54-38-0283
58-01-0301703-49351
6072
FIG. PART NO. DESCRIPTION OF PART NO REQ.
1 44-76-0050 Cord Protector (1)
2 22-64-0121 Cord Set (1)
3 45-88-0160 Spindle Washer (1)
4 49-05-0060 Spindle Washer - Flange (1)
5 38-50-5645 Spindle Shaft (1)
6 06-82-8864 10-24 x 1/2" Pan Hd. Sems T-25 Screw (4)
7 05-78-0305 Switch Screw T-15 (4)
8 28-14-1900 Lower Gear Case (1)
9 34-40-1610 1-9/16" O-Ring (1)
10 02-04-1746 Ball Bearing (1)
11 34-80-2960 Retaining Ring - Internal (1)
12 14-46-4320 Bevel Gear Kit (1)
13 32-05-1291 Spiral Bevel Gear (1)
14 42-74-0080 Spindle Locking Cog (1)
15 02-50-2423 Needle Bearing (1)
16 43-62-0880 Side Handle (1)
17 06-57-0500 Lock Nut (1)
18 32-60-2201 Spiral Bevel Pinion (1)
19 28-14-2090 Upper Gear Case (1)
20 06-82-7224 10-14 x 1" Pan Hd. Plastite T-25 Screw (4)
21 44-20-0235 Spindle Lock Assembly (1)
22 45-88-5320 Flat Washer (1)
23 34-40-1375 1-1/4" O-Ring (1)
24 02-04-1229 Ball Bearing (1)
25 34-80-2600 Retaining Ring - Internal (1)
26 16-50-0185 120 V. Armature (1)
27 22-84-0710 Fan (1)
28 06-82-7375 8-16 x 2-1/2"
Pan Hd. Plastite T-20 Screw
(2)
29 18-50-0170 120 V. Field (1)
30 02-04-0845 Ball Bearing (1)
9" SANDER
Dec. '9954-38-0282
FIG. PART NO. DESCRIPTION OF PART NO REQ.
31 31-50-0540 Motor Housing (1)
32 12-99-0126 Service Nameplate (1)
33 45-14-0185 Shim .005 Thick (1)
34 45-04-0570 Shoulder Screw (3)
35 31-70-0140 Tool Rest (1)
36 40-50-7770 Brush Holder Spring (2)
37 22-22-1325 Brush Holder Assembly (2)
38 22-18-0680 Brush Assembly (2)
39 23-44-0210 Brush Retaining Screw (2)
40 42-38-0190 Bumper (1)
41 31-44-1115 Left Handle Half (1)
42 06-55-1050 10-24 Hex Nut (5)
43 06-82-7409 8-16 x 1/2" Slot. Pan Hd. T-20 Screw (1)
44 23-66-1800 Switch (1)
46 06-82-2568 10-24 x 7/8" Slot. Pan Hd. T-25 Screw (3)
47 31-44-1110 Right Handle Half (1)
48 06-82-2598 10-24 x 2-3/4" Slot. Pan Hd. T-25 Screw (2)
49 22-20-0660 Brush Tube (2)
FIG. LUBRICATION:
19 1.5 Oz. Type "G" Grease, Cat. No. 49-08-4140.
FIG. NOTE:
17 Torque To 125-135 In./Lbs.
REVISED BULLETIN
SERVICE PARTS LIST
BULLETIN NO.
WIRING INSTRUCTION
DATE
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
SERIAL
NUMBER
CATALOG NO.
0
00
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005

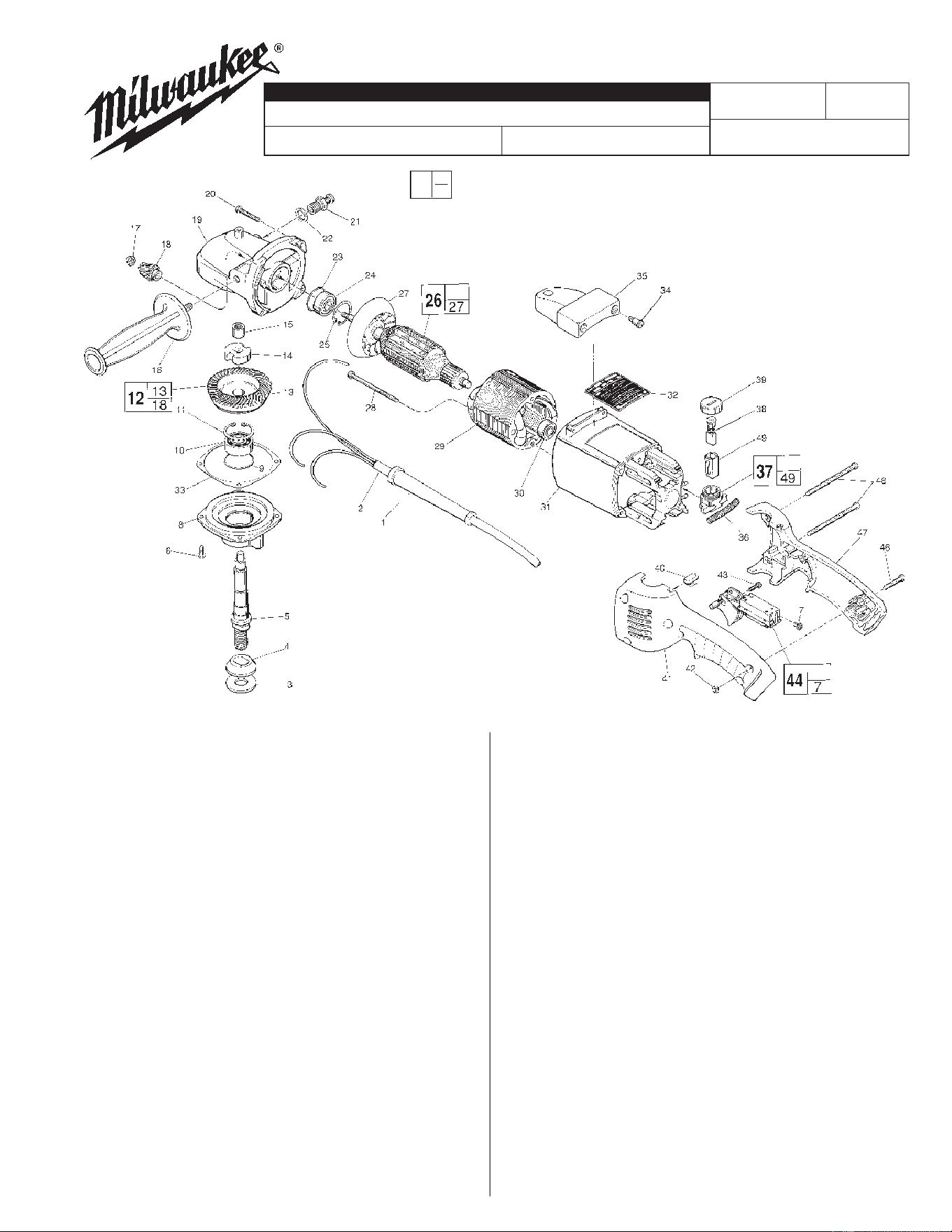

Drwg. 1
«
«
«
«
«
