Sharp ES-FW914D6 9kg Front Load Washer Dryer " User Manual

ES-FW914D6

Washer Dryer / User Manual

EN

Icon Type Meaning

WARNING Serious injury or death risk

RISK OF ELECTRIC SHOCK Dangerous voltage risk

FIRE Warning; Risk of fire / flammable materials

CAUTION Injury or property damage risk

IMPORTANT / NOTE Operating the system correctly

Thank you for choosing this product.

This User Manual contains important safety information and instructions on the operation

and maintenance of your appliance.

Please take the time to read this User Manual before using your appliance and keep this

book for future reference.

CONTENTS

1. SAFETY INSTRUCTIONS ............................................................................................... .1

1.1 General Safety Warnings ...............................................................................................2

1.2 During Use .....................................................................................................................8

1.3 Packaging and Environment...........................................................................................9

1.4 Savings Information ........................................................................................................9

2. TECHNICAL SPECIFICATIONS ......................................................................................11

3. OVERVIEW OF YOUR MACHINE ................................................................................. .12

3.1 General Appearance.....................................................................................................12

4. INSTALLATION .............................................................................................................. .12

4.1 Removing the Transit Bolts...........................................................................................12

4.2 Adjusting the Feet / Adjusting Adjustable Stays............................................................13

4.3 Electrical Connection ....................................................................................................13

4.4 Water Inlet Hose Connection ........................................................................................13

4.5 Water Discharge Connection ........................................................................................14

5. CONTROL PANEL OVERVIEW ..................................................................................... .14

5.1 Detergent Drawer .........................................................................................................15

5.2 Sections ...................................................................................................................15

5.3 Program Dial.................................................................................................................16

5.4 Electronic Display ........................................................................................................ .16

6. USING YOUR WASHING MACHINE ............................................................................. .16

6.1 Preparing Your Laundry ................................................................................................16

6.2 Putting Laundry in the Machine ................................................................................... .17

6.3 Adding Detergent to the Machine .................................................................................17

6.4 Operating Your Machine .............................................................................................. .18

6.5 Selecting a Programme ............................................................................................... .18

6.6 Half-Load Detection System .........................................................................................18

6.7 Additional Functions ....................................................................................................18

6.8 Start/Pause button ........................................................................................................22

6.9 Child Lock ...................................................................................................................22

6.10 Cancelling the Programme ....................................................................................... .22

6.11 Programme End ..........................................................................................................22

7. PROGRAMME TABLE ................................................................................................... .23

7.1 Important Informations..................................................................................................28

8. CLEANING AND MAINTENANCE ................................................................................ .29

8.1 Warning ...................................................................................................................29

8.2 Water Inlet Filters .........................................................................................................29

8.3 Pump Filter ...................................................................................................................30

8.4 Detergent Drawer .........................................................................................................30

9. Body / Drum .................................................................................................................. .31

10. TROUBLESHOOTING ................................................................................................. .32

11. AUTOMATIC FAULT WARNINGS AND WHAT TO DO .............................................. .33

1. SAFETY INSTRUCTIONS

Operating voltage / frequency

(220-240) V~/50Hz

Total current (A) 10

Water pressure (Mpa) Maximum 1 Mpa /

Minimum 0. 1Mpa

Total power (W)

2200

Maximum washing capacity

(dry laundry) (kg)

9

Maximum drying capacity (kg)

6

• Do not install your machine on a carpet or such

grounds that would prevent the ventilation of its

base.

• The appliance is not intended for use by people

(including children) with reduced physical,

sensory or mental capabilities, or lack of

experience and knowledge unless they have been

given supervision or instruction concerning use

of the appliance by a person responsible for their

safety.

• Children of less than 3 years should be kept away

unless continuously supervised.

• Call the nearest authorized service centre for a

replacement if the power cord malfunctions.

• Use only the new water inlet hose coming

with your machine when making water inlet

connections to your machine.Never use old, used

or damaged water inlet hoses.

• Children should not play with the appliance.

EN - 1

Cleaning and user maintenance should not be

made by children without supervision.

NOTE: For a softcopy of this user manual,

please contact the following address:

“[email protected]”. In your

e-mail, please provide the model name and serial

number (20 digits) which you can find on the

appliance door.

To ensure your safety and the safety of others,

please read the following safety precautions

before using or installing your Washer Dryer.

Your machine is for domestic use only.

Using it for commercial purposes will void

your warranty.

This manual has been prepared for more than

one model therefore your appliance may not

have some of the features described within.

For this reason, it is important to pay particular

attention to any figures whilst reading the

operating manual.

1.1 General Safety Warnings

Before setting up your Washer Dryer, remove

the four transit bolts and the rubber washers

from the rear of the machine.

• Your warranty does not cover damage caused by

externalfactorssuchasfire,floodingandother

sources of damage.

• Retainthisusermanualforfutureuseandpassit

on to the next user.

• Thenecessaryambienttemperatureforoperation

EN - 2

ofyourWasherDryeris15-25°C.

• Wherethetemperatureisbelow0°C,hoses

maysplitortheelectroniccardmaynotoperate

correctly.

• Pleaseensurethatgarmentsloadedintoyour

WasherDryerarefreefromforeignobjectssuch

asnails,needles,lightersandcoins.

• Lintsmustnottobeallowedtoaccumulate

around the washer dryer.

• Residuemaybuildupondetergentandsofteners

exposedtoairforalongperiodoftime.Only

putsoftenerordetergentinthedraweratthe

beginningofeachwash.

• UnplugyourWasherDryerandswitchoffthe

watersupplyiftheWasherDryerisleftunusedfor

alongtime.Wealsorecommendthatyouleave

thedooropentopreventbuildupofhumidity

insidetheWasherDryer.

• SomewatermaybeleftinyourWasherDryeras

aresultofqualitychecksduringproduction.This

willnotaffecttheoperationofyourWasherDryer.

• Keepthedocumentbagthatwassuppliedinside

yourWasherDryerandcontainedthisuser

manualoutofthereachofchildrenandbabiesto

preventtheriskofsuffocation.

• Thepackagingofthemachinecouldbe

hazardoustochildren.Donotallowchildrento

playwiththepackagingorsmallpartsfromthe

Washer Dryer.

• Onlyusepre-washprogrammesforverydirty

laundry.

• Donotexceedthemaximumloadforthewashing

ordryingprogrammeyouhavechosen.

EN - 3

• In the event of a fault, unplug your Washer Dryer

andswitchoffthewatersupply.Donotattempt

torepairyourWasherDryeryourself.Repairs

should only be undertaken by an approved

serviceagent.

• Neveropenthedetergentdrawerwhileyour

WasherDryerisrunning.

• Never force the door open when your Washer

Dryerisrunning.

• Please follow the manufacturers’ instructions

on the use of fabric conditioner or any similar

products that you intend to use in your Washer

Dryer.

• DonotstopyourWasherDryerbeforethedrying

phase of a programme has been completed. If

youhavetodoso,quicklyremoveallofyour

laundryandimmediatelyspreadtheitemsonan

appropriatesurfacetoallowthemtocool.

• Theappliancemustnotbesuppliedthroughan

externalswitchingdevice,suchasatimer,or

connectedtoacircuitthatisregularlyswitchedon

andoffbyautility.

• Thisappliancemustnotbeinstalledbehinda

lockabledoor,aslidingdoororadoorwitha

hingeontheoppositesidetothatofthewasher

dryer,insuchawaythatafullopeningofthe

washerdryerdoorisrestricted.

• InstallyourWasherDryerinalocationthatcanbe

ventilatedandhasconstantaircirculation.

SAFETY WARNINGS

• Youmustreadthesewarnings.Ignoringthese

warningsmayputyouorothersatriskoffatal

injuries.

EN - 4

RISK OF BURNS

• Donottouchthedoor,drainhoseorany

dischargedwaterwhileyourWasherDryerin

running.Thehightemperaturesinvolvedposea

burnrisk.

• Openthedoorfullyafterthedryingprocess.

Donottouchthedoorglass.Itwillreachhigh

temperaturesandposeaburnrisk.

ELECTROCUTION RISK

Do not connect your Washer Dryer to the mains

electricity supply using an extension lead.

• Adamagedpowercord/plugcancausefireorgive

youanelectricshock.Whendamageditmustbe

replaced,thisshouldonlybedonebyqualified

personnel.

• Neverremovetheplugfromthesocketbypulling

the cord. Always hold the plug.

• Nevertouchthepowercord/plugwithwethands

asthiscouldcauseashortcircuitorelectric

shock.

• DonottouchyourWasherDryerifyourhandsor

feet are wet.

• Callthenearestauthorisedservicecompanyfor

assistanceifthepowercordmalfunctions.

Explosion Risk

• Thoroughlyrinseoffanychemicals,suchasstain

remover,fromyourgarmentsbeforebeginninga

washinganddryingprogramme.Failuretodoso

maycauseariskofexplosionwhenthedrying

functionisused.

EN - 5

Fire Risk

• Donotkeepflammableorexplosiveliquidsnear

yourmachine.

• Itemsthathavebeensoiledwithsubstancessuch

ascookingoil,acetone,alcohol,petrol,kerosene,

spotremovers,turpentine,waxesandwax

removersshouldbewashedinhotwaterwithan

extraamountofdetergentbeforebeingdriedin

the tumble dryer.

• Donotuseadetergentball/deviceifyouhave

selectedawashinganddryingprogrammeasthis

maycauseafirehazard.

• Donotdryyourlaundryundertheconditions

specifiedbelowastheypresentafirerisk:

• Ifthelaundryisnotwashed.

• Ifoilbasedstainsarenotpre-treatedbefore

beginningawashingordryingprogramme.

• Laundrywhichhasbeencleanedwithindustrial

chemicals.

• Laundrythathasahighamountofsponge,

foam,rubberorrubber-likepartsand

accessories.

• Items such as foam rubber (latex foam), shower

caps,waterprooftextiles,rubberbackedarticles

andclothesorpillowsfittedwithfoamrubber

padsshouldnotbedriedinthedryingprocess

oftheappliance.

• Stuffedordamageditems(suchaspillowsor

jackets).Therubberspongepresentsafirerisk

duringthedryingprocess.

• Neveruseproductsthatcontainsolventsinyour

machine.

EN - 6

• Pleaseensurethatgarmentsloadedintoyour

WasherDryerarefreefromforeignobjectssuch

asnails,needles,lighters,matchesandcoins.

Fall and Injury Risk

• DonotclimbonyourWasherDryer.

• Makesurehosesandcablesdonotcauseatrip

hazard.

• DonotturnyourWasherDryerupsidedownoron

itsside.

• DonotliftyourWasherDryerusingthedooror

detergent drawer.

• Makesurehosesandcablesdonotcauseatrip

hazard.

Door emergency opening function

When the machine is running, any power cut or

when the program is not yet complete, the door will

remain locked.

To open the door;

1. Please turn off the machine. Take off the power

plug from the mains socket.

2. To drain the waste water, follow the instructions

given in cleaning the pump filter section.

3. Pull the down the emergency opening mechanism

with the help of a tool and open the door at the

same time.

4. Doors, move the emergency opening handle

to the open position after being closed again,

if the door remains locked.

To avoid risk of injury, please take care when

moving your Washer Dryer. It is heavy and we

recommend that a minimum of two people move

EN - 7

your Washer Dryer.

Child Safety

• Donotallowchildrentoplaywiththemachine.

• Donotleavechildrenunattendednearthe

machine.Theymightlockthemselvesinthe

machine.

• Thedoorglassandmachinesurfacecanbecome

extremelyhotduringoperation.Donotallow

childrentotouchthemachine;itmaydamage

theirskin.

• Thepackagingofthemachinecouldbe

hazardoustochildren.Donotallowchildrento

playwiththepackagingorsmallpartsfromthe

Washer Dryer.

• Poisoningandirritationmayoccurifdetergentor

otherwashingaidsareconsumedorcomeinto

contactwithskinoreyes.Keepcleaningmaterials

outofreachofchildren.

1.2 During Use

• Donotallowpetsnearthemachine.

• Please ensure that you have removed all of the

packagingmaterialsandprotectivetapefromthe

outsideofyourWasherDryer,insidethedrumand

insidethedetergentdrawerbeforeusing.Check

foranyexternalvisibledamage.Donotinstallor

useyourWasherDryerifitisdamaged.

• YourWasherDryerisfordomesticuseonlyand

isonlyintendedtowashanddryitemswhich

arespecifiedbythemanufacturertobemachine

washableanddryableonthelabelandtextiles

composed of hand washable wool or wool blend

EN - 8

fabricsaswellassatin,lace,silkandotherhand-

washable garments. Do not use your Washer

Dryerforanypurposenotexpresslyspecifiedin

thisuserguide.

• Thisappliancecanbeusedbychildrenagedfrom

8yearsandaboveandbypersonswithreduced

physical,sensoryormentalcapabilitiesorlack

ofexperienceandknowledgeiftheyhavebeen

givensupervisionorinstructionconcerninguseof

theapplianceinasafewayandunderstandthe

hazardsinvolved.Childrenshallnotplaywiththe

appliance.Cleaningandusermaintenanceshall

notbedonebychildrenwithoutsupervision.

• Installationofyourmachinemustonlybecarried

outbyanauthorisedserviceagent.Installationby

anyoneotherthananauthorisedagentwillvoid

your warranty.

Replacement of drive belt, only by authorized

service.

Only original spare belt must use.

1.3 Packaging and Environment

DISPOSE OF PACKAGING AND YOUR OLD

MACHINE RESPONSIBLY

Removal of packaging materials

Packaging materials protect your machine from

any damage that may occur during transportation.

Please recycle the packaging materials.

Recycled material reduces raw material

consumption and lowers waste production.

EN - 9

1.4 Savings Information

Some important information to get the most efficient

use out of your machine:

• The amount of laundry you put in your Washer

Dryer should not exceed the maximum amount

indicated. Avoid overloading to allow your

machine to run more efficiently.

• Not using the pre-wash feature for normal and

lightly soiled laundry will save electricity and water

consumption.

CE Declaration of conformity

WedeclarethatourproductsmeettheapplicableEuropeanDirectives,Decisionsand

Regulationsandtherequirementslistedinthestandardsreferenced.

Disposal of your old machine

Thesymbolontheproductoronitspackagingindicatesthatthisproduct

maynotbetreatedashouseholdwaste.Insteaditshallbehandedoverto

theapplicablecollectionpointfortherecyclingofelectricalandelectronic

equipment.Byensuringthisproductisdisposedofcorrectly,youwillhelp

preventpotentialnegativeconsequencesfortheenvironmentandhuman

health,whichcouldotherwisebecausedbyinappropriatewastehandling

ofthisproduct.Formoredetailedinformationaboutrecyclingofthis

product,pleasecontactyourlocalcityoffice,yourhouseholdwastedisposalserviceor

the shop where you purchased the product.

EN - 10

2. TECHNICAL SPECIFICATIONS

Maximum washing capacity (dry laundry) (kg) 9.0

* Maximum drying capacity (kg) 6.0

Spin speed (rpm) 1400

Number of programmes 15

Operation voltage / Frequency (v/hz) 220-240 / 50

Water pressure (mpa)

Maximum: 1

Minimum: 0.1

Dimensions (HxWxD) (mm) 845x597x582

* You should not put dry laundry in your machine for drying.

EN - 11

EN - 12

3. OVERVIEW OF

YOUR MACHINE

123

4

5

6

7

8

9

10

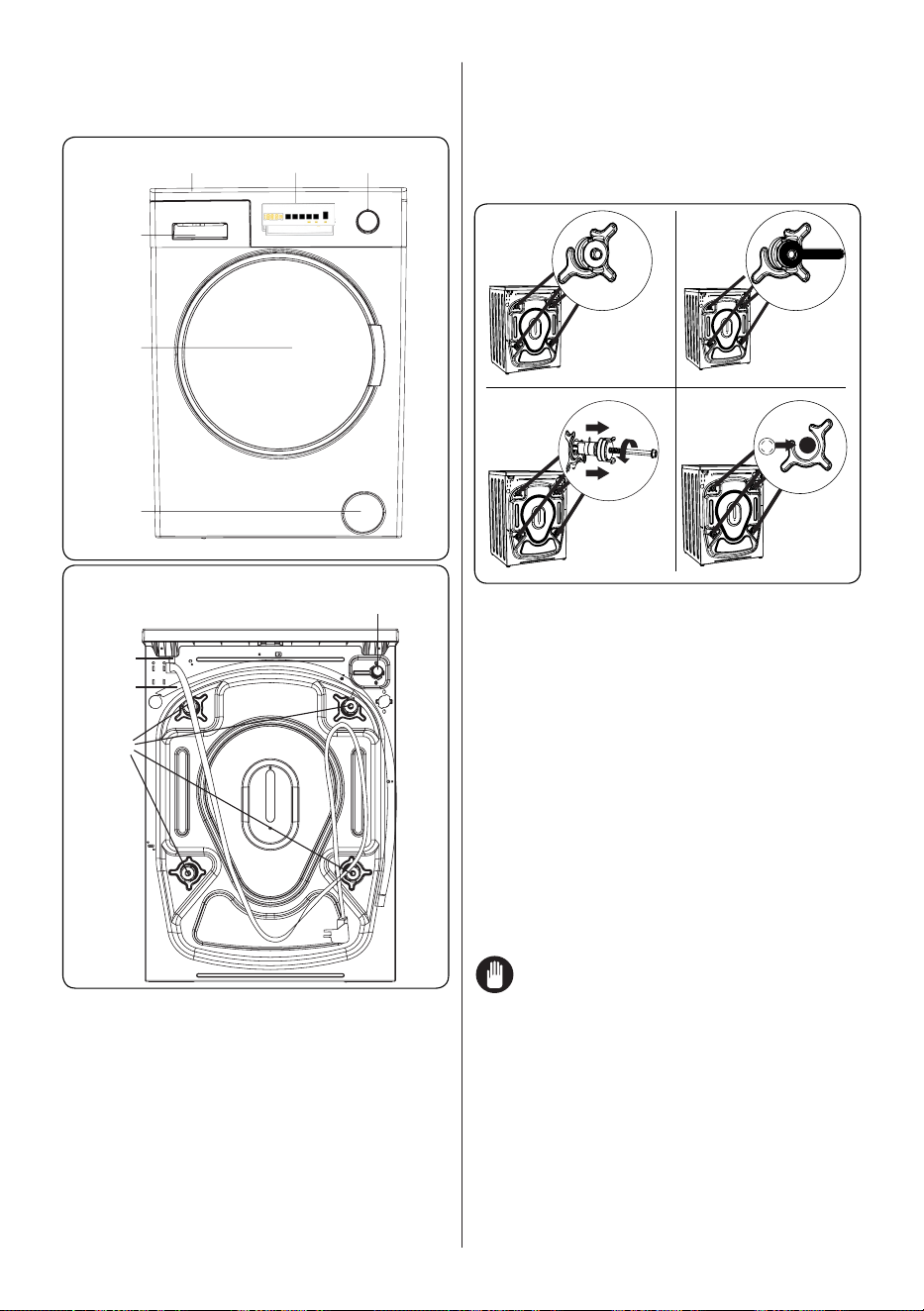

3.1 General Appearance

1. ProgrammeDial

2. ElectronicDisplay

3. Upper Tray

4. Detergent Drawer

5. Drum

6. PumpFilterCover

7. Water Inlet Valve

8. Power Cord

9. DrainHose

10. Transport Screws

4. INSTALLATION

4.1 Removing the Transit Bolts

X X4 4

X4

1

3

2

4

1. Beforeoperatingthewashingmachine,

removethe4transitboltsandrubber

spacersfromtherearofthemachine.

If the bolts are not removed, they

maycauseheavyvibration,noiseand

malfunctionofthemachineandvoidthe

warranty.

2. Loosenthetransitboltsbyturning

themanticlockwisewithanappropriate

spanner.

3. Removethetransitboltswithastraight

pull.

4. Fittheplasticblankingcapssuppliedin

theaccessoriesbagintothegapsleft

bytheremovalofthetransitbolts.The

transitboltsshouldbestoredforfuture

use.

NOTE: Removethetransitbolts

beforeusingthemachineforthefirsttime.

Faultsoccurringduetothemachinebeing

operatedwithtransitboltsfittedareoutof

the scope of the warranty.

EN - 13

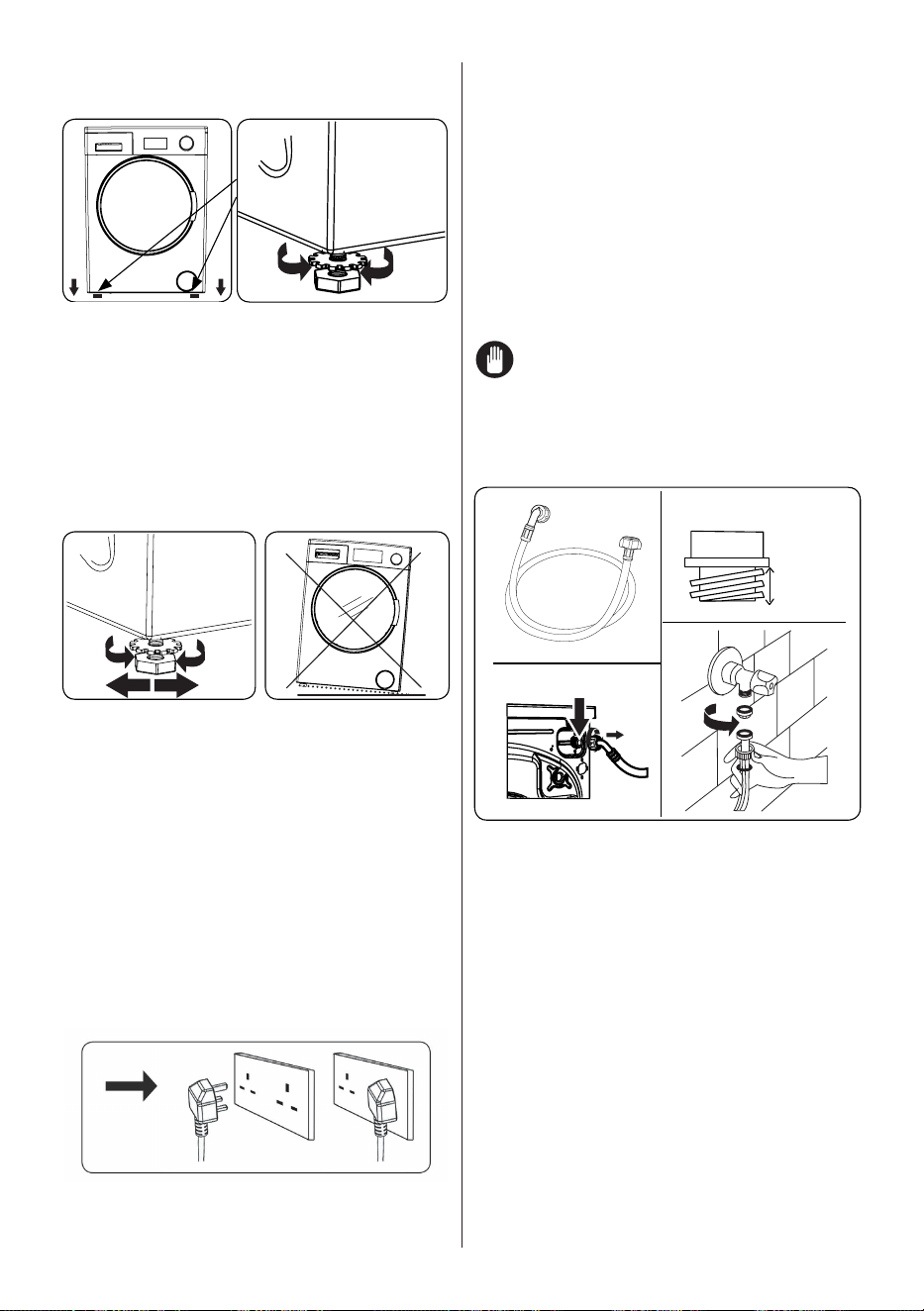

4.2 Adjusting the Feet /

Adjusting Adjustable Stays

1

1. Donotinstallyourmachineonasurface

(such as carpet) that would prevent

ventilationatthebase.

• Toensuresilentandvibration-free

operationofyourmachine,installitona

firmsurface.

• Youcanlevelyourmachineusingthe

adjustable feet.

• Loosentheplasticlockingnut.

X

4

2 3

2. Toincreasetheheightofthemachine,

turnthefeetclockwise.Todecrease

theheightofthemachine,turnthefeet

anticlockwise.

• Oncethemachineislevel,tightenthe

lockingnutsbyturningthemclockwise.

3. Neverinsertcardboard,woodorother

similarmaterialsunderthemachineto

levelit.

• Whencleaningthegroundonwhich

themachineislocated,takecarenotto

disturbthelevelofthemachine.

4.3 Electrical Connection

• YourWashingMachinerequiresa220-

240V, 50 mainssupply.

• Themainscordofyourwashing

machineisequippedwithanearthed

plug.Thisplugshouldalwaysbe

insertedtoanearthedsocketof10

amps.

• Ifyoudonothaveasuitablesocketand

fuseconformingwiththis,pleaseensure

theworkiscarriedoutbyaqualified

electrician.

• Wedonottakeresponsibilityfor

damage that occurs due to the use of

ungroundedequipment.

NOTE: Operatingyourmachine

withlowvoltagewillcausethelifecycle

ofyourmachinetobereducedandits

performancetoberestricted.

4.4 Water Inlet Hose Connection

3/4”

10 mm

1

3

2

4

1. Yourmachinemayhaveeithera

singlewaterinletconnection(cold)

ordoublewaterinletconnection(hot

andcold)dependingonthemachine

specifications.Thewhitecappedhose

shouldbeconnectedtocoldwaterinlet

and red capped hose to the hot water

inlet(ifapplicable).

• Topreventwaterleaksatthejoints,

either1or2nuts(dependingonyour

machine’sspecifications)aresupplied

inthepackagingwiththehose.Fitthese

nutstotheend(s)ofthewaterinlethose

that connect to the water supply.

2. Connectnewwaterinlethosestoa¾˝,

threaded tap.

• Connectthewhitecappedendofthe

waterinlethosetothewhitewaterinlet

valveontherearsideofthemachine

and the red capped end of the hose to

EN - 14

theredwaterinletvalve(ifapplicable).

• Handtightentheconnections.Ifinany

doubt,consultaqualifiedplumber.

• Waterflowwithpressureof0.1-1Mpa

willallowyourmachinetooperateat

optimumefficiency(pressureof0.1

Mpameansthatmorethan8litresof

waterperminutewillflowthroughafully

opened tap).

3. Once you have made all of the

connections,carefullyturnthewater

supply on and check for leaks.

4. Ensurethatthenewwaterinlethoses

arenottrapped,kinked,twisted,folded

or crushed.

• Ifyourmachinehasahotwaterinlet

connection,thetemperatureofthehot

watersupplyshouldnotbehigherthan

70°C.

NOTE: YourWashingMachine

must only be connected to your water

supplyusingthesuppliednewfillhose.Old

hoses must not be reused.

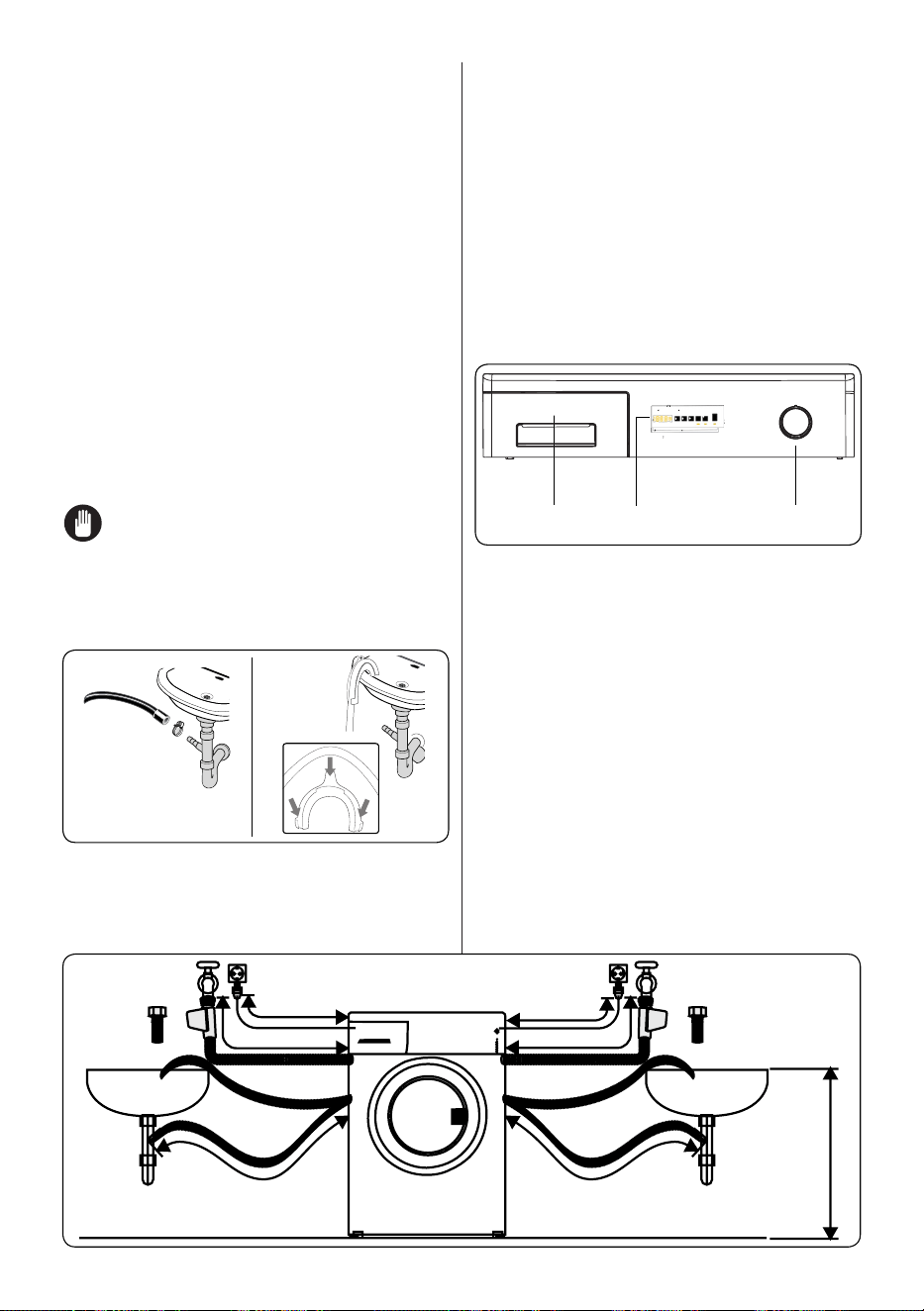

4.5 Water Discharge Connection

• Connectthewaterdrainhosetoa

standpipeortotheoutletelbowof

ahouseholdsink,usingadditional

equipment.

• Neverattempttoextendthewaterdrain

hose.

• Donotputthewaterdrainhosefrom

yourmachineintoacontainer,bucketor

bathtub.

• Makesurethatthewaterdrainhoseis

not bent, buckled, crushed or extended.

• Thewaterdrainhosemustbeinstalled

atamaximumheightof100cmfromthe

ground.

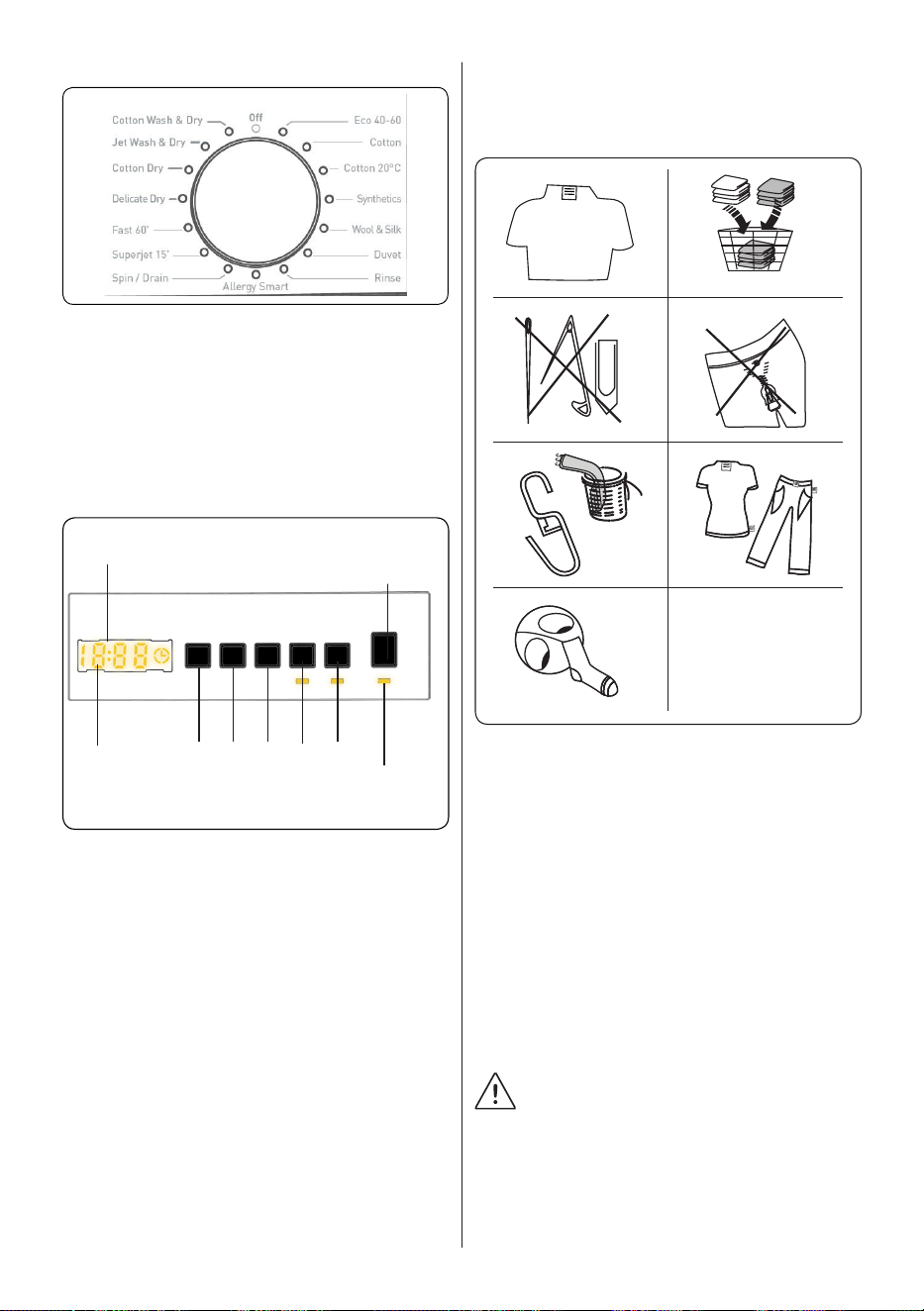

5. CONTROL PANEL OVERVIEW

31 2

1. Detergent drawer

2. Electronic Display

3. Programme Dial: Use the programme

dialtoselectthewashing/drying

programme for your laundry. Turn

theprogrammedialclockwiseor

anticlockwisetoselecttherequired

programme.Makesurethatthedial

ispointingexactlyattheselected

programme.

~ 95 cm ~ 140 cm

~ 145 cm ~ 95 cm

0 – max. 100 cm

˜

95 cm

150 cm

EN - 15

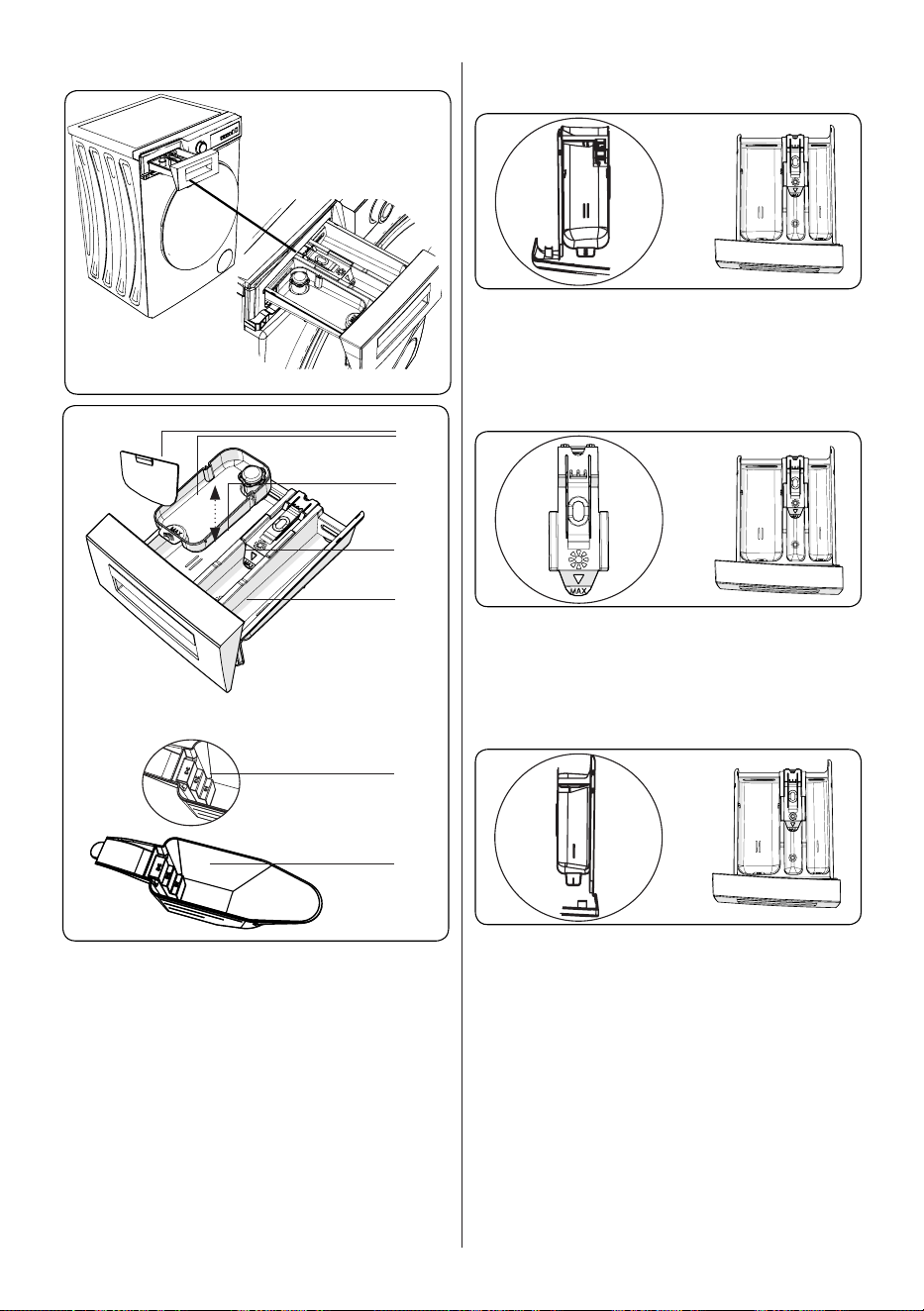

5.1 Detergent Drawer

1

2

3

4

5

6

1. LiquidDetergentAttachments

2. MainWashDetergentCompartment

3. Softener Compartment

4. Pre-Wash Detergent Compartment

5. Powder Detergent Levels

6. Powder Detergent Scoop (*)

(*)Specificationsmayvarydependingon

themachinepurchased.

5.2 Sections

Main wash detergent compartment:

Thiscompartmentisforliquidorpowder

detergentsorlimescaleremover.Thefluid

detergentlevelplatewillbesuppliedinside

yourmachine.(*)

Fabric conditioner, starch, detergent

compartment:

Thiscompartmentisforsofteners,

conditionersorstarch.Followthe

instructionsonthepackaging.Ifsofteners

leaveresidueafteruse,trydilutingthemor

usingaliquidsoftener.

Pre-wash detergent compartment:

Thiscompartmentshouldbeusedonly

whenthepre-washfeatureisselected.We

recommendthatthepre-washfeatureis

usedonlyforverydirtylaundry.

(*)Specificationsmayvarydependingon

themachinepurchased.

EN - 16

5.3 Program Dial

• Toselectthedesiredprogramme,turn

theprogrammedialeitherclockwiseor

anti-clockwiseuntilthemarkeronthe

programmedialpointstothechosen

programme.

• Makesurethattheprogrammedialis

set exactly to the programme you want.

5.4 Electronic Display

1

8

2

3 4 6

5 7

9

1. ElectronicDisplay

2. DigitalDisplay

3. Water Temperature Adjustment Button

4. RPM Speed Adjustment Button

5. DelayedStartAdditionalFunction

6. DurationDryingselection

7. Dryingoptionselection

8. Start/Pause Button

9. Start/Pause Button Lamp

Thedisplaypanelshowsthewashingdelay

timer(ifset),temperatureselection,spin

speed.,anyadditionalfunctionsselected.

The display panel shows “End--” when

the selected programme is complete. The

display panel also indicates if a fault has

occurred with your machine.

6. USING YOUR

WASHING MACHINE

6.1 Preparing Your Laundry

1

3

5

7

2

4

6

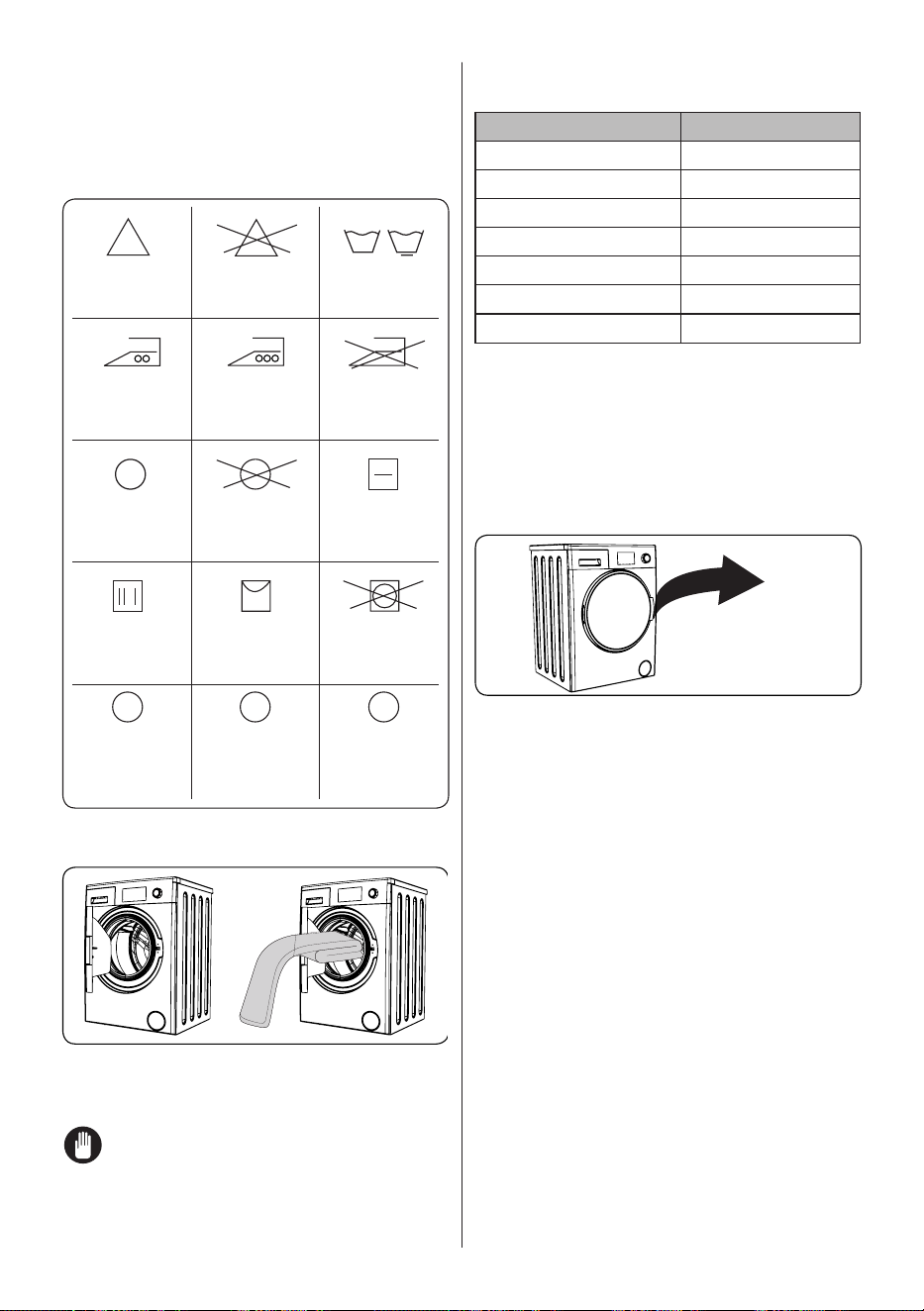

1. Followtheinstructionsgiveninthecare

labelsontheclothing.

• Separateyourlaundryaccordingtotype

(cotton,synthetic,sensitive,wooletc.

),washingtemperature(cold,30°,40°,

60°,90°)andthedegreeofdirtiness

(slightlystained,stained,highlystained).

2. Neverwashcolouredandwhitelaundry

together.

• Darktextilesmaycontainexcessdye

and should be washed separately

severaltimes.

3. Ensurethattherearenometallic

materialsonyourlaundryorinthe

pockets;ifso,removethem.

CAUTION: Anymalfunctions

whichoccurduetoforeignmaterials

damagingyourmachinearenotcoveredby

the warranty.

4. Closezipsandfastenanyhooksand

eyes.

5. Removethemetallicorplastichooksof

EN - 17

curtainsorplacetheminawashingnet

or bag.

6. Reversetextilessuchaspants,

knitwear,t-shirtsandsweatshirts.

7. Washsocks,handkerchiefsandother

smallitemsinawashingnet.

Maximum

ironing

temperature

150°C

Can be dry

cleaned

Dripdry

Drycleaning

ingasoil,

pure alcohol

andR113is

allowed

Maximum

ironing

temperature

200°C

No dry

cleaning

Hang to dry

Perchloroethylene

R11, R13,

Petroleum

Normal

washing

Donotiron

Dry flat

Do not tumble

dry

Perchlorinetyhlene

R11, R113, Gas

oil

Can be

bleached

Do not bleach

F P A

6.2 Putting Laundry in the Machine

• Openthedoorofyourmachine.

• Spreadyourlaundryevenlyinthe

machine.

NOTE: Take care not to exceed

themaximumloadofthedrumasthiswill

givepoorwashresultsandcausecreasing.

Refertothewashingprogrammetablesfor

informationonloadcapacities.

Thefollowingtableshowsapproximate

weightsoftypicallaundryitems:

LAUNDRY TYPE WEIGHT (gr)

Towel 200

Linen 500

Bathrobe 1200

Quiltcover 700

Pillowslip 200

Underwear 100

Tablecloth 250

• Loadeachitemoflaundryseparately.

• Checkthatnoitemsoflaundryare

trapped between the rubber seal and

the door.

• Gentlypushthedooruntilitclicksshut.

click

• Makesurethedoorisfullyclosed,

otherwisetheprogrammewillnotstart.

6.3 Adding Detergent to the Machine

Theamountofdetergentyouwillneedto

putinyourmachinewilldependonthe

followingcriteria:

• Ifyourclothesareonlyslightlysoiled,

do not pre-wash. Put a small amount

ofdetergent(asspecifiedbythe

manufacturer)intocompartmentIIofthe

detergent drawer.

• Ifyourclothesareexcessivelysoiled,

selectaprogrammewithpre-washand

put¼ofthedetergenttobeusedinto

compartment I of the detergent drawer

andtherestincompartmentII.

• Usedetergentsproducedforautomatic

washingmachines.Followthe

manufacturer’sinstructionsonthe

amount of detergent to use.

• In areas of hard water, more detergent

willberequired.

EN - 18

• Theamountofthedetergentrequired

willincreasewithhigherwashingloads.

• Putsoftenerinthemiddlecompartment

of the detergent drawer. Do not exceed

the MAX level.

• Thicksoftenersmaycausecloggingof

thedrawerandshouldbediluted.

• Itispossibletousefluiddetergentsin

allprogrammeswithoutapre-wash.To

dothis,slidethefluiddetergentlevel

plate(*)intotheguidesincompartment

IIofthedetergentdrawer.Usethelines

ontheplateasaguidetofillthedrawer

totherequiredlevel.

(*)Specificationsmayvarydependingon

themachinepurchased.

6.4 Operating Your Machine

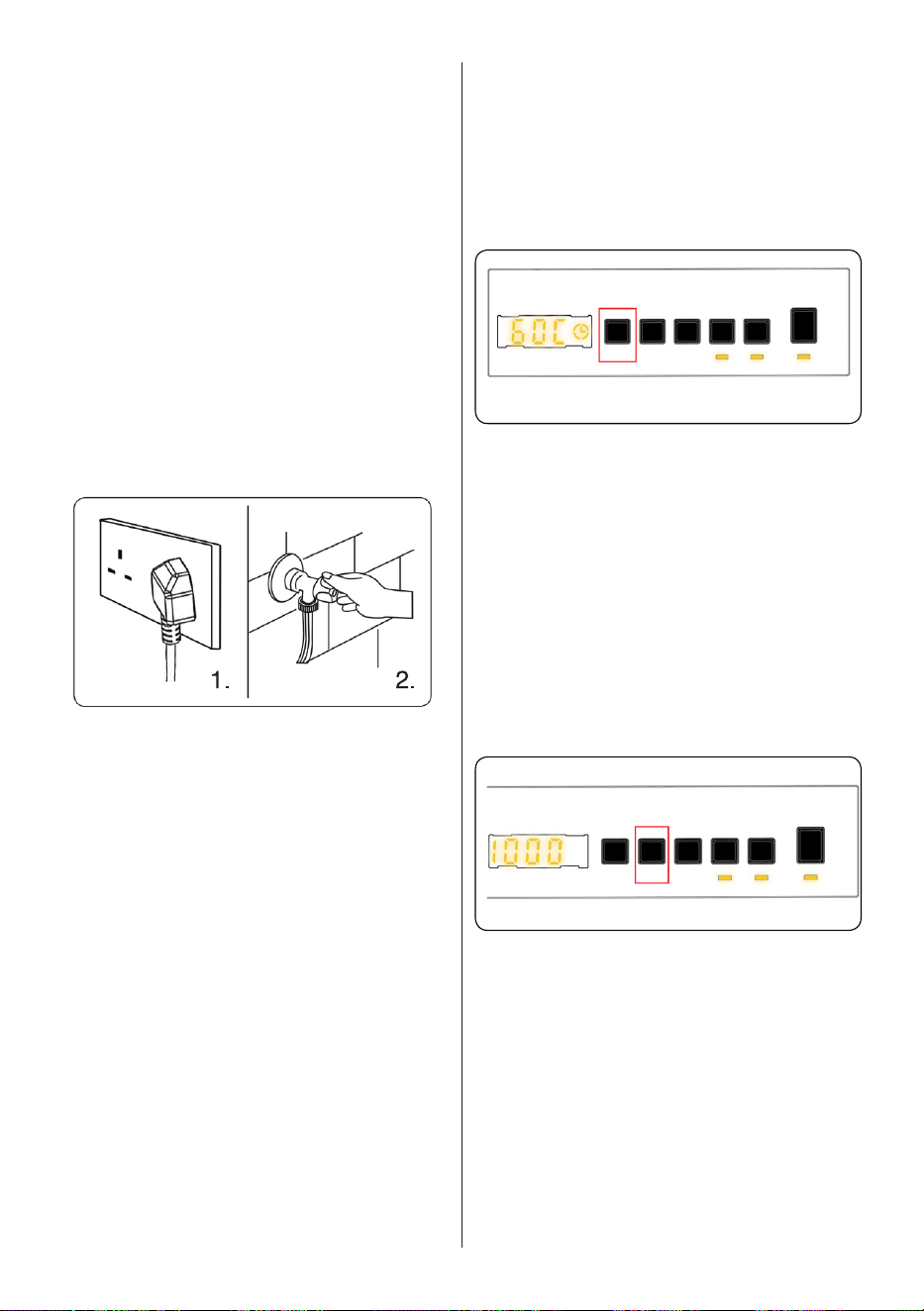

1. Plugyourmachineintothemains

supply.

2. Turn on the water supply.

• Openthemachinedoor.

• Evenlyspreadyourlaundryinthe

machine.

• Gentlypushthedooruntilitclicksshut.

6.5 Selecting a Programme

Use the programme tables to select the

mostappropriateprogrammeforyour

laundry.

6.6 Half-Load Detection System

Yourmachinefeaturesahalf-loaddetection

system.

Ifyouputlessthanhalfthemaximum

loadoflaundryintoyourmachineitwill

automaticallysetthehalf-loadfunction,

regardless of the programme you selected.

Thismeansthattheselectedprogramme

willtakelesstimetocompleteandwilluse

less water and energy.

(*) Model Dependant

6.7 Additional Functions

1. Temperature Selection

Use the washing water temperature

adjustment button to alter the automatically

programmed washing water temperature.

When you select a programme the

maximum temperature for that programme

is automatically selected. To adjust the

temperature, press the water temperature

adjustment button until the desired

temperature is displayed on the digital

display.

You can gradually decrease the washing

water temperature between the maximum

washing water temperature of the selected

programme and cold washing (- - C)

selections by pressing the temperature

adjustment button.

2. Spin Speed Selection

When you select a programme, the

maximum spin speed is automatically

selected.

To adjust the spin speed between the

maximum spin speed and the cancel

spinning option (- - -), press the Spin speed

button until the desired speed is displayed.

If you have skipped the spin speed you

want to set, keep pressing the spin speed

adjustment button until the desired spin

speed is displayed again.

EN - 19

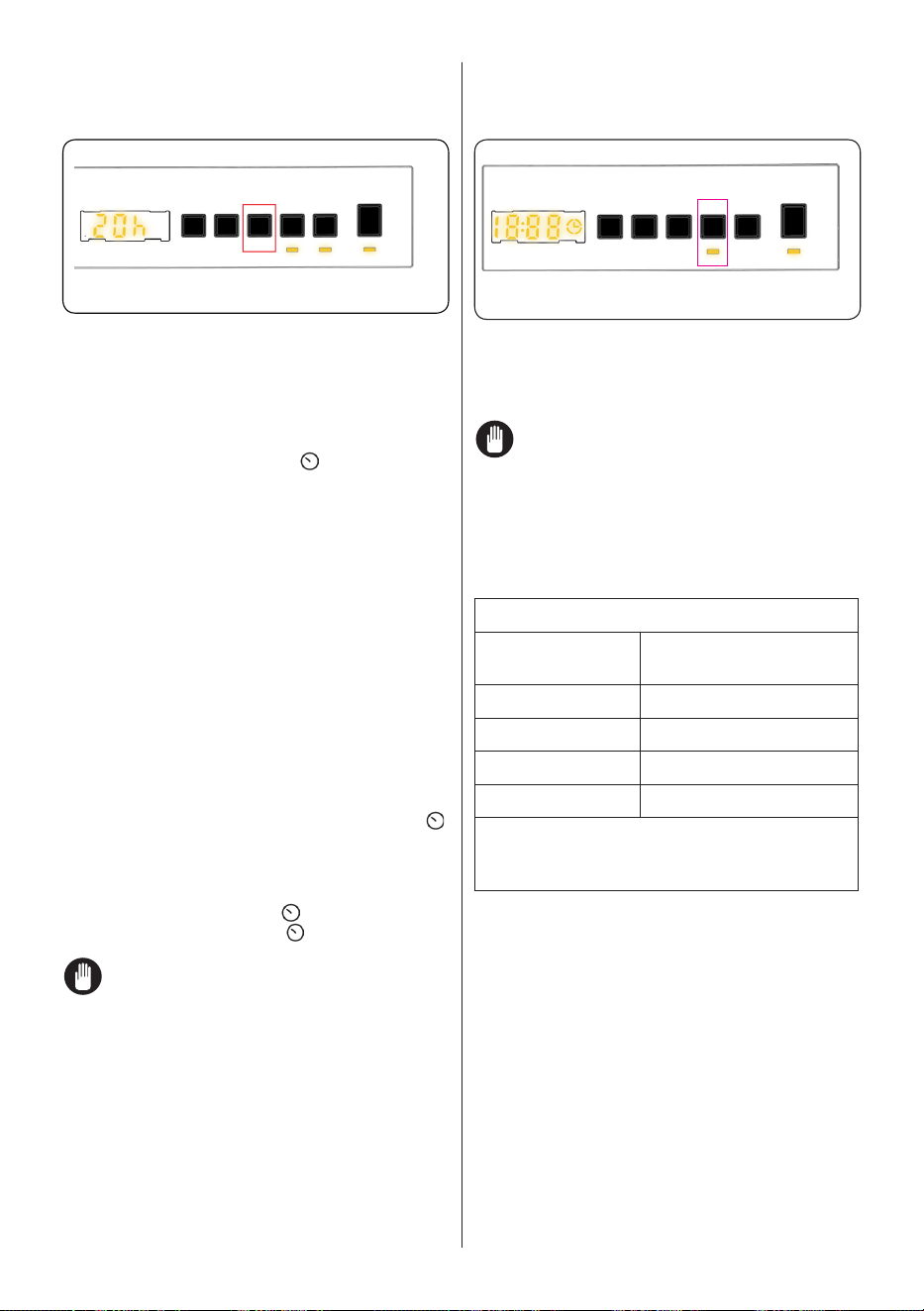

3. Delay Timer

Youcanusethisauxiliaryfunctiontodelay

thestarttimeofthewashingcyclefor1to

23 hours .

Tousethedelayfunction:

• Press the delay key once.

• “01h” will be displayed. will light up on

the electronic display.

• Press the delay key until you reach the

time after which you want the machine

to start the washing cycle.

• If you have skipped the delay time you

would like to set, you can keep pressing

the delay key until you reach that time

again.

• To use the time delay function, you need

to press the Start/Pause key to start the

machine.

• If you want to cancel the delay:

- If you have pressed the Start/Pause

key to start the machine, you just

need to press the delay key once.

will go off on the electronic display.

- If you have not pressed the Start/

Pause key, press the delay key

continuously until goes off on the

electronic display. will go off on

the electronic display.

NOTE: In the case that you want

to select the auxiliary function feature, if the

auxiliary function LED is not on, this means

that this feature is not being used in the

washing programme you have selected.

4. Time Dry selection :

If you continue pressing, duration options

(0:30, 0:60, 0:90, 120 minutes) will be

displayed. You can select the drying

duration you want.

NOTE: If one of the 30’ 60’ 90’

120’ above drying duration options is not

displayed when you press the Time Dry

button, it is not available for the selected

programme.

Table: Recommended drying durations for

load amounts:

Time Dry Programmes

Amount of

laundry to dry

Recommended drying

time

1 kg 30 minutes

2 kg 60 minutes

3,0 kg 90 minutes

3.5 kg 120 minutes

If the amount of laundry to be dried is

above 3.5kg, we recommend that you

select Cupboard, Hanger or Iron Drying.

EN - 20

5. Dry option selection:

By pressing the dry option, “Dry option” key,

you can use this drying function for your

laundry you wish to dry after washing. If

you want to enable this function, you should

press the drying level key after the program

you have selected. Drying level has 3 types

of drying: “Cupboard dry”, “Hanger dry”,

and “Iron dry”. If the drying level option is

selected, the time on the display will be up-

dated. The time on the display will increase

when switching from ironing dry towards

Cupboard dry. If you do not want to use the

drying level function at the end of the wash-

ing program, please press and hold the key

until its LED goes off.

If you select time drying, first of all, 30’, 60’,

90’ or 120’ will be displayed depending on

the selection, after which the drying time

will be added to the selected program and

the updated time will be displayed.

EN - 21

5.1 Drying option selection:

PROGRAMME

SELECTABLE/

NOT

SELECTABLE

DRYING

PROFILE

FACTORY

PRESET

SELECTABLE OPTIONS

Eco 40-60 S Cotton Dry - Option 1 Option 2 Option 3

Cotton S Cotton Dry - Option 1 Option 2 Option 3

Cotton20°C S Cotton Dry - Option 1 Option 2 -

Synthetics S Gentle Dry - Option 1 Option 2 Option 3

Wool&Silk NS - - - - -

Duvet NS - - - - -

Rinse S Cotton Dry - Option 1 Option 2 Option 3

Allergy Smart S Cotton Dry - Option 1 Option 2 -

Spin / Drain S Cotton Dry - Option 1 Option 2 Option 3

Superjet 15’ S Cotton Dry - Option 1 - -

Fast60’/60°C S Cotton Dry - Option 1 Option 2 -

Delicate Dry S Gentle Dry Option 2 Option 1 Option 2 Option 3

Cotton Dry S Cotton Dry Option 2 Option 1 Option 2 Option 3

Jet Wash &

Dry

NS Cotton Dry Option 1 - - -

Cotton Wash

& Dry

S Cotton Dry Option 2 Option 1 Option 2 Option 3

S: Selectable NS: No Selection

Selectable drying duration levels

Eco 40-60 30 60 90 120

Cotton 30 60 90 120

Cotton20°C 30 60 90 120

Synthetics 30 60 90 120

Wool&Silk - - - -

Duvet - - - -

Rinse 30 60 90 120

Allergy Smart 30 60 90 120

Spin / Drain 30 60 90 120

Superjet 15’ 30 60 90 120

Fast60’/60°C 30 60 90 120

Delicate Dry 30 60 90 120

Cotton Dry 30 60 90 120

Jet Wash & Dry - - - -

Cotton Wash & Dry 30 60 90 120

EN - 22

6.8 Start/Pause button

By pressing on the Start/Pause button,

you may start the programme you

have selected or suspend a running

programme. If you switch your machine to

the standby mode, the Start/Pause led on

the electronic display will blink.

6.9 Child Lock

The Child Lock function allows you to

lock the buttons so that the wash cycle

you have chosen cannot be changed

unintentionally.

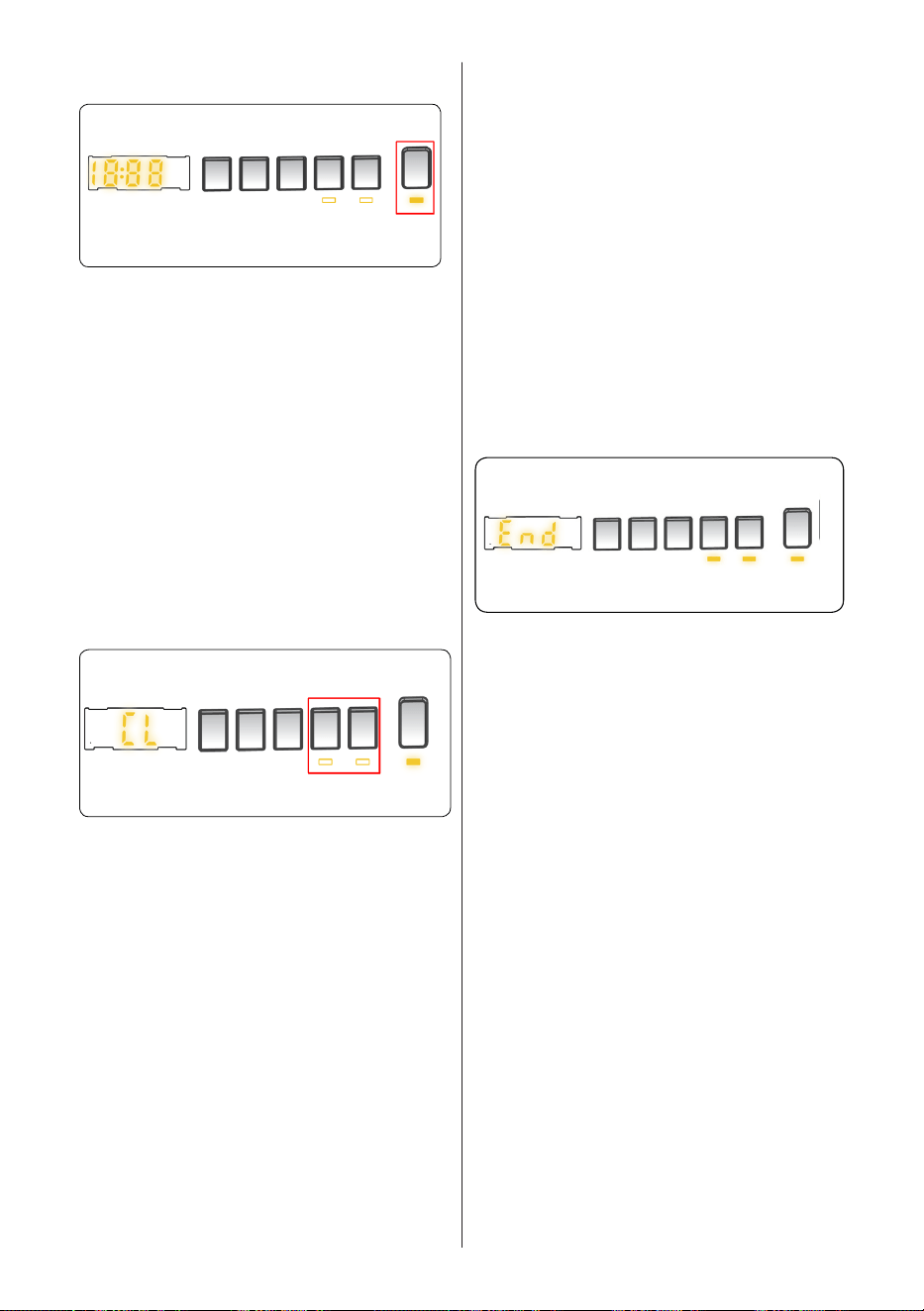

To activate child lock, press and hold

button 4 and 5 simultaneously for at

least 3 seconds. ‘’CL’’ will flash on the

electronic display for 2 seconds when the

child lock is activated.

If any button is pressed or selected

programme is changed by the programme

dial while the child lock is active, the “CL”

symbol will flash on the electronic display

for 2 seconds.

If the child lock function is active and

a programme is running, when the

programme dial is turned to the CANCEL

position and another programme

is selected the previously selected

programme continues from where it was

left.

To deactivate the child lock, press and

hold button 4 and 5 simultaneously for at

least 3 seconds until the “CL” symbol on

the electronic display disappears.

6.10 Cancelling the Programme

To cancel a running programme at any

time:

1. Turntheprogrammedialtothe

“STOP”position.

2. Yourmachinewillstopthewashing

operationandtheprogrammewillbe

cancelled.

3. Turntheprogrammedialtoanyother

programmetodrainthemachine.

4. Yourmachinewillperformthe

necessarydrainingoperationand

cancel the programme.

5. You can now select and run a new

programme.

6.11 Programme End

Yourmachinewillstopbyitselfassoon

as the programme you have selected

finishes.

• “END”willflashontheelectronic

display.

• Youcanopenthemachine’sdoorand

remove the laundry.

• Leavethedoorofyourmachineopen

toallowtheinnerpartofyourmachine

to dry.

• SwitchtheprogrammedialtoSTOP

position.

• Unplugyourmachine.

• Turn the water tap off.

EN - 23

7. PROGRAMME TABLE

Programme Eco 40-60 (***) Cotton Cotton20°C

Selectable

washing

temperatures

(°C)

40°*,60° 60°*,90°,80°,70°,60°,40° 20°*, (Cold water)

Maximum

washing/drying

capacity (kg)

9.0 / 6.0 9.0 / 6.0 4.5 / 4.5

Selectable spin

speed (rev /

min)

“- - -” (No spin), 400, 600, 800,

1000, 1200, 1400*

“- - -” (No spin), 400, 600,

800, 1000, 1200, 1400*

“- - -” (No spin), 400, 600,

800, 1000, 1200, 1400*

Laundry type /

Descriptions

Heat resistant cotton and linen

textiles (underwear, bedding,

tablecloths and towels) (max

4.5 kg)

Cotton and linen textiles

(underwear, bed sheet,

tablecloth, towel (max. 4.5

kg)

Less dirty, cotton and

linen textiles. (bed sheet,

tablecloth, towel (max.

2.0 kg)

Selectable

additional

functions

“- -C” (Cold wash), “- - -” (No

spin),

“- -C” (Cold wash), “- - -” (No

spin),

“- -C” (Cold wash), “- - -”

(No spin),

Selectable

drying functions

**

, , ,

Programme

duration (Min.)

229 145 59

Programme Synthetics Wool & Silk Duvet

Selectable

washing

temperatures

(°C)

40°*,30°,(Cold wash), 30°*,(Coldwash) 40°*,30°,(Coldwash)

Maximum

washing/drying

capacity (kg)

3.5 / 3.5 2.5 -

Selectable spin

speed (rev /

min)

“- - -” (No spin), 400, 600, 800,

1000, 1200*

“- - -” (No spin), 400, 600

,800*

“- - -” (No spin), 400, 600,

800*

Laundry type /

Descriptions

Synthetic and synthetic mix

textiles. (synthetic content shirt,

blouse, socks etc.)

Woollen and wool mix

laundry with machine wash

labels.

For washing a fibre duvet

with a machine washable

label. (max. 2.5 kg)

Selectable

additional

functions

“- -C” (Cold wash), “- - -” (No

spin),

“- -C” (Cold wash), “- - -” (No

spin),

“- -C” (Cold wash), “- - -” (No

spin),

Selectable

drying functions

**

,

- -

Programme

duration (Min.)

110 43 99

NOTE: THE PROGRAMME DURATION MAY CHANGE ACCORDING TO THE

AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED

ADDITIONAL FUNCTIONS.

(*)Programmefactorydefaultsettings.

(**)Whenyouwanttoselectmorethanoneadditionalfunction,theadditionalfunctionsyouwishtoselectmaynotcomplywitheach

other.

(*)Thenominatedprogram*COTTONisrecommendedfornormallysoiledloadequaltotheratedcapacityintheproductliterature.

Donotdrytowels,cottonandlinens,andsyntheticandsytheticmixclothestogether.

Fordryingselectthemostappropriatedryingprogramfortheclothes.

EN - 24

Programme Rinse Allergy Smart Spin / Drain

Selectable washing

temperatures(°C)

(Cold wash)*

60°*,50°,40°,30°

(Cold wash)

(Cold wash)*

Maximum washing/

drying capacity (kg)

9.0 / 6.0 4.5 / 4.5 9.0 / 6.0

Selectable spin

speed (rev / min)

“- - -” (No spin), 400,

600, 800, 1000, 1200,

1400*

“- - -” (No spin),400,

600, 800*

“- - -” (No spin),400, 600, 800, 1000, 1200,

1400*

Laundry type /

Descriptions

This programme can

be used for additional

rinsing after washing.

Baby dresses

Youcanusethisprogramforanytype

oflaundryifyouwantanadditionalspin

stepafterthewashingcycle./Youcan

usethedrainprogramtodrainthewater

accumulatedinsidethemachine(adding

orremovinglaundry).Toenablethedrain

program, turn the program knob to the

spin/drainprogram.Afteryouselect“spin

cancelled”usingtheauxiliaryfunctionkey,

theprogramwillstarttorun.

Selectable

additional functions

“- -C” (Cold wash)*, “- -

-” (No spin),

“- -C” (Cold wash),

“- - -” (No spin),

“- -C” (Cold wash)*, “- - -” (No spin),

Selectable drying

functions **

, , ,

Programme

duration (Min.)

30 201 24

Programme Superjet 15’ Fast60'60°C Delicate Dry

Selectable washing

temperatures(°C)

30°*,(Coldwash) 60°*, 50°,40°,30°,(Coldwash) -

Maximum washing/

drying capacity (kg)

2.0 / 2.0 4.5 / 4.5 3.5

Selectable spin

speed (rev / min)

“- - -” (No spin), 400, 600, 800*

“- - -” (No spin), 400, 600, 800,

1000, 1200 1400*

-

Laundry type /

Descriptions

For washing less dirty cotton,

coloured and linen textiles in a little

as 15 minutes.

Note: As the washing time is short,

less detergent is required than in

other programmes. The programme

period will increase if your machine

detects unstable loading.

Dirty, cotton, coloured and linen

textiles. (The washing duration

for loads of 2kg and under is 30

minutes)

Cotton laundry with

machine dryable

label.

Selectable

additional functions

“- -C” (Cold wash), “- - -” (No spin), “- -C” (Cold wash), “- - -” (No

spin),

“- -C” (Cold wash),

Selectable drying

functions **

, , ,

Programme

duration (Min.)

15 60 60

EN - 25

Programme Cotton Dry Jet Wash & Dry Cotton Wash & Dry

Selectable

washing

temperatures

(°C)

- 30°*,(Coldwash)

40°*,90°,80°,70°,60°,50°,

40°,30°,(Coldwash)

Maximum

washing/drying

capacity (kg)

6.0

0.5 kg (3 shirts) / 0.5

6.0 / 6.0

Selectable spin

speed (rev /

min)

- 800* 1400*

Laundry type /

Descriptions

Cotton laundry with machine

dryable label.

Cotton, coloured and linen

laundry with machine dryable

label.

Note: The machine

automatically determines the

duration of the programme

according to the amount of

laundry in the machine.

Cotton and linen textiles

(underwear, bed sheets,

tablecloth, towel (max. 3.0

kg)

Selectable

additional

functions

“- -C” (Cold wash), “- -C” (Cold wash), “- -C” (Cold wash),

Selectable

drying functions

**

,

-

,

Programme

duration (Min.)

95 33 265

NOTE: THE PROGRAMME DURATION MAY CHANGE ACCORDING TO THE AMOUNT OF

LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.

(*)Programmefactorydefaultsettings.

(**)Whenyouwanttoselectmorethanoneadditionalfunction,theadditionalfunctionsyouwishtoselectmaynotcomplywitheach

other.

Donotdrytowels,cottonandlinens,andsyntheticandsytheticmixclothestogether.

Fordryingselectthemostappropriatedryingprogramfortheclothes.

The Eco 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40°C

or 60°C, together in the same cycle, and that this programme is used to assess the compiance with the EU

ecodesign legislation.

The wash and dry cycle is able to clean normally soiled cotton laundry declared to be washable at 40°C or

60°C, together in the same cycle, and to dry it in such a way that it can be immediately stored in a cupboard,

and that this programme is used to assess the compliance with the EU ecodesign legislation.

EN - 26

• For household washer-dryers; the wash and dry cycle is able to clean normally soiled

cottonlaundrydeclaredtobewashableat40°Cor60°C,togetherinthesamecycle,

and to dry it in such a way that it can be immediately stored in a cupboard, and that this

programme is used to assess the compliance with the EU ecodesign legislation.

• The most efficient programmes in terms of energy consumption are generally those that

perform at lower temperatures and longer duration.

• Loading the household washer-dryer up to the capacity indicated by the manufacturer

for the respective programmes will contribute to energy and water savings.

• Program duration, energy consumption and water consumption values may vary

according to wash load weight and type, selected extra functions, tap water and

ambient temperature.

• It’s recommended to use liquid detergent for the washing programmes at low

temperature. The amount of detergent to be used may vary depending on the amount

of laundry and the level of dirtiness of the laundry. Please follow the detergent

manufacturers’ recommendations for the amount of the detergent to be used.

• The noise and remaining moisture content are influenced by the spinning speed. The

higher spinning speed in the spinning phase, the higher noise and the lower remaining

moisture content.

• You can access the product database where the model information is stored by reading

the QR code on the energy label.

EN - 27

Programme

Name

Rated

Capacity kg

Energy Consumption

kWh/cycle

Programme Duration

Hours:Minutes

Water

Consumption

Litres/Cycle

max.

Temperature

°C

Remaining

Moisture Content

%

1400 Rpm

Rated

Capacity

1/2 Load

1/4 Load

Rated

Capacity

1/2 Load

1/4 Load

Rated

Capacity

1/2 Load

1/4 Load

Rated

Capacity

1/2 Load

1/4 Load

Rated

Capacity

1/2 Load

1/4 Load

Cotton

90

9 2,37 03:10 85 81 53%

Cotton

60

9 1,37 02:25 58 57 53%

Eco

40-60

9 0,91 0,40 0,20 03:49 02:54 02:54 69 40 33 37 27 22 53% 53% 53%

Synthetic

3,5 0,74 01:50 63,55 45 53%

Fast 60’

60°C

4,5 0,98 01:00 31,07 60 53%

Cotton

20

4,5 0,14 00:59 49,16 20 53%

Wash

and Dry

6 4,63 2,46 09:00 05:05 100 66 38 27

EN - 28

7.1 Important Informations

• Use detergents, softeners and other additives suitable for automatic washing

machines only. Excessive foam has occurred and automatic foam absorption

system has been activated due to too much detergent usage.

• We recommend that periodic cleaning for washing machine every 2 months. For

periodic cleaning please use Drum Clean programme. If your machine do not

have Drum Clean programme, use Cottons-90 programme. When required, use

limescale removers manufactured specifically for washing machines only.

• Never force the door open when your Washing Machine is running. You can open

the door of your machine 2 minutes after the completion of a washing operation. *

• Never force the door open when your Washing Machine is running. The door will

open immediately after the washing cycle has ended. *

• The installation and repairing procedures should always carried out by the

Authorised Service Agent in order to avoid possible risks. The manufacturer shall

not be held liable for damages that may arise from procedures carried out by

unauthorised persons.

(*)Specificationsmayvarydependingonthemachinepurchased.

EN - 29

8. CLEANING AND

MAINTENANCE

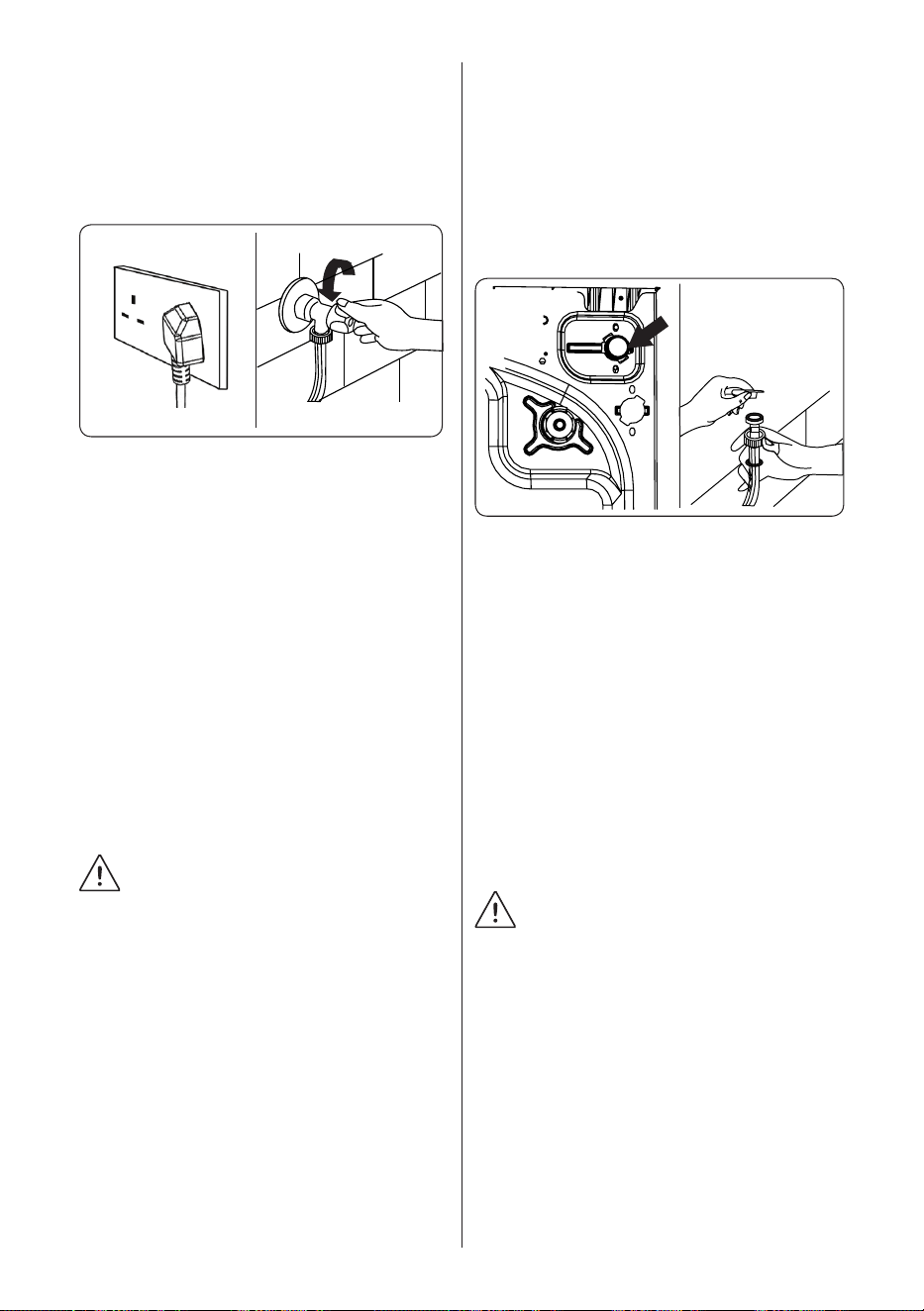

8.1 Warning

Turnyourmainspower

supply off and remove

the plug from the socket

beforecarryingout

maintenanceand

cleaningofyour

machine.

Turn off the water

supplybeforestarting

maintenanceand

cleaningofyour

machine.

CAUTION: Do not

usesolvents,abrasive

cleaners, glass cleaners

orall-purposecleaning

agents to clean your

WashingMachine.They

maydamagetheplastic

surfaces and other

componentswiththe

chemicalstheycontain.

8.2 Water Inlet Filters

Waterinletfilterspreventdirtandforeign

materialsfromenteringyourmachine.

Werecommendthatthesefiltersare

cleanedwhenyourmachineisunable

toreceivesufficientwater,althoughyour

watersupplyisonandthetapisopen.

We recommend that you clean your water

inletfiltersevery2months.

• Unscrewthewaterinlethose(s)from

theWashingMachine.

• Toremovethewaterinletfilterfrom

thewaterinletvalve,useapairof

long-nosedplierstogentlypullonthe

plasticbarinthefilter.

• Asecondwaterinletfilterislocated

inthetapendofthewaterinlethose.

Toremovethesecondwaterinlet

filter,useapairoflong-nosedpliers

togentlypullontheplasticbarinthe

filter.

• Cleanthefilterthoroughlywithasoft

brushandwashwithsoapywaterand

rinsethoroughly.Re-insertthefilterby

gentlypushingitbackintoplace.

CAUTION: Thefiltersatthe

waterinletvalvemaybecomeclogged

duetowaterqualityorlackofrequired

maintenanceandmaybreakdown.

Thismaycauseawaterleak.Anysuch

breakdowns are out of the scope of the

warranty.

EN - 30

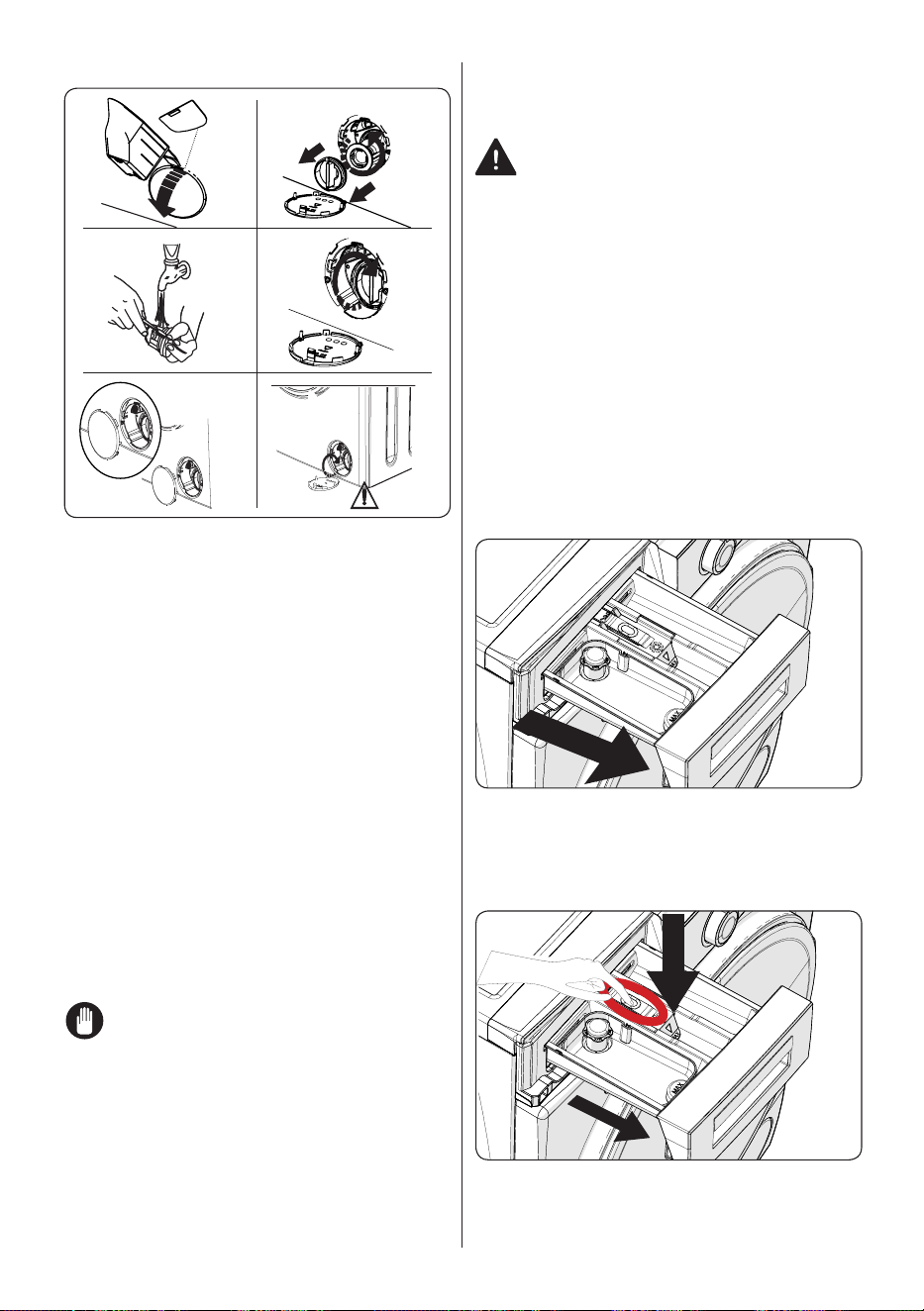

8.3 Pump Filter

1

3

5

2

4

6

ThepumpfiltersysteminyourWashing

Machineprolongsthelifeofthepumpby

preventinglintfromenteringyourmachine.

We recommend that you clean the pump

filterevery2months.

Thepumpfilterislocatedbehindthecover

onthefront-lowerrightcorner.

Tocleanthepumpfilter:

1. Youmayusethewashingpowder

spade(*)suppliedwithyourmachineor

liquiddetergentlevelplatetoopenthe

pump cover.

2. Lodge the end of the powder spade

orliquiddetergentlevelplateinthe

openingofthecoverandgentlypress

backwards.Thecoverwillopen.

• Beforeopeningthefiltercover,placea

containerunderthefiltercovertocollect

anywaterleftinthemachine.

• Loosenthefilterbyturning

anticlockwiseandremovebypulling.

Waitforthewatertodrain.

NOTE: Dependingonthe

amountofwaterinsidethemachine,you

mayhavetoemptythewatercollection

containerafewtimes.

3. Removeanyforeignmaterialsfromthe

filterwithasoftbrush.

4. Aftercleaning,re-fitthefilterbyinserting

itandturningclockwise.

5. Whenclosingthepumpcover,ensure

thatthemountingsinsidethecover

meettheholesonthefrontpanelside.

6. Closethefiltercover.

WARNING: Thewaterinthe

pumpmaybehot,waituntilithascooled

downbeforecarryingoutanycleaningor

maintenance.

(*)Specificationsmayvarydependingon

themachinepurchased.

8.4 Detergent Drawer

Theuseofdetergentmaycauseresidual

buildupinthedetergentdrawerover

time.Werecommendthatyouremove

the drawer every 2 months to clean the

accumulatedresidue.

To remove the detergent drawer:

• Pullthedrawerforwardsuntilitisfully

extended.

• Press the region shown below inside

the detergent drawer you have pulled

all the way back, and continue pulling

and remove the detergent drawer from

its place

• Remove the detergent drawer and

disassemble the flush stopper. Clean

thoroughly to completely remove any

EN - 31

softener residue. Refit the flush

stopper after cleaning and check that

it is seated properly.

• Rinse with a brush and lots of water.

• Collect the residues inside the

detergent drawer slot so that they

don’t fall inside your machine.

• Dry the detergent drawer with a towel

or dry cloth and place it back

Do not wash your detergent

drawer in a dishwasher.

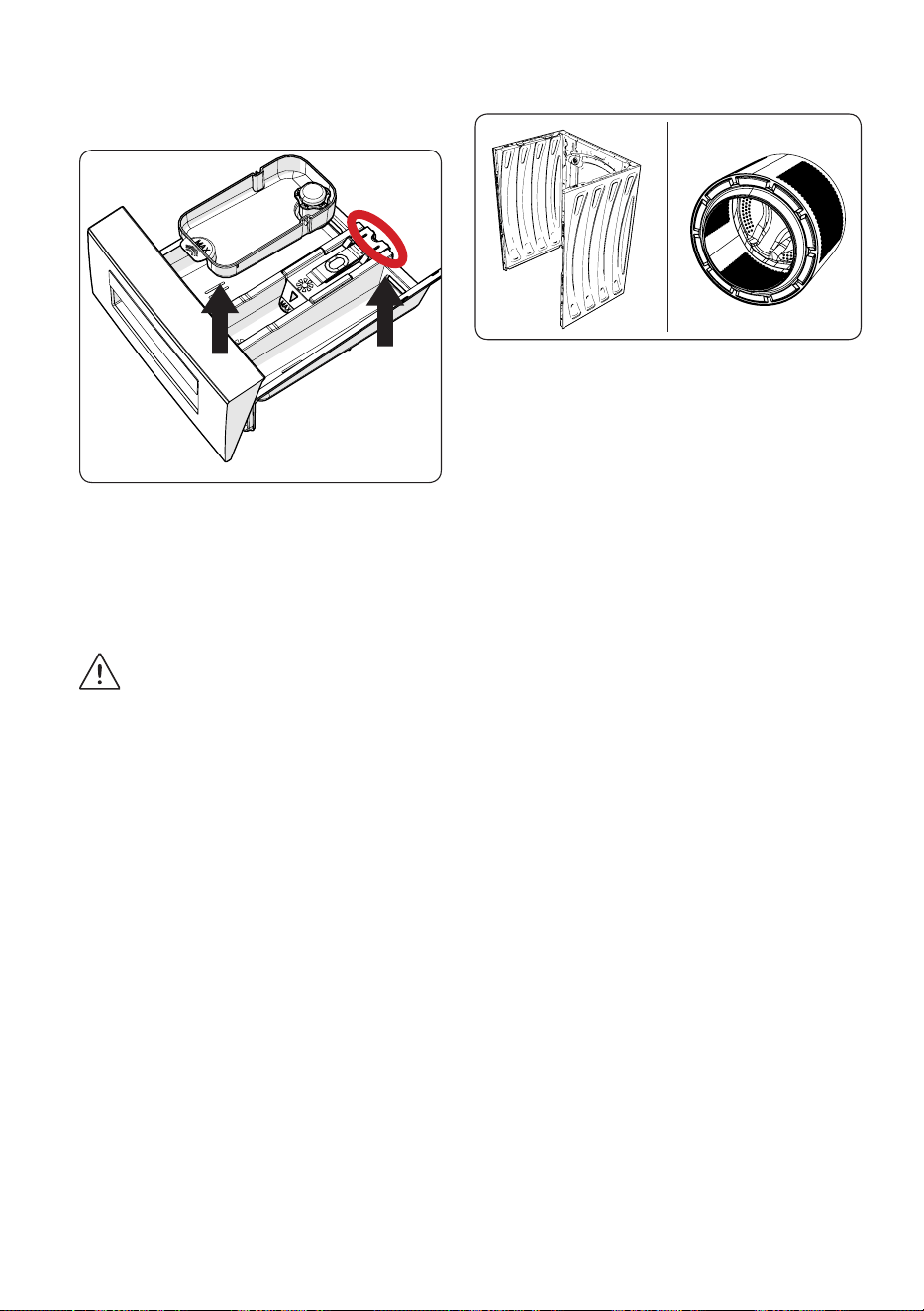

Liquid detergent apparatus(*)

For the cleaning and maintenance of the

liquid level detergent apparatus, remove

the apparatus from its location as shown

in the picture below, and thoroughly

clean the remaining detergent residues.

Replace the apparatus. Make sure that

no residual material remains inside the

siphon.

(*)Specificationsmayvarydependingon

themachinepurchased.

9. Body / Drum

1 2

1. Body

Useamild,non-abrasivecleaningagent,

or soap and water, to clean the external

casing.Wipedrywithasoftcloth.

2. Drum

Donotleavemetallicobjectssuchas

needles,paperclips,coinsetc.inyour

machine.Theseobjectsleadtothe

formationofruststainsinthedrum.To

cleansuchruststains,useanon-chlorine

cleaningagentandfollowtheinstructions

ofmanufacturerofthecleaningagent.

Neverusewirewoolorsimilarhard

objectsforcleaningruststains.

EN - 32

10. TROUBLESHOOTING

Repairofyourmachineshouldbecarriedoutbyanauthorisedservicecompany.

Ifyourmachinerequiresrepairorifyoucannotsolveanissuewiththeinformation

providedbelow,thenyoushould:

• Unplugyourmachinefromthemainspowersupply.

• Turn off the water supply.

FAULT POSSIBLE CAUSE TROUBLESHOOTING

Yourmachinedoesnotstart.

Machinenotpluggedin. Plugmachinein.

Fuses are faulty. Replace the fuses.

Nomainspowersupply. Checkmainspower.

Start/Pause button not pressed. Press the Start/Pause button.

Programmedial‘stop’position. Turntheprogrammedialtothedesiredposition.

Themachinedoorisnot

completely closed.

Closethemachinedoor.

Yourmachinedoesnot

intakewater.

Watertapisturnedoff. Turn tap on.

Waterinlethosemaybetwisted. Checkwaterinlethoseanduntwist.

Waterinlethoseclogged. Cleanwaterinlethosefilters.(*)

Inletfilterclogged. Cleantheinletfilters.(*)

Themachinedoorisnot

completely closed.

Closethemachinedoor.

Yourmachinedoesnot

dischargewater.

Drainhosecloggedortwisted.

Checkthedrainhose,theneithercleanor

untwist.

Pumpfilterclogged. Cleanthepumpfilter.(*)

Laundryistootighlypacked

togetherinthedrum.

Spreadyourlaundryinthemachineevenly.

Yourmachinevibrates.

The feet have not been adjusted. Adjust the feet. (**)

Transitboltsfittedfor

transportationhavenotbeen

removed.

Removethetransitboltsfromthemachine.(**)

Smallloadinthedrum. Thiswillnotpreventoperationofyourmachine.

Yourmachineisoverloadedwith

laundryorlaundryisunevenly

spread.

Do not overload the drum. Spread laundry evenly

inthedrum.

Yourmachinerestsonahard

surface.

DonotsetupyourWashingMachineonahard

surface.

Excessivefoamisformedin

the detergent drawer.

Excessiveamountofdetergent

used.

Press the Start/Pause button. To stop the foam,

diluteonetablespoonofsoftenerinto1/2litreof

waterandpourintothedetergentdrawer.Press

theStart/Pausebuttonafter5-10mins.

Wrong detergent used.

Onlyusedetergentsproducedforautomatic

WashingMachines.

EN - 33

FAULT POSSIBLE CAUSE TROUBLESHOOTING

Unsatisfactorywashing

result.

Yourwashingistoodirtyforthe

programme selected.

Usetheinformationintheprogrammetablesto

selectthemostappropriateprogramme.

Amount of detergent used

insufficient.

Usetheamountofdetergentasinstructedonthe

packaging.

Thereistoomuchlaundryinyour

machine.

Checkthatthemaximumcapacityforthe

selected programme has not been exceeded.

Unsatisfactorywashing

result.

Hard water.

Increasetheamountofdetergentfollowingthe

manufacturer’sinstructions.

Yourlaundryistootightlypacked

togetherinthedrum.

Checkthatyourlaundryisspreadout.

Assoonasthemachineis

loadedwithwater,water

discharges.

Theendofwaterdrainhoseistoo

lowforthemachine.

Checkthatthedrainhoseisatasuitableheight.

(**) .

Nowaterappearsinthe

drumduringwashing.

Nofault.Waterisintheunseen

part of the drum.

. . . . . . . . . . . . . . . . . . . . .

Laundry has

detergentresidue.

Non-dissolvingparticlesofsome

detergents may appear on your

laundryaswhitespots.

Performanextrarinse,orcleanyourlaundrywith

abrushafteritdries.

Grey spots appear on the

laundry.

Thereisuntreatedoil,creamor

ointmentonyourlaundry.

Usetheamountofdetergentasinstructedonthe

packaginginthenextwash.

Thespincycledoesnottake

place or takes place later

than expected.

No fault. The Unbalanced load

controlsystemhasbeenactivated.

TheUnbalancedloadcontrolsystemwilltryto

spreadyourlaundry.Thespinningcyclewillbegin

onceyourlaundryisspread.Loadthedrum

evenly for the next wash.

(*)Seethechapterregardingmaintenanceandcleaningofyourmachine.

(**)Seethechapterregardinginstallationofyourmachine.

11. AUTOMATIC FAULT WARNINGS AND WHAT TO DO

YourWashingMachineisequippedwithabuilt-infaultdetectionsystem,indicatedbya

combinationofflashingwashoperationlights.Themostcommonfailurecodesareshown

below.

TROUBLE CODE POSSIBLE FAULT WHAT TO DO

Er 01

Thedoorofyourmachineisnotshut

properly.

Shutthedoorproperlyuntilyouhearaclick.If

yourmachinepersiststoindicatefault,turnoff

yourmachine,unplugitandcontactthenearest

authorisedserviceagentimmediately.

Er 02

The water pressure or the water level

insidethemachinemaybelow.

Checkthetapisfullyturnedon.Mainswater

maybecut-off.Iftheproblemstillcontinues,your

machinewillstopafterawhileautomatically.Unplug

themachine,turnoffyourtapandcontactthe

nearestauthorisedserviceagent.

Er 03

Thepumpisfaultyorpumpfilteris

cloggedorelectricalconnectionofthe

pumpisfaulty.

Cleanthepumpfilter.Iftheproblempersists,

contactthenearestauthorisedserviceagent.(*)

Er 04

Yourmachinehasexcessiveamountof

water.

Yourmachinewilldischargewaterbyitself.Once

thewaterhasdrained,turnoffyourmachineand

unplugit.Turnoffthetapandcontactthenearest

authorisedserviceagent.

(*)Seethechapterregardingmaintenanceandcleaningofyourmachine.

.................................................................................................................................................

............................................................................................................................................. ...

.................................................................................................................................................

.......................................................................................................................................... ......

.................................................................................................................................................

....................................................................................................................................... .........

.................................................................................................................................................

.................................................................................................................................... ............

.................................................................................................................................................

................................................................................................................................. ...............

.................................................................................................................................................

.............................................................................................................................. ..................

.................................................................................................................................................

........................................................................................................................... .....................

.................................................................................................................................................

........................................................................................................................ ........................

.................................................................................................................................................

..................................................................................................................... ...........................

.................................................................................................................................................

.................................................................................................................. ..............................

.................................................................................................................................................

............................................................................................................... .................................

.................................................................................................................................................

......................................................................................
