Operation manual of front load washing machine
Operation manual
Thank you for purchasing our product.
Please read this manual carefully before use.
Please read "Safety precautions"carefully
before use.
Please keep this manual in a safe place.
Our product is specially designed for household
use only.
WASHING MACHINE
Table of contents Page
● Safety precautions
● Installation
Parts
Product specifications
Installation requirements
Unpacking the washing machine
Removing the shipping bolts
Adjusting the adjustable feet
Water inlet installation
Positioning the drain hose
● Before using the washing machine
I
nspection and preparation before washing
Using methods of detergents and additives
● Operations
Control panel
Simple steps to start
Program overview
Available options list
Function buttons
Icons
Setting mode
● Maintaining the washing machine
Cleaning the detergent dispenser
Cleaning the enclosure
Drum clean
Cleaning the drain pump filter
Cleaning the water supply valve filter
Handling a frozen washing machine
Storing the washing machine
● Troubleshooting
Problems and solutions
Error messages description
1
6
6
7
8
10
11
12
13
14
15
15
17
18
18
19
19
21
22
22
23
24
24
24
25
25
27
28
28
29
29
32
ES-FW105SG
ES-FW85SG
ES-FW70EW
EC②_2
Safety precautions
To ensure your safety, proper operation, and long service life, read this manual
carefully, and follow the instructions when installing, operating, and maintaining the
washing machine.
We are not liable for any damages resulting from improper use.
Keep this manual in safekeeping so that it can be referred to at any time when needed.
There are precautions marked with symbols such as "Warning" or "Caution" throughout
this manual. However, those precautions do not cover all possible conditions and/or
situations that may occur.
General precautions about this product
● Children of less than 3 years should be kept away unless continuously supervised.
● If the supply cord is damaged, it must be replaced by the manufacturer , its service
agent, or similarly qualified persons in order to avoid any possible hazards.
● This washing machine is intended to be used in household only and not in applica
tions such as:
− Staff kitchen areas in shops, offices and other working environments
− Farm houses
− By clients in hotels, motels and other residential type environments
− Bed and breakfast type environments
− Areas for communal use in blocks of flats or in launderettes
● Use a new water supply hose for connection to the water faucet. Reusing old hoses
can cause a water leak and subsequent property damage.
Important safety symbols and precautions
Meanings of icons and symbols in this manual:
Hazards or unsafe practices that may result in personal injury or
property damage.
CAUTION
WARNING
Hazards or unsafe practices that may result in severe personal injury,
death or property damage.
● This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
● Children should be supervised to ensure that they do not play with the appliance.
● Ventilations openings must not be obstructed by a carpet or any similar objects.
1
Safety precautions
Precautions about installation
● Never attempt to operate the washing machine if it is damaged, malfunctioning,
partially disassembled, or has missing or broken parts, including a damaged cord or
plug.
● The installation of the washing machine must be performed by a qualified technician
or service company.
− Failure to do so may result in electric shock, fire, an explosion, problems with the
product, or injury.
● Periodically check the water supply hose for expansion, kink, breakage, tear, and
water leak. Replace the hose promptly if there is any abnormality.
● Do not store or install the washing machine in unsuitable places such as:
− Damp places (such as a bathroom)
− Oily or dusty places
− Places subject to weathering conditions (such as direct sunlight, wind, rain, or
temperature below freezing)
● Do not use an electric transformer.
− This may result in electric shock or fire.
● This washing machine must not be installed behind a lockable door, a sliding door or
a door with a hinge on the opposite side to that of the washing machine, in such a
way that a full opening of the door of washing machine is restricted.
● Plug the power cord firmly into a professional AC power outlet with voltage of
AC 220V-240V, frequency of 50 Hz. If connected to an inappropriate power source,
electric shock or fire may result.
● Ensure that the power plug is plugged into an appropriate socket outlet and ground-
ed in accordance with all local codes and ordinances.
● Improper connection of the equipment-grounding conductor can result in risk of
electric shock. Check with a qualified electrician or service personnel if you are in
doubt as to whether the washing machine is properly grounded.
● Do not modify the plug attached to the washing machine. If the plug cannot match
the socket, a suited one should be installed by the manufacturer, product and service
agent or qualified person.
● Plug the power plug into the wall socket so that the cord is running towards the floor.
If you plug the power plug into the socket in the opposite direction, the electric wires
within the cable may be damaged and this may result in electric shock or fire.
● Do not allow the washing machine to contact or be close to any heat source (such as
heater, mosquito coil, candle, cigarette, hair dryer, etc.) or inflammable material.
● This washing machine is equipped with a power cord having a grounding function.
Use them to ensure that the machine is grounded properly. In the event of malfunction
or breakdown, grounding will reduce the risk of electric shock by providing a path of
least resistance for electric current.
2
-
Safety precautions
Precautions about operation
● Do not attempt to repair the washing machine by yourself. Repairs made by inexperi-
enced or unqualified persons may make more serious damage to the washing
machine and cause personal injury.
● Do not repair or replace any part of the washing machine. All repairs and servicing
must be performed by qualified service personnel unless specifically recommended
in this User Manual.
● Use only authorized factory parts.
● Do not touch the power plug with wet hands. Doing so may cause electric shock
hazard.
● Do not unplug the power plug while an operation is in progress. Plugging the power
plug into the wall socket again may cause a spark and result in electric shock or fire.
● Unplug the power plug when the washing machine is not being used for long periods
of time or during a thunder or lightning storm. Otherwise there is a risk of electric
shock or fire.
● Pets and children may climb into the washing machine. Keep children away from the
washing machine while it is in use.
● Do not leave the machine door open. Children may hang on the door or crawl inside
the washing machine, causing damage or injury.
● Never reach into the washing machine while it is operating. Wait until the drum has
completely stopped.
● In case of flood, disconnect the power plug, turn off the water supply faucet, and
contact the after-sales service department. There is a risk of electric shock.
● Do not push down the door excessively when the machine door is open.
● Do not touch the door while the washing machine is operating in high temperature.
● Before you open the door of the washing machine, check if the drum has been
drained. Do not open the door if you can still see water.
● Do not open the washing machine door by force while it is operating (high-tempera-
ture washing/spinning). Otherwise, water flowing out of the washing machine may
cause burns, or injury by causing the floor to be slippery.
In addition, the door cannot be opened for user's safety, and opening the door by
force may result in damage to the product or injury.
● Do not insert your hand or a metal object under the washing machine while it is
operating. Doing so may result in injury.
● Keep the water inlet faucet open when washing. Otherwise, the washing procedure
may not function properly.
● Do not stand on the washing machine or place objects (such as laundry, lighted
candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the washing
machine.
Doing so may result in electric shock, fire, problems with the product, or injury.
● Keep all washing detergents, softener and bleach away from children.
● Do not use a strong acid cleanser as a laundry detergent.
● Make sure not to get your finger (and especially children's finger) caught when opening
or closing the door. Doing so may result in injury.
3
Safety precautions
● Do not use gasoline, alcohol, dry cleanser or other flammable or explosive substanc-
es as a laundry detergent.
● Use household detergents which are available on the market and applicable to
machine wash only.
● Make sure that the pockets of all clothing to be washed are empty. Hard, sharp
objects such as coins, safety pins, nails, screws, or stones can cause extensive
damage to the washing machine.
● Do not wash the clothing with hasp or other heavy metals.
● Do not wash the clothing soaked in or stained with gasoline or other flammable,
explosive or toxic substances. There is a risk of fire or explosion.
Wash the clothing aforesaid manually in hot water and an extra amount of detergent
first, and ensure that all those liquid, solid and particle traces are removed before
putting it into the washing machine. Hazardous substances include acetone, alcohol,
gasoline, kerosene, certain liquid household cleanser and detergent, turpentine, wax,
and wax remover.
● Do not wash or spin any items other than normal chothes or sheets, namely as
follows:
− Rugs, mats, pet blankets, woolen bedding, sleeping bags
− Thick clothings such as fishing vests, ski pants, diaper covers, or sweat suits
− Waterproof sheets such as rain covers or car covers
● Do not wash thick or hard mats even if the washing machine mark is on the care
label. This may result in injury or damage to the washing machine, walls, floor, or
clothing due to abnormal vibrations.
● Do not wash throw rugs or doormats with rubber backing. The rubber backing may
come off and stick to inside the drum, and this may result in malfunction such as a
drainage error.
● Insert the laundry into the washing machine completely so that the laundry does not
get caught in the door. If laundry gets caught in the door, it may result in damage to
the laundry or the washing machine, or result in a water leak.
● Ensure that the rubber seal and front door glass are not contaminated by a foreign
substance (e.g. waste, thread, hair, etc.). If a foreign substance is caught in the door
or the door is not completely closed, it may cause a water leak.
● Do not wash large laundry items such as bedding in the washing net. There is a risk
of injury due to abnormal vibrations.
4
Safety precautions
Precautions about maintenance
● Cleaning and user maintenance shall not be made by children without supervision.
● When unplugging the power cord, grip the power plug firmly and pull it straight out of
the socket outlet. Pulling the power cord may damage it and result in a short-circuit,
fire and/or electric shock.
● Do not use the a strong acidic cleaning agent for cleaning the washing machine.
● Do not use benzene, thinner or alcohol to clean the washing machine. Otherwise
there is a risk of discolouration, deformation, damage, electric shock, or fire.
● Remove all foreign substances such as dust or water from the power plug terminals
and contact points using a dry cloth on a regular basis. Otherwise there is a risk of
electric shock or fire.
● This washing machine is manufactured from recyclable materials. If you decide to
dispose of this washing machine, please check local waste disposal regulations. Cut
off the power cord so that the washing machine cannot be connected to a power
source. Remove the door so that animals and small children cannot get trapped inside
the washing machine.
● Do not exceed the detergent quantities recommended in the detergent manufacturer's
instructions.
● Use stain removal products and bleaches before the wash cycle only when strictly
necessary.
● Save water and electricity by only washing full loads (the exact amount depends upon
the program used).
Protecting the environment
5
Installation
Drain hose
Power plug

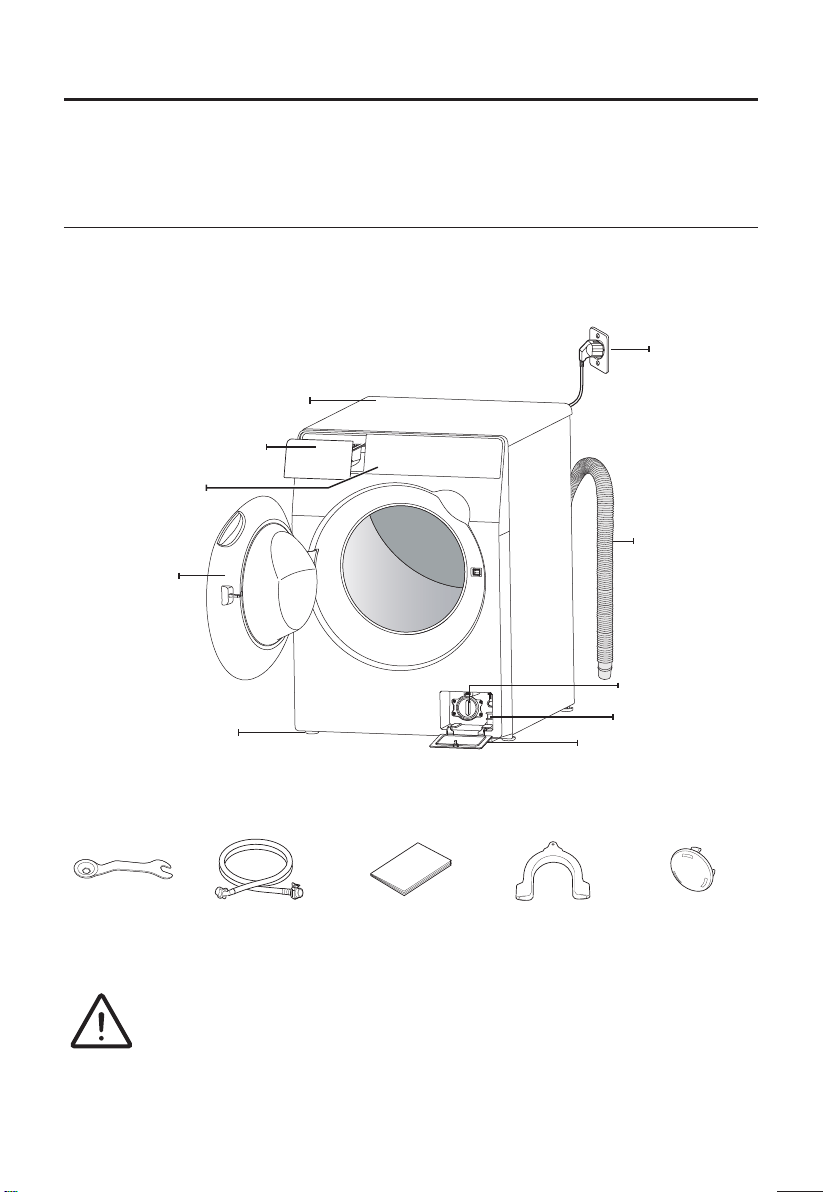

Parts
Strictly observe the relevant installation procedures in the manual to ensure that you use
the washing machine safely.
Unpack your washing machine and inspect it for shipping damage. Also make sure that
you have received all items shown below. If the washing machine was damaged during
shipping or you do not have all items,contact the place you purchased immediately.
Accessories
Spanner
(1)
Cold water inlet hose
(1)
Operation manual
(1)
Hose guide
(1)
Bolt caps
Top panel
Filter cover
Drain tube
Adjustable feet
Detergent/ Softener dispenser
Control panel
Drain pump filter
Door
This washing machine must be connected to the water supply by a new
hose (please use the inlet hose accompanying with this washing
machine). No old hose is allowed.
CAUTION
6
7.0kg, 8.5kg model: (4)
10.5kg model: (5)
Product specifications
Installation
Model
Rated capacity
Rated voltage
Rated frequency
Water pressure
Rated heating washing power
Spin speed(Maximum)
External dimensions
(W x D x H )
Net weight
ES-FW105SG
10.5 kg
0.03 - 0.8 MPa
50 Hz
220 V - 240 V~
1950 W
1400 rpm
598 × 680 × 850 mm
76 kg
ES-FW85SG
8.5 kg
0.03 - 0.8 MPa
50 Hz
220 V - 240 V~
1300 W
1200 rpm
598 × 560 × 850 mm
58 kg
ES-FW70EW
7.0 kg
0.03 - 0.8 MPa
50 Hz
220 V - 240 V~
1300 W
1000 rpm
598 × 510 × 850 mm
56 kg
7
Power supply
Water supply
● The working water pressure of the washing machine is 0.03MPa~0.8MPa. When the
water pressure is below 0.03MPa,the water supply valve may not work normally,or
the time of water supply is longer than that of program control,and the display screen
shows "E01".
● The water supply faucet must be less than 122cm away from the rear of the washing
machine so that the water supply hose can be easily connected to the washing
machine and the water faucet.
● The washing machine shall be close to the water faucet.
● Turn off the water faucet when the washing machine is not used.
● Check water leakage conditions of the internal loop regularly.
● Before using the washing machine, first check all connections of the water supply
valve and water faucet to prevent water leakage.
● To avoid the unnecessary risk of fire, electric shock or personal injury, all electrical
circuit and grounding must be set as per the national electrical standard.
● Do not overload the wall power socket.
● Ensure that your power supply unit can meet the normal load requirements of the
washing machine.
● The power cord has to be positioned so that it will not be stepped on, pressed or
clamped by the article on or next to it. Pay special attention to the power cord of plug,
socket and power cord contact of the washing machine.
● Do not use an extension cord or double adapter.
● Do not modify the provided plug. If it does not fit the outlet, call a qualified electrician
to install a proper outlet.
Installation requirements
Installation
8
Ambient temperature
25
25
25
51
Unit:mm
● Do not position the washing machine on a platform or a structure with weak support.
● To make the most of the washing machine, position it on a hard, flat and clean surface
without any water or oil.
● Avoid direct sunlight, with adequate ventilation.
● Room temperature shall not fall below 0 ˚C.
● Avoid positioning the washing machine near heat sources such as coal or gas stove.
● Do not correct any unevenness in the floor by placing pieces of wood or other material
under the washing machine.
● Clearance of 25mm is required for top, right, and left side. For rear, 51mm is required.
The washing machine cannot be positioned in a place where water freezes easily,
because some water may be left in the water valve, drainage pump and water hose.
Freeze in the pipeline may cause damage to the belt, drainage pump and other parts.
The washing machine should be positioned in the environment with ambient
temperature of 0˚C~40˚C and relative air humidity below 95% (when the temperature is
25˚C), thus the washing machine can be used in a convenient and safe way.
Installation
Installation location
Installation requirements
9
● After remove the carton box and transport materials, lift up the machine and
remove the foam mattress. Please make sure the foam mattress is not stuck
to the bottom.
● If need to lay down the machine to remove foam mattress, please protect the
side surface of machine, and lay it down on its side. Please do not lay down
the machine on front/back surface.
Unpacking the washing machine
Foam mattress
Installation
10
Note:
Certain models only
have 4 shipping bolts.
11
Installation

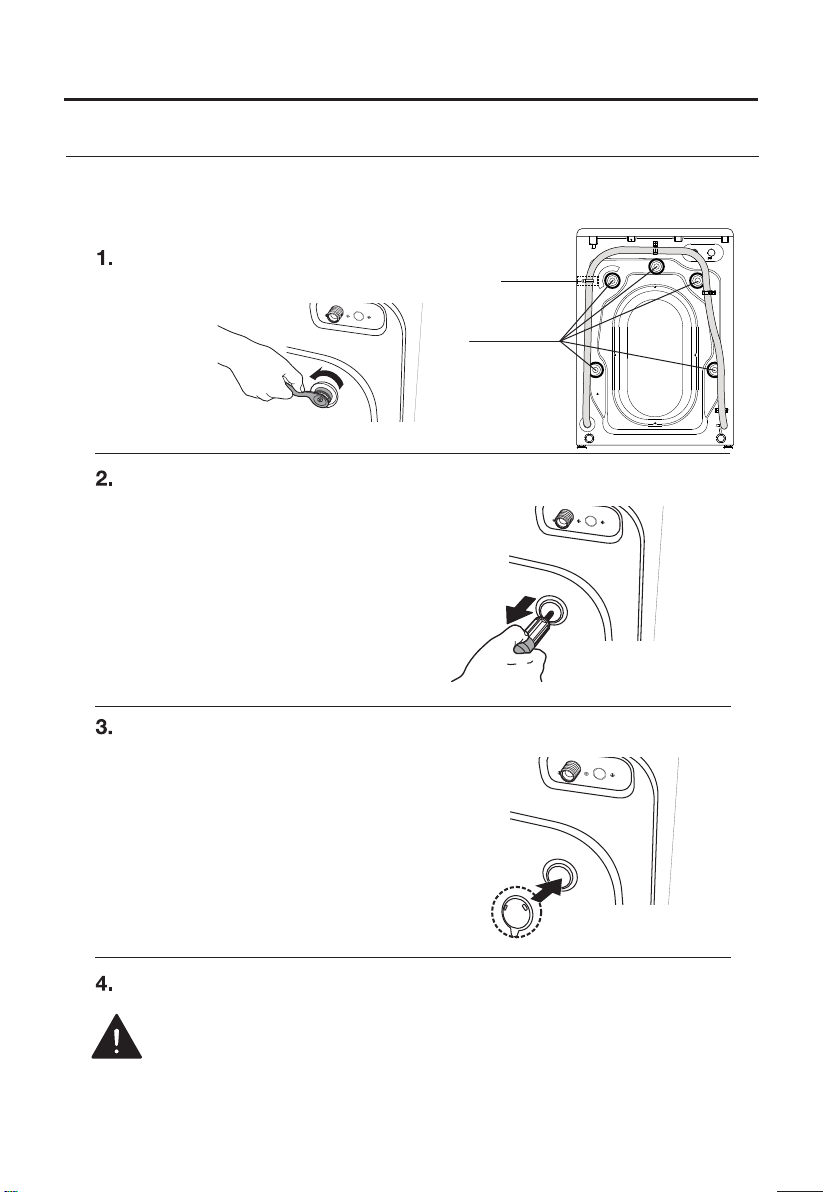

Removing the shipping bolts
Before using the washing machine, you must remove all shipping bolts from the back
of the washing machine. To remove the shipping bolts:
Loosen all shipping bolts with the spanner.
Take each bolt head and pull it out from
the hole. Repeat the same process for all
shipping bolts.
Fill the holes with the supplied bolt caps.
Keep the shipping bolts for future use.
● Packing materials can be dangerous to children; keep all packing
materials (plastic bags,foamed plastic,shipping bolts,etc.) well out of
the reach of children.
● Do not cut off the fixing belt of the drain hose.
● Do not remove the screw fixing the belt of the drain hose.
WARNING
Fixing belt
Shipping bolt

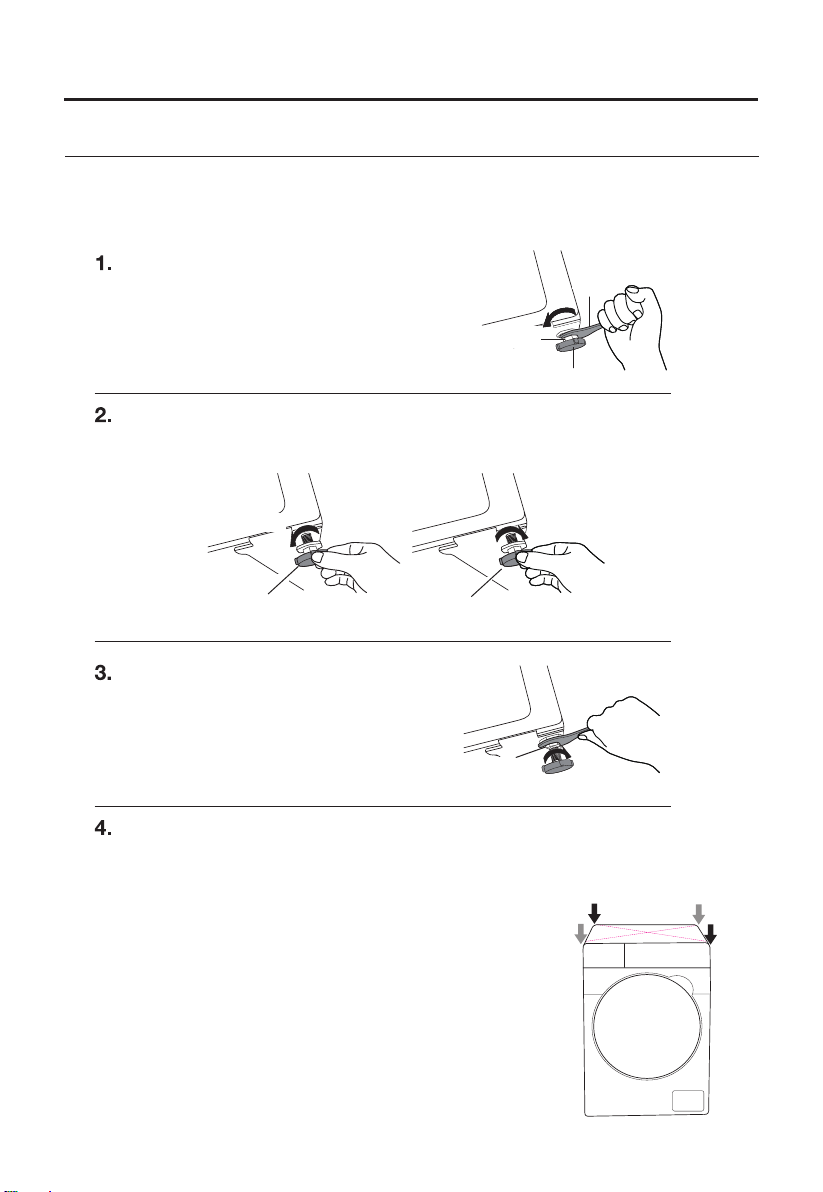

Adjusting the adjustable feet
If the floor is uneven,adjust the adjustable feet of the washing machine.
Do not insert pieces of wood or any other objects under the feet.
Turn left to loosen the feet nuts with the
spanner.
1.Press the two diagonal corners at the top of the
washing machine with your hands to check if the
washing machine still shakes. The two diagonals
have to be checked.
Adjust the adjustable feet until it is at the desired height, turn counter
clockwise for higher and turn clockwise for lower.
Check if the adjustable feet is leveled.The washing machine is level
when four feet do not shake relative to the ground.The steps you can
follow:
Tighten the feet nuts with the spanner.
Spanner
Feet nuts
Adjustable feet
Adjust the feet higher
Adjust the feet lower
Installation
Adjustable feet
Adjustable feet
Feet nuts
2.If the washing machine still shakes,the feet must be
readjusted.
12

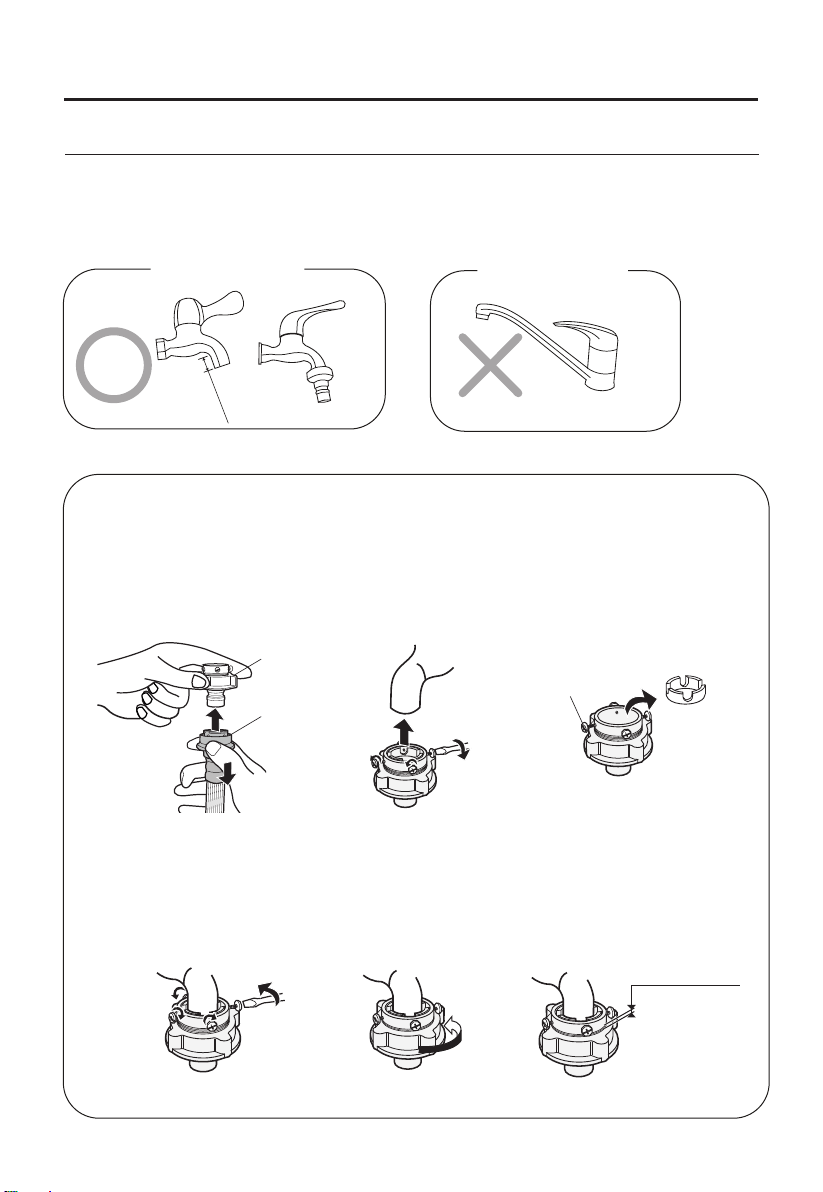

Water inlet installation
Tap selection
Inlet hose
Inlet hose connector
Slider
Screwdriver
Bolt
Bushing
Before twisting,about 4mm
After twisting,less 2mm
Nut
Illustration 1 Illustration 2 Illustration3
Illustration 6Illustration 5Illustration 4
pat eht ot rotcennoc esoh telni eht tcennoC
1. Press down the slider and remove the inlet hose connector from the inlet hose ,
like below illustration 1.
2. Loosen the four bolts on the inlet hose connector till the tap can be accessed, then
set the inlet hose connector in the tap, see illustration 2.(if the tap caliber is too large and
could not set the inlet hose end, unscrew the four
bolts and take out the bushing, tap exit
end must be flat, otherwise it will leak, see illustration 3)
3. Fasten the four bolts on the inlet hose connector evenly, see illustration 4.
4. Twist the nut as the illustration, see illustration 5.
Note: Before twisting the nut, the threading is about 4mm above the upper surface of the nut, after twisting,
the threading is less than 2mm above the upper surface of the nut, see illustration 6.
Installation
More than
10mm
Suitable tap
The front end should be longer than 10mm.
The tap exit end face should be flat and smooth, if not file it to avoid leakage.
Not suitable tap
13

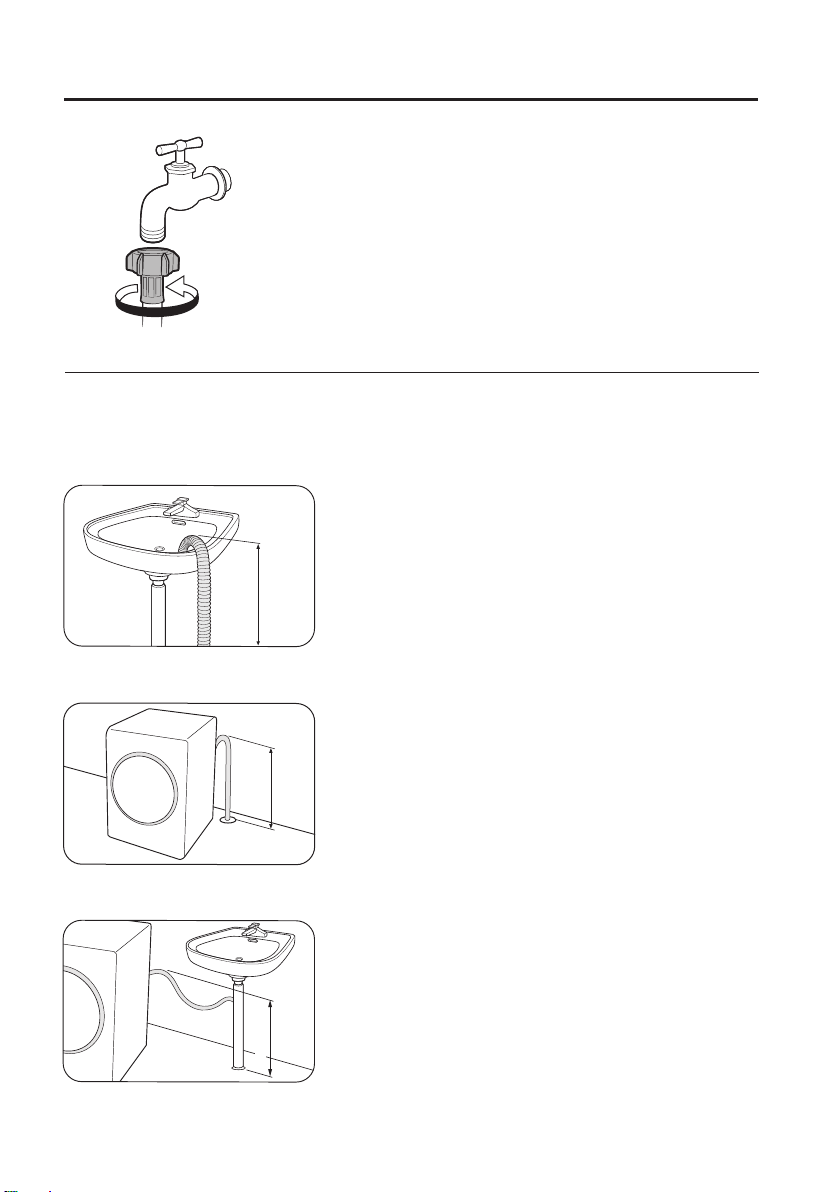

Positioning the drain hose
Ensure the drain hose is fixed, and the position does not move or become loose,
otherwise it will cause leakage and property loss.
The end of the drain hose may be positioned in three ways:
3.In a sink drain hose branch:
The end of the drain hose is connected to a sink drain
hose branch. The highest point of the drain hose must
be lower than 90cm.
2.In a floor drain directly:
Please ensure the drain hose height from the floor
drain is less than 90cm.
Note: the end of the drain hose cannot be immersed in
water.
1.Over the edge of a wash basin:
The end of the drain hose must be placed at lower
than 90cm from the ground. To avoid the influence of
the drain hose bending on water flow, secure it over
the edge of the wash basin with a hook or a piece of
string to prevent the drain hose from moving.
If you are using a screw type of water tap, use the
provided screw-type adaptor to connect to the water
tap as shown.
Installation
max. 90cm
max. 90cm
max. 90cm
14
1.
2.
3.
Before washing the laundry,take off the metal decorations and zip up the
laundry,buckle the collar,then turn the laundry inside out.
● Before washing jeans and overalls with hard objects such as
zippers and buttons, they should be closed or buttoned up.
Winter jacket,overalls, bedspread,jeans etc. shall be washed
separately.
● Clothes shall be straightened out before putting into the
washing machine; curtains with hooks shall be washed after
the hooks are taken off. Laundry with buttons or embroidery
shall be washed after the laundry is turned inside out.
● Please take off the decorations on the clothes before washing
since they may damage the laundry. All kinds of strings shall be
properly tied since they may twine other laundry.
Inspection and preparation before washing

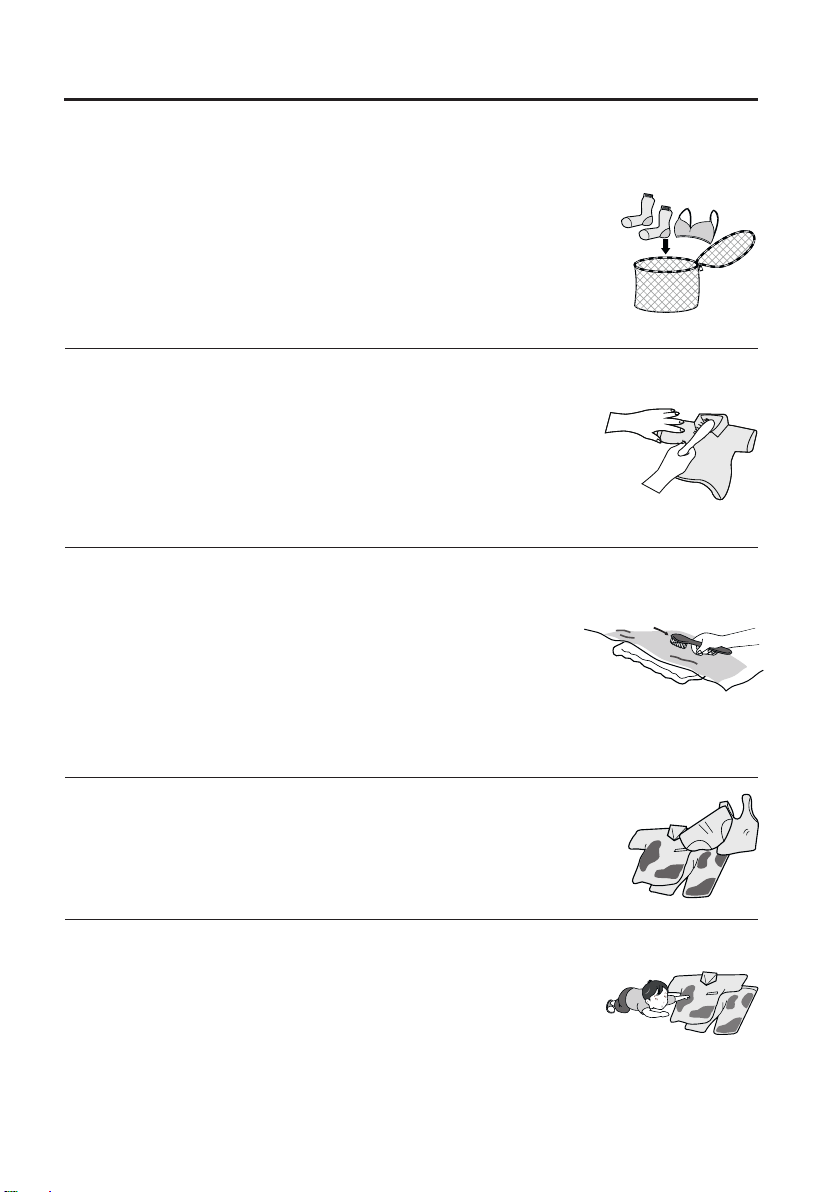

To prevent the fault of washing machine and the damage to laundry,you have to pay
attention to the following items.

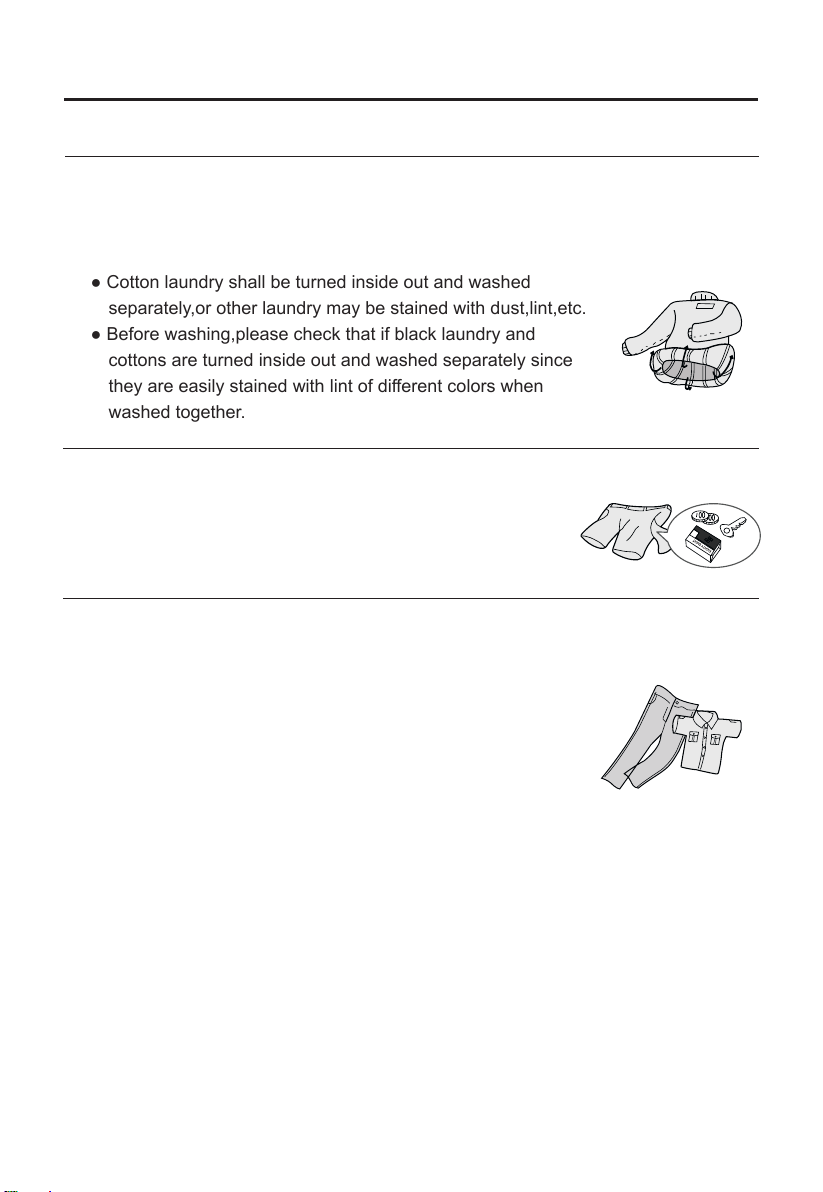

Sort the laundry according to soil, color and lint.
Take objects out from the pocket.
● Please check and empty the pockets of the laundry. Hard
objects such as decorations and coins may damage the
washing machine or result in abnormal fault.
● Cotton laundry shall be turned inside out and washed
separately,or other laundry may be stained with dust,lint,etc.
● Before washing,please check that if black laundry and
cottons are turned inside out and washed separately since
they are easily stained with lint of different colors when
washed together.
Before using the washing machine
15
4.
5.
6.
8.
7.
Clean dust,sludge and hairs of the pet attached on the laundry.
● Friction of dust and sludge with the laundry may damage the
clothes and affect washing results.
To protect the skin of the baby.
● Baby's laundry (baby's clothes and towels) such as diapers
shall be washed separately. Try to avoid washing with the
laundry of adults.
● Do not place the laundry in the washing machine for a long
time since they may get mildew and stains.
● Confirm if the laundry washed for the first time are fading.
Wipe the inconspicuous tails of the laundry with a white
towel stained with detergent to see if the towel is dyed with
the color of the laundry.
Before washing,please confirm if there are stains on the laundry.
Pre-wash areas such as white stockings, collars, cuffs in advance.
● Please wash the areas in advance such as cuffs, collars, and
pockets with a brush before machine washing.
● Please use powder or liquid detergents. Soap residues may
remain in the seams of the clothes or in the washing drum
when washing with soaps.
Small articles such as underwear must be washed in a washing mesh bag.
● Underwear with metal hooks should be washed in a washing
mesh bag to prevent the metal from rupturing through the
underwear to damage the laundry and inner drum.
● Small articles such as stockings are recommend to be
washed in a washing mesh bag (available in market) to
prevent them from falling into the door seal.
Before using the washing machine
16

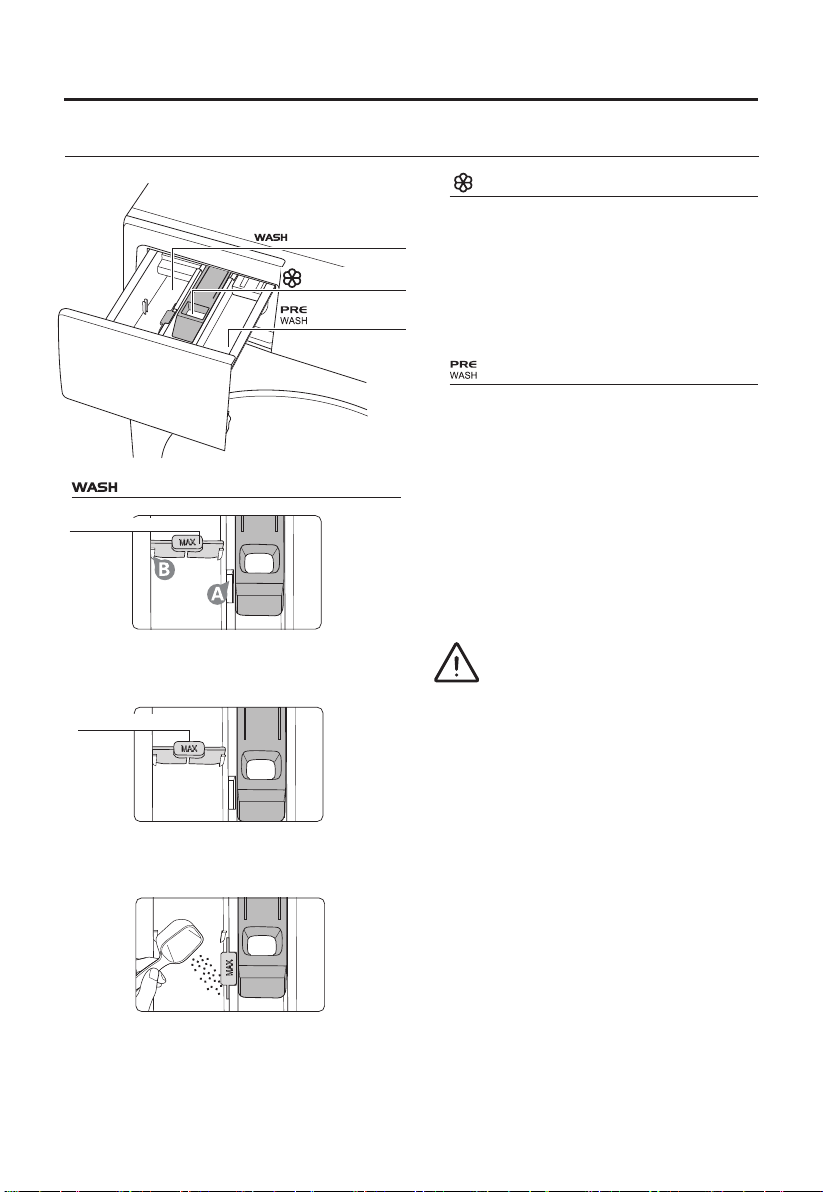

Using methods of detergents and additives
Prewash drawer—Powder detergent
Softener drawer—Softener
● During the last rinsing, softeners in the
detergent drawer will be poured automatically.
● The amount of liquid detergents shall not
exceed “MAX” base line.
● Do not put powder or liquid detergents in the
softener drawer.
If you select the program with the pre-wash
function, please put a little powder
detergent in the prewash drawer and
appropriate amount of powder detergent in
the main wash drawer. Powder detergent in
the prewash drawer can clean part of dirt on
the laundry, then powder detergent or liquid
detergent in the main wash drawer can
clean the laundry at a deeper level to save
the detergents.
● Never open the detergent box when
the washing machine is running.
● Use “low foam” detergent specific to
the drum washing machine.
● Do not use excess detergent, or too many
foams will affect rinsing effect or cause
functional fault.
●
Refer to the instructions of detergent
manufacturer,and use proper detergent based
on the type, color, water temperature, degree
of stain etc. of the clothing to be washed.
● Using right amount of detergent helps
achieve good washing effect and protect
the environment.
● Do not use capsule detergent.
● If you use liquid detergent in a reservation
or pre-washing function, it may get harden.
Do not use liquid detergent.
● If detergent spills over parts except for
detergent dispenser, wipe it away
immediately with wet cloth, or it may result
in damage.
Before using the washing machine
CAUTION
Main wash drawer—Washing powder or liquid
Prewash drawer
Main wash drawer
● When using the liquid detergents, put the
detergent accessory in site B.
● The amount of liquid detergents shall not
exceed “MAX” base line.
● Do not put in liquid detergent accessories
when using powder detergent.
“MAX” base line
Liquid detergent accessory
Softener drawer
MAX
MAX
MAX
17
Operations

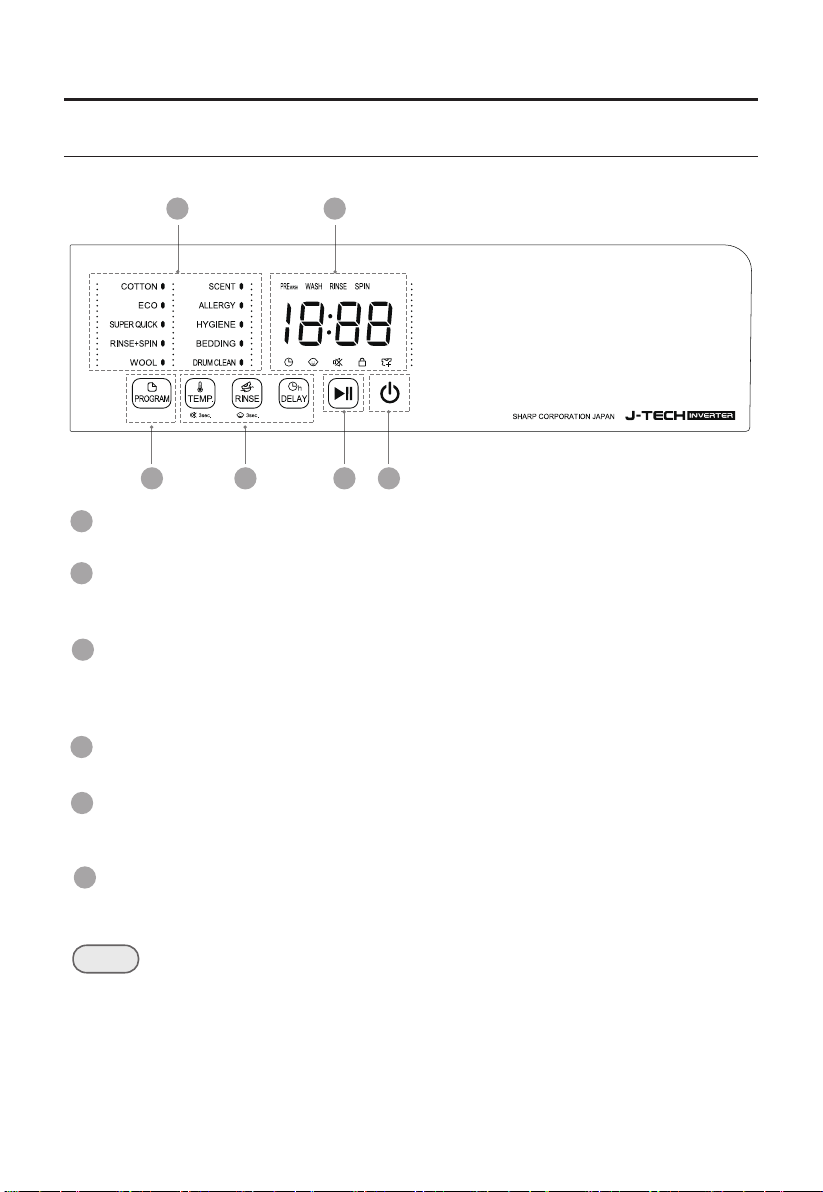

Control panel
Power button
● Press this button to turn on or off the washing machine.
Start / Pause button
● Press this button to start or pause the program.
● If a temporary stop of the program is needed, press Start / Pause.
Program button
● Press this button to select program.
Program name
● Select the program according to the type of laundry.
● The indication of selected program will blink.
Manual setting buttons
● Several options and functions can be customized. For more information on
each option, see page 22.
● Available options vary depending on the program.
Display
● The display shows the settings (temperature, times), estimated remaining time, options,
status, and error codes. For more information on indication, see page 32.
1
2
4
5
3
6
• Washing machine is automatically turned off when there is no operation in the last 5 minutes.
• Do not touch the control panel with wet handsor with gloves, bandages etc.
Touch directly with finger.
• Do not apply any sharp objects to the control panel in order to operate the washing machine.
NOTE
5 6
24 3 1
18
Operations

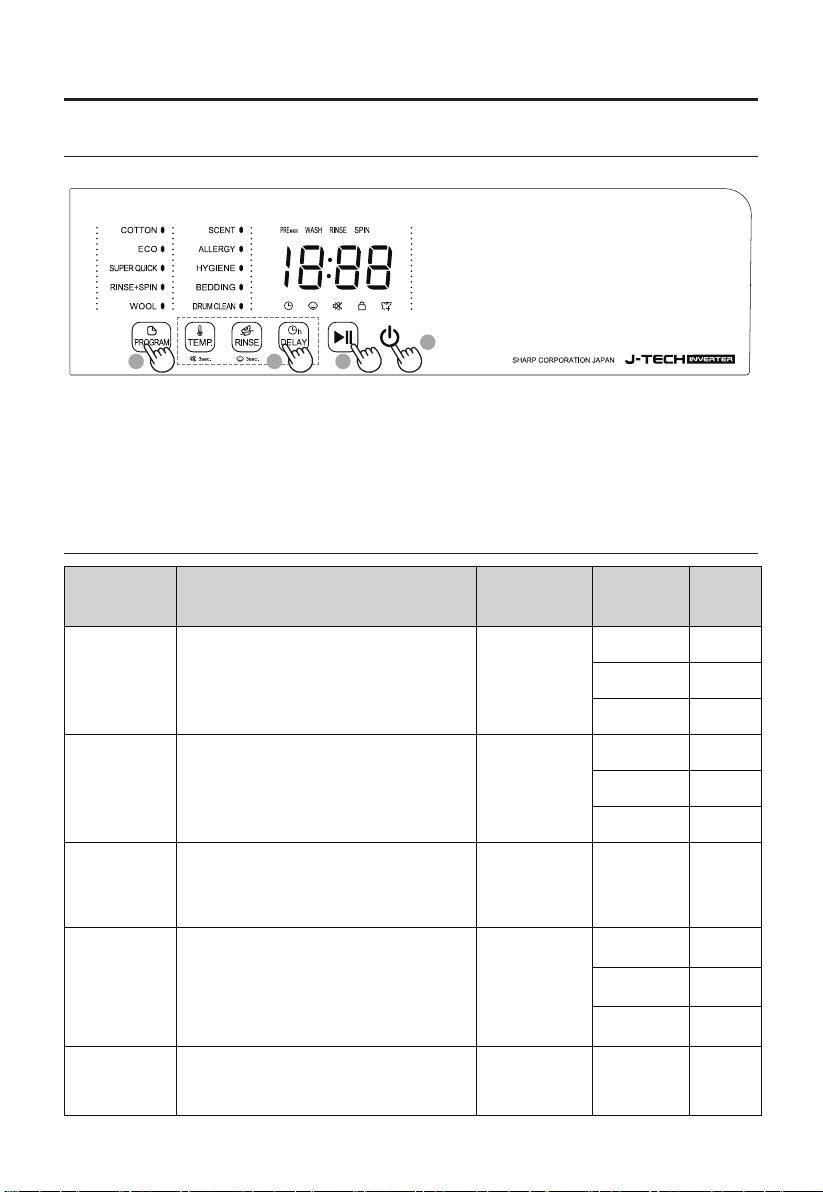

Simple steps to start
1. Press Power to turn on the washing machine.
2. Press PROGRAM (see page 19,20) to select program.
3. Set options (TEMP., RINSE, etc.) as necessary. Available options differ depending
on the selected program.
4. Press Start/Pause.
Program overview
1
2 3 4
Program Description
Proper
Temperature
Max
spin speed
Max
load
1400 rpm 10.5 kg
1200 rpm 8.5 kg
1000 rpm 7.0 kg
1400 rpm 10.5 kg
1200 rpm 8.5 kg
1000 rpm 7.0 kg
SUPER QUICK
● This program finishes within 15 minutes.
● Suitable for washing slightly soiled
clothing.
20 °C
(Cold to 40 °C)
400 rpm
(all models)
2.0 kg
1400 rpm 10.5 kg
1200 rpm 8.5 kg
1000 rpm 7.0 kg
WOOL
● Suitable for washing wools that are
machine washable.
30 °C
(Cold to
40 °C)
800 rpm
(all models)
2.0 kg
● Suitable for washing normally or slightly
soiled cotton textiles, linen bed sheet,
linen table cloth, underwear, towels,
shirts, etc.
COTTON
● Suitable for clothing that only needs
rinsing or to be rinsed once more by
using fabric softener.
RINSE+SPIN
40 °C
(Cold to 90 °C)
-
60 °C
(Cold to 90 °C)
● Suitable for washing normally soiled
clothes.
● This program consumes less energy
a
nd water.
*ECO
19
Operations
The nominated program *ECO is recommended for normally soiled load equal to the rated capacity
in the product literature.
Program Description
Proper
Temperature
Max
spin speed
Max
load
1400 rpm 10.5 kg
1200 rpm 8.5 kg
1000 rpm 7.0 kg
1400 rpm 4.0 kg
1200 rpm
1000 rpm
1400 rpm 4.0 kg
1200 rpm
1000 rpm
BEDDING
● Suitable for washing bedspread, bed
sheet, quilt cover, etc.
Cold
(Cold to 40 °C)
800 rpm
(all models)
2.0 kg
DRUM CLEAN
● This program is to clean the drum by
removing dirt and bacteria from it.
● Make sure the drum is empty.
● Do not use any
cleaning agents for
cleaning the drum.
- - -
SCENT
● This program washes clothing
effectively to last softener scent. The
clothing will be soaked in water with
softener.
40 °C
(Cold to 90 °C)
ALLERGY
● This program is to remove allergen such
as house mite using steam.
● Suitable for washing cotton, linen, and
other daily clothes.
● Steam process is installed in the
program and cannot be deselected.
60 °C
3.0 kg
3.0 kg
HYGIENE
● This program is to wash heavily soiled
clothing and remove allergen such as
house mite.
● Prewash process and Steam process
is installed in the program and cannot
be deselected.
● Suitable for washing cotton and linen.
60 °C
(60 °C to 90 °C)
20
Operations
Available options list
Available Options
TEMP. RINSE DELAY
COTTON
●
●
●
ECO
●
●
● ●
SUPER QUICK
● ●
RINSE+SPIN
ー ● ●
WOOL
●
●
●
●
SCENT
● ●
ALLERGY
ー ● ●
HYGIENE
● ●
BEDDING
●
●
● ●
DRUM CLEAN
ー ー ー
Program
21
Operations
Function buttons
When the door lock is in the closed state, the icon is on; when the door lock is in
the open state, the indicator icon is off.
Door lock
Add laundry
When the icon is on, you can add cloth.
Adding laundry is acceptable in the washing or rinsing process in below.
- Water level is lower than door locking water level
- Water temperature is lower than 55˚C
Icons
TEMP.
You can select the appropriate water temperature according to the cloth.
Press repeatedly to select water temperature in sequence: cold, 20˚C, 30˚C, 40˚C,
60˚C and 90˚C.
RINSE
You can select the appropriate rinse times according to the cloth.
When "0" is selected, the clothes will not be exhausted.
DELAY
You can select preset time (delay timer).
Press repeatedly to select preset time in sequence.
When preset time is set, delay timer icon ( ) will be lit.
• The preset time is from 3 hours to 24 hours. No preset is allowed under 3
hours.
• Clothes that are prone to static electricity are not suitable for the preset
function.
• After Start/ Pause is pressed, the time until the end of program is indicated on
Display.
NOTE
22
Operations
To activate setting mode, hold down PROGRAM, TEMP., RINSE simultaneously for 3
seconds when the washing machine is turned on.Setting Mode can be activated before
program is started.
Setting mode Setting button Contents
Water level RINSE
"0" or "1" is toggled on display by pressing
RINSE.
0: standard water level (default)
1: water added than standard level
Available programs: COTTON
Reset the setting to factory setting by pressing
DELAY.
Factory reset DELAY
Setting mode
Mute
In the standby state, press and hold TEMP. for 3 seconds to turn on and off the
mute function.
When this icon is on, the machine will not output sound, except for error sounds.
Child lock
Press and hold RINSE for 3 seconds, the child lock function will be turned on or off, and
the child lock indicator will turn on or off.
This function can lock all the buttons except the Power button and the child lock button.
Child lock can not be turned on when 0:00 is blinking on Display after program
operation ended.
NOTE
• Once the child lock function is turned on, this setting is memorized even after the
washing machine is turned off. When the washing machine is turned on again, the
program will resume from where it has been stopped.To operate other buttons
except Power, turn off the child lock repeating procedure explained above.
23
3. Reinsert the accessories and replace
the detergent dispenser into the recess;
make sure that detergent dispenser is
pushed back into place.

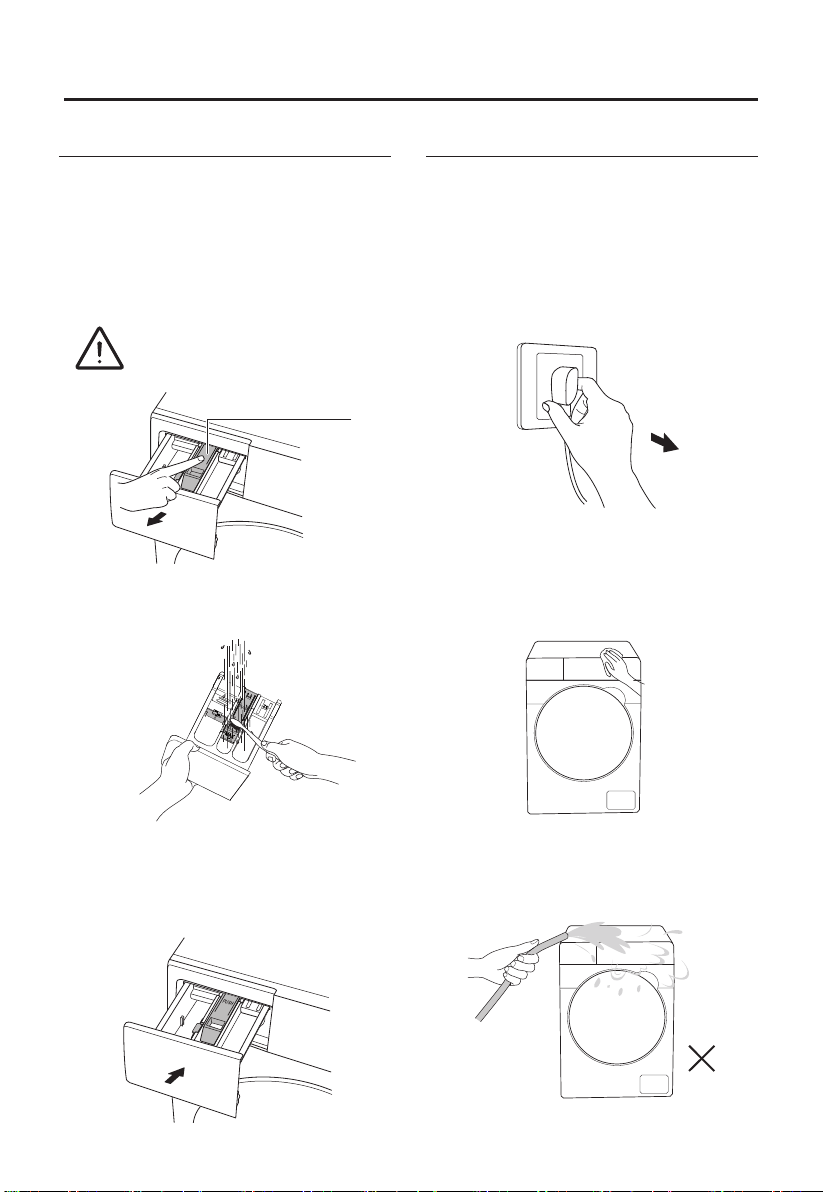

Cleaning the detergent dispenser
Clean the detergent dispenser when
detergent and softener accumulate.
1. Press the release lever on the inside
of the detergent dispenser and pull it
out. Then remove accessories from
the drawer.
Make sure not to drop detergent
dispenser when pulling it out.
2. Wash all recesses under running water
and clean the drawer and recesses with
a small brush.
Wipe the washing machine exterior with a
soft cloth and non-abrasive household
detergents.For the control panel, wipe off
with dry soft cloth.
Keep the washing machine clean to enhance
the performance, avoid unnecessary
maintenance and increase the service life.
Before cleaning the washing machine,the
machine shall be unplugged.
Do not pour water on the exterior in case
parts of the machine would be damaged.
Release lever
Cleaning the enclosure
Maintaining the washing machine
CAUTION
24
Drum clean
Keep the washing machine clean to enhance the performance, avoid unnecessary
maintenance and increase the service life.
This is an auto drum clean program and can remove the possibly bred mold in the drum.
1. Turn on the water supply faucet.
2. Put appropriate amount of cleansers in the detergent drawer and close the detergent
drawer.
3.Touch the screen and select the Drum clean program.
4.Press Start/Pause button to start the Drum clean program.
● The Drum clean program cannot be used when there are clothes in the washing
machine, or the laundry or machine may be damaged.
● Ordinary detergents cannot be used for the Drum clean program.
● Only one tenth of drum cleanser amount recommended by the manufacturer shall be
used for the sake of environmental protection.
● Bleach containing chlorine may fade the laundry; be sure to use oxygen bleach only.
● Powder cleanser: Please use powder bleach or the cleanser specialized for the
inner drum of the washing machine.
● Liquid cleanser: Please use liquid oxygen bleach or the cleanser specialized for the
inner drum of the washing machine.
Maintaining the washing machine
2. Pull out the drain tube, pull the stopper,
let water flow to a container.
1.Open the filter cover of the washing
machine.
Before cleaning and maintenance, please pull the power cord out from the socket.
Clean the drain pump filter 5 to 6 times a year is recommended; or when you see the
"E03" error message on the display clean the filter.

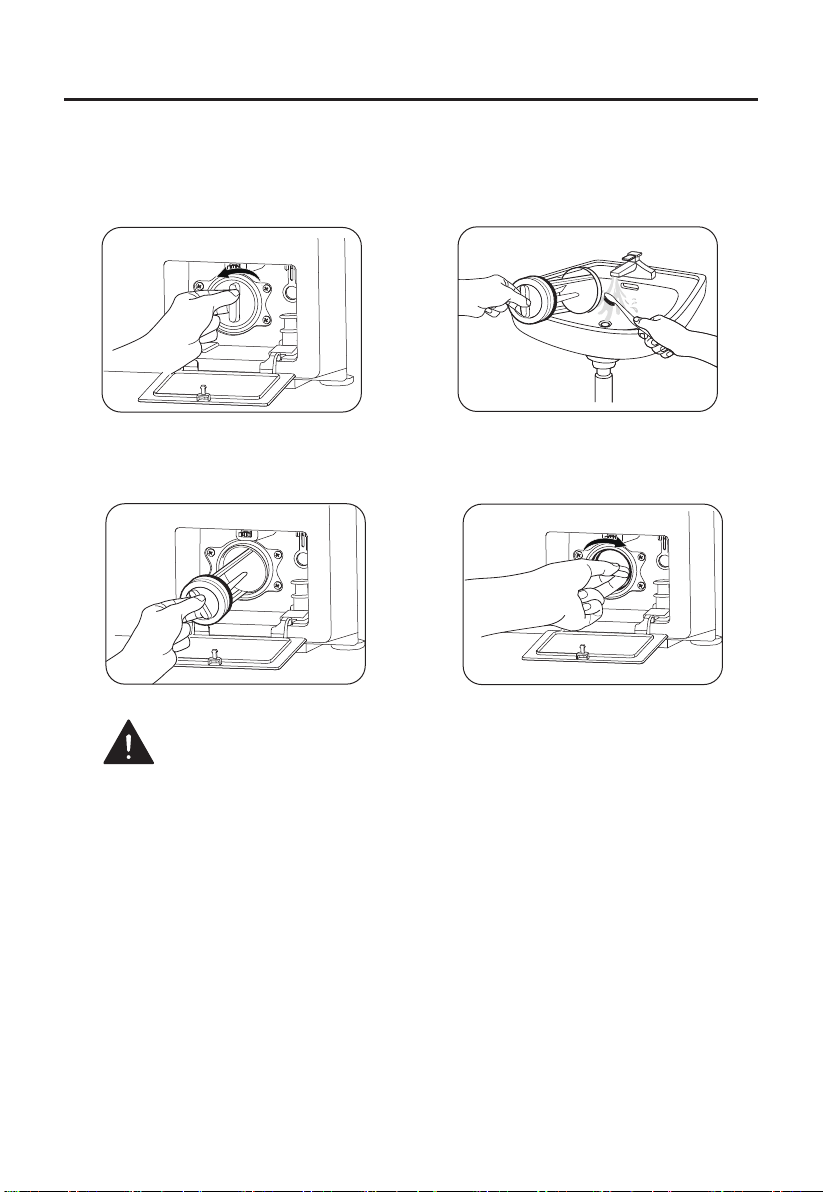

Cleaning the drain pump filter
25
Maintaining the washing machine
Don't unscrew the drain pump filter when the machine is in operation
or when hot water is flowing out.

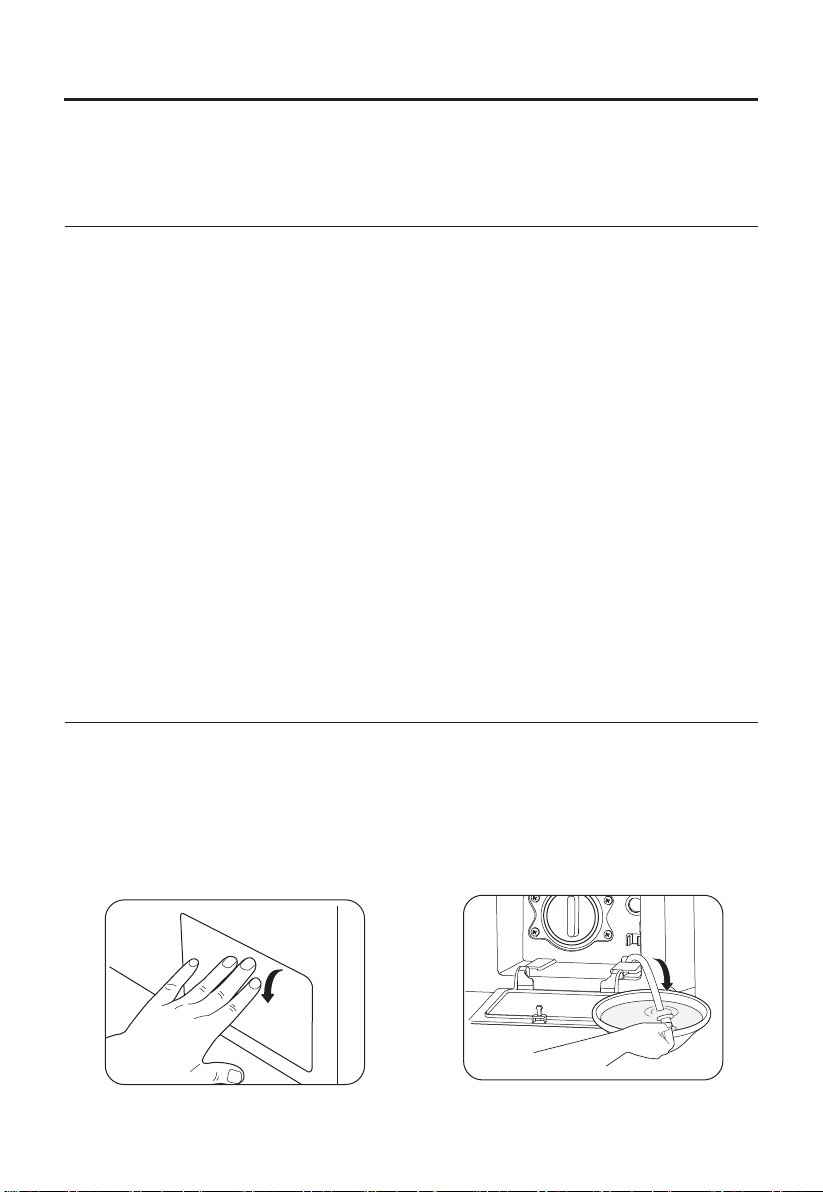

● Make sure the filter is replaced into the machine when the cleaning is
finished. Otherwise,fault or water leakage may occur.
● Make sure the filter is assembled in place.
● In case of emergency, drain water with this procedure.
5. Reinsert the drain pump filter.
6. Install the drain pump filter by turning
right and close the filter cover .
4. Wash any residue and stain from the filter
and make sure the inside of the drain
pump is not blocked.
3. Unscrew the pump filter by turning left
and drain off all the water.
WARNING
26

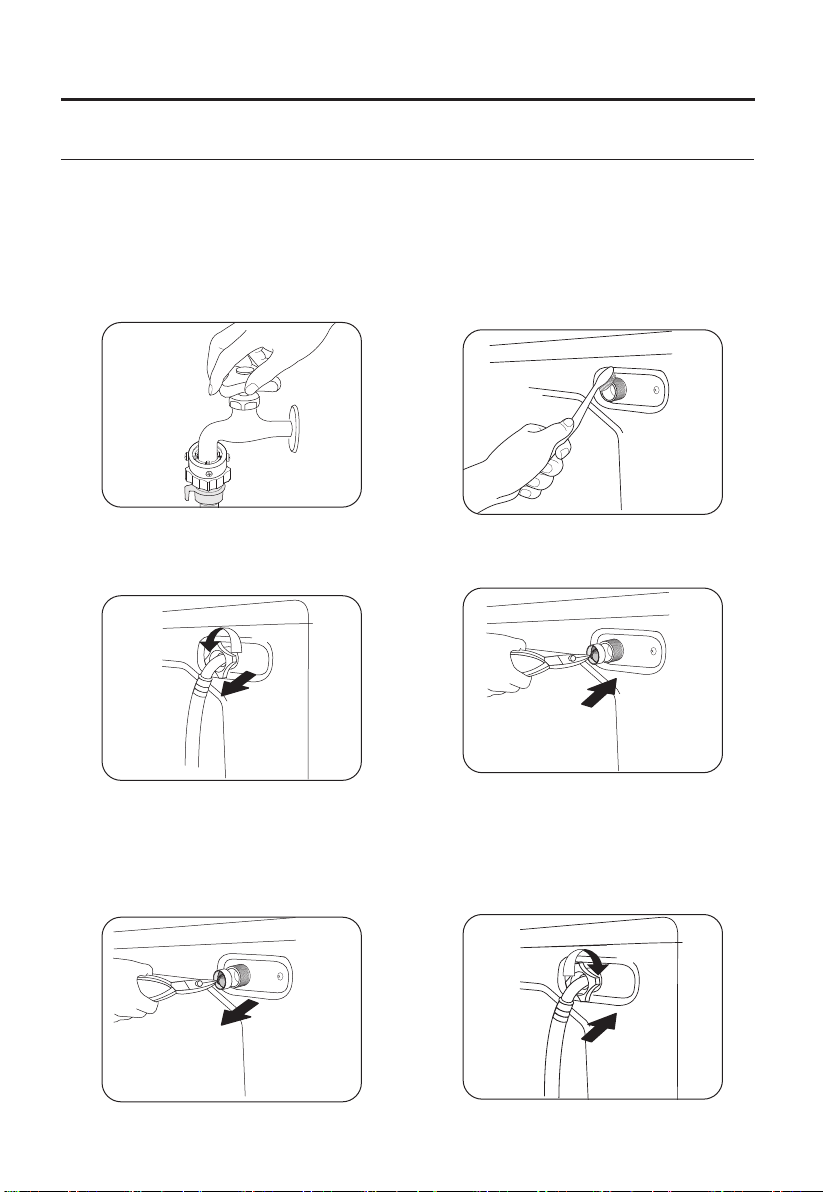

Cleaning the water supply valve filter
Maintaining the washing machine
You should clean the supply valve filter from time to time or when you see "E01" error
message on the display:
1. Pull out the power plug and turn off the
water supply faucet of the washing
machine.
4.
Clean the inside and outside of the threaded
connector.
2. Unscrew the water supply hose from
the back of the machine.
5.Push the filter back into the original place.
6.
Reconnect the water supply hose.Turn on
the faucet and make sure the connections
are watertight.
3. With a pair of pliers, gently pull out the
water supply valve filter from the valve
connector and rinse it under water until
clean.
27
Storing the washing machine
If you need to store your washing machine for a long time,please drain the residual
water out from the machine. Otherwise,the residual water will remain in your washing
machine for a long time and damage your machine.
1. Select RINSE+SPIN, and set RINSE times to 0 to drain the water in the drum.
2. Pull out the drain tube, pull the stopper, let water flow to a container.
3. Turn off the water faucet and separate the water supply hose.
4. Unplug the washing machine and open the machine door to allow ventilation.

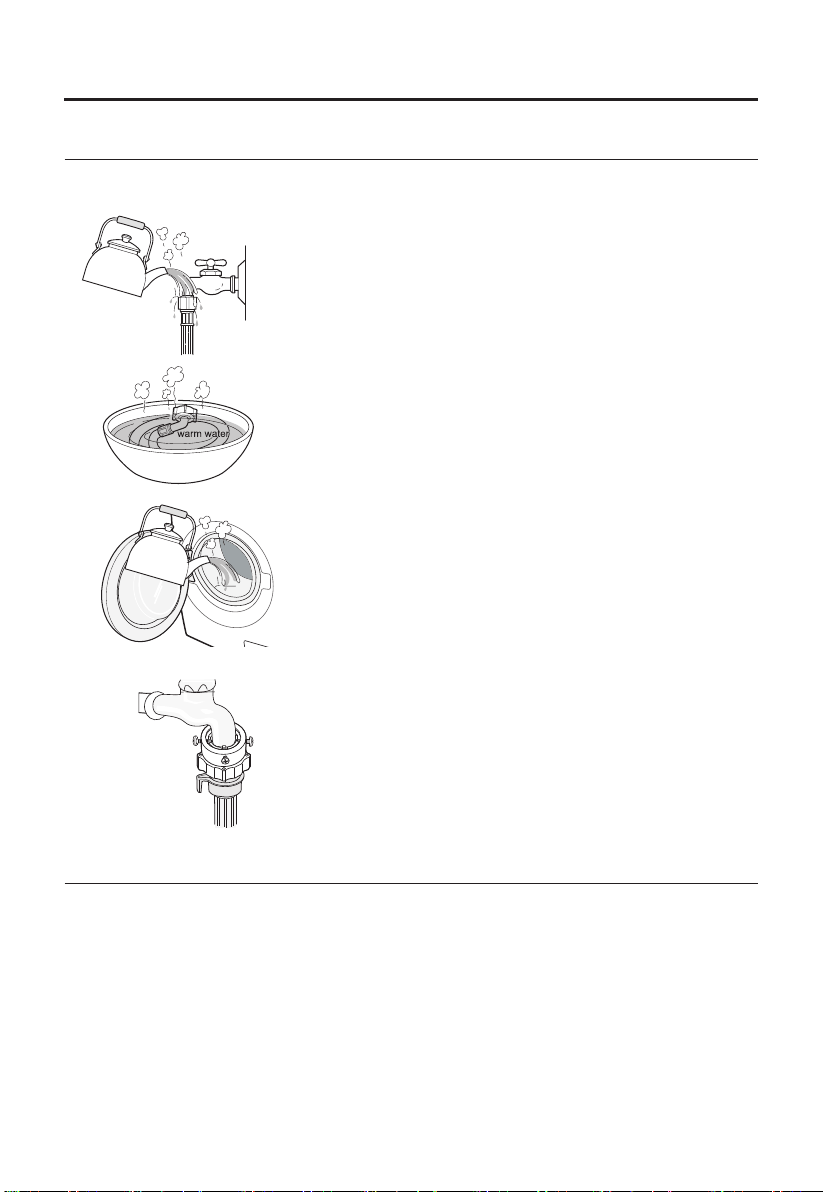

Handling a frozen washing machine
If the temperature drops below 0˚C and your washing machine is frozen,you can:
1.Wrap up the faucet with the towel soaked in warm water
and pour warm water on it to unfreeze the water supply
hose.
2.Remove the water supply hose and soak it in warm
water.
3.Pour warm water into the washing machine drum and
let it sit for 10 minutes.
4.Reconnect the water supply hose to the water faucet
and check if the water supply and drain operations are
normal.
● When using the washing machine again,please make
sure that the ambient temperature is above 0 ˚C.
warm water
warm water
Maintaining the washing machine
28
Problems and solutions
Washing machine
vibrates or is too noisy
The drainage pump has
abnormal noise
The displayed washing time
deviates from the actual
washing time
The pre-wash detergents
in the detergent dispenser
do not flow into the drum
• Check if the washing program with the pre-wash function is
selected.
• There is deviation in the weight of laundry, watery supply time
and balancing time.
• Check if the drainage pump filter is blocked by laundry flocks
and clean the drain pump filter timely to erase the noise.
Phenomenon Solution
Troubleshooting
Detergent is left in the
detergent dispenser after
a program is finished.
Washing machine does
not start.
• Make sure the washing machine is plugged in.
• Make sure to press Start/Pause to start the washing machine.
• Make sure Child Lock is not activated.
• Check the fuse or reset the circuit breaker.
Water supply does not
start, or is insufficient.
• Fully open the water tap.
• Make sure the door is properly closed.
• Make sure the water supply hose is not frozen.
• Make sure the water supply hose is not kinked or clogged.
• Make sure there is sufficient water pressure.
• Check if the water pressure is sufficient when washing.
• Check if the detergents are put in the injection port of the
body drawer.
• Check if the washing powder are damp and caking.
• Check if the washing machine is set on an uneven surface. If
the surface is uneven, adjust the adjustable feet to level the
washing machine.
• Check if the shipping bolts are removed.
• Check if the washing machine is touching any other objects.
• Check if the laundry load is balanced in the inner drum of the
washing machine.
29
Troubleshooting
Phenomenon Solution
Washing machine does
not drain and/or spin.
Door does not open.
• Make sure the drain hose is straightened all the way to the
drain system. If you encounter a drain restriction, call for
service.
• Make sure the drain pump filter is not clogged.
• Close the door and press or tap Start/Pause. For your
safety,the washing machine will not tumble or spin unless
the door is closed.
• Make sure the drain hose is not frozen or clogged.
• Make sure the drain hose is connected to a drain system
that is not clogged.
• If the washing machine is not supplied with sufficient power,
the washing machine temporarily will not drain or spin.
• As soon as the washing machine regains sufficient power, it
will operate normally.
• Press or tap Start/Pause to stop the washing machine.
• It may take a few moments for the door lock mechanism to
disengage.
• Make sure all the water in the drum is drained.
• The door may not open if water remains in the drum. Drain
the drum and open the door manually.
• Make sure the door lock light is off. The door lock light turns
off after the washing machine has drained.
• Check the washing machine is in cooling, and the door lock
cannot be opened until the cooling is over.
• Check the washing machine is in working, and the door lock
cannot be opened until the motor stop.
Water is leaking.
• Make sure the door is properly closed.
• Make sure all hose connections are tight.
• Make sure the end of the drain hose is correctly inserted
and secured to the drain system.
• Avoid overloading.
• Use “low foam” detergent to prevent oversudsing.
30
Troubleshooting
Phenomenon Solution
There are excessive foams.
Foam is left in gasket after
a program is finished.
Spin time is extended/
Spin speed is low.
Button does not respond.
18:88 is indicated on
Display when the washing
machine isturned on.
• Hold PROGRAM and Power simultaneously for 3 seconds
when 18:88 is indicated on Display.
• Because there is Fuzzy control in your machine, it can
inspect the balance when spinning. In order to protect the
machine, when the clothes is unbalance, it will expend the
spinning time or reduce speed to keep the clothes balance,
or spin in a lower speed.
• When there are excessive foams, the time on the display
will cease for a spell, meanwhile the machine is eliminating
the foams rather than fault, and the machine will
automatically return to normal program if finished.
• Make sure you use the recommended types of detergent as
appropriate.
• Use“low foam” detergent to prevent oversudsing.
• Reduce the detergent amount for soft water, small loads, or
lightly soiled loads.
• Check if control panel is clean. Wipe off water or dirt with soft
cloth. Remove stickers or tapes.
• Touch the panel directly with finger. Operating with gloves,
bandages, nails, or other sharp objects does not respond.
• Press the center of the button.
• Do not take your finger off the button immediately.
• Check if multiple buttons are not pressed.
31
Troubleshooting
Error messages description
Error code SolutionCode description
Abnormal
water supply
Abnormal
draining
Imbalance alarm
**:number
Abnormal door
lock
● Turn off power and pull out power plug.After waiting for 1
minute，plug the power plug，turn the washing machine on.
If after trying solutions, and trouble is not solved, contact with the after-sales service department.
● Check whether the drain hose is clogged.
● Clean the filter cover of drainage pump.
● Check whether the drain hose is installed correctly.
● Check if the door is opened and make sure the door is closed
firmly.
● Check whether the water tap for water supply is opened.
● Clean the filter cover of water inlet valve.
● Check the water pressure.
● The clothes have too large eccentricity or get tangled; arrange
them in order and put them in the drum.
● Add more clothes for washing.
There is
possibility of
malfunction
32
