ES-FL77MS
EN -2-
CHAPTER-1: BEFORE USING THE APPLIANCE 4
SAFETY WARNINGS 4
GENERAL WARNINGS 6
CHAPTER-2: OVERVIEW OF YOUR DEVICE 8
Techincal Specications 8
General Appearance 9
CHAPTER-3: INSTALLATION 9
Removing transportation safety screws 9
Adjusting Adjustable Stays 9
Electrical connection 10
Water inlet hose connection 10
Water discharge connection 10
CHAPTER-4: INTRODUCTION OF CONTROL PANEL 11
Detergent drawer 11
Programme knob 11
Electronic display 11
CHAPTER-5: PRELIMINARY PREPARATION FOR LAUNDERING 12
Separating laundries 12
Adding detergent into machine 12
CHAPTER -6: OPERATING YOUR MACHINE 13
Operating your machine 13
Auxiliary functions 13
Start / Pause 13
Child lock 13
Cancelling programme 14
Finishing programme 14
CHAPTER-7: PROGRAM TABLE 14-15
CHAPTER-8: MAINTENANCE AND CLEANING OF YOUR MACHINE 16
Warning 16
Water inlet lters 16
Pump lter 16
Detergent drawer 16
Liquid Detergent Apparatus 17
CHAPTER -9: FLUSH STOPPER / BODY / DRUM 17
Flush stopper 17
Body 17
Drum 17
CHAPTER-10: TROUBLESHOOTING 18
CHAPTER-11: AUTOMATIC FAULT WARNINGS AND WHAT TO BE DONE 20
Disposal of your old machine 20
Dear Customer,
Our goal is to offer you, high quality products that exceed your expectations. Your appliance is produced in
modern facilities and is carefully, particularly tested for quality.
This manual is prepared in order to help you use your appliance, which has been manufactured using the most
recent technology with condence and maximum efciency.
Before using your appliance, carefully read this guide which includes basic information to safe installation,
maintenance and use. Please contact your nearest Authorized Service centre for the installation of your product.
The operating instructions apply to several models. Differences may therefore occur.
CONTENTS
EN -3-
SAFETY WARNINGS
Operating voltage / frequency:
(V/Hz) (220-240) V~/50Hz;
Total current (A): 10
Water pressure (Mpa)
Maximum: 1 Mpa / Minimum : 0.1 Mpa
Total power (W) : 2100
Maximum dry laundry capacity (kg): 7
Do not install your machine on a carpet or such grounds that would prevent
the ventilation of its base.
The appliance is not intended for use by people (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
Call the nearest authorized service for a replacement if the power cord
malfunctions.
Use only the new water inlet hose coming with your machine while making
water inlet connections of your machine.Never use old, used or damaged
water inlet hoses.
This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without
supervision.
Note:For softcopy of this user manual, please contact following address:
“[email protected]”.In your e-mail, please provide
the model name and serial number (20 digits) which you can nd on the
appliance door.
You must read these warnings. You can thus protect yourself and your
beloved ones against fatal injuries and risks.
CHAPTER -1: BEFORE USING THE APPLIANCE
EN -4-
Danger of getting burnt!
Do not touch discharging hose and water during discharging as the
appliance may reach high temperatures when running.
DEATH RISK DUE TO ELECTRICAL CURRENT!
• Do not use multiple receptacles or extension cord.
• Do not plug in damaged plug sockets
• Never pull the cable when unplugging – always grip the plug itself.
• Do not plug-in or out the plug from the receptacle with wet hands to
prevent electrocution!
• Never touch the machine with wet hands or feet.
• Call the nearest authorized service for a replacement if the power cord
malfunctions.
Flooding risk!
• Check whether the water runs fast or not before placing the discharge
hose on the sink.
• Take necessary measures to prevent the slipping of your hose.
• The backring force of a hose that is not placed appropriately can
displace the hose. Prevent the stopper inside your sink from blocking the
sink hole.
Danger of Fire!
• Do not keep inammable liquids near your machine.
• The sulphure content of paint removers might cause corrosion. For this
reason, never use paint-removing materials in your machine.
• Never use products that contain solvent material (like washing gas) in
your machine.
• Remove all the objects in the pockets of your laundries (needle, paperclip,
lighter, matches etc.) when placing them your machine.
Fire and Explosion risk may occur.
Fall and injury hazard!
• Do not climb on your machine. The upper table of your machine may
break and you might get injured.
• Tidy the hose, cable and packaging of your machine during installation.
You might trip over and fall.
• Do not turn your machine upside down, or on its side.
• Do not lift your machine by holding it from extruding parts (detergent
CHAPTER -1: BEFORE USING THE APPLIANCE
EN -5-
drawer, door). These parts might break and cause you to get injured.
• There’s the risk of tripping and injury if the materials like hose and cables
are not properly stored after your machine is installed.
Machine must be carried by 2 people or more.
Child safety!
• Do not leave children unattended near the machine. Children might lock
themselves up into the machine and death risk might occur.
• Door glass and surface might be extremely hot while your machine
operates. Thus, especially touching the machine might give damage to the
skins of children.
• Keep packaging material away from children.
• Poisoning might occur if the detergent and maintenance materials
are consumed, and eyes or the skin might be irritated if they come into
contact with the skin. Keep the cleaning materials away from the reach of
children.
GENERAL WARNINGS
• The necessary ambient temperature for your machine’s ideal operation
is 15-25°.
• Frozen hoses can tear and explode. In regions where temperature is
below zero, ambient temperature might endanger the safe operation of
electronic card.
• Please ensure that the clothes you will place in your machine do not
contain any foreign substances (nail, needle, coins, lighter, matches, clip
etc.) in their pockets. These foreign substances can damage your machine.
• Before starting to use your machine, you may call the nearest authorized
service and request free-of-charge help for installation, operation and use
of your machine.
• It is recommended to perform the rst washing operation in 90˚ Cotton
programme and without laundry by inserting ½ scale of detergent in 2nd
compartment of the detergent drawer.
• As detergent or softener exposed to air for a long time may cause residues,
put your detergent or softener in the detergent drawer at the beginning of
every washing.
• It is advised that you unplug your machine and close the water inlet tap if
you will not use your machine for a long time. Also, leaving the door of your
machine will prevent the formation of bad odors due to humidity.
• Some water might be left in your machine after the trials and tests
CHAPTER -1: BEFORE USING THE APPLIANCE
EN -6-
conducted due to Quality Control procedures. This will not damage your
machine.
• Remember that packaging materials of your machine may be dangerous
for children.
• Keep the packaging materials in a place where children cannot reach or
dispose of them appropriately.
• Use pre-wash programs only for very dirty laundry.
• Never open the detergent drawer when the appliance is running.
• In case of any breakdown, unplug the appliance rst and then turn the
tap off. Do not attempt to repair by yourself, always contact for authorized
service advice.
• The amount of laundry you put in your washing machine should not
exceed the maximum amount indicated.
• Never force the door to open when the machine is running.
• Washing oury clothes in your machine damages the machine. Do not
wash oury clothes in your machine.
• Please adhere to detergent/fabric conditioner manufacturers’ the use of
fabric conditioner or similar products in your machine.
• Set up your machine in a place where its door can be completely opened.
(Do not set up your machine in places where its door cannot be fully
opened.)
• Set up your machine at locations that can be fully ventilated and could
have constant air circulation.
• Denitely read the user’s manual.
• Your machine is designed to be used domestically. Commercial use will
cause your warranty to be cancelled.
• Keep your pets away from your machine.
• Please check the packaging of your machine before installation, and
the outer surface after the package is opened. Do not operate damaged
machines or machines with opened package.
• Have your machine installed only by authorized service. Any interference
to your machine by anyone other than authorized services shall cause your
warranty to be void.
• The appliance is not intended for use by people (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
CHAPTER -1: BEFORE USING THE APPLIANCE
EN -7-
• Use your machine only for laundries that have been specied as suitable
for washing by the manufacturer.
• Before operating the washing machine, remove the 4 transportation
screws and rubber spacers from the back of the machine. If the screws are
not removed, it may cause heavy vibration, noise and product malfunction,
(voiding the guarantee).
• Your machine is not covered under warranty for faults caused by any kind
of external factors (pesticides, re, etc.).
• Please do not throw away this user manual; keep it for future reference.
You or somebody else might need it in the future.
Note: Machinery specications may vary depending on the product
purchased.
REMOVAL OF PACKAGING MATERIALS
Packaging materials protect your machine from any damage that might
occur during transportation. Packaging materials are environment friendly
as they are recyclable.
Recycling material provides both raw material savings and decreases
waste production.
CHAPTER-2: OVERVIEW OF YOUR DEVICE TECHNICAL
SPECIFICATIONS
Operating voltage / frequency (V/Hz) (220-240) V~/50Hz
Total current (A) 10
Water pressure (Mpa) Maximum: 1 Mpa /
Minimum : 0.1 Mpa
Total power (W) 2100
Maximum dry laundry capacity (kg) 7
Spinning revolution (rev / min) 1000
Programme number 15
Dimensions (Height x Width x Depth) (mm) 845 x 597 x 527
CHAPTER -1: BEFORE USING THE APPLIANCE
EN -8-

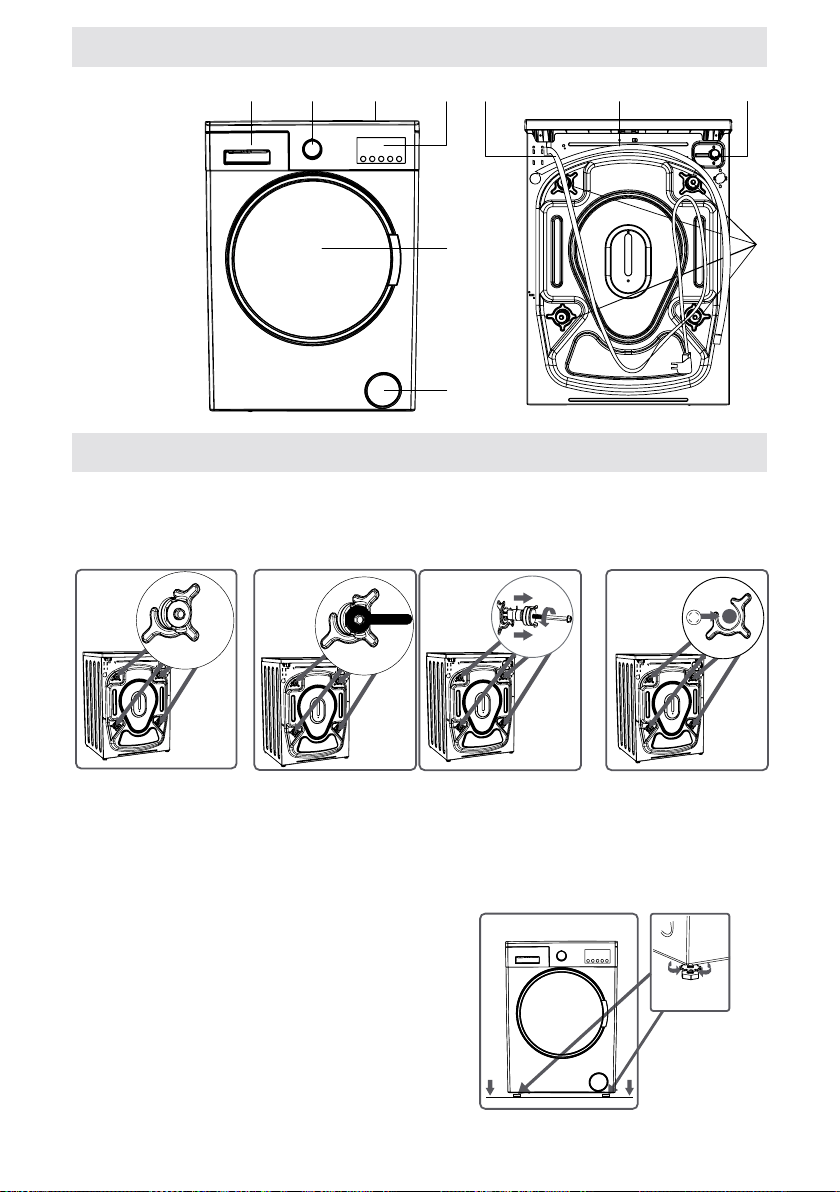

1 2 3
4 7
8
9
10
5
6
1. Detergent drawer
2. Programme knob
3. Upper Tray
4. Electronic display
5. Container
6. Cover of pump lter
7. Power Cable
8. Discharging Hose
9. Water Inlet Valve
10. Transportation
Safety
CHAPTER -3: INSTALLATION

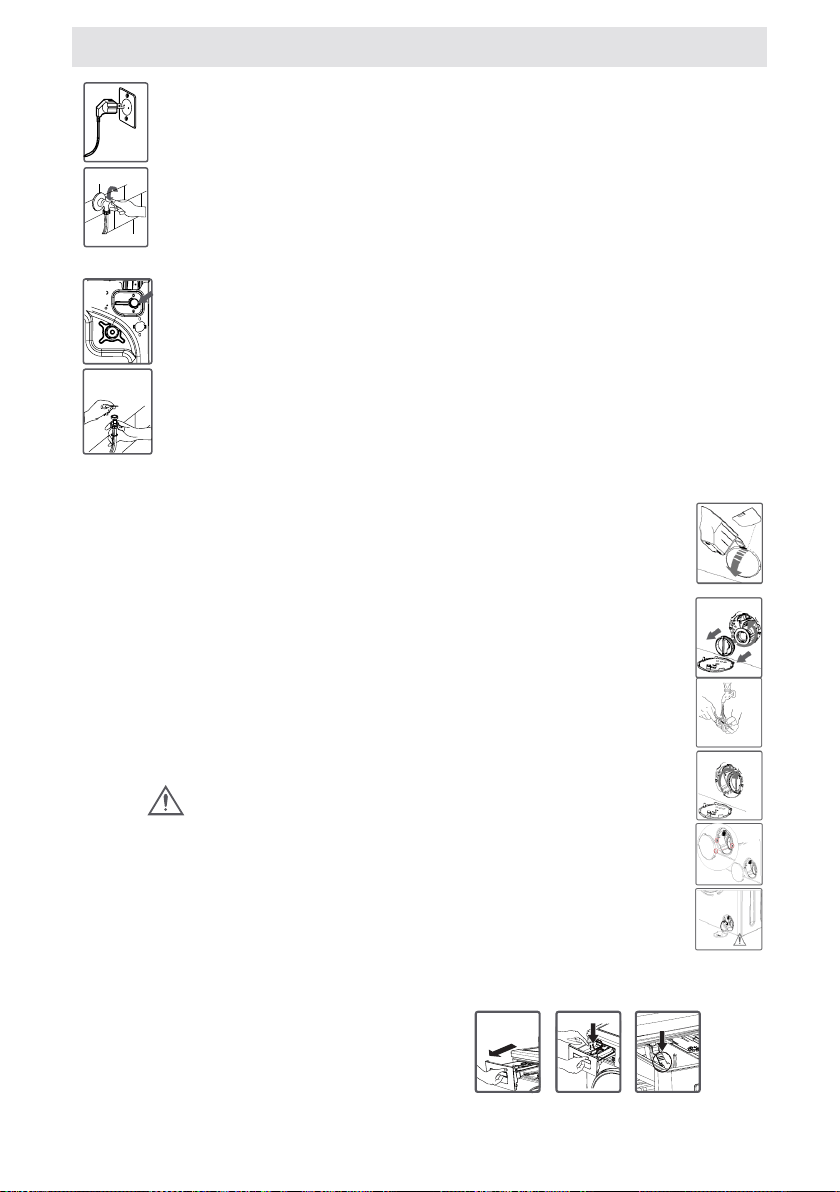

REMOVING TRANSPORTATION SAFETY SCREWS
Before operating the washing machine, remove the 4 transportation screws and rubber spacers from the back of
the machine. If the screws are not removed, it may cause heavy vibration, noise and product malfunction, (voiding
the guarantee). For this reason, transportation safety screws shall be loosened by being rotated in counter-
clockwise using an appropriate wrench.
X
4
X
4
X4
Before operating the washing machine, remove the 4 transportation screws and rubber spacers from the back of
the machine. If the screws are not removed, it may cause heavy vibration, noise and product malfunction, (voiding
the guarantee). For this reason, transportation safety screws shall be loosened by being rotated in counter-
clockwise using an appropriate wrench. Transportation screws shall be removed by pulling out. Fit the plastic
transportation screw taps delivered in accessories bag to the palces where transportation screws have been
removed. The transportation safety screws should be stored to be used in case of transportation.
NOTE: You should absolutely remove the transportation screws of your machine before the rst usage. Faults
occurring in the machines operated with transportation screw tted shall be out of scope of warranty.

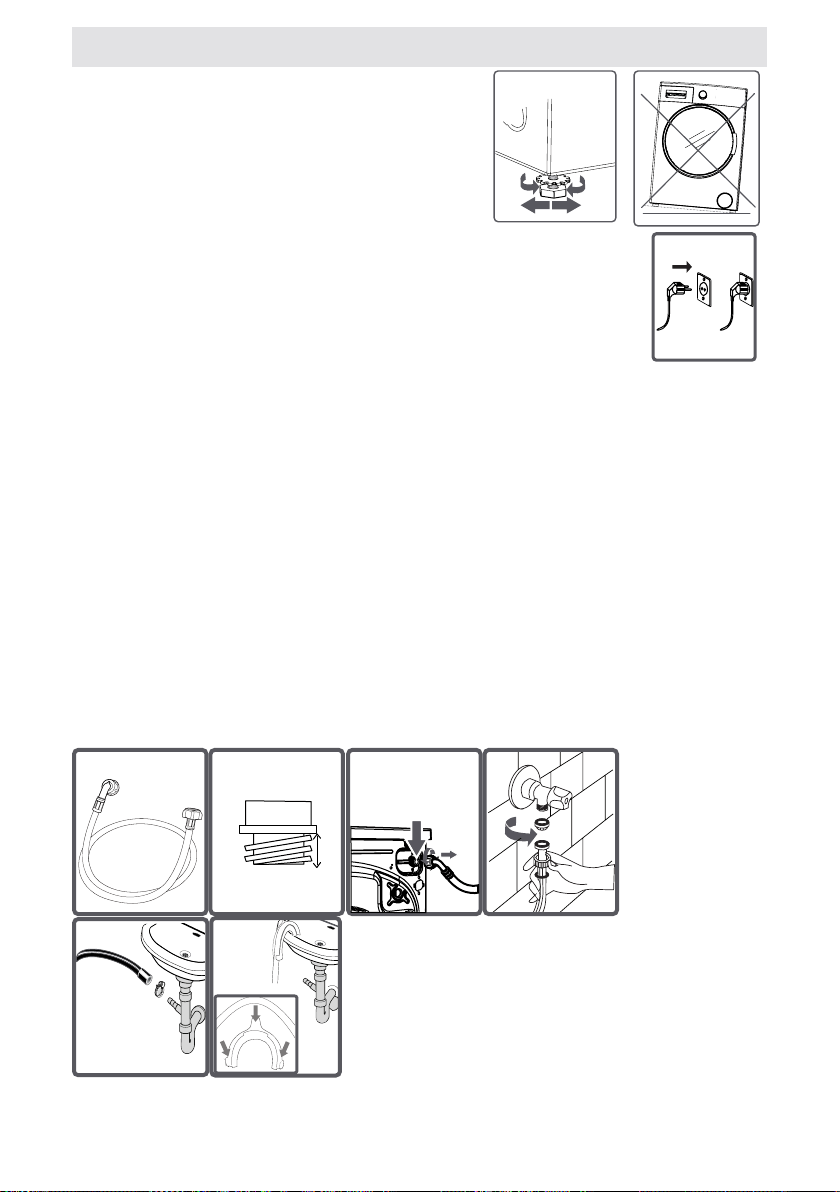

ADJUSTING ADJUSTABLE STAYS
• Do not install your machine on a carpet or such grounds that
would prevent the ventilation of its base.
• To ensure silent and vibration-free operation of your machine,
it should be deployed on a non-sliding and rm
ground.
• You can adjust the balance of your machine through the stays.
• Loosen the plastic adjustment nut.
CHAPTER -2: OVERVIEW OF YOUR DEVICE GENERAL
APPEARANCE
EN -9-
• Adjust the stays upward and downward by rotating them.
X
4
• After maintaining the balance, compress the plastic adjustment
nut upward again.
• Never put cardboard, wood or suchlike materials under your
machine if you are intending to stabilize the distortions on the
ground.
• When cleaning the ground, on which your machine rests, be
careful not to disorder stays stabilization.
ELECTRICAL CONNECTION
• Your washing machine is set to 220-240V and 50Hz.
• The mains cord of your washing machine is equipped with a specic earthed plug. This
plug should alwaysbe inserted to a earthed socket of 10 amps. The current value of the fuse
should be 10 amps. Fuse current value of the power line connected to this plug should also
be 10 amperes. If you don’t have such a receptacle and fuse conrming with this, please
have it done by a qualied electrician.
• We do not take the responsibility of the damages that occur due to ungrounded usage.
NOTE: Operating your machine under low voltage will cause the life cycle of your machine
to be reduced and its performance to be restricted.
WATER INLET HOSE / WATER DISCHARGE CONNECTION
• Your machine may have either a single inlet (cold) or double water inlets (cold/hot) based on its specications.
White-capped hose should be connected to cold water inlet and red-capped hose to hot water inlet (applicable
for machines with double water inlets).To eliminate water leakages in points of contact, 1 or 2 nuts are provided
in the hose package (applicable for machines with double water inlets). Fit these nuts to the ends of new water
inlet hoses on the side of faucet.
• Mount new water inlet hoses to a ¾ ˝, threaded faucet.
• Connect the white-elbow end of the water inlet hoses to the white-ltered water inlet valve on the rear side of the
machine and the red-elbow end to red-ltered one (applicable for machines with double water inlets)
• Tighten plastic parts of the junctions using your hand. In uncertain conditions, have the connection works be
done by a qualied plumber.
• Flow of water with pressure of 0,1-1 Mpa will allow your machine to operate more efciently.) (0,1 Mpa pressure
means that more than 8 litres of water will ow through a fully-tapped faucet per one minute.)
• Ensure that points of contact do not leak by tapping the faucet completely after carrying making the connections.
• Ensure that the new water inlet hoses are not bent, broken, crushed and resized.
• If your machine has double hot water inlets, the temperature of hot water inlet should be maximum 70°C. Note:
Use only the new water inlet hose coming with your machine while making Water inlet hose connections of your
machine. Never use old, used or damaged water inlet hoses.
• The end of water discharge hose can be tted to a specic apparatus directly attached to dirty water discharge
hole or outlet joint of the basin elbow.
• Never attempt to extend the water discharge hose by jointing.
• Do not put discharging hose of your machine in a vessel, bucket or sink.
• Make sure that the water discharge hose does not bend, buckle, be crushed or extended. Please note:
• The water drain hose should be mounted at a height of minimum 60 cm, maximum 100 cm from the ground
3/4”
10 mm
CHAPTER -3: INSTALLATION
EN -10-
1
2
3
1-Detergent drawer
2-Programme knob
3-Display Panel

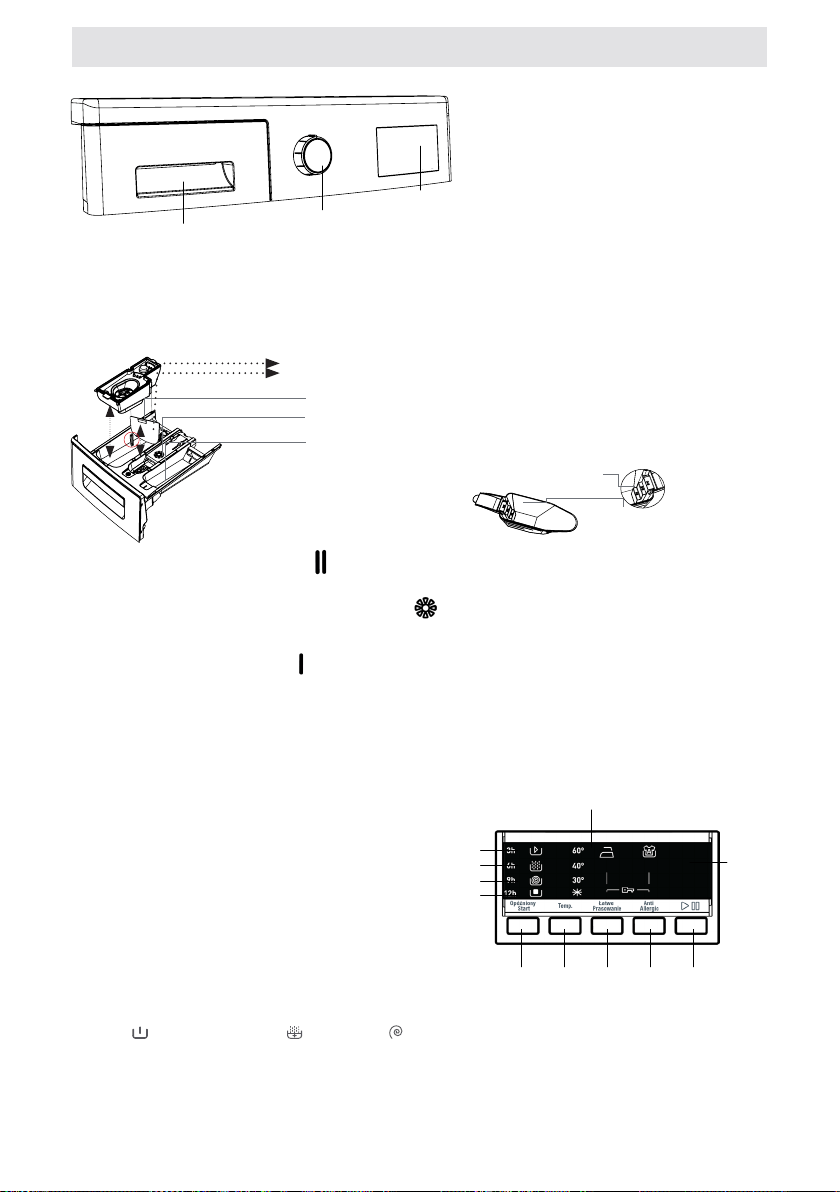

DETERGENT DRAWER
You can use the liquid level determination plate when you want to wash your laundry with liquid detergent. You
can use your liquid detergents in all programs without prewashing. Place the liquid detergent aparatus in the
second compartment (which is available inside the machine) of the detergent drawer (*) and set the detergent
amount. (Use the recommended amount of liquid detergent by detergent producers). Do not exceed the MAX
level, use only for liquid detergent, do not use this aparatus for powder detergent and take it out.)
Main wash detergent
Liquid Detergent Apparatus (*)
Softener
Compartment
Pre-wash detergent
compartment
Powder
detergent
spade (*)
Powder detergent
level stages
Main wash detergent compartment: In this compartment, only materials like detergent (liquid or powder),
lime preventer and such can be used.You can nd the liquid detergent aparatus inside your machine at rst
installation. (*)
Fabric conditioner, starch, detergent compartment: You can use softener for your laundry recommended
amount and type by the producer is recommended). Sometimes the fabric conditioners you use for your laundry
mar remain in this compartment. The reason for this is that the conditioner is not viscous. To prevent this situation,
more viscous liquid softeners are recommended to be used or the softener could be thinned and then used.
Pre-wash detergent compartment: This compartment must only be used when the pre-wash feature is selected.
Pre-wash feature is recommended for very dirty laundry. (*) Machinery specications may vary depending on the
product purchased.
PROGRAM KNOB
• You can select the programme you want to wash your laundry in through progra mme knob.
• You may set the programme selection operation by rotating the programme knob in both directions.
• Ensure that the programme knob is exactly on the programme you want to select.
ELECTRONIC DISPLAY
1
2 3 4 5 6 7 8
1. Display Panel
2. Washing
3. Rinsing
4. Spinning
5. Finished
6. Delayed start auxiliary function
7. Temperature selection adjustment
8. Auxiliary function button 1
On the display panel, you can see the washing delay timer of your machine, temperature selection of your
machine, the auxiliary functions you have selected and the stage of the programme you are running on your
machine ( pre wash/wash state, rinsing stage, wringing stage).
Furthermore, electronic display will warn you by means of led combinations that will turn on its display when a fault
occurs on your machine and notify you of the completion of the washing programme by revealing expression of
“Finished” on the display as soon as the washing programme you have selected has nished as well.
CHAPTER -4: INTRODUCTION OF CONTROL PANEL SECTIONS
6
2
7
3
1
8
4
9
5
10
11
1. Display Panel
2. Washing
3. Rinsing
4. Spinning
5. Finished
6. Delayed start auxiliary function
7. Temperature selection adjustment
8. Auxiliary function button 1
9. Auxiliary function button 2
10. Start/Pause button
11. Additional Function Leds
EN -11-
SEPARATING LAUNDRIES
• Your laundry has product labels on them that speciy their specications. Wash or dry your laundry according
to the specifciations on the product label.
• Separate your laundries according to their types (cotton, synthetic, sensitive, wool etc.), their temperatures
(cold, 30°, 40°, 60°, 90°) and degree of contamination (slightly stained, stained, highly stained).
• Never wash your coloured and white laundry together.
• Wash your coloured laundries separately in the rst washing as they may bleed.
• Ensure that there are no metallic materials on your laundries or in the pockets; if so, take them up.
WARNING: Faults that will emerge in case of penetration of foreign substances into your machine are not included
within the scope of warranty.
• Zip up and button up your laundries.
• Remove the metallic or plastic hooks of tulle curtains or curtains or place them in a washing net or bag and
then muzzle them.
• Reverse textiles such as pants, knitwear, t-shirt and sweat suit.
• Wash socks, handkerchief and suchlike small laundries in a washing net.
• Open the door of your machine.
• Spread your laundries in your machine.
NOTE: Maximum loading capacity may vary based on the laundry type you will wash, degree of contamination
and the programme you have chosen. Do not exceed maximum dry loading capacity indicated in the programme
table for washing programmes. You can take the following table of weights as an example. • Put each item of
laundry separately.
• Ensure that no laundry is stuck between the cover and bellow seal when closing the door of your machine.” •
Push the door of your machine until hearing the locking sound to close it.
• Close the door of your machine properly, otherwise your machine will not start the washing operation.
LAUNDRY TYPE WEIGHT (gr)
200
500
1200
700
200
100
250
Towel
Linen
Bathrobe
Quilt cover
Pillow slip
Underwear
Tablecloth
ADDING DETERGENT INTO MACHINE
The amount of detergent you will put in your machine will depend on the following criteria:
• Your detergent utilization will be based on the degree of contamination of your laundries. Do not prewash your
less stained laundries and put your slight amount of detergent in the 2nd compartment of the detergent drawer.
• For your much stained laundries, select a programme including prewashing, and put ¼ of the detergent you
will put in the detergent drawer in the 1st compartment of the detergent drawer while putting the remaining ¾ of
it into 2nd compartment.
• Use detergents produced for automatic washing machine in your machine. The amount of detergent you will use
for your laundries is printed on the detergent package.
• The higher the degree of hardness of the water the more detergent you will use.
• The amount of the detergent you will use will increase as the amount of your laundries increase.
• Put the softener in the softener compartment in the detergent drawer. Do not exceed the MAX level. Otherwise,
softener will ow into washing water through ushing.
• Softeners with high density are required to be thinned to a degree before being put in the drawer. Because high-
density softener will clog the ush and avoid the ow of the softener.
• You can use your liquid detergents in all programs without prewashing. For this, t liquid detergent level plate in
the accessories bag or the liquid detergent apparatus (*) into 2nd compartment of the detergent drawer and set
the amount of liquid detergent according to the levels on this plate. Remember to detach the liquid detergent plate.
CHAPTER -5: PRELIMINARY PREPARATION FOR LAUNDERING
EN -12-
(*)Machinery specications may vary depending on the product purchased.
• Plug your machine in.
• Open the water faucet.
• Open the machine door.
• Spread your laundries in your machine.
• Push the door of your machine until hearing the locking sound to close it.
• Selecting programme
• Select the convenient programme for your laundries on the programme table.
AUXILIARY FUNCTIONS
Before starting the programme, you can optionally select an auxiliary function.
• Press on the button of auxiliary function you would like to select.
• If auxiliary function symbol on electronic display ashes continuously, the
auxiliary function you have selected will be activated.
• If auxiliary function symbol on electronic display blinks, the auxiliary
function you have selected will not be activated.
Reason for non-activation:
• The auxiliary function you want to use in the washing programme you have selected is not applicable.
• Your machine has passed over the stage, during which the auxiliary function you would like to select would be
implemented.
• It is not compatible with an auxiliary function you have selected previously.
1- Delay timer
By using this auxiliary function, you can make your machine to start the washing operation with delays between
“3h, 6h, 9h, 12h”.
To use auxiliary function of delayed start:
- Press the delayed start button once.
- “3 h” led shall appear.
- Press on delayed start button until the time, on which you want washing operation to be started.
- To activate the time delay you have selected in the programme, you may press on any auxiliary function button
you like except “Start/Standby” button.
If you have skipped the time delay you want to set, you can go back to the time desired by keeping pressed on
time delay button.
If you want to cancel the time delay, you are required to press the time delay button once symbol will no longer
ash on electronic display.
If you want to cancel the time delay, you are required to press the time delay button once symbol will no longer
ash on electronic display.
2-Temperature selection
You can select the washing water temperature with the washing water temperature adjustment button.
When you select a new programme, there won’t be any display on the temperature adjustment leds on the display
panel. When you press the temperature adjustment button, the max. Temperature value of the programme
you have selected shall appear on the led display panel.
You can gradually decrease the washing water temperature between the maximum washing water temperature of
the selected programme and cold washing selections by pressing temperature adjustment button.
If you have missed the washing water temperature you wanted, you can return to the intended temperature by
continuously pressing the washing water temperature adjustment button.
NOTE: When 90° programme is selected, the max. temperature value of the selected programme is not displayed
on the display panel. When the temperature value is decreased to 60°, 40°, 30°, (cold washing) temperature
levels by pressing the temperature adjustment button, the decreased temperature value is displayed on the
display panel.
3- Easy ironing
You can enable your laundries to be taken out less wrinkled as the washing operation
is completed by employing this auxiliary function. You may make the programme active by
pressing the easy ironing auxiliary function button when the led light of the symbol turns on.
4- Anti-Allergic
In the programmes where this auxiliary function is active, you may have your machine perform an extra rinsing
operation on your laundries prior to latest rinsing operation. You may make the programme active by pressing the
anti-allergic button on the display panel when the led light of the symbol turns on.
Start/Pause button
By pressing on the Start/Pause button, you may start the programme you have selected or suspend a running
programme. If you switch your machine to the standby mode, the Start/Pause led on the electronic display will
blink.
Child Lock
To avoid programme ow from being affected if programme buttons are pressed or programme button is turned
when performing washing operation in your machine, child lock is available.
Child lock will be activated in case pressed on both auxiliary functions 3 and 4 at the same time for more than 3
seconds. You can see the auxiliary function leds on the display when activated.
If pressed any button while child lock is active, the Additional Function Leds will blink on the display.
CHAPTER -6: OPERATING YOUR MACHINE
EN -13-
If while the child lock is engaged and any programme is running, the programme knob is switched to the CANCEL
position and another programme is selected, the programme previously selected continues from where it left.
To deactivate it, it will be sufcient to press on the same buttons for more than 3 seconds. When the child lock is
deactivated, the Additional Function Leds will blink on the display.
Cancelling programme
If you want to cancel any programme running:
- Switch the programme knob to “OFF” position.
- Your machine will stop the washing operation and the programme will be cancelled.
- To get rid of the water accumulated in the machine switch the programme knob to any programme.
- Your machine will perform the necessary discharge operation and cancel the programme.
- You can run your machine by selecting a new programme.
Finishing programme
Your machine will stop by itself as soon as the programme you have selected nishes.
- End led will blink on the display panel.
- You can open the machine’s door and remove the laundry.
- Leave the door of your machine open to allow the inner part of your machine to dry after removing your laundries.
- Switch the programme knob to CANCEL position.
- Unplug your machine.
- Turn the water faucet off.
CHAPTER-7: PROGRAM TABLE
Program
name
Washing
temperature
(°C)
Maximum dry
laundry amount
(kg)
Detergent
compartment
Prog.
duration
(Min.)
Laundry type / Descriptions
COTTON 90° 90° 7,0 2 180
Very dirty, cotton and ax
textiles. (Underwear, linen,
tablecloth, towel (maximum
3,5 kg), bedclothes, etc.)
Pre-Wash
Cotton
60° 7,0 1+2 171
Dirty cotton and ax textiles.
(Underwear, linen, tablecloth,
towel (maximum 3,5 kg),
bedclothes, etc.)
COTTON
ECO
60C°
60° 7,0 2 200
Dirty cotton and ax textiles.
(Underwears, linen, tablecloth,
towel (maximum 3,5 kg),
bedclothes, etc.
COTTON
40C°
40° 7,0 2 190
Dirty cotton and ax textiles.
(Underwears, linen, tablecloth,
towel (maximum 2,5 kg),
bedclothes, etc.
ECO 20° 20° 3,5 2 96
Less dirty, cotton and
linen textiles. (Underwear,
bedsheet, tablecloth, towel
(max. 2 kg) bedcloth, etc.
EASY CARE 40° 3,5 2 89
Very dirty or synthetic-mixed
textiles. (Nylon socks, shirts,
blouses, synthetic-including
trousers etc.)
WOOL
30° 2,5 2 42
Woollen laundries with
machine wash labels.
RINSING - 7,0 - 36
If you want to additionally
rinse your laundries upon
completion of washing
operation, you may use this
programme for any kind of
laundries.
CHAPTER -6: OPERATING YOUR MACHINE
EN -14-
SPINNING - 7,0 - 15
If you want to additionally
Spinning your laundries
upon completion of washing
operation, you may use this
programme for any kind of
laundries.
SENSITIVE/
HAND WASH
30° 2,5 2 90
Laundry recommended
for hand wash or sensitive
laundry.
SPORTS
WEAR
30° 3,5 2 80
Sportswear.
MIXED 30° 3,5 2 80
Dirty cotton, synthetics,
colour and ax textiles can be
washed together.
BLOUSES /
SHIRTS
60° 3,5 2 112
Dirty cotton, synthetic and
synthetic-mixed shirts and
blouses can be washed
together.
DAILY 60 min. 60° 3,0 2 60
You can wash your dirty
cotton, colour and ax textiles
at 60°C in 60 minutes.
RAPID 15
min. 30° 2,0 2 15
You can wash your slightly
stained, cotton, colured and
ax textile within only 15
minutes.
NOTE: As the washing period is short, less amount of detergent is required to be used compared to other
programmes. The programme period will increase if your machine detects instable loading. You can open the
door of your machine 2 minutes after the completion of washing operation. (The duration of 2 minutes required to
open the door of your machine is not included in the washing period.)
NOTE: PROGRAM DURATION MIGHT CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER,
AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.
The nominated program (Cotton Eco 60°C course) is recommended for normally soiled load equal to the rated capacity in
the product literature.
CHAPTER-7: PROGRAM TABLE
EN -15-
Unplug your machine before starting the maintenance and cleaning of your machine.
Turn the tap water off before starting the maintenance cand cleaning of your machine.
CAUTION: Your machine’s parts might be damaged if cleaners with solvent agents are used. Do not
use cleaning materials with solvent agents.
WATER INLET FILTERS
Filters to avoid dirt and foreign substances in the water from penetrating into the machine are
available both on the side of faucet and on the ends of water valves along the water inlet hose of
your machine. If your machine cannot intake sufcient amount of water despite water faucet being
open, these lters should be cleaned. (It is recommended that you clean your pump lter once in
2 months.)
- Detach the water inlet hoses.
- Remove the lters on water inlet valves using pliers and then clean it with a brush in water.
- Disassemble the lters on the side of faucet side of water inlet hoses manually and clean it.
- Having the lters cleaned, you can t them in the same way reversely.
CAUTION:
Filters of water inlet valves may be clogged due to contaminated water faucet or lack of necessary
maintenance or valves may be broken down, causing water leaking into your machine continuously.
The breakdowns that may arise due to these reasons are out of the scope of warranty.
PUMP FILTER
A lter system which avoids threads remaining from your laundries and tiny materials from entering
into the pump during water discharging operation carried out by your machine after completing
washing so prolonging the lifecycle of your pump is available. It is recommended that you clean your
pump lter once in 2 months. To clean pump lter:
• To open the pump cover, you can use the powder detergent spade (*) or liquid detergent level plate
coming out of your machine.
• Fit the end point of the plastic part to the gap of the pump cover and push it back. This will open
the cover.
• Before opening the lter cover, settle a vessel in front of the lter cover to prevent the water
remained in the machine from owing on the ground.
• Loosen the lter cover in counter-clockwise and then empty water.
Note: You may have to empty the water collection vessel several times according to the amount of
water in the machine.
• Clean the foreign materials in the lter with a brush.
• After cleaning the lter, t the lter cover and tighten it by rotating it in clockwise direction.
• While closing the pump cover, ensure that the parts on the inner side of the cover to match the
holes on the front panel side.
• You can reattach the pump cover in the reverse order that you removed it.
WARNING!
As water in the pump may be hot, wait until it cools down.
(*) Machinery specications may vary depending on the product purchased.

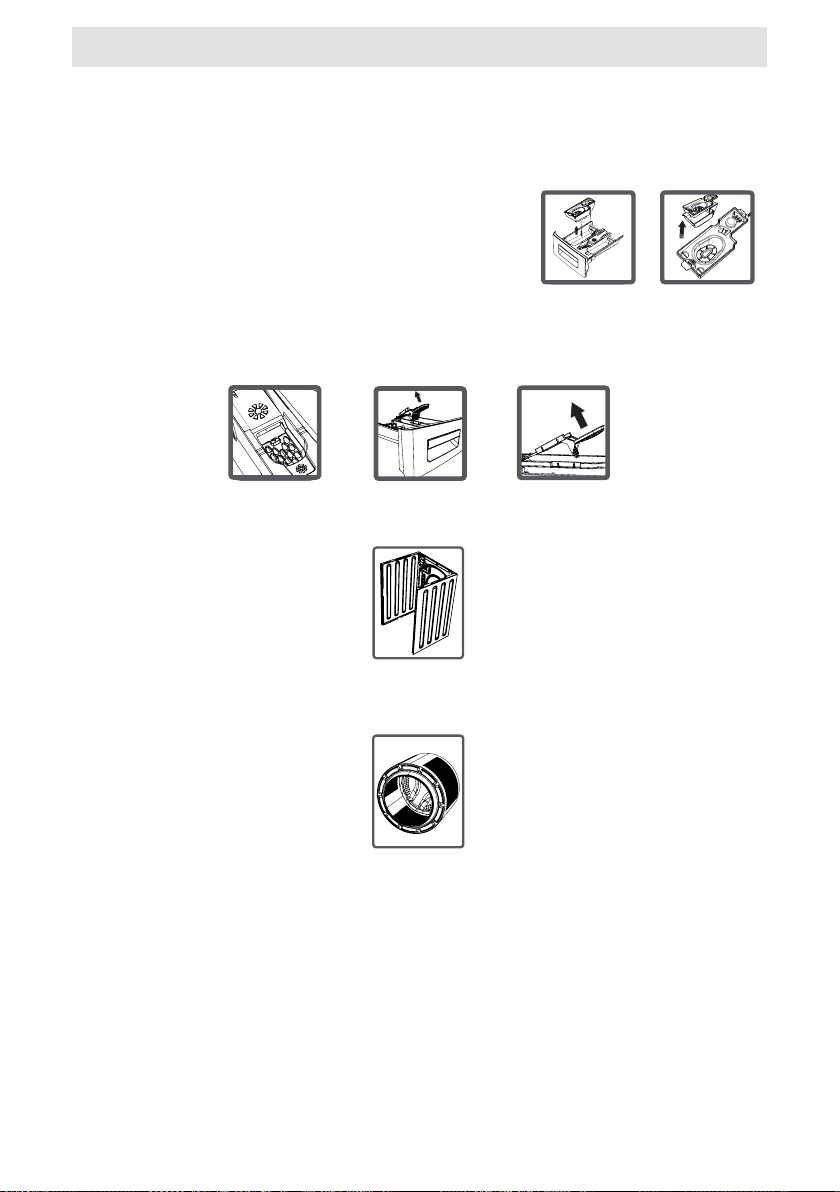

DETERGENT DRAWER
Your detergents may deposit residue in detergent drawer and housing of detergent drawer over time. To clean the
residue formed, disassemble the detergent drawer in particular periods. It is recommended that you clean your
detergent drawer every 2 months. To eject the detergent drawer:
Pull the detergent drawer up to the end
CHAPTER -8: MAINTENANCE AND CLEANING OF YOUR
MACHINE
EN -16-
Keep on pulling by depressing on the section shown below in the detergent drawer and keep pulling and then
unsettle the detergent drawer.
• Flsuh it using a brush.
• Collect residues in the housing of the detergent drawer without dropping them inside the machine. • Assemble
the detergent drawer after drying it using a towel or dry cloth.
• Do not wash your detergent drawer in dishwasher.
Liquid Detergent Apparatus (*)
Take out the liquid detergent level apparatus for cleaning and
maintenance purposes as shown in the picture and clean well detergent
residues. Put the apparatus back into its place. Make sure no residues
are left inside.
(*) Machinery specications may vary depending on the product
purchased.
FLUSH STOPPER
Flush stopper
Disassemble the detergent drawer. Disassemble the ush stopper and clean the softener residues completely.
Ret the ush stopper after cleaning it. Check whether it has settled properly.
Body
Clean the outer body of your machine with warm water and a non-inammable cleaning agent that will not abrade
the body of your machine. After rinsing with some water, dry it using a soft and dry cloth.
Drum
Do not leave metallic objects such as needles, paper clips, coins etc. in your machine. This objects lead to
formation of rust stains in the drum. To clean such rust stains, use a non-chlorine cleaning agent and follow the
instructions of manufacturers of the cleaning agent. Never use wire wool or similar hard objects for cleaning rust
stains.
CHAPTER -9: FLUSH STOPPER / BODY / DRUM
EN -17-
All repairing operations required for your machine should be carried out by our authorised service. If your machine
requires a repair or if you cannot remove the fault by the help of the information provided as follows:
•Unplug your machine.
•Turn the water faucet off.
FAULT POSSIBLE CAUSE TROUBLESHOOTING
Your machine does not
start.
It is not plugged. Plug it.
Fuse blown. Replace the fuses.
Electricity cut-off. Check mains power.
Start/pause button not pressed. Press on Start/Pause button
Programme dial ‘stop’ position. Switch the programme button to the
desired position.
The machine door is not completely
closed.
Close the machine door.
Your machine does not
intake water.
Water tap is turned off. Turn your faucet on.
Turn your faucet Check water inlet hose and untwist.
Water inlet hose clogged. Clean water inlet hose lters. (*)
Valve inlet lter clogged. Clean the valve inlet lters. (*)
The machine door not completely
closed.
Close the machine door.
(*) See the chapter regarding maintenance and cleaning of your machine.
FAULT POSSIBLE CAUSE TROUBLESHOOTING
Your machine does not discharge
water.
Discharging hose clogged or
twisted.
Check the discharging hose, then
either clean or untwist.
Pump lter clogged. Clean the pump lter. (*)
Laundry settled in the machine
unevenly.
Spread your laundry in the
machine evenly.
Your machine vibrates.
The feet of your machine have not
been adjusted.
Adjust the feet on your machine.
(**)
Safety stays tted for
transportation not disassembled.
Disassemble the safety stays of
your machine. (**)
Less amount of laundry in the
appliance.
This will not block operation of
your machine.
Your machine is overloaded
with laundry or laundry settled
unevenly.
Do not put in laundry more than
the amount recommended and
settle the laundry in the machine
evenly.
Your machine rests on a hard
surface.
Prevent your machine from resting
on hard surfaces.
(*) See the chapter regarding maintenance and cleaning of your machine.
(**) See the chapter regarding installation of your machine.
CHAPTER -10: TROUBLESHOOTING
EN -18-
FAULT POSSIBLE CAUSE TROUBLESHOOTING
Excessive foam is formed in the
detergent drawer.
Excessive amount of detergent
used.
Press on Start/Pause button To
eliminate foam formation, mix a
spoon of softener with half litres
of water, and pour the mixture in
the detergent drawer. After 5-10
minutes, press on Start/Pause
button again. In your next washing
operation, Adjust the detergent
dose accordingly.
Wrong detergent used.
Use detergents produced only for
automatic washing machines in
your machine.
Unsatisfactory washing result.
The contamination degree of your
laundries does not match the
programme you have chosen.
Select the programme appropriate
for the contamination degree of
your laundries. (See programme
table)
Amount of detergent used
insufcient.
Adjust the amount of detergent
based on the amount and
contamination degree of your
laundries.
Laundries in excess of maximum
capacity put in your machine.
Load your machine with laundries,
amount of which will not exceed
maximum laundry capacity.
Water being hard.
( Contaminated, lime water etc.)
Adjust the amount of detergent
based on the instruction of
detergent manufacturer.
Laundries distributed in your
machine non-homogenously.
Spread your laundries in
the machine properly and
homogeneously.
As soon as the machine is loaded
with water, water discharges.
The end of water discharging hose
is too low for the machine.
Set the water discharging hose on
appropriate height. (**)
No water appears in the drum
during washing.
No fault. Water is in the unseen
part of the drum.
-
Laundries have detergent
residues on them.
Non-dissolving particles of some
detergents may stick to your
laundries as white spots.
Perform an extra rinsing by
setting your machine to “Rinsing”
programme, or clean the spots
using a brush after your laundries
dry.
Grey spots appear on the
laundries.
The reason for such spots may be
oil, cream or ointment.
Apply the maximum amount
of detergent instructed by the
detergent manufacturer in the next
washing operation.
Spinning operation is not
performed or runs late.
No fault. Unbalanced load control
system has been activated.
Unbalanced load control system
will try to spread your laundries
homogeneously. Wringling
operation will begin after your
laundry is spread. Place the
laundry in the machine in a
balanced fashion the next time.
(**) See the chapter regarding installation of your machine.
CHAPTER -10: TROUBLESHOOTING
EN -19-
TROUBLE CODE POSSIBLE FAULT WHAT TO DO
The door of your machine is left
open.
Close the machine door. If your
machine persists to indicate
fault, turn off your machine,
unplug it and contact the nearest
authorised service immediately.
The water pressure or the water
level inside the machine is low.
Turn on the faucet. Mains water
may be cut-off. If the problem
still continues, your machine will
stop after a while automatically.
Unplug the machine, turn off your
faucet and contact the nearest
authorised service.
The pump is faulty or pump lter is
clogged or electrical connection of
the pump is faulty.
Clean the pump lter. If the
problem persists, contact the
nearest authorised service. (*)
Your machine has excessive
amount of water.
Your machine will discharge water
by itself. Pursuant to discharging
operation, turn off your machine
and unplug it. Turn off your
faucet and contact the nearest
authorised service.
DISPOSAL OF YOUR OLD MACHINE
This symbol on the product or package implies that the product should not be treated as domestic waste.
Instead, it should be delivered to applicable waste collection places recycling electrical and electronic
equipment. You will contribute to avoid potential negative results regarding environment and human health,
which will arise due to wrong waste procedure for the product by ensuring that this product is annihilated
properly. Recycling materials will help natural resources be preserved. For more detailed information regarding
recycling of this product, please contact local municipality, domestic waste annihilation service or the shop you
have purchased the product.
CHAPTER -11: AUTOMATIC FAULT WARNINGS AND
WHAT TO BE DONE
E01
Wash
Rinse
E02
Wash
End
Rinse
E03
Wash
Rinse
E04
Wash
Rinse
