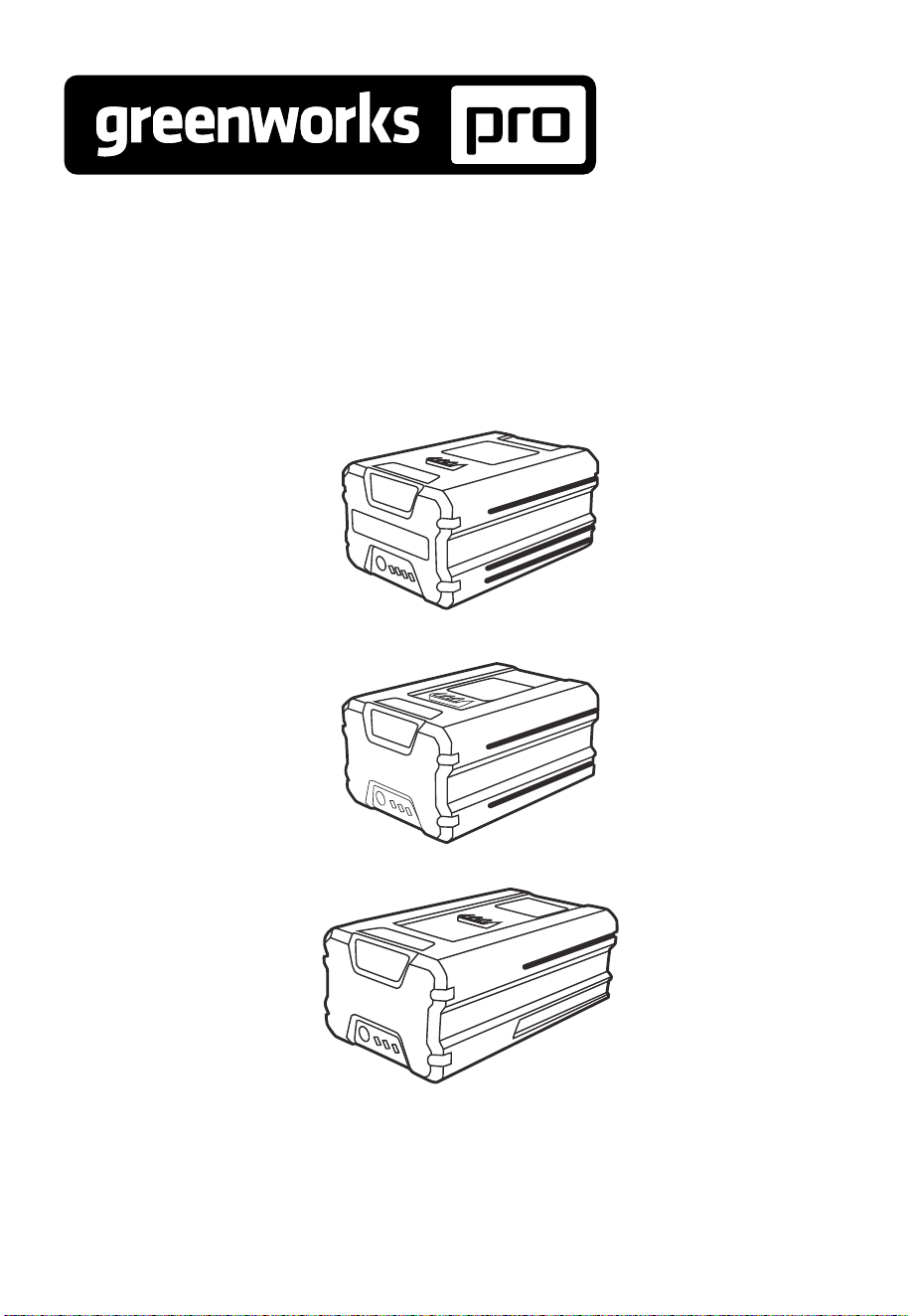

EN OPERATOR MANUALBATTERY
BAB723/ 2901302/
BAB703/ GBA80250/
2902402/ BAB706/ 2902502
www.greenworkstools.com
1 Important safety instructions..........4
2 Safety notes and precautions............4
3 Symbols on the product.................... 4
4 Risk levels...........................................4
5 Proposition 65.................................... 5
6 Environmentally safe battery
disposal............................................... 5
7 Operation........................................... 5
7.1 Check battery capacity.......................................5
8 Technical data.................................... 6
9 Limited warranty.............................. 6
3
English
EN
1 IMPORTANT SAFETY
INSTRUCTIONS
For the proper use, maintenance and storage of this battery, it
is crucially important that you read and understand the
instructions given in this manual.
To avoid serious injury, risk of fire, explosion and danger of
electric shock or electrocution:
• If the battery pack case is cracked or damaged, DO NOT
insert into the charger. Replace with a new battery pack.
• Charge the battery pack only with the recommended
charger.
• DO NOT try to short circuit any terminals of battery
pack.
WARNING
If the battery fluid gets in your eyes, flush immediately with
clean water for at least 15 minutes. Get immediate medical
attention. Do not charge the battery pack in rain or in wet
conditions. Do not immerse the tool, battery pack, or
charger in water or other liquid.
• Do not allow the battery pack or charger to overheat. If
they are warm, allow them to cool down. Recharge only
at room temperature.
• Do not place the battery pack in the sun or in a warm
environment. Keep at normal room temperature.
• Store in shady, cool and dry environments. If battery has
not been charged for an extended period of time, charge
for at least two (2) hours every two (2) months.
• The battery pack cells may develop a small leak under
extreme usage or temperature conditions. If the outer seal
is broken and the leakage gets on your skin:
- Use soap and water to wash immediately.
- Neutralize with lemon juice, vinegar, or other mild
liquid.
• If leakage gets in your eyes, follow instructions above
and seek medical attention.
• Please check prior use, if output voltage and current of
the battery charger is suitable for the battery pack.
• Use protective packaging when transporting battery pack.
• Handle with care.
• Keep away from humidity and fire.
2 SAFETY NOTES AND
PRECAUTIONS
• Do not disassemble the battery.
• Keep away from the children.
• Do not expose battery to water or salt.
• Battery should be stored in cool, dry location.
• Do not place the battery in high-temperature locations,
such as near a fire, heater, etc.
• Do not reverse the positive terminal and the negative
terminal of the battery.
• Do not connect the positive terminal and the negative
terminal of the battery to each other with any metal
objects.
• Do not knock, strike or step on the battery.
• Do not solder directly onto the battery or pierce the
battery with nails or other sharp tools.
• In the event that the battery leaks and the fluid gets into
one’s eye, do not rub the eye. Rinse thoroughly with
water.
• Immediately discontinue use of the battery, if, while
using, the battery emits an unusual smell, feels hot,
changes color, changes shape, or appears abnormal in any
other way.
3 SYMBOLS ON THE PRODUCT
Some of the following symbols may be used on this tool.
Please study them and learn their meaning. Proper
interpretation of these symbols will allow you to operate the
tool better and safer.
Symbol Explanation
V Voltage
W Power
Direct current
Read all safety warnings and all instruc-
tions.
Precautions that involve your safety.
4 RISK LEVELS
The following signal words and meanings are intended to
explain the levels of risk associated with this product.
SYM-
BOL
SIGNAL MEANING
DANGER Indicates an imminently haz-
ardous situation, which, if not
avoided, will result in death
or serious injury.
WARNING Indicates a potentially hazard-
ous situation, which, if not
avoided, could result in death
or serious injury.
CAUTION Indicates a potentially hazard-
ous situation, which, if not
avoided, may result in minor
or moderate injury.
CAUTION (Without Safety Alert Sym-
bol) Indicates a situation that
may result in property dam-
age.
4
English
EN
5 PROPOSITION 65
WARNING
This product contains a chemical known to the state of
California to cause cancer, birth defects or other
reproductive harm. Some dust created by power sanding,
sawing, grinding, drilling, and other construction activities
contains chemicals known to cause cancer, birth defects or
other reproductive harm. Some examples of these chemicals
are:
• Lead from lead-based paints;
• Crystalline silica from bricks and cement and other
masonry products;
• Arsenic and chromium from chemically treated lumber.
Your risk of exposure to these chemicals varies depending
on how often you do this type of work. To reduce your
exposure to these chemicals, work in a well-ventilated area,
and work with approved safety equipment, such as dust
masks that are specially designed to filter out microscopic
particles.
6 ENVIRONMENTALLY SAFE
BATTERY DISPOSAL
WARNING
If the battery pack cracks or breaks, with or without leaks,
do not recharge it and do not use. Dispose of the battery and
replace with a new battery pack. DO NOT ATTEMPT TO
REPAIR IT! To avoid injury and risk of fire, explosion, or
electric shock, and to avoid damage to the environment:
• Cover the battery’s terminals with heavy-duty adhesive
tape.
• DO NOT attempt to remove or destroy any of the
battery pack components.
• DO NOT attempt to open the battery pack.
• If a leak develops, the released electrolytes are
corrosive and toxic. DO NOT get the solution in the
eyes or on skin, and do not swallow it.
• DO NOT place these batteries in your regular
household trash.
• DO NOT incinerate.
• DO NOT place them where they will become part of
any waste landfill or municipal solid waste stream.
• Take them to a certified recycling or disposal center.
7 OPERATION
7.1 CHECK BATTERY CAPACITY
Press the battery capacity indicator (BCI) button. The lights
will illuminate according to the batteries capacity level. See
chart below:
1
2
Lights Capacity
3 Green Lights The battery is more than 75% capacity.
2 Green Lights
The battery is between 35% and 75%
capacity.
1 Green Light The battery is less than 35% capacity.
Lights go out
The battery requires charging immedi-
ately.
1
2
Lights Capacity
4 Green Lights The battery is above 80% capacity
3 Green Lights
The battery is between 80% and 60%
capacity.
2 Green Lights
The battery is between 60% and 40%
capacity.
1 Green Light
The battery is between 40% and 20%
capacity.
1 Blinking Green
Light
The battery is between 20% and 10%
capacity.
Lights go out
The battery is less than 10% capacity
and requires charging immediately.
* 1. BATTERY CAPACITY INDICATOR (BCI) BUTTON
2. LED CAPACITY INDICATOR
BATTERY PROTECTION FEATURES
This lithium-ion battery packs are designed with features that
protect the lithium-ion cells and maximize battery life.
If the tool stops during use, release the trigger to reset and
resume operation. If the tool still does not work, the battery
needs to be recharged.
COLD WEATHER OPERATION
The lithium-ion battery pack can be used in temperatures
down to -14°C (6.8°F). Put the battery pack on a tool and use
the tool in a light duty application. After about a minute, the
pack will warm up and begin operating normally.
5
English
EN
8 TECHNICAL DATA
Model 2901302
Battery 72 V
, 2Ah, 144Wh, 80V Max
Charge time 60min. (use GCH8020/ CAB801
Charger)
30min. (use 2901402 Charger)
24min. (1 Battery)/ 30min. (2 Batter-
ies) (use CAB812 Charger)
Model GBA80250
Battery 72 V
, 2.5Ah, 180Wh, 80V Max
Charge time 75min. (use GCH8020/ CAB801
Charger)
38min. (use 2901402 Charger)
30min. (1 Battery)/ 40min. (2 Batter-
ies) (use CAB812 Charger)
Model BAB703
Battery 72 V
, 3Ah, 216Wh, 80V Max
Charge time 90min. (use GCH8020/ CAB801
Charger)
45min. (use 2901402 Charger)
min. (1 Battery)/ 45min. (2 Batteries)
(use CAB812 Charger)
Model 2981102
Battery 72 V
, 4Ah, 288Wh, 80V Max
Charge time 120min. (use GCH8020/ CAB801
Charger)
60min. (use 2901402 Charger)
20min. (1 Battery)/ 60min. (2 Batter-
ies) (use CAB812 Charger)
Model BAB723
Battery 72 V
, 4Ah, 288Wh, 80V Max
Charge time 120min. (use GCH8020/ CAB801
Charger)
60min. (use 2901402 Charger)
50min. (1 Battery)/ 60min. (2 Batter-
ies) (use CAB812 Charger)
Model 2902502
Battery 72 V
, 5Ah, 360Wh, 80V Max
Charge time 150min. (use GCH8020/ CAB801
Charger)
75min. (use 2901402 Charger)
40min. (1 Battery)/ 75min. (2 Batter-
ies) (use CAB812 Charger)
Model BAB706
Battery 72 V
, 6Ah, 432Wh, 80V Max
Charge time 180min. (use GCH8020/ CAB801
Charger)
90min. (use 2901402 Charger)
45min. (1 Battery)/ 90min. (2 Batter-
ies) (use CAB812 Charger)
9 LIMITED WARRANTY
ITEMS NOT COVERED BY WARRANTY:
1. Any part that has become inoperative due to misuse,
commercial use, abuse, neglect, accident, improper
maintenance, or alteration; or
2. The unit, if it has not been operated and/or maintained in
accordance with the owner's manual; or
3. Normal wear;
4. Routine maintenance items such as lubricants, blade
sharpening;
5. Normal deterioration of the exterior finish due to use or
exposure.
HELPLINE:
Warranty service is available by calling our toll-free helpline,
at 1-855-345-3934.
6
English
EN
Renewed/Refurbished products and batteries are protected
against all defects in materials, parts or workmanship under
normal use for a period of 90 days from the shipping date or
in-store purchase date.
90-Day Warranty
TRANSPORTATION CHARGES:
Transportation charges for the movement of any power
equipment unit or attachment are the responsibility of the
purchaser. It is the purchaser’s responsibility to pay
transportation charges for any part submitted for replacement
under this warranty unless such return is requested in writing
by Greenworks.
USA address: Canadian address:
Greenworks Tools Greenworks Tools Canada Inc.
P.O. Box 1238 P.O. Box 93095, Newmarket,
Ontario
Mooresville, NC 28115 L3Y 8K3
7
English
EN
www.greenworkstools.com
P0801915-03 Rev B
