ASSEMBLY, CARE AND
USE INSTRUCTIONS
Model CM61352
READ CAREFULLY
IMPORTANT: RETAIN THESE INSTRUCTIONS AND
ATTACH RECEIPT TO MANUAL FOR FUTURE REFERENCE.
7121746 Rev C 10/2023 96802-KG
WARNING: This product can expose you to chemicals
including lead, DEHP, DINP, Molybdenum trioxide which
is known to the State of California to cause cancer and
or lead to birth defects. For more information go to
www.P65Warnings.ca.gov
Questions, problems, missing parts?
If your pressure washer is not working or if there are parts
missing or broken, please DO NOT RETURN IT TO THE PLACE OF
PURCHASE. Contact our Customer Service Department by calling
1-877-362-4271 or emailing cservice
@
fna-group.com
244964
2
TABLE OF CONTENTS
SPECIFICATIONS
Model
Rated
pressure
(PSI)
(MPa)
Working
Pressure
(PSI)
(MPa)
Working
Flow
(GPM)
(LPM)
Cold
Water
Volts Frequency
(Hz)
Amps Weight
(lbs.)
CM61352 2300
(15.9)
1950
(13.4)
1.1
(4.2)
✔
120 60 13 42.3
PRODUCT SPECIFICATIONS
Product Specifications........................................................................................................................... 2
Package Contents.................................................................................................................................. 3
Hardware Contents
............................................................................................................................... 3
Safety Information
................................................................................................................................ 4
Assembly Instructions
........................................................................................................................... 7
Operating Instructions..........................................................................................................................12
Care and Maintenance........................................................................................................................ 14
Pump Guard
......................................................................................................................................... 16
Troubleshooting
................................................................................................................................... 17
Limited Warranty
................................................................................................................................ 18
3
PACKAGE CONTENTSPACKAGE CONTENTS

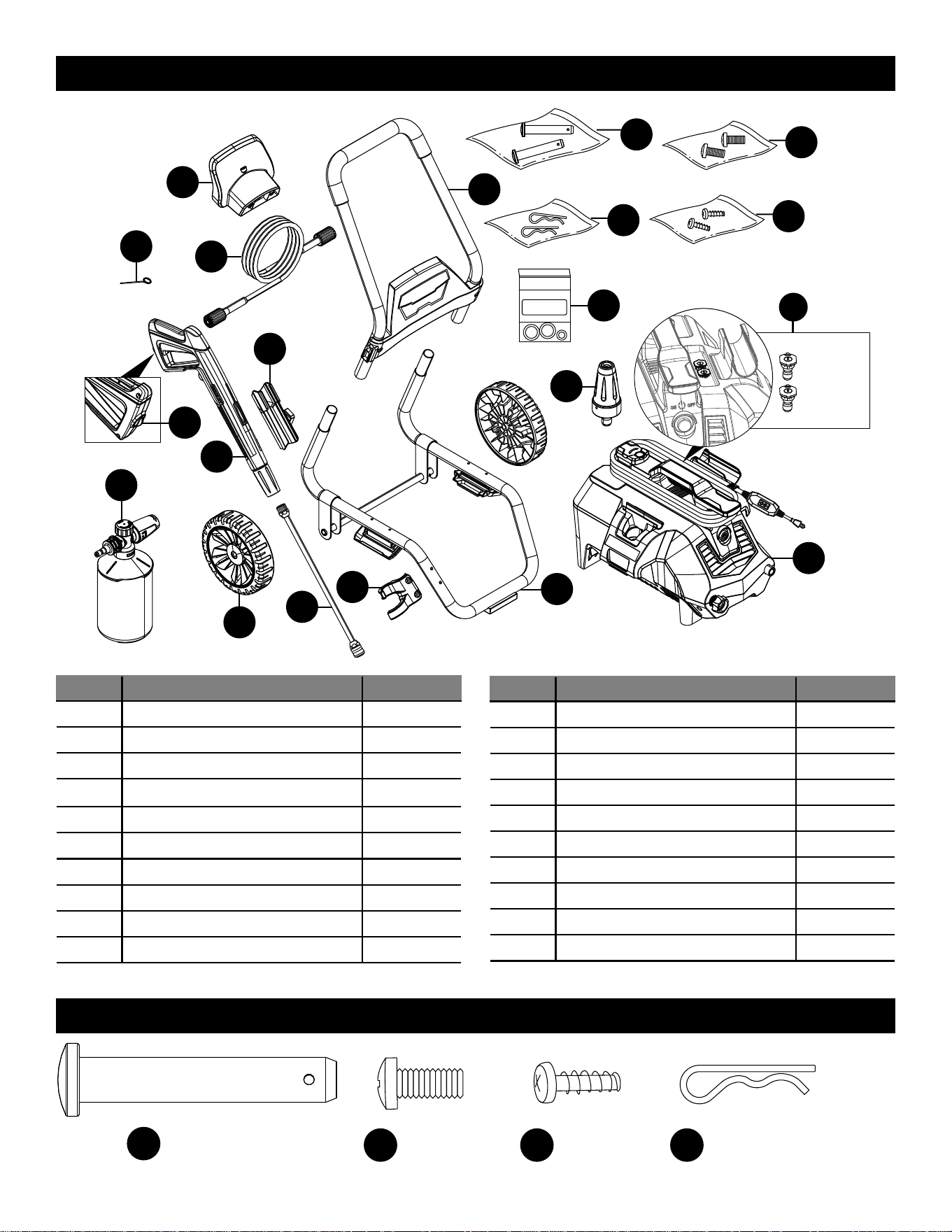

HARDWARE CONTENTS
PART DESCRIPTION QUANTITY
K Spray Gun 1
L Spray Gun Trigger Lock 1
M Spray Gun Holster 1
N High Pressure Hose 1
O High Pressure Foam Cannon 1
P Nozzle Cleaning Wire 1
AA Axle Pins 2
BB Screws 2
CC Screws 2
DD Cotter Pins 2
PART DESCRIPTION QUANTITY
A Hose Holder 1
B Handle 1
*C Rotary Nozzle 1
D O-Ring Replacement Kit 1
E Quick Connect Nozzles 2
F Power Washer Unit 1
G Lower Frame 1
H Lance Holder 1
*I Extension Lance 1
J Wheels 2
B
F
M
A
N
K
J
*C
*I
L
H
G
P
AA
BB
CC
DD
D
PW95824
E
15° – Yellow
25° – Green
O
*Packaged on the power washer unit.
AA
BB
CC
DD
Screws
Qty. 2
Axle Pins
Qty. 2
Screws
Qty. 2
Cotter Pins
Cant. 2
4
SAFETY INFORMATIONSAFETY INFORMATION
Please read and understand this entire manual before attempting to
assemble and operate the product.
This manual contains information that relates to PROTECTING
PERSONAL SAFETY and PREVENTING EQUIPMENT PROBLEMS. It
is very important to read this manual carefully and understand it
thoroughly before using the product. The symbols listed below are
used to indicate this information.
DANGER
Potential hazard that will result in serious injury or loss of
life.
WARNING
Hazard that could result in serious injury or loss of life.
CAUTION
Potential hazard that may result in moderate injury
or damage to equipment.
Note: The word “Note” is used to inform the reader of something
the operator needs to know about the tool.
WARNING
To reduce the risk of injury, the user must read and
understand the instructions before using this product.
1. Warning – When using this product, basic precautions should
always be followed, including the following.
2. Read all the instructions before using the product.
3. Know how to stop the product and bleed pressures quickly. Be
thoroughly familiar with the controls.
4. Keep operating area clear of persons.
5. Do not overreach or stand on unstable support. Keep good
footing and balance at all times.
6. Follow the maintenance instructions as specified in the
manual.
7. To avoid personal injury and/or damage to property and to
maximize your power washer experience, carefully follow all
of the safety tips, instructions, warnings and safeguards and
become familiar with all of the controls. Be sure you know how
to quickly bleed off the pressure from all parts of your power
washer and how to turn off the power washer.
8. This power washer conforms to CSA and other safety and
consumer standards. DO NOT modify or rebuild any part of
your power washer.
9. DO NOT use your power washer when you are under the
influence of alcohol or drugs. Use this power tool carefully and
only when you are alert.
10. Watch your balance and footing while using your power
washer. Surfaces become slippery when wet and are extra
slippery when using a detergent or cleaner.
11. NEVER operate the power washer in bare feet, sandals, or
open-toed shoes.
12. When using the power washer near children, make sure they
are closely supervised by an adult to avoid injury. NEVER let a
child use the power washer.
13. Keep fingers, hands, feet and any part of your body clear of
the stream of high pressure water. The powerful spray can
cause blindness or blast holes in the skin. It can break a
window if you are too close when you pull the trigger on the
spray gun.
14.
ALWAYS wear eye protection to prevent injury to eyes when
operating the power washer.
15. To avoid mishaps or injury, ALWAYS use the trigger safety
lock when not using the power washer even if only stopping
briefly.
16. The power washer is equipped with a Ground Fault Circuit
Interrupter (GFCI) (For US unit only) which greatly reduces
the chance of electric shock while the unit is in use. If
replacement of the plug or cord is needed, use only identical
replacement parts.
17. Point the spray gun in a safe direction when beginning a
power washer session.
18.
Warning- NEVER spray directly at a person, animal, electrical
device or the unit itself.
19. When first using the spray gun, hold the spray gun and lance
with two hands when pulling the trigger (one hand to pull the
trigger and the other to stabilize the gun assembly) until you
get used to the “kickback” from the spray gun.
20. When you turn the power switch off, water pressure may
remain in the system. To discharge the pressure, point the
spray gun in a safe direction and pull the trigger.
21. NEVER spray flammable liquids.
22. NEVER use the power washer in areas that contain
combustible dust, liquids or vapors.
23. Avoid contact of the pressure hose with sharp objects and
examine the hose regularly. Replace if damaged. Due to
the high pressure involved, it cannot be repaired if cut or
damaged.
24. Only use detergent specifically formulated for power washers
and follow instructions on the detergent’s label. Dish or
laundry soap is too thick and will clog the nozzle of your foam
cannon.
25. Protect eyes, lungs, and skin from exposure to detergent.
26. Warning-If connection is made to a potable water system, the
system Should be protected against backflow.
CAUTION
Store the power washer indoors to prevent the water
in the unit from expanding under freezing conditions.
When the water freezes and expands, your power washer
will be damaged and become inoperable. Or, if storing
5
SAFETY INFORMATIONSAFETY INFORMATION
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
outdoors, it is recommended you use pump saver (not
included) to protect pumps.
27. NEVER use hot water with your power washer. It will
overheat and damage the high pressure pump.
28. NEVER leave the power washer unattended while it is
powered “ON”.
29. ALWAYS turn the water supply on before turning the power
washer power to on. Running the pump dry will cause damage
to the internal components.
30. NEVER use a water supply to your power washer that
exceeds 100 PSI maximum.
31. NEVER disconnect the high pressure hose from the power
washer while the system is pressurized.
32. NEVER permanently engage the trigger mechanism on the
spray gun.
33. NEVER operate the power washer unless all components are
properly and securely connected.
34. NEVER allow the power washer pump to run for more than
one minute after you have turned off the water supply. This
can cause the motor and pump to overheat and fail.
35. NEVER use lances or other parts that are not compatible for
this specific SIMPSON unit.
36. NEVER spray any electrical outlet with your power washer.
37. Inspect the power cord before using. DO NOT use it if it is
damaged.
38. Stay alert - watch what you are doing.
Improper connection of the equipment grounding conductor
can result in the risk of electrocution. Check with a qualified
electrician if you are in doubt as to whether the receptacle
is properly grounded. DO NOT modify the plug provided with
this product. If it will not fit the receptacle, have a proper
receptacle installed by a qualified electrician. DO NOT use
any type of adapter with this product.
ELECTROCUTION HAZARD
DANGER:DANGER:
This pressure washer shall only be used with a dedicated
receptacle/plug rated 120vAC, 60 Hz at 15 -or- 20 amperes.
Any other appliances on the circuit should be turned off or
unplugged when using the pressure washer. Never use the
pressure washer with an adapter that may lead to higher
voltage or excessive current. Excessive current may trip
circuit breaker. Consult a qualified electrician if unsure of the
desired power supply receptacle’s ability to safely power this
pressure washer.
IT IS NOT RECOMMENDED TO USE AN EXTENSION
CORD. If, however, an extension cord is required, it must be
an OUTDOOR RATED 3-PRONG CORD, that is no longer
than 50 feet (15M) and has a minimum of 14 AWG (2.5mm
2
)
conductors. Always uncoil the extension cord when in use.
DO NOT use an extension cord that has its ground pin
damaged or missing.
POWER SUPPLY
CAUTION:CAUTION:

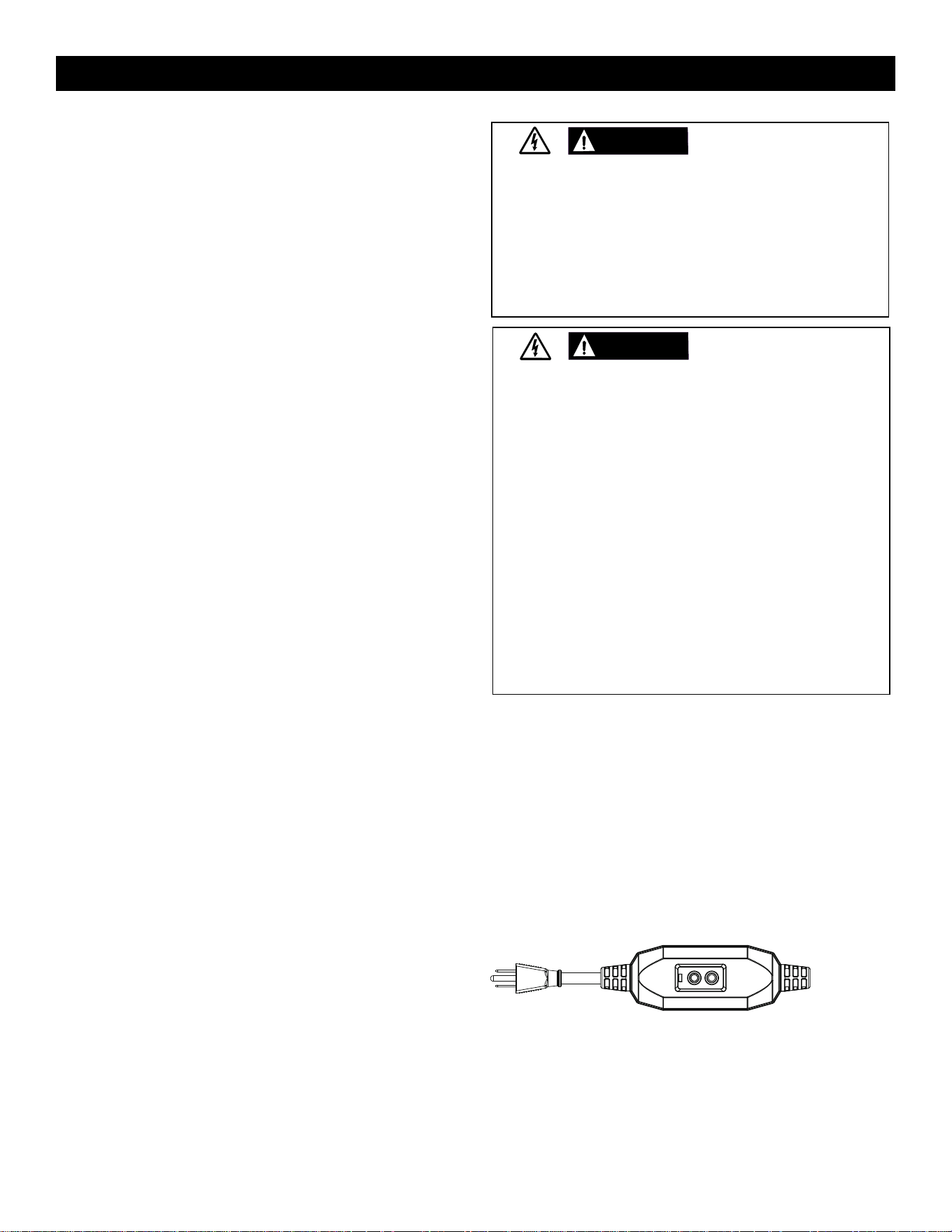

Ground Fault Circuit Interrupter Protection (For US unit only)：
This pressure washer is equipped with a ground fault circuit
interrupter (GFCI) built into the plugs of the power supply cord.
This device provides additional protection from the risk of electric
shock and have automatic detection function to detect whether
the additional protection function is invalid. Should replacement
of the plug or cord become necessary, use only identical
replacement parts that include GFCI protection.
This product must be grounded. If it should malfunction or
breakdown, grounding provides a path of least resistance
for electric current to reduce the risk of electric shock. This
product is equipped with a cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged into
an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
DANGER – Improper connection of the equipment-grounding
conductor can result in a risk of electrocution. Check with a
qualified electrician or service personnel if you are in doubt as
to whether the outlet is properly grounded. Do not modify the
plug provided with the product – if it will not fit the outlet, have
a proper outlet installed by a qualified electrician. Do not use any
type of adaptor with this product.
6
Special consideration needs to be made to the safety of not just the operator of the pressure washer, but also
people who may be adjacent to the area being cleaned. The best way to warn unsuspecting individuals is with
signage and barriers.
Barriers can be as simple as plastic traffic cones or barricades to using barrier belts around the area being
cleaned. Remember, pressure washing can dislodge weak or broken pavement turning it into projectiles that may
injure others. Keeping people clear of the area is the best way to avoid injury.
Wet pavement can be slippery to unsuspecting individuals causing injury from slips and falls. High-pressure and
low-pressure hoses can be trip hazards. Segregating the area and placing appropriate signage can reduce injury.
Barrier examples
KEEP OUT
HIGH
PRESSURE
WASHING
IN
PROGRESS
Sign examples
When pressure washing in public areas, signs should be posted that indicate
to stay clear of the area as high-pressure washing is being performed. Also,
signs should be posted that the surface may be slippery and trip hazards may
be present.
SLIP / TRIP HAZARDS
CAUTION:CAUTION:
Hoses may pose a tripping
hazard that can cause injuries
resulting from a fall
.
CAUTION
TRIPPING HAZARD
SAFETY INFORMATION
7
PREPARATION
Before beginning assembly of product, make sure all parts are
present. Compare parts with package contents list and hardware
contents list. If any part is missing or damaged, DO NOT attempt
to assemble the product. Please contact our Customer Service
Department by calling 1-877-362-4271 or emailing cservice
@
fna-group.com.
Estimated Assembly Time: 5 minutes.
Tools Required for Assembly (not included): #2 Phillips
screwdriver.

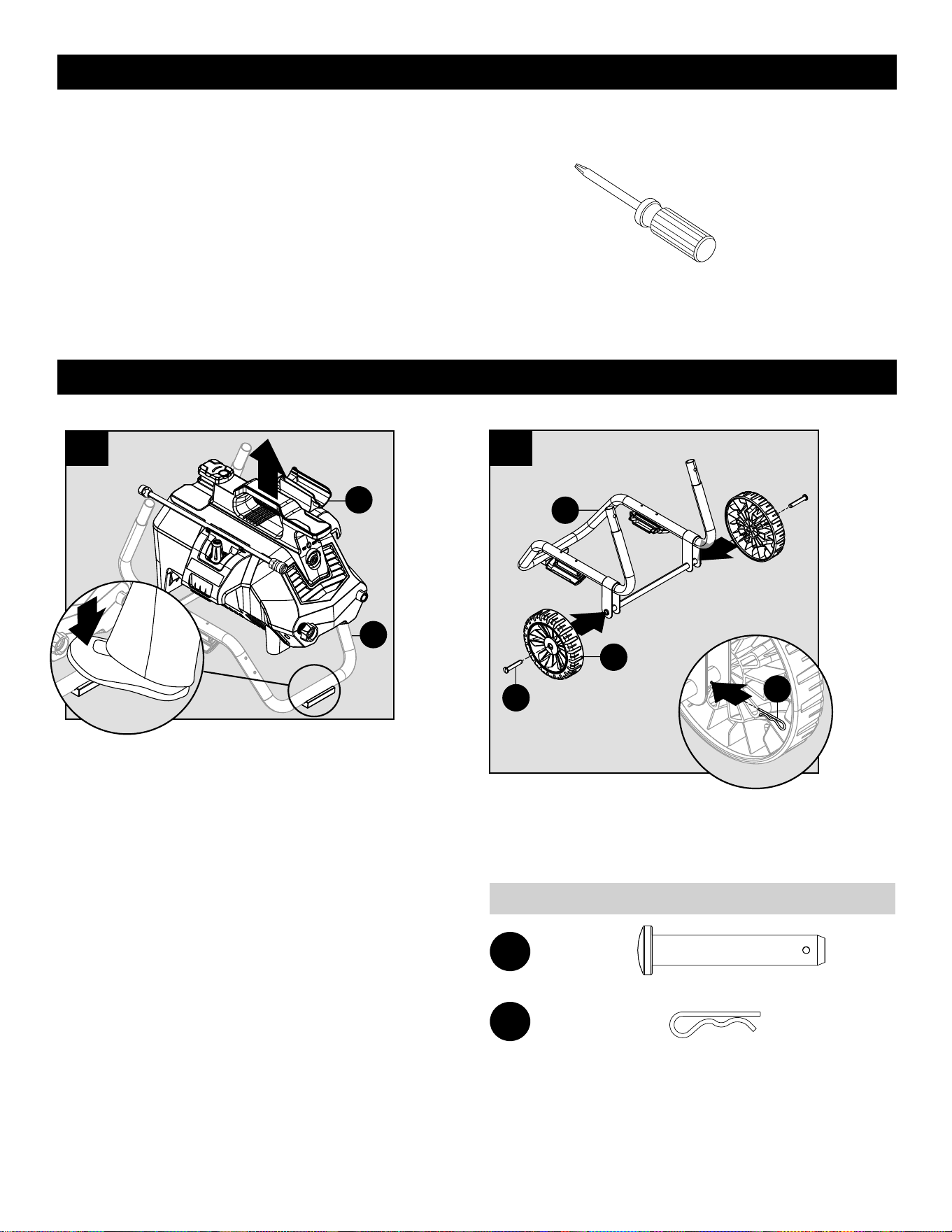

ASSEMBLY INSTRUCTIONS
PREPARATION
Place a foot on the pad at the front of the lower frame (G) and
then lift the power washer unit (F) off the frame. Set pressure
washer (F) to the side.
2
1
1
F
G
Axle Pins
x 2
AA
AA
BB
CC
DD
Screws
Qty. 2
Axle Pins
Qty. 2
Screws
Qty. 2
Cotter Pins
Cant. 2
1
1
2
2
G
J
AA
DD
Hardware Used:
Frame Assembly
Install axel pins (AA) and wheels (J) to lower frame (G). Secure
with cotter pins (DD).
DD
Cotter Pins
AA
BB
CC
DD
Screws
Qty. 2
Axle Pins
Qty. 2
Screws
Qty. 2
Cotter Pins
Cant. 2
x 2
8
1
3
2
G
H
BB
4
3
2
2
1
G
B

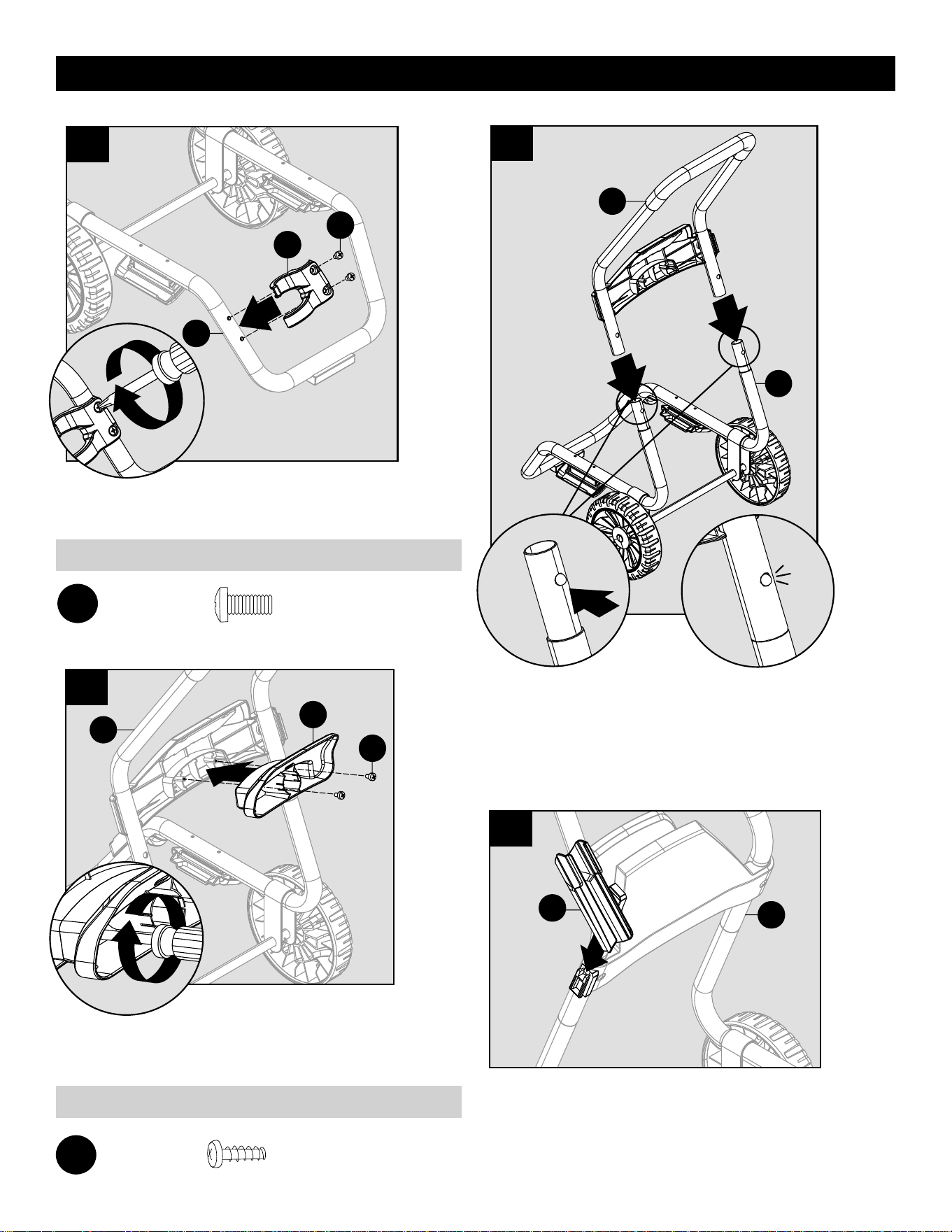

Install lance holder (H) to lower frame (G). Secure with two
screws (BB).
1
5
2
A
CC
B
Press buttons on lower frame (G) extensions and install handle
(B). Lower frame extensions will click when handle is in proper
position.
Install hose holder (A) onto back side of upper handle (B). Secure
with two screws (CC).
Screws x 2
BB
AA
BB
CC
DD
Screws
Qty. 2
Axle Pins
Qty. 2
Screws
Qty. 2
Cotter Pins
Cant. 2
Hardware Used:
Screws x 2
CC
AA
BB
CC
DD
Screws
Qty. 2
Axle Pins
Qty. 2
Screws
Qty. 2
Cotter Pins
Cant. 2
Hardware Used:
6
B
M
Slide spray gun holster (M) into place on the upper handle (B).
ASSEMBLY INSTRUCTIONS
9
ASSEMBLY INSTRUCTIONS

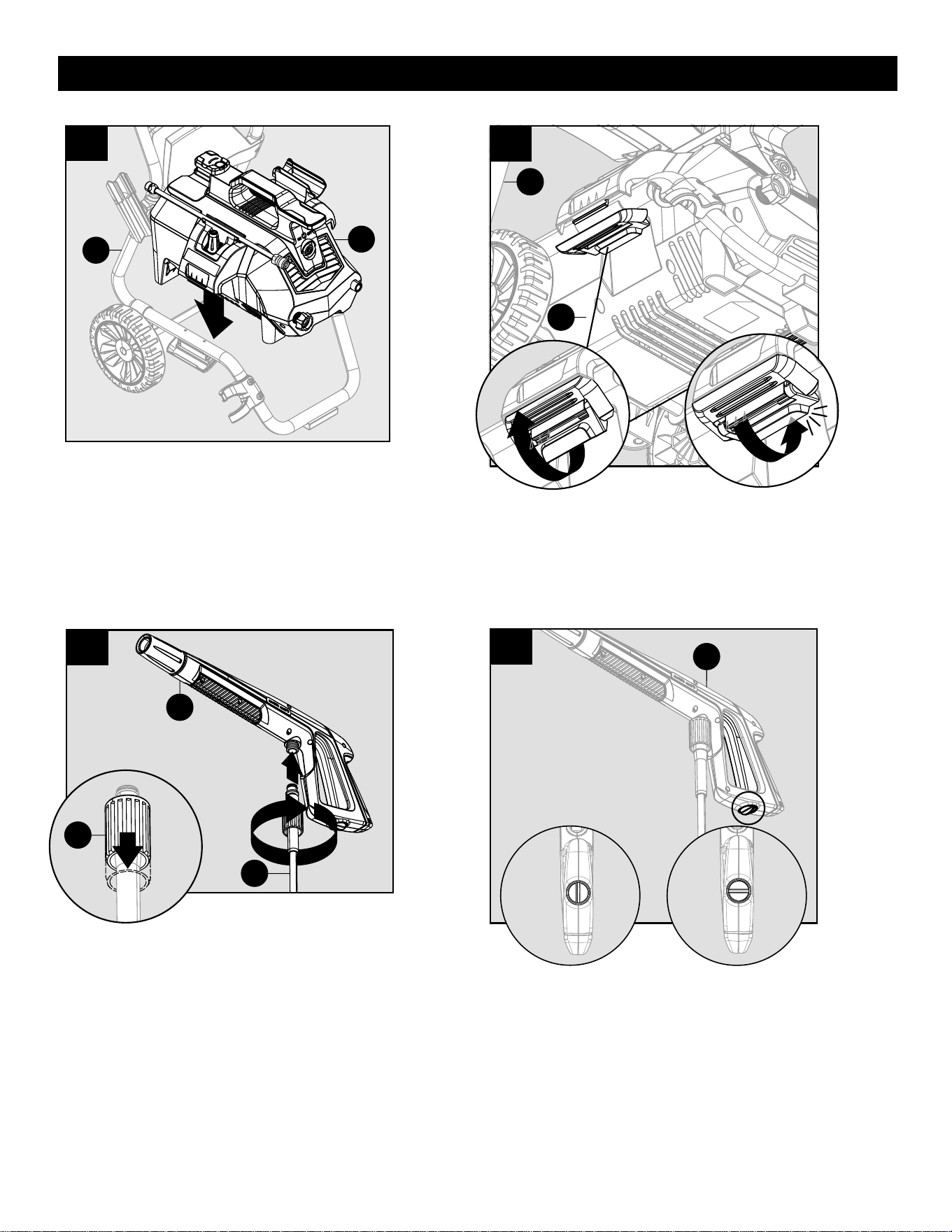

Locking Spray Gun (before Lance installation) To lock trigger of
spray gun (K), point gun away from you and turn dial to lock (“3”
and “9” position). Squeeze or pull trigger to make sure it is locked.
Always leave in locked position when not in use. This ensures the
gun is in “safe” mode until it is ready for use. Turn dial to unlock
(“12” and “6” position) to release spray gun trigger.
Note: The trigger lock prevents trigger from being accidentally
engaged.
10
K
1
Locked
Unlocked
Place power washer unit (F) into position on the lower frame (G).
7
F
G
8
1
2
F
G
Pull upward on latches that are located on sides of lower frame
(G). Once upper latch is flush with the lower lip, push down until
lower latch clicks into place.
3
2
9
1
K
N
N
Pull back on collar at one end of high pressure hose (N).Push
firmly to connect hose to spray gun (K). Twist collar to secure.
Confirm hose is locked into spray gun by slightly pulling on them.
The hose is now securely attached to spray gun.
10
ASSEMBLY INSTRUCTIONS
11
*I
K
1
2
1
2
*I
E
*C
12
*I
E
1
2
*C
13

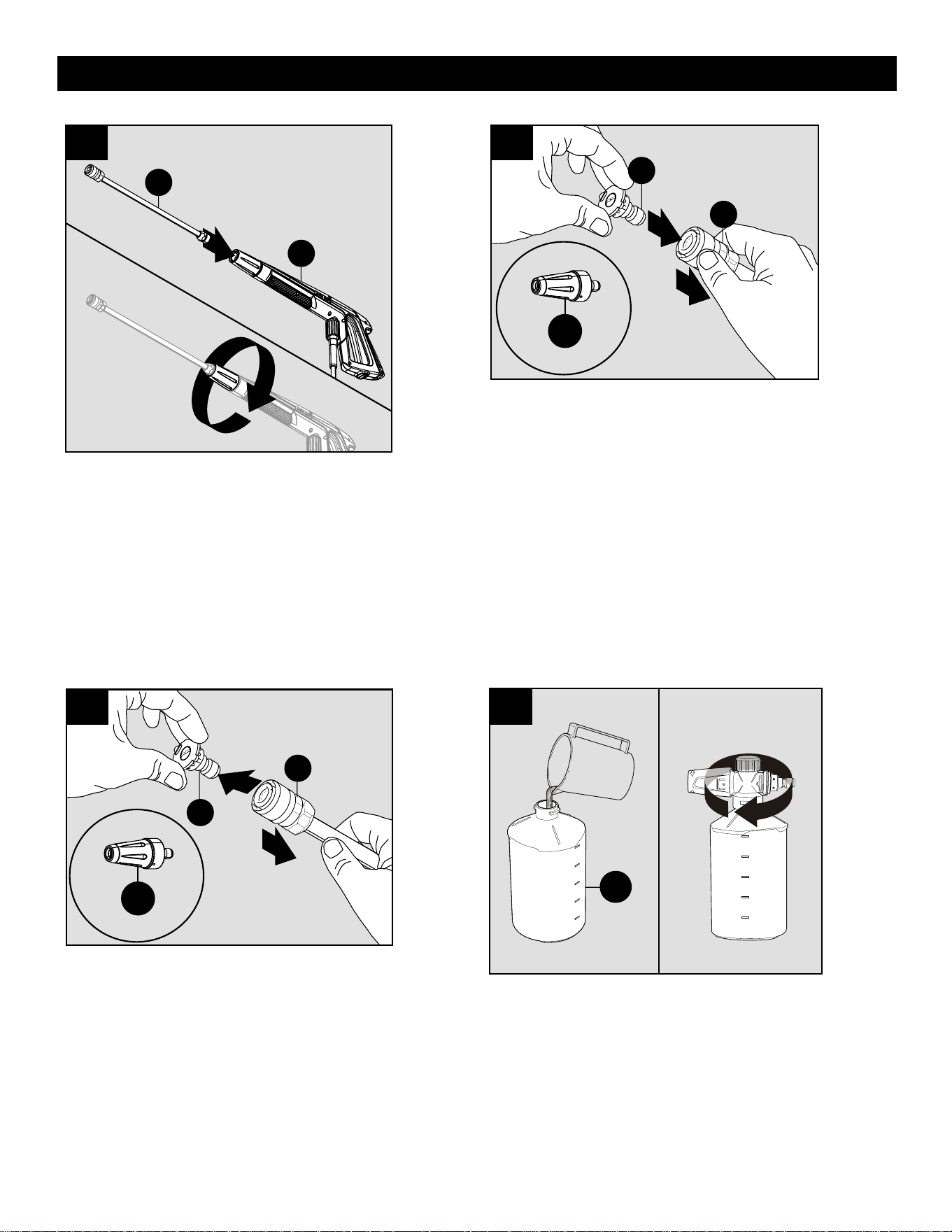

Extension Lance Installation
While spray gun (K) is in the locked position, insert lance (*I)
into the end of spray gun by inserting and turning clockwise
until fully in place. To remove, turn counterclockwise.
WARNING! The threads on the lance and gun coupler can be
easily cross threaded resulting in an improper assembly. An
improper assembly of the gun and lance can result in personal
injury. Do not use if the threads on the gun coupler and or lance
are cross threaded.
To remove nozzle (E) and Rotary nozzle (*C), pull back on collar of
lance (*I) and pull out nozzle. Foam Cannon Installation
The foam cannon (O) comes with a straw which is fitted into high
pressure top. If you do not see the straw, look inside the foam
cannon and attach it to the high pressure top. When using foam
cannon, fill it with a properly formulated detergent or cleaner
with a water ratio according to instructions on the container.
DO NOT use thick or gel-like detergents as they will clog the
foam cannon and can cause damage.
14
1
750ml
600ml
450ml
300ml
150ml
2
O
Pull back on collar of lance (*I), attach nozzle (E) and rotary nozzle
(*C) into end of lance (*I) by pressing selected nozzle into place.
It will make a “click” sound when firmly in place.
DO NOT use if a “click” sound was not heard. The nozzle may
not be secured.
Note: Always push safety lock button to lock trigger when
changing lances and nozzles to ensure that they do not acciden-
tally eject with force during removal.
11
3
2
N
F
1
N
17
Insert extension lance (*I) into nozzle holder (H), and press spray
gun (K) with extension lance (*I) into spray gun holster (M).
2
1
F
H
M
*I
K
18

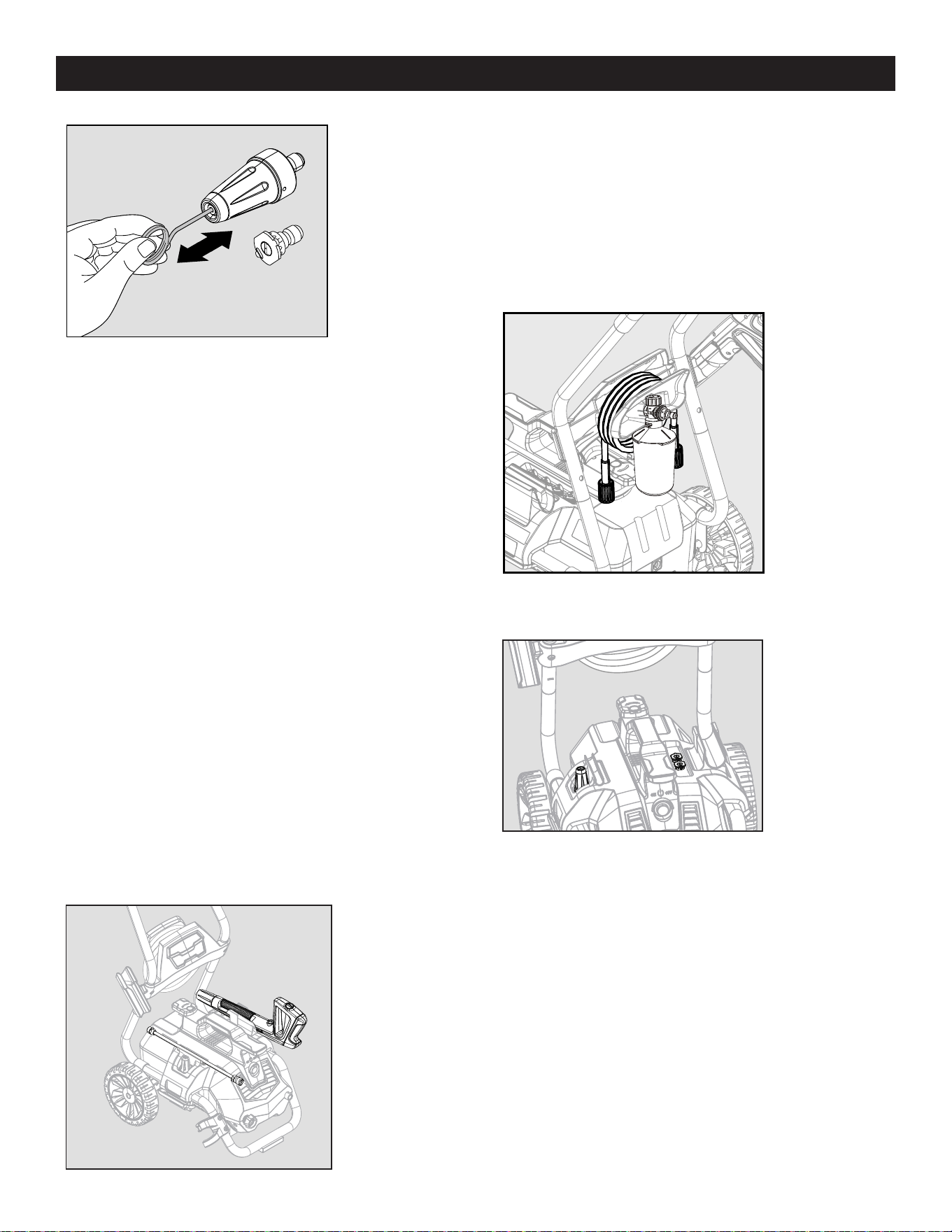

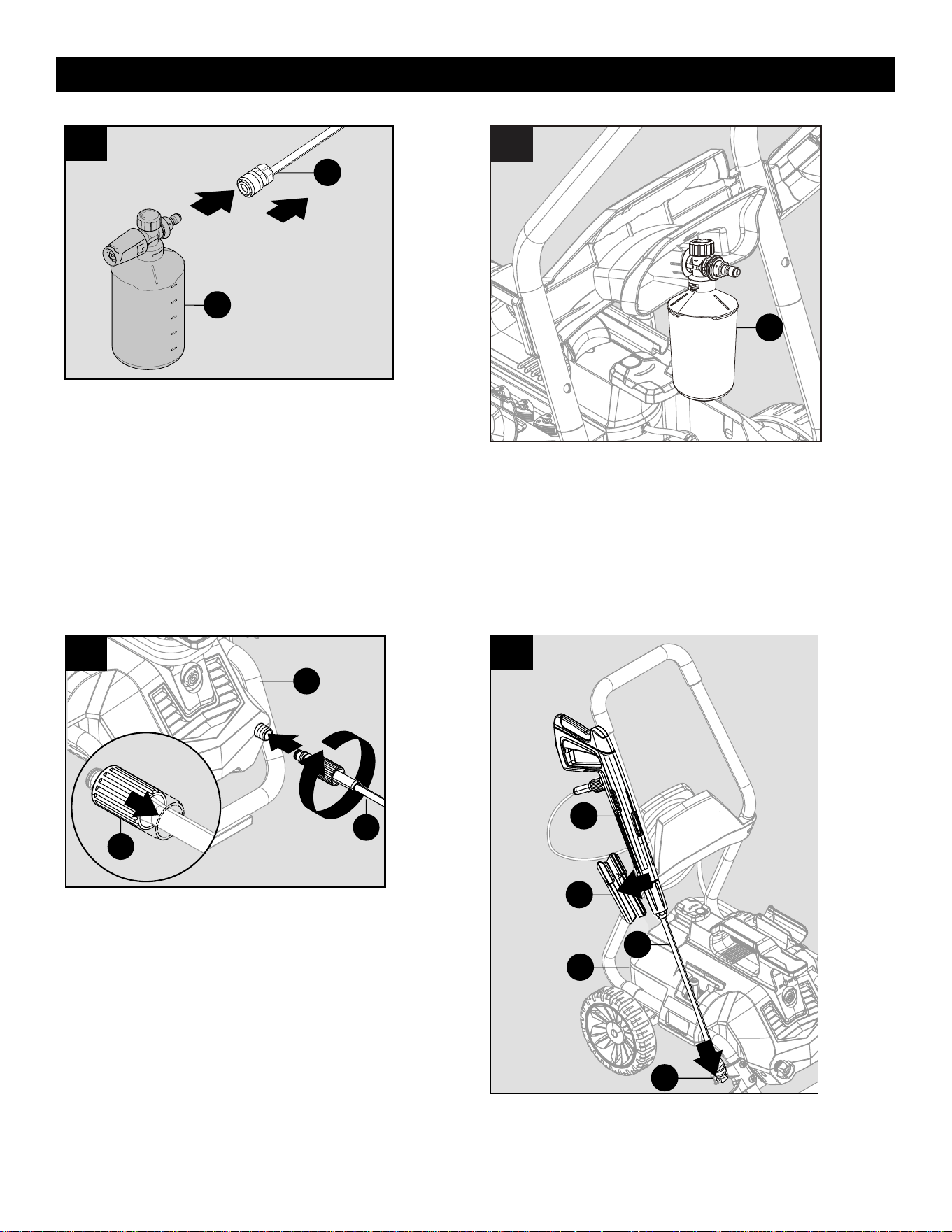

Foam Cannon Storage
Store the foam cannon (O) on the back of the power washer unit
(C).
16
O
*I
O
1
2
15
ASSEMBLY INSTRUCTIONS
Pull back on collar of lance (*I) and attach foam cannon (O) into
end of lance by pressing cannon into place. It will make a “click”
sound when firmly in place.
Note: Always lock spray gun when changing the foam cannon to
ensure it does not eject with force.
• When using the foam cannon, fill it with a properly formulated
detergent or cleaner with water ratio according to instructions
on the container.

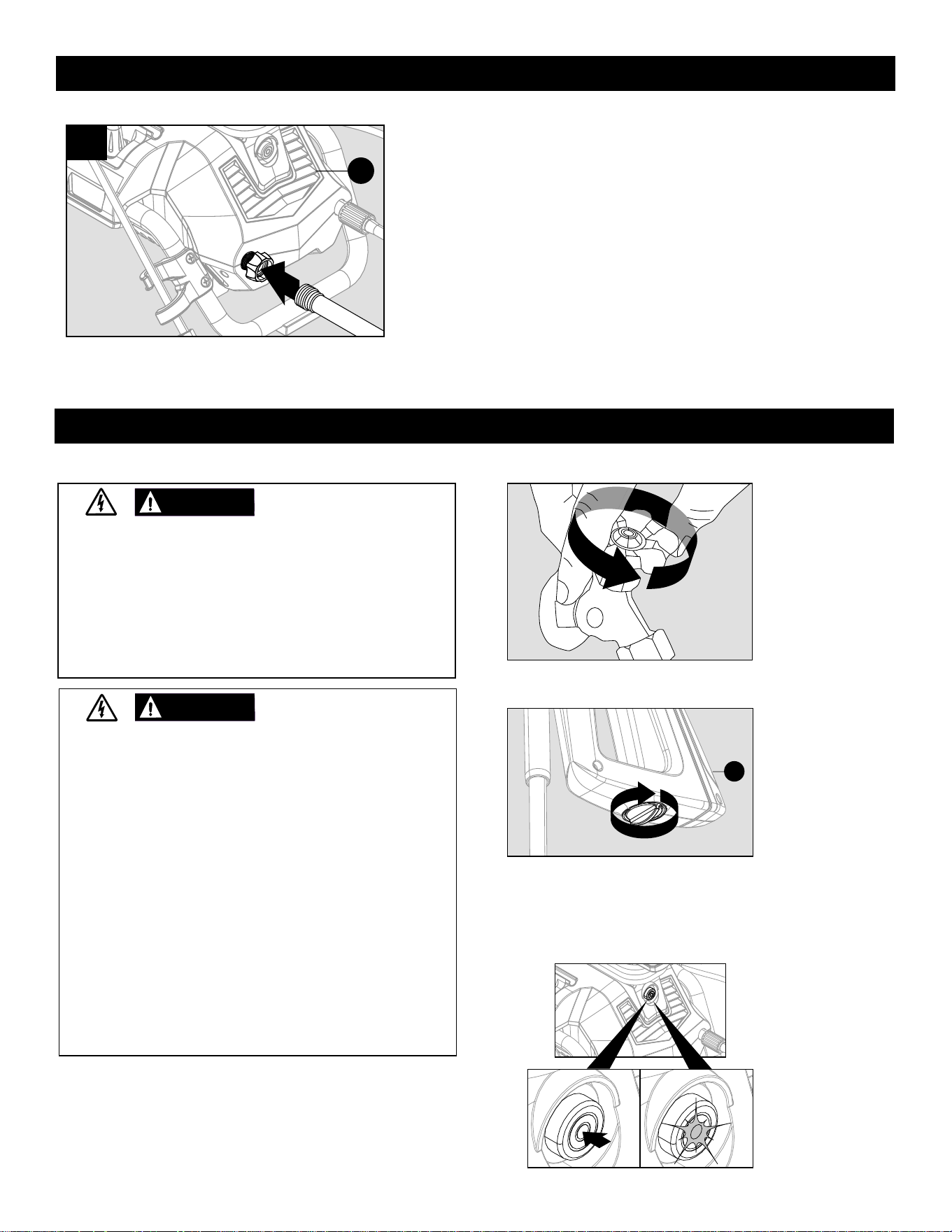

Pull back on the high-pressure hose collar. Push firmly to
connect hose to the power washer unit. Twist collar to secure.
If needed, position the power washer so you can observe that
the threads are started correctly. Confirm hose is locked into
power washer unit by slightly pulling on hose. The hose is now
securely attached. DO NOT CROSS THREAD. WARNING: Failure
to properly tighten the high-pressure hose will result in the hose
slipping and popping off upon turning the unit on.
Note: DO NOT use pliers or locking pliers to tighten.
12
• Turn on water supply at the faucet to completely open.
• Turn the safety lock button on the spray gun to unlocked. While
pointing the spray gun in a safe direction, squeeze the trigger
on the spray gun until there is a steady stream of water, letting
the water and air out of the hose.
OPERATING INSTRUCTIONSASSEMBLY INSTRUCTIONS
OPERATING INSTRUCTIONS
• Make sure the power switch is off (light will be off).
• Unwind the power cord completely and plug into a grounded
120 volt outlet.
ON
19
F
Attach a garden hose to built in garden hose adapter. The water
is now connected to your power washer.
Note: Flush out garden hose before connecting to garden hose
adapter.
You have now completed the assembly and are ready to begin
using your electric power washer. Read and observe all safety
instructions.
K
lock
OFF ON
Improper connection of the equipment grounding conductor
can result in the risk of electrocution. Check with a qualified
electrician if you are in doubt as to whether the receptacle
is properly grounded. DO NOT modify the plug provided with
this product. If it will not fit the receptacle, have a proper
receptacle installed by a qualified electrician. DO NOT use
any type of adapter with this product.
ELECTROCUTION HAZARD
DANGER:DANGER:
This pressure washer shall only be used with a dedicated
receptacle/plug rated 120vAC, 60 Hz at 15 -or- 20 amperes.
Any other appliances on the circuit should be turned off or
unplugged when using the pressure washer. Never use the
pressure washer with an adapter that may lead to higher
voltage or excessive current. Excessive current may trip
circuit breaker. Consult a qualified electrician if unsure of the
desired power supply receptacle’s ability to safely power this
pressure washer.
IT IS NOT RECOMMENDED TO USE AN EXTENSION
CORD. If, however, an extension cord is required, it must be
an OUTDOOR RATED 3-PRONG CORD, that is no longer
than 50 feet (15M) and has a minimum of 14 AWG (2.5mm
2
)
conductors. Always uncoil the extension cord when in use.
DO NOT use an extension cord that has its ground pin
damaged or missing.
POWER SUPPLY
CAUTION:CAUTION:
13
OPERATING INSTRUCTIONS
• Always test a small area to avoid chance of damaging the
surface.
• Push the power button to turn the unit on (red power light will
turn on). The unit will turn on for 1 - 2 seconds and shut off.
This is a normal function of the auto start feature.
• Squeeze the spray gun trigger to begin pressure washing.
• Begin power washing by squeezing the trigger on the spray
gun all the way into the handle.
• Release the spray gun trigger to stop the power washer.
• Allow the motor to come to a complete stop before squeezing
the trigger again.
• Squeezing rapidly will cause the auto start feature to miss an
on/off cycle that may prevent it from turning on while squeez-
ing trigger after rapid squeezing. Use slow, deliberate trigger
pulls to avoid this.
O
*I
Adjusting Soap Levels on Foam Cannon
Twist knob to adjust the level of soap as indicated on the top of
the Foam Cannon (O). Turn it clockwise for more concentration or
turn it counter-clockwise for less concentration.
3
2
1

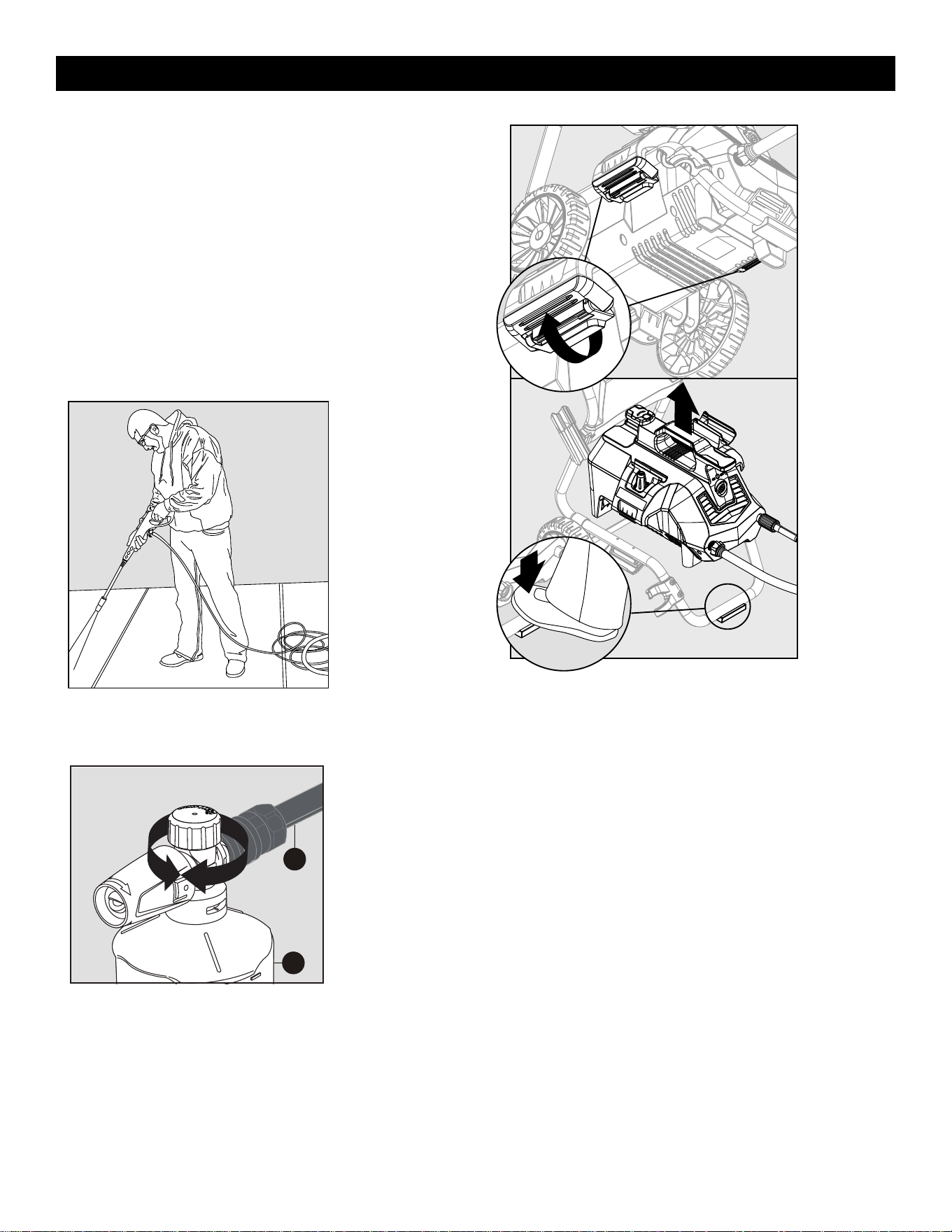

Removing Power Washer Unit from Frame for Handheld
Operation
• Locate latches on the lower side of frame. Unlock latches by
pulling downward on the latches. Place a foot on the pad at
the front of the lower frame and then lift the power washer
unit off the frame.
14
OPERATING INSTRUCTIONS
How to Avoid Damaging Surfaces
• Damage to surfaces being cleaned occurs because the impact
force of the water pressure exceeds the durability of the
surface. Bare wood can be penetrated, paint can be peeled
Operation Tips
• Note:

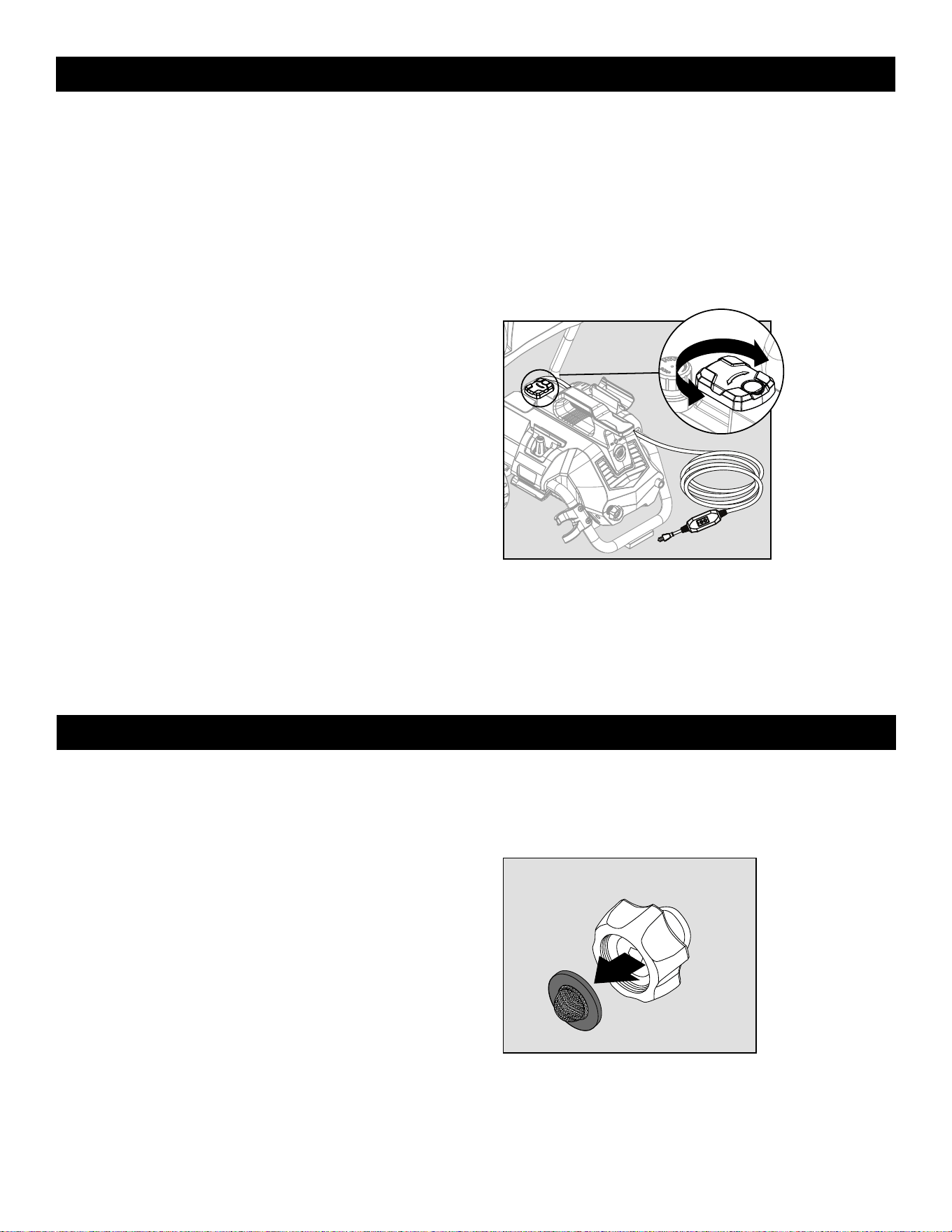

Test the GFCI (For US unit only) before each use:
1. Plug GFCI into power outlet. Indicator should turn green to
show that cord has power.
2. Press test button, green indicator should turn off to verify
that GFCI cut off power to the cord.
3. Press reset button – green indicator should turn on to show
that cord has power again.
4. When GFCI is working properly, green indicator will turn on
when power is applied. If green indicator turns off, it has
detected electric leakage and the GFCI cut off power to the
appliance.
• If you hear the motor run intermittently when the trigger is not
being squeezed, that is normal.
The pump is priming itself so it is ready to operate when the
trigger is squeezed. Turn off the power washer if not being
used after five minutes.
• The o-rings on the bayonet end of the nozzle should be cleaned
regularly and lubricated with non-water soluble grease such as
petroleum jelly (not included).
• Keep the nozzle cleaning wire for use in unclogging the nozzle.
If you lose the cleaning wire, a straightened paper clip also
works.
CARE AND MAINTENANCE
OPERATING INSTRUCTIONS
CARE AND MAINTENANCE
off, etc. You can vary the force of your power washer by
controlling:
1. The angle of the surface being cleaned.
2. The distance of the nozzle from the surface being cleaned.
• Never use a narrow high pressure stream of water on soft
surfaces susceptible to damage.
• Use the 25˚ quick connect nozzle when cleaning windows.
Squeeze the trigger and vary the spray pattern and angle until
optimum cleaning efficiency is achieved.
Using Power Cord
• Remove the power cord from the unit by swiveling the cord
hook to the right or left. The power cord then can be slid off to
either side of the power washer unit.
• Swivel cord hook back to center when ready to wrap the cord
back into place for storage.
Detergents
• Use detergents designed for power washers. Hardware
stores or home centers also have power washer detergents
for different cleaning projects. The cleaning solution should
be the consistency of water in order to prevent clogging your
detergent bottle and nozzle.
• This system applies detergent under low pressure. The
cleaning power of the detergents is enhanced when applied
with low pressure and enough time is given to break
down dirt and grime. The combination of low pressure and
chemical action is very effective and can be better than
scrubbing if applied properly.
Always spray detergent on a
dry surface.
Do not pre-soak area. Wetting the surface first
dilutes the detergent and reduces its cleaning ability.
Do
not
allow detergent to dry on surface. On vertical surfaces
being cleaned, apply detergent to lower surfaces and work
your way up to prevent detergent from causing streaks in
the dirt and grime. Rinse detergent by pressure washing
from bottom up for same reason.
• If a stain is particularly tough, it may be necessary to reapply
the detergent and use a bristled brush to scrub the stain.
Subsequent power washing after brushing should successfully
complete your cleaning job.
Cleaning Garden Hose Adapter
• The screen inside the adapter should be cleaned periodically.
Remove it by dragging a thumb over the screen with enough
pressure to pull the screen and washer out. Rinse it with clean
water and then place it back in the adapter.
15
CARE AND MAINTENANCE
Cleaning Nozzles
• A clogged or partially clogged nozzle can cause significant
reduction of water pressure coming out of the nozzle and/or
cause the unit to pulsate while spraying.
• Turn off the unit.
• Turn off the water supply to the unit.
• Relieve any pressure trapped in the hose by squeezing the
trigger 2 - 3 times, then lock the spray gun by turning the dial to
lock (“3” and “9” position).
• Using the nozzle tip cleaner provided (or an unfolded paper
clip), insert the wire into the nozzle hole and move back and
forth until debris is dislodged.
• Back flush water through the nozzles using garden hose and
highest pressure available (either standard water nozzle or use
your thumb over the nozzle to create water pressure for back
flush).
• Reinstall the nozzle.
Storage
• When your pressure washer session has been completed, turn
off the power switch. Unplug the power cord from the outlet.
Turn off the water supply. Pull the trigger on the spray gun
2-3 seconds to drain out the excess water and to release any
remaining water pressure. Do not allow the power washer to
run with no water flowing through it.
• Remove high pressure hose from spray gun and unscrew the
other end of the high pressure hose from the power washer.
CARE AND MAINTENANCE
• Remove lance from the gun. Place the gun and lance in the
holster on the sides.
• Make sure to discard any remaining detergent from
the tank. Residual chemical will stick to the container which
could become contaminated, and can cause the detergent
injector to clog and not function properly. Flush the tank and
nozzle head with clear water to prevent clogging.
• Wind the power cord around the L-shaped hooks located on
the top of the machine.
• The pressure hose is stored on the hose hook located on the
back of the handle.
• The quick connect nozzles and rotary nozzle are stored on the
nozzle holder located on both sides of machine.
• DO NOT store the power washer where it is exposed to
freezing temperatures unless you use SIMPSON Pump
Guard. Store the power washer indoors to prevent water
in the unit from expanding under freezing conditions. When
the water freezes and expands, your pressure washer will be
damaged and become inoperable. OR, if storing outdoors, it is
recommended you use SIMPSON Pump Guard (not included) to
protect the pump.
16

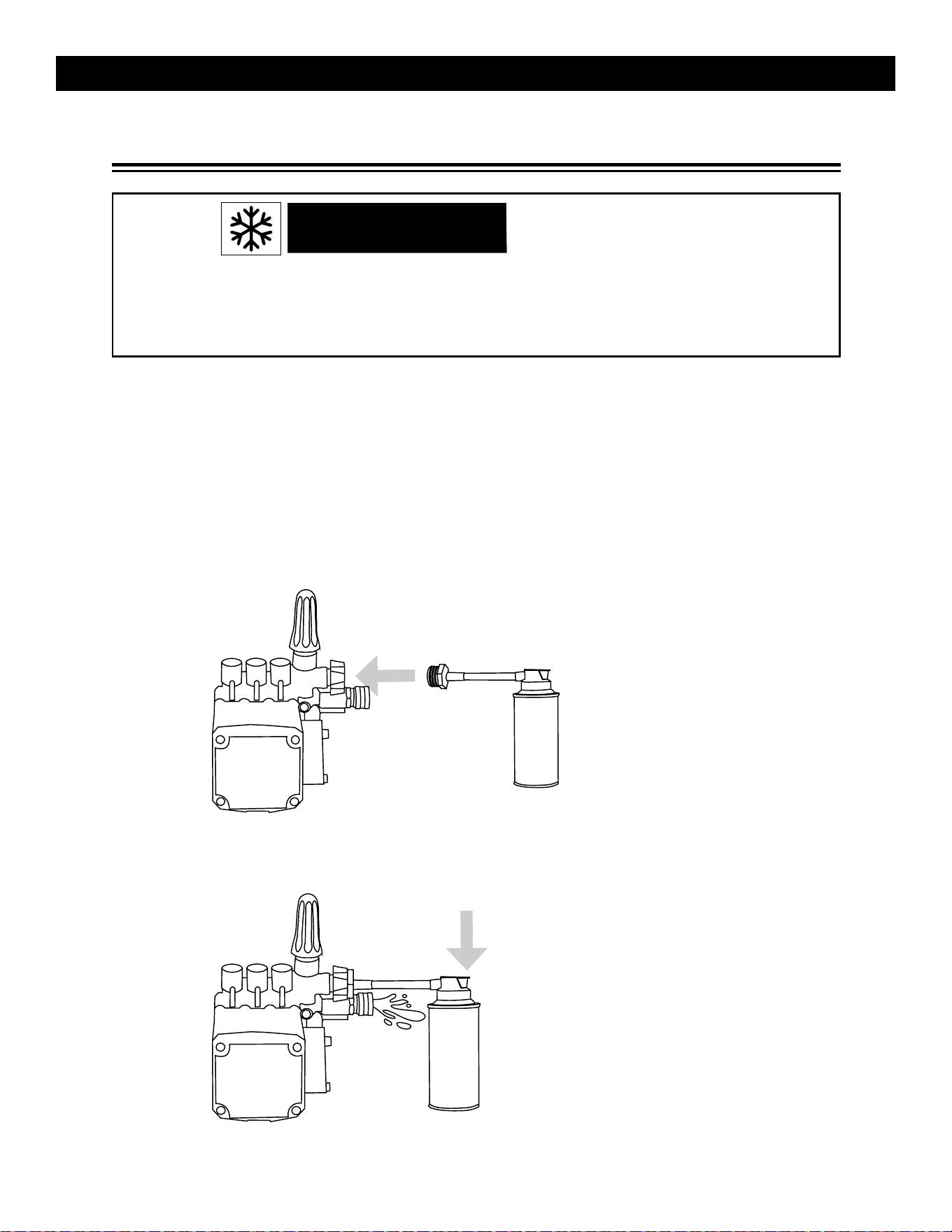

PUMP GUARD
USING SIMPSON
®
PUMP GUARD
NOTICE
Leaving water inside the pump during freezing weather will cause severe damage to the pump. To avoid costly
damage, always treat the pump with SIMPSON
®
Pump Guard to remove the trapped water and to fill the pump with
a lubricating, antifreeze solution.
PUMP DAMAGE
SIMPSON
®
Pump Guard (purchase separately) is formulated to protect your pump during long-term storage and from
freezing damage. Pump Guard should be used throughout the season to keep the seals pliable and well lubricated.
Before storing the unit for winter or for when there is a chance of freezing weather, use pump guard to remove all
traces of water from the internal cavities while filling them with an antifreeze solution. Pump Guard is insurance for
your investment, use it.
Simply use Pump Guard by following these easy steps:
1. Screw the Pump Guard adapter into the garden hose input on the pump.
2. Press and hold down on the button until all the water and the Pump Guard starts to come out of the high
pressure port.
3. Unscrew the Pump Guard from the pump then prepare the pressure washer for storage as outlined in STORAGE
AND TRANSPORTATION.
17
PROBLEM CORRECTIVE ACTION
Unit will not turn on.
1. Make sure the power washer is OFF. Plug in the electrical cord to a grounded 120 volt outlet. If the
electrical cord will not plug into your outlet, your electrical outlet is not properly grounded and should
not be used. Use another electrical outlet.
2. Press the TEST, then RESET buttons on the GFCI unit.
3. If this did not correct the problem, try plugging into another electrical outlet and repeat the above
procedure. If it is still not working, please contact our Customer Service Department by calling 1-877-
362-4271 or emailing cservice
@fna-group.com.
The high pressure (HP)
hose will not connect/
stay connected to the
spray gun. Is this a spray
gun problem?
1. In most cases, the spray gun is not the problem. The problem is the rubber sleeve covering the fitting
at the end of the high pressure hose. It has likely slipped up toward the metal tip. To fix: wiggle, twist
and/or pull the rubber sleeve down until the entire tip is visible plus an 1/8 in. of the metal fitting
below the tip. Now try to insert the hose tip into the spray gun. It should “click” into place and will not
come out until the hose is released by pushing in the lever on the underside of the gun. You may cut
away the end of the sleeve with a sharp knife if unable to move the sleeve down. Be careful not to cut
or puncture the hose.
The unit is running but
there is no water flow.
1. Power should NOT be turned on until water comes through the spray gun. Doing so will damage the
motor.
2. Check the water source.
3. Remove the nozzle from the lance to determine if clog is coming from the nozzle (If nozzle is clogged,
see nozzle cleaning instructions under “Cleaning nozzles”).
4. Take off the lance and just spray out of the spray gun. This will indicate if the problem is with the
lance.
5. Check Garden Hose Adapter for loose connection and the filter for debris.
Why is water leaking
where the high pressure
hose connects to the spray
gun?
1. Make sure there is an o-ring at the end of the metal tip of the high pressure hose. If no o-ring is
present, the connection between the hose and spray gun will leak. O-Ring Replacement Kit (D) is
included with purchase.
I can’t remove the lance
from the spray gun. What
should I do?
1. All lances are attached and removed from the spray gun in the same manner. Insert the end of the
lance into the spray gun. Press the spray gun and lance together (about a 1/8 in.) and turn the collar of
the gun clockwise. The lance will lock in place. Remove the lance by reversing this procedure. Press
the spray gun and lance together and turn counter clockwise. The lance will slide out.
2. Hold the spray gun and lance in an upright position with the nozzle end on the floor. Push the whole
assembly straight down to loosen the connection, and then follow the removal process again. You may
also spray soapy water or a lubricant in the area where the lance connects to the spray gun.
The power washer turns
on for
2 seconds, shuts off, and
will not turn back on. Do I
have a defective unit?
1. When the water is connected, the accessories are assembled properly, and the power is turned on, the
power washer may turn on for 1 - 2 seconds to prime the pump. It automatically shuts off and waits
for the spray gun trigger to be pressed. When the trigger is pressed, water starts flowing through the
pump. The water sensor in the pump “senses” the moving water and automatically turns the power
washer on.
2. Turn the power off, hold in the trigger on the spray gun so that you have a steady stream of water.
While you are holding the trigger open on the spray gun, at the same time, turn the power on.
TROUBLESHOOTING
If you have any questions regarding this product, please contact our Customer Service Department by calling 1-877-362-4271 or
emailing cservice
@fna-group.com.
18
TROUBLESHOOTINGLIMITED WARRANTY
The Warranty of this product is covered by SIMPSON.
This product has the following warranty coverage periods from the date of purchase:
HIGH-PRESSURE PUMP – 1 year
ELECTRIC MOTOR – 1 year
FRAME – 1 year
ACCESSORIES – 90 days (nozzles, hoses, spray guns, wands, tires, rubber feet)
Please read the following carefully to understand what each warranty entails:
This product is under warranty to the original retail consumer against defects in material and workmanship. The warranty is not
transferable or assignable. This limited warranty applies only to products used in consumer applications and is void in rental or any
commercial application. Reasonable care must be used in conformity with operation and maintenance instructions in the owner’s
manual and quick start guide. Failure to follow these instructions will void this warranty. This warranty gives you special legal rights
and you may also have other rights which vary from state to state.
Warranty Process
Keep your original receipt of purchase in case of warranty claim.
To process a warranty claim on your SIMPSON
®
pressure washer, report the concern to 1-877-362-4271 or cservice@FNA-GROUP.COM
for authorization and direction to the nearest authorized service center in your area.
