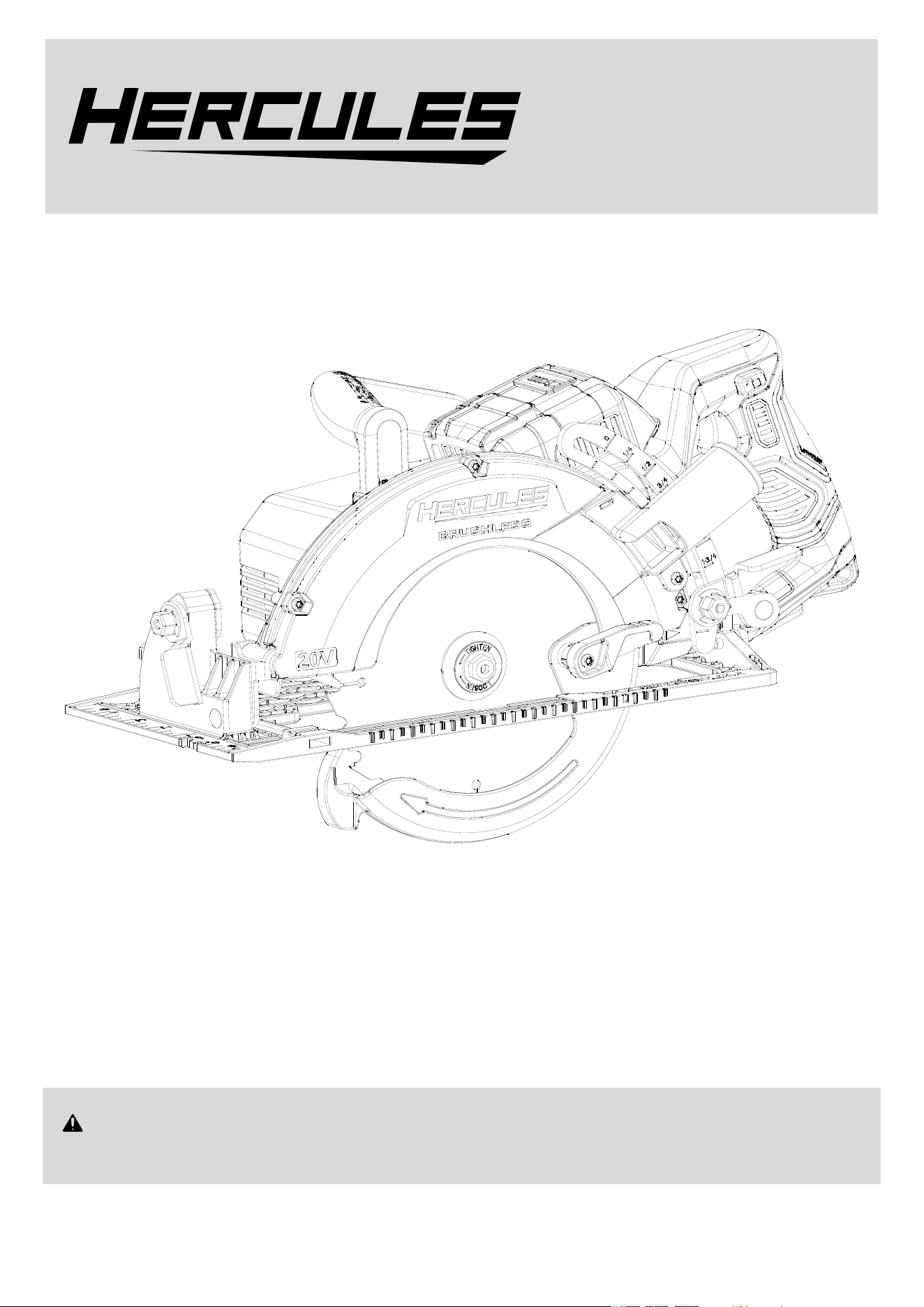

Model
HCB72B-1
20V Brushless 7-1/4″ Rear-Handle
Worm Drive Style Circular Saw
WARNING: To prevent serious injury, User must read and understand
Owner’s Manual. SAVE THIS MANUAL.
When unpacking, make sure that the product is intact and undamaged.
If any parts are missing or broken, please call 1‑800‑444‑3353
as soon as possible. Reference 59641.
®
Owner’s Manual &
Safety Instructions
25b
Page 2 For technical questions, please call 1-800-444-3353. Item 59641
IMPORTANT SAFETY INFORMATION
GENERAL POWER TOOL SAFETY WARNINGS
Read all safety warnings, instructions, illustrations
and specifications provided with this power tool.
Failure to follow all instructions listed below may
result in electric shock, fire and/or serious injury.
Save all warnings and instructions
for future reference.
The term “power tool” in the warnings refers
to your mains-operated (corded) power tool
or battery-operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away
while operating a power tool. Distractions
can cause you to lose control.
2. Electrical safety
a. Do not expose power tools to rain or wet
conditions. Water entering a power tool
will increase the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and
use common sense when operating a
power tool. Do not use a power tool while
you are tired or under the influence of
drugs, alcohol or medication. A moment
of inattention while operating power tools
may result in serious personal injury.
b. Use personal protective equipment. Always
wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard
hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools
with your finger on the switch or energizing power
tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench
before turning the power tool on. A wrench
or a key left attached to a rotating part of the
power tool may result in personal injury.
e. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing
or jewelry. Keep your hair, clothing
and gloves away from moving parts.
Loose clothes, jewelry or long hair
can be caught in moving parts.
g. If devices are provided for the connection
of dust extraction and collection
facilities, ensure these are connected
and properly used. Use of dust collection
can reduce dust-related hazards.
h. Do not let familiarity gained from frequent
use of tools allow you to become
complacent and ignore tool safety
principles. A careless action can cause
severe injury within a fraction of a second.
i. Only use safety equipment that has been
approved by an appropriate standards agency.
Unapproved safety equipment may not provide
adequate protection. Eye protection must be
ANSI‑approved and breathing protection
must be NIOSH‑approved for the
specific hazards in the work area.
j. Do not lay the tool down until it has come to
a complete stop. Moving parts can grab the
surface and pull the tool out of your control.
k. When using a handheld power tool,
maintain a firm grip on the tool with
both hands to resist starting torque.
l. Do not depress the spindle lock when
starting or during operation.
m. Do not leave the tool unattended when the
Battery Pack is connected. Turn off the tool,
and remove the Battery Pack before leaving.
n. This product is not a toy.
Keep it out of reach of children.
o. People with pacemakers should consult their
physician(s) before use. Electromagnetic fields in
close proximity to heart pacemaker could cause
pacemaker interference or pacemaker failure.
p. The warnings, precautions, and instructions
discussed in this instruction manual cannot
cover all possible conditions and situations
that may occur. It must be understood by the
operator that common sense and caution are
factors which cannot be built into this product,
but must be supplied by the operator.
4. Power tool use and care
a. Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer
at the rate for which it was designed.
Page 3For technical questions, please call 1-800-444-3353.Item 59641
b. Do not use the power tool if the switch
does not turn it on and off. Any power
tool that cannot be controlled with the switch
is dangerous and must be repaired.
c. Disconnect the plug from the power
source and/or remove the battery pack,
if detachable, from the power tool before
making any adjustments, changing
accessories, or storing power tools.
Such preventive safety measures reduce the
risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions
to operate the power tool. Power tools are
dangerous in the hands of untrained users.
e. Maintain power tools and accessories.
Check for misalignment or binding of moving
parts, breakage of parts and any other
condition that may affect the power tool’s
operation. If damaged, have the power tool
repaired before use. Many accidents are
caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions
and the work to be performed. Use of the
power tool for operations different from those
intended could result in a hazardous situation.
h. Keep handles and grasping surfaces
dry, clean and free from oil and grease.
Slippery handles and grasping surfaces
do not allow for safe handling and control
of the tool in unexpected situations.
5. Service
a. Have your power tool serviced by a
qualified repair person using only identical
replacement parts. This will ensure that
the safety of the power tool is maintained.
b. Never service damaged BATTERY packs.
Service of BATTERY packs should
only be performed by the manufacturer
or authorized service providers.
c. Maintain labels and nameplates on the tool.
These carry important safety information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
6. Cutting procedures
a. DANGER: Keep hands away from
cutting area and the blade. Keep your
second hand on auxiliary handle, or
motor housing. If both hands are holding
the saw, they cannot be cut by the blade.
b. Do not reach underneath the workpiece.
The guard cannot protect you from
the blade below the workpiece.
c. Adjust the cutting depth to the thickness of
the workpiece. Less than a full tooth of the blade
teeth should be visible below the workpiece.
d. Never hold the workpiece in your hands or
across your leg while cutting. Secure the
workpiece to a stable platform. It is important
to support the work properly to minimise body
exposure, blade binding, or loss of control.
e. Hold the power tool by insulated gripping
surfaces, when performing an operation
where the cutting tool may contact
hidden wiring or its own cord. Contact
with a “live” wire will also make exposed
metal parts of the power tool “live” and
could give the operator an electric shock.
f. When ripping, always use a rip fence or
straight edge guide. This improves the accuracy
of cut and reduces the chance of blade binding.
g. Always use blades with correct size
and shape (diamond versus round) of
arbor holes. Blades that do not match
the mounting hardware of the saw will
run off-center, causing loss of control.
h. Never use damaged or incorrect blade
washers or bolt. The blade washers and
bolt were specially designed for your saw, for
optimum performance and safety of operation.
7. Kickback causes and related warnings
‑ Kickback is a sudden reaction to a pinched,
jammed or misaligned saw blade, causing
an uncontrolled saw to lift up and out of
the workpiece toward the operator;
‑ When the blade is pinched or jammed
tightly by the kerf closing down, the blade
stalls and the motor reaction drives the
unit rapidly back toward the operator;
‑ If the blade becomes twisted or misaligned
in the cut, the teeth at the back edge of the
blade can dig into the top surface of the
wood causing the blade to climb out of the
kerf and jump back toward the operator.
Kickback is the result of saw misuse and/or incorrect
operating procedures or conditions and can be avoided
by taking proper precautions as given below.
a. Maintain a firm grip with both hands on the
saw and position your arms to resist kickback
forces. Position your body to either side of the
blade, but not In line with the blade. Kickback
could cause the saw to jump backwards,
but kickback forces can be controlled by the
operator , if proper precautions are taken.
Page 4 For technical questions, please call 1-800-444-3353. Item 59641
b. When blade is binding, or when interrupting
a cut for any reason, release the trigger
and hold the saw motionless in the material
until the blade comes to a complete stop.
Never attempt to remove the saw from
the work or pull the saw backward while the
blade is in motion or kickback may occur.
Investigate and take corrective actions to
eliminate the cause of blade binding.
c. When restarting a saw in the workpiece,
centre the saw blade in the kerf so that the
saw teeth are not engaged into the material.
If a saw blade binds, it may walk up or kickback
from the workpiece as the saw is restarted.
d. Support large panels to minimise the
risk of blade pinching and kickback.
Large panels tend to sag under their own
weight. Supports must be placed under
the panel on both sides, near the line of
cut and near the edge of the panel.
e. Do not use dull or damaged blades.
Unsharpened or improperly set blades
produce narrow kerf causing excessive
friction, blade binding and kickback.
f. Blade depth and bevel adjusting locking
levers must be tight and secure before
making the cut. If blade adjustment shifts while
cutting, it may cause binding and kickback.
g. Use extra caution when sawing into existing
walls or other blind areas. The protruding
blade may cut objects that can cause kickback.
8. Lower guard function
a. Check the lower guard for proper closing
before each use. Do not operate the saw if the
lower guard does not move freely and close
instantly. Never clamp or tie the lower guard
into the open position. If the saw is accidentally
dropped, the lower guard may be bent. Raise the
lower guard with the retracting handle and make
sure it moves freely and does not touch the blade
or any other part, in all angles and depths of cut.
b. Check the operation of the lower guard
spring. If the guard and the spring are
not operating properly, they must be
serviced before use. Lower guard may
operate sluggishly due to damaged parts,
gummy deposits, or a build-up of debris.
c. The lower guard may be retracted manually
only for special cuts such as “plunge cuts”
and “compound cuts”. Raise the lower guard
by the retracting handle and as soon as the
blade enters the material, the lower guard
must be released. For all other sawing, the
lower guard should operate automatically.
d. Always observe that the lower guard
is covering the blade before placing
the saw down on bench or floor. An
unprotected, coasting blade will cause the
saw to walk backwards, cutting whatever is
in its path. Be aware of the time it takes for
the blade to stop after switch is released.
9. Battery tool use and care
a. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to battery pack, picking up or carrying the
power tool. Carrying the power tool with your
finger on the switch or energizing power tool
that have the switch on invites accidents.
b. Disconnect the battery pack from the
power tool before making any adjustments,
changing accessories, or storing power
tool. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
c. Recharge only with the charger specified by
the manufacturer. A charger that is suitable
for one type of battery pack may create a risk
of fire when used with another battery pack.
d. Use power tools only with specifically
designated battery packs. Use of any other
battery packs may create a risk of injury and fire.
e. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from
one terminal to another. Shorting the battery
terminals together may cause burns or a fire.
f. Under abusive conditions, liquid may be
ejected from the battery; avoid contact.
If contact accidentally occurs, flush with
water. If liquid contacts eyes, additionally
seek medical help. Liquid ejected from the
battery may cause irritation or burns.
g. Do not use a battery pack or power tool that
is damaged or modified. Damaged or modified
batteries may exhibit unpredictable behavior
resulting in fire, explosion or risk of injury.
h. Do not expose a battery pack or power
tool to fire or excessive temperature.
Exposure to fire or temperature above
140°F may cause explosion.
i. Follow all charging instructions and do
not charge the battery pack or power tool
outside of the temperature range specified
in the instructions. Charging improperly or at
temperatures outside of the specified range may
damage the battery and increase the risk of fire.
j. Have servicing performed by a qualified
repair person using only identical
replacement parts. This will ensure that
the safety of the product is maintained.
Page 5For technical questions, please call 1-800-444-3353.Item 59641
k. Do not modify or attempt to repair the power
tool or the battery pack except as indicated
in the instructions for use and care.
l. The battery Charger gets hot during
use. The Charger’s heat can build up
to unsafe levels and create a fire
hazard if it does not receive adequate
ventilation, due to an electrical fault, or if it is
used in a hot environment. Do not place the
Charger on a flammable surface. Do not obstruct
any vents on the Charger. Especially avoid
placing the Charger on carpets and rugs; they
are not only flammable, but they also obstruct
vents under the Charger. Place the Charger on
a stable, solid, nonflammable surface (such as a
stable metal workbench or concrete floor) at least
1 foot away from all flammable objects, such as
drapes or walls. Keep a fire extinguisher and a
smoke detector in the area. Frequently monitor
the Charger and Battery Pack while charging.
10. Lithium Battery Safety Warnings
LITHIUM BATTERIES STORE
A LARGE AMOUNT OF ENERGY AND
WILL VENT FIRE OR EXPLODE
IF MISTREATED:
a. Keep Battery Pack dry.
b. DO NOT DO ANY OF THE FOLLOWING
TO THE BATTERY PACK:
• Open,
• Drop,
• Short-circuit,
• Puncture,
• Incinerate, or
• Expose to temperatures greater than 140°F.
c. Charge Battery Pack only according
to its Charger’s instructions.
d. Inspect Battery Pack before every use;
do not use or charge if damaged.
11. Vibration Safety
This tool vibrates during use.
Repeated or long‑term exposure to vibration may
cause temporary or permanent physical injury,
particularly to the hands, arms and shoulders.
To reduce the risk of vibration‑related injury:
a. Anyone using vibrating tools regularly or for
an extended period should first be examined
by a doctor and then have regular medical
check‑ups to ensure medical problems are not
being caused or worsened from use. Pregnant
women or people who have impaired blood
circulation to the hand, past hand injuries,
nervous system disorders, diabetes, or
Raynaud’s Disease should not use this tool.
If you feel any symptoms related to
vibration (such as tingling, numbness,
and white or blue fingers), seek medical
advice as soon as possible.
b. Do not smoke during use. Nicotine reduces
the blood supply to the hands and fingers,
increasing the risk of vibration‑related injury.
c. Wear suitable gloves to reduce the
vibration effects on the user.
d. Use tools with the lowest vibration
when there is a choice.
e. Include vibration‑free periods each day of work.
f. Grip tool as lightly as possible (while still keeping
safe control of it). Let the tool do the work.
g. To reduce vibration, maintain the tool as
explained in this manual. If any abnormal
vibration occurs, stop use immediately.
GROUNDING
TO PREVENT ELECTRIC SHOCK AND
DEATH FROM INCORRECT GROUNDING:
Check with a qualified electrician if you
are in doubt as to whether the outlet is
properly grounded. Do not modify the power cord
plug provided with the charger. Do not use the
charger if the power cord or plug is damaged.
If damaged, have it repaired by a service facility
before use. If the plug will not fit the outlet,
have a proper outlet installed by a
qualified electrician.
EXTENSION CORDS
Note: Extension cords must not be
used with this item’s Charger.
Page 6 For technical questions, please call 1-800-444-3353. Item 59641

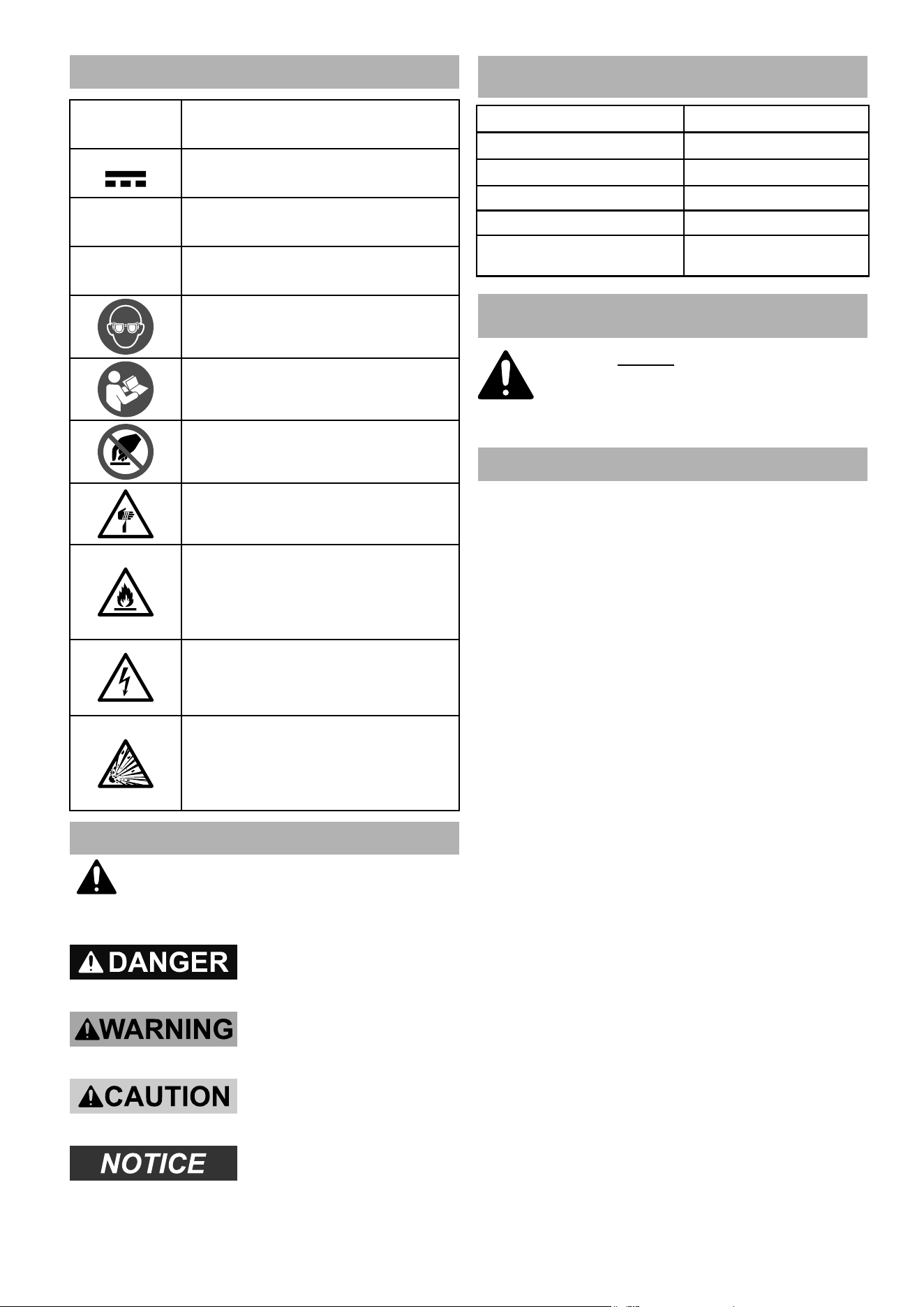

Symbology
V
Volts
Direct Current
A
Amperes
n
0
xxxx/min.
No Load Revolutions per Minute (RPM)
WARNING marking concerning Risk
of Eye Injury. Wear ANSI‑approved
safety goggles with side shields.
Read the manual before
set‑up and/or use
Keep hands clear of fence area.
DANGER marking concerning
Risk of Amputation.
Keep hands well clear of cutting area.
WARNING marking
concerning Risk of Fire.
Do not cover Charger
ventilation ducts.
Charge on fireproof surface only.
WARNING marking concerning
Risk of Electric Shock.
Properly connect Charger’s power
cord to appropriate outlet.
WARNING marking concerning
Risk of Explosion.
Do not puncture, short, or open
battery packs and do not charge
damaged battery packs.
Warning Symbols and Definitions
This is the safety alert symbol. It is used to
alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to
avoid possible injury or death.
Indicates a hazardous
situation which, if not
avoided, will result in death or serious injury.
Indicates a hazardous
situation which, if not
avoided, could result in death or serious injury.
Indicates a hazardous
situation which, if not
avoided, could result in minor or moderate injury.
Addresses practices not
related to personal injury.
SPECIFICATIONS
Battery Hercules 20V Li‑Ion
Charger Hercules 20V Li‑Ion
No Load Speed n
0
:5800/min
Maximum Blade Diameter 7‑1/4" (Ø184mm)
Arbor 5/8" Diamond
Maximum Depth of Cut
45° : 1-7/8"
90° : 2-1/2"
SET UP - BEFORE USE
Read the ENTIRE IMPORTANT SAFETY
INFORMATION section at the beginning
of this manual including all text under
subheadings therein before set up or use
of this product.
Charging
Charge battery before using this tool. Follow
instructions included with battery charger.
Page 7For technical questions, please call 1-800-444-3353.Item 59641

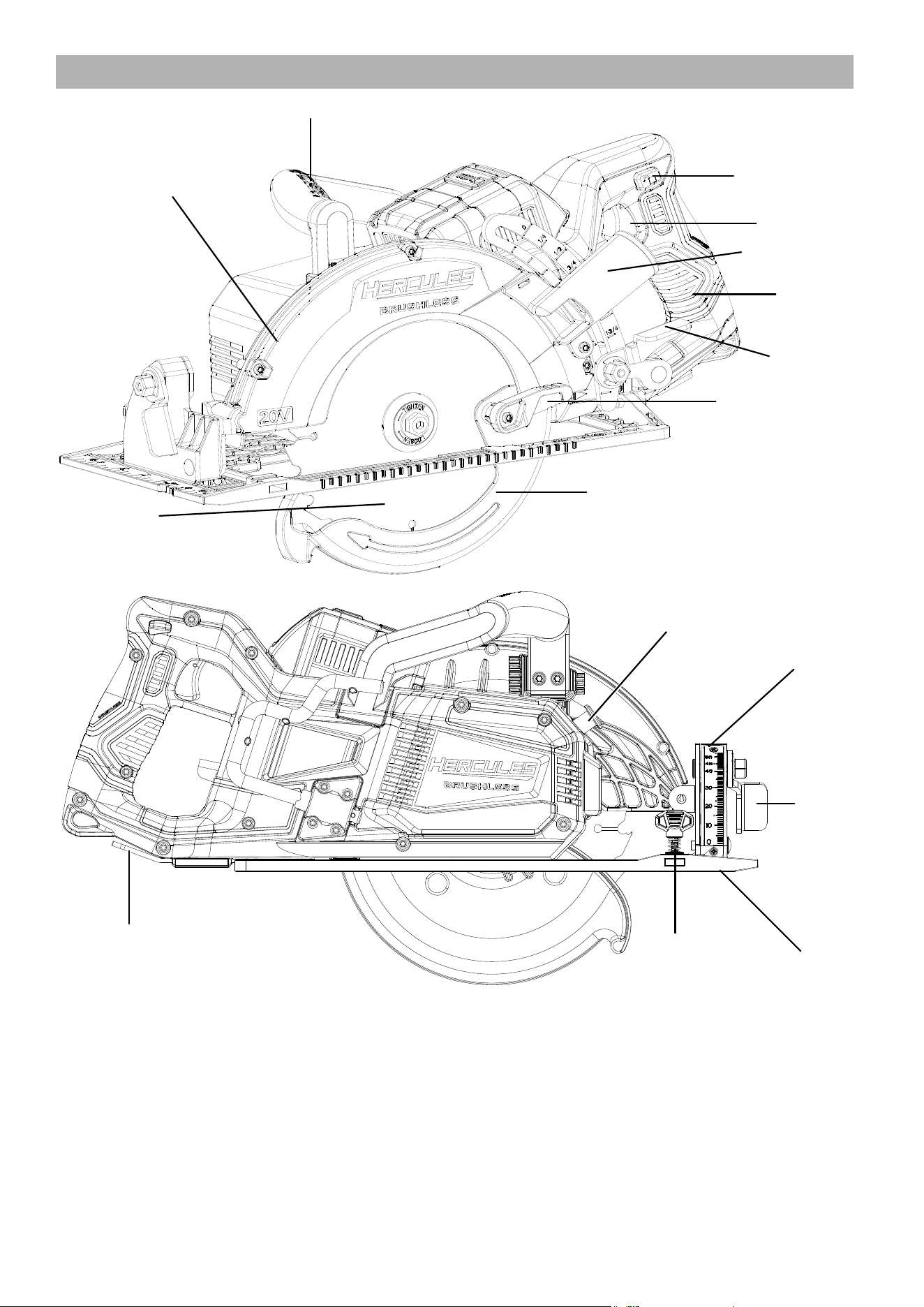

Functional Description
Auxiliary Handle
Trigger
Lock Off
Trigger
Main
Handle
Dust Port
Depth
Lock
Lever
Lower Guard
Lever
Lower Guard
Blade
Fixed Guard
Base Plate
Bevel Scale
Bevel
Lock
Lever
Fence
Lock
Knob
Spindle Lock
Blade
Wrench
Page 8 For technical questions, please call 1-800-444-3353. Item 59641
OPERATING INSTRUCTIONS
Read the ENTIRE IMPORTANT SAFETY
INFORMATION section at the beginning of
this manual including all text under
subheadings therein before set up or use
.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL
OPERATION: Make sure that the Trigger is in the
off-position and remove the Battery Pack before
performing any procedure in this section.
Tool Changing
TO PREVENT SERIOUS INJURY FROM
FLYING FRAGMENTS: Do not use blades
made from high-speed steel, abrasive blades,
or metal- or masonry-cutting blades. The
guards of this saw are not designed to
protect against the failure of such blades.
WARNING! TO PREVENT SERIOUS INJURY: DO
NOT OPERATE WITH ANY GUARD DISABLED,
DAMAGED, OR REMOVED. Moving guards
must move freely and close instantly.

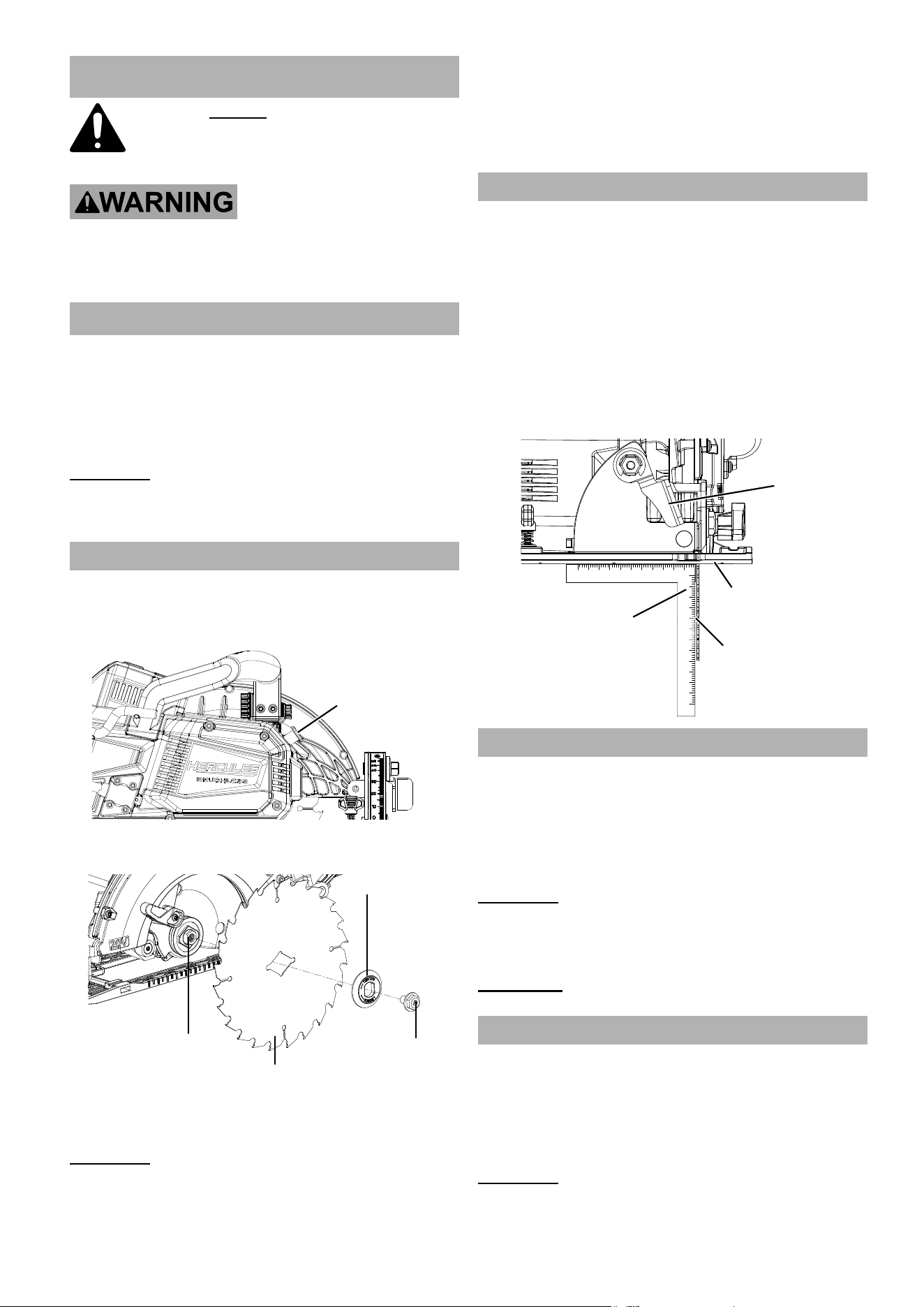

Mounting and Removing Blade
1. Hold in Spindle Lock, located above Upper Blade
Guard, while removing the Blade Bolt using the
included Blade Wrench, turning Bolt CLOCKWISE.
Spindle Lock
2. Remove the Outer Flange.
Blade
Bolt
Saw
Blade
Outer
Flange
Inner
Flange
3. Use the Lower Guard Lever to raise Lower Guard
and remove Blade. Leave Inner Flange in place.
WARNING! TO PREVENT SERIOUS INJURY:
Blade must be rated to at least 5,800 RPM.
4. Install Blade with the directional arrow pointing the
same as the directional arrow on Lower Guard.
5. Place Outer Flange on Spindle, recessed side first
with wording on Flange facing out. Hold in Spindle
Lock while using the Blade Wrench to replace the
Blade Bolt, turning it COUNTERCLOCKWISE.
Checking/Adjusting Blade Alignment
1. Raise Depth Lock Lever. Adjust Base Plate height
so that Blade is exposed and Base Plate is not
touching underside of Saw. Lower Depth Lock Lever.
2. Raise Bevel Lock Lever. Set bevel angle
to 0° and lower Bevel Lock Lever.
3. Place a square (sold separately) against
the Base Plate and Blade, making sure
to not touch the Blade teeth.
4. If Blade is not square, turn Circular Saw upside
down and adjust Set Screw in bottom of Base Plate.
Adjust until Blade is square to Base Plate.
Square
Base
Plate
Blade
Bevel
Lock
Lever

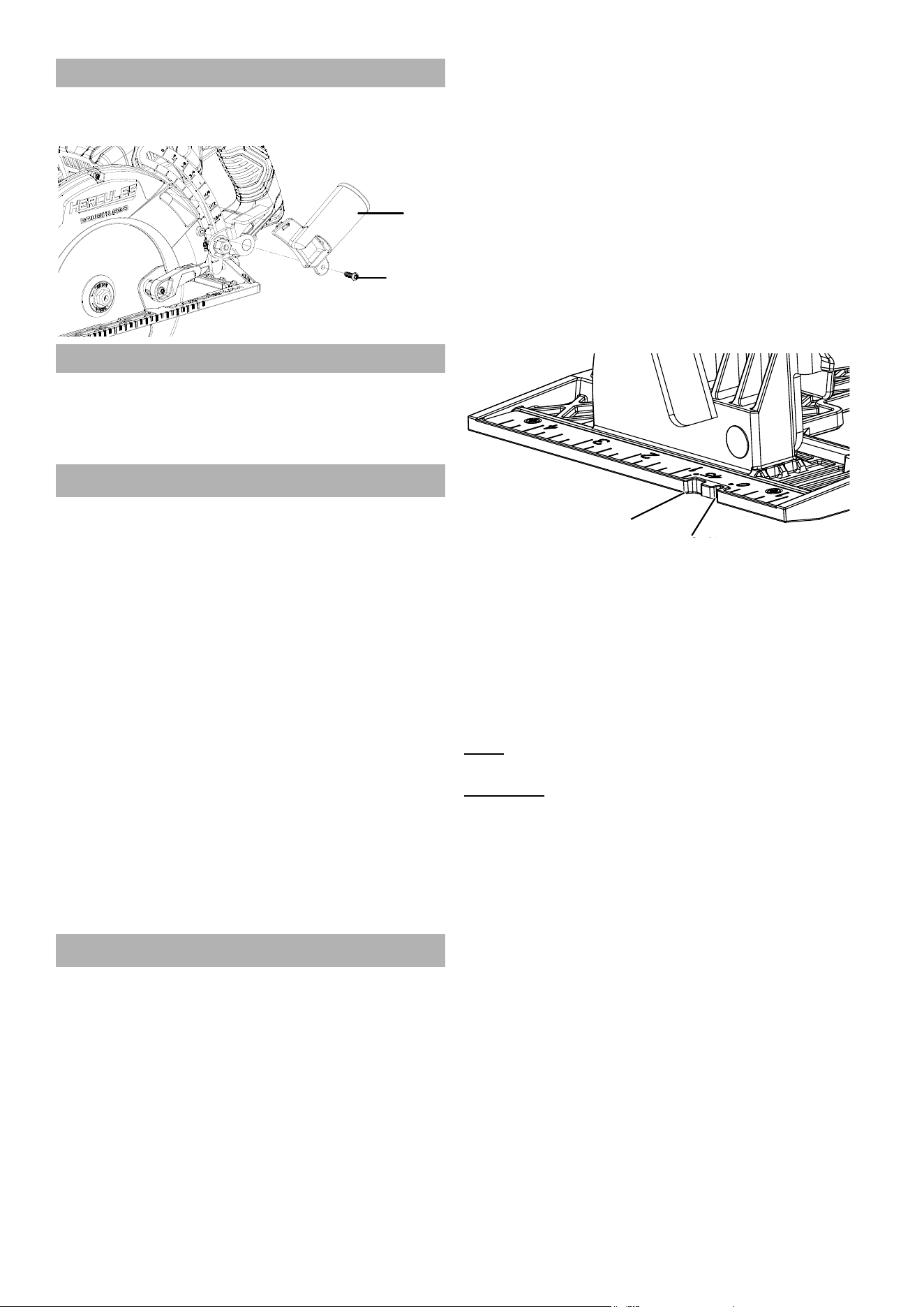

Adjusting Depth
1. Set the Base Plate flat against the
edge of the workpiece.
2. Hold Base Plate down with one hand and
raise or lower Saw with the other hand until
the Blade is at the desired depth of cut,
using the Depth Gauge as a guide.
WARNING! TO PREVENT SERIOUS INJURY:
adjust the depth of cut to just barely clear
the workpiece and remove shavings.
3. Lower Depth Lock Lever down to lock.
WARNING! TO PREVENT SERIOUS INJURY:
Tighten Depth Lever before use.
Adjusting Bevel
1. Raise the Lower Guard to expose Blade.
2. Loosen the Bevel Lock Lever to allow
the angle of cut to be adjusted.
3. Use Bevel Scale to set desired angle.
4. After adjustment, tighten the Bevel Lock Lever.
WARNING! TO PREVENT SERIOUS INJURY:
Tighten Bevel Lock Lever before use.
Page 9For technical questions, please call 1-800-444-3353.Item 59641
Attaching Dust Port
Attach Dust Port to Fixed Guard using
Bolt. Tighten Bolt securely.
Bolt
Dust
Port
Dust Collection Setup
1. Insert end of dust hose (sold separately)
into Dust Port on the side of the saw.
2. Connect other end of dust hose to a dust
collection system (sold separately).
Workpiece and Work Area Set Up
1. Workpiece selection:
a. Workpiece must be wood, free of
foreign objects and loose knots.
b. Do not use to cut logs, tree limbs,
or uneven lumber.
c. Wet lumber, green (unseasoned) lumber,
and pressure treated lumber all have an
increased potential for kickback and should
only be cut with a blade designed for cutting
that lumber. Wear a NIOSH‑approved
respirator and have appropriate ventilation
whenever cutting pressure treated lumber.
2. Designate a work area that is clean and well
lit. The work area must not allow access by
children or pets to prevent distraction and injury.
3. Secure loose workpieces to workbench
using a vise or clamps (not included) to
prevent movement while working.
4. There must not be objects, such as utility lines,
nearby that will present a hazard while working.
This is especially critical for plunge cuts.
General Instructions for Use
1. Make all necessary adjustments to the
Circular Saw. Make sure that all guards are
in place in proper working order and that all
adjustment levers are tight before operation.
2. Mark a cutting line onto the workpiece.
Position workpiece so that cutting line
is beyond edge of workbench.
3. Turn on dust collection system.
4. Make sure Trigger is in the off‑position,
then attach the Battery Pack.
5. Firmly grip the Main Handle with one hand and
the Auxiliary Handle with the other hand.
6. Rest front part of Base Plate flat on workpiece
surface with Blade not making contact.
7. Align saw Blade with cutting line on workpiece.
The Blade should not contact the workpiece.
There are two notches on the front edge of the
Base Plate that can be used as alignment aids:
a. For a straight 90° cut, align the cutting line on
the workpiece with the notch marked 0°.
b. When making a bevel cut, align the cutting line
on the workpiece with the notch marked 45°.
Notch 0°
Notch 45°
Notch 0°
8. Push and hold Trigger Lock Off down, then
squeeze Trigger to turn on the Circular
Saw. Release Trigger Lock Off.
9. Allow the saw Blade to reach full speed
before feeding Saw Blade into workpiece.
10. Feed the saw Blade gradually into the
workpiece. Do not force the Circular Saw to
cut faster than it is designed to cut. Do not
exert excessive pressure on workpiece.
Note: When cutting across the grain, wood fibers can
lift and tear. Move Saw slowly to minimize tearing.
WARNING! TO PREVENT SERIOUS INJURY:
MAKE straight cuts only. DO NOT pull backward
or twist Saw while cutting. The saw Blade may
walk out or “bind” in the workpiece causing
kickback, potential serious injury, and/or
damage to the workpiece and Circular Saw.
11. Release Trigger if saw Blade is to be backed out
of an uncompleted cut. Allow Blade to come to
a complete stop before removing the Saw. Do
not press against the saw Blade to stop it.
12. After completing the cut, release Trigger
and allow Blade to come to a complete
stop before removing it from the workpiece.
After removing it from the workpiece, make
sure Lower Guard closes immediately.
13. To prevent accidents, turn off the tool and
remove its Battery Pack after use. Clean, then
store the tool indoors out of children’s reach.
Page 10 For technical questions, please call 1-800-444-3353. Item 59641
Plunge Cut
1. Disconnect battery pack before
making any adjustments.
2. Mark a cutting line on the workpiece.
3. Adjust cut depth so Blade barely
clears the workpiece.
4. With the Trigger in off‑position, connect battery pack.
5. While firmly gripping Main Handle with one hand
and Auxiliary Handle with other hand, angle
front edge of the Base Plate to sit flat on the
workpiece with Blade directly above cutting line.
The Blade should not contact the workpiece.
6. Pull Lower Guard all the way up into
Upper Guard to expose Blade.
7. While holding Lower Guard in upward
position, push and hold the Trigger Lock Off
and squeeze the Trigger. Allow Saw to come
to full speed and slowly lower the Saw.
8. Once Saw makes contact with the workpiece,
immediately release Lower Guard Lever so
Lower Guard moves back in place. Make
sure both hands are gripping the Saw as
you move the Blade into the workpiece.
9. Once the Base Plate is flush with surface of
workpiece, gently push Saw forward. Feed
Blade through the material, allowing Saw
to do the cutting for you. Do not exert
excessive pressure on the workpiece.
10. When finished with the cut, release Trigger
and allow Saw to come to a full stop before
removing it from the workpiece.
WARNING! TO PREVENT SERIOUS INJURY:
Do not pull the Saw backward as the Blade
will climb out of the cut resulting in kickback.
Stop the Saw, turn it around and finish the
cut as explained above, sawing forward.
Cutting Large Sheets of Wood
WARNING! TO PREVENT SERIOUS INJURY:
Cutting without leveling and supporting the
workpiece may result in the Blade binding
and cause kickback, potential injury, and/
or damage to the workpiece and Saw.
Support and level large sheets of wood
to prevent bending or sag:
a. To support workpiece, use two‑by‑fours
(sold separately) on workbench close to the cut.
b. If the workpiece is too large for the
workbench, place the workpiece on the
floor supported by two‑by‑fours.
MAINTENANCE AND SERVICING
Procedures not specifically explained
in this manual must be performed
only by a qualified technician.
TO PREVENT SERIOUS INJURY FROM
ACCIDENTAL OPERATION: Release the Trigger
and remove the Battery Pack before performing any
procedure in this section.
TO PREVENT SERIOUS INJURY FROM
TOOL FAILURE:
Do not use damaged equipment.
If abnormal noise or vibration occurs, have
the problem corrected before further use.
Cleaning, Maintenance,
and Lubrication
1. BEFORE EACH USE, inspect the general
condition of the tool. Check for:
• loose hardware
• misalignment or binding of moving parts
• cracked or broken parts
• damaged electrical wiring
• any other condition that may
affect its safe operation.
2. AFTER USE, wipe external surfaces of the tool
with clean cloth. Wipe surfaces of upper and lower
blade guards with a dry clean cloth. Keep hands
and body away from blade while cleaning surfaces.
3. TO CLEAN: Ventilation openings should be kept
clean and free of dirt and debris. Wear ANSI‑
approved safety goggles and NIOSH‑approved
dust mask/respirator before cleaning ducts. Use
compressed air to clean ventilation openings.
Outer body may be cleaned with a clean cloth
and a mild detergent. Do not use solvents.
Do not immerse the Circular Saw in liquid.
4. For blade changing instructions see
Tool Changing on page 8.
5. Disconnect battery pack and store battery pack,
charger, and tool in dry, indoor area out of
reach of children and away from metal objects
(i.e., paperclips, coins) to prevent shorting.
Page 11For technical questions, please call 1-800-444-3353.Item 59641
Troubleshooting
Problem Possible Causes Likely Solutions
Tool will
not start.
1. Battery Pack not properly
connected.
2. Battery Pack not
properly charged.
3. Battery Pack burnt‑out.
4. Internal damage or wear.
(trigger, for example.)
1. Remove Battery Pack, make sure there are no
obstructions, reinsert the Battery Pack according
to its shape (it should only fit one way), and press
firmly until the Battery Pack locks in place.
2. Make sure Charger is connected and operating properly.
Give enough time for Battery Pack to recharge properly.
3. Dispose of old Battery Pack properly or recycle.
Replace Battery Pack.
4. Have qualified technician service tool.
Tool operates
slowly.
1. Forcing tool to work too fast.
2. Battery Pack wearing out.
1. Allow tool to work at its own rate.
2. Dispose of old Battery Pack properly or recycle.
Replace Battery Pack.
Performance
decreases
over time.
Blade dull or damaged. Keep blades sharp. Replace as needed.
Excessive noise
or rattling.
Internal damage or wear.
(bearings, for example.)
Have qualified technician service tool.
Overheating. 1. Forcing tool to work too fast.
2. Blade misaligned.
3. Blade dull or damaged.
4. Blocked motor housing vents.
1. Allow tool to work at its own rate.
2. Check and correct blade to fence alignment.
3. Keep cutting Blades sharp. Replace as needed.
4. Wear ANSI‑approved safety goggles and
NIOSH‑approved dust mask/respirator while
blowing dust out of motor using compressed air.
Follow all safety precautions whenever diagnosing or servicing the tool.
Disconnect Battery Pack and Charger power supply before service.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not available
individually as replacement parts. Specify UPC 193175477323 when ordering parts.
5-YEAR LIMITED WARRANTY
This Hercules tool is warranted to the original purchaser to be free from defects in materials and workmanship
for a period of five (5) years beginning on the date of purchase. This warranty does not cover battery packs and
battery chargers, which are covered under separate warranties. To obtain warranty service, visit your local Harbor
Freight retail store. Warranty registration is not required. The product or part must be returned to us with proof of
purchase (e.g. in‑store receipt or packing slip/invoice) and may require shipment by purchaser to a service center
at purchaser’s expense. If our inspection verifies a covered defect in materials or workmanship during the warranty
period, we will, at our option, repair or replace the defective product. We will return repaired products within a
reasonable time at our expense, but if we determine that there is no defect, or that the defect resulted from causes
not within the scope of our warranty, then we will return the product to you if you pay return shipping costs.
This warranty does not cover any failure or damage that we determine is due directly or indirectly to normal
wear and tear, misuse, use not for the intended purpose or not in accordance with the product manual,
abuse, accident, rental, modification or alteration, unauthorized repair, improper installation, neglect, lack of
maintenance, or any other failure not arising from defective materials or workmanship. Fraudulent returns or
claims will be denied. The repair or replacement described in this warranty shall be your sole and exclusive
remedy. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES, WRITTEN
OR ORAL, AND ANY IMPLIED WARRANTIES ARE DISCLAIMED TO THE EXTENT PERMITTED BY LAW
AND OTHERWISE LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN. HARBOR
FREIGHT SHALL NOT BE LIABLE UNDER ANY CIRCUMSTANCES FOR ANY INCIDENTAL, INDIRECT,
SPECIAL, CONSEQUENTIAL, OR PUNITIVE DAMAGES OR COSTS ARISING FROM THIS WARRANTY
OR THE USE OF THIS PRODUCT. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN
IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THESE LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC
LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
®
26677 Agoura Road • Calabasas, CA 91302 • 1-800-444-3353
Visit our website at: https://www.harborfreight.com
Email our technical support at: [email protected]
For technical questions, please call 1-800-444-3353
Copyright
©
2024 by Harbor Freight Tools
®
. All rights reserved. No portion of this manual or
any artwork contained herein may be reproduced in any shape or form without the express
written consent of Harbor Freight Tools. Diagrams within this manual may not be drawn
proportionally. Due to continuing improvements, actual product may differ slightly from the
product described herein. Tools required for assembly and service may not be included.
