PLANNING GUIDE
INTEGRATED TALL DISHWASHER
DW60UT4I2 | DW60UT4HI2
PAGE 290003478A PLANNING GUIDE TALL DISHWASHER VERSION A - MAY 2024 © FISHER & PAYKEL LIMITED 2024
PLANNING GUIDE | INTEGRATED TALL DISHWASHER DW60UT4I2 | DW60UT4HI2
This comprehensive Planning Guide provides you with the framework and tools to achieve your desired design outcome with Fisher & Paykel appliances. In this guide, you will
find a range of conceptual, detailed, and dimensional product information to bring your ideas to life and create spaces that truly reflect your vision.
CONCEPT DESIGN PAGE DEVELOPED AND DETAILED DESIGN PAGE DEVELOPED AND DETAILED DESIGN PAGE
Specification guide
DW60UT4I2, DW60UT4HI2 4
Data Sheet
Data Sheet 7
Design planning information 8
Installation Height 9
Recessed Handle 10
CONTENTS
CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used
as installation guidance for any product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
i
i
© FISHER & PAYKEL LIMITED 2024 PAGE 390003478A PLANNING GUIDE TALL DISHWASHER - VERSION A - MAY 2024
SPECIFICATION GUIDE
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used
as installation guidance for any product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 4PLANNING GUIDE TALL DISHWASHER - VERSION A - MAY 202490003478A © FISHER & PAYKEL LIMITED 2024
OVERVIEW
Designed to be integrated into your surrounding cabinetry
for a seamless finish, these Tall models give generous
internal space and installation flexibility for varying bench
heights. Flexible storage allows for easy stacking, whilst the
combination of clever technologies means a reliable
wash performance.
PRODUCTS
Integrated Dishwasher, 60cm, Tall, Sanitise
DW60UT4I2, DW60UT4HI2
Not all models are available in all markets
SPECIFICATION GUIDE | INTEGRATED TALL DISHWASHER
SERIES & STYLE
Series 9
Integrated
FEATURES
1 Designed to be integrated into your cabinetry for a
seamless finish, this model can be installed under bench
with a minimum height of 857mm
2 Tall height offers a generous 637mm of usable space and
easily accommodates plate sizes up to 325mm
3 Eight wash programs including specialty Auto, Eco,
60 Min and Glassware cycles
4 Extra Dry, Sanitise, Half Load and Intensive wash modifiers
provide extra wash options
5 Fan-assisted drying with end-of-cycle auto-door-open
removes excess moisture, and leaves your dishes with a
dry finish
6 An innovative air curtain channels the steam away from
the adjacent benchtop, protecting your cabinetry
7 Fully flexible racking including height adjustable middle
basket and cup racks, foldable wine racks, full-width
utensil tray and cutlery basket
8 With touch controls, floor-light cycle status indicator and
interior LED lighting
9 Wi-Fi capability and a SmartHQ™ app connectivity for
remote control and notifications
!0 B* Star energy*
!1 Quiet wash performance, running at a low decibel rating
of 42dBA, B sound rating**
* Subject to change. Final certification pending.
** Noise subject to change.
DW60UT4I2, DW60UT4HI2
DW60UT4I2 | DW60UT4HI2
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used
as installation guidance for any product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 5PLANNING GUIDE TALL DISHWASHER - VERSION A - MAY 202490003478A © FISHER & PAYKEL LIMITED 2024
SPECIFICATION GUIDE | INTEGRATED TALL DISHWASHER
PRODUCT SPECIFICATIONS
Model No. DW60UT4I2, DW60UT4HI2
Dimensions H 857 – 917mm W 597mm D 554mm
Electrical
Supply 220-240 V, 50 Hz
Service 10A
Receptacle 3-prong grounding-type
Plumbing
Supply
3/4" (20mm) BSP connector water inlet hose
with Aquastop
Pressure
Min 0.03 Mpa (4.35psi), Max 1 Mpa (145psi)
Cold water connection @ 20°C

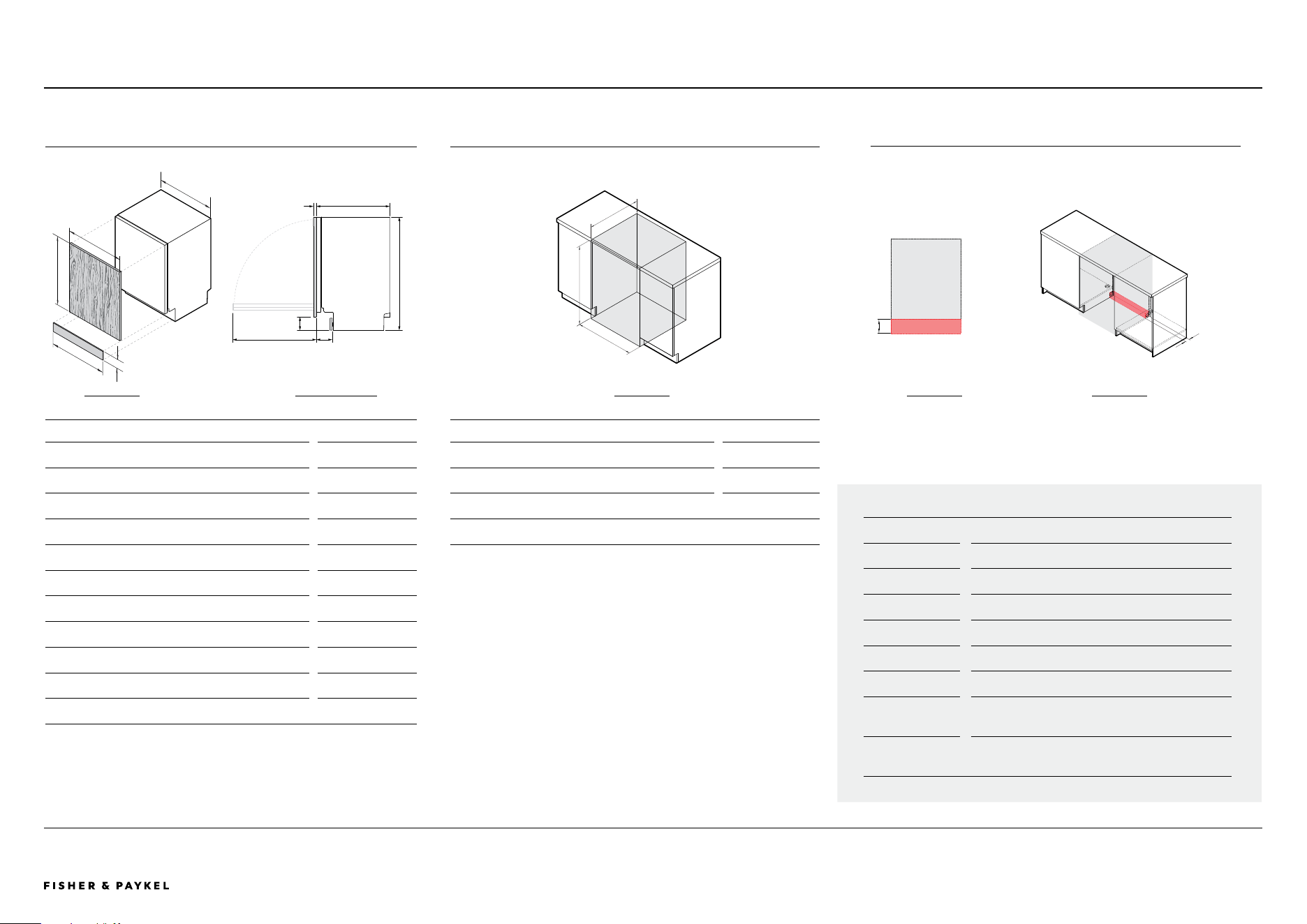

PRODUCT DIMENSIONS
mm
A Overall height* 857 – 917
B Overall width** 597
C Overall depth 554
D Minimum depth of open door 673
E Height of custom toe kick panel* **** 65 – 200
F Minimum width of custom toe kick panel*** 595
G Depth of toe kick recess 45 – 120
H Minimum height of custom door panel 714
I Minimum width of custom door panel 595
J Depth of custom door panel 16 – 25
K Height from floor to door panel base* 65 – 200
* Depending on adjustment of levelling feet
** Excluding side seals
*** Continuous toe kick installations are recommended
**** The toekick might have to be notched, to accommodate the door swing
CAVITY DIMENSIONS: STANDARD INSTALLATION
mm
A Overall height* 857 - 917
B Minimum overall width 600
C Minimum overall depth of cavity** 580
Custom door panel weight
4 - 9kg
*Depending on adjustment of levelling feet
**Includes front panels
K
g
d
C
I
E
H
J
F
B
A
C
B
A
PROFILE VIEWISO VIEW ISO VIEW
PLUMBING AND ELECTRICAL
Service outlet at rear extends both sides, hoses and cords can be routed to
either or both sides.
*Depending on adjustment of levelling feet.
REAR VIEW ISO VIEW
62mm
100 – 160mm*
DW60UT4I2 | DW60UT4HI2
<< CONTENTS
© FISHER & PAYKEL LIMITED 2024 PAGE 690003478A PLANNING GUIDE TALL DISHWASHER - VERSION A - MAY 2024
DATA SHEET
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm
(1/16''). Please read the Installation Guide for detailed information on
installing the product. For full installation instructions visit fisherpaykel.com
PAGE 790003478A PLANNING GUIDE TALL DISHWASHER - VERSION A - MAY 2024 © FISHER & PAYKEL LIMITED 2024

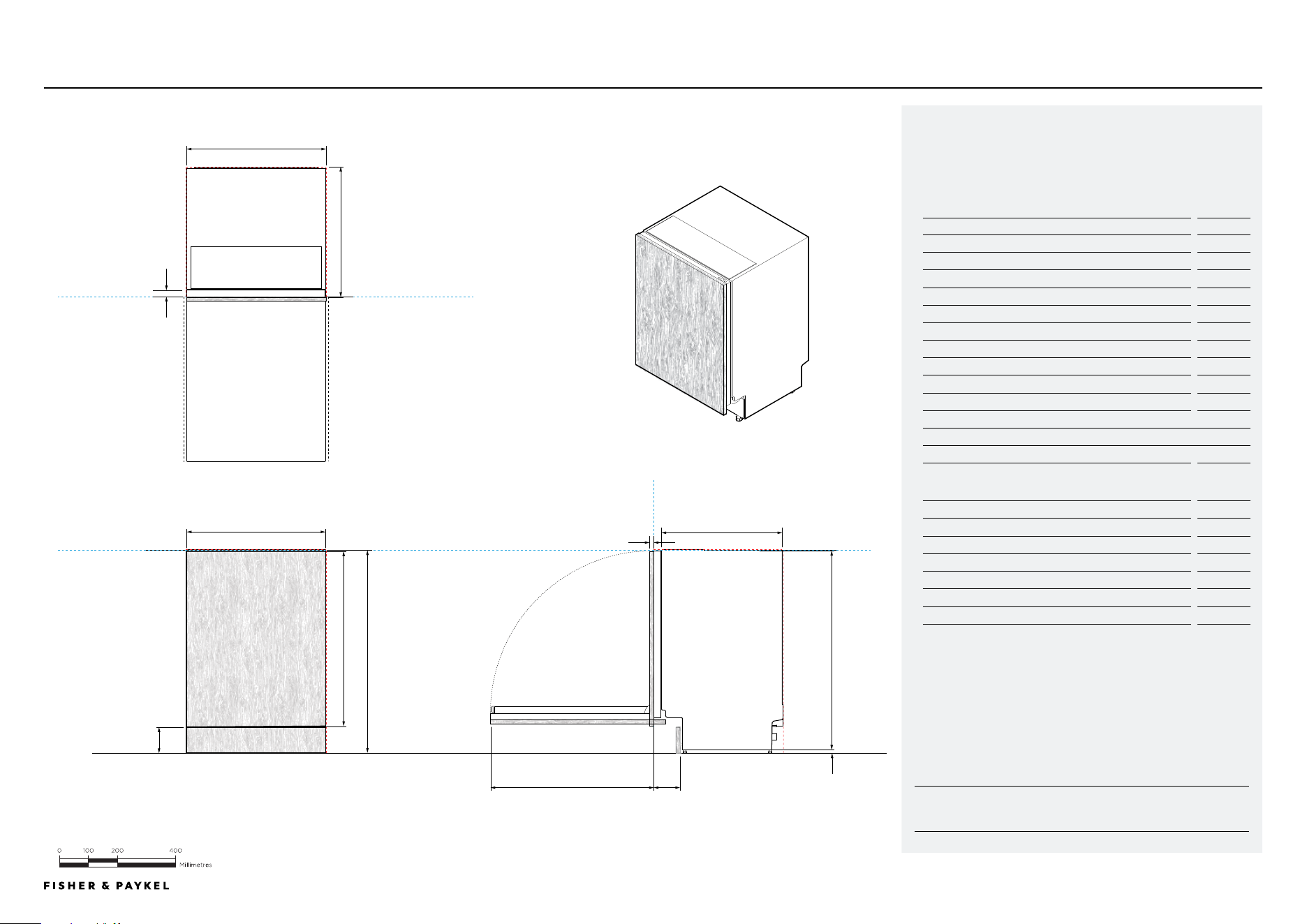

PRODUCT DATUM ----------------------------------------------------------
INDICATES CABINETRY CLEARANCES --------------------------------
Data Sheet
DATA SHEET | INTEGRATED TALL DISHWASHER
Model nos:
DW60UT4I2, DW60UT4HI2
Product Dimensions
mm
a Overall height of product*
857 - 917
B Overall width of product**
597
c Overall depth of product (excl. custom panel and handle)
554
D Height of chassis
857
e Depth of chassis (excl. inner door)
521
f Height of feet*
0 - 60
g Depth of toe kick recess
45 - 120
h Depth of inner door
28
i Height from to bottom of door to floor*
65 - 200
j Minimum depth of open door
673
k Minimum width of custom door panel
595
l Height of custom door panel
714 - 789
m Thickness custom door panel
16 - 25
*Depending on adjustment of levelling feet
**Excluding side seals
Minimum Clearances
mm
Inside height of cavity*
857 - 917
Minimum inside width of cavity
600
Minimum overall depth of cavity
580
Minimum clearance to corner cupboard
13
Height of toe kick area*
65 - 200
Minimum clearance to adjacent cupboard door
2
*Depending on adjustment of levelling feet
A
B
D
F
G
K
H
I
J
L
E
M
DATUM TOP OF CHASSIS
C
DATUM INNER DOOR
DATUM INNER DOOR
FLOOR
PLAN VIEW
FRONT VIEW PROFILE VIEW
DW60UT4I2 | DW60UT4HI2
<< CONTENTS
© FISHER & PAYKEL LIMITED 2024 PAGE 890003478A PLANNING GUIDE TALL DISHWASHER - VERSION A - MAY 2024

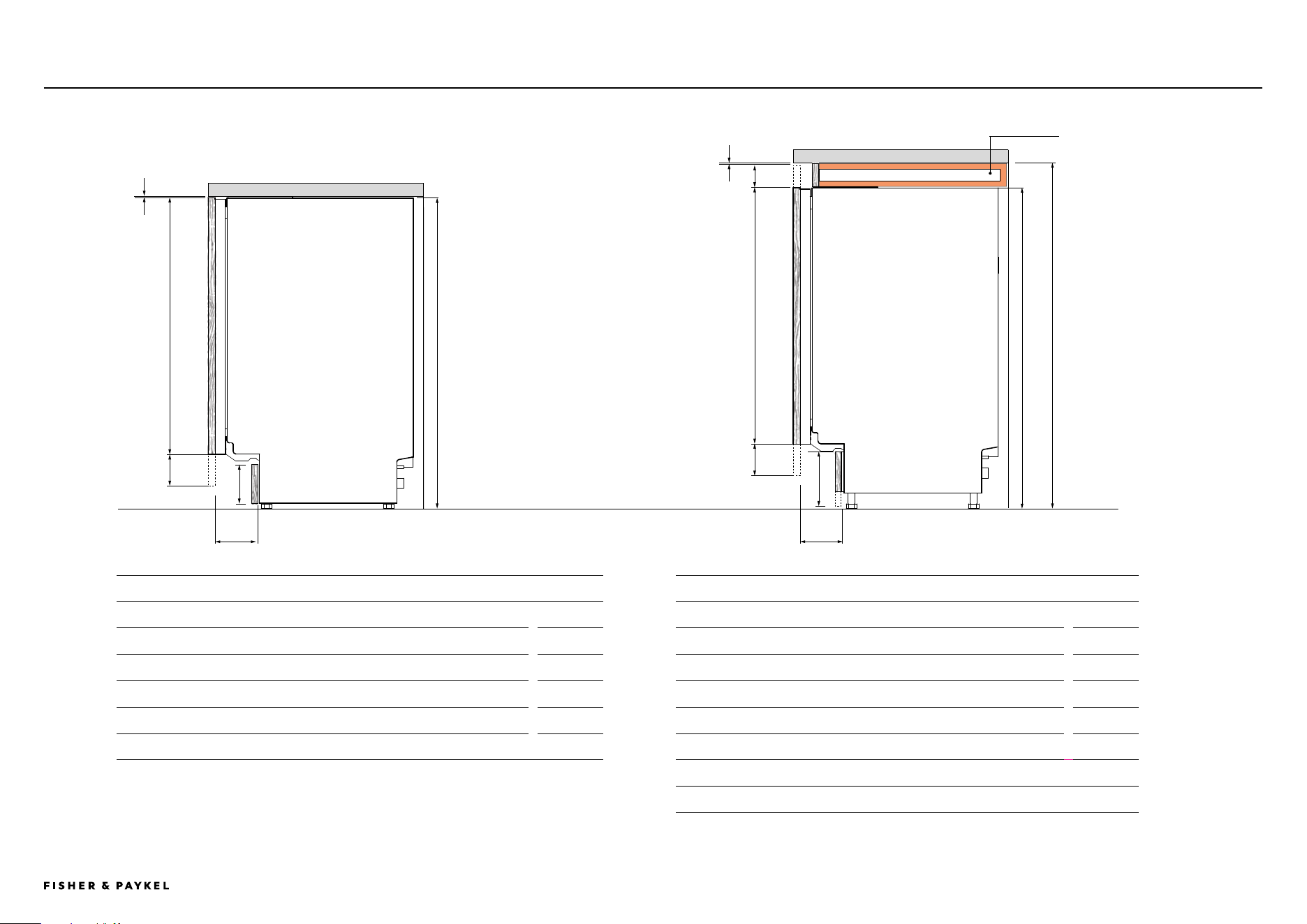

DESIGN PLANNING INFORMATION
PAGE 990003478A PLANNING GUIDE TALL DISHWASHER VERSION A - MAY 2024 © FISHER & PAYKEL LIMITED 2024
Minimum height Installation mm
A Minimum overall height of product and cavity (feet at lowest) 857
b Minimum height of custom door panel 714
C Maximum extension bottom custom door panel
75
D Minimum gap between door panel and bench top 3
e Depth of toe kick recess 45 - 120
F Minimum height toe kick 65
INSTALLATION HEIGHT | TALL DISHWASHER
A
B
D
f
C
E
Maximum height Installation
mm
A Maximum overall height of product (feet fully extended) 917
b Maximum cavity height (with door panel extension) 980
c Minimum height of custom door panel 714
d Maximum extension bottom custom door panel 75
e Maximum recommended extension top custom door panel 60
f Minimum gap between door panel and bench top 3
g Depth toe kick recess 45 - 120
h Maximum height toe kick 200
A B
D
h
C
f
g
e
Installation Height
If the cavity is taller than the
dishwasher, install a shelf or
substructure to ensure the
dishwasher remains stable and
does not tip over
DW60UT4I2 | DW60UT4HI2
<< CONTENTS
PAGE 1090003478A PLANNING GUIDE TALL DISHWASHER VERSION A - MAY 2024 © FISHER & PAYKEL LIMITED 2024

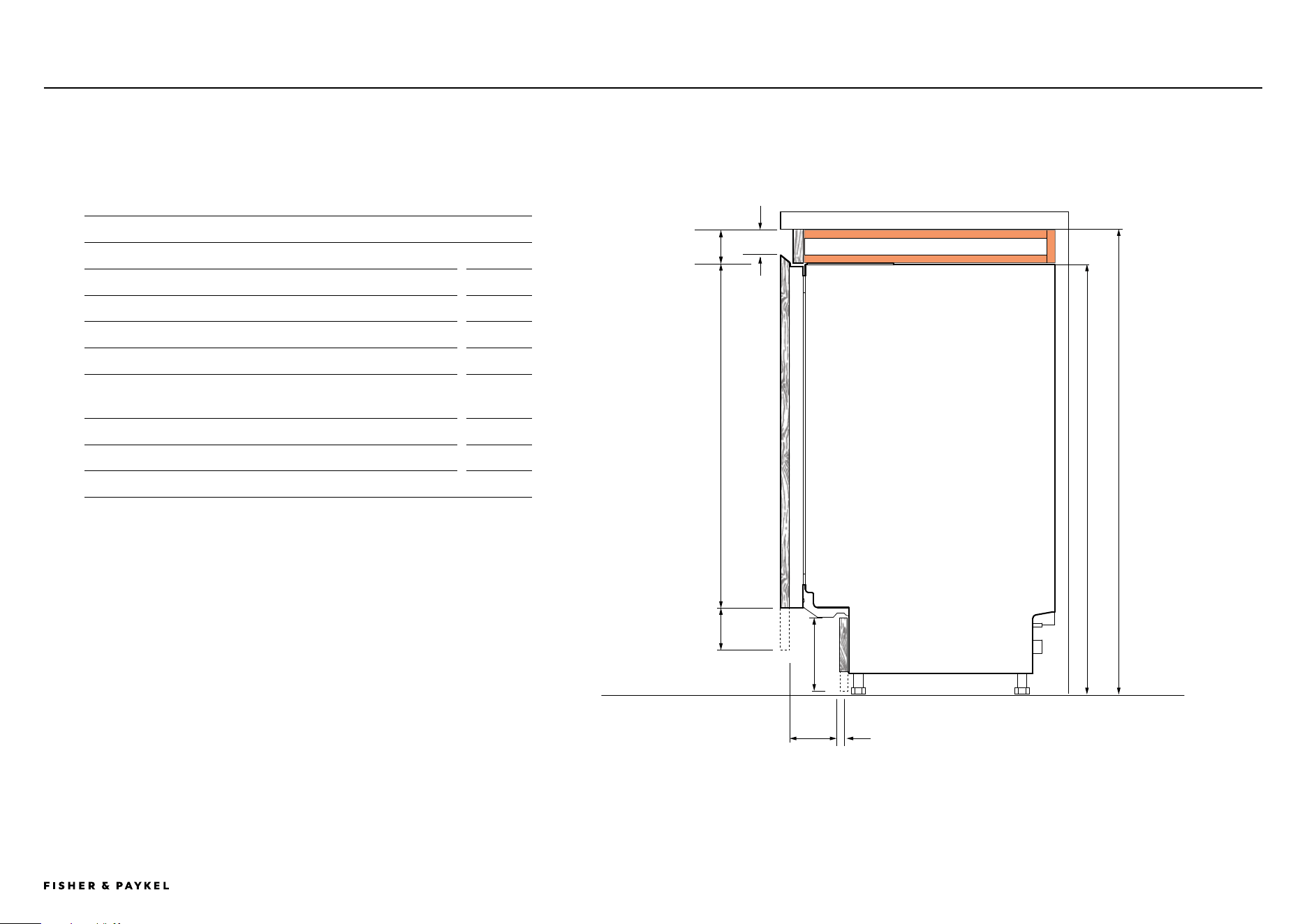

RECESSED HANDLE | TALL DISHWASHER
A
B
D
f
C
E
g
h i
Recessed handle mm
A Height product 857 - 917
b Minimum cavity height 857
c Minimum height of custom door panel 714
d Maximum custom door panel bottom extension 75
e Recommended height sub-structure 45
f Minimum recommended clearance between custom
door panel and bench
35
g Height toe kick 65 - 200
h Depth toe kick 45 - 120
i Mininmum toe kick thickness 16
Recessed Handle
DW60UT4I2 | DW60UT4HI2
<< CONTENTS
