Quad-Head LED Work Light with
Tripod Stand
© 2021 Menard, Inc., Eau Claire,WI 54703
OPERATOR’S MANUAL
Page 1
TABLE OF CONTENTS
Overview / Specifications .........................................................
Application Instructions ............................................................
Light Operation .........................................................................
Care And Maintenance .............................................................
Troubleshooting ........................................................................
Warranty ...................................................................................
Safety Instructions ....................................................................
Page 4
Page 1
Page 2
Page 3
Page 3
Page 3
Page 5
OVERVIEW
SPECIFICATIONS
Operating Voltage
Rated Power
Luminous flux
Light Color
CRI
Cord
Switch
Led life
Warranty
120V~ 60Hz
296W(74*4)
10000lm*4
4000K
80
10 ft SJTOW Power cord
Hight 100% /Off/ Low 50%
50000hrs
5 years

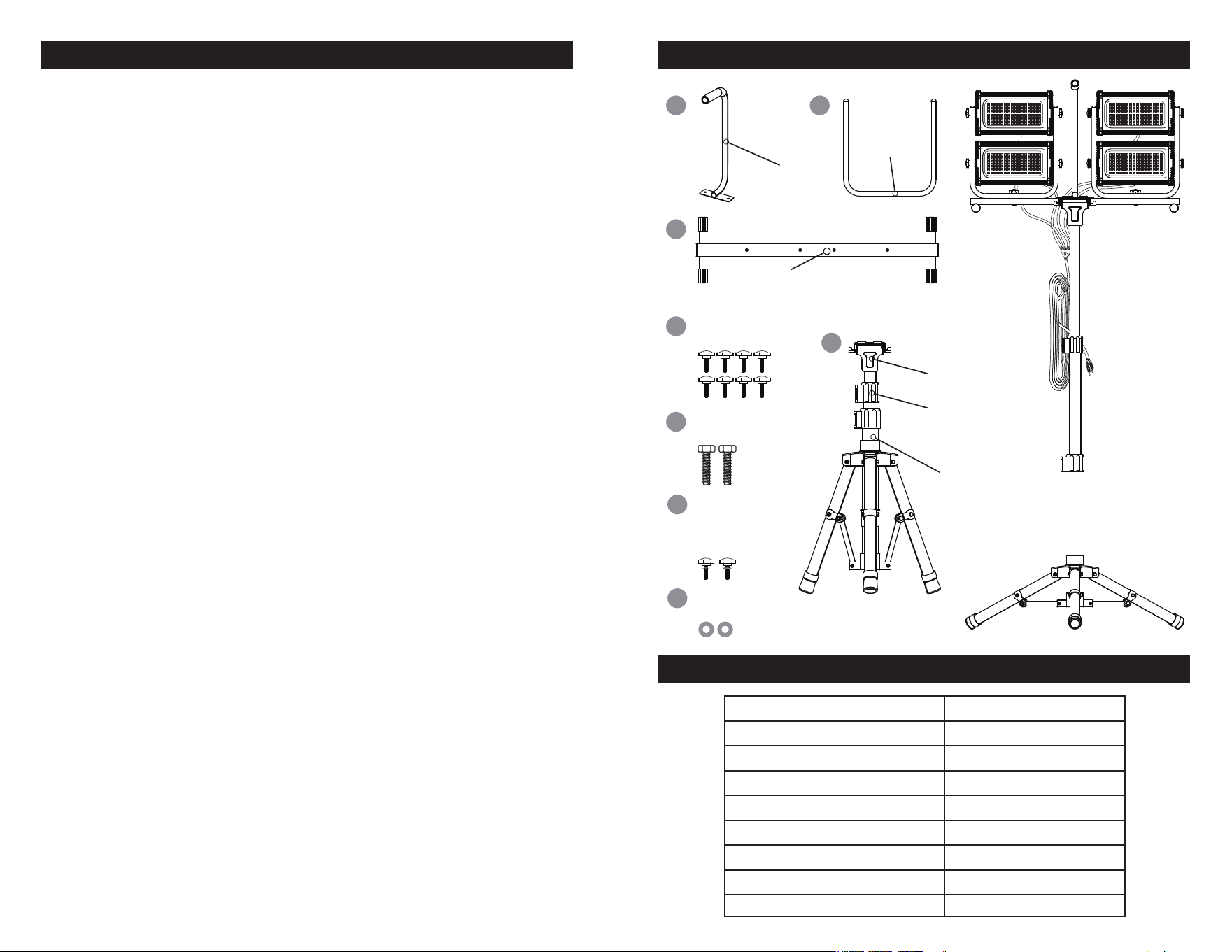

Handle X 1
U-bracketx2
2x
Hex Bolt
8x
Hand turn screw
2x
Hand turn screw
With shrapnel
and gasket
2x
Plastic Washer
Fixed buckle
Flip-Lock
Tripod
cross bar
A B
C
D
E
F
G
H
Page 3Page 2
APPLICATION INSTRUCTIONS
1. Attach the cross bar (C) securely to the
tripod's fixed buckle. Ensure that the fixing
plate located beneath the L-Shaped Handle
(A) is aligned with the (2) screw holes on
the crossbar. Once aligned, tighten down
with Hexagonal Screws (F). Next align the
(2) U-Shaped Brackets (B) with screw holes
and tighten down with Hand-Turn Screws
(G), insert a plastic washer(H) between each
U bracket and the crossbar to prevent any
scratching. Install the (2) Lights onto each of
the U-Brackets using Hand-Turn Screws (E).
(FIG 1).
2. To adjust the light, loosen both knobs
located on the sides by turning them in a
counterclockwise direction. (FIG 2). Pivot
the light body to redirect the light according
to your desired position. Once the light is in
the desired position, turn the knobs clock
-wise to tighten them and secure the light
in place.(FIG 3).

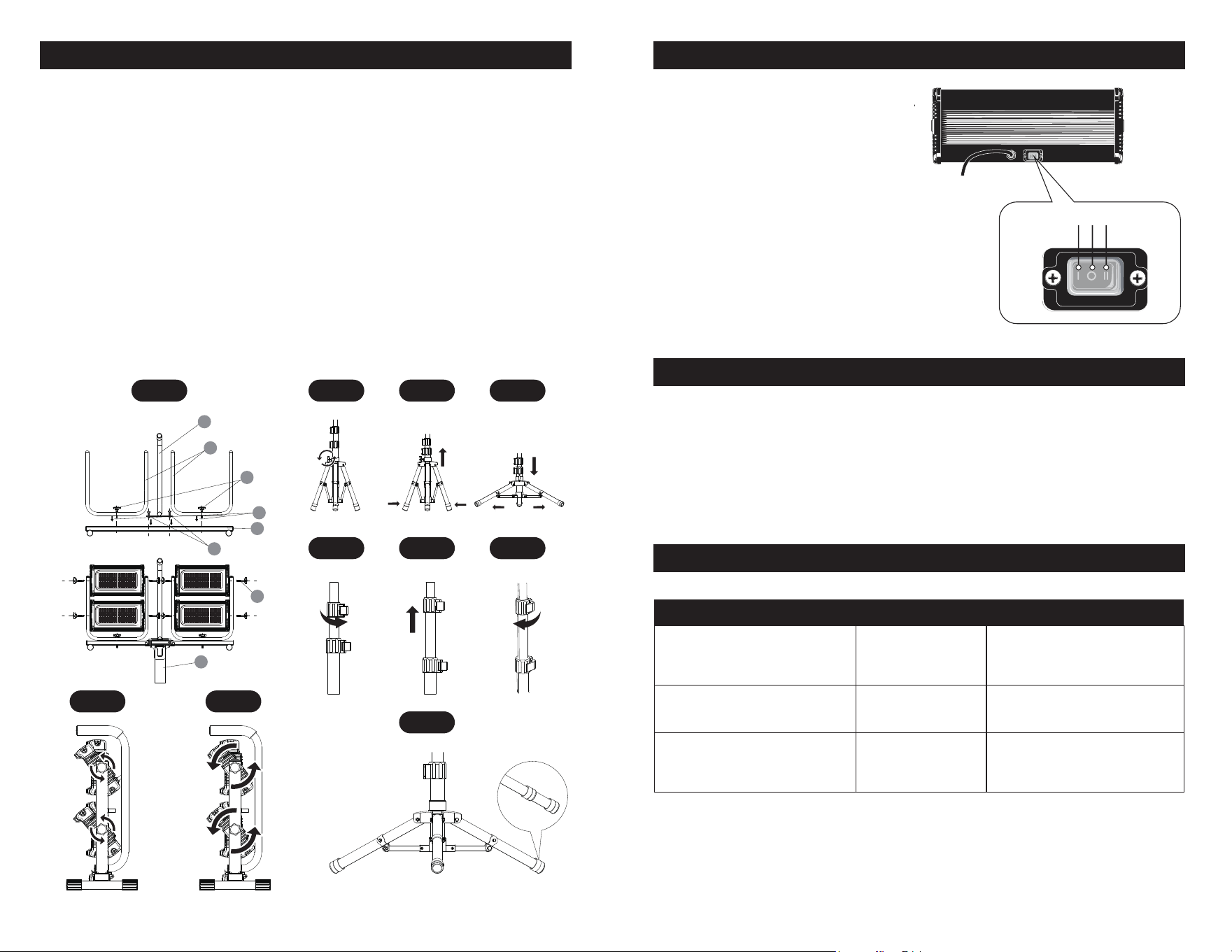

FIG.1 FIG.6FIG.4 FIG.5
FIG.9
FIG.10
FIG.7 FIG.8
FIG.2 FIG.3
LIGHT OPERATION
Each light head is equipped with a 3-Mode
Operation Switch. LO/OFF/HI
CARE AND MAINTENANCE
1. WARNING-Always make sure that the work light is unplugged and cooled down before
attempting to clean it.
2. Using a soft cloth, clean the fixture using a mild, non-abrasive glass cleaner. DO NOT use
solvents. DO NOT use cleaners containing abrasive gents. NEVER spray liquid cleaner
directly onto the light.
3. STORAGE-Always allow the work light to cool down completely before storing. Store in a
safe place, out of the reach of children.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
1. Turn on switch.
2. Plug cord in.
Light does not turn on
Circuit breaker trips or fuse blows
when light is turned on.
1. switch is off.
2. Not plugged in.
3. Light malfunction.
1. Discontinue use
immediately.
1. Call an electrician.
1. Tighten knobs.
2. Re-adjust position of stand legs.
Stand will not stay up.
1. Knobs are not tight
2. Stand legs are too
close together.
3. To adjust the base, loosen the fastener of
the star knob (FIG.4). For maximum height,
bring the legs of the tripod as close together
as possible (FIG. 5). By pushing the top
collar attached to the tripod legs downward,
the tripod legs will extend further, thereby
increasing the stability of the tripod base
(FIG. 6).
4. The center pillar of the tripod is equipped
with two Flip-locks that can be opened and
fastened to adjust the height of the top two
parts of the pillar. To release the lock, simply
break it (FIG. 7). You can then raise or lower
the column section as needed ( FIG. 8).
Once you have reached the desired height,
tighten the latch and lock securely in place
(FIG. 9).
5. One of the triangle brackets has the
capability to extend a short section of the
extension, allowing it to adapt to uneven
road environments (FIG 10).
II High Mode
I Low Mode Off
C
H
G
A
B
F
D
E
Page 5Page 4
SAFETY INSTRUCTIONS
WARNING:
CAUTION
1.Do not plug in the work light before completing assembly.
2.Never operate the light with the lens cover off and the lamp exposed.
3. Do Not look directly at the LED lens.
4.The unit can become extremely hot during operation. Allow the light
to cool down before moving or touching it.
5. Do not alter or disassemble the fixture.
6. Use the work light only with a 120V, 60Hz power supply.
7. Never submerge the light or cord in water.
8. Always keep the work light away from flammable surfaces or materials.
The purpose of safety symbols is to attract our attention to possible dangers. The safety symbols,
and the explanations with them, deserve your The instructions and careful attention and
understanding. The symbol warnings do not by themselves eliminate any danger. warnings they
give are no substitutes for proper accident prevention measures.
1.While the work light is ON, avoid touching its surfaces during adjustments or normal operation.
2.Avoid prolonged direct eye contact with the light while it is in operation.
3.The integrated LEDs in the work light do not need to be replaced.
4.This product is suitable for use in wet locations and cord operating environments with a
rating of -40°F.
Quad-Head LED Work Light with Tripod Stand
This MASTERFORCE™ brand product carries our famous No Hassle 5-Year Limited
Warranty to the original purchaser. If, during normal use, this MASTERFORCE™
product breaks or fails due to a defect in material or workmanship within five (5) years
from the date of original purchase, simply bring the product with the original sales receipt
back to your nearest MENARDS® retail store. At its discretion, MASTERFORCE™
agrees to have the product or any defective part(s) repaired or replaced with the same or
similar MASTERFORCE™ product or part free of charge, within the stated warranty
period, when returned by the original purchaser with original sales receipt. Not
withstanding the foregoing, this limited warranty does not cover any damage that has
resulted from abuse or misuse of the Merchandise.This warranty: (1) excludes
expendable parts including but not limited to blades, brushes, belts, bits, light bulbs,
and/or batteries; (2) not limited to washing the product, using in extreme weather
conditions, opening the products, or try to remodel the product; and (3) does not cover
any losses, injuries to persons/property or costs. This warranty does give you specific
legal rights and you may have other rights, which vary from state to state. Be careful,
products are dangerous if improperly used or maintained. Seller’s employees are not
qualified to advise you on the use of this merchandise. Any oral representation(s) made
will not be binding on seller or its employees. The rights under this limited warranty are
to the original purchaser of the merchandise and may not be transferred to any
subsequent owner. This limited warranty is in lieu of all warranties, expressed or implied
including warranties or merchantability and fitness for a particular purpose. Seller shall
not be liable for any special, incidental, or consequential damages. The sole exclusive
remedy against the seller will be for the replacement of any defects as provided herein,
as long as the seller is willing or able to replace this product or is willing to refund the
purchase price as provided above. For insurance purposes seller is not allowed to
demonstrate any of these products for you.
For questions / comments, technical assistance or repair parts -
Please call toll free at: 1-855-508-3883 (M-F 9am - 5pm)
SAVE YOUR RECEIPTS
THIS WARRANTY IS VOID WITHOUT THEM
5-YEAR LIMITED WARRANTY
