Operating and installation
instructions
Cooker hood
To prevent the risk of accidents or damage to the appliance, it is
essential to read these instructions before it is installed and used for
the first time.
en-GB M.-Nr. 12 490 281
Contents
2
Warnings and safety notes ......................................................................................... 4
Sustainability and environmental protection.......................................................... 11
Familiarisation................................................................................................................ 12
Guide to the cooker hood .............................................................................................
12
Components ...................................................................................................................
13
Grease filters ............................................................................................................. 13
Charcoal filter ............................................................................................................ 13
Drip tray...................................................................................................................... 13
Hob lighting ............................................................................................................... 14
Functions.........................................................................................................................
14
Fan power levels ....................................................................................................... 14
Run-on function ........................................................................................................ 14
Operating hours counter.......................................................................................... 15
Miele@home............................................................................................................. 15
Adaptive Con@ctivity .............................................................................................. 15
Power management ................................................................................................. 15
Commissioning.............................................................................................................. 16
Selecting extraction mode or recirculation mode......................................................
16
Setting up Miele@home...............................................................................................
16
Performing Scan & Connect................................................................................... 16
Signing off WiFi and remote control ...................................................................... 17
Setting up Con@ctivity .................................................................................................
17
Activating Con@ctivity3.0 via the home WiFi network..................................... 17
Activating Con@ctivity3.0 via a direct WiFi connection................................... 17
Signing on the remote control......................................................................................
18
Signing off the remote control ................................................................................ 18
Operation (automatic).................................................................................................. 19
Cooking with Con@ctivity over an electric hob ........................................................
19
Cooking with Con@ctivity over a gas hob..................................................................
19
Leaving automatic mode temporarily..........................................................................
20
Operation (manual)....................................................................................................... 21
Cooking without Con@ctivity (Manual mode) ..........................................................
21
Switching on the fan ......................................................................................................
21
Selecting the power level..............................................................................................
21
Selecting the run-on time .............................................................................................
21
Switching the fan off......................................................................................................
21
Switching on the hob lighting .......................................................................................
21
Dimming the hob lighting..............................................................................................
21
Switching the hob lighting off.......................................................................................
21
Contents
3
Adjusting settings ......................................................................................................... 22
Intervals for the grease filter operating hours counter..............................................
22
Intervals for the charcoal filter operating hours counter ..........................................
22
Activating/deactivating power management .............................................................
23
Safety switch-off....................................................................................................... 23
Energy saving tips......................................................................................................... 24
Cleaning and care ......................................................................................................... 25
Cleaning the casing........................................................................................................
25
Grease filters...................................................................................................................
25
Cleaning the drip tray............................................................................................... 26
Resetting the grease filter operating hours counter............................................ 27
Replacing the grease filters ..................................................................................... 27
Charcoal filter..................................................................................................................
28
Resetting the charcoal filter operating hours counter......................................... 28
Disposing of charcoal filters.................................................................................... 28
Installation...................................................................................................................... 29
Before installation ..........................................................................................................
29
Protective foil ..................................................................................................................
29
Installation materials......................................................................................................
29
Appliance dimensions....................................................................................................
30
Safety distance between hob and cooker hood (S) ..................................................
31
Installation recommendations......................................................................................
32
Drilling diagram for wall mounting ...............................................................................
32
Connection for air extraction ........................................................................................
33
Non-return flap.......................................................................................................... 33
Condensation............................................................................................................ 34
Silencer ...................................................................................................................... 34
Electrical connection .....................................................................................................
35
Customer Service Department.................................................................................. 36
Contact in the event of a fault......................................................................................
36
Position of the data plate ..............................................................................................
36
Warranty ..........................................................................................................................
36
Copyrights and licences ................................................................................................
36
Technical data................................................................................................................ 37
Optional accessories for recirculation mode..............................................................
37
EU Conformity declaration............................................................................................
38
UK Conformity declaration ...........................................................................................
38
Warnings and safety notes
4
This cooker hood complies with all relevant local and national
safety requirements. Inappropriate use can, however, lead to
personal injury and material damage.
Read the operating and installation instructions carefully before
using the cooker hood. They contain important information on its
safety, installation, use and maintenance. This prevents both
personal injury and damage to the cooker hood.
In accordance with standard IEC60335-1, Miele expressly and
strongly advises that you read and follow the instructions in the
chapter on installing the appliance as well as the safety instructions
and warnings.
Miele cannot be held liable for injury or damage caused by non-
compliance with these instructions.
Keep these instructions in a safe place and pass them on to any
future owner.
Correct application
This cooker hood is intended for use in domestic households and
similar working and residential environments.
The cooker hood is not intended for outdoor use.
It must only be used as a domestic appliance to extract vapours
and remove odours from cooking.
Any other usage is not supported by the manufacturer and could be
dangerous.
Where a recirculation cooker hood is fitted above a gas hob, please
ensure that there is an adequate supply of fresh air into the room in
which it is installed. Please seek the advice of a qualified gas fitter
(e.g. GasSafe in the UK) for more information if necessary.
The cooker hood can only be used by people with reduced
physical, sensory or mental capabilities, or lack of experience and
knowledge, if they are supervised whilst using it, or have been shown
how to use it in a safe way and recognise and understand the
consequences of incorrect operation.
Warnings and safety notes
5
Safety with children
Children under 8 years of age must be kept away from the cooker
hood unless they are constantly supervised.
Children aged 8 and older may only use the cooker hood without
supervision if they have been shown how to use it and are able to do
so in a safe manner. Children must be able to understand and
recognise the possible dangers caused by incorrect operation.
Children must not be allowed to clean or maintain the cooker hood
unsupervised.
Please supervise children in the vicinity of the cooker hood and do
not let them play with it.
The hob lighting is very intensive.
Ensure, in particular, that babies/small children do not look at the
light.
Danger of suffocation! Whilst playing, children may become
entangled in packaging material (such as plastic wrapping) or pull it
over their head with the risk of suffocation. Keep packaging material
away from children.
Technical safety
Unauthorised installation, maintenance and repairs can pose a
considerable risk to the user. Installation, maintenance and repairs
must only be carried out by a Miele authorised technician.
A damaged appliance can be dangerous. Check it for visible signs
of damage. Do not use a damaged appliance.
The electrical safety of this appliance can only be guaranteed when
correctly earthed. It is essential that this standard safety requirement
is met. If in any doubt please have the electrical installation tested by
a qualified electrician.
Do not connect the appliance to the mains electricity supply by a
multi-socket unit or an extension lead. These are a fire hazard and do
not guarantee the required safety of the appliance.
Warnings and safety notes
6
Temporary or permanent operation on an autonomous power
supply system or a power supply system that is not synchronised
with the mains power supply (e.g. island networks, back-up systems)
is possible. A prerequisite for operation is that the power supply
system complies with the specifications of EN50160 or an
equivalent standard.
The function and operation of the protective measures provided in
the domestic electrical installation and in this Miele product must
also be maintained in isolated operation or in operation that is not
synchronised with the mains power supply, or these measures must
be replaced by equivalent measures in the installation. As described,
for example, in the current version of BS OHSAS 18001–2 ISO
45001.
The connection data (voltage and frequency) on the data plate of
the cooker hood must match the mains electricity supply in order to
avoid the risk of damage to the cooker hood
Compare this before connecting the appliance to the mains. Consult
a qualified electrician if in any doubt.
For safety reasons, this appliance may only be used after it has
been built in.
The cooker hood must not be used in a non-stationary location
(e.g. on a ship).
Touching electrical components and tampering with electrical and
mechanical parts is highly dangerous to the user and can cause
operational faults.
Only open the housing as described in the instructions given in the
installation sheet and in the Cleaning and care section of this booklet.
Under no circumstances should any other parts of the housing be
opened.
During installation, maintenance and repair work, the appliance
must be disconnected from the mains electricity supply.
The manufacturer's warranty will be invalidated if the appliance is
not repaired by a Miele authorised technician.
If the electrical connection cable is faulty it must only be replaced
by a Miele authorised technician to protect the user from danger.
The lamps are a built-in component of the lighting. Replacement
lamps may only be fitted by a Miele authorised technician or by the
Miele Customer Service Department.
Warnings and safety notes
7

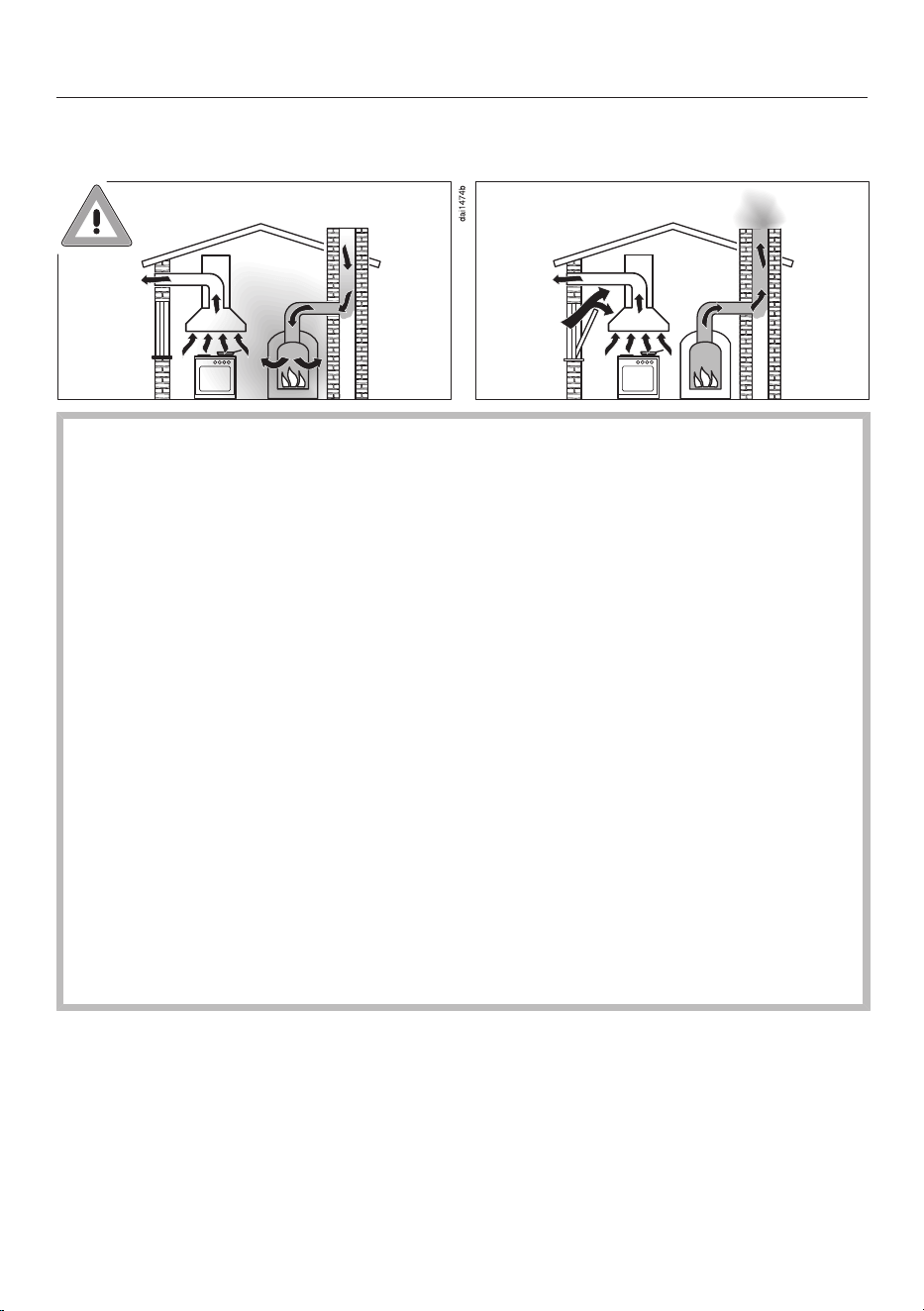

Using at the same time as another heating appliance that depends on the air
from the room
Danger of toxic fumes!
Great care should be taken when using the cooker hood in the
same room or the same area of the house at the same time as
another heating appliance that depends on the air from the room.
Such heating appliances draw in air from the room and duct
exhaust gases out through a chimney or extraction ducting. They
include gas, oil, wood and coal-fired boilers and heaters,
continuous flow or other water heaters, gas hobs and ovens.
The cooker hood draws in air from the kitchen and from
neighbouring rooms. This applies to the following modes of
operation:
– Extraction mode
– Recirculation mode with a recirculation box installed outside the
room.
If there is insufficient air, negative pressure will occur. The heating
appliance may be starved of oxygen. This impairs combustion.
Harmful gases could be drawn from the chimney or extraction
ducting back into the room.
Risk of death!
Warnings and safety notes
8
In order to ensure safe operation and to prevent gases given off by
the heating appliance from being drawn back into the room when
the cooker hood and the heater are both operated simultaneously,
an underpressure in the room of 0.04mbar (4Pa) is the maximum
permissible.
Sufficient ventilation can be maintained by air inlets which cannot
be blocked, e.g. in windows, doors and outside wall vents. The
cross-section of the inlet openings must enable sufficient
ventilation. A ventilation brick alone is not generally sufficient to
ensure safe ventilation.
The overall ventilation condition of the dwelling must be taken into
account. If in any doubt, ask a competent building regulations
inspector or qualified gas fitter (if appropriate).
If the cooker hood is being operated in recirculation mode, whereby
the air is redirected into the room in which it is installed, the above
restrictions do not apply.
Correct use
Open flames are a fire hazard.
The use of an open flame under the cooker hood is not permitted. To
avoid the danger of fire, do not flambé or grill over an open flame.
When switched on, the cooker hood could draw flames into the filter.
Fat deposits could ignite, presenting a fire hazard.
The cooker hood can become damaged when exposed to
excessive heat.
- When using the cooker hood over a gas hob, ensure that any
burners in use are always covered by a pan. Switch the cooking
zone off when a pan is removed, even for a short time.
- Select a pan which is suitable for the size of the burner.
- Regulate the flame so that it does not burn up the sides of the pan.
- Avoid overheating the pan (e.g. when cooking with a wok).
Always switch the cooker hood on when a cooking zone is in use,
otherwise condensation may collect in the hood, which could cause
corrosion.
Warnings and safety notes
9
Overheated oil and fat can ignite, causing fire damage to the
cooker hood.
When cooking with oil or fat, chip pans and deep fat fryers, etc, do
not leave the pans unattended. Similarly, never leave an open grill
unattended when grilling.
Do not use the cooker hood without the filters in place. This way
you will avoid the risk of grease and dirt getting into the appliance
and hindering its smooth operation.
There is a risk of fire if the cooker hood is not cleaned as described
in these operating instructions.
The cooker hood can get very hot during cooking due to heat rising
from the hob.
Do not touch the housing or the grease filters until the cooker hood
has cooled down.
Proper installation
To determine whether a cooker hood may be operated above your
cooking appliance, please refer to the information provided by the
appliance’s manufacturer.
Safety regulations prohibit the fitting of a cooker hood over solid
fuel stoves.
An insufficient safety distance between the hob and the cooker
hood can result in damage to the cooker hood.
The minimum safety distances between the top of the hob and the
bottom of the cooker hood given in the “Installation” section of this
manual must be observed, unless the hob manufacturer states that a
greater safety distance is required.
If more than one cooking appliance is fitted beneath the cooker hood,
and they have different minimum safety distances to the cooker
hood, select the greater distance.
The information provided in “Installation” must be observed when
fixing the ventilation hood.
Components can have sharp edges which may cause injury.
Wear gloves to protect your hands from being cut.
Exhaust ducting must be of non-inflammable material. Suitable
material is available from Miele specialist dealers or the Miele Spares
Dept.
Warnings and safety notes
10
The appliance must not be connected to a chimney or flue which is
in use. Neither should it be connected to ducting which ventilates
rooms with fireplaces.
If exhaust air is to be extracted into a chimney or ventilation duct
no longer used for other purposes, seek professional advice.
Cleaning and care
Do not use a steam cleaning appliance to clean this appliance.
The steam could reach electrical components and cause a short
circuit.
Accessories and spare parts
Only use genuine original Miele accessories and spare parts with
this appliance. Using accessories or spare parts from other
manufacturers will invalidate the warranty and Miele cannot accept
liability.
Miele can only guarantee the safety of the appliance when genuine
original Miele replacement parts are used. Faulty components must
only be replaced by Miele spare parts.
Miele will guarantee to supply functional spare parts for a
minimum of 10years and up to 15years following the discontinuation
of your vapour extraction unit.
Sustainability and environmental protection
11
Disposing of the packaging
material
The packaging material is used for
handling and protects the appliance
from transport damage. The packaging
material used is selected from materials
which are environmentally friendly for
disposal and can generally be recycled.
Recycling the packaging material
reduces the use of raw materials. Use
material-specific collection points for
valuable materials and take advantage
of return options. Your Miele dealer will
take the packaging material away.
Disposing of your old appliance
Electrical and electronic appliances
contain many valuable materials. They
also contain certain materials,
compounds and components which
were essential for their correct
functioning and safety. These could be
hazardous to human health and to the
environment if disposed of with
household waste or if handled
incorrectly. Please do not, therefore,
dispose of your old appliance with
household waste.
Instead, please make use of officially
designated collection and disposal
points to dispose of and recycle
electrical and electronic appliances in
your local community, with your dealer
or with Miele, free of charge. By law, you
are solely responsible for deleting any
personal data from the old appliance
prior to disposal. You are legally obliged
to remove any old batteries which are
not securely enclosed by the appliance
and to remove any lamps without
destroying them, where this is possible.
These must be taken to a suitable
collection point where they can be
handed in free of charge. Please ensure
that your old appliance poses no risk to
children while being stored for disposal.
Familiarisation
12

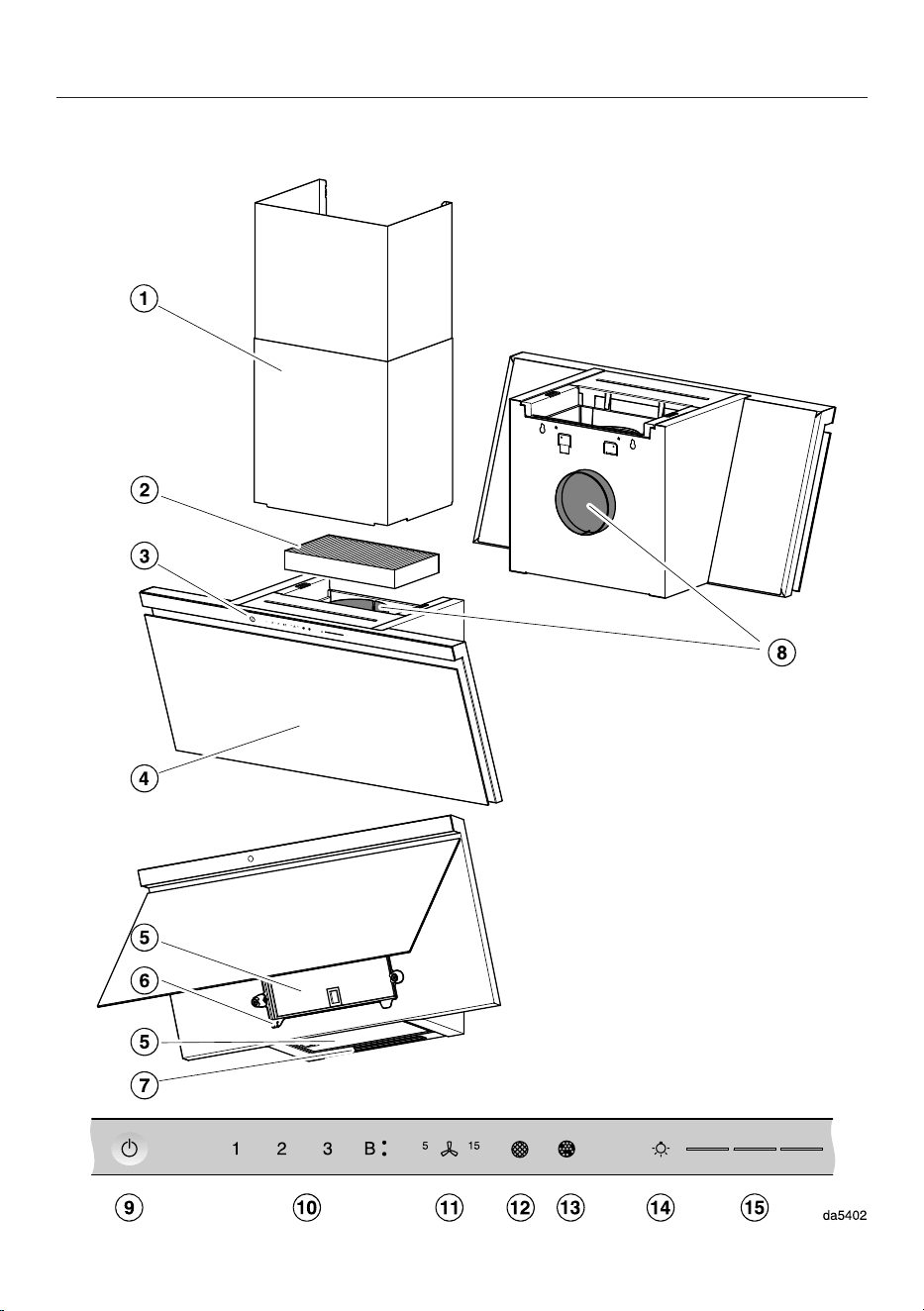

Guide to the cooker hood
Familiarisation
13
a
Tower
Optional accessory
For extraction mode only
b
Charcoal filter
Disposable or reactivatable charcoal
filter
Optional accessory for recirculation
mode
c
Control elements
d
Canopy
e
Grease filters
f
Drip tray
g
Hob lighting
h
Vent outlet
Extraction ducting can be directed
through the back of the cooker hood
or upwards to the ceiling.
For recirculation mode, extraction
ducting can only be directed
upwards.
i
Sensor control for switching the
cooker hood on and off
j
Sensor controls for switching the fan
on and off and for setting the fan
power level
k
Sensor control for the run-on
function
l
Sensor control for the grease filter
operating hours counter
m
Sensor control for the charcoal filter
operating hours counter
n
Sensor control for switching the
lighting on and off and for dimming
the lighting
o
Sensor controls for selecting and
displaying lighting levels
Components
Grease filters
The re-usable metal grease filters in the
appliance remove solid particles
(grease, dust, etc.) from the kitchen
vapours, preventing soiling of the cooker
hood.
Risk of fire
Oversaturated grease filters are a fire
hazard.
Clean the grease filters at regular
intervals.
Heavily soiled grease filters hinder the
extraction power and will lead to
increased levels of soiling in the cooker
hood and in the kitchen.
Charcoal filter
With recirculation mode, a charcoal
filter must be fitted in addition to the
grease filters. The charcoal filter is
designed to absorb cooking odours.
It is available as an optional accessory.
There are charcoal filters available that
need to be replaced at the end of their
service life and others that can be
reactivated.
Drip tray
Condensate collects in the drip tray
underneath the grease filter. Always
clean the drip tray when you clean the
grease filter. The drip tray can be
removed for cleaning.
Familiarisation
14
Hob lighting
The hob lighting can be switched on and
off and dimmed independently of the
fan.
If you are using Miele@home, you can
adjust the light temperature to match
your kitchen lighting via the Miele app
(Miele DynamicWhite).
Functions
Extraction mode
The air is drawn in and cleaned by the
grease filters and directed outside.
Recirculation mode
A charcoal filter is required. Please
purchase separately. See “Technical
data”.
The air is drawn in and cleaned first by
the grease filters and then by a charcoal
filter. The cleaned air is then recirculated
back into the kitchen.
Kitchen ventilation
Ensure that the kitchen is well ventilated
when operating the cooker hood.
In extraction mode, the efficiency of the
cooker hood is improved by the
incoming air.
In recirculation mode, the moisture
produced during cooking remains in the
kitchen. Ventilation helps to dissipate
moisture.
Fan power levels
Select power levels 1 to 3 for light to
heavy cooking vapours, odours or heat.
Increase the power level as the level of
vapours, odours or heat increases.
For short periods of cooking food with
intensive vapours, odours or heat, e.g.
when searing meat, select Booster level
B or B. The fan will automatically
switch back from the Booster levels
after a few minutes.
Run-on function
The run-on function enables the cooker
hood to continue running for a pre-
determined time before switching itself
off automatically.
This helps to remove any lingering
vapours and odours from the air after
cooking. It also reduces the risk of
residues accumulating in the cooker
hood and any resultant odours.
Familiarisation
15
Operating hours counter
The cooker hood registers the length of
time for which it has been operated.
When the grease filter symbol lights
up, the grease filters must be cleaned.
When the charcoal filter symbol
lights up, the charcoal filter must be
replaced or reactivated (if suitable for
reactivating).
You can set the operating hours counter
intervals to suit the type of cooking you
do.
Deactivate the operating hours counter
for the charcoal filter if you are operating
the cooker hood in extraction mode.
Miele@home
You can connect the cooker hood to
your home WiFi network and operate it
using the Miele app on your mobile
device.
If your Miele hob is also connected to
your WiFi network, the Con@ctivity
function will be activated automatically.
Adaptive Con@ctivity
With the Con@ctivity function, the
cooker hood is automatically controlled
in conjunction with the hob. The cooker
hood and Miele hob must be connected
to the home WiFi network or have a
direct WiFi connection.
The cooker hood can also be operated
manually at any time during automatic
operation.
If you regularly select a higher power
level, for example, automatic operation
will adapt to your behaviour (Miele
Con@ctivity Plus).
Power management
The cooker hood is fitted with a power
management system. Power
management helps to save energy. It
ensures that the fan power level is
reduced automatically and that the
lighting is switched off.
- If the Booster setting has been
selected, the fan will automatically
switch to level 3 after 5minutes.
- From fan power levels 3, 2 or 1, the
power will be reduced by one level
after 2hours and then in 30-minute
stages until the fan finally switches
off.
- The hob lighting will switch off
automatically after 12hours.
Commissioning
16
Selecting extraction mode or
recirculation mode
The cooker hood is suitable for both
extraction mode and recirculation
mode. The power of the fan is adapted
to suit the selected operating mode.
The cooker hood is delivered set up for
recirculation mode. It has to be reset
for extraction mode.
To reset it for extraction mode, the
operating hours counter for the charcoal
filter(s) has to be deactivated.
Touch the On/Off switch.
All symbols light up with reduced
brightness.
Press and hold the run-on option
control until the grease filter
and charcoal filtersymbols light
up.
Touch the charcoal filter symbol.
The charcoal filter symbol and one of
the fan power levels will flash.
Touch B.
Confirm your choice by touching the
charcoal filter control.
All the indicator lights will go out.
Extraction mode has now been set.
If you do not confirm your selection
within 4minutes, the cooker hood will
automatically revert to the original
setting.
Setting up Miele@home
Requirements:
- A WiFi network
- The Miele app
- A Miele user account You can
create a user account via the Miele
app.
Before installing the cooker hood in
its final location, ensure that the
signal of your WiFi network is strong
enough.
Miele@home availability
The ability to use the Miele app
depends on the availability of the
Miele@home service in your country.
The Miele@home service is not
available in every country.
For information about availability, please
visit www.miele.com.
Performing Scan & Connect
Scan the QR code.
If you have installed the Miele app and
have a user account, you will be taken
directly to the networking steps.
If you have not yet installed the Miele
app, you will be taken to the Apple App
Store
®
or the Google Play Store™.
Install the Miele app and set up a user
account.
Scan the QR code again.
The Miele app will guide you through
the setup process.
Commissioning
17
Signing off WiFi and remote control
To set up a new WiFi connection or a
connection with a remote control, the existing
connections must be disconnected first.
The sign-off process will always sign
off the WiFi and a connected remote
control at the same time.
Touch the On/Off switch.
All symbols light up with reduced brightness.
Press and hold the run-on control
until the grease filter and charcoal
filtersymbols light up.
Touch 1.
If a WiFi connection exists, 2 and 3 will
light up constantly.
If a remote control is signed on, B will
also light up.
Touch 1.
2 will light up constantly, 3 will flash.
After a few seconds, 2 and 3 will flash
on and off. The connection has now
been disconnected.
Quit signing-off mode on the cooker
hood by touching the run-on
control.
All connections have been disconnected. You
can establish a new connection.
Setting up Con@ctivity
Activating Con@ctivity3.0 via the
home WiFi network
Requirements:
- Home WiFi network
- WiFi-enabled Miele hob
Connect the cooker hood and hob to
your home WiFi network (see “Setting
up Miele@home”).
The Con@ctivity function will be
activated automatically.
Activating Con@ctivity3.0 via a direct
WiFi connection
Rather than connecting to the home network,
you can establish a direct connection between
the hob and the cooker hood.
Requirements:
- WiFi-enabled Miele hob
Touch the On/Off switch.
All symbols light up with reduced brightness.
Press and hold the run-on control
until the grease filter and charcoal
filtersymbols light up.
Touch 3.
2 will light up constantly, 3 will flash.
The cooker hood will be ready for
connection for the next 10minutes.
Start the WiFi connection on the hob.
For further details, see the hob
operating instructions.
When successfully connected, 2 and 3
will light up constantly.
Confirm the setting with the run-on
control.
If it is not possible to connect, 2 and 3 flash or
the cooker hood cancels the process.
Commissioning
18
Disconnect the connection to the
cooker hood (see “Signing out of
WiFi”) and to the hob.
Repeat the process.
With a direct WiFi connection, it is not
possible to connect the hob and the cooker
hood to a home network. This means that,
for example, the appliance then cannot be
operated via the Miele app. Should a
connection to the home network be
required at a later date, the direct WiFi
connection between the hob and the
cooker hood must be disconnected first
(see “Signing out of WiFi”).
Signing on the remote control
Miele DARC7 is an optional accessory
Touch the On/Off switch on the
cooker hood.
All symbols light up with reduced
brightness.
Press and hold the run-on control
until the grease filter and charcoal
filtersymbols light up.
Touch B.
2 will light up constantly, 3 will flash.
Start the sign-on process on the
remote control. For further details,
see the remote control operating
instructions.
When successfully signed on, 2 and 3
will light up constantly.
Confirm the setting with the run-on
control.
Signing off the remote control
For information about the sign-off
process, see “Commissioning –
Signing off WiFi and remote control”.
Operation (automatic)
19
Cooking with Con@ctivity over
an electric hob
Switch a cooking zone on at the
desired power level.
The hob lighting will come on.
After a few seconds the fan will come
on, first at power level 2, then it will
switch immediately to power level 1.
The cooker hood selects the required
fan power level automatically during
cooking. The power level selected by
the cooker hood depends on the
number of cooking zones being used
and their power levels.
The cooker hood responds with a delay.
This takes into account the fact that
changing the power level at the hob
does not increase or decrease the
cooking vapours straight away.
Examples for power levels 1 to B
Switch off all cooking zones after
cooking.
The cooker hood fan will reduce its
power level in stages over the next few
minutes and will then switch itself off.
This helps to neutralise any lingering
vapours and odours in the air.
After another 30seconds, the hob
lighting switches off.
Frying with Con@ctivity
For example, you switch on a cooking
zone at the highest power level to
heat cookware for frying. You reduce
the power level after approx.
10seconds to 4minutes (60seconds
to 5minutes for a HiLight hob).
The cooker hood recognises a frying
process.
The cooker hood switches itself on and
when the hob power level has been
reduced, the hood switches to fan
power level 3 and remains at that level
for approx. 5minutes.
After that, the cooker hood power level
is determined automatically by the
Con@ctivity function.
You can select another power level
manually before then.
Cooking with Con@ctivity over
a gas hob
Switch a cooking zone on at the
desired power level.
The hob lighting will come on.
After a few seconds, the fan will come
on at power level 2.
Regardless of the selected cooking
level, the fan remains at power level 2.
Switch off all cooking zones after
cooking.
The run-on function is activated. The 5
on the run-on control will light up.
After 5minutes, the fan and the hob
lighting will switch off.
This helps to neutralise any lingering
vapours and odours in the air.
Operation (automatic)
20
Leaving automatic mode
temporarily
To leave automatic mode temporarily:
Manually select a different fan power
level, or
Manually switch the cooker hood off,
or
Activate the run-on function, or
Operate the hob lighting (only in
combination with a gas hob)
Returning to automatic mode
In combination with an electric hob:
- If the cooker hood has not been used
for approx. 5minutes after selecting a
fan power level manually, or
- If the manually selected fan power
level corresponds to the automatic
one again, or
- The cooker hood fan and the hob have
been switched off for at least
30seconds.
Automatic mode will resume the next
time the hob is switched on.
In combination with a gas hob:
- The cooker hood fan and the hob have
been switched off for at least
30seconds.
Automatic mode will resume the next
time the hob is switched on.
Leaving automatic mode for the entire
cooking process
Switch the fan on before the hob.
Con@ctivity is deactivated until the
cooker hood is switched off.
If the cooker hood fan and the hob have
been switched off for at least
30seconds after cooking, automatic
mode will resume next time the hob is
switched on.
Operation (manual)
21
Cooking without Con@ctivity
(Manual mode)
The cooker hood can be operated
manually if:
- The Con@ctivity function is not
activated.
- You have temporarily deactivated the
Con@ctivity function (see “Operation
(Manual operation)” – “Leaving
automatic mode temporarily”).
Switching on the fan
Touch the On/Off switch.
All symbols light up with reduced
brightness.
Switch the fan on by touching one of
the controls from 1 to B.
Selecting the power level
Select the power level required by
touching a control from 1 to B.
If you touch the B control, the first
Booster level is activated.
The Bsymbol lights up.
If you touch the B control again, the
second Booster level is activated.
The Bsymbol lights up.
Switching back the Booster levels
The second Booster level switches back
to the first Booster level after 2minutes.
The first Booster level switches back to
level 3 after 5minutes.
Selecting the run-on time
After you have finished cooking, touch
the run-on control with the fan
still switched on:
- Once: the fan will switch itself off
after 5minutes (5 lights up).
- Twice: the fan will switch itself off
after 15minutes ( 15 lights up).
- If you touch the run-on control again,
the fan will remain on ( will go out).
Switching the fan off
Touch the control for the active power
level.
The fan switches off.
Switching on the hob lighting
Touch the On/Off switch.
All symbols light up with reduced brightness.
Touch the lighting control briefly.
The lighting will switch on at maximum
brightness. All 3bars next to the lighting
control light up.
Dimming the hob lighting
With the lighting switched on, press
and hold the lighting control.
The brightness will gradually dim until
you release the control.
Press and hold the lighting control again.
The brightness will gradually increase
until you release the control.
Alternatively, you can select 3
brightness levels by touching the bars
next to the lighting control.
Switching the hob lighting off
Touch the lighting control.
The hob lighting will switch off.
Adjusting settings
22
Intervals for the grease filter
operating hours counter
The factory default setting is a cleaning
interval of 30hours.
- Select a shorter interval of 20hours if
you fry food regularly.
- A shorter cleaning interval is also
recommended if you only cook
occasionally. This is to prevent grease
hardening on the filter(s) and making
cleaning more difficult.
- Select a longer interval of 40 or
50hours if you use very little fat for
cooking.
Changing the intervals for the grease
filter operating hours counter
Touch the On/Off switch.
All symbols light up with reduced
brightness.
Press and hold the run-on control
until the grease filter and charcoal
filtersymbols light up.
Touch the grease filter symbol.
The grease filter symbol and one of
the fan power level indicators will flash.
Fan power level indicators 1 to B show
the time set:
1.................................................... 20hours
2................................................... 30hours
3................................................... 40hours
Indicator B.................................. 50hours
Touch the relevant control to select
the duration required.
Confirm your choice by touching the
grease filter control. If you do not
confirm your selection within
4minutes, the cooker hood will
automatically revert to the original
setting.
Intervals for the charcoal filter
operating hours counter
The factory default setting is an interval
of 180hours.
- If you frequently cook dishes with
strong odours, we recommend
shortening the interval to 120hours.
- If you rarely cook dishes with strong
odours, you can extend the interval to
240hours.
Altering or deactivating the charcoal
filter operating hours counter intervals
Touch the On/Off switch.
All symbols light up with reduced
brightness.
Press and hold the run-on control
until the grease filter and charcoal
filtersymbols light up.
Touch the charcoal filter symbol.
The charcoal filter symbol and one of
the fan power levels will flash.
Fan power level indicators 1 to B show
the interval set:
1.................................................. 120hours
2................................................. 180hours
3................................................. 240hours
Indicator B............................. deactivated
Touch the relevant control to select
the interval required.
Confirm your choice by touching the
charcoal filter control. If you do not
confirm your selection within
4minutes, the cooker hood will
automatically revert to the original
setting.
Adjusting settings
23
Activating/deactivating power
management
Keep in mind that deactivating this
function may increase energy
consumption.
Touch the On/Off switch.
All symbols light up with reduced
brightness.
Press and hold the run-on control.
After a few seconds, the grease filter
and charcoal filter symbols light up,
and after a further 7seconds 1 lights up.
Then touch the following controls in
turn:
- The lighting control
- The 1 control and then
- The lighting control again
When power management is activated,
1 and B light up constantly.
When it is deactivated, 1 and B flash.
To deactivate power management,
touch 1.
1 and B will flash.
To activate, touch B.
1 and B will light up constantly.
Confirm the setting with the run-on
control.
All the lights will go out.
If you do not confirm your choice of
setting within 4minutes, the cooker
hood will revert to the old setting.
Safety switch-off
If the power management system has
been deactivated, the fan and hob
lighting will switch off automatically
after 12hours.
Press the On/Off switch to switch
them back on again.
Deactivating/activating the
sensor control buzzer
When a function is selected with the
sensor controls, a short buzzer will
sound for confirmation.
The buzzer can be deactivated.
Touch the On/Off switch.
All symbols light up with reduced
brightness.
Press and hold the run-on control.
After a few seconds, the grease filter
and charcoal filter symbols light up,
and after a further 7seconds 1 lights up.
Touch 1 three times.
If the buzzer is activated, 2 and 3 light
up constantly.
If it is deactivated, 2 and 3 flash.
Touch 1 to deactivate the buzzer.
2 and 3 will flash.
To activate, touch B.
2 and 3 will light up constantly.
Confirm the setting with the run-on
control.
All the lights will go out.
If you do not confirm your choice of
setting within 4minutes, the cooker
hood will revert to the old setting.
Energy saving tips
24
This cooker hood operates very
efficiently and economically. The
following will help you to save even
more energy when using it:
- Ensure that there is sufficient
ventilation in the kitchen when
cooking. In extraction mode, if there is
insufficient air flow the cooker hood
cannot operate efficiently and this
causes increased operating noise
levels.
- Always cook with the lowest possible
setting. This produces fewer cooking
vapours, so you can use a lower
cooker hood power level and therefore
benefit from reduced energy
consumption.
- Clean or change the filters at regular
intervals. Heavily soiled filters reduce
performance, increase the risk of fire
and are unhygienic.
- Use the Con@ctivity function. The
cooker hood will switch on and off
automatically at the optimum power
level for the cooking you are doing,
which ensures low energy
consumption.
- If you are operating the cooker hood
manually, please note the following:
– Check the power level selected on
the cooker hood. A low power level
is usually sufficient. Only use the
Booster setting when necessary.
– When a large volume of cooking
vapours are being produced,
switch to a high power level in
good time. This is more efficient
than operating the cooker hood for
longer to try to capture cooking
vapours which have already been
distributed throughout the kitchen.
– Make sure that you switch the
cooker hood off after use.
If cooking vapours and odours still
need to be removed from the
kitchen air after cooking, use the
run-on function. The fan will switch
off automatically after the selected
run-on time.
Cleaning and care
25
Before proceeding with any
maintenance or cleaning task, the
cooker hood must be disconnected
from the power supply (see “Warning
and Safety instructions”).
Cleaning the casing
Clean all surfaces and control
elements with a sponge cloth and a
solution of warm water and washing-
up liquid.
Remove the grease filters and clean
any grease residues from the
accessible parts of the casing. Doing
so will prevent a fire hazard.
After cleaning, wipe the surfaces dry
using a soft cloth.
Glass surfaces can also be cleaned
with a commercially available glass
cleaner.
Important information on
cleaning the casing
Unsuitable cleaning agents can damage
the surfaces.
Do not use any of the following cleaning
agents:
- Cleaning agents containing soda,
acids, chlorides or solvents
- Abrasive cleaning agents, e.g. powder
cleaners or cream cleaners and
abrasive sponges, as well as pot
scourers or sponges which have been
used previously with abrasive cleaning
agents
Minor scratches on the surface are
inevitable when cleaning coloured parts
of the casing; they may be visible
depending on the lighting in the kitchen.
Grease filters
Cleaning interval for grease filters
After a preset operating time, the grease
filter symbol will light up to remind
you to clean the grease filters.
Clean the grease filters every 3 to 4
weeks at the latest, even if the grease
filter symbol has not lit up yet.
Accumulated grease solidifies over a
longer period of time and makes
cleaning more difficult.

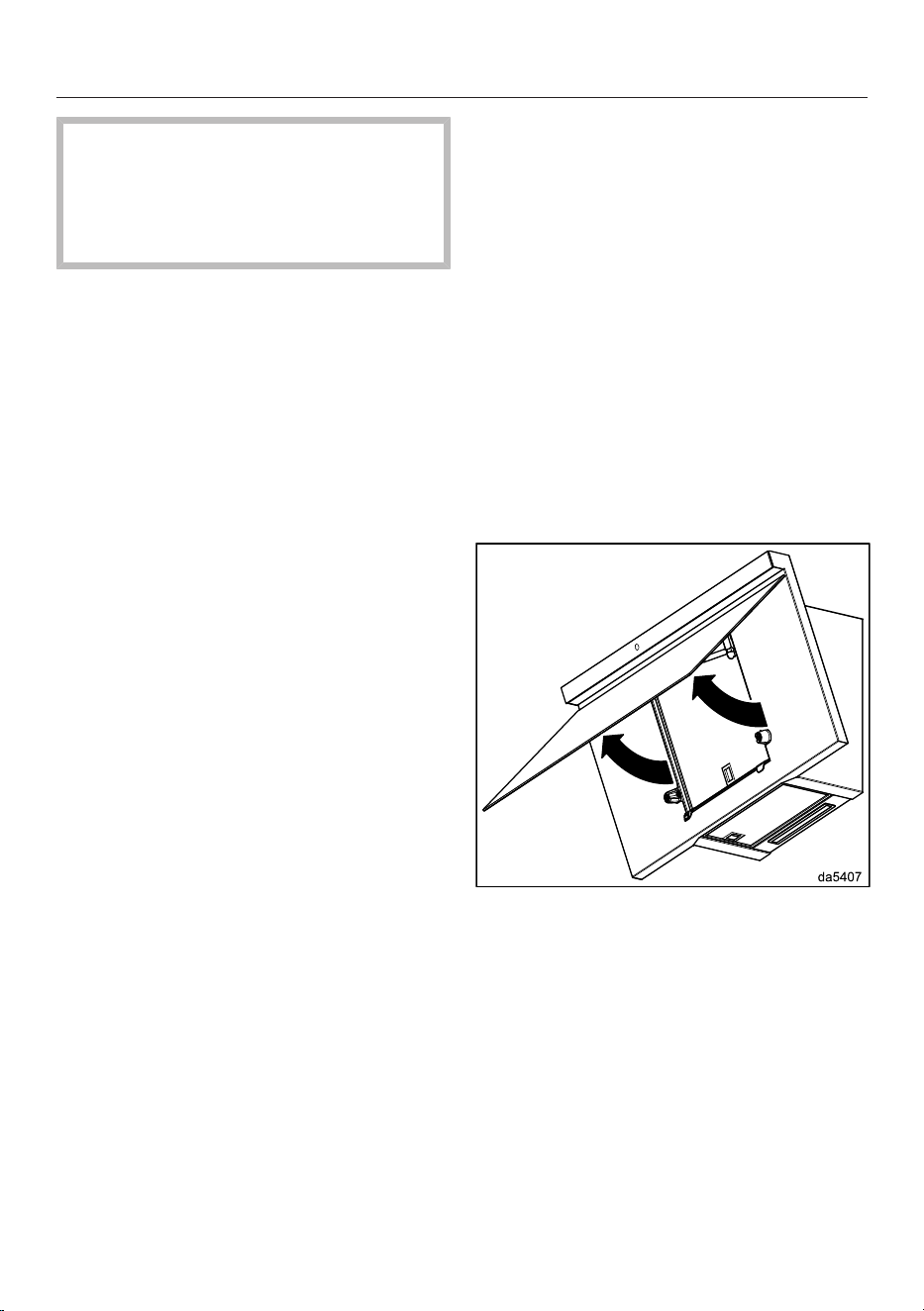

Opening the deflector plate
The deflector plate is held in place by
magnets.
Pull the deflector plate out of the
holder at the bottom and swing it
upwards.
Cleaning and care
26

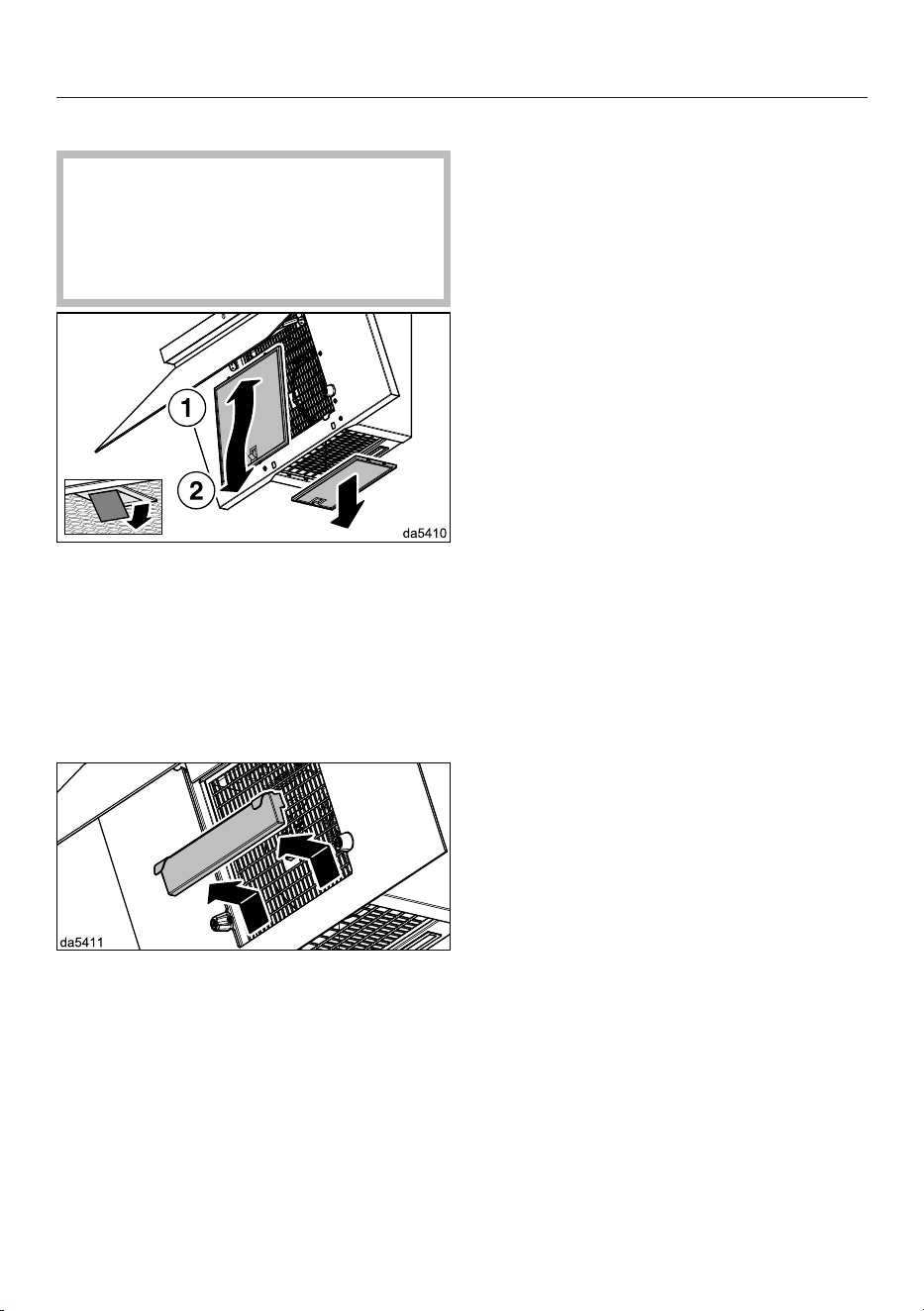

Removing the grease filters
If a filter falls onto the hob below,
this can result in damage to the filter
and the hob.
Make sure you hold the filter securely
at all times when handling it.

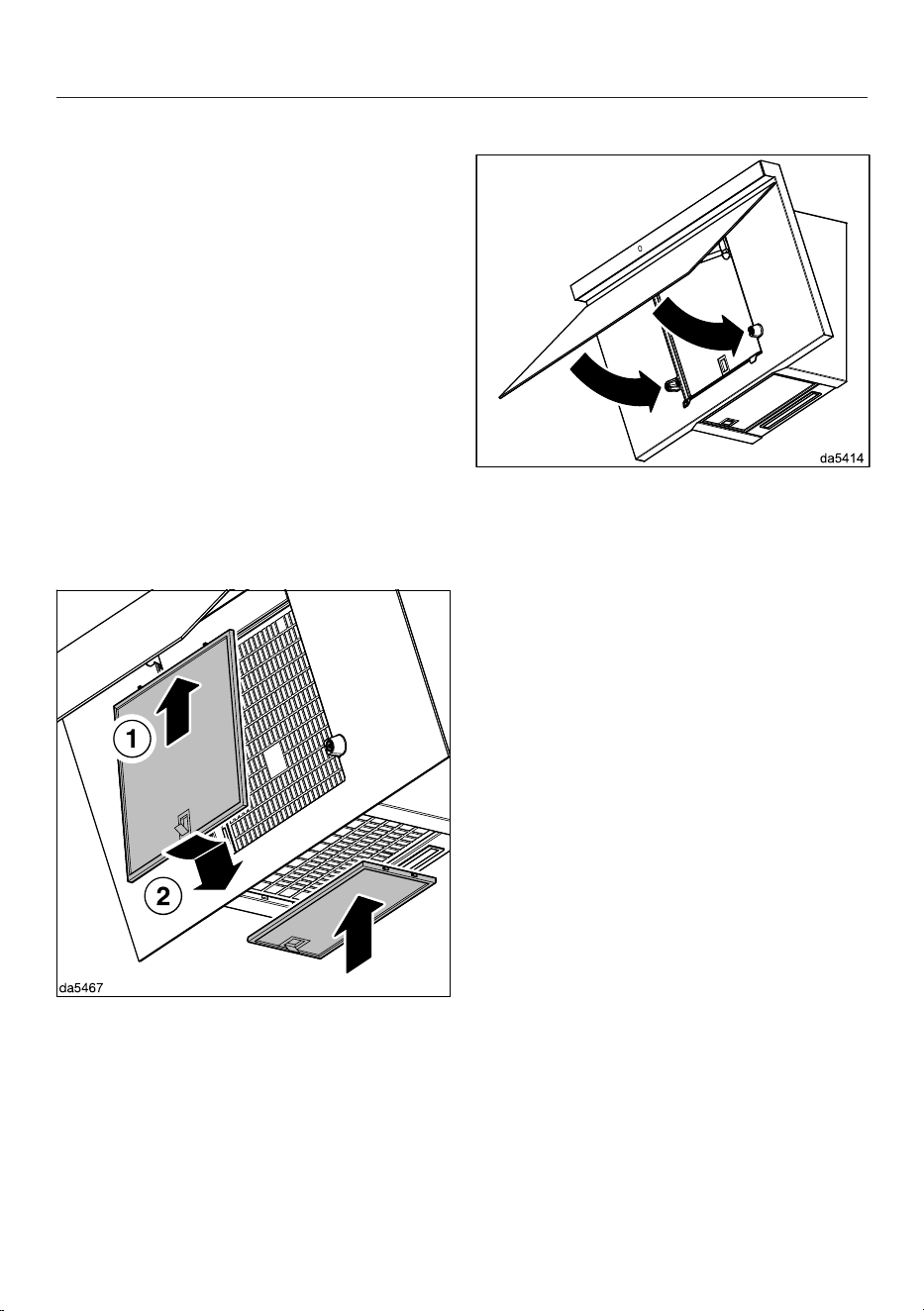

Open the front grease filter retainer
catch, push the filter upwards slightly
and remove it towards the front.
Open the bottom grease filter retainer
catch and remove the filter
downwards.
Cleaning the drip tray
Carefully pull the drip tray upwards
and out and pour away any
condensate that has collected in it.
Clean the drip tray with a damp cloth
and then reinsert it.
Cleaning the grease filters by hand
Clean the grease filters with a soft
nylon brush in a mild solution of hot
water and a little washing-up liquid.
Do not use concentrated washing-up
liquid.
After cleaning, leave the filters to dry
on an absorbent surface before
replacing them.
Important information on cleaning by
hand
Unsuitable cleaning agents may damage
the filter surfaces if used regularly.
Do not use any of the following cleaning
agents:
- Cleaning agents containing descaling
agents
- Powder cleaners and cream cleaners
- Aggressive all-purpose cleaners and
degreasing sprays
- Oven spray
Cleaning the grease filters in the
dishwasher
Place the grease filters upright or at a
slight angle in the lower basket.
Ensure the spray arm is not
obstructed.
Use a standard household cleaning
agent.
Select a programme with a maximum
wash temperature of 65°C.
Cleaning and care
27
Important information on cleaning in a
dishwasher
Excessively high temperatures may
cause the grease filters to become
unusable, if they become deformed, for
example. Select a programme that does
not exceed the recommended
temperature.
Also follow the information provided in
the operating instructions for the
dishwasher.
Depending on the cleaning agent used,
the internal filter surfaces may become
discoloured. This will not affect the
functioning of the grease filters in any
way.
Fitting the grease filters
Insert the grease filters.
Closing the deflector plate
Swing the deflector plate downwards.
It is held in place by magnets.
Resetting the grease filter operating
hours counter
After cleaning, the operating hours
counter needs to be reset.
With the fan switched on, press the
grease filter control for approx.
3seconds, until only 1 is flashing.
The grease filter symbol goes out.
Replacing the grease filters
Regular usage and cleaning can cause
the filter surfaces to become worn or
brittle.
If you identify any damage, replace the
grease filters.
Grease filters are available to order via
the Miele Customer Service
Department (see end of these operating
instructions for contact details) or from
your Miele dealer.
Cleaning and care
28
Charcoal filter
Replacement interval for the charcoal
filter
Replace the charcoal filter when it no
longer absorbs kitchen odours
effectively.
After an operating time of 180hours,
the charcoal filter symbol will light up
to remind you to replace the charcoal
filter.
We recommend replacing the charcoal
filter after 6months at the latest.
Reactivation interval for the charcoal
filter
If you are using a reactivatable charcoal
filter (Miele DKF...-R), the reactivation
interval is the same as the replacement
interval (see “Replacement interval for
the charcoal filter”).
Please refer to the charcoal filter
operating instructions for information on
reactivation.

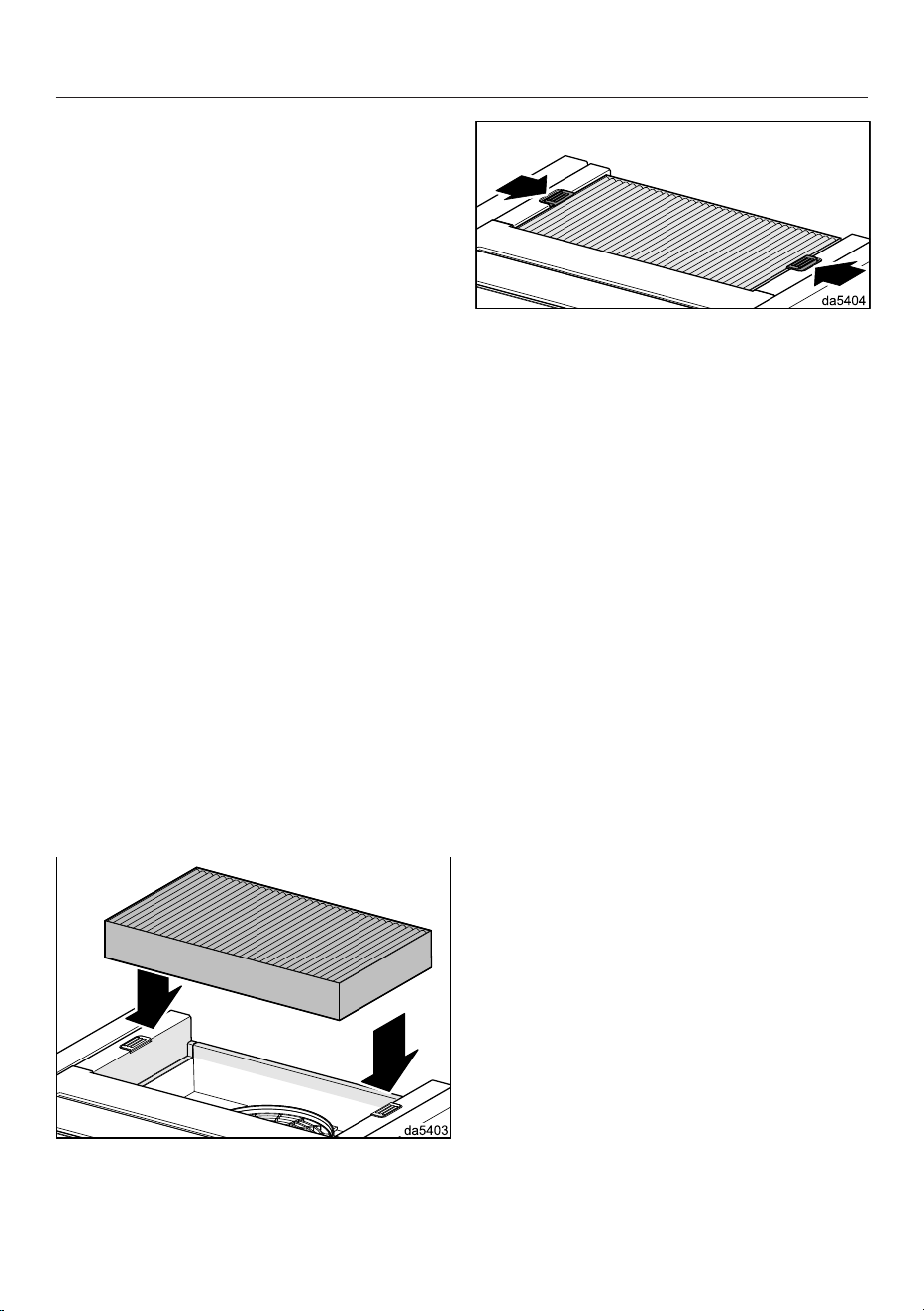

Fitting/replacing charcoal filters
Take the charcoal filter out of its
packaging.
Fit the charcoal filter into the holder in
the top of the cooker hood.
Close the locking catches.
Resetting the charcoal filter operating
hours counter
After changing or reactivating the
charcoal filter, the operating hours
counter needs to be reset.
With the fan switched on, press the
charcoal filter control for approx.
3seconds, until only 1 is flashing.
The charcoal filter symbol will go out.
Disposing of charcoal filters
Used charcoal filters can be disposed
of with normal household waste.
Installation
29
Before installation
Before installation, it is important
to read the information given on the
following pages as well as the
“Warning and Safety instructions” at
the beginning of this booklet.
Protective foil
The housing components have
protective foil around them to protect
them from transport damage.
Please remove this foil before fitting
the housing components. It can be
peeled off easily.

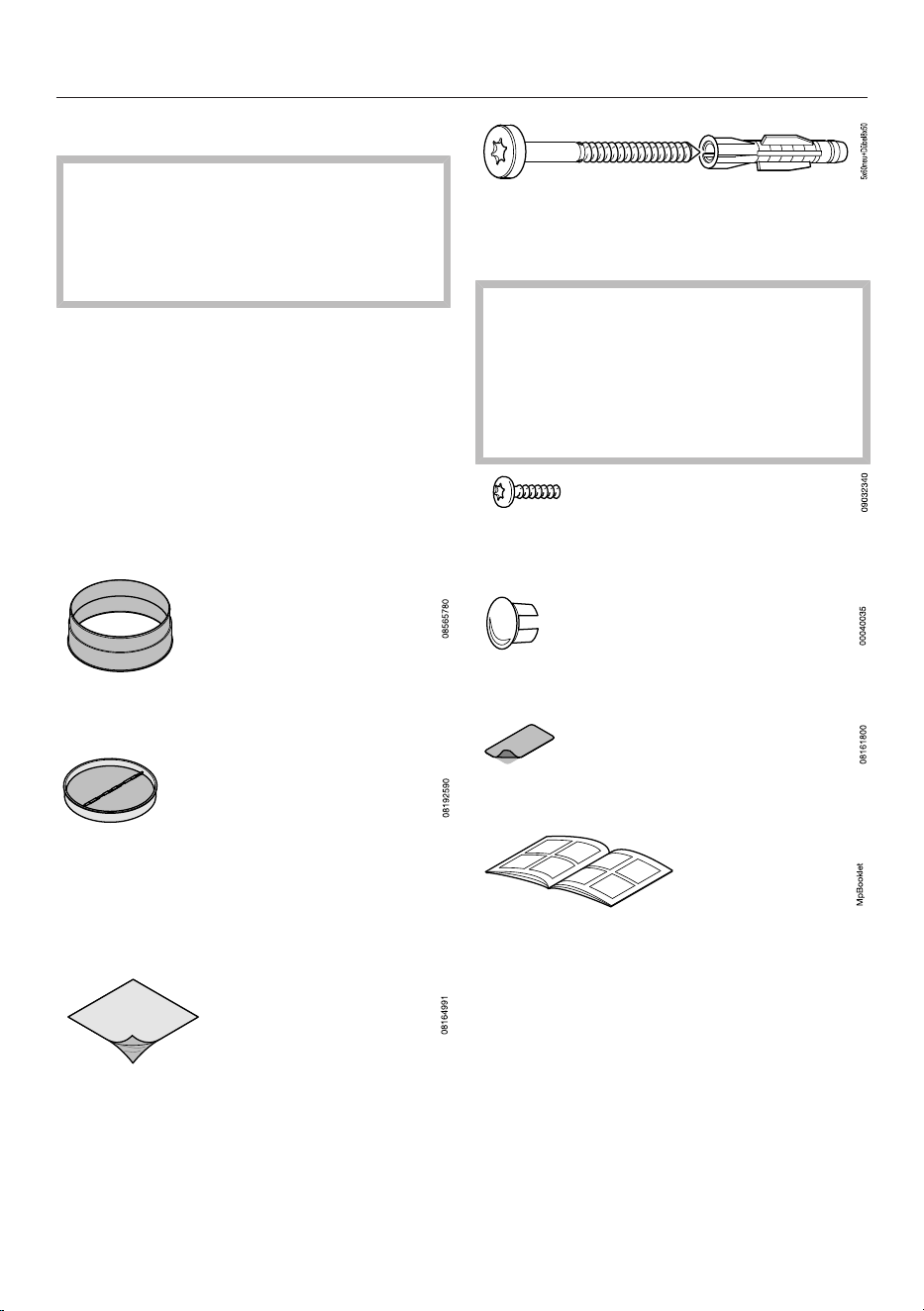

Installation materials
1vent connection
for exhaust ducting 150mm.
1 non-return flap
for fitting into the exhaust socket on the
motor unit. Depending on the model,
the non-return flap may already be
fitted.
Cover foil
for sealing the casing.
4 screws 5x60mm and
4 plugs 8x50mm
for securing to the wall.
The screws and plugs are
designed for use in solid walls only.
For other types of wall construction,
alternative fixings will be required.
Make sure the wall is able to take the
weight of the cooker hood.
1 screw 4x14mm
for securing the non-return flap.
1cap
2stickers
Installation sheet
See the installation sheet for details of
the individual steps involved in the
installation of this appliance.
Installation
30

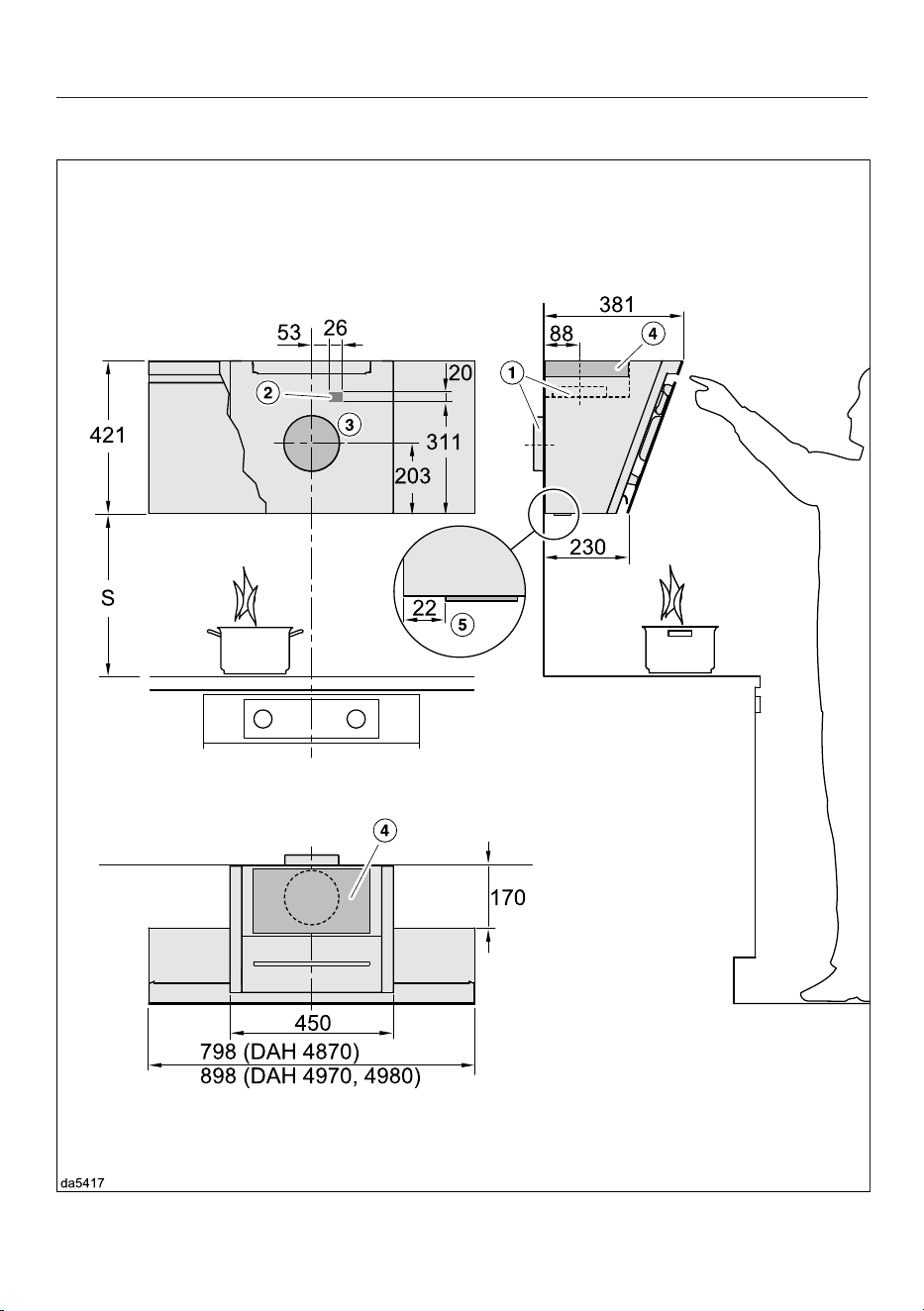

Appliance dimensions
The drawing is not to scale
Installation
31
a
Ducting upwards or to the rear
b
Cut-out for cooker hoods with hard-wired mains electrical connection rather
than a mains plug
c
An exhaust ducting cut-out with 200mm ensures sufficient space through
the wall for the exhaust ducting to flex
d
Ventilation grille for recirculation mode. The distance to the ceiling or to furniture
installed above the appliance should be at least 300mm. Wherever space is at
a premium, make sure that the air outflow can also be distributed above
cabinets mounted on either side of the appliance.
Exhaust duct 150mm
Please observe the installation positions for the socket and for the ducting cut-out
shown on the relevant drawings when using the DADC1000 tower.
e
Clearance between hob lighting and rear wall
Safety distance between hob and cooker hood (S)
When planning the installation height of your cooker hood, the minimum safety
distance between the top of a cooker or hob and the bottom of the cooker hood
is as follows, unless a greater distance is specified by the manufacturer of your
cooking appliance.
See “Warning and Safety” instructions for further information.
Cooking appliance Minimum distance S
Electric hob 450mm
Electric grill, deep fat fryer (electric) 650mm
Multi-burner gas hob,
total output ≤ 12.6 kW, no burner > 4.5 kW
650mm
Multi-burner gas hob,
total output > 12.6 kW and ≤ 21.6 kW,
no burner > 4.8 kW.
760mm
Multi-burner gas hob,
total output > 21.6 kW,
or multi-burner gas hob where one burner > 4.8 kW.
Not possible
Single burner gas hob, output ≤ 6 kW. 650mm
Single burner gas hob, output > 6 kW and ≤ 8.1 kW. 760mm
Single burner gas hob, output > 8.1 kW Not possible
Installation
32
Installation recommendations
- Account should also be taken of the
height of the person who will be using
the hood most often. They should
have sufficient space to work
comfortably at the hob, and be able to
reach the cooker hood controls with
ease.
- Please be aware that if positioned too
high, extraction will be inefficient.
- To achieve optimum vapour
extraction, the cooker hood must be
positioned centrally over the hob, not
to the side.
- The installation area must be easily
accessible. The cooker hood should
be easily accessible and easy to
dismantle in the event that service is
required. This should be taken into
consideration when planning the
position of cupboards, shelves,
ceilings or features in the vicinity of
the cooker hood.
Drilling diagram for wall
mounting
When drilling, please follow the
directions contained on the
accompanying installation sheet.
When installing a custom back wall
with pre-drilled holes, please refer to
the drilling distances in the drawing
above (screws 5mm).
Installation
33
Connection for air extraction
If the cooker hood is used at the
same time as a heating appliance
that relies on oxygen from the same
room, there is a risk in certain
circumstances of toxic fumes
building up.
It is essential that the “Warning and
Safety” instructions are observed.
The cooker hood should be installed
according to local and national
building regulations. Seek approval
from the building inspector where
necessary.
Only use smooth pipes or flexible
exhaust ducting made from approved
non-flammable materials for exhaust
ducting.
To achieve the most efficient air
throughput with the lowest noise levels,
please note the following:
- The diameter of the exhaust ducting
must not be smaller than the cross-
section of the exhaust duct (see
“Appliance dimensions”). This applies
in particular when using flat ducting.
- The exhaust ducting should be as
short and straight as possible.
- Only use wide radius bends.
- The exhaust ducting must not be
kinked or compressed.
- All connections must be strong and
airtight.
- If the exhaust ducting has flaps, these
must be opened whenever the cooker
hood is switched on.
Any constriction of the air throughput
will reduce extraction performance
and increase operating noise.

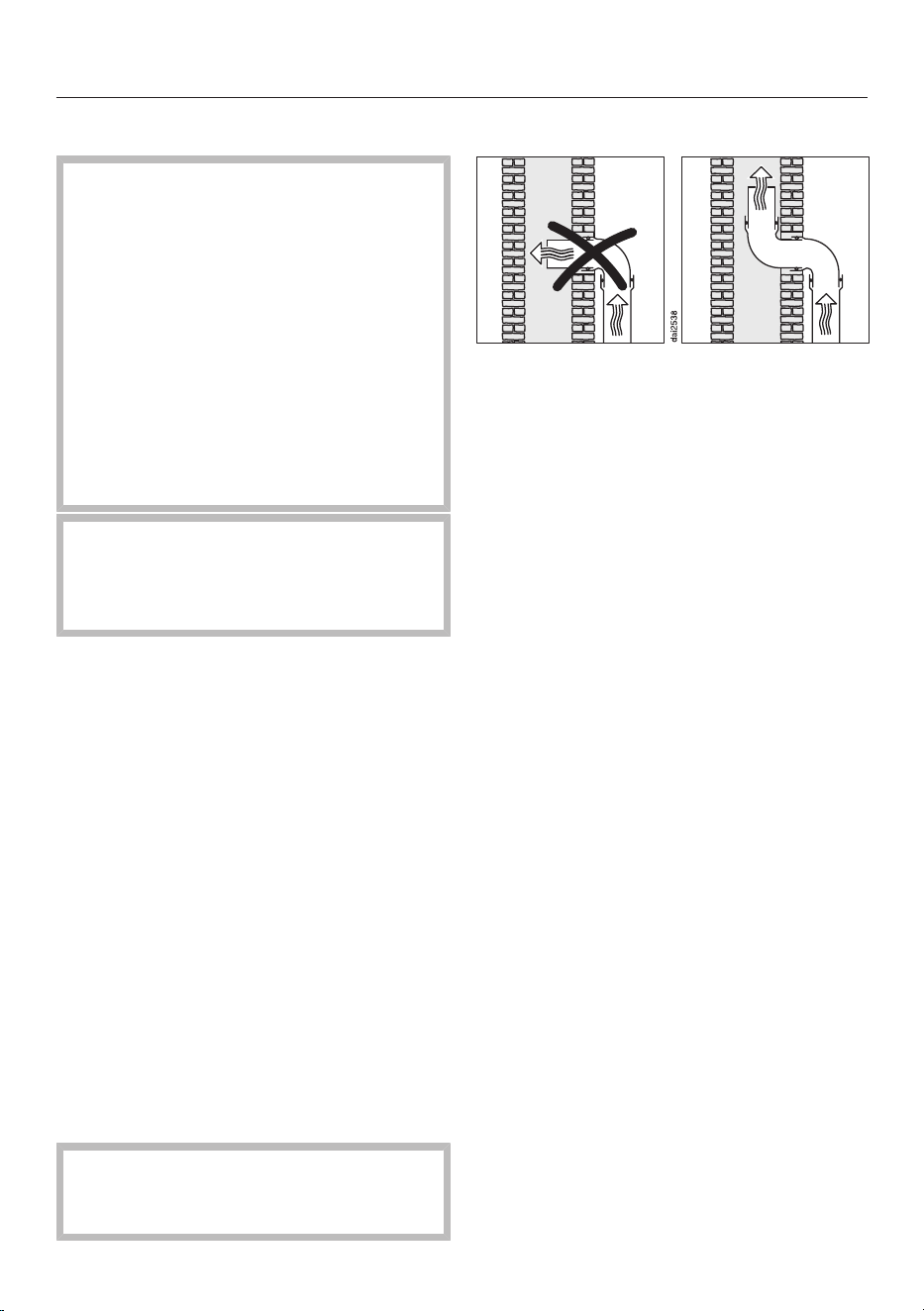

Flue
If the exhaust air is to be ducted into a
flue, the ducting must be directed in the
flow direction of the flue.
If the flue is used by several ventilation
units, the cross-section of the flue must
be large enough.
Non-return flap
Use a non-return flap in the exhaust
system.
A non-return flap ensures that when the
cooker hood is not in operation, the
duct is closed to prevent unwanted
exchange of room air and outside air.
If the exhaust is ducted through an
outside wall, a Miele wall vent or roof
vent (available as an optional accessory)
is recommended. Both of these have a
built-in non-return flap.
If the on-site ventilation system does
not have a non-return flap, one is
supplied with the cooker hood.
The non-return flap is fitted in the
exhaust socket of the fan.
Installation
34

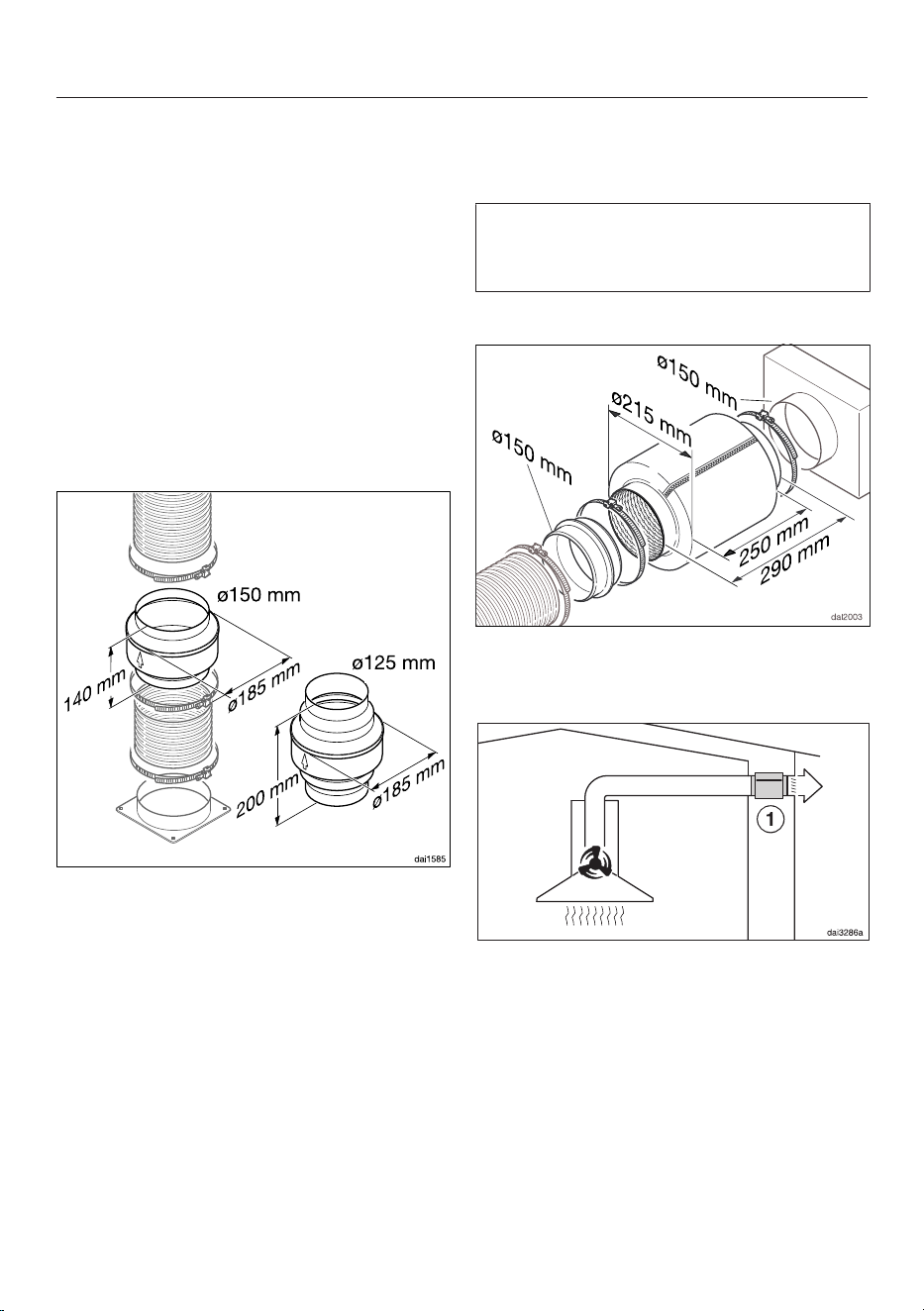

Condensation
If the exhaust ducting is to run through
cool rooms or ceiling space, for
example, the significant variations in
temperature between the different
areas can cause condensation to form.
Insulate the exhaust ducting to reduce
temperature variations.
If the exhaust ducting is to be laid
horizontally, it must be laid with a
downwards sloping gradient of at least
1cm per meter. This is to ensure that
condensation cannot drain back into the
cooker hood.
In addition to insulating the exhaust
ducting, it is advisable to also install a
condensate trap for collecting and
evaporating any potential condensation.
Condensate traps for 125mm or
150mm diameter exhaust ducting are
available as optional accessories.
When installing a condensate trap,
ensure that it is positioned vertically and
as closely as possible to the cooker
hood above the exhaust connection.
The arrow on the casing indicates the
direction of airflow.
A condensate trap can only be fitted in
extraction ducting which is directed
upwards out of the cooker hood.
Miele shall not accept warranty claims
for any functional defects or damage
caused by inadequate exhaust ducting.
Silencer
To reduce noise levels even further, a
silencer (optional accessory) can be
installed in the exhaust ducting.
In extraction mode, the silencer not only
reduces noise from the fan outside the
house, but also sounds originating
outside reaching the kitchen through the
exhaust ducting (e.g. traffic noise). For
this reason, the silencer must be
positioned as close as possible to the
ducting exit.
Installation
35
Electrical connection
The cooker hood is supplied with a
mains cable with moulded plug ready
for connection to a suitable earthed
socket.
If the socket is not easily accessible or a
fixed connection is envisaged, ensure
that a suitable means of disconnection
is provided on the installation side for
each pole.
Risk of fire from overheating.
Connecting the cooker hood to multi-
socket adapters or extension cables
can overload the cables.
For safety reasons, do not use an
extension cable or multi-socket
adapter.
The electrical system must comply with
local and national safety regulations
(BS7671 in the UK).
For safety reasons, we recommend
using a type residual current device
(RCD) in the relevant electrical
installation for connecting the cooker
hood.
If the mains connection cable is
damaged, it must only be replaced with
a specific mains connection cable of the
same type (available from the Miele
Customer Service Department). For
safety reasons, such replacement may
only be carried out by a qualified
specialist or the Miele Customer
Service Department.
These operating instructions and the
data plate indicate the nominal power
consumption and the appropriate fuse
rating. Compare this information with
the data of the on-site electrical
connection.
If in any doubt, consult a qualified
electrician.
Temporary or permanent operation on
an autonomous power supply system or
a power supply system that is not
synchronised with the mains power
supply (e.g. island networks, back-up
systems) is possible. A prerequisite for
operation is that the power supply
system complies with the specifications
of EN50160 or an equivalent standard.
The function and operation of the
protective measures provided in the
domestic electrical installation and in
this Miele product must also be
maintained in isolated operation or in
operation that is not synchronised with
the mains power supply, or these
measures must be replaced by
equivalent measures in the installation.
As described, for example, in the current
version of VDE-AR-E 2510-2.
Customer Service Department
36
Information to help you rectify faults yourself
and about Miele spare parts can be found at
www.miele.com/service.
Contact in the event of a fault
In the event of any faults which you
cannot remedy yourself, please contact
your Miele dealer or the Miele
Customer Service Department.
You can book a Miele Customer
Service Department call-out online at
www.miele.com/service.
Contact information for the Miele
Customer Service Department can be
found at the end of this document.
Please quote the model identifier and
serial number of your appliance (Fabr./
SN/Nr.) when contacting the Miele
Customer Service Department. This
information can be found on the data
plate.
Please note that telephone calls may be
monitored and recorded for training
purposes and that a call-out charge will
be applied to service visits where the
problem could have been resolved as
described in this booklet.
Position of the data plate
The data plate can be found by opening
the deflector plate.
Warranty
For information on the appliance
warranty specific to your country please
contact Miele. See back cover for
address.
In the UK, your appliance warranty is
valid for 2 years from the date of
purchase. However, you must activate
your cover by calling 0330 160 6640 or
registering online at www.miele.co.uk.
Copyrights and licences
For the purpose of operating and
controlling the communication module,
Miele uses proprietary or third-party
software that is not covered by open
source licensing terms. This software/
these software components are
protected by copyright. The copyrights
held by Miele and third parties must be
respected.
Furthermore, the communication
module integrated in the appliance
contains software components which
are distributed under open source
licence conditions. The open source
components contained in the appliance
along with the corresponding copyright
notices, copies of the licensing terms
valid at the time and any further
information can be accessed locally by
IP via a web browser (http[s]://<IP
address>/Licenses). The liability and
warranty arrangements for the open
source licences displayed in this
location only apply in relation to the
respective rights holders.
Technical data
37
Fan motor 220W
Hob lighting 3.2W
Total rated load 223.2W
Mains voltage, frequency AC230V, 50Hz
Fuse rating 10A
Length of mains connection cable 1.3m
Preset light temperature 3500K
Adjustable light temperature 2700–6500K
Weight
DAH4870 17kg
DAH4970, 4980 18kg
WiFi module
Frequency band 2.400–2.4835GHz
Maximum transmission power <100mW
Optional accessories for recirculation mode
One DKF29, DKF29-S or DKF29-R charcoal filter (reactivatable)
Technical data
38
EU Conformity declaration
Miele hereby declares that this cooker hood complies with Directive 2014/53/EU.
The complete text of the EU declaration of conformity is available from one of the
following internet addresses:
- Products, Download from www.miele.ie
- For service, information, operating instructions etc: go to
https://miele.co.uk/manuals and enter the name of the product or the serial
number
UK Conformity declaration
Miele hereby declares that this cooker hood complies with UK Radio Equipment
Regulations 2017, as amended.
The complete text of the UK declaration of conformity is available from one of the
following internet addresses:
- Products, Download from www.miele.co.uk
- For service, information, operating instructions etc: go to https://miele.co.uk/
manuals and enter the name of the product or the serial number
ThisStatement of Compliance confirms this Miele product fully complies with the
Product Security and Telecommunications Infrastructure (Security Requirements
for Relevant Connectable Products) Regulations 2023.
1) Household Appliance –
2)
Manufactured by: Miele & Cie KG,
Carl Miele Street 29, 33332 Gutersloh Germany
Imported by and contact point: Miele Company Ltd, Fairacres, Marcham Road,
Abingdon, Oxon, OX14 ITW Great Britain
The defined support period at the time of first supply is 10 years
3)
To report vulnerabilities and cybersecurity issues please contact: [email protected]4)
5) Signature
Name: Paul Wright
Company Position: Head of Technical Management
Date of signature: 19th March 2024
Place of signature:
Abingdon, Oxfordshire
Cooker Hood DAH 2960, DAH 4970, DAH 4980
Note for test institutes
Energy efficiency must be calculated using extraction mode. The cooker hood is set
up ex-works for recirculation mode. To re-set it for extraction mode the operating
hours counter for the charcoal filter(s) has to be deactivated (see “Before using for
the first time”).
Technical data
39
Data sheet for household cooker hoods
In acc. with delegated regulation (EU) No. 65/2014 and regulation (EU) No.
66/2014
MIELE
Model name/identifier DAH 4870 Sienna
Annual Energy Consumption (AEC
hood
) 28,7 kWh/year
Energy efficiency class A++
Energy efficiency index (EEI
hood
) 34,5
Fluid Dynamic Efficiency (FDE
hood
) 40,0
Fluid Dynamic Efficiency class
A (most efficient) to G (least efficient) A
Lighting Efficiency (LE
hood
) 81,3 lx/W
Lighting Efficiency class
A (most efficient) to G (least efficient) A
Grease Filtering Efficiency 70,7%
Grease Filtering Efficiency class
A (most efficient) to G (least efficient) D
Airflow at best efficiency point 426,6 m
3
/h
Air flow (min. speed) 215 m
3
/h
Air flow (max. speed) 415 m
3
/h
Air flow (intensive or boost setting) 875 m
3
/h
Max. air flow (Q
max
) 875,0 m
3
/h
Air pressure at best efficiency point 407 Pa
Airborne acoustical A-weighted sound power emissions (min. speed) 38 dB
Airborne acoustical A-weighted sound power emissions (max. speed) 50 dB
Airborne acoustical A-weighted sound power emissions (intensive or
boost setting)
68 dB
Electrical power input at best efficiency point 120,5 W
Power consumption in standby mode (P
s
) 0,29 W
Nominal power of lighting system 3,2 W
Average illumination of the lighting system on the cooking surface 260 Ix
Time increase factor 0,6
Technical data
40
Data sheet for household cooker hoods
In acc. with delegated regulation (EU) No. 65/2014 and regulation (EU) No.
66/2014
MIELE
Model name/identifier DAH 4970 Sienna
Annual Energy Consumption (AEC
hood
) 28,2 kWh/year
Energy efficiency class A++
Energy efficiency index (EEI
hood
) 34,3
Fluid Dynamic Efficiency (FDE
hood
) 40,2
Fluid Dynamic Efficiency class
A (most efficient) to G (least efficient) A
Lighting Efficiency (LE
hood
) 81,3 lx/W
Lighting Efficiency class
A (most efficient) to G (least efficient) A
Grease Filtering Efficiency 70,7%
Grease Filtering Efficiency class
A (most efficient) to G (least efficient) D
Airflow at best efficiency point 421,1 m
3
/h
Air flow (min. speed) 218 m
3
/h
Air flow (max. speed) 420 m
3
/h
Air flow (intensive or boost setting) 884 m
3
/h
Max. air flow (Q
max
) 884,0 m
3
/h
Air pressure at best efficiency point 408 Pa
Airborne acoustical A-weighted sound power emissions (min. speed) 38 dB
Airborne acoustical A-weighted sound power emissions (max. speed) 50 dB
Airborne acoustical A-weighted sound power emissions (intensive or
boost setting)
68 dB
Electrical power input at best efficiency point 118,7 W
Power consumption in standby mode (P
s
) 0,29 W
Nominal power of lighting system 3,2 W
Average illumination of the lighting system on the cooking surface 260 Ix
Time increase factor 0,6
Technical data
41
Data sheet for household cooker hoods
In acc. with delegated regulation (EU) No. 65/2014 and regulation (EU) No.
66/2014
MIELE
Model name/identifier DAH 4980 Sienna
Annual Energy Consumption (AEC
hood
) 28,2 kWh/year
Energy efficiency class A++
Energy efficiency index (EEI
hood
) 34,3
Fluid Dynamic Efficiency (FDE
hood
) 40,2
Fluid Dynamic Efficiency class
A (most efficient) to G (least efficient) A
Lighting Efficiency (LE
hood
) 81,3 lx/W
Lighting Efficiency class
A (most efficient) to G (least efficient) A
Grease Filtering Efficiency 70,7%
Grease Filtering Efficiency class
A (most efficient) to G (least efficient) D
Airflow at best efficiency point 421,1 m
3
/h
Air flow (min. speed) 218 m
3
/h
Air flow (max. speed) 420 m
3
/h
Air flow (intensive or boost setting) 884 m
3
/h
Max. air flow (Q
max
) 884,0 m
3
/h
Air pressure at best efficiency point 408 Pa
Airborne acoustical A-weighted sound power emissions (min. speed) 38 dB
Airborne acoustical A-weighted sound power emissions (max. speed) 50 dB
Airborne acoustical A-weighted sound power emissions (intensive or
boost setting)
68 dB
Electrical power input at best efficiency point 118,7 W
Power consumption in standby mode (P
s
) 0,29 W
Nominal power of lighting system 3,2 W
Average illumination of the lighting system on the cooking surface 260 Ix
Time increase factor 0,6
United Kingdom
Miele Co. Ltd., Fairacres, Marcham Road, Abingdon, Oxon, OX14 1TW
Tel: 0330 160 6600, Internet: www.miele.co.uk, E-mail: [email protected]
Australia
Miele Australia Pty. Ltd.
ACN 005 635 398
ABN 96 005 635 398
Level 4, 141 Camberwell Road
Hawthorn East, VIC 3123
Tel: 1300 464 353
E-mail: [email protected]
Internet: www.miele.com.au
Miele Electrical Appliances Co. Ltd.
No. 82, Shimenyi Road, JingAn District
Shanghai, China, P.R.C
Post Code: 200040
Phone: +86 21 6157 3500
Fax: +86 21 6157 3511
E-mail: info@miele.cn
Internet: www.miele.cn
China Mainland
Miele (Hong Kong) Ltd.
41/F - 4101, Manhattan Place
23 Wang Tai Road
Kowloon Bay, Hong Kong
Tel: (852) 2610 1025
Fax: (852) 3579 1404
E-mail:
Website: www.miele.hk
Hong Kong, China
Miele India Pvt. Ltd.
1st Floor, Copia Corporate Suites,
Commercial Plot 9, Mathura Road,
Jasola, New Delhi - 110025
E-mail: customercare@miele.in
Website: www.miele.in
India
Miele Ireland Ltd.
2024 Bianconi Avenue
Citywest Business Campus
Dublin 24
Tel: (01) 461 07 10
Fax: (01) 461 07 97
E-mail: [email protected]
Internet: www.miele.ie
Ireland
Malaysia
Miele Sdn Bhd
Suite 12-2, Level 12
Menara Sapura Kencana
Petroleum
Solaris Dutamas No. 1
Jalan Dutamas 1
50480 Kuala Lumpur, Malaysia
Phone: +603-6209-0288
Fax: +603-6205-3768
Miele New Zealand Limited
IRD 98 463 631
8 College Hill
Freemans Bay, Auckland 1011
Tel: 0800 464 353
Internet: www.miele.co.nz
New Zealand
Miele Pte. Ltd.
29 Media Circle
#11-04 ALICE@Mediapolis
Singapore 138565
Tel: +65 6735 1191
Fax: +65 6735 1161
E-mail: [email protected]
Internet: www.miele.sg
Singapore
Miele (Pty) Ltd.
63 Peter Place, Bryanston 2194
Tel: (011) 875 9000
Fax: (011) 875 9035
E-mail: [email protected]
Internet: www.miele.co.za
South Africa
Miele Appliances Ltd.
Showroom 1, Eiffel 1 Building
P.O. Box 114782 - Dubai
Tel. +971 4 3044 999
Fax. +971 4 3418 852
800-MIELE (64353)
E-mail: [email protected]
Website: www.miele.ae
United Arab Emirates
Manufacturer: Miele & Cie. KG, Carl-Miele-Straße 29, 33332 Gütersloh, Germany
Thailand
Miele Appliances Ltd.
BHIRAJ TOWER at EmQuartier
43rd Floor Unit 4301-4303
689 Sukhumvit Road
North Klongton Sub-District
Vadhana District
Bangkok 10110, Thailand
Sheikh Zayed Road, Umm Al Sheif
E-mail: customercare@miele.co.nz
P.O. Box 69434, Bryanston 2021
M.-Nr. 12 490 281 / 01en-GB
DAH4870, DAH4970, DAH4980
