Operating and installation
instructions
Cooker hood
To prevent the risk of accidents or damage to the appliance, it is
essential to read these instructions before it is installed and used for
the first time.
en-GB M.-Nr. 12 573 220
Contents
2
Warning and Safety instructions ............................................................................... 4
Caring for the environment......................................................................................... 13

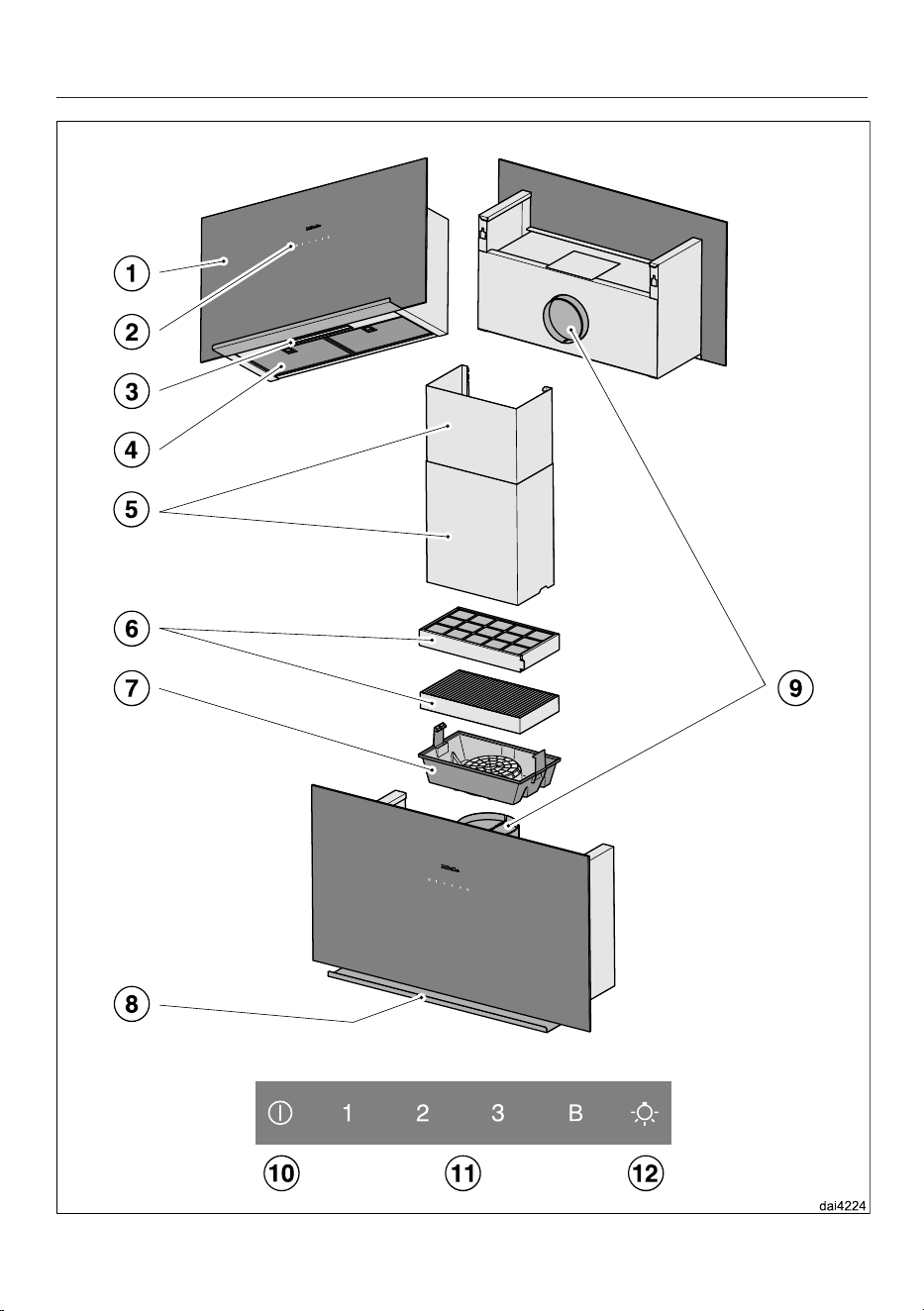

Guide to the cooker hood............................................................................................ 14
Modes of operation ...................................................................................................... 16
Operation........................................................................................................................ 17
Switching the fan on ......................................................................................................
17
To select a power level ..................................................................................................
17
Run-on time ....................................................................................................................
17
Switching the fan off......................................................................................................
17
Switching the hob lighting on/off.................................................................................
17
Power management.......................................................................................................
17
Activating/deactivating Power management ....................................................... 18
Safety switch-off ............................................................................................................
18
Energy saving tips......................................................................................................... 19
Cleaning and care ......................................................................................................... 20
Housing............................................................................................................................
20
Important information for appliances with lacquered casing ............................ 20
Grease filters...................................................................................................................
20

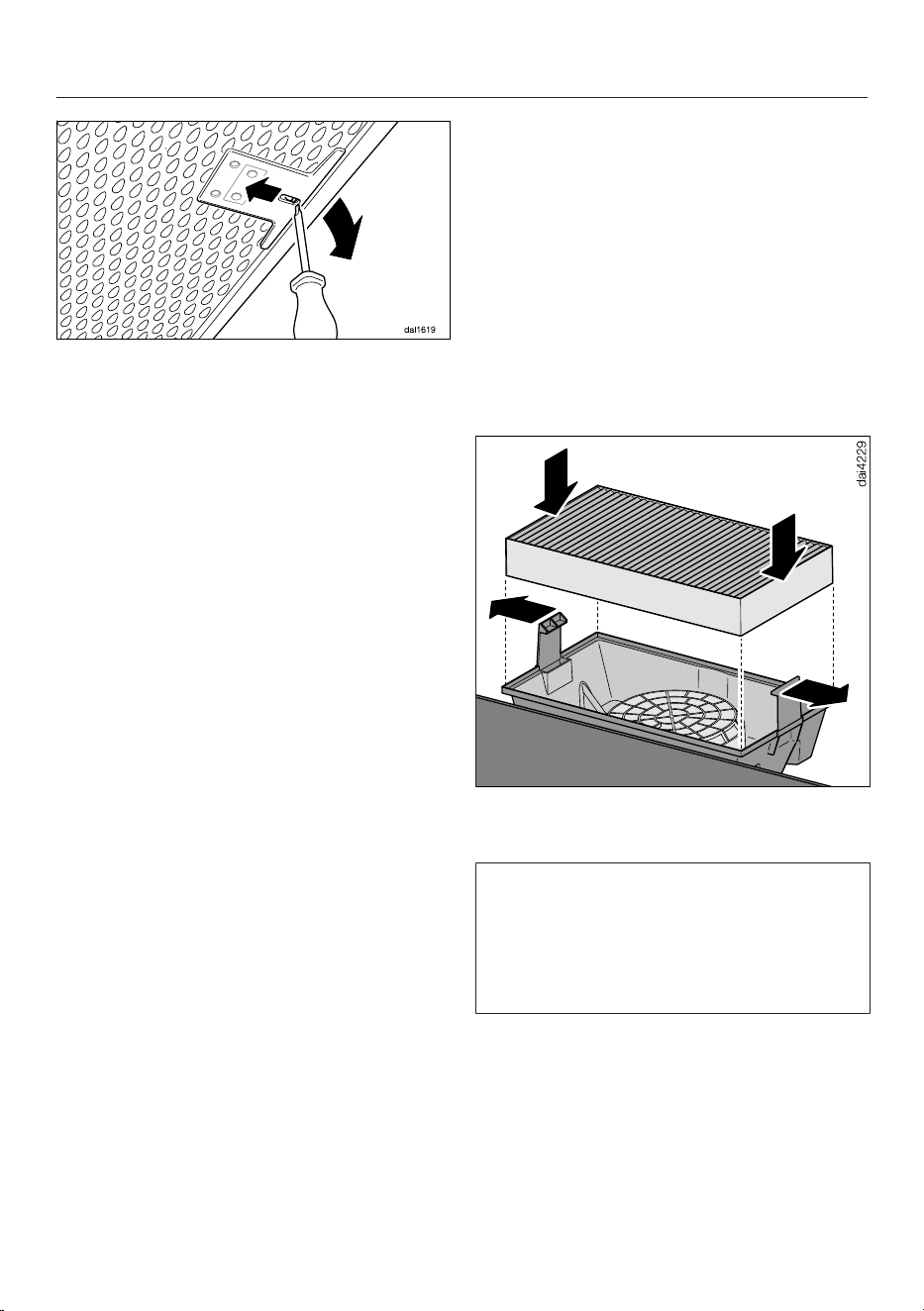

Replacing the grease filters ..................................................................................... 22
Charcoal filter..................................................................................................................
22
Disposing of charcoal filters.................................................................................... 23
Reactivatable charcoal filter.................................................................................... 23
Service............................................................................................................................. 24
Contact in the event of a fault......................................................................................
24
Position of the data plate ..............................................................................................
24
Warranty ..........................................................................................................................
24
Installation...................................................................................................................... 25
Before installation ..........................................................................................................
25
Protective foil ..................................................................................................................
25

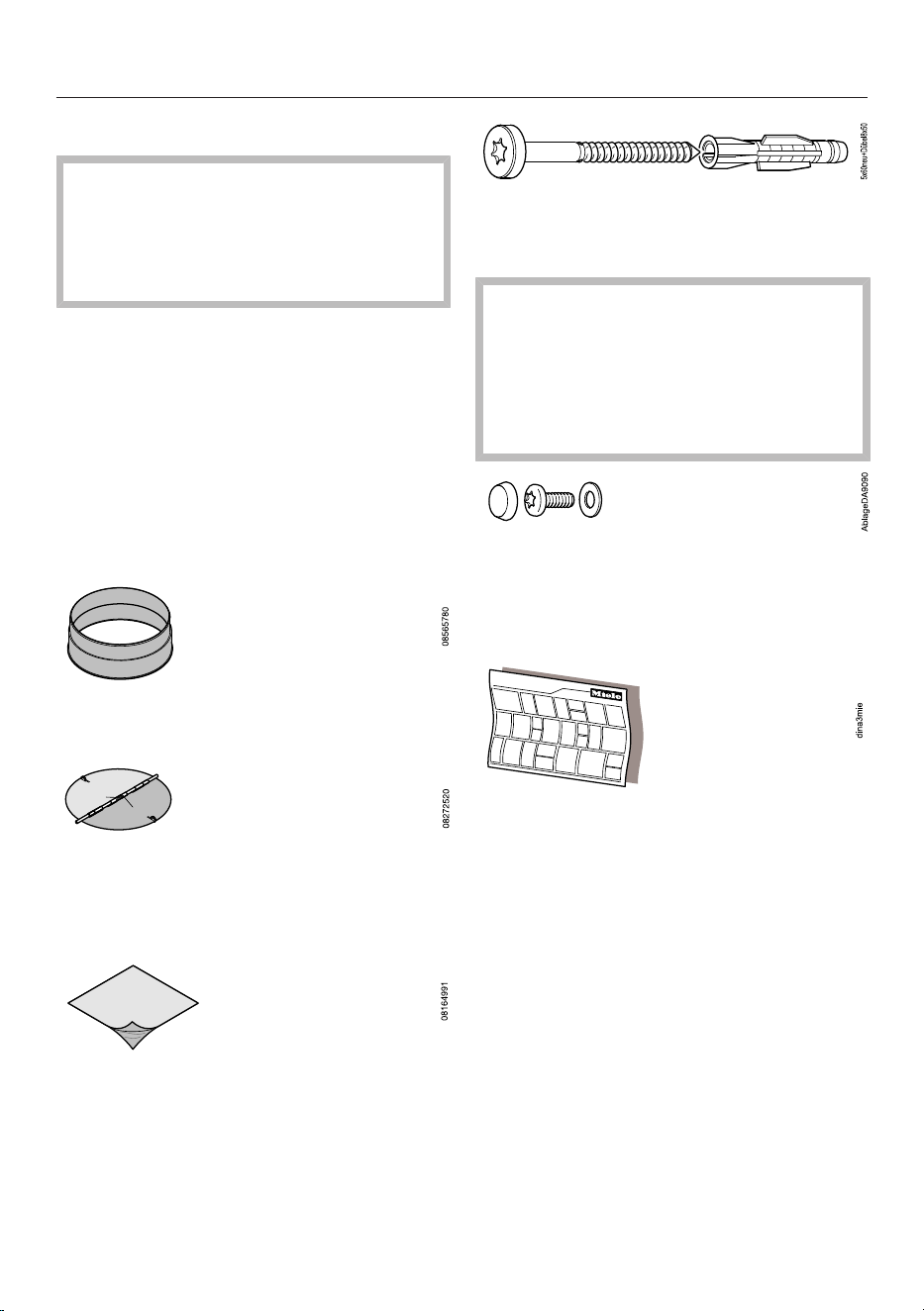

Installation materials......................................................................................................
25

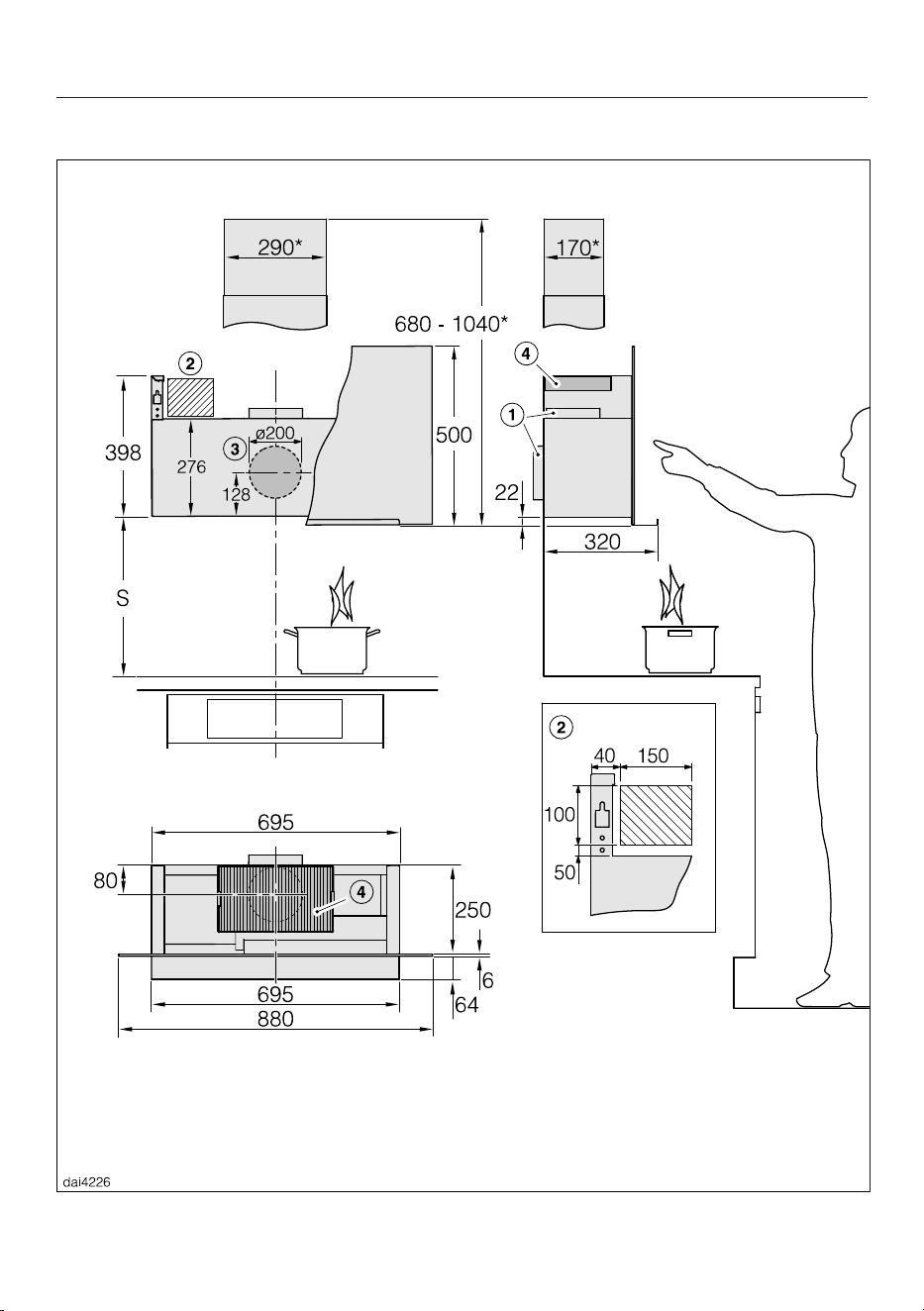

Appliance dimensions....................................................................................................
26
Safety distance between hob and cooker hood (S) ..................................................
27
Installation recommendations......................................................................................
28
Drilling diagram for wall mounting ...............................................................................
28
Contents
3
Connection for air extraction ........................................................................................
29
Non-return flap.......................................................................................................... 30
Condensation............................................................................................................ 30

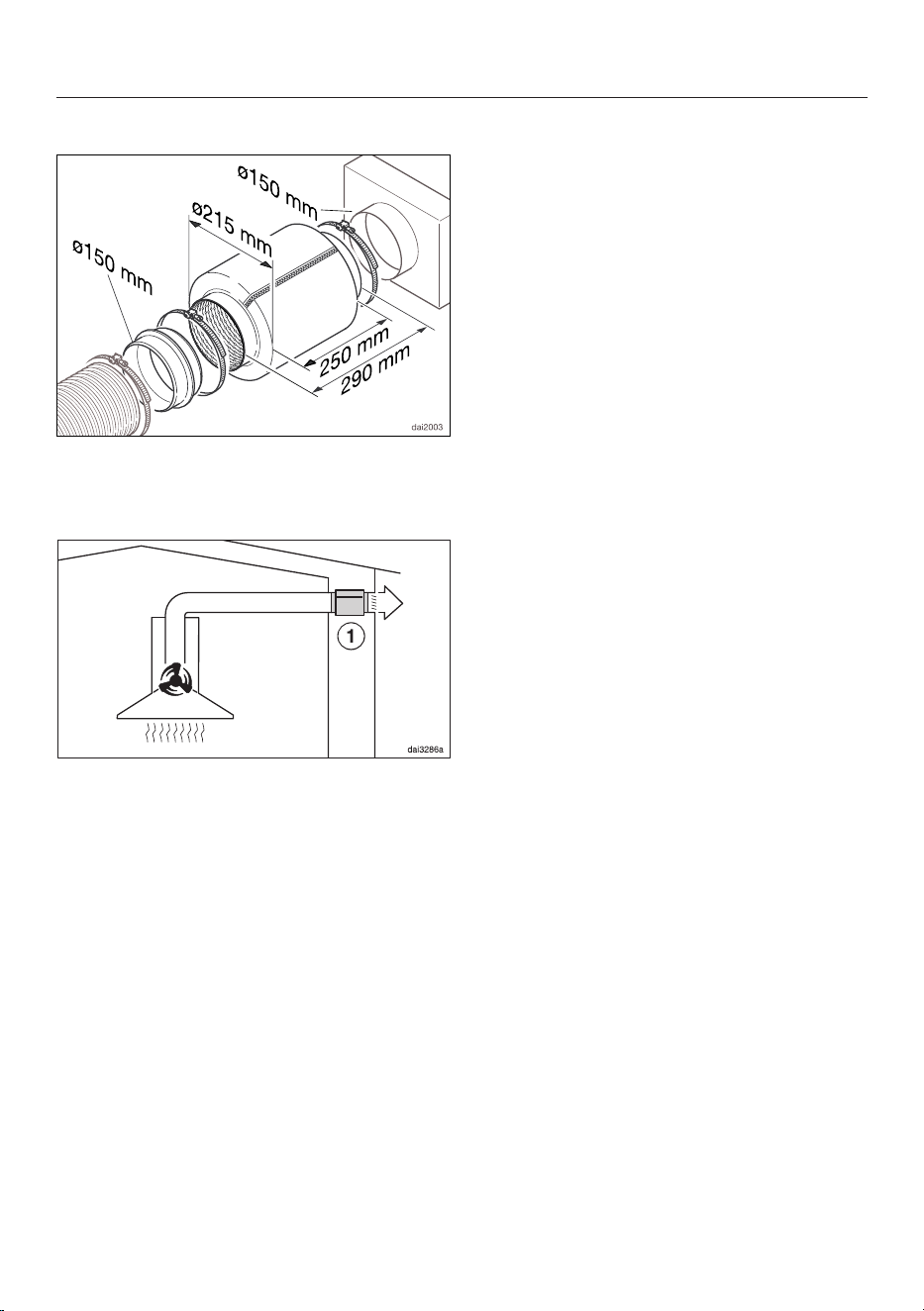

Silencer ...................................................................................................................... 31
Electrical connection .....................................................................................................
32
Technical data................................................................................................................ 33
Optional accessories for recirculation mode..............................................................
33
Warning and Safety instructions
4
This cooker hood complies with all relevant local and national
safety requirements. Inappropriate use can, however, lead to
personal injury and material damage.
Read the operating and installation instructions carefully before
using the cooker hood. They contain important information on its
safety, installation, use and maintenance. This prevents both
personal injury and damage to the cooker hood.
In accordance with standard IEC60335-1, Miele expressly and
strongly advises that you read and follow the instructions in the
chapter on installing the appliance as well as the safety instructions
and warnings.
Miele cannot be held liable for injury or damage caused by non-
compliance with these instructions.
Keep these instructions in a safe place and pass them on to any
future owner.
Correct application
This cooker hood is intended for use in domestic households and
similar working and residential environments.
The cooker hood is not intended for outdoor use.
It must only be used as a domestic appliance to extract vapours
and remove odours from cooking.
Any other usage is not supported by the manufacturer and could be
dangerous.
Where a recirculation cooker hood is fitted above a gas hob, please
ensure that there is an adequate supply of fresh air into the room in
which it is installed. Please seek the advice of a qualified gas fitter
(e.g. GasSafe in the UK) for more information if necessary.
Warning and Safety instructions
5
The cooker hood can only be used by people with reduced
physical, sensory or mental capabilities, or lack of experience and
knowledge, if they are supervised whilst using it, or have been shown
how to use it in a safe way and recognise and understand the
consequences of incorrect operation.
Safety with children
Children under 8 years of age must be kept away from the cooker
hood unless they are constantly supervised.
Children aged 8 and older may only use the cooker hood without
supervision if they have been shown how to use it and are able to do
so in a safe manner. Children must be able to understand and
recognise the possible dangers caused by incorrect operation.
Children must not be allowed to clean or maintain the cooker hood
unsupervised.
Please supervise children in the vicinity of the cooker hood and do
not let them play with it.
The hob lighting is very intensive.
Ensure, in particular, that babies/small children do not look at the
light.
Danger of suffocation! Whilst playing, children may become
entangled in packaging material (such as plastic wrapping) or pull it
over their head with the risk of suffocation. Keep packaging material
away from children.
Warning and Safety instructions
6
Technical safety
Unauthorised installation, maintenance and repairs can cause
considerable danger for the user. Installation, maintenance and
repairs must only be carried out by a Miele authorised technician.
A damaged appliance can be dangerous. Check it for visible signs
of damage. Do not use a damaged appliance.
The electrical safety of this appliance can only be guaranteed when
correctly earthed. It is essential that this standard safety requirement
is met. If in any doubt please have the electrical installation tested by
a qualified electrician.
Temporary or permanent operation on an autonomous power
supply system or a power supply system that is not synchronised
with the mains power supply (e.g. island networks, back-up systems)
is possible. A prerequisite for operation is that the power supply
system complies with the specifications of EN50160 or an
equivalent standard.
The function and operation of the protective measures provided in
the domestic electrical installation and in this Miele product must
also be maintained in isolated operation or in operation that is not
synchronised with the mains power supply, or these measures must
be replaced by equivalent measures in the installation. As described,
for example, in the current version of BS OHSAS 18001–2 ISO
45001.
The connection data (voltage and frequency) on the data plate of
the cooker hood must match the mains electricity supply in order to
avoid the risk of damage to the cooker hood
Compare this before connecting the appliance to the mains. Consult
a qualified electrician if in any doubt.
Do not connect the appliance to the mains electricity supply by a
multi-socket unit or an extension lead. These are a fire hazard and do
not guarantee the required safety of the appliance.
For safety reasons, this appliance may only be used after it has
been built in.
Warning and Safety instructions
7
The cooker hood must not be used in a non-stationary location
(e.g. on a ship).
Touching electrical components and tampering with electrical and
mechanical parts is highly dangerous to the user and can cause
operational faults.
Only open the housing as described in the instructions given in the
installation sheet and in the Cleaning and care section of this booklet.
Under no circumstances should any other parts of the housing be
opened.
The manufacturer's warranty will be invalidated if the appliance is
not repaired by a Miele authorised technician.
If the electrical connection cable is faulty it must only be replaced
by a Miele authorised technician to protect the user from danger.
The lamps are a built-in component of the lighting. Replacement
lamps may only be fitted by a Miele authorised technician or by the
Miele Customer Service Department.
During installation, maintenance and repair work, the appliance
must be disconnected from the mains electricity supply.
Warning and Safety instructions
8

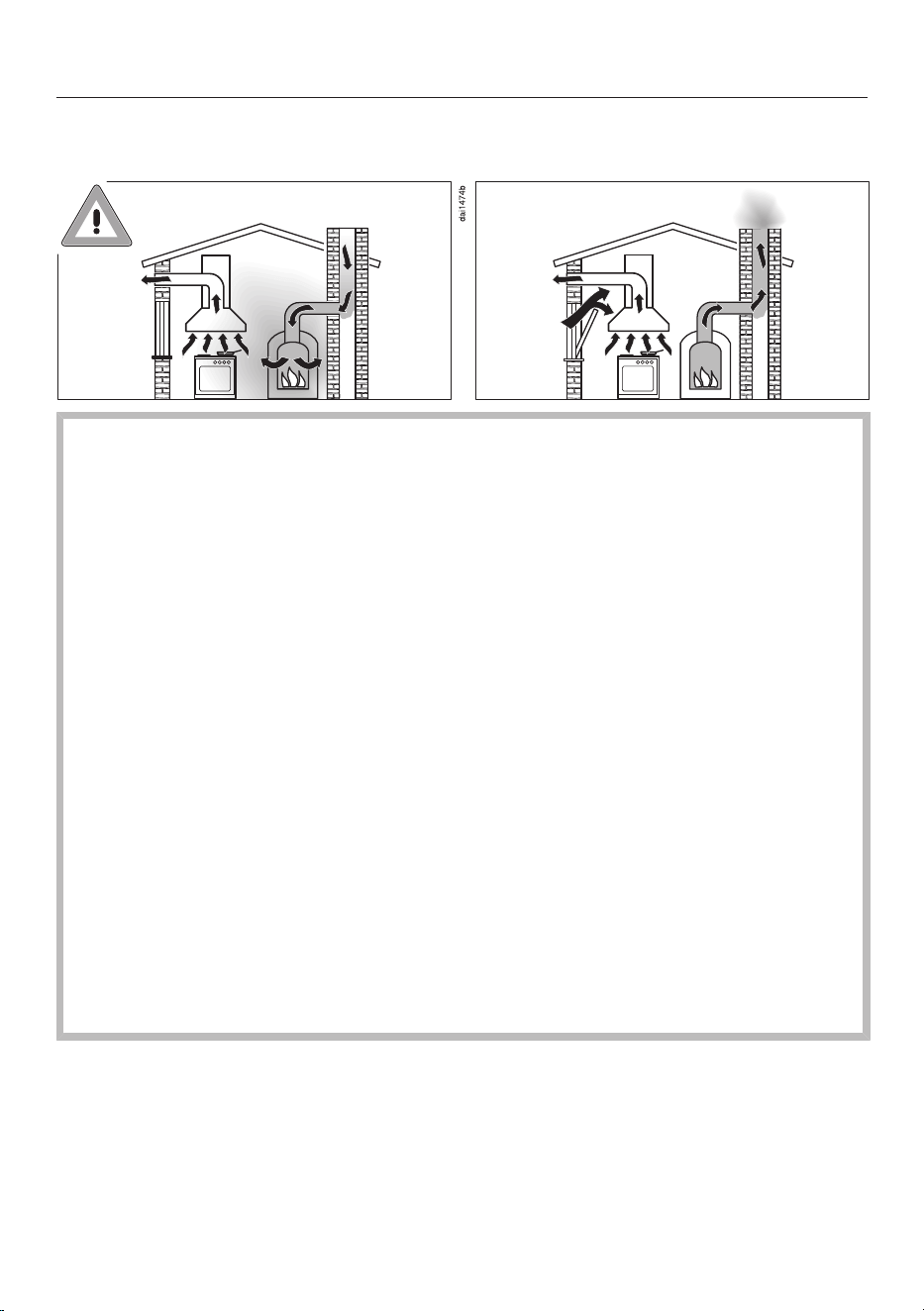

Using at the same time as another heating appliance that depends on the air
from the room
Danger of toxic fumes!
Great care should be taken when using the cooker hood in the
same room or the same area of the house at the same time as
another heating appliance that depends on the air from the room.
Such heating appliances draw in air from the room and duct
exhaust gases out through a chimney or extraction ducting. They
include gas, oil, wood and coal-fired boilers and heaters,
continuous flow or other water heaters, gas hobs and ovens.
The cooker hood draws in air from the kitchen and from
neighbouring rooms. This applies to the following modes of
operation:
– Extraction mode
– Recirculation mode with a recirculation box installed outside the
room.
If there is insufficient air, negative pressure will occur. The heating
appliance may be starved of oxygen. This impairs combustion.
Harmful gases could be drawn from the chimney or extraction
ducting back into the room.
Risk of death!
Warning and Safety instructions
9
In order to ensure safe operation and to prevent gases given off by
the heating appliance from being drawn back into the room when
the cooker hood and the heater are both operated simultaneously,
an underpressure in the room of 0.04mbar (4Pa) is the maximum
permissible.
Sufficient ventilation can be maintained by air inlets which cannot
be blocked, e.g. in windows, doors and outside wall vents. The
cross-section of the inlet openings must enable sufficient
ventilation. A ventilation brick alone is not generally sufficient to
ensure safe ventilation.
The overall ventilation condition of the dwelling must be taken into
account. If in any doubt, ask a competent building regulations
inspector or qualified gas fitter (if appropriate).
If the cooker hood is being operated in recirculation mode, whereby
the air is redirected into the room in which it is installed, the above
restrictions do not apply.
Warning and Safety instructions
10
Correct use
Open flames are a fire hazard.
The use of an open flame under the cooker hood is not permitted. To
avoid the danger of fire, do not flambé or grill over an open flame.
When switched on, the cooker hood could draw flames into the filter.
Fat deposits could ignite, presenting a fire hazard.
The cooker hood can become damaged when exposed to
excessive heat.
- When using the cooker hood over a gas hob, ensure that any
burners in use are always covered by a pan. Switch the cooking
zone off when a pan is removed, even for a short time.
- Select a pan which is suitable for the size of the burner.
- Regulate the flame so that it does not burn up the sides of the
pan.
- Avoid overheating the pan (e.g. when cooking with a wok).
Always switch the cooker hood on when a cooking zone is in use,
otherwise condensation may collect in the hood, which could cause
corrosion.
Overheated oil and fat can ignite, causing fire damage to the
cooker hood.
When cooking with oil or fat, chip pans and deep fat fryers, etc, do
not leave the pans unattended. Similarly, never leave an open grill
unattended when grilling.
Warning and Safety instructions
11
Do not use the cooker hood without the filters in place. This way
you will avoid the risk of grease and dirt getting into the appliance
and hindering its smooth operation.
The cooker hood can get very hot during cooking due to heat rising
from the hob.
Do not touch the housing or the grease filters until the cooker hood
has cooled down.
Proper installation
To determine whether a cooker hood may be operated above your
cooking appliance, please refer to the information provided by the
appliance’s manufacturer.
Safety regulations prohibit the fitting of a cooker hood over solid
fuel stoves.
An insufficient safety distance between the hob and the cooker
hood can result in damage to the cooker hood.
The minimum safety distances between the top of the hob and the
bottom of the cooker hood given in the “Installation” section of this
manual must be observed, unless the hob manufacturer states that a
greater safety distance is required.
If more than one cooking appliance is fitted beneath the cooker hood,
and they have different minimum safety distances to the cooker
hood, select the greater distance.
The information provided in “Installation” must be observed when
fixing the ventilation hood.
Components can have sharp edges which may cause injury.
Wear gloves to protect your hands from being cut.
Exhaust ducting must be of non-inflammable material. Suitable
material is available from Miele specialist dealers or the Miele Spares
Dept.

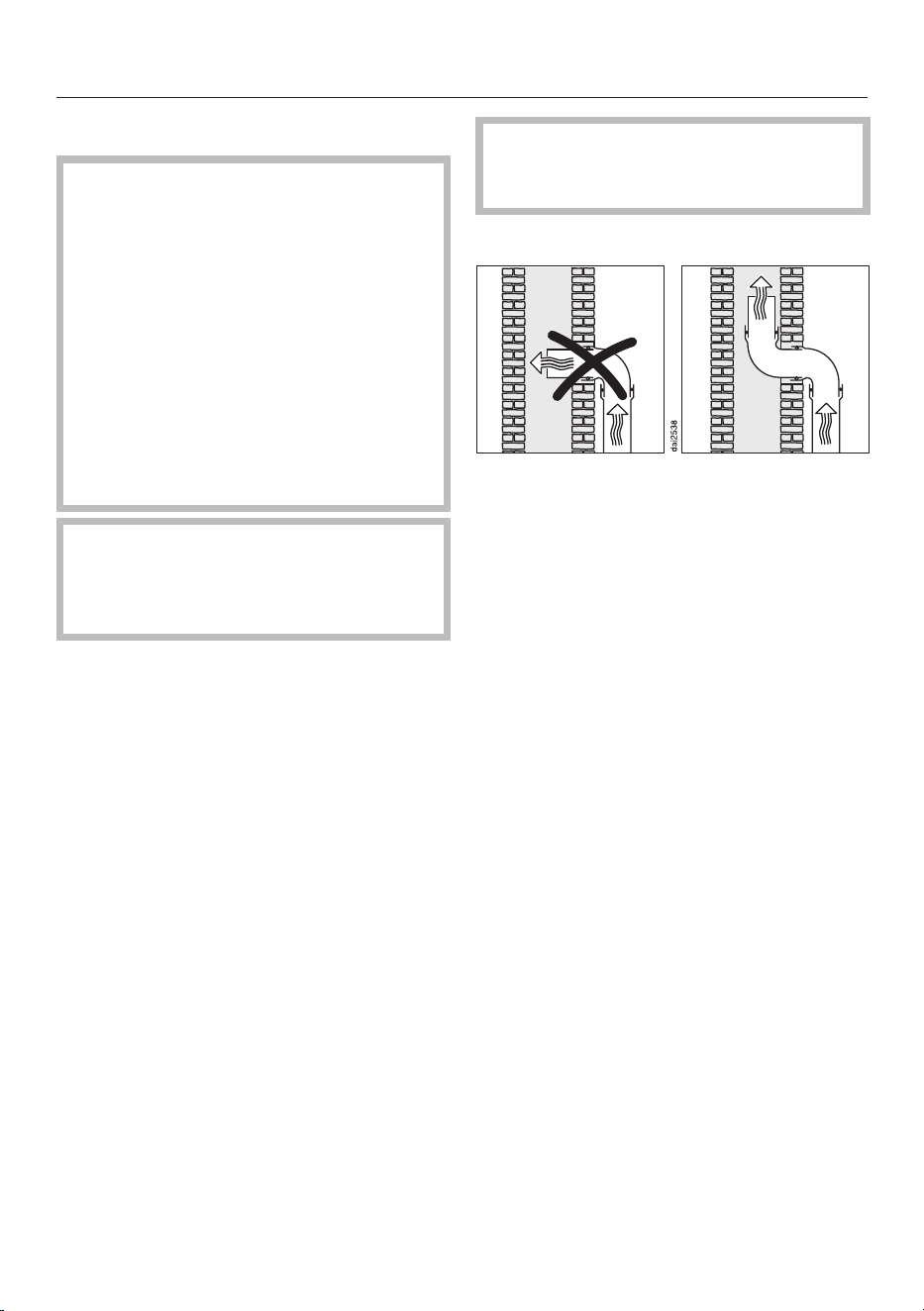

The appliance must not be connected to a chimney or flue which is
in use. Neither should it be connected to ducting which ventilates
rooms with fireplaces.
Warning and Safety instructions
12
If exhaust air is to be extracted into a chimney or ventilation duct
no longer used for other purposes, seek professional advice.
Cleaning and care
There is a risk of fire if the cooker hood is not cleaned as described
in these operating instructions.
Do not use a steam cleaning appliance to clean this appliance.
The steam could reach electrical components and cause a short
circuit.
Accessories and spare parts
Only use genuine original Miele accessories and spare parts with
this appliance. Using accessories or spare parts from other
manufacturers will invalidate the warranty and Miele cannot accept
liability.
Miele can only guarantee the safety of the appliance when genuine
original Miele replacement parts are used. Faulty components must
only be replaced by Miele spare parts.
Miele will guarantee to supply functional spare parts for a
minimum of 10years and up to 15years following the discontinuation
of your vapour extraction unit.
Caring for the environment
13
Disposing of the packaging
material
The packaging material is used for
handling and protects the appliance
from transport damage. The packaging
material used is selected from materials
which are environmentally friendly for
disposal and can generally be recycled.
Recycling the packaging material
reduces the use of raw materials. Use
material-specific collection points for
valuable materials and take advantage
of return options. Your Miele dealer will
take the packaging material away.
Disposing of your old appliance
Electrical and electronic appliances
contain many valuable materials. They
also contain certain materials,
compounds and components which
were essential for their correct
functioning and safety. These could be
hazardous to human health and to the
environment if disposed of with
household waste or if handled
incorrectly. Please do not, therefore,
dispose of your old appliance with
household waste.
Instead, please make use of officially
designated collection and disposal
points to dispose of and recycle
electrical and electronic appliances in
your local community, with your dealer
or with Miele, free of charge. By law, you
are solely responsible for deleting any
personal data from the old appliance
prior to disposal. You are legally obliged
to remove any old batteries which are
not securely enclosed by the appliance
and to remove any lamps without
destroying them, where this is possible.
These must be taken to a suitable
collection point where they can be
handed in free of charge. Please ensure
that your old appliance poses no risk to
children while being stored for disposal.
Guide to the cooker hood
14
Guide to the cooker hood
15
a
Canopy
b
Control elements
c
Hob lighting
d
Grease filters
e
Tower
Optional accessory
For extraction mode only
f
Charcoal filter
Disposable or reactivatable charcoal filter
Optional accessory for recirculation mode
g
Charcoal filter cassette
h
Shelf
i
Vent outlet
Extraction ducting can be directed through the back of the cooker hood or
upwards to the ceiling.
For recirculation mode, extraction ducting can only be directed upwards.
j
Sensor control for switching the fan on and off
k
Sensor controls for selecting the fan power level
l
Sensor control for switching the hob lighting on and off
Modes of operation
16
Depending on the model of the cooker
hood, the following options are
available:
Extraction mode
The air is drawn in and cleaned by the
grease filters and directed outside.
Recirculation mode
A charcoal filter is required. Please
purchase separately. See “Technical
data”.
The air is drawn in and cleaned first by
the grease filters and then by a charcoal
filter. The cleaned air is then recirculated
back into the kitchen.
Operation
17
Switching the fan on
Switch the fan on as soon as you start
cooking. This is to ensure that vapours
are captured right from the start.
Touch the On/Off control.
The fan will come on at power level 2.
To select a power level
For light to heavy cooking vapours and
odours, select from power levels 1 to 3.
For short periods of cooking food with
intensive vapours and a strong aroma,
e.g. when searing meat, select Booster
settingB.
Select the power level required by
touching a control from 1 to B.
Reducing power down from the
Booster setting
If power management is activated
(default setting), the fan automatically
switches back to level 3 after 5minutes.
Run-on time
It is advisable to run the fan for a few
minutes after cooking has finished.
This helps to remove any lingering
vapours and odours from the air.
It also reduces the risk of residues
accumulating in the cooker hood and
any resultant odours.
Switching the fan off
Press the On/Off control to switch
the fan off.
Switching the hob lighting on/
off
The hob lighting can be switched on and
off independently of the fan.
Touch the lighting control to turn
the hob lighting on and off.
Power management
The cooker hood is fitted with a power
management system. Power
management helps to save energy. It
ensures that the fan power level is
reduced automatically and that the
lighting is switched off.
- If the Booster setting has been
selected, the fan will automatically
switch to level 3 after 5minutes.
- From fan power levels 3, 2 or 1, the
power will be reduced by one level
after 2hours and then in 30-minute
stages until the fan finally switches
off.
- The hob lighting will switch off
automatically after 12hours.
Operation
18
Activating/deactivating Power
management
You can deactivate Power management.
Keep in mind that this may increase
energy consumption.
Switch off the fan and the lighting.
Touch the1andBcontrols at the
same time for approx. 10 seconds,
until 1 lights up.
Then touch the following controls in
turn:
- the lighting control,
- the 1 control and then
- the lighting control again.
When Power management is activated,
the 1 and B indicators light up
constantly.
When it is deactivated, the 1 and B
indicators flash.
To deactivate Power management,
touch 1.
The 1 and B indicators will flash.
To activate Power management,
touchB.
The 1 and B indicators will light up
constantly.
Confirm your choice with the on/off
control.
All the indicator lights will go out.
If you do not confirm your choice of
setting within 4minutes, the cooker
hood will revert to the old setting.
Safety switch-off
If Power management has been
deactivated, the cooker hood will switch
itself off automatically after 12hours if it
has been left on (fan and hob lighting).
To switch it on again press the On/
Off control or the lighting
control.
Energy saving tips
19
This cooker hood operates very
efficiently and economically. The
following will help you to save even
more energy when using it:
- Ensure that there is sufficient
ventilation in the kitchen when
cooking. In extraction mode, if there
is insufficient air flow the cooker hood
cannot operate efficiently and this
causes increased operating noise
levels.
- Always cook with the lowest possible
setting. This produces fewer cooking
vapours, so you can use a lower
cooker hood power level and
therefore benefit from reduced energy
consumption.
- Check the power level selected on
the cooker hood. A lower power level
is generally sufficient for the majority
of cooking. Only use the Booster
setting when necessary.
- When a large volume of cooking
vapours is being produced, switch to
a high power level in good time. This
is more efficient than operating the
cooker hood for longer to try to
capture cooking vapours which have
already been distributed throughout
the kitchen.
- Make sure that you switch the cooker
hood off after use.
- Clean or change the filters at regular
intervals. Heavily soiled filters reduce
performance, increase the risk of fire
and are unhygienic.
Cleaning and care
20
Before proceeding with any
maintenance or cleaning task, the
cooker hood must be disconnected
from the power supply (see “Warning
and Safety instructions”).
Housing
General information
The surfaces and controls are
susceptible to scratches and
abrasion.
Please observe the following cleaning
instructions.
All external surfaces and controls can
be cleaned using hot water with a
small amount of washing-up liquid
applied with a well wrung-out soft
sponge or cloth.
After cleaning, wipe the surfaces dry
using a soft cloth.
Do not use:
- cleaning agents containing soda,
acids, chlorides or solvents,
- abrasive cleaning agents, e.g. powder
cleaners or cream cleaners and
abrasive sponges, as well as pot
scourers or sponges which have been
used previously with abrasive
cleaning agents. These will damage
the surface material.
Important information for appliances
with lacquered casing
Minor scratches on the surface are
inevitable when cleaning the casing;
they may be visible depending on the
lighting in the kitchen.
Important for appliances with glass
surfaces
Glass surfaces can be cleaned using a
proprietary non-abrasive cleaning
agent designed specifically for use on
glass.
Grease filters
Fire hazard
Oversaturated grease filters are a fire
hazard.
Clean the grease filters at regular
intervals.
The re-usable metal grease filters in the
appliance remove solid particles
(grease, dust, etc.) from the kitchen
vapours, preventing soiling of the cooker
hood.
The grease filters must be cleaned at
regular intervals.
Heavily soiled grease filters hinder air
extraction and will lead to increased
levels of soiling in the cooker hood and
in the kitchen.
Cleaning interval
Accumulated grease solidifies over a
longer period of time and makes
cleaning more difficult. The grease filters
should therefore be cleaned every 3 to
4 weeks.
Cleaning and care
21
Removing a grease filter
When handling a grease filter, be
careful not to drop it.
This can result in damage to the filter
and the hob below.
Make sure you hold the filter securely
at all times when handling it.

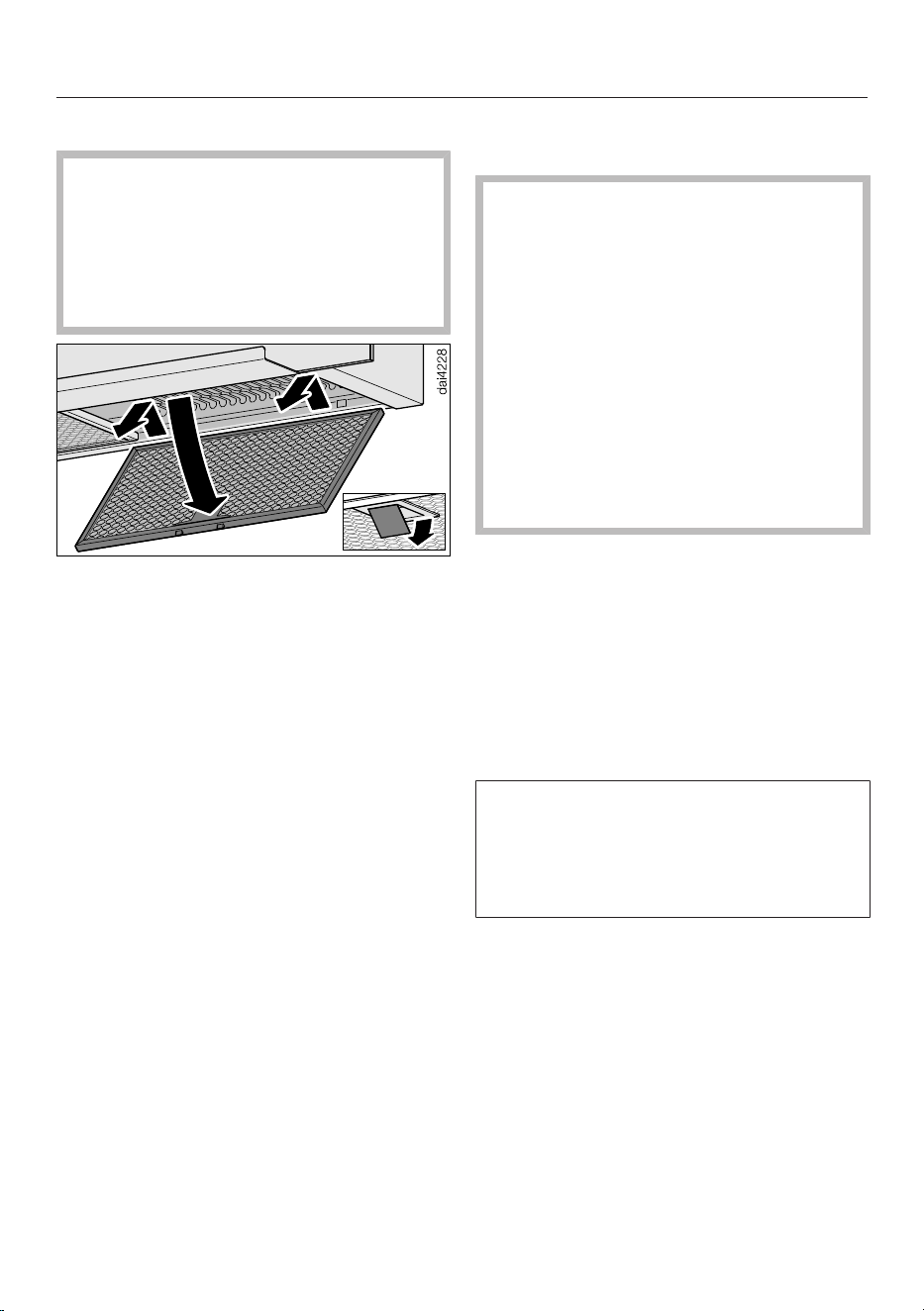

To take out a grease filter, release the
locking clip on the filter, lower the
filter approx. 45°, unhook it at the
back and remove it.
Cleaning the grease filters by hand
Clean the filters with a soft nylon
brush in a mild solution of hot water
and a small amount of washing-up
liquid. Do not use “neat” washing up
liquid.
Unsuitable cleaning agents
Unsuitable cleaning agents can cause
damage to the surface of the filters if
used regularly.
Do not use:
- cleaning agents containing descaling
agents
- powder cleaners, cream cleaners
- aggressive multi-purpose cleaning
agents or spray cleaners for grease
- oven sprays
Cleaning the grease filters in the
dishwasher
Risk of damage due to
excessively high temperatures in the
dishwasher.
Excessively high temperatures may
cause the grease filters to become
unusable, if they become deformed,
for example.
Select a programme that does not
exceed the recommended
temperature.
Also follow the information provided
in the operating instructions for the
dishwasher.
Place the grease filters upright or at a
slight angle in the lower basket.
Ensure the spray arm is not
obstructed.
Use a standard household cleaning
detergent.
Select a programme with a maximum
wash temperature of 65°C.
Depending on the detergent used, the
internal filter surfaces may become
discoloured. This will not affect the
functioning of the grease filters in any
way.
After cleaning
After cleaning, leave the filters to dry
on an absorbent surface before
replacing them.
When removing the filters for
cleaning, also clean off any residues
of oil or fat from the now accessible
housing to prevent the risk of these
catching fire.
Refit the grease filters, making sure
that the latch faces outwards.
Cleaning and care
22
If a grease filter is inadvertently fitted
upside down, insert a small
screwdriver blade into the slit to
disengage the clip.
Replacing the grease filters
Regular usage and cleaning can cause
the filter surfaces to become worn.
If you identify any damage, replace the
grease filters.
Grease filters are available to order via
the Miele Customer Service
Department (see end of these operating
instructions for contact details) or from
your Miele dealer.
Charcoal filter
For recirculation mode, a charcoal filter
must be fitted in addition to the grease
filter. The charcoal filter is designed to
absorb cooking odours.
The charcoal filter is fitted in the top of
the cooker hood.
Fitting/replacing charcoal filters
Take the charcoal filter out of its
packaging.
Insert the charcoal filter into the
charcoal filter cassette.
The charcoal filter cassette is supplied
either ready installed or separately
with the cooker hood.
Follow the directions included on the
accompanying installation plan.
When to change the charcoal filter
Replace the charcoal filter when it no
longer absorbs kitchen odours
effectively.
It should, however, be replaced at
least every 6 months.
Cleaning and care
23
Disposing of charcoal filters
Used charcoal filters can be disposed
of with normal household waste.
Reactivatable charcoal filter
A reactivatable charcoal filter is available
for this cooker hood. It can be used
several times after being reactivated in
the oven.
Please follow the operating
instructions supplied with the filter.
Charcoal filters are available to order via
the Miele Webshop, the Miele Spare
Parts Department (see end of this
booklet for contact details) or from your
Miele dealer.
The charcoal filters are listed under
“Technical data” at the back of this
booklet.
Service
24
Information to help you rectify faults
yourself and about Miele spare parts
can be found at www.miele.com/
service.
Contact in the event of a fault
In the event of any faults which you
cannot remedy yourself, please contact
your Miele dealer or the Miele
Customer Service Department.
You can book a Miele Customer
Service Department call-out online at
www.miele.com/service.
Contact information for the Miele
Customer Service Department can be
found at the end of this document.
Please quote the model identifier and
serial number of your appliance (Fabr./
SN/Nr.) when contacting the Miele
Customer Service Department. This
information can be found on the data
plate.
Please note that telephone calls may be
monitored and recorded for training
purposes and that a call-out charge will
be applied to service visits where the
problem could have been resolved as
described in this booklet.
Position of the data plate
The data plate is visible after removing
the grease filter.
Warranty
For information on the appliance
warranty specific to your country please
contact Miele. See back cover for
address.
In the UK, your appliance warranty is
valid for 2 years from the date of
purchase. However, you must activate
your cover by calling 0330 160 6640 or
registering online at www.miele.co.uk.
Installation
*INSTALLATION*
25
Before installation
Before installation, it is important
to read the information given on the
following pages as well as the
“Warning and Safety instructions” at
the beginning of this booklet.
Protective foil
The housing components have
protective foil around them to protect
them from transport damage.
Please remove this foil before fitting
the housing components. It can be
peeled off easily.
Installation materials
1vent connection
for exhaust ducting 150mm.
1 non-return flap
for fitting into the exhaust socket on the
motor unit (not needed for recirculation
mode).
Cover foil
for sealing the casing.
4 screws 5x60mm and
4 plugs 8x50mm
for securing to the wall.
The screws and plugs are
designed for use in solid walls only.
For other types of wall construction,
alternative fixings will be required.
Make sure the wall is able to take the
weight of the cooker hood.
2 screws M4x8mm,
2 washers and
2 caps
for securing the shelf.
Montage
Installation
Montaje
Montaggio
Montering
Montagem
Asennus
Installation plan
See the installation plan for details on
the individual steps involved in the
installation of this appliance.
Installation
*INSTALLATION*
26
Appliance dimensions
The drawing is not to scale
Installation
*INSTALLATION*
27
a
Ducting upwards or to the rear
b
Recommended area for the mains connection
c
A ducting outlet with 200mm ensures sufficient space through the wall for
the ducting to flex
d
Ventilation grille for recirculation mode. The distance to the ceiling or to furniture
installed above the appliance should be at least 300mm.
Vent connection150mm
* Installation with DADC9000 tower (optional accessory). Note the possible area
for the ducting outlet in the accompanying installation diagram.
Safety distance between hob and cooker hood (S)
When planning the installation height of your cooker hood, the minimum safety
distance between the top of a cooker or hob and the bottom of the cooker hood
is as follows, unless a greater distance is specified by the manufacturer of your
cooking appliance.
See “Warning and Safety” instructions for further information.
Cooking appliance Minimum distance S
Electric hob 450mm
Electric grill, deep fat fryer (electric) 650mm
Multi-burner gas hob,
total output ≤ 12.6 kW, no burner > 4.5 kW
650mm
Multi-burner gas hob,
total output > 12.6 kW and ≤ 21.6 kW,
no burner > 4.8 kW.
760mm
Multi-burner gas hob,
total output > 21.6 kW,
or multi-burner gas hob where one burner > 4.8 kW.
Not possible
Single burner gas hob, output ≤ 6 kW. 650mm
Single burner gas hob, output > 6 kW and ≤ 8.1 kW. 760mm
Single burner gas hob, output > 8.1 kW Not possible
Installation
*INSTALLATION*
28
Installation recommendations
- Account should also be taken of the
height of the person who will be using
the hood most often. They should
have sufficient space to work
comfortably at the hob, and be able
to reach the cooker hood controls
with ease.
- Please be aware that if positioned too
high, extraction will be inefficient.
- To achieve optimum vapour
extraction, the cooker hood must be
positioned centrally over the hob, not
to the side.
- The installation area must be easily
accessible. The cooker hood should
be easily accessible and easy to
dismantle in the event that service is
required. This should be taken into
consideration when planning the
position of cupboards, shelves,
ceilings or features in the vicinity of
the cooker hood.
Drilling diagram for wall
mounting
When drilling, please follow the
directions contained on the
accompanying installation sheet.
When installing a custom back wall
with pre-drilled holes, please refer to
the drilling distances in the drawing
above (screws 5mm).
Installation
*INSTALLATION*
29

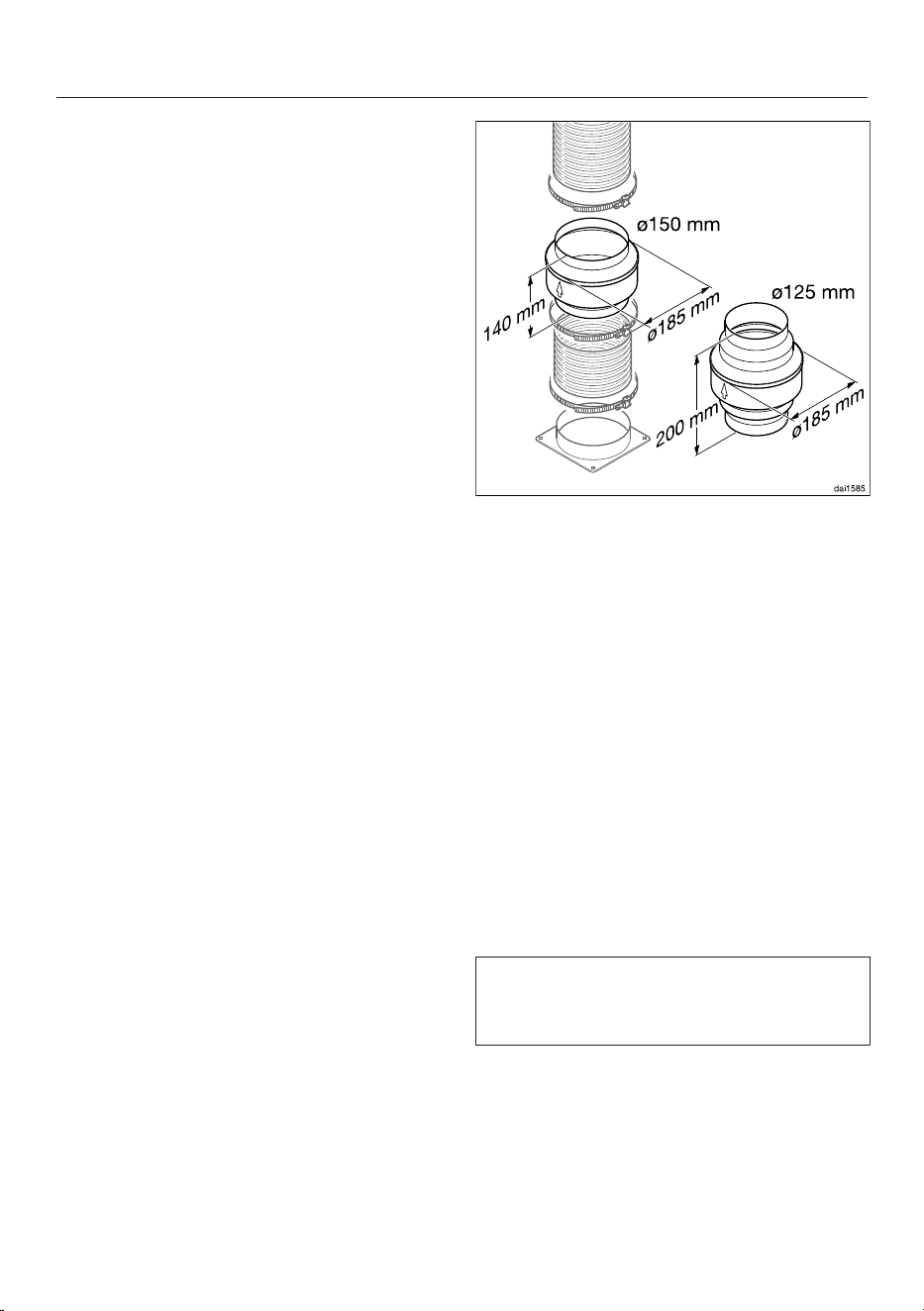

Connection for air extraction
If the cooker hood is used at the
same time as a heating appliance
that relies on oxygen from the same
room, there is a risk in certain
circumstances of toxic fumes
building up.
It is essential that the “Warning and
Safety” instructions are observed.
The cooker hood should be installed
according to local and national
building regulations. Seek approval
from the building inspector where
necessary.
Only use smooth pipes or flexible
exhaust ducting made from approved
non-flammable materials for exhaust
ducting.
To achieve the most efficient air
throughput with the lowest noise levels,
please note the following:
- The diameter of the exhaust ducting
must not be smaller than the cross-
section of the exhaust duct (see
“Appliance dimensions”). This applies
in particular when using flat ducting.
- The exhaust ducting should be as
short and straight as possible.
- Only use wide radius bends.
- The exhaust ducting must not be
kinked or compressed.
- All connections must be strong and
airtight.
- If the exhaust ducting has flaps, these
must be opened whenever the cooker
hood is switched on.
Any constriction of the air throughput
will reduce extraction performance
and increase operating noise.
Flue
If the exhaust air is to be ducted into a
flue, the ducting must be directed in the
flow direction of the flue.
If the flue is used by several ventilation
units, the cross-section of the flue must
be large enough.
Installation
*INSTALLATION*
30
Non-return flap
Use a non-return flap in the exhaust
system.
A non-return flap ensures that when the
cooker hood is not in operation, the
duct is closed to prevent unwanted
exchange of room air and outside air.
If the exhaust is ducted through an
outside wall, a Miele wall vent or roof
vent (available as an optional accessory)
is recommended. Both of these have a
built-in non-return flap.
If the on-site ventilation system does
not have a non-return flap, one is
supplied with the cooker hood.
The non-return flap is fitted in the
exhaust socket of the fan.
Condensation
If the exhaust ducting is to run through
cool rooms or ceiling space, for
example, the significant variations in
temperature between the different
areas can cause condensation to form.
Insulate the exhaust ducting to reduce
temperature variations.
If the exhaust ducting is to be laid
horizontally, it must be laid with a
downwards sloping gradient of at least
1cm per meter. This is to ensure that
condensation cannot drain back into the
cooker hood.
In addition to insulating the exhaust
ducting, it is advisable to also install a
condensate trap for collecting and
evaporating any potential condensation.
Condensate traps for 125mm or
150mm diameter exhaust ducting are
available as optional accessories.
When installing a condensate trap,
ensure that it is positioned vertically and
as closely as possible to the cooker
hood above the exhaust connection.
The arrow on the casing indicates the
direction of airflow.
A condensate trap can only be fitted in
extraction ducting which is directed
upwards out of the cooker hood.
Miele shall not accept warranty claims
for any functional defects or damage
caused by inadequate exhaust ducting.
Installation
*INSTALLATION*
31
Silencer
To reduce noise levels even further, a
silencer (optional accessory) can be
installed in the exhaust ducting.
In extraction mode, the silencer not only
reduces noise from the fan outside the
house, but also sounds originating
outside reaching the kitchen through the
exhaust ducting (e.g. traffic noise). For
this reason, the silencer must be
positioned as close as possible to the
ducting exit.
Installation
*INSTALLATION*
32
Electrical connection
The cooker hood is supplied with a
mains cable with moulded plug ready
for connection to a suitable earthed
socket.
If the socket is not easily accessible or a
fixed connection is envisaged, ensure
that a suitable means of disconnection
is provided on the installation side for
each pole.
Risk of fire from overheating.
Connecting the cooker hood to multi-
socket adapters or extension cables
can overload the cables.
For safety reasons, do not use an
extension cable or multi-socket
adapter.
The electrical system must comply with
local and national safety regulations
(BS7671 in the UK).
For safety reasons, we recommend
using a type residual current device
(RCD) in the relevant electrical
installation for connecting the cooker
hood.
If the mains connection cable is
damaged, it must only be replaced with
a specific mains connection cable of the
same type (available from the Miele
Customer Service Department). For
safety reasons, such replacement may
only be carried out by a qualified
specialist or the Miele Customer
Service Department.
These operating instructions and the
data plate indicate the nominal power
consumption and the appropriate fuse
rating. Compare this information with
the data of the on-site electrical
connection.
If in any doubt, consult a qualified
electrician.
Temporary or permanent operation on
an autonomous power supply system or
a power supply system that is not
synchronised with the mains power
supply (e.g. island networks, back-up
systems) is possible. A prerequisite for
operation is that the power supply
system complies with the specifications
of EN50160 or an equivalent standard.
The function and operation of the
protective measures provided in the
domestic electrical installation and in
this Miele product must also be
maintained in isolated operation or in
operation that is not synchronised with
the mains power supply, or these
measures must be replaced by
equivalent measures in the installation.
As described, for example, in the current
version of VDE-AR-E 2510-2.
Technical data
33
Fan motor 200W
Hob lighting 3.2W
Total rated load 203.2W
Mains voltage, frequency AC230V, 50Hz
Fuse rating 5A
Power connection cable length 1.5m
Weight 21,5kg
Optional accessories for recirculation mode
One DKF29, DKF29-S or DKF29-R charcoal filter (reactivatable)
Technical data
34
Data sheet for household cooker hoods
In acc. with delegated regulation (EU) No. 65/2014 and regulation (EU) No.
66/2014
MIELE
Model name/identifier DA 9092 W Screen
Annual Energy Consumption (AEC
hood
) 67,7 kWh/year
Energy efficiency class B
Energy efficiency index (EEI
hood
) 66,1
Fluid Dynamic Efficiency (FDE
hood
) 23,5
Fluid Dynamic Efficiency class
A (most efficient) to G (least efficient) B
Lighting Efficiency (LE
hood
) 93,8 lx/W
Lighting Efficiency class
A (most efficient) to G (least efficient) A
Grease Filtering Efficiency 92,8%
Grease Filtering Efficiency class
A (most efficient) to G (least efficient) B
Airflow at best efficiency point
412,8 m
3
/h
Air flow (min. speed)
205 m
3
/h
Air flow (max. speed)
415 m
3
/h
Air flow (intensive or boost setting)
670 m
3
/h
Max. air flow (Q
max
)
670,0 m
3
/h
Air pressure at best efficiency point 319 Pa
Airborne acoustical A-weighted sound power emissions (min. speed) 39 dB
Airborne acoustical A-weighted sound power emissions (max. speed) 50 dB
Airborne acoustical A-weighted sound power emissions (intensive or
boost setting)
62 dB
Electrical power input at best efficiency point 155,1 W
Power consumption in standby mode (P
s
) 0,25 W
Nominal power of lighting system 3,2 W
Average illumination of the lighting system on the cooking surface 300 Ix
Time increase factor 1,2
United Kingdom
Miele Co. Ltd., Fairacres, Marcham Road, Abingdon, Oxon, OX14 1TW
Tel: 0330 160 6600, Internet: www.miele.co.uk, E-mail: [email protected]
Australia
Miele Australia Pty. Ltd.
ACN 005 635 398
ABN 96 005 635 398
Level 4, 141 Camberwell Road
Hawthorn East, VIC 3123
Tel: 1300 464 353
E-mail: [email protected]
Internet: www.miele.com.au
Miele Electrical Appliances Co., Ltd.
1-3 Floor, No. 82 Shi Men Yi Road
Jing' an District
200040 Shanghai, PRC
Tel: +86 21 6157 3500
Fax: +86 21 6157 3511
E-mail: [email protected]
Internet: www.miele.cn
China Mainland
Miele (Hong Kong) Ltd.
41/F - 4101, Manhattan Place
23 Wang Tai Road
Kowloon Bay, Hong Kong
Tel: (852) 2610 1025
Fax: (852) 3579 1404
E-mail:
Website: www.miele.hk
Hong Kong, China
Miele India Pvt. Ltd.
1st Floor, Copia Corporate Suites,
Commercial Plot 9, Mathura Road,
Jasola, New Delhi - 110025
E-mail: customercare@miele.in
Website: www.miele.in
India
Miele Ireland Ltd.
2024 Bianconi Avenue
Citywest Business Campus
Dublin 24
Tel: (01) 461 07 10
Fax: (01) 461 07 97
E-mail: [email protected]
Internet: www.miele.ie
Ireland
Malaysia
Miele Sdn Bhd
Suite 12-2, Level 12
Menara Sapura Kencana
Petroleum
Solaris Dutamas No. 1
Jalan Dutamas 1
50480 Kuala Lumpur, Malaysia
Phone: +603-6209-0288
Fax: +603-6205-3768
Miele New Zealand Limited
IRD 98 463 631
8 College Hill
Freemans Bay, Auckland 1011
Tel: 0800 464 353
Internet: www.miele.co.nz
New Zealand
Miele Pte. Ltd.
29 Media Circle
#11-04 ALICE@Mediapolis
Singapore 138565
Tel: +65 6735 1191
Fax: +65 6735 1161
E-mail: [email protected]
Internet: www.miele.sg
Singapore
Miele (Pty) Ltd.
63 Peter Place, Bryanston 2194
Tel: (011) 875 9000
Fax: (011) 875 9035
E-mail: [email protected]
Internet: www.miele.co.za
South Africa
Miele Appliances Ltd.
Showroom 1, Eiffel 1 Building
P.O. Box 114782 - Dubai
Tel. +971 4 3044 999
Fax. +971 4 3418 852
800-MIELE (64353)
E-mail: [email protected]
Website: www.miele.ae
United Arab Emirates
Manufacturer: Miele & Cie. KG, Carl-Miele-Straße 29, 33332 Gütersloh, Germany
Thailand
Miele Appliances Ltd.
BHIRAJ TOWER at EmQuartier
43rd Floor Unit 4301-4303
689 Sukhumvit Road
North Klongton Sub-District
Vadhana District
Bangkok 10110, Thailand
Sheikh Zayed Road, Umm Al Sheif
E-mail: customercare@miele.co.nz
P.O. Box 69434, Bryanston 2021
M.-Nr. 12 573 220 / 01en-GB
DA9092W
