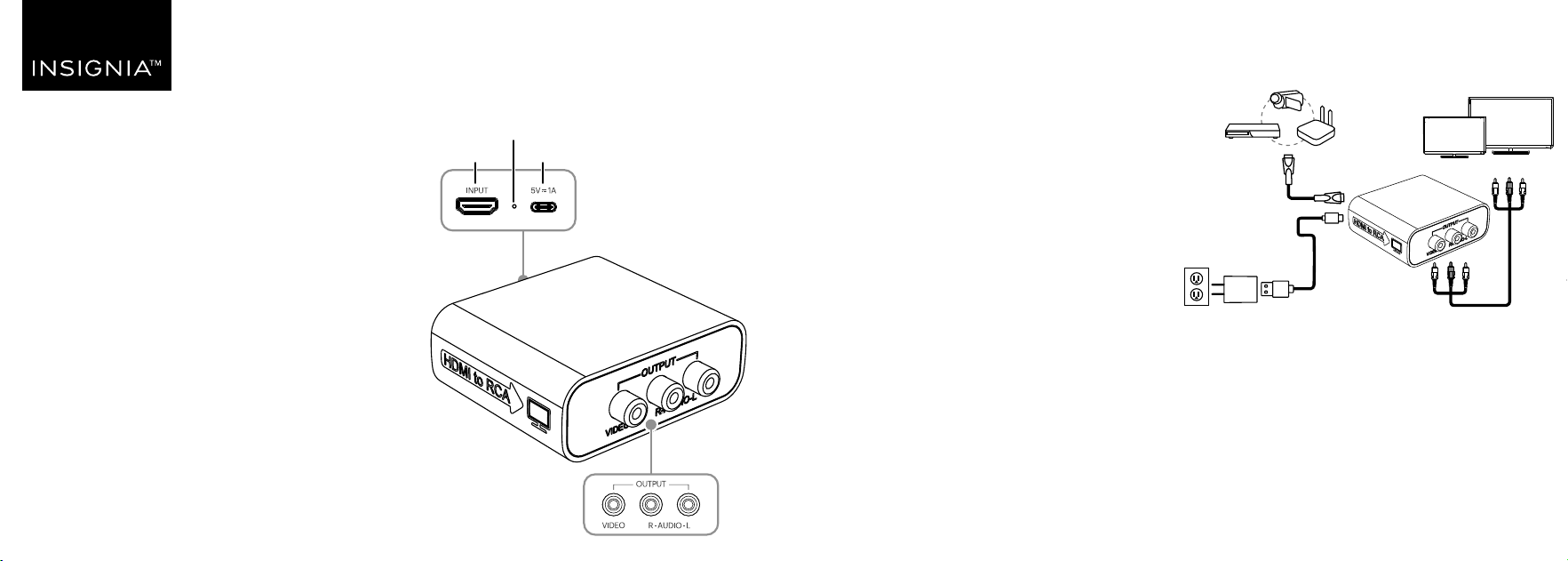

HDMI input port USB-C port
Power indicator
Before using your new product, please read these instructions to prevent any damage.
PACKAGE CONTENTS
• HDMI to RCA converter
• AC power adapter
• 6 ft. (1.83 m) USB-A to USB-C cable
• Quick Setup Guide
QUICK SETUP GUIDE
HDMI to RCA
Converter
NS-AVHTR25
FEATURES
• HDMI port accepts signals from Blu-ray players, cable boxes,
and more
• RCA jacks connect to TVs, monitors, and projectors
Top view
SETTING UP YOUR CONVERTER
Notes:
• This product converts digital HDMI signals to work on an analog RCA
display. You cannot use this product to convert analog RCA signals to
work on a digital HDMI display.
• Before you set up your converter, turn o the audio/video device that
you are connecting.
1 Connect an HDMI cable (not included) to the HDMI INPUT
port on your converter, then connect it to an HDMI output
port of your source device.
2 Connect an AV cable (not included) to the OUTPUT port on
your converter, then connect it to the AV IN port on your TV
or monitor.
3 Connect the USB-A to USB-C power cable to the USB-C port
on your converter, then connect the USB-A into an available
port on your device.
OR
Connect the USB-A to USB-C power cable from your
converter to the AC power adapter, then plug the AC power
adapter into a wall outlet.
Wall
outlet
AV cable
(not included)
HDMI cable
(not included)
Monitor or TV
USB-A to USB-C
power cable
(included)
AC power adapter
(included)
OR
Blu-ray/DVD
player
Video camera
Set-top box
4 Turn on the connected devices and begin playback. If you
are not receiving audio or video, check the connections and
settings to make sure that they are all correct.
SPECIFICATIONS
Dimensions (H×W×D):
2.66 × 2.78 × 1.04 in. (6.75 × 7.05 × 2.65 cm)
HDMI version: HDMI 1.4
HDMI video input resolution: 640×480@60Hz,
800×600@60Hz, 1024×768@60Hz,
1280×720@60Hz,1280×1024@60Hz, 1360×768@60Hz,
1600×1200@60Hz, 1920×1080@60Hz, 480i/p@60Hz,
576i/p@50Hz, 720p@50/60Hz, 1080i/p@50/60Hz
Output format:
Video: NTSC
Audio: RCA Stereo
Power supply: USB-C: 5V/1A
Power consumption: 1.5W (max.)
Power cable: USB-A to USB-C, length 6 ft. (1.83 m)
IMPORTANT SAFETY INFORMATION
• For indoor use only.
• There are no user serviceable parts. Do not open the
housing.
• Do not use in a high humidity environment.
• Use the included AC power adapter only.
LEGAL NOTICES
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
FCC Caution
Changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, maybe cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
• It is recommended to consult the dealer or an experienced radio/TV technician for
help.
CAN ICES (B) / NMB (B)
TROUBLESHOOTING
If you have problems with your converter, try these
suggestions before calling customer service:
The power indicator is o.
• Make sure that your converter is plugged into a working
wall outlet or USB-A port. If it is a switched outlet, make
sure that the power to the outlet is turned on.
There is no video or audio.
• Make sure that all connections are correct and secure.
• Make sure that the TV is set to the HDMI input and the
source device is set up to output an RCA signal.
• Make sure that the RCA and HDMI cables are working.
There is video but no audio.
• Make sure that the volume is turned up on your playback
device.
• Make sure that your TV or monitor is on the AV input.
• Make sure that the RCA cable is working.
The audio has static/background noise.
• Make sure that all connections are correct and secure.
• Make sure that the RCA and HDMI cables are not damaged.
Replace the cables if necessary.
The image quality is poor.
• Because of the limitations of the legacy analog composite
video output, the image quality will not be as good as a
digital or HD source. There will be softness to the image
and the colors will not be as vivid. This is normal and not a
limitation of your converter.
