Before using your new product, please read these instructions to prevent any damage.
PACKAGE CONTENTS
• HDMI to Analog Converter
• Power Adapter
• Quick Setup Guide
Attention: This converter supports HDMI INPUT only. It doesn't
support HDMI OUTPUT.
Note: RCA and HDMI cable not included and required for use.
QUICK SETUP GUIDE
HDMI to RCA
Converter
NS-HZ331
FEATURES
• Standard HDMI input accepts signals up to 1080p from devices like
Blu-ray players, cable/satellite boxes, video game systems, and more.
• RCA output signal compatible with virtually all TVs and displays with an
RCA input.
• Custom audio/video conversion circuitry for the best sound and
picture quality.
• Supports NTSC TV format.

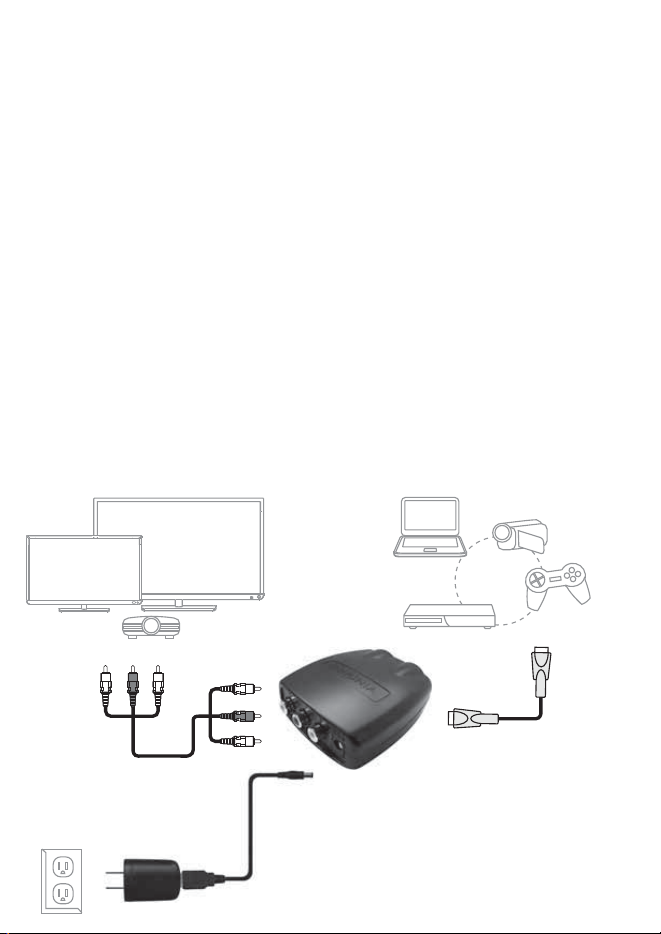

SETTING UP YOUR CONVERTER
Note: Before you install this device, turn o the audio/video device that you
are connecting.
1 Connect an HDMI cable (not included) to the HDMI IN port on the
converter, then connect it to an HDMI output on the device you
want to convert.
2 Connect an AV cable (not included) to the OUTPUT port on the
converter, then connect it to the AV IN port on your TV or monitor.
3 Connect the power cable to the DC jack on the converter, then
plug the adapter into a wall outlet. The power indicator lights
green.
4 Turn on the connected devices and begin playback. If you are not
getting audio or video, check the connections and settings to
make sure that they are all correct.
Note: This product won’t output video if forced to input 4K resolution.
Make sure that you set your source device’s output resolution to auto or
below 1080p (inclusive). You might need another HDMI TV to set it and save it
rst, then try the above steps 1- 4. Make sure that you set your source device’s
audio output to PCM or stereo, so it can output audio properly.
OR
AV cable
(not included)
Display
Blu-ray/DVD player
Game Box
Power adapter
(included)
HD camera
TV
Laptop or
notebook
HDMI cable
(not included)
Top view
DC jack
Power-on indicator (green)
OUTPUT
VIDEO R-AUDIO-L
INPUT
Projector
