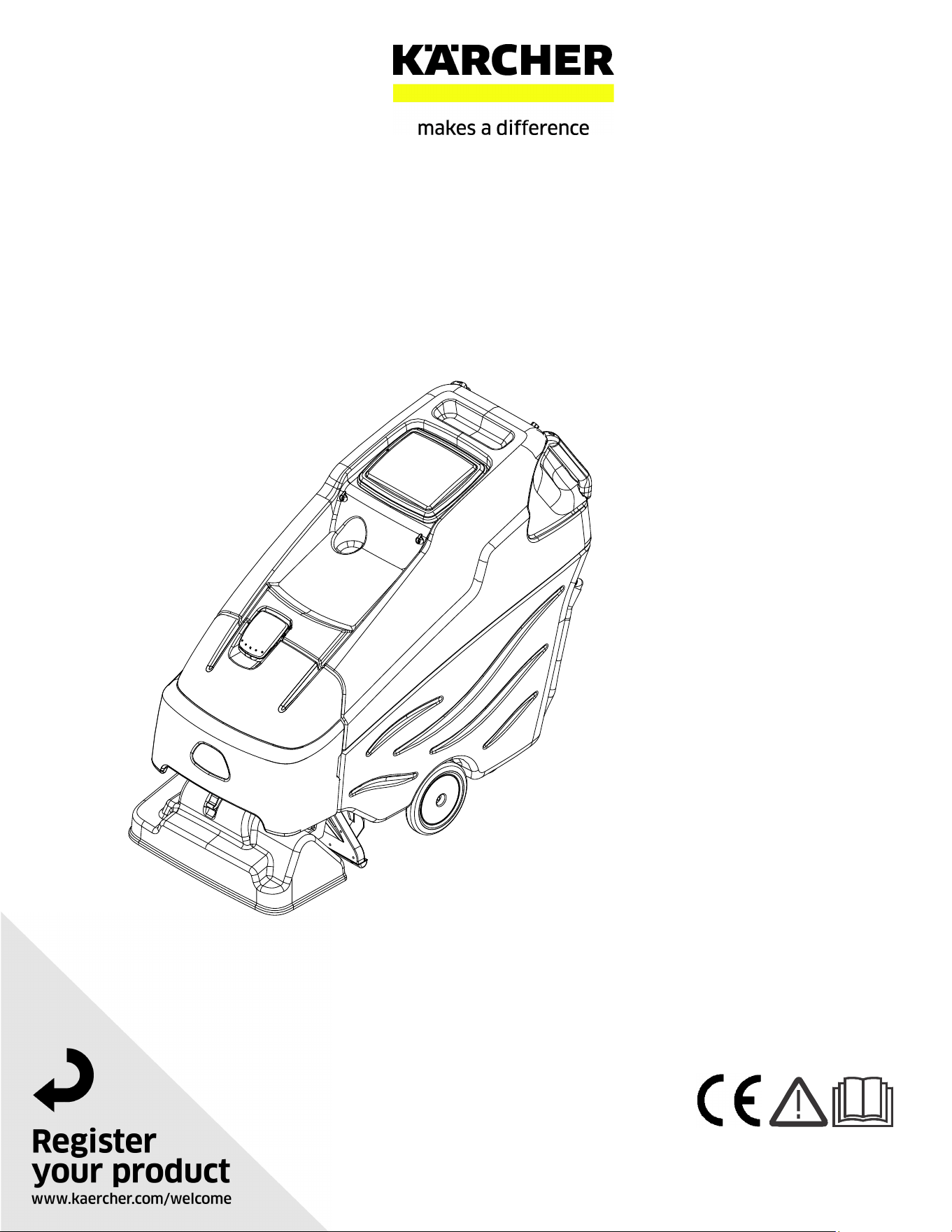

86447840-A 12/28/20
Commodore Duo
English 02
2 86447840 Operators Manual - Commodore Duo
Overview
The Commodore Duo is a battery powered carpet extractor intended for commercial use. The Commodore Duo
applies a cleaning solution onto a carpeted floor, sweeps and scrubs the carpet with two counter-rotating brushes
and then vacuums the soiled water back into the recovery tank.
MODELS:
1.008-002.0
1.008-003.0
1.008-004.0
1.008-006.0
1.008-658.0
3
Machine Data Label . . . . . . . . . . . . . . . . . . . . . . . . . .2
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . .3
How To Use This Manual . . . . . . . . . . . . . . . . . . . . .4
Safety Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . .6
Hazard Intensity Level . . . . . . . . . . . . . . . . . . . . . . .8
Technical Specifications . . . . . . . . . . . . . . . . . . . . .10
How This Machine Works . . . . . . . . . . . . . . . . . . . .12
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Drive Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Scrub Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Machine Operation . . . . . . . . . . . . . . . . . . . . . . . . .18
Pre-Run Machine Inspection. . . . . . . . . . . . . . . . . .18
Starting Machine . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Emergency Stop Procedures . . . . . . . . . . . . . . . . .18
Filling Solution Tank . . . . . . . . . . . . . . . . . . . . . . . .18
Normal Scrubbing . . . . . . . . . . . . . . . . . . . . . . . . . .19
To Begin Scrubbing . . . . . . . . . . . . . . . . . . . . . . . .19
To Stop Scrubbing . . . . . . . . . . . . . . . . . . . . . . . . .19
Emptying And Cleaning Solution Tank . . . . . . . . . .20
Emptying And Cleaning Recovery Tank . . . . . . . . .20
Service Schedule . . . . . . . . . . . . . . . . . . . . . . . . . .22
Batteries (Wet Cell Only) . . . . . . . . . . . . . . . . . . . .24
Scrub Deck . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Scrub Brushes . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Scrub Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Actuator Scrub Deck Removal/Replacement . . . . .30
Circuit Protection. . . . . . . . . . . . . . . . . . . . . . . . . . .31
Solution Strainer & Pump . . . . . . . . . . . . . . . . . . . .32
Drive Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Vacuum. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Transporting Machine . . . . . . . . . . . . . . . . . . . . . . .39
Machine Troubleshooting . . . . . . . . . . . . . . . . . . . .40
86447840 Operators Manual - Commodore Duo
4
This manual contains the following sections:
• How to Use This Manual
• Safety
• Operations
• Maintenance
• Suggested Spare Parts List
The HOW TO USE THIS MANUAL section will tell you
how to find important information for ordering correct
repair parts.
Parts may be ordered from authorized dealers. When
placing an order for parts, the machine model and
machine serial number are important. Refer to the
MACHINE DATA box which is filled out during the
installation of your machine. The MACHINE DATA box
is located on the inside of the front cover of this manual.
The model and serial number of your machine are
located on the back of the machine.
The SAFETY section contains important information
regarding hazardous or unsafe practices of the
machine. Levels of hazards are identified that could
result in product damage, personal injury, or severe
injury resulting in death.
The OPERATIONS section is to familiarize the operator
with the operation and function of the machine.
The MAINTENANCE section contains preventive main-
tenance to keep the machine and its components in
good working condition. They are listed in this general
order:
• Batteries
• Scrub Brushes
• Service Schedule
• Machine Troubleshooting
NOTE: The manual part number is located on the
lower right corner of the front cover.
86447840 Operators Manual - Commodore Duo
5
Safety Labels
These drawings indicate the location of safety labels on the machine. If at any time the labels become illegible,
promptly replace them.
EMPLACEMENT DE L'ÉTIQUETTE DE SÉCURITÉ
REMARQUE : Ces dessins indiquent l'emplacement des étiquettes de sécurité sur la machine. Si, à tout moment,
les étiquettes deviennent illisibles, contactez votre représentant autorisé pour un remplacement rapid
CAUTION
BATTERY
86243830
86252520
86244300
SOLUTION WARNING
PINCH CAUTION
CAUTION
FRONT PANEL
86013310
86447840 Operators Manual - Commodore Duo
6
IMPORTANT SAFETY INSTRUCTIONS
When using this machine, basic precaution
must always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.
To reduce the risk of fire, electric shock, or injury:
Use only indoors. Do not use outdoors or expose to rain.
Use only as described in this manual. Use only manufacturer's recommended components and attachments.
If the machine is not working properly, has been dropped, damaged, left outdoors, or dropped into water, return it to
an authorized service center.
Do not operate the machine with any openings blocked. Keep openings free of debris that may reduce airflow.
This machine is not suitable for picking up hazardous dust.
Do not operate this machine near flammable fluids, dust or vapors.
Maintenance and repairs must be done by qualified personnel.
If foam or liquid comes out of machine, switch off immediately.
Disconnect battery before cleaning or servicing.
Before the machine is discarded, the batteries must be removed and properly disposed of.
Make sure all warning and caution labels are legible and properly attached to the machine.
During operation, attention shall be paid to other persons, especially children.
Before use all covers and doors shall be put in the positions specified in the instructions.
When leaving unattended, secure against unintentional movement.
The machine shall only be operated by instructed and authorized persons.
When leaving unattended, switch off or lock the main power switch to prevent unauthorized use.
Only chemicals recommended by the manufacturer shall be used.
This appliance has been designed for use with the brushes specified by the manufacturer. The fitting of other
brushes may affect its safety.
Do not use on surfaces having a gradient of over 2 degrees.
READ AND SAVE THESE INSTRUCTIONS
86447840 Operators Manual - Commodore Duo
7
Safety
MESURES DE SÉCURITÉ IMPORTANTES
Lors de l’utilisation d’un appareil à batteries, il est nécessaire de respecter
systématiquement des mesures de sécurité de base, comme suit :
PRENEZ NOTE DE TOUTES CES MESURES AVANT D’UTILISER CETTE MACHINE.
Pour réduire les risques d’incendie, de chocs électriques, ou
de blessures :
N’utiliser cette machine qu’en intérieur. Ne jamais l’utiliser à l’extérieur ou dans la pluie.
Utiliser cet appareil conformément aux instructions du présent manuel uniquement. N’utiliser que les composants et
les accessoires conseillés par le fabricant.
Lorsque la machine ne fonctionnant pas correctement, a fait l’objet d’une chute ou d’une détérioration, a été laissée à
l’extérieur, est tombée dans l’eau, la retourner au centre de service agréé.
Ne pas opérer la machine lorsque les conduits de ventilation sont bloquées. Débarrasser les débris des conduits, car ils
peuvent réduire l’écoulement d’air.
Cette machine n’est pas adaptée au ramassage de poussières dangereuses
Ne pas l’utiliser près de liquides, de poussières ou de vapeurs inflammables.
L’entretien et les réparations de la machine doivent être effectuées par un personnel qualifié.
Si de la mousse ou du liquide sort de la machine, la mettre hors tension immédiatement.
Déconnecter les batteries avant de nettoyer la machine ou de la soumettre à un entretien.
Avant de se débarrasser de la machine, il est nécessaire de retirer les batteries et de les jeter correctement.
S’assurer que toutes les plaques d’avertissement ou de précaution sont lisibles et fixées correctement sur la machine.
Durant la manoeuvre de la machine, prendre garde aux personnes environnantes et notamment aux enfants.
Avant l’utilisation de la machine, veiller à positionner tous les couvercles et portes comme indiqué dans les instructions.
Lorsque la machine est laissée sans surveillance, s’assurer qu’elle ne se déplace pas de manière accidentelle.
Cette machine ne doit être manoeuvrée que par un personnel expérimenté et qualifié.
Lorsque la machine est laissée sans surveillance, la mettre hors tension ou verrouiller l’interrupteur principal afin
d’empêcher un emploi non autorisé.
Seuls les produits chimiques recommandés par le fabricant doivent être utilisés.
Cette machine a été conçue pour être utilisée avec des brosses spécifiées par le fabricant.
L’utilisation d’autres brosses peut affecter sa sûreté.
N'employez pas sur des surfaces ayant un gradient de plus de 2 degrés.
CONSERVER CES INSTRUCTIONS
86447840 Operators Manual - Commodore Duo
8
Hazard Intensity Level
The following symbols are used throughout this guide as indicated in their descriptions:
There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR SAFETY.
The level of hazard intensity is determined by the following definitions:
WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death.
CAUTION - Hazards or unsafe practices which could result in minor personal injury or product or property damage.
FOR SAFETY: To Identify actions which must be followed for safe operation of equipment.
Report machine damage or faulty operation immediately. Do not use the machine if it is not in proper operating
condition. Following is information that signals some potentially dangerous conditions to the operator or the equip-
ment. Read this information carefully. Know when these conditions can exist. Locate all safety devices on the
machine. Please take the necessary steps to train the machine operating personnel.
FOR SAFETY:
DO NOT OPERATE MACHINE:
Unless Trained and Authorized.
Unless Operation Guide is Read and understood.
In Flammable or Explosive areas.
In areas with possible falling objects
WHEN SERVICING MACHINE:
Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. Use
manufacturer approved replacement parts.
Batteries emit hydrogen gas. Explosion or fire can result. Keep sparks and open flame away. Keep
solution tank in raised position when charging. Keep sparks and flames away from the batteries. Do not
smoke around batteries.
Disconnect batteries before working on machine. Only qualified personnel should work inside machine.
Always wear eye protection and protective clothing when working on or near batteries. Avoid skin contact
with the acid contained in the batteries.
Never allow metal to lie across battery tops.
86447840 Operators Manual - Commodore Duo
9
Les symboles ci-dessous sont utilisés à travers ce manuel comme illustré dans leurs descriptions :
DEGRÉS DE RISQUES EN CAS DE DANGER
Il existe trois degrés de risques identifiés par les termes signalétiques –AVERTISSEMENT et ATTENTION
et POUR VOTRE SÉCURITÉ. Le degré de risque est défini de la manière suivante:
AVERTISSEMENT - Dangers ou méthodes dangereuses qui POURRAIENT provoquer de graves blessures ou entraîner
la mort.
ATTENTION - Dangers ou méthodes dangereuses qui pourraient provoquer des blessures légères ou une détérioration
du produit ou des biens immobiliers.
POUR VOTRE SÉCURITÉ: ce signe permet d’identifier les mesures de précaution à prendre pour assurer un bon
fonctionnement du matériel.
Rendre compte immédiatement d’une défaillance ou d’une détérioration de la machine. Ne pas utiliser la machine si celle-
ci ne fonctionne pas correctement. Lire soigneusement les informations ci-dessous signalant certains dangers potentiels
pour l’opérateur de la machine. L’opérateur doit être absolument au courant de ces dangers potentiels. Localiser tous les
dispositifs de sécurité sur la machine. Il est conseillé de prendre les mesures nécessaires pour former le personnel
opérateur.
POUR VOTRE SÉCURITÉ:
NE PAS MANOEUVRER LA MACHINE:
Lorsqu’on n’est pas expérimenté ou qualifié.
Lorsque le guide d’utilisation n’est pas été lu ou compris.
Dans des zones inflammables ou explosives.
Dans des zones où des objets peuvent tomber.
LORS DE L’ENTRETIEN DE LA MACHINE:
Éviter les parties amovibles. Ne pas porter de vêtements amples, tels que des vestes, des chemises ou des
vêtements avec manches lors de l’utilisation de la machine. Utiliser les pièces détachées homologuées.
Les batteries émettent le gaz d'hydrogène. L'explosion ou le feu peut résulter. Étincelles de subsistance et
flamme nue loin. Compartiment de batterie de subsistance ouvert en chargeant. Étincelles et flammes de
subsistance loin des batteries. Ne fumez pas autour des batteries.
Déconnecter les batteries avant de travailler sur la machine. La machine ne doit être confiée qu’à un personnel
qualifié. Porter systématiquement des lunettes et des vêtements de protection lors d’une intervention sur les
batteries ou aux alentours. Éviter tout contact de la peau avec l’acide contenu dans les batteries.
Ne jamais placer d’objets métalliques sur le dessus des batteries.
86447840 Operators Manual - Commodore Duo
10
Technical Specifications
ITEM DIMENSION/CAPACITY
Nominal Power 1260 W
Rated Voltage 36 Volts DC
Rated Amperage 35 amps
Batteries 3 X12 Volt 130-195-215 AH @ 20 hr. rate
Battery Compartment Dimensions
23.5 in. x 15.5 in. x 16.5 in. tall
(600 mm x 400 mm x 420 mm)
Propelling Motor .5 HP (373 W)
Mass (GVW) 889 lbs (403 kg)
Weight Empty Without Batteries 340 lbs (154 kg)
Solution Control Metered flow with automatic shut-off in neutral and reverse
Spray Pump Pressure 100 psi (688 Kpa)
Solution Capacity 19.4 gal (74 Liter)
Spray Jets - Interim 2 Jets with total flow of 0.24 gal/min (0.9 Liter/min)
Spray Jets - Extraction 2 Jets with total flow of 1.05 gal/min (4.0 Liter/min)
Recovery Capacity 17.5 gal (66 Liter)
Vacuum Motors 1 x .75 Hp (560 W)
Scrub Brush Diameter 3.38” Inch (85.5 mm)
Scrub Brush Motor 1 x .5 Hp (375 W)
Scrub Brush Pressure Floating
Scrub Brush Speed 1084 rpm
Tires 9 in. (228mm) Solid Gray non-marking
Foundation Pressure 503 psi (3.5 Mpa)
Maximum (Transport) Speed Propel = 252 Ft/min (4.6 Km/hr)
Scrubbing Speed
Interim = 110 Ft/min (2.0 Km/hr)
Extract = 55 Ft/min (1.0 Km/hr
Frame Construction Powder coated steel
Minimum Aisle U-Turn Width 56 in. (1.4 Meter)
Maximum Rated Climb And Descent Angle 6 degrees
86447840 Operators Manual - Commodore Duo
11
Technical Specifications
SPECIAL NOTES:
The sound pressure level at the operator's ear was measured to be 69.5dBA. This was a near field, broadband
measurement taken in a typical industrial environment on a tile floor. This appliance contains no possible source of
impact noise. The instantaneous sound pressure level is below 63 Pa. The weighted root mean square acceleration
at the operator's arms was measured to be below 2.5m/s2. This was a tri-axial, third-octave-band measurement
made during normal operation on a composite tile floor. The measurement and related calculations were made in
accordance with ANSI S3.34-1986.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabili-
ties, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the
appliance.
Cet appareil n'est pas prévu à l'usage des personnes (enfants y compris) avec des possibilités physiques, sensorielles ou
mentales réduites, ou le manque d'expérience et de connaissance, à moins qu'ils aient été donnés la surveillance ou
l'instruction au sujet de l'utilisation de l'appareil par une personne chargée de leur sûreté. Des enfants devraient être
dirigés pour s'assurer qu'ils ne jouent pas avec l'appareil.
ITEM MEASURE
Height 43 inches (1100 mm)
Length 54 inches (1400 mm)
Width 27 inches (700 mm)
Width of scrub path 20 inches (500mm)
86447840 Operators Manual - Commodore Duo
LENGTH
WIDTH
12
How This Machine Works
The Machine is a battery powered, self-propelled
Carpet Maintainer and Carpet Extractor intended for
commercial use.
The machine is designed to maintain your carpet using
the Encapsulating Interim Carpet Cleaning Process. By
using the Interim Carpet Maintainer in conjunction with
Windsor Red Carpet Encapsulating Interim Cleaning
(W450-4) or Encapsulating Interim Cleaning with
Carpet Protection (W455-4) chemical solution, you can
perform a regular light cleaning and grooming of your
carpet very quickly, and have the carpet dry and ready
for traffic within 30 minutes.
The machine is also designed to restore your carpet
using carpet extraction chemicals. The machine is
designed to apply cleaning solution onto carpeted floor,
scrub the carpet with two counter-rotating brushes,
then vacuum the soiled water back into the recovery
tank.
86447840 Operators Manual - Commodore Duo
13
Components
1. Control Panel-Drive/Scrub
2. Front Cover
3. Solution Tank
4. Recovery Tank
5. Solution Fill Cover
6. Recovery Dome
7. Scrub Deck
8. Recovery Drain Hose
9. Solution Drain Hose
10. Vacuum Shoes
86447840 Operators Manual - Commodore Duo
14
Drive Controls
1. Key Switch
2. Reverse Switch
3. Throttle Switches
4. Speed Control Knob
5. Battery Discharge Indicator
6. Hour Meter
86447840 Operators Manual - Commodore Duo
1
2
3
4
5
6
15
1. Key Switch
Controls the power for machine functions.
To turn the machine power on, rotate key clockwise.
To turn the machine off, rotate key counterclockwise.
2. Reverse Button
Controls the direction of travel of the vehicle.
To travel in reverse, press the button and press either of the throttle switches.
To travel forward, release the button are press either of the throttle switches.
3. Throttle Switches
Propel the vehicle with the speed control knob setting selected. Pressing either of the switches causes the
machine to travel in the direction selected by the Reverse Button.
To travel, press either of the throttle switches.
To stop travel, release both throttle switches.
4. Speed Control Knob
Controls the speed of the machine. Speed range B is intended for carpet extraction. Speed A is intended for
interim carpet cleaning. Faster speeds are recommended for transport only, not scrubbing.
To increase speed, turn the knob clockwise.
To decrease speed, turn the knob counter clockwise.
Speeds can be adjusted at any time, whether machine is moving or not.
5. Battery Discharge Indicator
Indicates the charge level of the batteries.
The meter display is divided into 10 vertical bars. All bars illuminated indicate full charge. Bars flashing near
the left side indicate the batteries should be charged. Further operation of the machine could damage the
machine and the batteries. Bars flashing also indicate that machine has been left unattended with key on for
more than 15 minutes. Turn key off then on to reset.
6. Hour Meter
Records the number of hours the machine has been in operation (scrubbing). This information is useful in
determining when to service the machine.
86447840 Operators Manual - Commodore Duo
16
Scrub Controls
1. Solution Pump Switch
2. Solution Pump Indicator
3. Function Switch
86447840 Operators Manual - Commodore Duo
1
2
3
17
1. Solution Pump Switch
Controls power to the spray pump.
If the throttle is in neutral, or reverse control button is in reverse position, the flow is automatically interrupted.
This feature prevents application of solution without scrubbing it into carpet.
2. Solution Pump Indicator Light
The solution pump indicator light is illuminated green when the pump is on.
3. Scrub Deck Rotary Switch (Basic)
Raises and lowers the scrub deck, and turns the scrub brush motors on and off, and controls the solution
solenoids.
For interim or "A" mode, rotate the function knob to the "A" position. The scrub deck will lower and the scrub
motor will turn on and the interim solenoid will open and spray will flow through the interim jets. The brush
motor will automatically turn off in neutral. The interim solenoid will shut off in neutral or reverse.
To raise the deck, turn off the brush motor and solenoid(s). Rotate the knob to the off position to the far counter
clockwise position.
For extraction or "B" mode, rotate the function knob to the "B" position. The scrub deck will lower and the
scrub motor will turn on and the extraction solenoid and interim solenoid will open and spray will flow through
the extraction and interim jets and the vacuum motor will run. The brush motor will automatically turn off in
neutral. The extraction and interim solenoid will shut off in neutral or reverse.
To raise the deck, turn off the brush motor and solenoid(s). Rotate the knob to either the off position to the far
counter clockwise position, or rotate the knob to the far clockwise position to the accessory mode so that the
vacuum motor continues to run to keep any excess soiled solution from dripping back onto the floor.
To use the machine with an accessory hand tool or wand rotate the knob fully clockwise to the accessory
position. Only the vacuum motor and pump will run. Connect the solution hose of the accessory tool to the
solution accessory port. The fitting is 1/8" male quick disconnect. If needed to adapt to 1/4" male quick
disconnect (see Suggested Spare Parts for part number).
To connect the vacuum hose, disconnect the hose assembly from the lower connection of the "Y" tube
junction. Use adapter to join the two hose cuffs together (See Accessories page).
86447840 Operators Manual - Commodore Duo
18
Machine Operation
Pre-Run Machine Inspection
Do a pre-run inspection to find possible problems that
could cause poor performance or lost time from break-
down. Follow the same procedure each time to avoid
missing steps.
NOTE: See maintenance section for pre-run machine
inspection checklist items.
Starting Machine
NOTE: Perform pre-run machine check before
operating machine.
FOR SAFETY: Before starting machine, make sure
that all safety devices are in place and operating
properly.
1. Turn the machine power on by turning key switch
clockwise to the "I" (on) position.
2. Check the position of the Direction Control Button
to make sure the machine will travel in the direction
intended.
3. Check the position of the speed control knob to
make sure the machine will travel at the intended
speed.
4. Press either throttle switch.
Emergency Stop Procedures
1. Release both the throttle switches.
2. Turn machine power off with key switch by turning
key switch counterclockwise to the "o" (off)
position.
Filling Solution Tank
FOR SAFETY: Before leaving or servicing
machine; stop on level surface, turn off machine
and remove key.
1. Turn the machine power off.
2. Remove the front cover and the solution fill lid.
3. Fill the solution tank with clean water. (See the
Technical Specifications chart for exact capacity).
The water must not be hotter than 140° F (60°C) to
prevent damage to the tank.
4. Replace the solution fill lid and front cover.
Flammable materials can cause an explosion or
fire. Do not use flammable materials in the tanks.
Les matières inflammables peuvent provoquer une
explosion ou un incendie. Ne pas utiliser de
matériaux inflammables dans les réservoirs.
86447840 Operators Manual - Commodore Duo
19
Normal Scrubbing
Plan the scrubbing pattern in advance.
For efficient operation, the runs should be the longest
possible without turning, stopping, or raising or
lowering scrub deck. The longest track is around the
perimeter of the area to be cleaned and a collapsing
rectangle pattern is most efficient.
In order to achieve the best possible results, the area
which is to be cleaned, should be vacuumed before
scrubbing. Large debris, strings and wire must be
removed to prevent being caught in brushes.
If the machine is allowed to stand in neutral with the
scrub deck down for more than 2 seconds, the
solutions flow stops and brush motor stops. When
forward travel is resumed, the solution flow and the
scrub brush motor will continue. Overlap the brush
path and avoid transporting over previously cleaned
areas.
Recommended Scrubbing Path:
To Begin Scrubbing
When operating the machine around people, pay
close attention for unexpected movement. Use
extra caution around children.
Lorsque vous utilisez la machine en présence de
gens, portez une attention particulière aux mouve-
ments inattendus. Soyez plus prudent, surtout en
présence d’enfants.
1. Turn machine power on.
2. Position rotary switch to the position matching the
process to be preformed, and the chemical that
was added to the solution tank either interim or
extraction/cleaning.
3. Check position of reverse button and the position
speed control knob so that the machine is set to
travel in the direction and the speed intended.
4. Drive machine forward by pressing either throttle
switch to begin scrubbing.
To Stop Scrubbing
1. While scrubbing turn off the pump switch to stop
spraying solution. Continue to scrub and recover
the solution for an additional pass.
2. Allow the throttle switches to return to neutral.
3. Rotate the selector switch to the accessory
position so that the vacuum motor continues to run
and evacuate the system. This will also raise the
deck and vacuum shoes.
4. Turn the rotary switch to the off position by rotating
the selector switch clockwise. Turn machine power
off.
FOR SAFETY: Before leaving or servicing machine:
stop on level surface, turn off machine and remove
key.
FOR SAFETY: When using machine, go slow on
inclines and slippery services.
86447840 Operators Manual - Commodore Duo
20
Emptying And Cleaning Solution Tank
1. Park the machine next to a floor drain. Drain hose
is at the rear of the machine.
2. Turn the machine power off.
3. Remove the top of the hose from the barb mount
and lower hose in direction of the drain. Do not
stand in front of end of hose. Solution will come out
with force.
4. Remove the front cover and solution fill cover.
5. Flush the solution tank out with clean water and
run several gallons of clean water through both
spray jet systems. Do not use water hotter than
140°F (60°C) to clean tank or damage may occur.
6. Replace the drain hose to the barbed fitting.
7. If machine is to be stored, leave the solution fill
cover off.
Emptying And Cleaning Recovery Tank
1. Park the machine next to a floor drain. Drain hose
is at the front of the machine.
2. Turn the machine power off.
3. Remove front cover. Remove hose assembly from
mounting hook. Place the end of the hose at the
drain and slowly remove the cap. Do not stand in
front of hose end. Soiled solution will come out with
force.
4. Remove dome lid.
5. Flush the recovery tank out with clean water. Do
not use water hotter than 140°F (60°C) to clean
tank or damage may occur.
6. Replace the drain hose cap and place hose back
on hook. Replace front cover.
7. If machine is to be stored, leave the recovery dome
off.
86447840 Operators Manual - Commodore Duo
HOSE
SOLUTION
DRAIN
2186447840 Operators Manual - Commodore Duo
22
Service Schedule
Maintenance
Before Each
Work Period
After Each
Work Period
50 HRS 100HRS 200HRS
Check water level of batteries after
charging; add distilled water if neces-
sary.
*
Check brushes for proper installation. *
Check for securely attached drain hose,
plug and cap.
Check that solution fill lid seals tightly *
Visually check for damaged or worn
tires.
*
Check all throttle, direction and speed
controls for proper operation.
*
Observe spray pattern and clean jets if
necessary.
*
Prime chemical system for 30 seconds
for each chemical.
*
Clean brushes and check wear. *
Remove bearing cap from end of brush.
Clean bearing and cap.
*
Clean underside of scrub deck. *
Clean out solution tank. *
Clean out recovery tank. *
Clean and inspect solution filter strainer. *
Store with solution fill lid and recovery
dome off tanks to allow tanks to dry.
*
Clean outside of tank, check for
damage.
*
Charge batteries. *
Flush chemical system *
Clean off top of batteries. *
Check battery cells with hydrometer. *
Check battery connections are tight. *
Clean battery cases and battery
compartment.
*
Grease appropriate zerks (grease
fittings).
*
Clean pivot points on scrub deck. *
Check all motors for carbon brush wear. *
Check motor commutators. *
86447840 Operators Manual - Commodore Duo
23
1. Battery Connector
2. Battery Connector
3. Batteries
4. Prop Rod and Catch
5. "Y" Tube
6. Recovery Hose
86447840 Operators Manual - Commodore Duo
24
Batteries (Wet Cell Only)
The batteries provide the power to operate the
machine. The batteries require regular maintenance to
keep them operating at peak efficiency.
The machine batteries will hold their charge for long
periods of time, but they can only be charged a certain
number of times. To get the greatest life from the
batteries, charge them when their charge level reaches
25% of a full charge. Use a hydrometer to check the
charge level.
Do not allow the batteries to remain in a discharged
condition for any length of time. Never expose a
discharged battery to temperatures below freezing.
Discharged batteries will freeze causing cracked
cases. Do not operate the machine if the batteries are
in poor condition or if they have a charge level below
25% (specific gravity below 1.155).
Keep all metallic objects off the top of the batteries, as
they may cause a short circuit. Replace worn or
damaged cables and terminals.
Check the electrolyte level in each battery cell before
and after charging the batteries. Never add acid to the
batteries, use distilled water. Do not allow water level to
fall below the battery plates. Portions of plates exposed
to air will be destroyed. Do not overfill. Keep plugs
firmly in place at all times.
When servicing machine, avoid contact with
battery acid.
Lors de l'entretien de la machine, évitez tout
contact avec l'acide de batterie.
Batteries emit hydrogen gas. Explosion or fire can
result. Keep sparks and open flame away. Keep
covers open when charging.
Les batteries émettent du gaz hydrogène. Une
explosion ou un incendie peut en résulter.
Maintenez les étincelles et les flammes nues à
l’écart. Gardez les carters ouverts lors du charge-
ment.
Wear eye protection and protective clothing when
working with batteries.
Portez des lunettes de protection et des vêtements
de protection lorsque vous travaillez avec des
batteries.
Charge batteries in a well ventilated area.
Chargez les batteries dans un endroit bien ventilé
Battery Maintenance
1. When cleaning the batteries, use a solution of
baking soda and water. Do not allow the cleaning
fluid to enter the battery cells, electrolyte will be
neutralized.
2. Maintain the proper electrolyte level in each battery
cell. If a cell should accidentally overflow, clean
immediately.
3. Wipe off the top of the batteries at least once a
week.
4. Test battery condition with a hydrometer at least
once a week.
5. Ensure that all connections are tight and all
corrosion removed.
6. Every 4 to 6 months, remove that batteries from
the machine and clean the battery cases and
battery compartment.
Checking Battery Specific Gravity
Use a hydrometer to check the battery specific gravity.
86447840 Operators Manual - Commodore Duo
25
NOTE: Do not take readings immediately after adding
distilled water, if the water and acid are not
thoroughly mixed, the reading may not be accurate.
Check the hydrometer readings against this chart.
NOTE: If the readings are taken when the battery
electrolyte is any temperature other than 80°F (27°C),
the reading must be temperature corrected.
To find the corrected specific gravity reading when the
temperature of the battery electrolyte is other than 80°F
(27°): Add (+) to the specific gravity reading 0.004 (4
points), for each 10°F (6°C) above 80° (27°C).
Subtract (-) from the specific reading 0.004 (4 points),
for each 10°F (6°C) below 80°F (27°C).
Charging Batteries
When servicing machine, avoid contact with
battery acid.
Lors de l'entretien de la machine, évitez tout
contact avec l'acide de batterie.
Batteries emit hydrogen gas. Explosion or fire can
result. Keep sparks and open flame away. Keep
covers open when charging.
Les batteries émettent du gaz hydrogène. Une
explosion ou un incendie peut en résulter.
Maintenez les étincelles et les flammes nues à
l’écart. Gardez les carters ouverts lors du charge-
ment.
Wear eye protection and protective clothing when
working with batteries.
Portez des lunettes de protection et des vêtements
de protection lorsque vous travaillez avec des
batteries.
Charge batteries in a well ventilated area.
Chargez les batteries dans un endroit bien ventilé
Use a 36 volt, 20 amp maximum output DC charger
which will automatically shut off when the batteries are
fully charged.
1. Empty recovery tank.
2. Stop the machine in a clean, well ventilated area
next to the charger.
3. Turn "OFF" machine.
FOR SAFETY: Before leaving or servicing machine;
stop on level surface, turn off machine and remove
key.
4. Unplug the machine from the battery pack.
Remove front cover. Disconnect recovery hose
from "Y" tube. Raise recovery tank and verify prop
rod latch is safely engaged.
Batteries emit hydrogen gas. Explosion or fire can
result. Keep sparks and open flame away. Keep
covers open when charging.
Les batteries émettent du gaz hydrogène. Une
explosion ou un incendie peut en résulter.
Maintenez les étincelles et les flammes nues à
l’écart. Gardez les carters ouverts lors du charge-
ment.
SPECIFIC GRAVITY @
80° F (27°C)
BATTERY CONDITION
1.265 100% CHARGED
1.225 75% CHARGED
1.190 50% CHARGED
1.155 25% CHARGED
1.120 DISCHARGED
86447840 Operators Manual - Commodore Duo
26
5. Check the electrolyte level in each battery cell.
Before charging, add just enough distilled water to
cover the plates. After charging is complete, add
just enough distilled water to bring up the level to
the indicator ring. If the water level is too high
before charging, normal expansion rate of the elec-
trolyte may cause an overflow resulting in a loss of
battery acid balance and damage the machine.
6. Replace the battery caps, and leave them in place
while charging.
7. Unplug the machine connector from the battery.
FOR SAFETY: When charging, connect the charger
to the batteries before connecting the charger to
the AC wall outlet. Never connect the charger to the
AC wall outlet first. Hazardous sparks may result.
8. Plug the charger connector into the battery
connector. Connect the charger AC plug to a wall
outlet. The charger gauge should indicate that the
batteries are charging.
9. When the batteries are fully charged, disconnect
the charger from the AC wall outlet, then discon-
nect the charger from the batteries.
10. Connect the machine to the battery connector.
11. Check the electrolyte level. It should be up to the
indicator ring. If necessary, add distilled water.
12. Lower recovery tank by safely disengaging the
prop rod latch and slowly lowering. Replace the
hose and "Y" tube connection. Replace front
cover.
Changing Batteries
Stop the machine in a clean area next to the charger.
Turn off machine.
FOR SAFETY: Before leaving or servicing the
machine; stop on level surface, turn off machine
and remove key.
1. Disconnect machine from battery pack.
2. Raise recovery tank and engage prop rod latch.
3. Disconnect main positive lead and secure cable
terminals away from batteries.
4. Loosen both terminals on each jumper cable and
remove one at a time.
5. Prepare a suitable site to place the batteries.
6. Attach suitable battery lifting device and lift
batteries from the machine.
Batteries are a potential environmental hazard.
Consult your battery supplier for safe disposal
methods.
Les batteries constituent un danger potentiel pour
l'environnement. Consultez le fournisseur de votre
batterie pour connaître les méthodes d'élimination
sûres.
Rear of Machine
+
-
-
+ +
-
RED
BLK
RED
BLK
RED
BLK
86447840 Operators Manual - Commodore Duo
27
Scrub Deck
1. Scrub deck lift actuator
2. Scrub brush motor
3. Scrub brushes
4. Retaining clip
86447840 Operators Manual - Commodore Duo
1
2
4
3
28
Scrub Head
The dual cylindrical scrub head is designed to scrub
chemical into the carpet. The two counter rotating
brushes raise the pile of the carpet, giving it a lush
groomed appearance.
Maintenance
Scrub brushes should be exchanged front to back
every 50 hours to ensure even wear. Scrub brushes
should be replaced as a set when bristle length wears
to height of yellow PerformAlert
TM
bristles
Scrub Brushes
Scrub Brush Removal
The scrub brushes are removed from the right side of
the machine.
1. Raise the scrub deck to the storage position.
2. Pull out on the bottom of the retaining clip.
3. The brush assembly and end cap should drop
down. Then pull the brush down far enough to
clear the bottom of the housing.
4. Pull brush out with a rocking motion to free brush
from drive hub.
Bearing Cleaning
1. Remove bearing cap from end of brush.
2. Clean cap and bearings.
Scrub Brush Replacement
1. Lift the drive side of the brush and push it onto
drive hub until a positive stop is felt. The brush
cannot be installed until the brush is fully seated on
the drive hub.
2. Pull out on the bottom of the retaining clip.
3. Line up the end cap with the flats to each side.
4. Slide brush up into the retaining clip until it clicks in
place.
86447840 Operators Manual - Commodore Duo
29
Scrub Motor
Do not use a pressure washer to clean around the
brush motors. Use tap pressure only.
N’utilisez pas de nettoyeur haute pression pour
nettoyer autour des moteurs des brosses. Utilisez
seulement la pression du robinet.
To Replace Scrub Brush Motor
1. With the scrub deck in the lowered position,
remove the deck cover and disconnect brush
motor wiring connector from harness.
2. Remove the motor and end bracket assembly from
the deck.
3. Separate brush motor from end brackets.
4. Reverse to reassemble.
Brush Motor Carbon Brush Replacement
1. Scribe alignment mark on motor barrel to motor
cap. Remove two bolts.
2. Remove end cap from motor.
NOTE: Motors contain two wave washers in cap. Do
not lose these.
3. Release brush from spring tension. Remove screw
connecting brush wire lead to brush holder. Clean
brush holder to insure free movement.
4. Retract spring and install new brush. Install
connector screw and lead.
5. When all new brushes are installed. Place all in
retracted position, held into brush holder by spring
tension.
6. Carefully place end cap onto bearing on motor
shaft.
NOTE: Use care to assure wave washer alignment.
7. With end cap in partially installed position, release
all brushes to contact position with motor commu-
tator.
NOTE: Failure to insure all brushes are released will
result in motor failure.
8. Reset end cap and realign with scribe marks on
motor barrel. Reinstall the two attach bolts from
cap into base.
9. Maintain alignment between motor barrel base and
cap.
86447840 Operators Manual - Commodore Duo
30
Actuator Scrub Deck Removal/
Replacement
FOR SAFETY: Before leaving or servicing machine,
stop on a level surface. Turn off machine.
1. Lower scrub deck. Remove the front cover and
raise recovery tank.
2. Disconnect electrical connector.
3. Remove the clevis pin retaining the bottom of the
actuator.
4. Remove the clevis pin retaining the top of the
actuator.
5. Reverse for re-installation.
Scrub Deck Actuator Adjustment
The actuator will need to be adjusted when replaced.
To adjust the actuator:
1. While holding actuator barrel to prevent it from
spinning, apply power to the actuator such that it is
fully extended. Limit switch within actuator will stop
it.
2. With actuator fully extended, attach to the top
bracket.
3. At the bottom mount align the mounting hole with
the center of the slot, turn the barrel in or out
enough to align connection to bracket.
4. Connect actuator electrical plug.
5. Check travel of actuator during operation.
86447840 Operators Manual - Commodore Duo
31
Circuit Protection
1. Circuit Breakers
Circuit breakers interrupt the flow of power in the event
of an electrical overload. When a circuit breaker is
tripped, reset it by pressing the exposed button. If a
circuit breaker continues to trip, the cause of the elec-
trical overload should be found and corrected
86447840 Operators Manual - Commodore Duo
1
22 Amp. Protects the scrub brush motor.
30 Amp. Protects the vacuum motor.
25 Amp. Protects the propel motor.
3 Amp. Protects the machine controls,
pump and actuator.
32
Solution Strainer & Pump
1. Pump
2. Solution Strainer
3. Solenoid Valves
4. Jets- Interim
5. Jets-Extraction
86447840 Operators Manual - Commodore Duo
1
2
3
4
5
33
Solution Strainer
The solution strainer is located on the front of the
machine under the front cover. The strainer protects the
pump, solenoid valve and jets from debris. If there is
little or no solution flow to the ground, check the
strainer for debris. Clean the solution strainer. To
remove the strainer, turn the bottom part of the strainer
counterclockwise until the bottom is separated. Clean
out the debris from the wire mesh and the bowl and re-
assemble. Make sure the O-ring gasket is in place
when re-assembled.
Pump
The pump is located on the front of the machine under
the front cover. The pump delivers solution from the
tank to the scrub deck.
To repair or replace pump:
1. Remove front cover.
2. Remove hoses connecting the pump.
3. Remove screws that secures pump to mounting
plate.
Solenoid Valve
The solenoid valves is mounted on the front of the
scrub deck, on left side.
The solenoid valves shuts off solution flow to jets
whenever scrubbing stops or in reverse. To repair or
replace solenoid valve, remove screws that secure it to
deck.
Jets
The two sets of jets are located in front of the scrub
deck.
The jets spray cleaning solution onto the carpet. The
spray pattern should be checked regularly and if jets
become clogged they should be cleaned or replaced
immediately.
To clean jets:
1. Remove jet from jet body by rotating it counter-
clockwise.
2. Blow debris back through orifice if possible. Do not
use pointed object to unplug jet. This will damage
jet and cause improper spray pattern and solution
flow through jets.
3. If jet cannot be cleaned by blowing debris back
through its orifice, submerge jet in small container
of acetic acid and let soak for up to six hours.
4. After soaking jet, use a soft brush to remove debris
and rinse thoroughly.
5. Install jet in jet body by rotating it clockwise firmly
into place.
6. For lower flow in extraction "B" other jets are avail-
able. (See Accessories page).
86447840 Operators Manual - Commodore Duo
34
Drive Assembly
1. Drive Assembly
2. Grease Points
3. Drive Motor
86447840 Operators Manual - Commodore Duo
1
2
32
35
Drive Assembly
Drive Motor Carbon Brush Replacement
Do not use a pressure washer to clean around the
motors. Use tap pressure only.
N’utilisez pas de nettoyeur haute pression pour
nettoyer autour des moteurs des brosses. Utilisez
seulement la pression du robinet.
FOR SAFETY: Before leaving or servicing machine,
stop on a level surface, turn off machine and
remove key.
1. Disconnect batteries from machine.
2. Disconnect the electrical connection to the traction
motor.
3. Remove brush cap.
4. Release brush from spring tension. Remove screw
connecting brush wire lead to brush holder. Clean
brush holder to insure free movement.
5. Install new brush and reinstall connecting screw
and lead.
6. When all new brushes are installed. Place all in
retracted position, held into brush holder by spring
tension.
7. Carefully replace brush cap.
86447840 Operators Manual - Commodore Duo
36
Vacuum
1. Vacuum Shoes
2. Vacuum Glides
3. Vacuum Shoe Retainer Knobs
4. "Y" Tube
5. Float Ball And Screen
6. Vacuum Motor
86447840 Operators Manual - Commodore Duo
1
2 3
4
5
6
2
37
Vacuum Shoes
The dual offset vacuum shoes are designed to extract
soiled solution from the carpet. The plastic vacuum
shoe glides minimize wear to flooring.
Maintenance
The vacuum shoes should be removed and cleaned
daily to ensure maximum recovery.
Vacuum Shoe Removal
1. Unscrew retainer knob from right side vacuum
shoe.
2. Pull vacuum shoe forward until it is free from pivot
pin.
3. Remove vacuum hose from top of vacuum shoe
4. Repeat to remove left side vacuum shoe.
5. Inspect or repair as necessary and reinstall.
To Clean Vacuum Shoes
1. With the vacuum shoes in the raised position, turn
key switch "off".
2. Remove vacuum shoes.
3. Flush vacuum shoes from top with water. If neces-
sary, clean blockage from narrow opening with a
scraper or similar device.
4. Vacuum shoe glides may be removed for cleaning
(or replaced) by removing the three pins that
secure them to metal vacuum shoes.
Recovery Tank Float Shut-Off
When water is no longer being vacuumed from the floor
and the vacuum fan is operating, the ball float has
engaged. The vacuum motors will not vacuum water
with recovery tank full. The recovery tank must be
drained.
1. The float shut-off screen can be cleaned in or out
of the machine.
2. To clean the float shut-off while it is inside the
machine wipe material off screen then rinse. Check
that the ball is also clean and moves freely.
3. To remove the float shut-off, grasp the elbow with
one hand tilt and pull the float screen assembly to
pull it off the elbow.
4. To install, place one hand on the elbow, and then
tilt and push the float screen assembly over the
elbow.
To Repair Or Replace Vacuum Motor(s)
1. Remove the front cover, drain the recovery tank.
2. Raise the recovery tank and safely engage the
prop rod latch.
3. Disconnect electrical connector from the vacuum
motor(s) and connecting hoses.
4. Unbolt the bracket and vacuum motor assembly
and remove from tank.
5. Remove the vacuum motor from the bracket.
6. Reverse steps to install. Make sure the gaskets fit
and seal properly as you reassemble.
7.
86447840 Operators Manual - Commodore Duo
38
Vacuum Motor Carbon Brushes
If armature commutator is grooved, extremely pitted or
not concentric, the motor will need to be replaced or
sent to a qualified service center.
Important:
These brushes wear quicker as the length shortens due
to increased heat. Spring inside brush housing will
damage motor if brushes are allowed to wear away
completely.
Periodically check the length of the carbon brushes.
Replace both carbon brushes when either is less than
3/8" (9.5mm) long.
Transporting Machine
Pushing Machine
The machine may be pushed for short distances at
speeds not to exceed 5 mph. Be careful to avoid
damaging machine. The machine may be pushed by
hand from the rear.
NOTE: To avoid damage caused by regenerative
voltage, disconnect traction motor before towing or
pushing machine.
Preparation For Loading /Unloading
Trailer
Before loading or unloading machine from trailer,
remove vacuum shoes to eliminate interference. Scrub
head must be in the up position before loading.
When transporting the machine on a trailer or in a truck,
in addition to using tie-downs, be sure to block the tires
to prevent the machine from rolling.
Carbon Brushes
End Cap
3
8
[9.5mm]
86447840 Operators Manual - Commodore Duo
39
Machine Troubleshooting
PROBLEM CAUSE SOLUTION
No power to
machine
Battery disconnected Check all battery cable connections
Battery cables corroded Clean connections
Faulty key switch Replace switch
Little or no propel
Low battery charge Charge batteries
Machine turned on with propel trigger not in
neutral position
Allow pedal to return to neutral. Restart
Tripped circuit breaker Reset circuit breaker and check brush
Controller overheated Allow cool down period
Loose motor connection
Check wires and connections from controller
to motor
Faulty throttle circuit or potentiometer
Check wires and connections from throttle to
controller and potentiometer resistance
Faulty brake circuit Check wires connections
Machine does not
change speeds
Faulty speed control circuit or potentiometer Check wires, connections and pot
Forward speed only
Reverse speed only
Faulty forward/reverse switch Replace switch
Poor scrubbing
performance
Debris caught in scrub brushes Remove debris
Low scrub brush down pressure Check brush wear
Low battery charge Charge batteries
Little or no solution
flow to the floor
Solution tank empty Fill solution tank
Solution pump turned off Turn on pump
Solution strainer plugged Clean solution strainer
Solution system plumbing obstructed Clear obstruction from plumbing
Pump obstructed Clean or replace pump
Solution solenoid valve obstructed or stuck Clean or replace valve
Jet(s) obstructed Clean or replace jet(s)
Faulty pump circuit or pump Check wiring, connections, and pump.
Faulty solenoid Check solenoid valve
Brush motors do not
run, or run slowly
Circuit breaker(s) tripped
Reset circuit beaker(s) and check brush
pressure.
Low battery charge Charge battery
Fault brush circuit or motor Check wires, connections and motor
Worn brush motor brushes Replace brushes, check commutator
Scrub deck will not
go down/up
Actuator circuit breaker tripped Reset breaker
Faulty actuator circuit or actuator Check wires, connections and actuator
86447840 Operators Manual - Commodore Duo
40
Suggested Spare Parts
86447840 Operators Manual - Commodore Duo
86335930, CAP, DISPENSING, 9.50 TUBE
86001360 BRUSH SET
86326980 BRUSH SET
86288820 BRUSH SET
BRUSH DECK MOTOR
TRANSAXLE
86326980 BRUSH SET
VACUUM
86230680 BRUSH, EXTRACTOR
86199840, FLOAT SCREEN CAGE ASM
86013200, JET, MINI PROMAX 11004
86012550, JET, PROMAX 11001
86004570, JET BODY, MINI PROMAX
41
