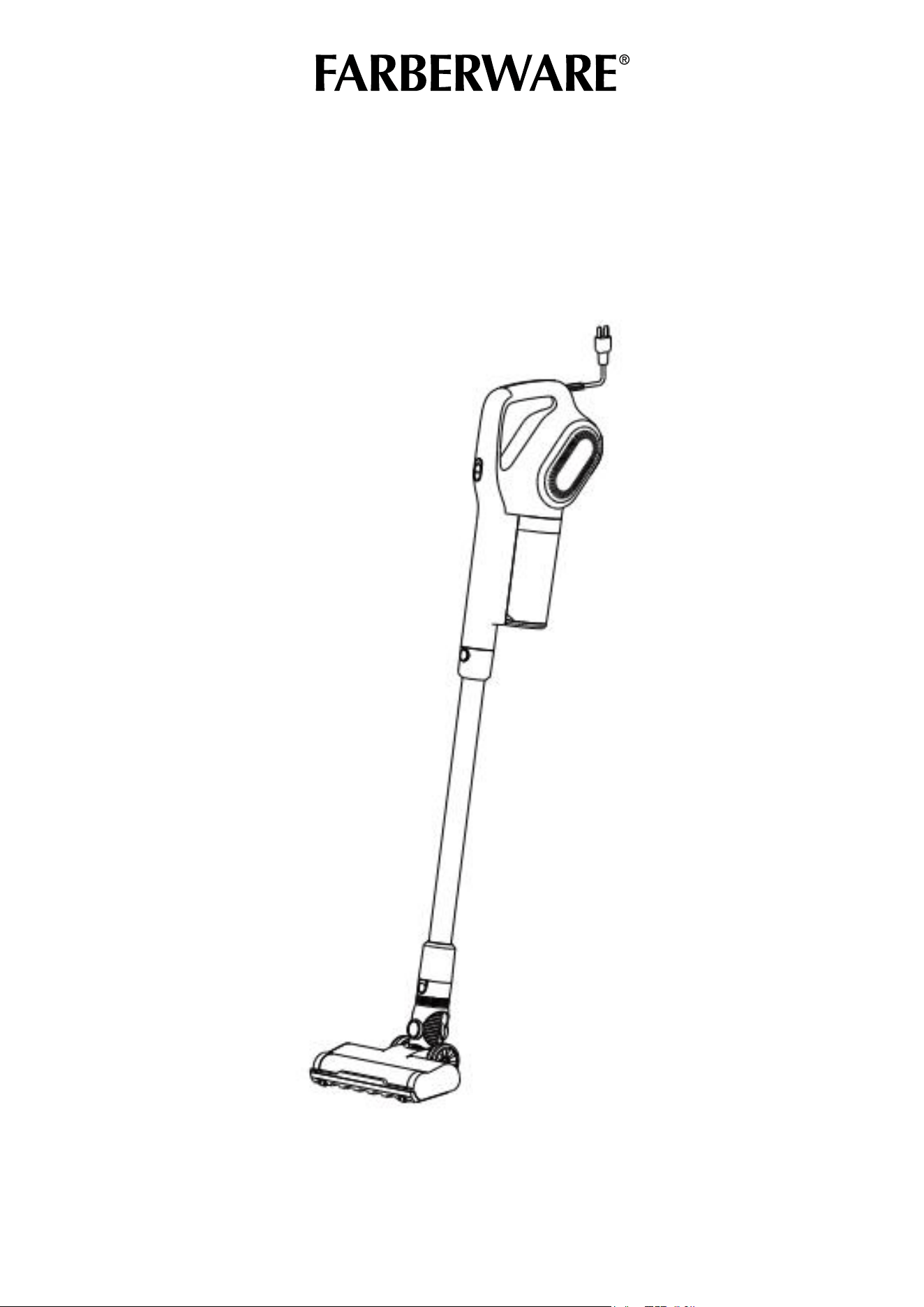

INSTRUCTION MANUAL
Vacuum Cleaner
VCS-90B1
BEFORE OPERATING THIS PRODUCT, PLEASE READ, UNDERSTAND AND FOLLOW THESE INSTRUCTIONS.
Visit our website www.farberwareVC.com
BEFORE OPERATING THIS PRODUCT, PLEASE READ, UNDERSTAND AND FOLLOW THESE INSTRUCTIONS.
1. IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precaution should always READ ALL INSTRUCTIONS
BEFORE USING (THIS APPLIANCE)
1. The vacuum cleaner is an electric appliance. It must be used in accordance with the operating
conditions of the instructions. The instructions should be kept properly for future reference.
2. Check and confirm that the vacuum cleaner voltage must be consistent with the supply
voltage.
3. It is strictly forbidden to inhale the following objects, otherwise it may damage the vacuum
cleaner or cause fire.
A. Heating objects. Such as carbon fire, etc.
B. Large cuts of sharp fragments, such as glass, etc.
C. Harmful substances or water and liquids (solvents, corrosives, etc.);
D. Flammable and explosive goods, such as gasoline or alcohol products;
4. When cleaning, repairing or temporarily not use the vacuum cleaner, the power supply must
be cut off. When the power supply is cut off, pull the power cord and pull the plug out by
holding the plastic part of the plug by hand.
5. Remember do not immerse the main vacuum cleaner in water, avoid approaching to heating
equipment or exposure to the sun to avoid fire.
6. Don't let children play with vacuum cleaners to avoid accidents.
7. In the following cases, do not use vacuum cleaner:
A. Fall and obvious damage or abnormal movement;
B. Power line is damaged.
When these happens, do not turn on the machine and send it to the maintenance service
department designated by our company in time.
8. Avoid a long-term operating in the condition of the suction inlet is blocked, to avoid a motor
damage and thermal deformation of vacuum cleaner.
9. If the soft wire of the power supply is damaged, in order to avoid a danger, it must be
replaced by professional manufacturer, its maintenance department or similar department.
Warranty
Consumers who purchase this product can enjoy three year Warranty service.
2. Product Structure
1. Power cord
2. Main unit Power cord button
3. Cotton filter
4. Cyclone filter
5. Dust cup
6. Metal tube
7. Power cord winder
8. Floor brush
3. How To use
1. As an upright vacuum cleaner
1. Before use, as shown in Figure 1, press and hold the dust cup button, open the dust cup,
and confirm that the dust cup has a cyclone filter and cotton filter inside.
2. Install the dust cup as shown in Figure 2. When you hear a click, it means it is in place.
3. As shown in Figure 3, insert the button end of the pipe into the hole of the host and fix it.
4. Insert the joint of the floor brush assembly into the other end of the tube as shown in
Figure 4.
5. Insert the power plug into the socket as shown in Figure 5, and confirm that the
connection is firm. Push the push button switch in the direction of the arrow and the vacuum
cleaner will start working.
6. As shown in Figure 6, press the button on the dust cup pointed by the arrow above the
dust cup to pour out the dust with one click.
7. Push the push button back as shown in Figure 7, the vacuum cleaner will stop working,
and place it upright against the wall.

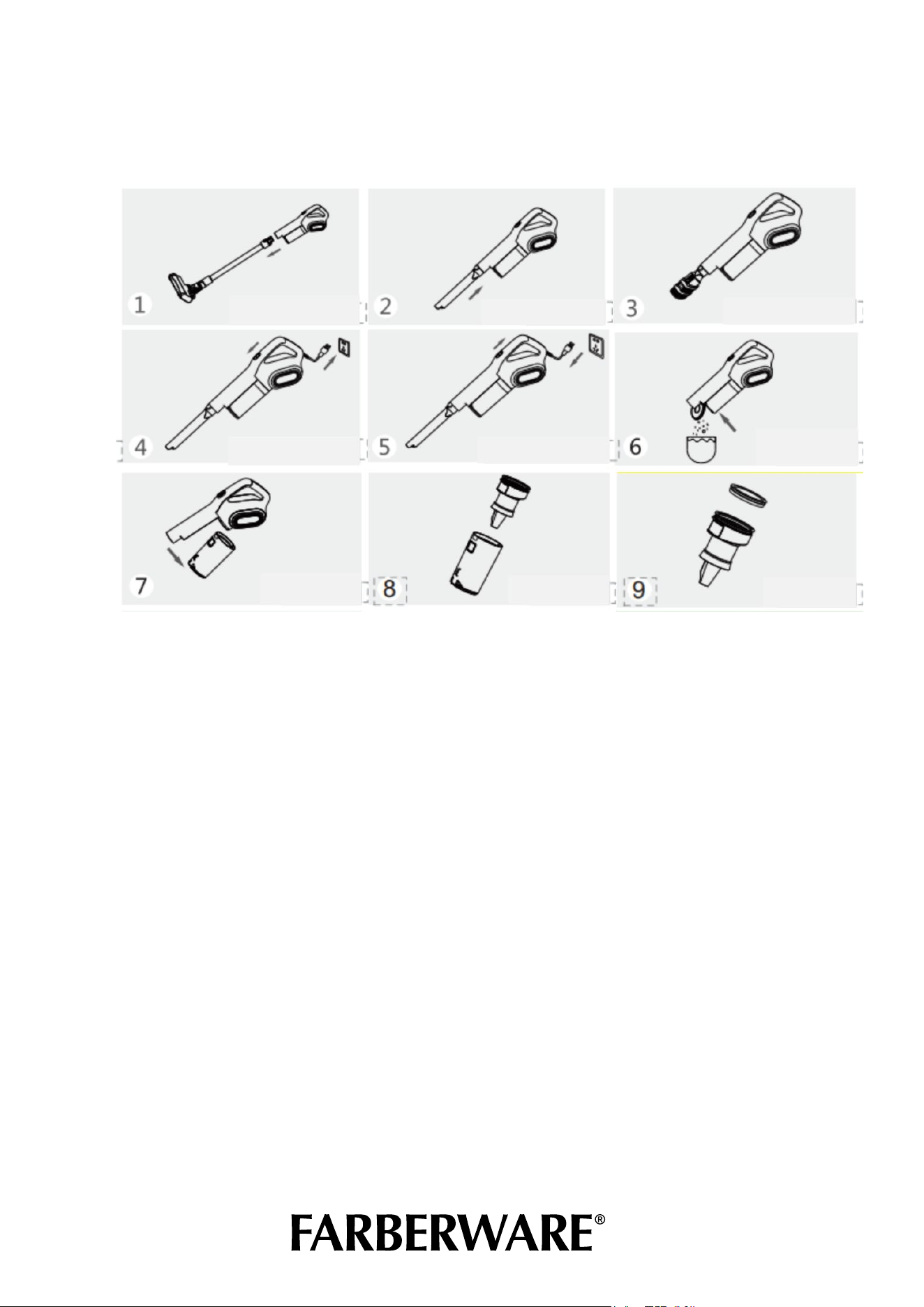

2. As an handy vacuum cleaner
1. Press the takeover button as shown in Figure 1, and pull out the tube and floor brush
together.
2. Insert the crevice nozzle into the main unit as shown in Figure 2 and fix it.
3. As shown in Figure 3, the two-in-one brush can be switched and installed.
4. Insert the power plug into the socket as shown in Figure 4 and make sure it is secure.
Push the push button switch in the direction of the arrow and the vacuum cleaner will
start working.
5. Turn the push button switch back as shown in Figure 5, the vacuum cleaner will stop
working, and unplug the power plug.
6. As shown in Figure 6, press the button on the dust cup pointed by the arrow above
the dust cup to pour out the dust with one click.
7. As shown in Figure 7, press and hold the dust cup button and remove the dust cup
assembly.
8. As shown in Figure 8, take out the filter in the dust cup and pour the dust in the dust
cup into the trash can.
9. Take out the cotton filter cotton from the cyclone filter as shown in Figure 9, and clean
them.
4. Specifications
Product Vacuum cleaner Model No. VCS-90B1
Rated Voltage 120V Rated Frequency 50Hz
Rated power 700W Max suction 16Kpa
Noise <80dB Capacity of dust box 0.8L
5. Packing details
Part name Quantity
Main unit 1
Floor brush 1
Tube 1
Crevice nozzle 1
2 in 1 brush 1
Power cord winder 1
Instruction Manual 1
Warranty card 1
Qualified label 1
6. Trouble shooting
Note: Cut off the power supply and remove the power plug before troubleshooting.
The suction power decreases and there is abnormal sounds.
Settlement: stop the appliance, the temperature of motor is too high, cool down.
The floor brush or the air duct is blocked.
Settlement: clean the floor brush and the air duct
The filter is blocked.
Settlement: wash the filter or replace a new one
The motor doesn’t work.
Please check that the plug is securely inserted into the socket or that the power is on
The appliance stops working suddenly.
Turn off the power, unplug the power plug, wait for the vacuum cleaner to cool down for 30 minutes, clean
the garbage in the dust cup, and then use it again.
If the problem cannot be solved, please contact our maintenance center
7. Cleaning and Maintenance
Daily maintenance
After use, open the dust cup and take out the cotton filter and cyclone filter, wash them with
clean water and let them dry naturally.
Precautions:
1. If the appliance is used frequently and every day, the filters and dust cup should be
cleaned at least 1-3 times a month, or if the sound of the appliance is much louder than
normal during use, then the dust cup should also be cleaned.
2. The vacuum cleaner should be operated with both the cotton filter and cyclone filter
installed.
3. Before using the appliance, check whether the cotton filter and cyclone filter are installed
correctly or damaged.
©2024 Farberware Licensing Company, LLC All Rights Reserved
Copyrights and Trademarks of Farberware Licensing Company, LLC
including FARBERWARE™ and FARBERWARE®, are used under license
from Farberware Licensing Company, LLC.
Distributed by Shamrock Industries, Memphis, TN 38118
3-Year Limited Warranty ● [email protected]
For more information go to www.farberwareVC.com
Made in China
