Tower Fan
Instruction Manual
Installation and Operation Guide
Table of Content
04
08
19
06
10 13
20
07
16
Warning and Safety
Control Panel
Remote Control
Troubleshooting
Name of Parts
Product Specication
Power Connection Operation Instruction
Warranty
Assembly Instruction
Care and Maintenance
4
Warning and Safety
• Read this guide before installation. Failure to follow the safety instructions may result in property damage,
serious injury, or death.
• Please Keep this manual.
Danger:
Indicates an IMMINENTLY hazardous situation that, if not avoided, will result in death, serious injury, or
serious property damage.
Warning:
Indicates an POTENTIALLY hazardous situation that, if not avoided, will result in death, serious injury, or
serious property damage.
Caution:
Indicates an POTENTIALLY hazardous situation that, if not avoided, will result in minor to moderate
injury. It may also be used to indicate unsafe practice.
Attention:
Pay additional attention to the instruction.
DO NOT:
Indicates prohibited actions and/or practice.
DANGER
WARNING
WARNING
CAUTION
CAUTION
About Installation
• Do not install or use this appliance in the bathroom, laundry area, or places that might come
into contact with water.
• Do not alter, change, or modify the appliance.
• The base must be properly assembled before using the tower fan.
WARNING
WARNING
About Power and Electricity
• Do not operate the tower fan with a damaged cord or plug.
• Do not bend, tug, or compress the power cord to prevent damaging the cord. Damaged cord
should be replaced by a qualied electrician.
• Do not run the power cord under any carpeting nor covering it with throw rug or pillows.
• Do not use the tower fan with any solid-state speed control device.
• Ensure that the power voltage corresponds to that stamped on the rating plate.
• Always disconnect the tower fan from power supply when leaving it unused for a long time or
before cleaning.
• Arrange the power cord away from high trac area to prevent tripping over.
5
v.20241209U
Warning and Safety
WARNING
WARNING
WARNING
WARNING
About Operation
Encountering Troubles
About Handling and Maintenance
• Do not disconnect the tower fan from power supply before shutting o the fan. This might
create a spark and potentially cause a re.
• Do not climb onto or place object on the tower fan.
• Do not insert your ngers or any objects into the power fan.
• Do not obstruct the air inlet and outlet.
• Do not operate the tower fan with wet hands.
• Do not operate the tower fan near ammables and combustibles.
• Only operate / use the tower fan as instructed in this booklet. These instruction are not
intended to cover every possible condition and situation. As with any household appliance,
common sense and caution are therefore always recommended for usage and maintenance.
• In the case of the tower fan emitting smoke, burning smell, or making unusual noise, shut down
the fan and disconnect it from the power supply immediately. Contact a qualied technician for
inspection and repair.
• Do not ush the tower fan with water.
• Do not use replacement parts that have not been recommended by the manufacturer, including
homemade, 3D printed or other aftermarket parts.
• Repairs should be carried out by a professional or qualied technician only. Incorrect repair
could expose the user to potential electric shock or other kinds of hazard.
• Before cleaning the fan, it must be shut down and disconnect from power supply for at least 5
minutes.
CAUTION
6
Name of Parts
Product Specication
Air Outlet
Control Panel
Base
Power Cord
Remote Control
TF01 / TF01S
Power Supply Input 120 V / 60 Hz
Rated Power 45 W
Air Inlet
7
v.20241209U
Assembly Instruction
Assemble the Base
• Align and assemble the base plates.
• Arrange the power cord through the center
opening and clip underneath the base.
• Unscrew the retainer cap from the bottom of the fan.
• Screw the retainer cap back to the tower fan.
• Do not pinch the power cord between the base
and the retainer cap.
1
3
2
4
8
Assembly Instruction
Power Connection
About Fused Safety Plug
1. Insert the power plug into a wall power socket.
1. Unplug the power plug from power supply.
2. Slide open the fuse over.
3. Remove the old fuse.
4. Insert a new 2.5 amp 125 volt fuse.
5. Close the cover and reconnect the power plug to power supply.
This tower fan is equipped with a fused safety plug to protect against overload. In the case of an overload, the fuse
wire would melt and disconnect power to the tower fan. A triggered fuse must be replaced before using the tower fan
again.
2.5A Fuse
9
v.20241209U

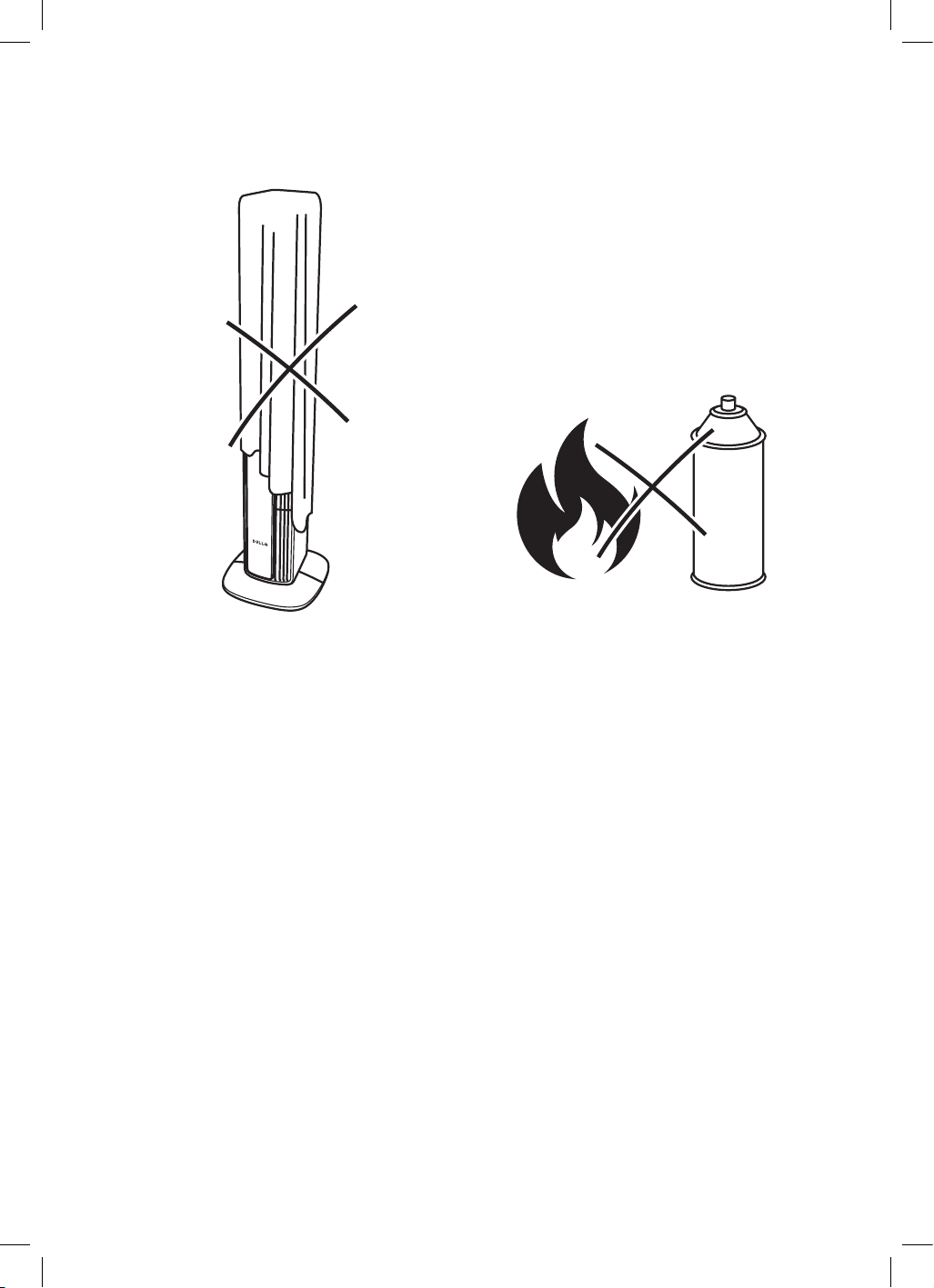

Before Using
Operation Tips
DO NOT obstruct the air inlet and outlet while the
tower fan is in operation.
DO NOT use the tower fan near flammables and
combustibles.
10
Control Panel / Remote Control
Power Button
Power ON / OFF the tower fan
Display Button
Turn ON / OFF the fan display
*Only avaliable on remote control
Oscillate Button
Control the fan to oscillate
Mute Button
Mute / Unmute the fan
*Only avaliable on remote control
Timer Button
Enable ON / OFF timer setting
Mode Button
Select between normal, natural,
auto, and sleep mode
Increase Button
Increase fan speed (12 levels)
Decrease Button
Decrease fan speed (12 levels)
11
v.20241209U

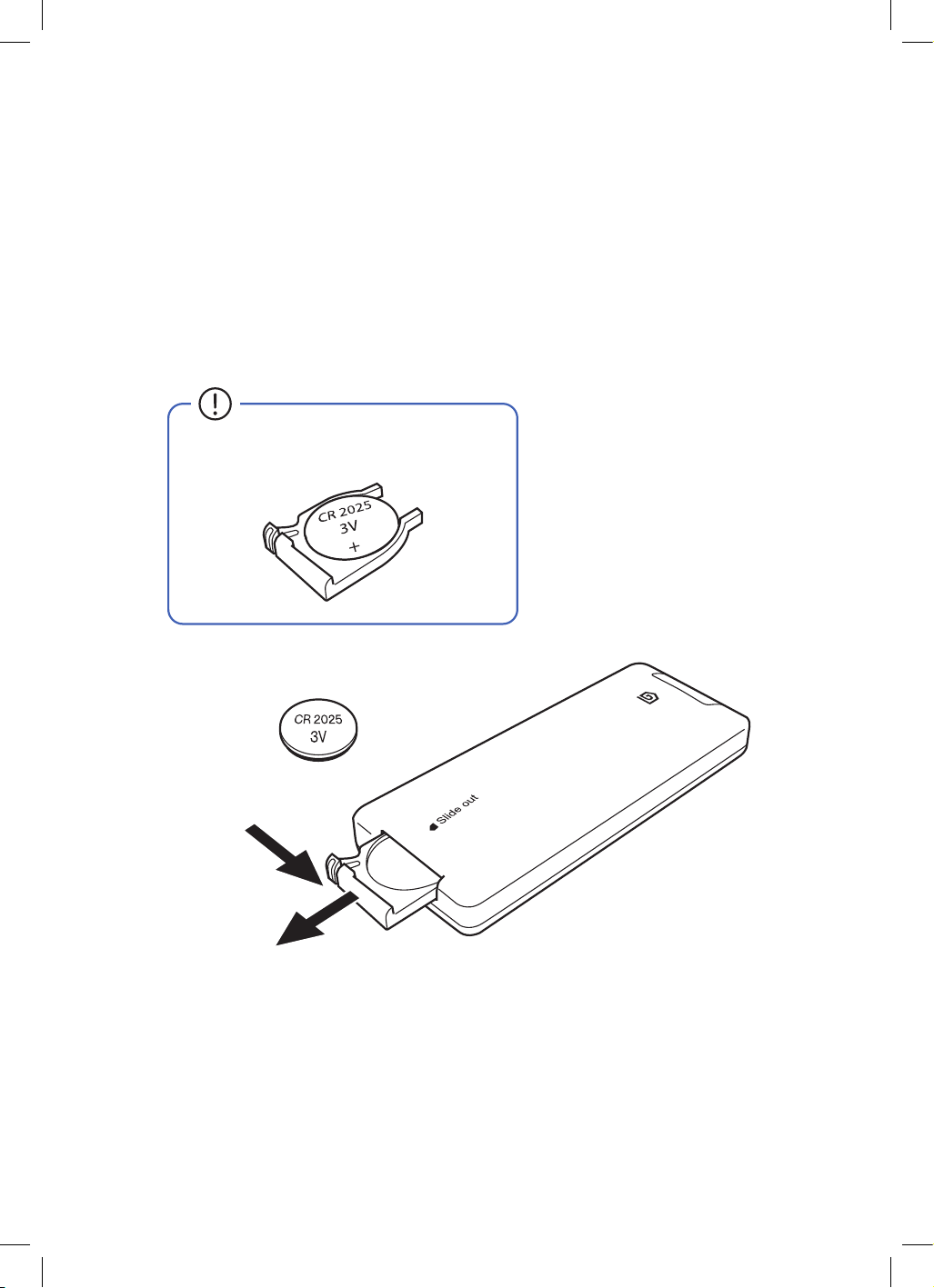

Remote Control
Push in locking tab
Pull out battery tray
Remote Control (Replace Battery)
Remote Control (Using for the first time)
1. Hold the remote control with buttons facing downwards.
2. Remove the battery tray from the remote control by pulling the tray while pushing in the locking tab.
3. Place a CR2025 coin battery into the battery compartment according to the correct polarity.
4. Reinstall the battery tray into the remote control.
1. The remote control comes with a pre-installed battery.
2. Before using the remote control for the rst time, pull and remove the insulating strip from the remote control
• Positive pole of the battery should be facing
upward on the battery tray.
+
−
12
Remote Control

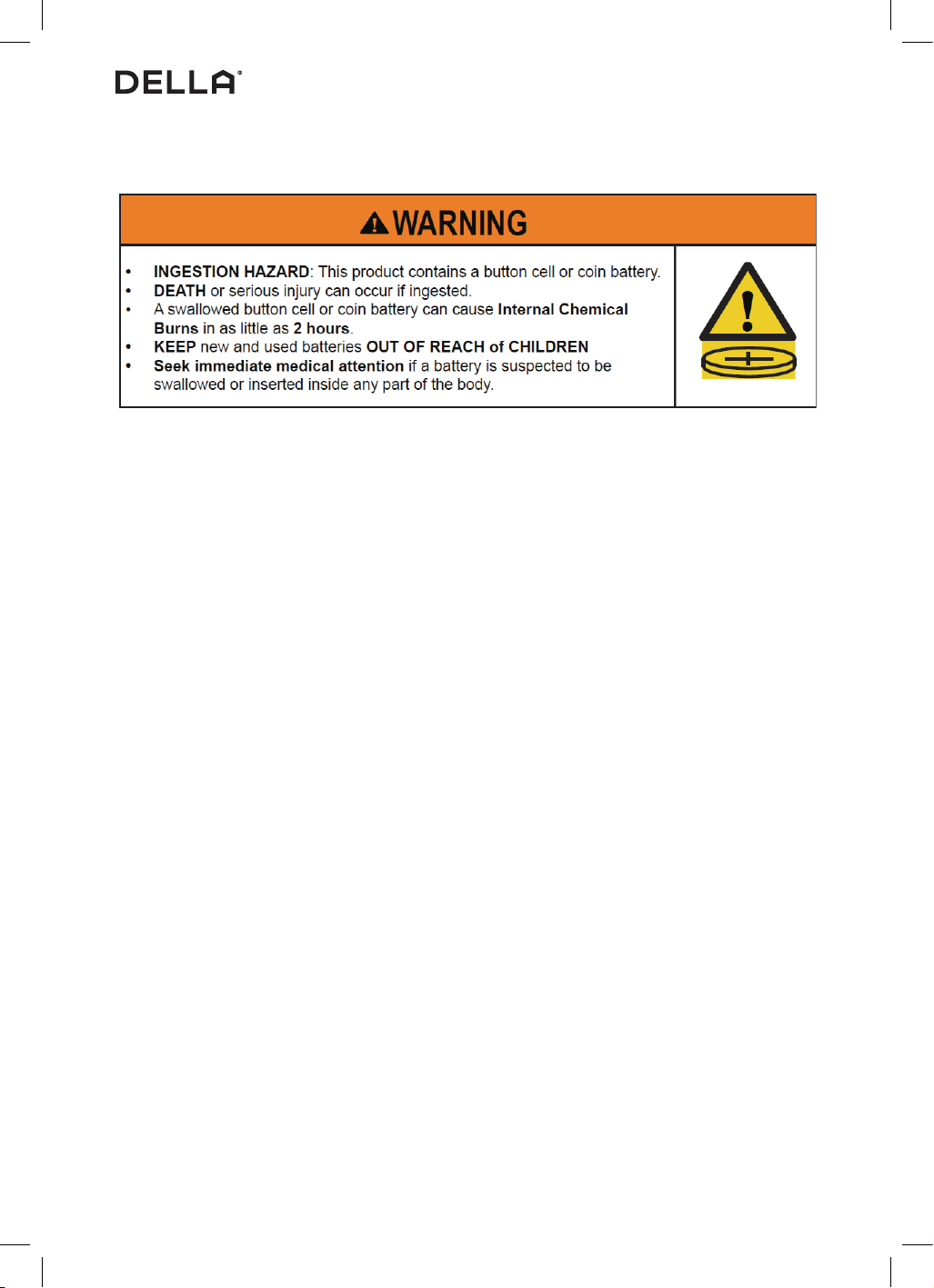

Coil Cell Battery Safety Warning
a)
b)
c)
d)
e)
f)
g)
h)
i)
j)
k)
l)
m)
Remove and immediately recycle or dispose of used batteries according to
local regulations and keep away from children. Do NOT dispose of batteries in
household trash or incinerate.
Even used batteries may cause severe injury or death.
Call a local poison control center for treatment information.
Compatible battery type: CR2025, Voltage: 3V.
Non-rechargeable batteries are not to be recharged.
Do not force discharge, recharge, disassemble, heat above manufacturer’s
specied temperature rating or incinerate. Doing so may result in injury due to
venting, leakage or explosion resulting in chemical burns.
Ensure the batteries are installed correctly according to polarity (+ and -).
Do not mix old and new batteries, dierent brands, or types of batteries, such as
alkaline, carbon-zinc, or rechargeable batteries.
Remove and immediately recycle or dispose of batteries from equipment not
used for an extended period of time according to local regulations.
Always completely secure the battery compartment. If the battery compartment
does not close securely stop using the product, remove the batteries, and keep
them away from children.
Do not ingest battery, Chemical Burn Hazard.
This product contains a coin or button cell battery. If the coin or button cell
battery is swallowed, it can cause severe internal burns in just 2 hours and can
lead to death.
Keep new and used batteries away from children. If the battery does not close
securely, stop using the product and keep it away from children. If you think
batteries might have been swallowed or placed inside any part of the body,
seek immediate medical attention.
13
v.20241209U
Operation Instruction
Normal Mode
Tower fan operates at a xed fan speed.
Auto Mode
Tower fan automatically adjust fan
speed according to its detected
ambient temperature.
Natural Mode
Tower fan operate in alternating fan
speed, mimicking natural wind.
Sleep Mode
Tower fan automatically decrease fan
speed every 30 mins. The tower fan will
also automatically turn on mute function.
Press to turn on the tower fan.
Press and to adjust fan speed. There are 12 levels of fan speed.
Press to oscillate the tower fan and change airow direction.
Set a timer to automatically turn OFF the tower fan.
Press when the tower fan is ON.
Continue pressing to set the desired turn o time between 0 - 24 hours.
Leave the setting for 10 seconds to conrm the setting.
Press again to cancel the timer setting.
The tower fan display will automatically turn o after not touching for 30 seconds.
In sleep mode, the display will automatically turn o after not touching for 5 seconds.
Press on the remote control once to force the display to be ON, press again to force the display to be o.
Press to select operation mode.
Basic Operation
Operation Mode
Timer Function (Shutdown Timer)
Display ON / OFF
14
Operation Instruction
Press on the remote control once to mute the buzzer.
Press on the remote control again to unmute the buzzer.
Alternatively, press and hold on the control panel for 3 seconds to mute / unmute the buzzer.
Child lock function will disable all input from the control panel until unlocked.
Press and hold and for 3 seconds to activate child lock.
“LC” will be displayed on the display.
Press and hold and for 3 seconds again to deactivate child lock.
Wi-Fi reset function allows you to clear all existing app pairing and pair the tower fan to your mobile device’s app again.
Press and hold for 5 seconds to enable Wi-Fi reset.
NOTE: Wi-Fi function is only available for TF01S model.
When the tower fan is ON
Press and hold for 3 seconds to reset the tower fan to factory default setting.
Mute Function
Child Lock
Wi-Fi Reset
Factory Reset
15
v.20241209U
Wi-Fi Set Up (Only available for TF01S)
Operation Instruction
Other than the control panel and remote control, you can control your tower fan via Della+ app.
1. Search “Della+” on Apple app store or Google Play, or scan the QR code below to download the application.
2. Register an account in the app.
3. Follow the in-app instructions to add and pair your Della tower fan to the app and complete the Wi-Fi set up.
Scan this QR code to add device to your Della+ app.
Device QR code
• The Della+ application is free, however, data charges may apply when downloading or using the application.
• Della+ can be altered without notice for quality improvement and also be deleted depending on the
circumstances of manufacturing rms.
• All trademarks, logo, brand names are the property of their respective companies. Use of these names,
brands, and trademarks does not imply endorsement. Della assumes no responsibility with regard to the
performance or use of these products.
• Check out detailed tutorial on the most updated application on dellahome.com/support
16
Care and Maintenance
• Before cleaning the tower fan, you must shut down the unit and disconnect it from the power supply for at
least 5 minutes.
• Never ush the tower fan with water.
CAUTION
Cleaning the Unit
• Clean the tower fan with a soft dry cloth or a damped cloth with neutral detergent.
• Remove dust and debris on the air inlet and outlet.
17
v.20241209U
Care and Maintenance

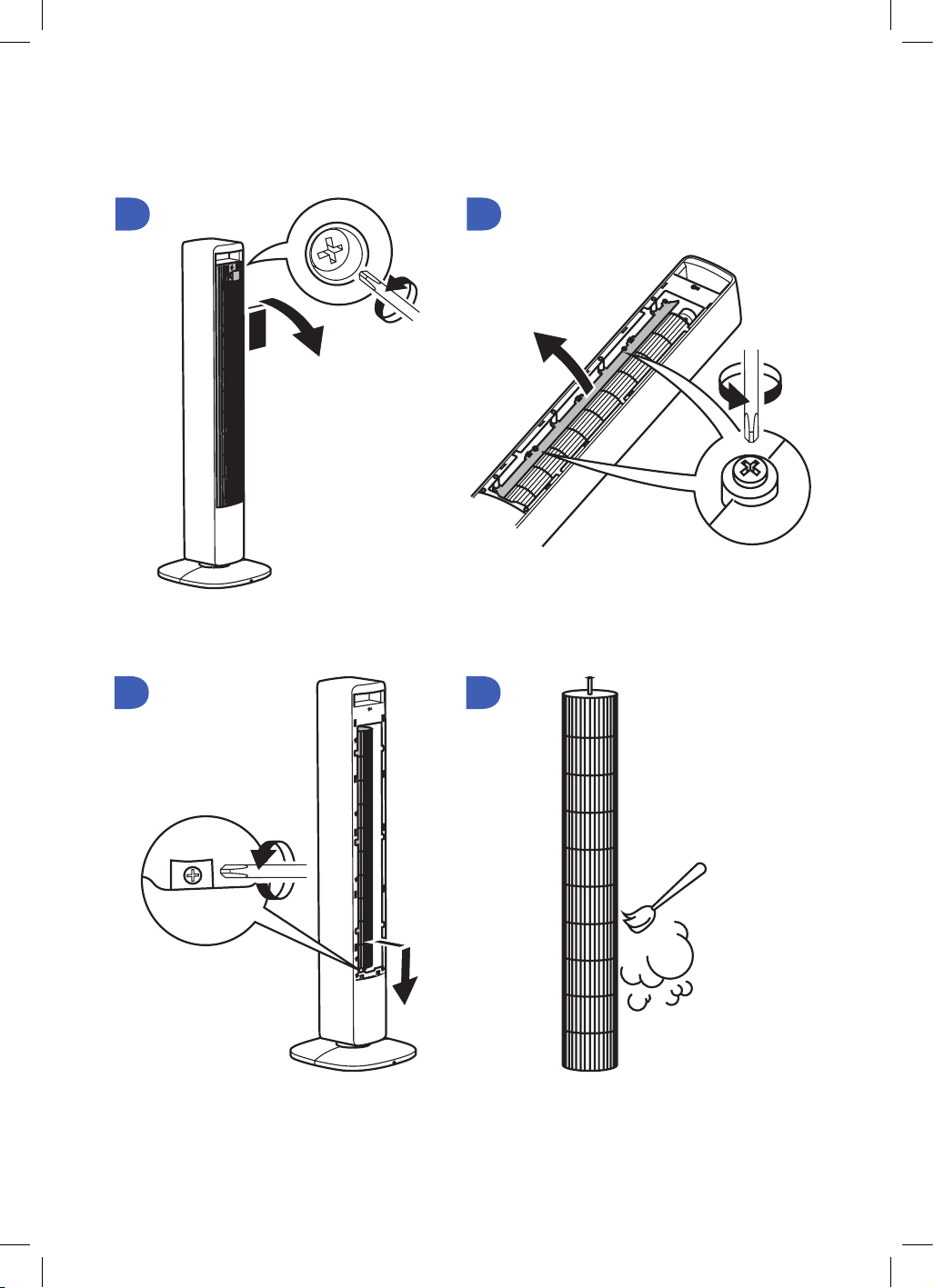

Cleaning the Fan Blade
• Remove the screw holding the vent, then pull up
and out the air inlet vent from the tower fan.
• Remove the air deector from the inside of the
tower fan.
• Brush o dust or debrit from the fan blade.• Remove the fan blade from the tower fan.
1 2
3 4
18
Care and Maintenance
Maintenance Routine
Planning to Not Operate the Tower Fan for a Long Period
Using the Tower Fan after a Long Idle Period
• Regularly check and remove any obstacles from the air inlet and outlet.
• Disconnect the power supply of the tower fan.
• Clean the fan tower.
• Store the tower fan in a dry indoor location.
• Clean the fan tower.
• Remove any obstacles from the air inlet and outlet.
• Connect the tower fan to power supply and start using.
19
v.20241209U
Troubleshooting
Before consulting repair or warranty, please check the following troubleshooting guide.
In the case of an persistent problem, contact a qualified technician for diagnosis and repair.
• When encountering presisting problem, stop operation and disconnect the tower fan from power supply.
• Do not attempt to repair or modify the fan by yourslef. Incorrect work may result in electric shock, or injury.
WARNING
Problem Possible Cause / Explanation / Solution
The tower fan is non operational
The power cord is not plugged to an electric outlet.
Fauly electric connection, mismatch outlet voltage, or damaged
electronic control board.
The fan is placed on uneven ground and internal protection
system activated. Place the fan on at and even ground.
Tower fan is shaky and making escessive
noise
The fan blade is too dirty. Clean the fan blade.
The base is not assembled securely.
The tower fan is not responding to control
panel commands
The control panel with child lock enabled.
The tower fan is not responding to remote
control commands
Remote control is too far away from the tower fan.
There is an obstruction between the remote control and tower
fan.
The battery power has run out in the remote control. Replace the
battery
20
Warranty
DELLA distributor (hereinafter “Company”) warrants this product against failure due to defect in materials or
workmanship under normal use and maintenance as follows: All warranty periods begin on the date of purchase. If a
part fails due to defect during the applicable warranty period, Company will provide a new or remanufactured part, at
Company’s option, to replace the failed defective part at no charge for the part. This limited warranty is subject to all
provisions, conditions, limitations and exclusions listed below.
• The standard warranty period is one (1) year for the entire unit and all parts, with no registration required.
• The extended warranty peroid for Window ACs, Portable ACs, and Tower Fans is an additional 6-months peroid.
• In order to qualify for the free extended warranty the unit must be:
1. Registered within one hundred (100) days of purchase.
2. Must be with the original owner.
3. In the same address of residence that you entered with your registration.
• Some parts may need to be returned to Della. The limited lifetime warranty covers only parts that need to be
replaced. For more information, please contact Della.
dellahome.com/pages/warranty
WARRANTY COVERAGE
STANDARD WARRANTY
EXTENDED WARRANTY
WARRANTY PARTS REPLACEMENT
Scan the QR code or visit our page on dellahome.com/pages/warranty to sign up for warranty coverage on your
new DELLA appliance.
21
v.20241209U
Warranty
LIMITATIONS OF WARRANTIES: ALL IMPLIED WARRANTIES AND/OR CONDITIONS (INCLUDING IMPLIED
WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE OR PURPOSE
ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY. SOME STATES DO NOT ALLOW LIMITATION
ON HOW LONG AN IMPLIED WARRANTY OR CONDITION LASTS, SO THE ABOVE MAY NOT APPLY TO YOU THE
EXPRESS WARRANTIES MADE IN THIS WARRANTY ARE EXCLUSIVE AND MAY NOT BE ALTERED ENLARGED,
OR CHANGED BY ANY DISTRIBUTOR, DEALER, OR OTHER PERSON, WHATSOEVER.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. In
jurisdictions where warranty benefits conditioned on registration are prohibited by law, registration is not required, and
the STANDARD warranty period shown above will apply.
1. Labor or other costs incurred for diagnosing, repairing, removing, installing, shipping, servicing or handling of
either defective parts, or replacement parts, or new units.
2. Product cleaning required prior to warranty service and repair.
3. Normal maintenance as outlined in the installation and servicing instructions or Owner’s Manual, including filter
cleaning and/or replacement and lubrication.
4. Failure due to faulty installation or repairs, damage, misapplication, abuse, improper servicing, lack of or in-
sufficient maintenance, unauthorized alteration or improper operation.
5. Failure to start due to voltage conditions, improper wiring, blown fuses, open circuit breakers, or damages due
to the inadequacy or interruption of electrical service.
6. Failure or damage due to floods, winds, fires, lightning, accidents, corrosive environments (rust or residue etc.) or
other conditions beyond the control of the Company.
7. Damages due to chemicals (volatile organic compounds, sulfur, acids, etc.) or particulates.
8. Failure or damage of coils, piping or other parts due to corrosion, when installed in corrosive environments or
within one (1) mile of seacoast.
9. Parts not supplied or designated by Company, or damages resulting from their use.
10. Products installed outside the 48 contiguous United States, except the District of Columbia and Hawaii, and
Canada.
11. Electricity or fuel costs or increases in electricity or fuel costs from any reason whatsoever, including additional
or unusual use of supplemental electric heat.
12. Any cost to replace, refill or dispose of refrigerant, including the cost of refrigerant.
13. Shipping damage or damage as a result of transporting the unit.
14. Accessories such as condensate pumps, line sets and so forth are not covered.
15. Any special, indirect or consequential property or commercial damage of any nature whatsoever. Some states
do not allow the exclusion of incidental or consequential damages, so the above limitation may not apply to you.
16. Consumable components, such as air filters, are not covered under parts warranty.
LIMITED WARRANTY STATEMENT
THIS LIMITED WARRANTY DOES NOT COVER:
22
FCC Caution
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. Any changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the seperation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio / TV technician for help.
Radio Frequency Interference
Model: TF01 / TF01S
Compliance Information
© Della All rights reserved.
The design and specications are subject to change without prior
notice for product improvement. Any updates to the manual will be
uploaded to the della website.
www.dellahome.com
support@dellahome.com
800–863–4143
6:00 a.m. – 4:00 p.m. PST Monday – Friday
