Electric Pressure Washer
Assembly, Care and Use Instructions
Read carefully. Retain these instructions and
attach receipt to manual for future reference.
ALWAYS WEAR EYE PROTECTION TO
PREVENT INJURY TO EYES WHEN
OPERATING THE POWER WASHER.
Table of Contents
1
Package Contents .............................................................................................................................. 2
Product Specifications ..................................................................................................................... 2
Safety Information ............................................................................................................................. 3
GFCI ...................................................................................................................................................... 4
Preparation ......................................................................................................................................... 5
Assembly Instructions....................................................................................................................... 5
Important Initial Startup ................................................................................................................. 10
Operating Instructions ................................................................................................................... 10
Care and Maintenance .................................................................................................................. 12
Troubleshooting ............................................................................................................................... 13
Two Year Limited Consumer Warranty ........................................................................................ 14
Replacement Parts .......................................................................................................................... 15

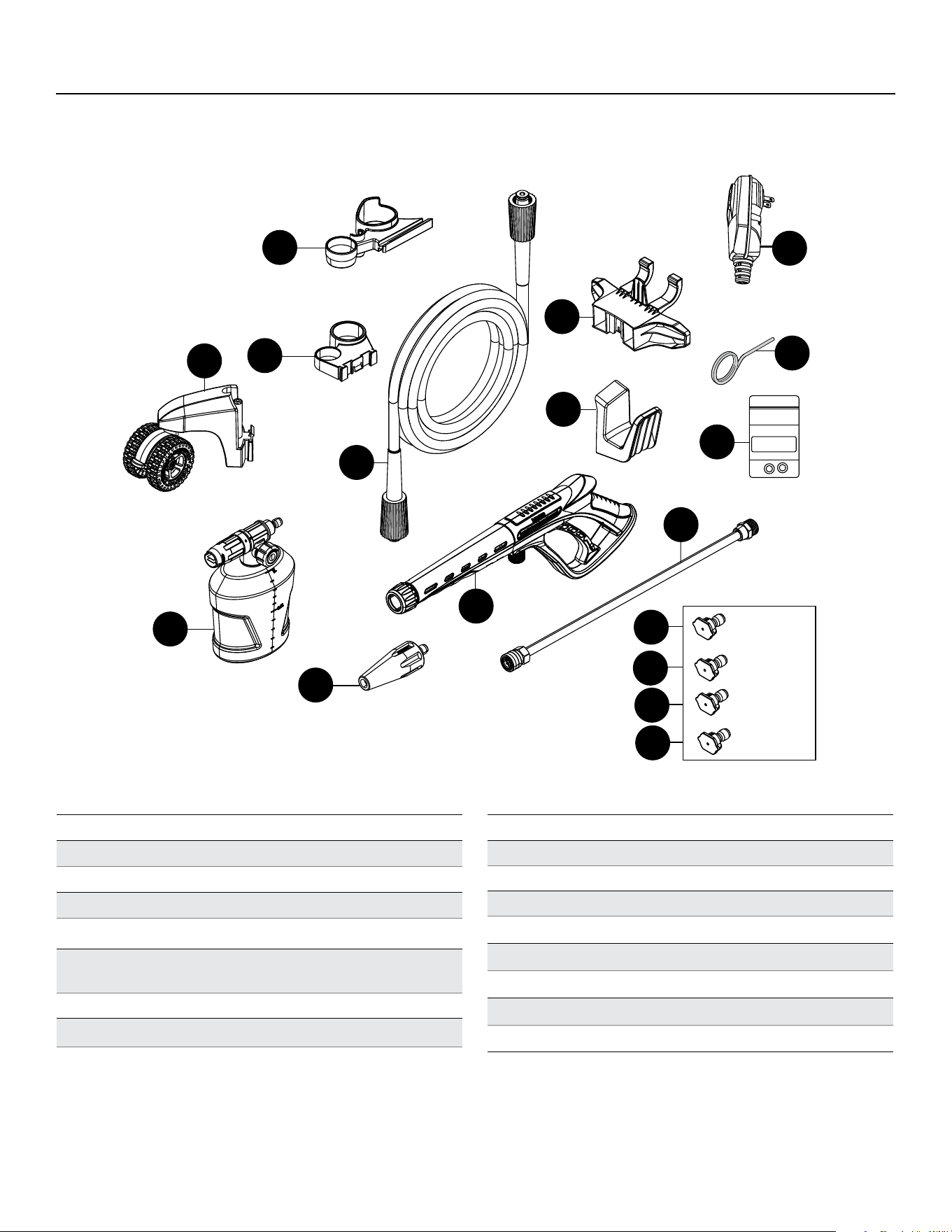

Package Contents
2

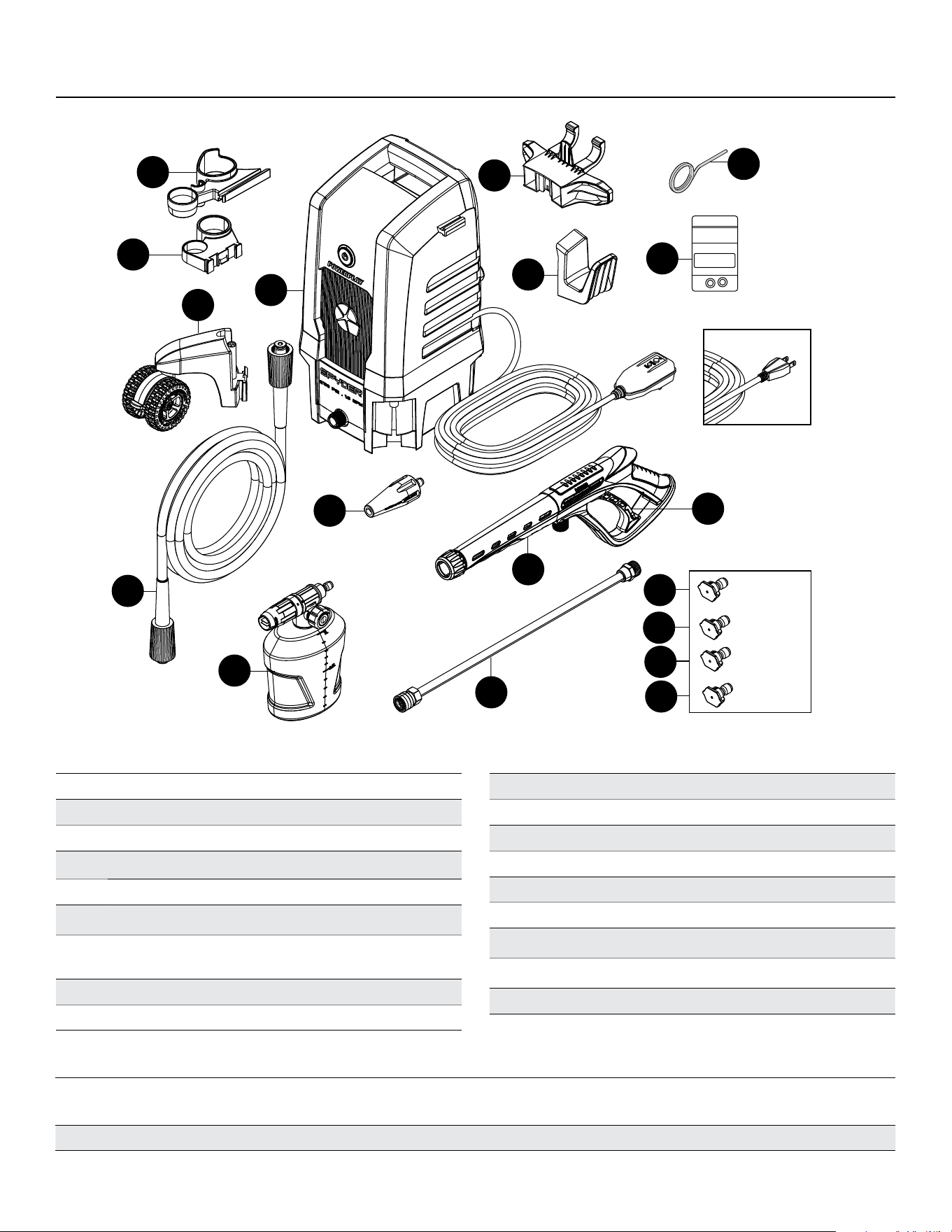

Part Description Quantity
A Upper Spray Gun Holder 1
B Lower Spray Gun Holder 1
C Casters 4
D Power Washer Unit 1
E Hose Holder Bracket 1
F O-Ring Replacement Kit 1
G 25’ Flexwash
®
Pro Hose
with M22 Fittings
1
H Spray Gun with M22 Fitting 1
I Spray Gun Safety Lock 1
Part Description Quantity
J Steel Lance with QC 1
K1 0° High Pressure Spray Tip - Red 1
K2 15° High Pressure Spray Tip - Yellow 1
K3 25° High Pressure Spray Tip - Green 1
K4 40° High Pressure Spray Tip - White 1
L Turbo Nozzle 1
M 1000 ML Foam Cannon with QC tip 1
N Foam Cannon Bracket 1
O Spray Tip Cleaner 1
O-Ring
0˚ – Red
15˚ – Yellow
25˚ – Green
40˚ – White
I
H
C
B
A
G
J
D
E
N
F
K1
O
K2
K3
K4
L
M
USA Model
Canadian Model
Product Specifications
PSI
(lbs/sq. in.)
GPM
(Gal/per min) Water Temperature Volts Amps Weight (lbs.)
2100 1.5 max Cold water only 120 13 25.9
Safety Information
IMPORTANT SAFETY INSTRUCTIONS
Please read and understand this entire manual before attempting
to assemble, operate, or install the product.
This manual contains information that relates to PROTECTING
PERSONAL SAFETY and PREVENTING EQUIPMENT PROBLEMS.
It is very important to read this manual carefully and understand it
thoroughly before using the product. The symbols listed below are
used to indicate this information.
DANGER
Potential hazard that will result in serious injury or
loss of life.
WARNING
Hazard that could result in serious injury or loss of life.
CAUTION
Potential hazard that may result in moderate injury or
damage to equipment.
Note: The word “Note” is used to inform the reader of something
the operator needs to know about the tool.
WARNING
To reduce the risk of injury, the user must read and
understand the instructions before using this product.
• WARNING – When using this product, basic, precautions should
always be followed, including the following:
• ALWAYS take time to read all the instructions before using the
product.
• Understand and know how to safely stop the product and bleed
pressures quickly. Be fully familiar with all controls.
• Keep operating area clear of all people, animals and hazardous
objects.
• DO NOT overreach or stand on unstable support. Keep good
footing and balance at all times.
• It is recommended to carefully read and understand all operating
aspects of the pressure washer outlined in this manual to avoid
personal injury and/or damage to property and maximize your
power washing experience.
• This power washer conforms to CSA and other safety and
consumer standards. DO NOT modify or rebuild any part of your
power washer.
• Watch your balance and footing while using your power washer.
Surfaces become slippery when wet and are extra slippery when
using a detergent or cleaner.
• NEVER operate the power washer in bare feet,
sandals, or open-toed shoes.
• NEVER let a child use the power washer.
• DO NOT touch the high pressure spray with your fingers, hands,
feet and be careful to avoid any contact with your eyes as the
powerful spray can cause blindness or blast holes in the skin.
• ALWAYS wear eye protection to prevent injury to eyes when
operating the power washer.
• To avoid accidents causing injury, ALWAYS use the trigger safety
lock when the power washer is not in use even if the spraying
stops for a moment.
• Point the spray gun in a safe direction when beginning to use
your pressure washer.
• NEVER spray directly at a person, animal, electrical device, or the
unit itself. The pressure washer can break glass if hit with direct
contact.
• When first using the spray gun, hold the spray gun
and lance with two hands when pulling the trigger
(one hand to pull the trigger and the other to stabilize the gun)
until you get used to the “recoil” from the spray gun.
• When you turn the power switch to the off position, water
pressure may remain in the system. To release the pressure, point
the spray gun in a safe direction and pull the trigger.
• NEVER spray flammable liquids.
• NEVER use the power washer in areas that contain combustible
dust, liquids or vapors.
• Examine the hose regularly. Replace if damaged. Due to the high
pressure involved, it cannot be repaired if cut or damaged.
• Only use detergent specifically formulated for power washers
and follow instructions on the detergent’s label.
• Detergent can be harmful to your skin, eyes and lungs. Please be
cautious when handling any chemicals. Dish and laundry soap is
too thick and will clog the nozzle of your detergent bottle.
WARNING- When using this product, basic precautions should
always be followed, including the following:
Read all the instructions before using the product.
• Read all the instructions before using the product.
• To reduce the risk of injury, close supervision is necessary when
product is used near children.
• Know how to stop the product and bleed pressures
quickly. Be thoroughly familiar with the controls.
• Stay alert- watch what you are doing.
• Do not overreach or stand on unstable support. Keep
good footing and balance at all times.
• Follow the maintenance instructions specified in the
manual.
• WARNING- Risk of injection or injury to persons- DO NOT
direct discharge stream at persons.
IMPORTANT: Store the power washer indoors in a heated
environment to prevent the water in the unit from freezing
and expanding. When the water freezes and expands, the
high-pressure pump will crack and render the pressure
washer inoperable. It is recommended you use pump saver
(not included) to protect pumps from freezing and cracking.
3
4
Safety Information
Cord Set Appliance Cord
Tie Cord as shown.
Connect plug
and receptacle.
• NEVER use hot water with your power washer. It will overheat
and damage the seals and components in the high-pressure
pump that cannot be repaired.
• NEVER leave the power washer “ON” while it is unattended.
• ALWAYS turn the water supply “ON ” before turning the power
washer power to “ON”. Running the pump dry of water will
cause damage to the internal components and render the
pressure washer inoperable.
• NEVER use a water supply to your power washer that exceeds
150 PSI maximum.
• NEVER disconnect the high pressure hose from the power
washer while the system is pressurized.
• NEVER permanently engage the trigger mechanisms on the spray
gun.
• NEVER operate the power washer unless all components are
properly and securely connected.
• NEVER allow the power washer pump to run for more than one
minute after you have turned off the water supply. This can
cause the motor and pump to overheat and fail.
• WARNING We do Not Recommend the use an Extension Cord.
If an Extension Cord is Required.
WARNING
Electrical shock may cause SEVERE INJURY or DEATH. Heed
these warnings.
• Do not allow any part of the electric pressure washer to
make contact with water while it is in operation. If the
appliance becomes wet while turned off, wipe off dry
before starting.
• Do not use an extension cord over 50 ft. The pressure
washer comes equipped with a 35 ft power cable.
Combined length must not exceed 85 ft. Any extension cord
must be 12-gauge (or heavier) to safely power the pressure
washer.
• Do not touch the appliance or its plug with wet hands or
while standing in water. Wearing rubber boots offers some
protection.
Extension Cord Chart
Cord Length 50 feet (15.2m)
Min. Wire Gauge (A. W. G.) 12

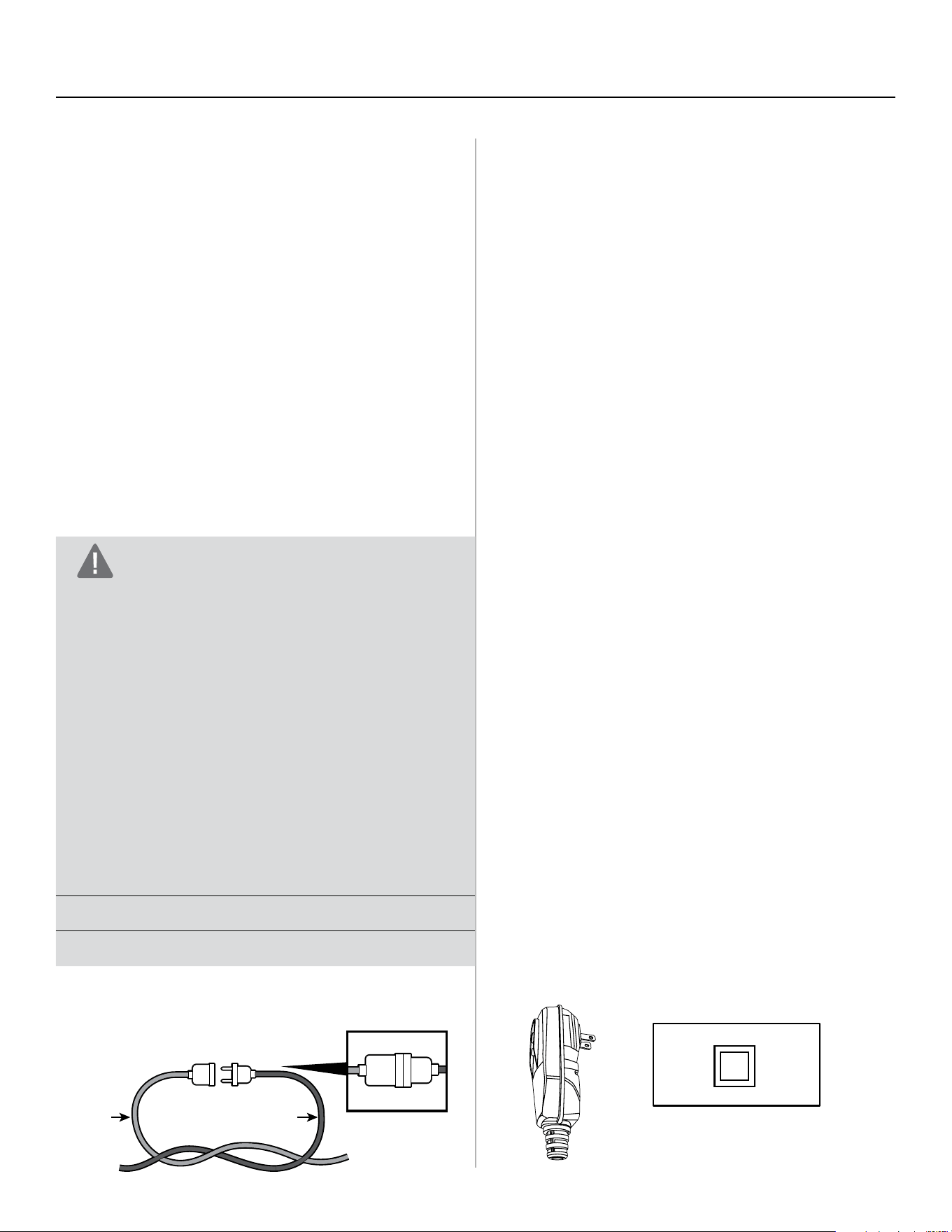

To prevent the appliance cord from disconnecting from the extension
cord during operation, make a knot with the two cords as shown.
Method of Securing Extension Cord
Do not abuse the cord. Never pull the pressure washer by the cord
or yank the cord to disconnect it from the receptacle. Keep the cord
away from heat, oil, and sharp edges.
• NEVER use lances or other parts that are not compatible for this
specific Powerplay unit.
• NEVER spray any electrical outlet with your power washer.
• Inspect the power cord before using. DO NOT use it if it is
damaged.
• Injection Hazard: Equipment can cause serious injury if the
spray penetrates the skin. DO NOT point the gun at anyone or
any part of the body. In case of penetration seek medical aid
immediately.
• This system is capable of producing 13,000 kPa. To avoid rupture
and injury DO NOT operate this pump with components rated
less than 13,000 kPa working pressure (including but not limited
to spray guns, hose, and hose connections).
• Before servicing, cleaning, or removal of any part, shut off power
and relieve pressure.
WARNING: To reduce the risk of electrocution, keep all
connections dry and off the ground. Do no touch plug with
wet hands.
SAVE THESE INSTRUCTIONS
Servicing of a Double-Insulated Appliance
Ground Fault Circuit Interrupter Protection:
The Spyder USA model pressure washer has a ground-fault circuit-
interrupter (GFCI) built into the plug of the power-supply cord. A
GFCI provides additional protection from the risk of electric shock.
If replacement of the plug or cord is necessary, use identical
replacement parts that include GFCI protection.
In a double-insulated product, two systems of insulation are
provided instead of grounding. Grounding means are not provided for
a double insulated product, nor should grounding means be added to
the product.
Servicing a double-insulated product requires extreme care and
knowledge of the system, and should only be done by qualified
service personnel.
A double-insulated product is marked with the words “Double
Insulation” or “Double Insulated”. Product may also be marked with
symbol shown below:
Double Insulated Product
5
Assembly Instructions

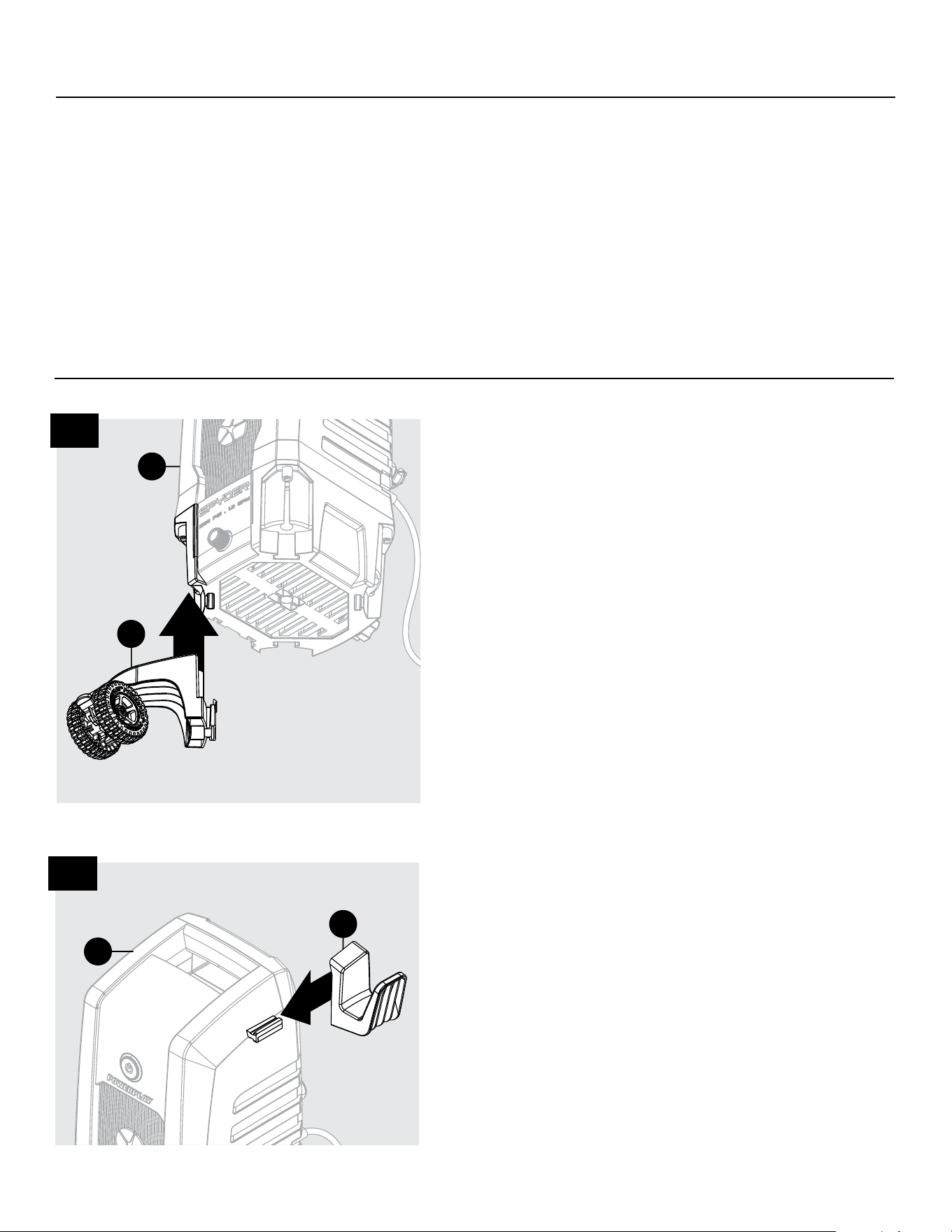

Slide hose holder (E) onto tab on the right side of power
washer unit (D).
E
D
2
Slide caster (C) tab into slot on bottom corner of power
washer unit (D). Repeat for the remaining casters.
1
D
C
Assembly Instructions
Estimated Assembly Time: 10 minutes
Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and
hardware contents list. If any part is missing or damaged,
DO NOT
attempt to assemble the product, contact customer service
at
855-770-7529 or [email protected]
6
Assembly Instructions

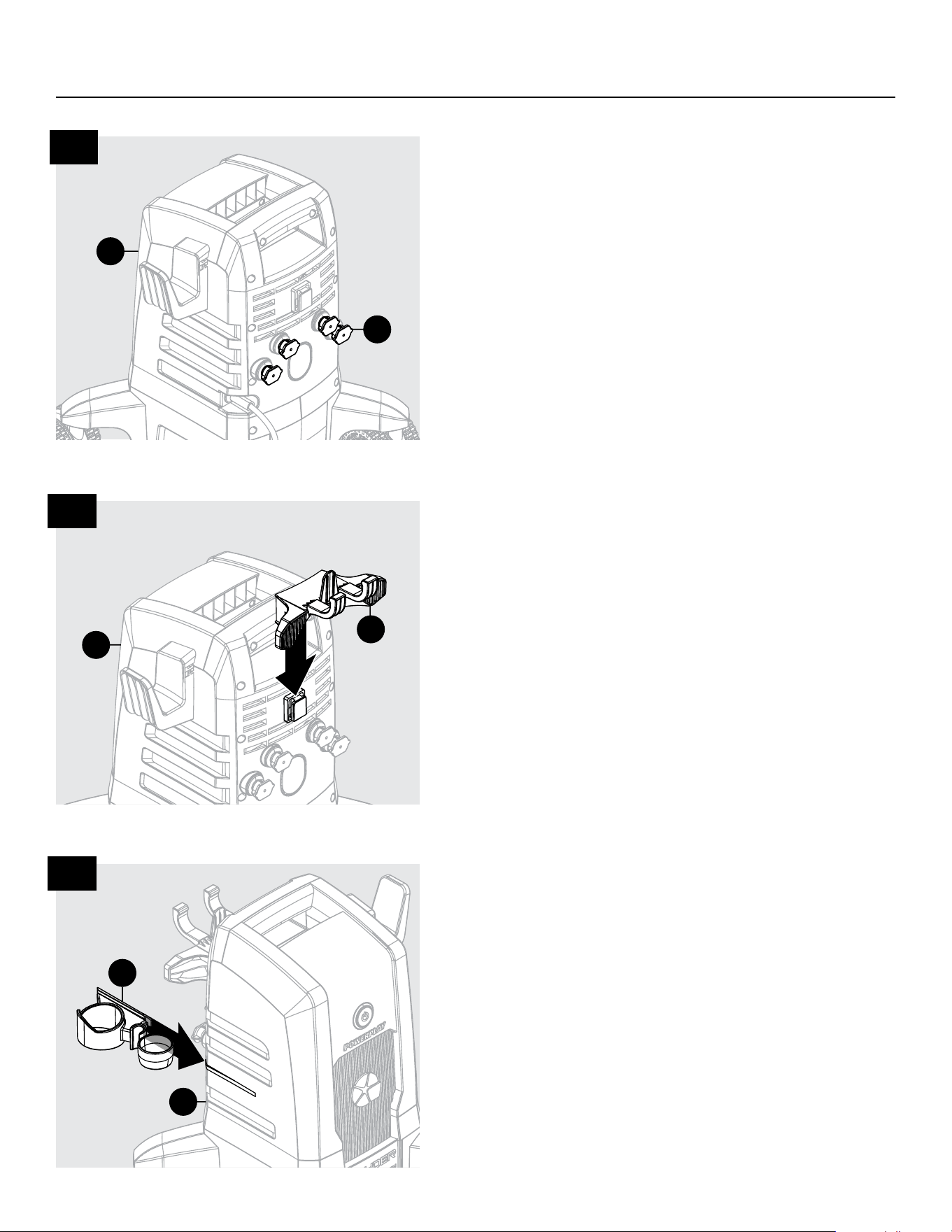

Slide foam cannon bracket (N) onto tab on back of power
washer unit (D).
Spray Tips (K) storage is on back of pressure washer.
N
D
4
D
3
K
Slide upper spray gun holder (A) tab into slot on left side of
power washer unit (D).
5
A
D
7
Assembly Instructions

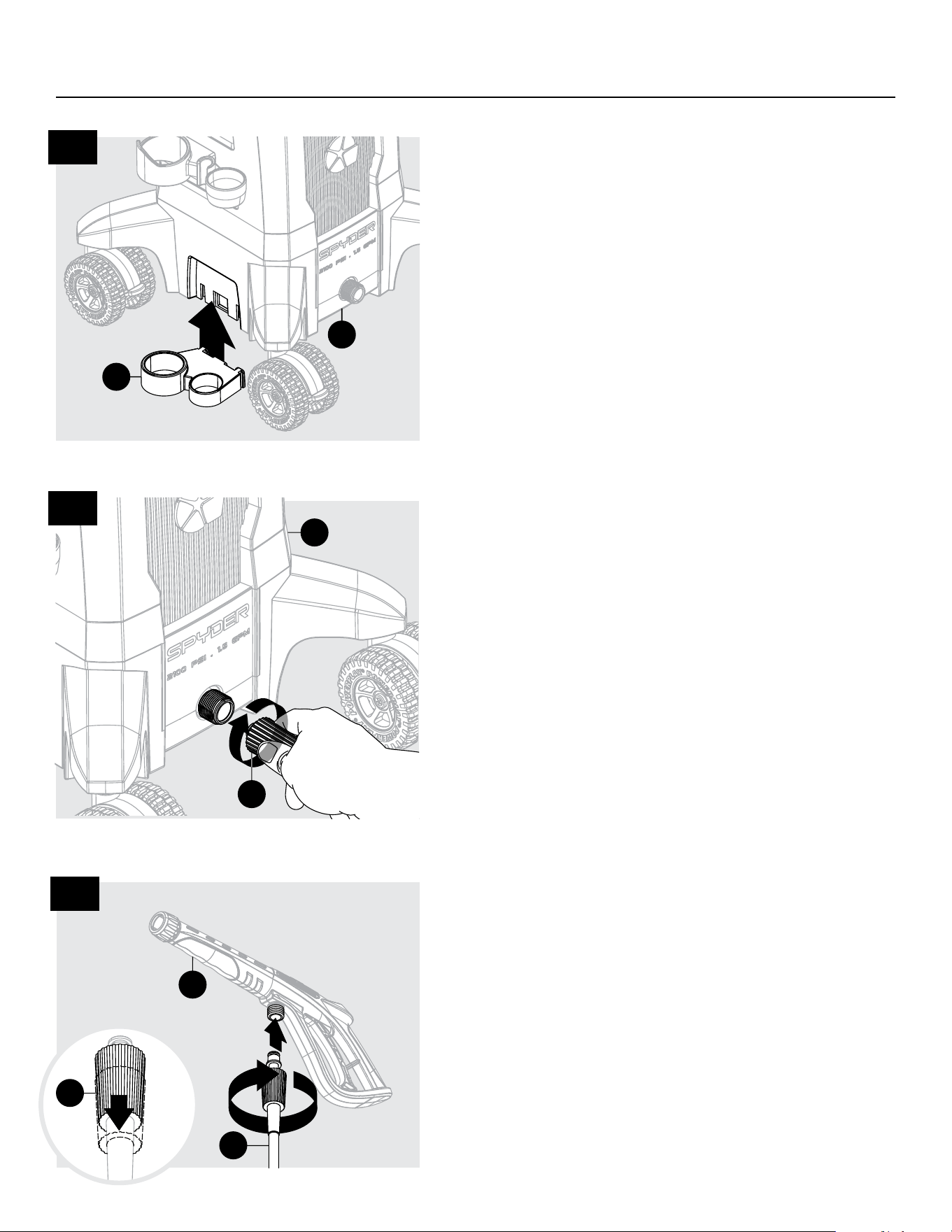

Hold back the collar at the other end of the hose (G). Push
firmly to connect hose fitting to spray gun (H). Twist collar
clockwise to secure. Confirm hose is locked into spray gun
by slightly pulling on them.
Hold back the collar at one end of the hose (G). Push firmly
to connect hose fitting to the water outlet tube on the front
of the power washer unit (D). Twist the collar clockwise
to secure. Confirm hose is locked into the water outlet by
slightly pulling on the hose.
Note: DO NOT use pliers or locking pliers to tighten.
From below, slide lower spray gun holder (B) tabs into
slots on bottom left side of power washer unit (D).
7
G
D
D
B
6
3
2
8
1
H
G
G
8
Assembly Instructions
To remove the hose, twist collar counter clockwise then
pull back to release the hose (G) connection from the spray
gun (H).

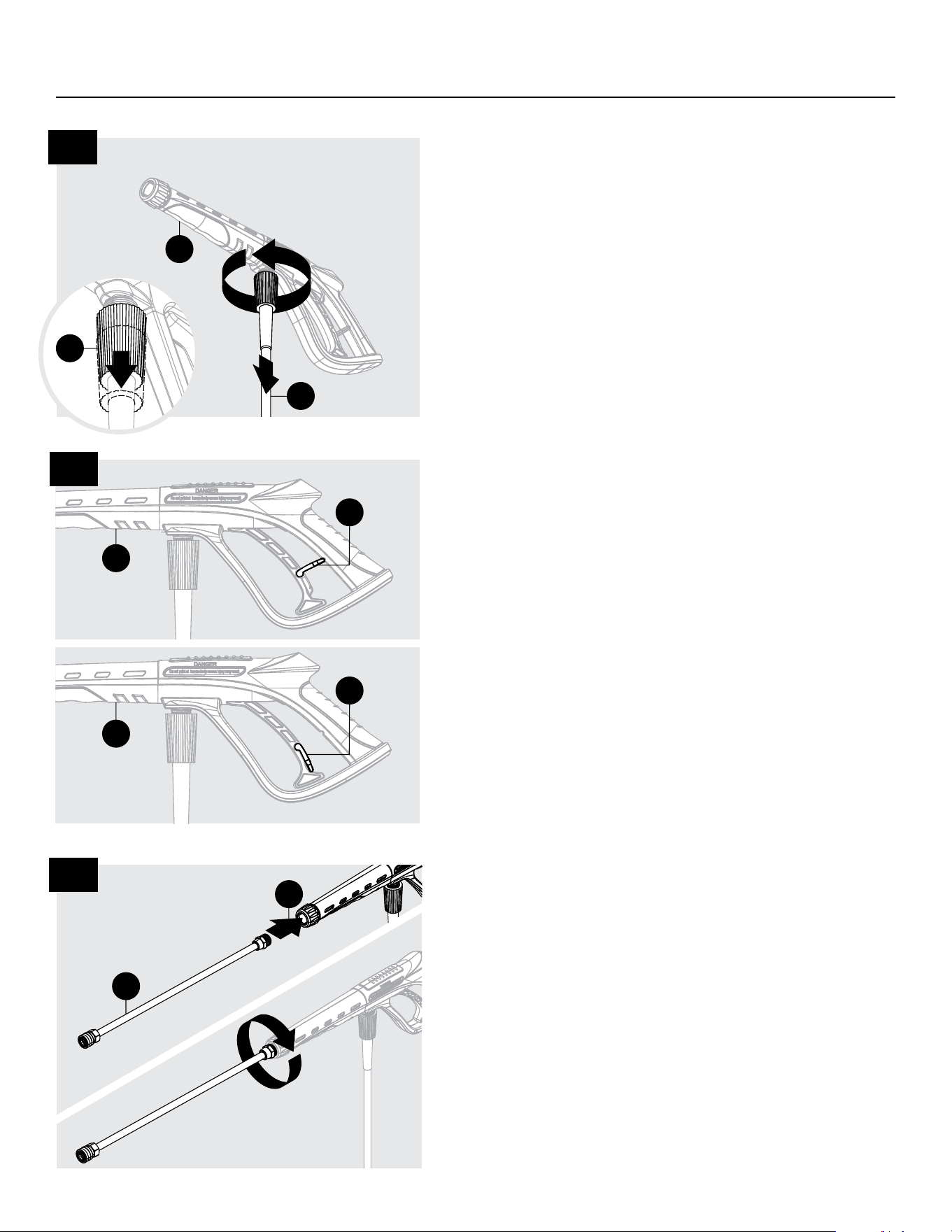

To lock the trigger of the spray gun (H), aim the gun
away from you and pull up on the safety lock (I). After
doing so, squeeze or pull the trigger to make sure it is
locked and will not move. ALWAYS keep spray gun (H)
locked when not in use.
Insert lance (J) into spray gun (H) and turn clockwise to
tighten (DO NOT overtighten).
Note: ALWAYS engage the safety lock (I) when changing
lances and spray tips to ensure they do not accidentally
eject with force during removal.
2
J
H
11
I
H
10
H
I
Lock
Unlock
2
1
3
9
2
H
G
G
9
Assembly Instructions
Attach a garden hose to the garden hose adapter on the
back of the power washer unit (D).
Note: Flush out garden hose before connecting to garden
hose adapter.
Assembly is now complete. Read and observe all safety
instructions before turning on the power washer.

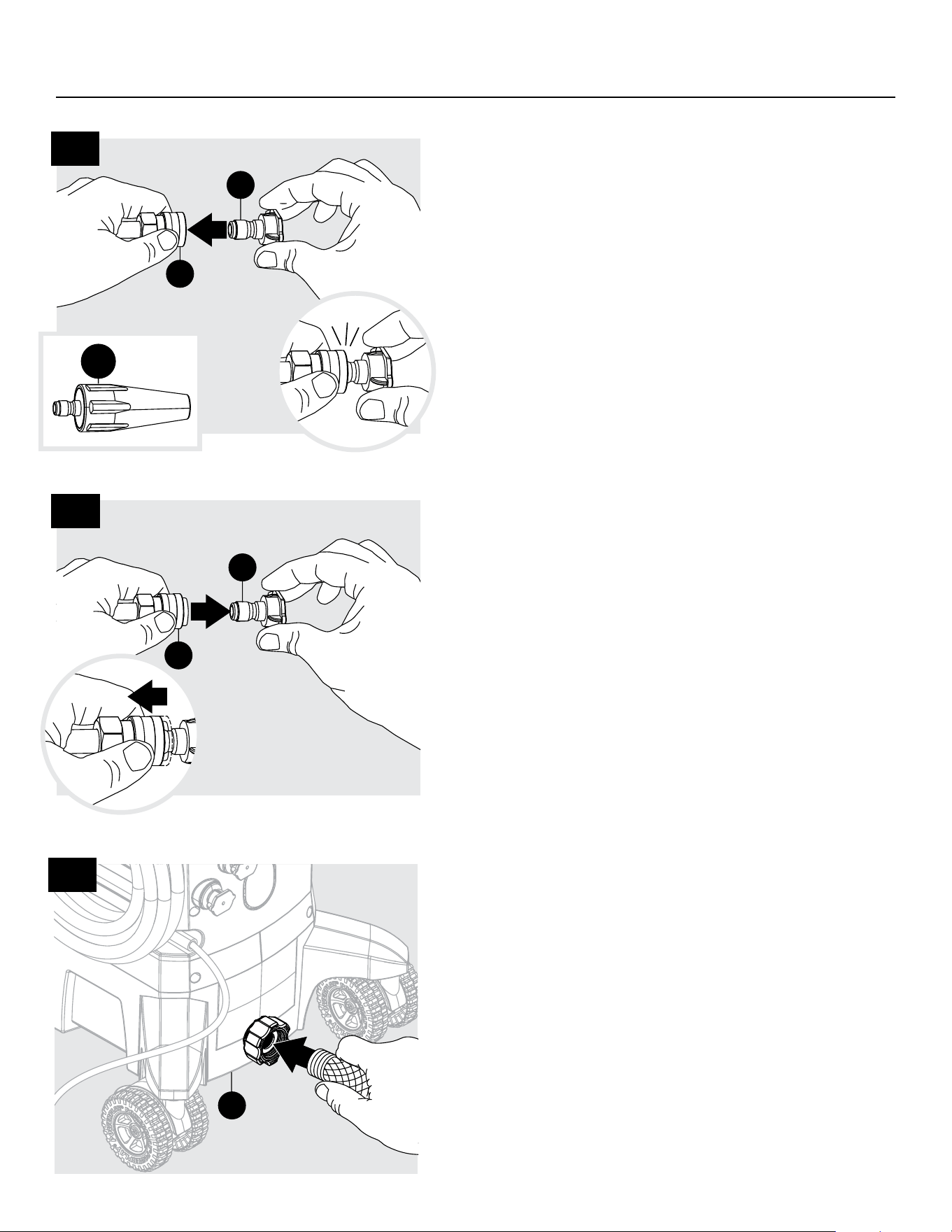

To remove spray tip (K), pull back on collar of lance (J)
and pull out spray tip.
Attach spray tips (K) or turbo nozzle (L) into end of lance (J)
by pressing selected tip into place. It will make a “click”
sound when firmly in place.
Note: ALWAYS engage the locking collar forward (I) when
changing lances and spray tips to ensure that they do not
accidentally eject with force during removal.
D
14
2
13
1
J
K
12
2
1
L
J
K
10
Important Initial Startup

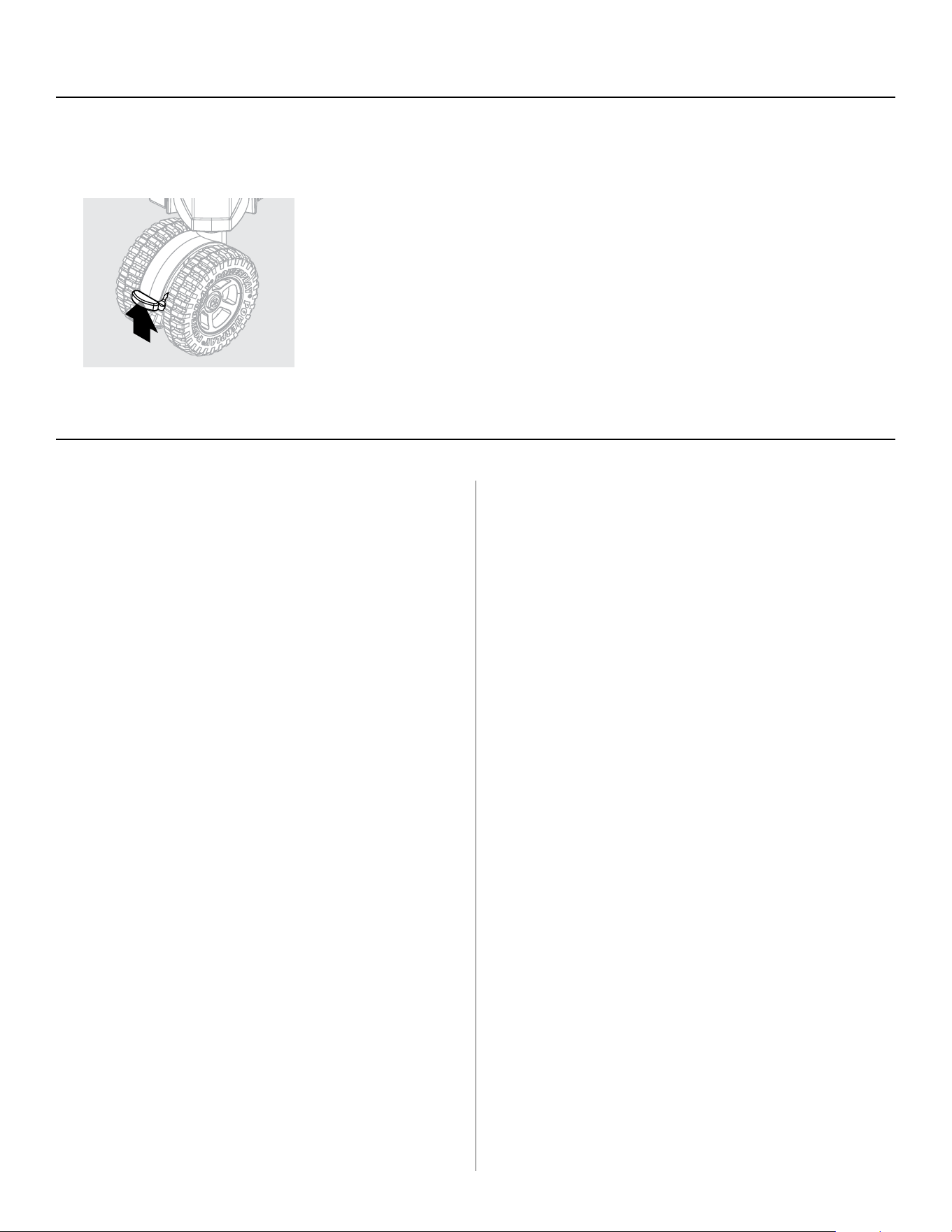

1. Ensure wheel brakes are OFF (lever in UP position)
to roll. Lever in DOWN position locks the wheels.
1. Release the spray gun safety lock (I) on the spray gun (H).
2. Remove spray tips or Adaptivewash™ nozzle from the
lance.
3. Point the spray gun in a safe direction and squeeze the
trigger until there is a steady stream of water, releasing
water and air out of the hose.
4. Then turn the machine to the “ON” position starting the
motor, press and hold the trigger on the spray gun for 30
Seconds to flush the system of any foreign material that
may block the spray tip or nozzle, causing the machine to
“pulse on and off the pressure switch.”
5. Once completed insert the spray tip or nozzle of your
choice.
Operating Instructions
1. Turn on water supply at the faucet.
2. The Push Start Button has 2 positions press once for
“ON” (IN), Press again for “OFF (OUT). Make sure the
Push Start Button is in the Off Position (Out).
3. Completely unwind the power cord and plug into a
grounded 120 volt outlet.
4. Release the spray gun safety lock (I) on the spray gun
(H). Point the spray gun in a safe direction and squeeze
the trigger until there is a steady stream of water,
releasing water and air out of the hose. Lock the spray
gun.
5. Turn the power switch to the “ON” (IN) position. The
unit will run on for 1 - 2 seconds and shut off. This is a
normal function of the auto-start feature.
6. Begin power washing by squeezing the trigger all the
way into the handle.
7. Release the trigger to stop the power washer.
8. Allow the motor to come to a complete stop before
squeezing the trigger again.
9. Squeezing the trigger rapidly will cause the auto-start
feature to miss an on/off cycle and may prevent the
washer from turning on. Use slow, deliberate trigger
pulls to avoid this.
10. ALWAYS test a small area to avoid damaging the
surface.
Operation Tips
• It is normal to hear the motor run intermittently when
the trigger is not being squeezed. The pump is priming
itself to operate when the trigger is squeezed.
• Turn off the power washer if not being used after five
minutes.
• The O-rings in the hose should be cleaned regularly
and lubricated with non-water soluble grease such as
petroleum jelly.
• Keep the spray tip cleaning wire nearby for unclogging
the tips.
How to Avoid Damaging Surfaces
• Damage to surfaces being cleaned occurs when
the impact force of the water pressure exceeds the
durability of the surface. Bare wood can be penetrated;
paint can be peeled off, etc. You can vary the force of
the power washer by adjusting:
1. The angle of the nozzle to the surface being
cleaned.
2. The distance from the nozzle to the surface being
cleaned.
• NEVER use a narrow, high-pressure stream of water on
soft surfaces.
• When cleaning windows, it is recommended to use
a minimum of 25° spray tip to protect the glass. A
0° spray tip is too concentrated of a spray and may
shatter the window. Position spray tip at a 45° angle,
approximately four to five feet away from the window.
Squeeze the trigger and vary the spray pattern and
angle until optimum cleaning efficiency is achieved.
Operating Instructions
11
Operating Instructions
Using Detergents
• When using detergent, fill foam cannon with a properly
formulated detergent-to-water ratio, following
instructions on the container.
• Use detergents designed for high pressure power
washers. Hardware stores or home centers may offer
detergents for different cleaning projects. The cleaning
solution should be the consistency of water in order to
prevent foam cannon from clogging.
• ALWAYS spray detergent on a dry surface.
• DO NOT pre-soak area. Wetting the surface first dilutes
the detergent and reduces its cleaning ability.
• DO NOT allow detergent to dry on surface. On vertical
surfaces, apply detergent to lower surfaces first and
work your way up to prevent streaks in the dirt and
grime. Rinse detergent by pressure washing from
bottom up for same reason.
• For tough stains, it may be necessary to reapply the
detergent and use a bristled brush to scrub the stain.
Subsequent power washing after brushing should
successfully remove dirt.

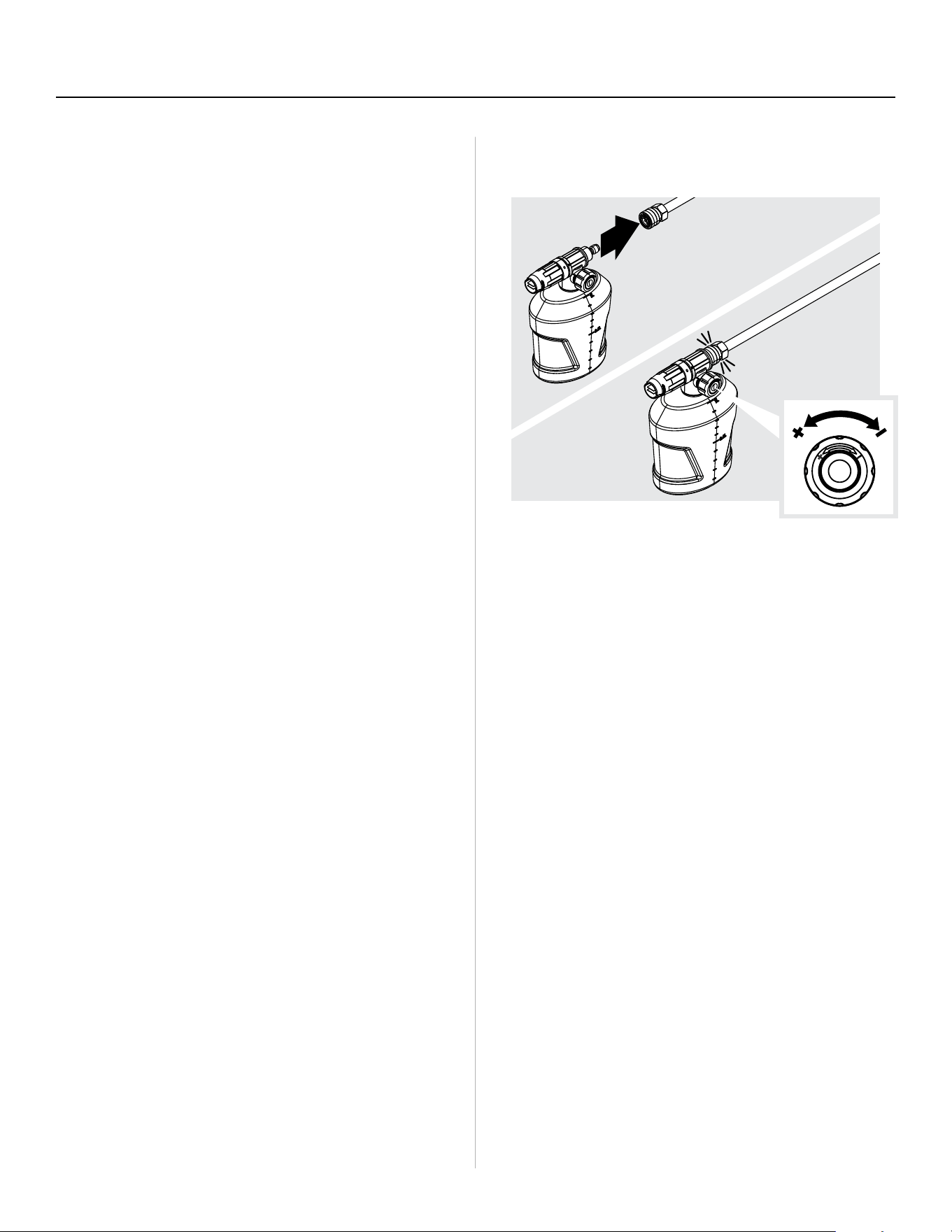

Using the Foam Cannon
1. Remove spray tip from lance and attach foam cannon.
2. Unscrew fluid tank from foam cannon valve assembly.
3. Fill fluid tank with water (for best results, use warm
water.)
4. Add 1-3 ounces of your favorite detergent to the fluid
tank.
5. Attach fluid tank to foam cannon valve and attach
assembly to the gun. Use the control knob to change the
flow of soap + (more) or - (less).
6. When finished, run clean plain water through the
pressurized foaming system to purge soap from the
internal components.
1
2
12
Care and Maintenance

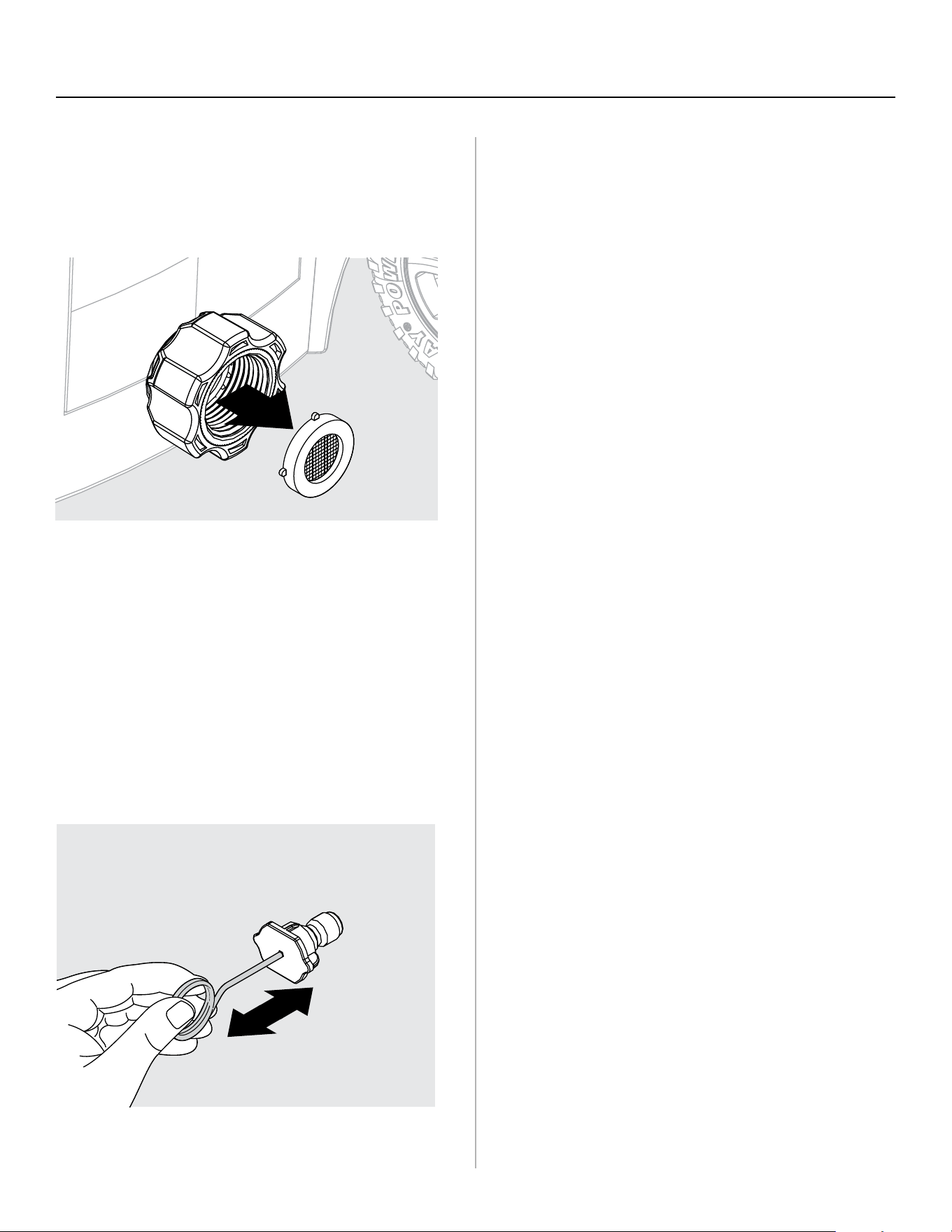

Cleaning Garden Hose Adapter
The screens inside the garden hose adapter should be
cleaned periodically.
1. Rinse with clean water.
2. Place back into the adapter.
Cleaning Spray Tips
A clogged spray tip can significantly reduce water
pressure and/or cause the unit to pulsate while spraying.
1. Turn off the unit and the water supply.
2. Relieve any pressure trapped in the hose by squeezing
the trigger 2-3 times, then lock the spray gun.
3. ALWAYS remove spray tips before cleaning.
4. Using the spray tip cleaner provided, insert the wire
into the spray tip hole and slide back and forth until
debris is dislodged.
5. Back flush water through the spray tip using a garden
hose and highest pressure available (hold thumb over
water nozzle to increase pressure).
Moving and Storage Instructions
1. When the pressure washing session is complete, turn
off the power switch.
2. Unplug the power cord from the outlet.
3. Turn off the water supply. Pull the trigger on the spray
gun 2-3 times to drain out excess water and to release
any remaining water pressure.
4. Disconnect the garden hose adapter from the water
inlet. DO NOT allow the power washer to run with no
water flowing through it.
5. It is recommended to run pump saver through the pump
and high pressure hose.
5a. Install the pump saver by attaching the bottle to
the garden hose adaptor and open the valve on the
bottle.
5b. Plug in the power-cord and turn the pressure
washer on/off switch to the “on” position and pull
the trigger for 5 seconds in order to activate the
pump and purge the pump saver through the pump
system and hose.
5c. Once you are done, turn the on/off switch to
the “off” position, pull the trigger to release the
internal pressure and then disconnect the hose
and accessories from the power washer.
6. Remove hose from spray gun.
7. Remove lance from spray gun. Place the gun in the
holder on the side of the unit. Place lance into the slot
next to the spray gun.
8. Hook the power cord around the power cord holder.
Winterizing
1. Disconnect all water connections.
2. Turn on the machine for a few seconds until there is no
water left in the machine. Turn off immediately.
3. Make sure that the hose does not become kinked.
4. Store machine and accessories in a room that will not
reach 32°F (0°C).
5. Do not store near a furnace or other sources of heat.
Operate the pressure washer with non-corrosive/non-
toxic anti-freeze, a pump saver, or a pump protector
before storing for the winter.
NOTE: Using a pump saver is recommended.
13
Care and Maintenance
Problem Corrective Action
Unit will not turn on. 1. Make sure the power washer is OFF. Plug the electrical cord into a grounded 120 volt
outlet. If the electrical cord will not plug into your outlet, your electrical outlet is not
properly grounded and should not be used. Use another electrical outlet.
2. Pull trigger on gun to ensure water flow.
3. If it is still not working, call Customer Service.
Note: When power switch is turned on, the power washer will turn on by itself for 1-2
seconds and shut off.
The unit is running but
there is no water flow.
1. Check the water source. Unclog the spray tip on the lance. (See spray tip cleaning
instructions under “Cleaning Spray Tip”.) Or, remove the lance and spray directly out of
the spray gun. This will indicate if the problem is with the lance.
Water is leaking where
the hose connects to the
spray gun.
1. Make sure there is an o-ring at the end of the metal tip of the hose. If no o-ring is
present, the connection between the hose and spray gun will leak. O-Ring replacements
are included in the package contents.
The power washer
turns on for 2 seconds,
shuts off, and will not
turn back on. Is the unit
defective?
1. When the water is connected, the accessories are assembled properly, and the power
switch is turned on, the power washer may turn on for 1 - 2 seconds to prime the pump. It
automatically shuts off and waits for the spray gun trigger to be pressed. When the trigger
is pressed, water starts flowing through the pump. The water sensor in the pump detects
the moving water and automatically turns the power washer on.
2. Turn the power switch to ‘Off’, press the trigger on the spray gun so that you have a
steady stream of water. Continue pressing the trigger, open the spray gun and at the same
time, turn the power switch ‘On’.
Unit pulsating when in
use
Motor starting and
stopping
1. Spray tip partially blocked with foreign matter (dirt, water scale).
2. Remove spray tip and clean with supplied tip cleaner. Ensure foreign matter is removed
from the barrel of the spray tip by lightly knocking the connector end of the spray tip on a
solid surface.
Fluctuating pressure
Machine not reaching
high pressure
1. Check the hoses and connections are airtight. Remove spray nozzle and run clear water
through the system to try and clear any debris.
2. Make sure water source is fully open. Use 3/4 in. garden hose. Check garden hose for
kinks, leaks, and blockages, or replace hose.
Can’t remove lance
from spray gun:
1. Lances are attached and removed from the spray gun in the same manner. Insert the
quick-release bayonet end of the lance/foam cannon into the spray gun. Press the lance
and spray gun together (about a 1/8”) and turn clockwise. The lance will lock in place.
Remove the lance by reversing this procedure.
2. Or, hold the lance in an upright position with the nozzle end on the floor. Push the whole
assembly straight down to loosen the connection, and then follow the removal process
again. You may also spray soapy water or a lubricant in the area where the lance
connects to the spray gun.
Machine will not roll 1. Ensure brake levers on wheels are in the “UP” (OFF) position.
14
Warranty
The two-year limited consumer warranty of this product is covered by Powerplay Corporation.
This product has a 2 (two) year limited consumer warranty. Please read the following carefully to understand what the
warranty entails:
This product is under warranty to the original retail consumer against defects in material and workmanship for a period of
2 (two) years. This limited two-year warranty applies only to products used in consumer applications and is void in
rental or any commercial application. Reasonable care must be used in conformity with safety, assembly, operation and
maintenance instructions in the owner’s manual. Failure to follow these instructions will void this warranty. The warranty
is not transferable or assignable.
This warranty does not cover commercial use, improper maintenance, normal wear, unauthorized alterations, misuse,
accidents, product failure due to external causes and neglect.
This warranty covers replacement parts due to defects in parts, materials, and workmanship found to be defective
through normal use. This warranty gives you special legal rights and you may also have other rights which vary from state
to state.
Warranty Process
Keep your original receipt of purchase in case of warranty claim. If your power washer develops a problem, contact
Customer Service:
• Contact Customer Service buy calling our toll-free number at 1-855-770-7529 extension 252 or email us at, custserv@
powerplaypro.com. Customer Service is available Monday - Friday 8:00 a.m. to 4:00 p.m. Eastern Standard Time (EST). A
customer service representative and/or technician will work with you to fix the problem.
If the power washer needs to be returned for repair, shipping costs to the company must be paid by the customer.
A Return Merchandise Authorization (RMA) Number will be issued for the return. Upon receiving the power washer, the
company will repair or replace the unit. We will send the unit back to customer at no charge.
Please note: Power washers sent to the company without an RMA Number will NOT be accepted and shipped back at
the expense of the sender.
Return address:
Powerplay Corporation
1850 Boulevard Hymus
Dorval, Quebec H9P1J7
Canada
15
Replacement Parts
For replacement parts, call our customer service department at 1-855-770-7529. 8:00 a.m. - 4:00 p.m., EST, Monday - Friday
or order online at www.powerplaypro.com.
O-Ring
H
C
B
A
G
J
E
N
F
K1
O
K2
K3
K4
L
M
USA Model
P
0˚ – Red
15˚ – Yellow
25˚ – Green
40˚ – White
Part Description Part #
A Upper Spray Gun Holder PWXA156
B Lower Spray Gun Holder PWXA157
C Casters PWXA145
E Hose Holder Bracket PWXA158
F O-Ring Replacement Kit PWXA096
G 25’ Flexwash
®
Pro Hose with M22
Fittings
PWXA155-B
H Spray Gun with M22 Fitting PWXA008-B
J Steel Lance with QC PWXA012
Part Description Part #
K1 0° High Pressure Spray Tip - Red PWXA015
K2 15° High Pressure Spray Tip - Yellow PWXA016
K3 25° High Pressure Spray Tip - Green PWXA020
K4 40° High Pressure Spray Tip - White PWXA146
L Turbo Nozzle PWXA032
M 1000 ML Foam Cannon with QC PWXA144
N Foam Cannon Bracket PWXA159
O Spray Tip Cleaner PWXA123
P GFCI Assembly (USA Model) PWXA092
