SPYDER
Electric Pressure Washer
Assembly, Care and Use Instructions
SPY1500VC
Read carefully. Retain these instructions and
attach receipt to manual for future reference.
IMPORTANT: NEVER use an extension cord with this
unit. It may cause damage to the motor and VOID the
warranty.
Questions, problems, missing parts?
Before returning to your retailer, contact our customer service department at 1-855-770-7529 or
[email protected], 8:00 a.m. - 4:00 p.m., EST, Monday - Friday. www.powerplaypro.com
SPY-21 REVISION 1-0621
ALWAYS WEAR EYE PROTECTION TO
PREVENT INJURY TO EYES WHEN
OPERATING THE POWER WASHER.
POWER WASHERS FOR TODAY’S DIRT WARRIORS.
1
Table of Contents
Package Contents .............................................................................................................................. 2
Product Specifications ..................................................................................................................... 2
Safety Information ............................................................................................................................. 3
Preparation ......................................................................................................................................... 5
Assembly Instructions....................................................................................................................... 5
Important Initial Startup ................................................................................................................... 9
Operating Instructions ...................................................................................................................... 9
Care and Maintenance .................................................................................................................. 11
Troubleshooting ............................................................................................................................... 12
One Year Limited Consumer Warranty ........................................................................................ 13
Replacement Parts .......................................................................................................................... 14
2
Product Specifications
Model
PSI
(lbs/sq. in.)
GPM
(Gal/per min) Water Temperature Volts Amps Weight (lbs.)
SPY1500VC 1500 1.3 Cold water 120 10 12.56
O-Ring
K
H
C
B
A
G
J
D
E
F
L
I
M

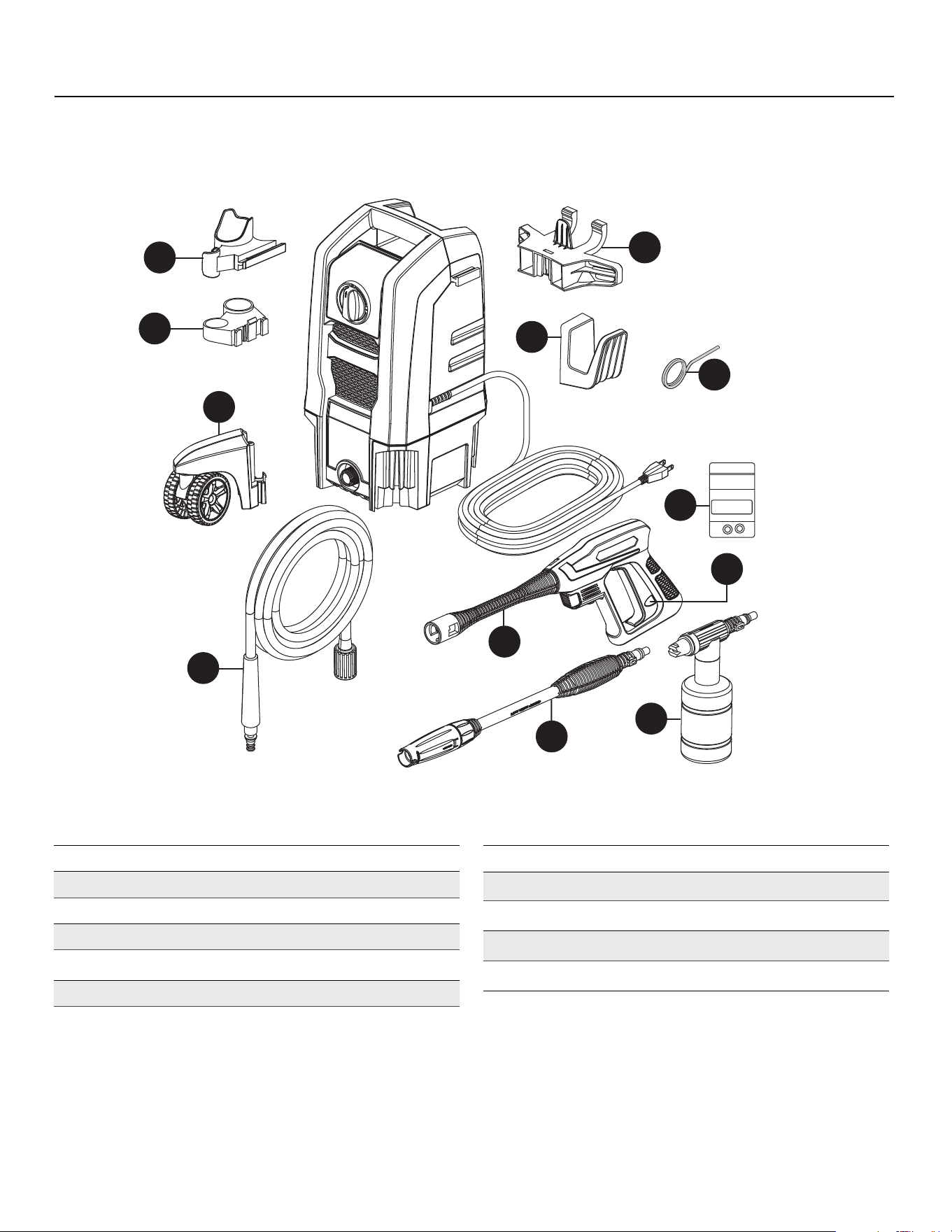

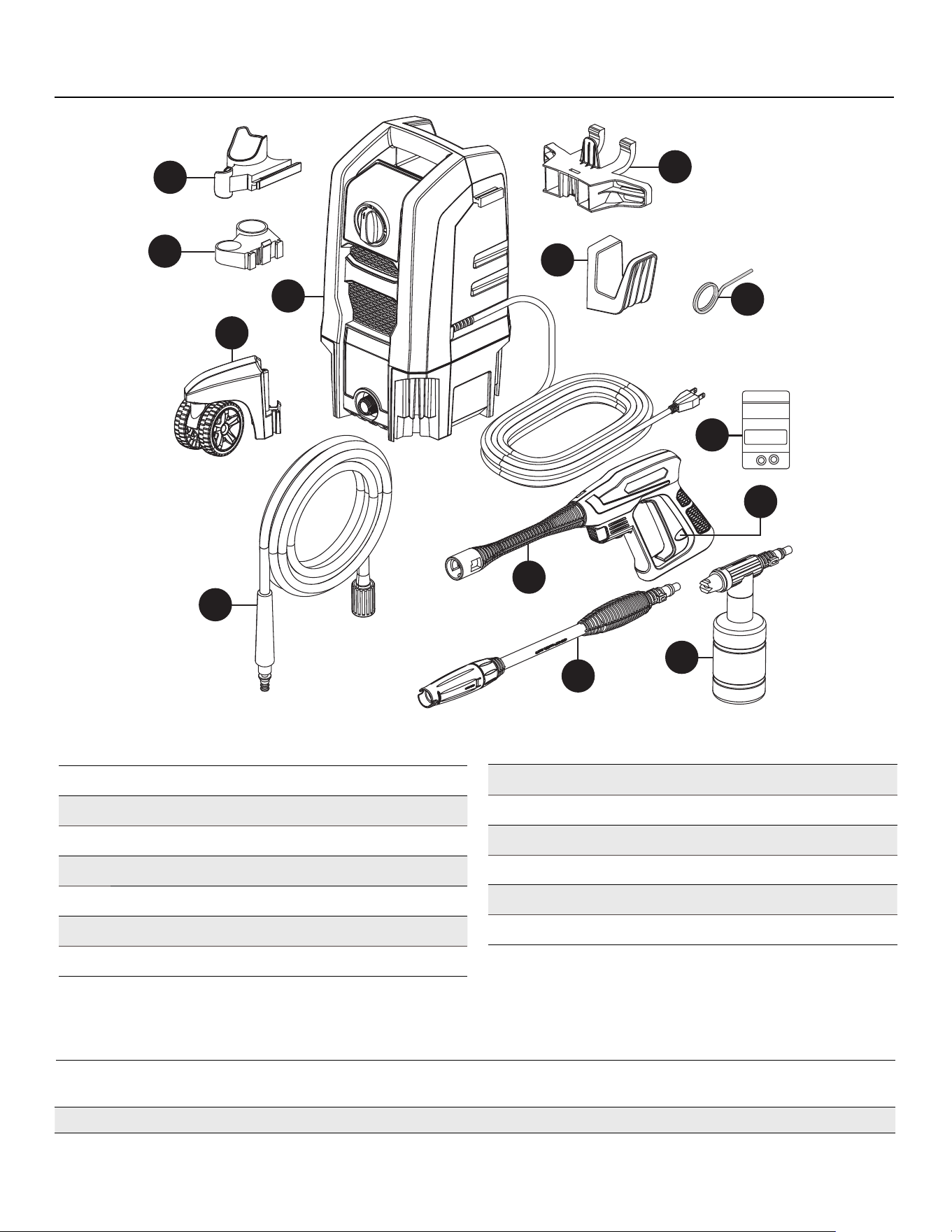

Package Contents
Part Description Quantity
A Upper Spray Gun Holder 1
B Lower Spray Gun Holder 1
C Casters 4
D Power Washer Unit 1
E Hose Holder Bracket 1
F O-Ring Replacement Kit 1
G Flexwash
®
Hose 1
Part Description Quantity
H Spray Gun 1
I Spray Gun Safety Lock 1
J Adaptivewash™ Spray Wand 1
K Detergent Bottle Bracket 1
L Detergent Bottle 1
M Spray Tip Cleaner 1
3
Safety Information
IMPORTANT SAFETY INSTRUCTIONS
Please read and understand this entire manual before
attempting to assemble, operate, or install the product.
This manual contains information that relates to
PROTECTING PERSONAL SAFETY and PREVENTING
EQUIPMENT PROBLEMS. It is very important to read this
manual carefully and understand it thoroughly before using
the product. The symbols listed below are used to indicate
this information.
DANGER
Potential hazard that will result in serious injury or
loss of life.
WARNING
Hazard that could result in serious injury or loss of life.
CAUTION
Potential hazard that may result in moderate injury or
damage to equipment.
Note: The word “Note” is used to inform the reader of
something the operator needs to know about the tool.
WARNING
To reduce the risk of injury, the user must read and
understand the instructions before using this product.
•
WARNING – When using this product, basic,
precautions should always be followed, including the
following:
•
ALWAYS take time to read all the instructions before
using the product.
•
Understand and know how to safely stop the product
and bleed pressures quickly. Be fully familiar with all
controls.
•
Keep operating area clear of all people, animals and
hazardous objects.
•
DO NOT overreach or stand on unstable support. Keep
good footing and balance at all times.
•
It is recommended to carefully read and understand all
operating aspects of the pressure washer outlined in this
manual to avoid personal injury and/or damage to property
and maximize your power washing experience.
•
This power washer conforms to CSA and other safety
and consumer standards. DO NOT modify or rebuild
any part of your power washer.
•
Watch your balance and footing while using your
power washer. Surfaces become slippery when wet
and are extra slippery when using a detergent or
cleaner.
•
NEVER operate the power washer in bare feet,
sandals, or open-toed shoes.
• NEVER let a child use the power washer.
•
DO NOT touch the high pressure spray with your
fingers, hands, feet and be careful to avoid any
contact with your eyes as the powerful spray can
cause blindness or blast holes in the skin.
•
ALWAYS wear eye protection to prevent injury to eyes
when operating the power washer.
•
To avoid accidents causing injury, ALWAYS use the
trigger safety lock when the power washer is not in
use even if the spraying stops for a moment.
•
Point the spray gun in a safe direction when beginning
to use your pressure washer.
•
NEVER spray directly at a person, animal, electrical
device, or the unit itself. The pressure washer can
break glass if hit with direct contact.
•
When first using the spray gun, hold the spray gun
and Adaptivewash™ Spray Wand with two hands
when pulling the trigger
(one hand to pull the trigger and the other to stabilize
the gun) until you get used to the “recoil” from the
spray gun.
•
When you turn the power switch to the off position,
water pressure may remain in the system. To release
the pressure, point the spray gun in a safe direction
and pull the trigger.
•
NEVER spray flammable liquids.
•
NEVER use the power washer in areas that contain
combustible dust, liquids or vapors.
•
Examine the hose regularly. Replace if damaged. Due
to the high pressure involved, it cannot be repaired if
cut or damaged.
•
Only use detergent specifically formulated for power
washers and follow instructions on the detergent’s
label.
•
Detergent can be harmful to your skin, eyes and lungs.
Please be cautious when handling any chemicals.
Dish and laundry soap is too thick and will clog the
nozzle of your detergent bottle.
4
Safety Information
IMPORTANT SAFETY INSTRUCTIONS
WARNING- When using this product, basic precautions
should always be followed, including the following:
Read all the instructions before using the product.
• Read all the instructions before using the product.
• To reduce the risk of injury, close supervision is
necessary when product is used near children.
• Know how to stop the product and bleed pressures
quickly. Be thoroughly familiar with the controls.
• Stay alert- watch what you are doing.
• Do not overreach or stand on unstable support. Keep
good footing and balance at all times.
• Follow the maintenance instructions specified in the
manual.
• WARNING- Risk of injection or injury to persons-
DO NOT direct discharge stream at persons.
IMPORTANT: Store the power washer indoors in a
heated environment to prevent the water in the unit
from freezing and expanding. When the water freezes
and expands, the high-pressure pump will crack
and render the pressure washer inoperable. It is
recommended you use pump saver (not included) to
protect pumps from freezing and cracking.
•
NEVER use hot water with your power washer. It will
overheat and damage the seals and components in the
high-pressure pump that cannot be repaired.
•
NEVER leave the power washer “ON” while it is
unattended.
•
ALWAYS turn the water supply “ON ” before turning
the power washer power to “ON”. Running the
pump dry of water will cause damage to the internal
components and render the pressure washer
inoperable.
•
NEVER use a water supply to your power washer that
exceeds 150 PSI maximum.
•
NEVER disconnect the high pressure hose from the
power washer while the system is pressurized.
•
NEVER permanently engage the trigger mechanisms
on the spray gun.
•
NEVER operate the power washer unless all
components are properly and securely connected.
•
NEVER allow the power washer pump to run for
more than one minute after you have turned off the
water supply. This can cause the motor and pump to
overheat and fail.
•
NEVER use an extension power cord since it causes
voltage drop and can burn the motor. It also increases
risk of electric shock to the operator.
•
NEVER use lances or other parts that are not
compatible for this specific Powerplay unit.
•
NEVER spray any electrical outlet with your power
washer.
•
Inspect the power cord before using. DO NOT use it if
it is damaged.
•
Injection Hazard: Equipment can cause serious
injury if the spray penetrates the skin. DO NOT point
the gun at anyone or any part of the body. In case of
penetration seek medical aid immediately.
•
This system is capable of producing 13,000 kPa. To
avoid rupture and injury DO NOT operate this pump
with components rated less than 13,000 kPa working
pressure (including but not limited to spray guns, hose,
and hose connections).
•
Before servicing, cleaning, or removal of any part, shut
off power and relieve pressure.
WARNING: To reduce the risk of electrocution, keep
all connections dry and off the ground. Do no touch
plug with wet hands.
SERVICING OF A DOUBLE INSULATED APPLIANCE
In a double-insulated product, two systems of insulation
are provided instead of grounding. No grounding means is
provided on a double-insulated product, nor should a means
for grounding be added to the product. Servicing a double-
insulated product requires extreme care and knowledge of
the system, and should be done only by qualified service
personnel. Replacement parts for a double-insulated
product must be identical to the parts they replace.
A double-insulated product is marked with the words
“DOUBLE INSULATION” or “DOUBLE INSULATED.” The
symbol may also be marked on the product.
SAVE THESE INSTRUCTIONS
5

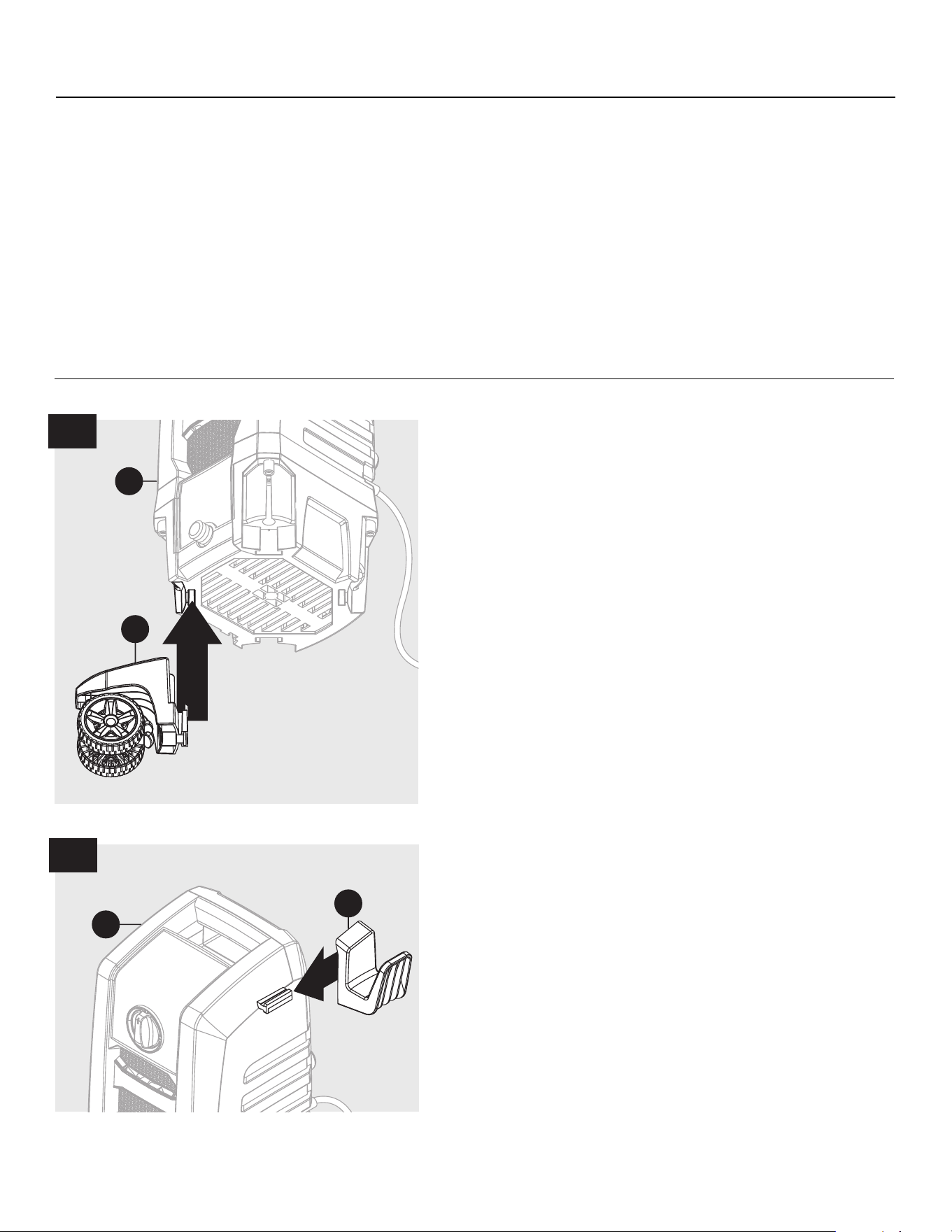

Preparation
Slide caster (C) tab into slot on bottom corner of power
washer unit (D). Repeat for the remaining casters.
Slide hose holder (E) onto tab on the right side of power
washer unit (D).
1
D
C
E
D
2
Estimated Assembly Time: 10 minutes
Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and
hardware contents list. If any part is missing or damaged,
DO NOT
attempt to assemble the product, contact customer service
at
855-770-7529 or [email protected]
Assembly Instructions
Assembly Instructions
6

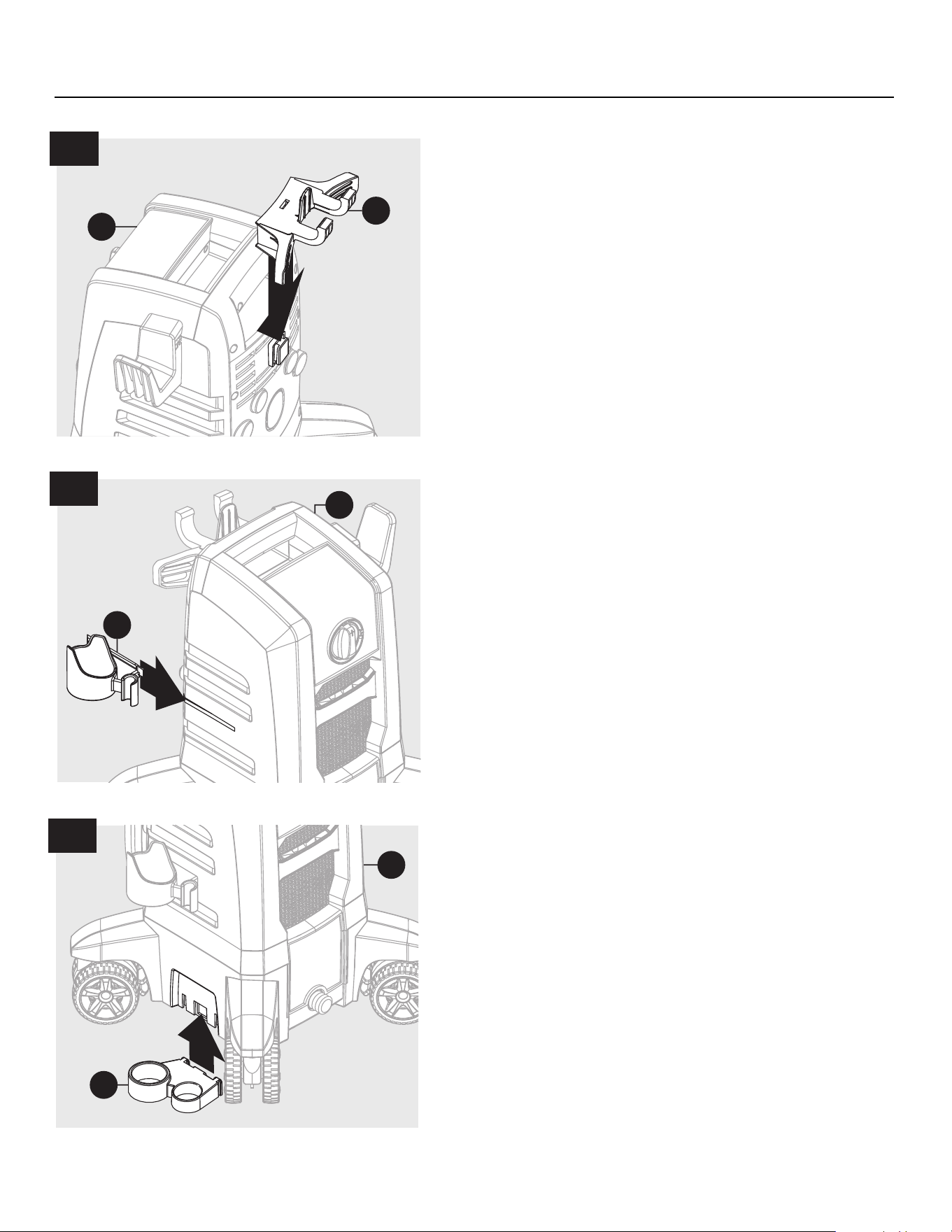

Slide upper spray gun holder (A) tab into slot on left side
of power washer unit (D).
4
A
D
From below, slide lower spray gun holder (B) tabs into
slots on bottom left side of power washer unit (D).
D
B
5
Slide detergent bottle bracket (K) onto tab on back of
power washer unit (D).
K
D
3
7
Assembly Instructions

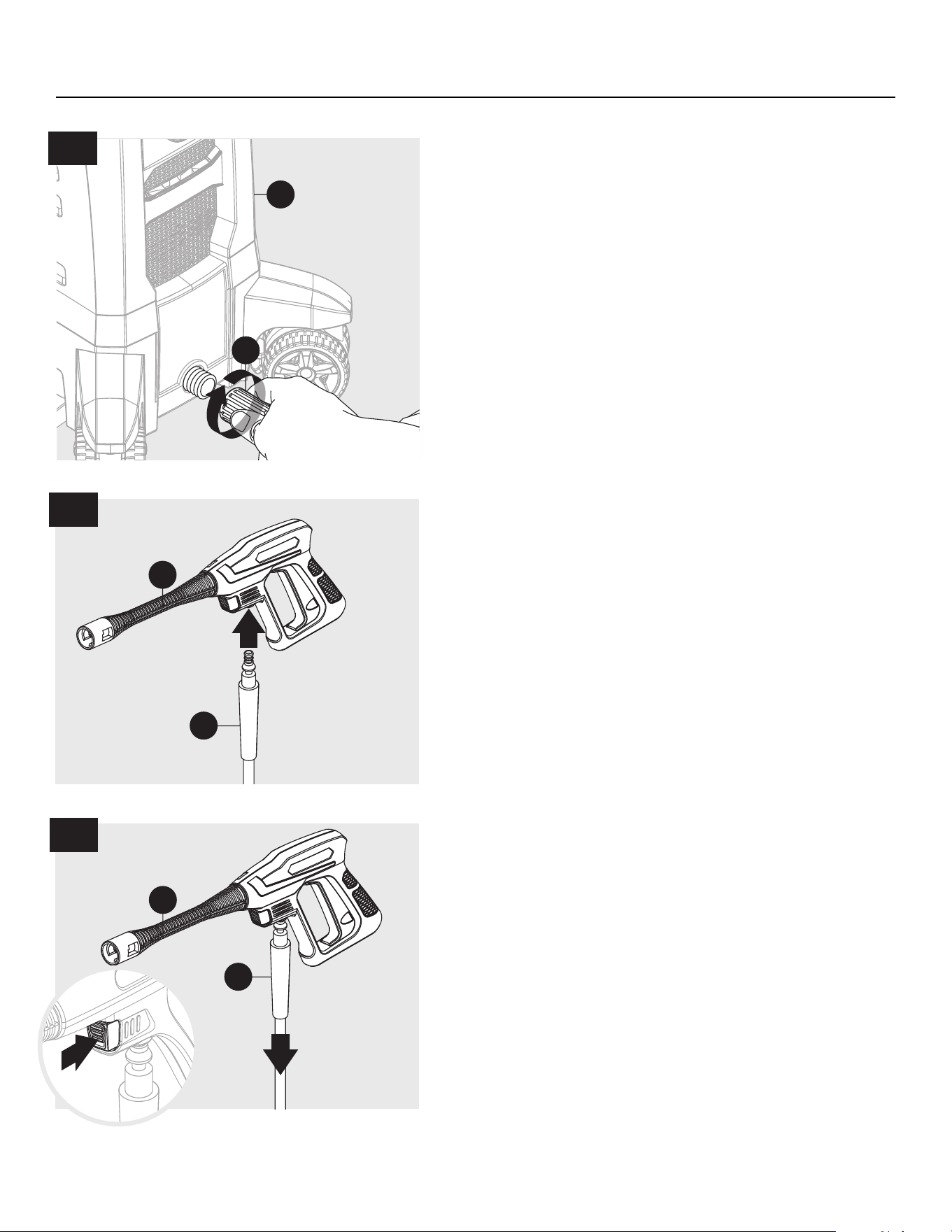

Hold back the collar at one end of the hose (G). Push firmly
to connect hose fitting to the water outlet tube on the front
of the power washer unit (D). Twist the collar clockwise
to secure. Confirm hose is locked into the water outlet by
slightly pulling on the hose.
Note: DO NOT use pliers or locking pliers to tighten.
6
G
D
7
G
H

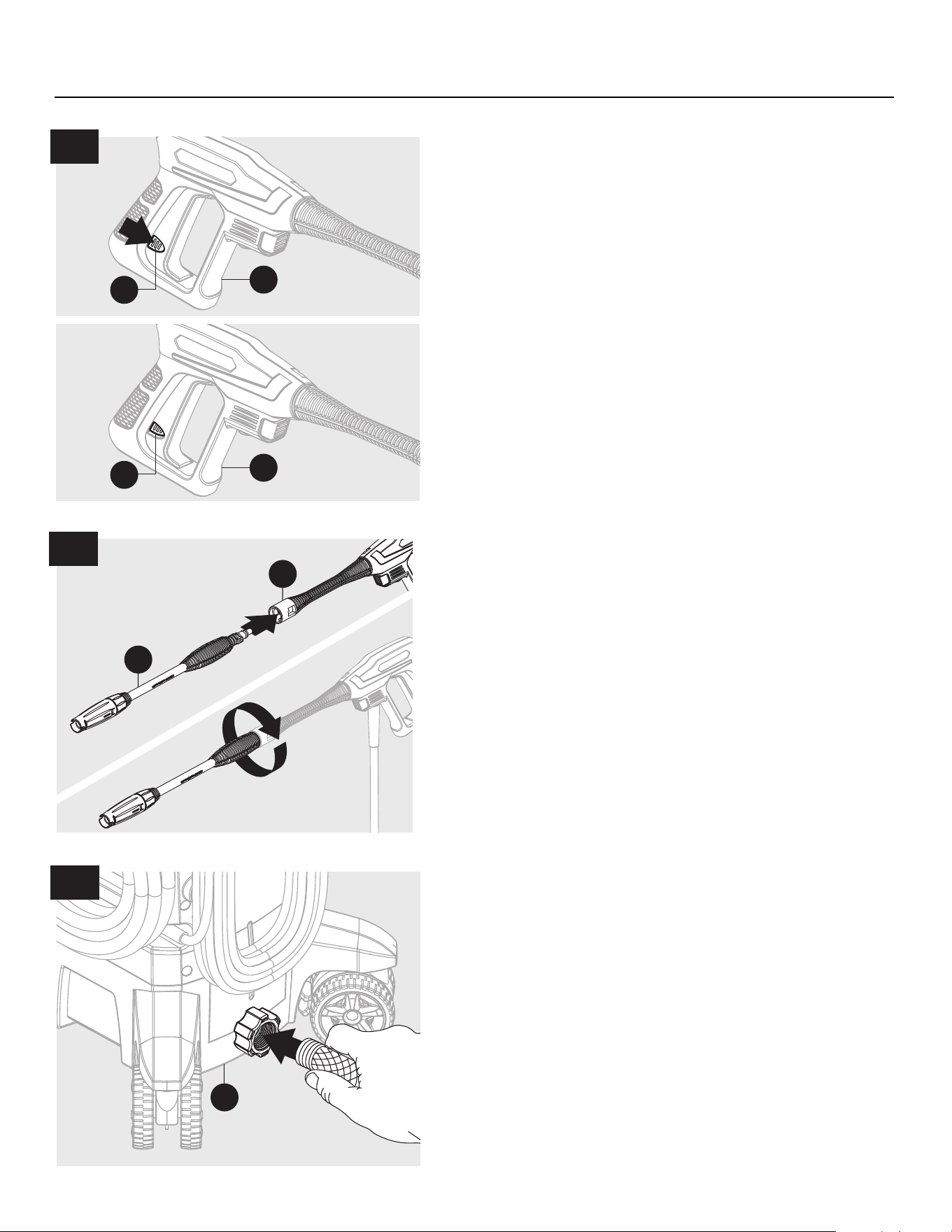

Push firmly to connect hose fitting (G) to spray gun (H).
Confirm hose is locked into spray gun by slightly pulling
on them.
To remove the hose, push the button on lower front of gun
to release the hose (G) connection from the spray gun (H).
8
G
H
2
1
Assembly Instructions
8
I
Unock
Lock
9
H
H
I
To lock the trigger of the spray gun (H), aim the gun
away from you and pull up on the safety lock (I). After
doing so, squeeze or pull the trigger to make sure it is
locked and will not move. ALWAYS keep spray gun (H)
locked when not in use.
Insert Adaptivewash™ Spray Wand (J) into spray gun
(H) and turn clockwise to tighten (DO NOT overtighten).
Note: ALWAYS engage the safety lock (I) when changing
Adaptivewash™ Spray Wand (J) to ensure that they do
not accidentally eject with force during removal.
2
1
J
H
10
Attach a garden hose to the garden hose adapter on the
back of the power washer unit (D).
Note: Flush out garden hose before connecting to garden
hose adapter.
Assembly is now complete. Read and observe all safety
instructions before turning on the power washer.
D
11
9
Release the spray gun safety lock (I) on the spray gun (H).
Point the spray gun in a safe direction and squeeze the
trigger until there is a steady stream of water, releasing
water and air out of the hose. Then turn the machine to the
“ON” position starting the motor, press and hold the trigger
on the spray gun for 30 Seconds to flush the system of any
foreign material that may cause a blockage, causing the
machine to “pulse on and off the pressure switch.” Once
completed install Adaptivewash™ Spray Wand (J) and
begin usage.
Operating Instructions
Operating Instructions
1. Turn on water supply at the faucet.
2. Make sure the “ON/OFF” switch is in the “OFF”
position. The power switch has international
symbols: On (|) Off (O).
3. Completely unwind the power cord and plug into a
grounded 120 volt outlet.
4. Release the spray gun safety lock (I) on the spray gun (H).
Point the spray gun in a safe direction and squeeze the
trigger until there is a steady stream of water, releasing
water and air out of the hose. Lock the spray gun.
5. Turn the power switch to the “ON” (|) position. The unit
will run on for 1 - 2 seconds and shut off. This is a normal
function of the auto-start feature.
6. Begin power washing by squeezing the trigger all the way
into the handle.
7. Release the trigger to stop the power washer.
8. Allow the motor to come to a complete stop before
squeezing the trigger again.
9. Squeezing the trigger rapidly will cause the auto-start
feature to miss an on/off cycle and may prevent the
washer from turning on. Use slow, deliberate trigger pulls
to avoid this.
10. ALWAYS test a small area to avoid damaging the surface.
Using Adaptivewash™ Spray Wand

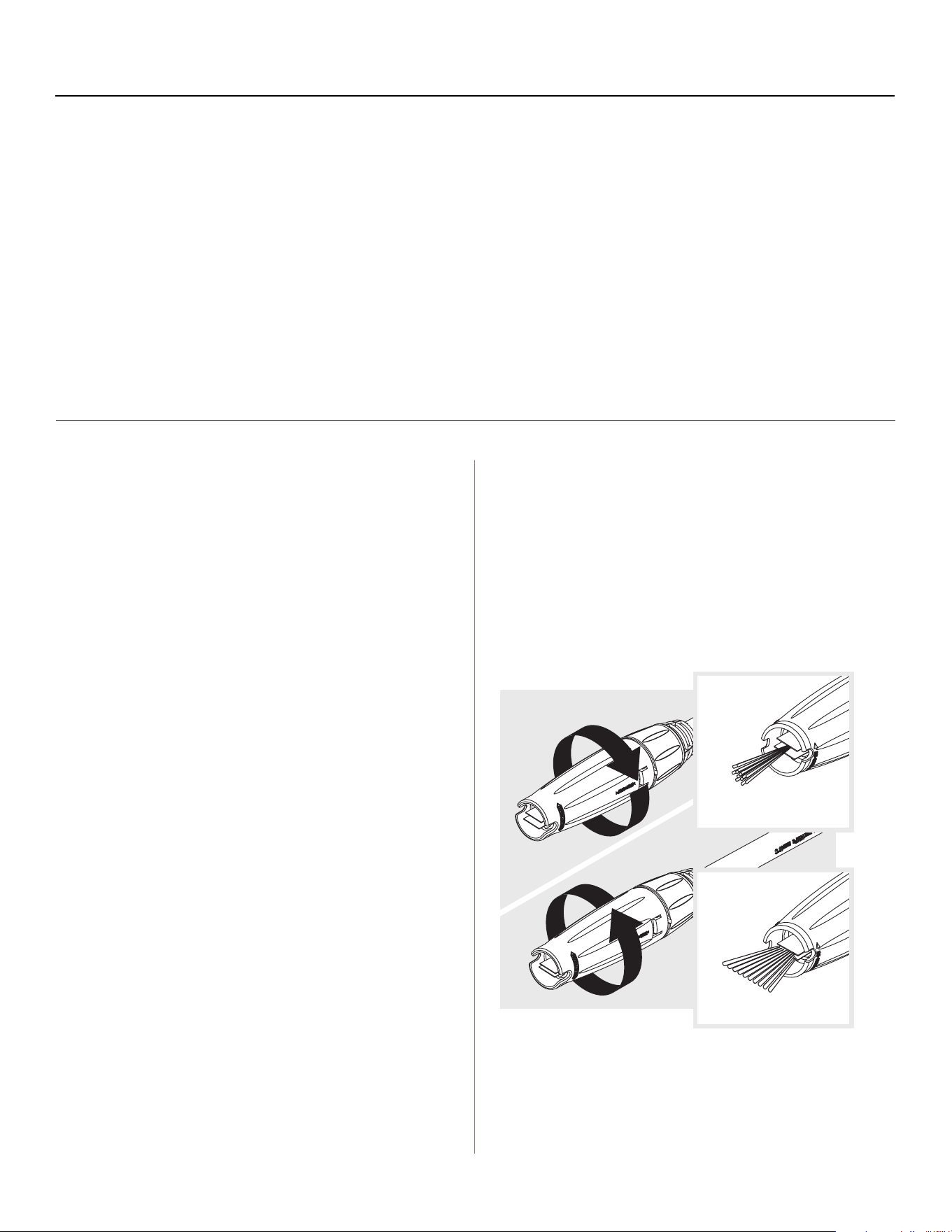

The spray pattern and intensity can be adjusted for each
task by twisting the spray nozzle at the far end of the
Adaptivewash™ Spray Wand.
• Twist the nozzle head clockwise for the high pressure
(pencil stream) setting.
• Twist the nozzle head counter clockwise for the low
pressure (fan spray) setting.
Important Initial Startup
Fan Spray
Pencil Stream
10
Operating Instructions
Operation Tips
• It is normal to hear the motor run intermittently when
the trigger is not being squeezed. The pump is priming
itself to operate when the trigger is squeezed.
• Turn off the power washer if not being used after five
minutes.
• The O-rings in the hose should be cleaned regularly
and lubricated with non-water soluble grease such as
petroleum jelly.
• Keep the spray tip cleaning wire nearby for unclogging
the tips.
How to Avoid Damaging Surfaces
• Damage to surfaces being cleaned occurs when
the impact force of the water pressure exceeds the
durability of the surface. Bare wood can be penetrated;
paint can be peeled off, etc. You can vary the force of
the power washer by adjusting:
1. The angle of the nozzle to the surface being
cleaned.
2. The distance from the nozzle to the surface
being cleaned.
• NEVER use a narrow, high-pressure stream of water on
soft surfaces.
Detergent Tips
• Any detergent may be used in the detergent bottle. The
cleaning solution should be the consistency of water in
order to prevent detergent bottle and Adaptivewash™
Spray Wand from clogging.
• ALWAYS spray detergent on a dry surface.
• DO NOT pre-soak area. Wetting the surface first dilutes
the detergent and reduces its cleaning ability.
• DO NOT allow detergent to dry on surface. On vertical
surfaces, apply detergent to lower surfaces first and
work your way up to prevent streaks in the dirt and
grime. Rinse detergent by pressure washing from
bottom up for same reason.
• For tough stains, it may be necessary to reapply the
detergent and use a bristled brush to scrub the stain.
Subsequent power washing after brushing should
successfully remove dirt.
Using the Detergent Bottle

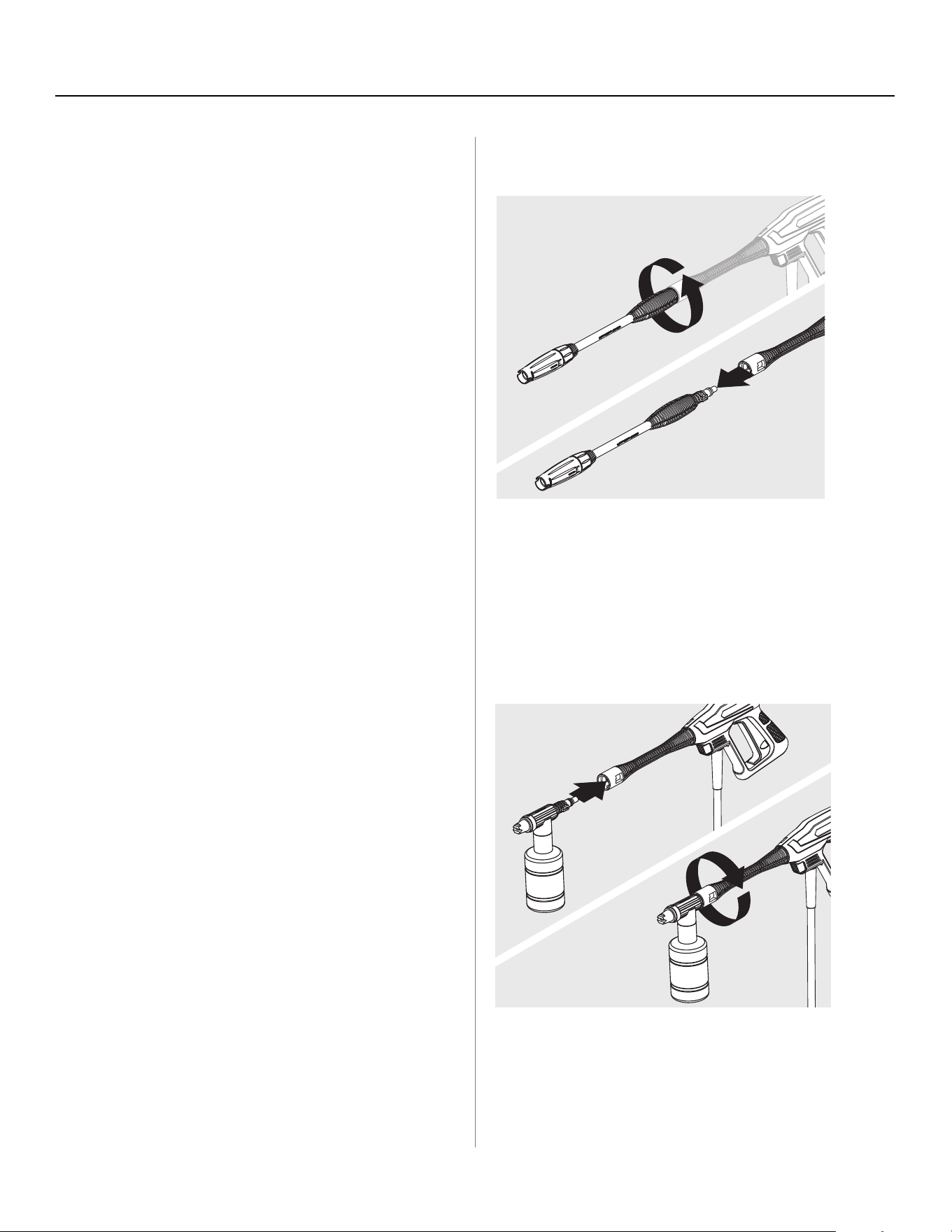

1. Detach the lance from the high pressure gun.
2. Unscrew fluid tank from detergent bottle valve assembly.
3. Fill fluid tank with water (for best results, use warm
water.)
4. Add 1-3 ounces of your favorite detergent to the fluid
tank.
5. Attach fluid tank to detergent bottle valve and attach
assembly to the gun. Use the control knob to change the
flow of soap + (more) or - (less).
6. When finished, run clean plain water through the
pressurized foaming system to purge soap from the
internal components.
Flush with hot water for added cleansing power.
2
1
2
1
11
Care and Maintenance

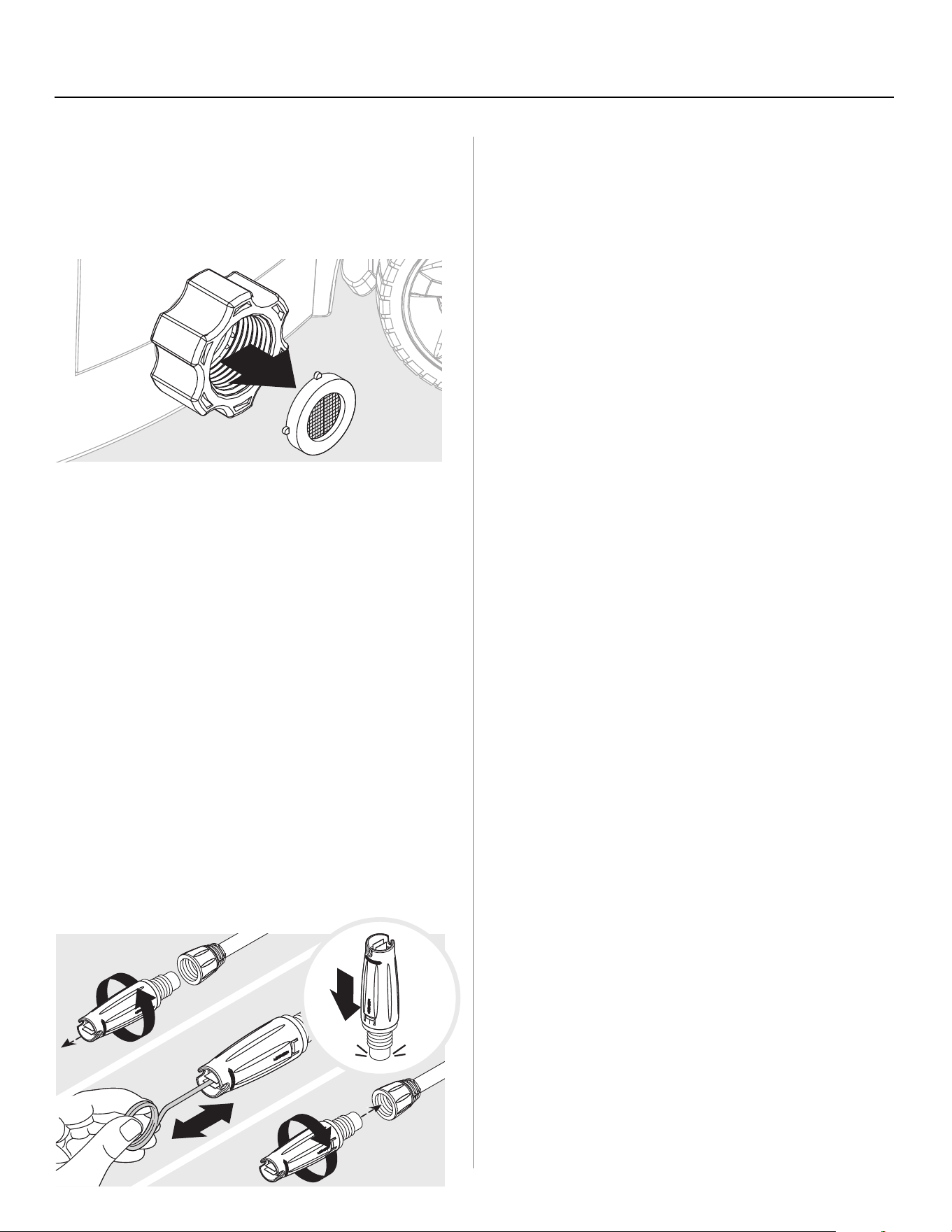

Cleaning Garden Hose Adapter
The screens inside the garden hose adapter should be
cleaned periodically.
1. Rinse with clean water.
2. Place back into the adapter.
Cleaning Nozzles
A clogged or partially clogged Adaptivewash™ Spray
Wand nozzle can cause significant reduction of water
pressure coming out of the nozzle and/or cause the unit to
pulsate while spraying.
1. Turn off the unit.
2. Turn off the water supply to the unit.
3. Relieve any pressure trapped in the hose by
squeezing the trigger 2-3 times, and then lock the
spray gun by pushing the lock button from left to right.
4. Remove the Adaptivewash™ Spray Wand Nozzle
from the Adaptivewash™ Spray Wand
5. Using the nozzle tip cleaner provided (or an unfolded
paper clip), insert the wire into the nozzle hole and
move back and forth until debris is dislodged.
6. Tap quick connect end of Adaptivewash™ Spray Gun
on hard surface several times
7. Back flush water through the Adaptivewash™ Spray
Wand nozzle using garden hose and highest pressure
available (either standard water nozzle or use your
thumb over the nozzle to create water pressure for
back flush).
Moving and Storage Instructions
1. When the pressure washing session is complete, turn
off the power switch.
2. Unplug the power cord from the outlet.
3. Turn off the water supply. Pull the trigger on the spray
gun 2-3 times to drain out excess water and to release
any remaining water pressure.
4. Disconnect the garden hose adapter from the water
inlet. DO NOT allow the power washer to run with no
water flowing through it.
5. It is recommended to run pump saver through the pump
and high pressure hose.
5a. Install the pump saver by attaching the bottle to
the garden hose adaptor and open the valve on the
bottle.
5b. Plug in the power-cord and turn the pressure
washer on/off switch to the “on” position and pull
the trigger for 5 seconds in order to activate the
pump and purge the pump saver through the pump
system and hose.
5c. Once you are done, turn the on/off switch to
the “off” position, pull the trigger to release the
internal pressure and then disconnect the hose
and accessories from the power washer.
6. Remove hose from spray gun.
7. Remove Adaptivewash™ Spray Wand from spray gun.
Place the gun in the holder on the side of the unit. Place
Adaptivewash™ Spray Wand into any of the slots in the
back of the unit.
8. Hook the power cord around the power cord holder.
Winterizing
1. Disconnect all water connections.
2. Turn on the machine for a few seconds until there is no
water left in the machine. Turn off immediately.
3. Make sure that the hose does not become kinked.
4. Store machine and accessories in a room that will not
reach 32°F (0°C).
5. Do not store near a furnace or other sources of heat.
Operate the pressure washer with non-corrosive/non-
toxic anti-freeze, a pump saver, or a pump protector
before storing for the winter.
NOTE: Using a pump saver is recommended.
4
1
2
3
12
12
Problem Corrective Action
Unit will not turn on. 1. Make sure the power washer is OFF. Plug the electrical cord into a grounded 120 volt outlet
(no electrical extension cord should be used). If the electrical cord will not plug into your
outlet, your electrical outlet is not properly grounded and should not be used. Use another
electrical outlet.
2. Pull trigger on gun to ensure water flow.
3. If it is still not working, call Powerplay Customer Service at 855-770-7529 ext. 252
Note: When power switch is turned on, the power washer will turn on by itself for 1-2
seconds and shut off.
The unit is running but
there is no water flow.
1.
Check the water source. Clean Adaptivewash™ orifice. Or, remove the Adaptivewash™
nozzle head and clean the orifice with nozzle tip cleaner.
Water is leaking where the
hose connects to the spray
gun.
1.
Make sure there are 2 o-rings at the end of the metal tip of the hose. If no o-ring is
present, the connection between the hose and spray gun will leak. 2 o-ring replacements
are included in the package contents.
The power washer turns
on for 2 seconds, shuts
off, and will not turn back
on. Is the unit defective?
1.
When the water is connected, the accessories are assembled properly, and the power
switch is turned on, the power washer may turn on for 1 - 2 seconds to prime the pump. It
automatically shuts off and waits for the spray gun trigger to be pressed. When the trigger
is pressed, water starts flowing through the pump. The water sensor in the pump detects
the moving water and automatically turns the power washer on.
2.
Turn the power switch to ‘Off’, press the trigger on the spray gun so that you have a steady
stream of water. Continue pressing the trigger, open the spray gun and at the same time,
turn the power switch ‘On’.
Unit pulsating when in
use
Motor starting and
stopping
1. Adaptivewash™ Spray Wand orifice is partially blocked with foreign matter (dirt, water
scale).
2.
Remove Adaptivewash™ Wand and clean with nozzle tip cleaner. Ensure foreign matter
is removed from the barrel of the Adaptive Wash™ Wand by lightly knocking on a solid
surface.
Fluctuating pressure
Machine not reaching
high pressure
1
. Check the hoses and connections are airtight. Remove Adaptivewash™ Spray Wand and
run clear water through the system to try and clear any debris.
2
. Make sure water source is fully open. Use 3/4 in. garden hose. Check garden hose for
kinks, leaks, and blockages, or replace hose.
Can’t remove
Adaptivewash™ Spray
Wand from spray gun:
1.
The Adaptivewash™ Spray Wand is attached and removed from the spray gun in the same
manner. Insert the quick-release end of the Adaptivewash™ Spray Wand/detergent bottle
into the spray gun. Press the Adaptivewash™ Spray Wand and spray gun together (about a
1/8”) and turn clockwise. The Adaptivewash™ Spray Wand will lock in place. Remove the
Adaptivewash™ Spray Wand by reversing this procedure.
2.
Or, hold the Adaptivewash™ Spray Wand in an upright position with the nozzle end on the
floor. Push the whole assembly straight down to loosen the connection, and then follow
the removal process again. You may also spray soapy water or a lubricant in the area
where the Adaptivewash™ Spray Wand connects to the spray gun.
Troubleshooting
13
Warranty
The one year limited consumer warranty of this product is covered by Powerplay Corporation.
This product has a 1 (one) year limited consumer warranty. Please read the following carefully to understand what the
warranty entails:
This product is under warranty to the original retail consumer against defects in material and workmanship for a period
of 1(one) year. The warranty is not transferable or assignable. This warranty covers replacement parts. This limited one
year warranty applies only to products used in consumer applications and is void in rental or any commercial application.
Reasonable care must be used in conformity with operation and maintenance instructions in the owner’s manual and
quick start guide. Failure to follow these instructions will void this warranty. This warranty gives you special legal rights
and you may also have other rights which vary from state to state.
Warranty Process
Keep your original receipt of purchase in case of warranty claim.
If your power washer develops a problem, contact Customer Service:
• Contact Customer Service buy calling our toll-free number at 1-855-770-7529 extension 252 or email us at,
[email protected]. Customer Service is available Monday - Friday 8:00 a.m. to 4:00 p.m. Eastern Standard
Time (EST). A customer service representative will work with you to fix the problem.
If the power washer needs to be returned for repair, shipping costs to the company must be paid by the customer.
A Return Merchandise Authorization (RMA) Number will be issued for the return. Upon receiving the power washer, the
company will repair or replace the unit. We will send the unit back to customer at no charge.
Please note: Power washers sent to the company without an RMA Number will NOT be accepted and shipped back at
the expense of the sender.
Return address:
Powerplay Corporation
1850 Boulevard Hymus
Dorval, Quebec H9P1J7
Canada
Replacement Parts
For replacement parts, call our customer service department at 1-855-770-7529. 8:00 a.m. - 4:00 p.m., EST, Monday - Friday
or order online at www.powerplaypro.com.
O-Ring
K
H
C
B
A
G
J
E
F
L
I
M
Part Description Part #
H Spray Gun PWXA103
J Adaptivewash™ Spray Wand PWXA104
K Detergent Bottle Bracket PWXA095
L Detergent Bottle PWXA108
M Spray Tip Cleaner PWXA123
Part Description Part #
A Upper Spray Gun Holder PWXA100
B Lower Spray Gun Holder PWXA101
C Casters PWXA105-C
E Hose Holder Bracket PWXA094
F O-Ring Replacement Kit PWXA125
G Flexwash
®
Hose PWXA098-W
