What's in the Box
Overview
Recharge Your Power Station
Powering Your Device
Light
The Anker App for Smart Control
FAQ
Specifications
What's in the Box
C1:15W
C2:140W
C3:140W
A:12W
Anker SOLIX C300 Portable Power
Station
AC Charging Cable Important Safety Instructions
Overview
C1:15W C2:140W C3:140W
A:12W
1
7
5
2
4
11
6
13
12
15
14
9
17
18
16
8
3
10
1
Handle
2
Strap Attachment*
3
140W USB-C Input/Output Port
· [ ] indicates a bidirectional interface.
4
Car Socket
5
15W USB-C Output Port
6
12W USB-A Output Port
7
Car Socket On/O Button
8
Solar Input and Car Input
· The sliding cover design is intended to prevent this port and the 140W USB-C Input/Output Port from being used
simultaneously.
9
140W USB-C Output Port
10
AC Input Port
11
AC Output Ports
12
Ambient Light On/O Button
13
Ambient Light
14
Main Power Button
15
LCD Screen
16
Reset
17
IoT Button
18
AC Output On/O Button
*The strap attachments are designed for Anker SOLIX adjustable straps (sold separately).
Recharge Your Power Station
AC Recharging (330W Max)
Recharge your power station by connecting to a wall outlet with the AC charging cable.
Solar Panel Recharging (100W Max)
Recharge your power station with a maximum solar input of 100W by connecting up to one Anker 100W/60W Solar Panel
as shown in the figure with a solar charging cable.
The voltage of the solar panel should be 11V-28V, otherwise it will damage the power station.
C1:15W C2:140W C3:140W
A:12W
C2:140W
The solar charging cable is sold separately.
USB-C Recharging (140W Max)
Recharge your power station by connecting to a wall adapter with a USB-C cable.
USB-C recharging and XT-60 recharging cannot be used simultaneously.
C1:15W C2:140W C3:140W
A:12W
C2:140W
C2:140W
C2:140W
C2:140W
USB-C cables are sold separately. Use a 140W USB-C cable and 140W adapter for the best charging experience.
DC Recharging
Recharge your power station by connecting to a DC output port with the DC charging cable.
C1:15W C2:140W C3:140W
A:12W
C2:140W
DC charging cable sold separately.
When your portable power station only has 1% battery remaining, the "Remaining Battery" indicator will flicker to
remind you to recharge.
Powering Your Device
Power On/O
C1:15W C2:140W C3:140W
A:12W
Press the main power button for 3 seconds to turn your power station on or o.
When the "Remaining Battery" indicator shows on the LCD screen, your power station is ready to charge devices.
• When powered on, press the main power button to turn the screen on or o.
• The screen will automatically turn o after 15 seconds of lighting up. The auto-o time can be set in the Anker
app.
• The power station will power o automatically if the output buttons are turned o and no power loads are
detected for 2 hours. The standby duration can be set in the Anker app. We recommend not setting this to
ʼnever," so that the product can shut down on its own and save power in a long-term unused state.

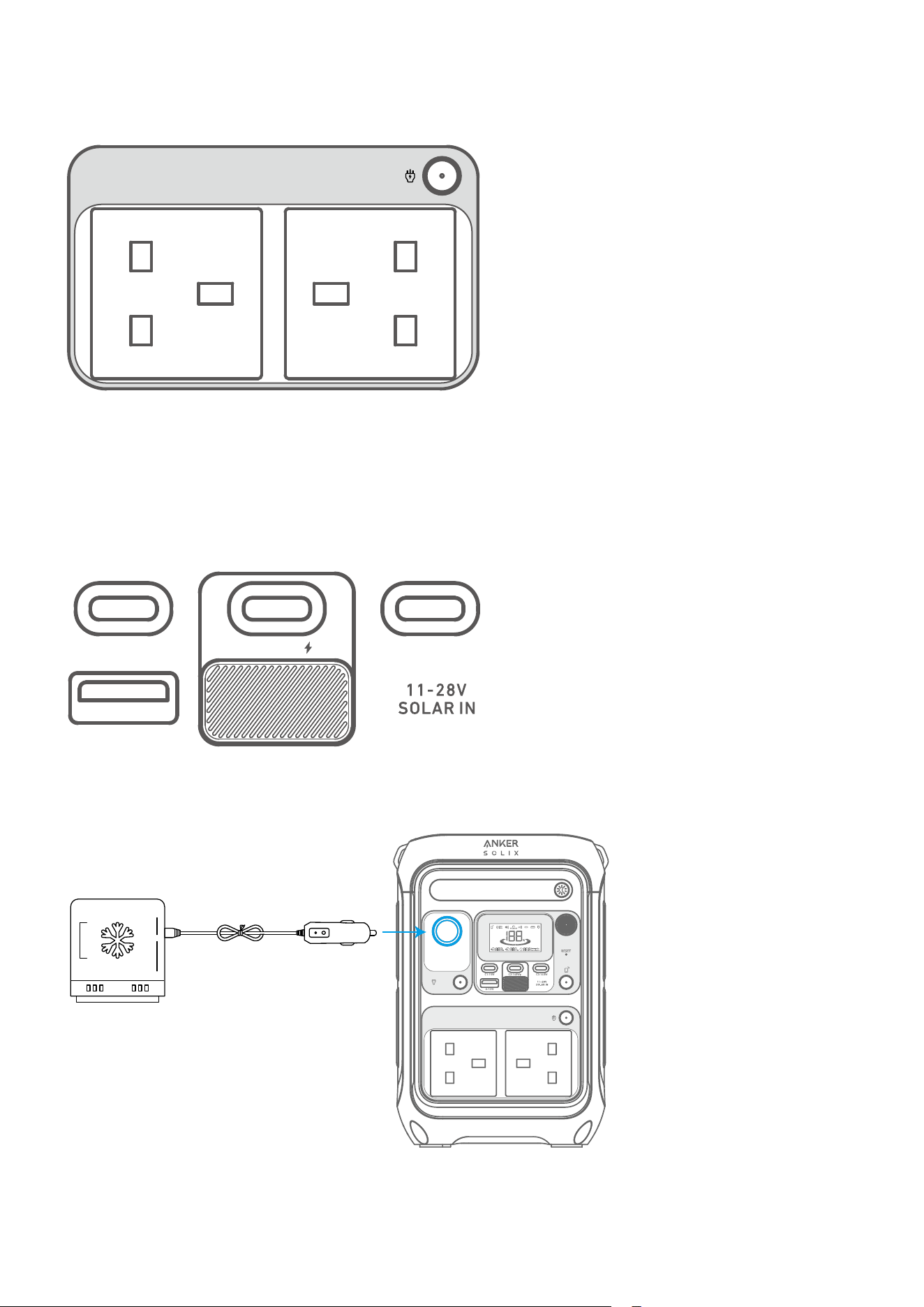

AC Charging
Press the AC outlet button and connect your device with the AC output ports.
The AC outlets can intelligently identify whether a plug is inserted. This helps prevent power waste by automatically
turning o the power station if no plug is detected for more than 15 minutes.
USB Charging
Connect your devices to the USB ports.
Note: The USB-C2 and USB-C3 output ports are a PS3 classification. There is a risk of fire when connecting additional
equipment to the USB-C ports; safeguards against fire in the connected equipment or accessories should be considered.
Only connect your portable power station to equipment or accessories that comply with clauses 6.3, 6.4 and 6.5 of IEC/
EN IEC/ BS EN IEC 62368-1 standards. Additionally, use a USB-C 5A cable to achieve maximum power (20VDC/5A, 100W;
28VDC/5A, 140W).
C1:15W C2:140W C3:140W
A:12W
Car Socket Charging
Turn on the car socket and connect your devices to start charging.
C1:15W C2:140W C3:140W
A:12W
Uninterruptible Power Supply (UPS)
To use the UPS feature, connect your power station to a wall outlet with the AC charging cable, then press the AC outlet
button and connect your devices via the AC output ports. UPS supports 10ms.
C1:15W C2:140W C3:140W
A:12W
1
2
3
SurgePad™
Anker SOLIX C300 Portable Power Station supports the SurgePad™ feature for up to 600W AC output.
SurgePad™ automatically turns on when the total output exceeds the rated output, allowing the power station to deliver
rated power to high-wattage devices.
SurgePad™ does not function in bypass mode (when the power station is being charged with the AC output on).
SurgePad™ works better with devices that generate heat, but does not support precision instruments and other devices
that have voltage protection or strict voltage requirements. To see if SurgePad™ works with your high-wattage devices,
try powering them with the power station.
Light
Ambient Light
Press the button once to turn on the ambient light, and press again up to 2 times to switch between brightness levels.
C1:15W C2:140W C3:140W
A:12W
×1
×2
×3
SOS Mode
Hold the button for 2 seconds to turn on SOS mode.
C1:15W C2:140W C3:140W
A:12W
2S
SOS
LCD Screen Guide
2
1
4
3 6 7
9
12
13
5 8
11
10
1
Press the IoT button once to turn on Bluetooth and Wi-Fi, and connect your devices through the app when this icon
appears on the screen.
Press the IoT button for 2 seconds to turn o Bluetooth and Wi-Fi.
Press the IoT button for 7 seconds to reset Bluetooth and Wi-Fi.
2
AC Charge and Voltage Frequency
3
Low-Temperature Alert: When this icon shows, stop using the power station until the icon disappears.
4
Overload Warning:
This icon appears when a port is overloaded. The port will be turned o to avoid any damage. Please remove the device
causing overload.
5
High-Temperature Alert:
When this icon shows, stop using the power station and let it cool down until the icon disappears.
6
USB-C Input/Output Port
7
USB-A Output Port
8
Car Charging
9
Remaining Battery for Power Station
10
Current Output Power
11
Current Input Power
12
Estimated Time to Fully Recharge
13
Estimated Time for Battery to Deplete
The Anker App for Smart Control
You can remotely control your power station using the Anker app.
1. Download the Anker app from the App Store (iOS devices) or Google Play (Android devices), or by scanning the QR code.
2. Connect the device to a network before using the app for the first time. After connecting successfully, you can connect
your device o-grid.
3. Firmware update: You will be informed once a new firmware version is detected when you connect the power station to
the app. During the update, ensure the power station is AC charged and connected to Wi-Fi or Bluetooth.
FAQ
Q1: What is the max power output of the AC output ports?
The AC output ports can deliver a maximum of 300W rated power to connected devices. It can also support up to 600W
with SurgePad™.
Q2: Can Anker SOLIX C300 Portable Power Station power a CPAP machine?
Yes.
Q3: What should I do when using a solar charger to charge Anker SOLIX C300 Portable Power Station?
The solar input supports an 11-28V solar charger with an XT-60 connector. We recommend using Anker 100W/60W Solar
Panel for the best compatibility.
Q4: Can the USB-C ports be used to charge Anker SOLIX C300 Portable Power Station (input only) or are they output
only?
The USB-C1 and USB-C3 ports are output only. The USB-C2 supports output and input.

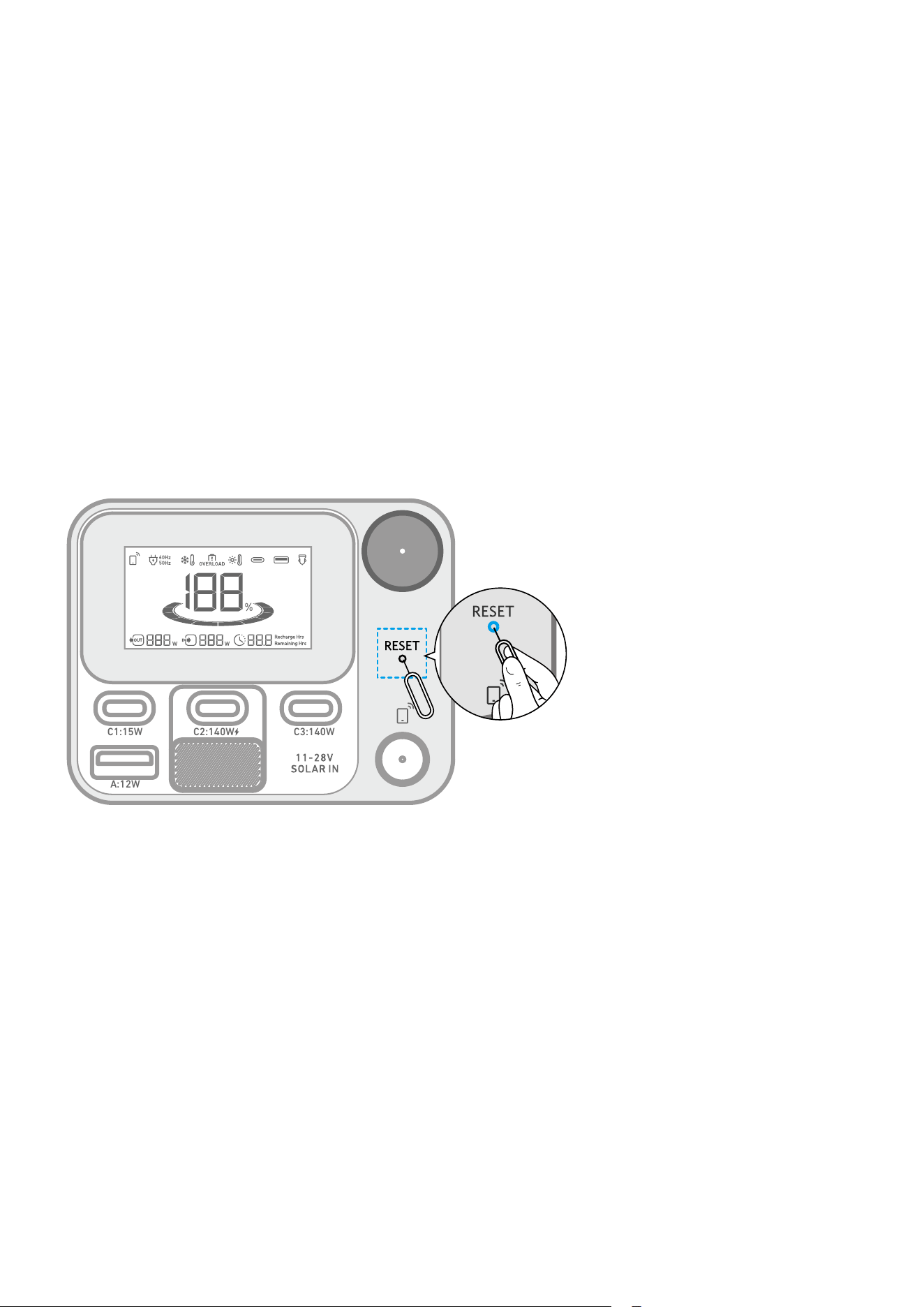

Q5: How do I reset Anker SOLIX C300 Portable Power Station?
If your power station isn't working correctly, insert a paper clip or pin into the reset hole for 1 second for a factory reset. If
the power station still doesn't work, please contact support@anker.com.
C1:15W C2:140W C3:140W
A:12W
C1:15W C2:140W C3:140W
A:12W
Q6: Why is the power station not working after it hasn't been used for a long time?
If the power station is stored at a low capacity for a long time, lithium batteries will self-consume power which may lead
to a quick discharge. This often leads to poor conductivity and a reduced battery lifespan that causes the battery not to
work.
Q7: How should I store and maintain the power station?
When storing your portable power station, please make sure that you:
1) Turn o the main power button.
2) Store the power station in a dry and cool environment.
3) Check the remaining battery capacity each week. If the battery level is below 30%, fully charge the power station. Don't
forget to charge it to 100% once every 3 months.
Q8: Does the power station have to be used upright?
Yes, the product needs to be used and stored upright.
Q9: When will the output ports of Anker SOLIX C300 Portable Power Station automatically shut down?
The output ports shut down under these two conditions:
1) USB-A and USB-C1 Ports: If there is no input to the power station and the total output current of the connected load is
less than 60mA for two hours, the ports will shut down.
2) USB-C2 and C3 Ports: If there is no input to the power station and the output current of the connected load is less than
100mA for two hours, the ports will shut down.
Note that the time cannot be changed. To reactivate the ports, unplug the connection cable, then plug it back in.
Q10: Why didn't the Anker SOLIX C300 automatically shut down after I set the device timeout to 30 minutes?
Anker SOLIX C300 Portable Power Station automatically shuts down under these two conditions:
1) If "Device Timeout" is NOT set to "Never" in the Anker app.
2) If there is no input to the power station and all output ports are o, C300 enters sleep mode, then shuts down according
to the set time for device timeout. This timing does not begin when device timeout is set.
To exit sleep mode, please perform the following actions:
1) Charge or discharge C300.
2) Press any button on the power station.
3) Use the Anker app.
Specifications
Cell Capacity 288Wh
AC Input Voltage 220V-240V~ 2.0A Max, 50Hz/60Hz, L+N+PE
AC Input Power (Charging) 330W Max
AC Input Power (Bypass Mode) 380W Max
Solar Panel Input 11-28V 8.2A (100W Max)
USB-C2 Input 9V 3A / 15V 3A / 20V 5A / 28V 5A (140W Max)
Car Charger Output 12V 10A
AC Output (Inverter Mode) 230V~ 1.31A, 50Hz, 300VA/300W Max
AC Output (Bypass Mode) 220V-240V~ 1.37A, 50Hz/60Hz, 300VA/300W Max
USB-A Output 5V 2.4A (12W)
USB-C1 Output 5V 3A (15W)
USB-C2 Output 5V 3A / 9V 3A / 15V 3A / 20V 5A / 28V 5A (140W Max)
USB-C3 Output 5V 3A / 9V 3A/ 15V 3A / 20V 5A / 28V 5A (140W Max)
USB-A and USB-C1 Total Output 5V 4A (20W Max)
Total Output 360W
UPS <10ms
Discharging Temperature -20°C-40°C / -4°F-104°F
Charging Temperature 0°C-40°C / 32°F-104°F
Size 16.4*16.1*24.0 cm / 6.5*6.3*9.5 in
Net Weight 4.13 kg / 9.1 lb
