LF 50, LF 60
EN Operator's manual 2-23
Contents
Introduction..................................................................... 2
Safety..............................................................................5
Operation...................................................................... 10
Maintenance................................................................. 12
Transportation, storage and disposal........................... 14
Technical data.............................................................. 17
EC Declaration of Conformity....................................... 23
Introduction
California Proposition 65
WARNING!
The engine exhaust from this
product contains chemicals known
to the State of California to cause
cancer, birth defects or other
reproductive harm.
2 1107 - 006 - 23.06.2022

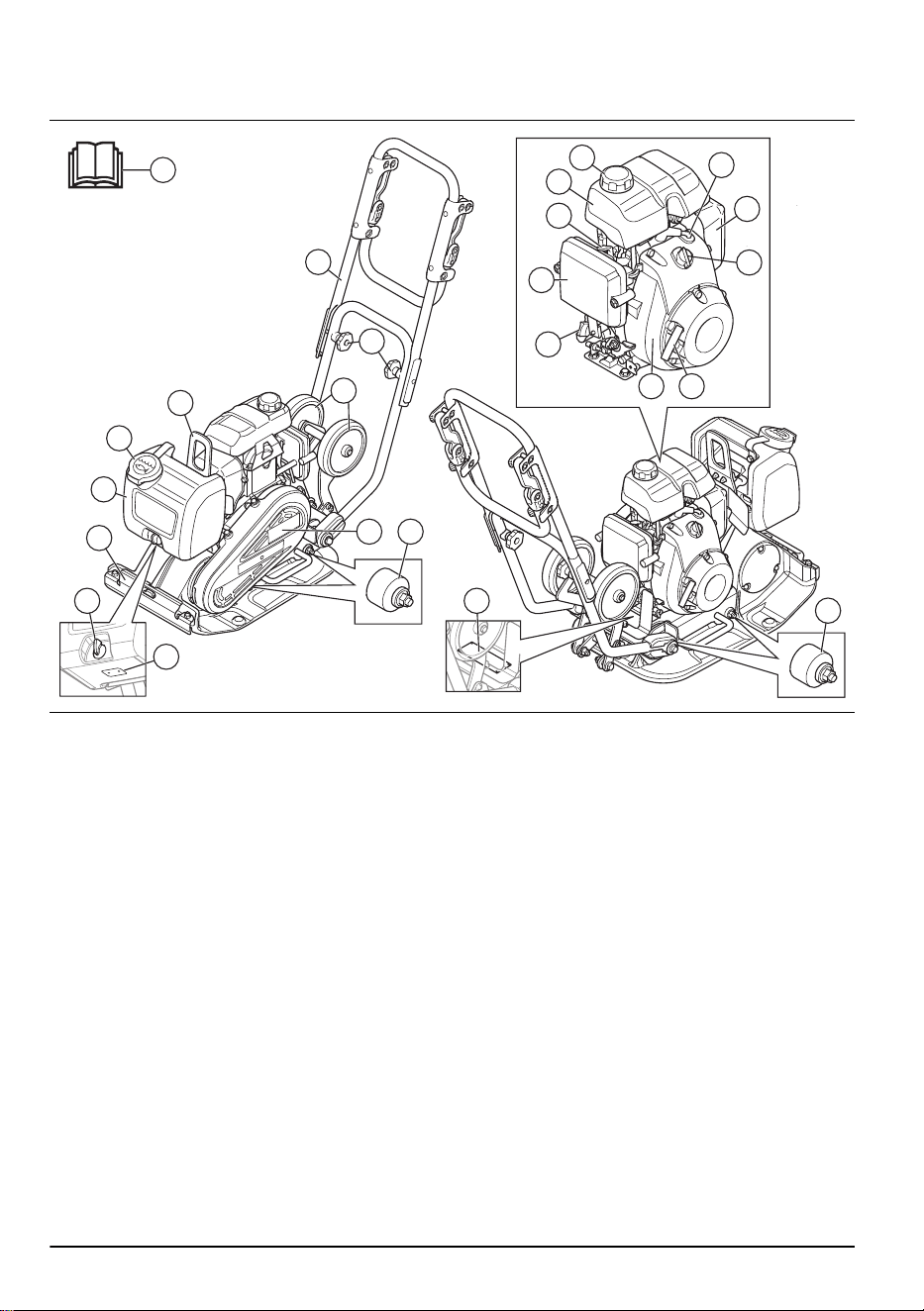

Product overview (LF 50)
8
3
6
5
5
9
10
19
17
12
11
16
1415
18
2
7
13
4
1
1. Operator's manual
2. Upper handle
3. Lifting eye
4. V-belt cover
5. Vibration damping units
6. Transport wheels
7. Handle knobs
8. Eccentric element
9. Type plate
10. Fuel tank cap
11. Spark plug
12. Muffler
13. Engine ON/OFF switch
14. Starter rope handle
15. Cooling fins
16. Oil tank / dipstick
17. Air filter
18. Choke control
19. Fuel tank
1107 - 006 - 23.06.2022 3

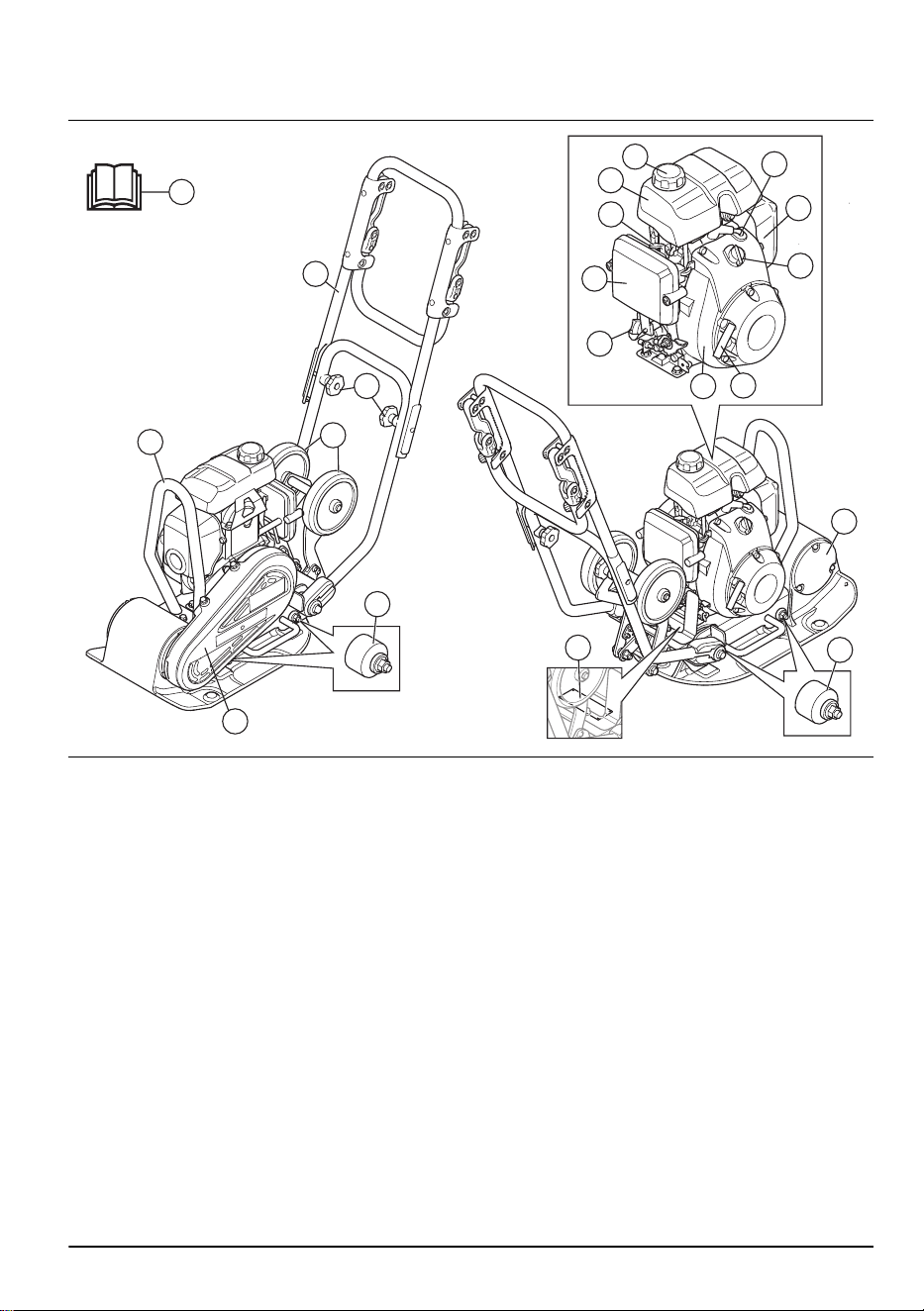

Product overview (LF 60)
8
7
6
3
4
5
2
9
14
23
21
16
15
20
1819
22
10
10
11
13
12
17
1
1. Operator's manual
2. Upper handle
3. Lifting point
4. Water tank cap
5. Water tank
6. Water supply
7. Water tap
8. Water nozzle
9. V-belt cover
10. Vibration damping units
11. Transport wheels
12. Handle knobs
13. Type plate
14. Fuel tank cap
15. Spark plug
16. Muffler
17. Engine ON/OFF switch
18. Starter rope handle
19. Cooling fins
20. Oil tank / dipstick
21. Air filter
22. Choke control
23. Fuel tank
Product description
The product is a walk-behind forward plate compactor
with a combustion engine. The product is used for
compaction of thin to moderately thick layers of granular
soils. With the optional water tank, the product can also
be used for compaction of asphalt.
Descriptions of the identification letters for the product
variants:
• L = Low vibration handle is included.
• A = Water tank for compaction of asphalt is included.
• T = Transport wheels are included.
Intended use
The product is for professional operation only. Use the
product for repairs and maintenance of driveways, paths
and parking lots. With the optional block paving kit the
product can also be used for block paving. Do not use
the product for other tasks.
4 1107 - 006 - 23.06.2022
Symbols on the product
WARNING: Be careful and use the
product correctly. This product can cause
serious injury or death to the operator or
others.
Read the manual carefully and make
sure that you understand the instructions
before you use the product.
Read the manual carefully and make
sure that you understand the instructions
before you use the product.
Unleaded gasoline with a maximum of
10% ethanol.
Ultra-low-sulfur diesel fuel only
Use hearing protection.
Risk of injury. Be careful around the drive
belt.
Hot surface.
XXXXXXXXXX
Keep your hands away from this area.
Lifting point on the safety frame.
Do not attach the lifting equipment at this
point. ((LF 50))
Noise emission to the environment as
referred to in the EC directive. The
emission of the product is specified in
Technical data on page 17
and on the
label.
This product is in compliance with
applicable EC directives.
Note: Other symbols/decals on the product refer to
special certification requirements for some markets.
Type plate
4 6 753
1
2
1. Product type
2. Product number
3. Product weight
4. Serial number
5. Manufacturer
6. Rated power
7. Production year
Product liability
As referred to in the product liability laws, we are not
liable for damages that our product causes if:
• the product is incorrectly repaired.
• the product is repaired with parts that are not
from the manufacturer or not approved by the
manufacturer.
• the product has an accessory that is not from the
manufacturer or not approved by the manufacturer.
• the product is not repaired at an approved service
center or by an approved authority.
Safety
Safety definitions
Warnings, cautions and notes are used to point out
specially important parts of the manual.
WARNING: Used if there is a risk of
injury or death for the operator or bystanders
1107 - 006 - 23.06.2022 5
if the instructions in the manual are not
obeyed.
CAUTION: Used if there is a risk of
damage to the product, other materials or
the adjacent area if the instructions in the
manual are not obeyed.
Note: Used to give more information that is necessary
in a given situation.
General safety instructions
WARNING: Read the warning
instructions that follow before you use the
product.
• This product is a dangerous tool if you are not
careful or if you use the product incorrectly. This
product can cause serious injury or death to the
operator or others. Before you use the product,
you must read and understand the contents of this
operator’s manual.
• Save all warnings and instructions.
• Comply with all applicable laws and regulations.
• The operator and the employer of the operator must
know and prevent the risks during operation of the
product.
• Do not let a person operate the product unless they
read and understand the contents of the operator's
manual.
• Do not operate the product unless you receive
training before use. Make sure that all operators
receive training.
• Do not let a child operate the product.
• Only let approved persons operate the product.
• The operator is responsible for accidents that occur
to other persons or their property.
• Do not use the product if you are tired, ill, or under
the influence of alcohol, drugs or medicine.
• Always be careful and use your common sense.
• This product produces an electromagnetic field
during operation. This field can under some
circumstances interfere with active or passive
medical implants. To decrease the risk of serious
injury or death, we recommend persons with medical
implants to speak to their physician and the medical
implant manufacturer before operating this product.
• Keep the product clean. Make sure that you can
clearly read signs and decals.
• Do not use the product if it is defective.
• Do not do modifications to this product.
• Do not operate the product if it is possible that other
persons have done modifications to the product.
Safety instructions for operation
WARNING: Read the warning
instructions that follow before you use the
product.
• Make sure that you know how to stop the engine
quickly in an emergency.
• The operator must have the physical strength that is
necessary to operate the product safely.
• Do not operate the product without all protective
covers installed.
• Use personal protective equipment. Refer to
Personal protective equipment on page 8
.
• Make sure that only approved persons are in the
work area.
• Keep the work area clean and bright.
• Make sure that you are in a safe and stable position
during operation.
• Make sure that there is no risk that you or the
product can fall from a height.
• Make sure that there is no grease or oil on the
handle.
• Do not use the product in areas where fire or
explosions can occur.
• The product can cause objects to eject at high
speed. Make sure that all persons in the work
area use approved personal protective equipment.
Remove loose objects from the work area.
• Before you go away from the product, stop the
engine and make sure that there is no risk of
accidental start.
• Make sure that clothes, long hair and jewelry do not
get caught in moving parts.
• Do not sit on the product.
• Do not hit the product.
• Always operate the product from behind with your
hands on the handle.
• Do not operate the product near electrical cables.
The product does not have electrical insulation and
injury or death can occur.
• Before you operate the product, find out if there are
hidden wires, cables and pipes in the work area.
If the product hits a hidden object, stop the engine
immediately and examine the product and the object.
Do not start to operate the product again until you
know that it is safe to continue.
Vibration safety
WARNING:
Read the warning
instructions that follow before you use the
product.
• During operation of the product, vibrations go from
the product to the operator. Regular and frequent
operation of the product can cause or increase the
degree of injuries to the operator. Injuries can occur
6
1107 - 006 - 23.06.2022
in fingers, hands, wrists, arms, shoulders, and/or
nerves and blood supply or other body parts. The
injuries can be debilitating and/or permanent, and
can increase gradually during weeks, months or
years. Possible injuries include damage to the blood
circulation system, the nervous system, joints, and
other body structures.
• Symptoms can occur during operation of the product
or at other times. If you have symptoms and
continue to operate the product, the symptoms can
increase or become permanent. If these or other
symptoms occur, get medical aid:
• Numbness, loss of feeling, tingling, pricking,
pain, burning, throbbing, stiffness, clumsiness,
loss of strength, changes in skin color or
condition.
• Symptoms can increase in cold temperatures. Use
warm clothing and keep your hands warm and dry
when you operate the product in cold environments.
• Do maintenance on and operate the product as
given in the operator's manual, to keep a correct
vibration level.
• The product has a vibration damping system that
decreases the vibrations from the handles to the
operator. Let the product do the work. Do not
push the product with force. Hold the product at
the handles lightly, but make sure that you control
the product and operate it safely. Do not push the
handles into the end stops more than necessary.
• Keep your hands on the handle or handles only.
Keep all other body parts away from the product.
• Stop the product immediately if strong vibrations
suddenly occurs. Do not continue the operation
before the cause of the increased vibrations is
removed.
Dust safety
WARNING:
Read the warning
instructions that follow before you use the
product.
• Operation of the product can cause dust in the
air. Dust can cause serious injury and permanent
health problems. Silica dust is regulated as harmful
by several authorities. These are examples of such
health problems:
• The fatal lung diseases chronic bronchitis,
silicosis and pulmonary fibrosis
• Cancer
• Birth defects
• Skin inflammation
• Use correct equipment to decrease the quantity of
dust and fumes in the air and to decrease dust on
work equipment, surfaces, clothing and body parts.
Examples of controls are dust collection systems
and water sprays to bind dust. Decrease dust at
the source where possible. Make sure that the
equipment is correctly installed and used and that
regular maintenance is done.
• Use approved respiratory protection. Make sure
that the respiratory protection is applicable for the
dangerous materials in the work area.
• Make sure that the airflow is sufficient in the work
area.
• If it is possible, point the exhaust of the product
where it cannot cause dust to go into the air.
Exhaust fumes safety
WARNING: Read the warning
instructions that follow before you use the
product.
• The exhaust fumes from the engine contain carbon
monoxide which is an odourless, poisonous and very
dangerous gas. To breathe carbon monoxide can
cause death. Because carbon monoxide is odourless
and cannot be seen, it is not possible to sense it. A
symptom of carbon monoxide poisoning is dizziness,
but it is possible that a person becomes unconscious
without warning if the quantity or concentration of
carbon monoxide is sufficient.
• Exhaust fumes also contain unburned hydrocarbons
including benzene. Long-term inhalation can cause
health problems.
• Exhaust fumes that you can see or smell also
contain carbon monoxide.
• Do not use a combustion engine product indoors or
in areas that do not have sufficient airflow.
• Do not breathe the exhaust fumes.
• Make sure that the airflow in the work area is
sufficient. This is very important when you operate
the product in trenches or other small work areas
where exhaust fumes can easily collect.
Noise safety
WARNING:
Read the warning
instructions that follow before you use the
product.
• High noise levels and long-term exposure to noise
can cause noise-induced hearing loss.
• To keep the noise level to a minimum, do
maintenance on and operate the product as given
in the operator's manual.
• Examine the muffler for damages and defects. Make
sure that the muffler is correctly attached to the
product.
• Use approved hearing protection while you operate
the product.
• Listen for warning signals and voices when you use
hearing protection. Remove the hearing protection
when the product is stopped, unless hearing
protection is necessary for the noise level in the work
area.
1107 - 006 - 23.06.2022
7
Personal protective equipment
WARNING: Read the warning
instructions that follow before you use the
product.
• Always use approved personal protective equipment
when you operate the product. Personal protective
equipment cannot fully prevent injury but it
decreases the degree of injury if an accident does
occur. Let your dealer help you select the correct
personal protective equipment.
• Regularly do a check of the condition of the personal
protective equipment.
• Use an approved protective helmet.
• Use approved hearing protection.
• Use approved respiratory protection.
• Use approved eye protection with side protection.
• Use protective gloves.
• Use boots with steel toe-cap and non-slip sole.
• Use approved work clothing or equivalent close-
fitting clothing that has long sleeves and long legs.
Fire extinguisher
• Keep a fire extinguisher near during operation.
• Use a powder fire extinguisher of "ABE" class or a
carbon dioxide fire extinguisher of "BE" type.
Safety devices on the product
WARNING: Read the warning
instructions that follow before you use the
product.
• Do not use a product with defective safety devices.
• Do a check of the safety devices regularly. If
the safety devices are defective, speak to your
Husqvarna service agent.
Engine ON/OFF switch
The engine can only start when the engine ON/OFF
switch is set to "ON". The engine stops when you set the
engine ON/OFF switch to "OFF".
To do a check of the engine ON/OFF switch
1. Start the engine. Refer to
To start the product on
page 10
.
2. Set the engine ON/OFF switch to "OFF". The engine
stops.
Muffler
The muffler keeps the noise levels to a minimum and
sends the exhaust fumes away from the operator.
Do not use the product if the muffler is missing or
defective. A defective muffler increases the noise level
and the risk of fire.
WARNING:
The muffler becomes very
hot during and after use and when the
engine operates at idle speed. Be careful
near flammable materials and/or fumes to
prevent fire.
To do a check of the muffler
• Examine the muffler regularly to make sure that it is
attached correctly and not damaged.
Safety frame
The safety frame prevents damage to the product if it
falls. The handle and the lifting point are parts of the
safety frame.
To do a check of the safety frame
• Make sure that there are no cracks or other
damages on the safety frame.
• Make sure that the safety frame is correctly installed
on the product.
Vibration damping units
The vibration damping units decrease vibration in the
product. The vibration damping units decrease harmful
vibrations to prevent injury to the operator and damage
to the product.
To do a check of the vibration damping units
There are 4 vibration damping units, 2 on the left side
and 2 on the right side of the product.
• Make sure that the vibration damping units are
correctly installed.
• Examine the vibration damping units for damages
and wear.
• Replace the vibration damping units if it is
necessary.
Fuel safety
WARNING:
Read the warning
instructions that follow before you use the
product.
• Fuel is flammable and the fumes are explosive. Be
careful with fuel to prevent injury, fire and explosion.
• Do not breathe in the fuel fumes. The fuel fumes are
poisonous and can cause injury. Make sure that the
airflow is sufficient.
• Do not remove the fuel tank cap or fill the fuel tank
when the engine is on.
• Let the engine become cool before you refuel.
• Do not fill fuel in an indoor area. Not sufficient airflow
can cause injury or death because of asphyxiation or
carbon monoxide.
• Do not smoke near the fuel or the engine.
8
1107 - 006 - 23.06.2022
• Do not put hot objects near the fuel or the engine.
• Do not fill fuel near sparks or flames.
• Before you refuel, open the fuel tank cap slowly and
release the pressure carefully.
• Fuel on your skin can cause injury. If you get fuel on
your skin, use soap and water to remove the fuel.
• If you spill fuel on your clothing, change clothing
immediately.
• Do not fill the fuel tank fully. Heat causes the fuel to
expand. Keep a space at the top of the fuel tank.
• Tighten the fuel tank cap fully. If the fuel tank cap is
not tightened, there is a risk of fire.
• Before you start the product, move the product to a
minimum of 3 m/10 ft from where you refueled.
• Do not start the product if there is fuel or engine
oil on the product. Remove the unwanted fuel and
engine oil and let the product dry before you start the
engine.
• Examine the engine for leaks regularly. If there are
leaks in the fuel system, do not start the engine until
the leaks are repaired.
• Do not use your fingers to examine the engine for
leaks.
• Keep fuel in approved containers only.
• When the product and fuel is in storage, make sure
that fuel and fuel fumes cannot cause damage.
• Drain the fuel in an approved container outdoors and
away from sparks and flames.
Safety instructions for operation on slopes
WARNING:
Read the warning
instructions that follow before you use the
product.
• Do not operate the product on a slope that is more
than 20°. Loose ground, vibrations and the operation
speed can cause the product to fall on a slope that is
less than 20°.
• Make sure that the work area is safe. Wet and loose
soil decreases safe operation of the product. Be very
careful on slopes and rough surfaces.
• Make sure that all persons in the work area are
above the product on the slope.
• Operate the product up and down the slope, not from
side to side.
• Do not park the product on a slope. If you must park
the product on a slope, make sure that the product
cannot fall. There is a risk of injury and damage.
Safety instructions for operation near edges
WARNING:
Read the warning
instructions that follow before you use the
product.
• There is a risk that the product falls when you
operate it near an edge. Always keep a minimum
of ⅔ of the product on a surface that is sufficiently
stable to hold the product weight.
• If the product falls, stop the engine before you lift the
product back to a surface that is sufficiently stable.
Refer to
To lift the product on page 15
.
Safety instructions for maintenance
WARNING: Read the warning
instructions that follow before you use the
product.
• If the maintenance is not done correctly and
regularly, the risk of injury and damage to the
product increases.
• Use personal protective equipment. Refer to
Personal protective equipment on page 8
.
• Stop the engine and make sure that all parts of the
product are cool before you do the maintenance.
• Clean the product to remove dangerous material
before you do the maintenance.
• Disconnect the spark plug cap before you do the
maintenance.
• The exhaust fumes from the engine are hot and can
contain sparks. Do not operate the product in indoor
areas or near flammable material.
• Do not change the product. Modifications that
are not approved by the manufacturer, can cause
serious injury or death.
• Always use original accessories and spare parts.
Accessories and spare parts that are not approved
by the manufacturer, can cause serious injury or
death.
• Replace damaged, worn or broken parts.
• Only do the maintenance as given in this operator's
manual. Let an approved service center do all other
servicing.
• Remove all tools from the product before you start
the engine after maintenance. Loose tools or tools
attached to rotating parts can eject and cause injury.
• After maintenance, do a check of the vibration level
in the product. If it is not correct, speak to an
approved service center.
• Let an approved service center do servicing on the
product regularly.
1107 - 006 - 23.06.2022
9
Operation
Introduction
WARNING: Read and understand the
safety chapter before you use the product.
To do before you operate the product
• Read the operator's manual carefully and make sure
that you understand the instructions.
• Read the engine manual that is supplied by the
engine manufacturer.
• Do the daily maintenance. Refer to
Maintenance
schedule on page 12
.
Water tank
For LF 60 there is an optional water tank for compaction
of asphalt.
CAUTION: Do not add other fluids
than water to the water tank. Other fluids
can cause damage to the product and be
harmful to the environment.
To start the product
1. Open the fuel valve.
2. Set the throttle control to ⅓ throttle.
3. Set the choke control in the correct position.
a) If the engine is cold, close the choke.
b) If the engine is warm or the ambient temperature
is high, open the choke.
4. Set the engine ON/OFF switch to "ON".
5. Pull the starter rope handle slowly until you feel
resistance.
6. Release the starter rope handle to let the starter
rope go back.
7. Pull the starter rope handle until the engine starts.
8. Open the choke control gradually until it is fully open.
9. Let the engine operate at idle speed for 2–3 minutes.
10
1107 - 006 - 23.06.2022
10. Set the throttle control to full throttle.
To stop the product
1. Lift the throttle control to the idle speed position.
2. Set the engine ON/OFF switch to "OFF". The engine
stops.
3. Move the fuel valve to the "OFF" position.
To operate the product
CAUTION:
Always operate the product
forward and at full throttle. Lower engine
speed and rearward movement prevents
correct function of the eccentric element and
can cause product failure.
1. Apply full throttle.
2. Carefully push the product forward.
CAUTION:
Do not push the product
down. Too much pressure can cause
unsatisfactory result.
3. To change direction, turn the product around.
a) To turn the product with a minimum turning
radius, lift the handle to a 90 degrees angle. Use
this function in small spaces and on ground that
is not level.

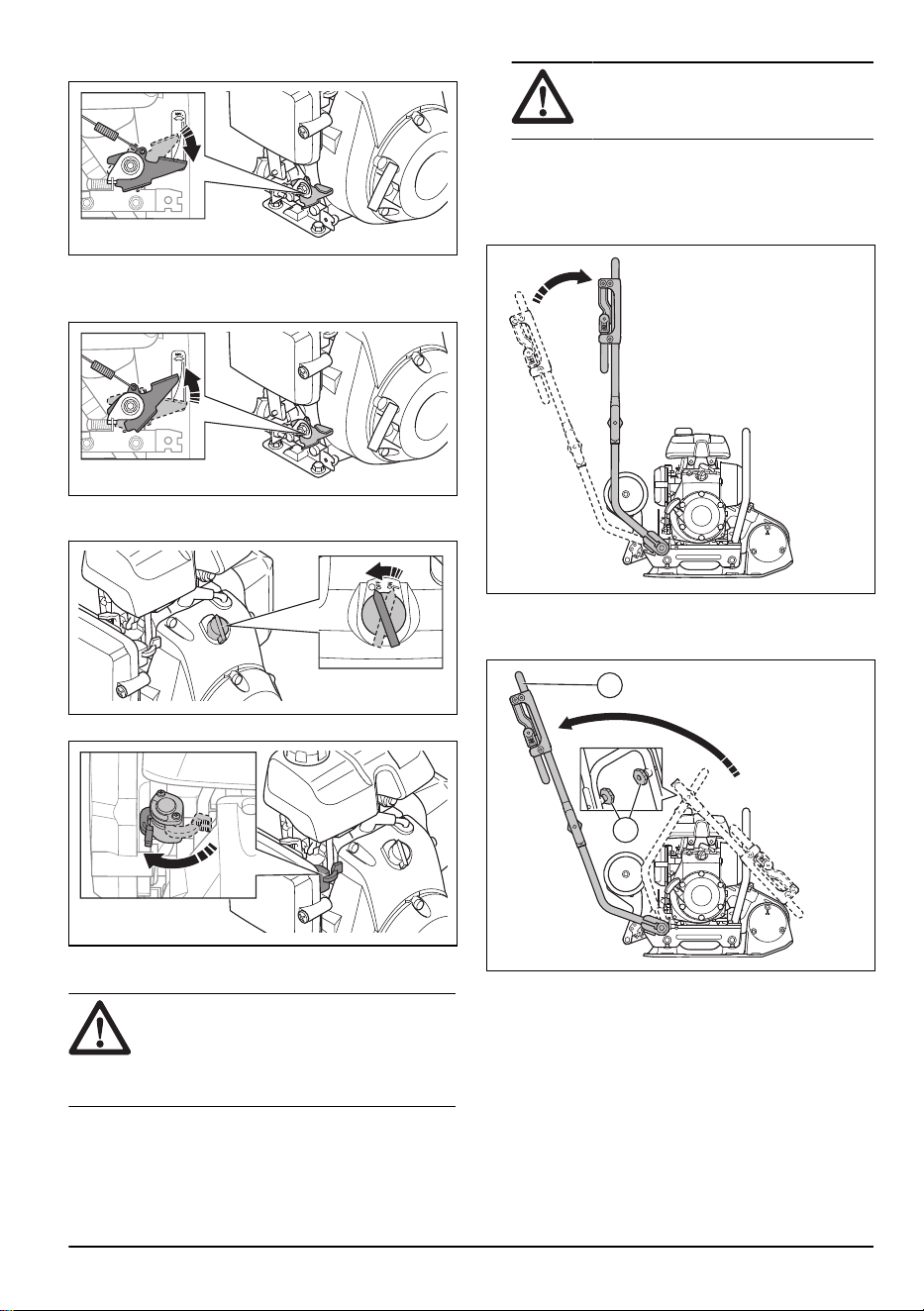

To set the product in operation position
1. Loosen the handle knobs (A).
A
B
2. Lift the handle (B).
3. Tighten the handle knobs (A).
1107 - 006 - 23.06.2022
11
To set the product in transport position
1. Loosen the handle knobs (A).
A
B
2. Lower the handle (B).
3. Tighten the handle knobs (A).
To adjust the water flow on (LF 60)
• Turn the water tap (A). Adjust the water flow
between closed (B) and fully open (C) mode.
A
B
C
Maintenance
Introduction
WARNING: Read and understand the
safety chapter before you do maintenance
on the product.
Maintenance schedule
* = General maintenance done by the operator. The
instructions are not given in this operator's manual.
X = The instructions are given in this operator's manual.
O = Refer to the engine manual for instructions.
General product maintenance Before use,
each 10 h
Weekly,
each 100 h
Make sure that there are no fuel or oil leaks. *
Clean the product. X
Make sure that nuts and screws are tightened. *
Examine the throttle control and choke control for damage. *
Make sure that the throttle control and the choke control can move smoothly. *
Examine the vibration damping units for damage. X
Examine the tension of the V-belt and look for damages. Adjust or replace the V-belt
as necessary.
X
Engine maintenance Before use,
each 10 h
After the
first 20 h
Weekly,
each 100 h
Yearly, each
300 h
Do a check of the fuel level and the engine oil level. X
Clean the cooling fins of the engine. O
Examine the air filter. Clean the air filter if it is necessary. X X
Clean the air filter. X
12 1107 - 006 - 23.06.2022
Engine maintenance Before use,
each 10 h
After the
first 20 h
Weekly,
each 100 h
Yearly, each
300 h
Replace the air filter. X
Replace the engine oil. X X X
Do a check of the engine speed. O O O
Examine and clean the spark plug. Replace the spark
plug if it is necessary.
O O
Replace the spark plug. O
Clean the fuel valve of the carburetor. O O
Clean the spark arrester screen on the muffler. O O
Adjust the valve head clearance for the air intake and the
exhaust valves.
O
Drain the fuel and clean the fuel tank and the fuel filter. O O
Clean and adjust the carburetor. O
Replace the fuel filter. O
To clean the product
• Use running water from a hose or a high-pressure
washer to clean the product.
CAUTION: Do not point the water
directly at the fuel tank cap, electrical
components or the engine.
• Remove grease and oil from the handle.
To do a general inspection
• Make sure that all nuts and screws on the product
are tightened correctly.
To do a check of the engine oil level
1. Remove the oil tank cap and dipstick.
2. Clean the oil from the dipstick.
3. Put the dipstick back fully into the oil tank.
4. Remove the dipstick.
5. Examine the oil level on the dipstick.
6. If the oil level is low, fill with engine oil and do a
check of the oil level again. Refer to
Technical data
on page 17
or the engine manual for the correct
type of oil.
To replace the engine oil
If the engine is cold, start the engine for 1–2 minutes
before you drain the engine oil. This makes the engine
oil warm and easier to drain.
WARNING:
Engine oil is very hot
directly after the engine stops. Let the
engine become cool before you drain the
engine oil. If you spill engine oil on your skin,
clean with soap and water.
1. Put a container below the drain plug for the engine
oil.
2. Remove the oil drain plug (A) and connect a hose
(B).
A
B
3. Tilt the product and let the oil run out into the
container.
4. Remove the hose.
5. Install the oil drain plug and tighten it.
6. Fill with new engine oil. Refer to the engine manual
for the correct type of oil.
7. Do a check of the engine oil level.

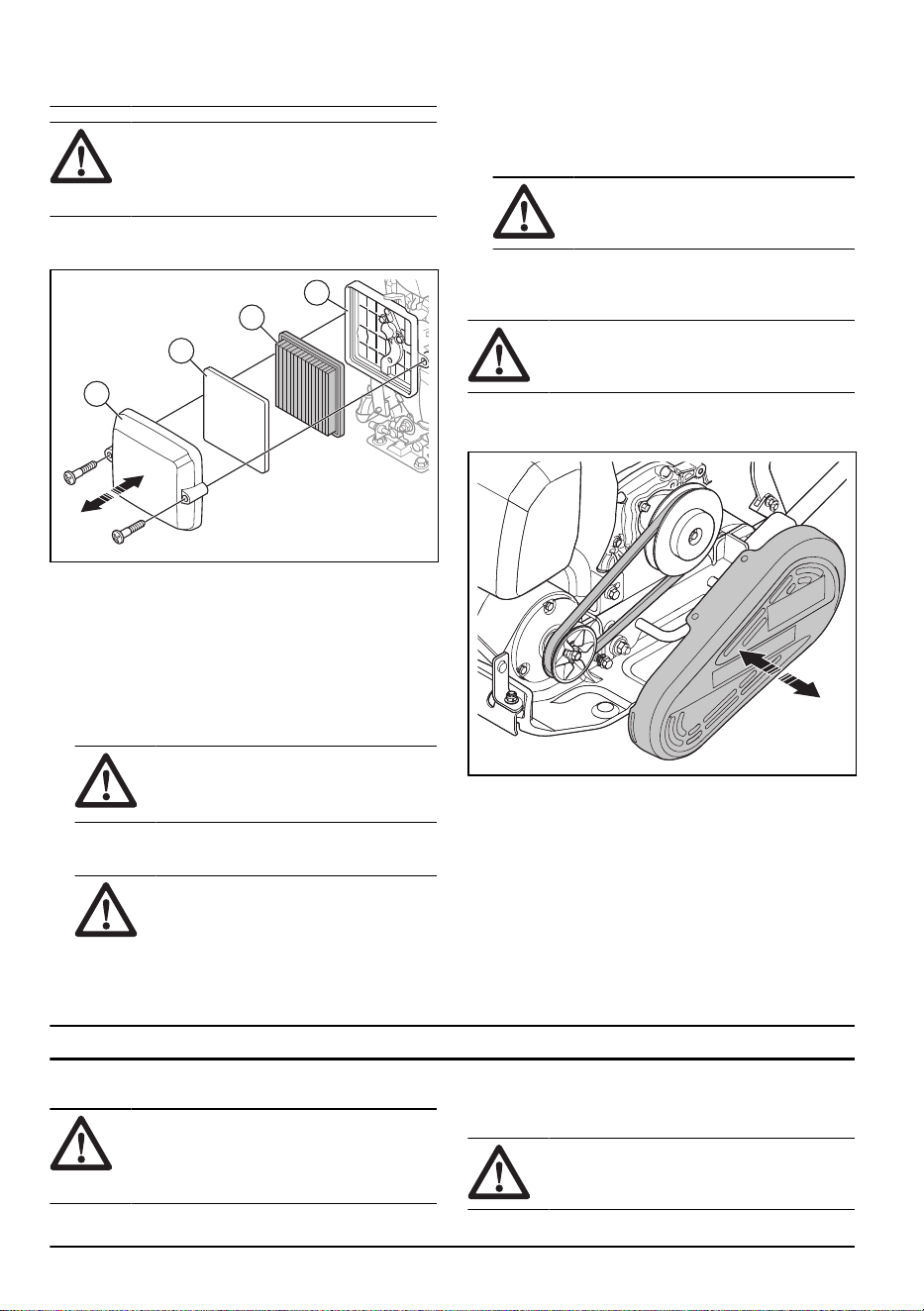

To clean or replace the air filter
WARNING:
Use approved respiratory
protection when you clean or replace the air
filter. Discard used air filters correctly. The
1107 - 006 - 23.06.2022 13
dust in the air filter is dangerous to your
health.
WARNING: Do not clean the air filter
with compressed air. This causes damage to
the air filter and the risk increases that you
breathe the dangerous dust.
1. Loosen the 2 screws on the air filter cover (A) and
remove the air filter cover.
C
A
B
D
2. Remove the foam filter element (B) from the air filter
cover.
3. Remove the paper filter element (C) from the air filter
housing (D).
4. Clean the air filter housing and the air filter cover
with a moist cloth.
5. Examine the air filter elements. Discard damaged air
filter elements.
CAUTION:
Always replace a
damaged air filter, or the dust will go into
the engine and cause engine damage.
6. Tap the paper filter element against a hard surface
or use a vacuum cleaner to remove the particles.
CAUTION:
Do not let the nozzle of
the vacuum cleaner touch the surface of
the paper filter element. Keep a small
distance. The sensitive surface of the
paper filter element becomes damaged
if objects touch it.
7. Clean the foam filter element with a solution of soap
and water.
8. Flush the foam filter element in clean water.
9. Compress the foam filter element to remove the
water and let the foam filter element dry fully.
CAUTION: Do not put oil on the
foam element of the air filter.
10. Install the air filter in the opposite sequence.
To do a check of the V-belt
WARNING: Do not operate the product
without the V-belt cover installed.
1. Stop the engine.
2. Remove the V-belt cover.
3. Examine the V-belt for damages and wear. Replace
the V-belt if it is necessary.
4. Examine the tension of the V-belt.
5. If the tension is not sufficient, do these steps:
a) Loosen the 4 bolts that hold the engine to the
bottom plate.
b) Move the engine rearward.
c) Make sure that the V-belt pulleys align and
tighten the 4 bolts.
6. Install the V-belt cover.
Transportation, storage and disposal
Transportation
WARNING: Be careful during
transportation. The product is heavy and can
cause injury or damage if it falls or moves
during transportation.
Transport wheels let you move the product manually for
shorter distances. For longer distances, lift the product
to move it or put the product on a vehicle.
CAUTION: Do not tow the product
behind a vehicle.
14 1107 - 006 - 23.06.2022
To engage the transport wheels (optional)
• Fold the wheels down, below the bottom plate.
To lift the product
WARNING: Make sure that the lifting
equipment has the correct specification to
lift the product safely. The type plate on the
product shows the product weight.
WARNING: Do not walk or stay below
or near a lifted product.
1. Set the product in transport position. Refer to
To set
the product in transport position on page 12
.
2. Attach the lifting equipment to the lifting eye (A).
a) LF 50:
A
B
b) :
A
B
WARNING: Do not use metal hooks,
chains or other lifting equipment with rough
edges that can cause damage to the lifting
eye.
WARNING: Do not lift a damaged
product. Make sure that the vibration
damping units (B) are correctly installed and
not damaged.

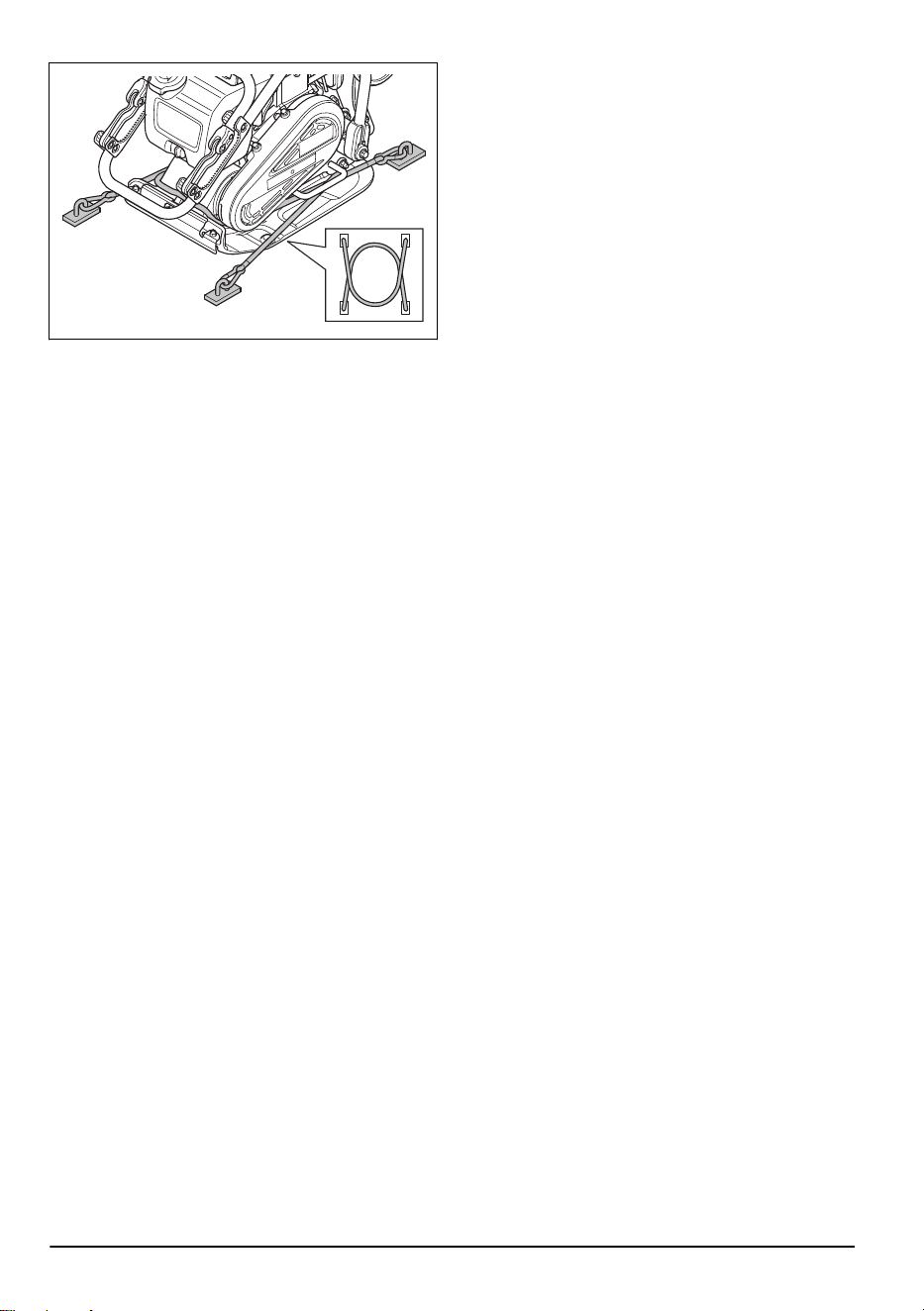

To safety the product to a transportation
vehicle with tie-down straps
1. Put the handle in transport position. Refer to
To set
the product in transport position on page 12
.
2. Put 2 straps around the bottom plate.
a) Put 1 strap around the front of the bottom plate
and attach the strap to the vehicle.
b) Put 1 strap around the rear of the bottom plate
and attach the strap to the vehicle.
LF 50:
LF60:
1107 - 006 - 23.06.2022
15
Storage
• Remove all fuel from the fuel tank before you put the
product in storage for a long period of time. Discard
the fuel at an applicable disposal location.
• Clean the product before storage. Remove oil and
dust from the rubber parts.
• Clean the air filter before storage.
• Carefully pull the starter rope handle until there
is a small resistance. This closes the valves and
makes sure that moisture cannot go into the engine
cylinder.
• Put a protective cover on the product.
• Keep the product in a dry and frost free area.
• Keep the product in a locked area to prevent access
for children or persons that are not approved.
Disposal
• Obey the local recycling requirements and applicable
regulations.
• Discard all chemicals, such as engine oil or fuel, at a
service center or at an applicable disposal location.
• When the product is no longer in use, send it to
a Husqvarna dealer or discard it at a recycling
location.
16
1107 - 006 - 23.06.2022
Technical data
Technical data (LF 50)
Net weight, kg/lb 52/114.6
Operation weight (EN500, incl. oil, ½ fuel), kg/lb 52.5/115.7
Engine brand, type Honda, GXR 120
Engine power, kW/hp @rpm
1
2.3/3.1@3600
Vibration frequency, Hz/rpm 95/5700
Amplitude, mm/in. 0.905/0.04
Centrifugal force, kN/lbf 8.4/1888
Operation speed, m/min or ft./min 32 or 105
Max. tilt, degrees/% 20/36
Fuel tank capacity, l/qts 1.2/1.26
Engine oil capacity *, l/qts 0.4/0.42
Fuel consumption, l/h or qts/h 0.67 or 0.71
Fuel * Unleaded gasoline, max. 10% ethanol
Engine oil * SAE 10W-30, API Class SJ
* = For further information and questions about this
specific engine, refer to the engine manual or the web
site of the engine manufacturer.
Noise and vibration emissions
Sound power level, measured dB (A) 101
Sound power level, guaranteed L
WA
dB (A)
2
102
Sound pressure level at the operator's ear, L
P
, dB (A)
3
88
Vibration level, a
hv
, m/s
2
, standard handle/low vibration handle
4
7.8/1.5
1
As specified by the engine manufacturer. The power rating of the engine indicated is the average net output
(at specified rpm) of a typical production engine for the engine model measured to SAE standard J1349/
ISO1585. Mass production engines may differ from this value. Actual power output for the engine installed on
the final product will depend on the operating speed, environmental conditions and other values.
2
Noise emissions in the environment measured as sound power (L
WA
) as per EN ISO 3744 in conformity
with EC directive 2000/14/EC. The difference between guaranteed and measured sound power is that the
guaranteed sound power also includes dispersion in the measurement result and the variations between
different machines of the same model according to Directive 2000/14/EC.
3
Sound pressure level L
P
according to EN ISO 11201, EN 500-4. Uncertainty K
PA
3.0 dB (A).
4
Vibration value according to EN 500-4. Reported data for vibration level has a typical statistical dispersion
(standard deviation) of 1.5 m/s
2
.
1107 - 006 - 23.06.2022 17
Weights for options
Transport wheel, kg/lbs 4.4/9.7
Low vibration handle, kg/lbs 1.1/2.4
Technical data (LF 60)
Net weight, kg/lb LA: 62/136.7
LAT: 66.4/146.4
Operation weight (EN500, incl. oil, ½ fuel), kg/lb LA: 62.5/137.8
LAT: 66.9/147.5
Engine brand, type Honda, GXR 120
Engine power, kW/hp @rpm
5
2.3/3.1@3600
Vibration frequency, Hz/rpm 95/5700
Amplitude, mm/in. 0.943/0.04
Centrifugal force, kN/lbf 10.4/2338
Operation speed, m/min or ft./min 22 or 72
Max. tilt, degrees/% 20/36
Fuel tank capacity, l/qts 1.2/1.26
Engine oil capacity *, l/qts 0.4/0.42
Fuel consumption, l/h or qts/h 0.67 or 0.71
Water tank for asphalt, l/gal 5/1.32
Fuel * Unleaded gasoline, max. 10% ethanol
Engine oil * SAE 10W-30, API Class SJ
* = For further information and questions about this
specific engine, refer to the engine manual or the web
site of the engine manufacturer.
Noise and vibration emissions
Sound power level, measured dB (A) 101
Sound power level, guaranteed L
WA
dB (A)
6
102
5
As specified by the engine manufacturer. The power rating of the engine indicated is the average net output
(at specified rpm) of a typical production engine for the engine model measured to SAE standard J1349/
ISO1585. Mass production engines may differ from this value. Actual power output for the engine installed on
the final product will depend on the operating speed, environmental conditions and other values.
6
Noise emissions in the environment measured as sound power (L
WA
) as per EN ISO 3744 in conformity
with EC directive 2000/14/EC. The difference between guaranteed and measured sound power is that the
guaranteed sound power also includes dispersion in the measurement result and the variations between
different machines of the same model according to Directive 2000/14/EC.
18 1107 - 006 - 23.06.2022
Noise and vibration emissions
Sound pressure level at the operator's ear, L
P
, dB (A)
7
88
Vibration level, a
hv
, m/s
2
, standard handle/low vibration handle
8
7.9/1.9
Weights for options
Transport wheel, kg/lbs 4.4/9.7
Low vibration handle, kg/lbs 1.1/2.4
Noise and vibration declaration
statement
These declared values were obtained by laboratory
type testing in accordance with the stated directive or
standards and are suitable for comparison with the
declared values of other products tested in accordance
with the same directive or standards. These declared
values are not suitable for use in risk assessments
and values measured in individual work places may
be higher. The actual exposure values and risk of
harm experienced by an individual user are unique and
depend upon the way the user works, in what material
the product is used, as well as upon the exposure time
and the physical condition of the user, and the condition
of the product.
7
Sound pressure level L
P
according to EN ISO 11201, EN 500-4. Uncertainty K
PA
3.0 dB (A).
8
Vibration value according to EN 500-4. Reported data for vibration level has a typical statistical dispersion
(standard deviation) of 1.5 m/s
2
.
1107 - 006 - 23.06.2022 19

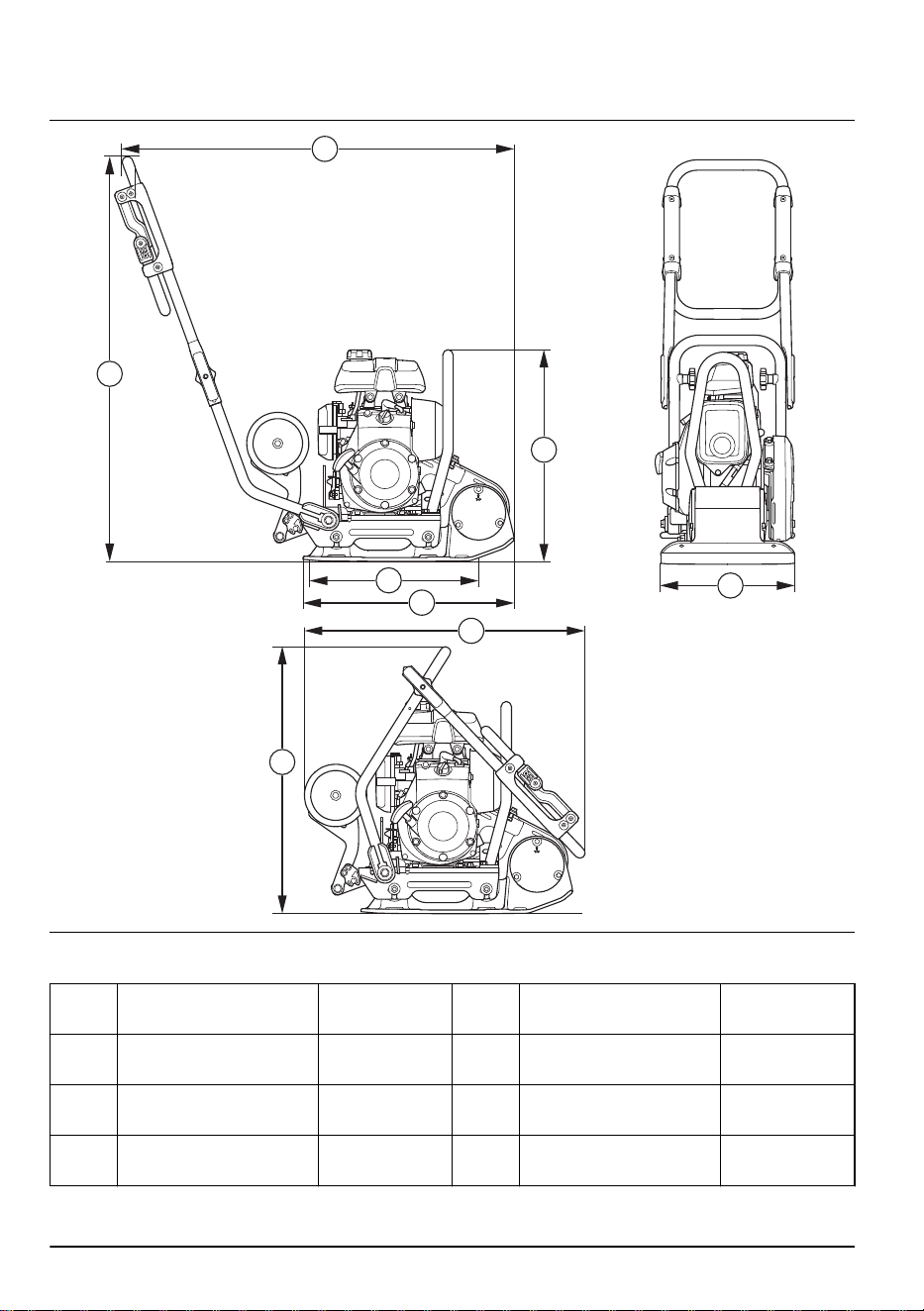

Product dimensions (LF 50)
B
A
C
D
E
F
G
H
A
Length including handle,
mm/in.
940/37 E
Length bottom plate,
mm/in.
505/19.9
B
Handle height, mm/in.
965/38 F
Length with handle folded,
mm/in.
680/26.7
C
Height, mm/in.
605/23.8 G
Height with handle folded,
mm/in.
605/23.8
D
Bottom plate contact area,
m
2
/sq. ft.
0.090/097 H
Width, mm/in.
320/12.6
20 1107 - 006 - 23.06.2022

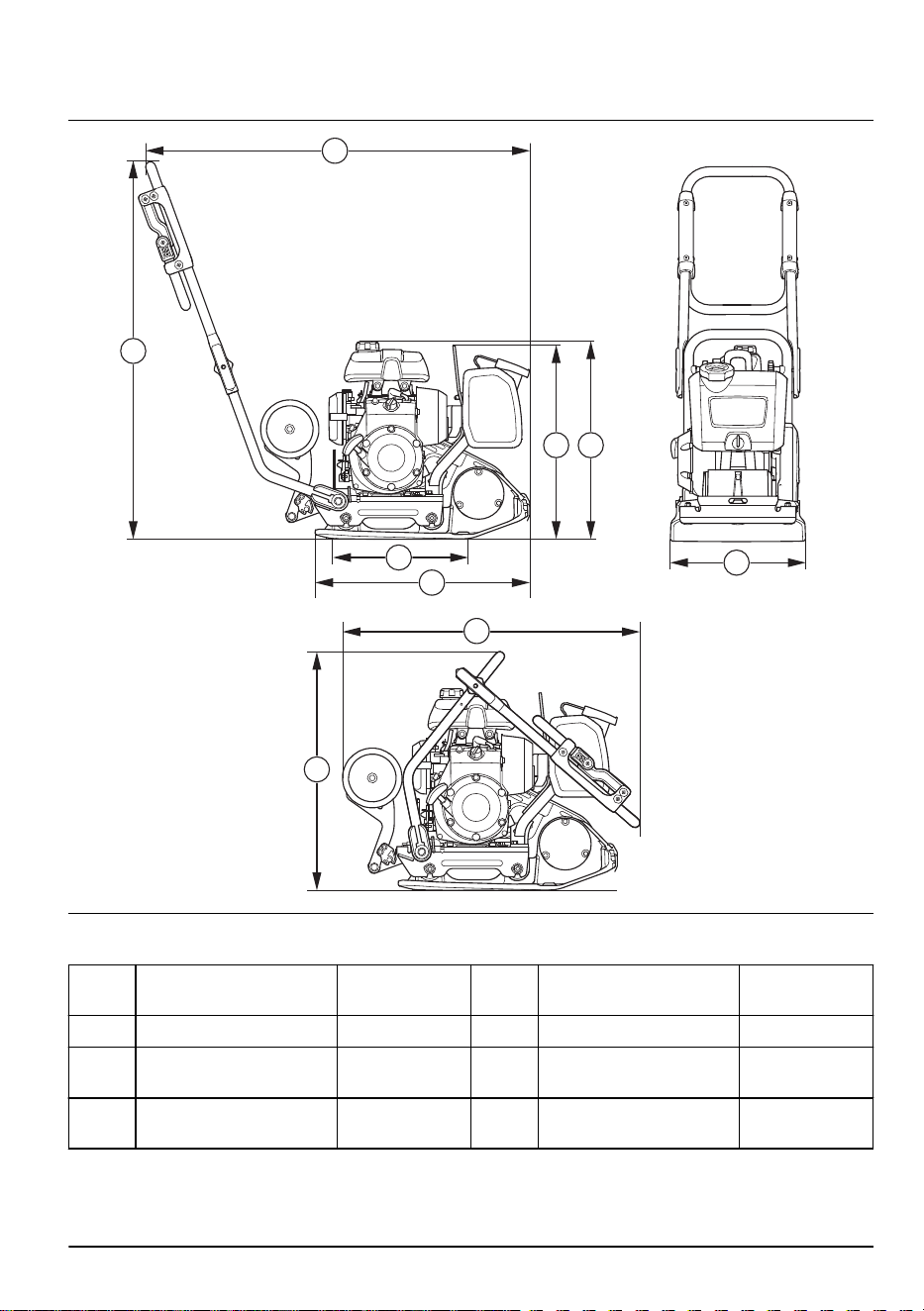

Product dimensions (LF 60)
H
I
G
E
F
DC
B
A
A
Length including handle,
mm/in.
986/38.8 F
Length bottom plate, mm/in
550/21.7
B Handle height, mm/in. 968/38.1 G Width, mm/in. 350/13.7
C
Height at lifting point on the
safety frame, mm/in.
490/19.3 H
Length with handle folded,
mm/in.
680/26.7
D
Height, mm/in.
505/19.9 I
Height with handle folded,
mm/in.
605/23.8
1107 - 006 - 23.06.2022 21
E Bottom plate contact area,
m
2
/sq. ft.
0.093/1.001
22 1107 - 006 - 23.06.2022
EC Declaration of Conformity
EC Declaration of Conformity
We, Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel:
+46-36-146500, declare on our sole responsibility that
the product:
Description Forward Plate Compaction Machine
Brand Husqvarna
Type/Model LF 50, LF 60
Identification Serial numbers dating from 2022 and onwards
complies fully with the following EU directives and
regulations:
Directive/Regulation Description
2014/30/EU "relating to electromagnetic compatibility"
2006/42/EC "relating to machinery"
2000/14/EC "relating to outdoor noise"
and that the following harmonized standards and/or
technical specifications are applied;
EN 500-1+A1:2009
EN 500-4:2011
Notified Body: 0404, RISE SMP Svensk Maskinprovning
AB, Verkstadsgatan 17, Box 4053, 904 32
UMEÅ, Sweden, has certified conformity with the
Council's Directive 2000/14/EC, conformity assessment
procedure: Annex VI.
For information relating to noise emissions, refer to the
chapter
Technical data on page 17
.
Partille, 2022-03-29
Martin Huber
R&D Director, Concrete Surfaces & Floors
Husqvarna AB, Construction Division
Responsibe for technical documentation
1107 - 006 - 23.06.2022 23
www.husqvarnacp.com
Original instructions
1140383-26
2022-07-01
