6.5A ORBITAL
JIG SAW
WITH LASER
64290
TM
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s Date Code in the back of
the manual (or month and year of purchase if product has no number). Keep this manual and the receipt in
a safe and dry place for future reference. 25d
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1‑800‑444‑3353 as soon as possible.
Copyright
©
2024 by Harbor Freight Tools
®
. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Page 2 For technical questions, please call 1-800-444-3353. 64290
Table of Contents
Safety ........................................................................2
Specifications ............................................................8
Setup .........................................................................8
Operation ................................................................... 9
Maintenance .............................................................12
Warranty ...................................................................15
TM
WARNING SYMBOLS AND DEFINITIONS
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
IMPORTANT SAFETY INFORMATION
General Power Tool Safety Warnings
Read all safety warnings, instructions, illustrations and specifications provided with this power tool.
Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-operated (corded)
power tool or battery-operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away
while operating a power tool. Distractions
can cause you to lose control.
2. Electrical safety
a. Power tool plugs must match the outlet.
Never modify the plug in any way. Do not use
any adapter plugs with earthed (grounded)
power tools. Unmodified plugs and matching
outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or
grounded surfaces, such as pipes,
radiators, ranges and refrigerators.
There is an increased risk of electric shock
if your body is earthed or grounded.
c. Do not expose power tools to rain or wet
conditions. Water entering a power tool
will increase the risk of electric shock.
SAFETY OPERATION MAINTENANCESETUP
Page 3For technical questions, please call 1-800-444-3353.64290
d. Do not abuse the cord. Never use the cord
for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp
edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.
e. When operating a power tool outdoors,
use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor
use reduces the risk of electric shock.
f. If operating a power tool in a damp location
is unavoidable, use a ground fault circuit
interrupter (GFCI) protected supply. Use of
a GFCI reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and
use common sense when operating a
power tool. Do not use a power tool while
you are tired or under the influence of
drugs, alcohol or medication. A moment
of inattention while operating power tools
may result in serious personal injury.
b. Use personal protective equipment. Always
wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard
hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools
with your finger on the switch or energizing power
tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench
before turning the power tool on. A wrench
or a key left attached to a rotating part of the
power tool may result in personal injury.
e. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing
or jewelry. Keep your hair, clothing
and gloves away from moving parts.
Loose clothes, jewelry or long hair
can be caught in moving parts.
g. If devices are provided for the connection
of dust extraction and collection
facilities, ensure these are connected
and properly used. Use of dust collection
can reduce dust-related hazards.
h. Do not let familiarity gained from frequent
use of tools allow you to become
complacent and ignore tool safety
principles. A careless action can cause
severe injury within a fraction of a second.
i. Only use safety equipment that has been
approved by an appropriate standards agency.
Unapproved safety equipment may not provide
adequate protection. Eye protection must be
ANSI‑approved and breathing protection
must be NIOSH‑approved for the
specific hazards in the work area.
j. Avoid unintentional starting.
Prepare to begin work before turning on the tool.
k. Do not lay the tool down until it has come to
a complete stop. Moving parts can grab the
surface and pull the tool out of your control.
l. When using a handheld power tool,
maintain a firm grip on the tool with
both hands to resist starting torque.
m. Do not leave the tool unattended when
it is plugged into an electrical outlet.
Turn off the tool, and unplug it from its
electrical outlet before leaving.
n. This product is not a toy.
Keep it out of reach of children.
o. People with pacemakers should consult their
physician(s) before use. Electromagnetic fields
in close proximity to heart pacemaker could
cause pacemaker interference or pacemaker
failure. In addition, people with pacemakers
should:
• Avoid operating alone.
• Do not use with Trigger locked on.
• Properly maintain and inspect to avoid
electrical shock.
• Properly ground power cord.
Ground Fault Circuit Interrupter (GFCI)
should also be implemented – it prevents
sustained electrical shock.
p. The warnings, precautions, and instructions
discussed in this instruction manual cannot
cover all possible conditions and situations
that may occur. It must be understood by the
operator that common sense and caution are
factors which cannot be built into this product,
but must be supplied by the operator.
4. Power tool use and care
a. Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer
at the rate for which it was designed.
b. Do not use the power tool if the switch
does not turn it on and off. Any power
tool that cannot be controlled with the switch
is dangerous and must be repaired.
c. Disconnect the plug from the power
source and/or remove the battery pack,
if detachable, from the power tool before
making any adjustments, changing
accessories, or storing power tools.
Such preventive safety measures reduce the
risk of starting the power tool accidentally.
SAFETYOPERATIONMAINTENANCE SETUP
Page 4 For technical questions, please call 1-800-444-3353. 64290
d. Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions
to operate the power tool. Power tools are
dangerous in the hands of untrained users.
e. Maintain power tools and accessories.
Check for misalignment or binding of moving
parts, breakage of parts and any other
condition that may affect the power tool’s
operation. If damaged, have the power tool
repaired before use. Many accidents are
caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions
and the work to be performed. Use of the
power tool for operations different from those
intended could result in a hazardous situation.
h. Keep handles and grasping surfaces
dry, clean and free from oil and grease.
Slippery handles and grasping surfaces
do not allow for safe handling and control
of the tool in unexpected situations.
5. Service
a. Have your power tool serviced by a
qualified repair person using only identical
replacement parts. This will ensure that
the safety of the power tool is maintained.
b. Maintain labels and nameplates on the tool.
These carry important safety information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
6. Safety instructions for jig saws
a. Hold the power tool by insulated gripping
surfaces, when performing an operation
where the cutting accessory may contact
hidden wiring or its own cord. Cutting
accessory contacting a “live” wire may make
exposed metal parts of the power tool “ live”
and could give the operator an electric shock.
b. Use clamps or another practical way to
secure and support the workpiece to a
stable platform. Holding the workpiece
by hand or against your body leaves it
unstable and may lead to loss of control.
Vibration Safety
This tool vibrates during use.
Repeated or long‑term exposure to vibration may
cause temporary or permanent physical injury,
particularly to the hands, arms and shoulders.
To reduce the risk of vibration‑related injury:
1. Anyone using vibrating tools regularly or for
an extended period should first be examined
by a doctor and then have regular medical
check‑ups to ensure medical problems are not
being caused or worsened from use. Pregnant
women or people who have impaired blood
circulation to the hand, past hand injuries,
nervous system disorders, diabetes, or
Raynaud’s Disease should not use this tool.
If you feel any symptoms related to vibration (such
as tingling, numbness, and white or blue fingers),
seek medical advice as soon as possible.
2. Do not smoke during use. Nicotine reduces
the blood supply to the hands and fingers,
increasing the risk of vibration‑related injury.
3. Wear suitable gloves to reduce the
vibration effects on the user.
4. Use tools with the lowest vibration
when there is a choice.
5. Include vibration‑free periods each day of work.
6. Grip tool as lightly as possible (while still keeping
safe control of it). Let the tool do the work.
7. To reduce vibration, maintain the tool as
explained in this manual. If any abnormal
vibration occurs, stop use immediately.
SAVE THESE INSTRUCTIONS.
SAFETY OPERATION MAINTENANCESETUP
Page 5For technical questions, please call 1-800-444-3353.64290

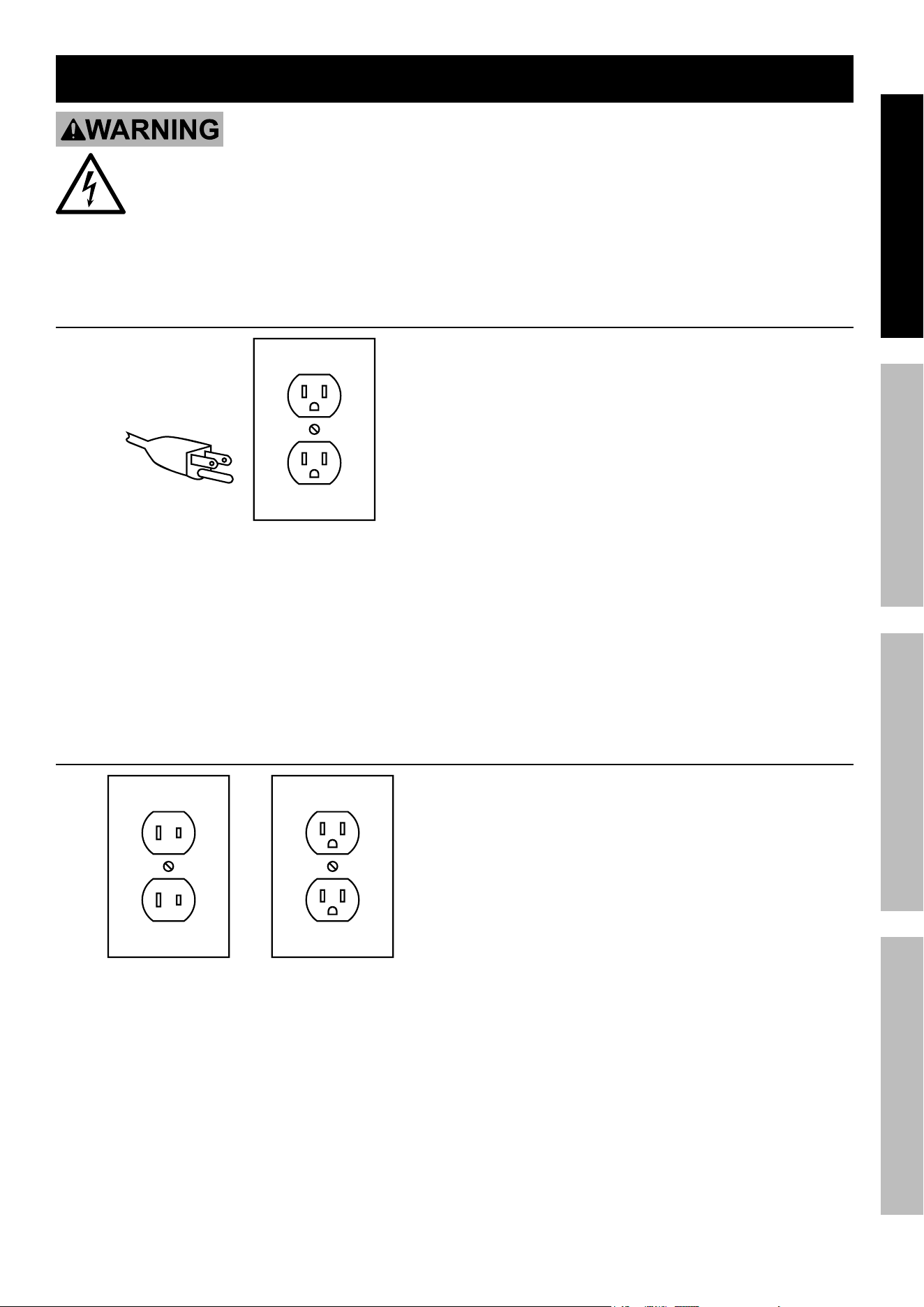

Grounding
TO PREVENT ELECTRIC SHOCK AND DEATH FROM INCORRECT GROUNDING WIRE
CONNECTION: Check with a qualified electrician if you are in doubt as to whether the outlet is
properly grounded. Do not modify the power cord plug provided with the tool. Never remove the
grounding prong from the plug. Do not use the tool if the power cord or plug is damaged. If damaged, have
it repaired by a service facility before use. If the plug will not fit the outlet, have a proper outlet installed by
a qualified electrician.
Grounded Tools: Tools with Three Prong Plugs
3-Prong Plug and Outlet
1. Tools marked with “Grounding Required” have
a three wire cord and three prong grounding
plug. The plug must be connected to a properly
grounded outlet. If the tool should electrically
malfunction or break down, grounding provides
a low resistance path to carry electricity away
from the user, reducing the risk of electric
shock. (See 3-Prong Plug and Outlet.)
2. The grounding prong in the plug is connected
through the green wire inside the cord to the
grounding system in the tool. The green wire
in the cord must be the only wire connected
to the tool’s grounding system and must
never be attached to an electrically “live”
terminal. (See 3-Prong Plug and Outlet.)
3. The tool must be plugged into an appropriate outlet,
properly installed and grounded in accordance
with all codes and ordinances. The plug and outlet
should look like those in the preceding illustration.
(See 3-Prong Plug and Outlet.)
Double Insulated Tools: Tools with Two Prong Plugs
Outlets for 2-Prong Plug
1. Tools marked “Double Insulated” do not
require grounding. They have a special
double insulation system which satisfies
OSHA requirements and complies with
the applicable standards of Underwriters
Laboratories, Inc., the Canadian Standard
Association, and the National Electrical Code.
2. Double insulated tools may be used in either of the
120 volt outlets shown in the preceding illustration.
(See Outlets for 2-Prong Plug.)
SAFETYOPERATIONMAINTENANCE SETUP
Page 6 For technical questions, please call 1-800-444-3353. 64290
Extension Cords
1. Grounded tools require a three wire extension cord.
Double Insulated tools can use either
a two or three wire extension cord.
2. As the distance from the supply outlet increases,
you must use a heavier gauge extension cord.
Using extension cords with inadequately sized wire
causes a serious drop in voltage, resulting in loss of
power and possible tool damage. (See Table A.)
3. The smaller the gauge number of the wire, the
greater the capacity of the cord. For example,
a 14 gauge cord can carry a higher current
than a 16 gauge cord. (See Table A.)
4. When using more than one extension cord
to make up the total length, make sure
each cord contains at least the minimum
wire size required. (See Table A.)
5. If you are using one extension cord for more
than one tool, add the nameplate amperes
and use the sum to determine the required
minimum cord size. (See Table A.)
6. If you are using an extension cord outdoors, make
sure it is marked with the suffix “W‑A” (“W” in
Canada) to indicate it is acceptable for outdoor use.
7. Make sure the extension cord is properly wired
and in good electrical condition. Always replace
a damaged extension cord or have it repaired
by a qualified electrician before using it.
8. Protect the extension cords from sharp objects,
excessive heat, and damp or wet areas.
TABLE A: RECOMMENDED MINIMUM WIRE
GAUGE FOR EXTENSION CORDS* (120/240 VOLT)
NAMEPLATE
AMPERES
(at full load)
EXTENSION CORD
LENGTH
25´ 50´ 75´ 100´ 150´
0 – 2.0 18 18 18 18 16
2.1 – 3.4 18 18 18 16 14
3.5 – 5.0 18 18 16 14 12
5.1 – 7.0 18 16 14 12 12
7.1 – 12.0 18 14 12 10 ‑
12.1 – 16.0 14 12 10 ‑ ‑
16.1 – 20.0 12 10 ‑ ‑ ‑
* Based on limiting the line voltage drop to five volts at
150% of the rated amperes.
TM
SAFETY OPERATION MAINTENANCESETUP
Page 7For technical questions, please call 1-800-444-3353.64290
Symbology
Double Insulated
VAC
Volts Alternating Current
A
Amperes
n
0
xxxx/min.
No Load Revolutions per Minute (RPM)
WARNING marking concerning Risk
of Eye Injury. Wear ANSI‑approved
safety goggles with side shields.
Read the manual before
set‑up and/or use.
WARNING marking concerning
Risk of Hearing Loss.
Wear hearing protection.
WARNING marking
concerning Risk of Fire.
Do not cover ventilation ducts.
Keep flammable objects away.
WARNING marking concerning
Risk of Electric Shock.
Properly connect power cord
to appropriate outlet.
TM
SAFETYOPERATIONMAINTENANCE SETUP
Page 8 For technical questions, please call 1-800-444-3353. 64290
Specifications
Electrical Rating 120 VAC / 60 Hz / 6.5 A
No Load Speed n
0
: 0 – 3000/min
Stroke Length 5/8"
Baseplate Tilt 0 – 45° left or right
Blade Type
T‑shank Blades
(sold separately)
LASER LIGHT
DO NOT STARE INTO BEAM
Max. Output: 1 mW,
Wavelength: 650 nm
CLASS IIa LASER PRODUCT
This product complies
with 21 CFR 1040.10
and 1040.11
Distributed by
Harbor Freight Tools
26677 Agoura Road
Calabasas, CA 91302
64290
Manufacture Date:
, �������
AVOID EXPOSURE
Laser light is emitted
from this opening.
CAUTION! Use of controls or adjustments or
performance of procedures other than those specified
herein may result in hazardous radiation exposure.
CAUTION! The use of optical instruments
with this product will increase eye hazard.
Setup - Before Use:
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.

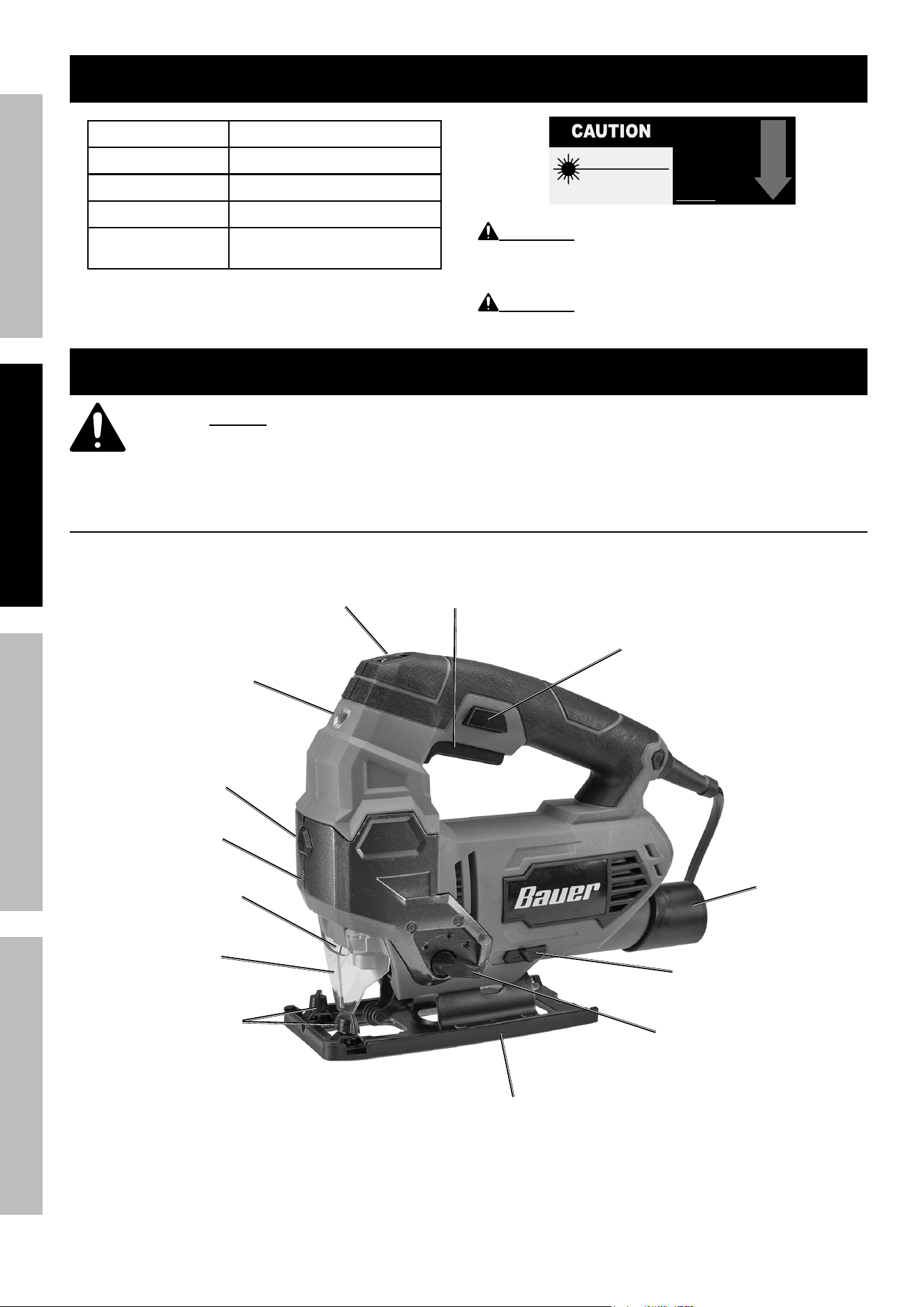

Functions
Dust Port
Trigger
Cutting
Mode Lever
Lock ON
Button
Baseplate
Transparent
Guard
Power ON
Light
Dust Blower
Switch
Laser ON/OFF
Button
Speed Dial
Blade Clamp
Assembly
Fence Lock
Knobs
Laser Opening
SAFETY OPERATION MAINTENANCESETUP
Page 9For technical questions, please call 1-800-444-3353.64290
Operating Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
Tool Set Up
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Turn the Power Switch of the tool off and unplug the tool from its electrical
outlet before adjusting tool or installing accessories.

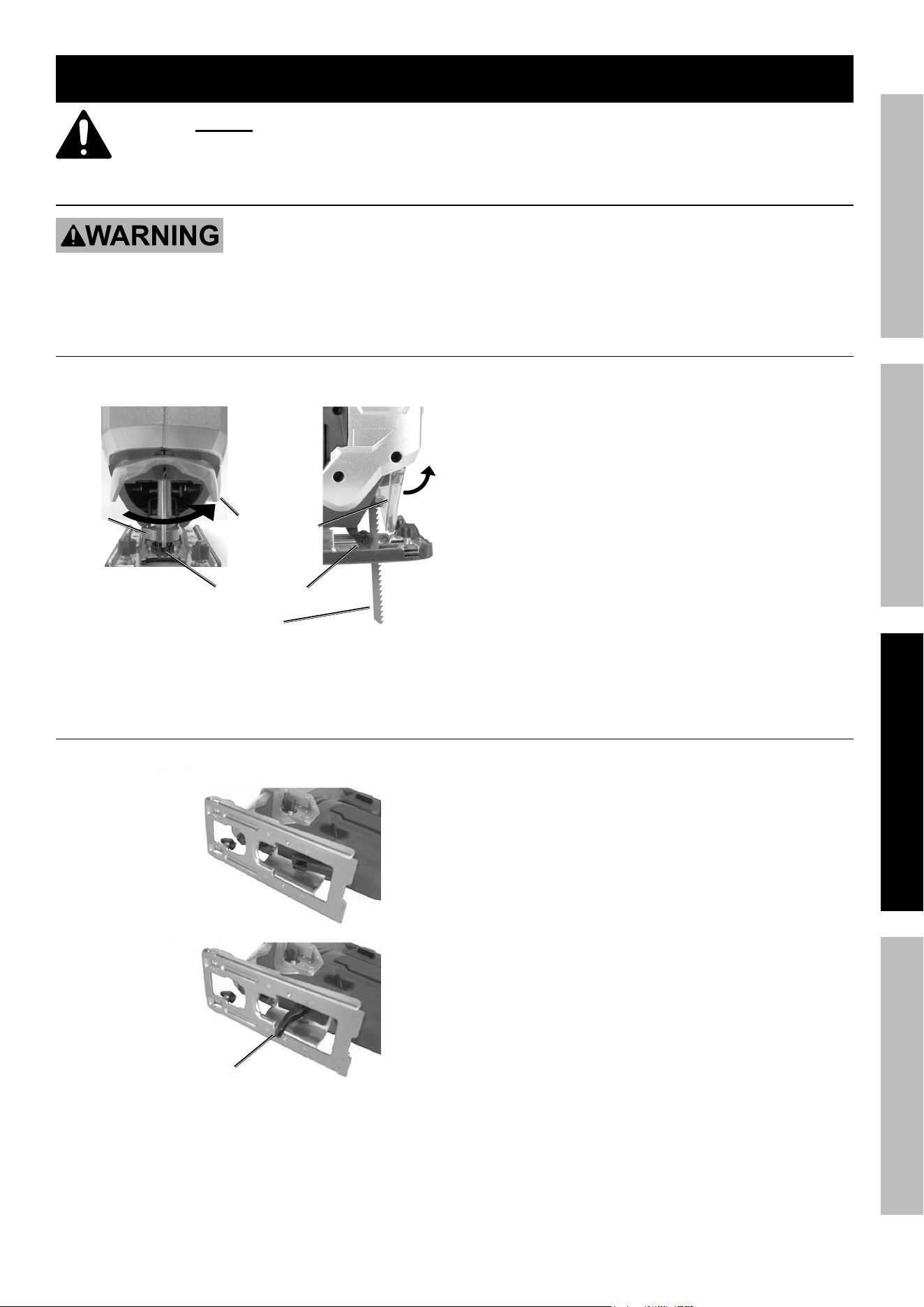

Installing the Blade
Blade
Transparent
Guard
Blade
Clamp
Guide Wheel
1. Open the Transparent Guard.
2. Rotate and hold the lever of the Blade Clamp
Assembly clockwise as far as it will go.
3. If a Blade is already installed, pull the
old Blade out of the Clamp.
4. Slide the new blade (sold separately) all the way
into the Blade Clamp opening with the teeth
pointing forward and the back of the Blade pressed
against the center recess of the Guide Wheel.
5. Release the Blade Clamp Lever.
6. Pull the blade straight down with a gloved hand
to check that the blade is secured in place.
7. Close the Transparent Guard.
Adjusting the Cutting Angle
Locked Position
Released Position
Angle Adjustment Lever
1. Pull the Angle Adjustment Lever
out to loosen the Baseplate.
2. Pull the Baseplate out and tilt it to the desired
angle between 0° and 45° to the right or left.
3. Release the Baseplate, checking that the pin on the
body is engaged between the teeth of the Baseplate.
4. Press the Angle Adjustment Lever closed
to lock the Baseplate in place.
SAFETYOPERATIONMAINTENANCE SETUP
Page 10 For technical questions, please call 1-800-444-3353. 64290
Installing the Rip Fence
Fence
Lock Knobs
Main Guide
of Rip Fence
Bar of
Rip Fence
1. Loosen the Fence Lock Knobs.
2. With the main guide of the Rip Fence facing
downward, slide the bar of the Rip Fence
into the slots on the Baseplate until it is
the desired distance from the Blade.
3. Tighten in place with the Fence Lock Knobs.
Dust Collector
Dust Port
Dust Blower Lever
OPEN
CLOSED
1. Slide the Dust Blower Lever to the
right to open the Dust Port.
2. Connect a Dust collection
system/bag (sold separately) to the Dust
Port on the back of the Jigsaw.
3. If a dust collection system/bag will not
be used, slide the Dust Blower Lever
to the Left to close the Dust Port.
Work Piece and Work Area Set Up
1. Designate a work area that is clean and well‑
lit. The work area must not allow access by
children or pets to prevent distraction and injury.
2. Route the power cord along a safe route to reach
the work area without creating a tripping hazard or
exposing the power cord to possible damage. The
power cord must reach the work area with enough
extra length to allow free movement while working.
3. Secure loose work pieces using a vise or clamps
(not included) to prevent movement while working.
4. There must not be objects, such as utility lines,
nearby that will present a hazard while working.
SAFETY OPERATION MAINTENANCESETUP
Page 11For technical questions, please call 1-800-444-3353.64290

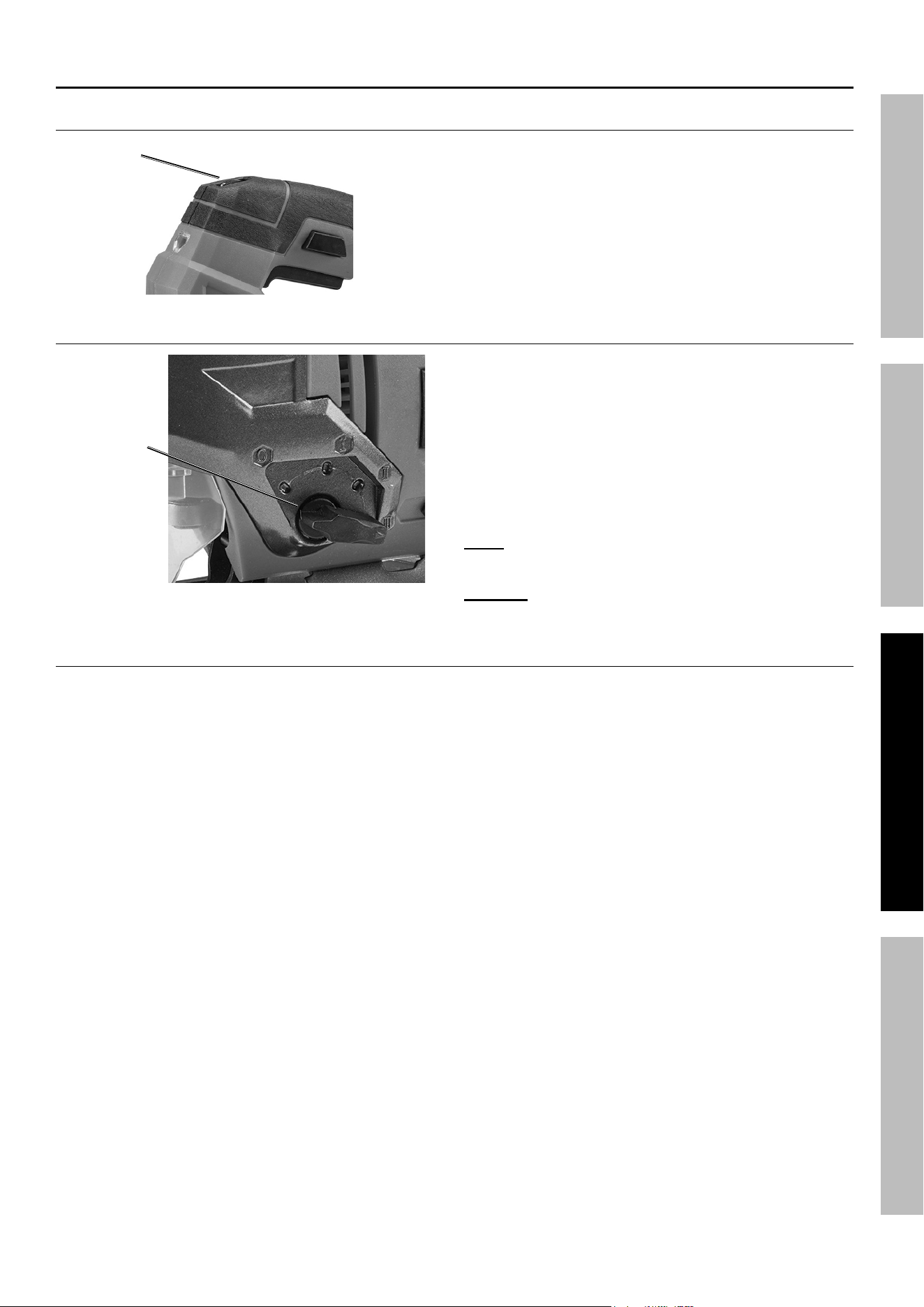

General Operating Instructions
Adjusting the Cutting Speed
Speed Dial
Use the Speed Dial to set the cutting speed
from 1 (slow) to 6 (fast). Use the faster
settings to cut softer workpieces.
Adjusting the Cutting Mode
Cutting Mode
Lever
Use the Cutting Mode Lever to set one
of the following cutting modes:
a. Straight cutting. Set the Lever to “O”. The
blade travels vertically up and down only.
b. Orbital cutting. Set the Lever to “I”, “II”, or “III”.
The blade travels in a circular motion, up and
down and forward and backward. The higher
the number, the larger the orbit of the blade.
Note: Do not use the Orbital settings
to cut metal or hardwoods.
NOTICE: Do not adjust the cutting
mode while the saw is operating.
Basic Operation
1. Make all necessary adjustments to the Jigsaw.
2. Make sure that all guards are in place in
proper working order and that all adjustment
knobs are tight before operation.
3. Plug the Power Cord into the nearest
120 volt, grounded, electrical outlet.
4. Press the Laser ON/OFF Button
to turn the Laser ON.
5. Hold the jigsaw so that the blade is near the start
of cut, but not touching the workpiece. Firmly
grip the Handle with one hand and squeeze
and hold the Trigger to turn on the Jigsaw.
6. Press the Lock ON Button then release the
Trigger to set the Jigsaw into continuous mode.
7. Allow the Saw Blade to reach full speed then
rest the Baseplate on the workpiece and
guide the Saw Blade into the workpiece.
8. Do not force the Jigsaw to cut faster
than it is designed to cut. Feed the Saw
Blade gradually into the workpiece.
9. Turn off the Jigsaw if the Saw Blade is to be
backed out of an uncompleted cut. When turning
off the Jigsaw, allow the Saw Blade to fully stop
on its own before removing the Jigsaw. Do
not press against the Saw Blade to stop it.
10. Once the cutting job is completed, release the
Trigger and wait until the Saw Blade stops. If
using the Lock on feature, press and release
the Trigger to turn off the Jigsaw. Press the
Laser ON/OFF Button to turn the Laser off.
11. To prevent accidents, unplug the Power Cord
from its electrical outlet. Clean, then store
the tool indoors out of children’s reach.
SAFETYOPERATIONMAINTENANCE SETUP
Page 12 For technical questions, please call 1-800-444-3353. 64290
Maintenance and Servicing
Procedures not specifically explained in this manual must
be performed only by a qualified technician.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Turn the Power Switch of the tool off and unplug the tool from its electrical outlet
before performing any inspection, maintenance, or cleaning procedures.
TO PREVENT SERIOUS INJURY FROM TOOL FAILURE:
Do not use damaged equipment. If abnormal noise or vibration
occurs, have the problem corrected before further use.
Cleaning, Maintenance, and Lubrication
1. BEFORE EACH USE, inspect the general
condition of the tool. Check for:
• loose hardware
• misalignment or binding of moving parts
• damaged cord/electrical wiring
• cracked or broken parts
• any other condition that may
affect its safe operation.
2. AFTER USE, wipe external surfaces
of the tool with clean cloth.
3. WARNING! TO PREVENT SERIOUS
INJURY: If the supply cord of this power
tool is damaged, it must be replaced only
by a qualified service technician.
4. TO CLEAN: The ventilation openings should be
kept clean and free of dirt and debris. Wear ANSI‑
approved safety goggles and NIOSH‑approved dust
mask/respirator before cleaning ducts. The most
effective way to clean the ventilation openings is with
compressed air. The outer body may be cleaned
with a clean cloth and a mild detergent. Do not use
solvents. Do not immerse the Jigsaw in liquid.
SAFETY OPERATION MAINTENANCESETUP
Page 13For technical questions, please call 1-800-444-3353.64290
Troubleshooting
Problem Possible Causes Likely Solutions
Tool will not start. 1. Cord not connected.
2. No power at outlet.
3. Tool’s thermal reset breaker
tripped (if equipped).
4. Internal damage or wear.
(Carbon brushes or
switch, for example.)
1. Check that cord is plugged in.
2. Check power at outlet. If outlet is unpowered,
turn off tool and check circuit breaker. If breaker
is tripped, make sure circuit is right capacity
for tool and circuit has no other loads.
3. Turn off tool and allow to cool.
Press reset button on tool.
4. Have technician service tool.
Tool operates slowly. Extension cord too long or
cord diameter too small.
Eliminate use of extension cord. If an extension
cord is needed, use one with the proper diameter
for its length and load. See Extension Cords
in Grounding section on page 5.
Performance
decreases
over time.
1. Accessory dull or damaged.
2. Carbon brushes worn
or damaged.
1. Keep cutting accessories sharp. Replace as needed.
2. Have qualified technician replace brushes.
Excessive noise
or rattling.
Internal damage or wear. (Carbon
brushes or bearings, for example.)
Have technician service tool.
Overheating. 1. Forcing tool to work too fast.
2. Accessory misaligned.
3. Accessory dull or damaged.
4. Blocked motor housing vents.
5. Motor being strained by long or
small diameter extension cord.
1. Allow tool to work at its own rate.
2. Check and correct accessory to
fence and/or table alignment.
3. Keep cutting accessories sharp. Replace as needed.
4. Wear ANSI‑approved safety goggles and
NIOSH‑approved dust mask/respirator while
blowing dust out of motor using compressed air.
5. Eliminate use of extension cord. If an extension
cord is needed, use one with the proper diameter
for its length and load. See Extension Cords
in Grounding section on page 5.
Laser Guide will
not illuminate.
1. Laser is off.
2. Laser opening is
dirty or blocked.
3. Laser damaged.
1. Press Laser Button to turn Laser on.
2. Turn the Laser “OFF”. Then, clean the laser opening.
3. Have a qualified service technician
check the tool for internal damage.
Follow all safety precautions whenever diagnosing or servicing the tool. Disconnect power
supply before service.
SAFETYOPERATIONMAINTENANCE SETUP
Page 14 For technical questions, please call 1-800-444-3353. 64290
Record Product’s Date Code Here:
Note: If product has no Date Code, record month and year of purchase instead.
Note: Replacement parts may be available for this item.
Visit harborfreight.com/parts for a list of in‑stock parts. Reference UPC 792363642903.
SAFETY OPERATION MAINTENANCESETUP
Page 15For technical questions, please call 1-800-444-3353.64290
Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
SAFETYOPERATIONMAINTENANCE SETUP
TM
26677 Agoura Road • Calabasas, CA 91302 • 1-800-444-3353
