USER MANUAL
V1.0-2023.11
Please read the User Manual carefully before using
the product and keep it properly.
PETKIT YUMSHARE SOLO WITH CAMERA
SMART PET FEEDER
PRODUCT LIST
01
-3-
RETURN TO
CONTENTS
*Please confirm that the following accessories are complete before installation and use.
(Batteries or screwdrivers are not equipped and need to be purchased separately)
Desiccant
DESICCANT
User Manual
Food Bowl Hopper
Main Unit
USER MANUAL
Adapter
1
*Note: in order to provide a better user experience, we will be implementing periodic product enhancements.
Product images shown for illustration purpose only. Actual product may vary from the image shown on the
box. For any discrepancies, please refer to the actual product.
-4-
RETURN TO
CONTENTS
PRODUCT DESCRIPTION
02
Indicator Light
Wi-Fi Setting Button
PUSH Button
Main Unit
Notch
Feeding Button
Lid Release Button
Hopper
Lid
Camera
Non-detachable
Dispensing
Module
Food Bowl
Microphone
Food Bowl
Holder
Desiccant
Compartment
Food Dispensing
Vanes
Power Input
Speaker
Back of the
main unit
Interior of
the lid
PRODUCT INSTALLATION
03
-5-
RETURN TO
CONTENTS
3.1 Instaling the Main Unit
① Place the main unit on the level ground or desk.
② Li the hopper, align the notches on both sides with the PUSH button on the main unit,
and place it vertically downwards.
③ Press and hold the PUSH buttons until they are fully stuck into the notches.
④ Place the food bowl in the food bowl holder.
3.2 Connecting the Power Supply
Take out the power adapter cord and attach it to the power input on the back.
3.3 Installing the Backup Batteries
① Take out the screw and remove the battery cover.
② Take 5 AAA batteries and place them in the battery compartment.(Pay attention to the
orientation of the positive and negative ends)
③ Put the battery cover back on and tighten down the screw. Choose whether to install
batteries based on personal actual usage needs. (Batteries need to be purchased separately,
and only alkaline batteries can be used)
-6-
RETURN TO
CONTENTS
*Note: When the battery is low, please replace the batteries in time. Check and replace the
batteries before leaving the device unattended for an extended period of time.
DESICCANT
② Open the desiccant compartment, put
the desiccant in it, and close the desiccant
compartment.
3.4 Installing the Desiccant
① Press the lid release button to the right
as shown in the picture, and li it up to
remove the lid.
AAA alkaline
batteries *5
Bottom of the
main unit
HOW TO USE
04
-7-
RETURN TO
CONTENTS
4.1 Adding Pet Food
① Open the lid to add pet food, and do not exceed the MAX line.
* Recommended kibble size of dry food ≤12mm (0.47in)
Recommended kibble size of freeze-dried food ≤9mm (0.35in)
② Cover the lid: Insert the rear side of the lid into the two holes above the hopper.
-8-
RETURN TO
CONTENTS
4.3 Manual Feeding
Hold the feeding button to dispense food. Release the button to stop dispensing food.
Indicator
light
Status
Device is not connected to
Wi-Fi
White light is
flashing slowly
White light is
flashing quickly
White light is
constantly on
Device is connecting to
Wi-Fi
Device is connected to Wi-Fi
(Camera is not working)
Green light is
constantly on
Device is connected to Wi-Fi
(Camera is working)
4.2 Indicator Light
The indicator light can be turned on/o in the app.
The indicator light is not on in battery mode.
Indicator light
-9-
RETURN TO
CONTENTS
4.4 App Binding and Activation
① Download and install PETKIT App:
② Add a device
Open the PETKIT App and enter its homepage; click “+” on the top right corner of the page
to select and add the “PETKIT YUMSHARE SOLO WITH CAMERA ”.
Download the PETKIT App in an App Store
or Android Stores
Available on
Android
stores
TM
Download on the
App Store
*Note: To provide the best possible user experience and
functional optimization, the product firmware will be
irregularly upgraded. Please refer to actual situations
and promptly upgrade the firmware via PETKIT App.
Device
电量：100%
0h 8h 16h 24h
小佩智能猫牌
进食次数
5
下次出粮时间：19:30
智能双子星喂食
器
0h 8h 16h 24h
9:41
Hello, PETKIT
-10-
RETURN TO
CONTENTS

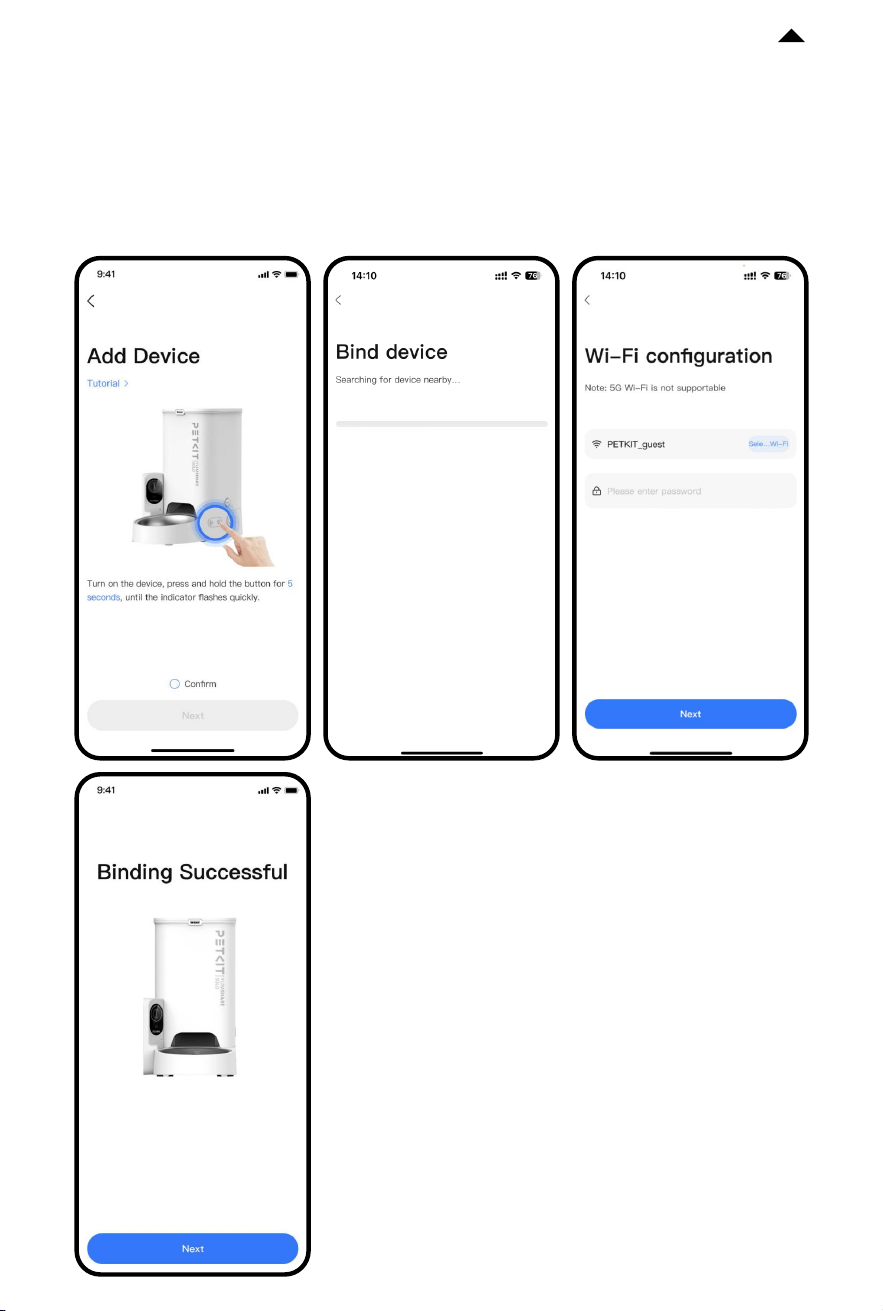

③ Start connection
In the startup state, long press the Wi-Fi setup button for 5 seconds until the indicator light
on the device flashes rapidly; click Next to configure Wi-Fi and the App will start to connect
to the device. Please wait until the App displays configuration succeeds.
*This product supports 2.4GHz Wi-Fi, but not 5GHz. Please make sure you have turned on
the 2.4 band when connecting the device to the Internet.
*Note: To provide the best possible user experience and
functional optimization, the product firmware will be
irregularly upgraded. Please refer to actual situations
and promptly upgrade the firmware via PETKIT App.
-11-
RETURN TO
CONTENTS

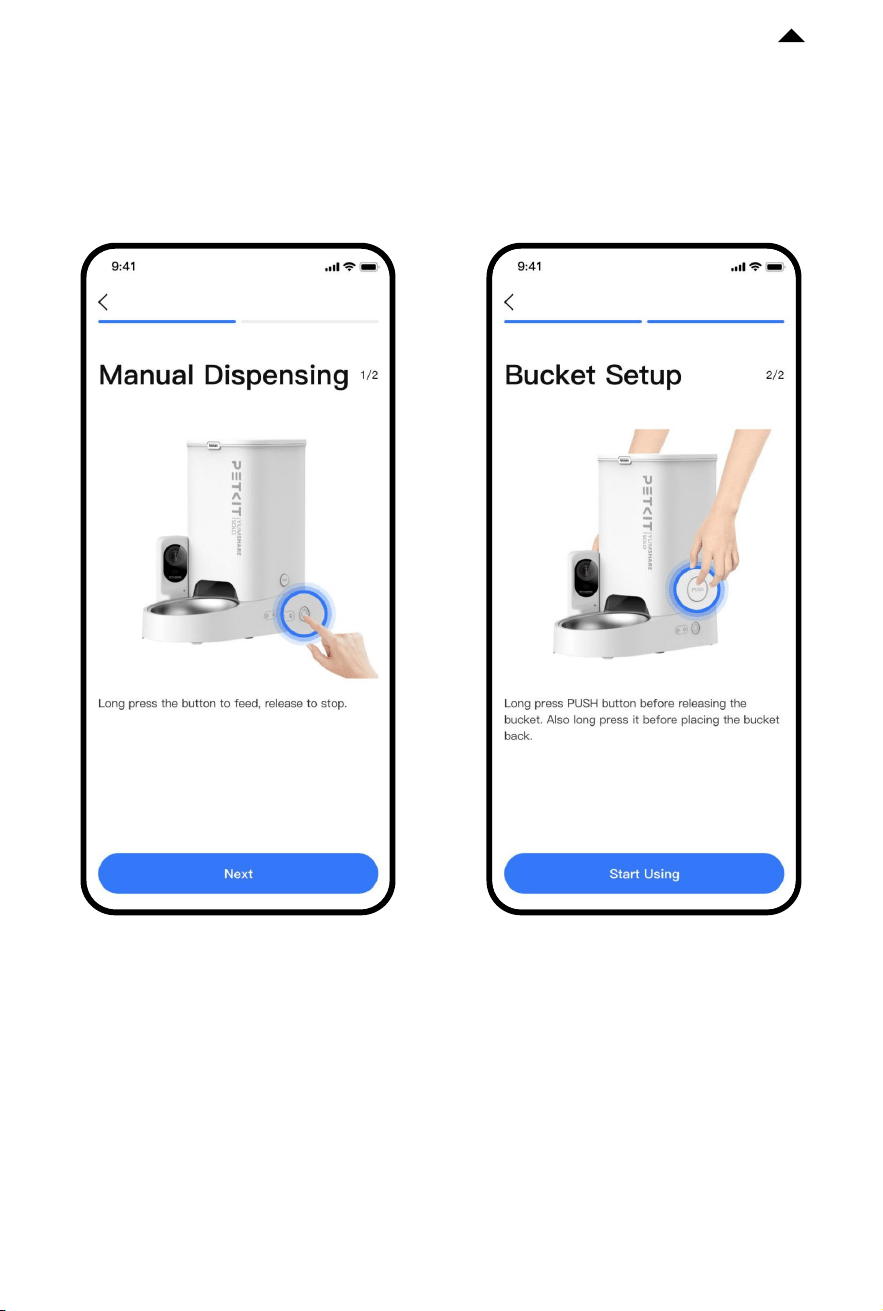

④ Read usage guidelines
Aer the device successfully connects to the PETKIT App for the first time, to ensure pet
safety and proper use of the product, please carefully read the usage guidelines and
appropriately use the product according to the instructions.
*Note: To provide the best possible user experience and
functional optimization, the product firmware will be
irregularly upgraded. Please refer to actual situations
and promptly upgrade the firmware via PETKIT App.
DESCRIPTION OF APP
FUNCTIONS
05
-12-
RETURN TO
CONTENTS
5.1 Device Homepage
① Real-time video
View your pet's status in real-time.
② VLOG
Click , and the system will
automatically generate vlogs of your pet.
This section displays up to the last 7 days
of video.
③ YUMSHARE today (Timeline)
Clips captured are categorized as visit, eat
and feed through AI algorithm. You can click
any of them for more details.
*Only pictures can be viewed when PETKIT
Care+ Cloud Service is not subscribed. Please
subscribe the Service if you want such
functions as playing back full clips, moments
and speedup playback. For specific rules,
please refer to PETKIT Care+ Service
Agreement.
*Note: To provide the best possible user experience and
functional optimization, the product firmware will be
irregularly upgraded. Please refer to actual situations
and promptly upgrade the firmware via PETKIT App.
④ Function keys
Go
-13-
RETURN TO
CONTENTS
④ Description of function keys
*Note: To provide the best possible user experience and
functional optimization, the product firmware will be
irregularly upgraded. Please refer to actual situations
and promptly upgrade the firmware via PETKIT App.
Click it to dispense food for your pets instantly.
(Remote control is supported.)
Extra feeding
Long press “Intercom”, and the feeder will
broadcast what you said simultaneously,
so as to have dialogues with your pets in
real time.
Intercom
Your voice is only heard when playing
back videos. (You need to turn on the
microphone first via the App.)
-14-
RETURN TO
CONTENTS
*Note: To provide the best possible user experience and
functional optimization, the product firmware will be
irregularly upgraded. Please refer to actual situations
and promptly upgrade the firmware via PETKIT App.

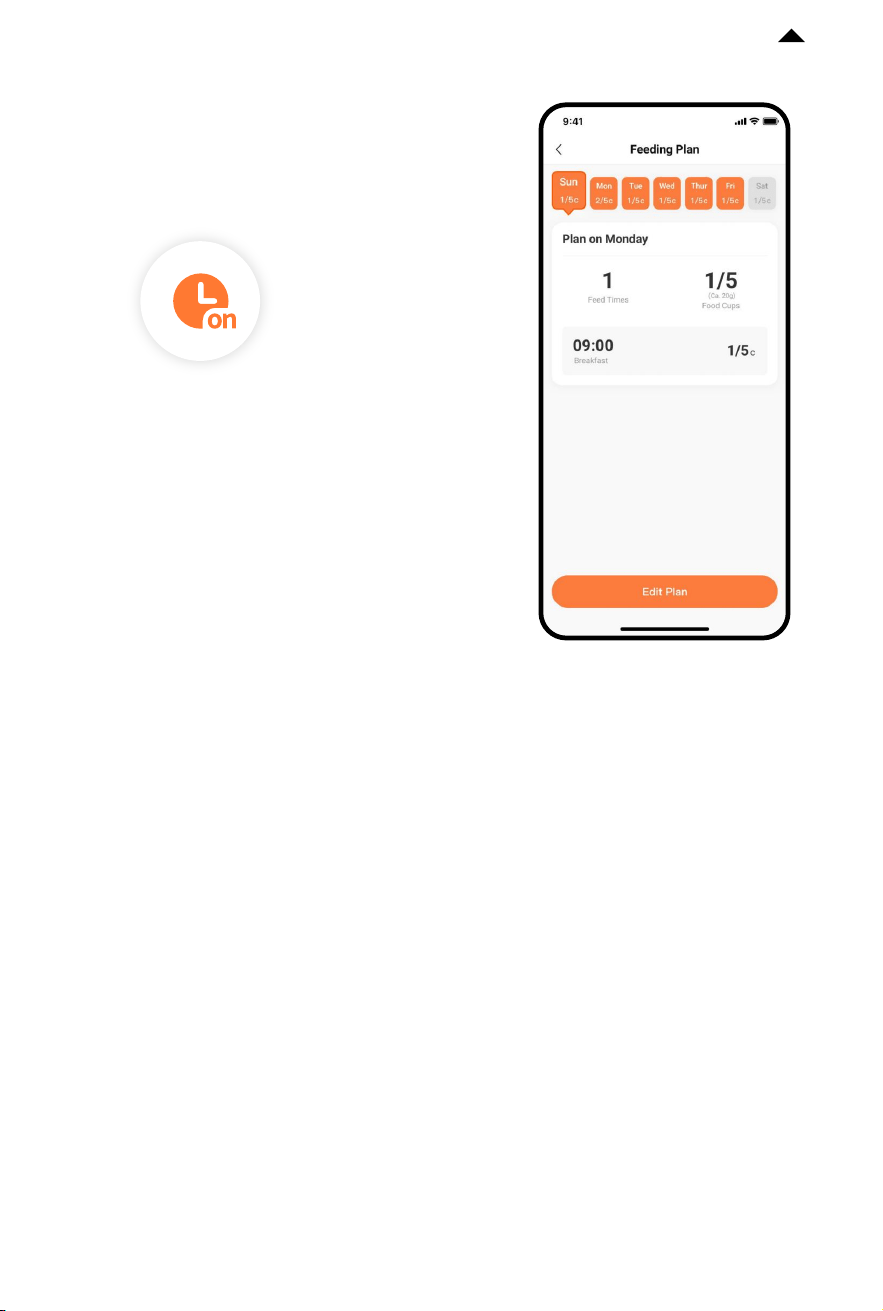

Set up the feeding time and portions to
make sure your pet is feed on time.
Feeding plans
-15-
RETURN TO
CONTENTS
*Note: To provide the best possible user experience and
functional optimization, the product firmware will be
irregularly upgraded. Please refer to actual situations
and promptly upgrade the firmware via PETKIT App.

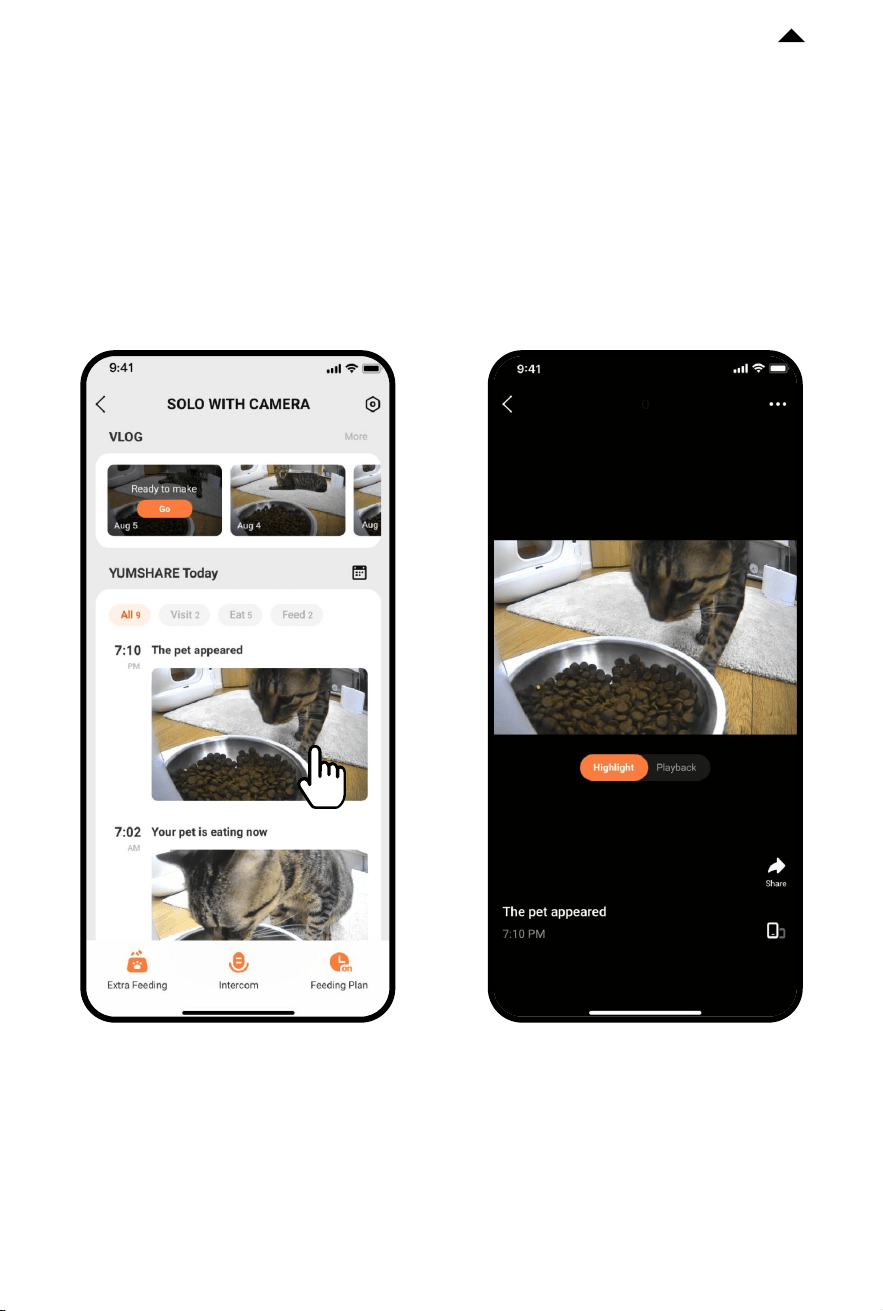

5.2 Three Ways to Play Videos
① Highlight playback
You can preview 4-second videos that are sped up by clicking them in the Timeline.
Aer subscribing the PETKIT Care+ Cloud Service, click the Timeline on the homepage of
the device to play back full clips, highlight with speedup options.
-16-
RETURN TO
CONTENTS
*Note: To provide the best possible user experience and
functional optimization, the product firmware will be
irregularly upgraded. Please refer to actual situations
and promptly upgrade the firmware via PETKIT App.

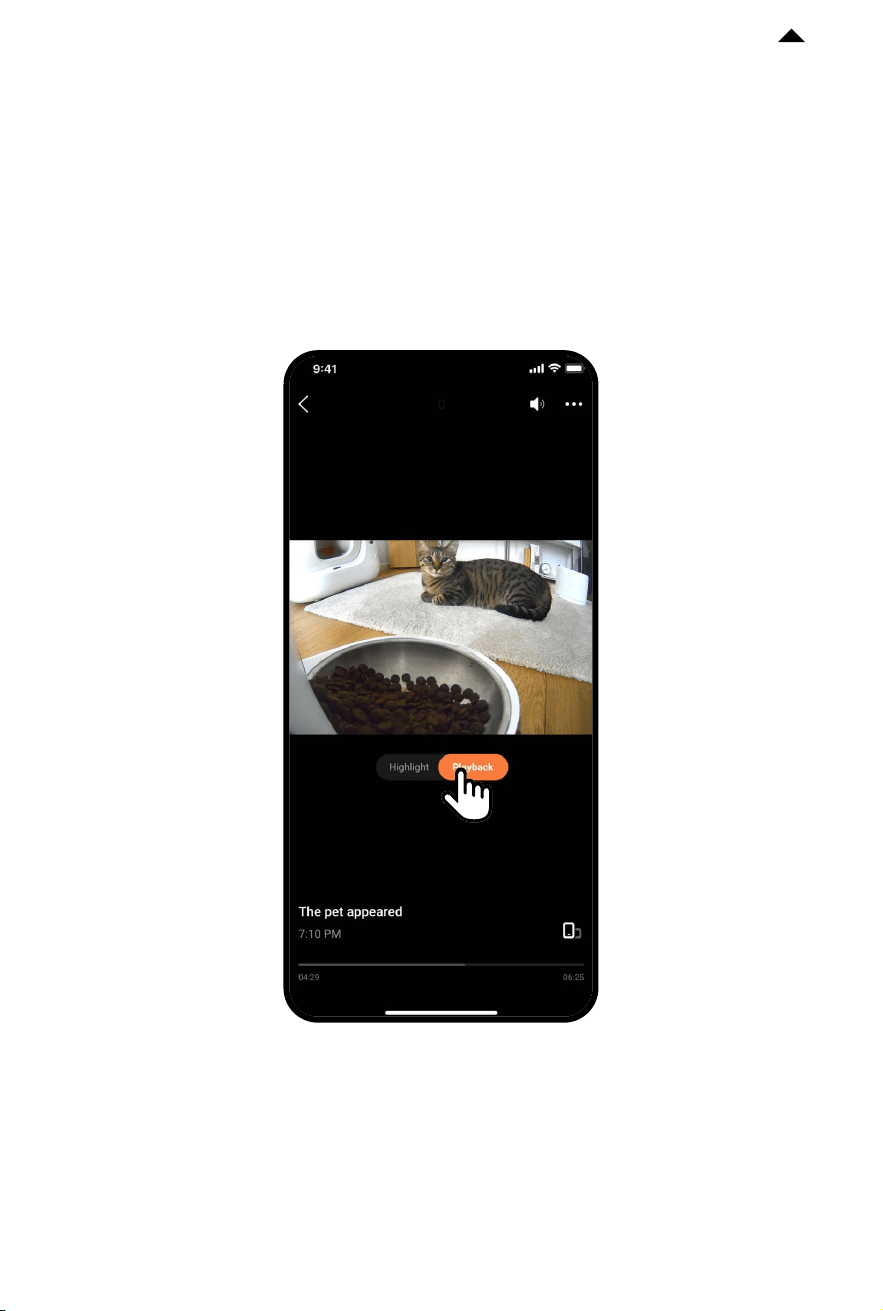

② Full clips playback
Switch the tag to “Playback” to watch complete video clips.
-17-
RETURN TO
CONTENTS
*Note: To provide the best possible user experience and
functional optimization, the product firmware will be
irregularly upgraded. Please refer to actual situations
and promptly upgrade the firmware via PETKIT App.

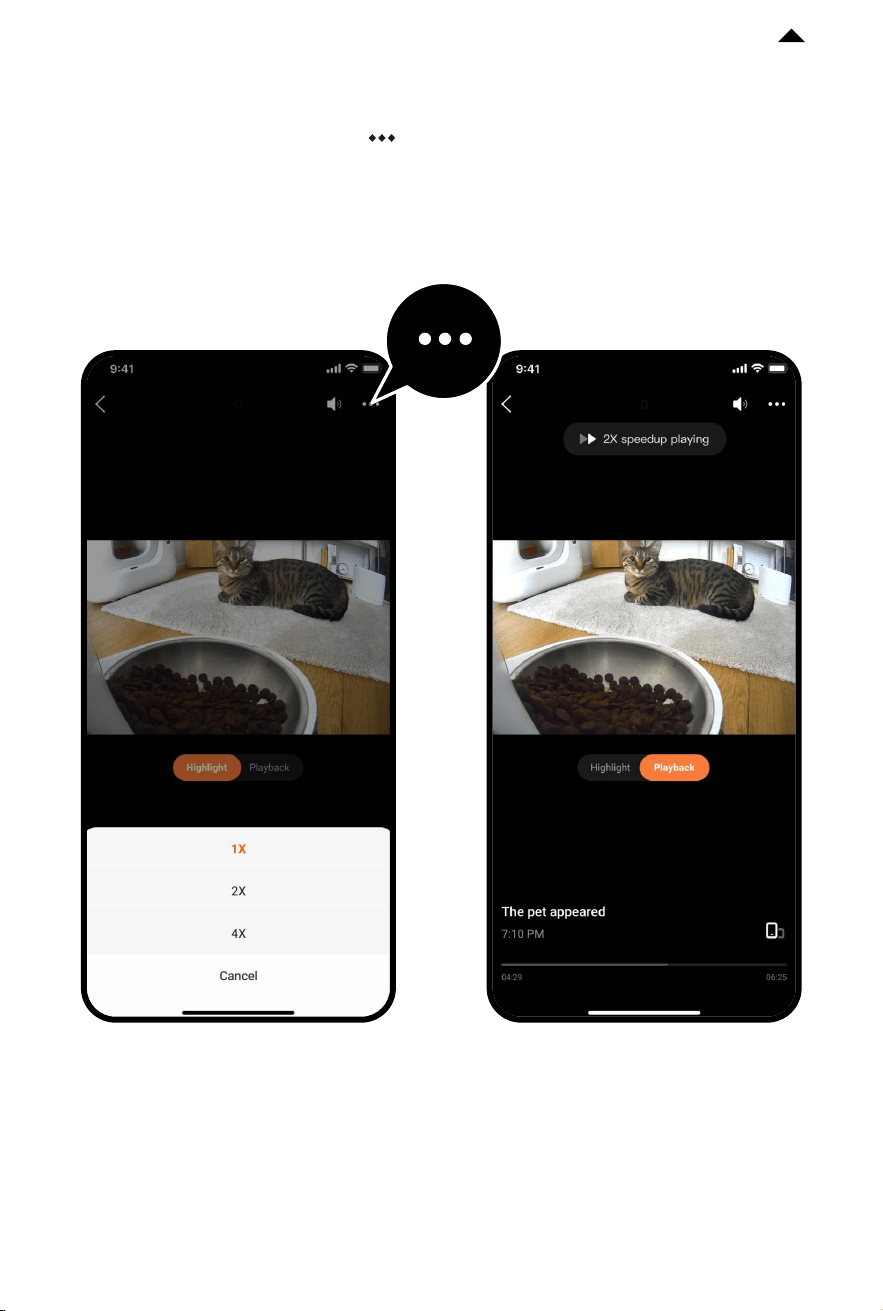

③ Speedup playback
When playing full video clips, click “ . . .
” on the top right corner to choose the speed as
needed, or long press the center of video frame to directly switch to 2x play.
-18-
RETURN TO
CONTENTS
*Note: To provide the best possible user experience and
functional optimization, the product firmware will be
irregularly upgraded. Please refer to actual situations
and promptly upgrade the firmware via PETKIT App.

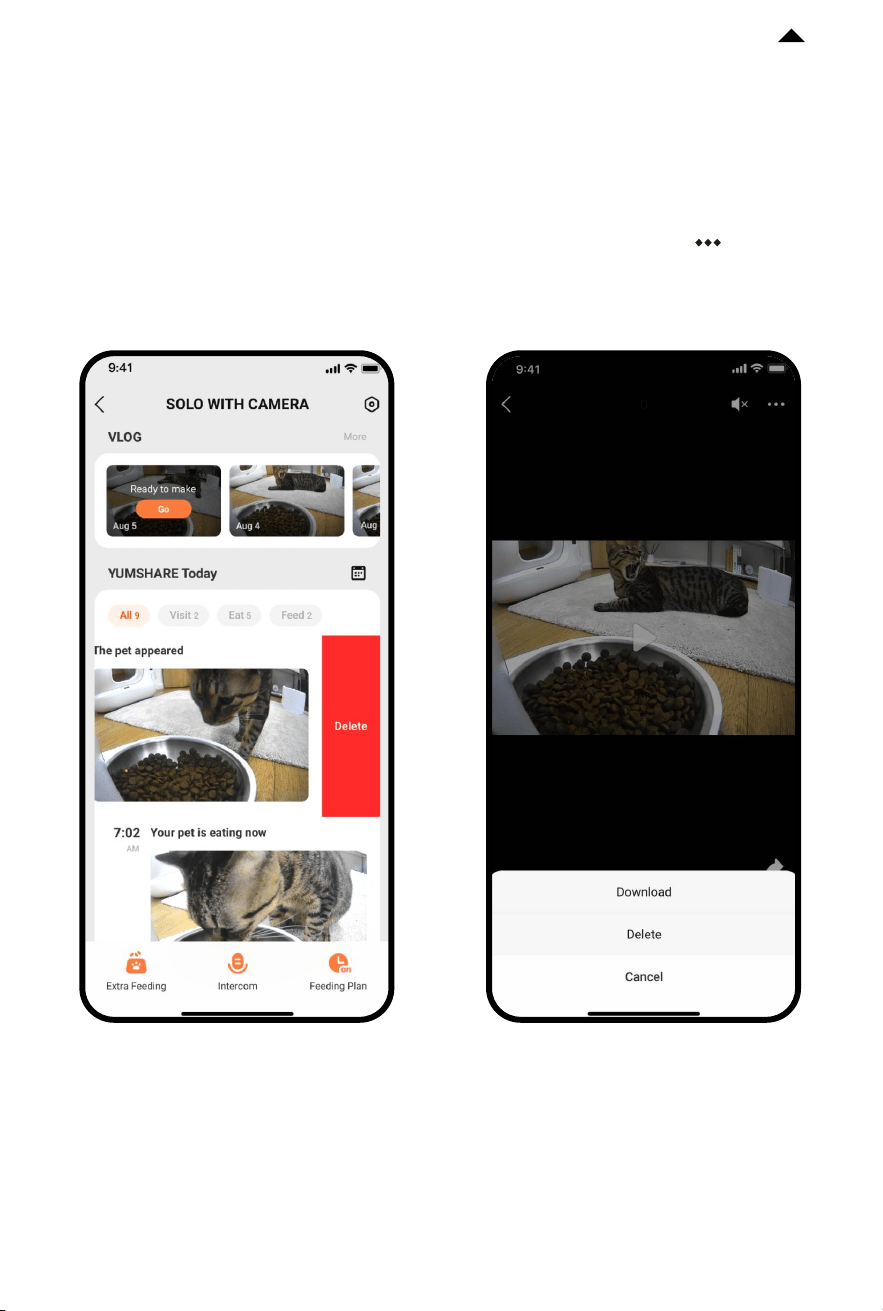

5.3 Delete Video Clips
① Method 1: Delete videos in the Timeline; ② Method 2: Delete videos in VLOG. Click
the video you want to remove, turn its play
tag to “Full” and click the “ . . .
” on the top
right corner to delete the video.
You are entitled to delete any video.
-19-
RETURN TO
CONTENTS
5.4 Privacy Protection
① Camera permissions: You are entitled to turn the camera on or o as needed.
*Note: To provide the best possible user experience and
functional optimization, the product firmware will be
irregularly upgraded. Please refer to actual situations
and promptly upgrade the firmware via PETKIT App.
If it is turned o, any video footage fails to be captured.
C
amera Switch
If you turn off the camera, live steaming and
playback will not be available, but feeding
plan(s) still work.
-20-
RETURN TO
CONTENTS
*Note: To provide the best possible user experience and
functional optimization, the product firmware will be
irregularly upgraded. Please refer to actual situations
and promptly upgrade the firmware via PETKIT App.

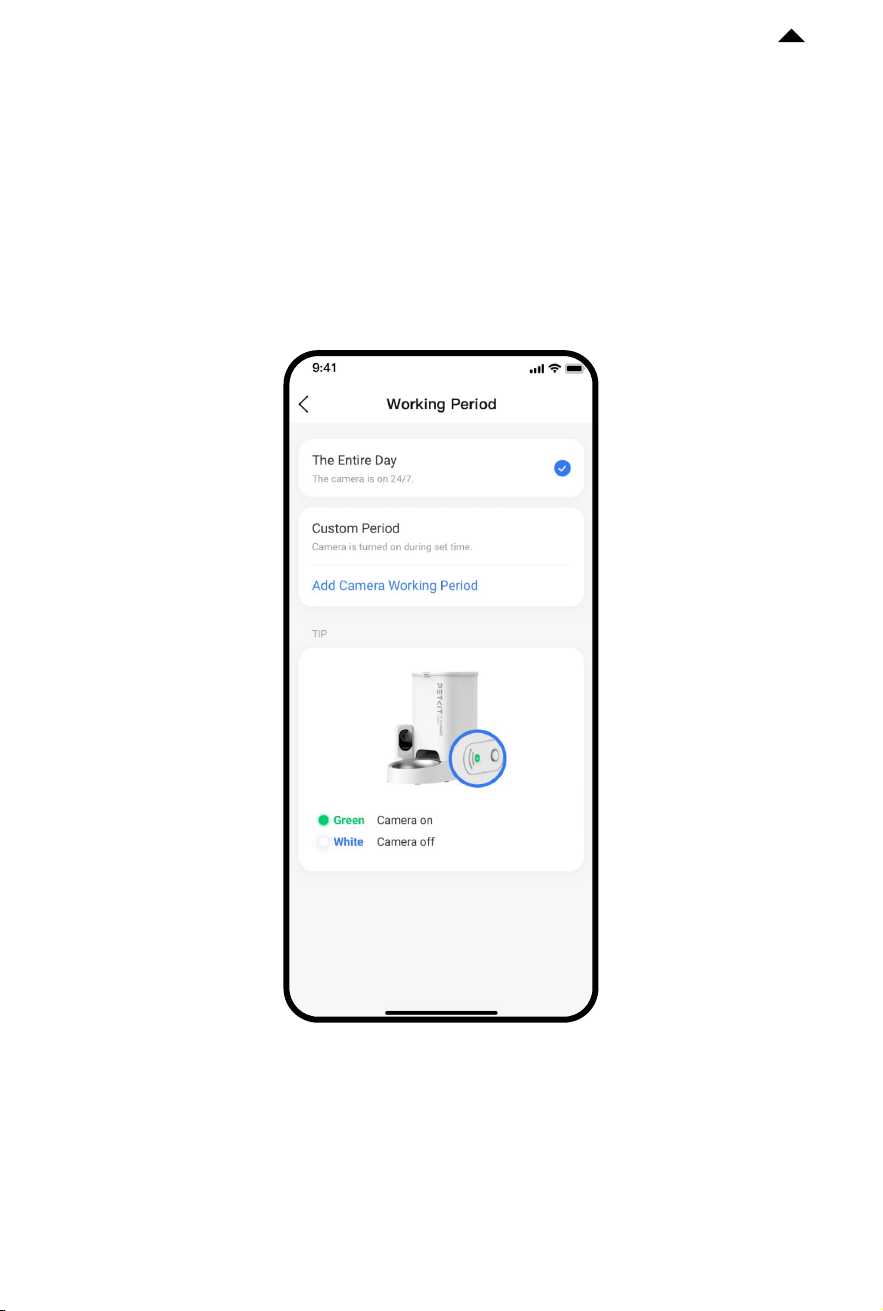

(1) Customize the detection time periods of the camera
You can personalize the time slots to turn on the camera, and beyond those, the camera is
turned o automatically.
Working Period
The Entire Day
C
amera is turned on during set time.
C
ustom Period
C
amera is turned on during set time.
Add Camera Working Period
-21-
RETURN TO
CONTENTS
*Note: To provide the best possible user experience and
functional optimization, the product firmware will be
irregularly upgraded. Please refer to actual situations
and promptly upgrade the firmware via PETKIT App.
(2) Indicator light status
When the camera is turned on, the light is green; when o, the light is white.
-22-
RETURN TO
CONTENTS
*Note: To provide the best possible user experience and
functional optimization, the product firmware will be
irregularly upgraded. Please refer to actual situations
and promptly upgrade the firmware via PETKIT App.
② Microphone permissions
You are entitled to turn on or o the microphone as needed.
M
icrophone
E
nable/disable sound collection.
If it is turned o, there is no sound for any video footage.
Basic Settings
-23-
RETURN TO
CONTENTS
*Note: To provide the best possible user experience and
functional optimization, the product firmware will be
irregularly upgraded. Please refer to actual situations
and promptly upgrade the firmware via PETKIT App.

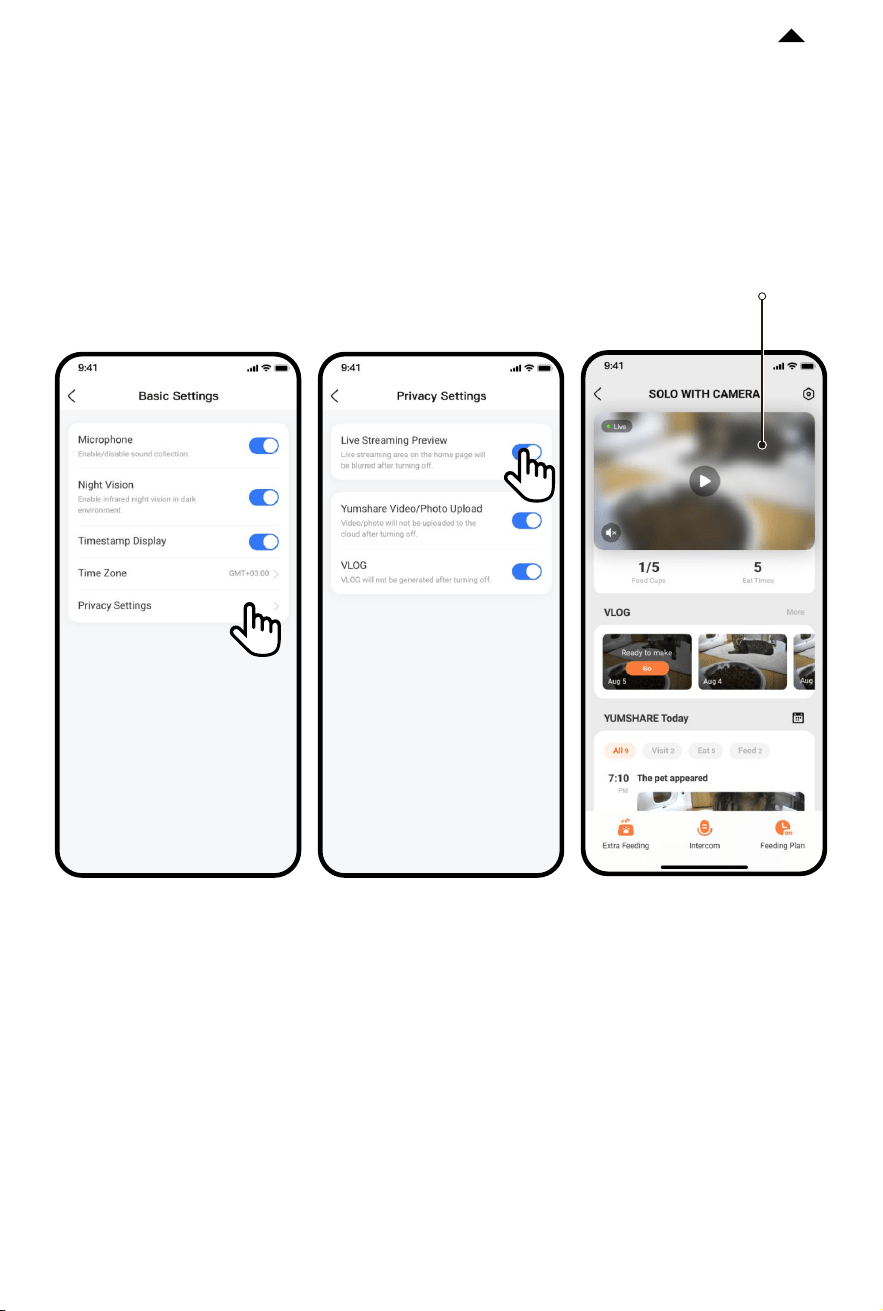

③ Real-time frame privacy protection
Aer this function is turned on, any real-time video frame will be blurred to protect your
privacy when you enter the device homepage.
Real-time
frame privacy
-24-
RETURN TO
CONTENTS
5.5 Additional Notes
① Cyclic videos stored in the Cloud
The playback contents are based on time-limited cyclic storage, and the data outside the
time limit is periodically cleared. All videos can be downloaded and viewed in your
phone's local and App albums. (e.g. 7-day video loop means that the videos or pictures
stored in the last 7 days will be retained except for today’s and meanwhile the contents
of the day before the last 7 days will be automatically cleared.)
② PETKIT Care+ Cloud Service
You can purchase the Service for every feeder with camera via the App to enjoy such
services as pet detection, playing back full HD video stored in the Cloud and HD Moments,
which are subject to actual description. Multiple purchases of the Service are supported.
PETKIT sta will provide you service upgrade or extension according to the attributes of
the service you have bought. The Cloud Service is allowed to be transferred to another
device for once a year. Please note that the Cloud Service is a virtual product so that it is
not refundable once purchased.
Click to check items of PETKIT Care+ Cloud Service Agreement.
-26-
RETURN TO
CONTENTS
③ Pull out the food dispensing vanes in the hopper.
④ Rotate clockwise to remove the impeller cover and take out the impeller.
⑤ Clean the hopper, vanes, impeller cover, impeller, upper lid and food bowl in turn. It is
recommended to add appropriate amount of detergent and rinse well.
⑥ Aer cleaning, wait for each part to dry completely and install them back in turn.
(*For detailed steps of cleaning and maintenance, please watch corresponding video.)
Food dispensing vanes
Rotate clockwise
Impeller
Impeller
cover
Bottom of the
container
Please be sure to use a sponge or so cloth to clean the inside of the hopper, do
not use hard-material cleaning tools to avoid scratching the plastic parts and
aecting the normal operation of the sensor. Main unit cannot be immersed or
soaked in water, it can be wiped with a damp tissue.
VIDEO GUIDE
07
-27-
RETURN TO
CONTENTS
Please copy the video URL and open it in your browser to watch the video.
https://youtu.be/TWpWSRLi6fg
7.1 Video of Installation and Usage
Please copy the video URL and open it in your browser to watch the video.
https://youtu.be/Rfj6vm6sF40
7.2 Video of Cleaning and Maintenance
BASIC SPECIFICATIONS
08
Product Name
Product Code
Product Dimensions
PETKIT YUMSHARE SOLO WITH CAMERA SMART PET FEEDER
P571
316*186*296mm (12.4*7.3*11.7in)
Capacity 3L
Scope of Application cats and small-breed dogs
Wireless Connection
Rated Input
Rated Power
Wi-Fi
4W
6V 2A
· Please install and use the product as instructed in the User Manual.
·
Do not try to disassemble the camera with force.
·
Do not scratch or polish the camera with sharp objects.
·
For indoor use only. Do not expose the product directly to sunlight for extended periods
of time. Do not place it near an open flame.
·
Please note that this product operates on safe low voltage, but pets chewing on the
wires may still pose a risk of electrical leakage. We recommend taking measures to prevent
this, such as securing and hiding the power cord when using the product. If you find your
pets chewing the cord, please stop them promptly.
·
Please use the original adapter, otherwise it may damage the device or cause safety hazards.
·
Make sure the device is placed on a level surface. Do not overturn the device, or it may
not function properly.
·
Do not drop all items expect dry pet food into the food storage container, or the device
will not function properly, and it may even endanger the safety of the pet.
·
In order to prevent your pet from overturning this device, we recommend placing it in a
corner or against a wall.
·
To prevent the device from falling down and injuring your pet or damaging property,
please do not place this device in an elevated location.
·
The main unit of the product is prohibited from soaking or submerging in water, and the
machine should not be used in damp environments.
·
If you want to stop using the device, make sure to remove the battery and unplug the
power adapter, and please clean and dry the device before storing.
·
Please unplug the power cord before moving the device.
·
Children should use this product under the guidance of adults.
·
Repairs should be done under the guidance of a professional to avoid safety hazards.
·
If you need to go out, please check the battery in the battery compartment to make sure
the battery has suicient charge (this device can only use alkaline batteries).
USER SAFETY GUIDE
11
* Failure to follow the safety guides outlined below can result in product malfunction or
other unforeseen mishaps.
-28-
RETURN TO
CONTENTS
A MESSAGE TO OUR VALUED
CUSTOMERS
10
· Thank you for choosing to purchase PETKIT YUMSHARE SOLO WITH CAMERA SMART PET
FEEDER.
·
Please carefully read the User Manual before using the product. By setting up and using
this product, you are acknowledged that you have already read and accepted the safety
guidelines listed below.
·
We are not liable and will not accept responsibility for any accidents or injuries that result
from improper use of this product.
·
PETKIT reserves the rights of interpretation and revision.
-28-
RETURN TO
CONTENTS
Disposal
The European directive 2012 / 19 / CE on Waste Electrical and Electronic Equipment(WEEE), requires that
old household electrical appliances must not be disposed in the normal unsorted municipal waste
stream. Old appliances must be collected separately in order to optimize the recovery and recycling of
the materials theycontain and reduce the impact on human health and the environment. The crossed
out "wheeled bin" symbol on the product reminds you of your obligation,that when you dispose of the
appliance it must be separately collected. Consumers should contact their local authority or retailer for
information concerning the correct disposal of their old appliance.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and ；
(2) this device must accept any interference received, including interference that may cause undesired
operation.
FCC warning:
Any Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules.These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment o and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
ThedevicehasbeenevaluatedtomeetgeneralRFexposurerequirement.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator &
your body.
IC warning
- English:
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the
following two conditions:
(1) This device may not cause interference, and
(2) This device must accept any interference, including interference that may cause undesired operation
of the device.
- French:
Le présentappareilestconforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitationestautorisée
aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareildoit accepter tout brouillageradioélectriquesubi, mêmesi le brouillageest
susceptible d'encompromettre le fonctionnement.
