MODEL NO: S01267
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this Topchest &
Rollcab combination.
9 Locate the Topchest & Rollcab combination in a suitable working area.
9 Keep the work area clean, uncluttered and ensure there is adequate lighting.
9 Keep the Topchest & Rollcab combination clean and tidy in accordance with good workshop practice.
9 Keep children and unauthorised persons away from the working area.
8 DO NOT use the Topchest & Rollcab combination for any purpose other than that for which it is designed.
8 DO NOT move the Topchest & Rollcab combination with drawers open.
8 DO NOT open more than one drawer at the same time.
8 DO NOT step on the drawers.
8 DO NOT use in damp work areas.
WARNING! The warnings, cautions and instructions referred to in this instruction manual cannot cover all possible conditions and situations that
may occur. It must be understood that common sense and caution are factors which cannot be built into this product, but must be applied by the
operator.
2. INTRODUCTION
247pc Comprehensive tool kit with sockets and accessories, pliers, screwdrivers, spanners, precision screwdrivers, pick and hook set,
ball pein hammer, pry bar, adjustable wrench, bits, hex keys, inspection tools, tape measure and tweezers. Six drawer top chest and
rollcab tted with smooth 25mm ball-bearing drawer slides and Ø75mm castor wheels. Tools feature soft grip handles for comfort and
control. Supplied in convenient foam storage trays.
3. SPECIFICATION
4. CONTENTS
Refer to
instruction
manual
S01267 Issue:1 06/09/24
Original Language Version
© Jack Sealey Limited
TOOL KIT WITH 6 DRAWER TOP CHEST AND
ROLLCAB 247PC, BALL BEARING SLIDES
Model No: S01267
Nett Weight: 36.2kg
Contents:
Drawer 1: Screwdrivers; Slotted - 3 x 75, 4 x 100, 6 x 150, Phillips - #1 x 75, #2 x 100, Pozi - #1 x 75, #2 x 100, TRX-Star* - T10 x 100, T15
x 100, T20 x 100, T25 x 100, T27 x 100, T30 x 100.
Drawer 2: Precision Screwdrivers; Phillips - #0, #00, #000, Slotted - 2, 2.5, 3mm, Pick and Hooks; Straight, Right Angle, Half-Round, Swan
Neck, 45°/90° Tip, 40°/45° Tip, Ø50mm Inspection Mirror, 2.2kg Magnetic Pick-Up Tool, 3m Tape Measure, Tweezers, Precision
Bit Driver with Extension Bar, Precision Bits; Slotted - 1, 1.5, 2, 2.5, 3, 3.5, 4mm, Phillips - #1, #0, #00, #000, Pozi - #0, #1, TRX-
Star* - T4, T5, T6, T7, T8, T9, T10, T15, T20, Hex - 0.7, 0.9, 1.3, 1.5, 2, 2.5, 3, 4mm.
Drawer 3: Bits; TRX-Star* - T20, T25, T30, T40, T45, T50, T55 (1 each of 30 and 75mm), Hex – 4, 5, 6, 7, 8, 10, 12mm (1 each of 30 and
75mm), Spline - M5, M6, M8, M10, M12 (1 each of 30 and 75mm), Adaptors; 1/2”Sq Drive x 10mm Hex, Hex Keys; 1.5, 2, 2.5,
3, 4, 5, 6, 8, 10mm, TRX-Star* Keys; T10, T15, T20, T25, T27, T30, T40, T45, T50, Imperial Hex Keys; 1/16”, 5/64”, 3/32”, 1/8”,
5/32”, 3/16”, 1/4”, 5/16”, 3/8”, 1/4” Hex Bits; Slotted – 3, 4,5, 6, 7mm, Phillips - #0 x 2, #1 x 2, #2 x 4, #3 x 2, Pozi - #0, #1, #2, #3,
TRX-Star* - T10, T15, T20, T25, T30, Hex - 2, 3, 4, 5, 6mm, 25mm Adaptor, 60mm Quick Chuck Bit Holder, Bit Holder Handle.
Drawer 4: 200mm Adjustable Wrench, 200mm Water Pump Pliers, 200mm Long Nose Pliers, 175mm Combination Pliers, 160mm Side
Cutters, 180mm Locking Pliers, 12oz Ball Pein Hammer, 460mm Pry Bar.
Drawer 5: Combination Spanners; 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 22mm, Stubby Combination Spanners; 10, 12, 13, 15, 17mm,
TRX-Star* Spanners; E6 x E8, E10 x E12, E14 x E18, E20 x E24, 3/8”Sq Drive Crow’s Foot Spanners; 10, 12, 13, 15, 17mm.
Drawer 6: 1/4”Sq Drive Standard Sockets; 4, 4.5, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 13mm, 1/4”Sq Drive Deep Sockets; 6, 7, 8, 10, 11, 12, 13mm,
1/2”Sq Drive Standard Sockets; 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24, 27, 30, 32mm, 1/2”Sq Drive Deep Sockets;
10, 12, 13, 14, 15, 17, 19, 22, 24mm, 1/4”Sq Drive Accessories; 72-Tooth Reversible Ratchet Wrench, Universal Joint, Spinner
Handle, Extension Bars; 75, 150mm, 1/2”Sq Drive Accessories; 72-Tooth Reversible Ratchet Wrench, Extension Bars; 125,
250mm, Universal Joint.

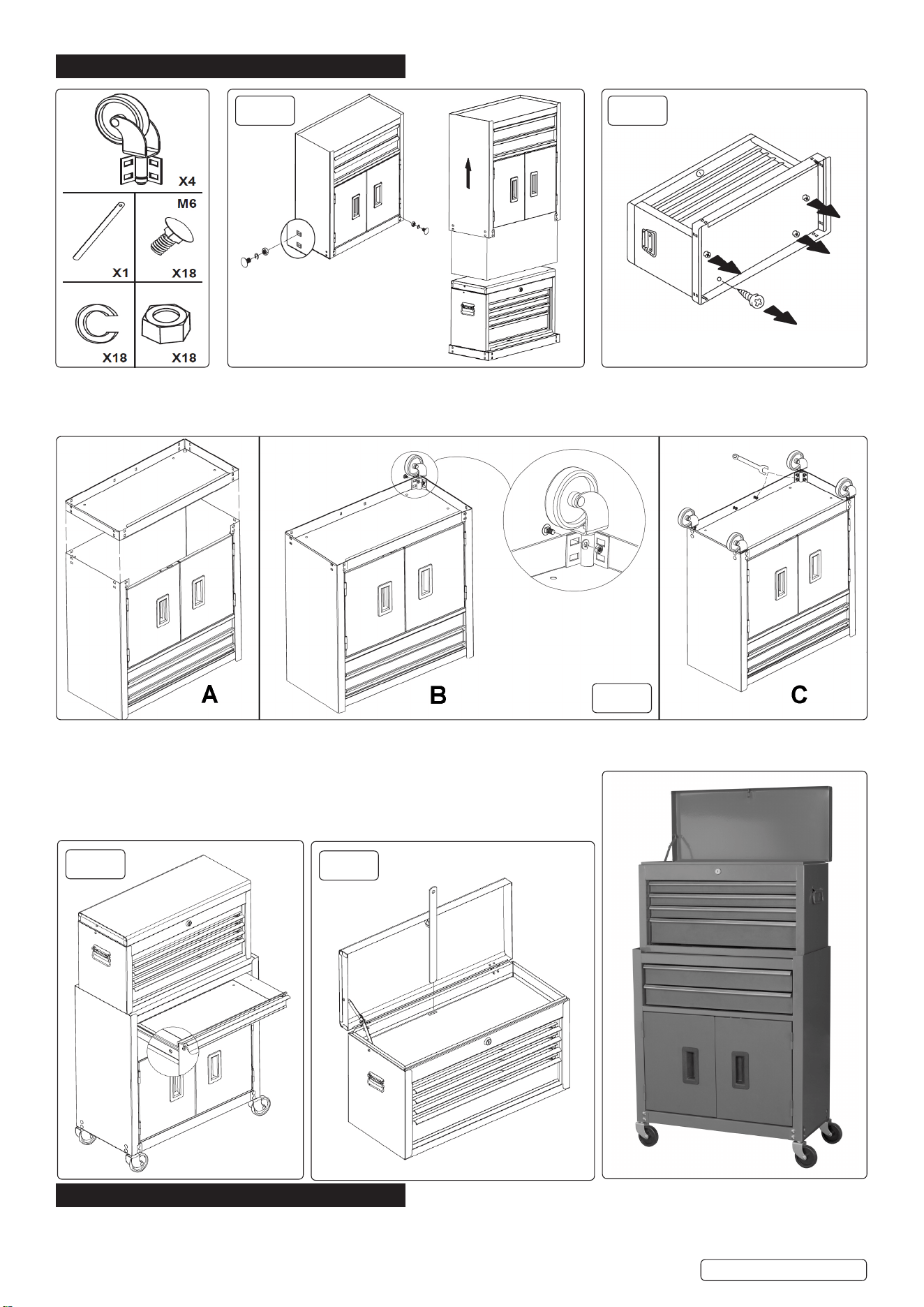

5. ASSEMBLY
5.1. Remove the bolts, nuts and washers from the base of the rollcab (g.1), and then lift o the body to uncover the topchest.
5.2. Remove the screws from the base (g.2), and separate from the topchest, discard the screws.
Note: Place protective material onto the ground to avoid damaging the back of the topchest.
5.3. Turn the rollcab upside down and place the base into position as shown in g.3A.
Note: Place protective material onto the ground to avoid damaging the top of the rollcab.
5.4. Position the corner brackets (g.3B) and secure using bolts, washers and nuts.
5.5. Attach the back panel to the base using two bolts, washers and nuts.
5.6. Ensure the base is square in the rollcab and tighten all nuts fully (g.3C).
5.7. Place the rollcab upright and place the topchest on top as shown in g.4.
6. OPERATION
6.1. To lock the top chest, close all drawers, then insert one lock bar into the back slot inside the top compartment. Close the lid and lock
with the key (g.5).
Original Language Version
© Jack Sealey Limited
fig.
4
fig.
5
fig.
1
fig.
2
S01267 Issue:1 06/09/24
fig.
3
7. MAINTENANCE.
7.1. Periodically lubricate the drawer slides (g.4).
7.2. Clean the surfaces with a soft cloth and a mild water/detergent solution.
7.3. Check all xings and tighten if required.
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted,
taken to a recycling centre and disposed of in a manner which is compatible with the environment. When the product
becomes completely unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and
dispose of the product and fluids according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 24 months from purchase date, proof of which is required for any claim.
Original Language Version
© Jack Sealey Limited
S01267 Issue:1 06/09/24
