TOOL CHEST & ROLLER
CABINET COMBINATION
Stock No’s.30680 / 30681 Part No’s. D100-24COMB06 / D100 -24COMB08
EN
Original Instructions
Version 1 – 10/24
24" (6/8 DRAWER)
1
2
4
5
6 8
9
10
7
Item Description Qty
1
Tool chest 1
2
Roller cabinet 1
3a
Castors – xed 2
3b
Castors –
swivel with brakes 2

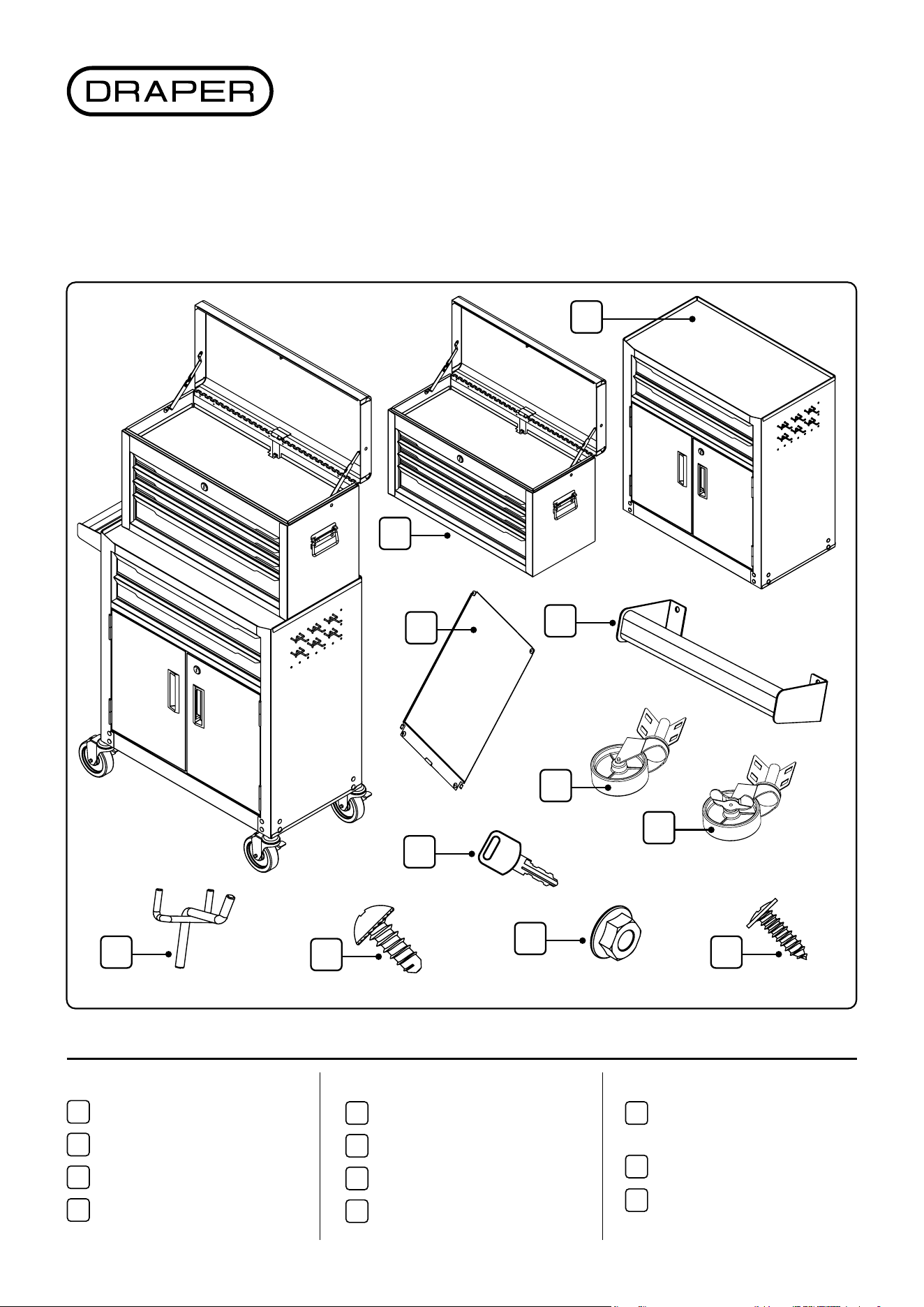

Product Overview
3a
3b
Item Description Qty
4
Side panel 1
5
Handle 1
6
Tool hanging hooks 4
7
Keys 4
Item Description Qty
8
M4 self
tapping screw 4
9
M6×12mm screw 20
10
M6 Nuts 16
Health & Safety Instructions
WARNING!
• DO NOT open more than one loaded drawer at a
time.
• DO NOT exceed the maximum loading capacity of
120kg.
• For ease of assembling, it is recommended that 2
persons assist each other.

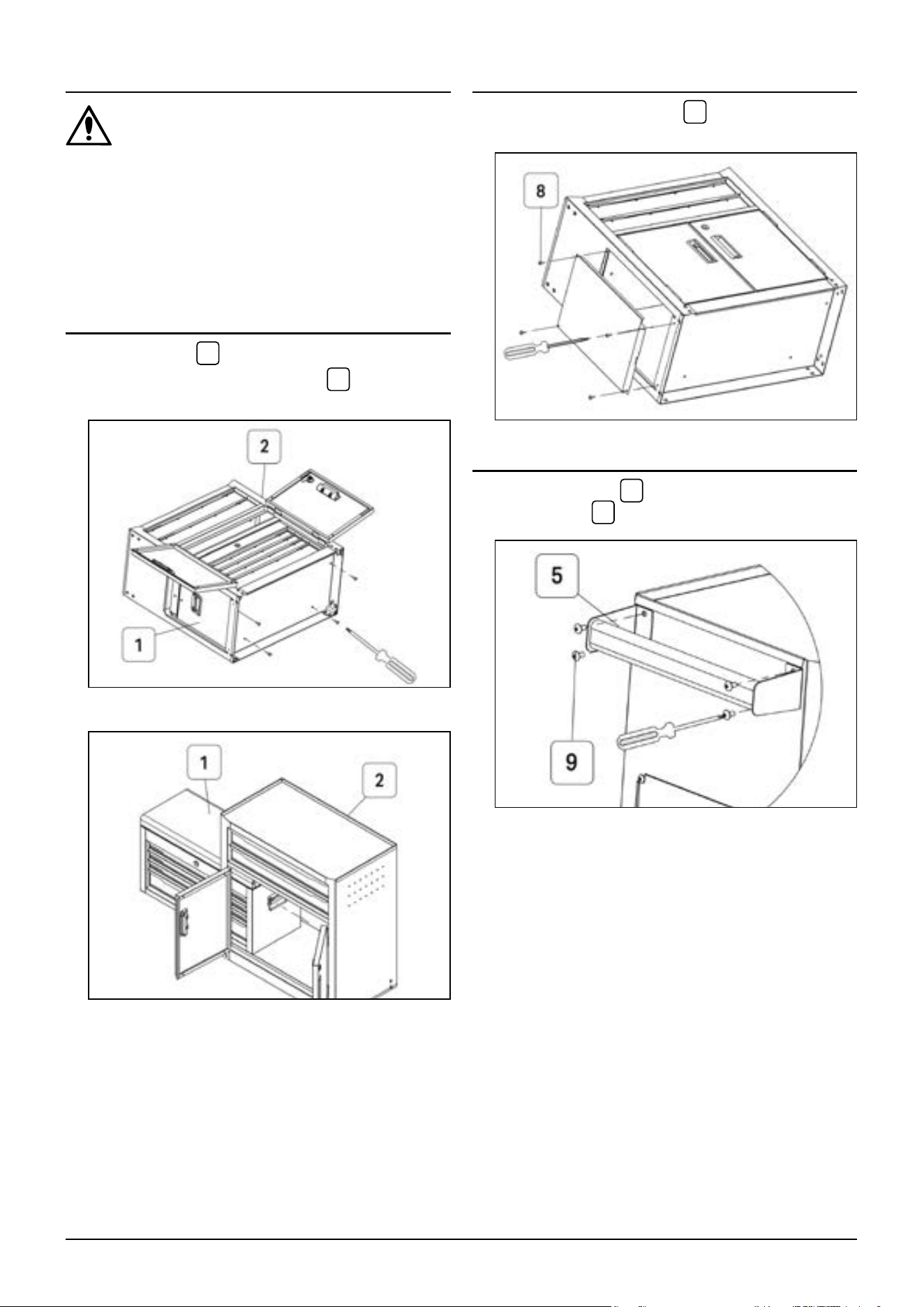

Step 1 – Unpacking Tool Chest
1. Lay the cabinet
2
down on a at level surface.
2. Undo the screws holding the chest
1
inside the
cabinet.
3. Slide out the chest and discard the transit screws.
Step 2 – Side Panel Assembly
• Use the self tapping screws
8
to attach the side
panel.
Step 3 – Handle Assembly
• Attach the handle
5
to the side of the cabinet using
4× M6 screws
9
.
– 2 –
– 3 –

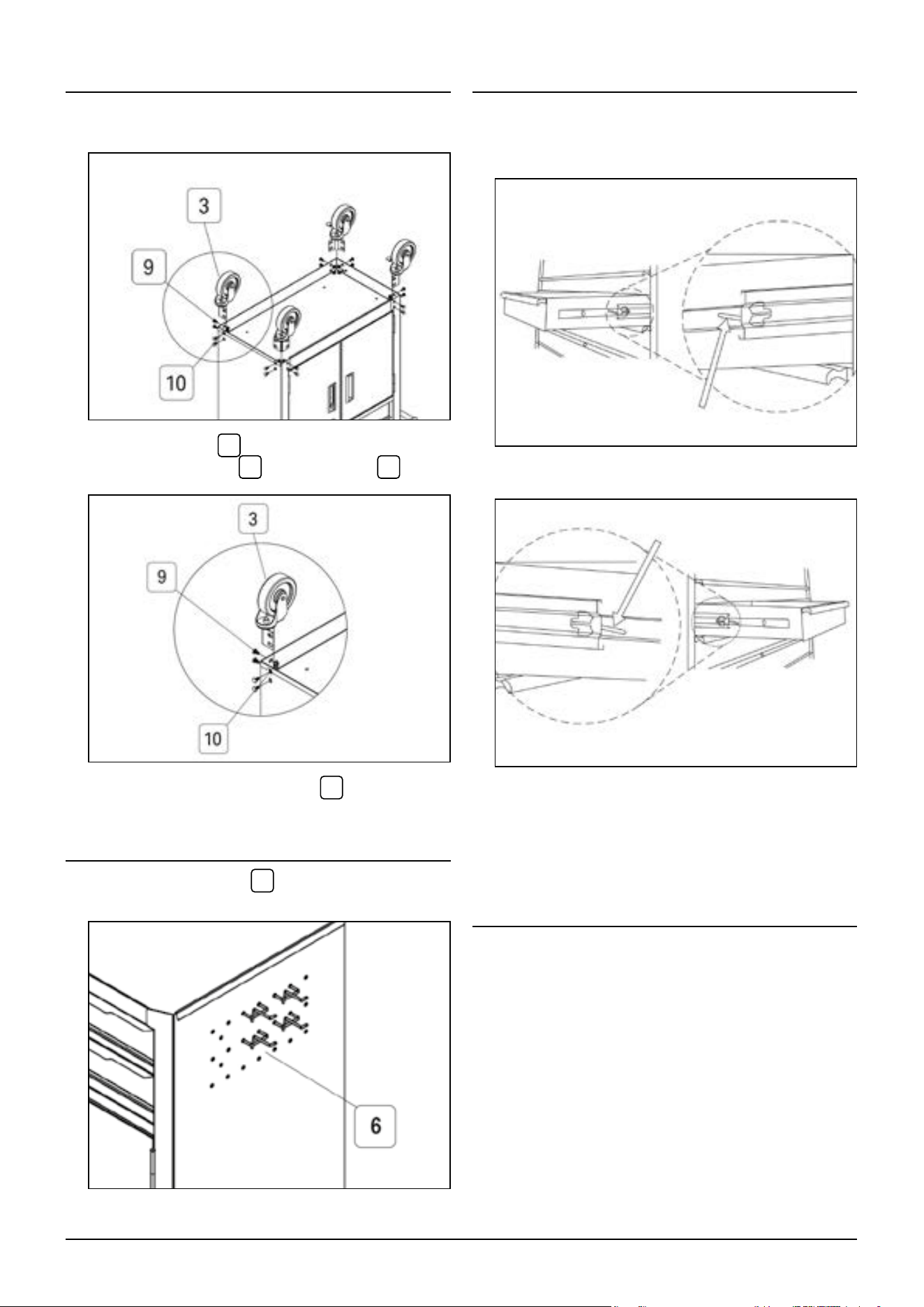

Step 4 – Castor Assembling
1. Ensure the cabinet is locked and then turn upside
down.
2. Secure the castors
3
to the bottom of the cabinet
using 16 × M6 screws
9
and 16 M6 Nuts
10
.
3. Note: The castors with the brakes
3b
should be
attached on the same side as the handle.
Step 5 – Tool Hanging Hooks
• Add the hanging hooks
6
to the pegboard side of
the cabinet.
Removing & Replacing The Drawers
1. Pull the drawer completely out.
2. Push up on one side and push down on the other (see
illustrations).
Push UP (one side)
Push DOWN (other side)
3. Pull the drawer o the slides.
4. To ret, align with the internal drawer slide and push
in until locked in place.
Maintenance
• Lubricate the top and bottom channels of the drawer
sliders at least twice a year.
• Grease the castors annually using high quality
bearing grease.
• Wipe over the surfaces with a mild detergent and
water.
