LED FLUSH MOUNT 3CCT
Model Number: C7252

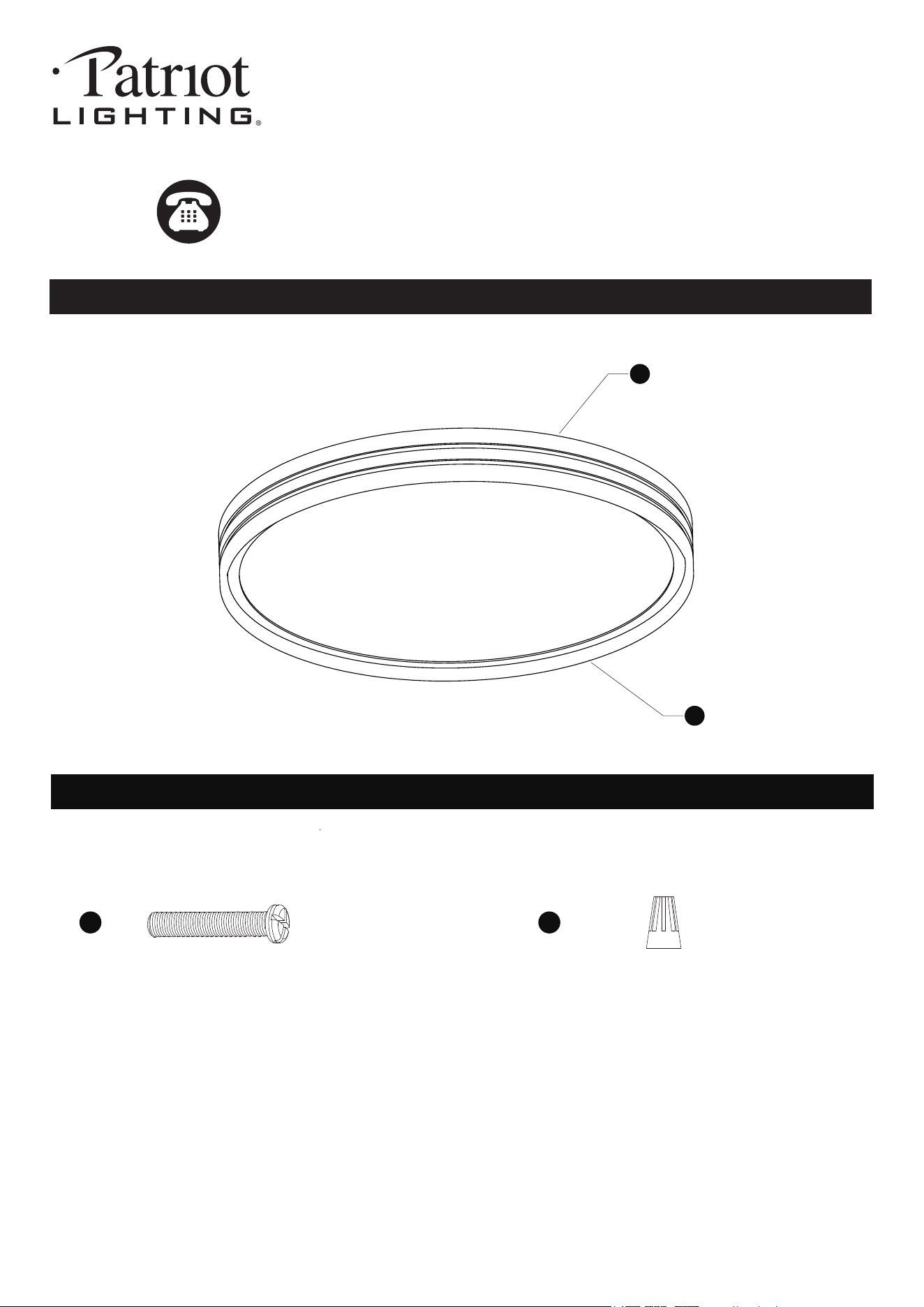

HARDWARE CONTENTS Note: Hardware not shown actual size.
PACKAGE CONTENTS
AA
Mounting Screw
X2
Wire Connector
X3
BB
Page 1 of 3
200707
A
B
Before beginning assembly, installation or operation of product, make sure all parts are present. Compare parts with
package contents list and diagram on previous page. If any part is missing or damaged, do not attempt to assemble,
install or operate the product. Contact customer service for replacement parts.
Tools Required for Assembly (not included): Screwdriver, Phillips Screwdriver, Pliers, Electrical Tape, Wire Cutters,
Safety Glasses, Ladder.
This fixture is dimmable with a forward phase electronic dimmer. Dimmers tested to be compatible with this
fixture are the Lutron: TGCL-153PH, MACL-153MH, SCL-153P, DVWCL-153PH.
If you are unfamiliar with electrical installation, it is recommended to use a qualified electrician for your installation(s).
SAFETY INFORMATION
PREPARATION
ASSEMBLY INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, operate or install the product.
WARNING
• Turn off electricity at main fuse box (or circuit breaker box) before beginning installation by removing fuse (or switching
off circuit breaker).
• Be careful not to damage or cut the wire insulation (covering) during fixture installation. Do not permit wires to contact
any surface having a sharp edge. To do so may damage or cut the wire insulation, which could cause serious injury
or death from electric shock.
• LED electronics can be damaged by electro static discharge (ESD)shock. Before installation, discharge yourself
by touching a grounded bare metal surface to remove this hazard. To avoid damage, do not touch the LED module.
CAUTION
• All electrical connections must be in agreement with local codes, ordinances or the national electric code (NEC).
Contact your municipal building department to learn about your local codes, permits and/or inspections.
• Risk of fire – most dwellings built before 1985 have supply wire rated for 140°F/60ºC. Consult a qualified electrician
before installation.
• Do not connect this fixture to an electrical system that does not provide a means for equipment grounding. Never use
a fixture in a two-wire system that is not grounded. If you are not sure your lighting system has a grounding means,
do not attempt to install this fixture. Contact a qualified, licensed electrician for information with regards to proper
grounding methods as required by the local electrical code in your area.
Turn off the power at fuse or circuit box.
Turn on the power at fuse or circuit
box.

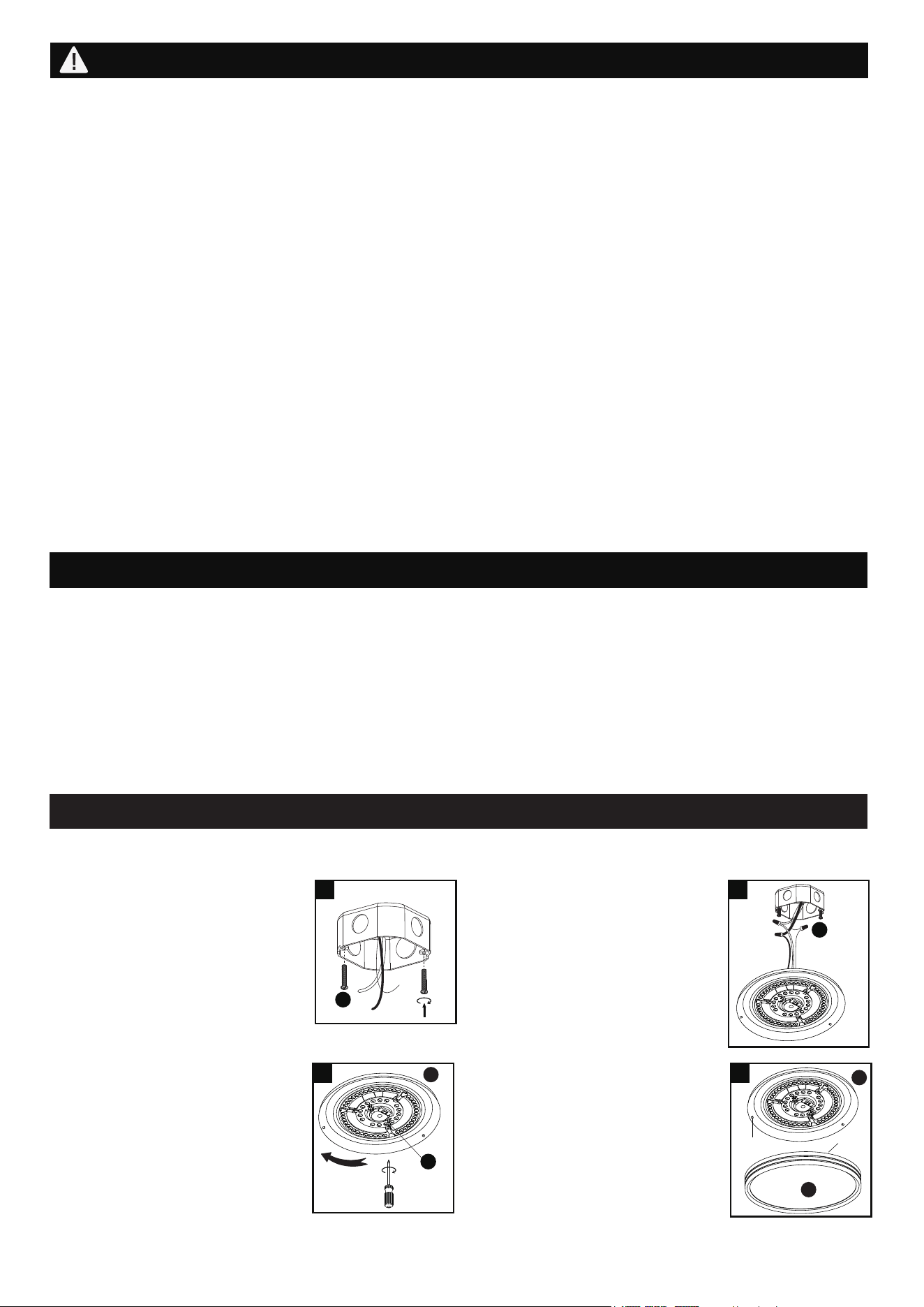

1. Attach the two mounting screws
(AA) to the holes on outlet box,
thread them in part way: 2 to 3
turns only.
2. Connect the black to black (power),
white to white (neutral) and copper
wire or green / yellow wire to
ground wire with supplied wire
connectors (BB).
Tuck all wires into outlet box.
AA
1
1
1
2
BB
4. Attach the plastic shade (B) to
the ceiling pan (A) by aligning
studs and slots, then turn it
clockwise until it is locked in place.
3. Attach the ceiling pan (A) to the
outlet box by inserting two
mounting screws (AA) head into
the key holes, then rotate the
ceiling pan until it is locked in
place, finally secure the mounting
screws tightly with screwdriver (not
included).
A
3
AA
Page 2 of 3
200707
Stud
A
4
Slot
B
Spare Parts List:
Assembly Kit
6271MM (1 SET)
Plastic Shade
10191AC
B
Page 3 of 3
200707
The following parts are available for reorder if damaged or missing. Call our toll free at 1-800-887-6326.
AA
Mounting Screw
X2
Wire Connector
X3
BB

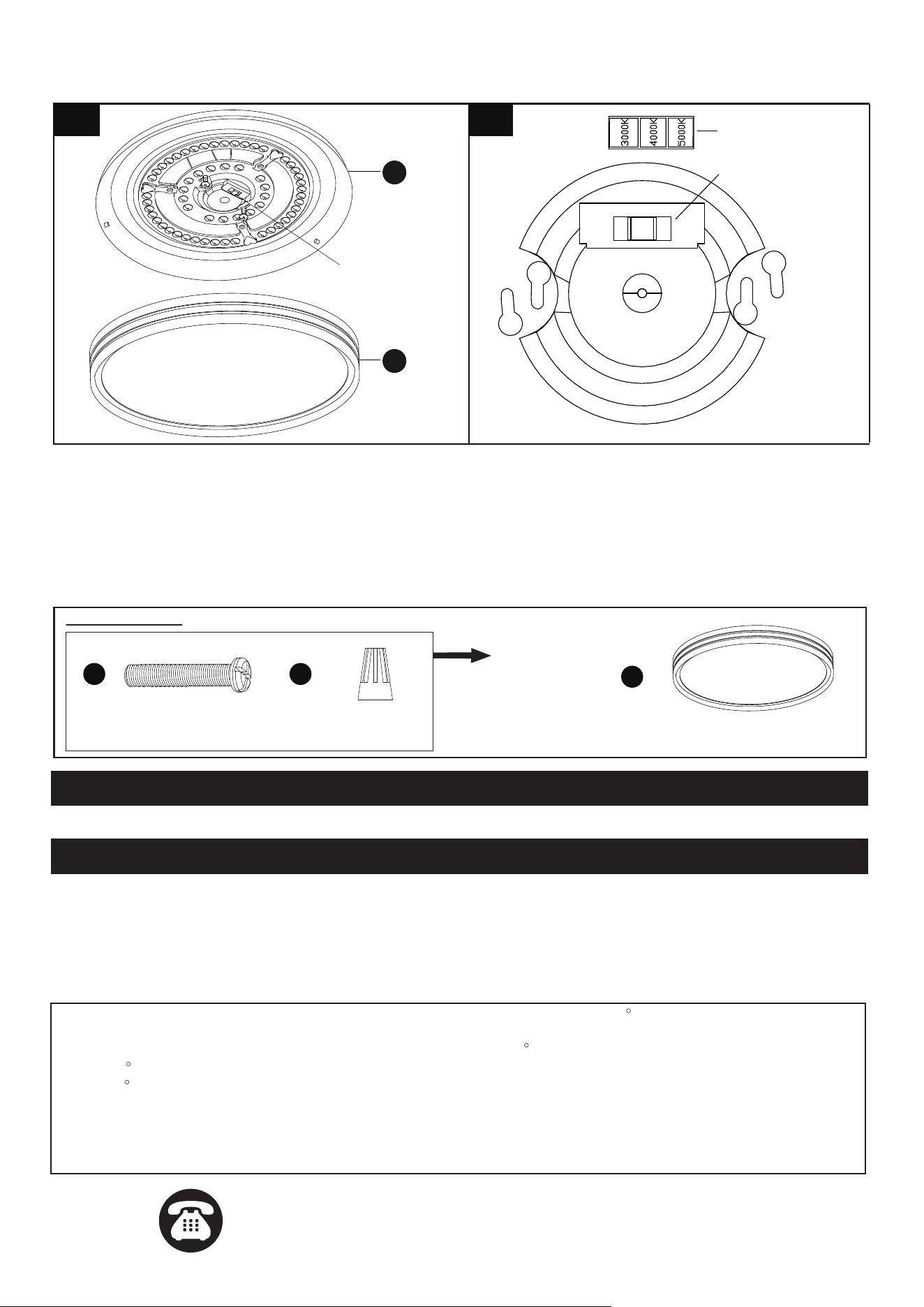

Adjusng the color Temperature of the Light
Customizing the color temperature of LED light by moving toggle switch.
1-a 1-b
View Fig.1-b
Color Temperature
TROUBLESHOOTING
CARE AND MAINTENANCE
● To clean, turn off and wipe with a damp, non-abrasive cloth.
1) The light does not come on at all:
a) Make sure the wall switch and circuit breaker are on.
b) Make sure the wiring is correct.
2) Fuse blows or circuit trips when light is turned on.
a) Check for crossed wires, ensure wiring is correct.
If unable to fix any of the above issues, please consult a certified electrician.
FIVE-YEAR LIMITED WARRANTY: If, during normal use, this PATRIOT LIGHTING lighting fixture breaks or fails due
to a defect in material workmanship within five (5) years from the date of original purchase, simply bring this lighting
fixture with the original sales receipt back to your nearest MENARDS retail store. At its discretion, PATRIOT
LIGHTING agrees to have the product or any defective part(s) repaired or replaced with the same or similar PATRIOT
LIGHTING product or part free of charge, within the stated warranty period, when returned by the original purchaser
with original sales receipt. This warranty; (1) excludes expendable parts including but not limited to light bulbs; (2) does
not cover damage that has resulted from abuse or misuse; and (3) does not cover any losses, labor, injuries to
persons/property or costs. This warranty does give you specific legal rights and you may have other rights, which vary
from state to state.
Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-800-887-6326
Monday – Friday 9:00 a.m. – 5:00 p.m. CST
R
R
R
R
a. Move the toggle switch to 3000K, the color temperature is set at 3000K.
b. Move the toggle switch to 4000K, the color temperature is set at 4000K.
c. Move the toggle switch to 5000K, the color temperature is set at 5000K.
Notice: Please move the toggle switch to make your selection before attaching plastic
shade (B) to the ceiling pan (A).
B
A
Toggle Switch
