536LiRX
Oper
ator
′
s manual
Please r
ead the operator’s manual carefully and make sure you understand the instructions
before using the machine.
KEY
T
O SYMBOLS
2
–
English

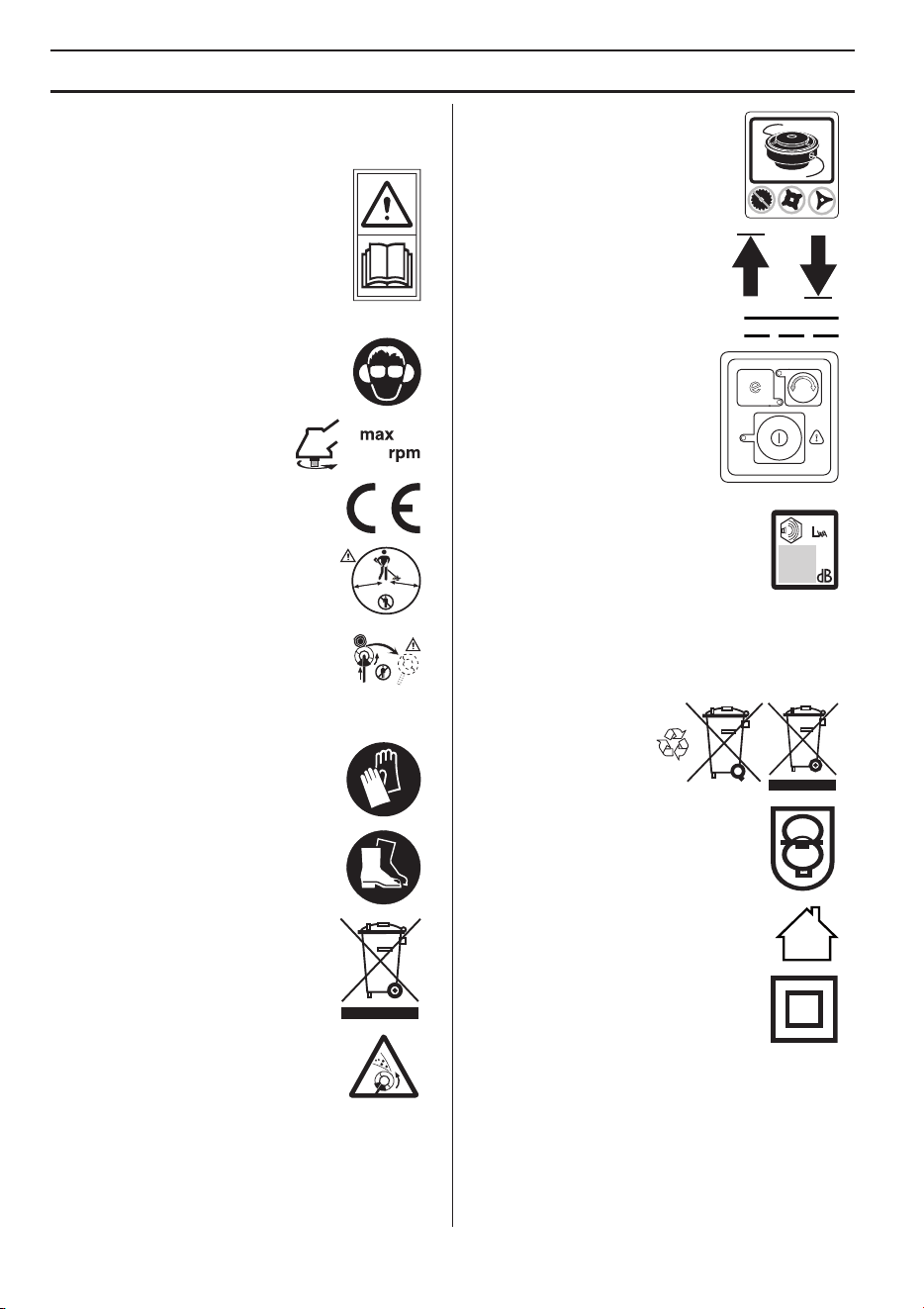

Symbols on the mac
hine:
T
ranslation of the original Swedish operating instruction.
WARNING! Trimmers can be dangerous!
Careless or incorrect use can result in
serious or fatal injury to the operator or
others. It is extremely important that you
read and understand the contents of the
operator's manual. Please read the
operator’s manual carefully and make
sure you understand the instructions
before using the machine.
Always wear:
• Approved hearing protection
• Approved eye protection
Max. speed of output shaft, rpm
This product is in accordance with
applicable EC directives.
The operator of the machine must
ensure, while working, that no persons
or animals come closer than 15 meters.
Machines fitted with saw blades or grass
blades can be thrown violently to the side
when the blade comes into contact with a
fixed object. The blade is capable of
amputating an arm or leg. Always keep
people and animals at least 15 meters from the machine.
Always wear approved protective gloves.
Wear sturdy, non-slip boots.
Symbols on the product or its packaging
indicate that this product cannot be
handled as domestic waste. This
product must be deposited at an
appropriate recycling facility. (Applies to
Europe only)
Watch out for thrown objects and
ricochets.
Only use non-metallic, flexible cutting
attachments, i.e. trimmer heads with
trimmer line.
Arrows which show limits for handle
positioning.
Direct current.

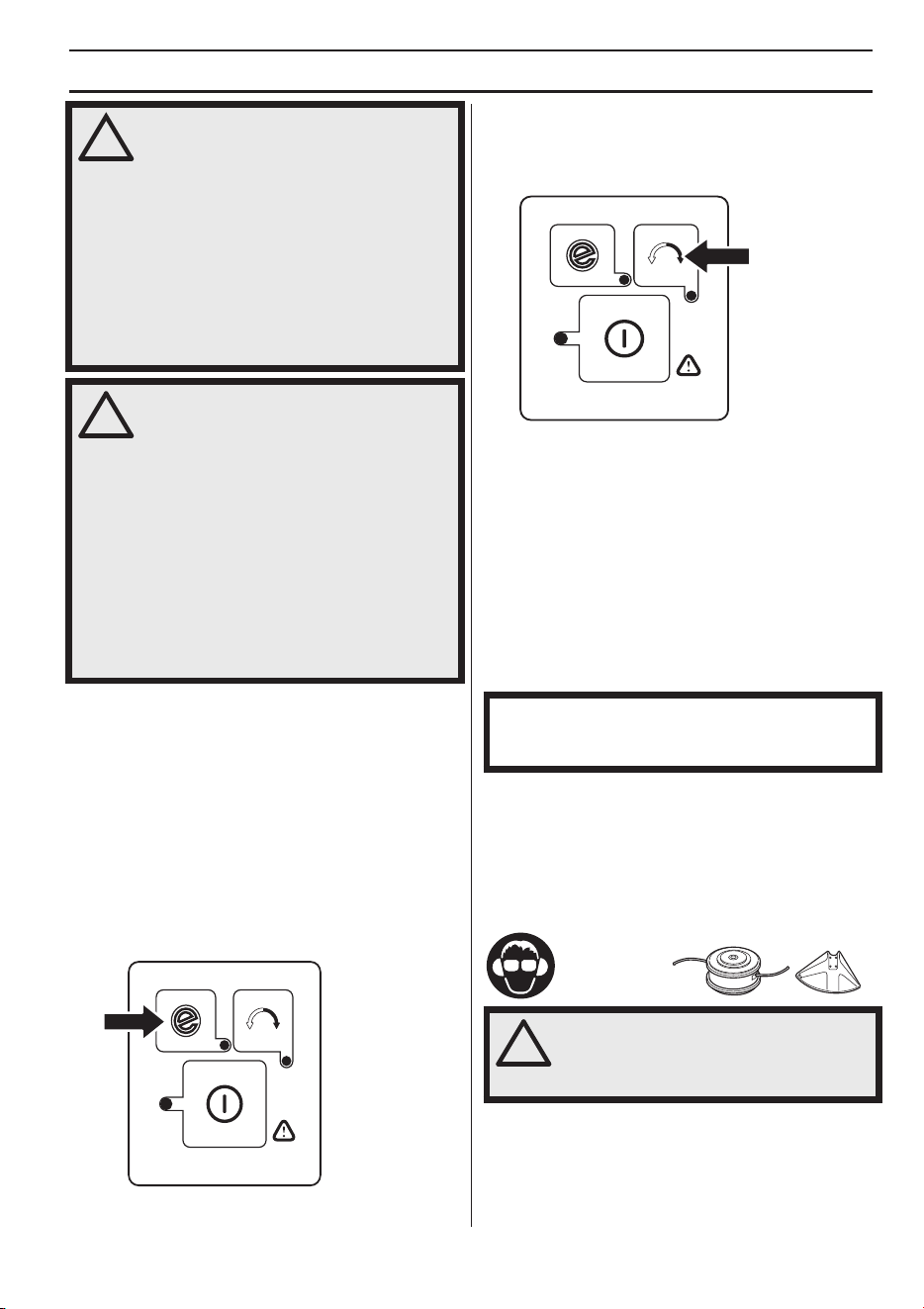

Control panel
• Rotation direction
• Activate and deactivate button
• SavE mode The machine is
equipped with a battery saving
function (SavE).
• Warning indicator
Noise emission to the environment
according to the European Community’s
Directive. The machine’s emission is
specified in the Technical data chapter
and on the label.
Symbols on the battery and/or on
the battery charger:
This product m
ust be
deposited at an
appropriate recycling
facility. (Applies to
Europe only)
Fail-safe transformer
Use and store battery charger only
indoors.
Double insulation
Other symbols/decals on the mac
hine refer to special
certification requirements for certain markets.
6000
5
0
FT
15
m
50FT
15 m
KEY
T
O SYMBOLS
English
–
3

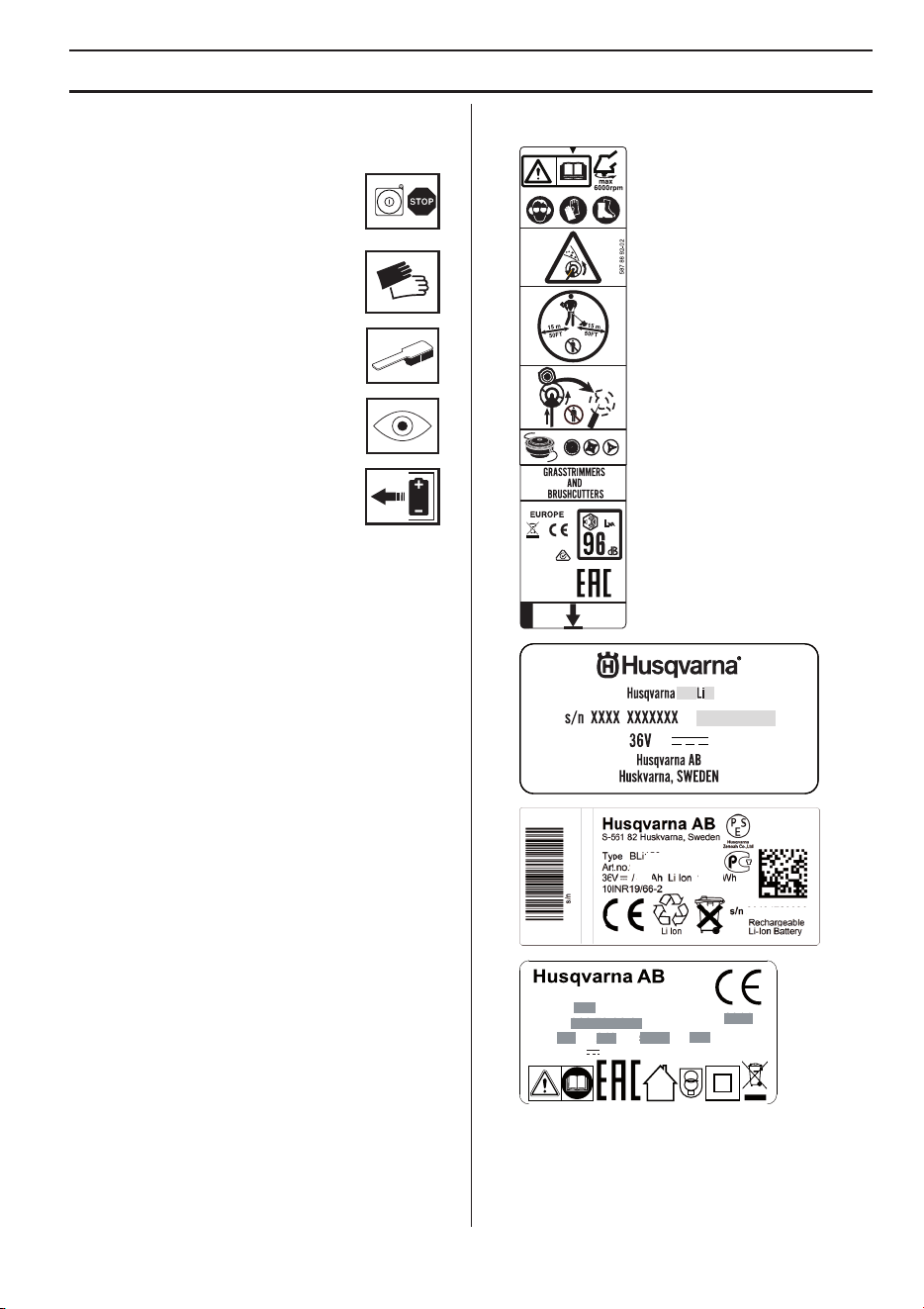

Symbols in the operator’
s
manual:

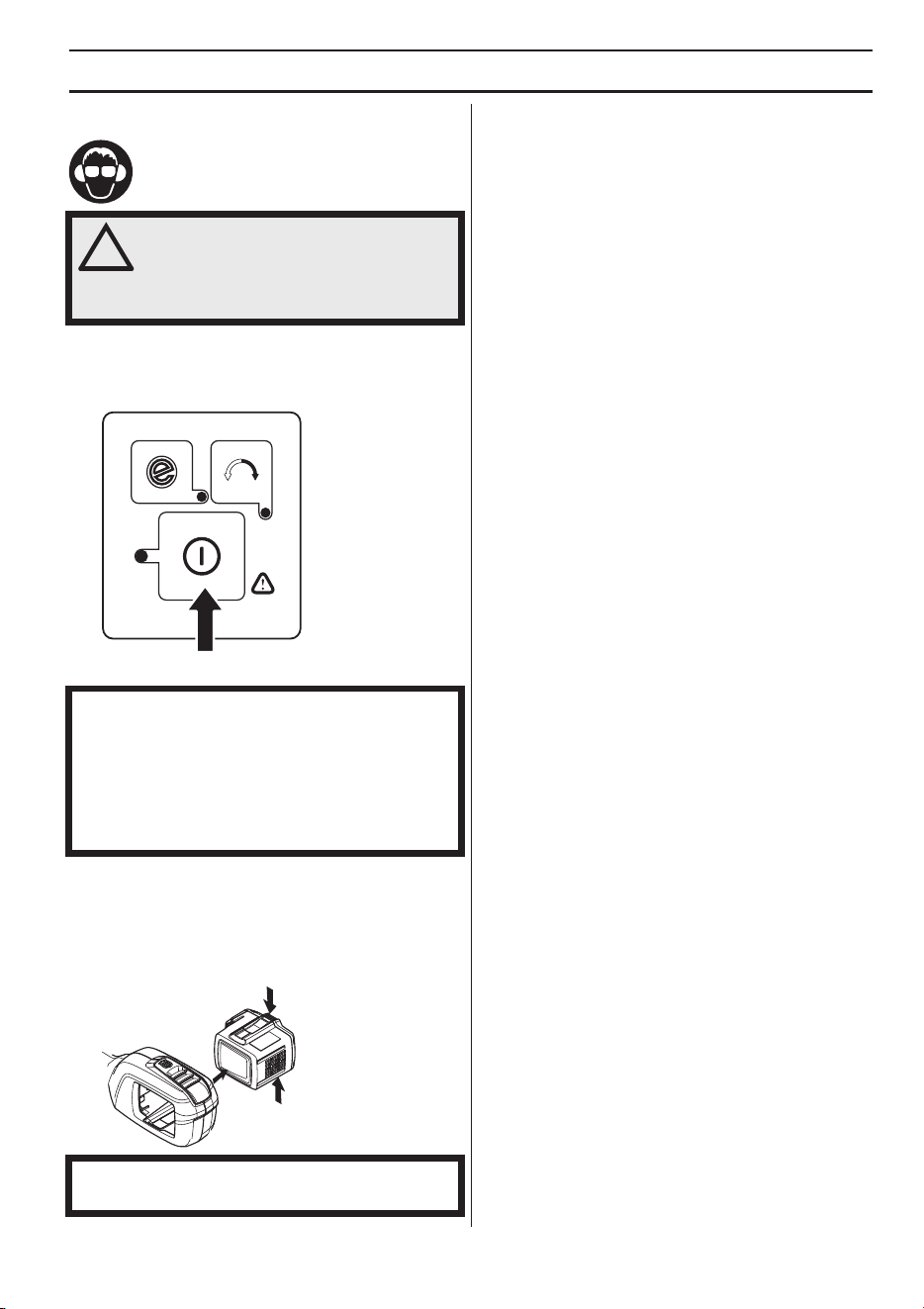

The machine is tur
ned on and off by
pressing the on and stop button. Always
remove the battery to prevent the
machine being started by accident.
Always wear approved protective gloves.
Regular cleaning is required.
Visual check.
Remove the battery. IMPORTANT!
Always remove the battery to prevent the
machine being started by accident.
You will find the following labels on your lawn trimmer,
battery and battery charger:
Li-ion
Li-ion
Husqvarna AB
Huskvarna
SWEDEN
PRI: 100V - 240V ~ 50-60Hz 330W max.
S-561 82 Huskvarna, Sweden
Art.No. 966 73 06-01
/ 7A maxSEC: 36V
Typ QC 330
2014
WW/YY
CONTENTS
4
–
English
Contents
Note the f
ollowing before
starting:
Please read the oper
ator's manual carefully.
KEY
TO SYMBOLS
Symbols on the machine:
...................................... 2
Symbols on the battery and/or on the battery
charger: .................................................................
2
Symbols in the operator’s manual: ........................ 3
CONTENTS
Contents
............................................................... 4
Note the following before starting: ........................ 4
INTR
ODUCTION
Dear Customer
, ..................................................... 5
WHA
T IS WHAT?
What is what?
....................................................... 6
GENERAL SAFETY PRECA
UTIONS
Gener
al power tool safety warnings ...................... 7
Personal protective equipment ............................. 9
Battery and battery charger .................................. 9
Machine
′
s safety equipment ................................. 11
Cutting equipment ................................................. 12
ASSEMBL
Y
Fitting the handlebar
............................................. 15
Assembling the guard ........................................... 15
Dismantling the Trimmer Head .............................. 15
Assembly of grass blade and grass cutter ............ 16
Adjusting the harness and trimmer ....................... 16
Standard harness ................................................. 16
Transport position, handlebar ............................... 17
B
ATTERY HANDLING
Batter
y .................................................................. 18
Battery charger ..................................................... 18
Transport and storage ........................................... 19
Disposal of the battery, battery charger and
machine ................................................................
19
ST
ARTING AND STOPPING
Chec
k before starting ............................................ 20
Connect battery to the machine ............................ 20
Starting and stopping ............................................ 21
W
ORKING TECHNIQUES
Gener
al working instructions ................................ 22
MAINTENANCE
Inspection and maintenance
................................. 26
Troubleshooting schedule ..................................... 27
Maintenance schedule .......................................... 28
TECHNICAL D
ATA
T
echnical data ....................................................... 29
EC Declaration of Conformity ............................... 30
!
W
ARNING! Long-term exposure to noise
can result in permanent hearing
impairment. Always use hearing
protection.
!
W
ARNING! Under no circumstances may
the design of the machine be modified
without the permission of the
manufacturer. Always use original
accessories. Non-authorized
modifications and/or accessories can
result in serious personal injury or the
death of the operator or others.
!
W
ARNING! A lawn trimmer can be
dangerous if used incorrectly or
carelessly, and can cause serious or fatal
injury to the operator or others. It is
extremely important that you read and
understand the contents of this
operator’s manual.
English
–
5
INTR
ODUCTION
Dear Customer
,
Cong
ratulations on your choice to buy a Husqvarna product! Husqvarna is based on a tradition that dates back to 1689,
when the Swedish King Karl XI ordered the construction of a factory on the banks of the Husqvarna River, for production
of muskets. The location was logical, since water power was harnessed from the Huskvarna River to create the water-
powered plant. During the more than 300 years in existence, the Husqvarna factory has produced a lot of different
products, from wood stoves to modern kitchen appliances, sewing machines, bicycles, motorcycles etc. In 1956, the first
motor driven lawn mowers appeared, followed by chain saws in 1959, and it is within this area Husqvarna is working
today.
Today Husqvarna is one of the leading manufacturers in the world of forest and garden products, with quality as our
highest priority. The business concept is to develop, manufacture and market motor-driven products for forestry and
gardening, as well as for the building and construction industry. Husqvarna
′
s aim is also to be at the front edge for
ergonomics, usability, security and environmental protection. That is the reason why we have developed many different
features to add to our products within these areas.
We are convinced that you will appreciate with great satisfaction the quality and performance of our product for a very
long time to come. The purchase of one of our products gives you access to professional help with repairs and service
whenever this may be necessary. If the retailer who sells your machine is not one of our authorised dealers, ask for the
address of your nearest service workshop.
It is our wish that you will be satisfied with your product and that it will be your companion for a long time. Think of this
operator
′
s manual as a valuable document. By following its content (usage, service, maintenance, etc), the life span and
the second-hand value of the machine can be extended. If you sell this machine, make sure that the operator
′
s manual
is passed on to the buyer.
Thank you for using a Husqvarna product.
Husqvarna AB has a policy of continuous product development and therefore reserves the right to modify the design and
appearance of products without prior notice.
6
–
English
WHA
T IS
WHA
T?

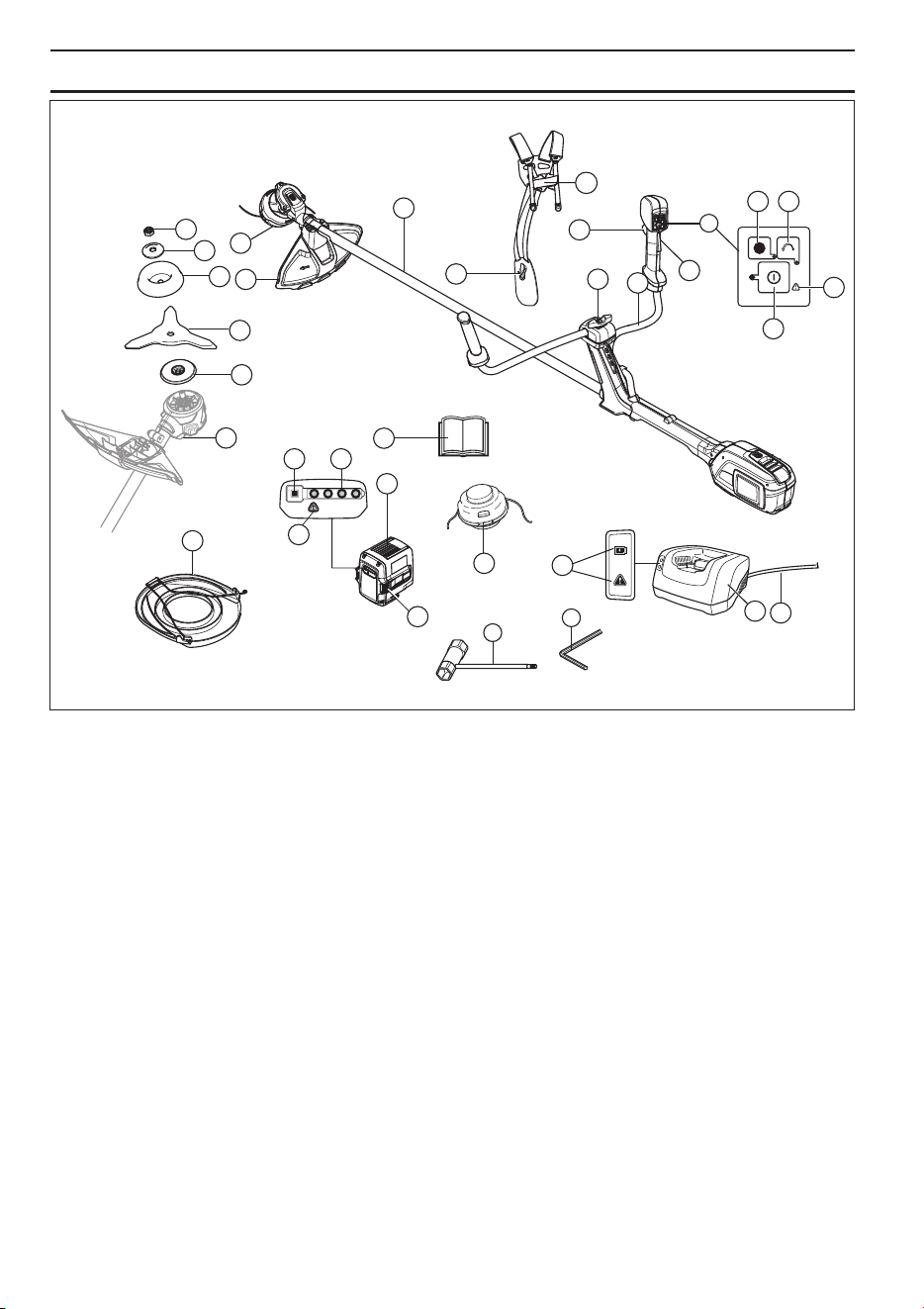

What is what?
22
13
20
17
10
11
14
15
16
32
5
2
3
6
1
12
7
18
19
21
22
23
24
25
26
27
31
4
8
9
17
13
28
29
30
1
Trimmer head
2 Cutting attachment guard
3 Shaft
4 Harness Quick release
5 Harness, hip pad
6 Handle adjustment
7 Handlebar
8 Power trigger
9 Power trigger lockout
10 Keypad
11 SavE button
12 Rotation direction button
13 Warning indicator (ERROR LED)
14 Activate and deactivate button
15 Cord
16 Battery charger
17 Power on and warning indicator (ERROR LED)
18 4 mm hex key
19 Socket spanner
20 Trimmer head
21 Battery release buttons
22 Battery
23 Battery status
24 Battery indicator button
25 Transport guard
26 Hole for locking pin 4 mm hex key
27 Drive disc
28 Blade
29 Support cup
30 Support flange
31 Locking nut
32 Operator
′
s manual
GENERAL SAFETY PRECA
UTIONS
English
–
7
General po
wer tool safety
warnings
Please read the oper
ator’s manual carefully and make
sure you understand the instructions before using the
machine.
Chec
k before starting
•
Always remove the battery to prevent the machine
being started by accident. Always remove the battery
before any maintenance on the machine.
• Before using the machine and after any impact, check
for signs of wear or damage and repair as necessary.
• Inspect the working area. Remove all loose objects,
such as stones, broken glass, nails, steel wire, string,
etc. that could be thrown out or become wrapped
around the cutter or cutter guard.
• Check the motor for dirt and cracks. Clean off grass
and leaves from the engine using a brush. Gloves
should be worn when necessary.
• Check that the trimmer head is completely attached to
the trimmer.
• Check that the machine is in perfect working order.
Check that all nuts and screws are tight.
• Check that the trimmer head and trimmer guard are
not damaged or cracked. Replace the trimmer head or
trimmer guard if they have been exposed to impact or
are cracked. Always use the recommended guard for
the cutting attachment you are using. See chapter on
Technical data.
• The machine operator must ensure that no people or
animals come closer than 15 metres while working.
When several operators are working in the same area
the safety distance should be at least 15 metres.
• Carry out an overall inspection of the machine before
use. See the maintenance schedule.
• National or local regulations may regulate the use.
Comply to given regulations.
P
ersonal safety
•
The cutting tool does not stop immediately after the
machine is turned off.
• The machine is only design for trimming.
• Keep bystanders away.
!
W
ARNING! Read all safety warnings and
all instructions. Failure to follow the
warnings and instructions may result in
electric shock, fire and/or serious injury.
IMPOR
TANT!
Save all warnings and instructions for
future reference.
GENERAL SAFETY PRECA
UTIONS
8
–
English
•
Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the influence of drugs, alcohol or medication.
A
moment of inattention while operating power tools
may result in serious personal injury.
• This appliance is not intended for use by person
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety. Children should be
supervised to ensure that they do not play with the
appliance.
• Never allow children or other persons not trained in
the use of the machine and/or the battery to use or
service it. Local laws may regulate the age of the user.
• Store the equipment in a lockable area so that it is out
of reach of children and unauthorized persons.
• Keep hands and feet away from the cutting area at all
times and especially when switching on the motor.
•
Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves
away from moving parts.
Loose clothes, jewellery or
long hair can be caught in moving parts.
• Wear personal protective equipment. See instructions
under the ”Personal protective equipment” heading.
• Always use face or dust mask if operation is dusty.
• Turn off the machine when it has to be moved. Always
remove the battery when passing the machine to
another person.
• Transport guard must always be used for storage and
transport.
• Keep in mind that it is you, the operator that is
responsible for not exposing people or their property
to accidents or hazards.
P
ower tool use and care
•
The only accessories you can operate with this
product are the cutting attachment we recommend in
the technical data chapter.
• Never use a machine that has been modified in any
way from its original specification. Never use the
machine near explosive or flammable materials.
• Never use a machine that is faulty. Carry out the safety
checks, maintenance and service instructions
described in this manual. Some maintenance and
service measures must be carried out by trained and
qualified specialists. See instructions under the
Maintenance heading.
• Only use original spare parts.
• Always ensure that ventilation openings are kept clear
of debris.
• Keep handles dry, clean and free from oil and grease.
• All covers, guards and handles must be fitted before
starting.
• Only use the machine in daylight or in other well-lit
conditions.
• Do not overreach. Keep proper footing and balance at
all times.
• Don’t force the machine. It will do the job better and
with less likelihood of a risk of injury at the rate for
which it was designed.
• Never use the machine in bad weather, for instance in
fog, in rain, damp or in wet locations,strong winds,
intense cold, risk of lightning, etc. Extremely hot
weather may cause overheating of the machine.
• If the machine starts vibrating abnormally, stop the
machine and remove the battery.
• Walk, never run.
Al
ways use common sense
It is not possib
le to cover every conceivable situation you
can face. Always exercise care and use your common
sense. Avoid all situations which you consider to be
beyond your capability. If you still feel uncertain about
operating procedures after reading these instructions,
you should consult an expert before continuing.
Impor
tant
!
W
ARNING! This machine produces an
electromagnetic field during operation.
This field may under some
circumstances interfere with active or
passive medical implants. To reduce the
risk of serious or fatal injury, we
recommend persons with medical
implants to consult their physician and
the medical implant manufacturer before
operating this machine.
!
W
ARNING! Never allow children to use or
be in the vicinity of the machine. Since
the machine is easy to start, children
may be able to start it if they are not kept
under full surveillance. This can mean a
risk of serious personal injury. Therefore
disconnect the battery when the machine
is not under close supervision.
GENERAL SAFETY PRECA
UTIONS
English
–
9

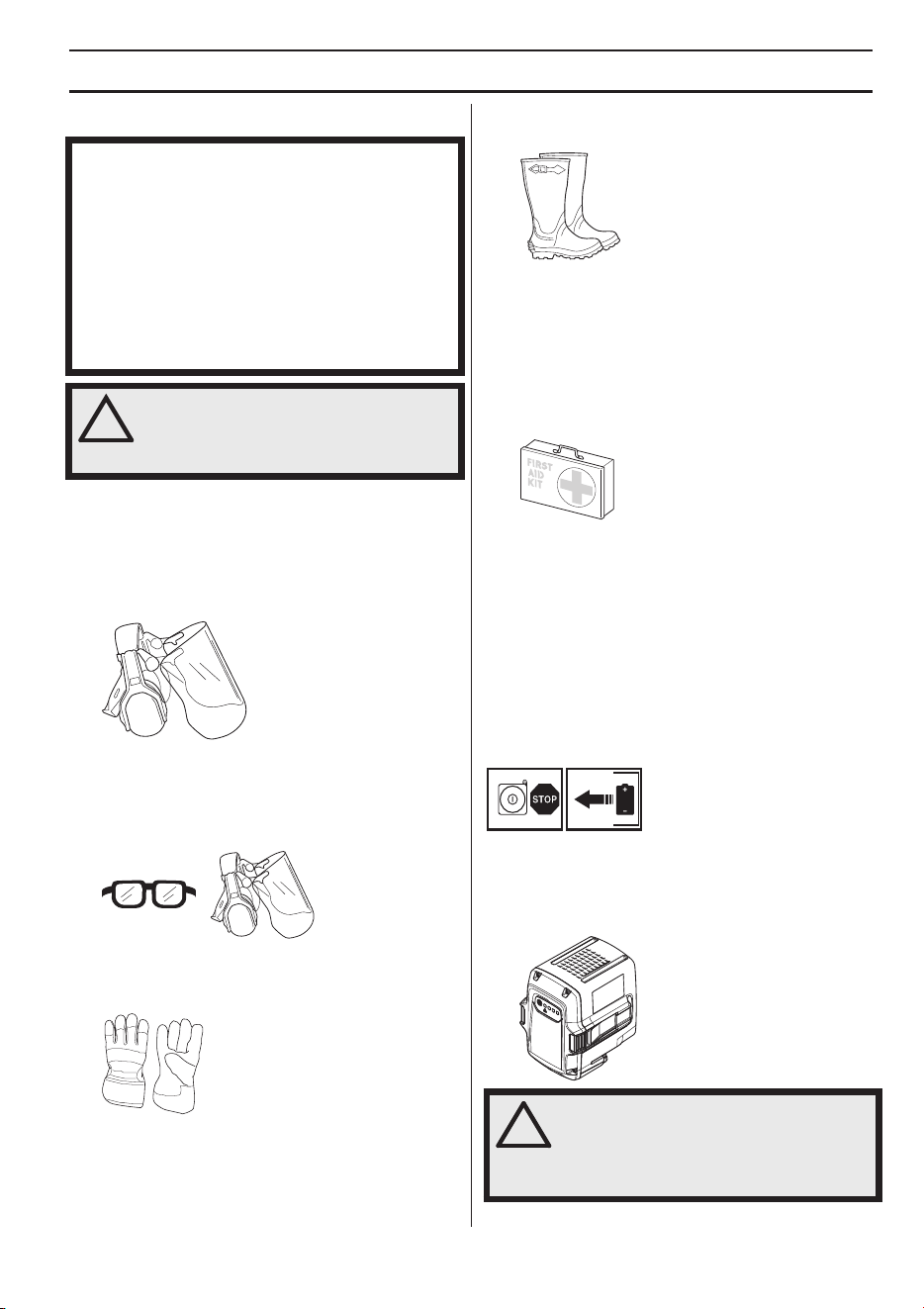

Personal protective equipment
WARNING! There is a risk of burns as the gear housing
can become very hot. Use gloves when working with the
trimmer head.
HEARING PROTECTION
Wear hearing protection that provides adequate noise
reduction.
EYE PROTECTION
Always wear approved eye protection. If you use a visor
then you must also wear approved protective goggles.
Approved protective goggles must comply with the ANSI
Z87.1 standard in the USA or EN 166 in EU countries.
GLOVES
Gloves should be worn when necessary, e.g. when fitting
cutting attachments.
BOOTS
Wear sturdy, non-slip boots.
CLOTHING
Wear clothes made of a strong fabric and avoid loose
clothing that can catch on twigs and branches. Always
wear heavy, long pants. Do not wear jewellery, shorts
sandals or go barefoot. Secure hair so it is above shoulder
level.
FIRST AID KIT
Always have a first aid kit nearby.
Battery and battery charger
This section describes the battery and battery charger
safety for your battery product.
Only use Husqvarna original batteries for Husqvarna
products and only charge them in an original battery QC
charger from Husqvarna. The batteries are software
encrypted.
Use only a Husqvarna original BLi battery in your
machine.
Battery safety
The rechargeable Husqvarna batteries, BLi, are
exclusively used as a power supply for the relevant
Husqvarna cordless appliances. To avoid injury, the
battery must not be used as a power source for other
devices.
IMPORTANT!
A lawn trimmer can be dangerous if used incorrectly or
carelessly, and can cause serious or fatal injury to the
operator or others. It is extremely important that you
read and understand the content of this operator’s
manual.
You must use approved personal protective equipment
whenever you use the machine. Personal protective
equipment cannot eliminate the risk of injury but it will
reduce the degree of injury if an accident does happen.
Ask your dealer for help in choosing the right equipment.
!
WARNING! Listen out for warning signals
or shouts when you are wearing hearing
protection. Always remove your hearing
protection as soon as the motor stops.
!
WARNING! Protect the battery from
direct sunlight, heat or open flame. There
is a risk the battery may explode if it is
thrown into an open fire. There is a risk of
burns and/or chemical burns.
Li-ion
Li-ion
GENERAL SAFETY PRECAUTIONS
10 – English

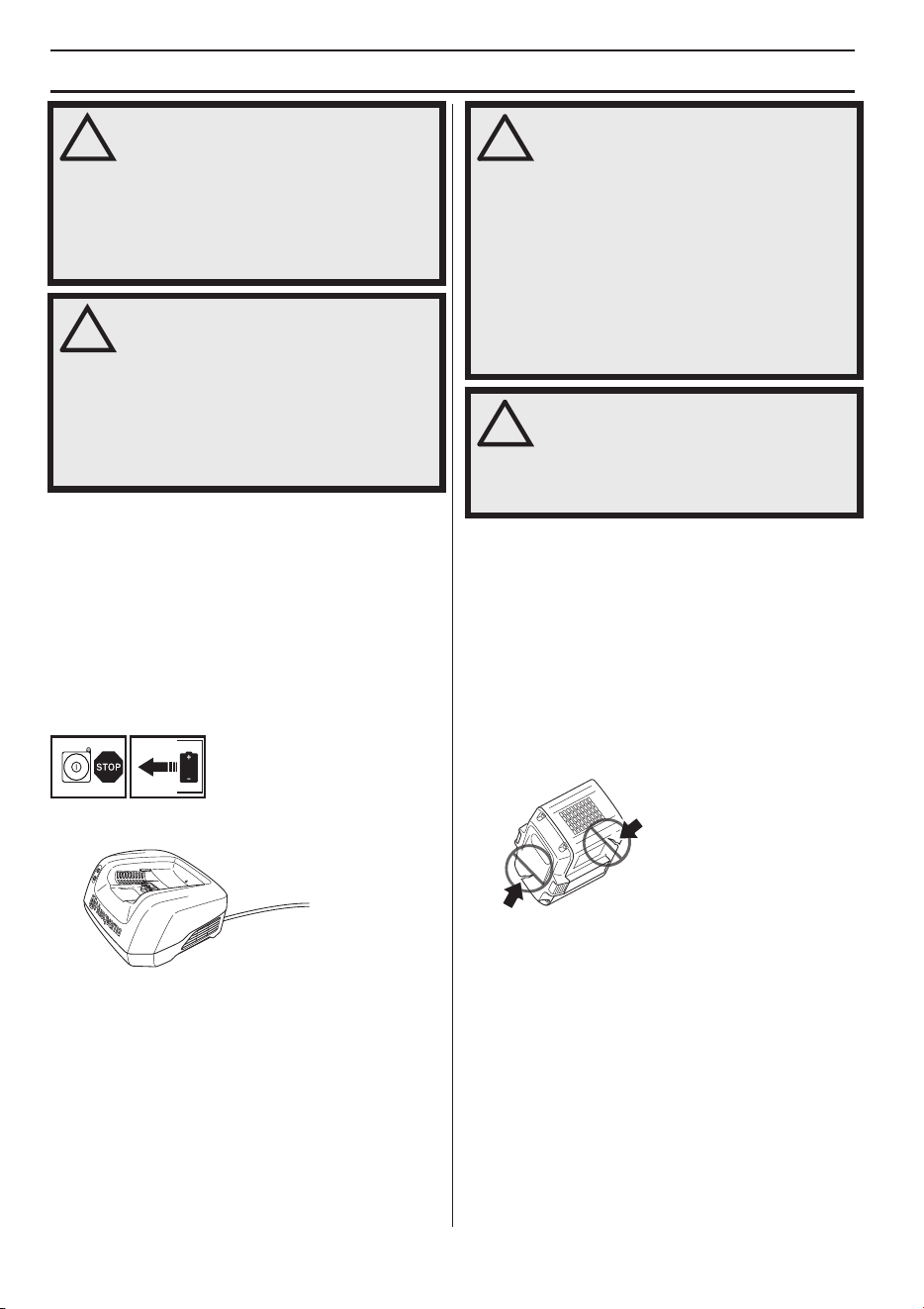

• Use the battery in surroundings where temperatures
are between -10
°C and 40 °C.
• Do not expose the battery to microwaves or high
pressure.
• Never clean the battery or the battery charger with
water. See instructions under the Maintenance
heading.
• Store the battery out of reach of children.
• Protect the battery from rain and wet conditions.
Battery charger safety
Only use Chargers, Husqvarna QC, for charging the
Husqvarna replacement batteries, BLi.
• Regularly check that the battery charger connection
wire is intact and that there are no cracks in it.
• Never carry the battery charger using the cord and
never pull out the plug by pulling the cord.
• Keep all cables and extension leads away from water,
oil and sharp edges. Make sure the cable is not
jammed in doors, fences or the like. Otherwise it can
cause the charger to become live. Inspect extensions
cords periodically and replace if damaged.
Do not use:
• a faulty or damaged battery charger or never use a
faulty, damaged or deformed battery.
Do not charge:
• non-rechargeable batteries in the battery charger or
use them in the machine.
• the battery in the battery charger outdoors.
• the battery in the rain or in wet conditions.
• the battery in direct sunlight.
Use the battery charger only when the surrounding
temperature is between 5
°C and 40 °C. Use the charger
in an environment which is well ventilated, dry and free
from dust.
!
WARNING! Avoid all skin contact with
battery acid. Battery acid may cause skin
irritation, burns or corrosive injuries. If
you get acid in your eyes, do not rub but
flush your eyes with plenty of water for at
least 15 minutes. See a doctor. You must
wash any exposed skin with copious
amounts of water and soap in case of
incidental contact.
!
WARNING! Never connect the battery
terminals to keys, coins, screws or other
metal as this may short-circuit the
battery. Never insert objects into the
battery's air vents.
Unused batteries must be kept away from
metal objects such as nails, coins,
jewellery. Do not try to disassemble or
crush the battery
Li-ion
Li-ion
!
WARNING! Minimise the risk of electric
shock or short circuit as follows:
Never insert any object into the charger’s
cooling slots.
Do not try to dismantle the battery
charger.
Never connect the charger terminals to
metal objects as this can short circuit the
battery charger.
Use approved and intact wall sockets.
!
WARNING! Do not use the battery
charger close to corrosive or flammable
materials. Do not cover the battery
charger. Pull out the plug to the battery
charger in the event of smoke or fire.
Remember the risk of fire.
GENERAL SAFETY PRECAUTIONS
English – 11

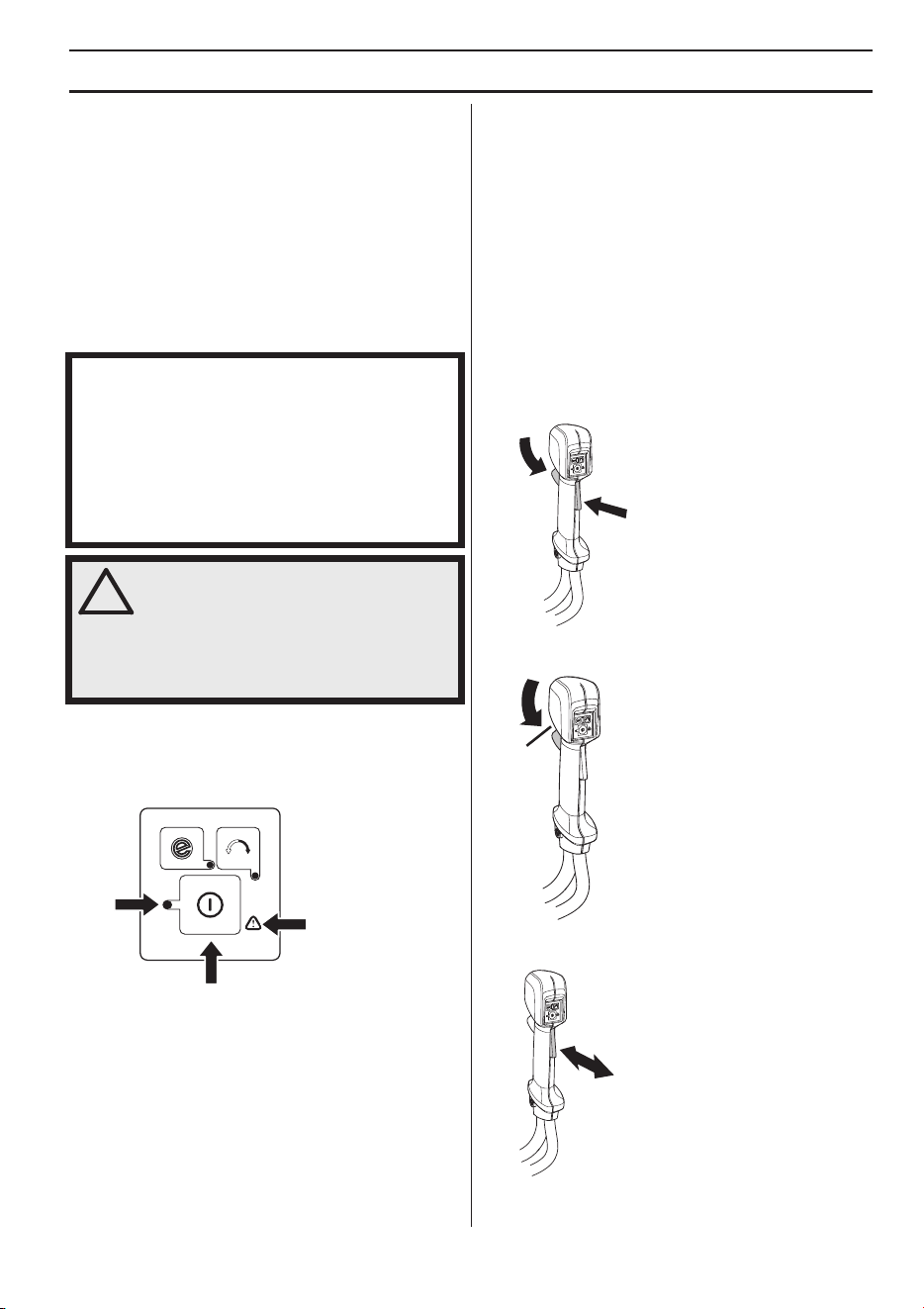

Machine′s safety equipment
This section describes the machine′s safety equipment,
its purpose, and how checks and maintenance should be
carried out to ensure that it operates correctly. See the
”What is what?” section to locate where this equipment is
positioned on your machine.
The life span or the runtime of the machine can be
reduced and the risk of accidents can increase if machine
maintenance is not carried out correctly and if service
and/or repairs are not carried out professionally. If you
need further information please contact your nearest
service workshop.
Control panel
Make sure the machine is switched on or off when the
activate/deactivate button (1) is pressed and held (>1
sec.). The green LED (2) is lit or turned off.
Flashing warning indicator (3) and green LED (2) is lit
could indicate that:
• it is not possible to apply full power and, at the same
time, activate the machine. Release the power trigger
and the machine is active.
• the machine is blocked. Deactivate the machine.
Remove the battery from the machine. Remove the
grass or other material that is wrapped around the
trimmer head or gras blade.
• the machine is overloaded due to heavy trimming.
Release the power trigger and the machine is active.
If the warning symbol (3) flashes, it indicates that the
machine is too hot and the machine deactivates. When
the machine is restored to normal temperature it is again
ready to run and you can activate the machine.
Solid red warning light (3) indicates service.
Power trigger lockout
The power trigger lockout is designed to prevent
accidental operation of the power trigger. When you press
the lock (1) (i.e. when you grasp the handle) it releases
the power trigger (2). When you release the handle the
power trigger and the power trigger lockout both move
back to their original positions. This movement is
controlled by two independent return springs.
Make sure the power trigger is locked when the power
trigger lock is in its original position.
Press the power trigger and make sure it returns to its
original position when you release it.
IMPORTANT!
All servicing and repair work on the machine requires
special training. This is especially true of the machine
′s
safety equipment. If your machine fails any of the
checks described below you must contact your service
agent. When you buy any of our products we guarantee
the availability of professional repairs and service. If the
retailer who sells your machine is not a servicing dealer,
ask him for the address of your nearest service agent.
!
WARNING! Never use a machine with
faulty safety equipment. The machine's
safety equipment must be checked and
maintained as described in this section.
If your machine fails any of these checks
contact your service agent to get it
repaired.
3
1
2
1
2
GENERAL SAFETY PRECAUTIONS
12 – English
Check that the power trigger and the power trigger lockout
move freely and that the return spring works properly.
See instructions under the heading Start. Start the
machine and apply full power. Release the power trigger
and check that the cutting attachment stops and remain at
a standstill.

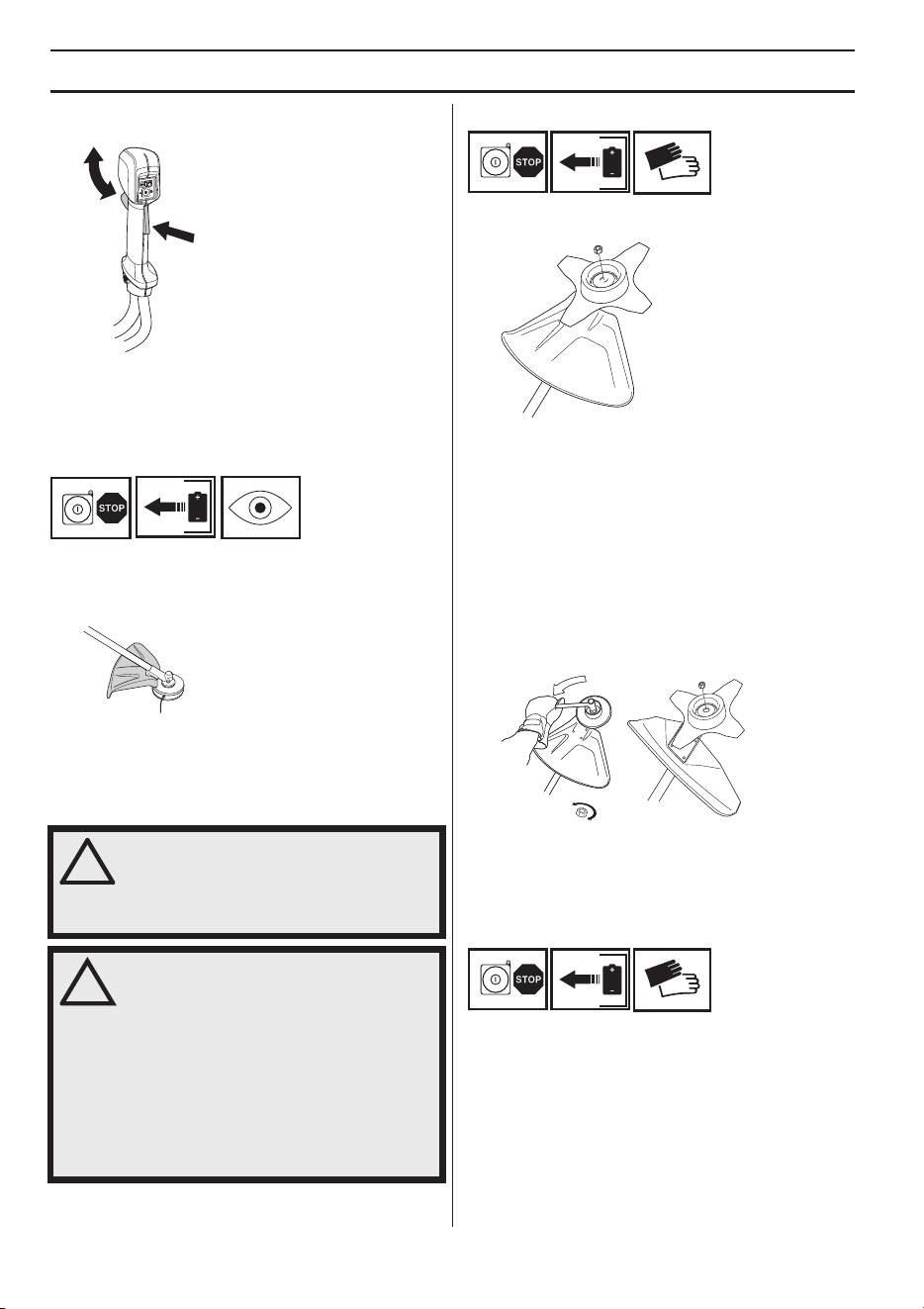

Cutting attachment guard
This guard is intended to prevent loose objects from being
thrown towards the operator. The guard also protects the
operator from accidental contact with the cutting
attachment.
Check that the guard is undamaged and not cracked.
Replace the guard if it has been exposed to impact or is
cracked.
Always use the recommended guard for the cutting
attachment you are using. See chapter on Technical data.
Locking nut
A locking nut is used to secure some types of cutting
attachment.
When fitting, tighten the nut in the opposite direction to the
direction of rotation of the cutting attachment. To remove
it, undo the nut in the same direction as the cutting
attachment rotates. (CAUTION! The nut has a left-hand
thread.) Lock the blade shaft with the L key.
When loosening and tightening the saw blade nut, there
is a risk of injury from the teeth of the saw blade. You
should therefore always ensure that your hand is shielded
by the blade guard when doing this. Always use a socket
spanner with a shaft that is long enough to allow this. The
arrow in the diagram shows the area where you should
operate the socket spanner when loosening or tightening
the nut.
The nylon lining inside the locking nut must not be so worn
that you can turn it by hand. The lining should offer a
resistance of at least 1.5 Nm. The nut should be replaced
after it has been put on approx. 10 times.
Cutting equipment
This section describes how to choose and maintain your
cutting equipment in order to:
• Reduce the risk of blade thrust.
• Obtain maximum cutting performance.
• Extend the life of cutting equipment.
!
WARNING! Never use a cutting
attachment without an approved guard.
See the chapter on Technical data. If an
incorrect or faulty guard is fitted this can
cause serious personal injury.
!
WARNING! This machine is renowned for
its low vibration load. Overexposure to
vibration can lead to circulatory damage
or nerve damage in people who have
impaired circulation. Contact your doctor
if you experience symptoms of
overexposure to vibration. These
symptoms include numbness, loss of
feeling, tingling, pricking, pain, loss of
strength, changes in skin colour or
condition. These symptoms normally
appear in the fingers, hands or wrists.
Li-ion
Li-ion
Li-ion
Li-ion
Li-ion
Li-ion
GENERAL SAFETY PRECAUTIONS
English – 13

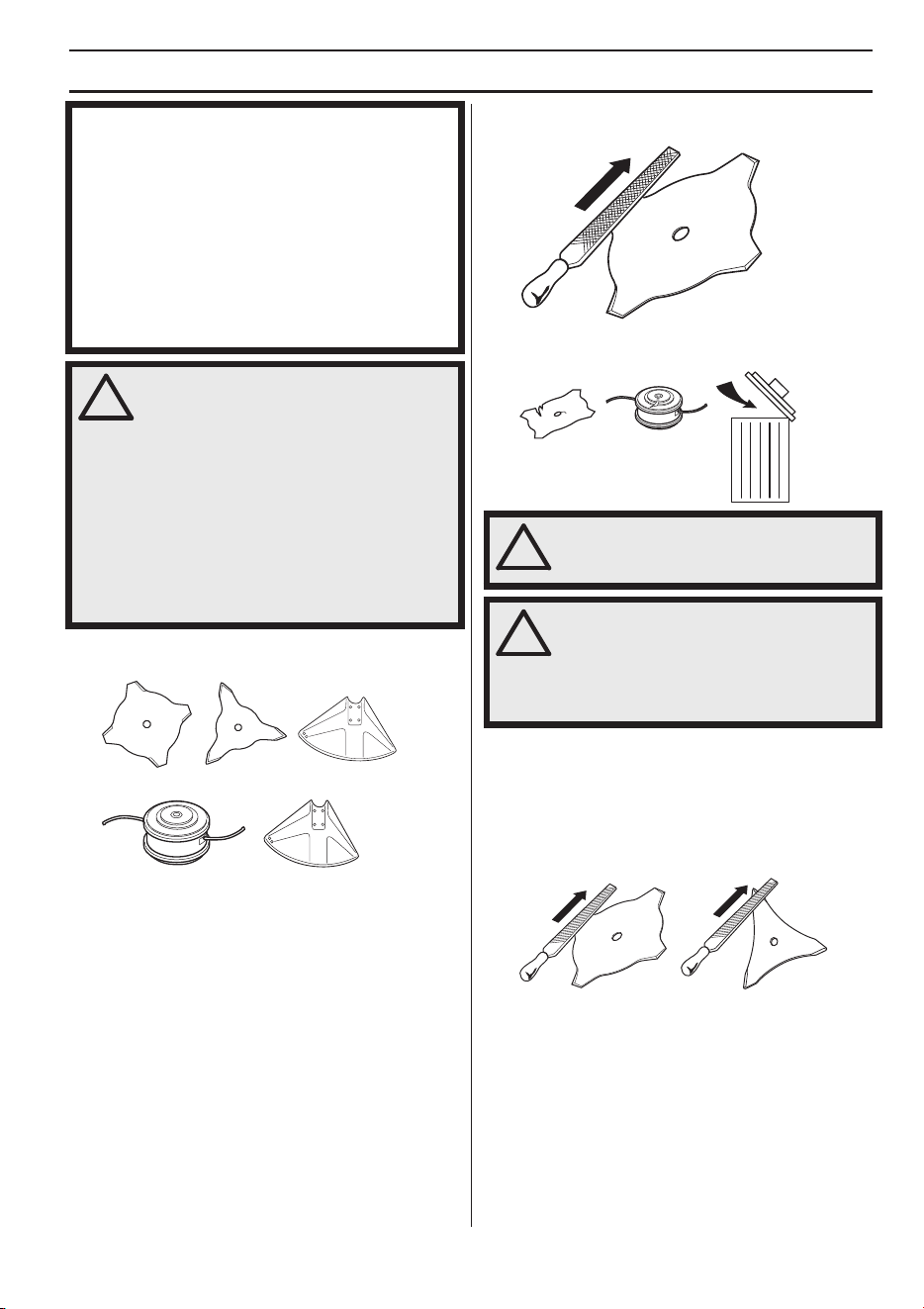

Grass blades and grass knifes are intended for cutting
coarse grass.
A trimmer head is intended for trimming grass.
General rules
Only use cutting attachments with the guards we
recommend! See the chapter on Technical data.
Keep the cutting edge properly sharpened! Follow our
instructions and use the recommended sharpner. A
damaged or badly sharpened blade increases the risk of
accidents, snags and thrust.
Keep the teeth of the blade correctly sharpened! Follow
our instructions and use the recommended file gauge. An
incorrectly sharpened or damaged blade increases the
risk of accidents.
Check the cutting attachment for damage or cracks. A
damaged cutting attachment should always be replaced.
Sharpening grass knifes and grass
blades
• See the cutting attachment packaging for correct
sharpening instructions.
• Sharpen all edges equally to maintain the balance of
the blade.
IMPORTANT!
Only use cutting attachments with the guards we
recommend! See the chapter on Technical data.
Refer to the instructions for the cutting attachment to
check the correct way to load the line and the correct
line diameter.
Keep the teeth of the blade correctly sharpened! Follow
our recommendations. Also refer to the instructions on
the blade packaging.
The blade should be completely stationary once the
throttle has returned to its original position.
!
WARNING! Always remove the battery
before you work on any part of the
cutting equipment. It continues to rotate
even after the power trigger has been
released. Check that the cutting
equipment has stopped completely and
remove the battery before you start any
work on it.
Using an incorrect cutting attachment or
an incorrectly sharpened blade
increases the risk of blade thrust.
Always wear protective gloves.
!
WARNING! Using an incorrect cutting
attachment or an incorrectly sharpened
blade increases the risk of blade thrust.
!
WARNING! Always discard a blade that is
bent, twisted, cracked, broken or
damaged in any other way. Never attempt
to straighten a twisted blade so that it
can be reused. Only use original blades
of the specified type.
GENERAL SAFETY PRECAUTIONS
14 – English
Trimmer head
• Only use the recommended trimmer heads and
trimmer lines. These have been tested by the
manufacturer to suit a particular motor size. This is
especially important when a fully automatic trimmer
head is used. Only use the recommended cutting
attachment. See the chapter on Technical data.
• Smaller machines generally require small trimmer
heads and vice versa. This is because when clearing
using a cord the engine must throw out the cord
radially from the trimmer head and overcome the
resistance of the grass being cleared.
• The length of the cord is also important. A longer cord
requires greater engine power than a shorter cord of
the same diameter.
• Make sure that the cutter on the trimmer guard is
intact. This is used to cut the cord to the correct length.
• To increase the life of the cord it can be soaked in
water for a couple of days before use. This will make
the cord tougher so that it lasts longer.
• Different line lengths can result in unnecessary
vibrations. Tap the trimmer head to get correct lengths
on the line.
!
WARNING! Always use recommended
trimmer line. See technical data. Failure
to follow this instruction may cause
personal injury.
IMPORTANT!
Always ensure the trimmer line is wound tightly and
evenly around the drum, otherwise the machine will
generate harmful vibration.
ASSEMBLY
English – 15

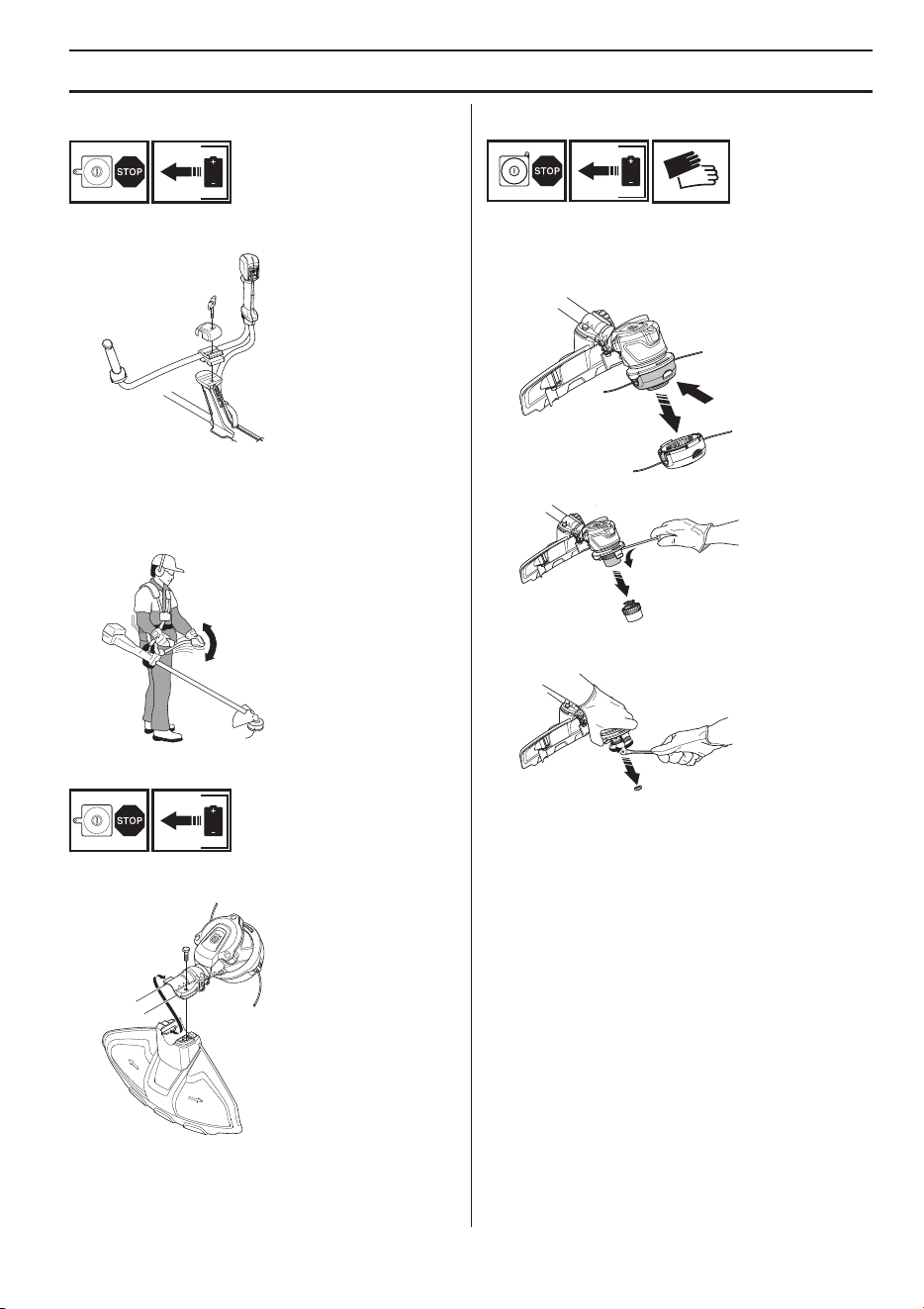

Fitting the handlebar
• Position the handlebar as shown. Fit the mounting
components and tighten the knob lightly.
• Put on the harness and hang the machine from the
support hook. Now make a final adjustment so that
the machine is in a comfortable working position when
it hangs from the harness.
• Tighten the knob.
Assembling the guard
• Fit the correct trimmer guard (A) for use with the
trimmer head.
• Hang the trimmer guard on the hook on the plate
holder (1).
• Bend the guard around the shaft and tighten it with the
bolt (2) on the opposite side of the shaft.
Dismantling the Trimmer Head
Check that the trimmer head is undamaged and not
cracked. Replace the trimmer head if necessary.
Press the snap-in clips on the trimmer head and remove
the trimmer head and line.
Pull out the line chute assembly.
Remove the nut holding the trimmer head and the drive
disc.
Li-ion
Li-ion
Li-ion
Li-ion
1
2
A
Li-ion
Li-ion
ASSEMBLY
16 – English

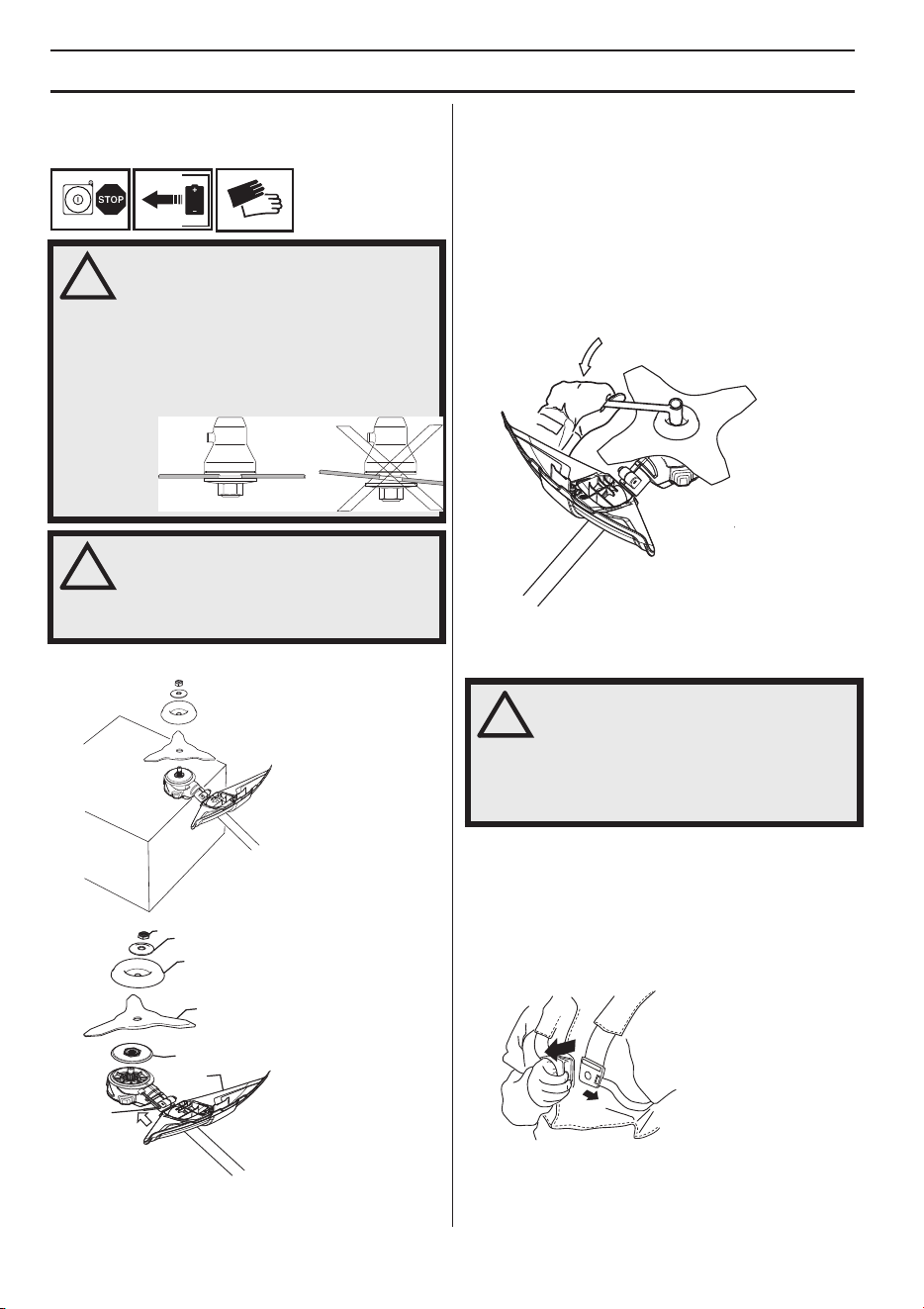

Assembly of grass blade and
grass cutter
Make sure the surface is level when fitting the blade.
NOTE!
Use the recommended blade guard.
• Fit the drive disc (B) on the output shaft.
• Turn the output shaft until one of the holes in the drive
disc aligns with the corresponding hole in the gear
housing.
• Insert the L key (C) into the hole to lock the shaft.
• Place the blade (D), support cup (E) and support
flange (F) on the output shaft.
• Fit the nut (G). Tighten the nut to a torque of 35-50 Nm
(3.5-5 kpm). Use the socket spanner in the tool kit.
Grasp the handle of the spanner as close to the
trimmer guard as possible.
Adjusting the harness and
trimmer
Standard harness
Quick release
At the front is an easily accessible, quick release. Use this
if the engine catches fire or in any other emergency
situation that requires you to free yourself from the
machine and harness.
!
WARNING! When fitting the cutting
attachment it is extremely important that
the raised section on the drive disc/
support flange engages correctly in the
centre hole of the cutting attachment. If
the cutting attachment is fitted
incorrectly it can result in serious and/or
fatal personal injury.
!
WARNING! Never use a cutting
attachment without an approved guard.
See the chapter on Technical data. If an
incorrect or faulty guard is fitted this can
cause serious personal injury.
Li-ion
Li-ion
G
A
C
D
E
B
F
!
WARNING! When using a trimmer it must
always be hooked securely to the
harness. Otherwise you will be unable to
control the trimmer safetly and this can
result in injury yourself or others. never
use a harness with a defective quick
release.
ASSEMBLY
English – 17

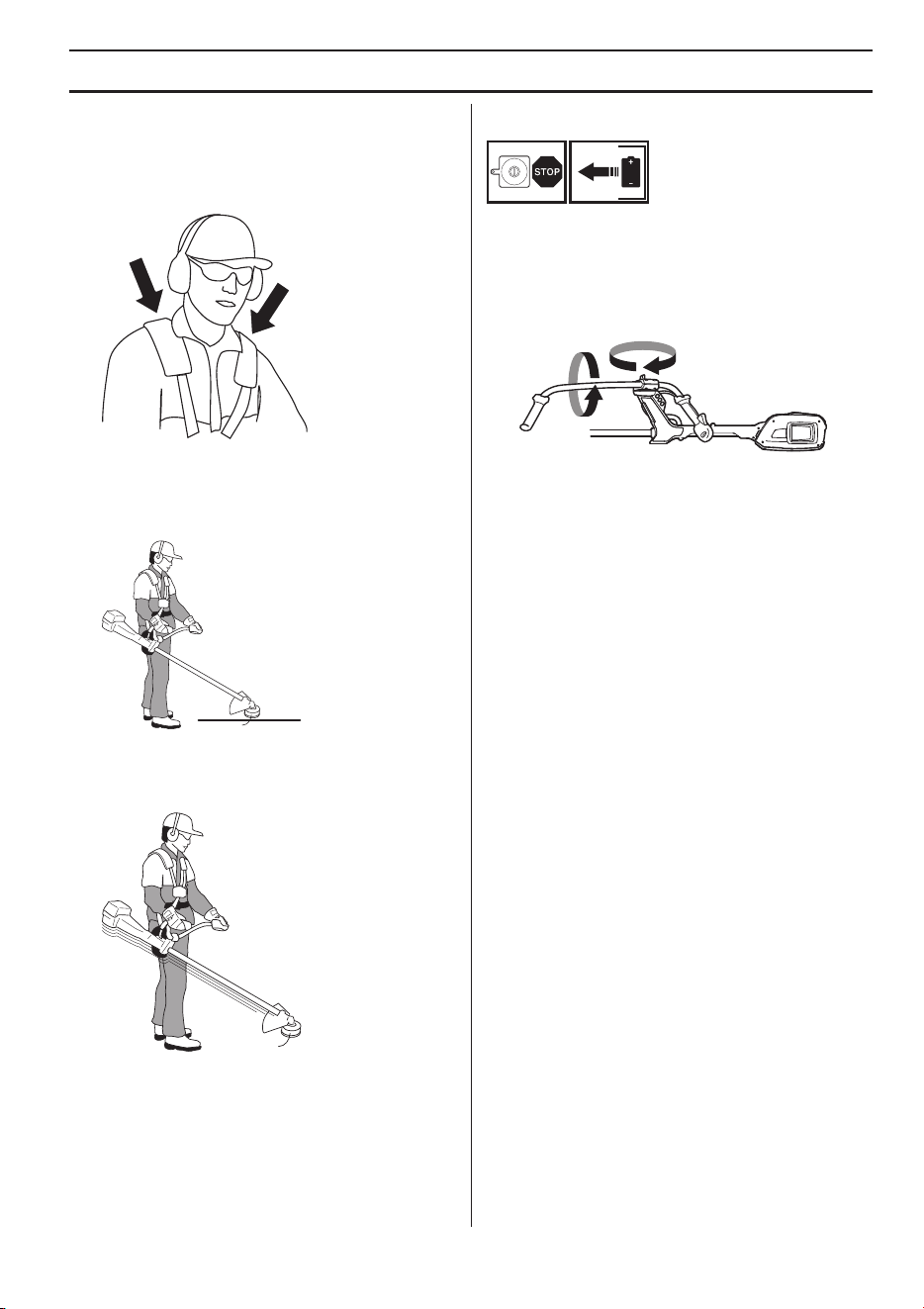

Spreading the load on your shoulders
A well-adjusted harness and machine makes work much
easier. Adjust the harness for the best working position.
Tension the side straps so that the weight is evenly
distributed across both shoulders.
Correct height
The machine should be supported in a harness when
trimming so that the cutting equipment is parallel to the
ground.
Correct balance
Let the trimmer head balance at a comfortable cutting
height, i.e. close to the ground.
Transport position, handlebar
• The handlebar can easily be turned to fit along the
shaft for easier transportation and storage.
• Loosen the knob. Turn the handle clockwise so that
the throttle handle touches the battery.
• Now twist the handlebar around the shaft. Tighten the
knob.
Li-ion
Li-ion
BATTERY HANDLING
18 – English
Battery
The display shows the battery capacity and if there are
any problems with the battery. The battery capacity is
displayed for 5 seconds after the machine is switched off
or the battery indicator button is pressed. The warning
symbol on the battery is lit when an error has occurred.
See fault codes.
Battery charger
Connect the battery charger
• Connect the battery charger to the voltage and
frequency specified on the rating plate. Put the
electric plug in a earthed socket-outlet. The LED on
the battery charger flashes green once.
• The battery will not be charged if the battery
temperature is over 50
°C. In that case the battery
charger will actively cool down the battery.
Connect the battery to the battery
charger.
Regularly check that the battery charger and the battery
are intact. See instructions under the Maintenance
heading.
The battery must be charged before using it the first time.
The battery is only 30% charged when delivered.
• Put the battery in the battery charger. Make sure that
the battery is connected to the battery charger.
• The green charging light on the charger is lit when the
battery is connected to the battery charger.
• When all LEDs are lit the battery is fully charged.
• Pull out the plug. Never jerk the power supply cable to
disconnect it from the wall socket.
• Remove the battery from the battery charger.
See separate manual for instructions on how to charge
the backpack battery.
Charging status
Lithium-ion batteries can be charged at whatever
charging level. The charging process can be cancelled or
started whatever the battery’s charge level is. The battery
is not damaged. A fully charged battery will not lose its
charge even when the battery is left in the charger.
The battery will not be charged if the battery temperature
is over 50
°C.

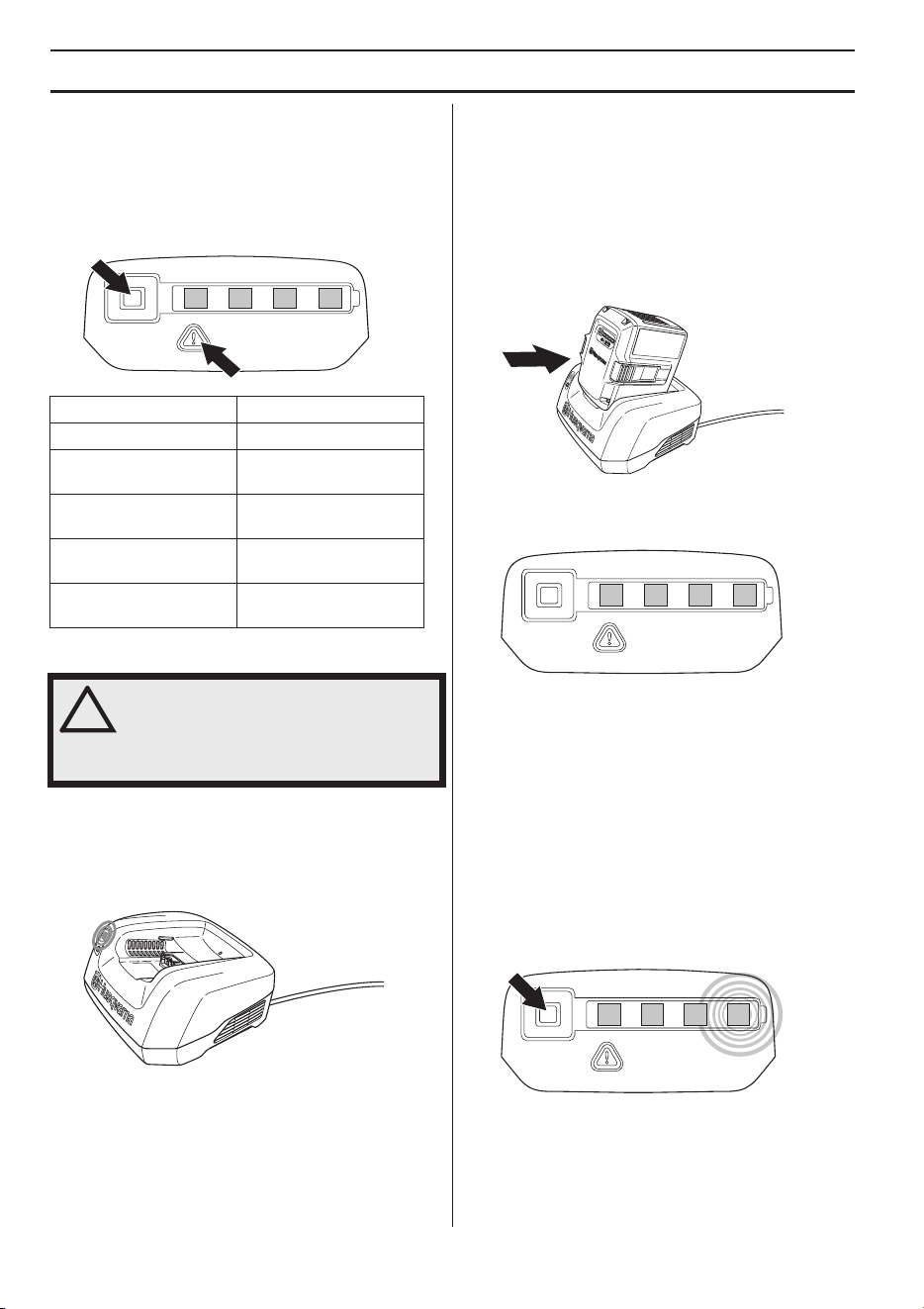

LED lights Battery status
All LEDs are lit Fully charged (75-100%).
LED 1, LED 2, LED 3 are
lit.
The battery is 50%-75%
charged.
LED 1, LED 2 are lit.
The battery is 25%-50%
charged.
LED 1 is lit.
The battery is 0%-25%
charged.
LED 1 flashes.
The battery is empty.
Charge the battery.
!
WARNING! Risk of electric shock and
short circuiting. Use approved and intact
wall sockets. Make sure that the cable is
not damaged. Replace cable if it appears
to be damaged in any way.
1
2
34
1
2
3
4
1
2
3
4
BATTERY HANDLING
English – 19
Transport and storage
• The contained lithium-ion batteries are subject to the
Dangerous Goods Legislation requirements.
• For commercial transports e.g. by third parties,
forwarding agents, special requirement on packing
and labeling must be observed.
• For preparation of the item being shipped, consulting
an expert for hazardous material is required. Please
also observe possibly more detailed national
regulations.
• Tape or mask off open contacts and pack up the
batteriy in such a manner that it cannot move around
in the packing.
• Secure the machine during transport.
• Always remove the battery for storage or transport.
• Store the battery and the battery charger in a dry,
moisture-free and frost-free space.
• To prevent accidents, ensure that your battery is not
connected to the machine when stored.
• Do not store the battery in places where static
electricity can occur. Never store the battery in a metal
box.
• Store the battery where the temperature is between 5
°C and 25 °C and never in direct sunlight.
• Store the battery charger where the temperature is
between 5
°C and 45 °C and never in direct sunlight.
• Make sure the battery is charged to 30% - 50% before
storing for long periods.
• Store the battery charger only in an enclosed and dry
space.
• Be sure to store the battery separate from the battery
charger. Store the equipment in a lockable area so
that it is out of reach of children and unauthorized
persons.
• Ensure the machine is cleaned and that a complete
service is carried out before long-term storage.
• Transport guard must always be used for storage and
transport.
Disposal of the battery, battery
charger and machine
Symbols on the product or its packaging indicate that this
product cannot be handled as domestic waste. It must
instead be submitted to an appropriate recycling station
for the recovery of electrical and electronic equipment.
By ensuring that this product is taken care of correctly,
you can help to counteract the potential negative impact
on the environment and people that can otherwise result
through the incorrect waste management of this product.
For more detailed information about recycling this
product, contact your municipality, your domestic waste
service or the shop from where you purchased the
product.
LED display Charging status
LED 1 flashes.
The battery is 0%-25%
charged.
LED 1 is lit, LED 2
flashes.
The battery is 25%-50%
charged.
LED 1, LED 2 are lit, LED
3 flashes.
The battery is 50%-75%
charged.
LED 1, LED 2, LED 3 are
lit, LED 4 flashes.
Battery is 75%-100%
charged
LED 1, LED 2, LED 3,
LED 4 are lit.
When all the LEDs are lit
on the battery, it is fully
charged.
Li-ion
Li-ion

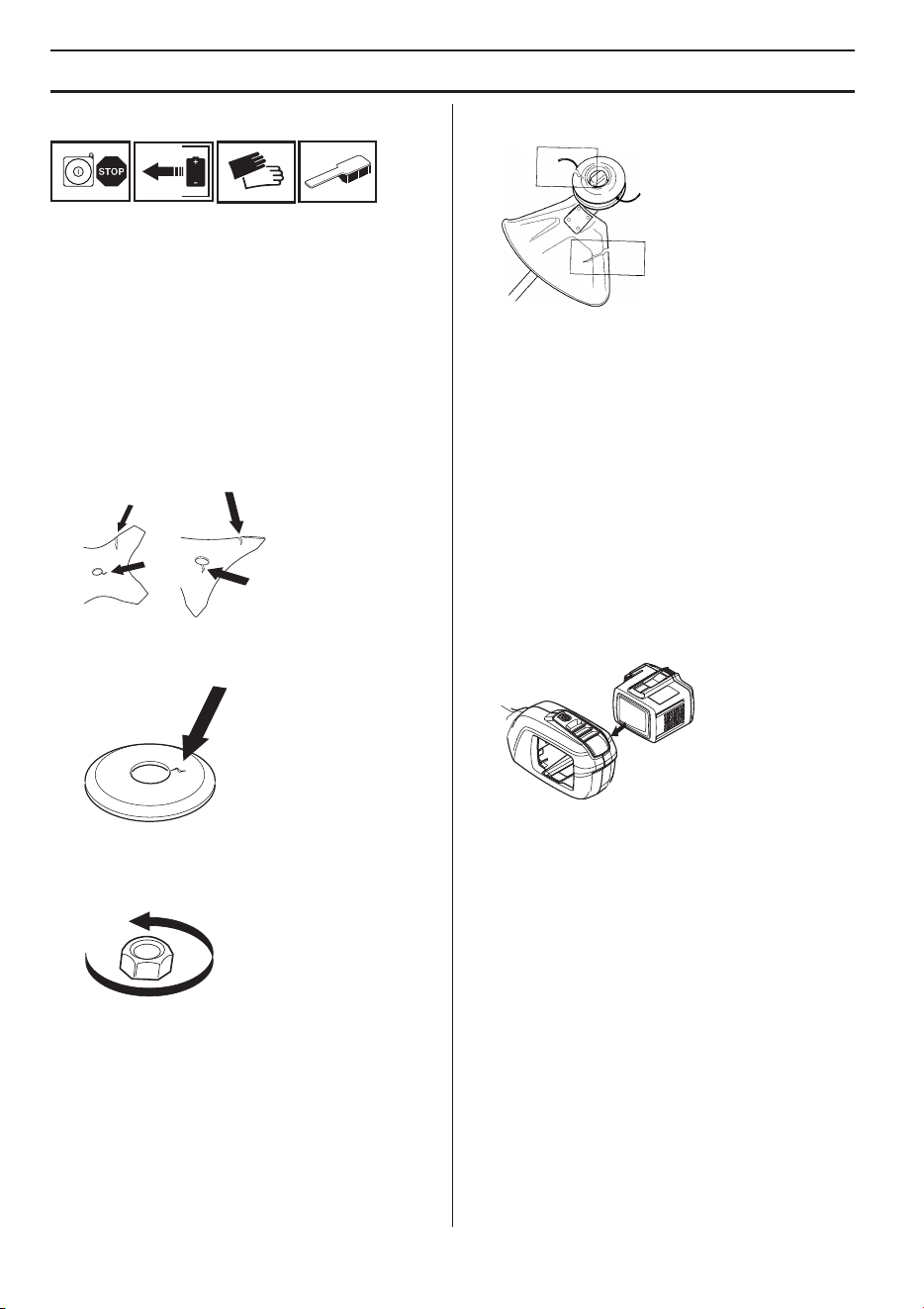

STARTING AND STOPPING
20 – English
Check before starting
• Check the motor for dirt and cracks. Clean off grass
and leaves from the engine using a brush. Gloves
should be worn when necessary.
• Check that the trimmer head is completely attached to
the trimmer.
• Check that the machine is in perfect working order.
Check that all nuts and screws are tight.
• Check the blade to ensure that no cracks have formed
at the bottom of the teeth or by the centre hole. The
most common reason why cracks are formed is that
sharp corners have been formed at the bottom of the
teeth while sharpening or that the blade has been
used with dull teeth. Discard a blade if cracks are
found.
• Check that the support flange is not cracked due to
fatigue or due to being tightened too much. Discard
the support flange if it is cracked.
• Ensure the locking nut has not lost its captive force.
The nut lock should have a locking force of at least 1.5
Nm. The tightening torque of the locking nut should be
35-50 Nm.
• Check that the blade guard is not damaged or
cracked. Replace the blade guard if it is exposed to
impact or is cracked.
• Check that the trimmer head and trimmer guard are
not damaged or cracked. Replace the trimmer head or
trimmer guard if they have been exposed to impact or
are cracked.
• Never use the machine without a guard nor with a
defective guard.
• All covers must be correctly fitted and undamaged
before you start the machine.
• Only use the machine for the purpose it was intended
for.
Connect battery to the machine
Make sure to use fully charged batteries. Use only a
Husqvarna original battery in your machine. See technical
data.
• Insert the battery in the machine. The battery should
slide easily into the battery holder on the machine. If
the battery does not slide in easily, it is not being
inserted correctly. The battery will lock itself into place
when you hear a click. Make sure the battery is fitted
correctly to the machine.
Li-ion
Li-ion
STARTING AND STOPPING
English – 21
Starting and stopping
Starting
Turn on the machine. Press and hold the start button (>1
sec.) until the green LED is lit.
Use the power trigger to control the speed.
Stopping
Stop the machine by releasing the throttle and the throttle
lockout plus deactivating the machine.
Remove the battery from the machine by pressing the two
release buttons and pulling out the battery.
!
WARNING! Make sure no unauthorised
persons are in the working area.
Otherwise there is a risk of serious
personal injury. The safety distance is 15
meters.
IMPORTANT! The cutting attachment being used will be
identified once the machine has been activated and the
throttle depressed. When changing the cutting
attachment from e.g. a trimmer head to a grass blade,
the machine will stop and the LED lamp will flash until
the throttle is released to its original position. The cutting
attachment has now been identified and the machine is
ready to use.
IMPORTANT! Always remove the battery to prevent the
machine being started by accident.

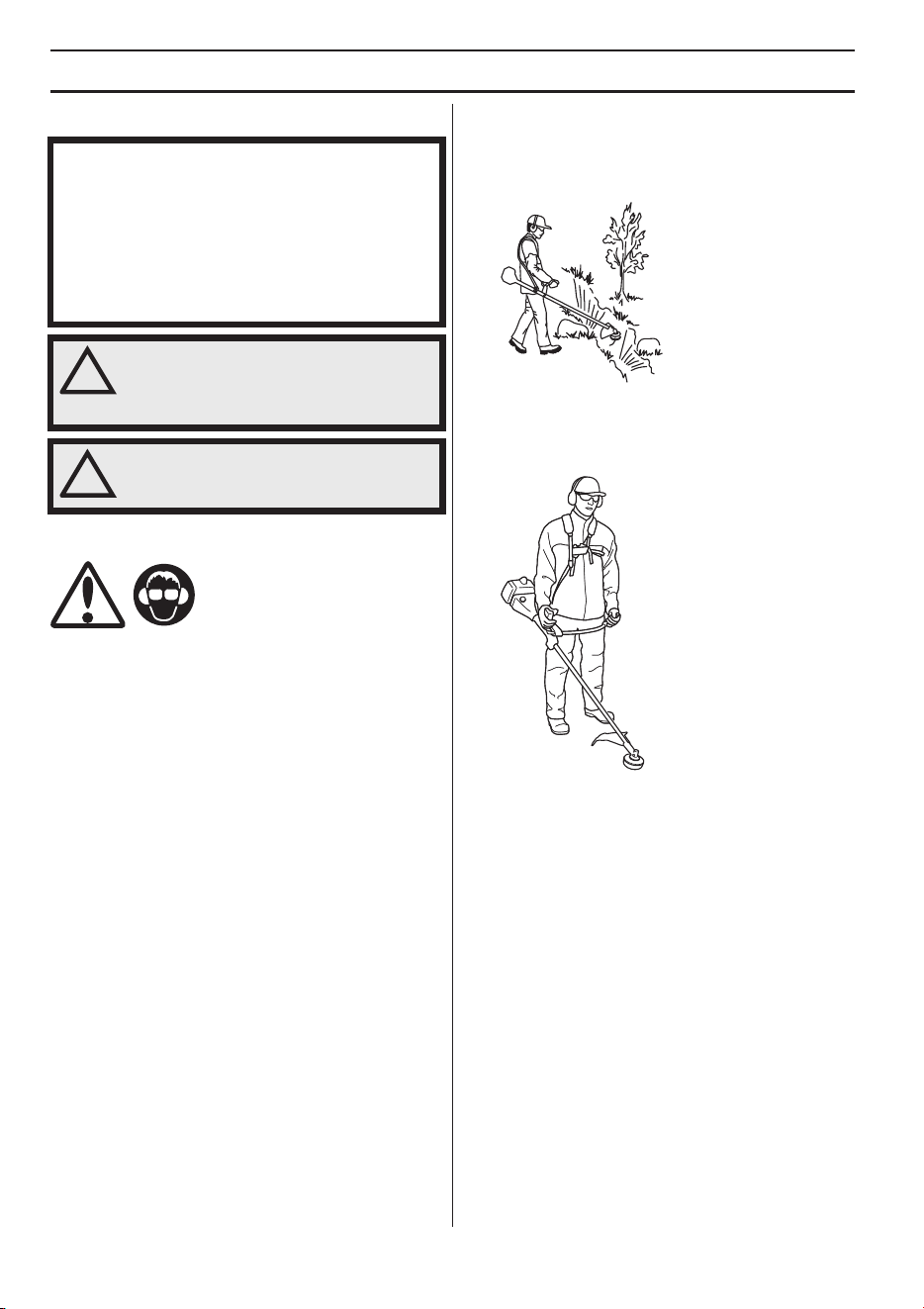

WORKING TECHNIQUES
22 – English
General working instructions
Basic safety rules
Wear personal protective equipment. See instructions
under the ”Personal protective equipment” heading.
1 Look around you:
• To ensure that people, animals or other things cannot
affect your control of the machine.
• To ensure that people, animals, etc., do not come into
contact with the cutting attachment or loose objects
that are thrown out by the cutting attachment.
• CAUTION! Do not use the machine unless you are
able to call for help in the event of an accident. Ensure
that no-one comes closer than 15 metres while you
are working.
2 Inspect the working area. Remove all loose objects,
such as stones, broken glass, nails, steel wire, string,
etc. that could be thrown out or become wrapped
around the cutting attachment.
3 Never use the machine in bad weather, for instance in
fog, in rain, damp or in wet locations,strong winds,
intense cold, risk of lightning, etc. Working in bad
weather is tiring and can lead to dangerous
conditions, e.g. slippery surfaces.
Safety instructions while working
• When working with a brush cutter the harness should
always be worn. Otherwise you will be unable to
control the brush cutter safely and this can result in
injury to yourself or others. Never use a harness with
a defective quick release.
• Make sure you can move and stand safely. Check the
area around you for possible obstacles (roots, rocks,
branches, ditches, etc.) in case you have to move
suddenly. Take great care when working on sloping
ground.
• Do not overreach. Keep proper footing and balance at
all times.
• Always hold the machine with both hands. Hold the
machine on the right side of your body.
• Keep all parts of your body away from the rotating
cutting attachment. Keep the cutting attachment
below waist level.
• Turn off the machine when it has to be moved. Always
remove the battery when passing the machine to
another person.
• Never put the machine down without turning it off first
and always remove the battery.
• If any foreign object is hit or if vibrations occur stop the
machine immediately. Remove the battery from the
machine and check that the machine is not damaged.
• If any unwanted vibrations occur, tap out new line to
give the line the correct length and the vibrations
should stop.
• Release the power trigger after each working
operation to save battery power.
IMPORTANT!
This section takes up the basic safety precautions for
working with a lawn trimmer.
If you encounter a situation where you are uncertain
how to proceed you should ask an expert. Contact your
dealer or your service workshop.
Avoid all usage which you consider to be beyond your
capability.
!
WARNING! The machine can cause
serious personal injury. Read the safety
instructions carefully. Learn how to use
the machine.
!
WARNING! Always remove the battery
before any maintenance on the machine.
WORKING TECHNIQUES
English – 23
Safety instructions after completing work
• Make sure the cutting attachment has stopped before
cleaning, carrying out repairs or an inspection.
Remove the battery from the machine.
SavE mode
The machine is equipped with a battery saving function
(SavE). Activate the function by pressing the SavE button.
A green LED will light to indicate that the function is on.
In most cases SavE mode is the most optimum when
trimming and gives longest runtime. Release the power
trigger after each working operation to save battery
power.
Rotation direction
It is possible to change the rotation direction of the
trimmer head in any position, at full speed or at stop
postion.
Trimmer head
When the rotation button is pressed, the green diode will
lit and the trimmer head rotates in counterclockwise. The
trimmer head always rotates clockwise by default (green
LED is off).
It is easier to tap out the trimmer line to make it longer
when the trimmer head rotates clockwise.
Grass blade/grass cutter
When using the grass blade or grass knife, working
rotation is anticlockwise only.
A clockwise direction of rotation is used to loosen any cut
material that has fastened on the trimmer head or blade.
Automatic switch off functionality
The machine is equipped with a shutdown feature that
deactivates the machine if not used. The green LED will
be extinguished and the machine turned off after 45
seconds.
Grass trimming with a trimmer head
!
WARNING! Neither the operator of the
machine nor anyone else may attempt to
remove the cut material while the motor
is running or the cutting attachment is
rotating, as this can result in serious
injury.
Turn off the machine and remove the
battery before removing materials that
are wound around the trimmer head as
otherwise there is risk of injury. The
bevel gear can get hot during use and
may remain so for a while afterwards. You
could get burnt if you touch it.
!
WARNING! Watch out for thrown objects.
Always wear approved eye protection.
Never lean over the cutting attachment
guard. Stones, rubbish, etc. can be
thrown up into the eyes causing
blindness or serious injury.
Keep unauthorised persons at a
distance. Children, animals, onlookers
and helpers should be kept outside the
safety zone of 15 metres. Stop the
machine immediately if anyone
approaches. Never swing the machine
around without first checking behind you
to make sure no-one is within the safety
zone.
IMPORTANT! If the direction of rotation is changed to
clockwise with blade, the blade speed will be reduced
for a certain period and then again rotate anticlockwise.
!
WARNING! Sometimes branches or
grass get caught between the guard and
cutting attachment. Always remove the
battery before cleaning.

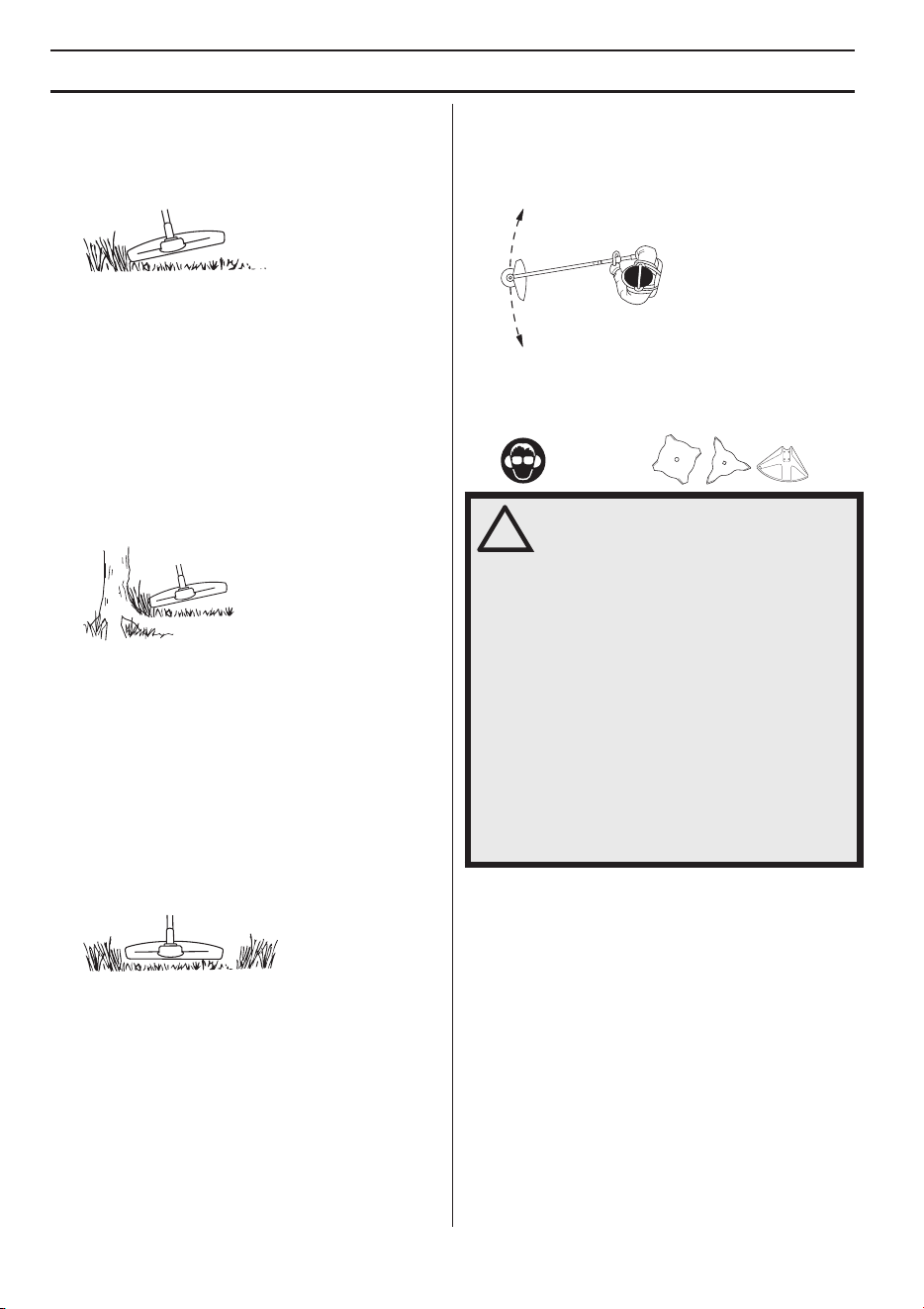

WORKING TECHNIQUES
24 – English
Trimming
• Hold the trimmer head just above the ground at an
angle. It is the end of the line that does the work. Let
the line work at its own pace. Never press the line into
the area to be cut.
• The line can easily remove grass and weeds up
against walls, fences, trees and borders. However it
can also damage sensitive bark on trees and bushes,
and damage fence posts.
• Reduce the risk of damaging plants by shortening the
line to 10-12 cm and reducing the engine speed.
Clearing
• The clearing technique removes all unwanted
vegetation. Keep the trimmer head just above the
ground and tilt it. Let the end of the line strike the
ground around trees, posts, statues and the like.
CAUTION! This technique increases the wear on the
line.
• The line wears quicker and must be fed forward more
often when working against stones, brick, concrete,
metal fences, etc., than when coming into contact with
trees and wooden fences.
• When trimming and clearing, you should use less than
full throttle (80%) so that the cord lasts longer and to
reduce the wear on the trimmer head.
Cutting
• The trimmer is ideal for cutting grass that is difficult to
reach using a normal lawn mower. Keep the line
parallel to the ground when cutting. Avoid pressing the
trimmer head against the ground as this can ruin the
lawn and damage the tool.
• Do not allow the trimmer head to constantly come into
contact with the ground during normal cutting.
Constant contact of this type can cause damage and
wear to the trimmer head.
Sweeping
• The fan effect of the rotating line can be used for quick
and easy clearing up. Hold the line parallel to and
above the area to be swept and move the tool to and
fro.
• When cutting and sweeping you should use full
throttle to obtain the best results.
Grass clearing using a grass blade
• Grass blades and grass knifes must not be used on
woody stems.
• A grass blade is used for all types of tall or coarse
grass.
• The grass is cut down with a sideways, swinging
movement, where the movement from right-to-left is
the clearing stroke and the movement from left-to-
!
WARNING! Machines fitted with grass
blades can be thrown violently to the
side when the blade comes into contact
with a fixed object. This is called blade
thrust. A blade thrust can be violent
enough to cause the machine and/or
operator to be propelled in any direction,
and possibly lose control of the machine.
Blade thrust can occur without warning if
the machine snags, stalls or binds. Blade
thrust is more likely to occur in areas
where it is difficult to see the material
being cut.
Avoid cutting with the area of the blade
between the 12 o'clock and 3 o'clock
positions. Because of the speed of
rotation of the blade, blade thrust can
occur if you attempt to cut thick stems
with this area of the blade.

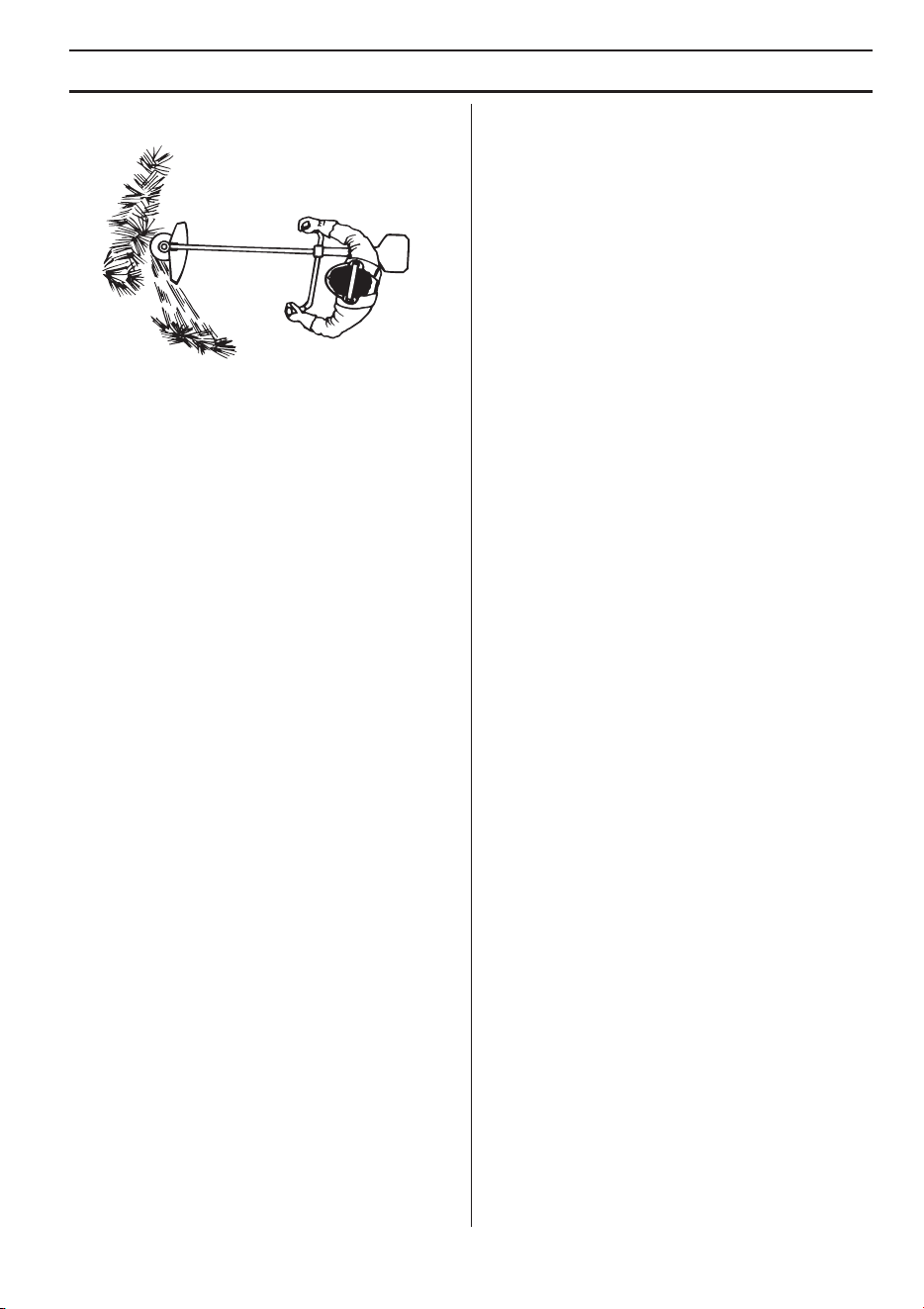

WORKING TECHNIQUES
English – 25
right is the return stroke. Let the left-hand side of the
blade (between 8 and 12 o’clock) do the cutting.
• If the blade is angled to the left when clearing grass,
the grass will collect in a line, which makes it easier to
collect, e.g. by raking.
• Try to work rhythmically. Stand firmly with your feet
apart. Move forward after the return stroke and stand
firmly again.
• Let the support cup rest lightly against the ground. It
is used to protect the blade from hitting the ground.
• Reduce the risk of material wrapping around the blade
by following these instructions:
- Always work at full throttle.
• Stop the engine, unclip the harness and place the
machine on the ground before you start to collect the
cut material.

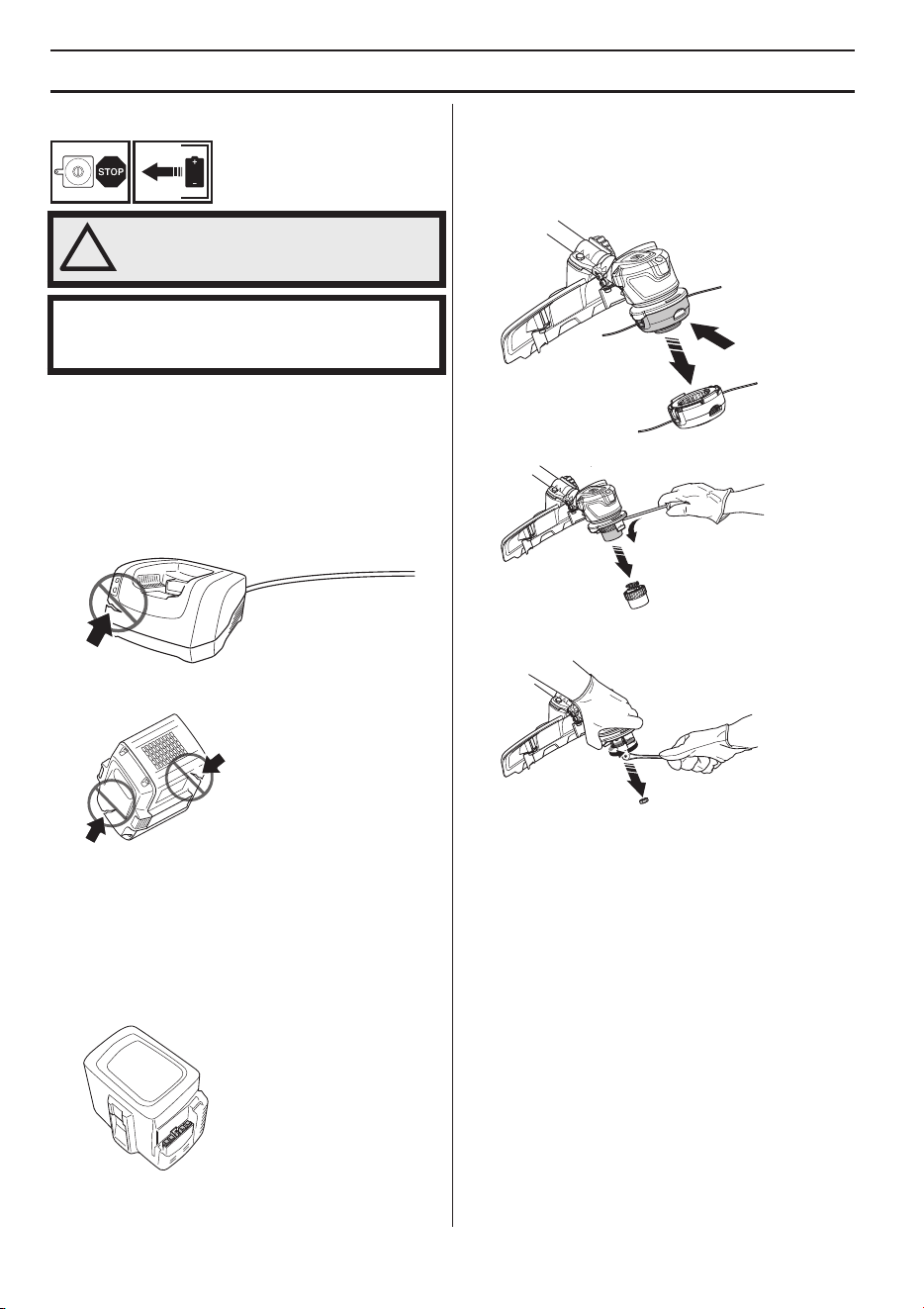

MAINTENANCE
26 – English
Inspection and maintenance
All servicing and repair work on the machine requires
special training. This is especially true of the machine
′s
safety equipment. If your machine fails any of the checks
described below you must contact your service agent.
When you buy any of our products we guarantee the
availability of professional repairs and service. If the
retailer who sells your machine is not a servicing dealer,
ask him for the address of your nearest service agent.
Only use original spare parts.
Regularly check that the battery charger and the battery
are intact.
Cleaning
Clean the machine after use. If the battery connector on
the machine is dirty, clean it by blowing them with
compressed air or use a soft brush.
Make sure the battery and battery charger are clean and
that the terminals on the battery and the battery charger
are always clean and dry before the battery is placed in
the battery charger.
Keep the battery guide tracks clean. Clean plastic parts
with a clean and dry cloth.
Trimmer head
Check that the trimmer head is undamaged and not
cracked. Replace the trimmer head if necessary.
• Press the snap-in clips on the trimmer head and
remove the trimmer head and line.
• Pull out the line chute assembly.
• Remove the nut holding the trimmer head and the
drive disc.
• Replace the trimmer head.
• Fit the nut and the line chute assembly.
• Fit the trimmer head.
!
WARNING! Always remove the battery
before any maintenance on the machine.
IMPORTANT! Never clean the battery or the battery
charger with water. Strong cleaning agents can damage
the plastic.
Li-ion
Li-ion
English – 27
MAINTENANCE
Troubleshooting schedule
Keypad
Troubleshooting takes place from the keypad.
Battery
Troubleshooting the battery and/or the battery charger during charging.
Battery charger
Control panel Possible faults Possible action
Green activate LED flashing.
Low battery voltage. Charging the battery
Identifying the cutting tool Release the throttle
Error LED flashes.
The power trigger and the activate
button are pressed at the same time.
Release the power trigger and the
machine is active.
Overload.
The trimmerhead is jammed.
Remove the battery from the
machine. Release the trimmer head
from grass.
Temperature deviation. Allow the machine to cool down.
The machine does not start Dirt in battery connectors.
Clean with compressed air or a soft
brush.
Error LED is lit with red light. Service Contact your service agent.
LED display Possible faults Possible action
Green activate LED flashing. Low battery voltage. Charge the battery.
Error LED flashing
The battery is discharged. Charge the battery.
Temperature deviation.
Use the battery in surroundings
where temperatures are between -10
°C and 40 °C.
Error LED is lit Cell difference too much (1V). Contact your service agent.
LED display Possible faults Possible action
Error LED flashing
Temperature deviation.
Use the battery charger only when the
surrounding temperature is between 5
°C and 40 °C.
Over voltage.
Check that the mains voltage
corresponds with that stated on the
rating plate on the machine.
Remove the battery from the battery
charger.
Error LED is lit Contact your service agent.
28 – English
MAINTENANCE
Maintenance schedule
The following is a list of the maintenance steps that must be performed on the machine. Most of the items are described
in the Maintenance section. The user must only carry out the maintenance and service work described in this Operator's
Manual. More extensive work must be carried out by an authorized service workshop.
!
WARNING! Always remove the battery
before any maintenance on the machine.
Maintenance
Daily
maintenance
Weekly
maintenance
Monthly
maintenance
Clean the outside of the machine with a clean and dry cloth.
Never use water.
X
Keep handles dry, clean and free from oil and grease. X
Make sure that the activate and deactivate button works correctly
and is not damaged.
X
Check that all controls are undamaged and in working order. X
Make sure that the power trigger lock and the power trigger
function works correctly from a safety point of view.
X
Check that the guard is undamaged and not cracked. Replace
the guard if it has been exposed to impact or is cracked.
X
Check that the trimmer head is undamaged and not cracked.
Replace the trimmer head if necessary.
X
Check that nuts and screws are tight. X
Check that the battery is intact. X
Check the battery's charge. X
Check that the release buttons on the battery works and locks the
battery into the machine.
X
Check that the battery charger is intact and functional. X
Check that the harness is not damaged. X
Check that all couplings, connections and cables are intact and
free from dirt.
X
Check the connections between the battery and the machine and
also check the connection between battery and the battery
charger.
X
Li-ion
Li-ion
English – 29
TECHNICAL DATA
Technical data
Use only a Husqvarna original BLi battery in your machine.
Note 1: Noise emissions in the environment measured as sound power (L
WA
) in conformity with EC directive 2000/14/
EC. The difference between guaranteed and measured sound power is that the guaranteed sound power also includes
dispersion in the measurement result and the variations between different machines of the same model according to
Directive 2000/14/EC.
Note 2: Reported data for equivalent sound pressure level for the machine has a typical statistical dispersion (standard
deviation) of 3 dB (A).
Note 3: Reported data for equivalent vibration level has a typical statistical dispersion (standard deviation) of 2 m/s
2
.
536LiRX
Motor
Motor type BLDC (brushless) 36V
Speed of output shaft, rpm 5500
Cutting width, mm 400
Weight
Weight without battery, kg 3,8
Weight with battery, kg 5
Battery runtime
Battery runtime, min, (free run) with SavE activated 60
Noise emissions
(see note 1)
Sound power level, measured dB (A) 92
Sound power level, guaranteed L
WA
dB (A) 96
Noise levels
(see note 2)
Equivalent sound pressure level at the operator’s ear, measured
according to EN ISO 60335-91-2 and ISO 22868, dB(A):
Equipped with trimmer head (original), left/right 82
Equipped with grass blade (original), left/right
Vibration levels
(see note 3)
Equivalent vibration levels (a
hv,eq
) at handles, measured according to ISO
22867, m/s
2
Equipped with trimmer head (original), left/right 1,2/0,7
Equipped with grass blade (original), left/right 2,8/1,6
Approved chargers for the specified batteries, BLi.
Battery charger QC120 QC330
Mains Voltage, V 220-240 100-240
Frequency, Hz 50-60 50-60
Power,W 125 330
30 – English
TECHNICAL DATA
EC Declaration of Conformity
We, Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel: +46-36-146500, declare that the battery lawn trimmers
Husqvarna 536LiRX with serial numbers dating from 2016 onwards (the year is clearly stated on the rating plate,
followed by the serial number), comply with the requirements of the COUNCIL’S DIRECTIVE:
- of May 17, 2006 ”relating to machinery” 2006/42/EC.
- of February 26, 2014 ”relating to electromagnetic compatibility” 2014/30/EU.
- of May 8, 2000 ”relating to the noise emissions in the environment” 2000/14/EC.
- of June 8, 2011 on the ”restriction of use of certain hazardous substances” 2011/65/EU.
The following standards have been applied:
IEC 60335-1:2010+A1, EN 62133:2011, EN 60335-2-29:2011, EN ISO 11806-1:2011, ISO 14982:2009
SMP Svensk Maskinprovning AB, Box 7035, SE-750 07 Uppsala, Sweden, has carried out EC type examination in
accordance with the machinery directive’s (2006/42/EC) article 12, point 3b.
SMP Svensk Maskinprovning AB has also verified agreement with appendix V of the council’s directive 2000/14/EG. The
certificate has the number:
01/1610/004
Intertek Semko AB, Box 1103, SE-164 22 Kista, Sweden has issued a voluntary type approval for Husqvarna AB.
For information relating to noise emissions, see the Technical data chapter.
Huskvarna January 10, 2017
Lars Roos, Development manager (Authorized representative for Husqvarna AB and responsible for technical
documentation.)
Approved accessories Type Cutting attachment guard, Art. no.
Blade shaft thread M10
Trimmer head
T25B (Ø 2.0 mm - Ø 2,4 mm Whisper
line)
577 01 83-03
Grass blade/grass cutter Grass blade 255-4 (Ø 255 4-teeth) 577 01 83-03
Grass blade/grass cutter Grass blade 255-3 (Ø 255 3 teeth) 577 01 83-03
Support cup Fixed

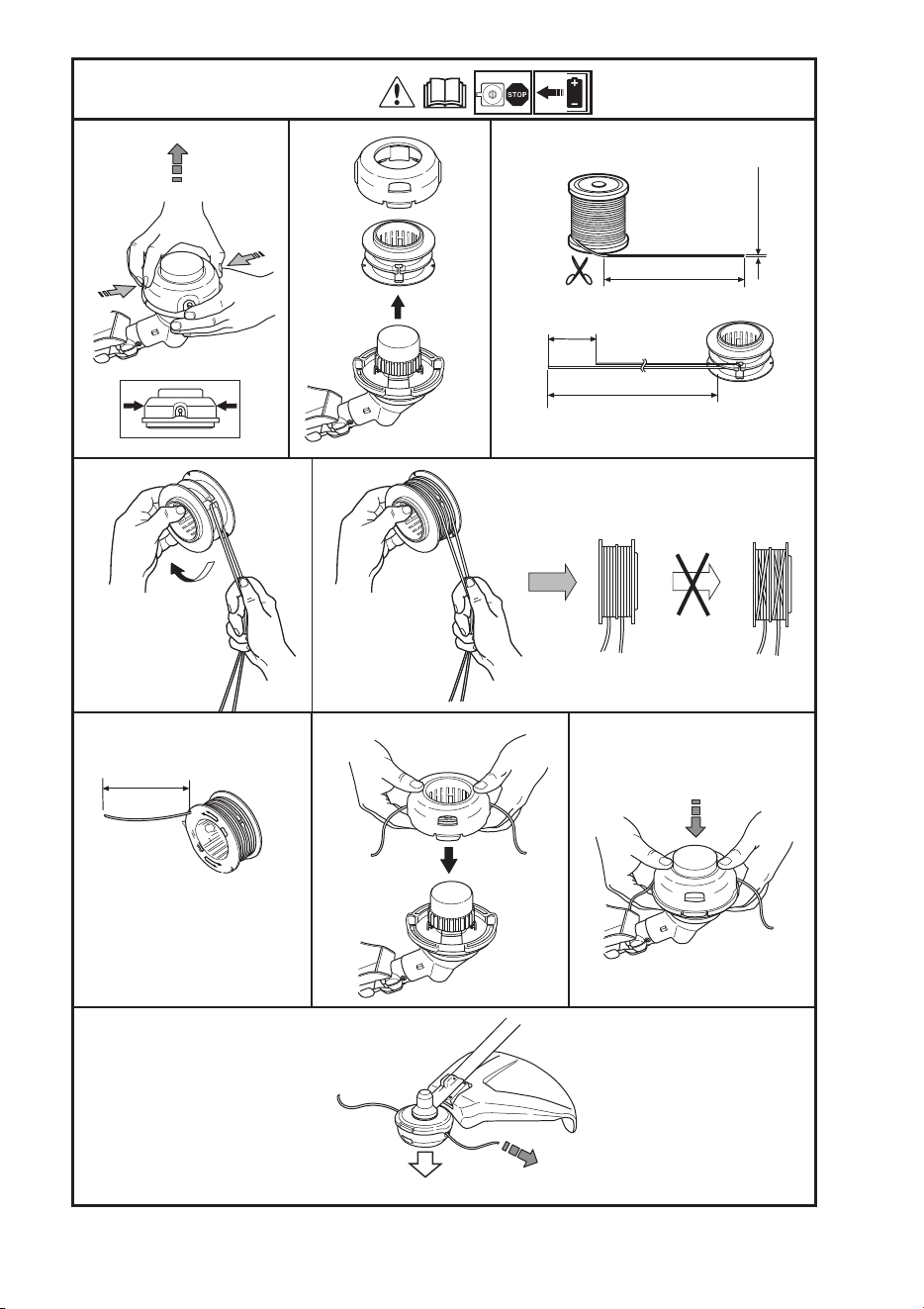

"Clic"
1
2
3
5
6
7
9
6,0 m
18'
4
8
3,05 m
9'
2,0 - 2,4 mm
.080 - .094"
10 cm
4"
6"
15 cm
T25B
Li-ion
Li-ion
1157277-26
´®z+Y;h¶6?¨
´®z+Y;h¶6?¨
2018-03-26
