1500W DIGGER POST HOLE ELECTRIC
SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S
SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH
AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER).
OWNER’S MANUAL AND SAFETY INSTRUCTIONS
ITEM: 85060
FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: (909) 628 0880 MON-FRI 9AM TO 3PM PST
GENERAL SAFETY WARNINGS
Read all safety warnings and instructions. Failure to follow the warnings and instructions may result
in electric shock, re and/or serious injury. Save all warnings and instructions for future reference.
SAFETY
Please read this section carefully. Read entire operating and maintenance instructions AND the instructions
for the equipment this engine powers. Failure to follow instructions could result in serious injury or death.
Operate the auger according to the safety instructions outlined here and inserted throughout the text. Anyone
who uses this auger must read the instructions and be familiar with the controls.
1
The size, power, complexity and operating characteristics of this type of powered equipment would
dictate that each operator must receive adequate, professional instruction regarding the proper operation
of this Hole Digger before being allowed to utilize it. BEFORE attempting to utilize this Hole Digger,
read this Operator Manual, to familiarize each operator with its correct operating procedures. Avoid the
urge not to take the necessary time to read this Operator Manual before operating the Hole Digger. DO
NOT OPERATE THE HOLE DIGGER UNTIL EACH OPERATOR COMPLETELY COMPREHENDS THE
CONTENTS OF THIS MANUAL, THE APPLICABLE SAFETY AND OPERATIONAL INFORMATION
DVD, APPLICABLE SUPPLEMENTAL INFORMATION AND THE INFORMATION SUPPLIED BY THE
ENGINE MANUFACTURER.
IMPORTANT SAFETY INFORMATION
Develop a comprehensive program for the safe operation of the Hole Digger by its owner(s) and/or
operator(s). Such a program will include, but is not limited to: instructional requirements for operation,
applicable OSHA requirements, local laws and regulations, job site safety and a Hole Digger maintenance
program. Constantly examine and upgrade this program to guarantee owner(s) and/or operator(s) safety.
Determine that the Hole Digger is in its original, factory conguration and has not been modied in any
manner. Many modications can result in potentially dangerous congurations that can lead to property
damage and/or personal injury.
Minors should never be allowed to operate the Hole Digger. Bystanders, especially children and animals,
should not be allowed in the area where the Hole Digger is in use. The hole digging process can result in
ying particles being emitted at high velocity and striking the operator and/or onlookers. This can lead to
the possibility of property damage and/or personal injury. Keep all body parts, loose clothing, foreign
objects and onlookers clear of the rotating auger and/or auger extensions.
Operators must be in proper physical condition, mental health and not under the inuence of any substance
(drugs, alcohol, etc.) which might impair vision, dexterity or judgment. Working with the Hole Digger is
strenuous. If you have any condition that might be aggravated by strenuous work, check with your doctor
BEFORE operating the Hole Digger.
Prolonged use of the Hole Digger (or other, similar machines) exposes the operator to vibrations which
may produce Whitenger Disease (Raynaud’s Phenomenon). This phenomenon reduces the hand’s
ability to feel and regulate temperature, produces numbness and burning sensations and may cause
nerve and circulation damage and tissue necrosis. Anti-vibration systems do not guarantee that you will
not sustain Whitenger Disease. Therefore, continuous and regular users should closely monitor the
condition of their hands and ngers. After each period of use, exercise to restore normal blood circulation.
If any of the symptoms appear, seek medical advice immediately.
Clothing must be sturdy and snug tting, but allow complete freedom of movement. Never wear loose
tting jackets, scarves, neck ties, jewelry, ared or cuffed pants or anything that could become caught on
controls or moving parts. Wear long pants to protect your legs. Protect your hands with heavy duty, non-
slip gloves to improve your grip. Good footing is most important when operating the Hole Digger. Wear
sturdy boots with non-slip soles. Steel-toed safety shoes are highly recommended.
2
IMPORTANT SAFETY INFORMATION
Flying debris, generated by the hole digging process, can cause eye injury. Eye protection is required
while operating or when near operating equipment.
Visually inspect the Hole Digger, auger(s), auger extension, and accessories for damaged or worn parts.
Inspect each auger for the proper screw bit and blade. Look for loose and/or damaged handle grip areas.
Check for loose and/or broken parts. Determine that operator controls work freely, all safety devices are
operative and information/safety decals are readable. Check to determine that the Hole Digger and all
related accessories are in good mechanical condition BEFORE utilization.
Know how the controls operate. Know how to stop the engine quickly in an emergency. ALWAYS start the
engine according to the instructions as outlined in this manual to minimize the possibility of unexpected or
uncontrolled auger rotation. Unexpected auger rotation can cause loss of machine control, and the
possibility of property damage and/or personal injury.
DO NOT operate the Hole Digger with onlookers close by. Caution all onlookers to stand clear. The hole
digging process can result in ying particles being emitted at high velocity and striking the operator and/or
onlookers, This can lead to the possibility of property damage and/or personal injury. Wear proper safety
eyewear. Keep all body parts, loose clothing and foreign objects clear of the rotating auger.
NOTE: This Post Hole Digger operates with no more than 6” bits.
Operate only when/where visibility and light are adequate for the job at hand.
Stop the engine between each hole to minimize the possibility of property damage and/or personal injury.
Normal operation is on level surfaces.
This machine is not designed for working with ice, excessively rocky ground and especially in an area
which with underground electric, gas, water, or telephone lines. This machine is not designed for use in
any position other than the auger bit is in upright.
Even with the intended use of the appliance there is always a residual risk, which can not prevented.
According to the type and construction of the appliance the following potential hazards might apply:
• Access to the rotating auger bit (cutting hazards)
• Unforeseen, abrupt movement of the auger bit. (vibrating on hands)
• Flung out of foreign materials from the working area.
• Inhalation of work place particles, emissions from the gasoline engine
• Skin contact with the fuel (gasoline / oil)
• Loss of hearing, if no required ear protection used during work.
Keep work area clean and well lit. Cluttered and dark areas invite accidents.
DO NOToperate power tools in explosive atmospheres, such as in the presence of ammable liquids,
gases or dust. Power tools create sparks which may ignite the dust or fumes.
Keep children and bystanders away while operating a power tool. Distractions can cause you to lose
control.
Always check that the power supply corresponds to the voltage on the rating plate.
Power tool plugs must match the outlet. Never modify the plug in any way. DO NOT use any adapter plugs
with earthed (grounded) power tools. Unmodied plugs and matching outlets will reduce risk of electric shock.
Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is earthed or grounded.
3
IMPORTANT SAFETY INFORMATION
DO NOT expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of
electric shock.
DO NOT abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord
away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric
shock.
When operating a power tool outdoors, use an extension cord suitable for outdoor use.Use of a cord
suitable for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use a residual cu
Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to
a rotating part of the power tool may result in personal injury.
DO NOT overreach. Keep proper footing and balance at all times. This enables better control of the power
tool in unexpected situations.
Dress properly. DO NOT wear loose clothing or jewellery. Keep your hair, clothing and gloves away from
moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
DO NOT force the power tool. Use the correct power tool for your application. The correct power tool will
do the job better and safer at the rate for which it was designed.
DO NOT use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled
with the switch is dangemus and must be repaired.
Disconnect the plug from the power source before making any adjustments, changing accessories, or
storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool
or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
Maintain power tools. Check for misalignment or sticking of moving parts, breakage of parts and any other
condition that may affect the power tool’s operation. If damaged,have the power tool repaired before use.
Many accidents are caused by poorly maintained power tools.
SAVE THESE WARNINGS
Make sure the extension cord is in good condition. When using an extension cord, be sure to use one that
is heavy enough to carry the current that your product will draw. An undersized cord will cause a drop in
line voltage, which will result in loss of power and overheating.
Before connecting the motor to the power line.make sure the switch is in the OFF position and the electric
current is rated the same as the current stamped on the motor nameplate. Running at a lower voltage will
damage the motor.
This tool must be grounded while in use in order to protect the operator from electric shock.
DO NOT place excessive body weight on the machine.
DO NOT use an ice auger bit In earth or an earth auger bit in ice. A different style of auger bit is required for
each type of drilling.
DO NOT use the auger in excessively rocky ground.
DO NOT submerge earth auger in any liquids.
DO NOT use products that contain ammonia, chlorine, or abrasives.
DO NOT use chlorinated cleaning solvents, carbon tetrachloride, kerosene, or gasoline.
Keep earth auger body clean. Use a soft cloth dampened with a mild soap and water mixture and wipe the
earth auger body to clean.
4
IMPORTANT SAFETY INFORMATION INFORMATION / ASSEMBLY / OPERATION
PACKAGE CONTENTS:
1 x 1200W electric earth auger
1 xAuger bit
2 x Bolt
2 x Nut
1 x Hex spanner
1 x Manual
CAUTION:
• Remove all packing materials
• Remove remaining packaging and transit supports (if exisng)
• Check the completeness of the packing content
• Check the appliance.the power cord.the power plug and all
accessories for transportaon, damages.
• Keep the packaging materials as far as possible ll the end of
the warranty period. Dispose it into your local waste disposal
system aerwards.
TECHNICAL DATA:
Power supply voltage: 110V- 60Hz
Power consumpon: I0.9AMP
Diameter auger bit: 4 inch
Drilling depth: 560mm
Neo weight: 12.8kg
SOUND EMISSION :
ATTENTION! The sound power pressure may exceed 85 dB(A), in this case individual hearing protection
must be worn.
ASSEMBLY
1. Put the auger into the output shaft of the auger bit;
2. Insert the bolt;
3. Lock it with the nut.
OPERATION
1. Before starting machine, position auger upright at desired drilling point.
2. Position feet stable and away from the auger bit.
3. Firmly grip the two handles with both hands.
4. Slowly squeeze the switch trigger to rotate the auger bit.
5. Press the handles lightly downward to drill a hole.
6. Raise the auger frequently to help clear drilling debris from the hole.
7. Overloading the auger during drilling may cause it to stop turning. When this occurs, lift the auger to reduce
the drilling load on the motor, and allow drilling debris to be augered out of the hole and resume drilling.

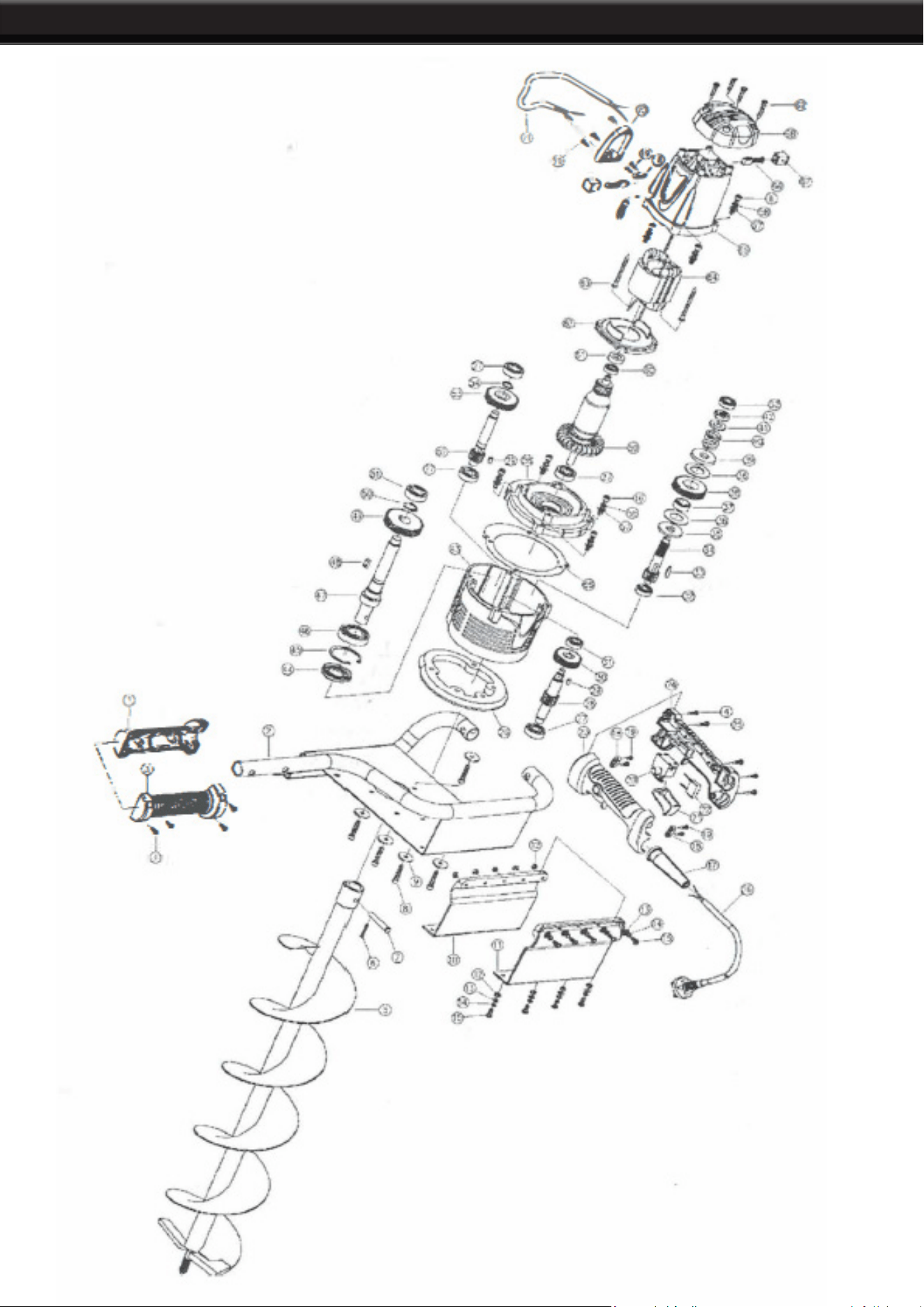

PARTS INFORMATION
5

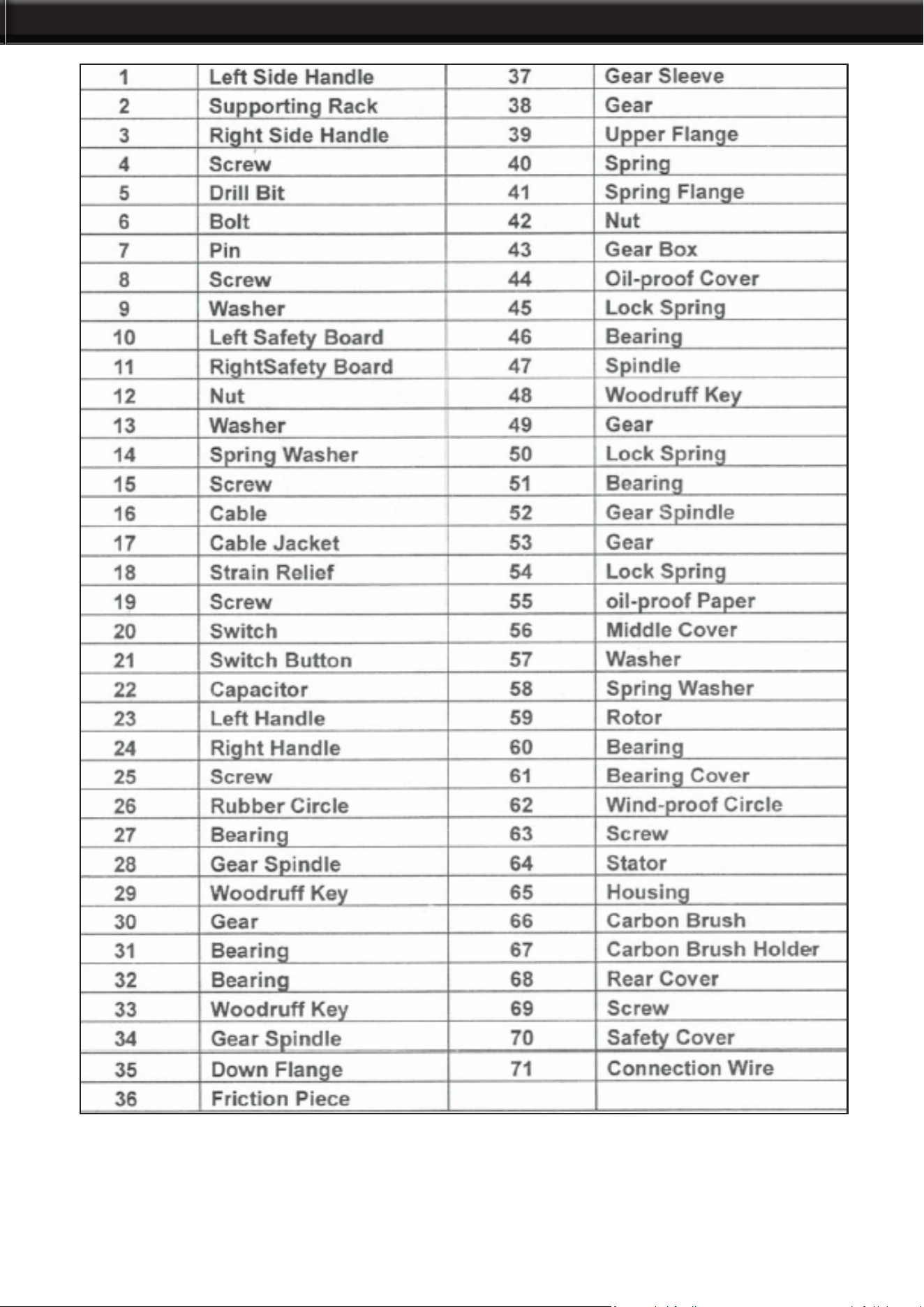

PARTS LIST
6
NOTE: Should your appliance need replacement after extended use, do not discard it with the household
rubbish but dispose of it in an environmentally safe way. Waste produced by electrical machine items
should not be handled like normal household rubbish. Please recycle where recycle facilities exist. Check
with your Local Authority or retailer for recycling advice.
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT
HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS
QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR
DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE
UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER
ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL
PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION
OF REPLACEMENT PARTS THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only and are not available individually
as replacement parts.
PLEASE READ THE FOLLOWING CAREFULLY
OF NOTE
PRODUCT MADE IN CHINA
