INSTALLATION/OWNER’S MANUAL
Media Receiver with Android Auto™ and Apple CarPlay
®
featuring a 10.1" digital TFT Display
DCPA1013
Copyright Notes
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents
and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright
protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing
uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
The Bluetooth
®
word mark and logos are owned by the Bluetooth SIG, Inc.
Use of the Apple CarPlay logo means that a verhicle user interface meets Apple performance standards. Apple is not
responsible for the operation of this vehicle or its compliance with safety and regulatory standards. Please note that use of
this product with iPhone, iPod or iPad may affect wireless performance. Apple CarPlay is a trademark of Apple Inc. "Made
for iPod" and "Made for iPhone" mean that an electronic accessory has been designed to connect specifically to iPod or
iPhone, respectively, and has been certified by the developer to meet Apple performance standards. iPhone and iPod are
trademarks of Apple, Inc., registered in the U.S. and other countries.
Availability of Android Auto™ may vary depending upon your country and phone model. Please visit android.com/auto for
more information. Android, Android Auto, Google and other marks are trademarks of Google Inc.
Other trademarks and trade names are those of their respective owners.
Safety Notes
This is a safety feature to prevent driver distraction. In-dash video functions
will only operate when vehicle is in Park and the parking brake is engaged. It
is illegal in most jurisdictions for the driver to view video while the vehicle is
in motion.
The SAFETY NOTICE is reminder to drive responsibly and safely while using your mobile phone device, or any apps that are
compatible with this unit.
It is highly recommended that your DUAL unit is installed by a professional installer or an authorized dealer.
This product is only for use in vehicles with 12VDC negative ground only.
To prevent damage or injury:
• Make sure to ground the unit securely to the vehicle chassis ground.
• Do not remove the top or bottom covers of the unit.
• Do not install the unit in a spot exposed to direct sunlight, excessive heat or the possibility of water splashing.
• Do not subject the unit to excessive shock.
• When replacing a fuse, only use a new one with the correct rating. Using a fuse with the wrong rating may cause the unit
to malfunction.
• To prevent short circuits when replacing a fuse, disconnect the wiring harness first.
• Use only the provided hardware and wire harness.
• If you experience problems during installation, consult your nearest DUAL dealer.
• If the unit malfunctions, reset the unit as described. If the problem still persists, consult your nearest DUAL dealer or call
technical assistance @ 1-866-382-5476.
• To clean the monitor, wipe only with a dry silicone cloth or other soft cloth. Do not use a stiff cloth or solvents such as
paint thinner and alcohol, as these can scratch the surface of the panel and/or remove the printing.
• When the temperature of the unit falls (as in winter), the liquid crystal inside the screen will become darker than usual.
Normal brightness will return after the unit is in use for a while.
• When extending the ignition, battery or ground wiring, make sure to use automotive-grade wiring with an a minimum
AWG 16 or more to prevent voltage drops.
• Do not touch the liquid crystal fluid if the LCD is damaged or broken. The liquid crystal fluid may be hazardous to your
health or fatal. If the liquid crystal fluid from the LCD contacts your body or clothing, wash it off with soap immediately.
2
DCPA1013
Page
Warning Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FCC Compliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Preparation/Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Screen Rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

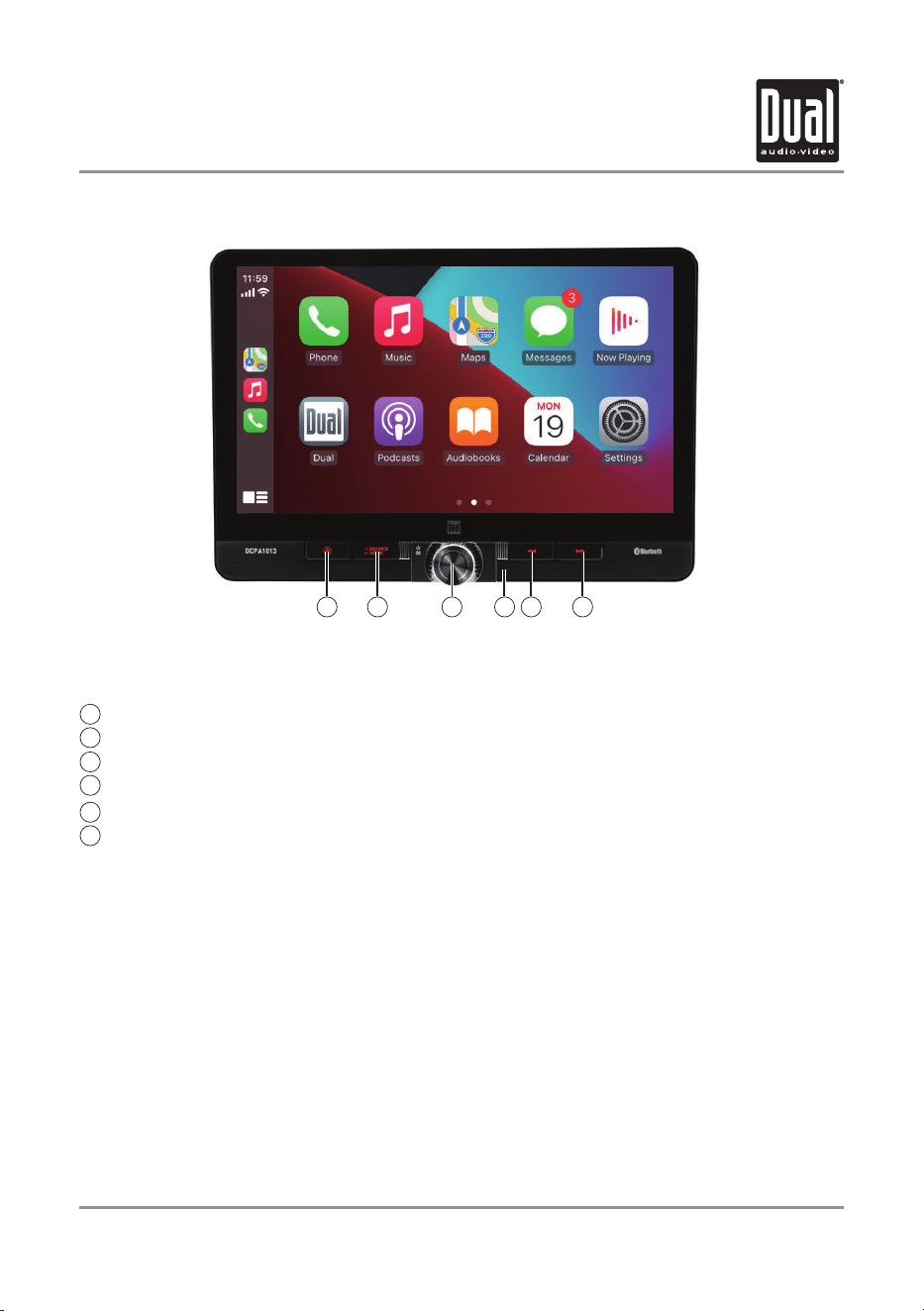

Control Locations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

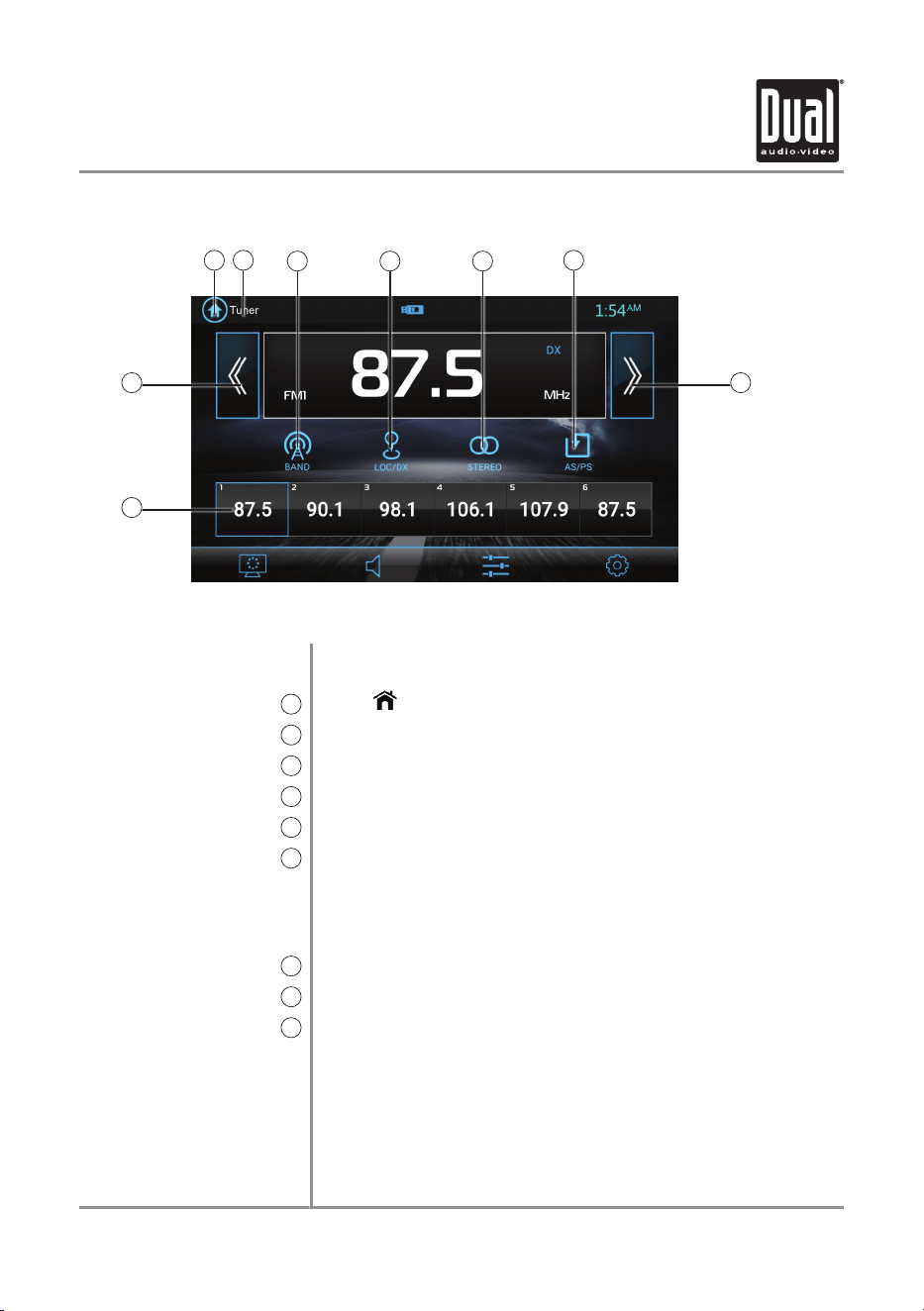

AM/FM Tuner Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
USB Operation . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Media Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

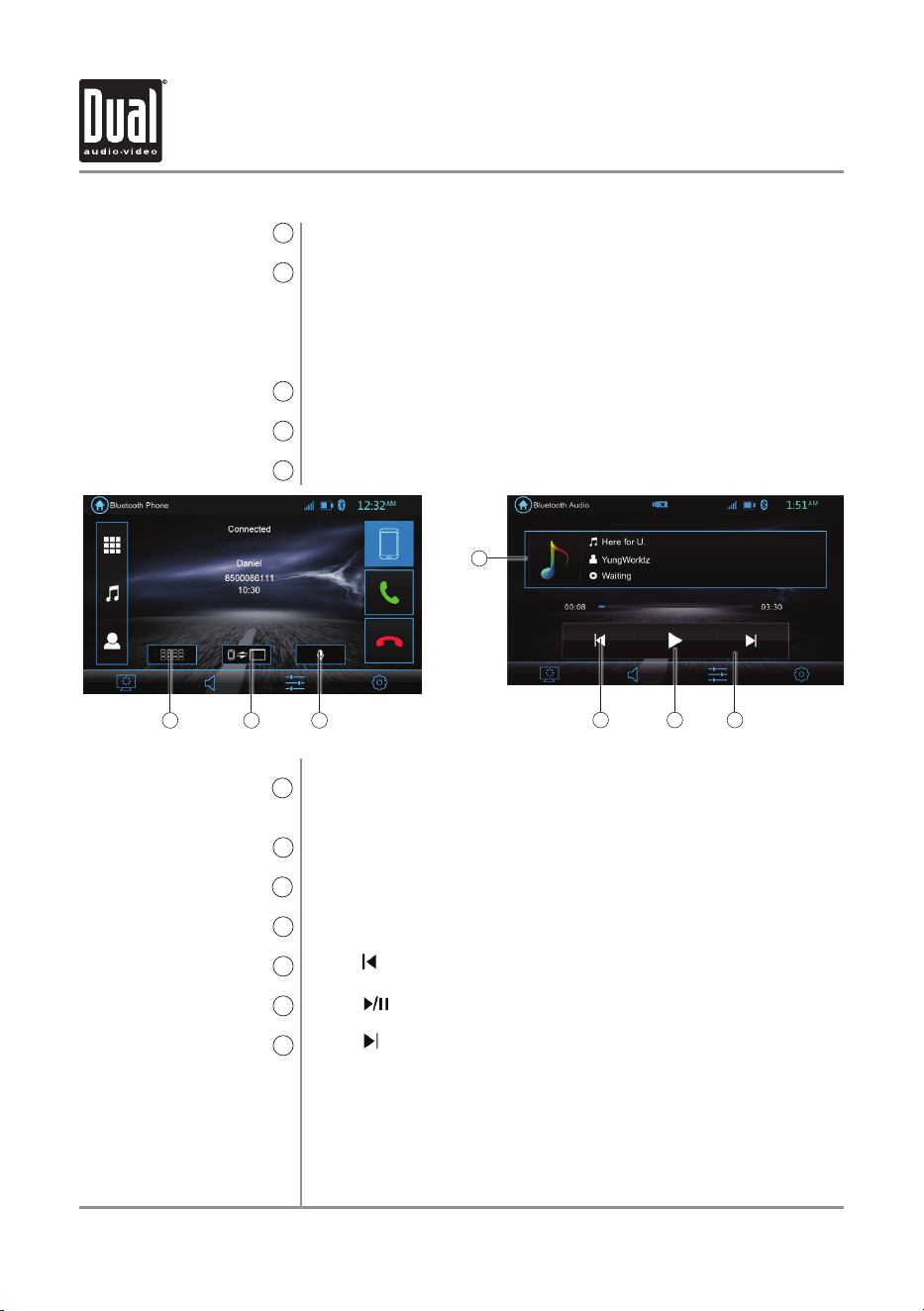

Bluetooth Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Driver Orientation Settings . . . . . . . . . . . .. . . . . . . . .

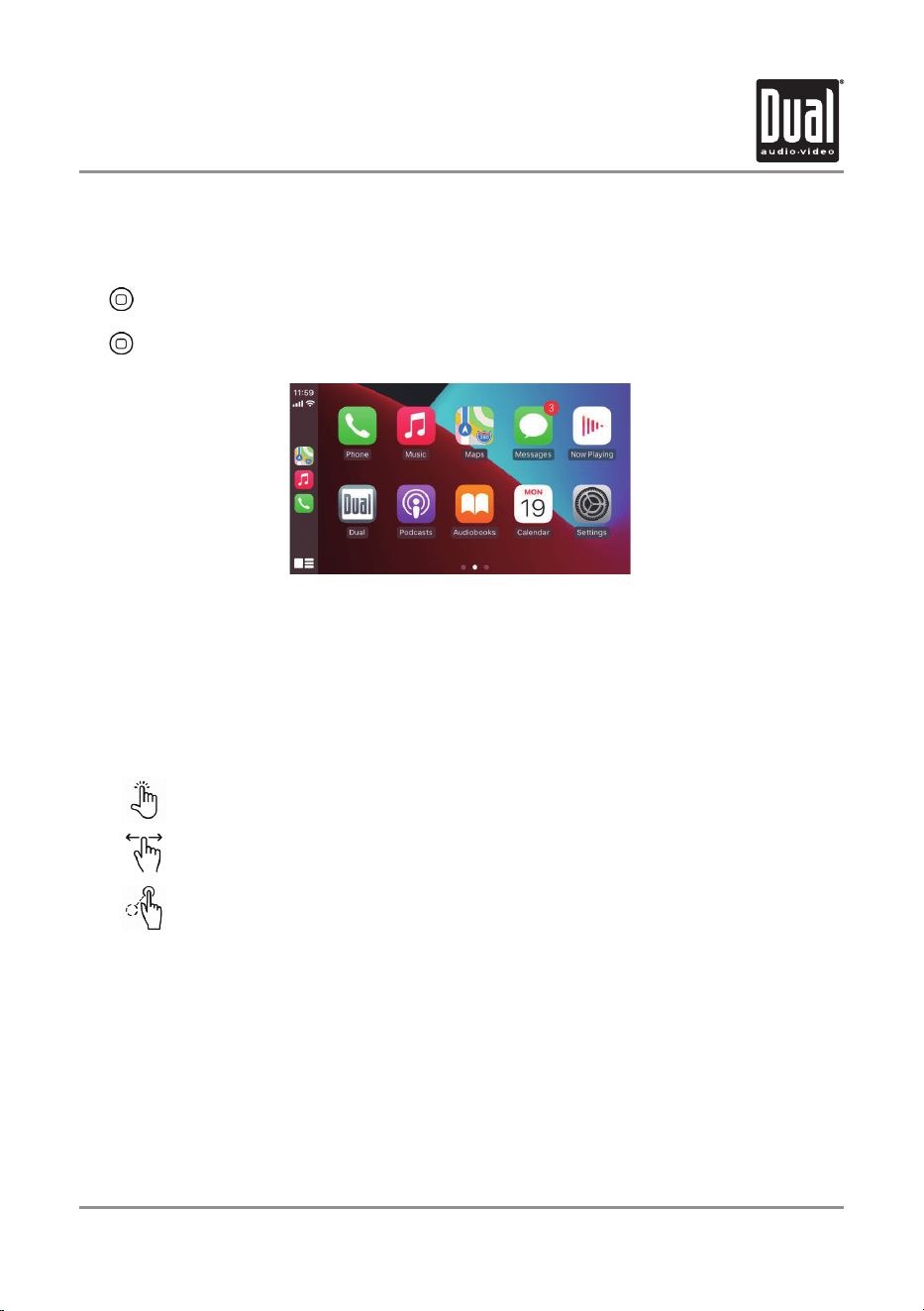

Apple CarPlay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . .
Android Auto . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

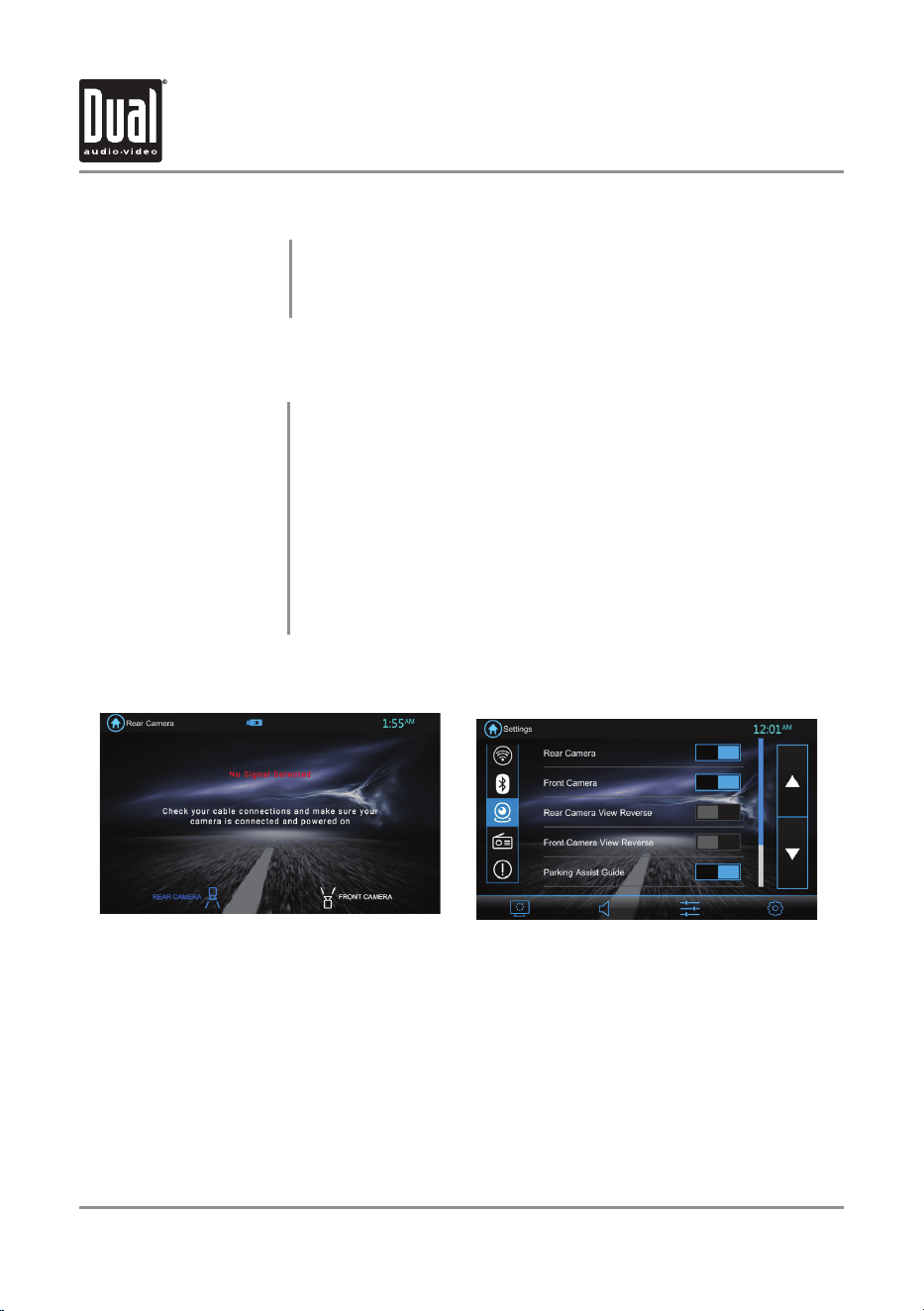

Auxiliary Inputs/Rear Camera Operation. . . . . . . . . . . . . . . . . . . . . . . . . .
SWC Input Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Table of Contents
3
4
5
6
7
8
9-10
11
12
13
14-15
16-17
18
19-20
21-22
23
24
25
26
27
3
DCPA1013
Upon installation of this monitor/media player (“unit”) into a vehicle, the driver of
the vehicle must not operate this unit by watching videos or playing video games
while driving. Failure to follow this instruction could lead to driver distraction
which could result in serious injury or death to the vehicle’s occupants or persons
outside the vehicle and/or property damage.
Several states prohibit the installation of monitors/media players if the screen is
visible from the driver’s seat. If you reside in a jurisdiction which has enacted
such a law, this unit must not be installed so that the screen is visible from the
driver’s seat. When installing this unit in the front console/dashboard, the unit
must be positioned so that it is facing the front passenger seat only. Failure
to follow this instruction could lead to driver distraction which could result in
serious injury or death to the vehicle’s occupants or persons outside the vehicle
and/or property damage.
This unit is designed so that it may be operated only when the vehicle is in “Park”
and the parking brake is fully engaged. To this end, this unit includes a parking
brake lock-out feature which prohibits the unit from operating if the vehicle is not
in “Park” and/or the parking brake is not fully engaged. When installing this unit,
the installer must connect the parking brake detect wire to the parking brake
mechanism in order to make the parking brake lock-out feature operable. DO
NOT simply ground the parking brake detect wire to a metal portion of the vehicle.
Failure to properly install the parking brake lock-out feature could lead to driver
distraction which could result in serious injury or death to the driver’s occupants
or persons outside the vehicle and/or property damage.
Once the parking brake lock-out feature is installed, the owner/user must not
attempt to disrupt/neutralize the parking brake lock-out feature by (a) partially
engaging the parking brake and/or (b) purchasing/using any device or unit
designed to send necessary brake signals to the unit. Failure to follow these
instructions could lead to driver distraction which could result in serious injury
or death to the driver’s occupants or persons outside the vehicle and/or property
damage.
When operating this unit, keep the unit’s volume level low enough so that the
vehicle’s occupants can hear traffic-related sounds such as police and emergency
vehicles. Failure to follow this instruction could lead to driver distraction which
could result in serious injury or death to the vehicle’s occupants or persons
outside the vehicle and/or property damage.
WARNING
4
DCPA1013
FCC Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
Warning: Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with a minimum distance of 20cm between the radiator &
your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
5
DCPA1013

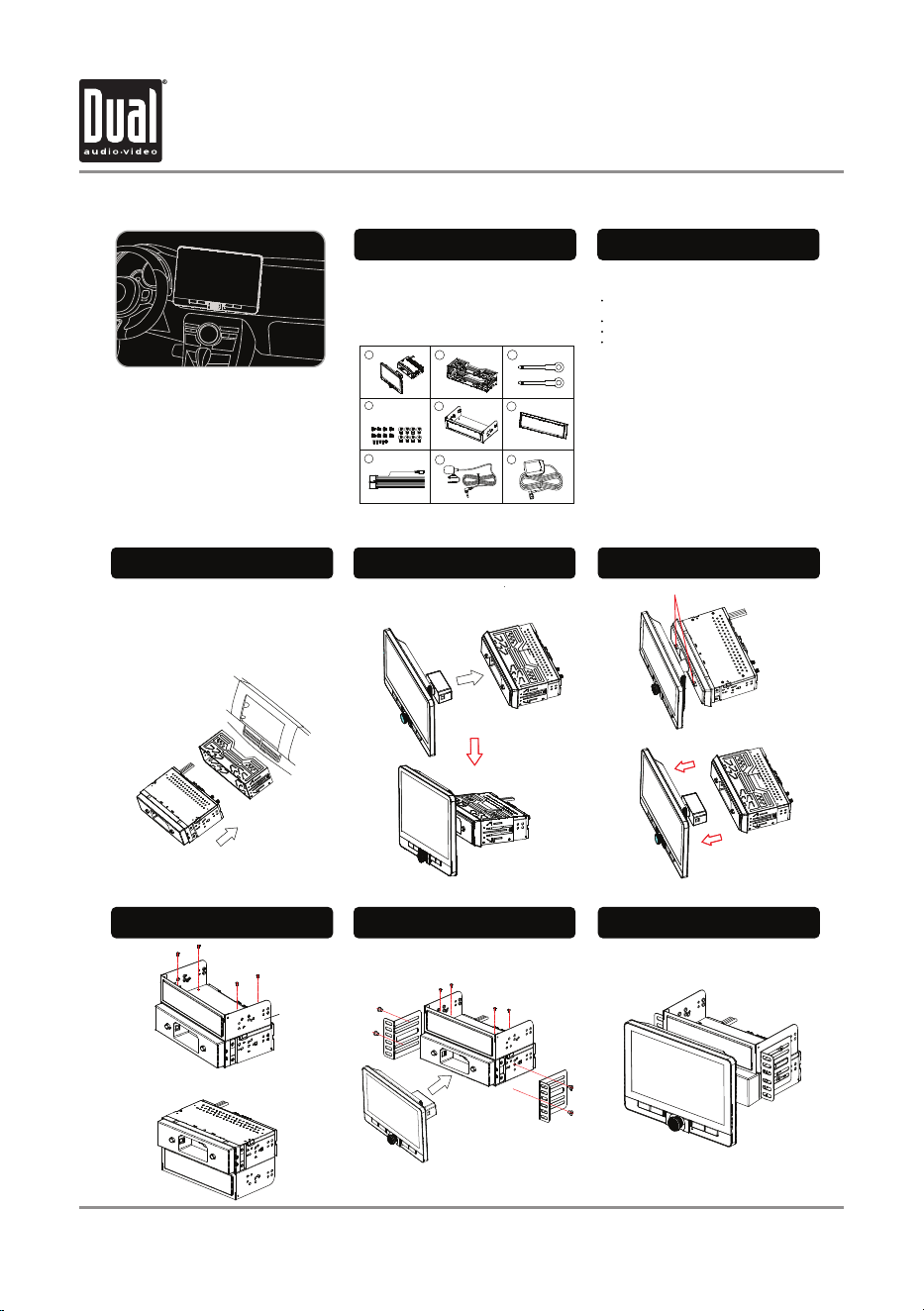

Preparation
Installation Guide
Preparing for Installation
Installation
Package Contents Before You Begin
1.Main Unit
2.Mounting Sleeve for 1 DIN
3.Release Keys
4.Screw Kit
5.Chassis sleeve for 2 DIN install
Before You Begin6.Trim Ring
7.Wiring Harness
8.Microphone
1
2
3
Mounting Screw for 2DIN Bracket M2.5*4 5PCS
Flat Head Screw M5*6 8pcs
Round Head Screw M5*6 8pcs
4
5
6
7
9
8
Install Mounting Sleeve and Trim Ring
1) Install the mounting sleeve into a dash kit (sold separately) or dash
opening, bending the tabs to secure the mounting sleeve.
2) Connect the wiring harness, microphone and antenna to the chassis
of the radio.
3) Snap trim ring into place making sure the notched area is on the
bottom.
4) Slide the receiver into the mounting sleeve to secure.
To connect the LCD to the unit, carefully push the LCD
connector into the receiver's chassis until you hear a click
as shown below.
Connecting the LCD to the Chassis
Removing the LCD from the Chassis
Installing the 2-DIN Chassis Sleeve Install Mounting Side Brackets Installation Complete
Attach the 2-DIN chassis sleeve using (4) M2.5*4 screws
Mounting brackets shown below or optional
vehicle mounting kit are not included
2-DIN Chassis Sleeve
Install the 2-DIN mounting chassis sleeve to the top of the
chassis (shown above) or to the bottom of the chassis (shown below).
Step #1
Step #1
Step #2
Step #2
Step #3
Install the mounting brackets to the chassis of the
radio or to the 2-DIN chassis sleeve depending on
choice of mounting option as shown in Step #1 to the left.
9.GPS Antenna (for CarPlay
and Android Auto only)
• Consult a qualified technician for instructions.
We always recommend professional installation.
• Disconnect the negative battery terminal.
• Remove trim ring from unit (if installed).
• Insert the removal keys, and remove the mounting sleeve
from the receiver.
Note: Most vehicles require an installation kit, wiring
harness and/or antenna adapter (all sold separately)
to properly install the head unit in the vehicle.
2. Gently pull the display panel forward
1. Hold down the two release buttons
A
B
OR
6
DCPA1013

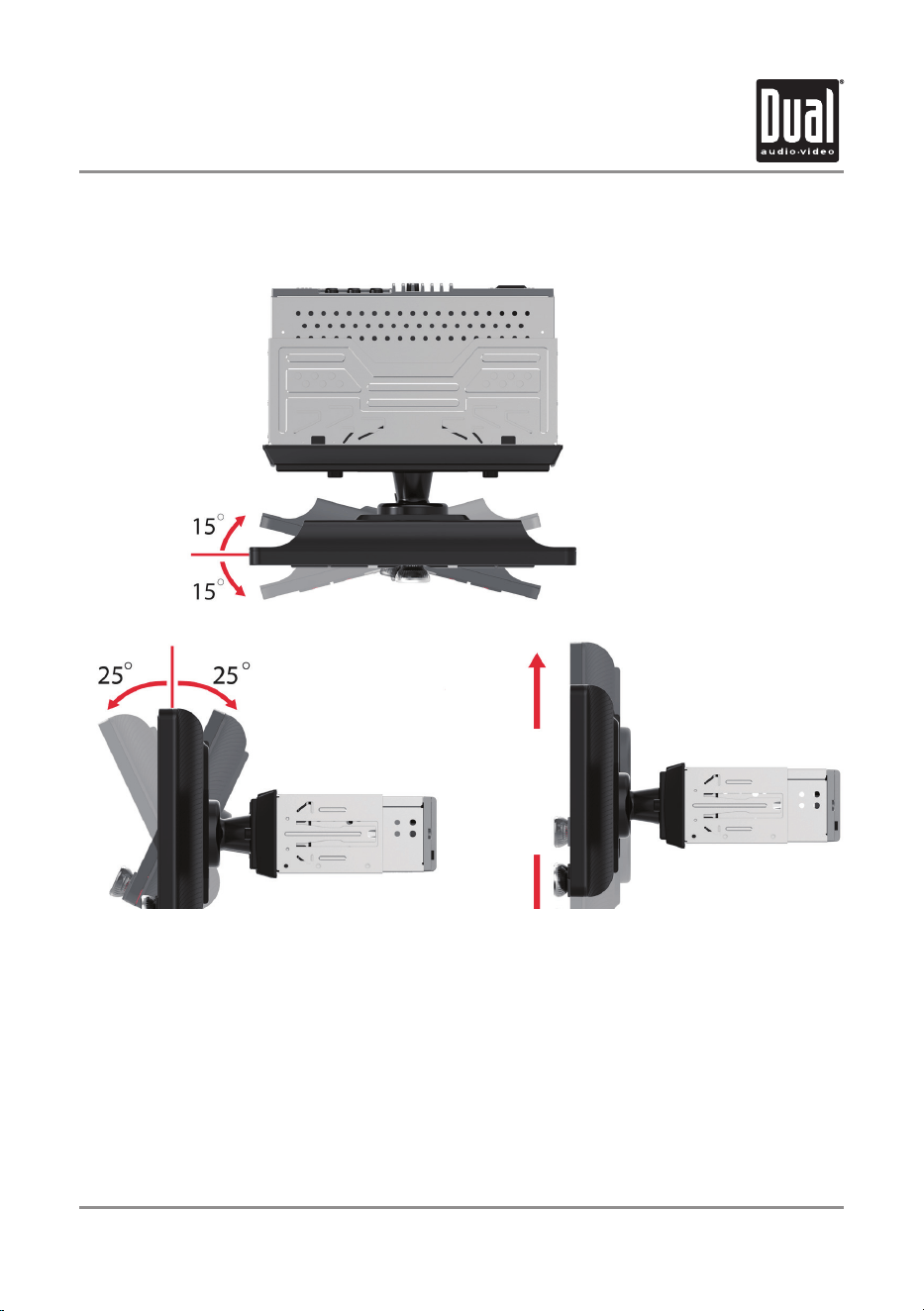

Screen Rotation
7
DCPA1013

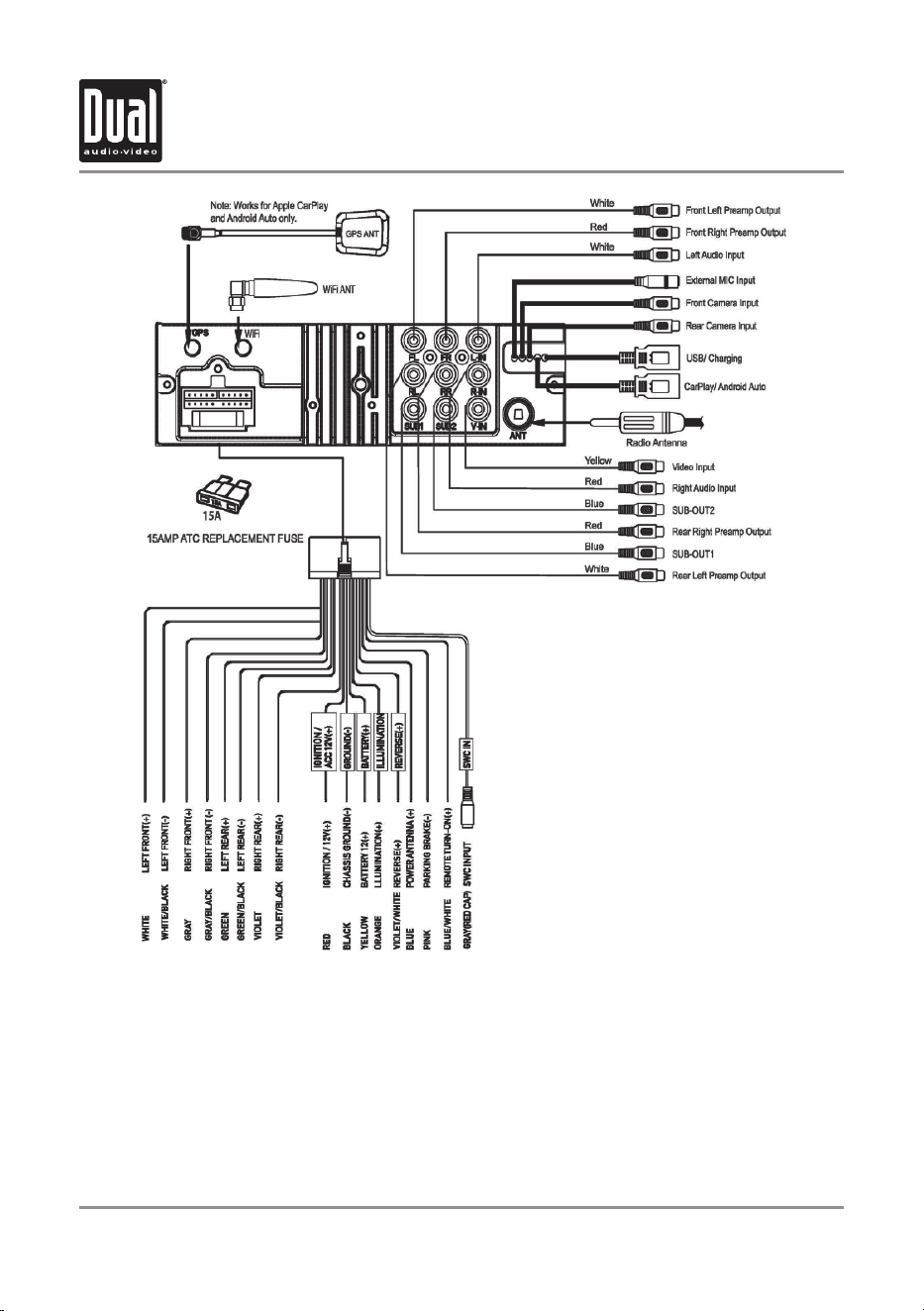

CarPlayand
Android Auto
GRAY
BLACK
18PIN
BLUE
BLUE
RE D
WHITE
RE D
WHITE
YEL L OW
RED
YEL L OW
WHITE
GND
CAMERA 12V
AV IN R
AV IN L
VIDE O IN
CAME RA IN
LINE OUT FRONT L
LINE OUT FRON T R
LINE OUT REAR L
LINE OUT REAR R
SUB WOOFER 1
SUB WOOFER 2
BL ACK
BL ACK
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
GRAY
RE D
WHITE/B LACK
GRAY/BLACK
GREEN
GREEN/BLACK
VIOL ET
VIOLE T/BL ACK
RED
BLACK
YELLOW
ORANGE
VIOL ET/WHITE
BLUE
PINK
BLUE/WHITE
WHITE
GRAY
LEFT FRONT(-)
RIGHT FRON T(-)
LEFT REAR(+)
LEFT REAR(- )
RIGHT REAR(+)
RIGHT REAR(- )
CHASSIS GROUND(- )
BATTERY 12(+)
LLUMINATION(+)
REVERS E(+)
POWER ANTENNA (+)
PARKING BRAKE(-)
REMOTE TURN-ON(+)
LEFT FRONT(+)
RIGHT FRONT(+)
SWC INPUTGRAY(RED CAP)
IGNITION / 12V(+)
IGNITION /
ACC 12V(+)
GROUND(-)
BATTERY(+)
ILLUMINATION
REVERSE (+)
20PIN
SWC IN
GPS
Note:
When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could cause
damage. The unit uses (1) 15 amp ATC mini style fuse located on the power connector.
Wiring Notes:
Subwoofer output
The Subwoofer preamp audio output (Blue jacket with Black RCA) is active in all audio modes.
Rear camera input
A rear view camera (not included) can be used with the Camera input.
SiriusXM
For more information on how to install the SiriusXM Connect Vehicle tuner, consult the installation guide included
with the tuner(SiriusXM connect tuner and subscription sold separely).
Note: For CarPlay and Android Auto only
CarPlayand
Android Auto
GRAY
BLACK
18PIN
BLUE
BLUE
RE D
WHITE
RE D
WHITE
YEL L OW
RED
YEL L OW
WHITE
GND
CAMERA 12V
AV IN R
AV IN L
VIDE O IN
CAME RA IN
LINE OUT FRONT L
LINE OUT FRON T R
LINE OUT REAR L
LINE OUT REAR R
SUB WOOFER 1
SUB WOOFER 2
BL ACK
BL ACK
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
GRAY
RE D
WHITE/B LACK
GRAY/BLACK
GREEN
GREEN/BLACK
VIOL ET
VIOLE T/BL ACK
RED
BLACK
YELLOW
ORANGE
VIOL ET/WHITE
BLUE
PINK
BLUE/WHITE
WHITE
GRAY
LEFT FRONT(-)
RIGHT FRON T(-)
LEFT REAR(+)
LEFT REAR(- )
RIGHT REAR(+)
RIGHT REAR(- )
CHASSIS GROUND(- )
BATTERY 12(+)
LLUMINATION(+)
REVERS E(+)
POWER ANTENNA (+)
PARKING BRAKE(-)
REMOTE TURN-ON(+)
LEFT FRONT(+)
RIGHT FRONT(+)
SWC INPUTGRAY(RED CAP)
IGNITION / 12V(+)
IGNITION /
ACC 12V(+)
GROUND(-)
BATTERY(+)
ILLUMINATION
REVERSE (+)
20PIN
SWC IN
GPS
Note:
When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could cause
damage. The unit uses (1) 15 amp ATC mini style fuse located on the power connector.
Wiring Notes:
Subwoofer output
The Subwoofer preamp audio output (Blue jacket with Black RCA) is active in all audio modes.
Rear camera input
A rear view camera (not included) can be used with the Camera input.
SiriusXM
For more information on how to install the SiriusXM Connect Vehicle tuner, consult the installation guide included
with the tuner(SiriusXM connect tuner and subscription sold separely).
Note: For CarPlay and Android Auto only
8
DCPA1013
Control Locations
Voice Activation Button
Source/Home
Power/Volume/Mute
Reset
Previous Button
Next Button
1
2
3
4
5
6
The radio display features the following functions and displays:
1 2 3 4 5 6
9
DCPA1013

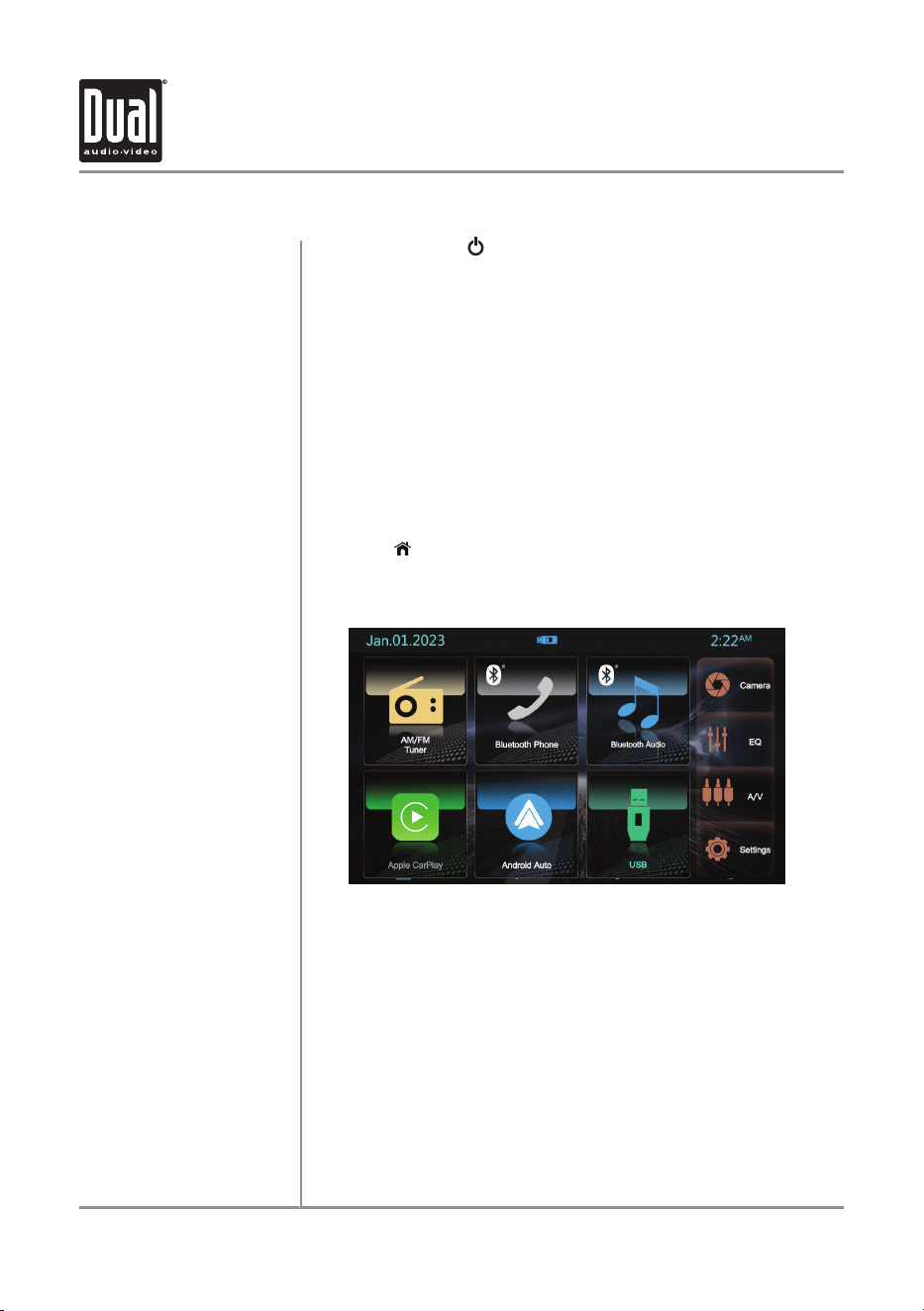

General Operation
Power On/Off
Volume
Mute
Mode
Main Menu
A/V In
USB
Reset
Momentarily press
to turn the unit on. Press and hold to turn
the unit off.
Rotate the volume knob to increase or decrease the volume level.
Momentarily press MUTE to silence the audio. Momentarily press
MUTE again to return to the previously selected volume. Rotating
the volume knob while the volume is muted will also cancel the
mute function.
Press SOURCE to step through the following modes of operation:
Radio/BT Phone/BT Audio/Apple CarPlay/Android Auto/USB/
Camera/EQ/AV/Settings.
Note: Modes of operation can also be accessed by selecting the
corresponding icon from the main menu.
Press the icon at the top left corner of the screen to display
the OSD main menu. Press the Radio/BT Phone/BT Audio/Apple
CarPlay/Android Auto/USB/Camera/EQ/AV/Settings icons to select
the desired source.
Connect external devices to the rear RCA Type A/V Input.
Connect a USB flash drive to the rear USB Input.
To resolve abnormal operation or if the unit is inoperable, press the
RESET button located on the front panel as shown in the Control
Locations section. The unit will reset the main processor to the
default settings.
Note: Use the tip of a pen to access the reset button and restore
the factory default software settings.
10
DCPA1013

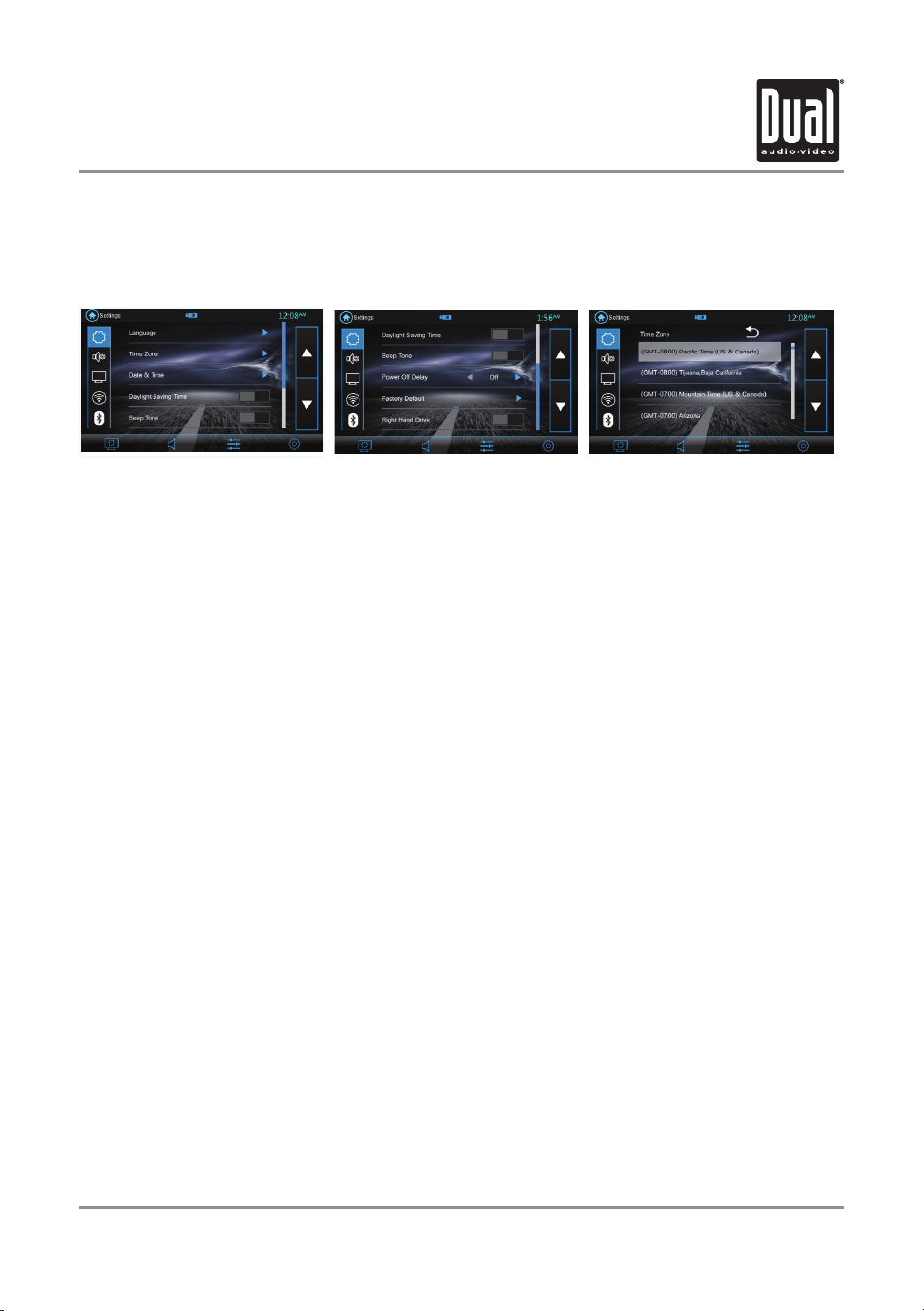

From the Main Menu screen, select Setup to access the Settings menu and select from eight
categories represented by the icons on the left of the screen: General, Audio, Display, Wifi,
Bluetooth, Camera, Region and Version. Select the category, and adjust any of the available
options using the touch screen.
General:
• Language: Select between English and Spanish.
• Time Zone: Select desired time zone.
• Date & Time: Adjust the day, month, year, hour, minute and format.
• Daylight Savings Time: Turn On or Off.
• Beep Tone: Turn On or Off.
• Power Off Delay: Select 1 second, 2 second, 3 seconds or Off.
• Factory Default: Reset the unit to factory default settings.

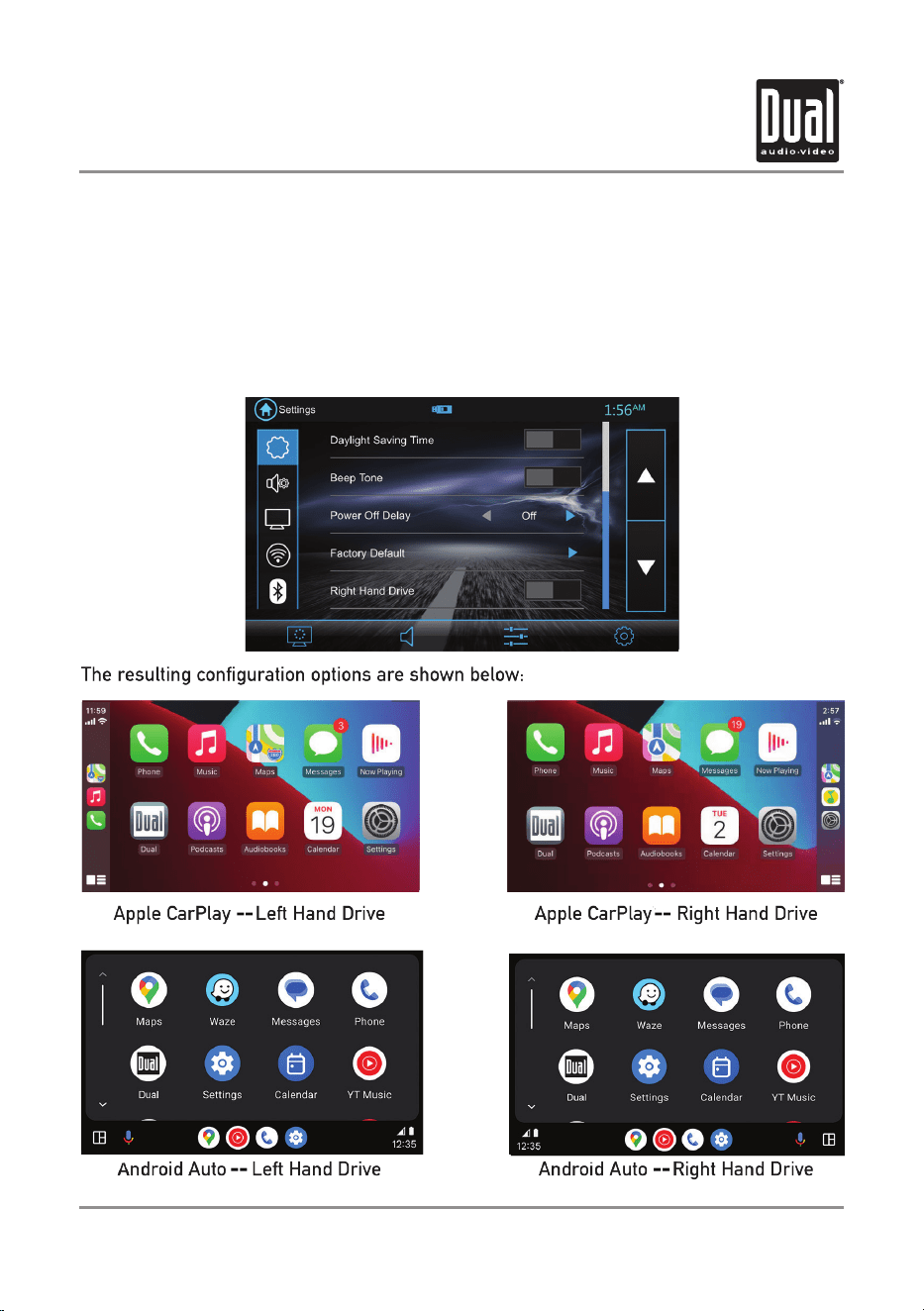

• Right Hand Drive: Turn On or Off. When the item is off, it is left hand drive mode, and when
the item is On, it is right hand drive mode. Default setting is Off (left hand drive mode).
Audio:
• Balance/Fader - Select to adjust balance/fader settings.
• Subwoofer - Turn the Subwoofer Control On/Off.
• Subwoofer Frequency- Select subwoofer frequency.
• Subwoofer Level - Select subwoofer 0-14 (7 is default).
• EQ - Select to adjust EQ settings.
• Loudness - Select to turn Loudness feature On or Off.
• Internal Amp - Select to turn Internal Amp On or Off.
• Default Volume - Select adjust default volume settings.
• Source Level - Select to adjust source level settings.
Display:
• Illumination Control - Select to turn Illumination Control On or Off.
• Gray Level & Brightness - Adjust Gray Level & Brightness settings for Day and Night.
• LED - Select a color for the LED button lights.
• LED Animation - Select to turn LED Animation On or Off.
• Wallpaper - Select from three wallpaper options.
• Background Brightness - Adjust Background Brightness.
WiFi: Turn WiFi On/Off, Reset Password or view Device List.
Bluetooth: Turn Bluetooth, Auto Connect and Auto Answer On/Off, view Device Name and clear
Phone Book Names and Numbers.
Camera: Turn Front and Rear Camera On/Off, reverse Camera Views, turn Parking Assistance
On/Off, adjust Parking Assistance settings and adjust the Rear View Delay.
Radio: Adjust the Region, and turn TA and AF On/Off.
Version: View version information.
General Operation
11
DCPA1013

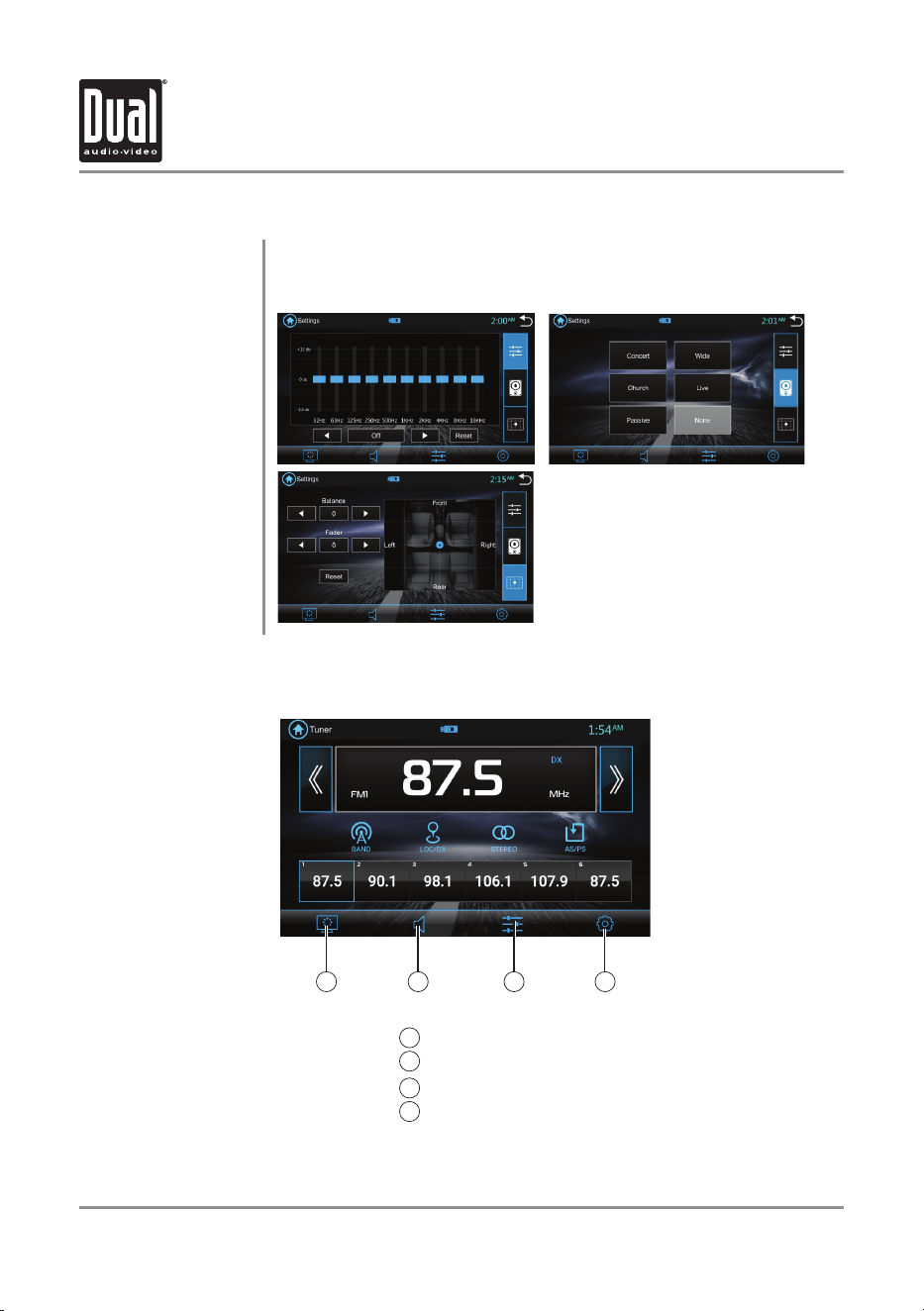

From the Settings screen, press the Equalizer icon (see #3 in On Screen
Controls) to adjust Equalizer, (10-Band Tone Control and 7 Presets EQ
Settings), Surround Sound and Fader / Balance controls,
Audio Operation
Audio Adjustment
Menus
On Screen Controls
Dimmer
Mute
Audio Settings
Settings
1
2
3
4
1 2 3 4
12
DCPA1013
AM/FM Tuner Operation
1 2 6
3
9
7 8
Radio Operation
Main Menu
1
Current Mode Indicator
2
Band
3
Local / Distance
4
Stereo / Mono
5
AS/PS
6
Seek Tune Down
7
Seek Tune Up
8
Preset Stations
9
From the main menu, touch Radio Icon to select AM/FM tuner
mode.
Press icon to return to Main Menu screen.
Display status of various tuning functions including Auto.
Press to step through three FM and two AM bands.
Press to toggle between local or distance tuning.
Press to toggle between stereo and mono operation.
Preset Scan: Press AS/PS to scan through all tunable presets in
the current band and play them for 3 seconds each.
Auto Store: Press and hold AS/PS to automatically search and
store the six strongest stations in the current band. A total of 18
FM and 12 AM stations can be stored.
Press to automatically tune to a lower frequency.
Press to automatically tune to a higher frequency.
To store a station as a preset in the current band, tune to the
desired station, then press and hold the desired preset number
to store. Press any preset button to recall and begin playback of
that station. (Hold this button down for a few seconds and it will
switch between AS and PS)
4 5
13
DCPA1013

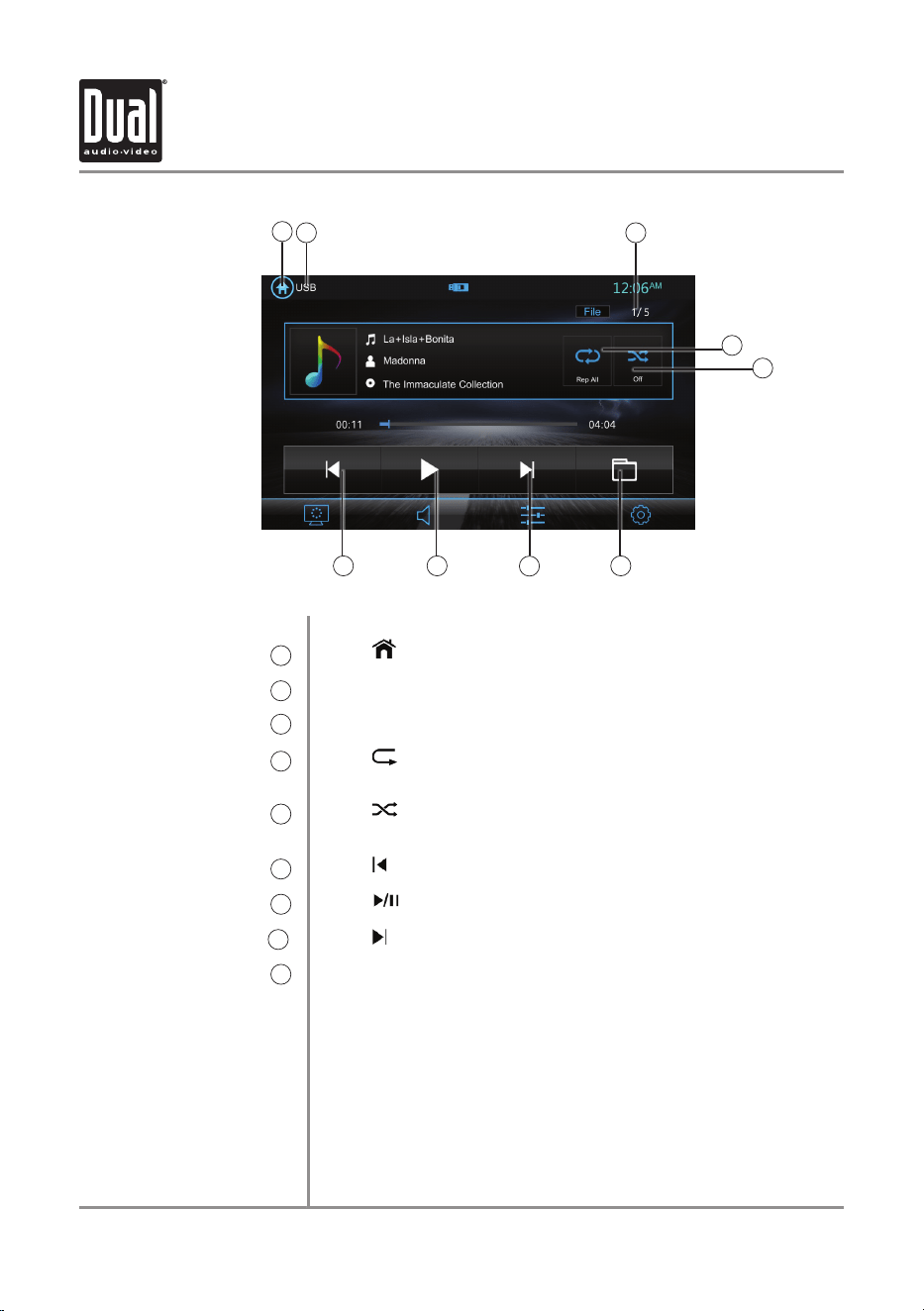

USB Operation
USB
Main Menu
1
Current Mode Indicator
2
File Number
3
Repeat
4
Random
5
Track Down
6
Play / Pause
7
Track Up
8
Folder
9
From the main menu, touch the USB icon on the main screen.
Press icon to return to Main Menu screen.
Displays source currently playing.
Displays the current file number.
Press to repeat current track and adjust to repeat all tracks in
the current folder. Press again to exit repeat mode.
Press icon to shuffle all tacks in the current folder and again
to shuffle all tracks. Press again to exit random mode.
Press icon to return to the beginning of the current track.
Press icon to pause or resume playback.
Press
icon to skip ahead to the next song
Press to access and navigate a list of all files and folders on the
device.
1
2 3
4
6 7 9
5
8
14
DCPA1013
Media Compatibility
File Type MP3
File System FAT
FAT 12 X
FAT 16/FAT 32
File
Extension
.mp3/.MP 3/.Mp3/.mP3/.flac/ogg
.rmp/.m4a X
MPEG
Format
MPEG 1
MPEG 2
MPEG 2.5
Sampling
Frequency
MPEG 1 32/44.1/48kHz
MPEG 2 12/16/22.05/24kHz
MPEG 2.5 8/11.025/12kHz
Bitrate
MPEG 1 32 ~ 320kbps
MPEG 2 8 ~ 160kbps
MPEG 2.5 8 ~ 160kbps
Other
Information
Directory Depth Unlimited
File Name Length 32 bytes
Total File Number 2000 files
Total Folder Number 200 folders
File Number via Folder 2000 files
MP3 ID3 TAG
ver.1.x
ver.2.x
Title, Artist, Album
Notes:
• Due to ongoing technological advancement, some USB flash drives may be incompatible with this unit.
15
DCPA1013
Media Compatibility
The following types of files are not compatible:
• MP3 PRO format, MP3 playlists
• RMP format
• AAC, protected AAC, M4A format
MP3 playback sequence begins in the root folder of the USB device. Any
empty folders or folders that do not include MP3 files are skipped.
ISO9660 standards:
• Maximum nested folder depth is 8 (including the root folder).
• Valid characters for folder/file names are letters A-Z (all caps),
numbers 0-9, and “_” (underscore). Some characters may not be
displayed correctly, depending on the character type.
• This device can play back files in Joliet and other standards that
conform to ISO9660. MP3 written in the formats other than the above
may not play and/or their file names or folder names may not be
displayed properly.
Some files may not play or be displayed correctly, depending on sampling
rates and bit rates.
For best results, use the following settings when ripping MP3 files:
128kbps or higher constant bit rate
44.1kHz or higher sampling frequency
Media Compatibility
Playback Order
Compatible Recording
Formats
Notes
16
DCPA1013

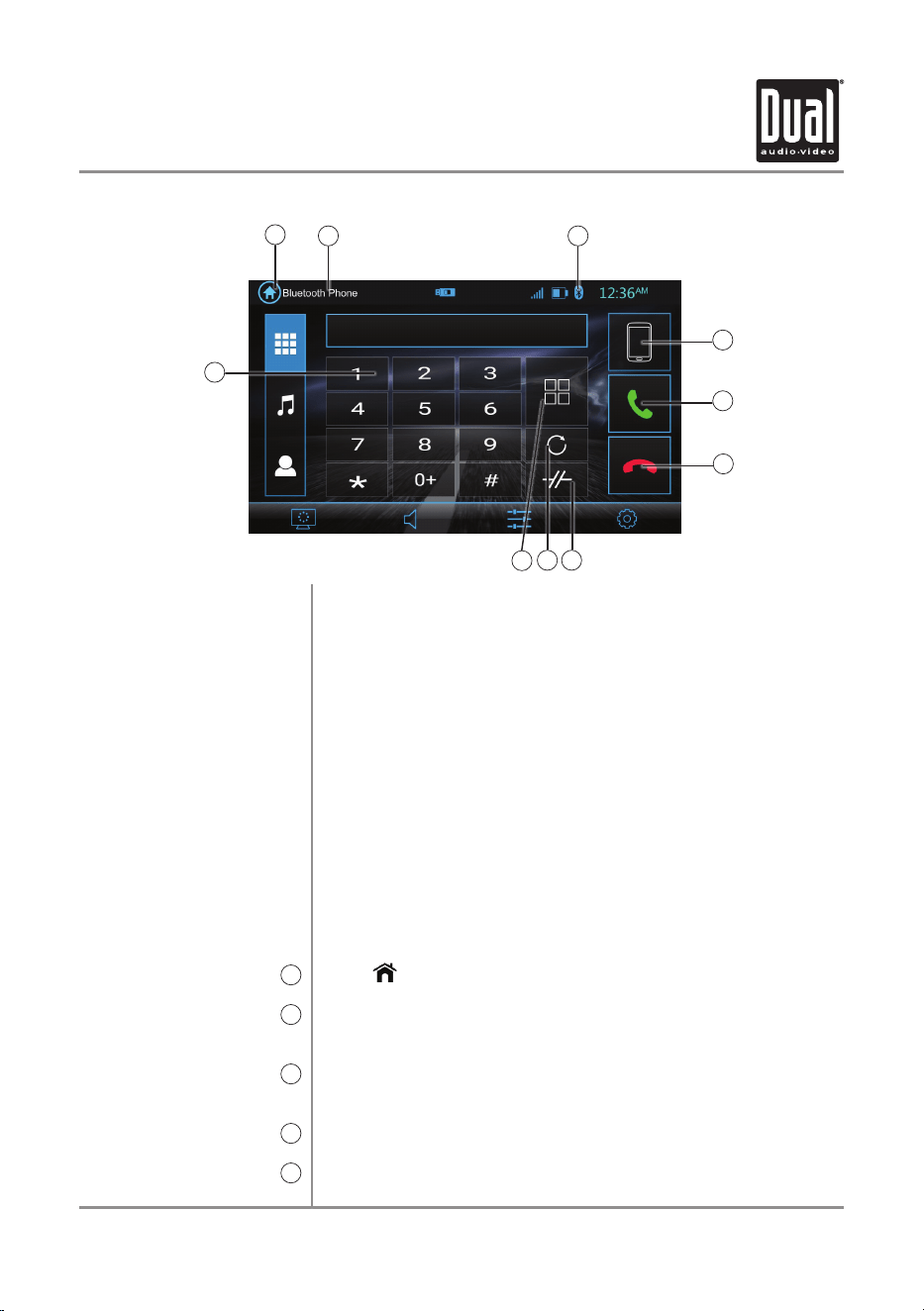

Bluetooth Operation
Before you can use a Bluetooth device to make hands-free calls
or stream audio, it must be authenticated. This is also referred to
as "pairing" a device.
The unit broadcasts the pairing signal constantly when no devices
are currently connected. Complete the pairing sequence from
your Bluetooth device. Refer to the owner's manual for your
device for more details. The device name is "DCPA1013". The
unit can be in any mode of operation when pairing is performed.
On certain phones, pairing may need to be done more than once.
The head unit will automatically connect to the last connected
device when the connect feature is set to Auto connect On. If the
connect feature is set to Auto Connect Off, the head unit will not
automatically connect to any device.
From the main menu, touch the Bluetooth on the screen.
Bluetooth icon will appear anytime a Bluetooth device is connected.
Press icon to return to Main Menu screen.
Displays current mode of operation.
When Bluetooth is On and a Bluetooth device is being paired,
the indicator will flash. When Bluetooth is On and a phone is
connected to the unit, the indicator will illuminate steady.
Use the keypad to dial a phone number.
Press to connect a call after dialing a phone number.
Before using Bluetooth
Pairing a New Device
Connect
Bluetooth Phone
Main Menu
1
Current Mode Indicator
2
Bluetooth Status
Indicator
3
Phone Keypad
4
Call
5
1
2 3
4
8
9 10
5
6
7
17
DCPA1013
Bluetooth Operation
11 12 13
14
Phone keypad
11
Audio Transfer Button
12
Microphone
13
Bluetooth Music
14
Track Down
15
Play / Pause
16
Track Up
17
End Call
6
Devices
7
Calling Screen Mode
8
Last Number
9
Disconnect Bluetooth
10
Provides an alternate method of accessing the phone keypad
during a call.
Press to transfer audio between the unit and mobile phone.
Press to turn the Microphone voice On or Off.
Press to transfer audio between the unit and mobile phone.
Press icon to return to the beginning of the current track.
Press icon to pause or resume playback.
Touch icon to skip ahead to the next song.
Press to end a call in progress or reject an incoming call.
Press to show the pairing device list. To connect to a previously
connected device. press the current device name. Any previously
connected devices that are in rang will be listed by their device
name. Press the desired device name to disconnect from the
current device and connect to the new device.
Press to access the calling screen during a call.
Press to call the last number dialed.
Press to disconnect the current BT connection.
15 16 17
18
DCPA1013
Driving Orientation Settings
To enhance the driving experience, the DCPA1013 allows the user to configure Apple CarPlay and
Android Auto for either Left Hand Drive (LHD) or Right Hand Drive (RHD) vehicles.
To select desired configuration, select either LHD or RHD from the Settings menu.
Note: If you change the setting for Right Hand Drive mode or Left Hand Drive mode
while the phone is connected to the receiver, disconnect the phone from the receiver and
re-connect it again.
19
DCPA1013
Apple CarPlay
®
Operation
Apple CarPlay is a smart interface for iPhone, allowing you to voice-control (via
Siri) music, navigation, phone and messaging apps - significantly reducing driver
distraction.
Phone - Use Siri to make calls, return missed calls, listen to voicemail
messages, and view the caller ID on the receiver’s screen.
Messages - Ask Siri to send, read, and reply to text messages. This hands
free operation minimizes distraction and allows you to keep hands on the
wheel and eyes on the road.
Music - Access music by artist, song, playlist, and more through the
receiver’s touchscreen or via Siri. The receiver will mirror the iPhone screen
with artist and track information.
Maps - Use Siri to request turn-by-turn directions – search by address or
points of interest. Apple Maps will be mirrored on the screen, including
traffic information and estimated time to destination.
Compatible Devices
Made for iPhone models:
iPhone 13 mini, iPhone 13, iPhone 13 Pro, iPhone 13 Pro Max, iPhone 12 mini, iPhone
12, iPhone 12 Pro, iPhone 12 Pro Max, iPhone 11 Plus, iPhone 11, iPhone XS Max,
iPhone XS, iPhone XR, iPhone X, iPhone 8, iPhone 8 Plus, iPhone 7, iPhone 7 Plus,
iPhone 6, iPhone 6S
Starting Apple CarPlay
Wireless CarPlay Connection Descriotion.
1.
Enter the main UI and click BT Phone to enter the Bluetooth interface;
2. Click Refresh to search nearby Bluetooth, click Pair to match Bluetooth;
3. Open the iPhone WLAN to connect to the car, after the connection is successful, the Apple
CarPlay icon in the device list will appear, and the Apple CarPlay connection is successful;
4. Enter the Apple CarPlay interface, click the functions of Phone/ Music/Map/Information/etc.
Note: For safety reasons, Apple CarPlay features are limited while driving and will
vary with each Apple CarPlay-enabled app. Available functions are determined by each
individual app provider. For more information, visit www.apple.com/ios/carplay.
Note: Certain iPhone functions may be illegal while driving in your location. Be sure to
familiarize yourself with local and state laws regarding mobile devices. When in
doubt, stop and park your vehicle before using any devices.
20
DCPA1013
Press any Application button on the main Apple CarPlay menu to access that operation
directly. The toolbar on the left side of the screen displays the time, signal strength
and shortcuts to the most popular applications - Phone, Music and Navigation - so
they can be accessed quickly and easily without returning to the main menu.
Controlling Apple CarPlay
The following basic controls will operate many standard Apple CarPlay features.
Exiting Apple CarPlay
Disconnecting your iPhone will automatically exit Apple CarPlay mode. To exit Apple
CarPlay mode while your phone is still connected, press the Power/Volume knob
momentarily, and the unit's main menu will be displayed.
Apple CarPlay
®
Operation
When the Apple CarPlay menu is displayed, the home button in the lower left corner
work just like the home button on your iPhone.
Press and hold it to summon Siri and begin your voice commands.
At any time during Apple CarPlay operation, you can press this button
momentarily to return to the main Apple CarPlay menu screen.
Touch - Briefly press the desired option.
Swipe - Briefly swipe in the desired direction.
Drag - Press, hold and drag to the desired location.
21
DCPA1013
Android Auto™ Operation
Android Auto brings the most useful apps to your phone screen or your compatible car
display, in a format that makes it easy for you to keep your main focus on driving. You
can control things like navigation and maps, calls and text messages, and music.
Google Assistant
With your Google Assistant on Android Auto, you can keep your eyes on the road and
your hands on the wheel while using your voice to help you with your day. Simply
say, “Ok Google,” or in compatible cars, long press the voice control button on your
steering wheel.
Navigation
Get real-time traffic alerts to avoid hazards, speed traps, and find the fastest route. Or
take a break and find a bite along the way.
Calls & Messages
Your Google Assistant lets you stay connected while you’re driving. Your Assistant can
help you call phone numbers from your contacts, chat with your favorite apps, read
your messages aloud and text back, keeping your hands on the wheel.
Compatible Devices
Android Auto requires the Android Auto app from Google Play installed on an Android
smartphone running Android Lollipop 5.0 or higher.
Warning:
Certain uses of the smartphone may not be legal while driving in your jurisdiction,
so you must be aware of and obey any such restrictions. If in doubt as to a particular
function, only perform it while the car is parked. No feature should be used unless it is
safe to do so under the driving conditions you are experiencing.
Starting Android Auto
Wireless Android Auto Connection Descriotion.
1. Enter the main UI and click BT Phone to enter the Bluetooth interface;
2. Click Refresh to search nearby Bluetooth, You'd better turn on your Phone's WLAN
before you connect to Bluetooth, otherwise the connection will fail;
3. Click Pair to match Bluetooth, then there will be a notification to select settings and
select your mobile Phone, and the Android Auto connection is successful;
4. Enter the Android Auto interface, click the functions of Phone/ Music/Map/
Information/etc.
Note: When the device for Android Auto is connected to this unit, the device is also
connected via Bluetooth at the same time. If five devices are already paired, the
message confirming whether to delete the registered device is displayed. If you want to
delete the device, touch [Agree]. If you want to delete other device, touch [BT Settings]
and delete the devices manually.
Note: If Android Auto is turned on during a call on a cellular phone other than the
Android Auto compatible device, the Bluetooth connection will switch to the Android
Auto compatible device after the call.
22
DCPA1013
Exiting Android Auto
To exit Android Auto, press the Exit button. Disconnecting your Android phone will
automatically exit Android Auto mode.
Android Auto™ Operation

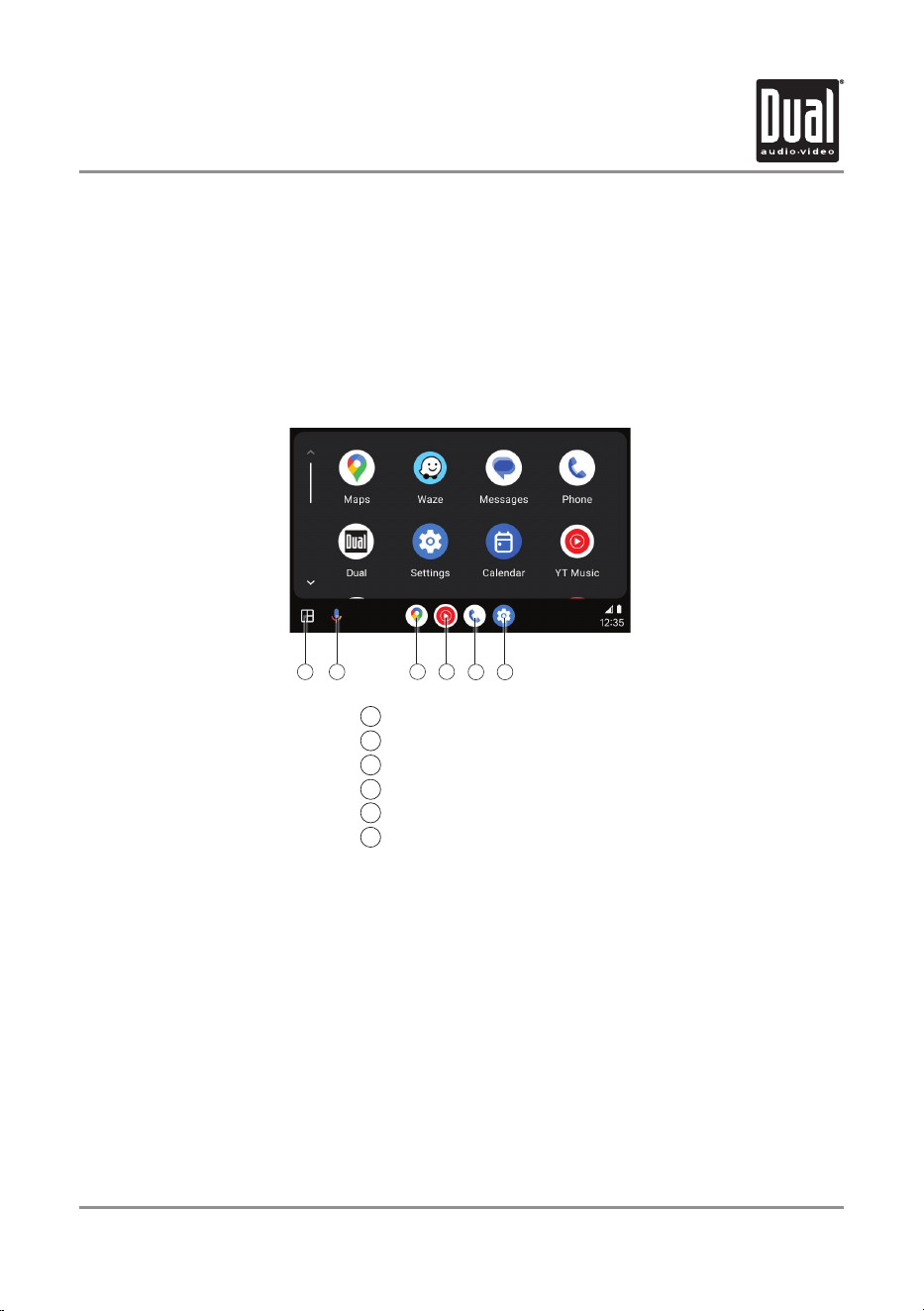

Using Android Auto
The Android Auto home screen displays personalized information, like time to your
destination, reminders, recent calls incoming messages, the song you're listening to,
and Google Now cards.
When the Android Auto menu is displayed, you can say "OK Google" or select the
microphone in the upper right corner to talk to Google.
3
21
4
Recent Apps
Google Assistant
Google Maps
YouTube
Phone
Settings
1
2
3
4
5 6
5
6
23
DCPA1013
Rear RCA Input
Front and Rear Camera Operation - (Optional)
Connect an optional audio/video source into the RCA (rear) input.
Adjust volume on the external audio source as needed (if connected
to the headphone output of the device).
Connect an optional camera to the front or rear Camera Input. Refer
to the wiring diagram for details.
The unit will automatically select camera mode when connected to
the reverse lamp circuitry.
Touch the CAMERA icon on the Main Menu (when enabled) to select
camera mode. Touch the top left area of the screen to return to the
Main Menu to turn this feature off.
Note: The manual mode is for dedicated cameras that are connected
to the 12VDC+ ignition wire and are always on while driving, it is not
meant for cameras that are connected to the vehicle's reverse light.
A/V IN
Using the Cameras
Auto Selection
Adjusting Front and Rear Camera Screen Image
If your front or rear cameras appear to have a reversed image on the radio’s display, go into the
Camera section in the Settings menu to reverse the image of the camera. To do this, toggle the "Rear
Camera View Reverse" or "Front Camera View Reverse" function to correct the viewing angle of the
camera(s).
24
DCPA1013
SWC Input Operation
The built-in SWC Interface is compatible with PAC steering wheel control modules.
The PAC SWI-RC is recommended. A third-party adapter must be used in order for the
DCPA1013 to be compatible with any steering wheel controls. The following controls
are available for most vehicles.
1. Reset 4. Seek/Track Down (-) 7. Volume Down (-) 10. BT End
2. Mode 5. Mute 8. Band
3. Seek/Track Up (+) 6. Volume Up (+) 9. BT Talk
PAC SWI-RC Installation Hints
1. Set "Radio Select Switch". Set the SWI-RC to position 7 - "Pioneer/Other/Sony".
2. To program, use the Pioneer/Sony/Other radio function mapping order for DUAL units.
3. When programming the SWI-RC, if a function is not supported (or not desired), then the
function MUST be skipped as per the PAC SWI-RC instructions.
4. The SWC function MUST be programmed in the correct order per the PAC SWI-RC radio
function mapping order instructions.
Function
Order
Function
Mapping
SWI-RC (3.3VDC Reference)
Center Pin (Ring)
Voltage
(Function Select)
Tip Pin Voltage
1 Reset
2 Mode
3 Seek + / Track + H 3.3v 0.6
4 Seek - / Track - H 3.3v 1.81
5 Mute H 3.3v 1.01
6 Volume + H 3.3v 2.07
7 Volume - H 3.3v 2.32
8 Band H 3.3v 2.73
9 BT Talk L 0.0V 0.60
10 BT End L 0.0V 1.01
Note: Not all OE steering wheel functions may be supported by the DCPA1013.
25
DCPA1013
Troubleshooting
General
Problem Cause Action
Unit will not turn on
(no power)
Yellow wire not connected or incorrect
voltage Red wire not connected or incorrect
voltage
Check connections for proper voltage (11~16VDC)
Black wire not connected Check connection to ground
Fuse blown Replace fuse(s)
Unit has power
(but no sound)
Speaker wires not connected Check connections at speakers
One or more speaker wires touching each
other or touching chassis ground
Insulate all bare speaker wires from each other and
chassis ground
Unit blows fuse(s)
Yellow or red wire touching chassis ground Check for pinched wire
Speaker wires touching chassis ground Check for pinched wire
Incorrect fuse rating Use fuses with correct rating
Unit has audio
(but no video)
Parking brake safety circuit not connected
Parking brake not applied
Check connections at parking brake
Apply parking brake as described on page 26
IR remote does not work Dead battery Replace battery
Please keep your original sales receipt and be prepared to provide this receipt
in the event you require service, as your original receipt is considered the best
proof of purchase and indicates the date you purchased your Dual product.
Dealer Name
Dealer Phone
Purchase Date
Register your product online at www.dualav.com.
For Your Records
Register Your Product
26
DCPA1013
Specifications
FM Tuner
AM Tuner
Rear USB
Monitor
General
Tuning range: 87.5MHz-107.9MHz
Usable sensitivity: 10dBf
50dB quieting sensitivity: 20dBf
Stereo separation @ 1kHz: 38dB
Frequency response: 30Hz-13kHz
Tuning range: 530kHz-1710kHz
Usable sensitivity: 24uV
Frequency response: 30Hz-2.3kHz
Compatibility: High Speed USB 2.0
USB Class: Mass storage class
Panel size: 10.1” diagonal measurement
View angle (up/down/left/right): 50/70/70/70
Resolution: 1024 (H) x 600 (V)
Brightness (cd/m
2
): 500
Contrast ratio: 500:1
Pixels: 1,152,000
Speaker output impedance: 4 ohms
Line output voltage: 2 volt RMS
Line output impedance: 200 ohms
Chassis dimensions: 7" X 4.1" X 2" (W x D x H)
Design and specifications subject to change without notice.
CEA-2006 Power Standard Specifications
(reference: 14.4VDC +/- 0.2V, 20Hz~20kHz)
Power Output: 16 Watts RMS x 4 channels at 4 ohms and < 1%
THD+N
Signal to Noise Ratio: 80dBA (reference: 1 watt into 4 ohms)
27
DCPA1013
Limited One Year Warranty
This warranty gives you specific legal rights. You
may also have other rights which vary from state
to state.
Dual Electronics Corp. warrants this product to
the original purchaser to be free from defects in
material and workmanship for a period of one
year from the date of the original purchase.
Dual Electronics Corp. agrees, at our option,
during the warranty period, to repair any defect in
material or workmanship or to furnish an equal
new, renewed or comparable product (whichever
is deemed necessary) in exchange without
charges, subject to verification of the defect or
malfunction and proof of the date of purchase.
Subsequent replacement products are warranted
for the balance of the original warranty period.
Who is covered? This warranty is extended to the
original retail purchaser for products purchased
from an authorized Dual dealer and used in the
U.S.A.
What is covered? This warranty covers all
defects in material and workmanship in this
product. The following are not covered: software,
installation/removal costs, damage resulting
from accident, misuse, abuse, neglect, product
modification, improper installation, incorrect line
voltage, unauthorized repair or failure to follow
instructions supplied with the product, or damage
occurring during return shipment of the product.
Specific license conditions and copyright notices
for the software can be found via www.dualav.com.
.
What to do?
1. Before you call for service, check the
troubleshooting guide in your owner’s manual.
A slight adjustment of any custom controls may
save you a service call.
2. If you require service during the warranty
period, you must carefully pack the product
(preferably in the original package) and ship
it by prepaid transportation with a copy of the
original receipt from the retailer to an
authorized service center.
3. Please describe your problem in writing and
include your name, a return UPS shipping
address (P.O. Box not acceptable), and a
daytime phone number with your shipment.
4. For more information and for the location of
the nearest authorized service center please
contact us by one of the following methods:
• Call us toll-free at 1-866-382-5476
• E-mail us at cs@dualav.com
Exclusion of Certain Damages: This warranty
is exclusive and in lieu of any and all other
warranties, expressed or implied, including
without limitation the implied warranties of
merchantability and fitness for a particular
purpose and any obligation, liability, right, claim or
remedy in contract or tort, whether or not arising
from the company’s negligence, actual or imputed.
No person or representative is authorized to
assume for the company any other liability in
connection with the sale of this product. In no
event shall the company be liable for indirect,
incidental or consequential damages.
28
DCPA1013
Notes
Dual Electronics Corp.
Toll Free: 1-866-382-5476
Monday-Friday, 9AM-5PM EST
www.dualav.com
©2024 Dual Electronics Corp. All rights reserved.
NSC0224-V01
