PLANNING GUIDE
76CM BUILT-IN OVENS ANDCOMPANIONS
PROFESSIONAL
SERIES 9 & 11
DOUBLE OVEN | OB76DPPTX1
OVEN | OB76SPPTX1
STEAM OVEN | OS76NPTX1
SPEED OVEN | OM76NPTX1
BUILT-IN COFFEE MAKER | EB76PSX1
WARMING DRAWER | WB76SPEX1
background
© FISHER & PAYKEL LIMITED 2024 PAGE 290003341E PLANNING GUIDE COOKING - VERSION E - SEPTEMBER 2024
PLANNING GUIDE | OVENS AND COMPANIONS, 76CM
This comprehensive Planning Guide provides you with the framework and tools to achieve your desired design outcome with Fisher & Paykel appliances. In this guide, you will
find a range of conceptual, detailed and dimensional product information to bring your ideas to life and create spaces that truly reflect your vision.
CONCEPT DESIGN PAGE DEVELOPED AND DETAILED DESIGN PAGE
CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
Design Choices
Ovens and Companions - ALL MODELS 4
Configurations - ALL MODELS 5
Overview - ALL MODELS 6
Specification Guides
Double Oven 8
Oven 9
Built-in Coee Maker 10
Combination Steam Oven 11
Combination Microwave Oven 12
Warming Drawer 13
Dimensions - ALL MODELS 14
Power, Weight and Capacity - ALL MODELS 15
Data Sheets
Double Oven 17
Oven 18
Built-in Coee Maker 19
Combination Steam Oven 20
Combination Microwave Oven 21
Warming Drawer 22
Planning Considerations
Cabinetry Preparation - ALL MODELS 24
Configurations - ALL MODELS 25
Double Oven 26
Oven 27
Built-in Coee Maker 28
Combination Steam Oven 30
Combination Microwave Oven 31
Warming Drawer 32
Services
Power Cord Length and Location - COMPANIONS 34
Power Cord Length and Location -
STEAM + MICROWAVE 35
Power Cord Length and Location - OVENS 36
DEVELOPED AND DETAILED DESIGN PAGE
i
i
background
© FISHER & PAYKEL LIMITED 2024 PAGE 390003341E PLANNING GUIDE COOKING - VERSION E - SEPTEMBER 2024
DESIGN CHOICES
Design Choices
background
© FISHER & PAYKEL LIMITED 2024 PAGE 490003341E PLANNING GUIDE COOKING - VERSION E - SEPTEMBER 2024
DESIGN CHOICES | OVENS AND COMPANIONS, 76CM ALL MODELS

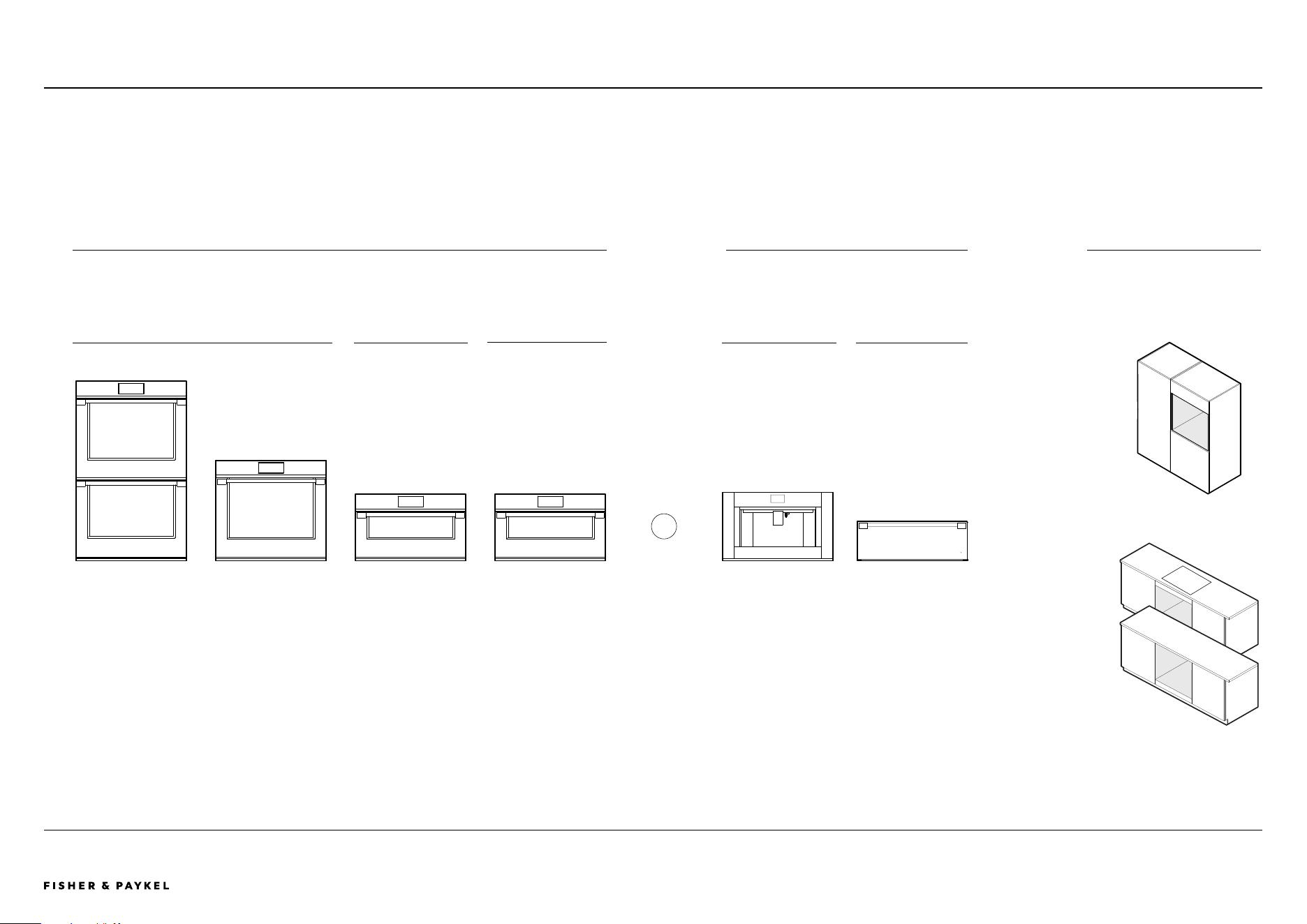

Ovens and Companions - ALL MODELS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
+

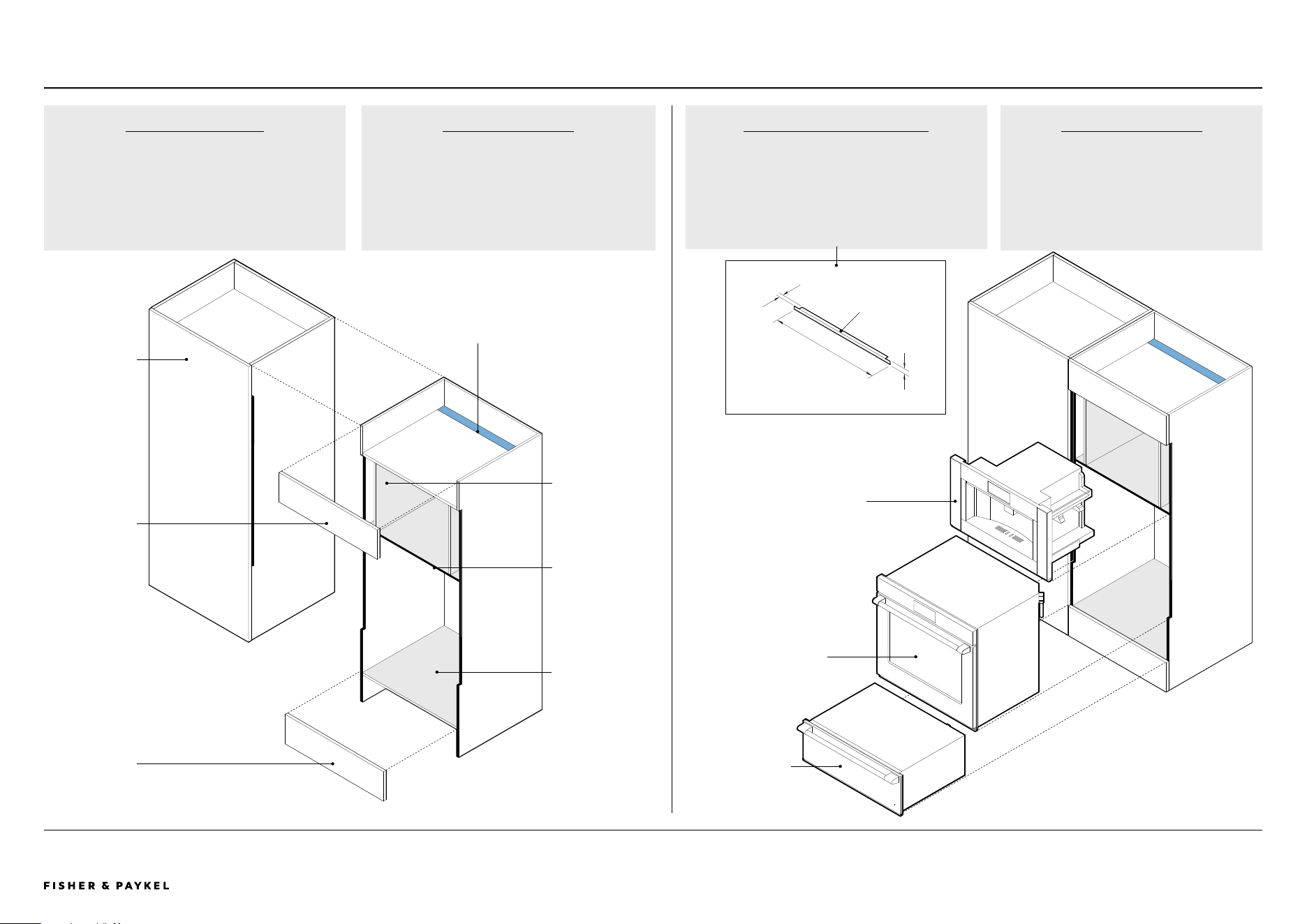

INSTALLATION IN WALL
INSTALLATION
UNDER-BENCH
OVEN COMBINATION STEAM
COMBINATION
MICROWAVE
BUILT-IN COFFEE
MAKER
WARMING DRAWER
INSTALLATION OPTIONSOVENS COMPANIONS
<< CONTENTS
background
© FISHER & PAYKEL LIMITED 2024 PAGE 590003341E PLANNING GUIDE COOKING - VERSION E - SEPTEMBER 2024
STACKED INSTALLATION GRID INSTALLATION
ROW INSTALLATION
CONSIDERATIONS
Different configurations possible,
consider heights for row and grid
installations.
Note: Stack Height is overall product height with minimum clearance above appliance front panel to upper cabinetry front panel or appliance.
Stack Height
1191mm
Stack Height
1234mm
ALL MODELSDESIGN CHOICES | CONFIGURATIONS, 76CM
Configurations - ALL MODELS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
Stack Height
1167mm
Stack Height
1410mm
Stack Height
1410mm
Stack Height
692mm
Stack Height
719mm
Stack Height
1435mm
<< CONTENTS
background
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 690003341E PLANNING GUIDE COOKING - VERSION E - SEPTEMBER 2024
DESIGN CHOICES | OVERVIEW, 76CM ALL MODELS
Overview - ALL MODELS
AU-NZ Professional
FRONT ELEVATION
WARMING DRAWER COMBINATION MICROWAVE OVEN COMBINATION STEAM OVEN BUILT-IN COFFEE MAKER OVEN DOUBLE OVEN
Series Series 9 Series 9 Series 9 Series 9 Series 9 Series 9
Model Code WB76SPEX1 OM76NPTX1 OS76NPTX1 EB76PSX1 OB76SPPTX1 OB76DPPTX1
Interface - 5" Touchscreen 5" Touchscreen 4.3" Touchscreen 5" Touchscreen 5" Touchscreen
Height 271mm 458mm 458mm 470mm 689mm 1232mm
Front Panel Thickness 20mm 30mm 30mm 40mm 40mm 40mm
SIDE ELEVATION
Front Panel Thickness
20mm
30mm
40mm
AU-NZ Professional
<< CONTENTS
background
© FISHER & PAYKEL LIMITED 2024 PAGE 790003341E PLANNING GUIDE COOKING - VERSION E - SEPTEMBER 2024
SPECIFICATION GUIDE
SERIES 9 & 11
Specification Guides
background
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 890003341E PLANNING GUIDE COOKING - VERSION E - SEPTEMBER 2024
SPECIFICATION GUIDE | DOUBLE OVEN, 76CM

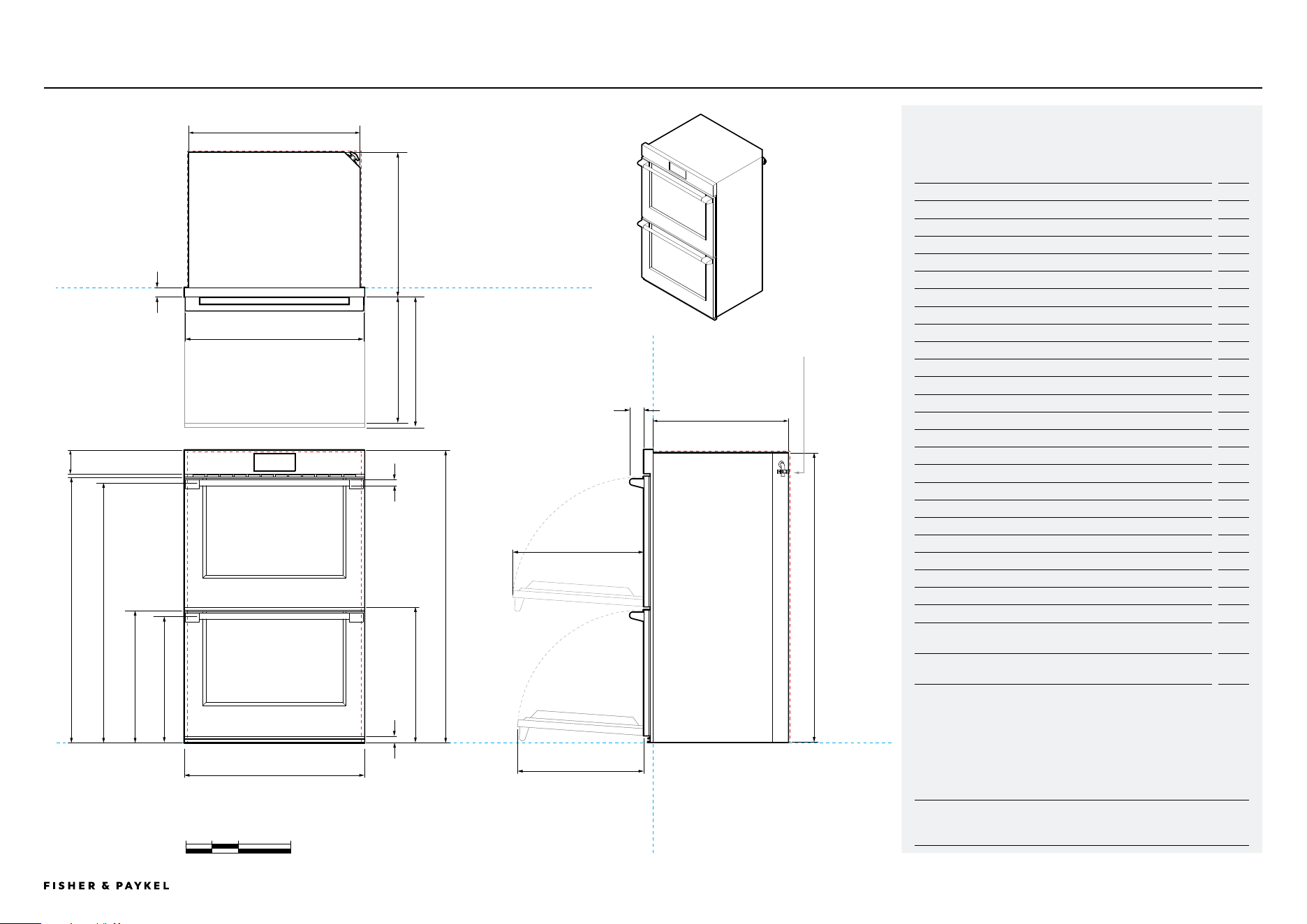

Double Oven
OVERVIEW
Complete your Professional-style kitchen with this 76cm
Double Oven. It matches perfectly with any of our
Professional kitchen appliances to deliver the feel of a
commercial kitchen in the home. Intuitive controls and the
performance to deliver perfect results make this double
oven beautiful to use.
PRODUCTS
OB76DPPTX1
Double Oven, 76cm, 17 Function, 115L + 115L, Touchscreen,
Stainless Steel
SERIES & STYLE
Series 9
Professional
FEATURES
1
Designed to fit flush with cabinetry
2 Designed to match the rest of Fisher & Paykel's
Professional style family of appliances
3 Generous 115L per oven, 230L total capacity
4 High-resolution, user-friendly 5" touch display
5 Guided cooking and recipes
6 Perfect results from a variety of oven functions
7 Even heat distribution throughout with AeroTech™
technology
8 Self-cleaning
9 CoolTouch door
"0 Wi-Fi/Connected capability through the SmartHQ™
app
ACCESSORIES
1
Full Extension Sliding Shelves*
2 Self-cleaning-proof side racks*
3 Roasting dish, tray and rack*
4 Wired Temperature Sensor*
*Included with product
OB76DPPTX1
<< CONTENTS
background
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 990003341E PLANNING GUIDE COOKING - VERSION E - SEPTEMBER 2024

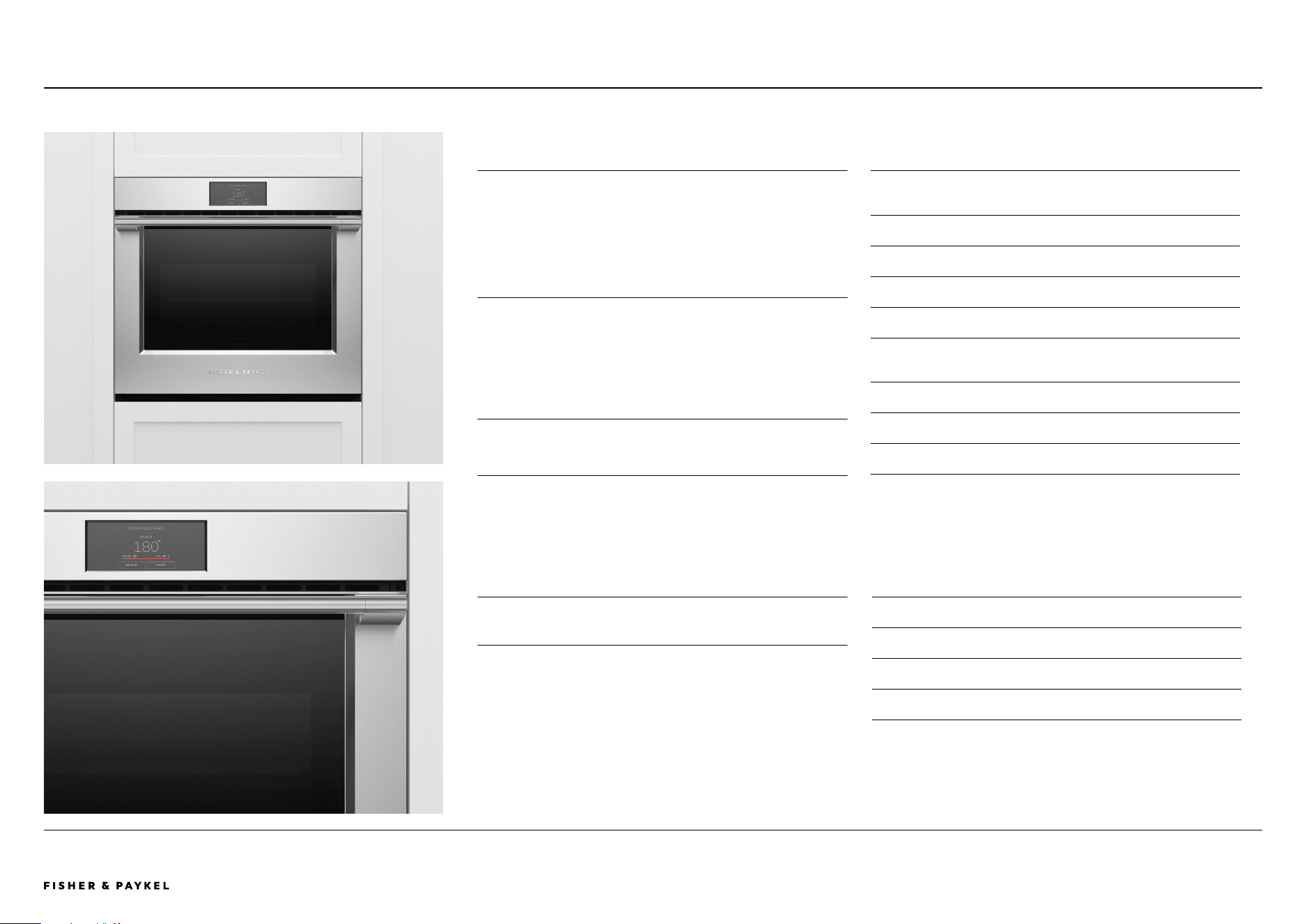

SPECIFICATION GUIDE | OVEN, 76CM
Oven
OVERVIEW
Complete your Professional-style kitchen with this 76cm
Oven. It matches perfectly with any of our Professional
kitchen appliances to deliver the feel of a commercial kitchen
in the home. With intuitive controls and the performance to
deliver perfect results, this oven is beautiful to use.
PRODUCTS
OB76SPPTX1
Oven, 76cm, 17 Function, 115L, Touchscreen, Stainless Steel
SERIES & STYLE
Series 9
Professional
FEATURES
1
Designed to match the rest of Fisher & Paykel's
Professional style family of appliances
2 Generous 115L total capacity
3 Intuitive, large 5" touchscreen display with illuminated dial
4 Guided cooking and recipes
5 Perfect results from a variety of oven functions
6 Even heat distribution throughout with AeroTech™
technology
7 Self-cleaning
8 CoolTouch door
9 Wi-Fi/Connected capability through the SmartHQ™ app
ACCESSORIES
1
Full Extension Sliding Shelves*
2 Self-cleaning-proof side racks*
3 Roasting dish, tray and rack*
4 Wired Temperature Sensor*
*Included with product
OB76SPPTX1
<< CONTENTS
background
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 1090003341E PLANNING GUIDE COOKING - VERSION E - SEPTEMBER 2024
SPECIFICATION GUIDE | BUILT-IN COFFEE MAKER, 76CM

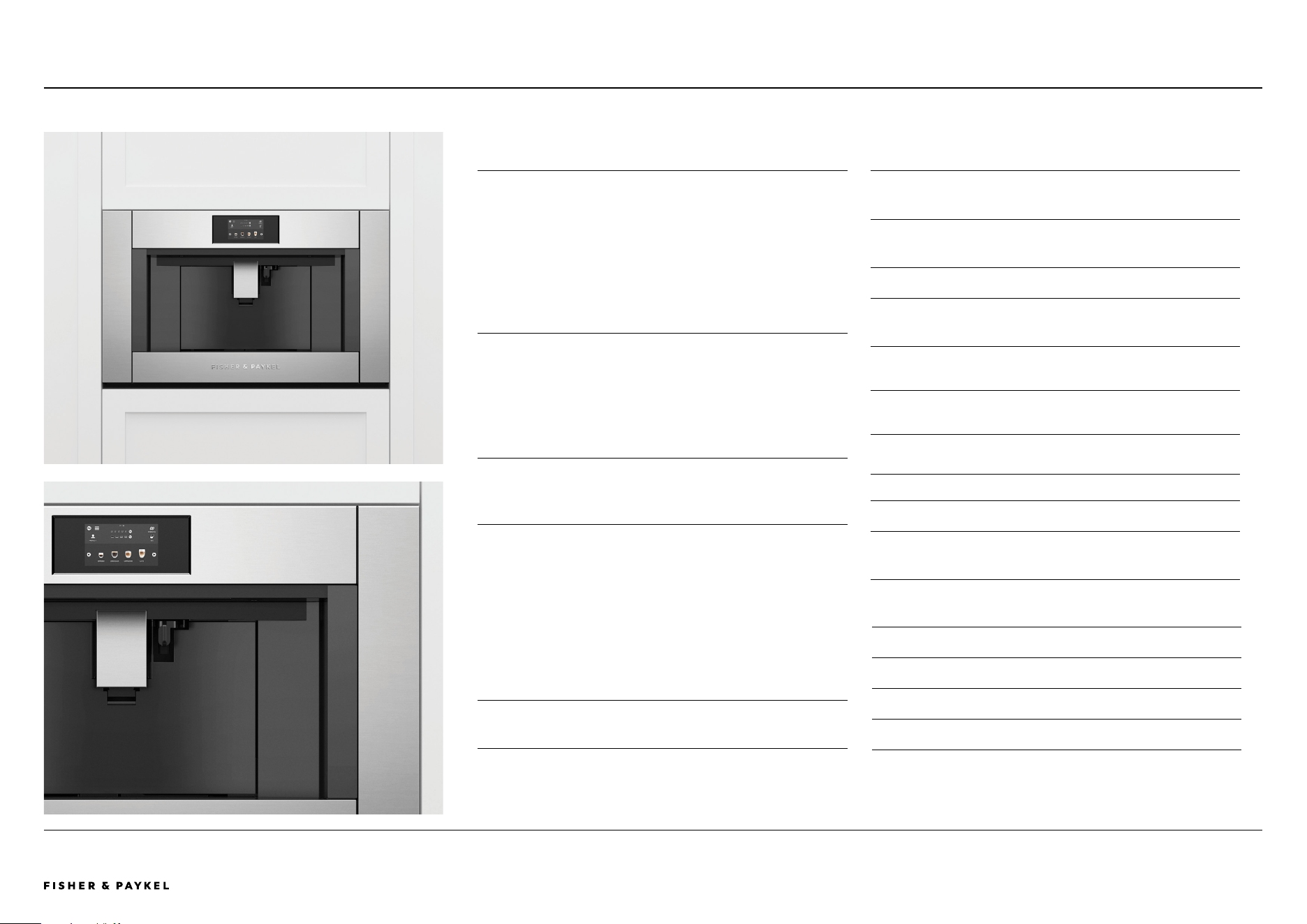

Built-in Coee Maker
OVERVIEW
Designed to complement our Professional style oven and
warming drawer, this built-in coee maker seamlessly
integrates into any kitchen design with a stylish stainless
steel finish. Beautiful to use, it has an intuitive touch display
with 13 dierent beverage options to suit individual taste and
selection – from Espresso to Latte. Pair with other
companion products to create a kitchen suite for every need.
PRODUCTS
EB76PSX1
Built-in Coee Maker, 76cm, 4.3" Touchscreen, Stainless Steel
Note: The models shown in this guide may not be available in all markets and are
subject to change at any time.
SERIES & STYLE
Series 9
Professional
FEATURES
1
Part of our suite of companion products, designed to
match aesthetically for flexible configurations
2 Pairs perfectly with the Professional style 76cm Oven and
Warming Drawer
3 Intuitive touch display for ease of use
4 13 beverage options to suit individual taste and selection –
from Americano to Latte
5 Personalized coffee and smart self-learning menu
preferences
6 Stainless steel conical burr grinder with 13 grind coarseness
positions
7 Self-cleaning function, with a removable drip tray and
waste container
8 2.5L water tank capacity
9 15 bar pump pressure
"0 Adjustable coffee strength, temperature and coffee
cup sizes
ACCESSORIES
1
Thermal milk jug*
2 Extractable steam outlet*
3 Coffee spoon*
4 Descaling agent and water filter*
*Included with product
EB30PSX1
<< CONTENTS
background
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 1190003341E PLANNING GUIDE COOKING - VERSION E - SEPTEMBER 2024

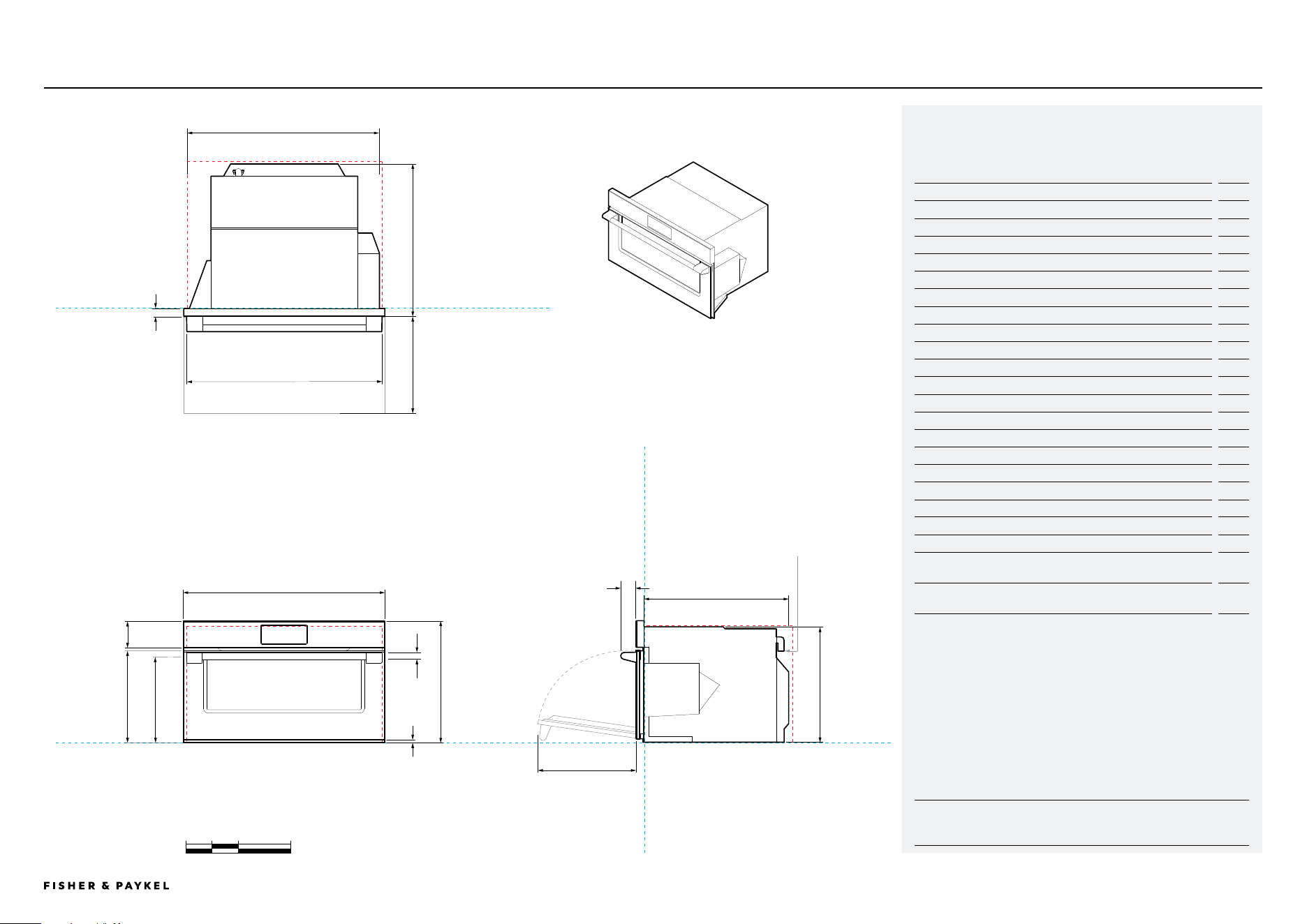

Combination Steam Oven
SPECIFICATION GUIDE | COMBINATION STEAM OVEN, 76CM
OS76NPTX1
OVERVIEW
With striking Professional styling, the Combination Steam
Oven fits seamlessly into any kitchen. As a companion
product, this Steam Oven is designed to install easily and fit
perfectly with other companion products. It features 23
functions, including steam-only, convection-only, or a
combination of both. Reduce the need for oils and fats with
six standalone steam functions, perfect for creating
flavourful and healthy restaurant-quality meals at home.
PRODUCTS
OS76NPTX1
Combination Steam Oven, 76cm, 23 Function
SERIES & STYLE
Series 9
Professional
FEATURES
1
Professional style, designed to fit flush with cabinetry
2 Generous 55L total capacity with four shelf positions
3 Intuitive, large 5" touchscreen display
4 23 oven functions including Steam, Sous Vide, Air Fry and
Crisp Regenerate
5 Guided touchscreen cooking makes it simple to cook by
food, function or recipe
6 Moisture control and even heat distribution thanks to
ActiveVent and AeroTech™ technology
7 1.4L water tank
8 Wi-Fi enabled and works with the SmartHQ™ app for
remote control and notifications
9 Steam Clean function ensures a spotless oven with minimal
effort
"0 Soft open and close door
ACCESSORIES
6
Perforated Large Steam Dish*
7 Perforated Small Steam Dish*
8 Large Steam Dish*
9 Wired Temperature Sensor*
"0 Catalytic Panel*
"1 Descale solution* - 2 sachets (Part 580925)
*Included with product
ACCESSORIES
1
Full Extension Sliding Shelf*
2 Wire Shelf*
3 Flat Brushed Baking Tray*
4 Roasting Dish*
5 Grill Rack*
<< CONTENTS
background
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 1290003341E PLANNING GUIDE COOKING - VERSION E - SEPTEMBER 2024

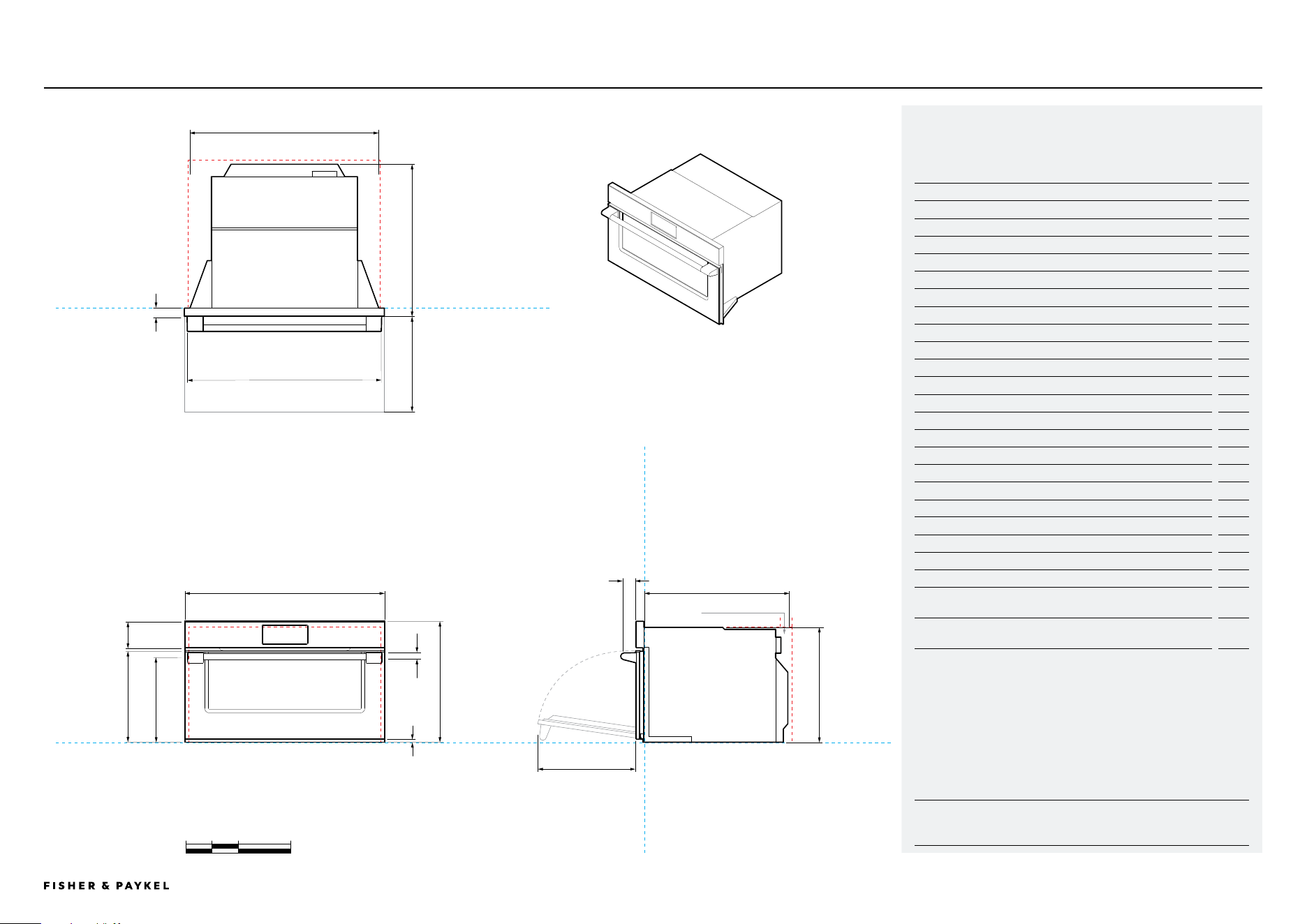

Combination Microwave Oven
OM76NPTX1
SPECIFICATION GUIDE | COMBINATION MICROWAVE OVEN, 76CM
OVERVIEW
With striking Professional styling, the Combination
Microwave Oven fits seamlessly into any kitchen. As a
companion product, this Microwave Oven is designed to
install easily and fit perfectly with other companion products
such as the Combination Steam Oven. A flexible appliance
that pairs the speed of microwave cooking with oven
technology, which can crisp and brown as it cooks. Featuring
22 cooking functions on an intuitive touch display for easy
programming of desired cooking mode and duration.
PRODUCTS
OM76NPTX1
Combination Microwave Oven, 76cm, 22 Function
SERIES & STYLE
Series 9
Professional
FEATURES
1
Professional style for a bold statement
2 49L total capacity
3 Intuitive, large 5" touchscreen display
4 Four microwave-only functions, 14 traditional oven
functions, and four combination functions
5 A Wired Temperature Sensor precisely monitors cooking in
real time
6 Guided cooking, with the option to access additional
functionality via the SmartHQ™ app
7 Wi-Fi/Connected capability through the SmartHQ™ app
8 Soft open and close door
ACCESSORIES
1
Wire Shelf*
2 Chrome Shelf Runners*
3 Step Down Wire Shelf*
4 Grill Rack*
5 Glass Tray*
6 Wired Temperature Sensor*
*Included with product
<< CONTENTS
background
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 1390003341E PLANNING GUIDE COOKING - VERSION E - SEPTEMBER 2024
SPECIFICATION GUIDE | WARMING DRAWER, 76CM

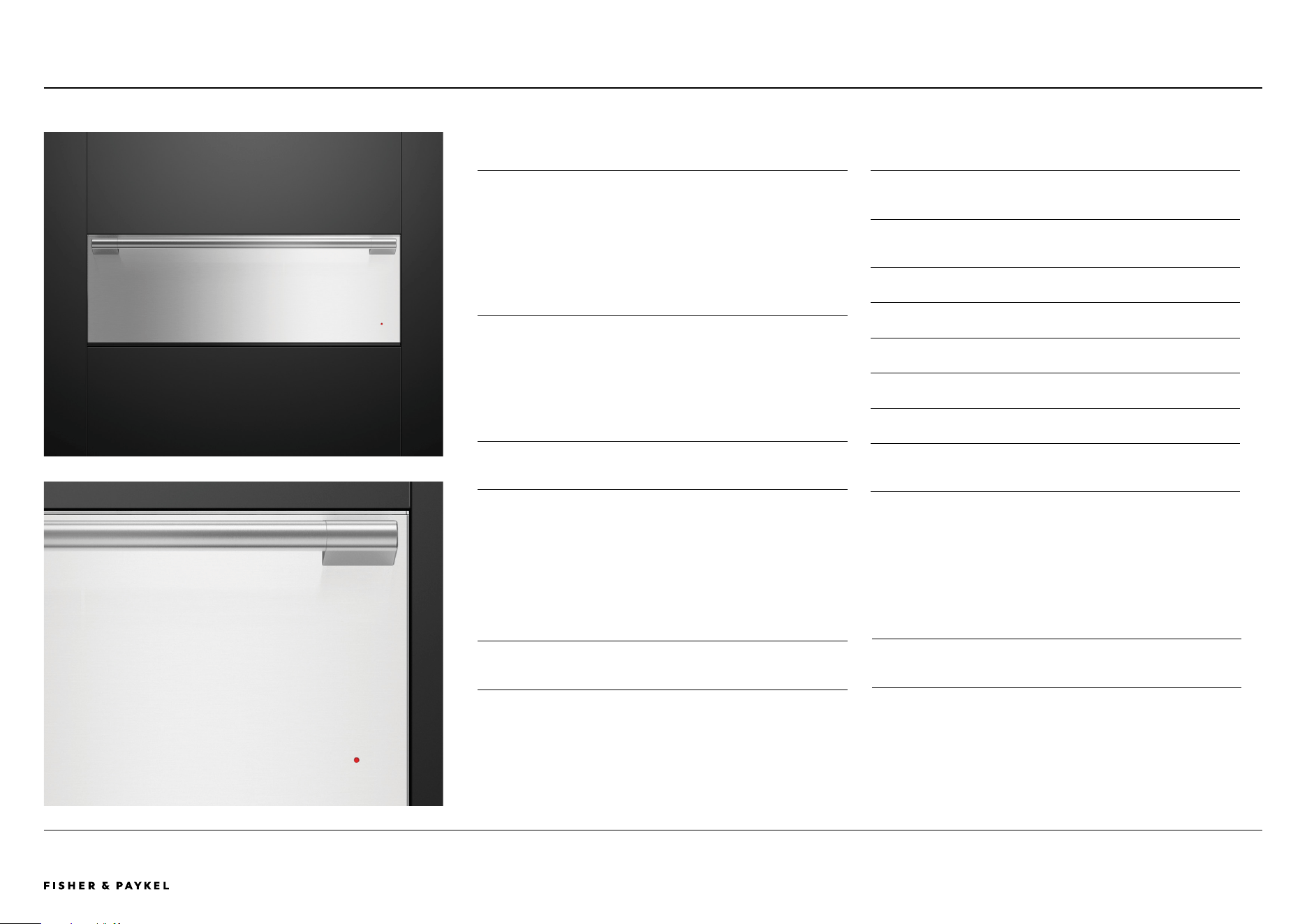

Warming Drawer
WB76SPEX1
OVERVIEW
Designed to complement our Professional style kitchen
appliances, this warming drawer has a brushed stainless
steel handle, and is soft-close for a coherent, considered
look. Beautiful to use, with capacitive touch controls and six
tailored functions for warming, proofing, dehydrating and
slow cook. Pair with other companion products to create a
kitchen suite for every need.
PRODUCTS
WB76SPEX1
Warming Drawer, 76cm, Stainless Steel
SERIES & STYLE
Series 9
Professional
FEATURES
1
Styled to perfectly match our Professional kitchen
appliances
2 Seamless pairing with other companion products in
brushed stainless steel
3 Soft-close drawer
4 Easy-to-use capacitive touch controls
5 Automatic timing and switch-off functionality
6 Easy-to-clean, smooth-glass base
7 Room for 16 standard-sized place settings
8 Versatile with six tailored programmes for warming,
proofing, dehydrating and slow cook
ACCESSORIES
1
Accessory rack for optimizing space*
*Included with product
<< CONTENTS
background
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 1490003341E PLANNING GUIDE COOKING - VERSION E - SEPTEMBER 2024
WARMING DRAWER
WB76SPEX1
COMBINATION MICROWAVE OVEN
OM76NPTX1
COMBINATION STEAM OVEN
OS76NPTX1
BUILT-IN COFFEE MAKER
EB76PSX1
OVEN
OB76SPPTX1
DOUBLE OVEN
OB76DPPTX1

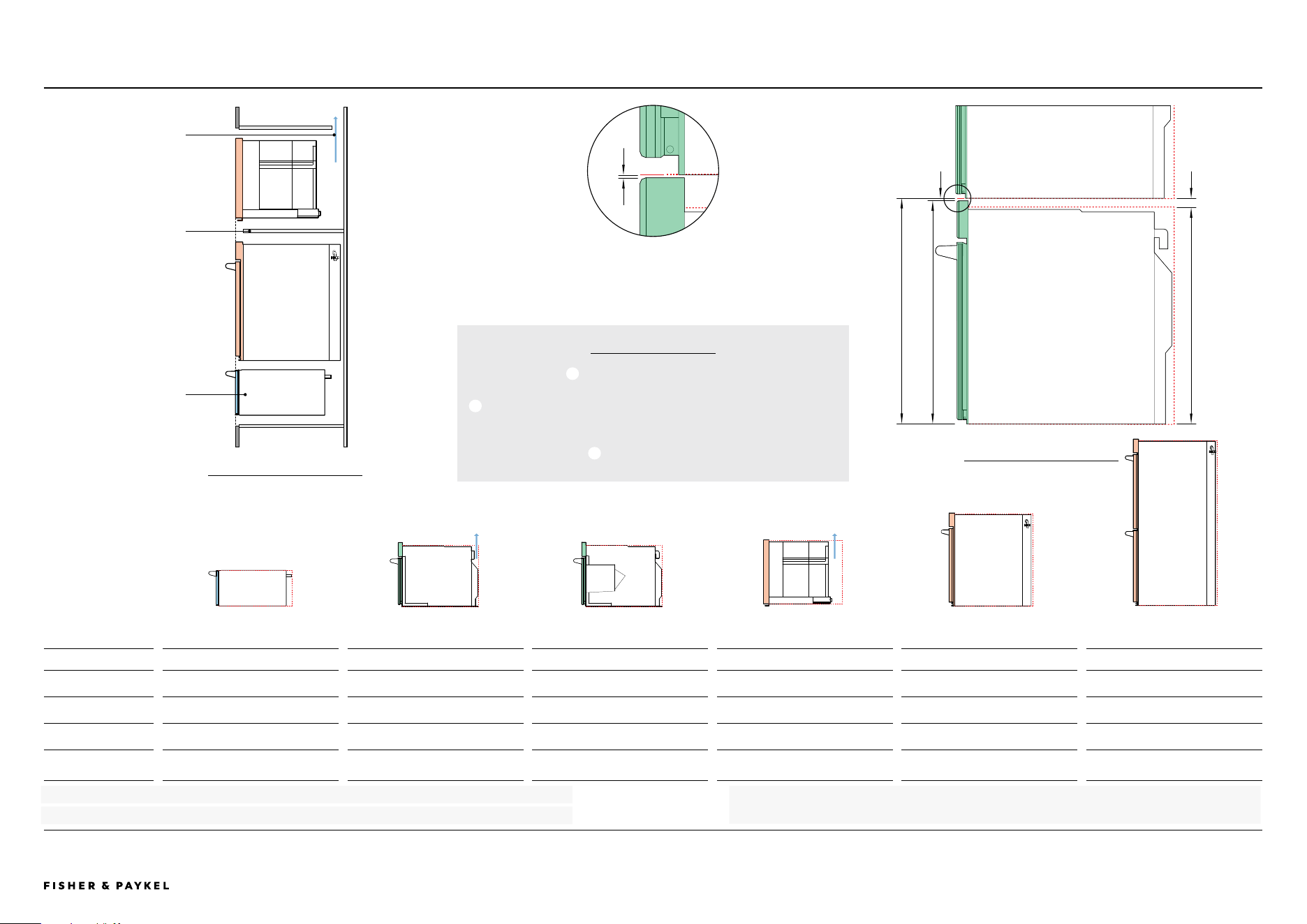

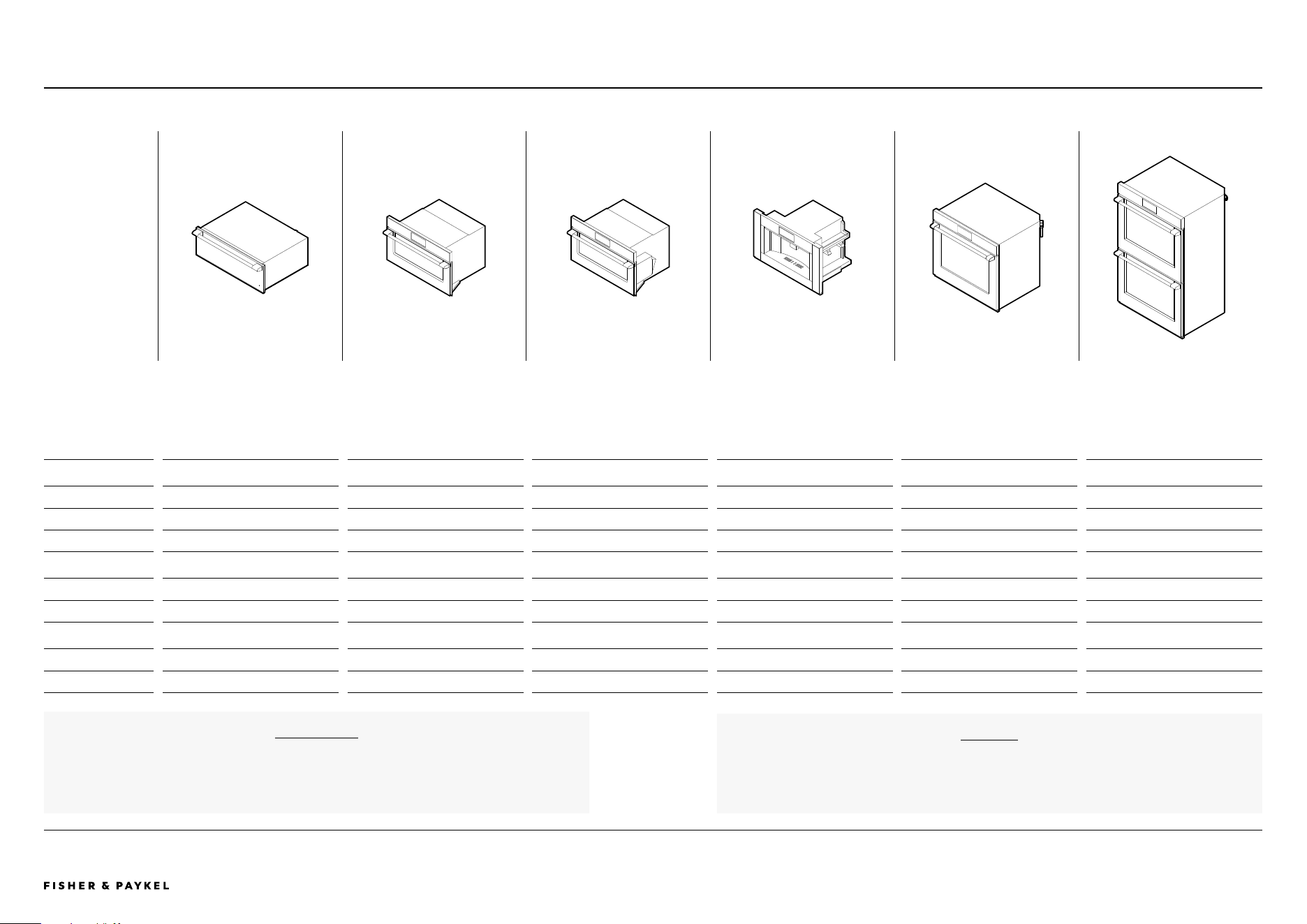

PRODUCT DIMENSIONS
A Overall height 271mm 458mm 458mm 470mm 690mm 1232mm
B Overall width 760mm 757mm 757mm 757mm 757mm 757mm
C Chassis height 271mm 435mm 435mm 442mm 674mm 1218mm
D Chassis width 707mm 720mm 720mm 560mm 720mm 720mm
E Chassis depth 547mm Including power plug 545mm 545mm 445mm 569mm 569mm
F Front panel thickness 20mm 30mm 30mm 40mm 40mm 40mm
Depth of oven door
fully open
-
320mm
* 320mm*
-
550mm
*
Upper door 550mm*
Lower door 530mm*

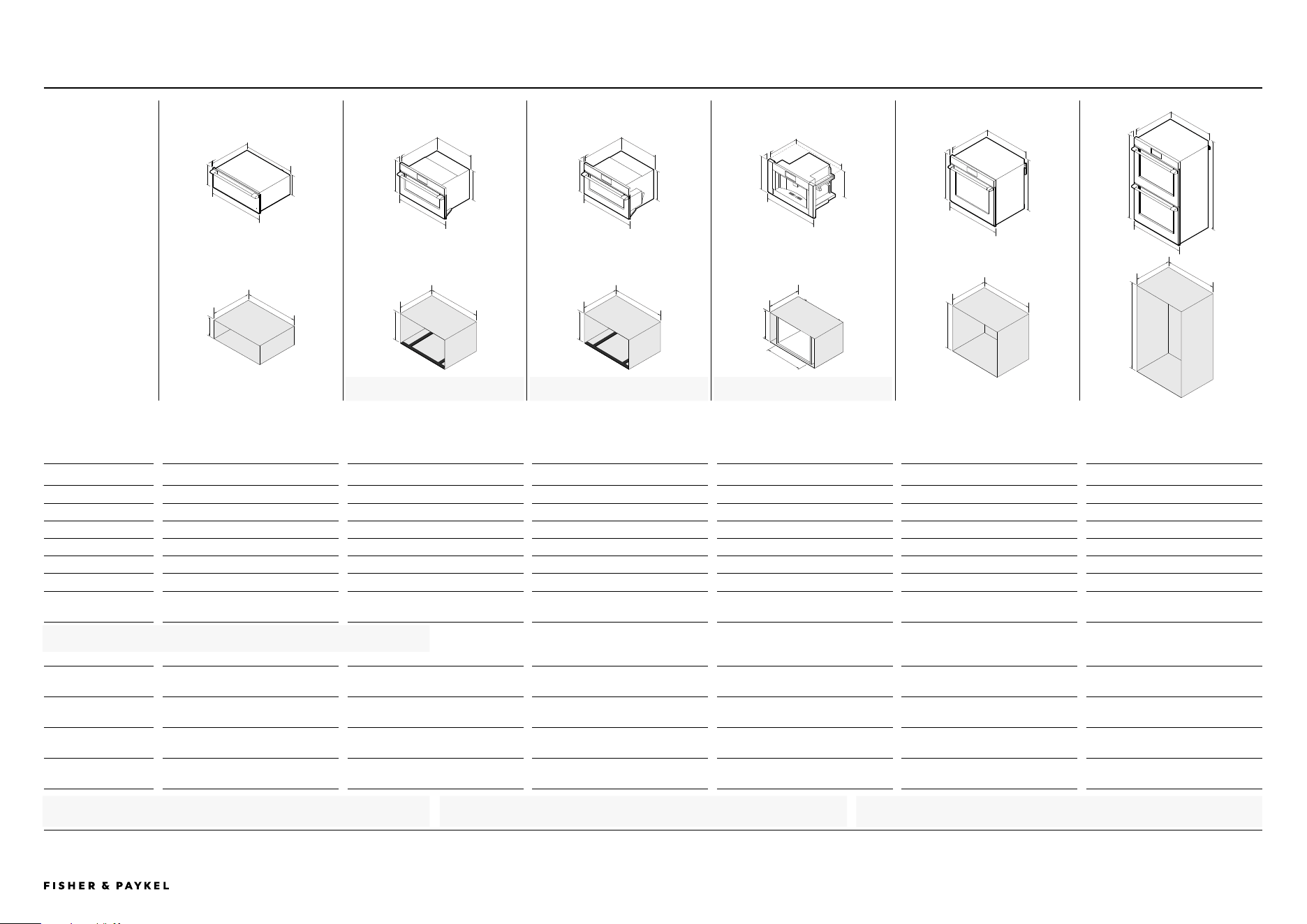

CAVITY DIMENSIONS
G Minimum inside height
of cavity
273mm
*
446mm height includes spacer thickness 446mm height includes spacer thickness
466mm height includes spacer
thickness
***
26 13/16" (681mm) 48 3/16" (1224mm)
H Minimum inside width
of cavity
724mm 724mm 724mm 560mm 28 1/2" (724mm) 28 1/2" (724mm)
I Minimum inside depth
of cavity
Proud 560mm
Flush 580mm
Proud 550mm
**
Flush 580mm**
Proud 550mm
Flush 580mm
Proud 545mm
**
Flush 585mm**
Proud 22 5/8" (575mm)
Flush 24 3/16" (615mm)
Proud 22 5/8" (575mm)
Flush 24 3/16" (615mm)
Recommened cabinet
width
764mm 764mm 764mm 764mm 30 1/16" (764mm) 30 1/16" (764mm)
SPECIFICATION GUIDE | DIMENSIONS
PRODUCT
DIMENSIONS
CAVITY
DIMENSIONS
A
B
e
f
d
c
g
h
I
Dimensions - ALL MODELS
ALL MODELS
6mm Spacer (Supplied)
16mm additional panel and 16-20mm side
walls required
*Measured from front of control panel
*Drawers can fully support 30inch Fisher & Paykel wall oven, without
adding shelf in between
**Requires ventilation at the rear of the cavity ***Spacer required only for standalone installation
6mm Spacer (Supplied)
A
B
e
f
d
c
g
h
I
g
h
I
A
B
e
f
d
c
A
B
e
f
d
c
g
h
I
g
h
I
A
B
e
f
d
c
A
B
e
f
d
c
g
h
I
<< CONTENTS
background
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 1590003341E PLANNING GUIDE COOKING - VERSION E - SEPTEMBER 2024
For more infomation on cord length, water supply and electrical requirements, refer to the
'Services' section of this Planning Guide.
SERVICES
WARMING DRAWER
WB76SPEX1
CONVECTION SPEED OVEN
OM76NPTX1
COMBINATION STEAM OVEN
OS76NPTX1
BUILT-IN COFFEE MAKER
EB76PSX1
OVEN
OB76SPPTX1
DOUBLE OVEN
OB76DPPTX1
POWER REQUIREMENTS
Supply 220-240 V, 50 Hz 220-240 V, 50 Hz 220-240 V, 50 Hz 220-240 V, 50 Hz 220-240 V, 50 Hz 220-240 V, 50 Hz
Service 10 A 20 A 20 A 10 A 20 A 40 A
Connection Flex cord 1800mm Hard wired Hard wired Flex cord 1700mm Hard wired Hard wired
WEIGHT
Packaged 37kg 55kg 55kg 31kg 110kg 184kg
Unpackaged 33kg 46kg 46kg 27kg 76kg 140kg
CAPACITY
Total oven - 49L 55L 49L 115L 115L per oven
Total water tank - - 1.4L 2.5L - -
SPECIFICATION GUIDE | POWER, WEIGHT AND CAPACITY
All Coffee Makers and Steam Ovens have internal water tanks which need to be filled manually.
No external water supply is required.
WATER
Power, Weight and Capacity - ALL MODELS
ALL MODELS
<< CONTENTS
background
© FISHER & PAYKEL LIMITED 2024 PAGE 1690003341E PLANNING GUIDE COOKING - VERSION E - SEPTEMBER 2024
DATA SHEETS
Data Sheets
background
© FISHER & PAYKEL LIMITED 2024 PAGE 1790003341E PLANNING GUIDE COOKING - VERSION E - SEPTEMBER 2024
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm
(1/16''). Please read the Installation Guide for detailed information on
installing the product. For full installation instructions visit fisherpaykel.com
INDICATES PRODUCT DATUM -------------------------------------------
INDICATES CABINETRY CLEARANCES --------------------------------
DATA SHEET | DOUBLE OVEN, 76CM
Double Oven
OB76DPPTX1
g
d
c
s
O
h
K
Q
M
P
s
f
DATUM: FRONT OF CHASSIS
b
757mm
a
1232mm
e
569mm
POWER
OUTLET
LOCATION
DATUM: FRONT OF CHASSIS
PLAN VIEW
FRONT VIEW PROFILE VIEW
DATUM : BOTTOM OF
CHASSIS
Model no:
Double Oven, 76cm - OB76DPPTX1
Product Dimensions
mm
A Overall height of product
1232
B Overall width of product
757
C Depth of control panel (excludes handle)
40
D Depth of chassis and control panel (excludes handle)
609
E Depth of chassis
569
F Height of chassis
1218
G Width of chassis
720
H Height of control panel
100
I Height from bottom datum to top of upper oven door
1118
J Height from bottom datum to centerline upper of handle
1095
K Height from bottom datum to top of lower oven door
557
L Height from bottom datum to centerline of lower handle
533
M Height from bottom datum to bottom of lower door
28
N Height from bottom datum to bottom of upper door
571
O Width of handle (including standoffs)
748
P Depth of handle (including standoffs)
58
Q Thickness of handle (not including standoffs)
25
R Depth of lower door when open (measured from front of door)
530
S Depth of upper door when open (measured from front of door)
550
Minimum Clearances- Proud Installation
mm
Minimum inside height of cavity
1224
Minimum inside width of cavity
724
Minimum inside depth of cavity
575
Minimum clearance above oven control panel to upper cabinetry front
panel or appliance
2
Minimum clearance between bottom of oven chassis to lower cabine-
try front panel or appliance
2
Note: Depending on cabinet panel thickness a rebate around control panel might be required.
IMPORTANT NOTE: For full installation and clearance details please refer to our installation
manual.
R
I
J
L
N
R
Millimeters
0 100 200 400
<< CONTENTS
background
© FISHER & PAYKEL LIMITED 2024 PAGE 1890003341E PLANNING GUIDE COOKING - VERSION E - SEPTEMBER 2024
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm
(1/16''). Please read the Installation Guide for detailed information on
installing the product. For full installation instructions visit fisherpaykel.com
INDICATES PRODUCT DATUM -------------------------------------------
INDICATES CABINETRY CLEARANCES --------------------------------
DATA SHEET | OVEN, 76CM
Oven
OB76SPPTX1
g
d
c
p
l
h
i
j
n
k
m
o
f
DATUM: FRONT OF CHASSIS
b
757mm
a
690mm
e
569mm
POWER
OUTLET
LOCATION
DATUM: FRONT OF CHASSIS
PLAN VIEW
FRONT VIEW PROFILE VIEW
DATUM : BOTTOM OF CHASSIS
Model no:
Oven, 76cm - OB76SPPTX1
Product Dimensions
mm
A Overall height of product
690
B Overall width of product
757
C Depth of control panel (excludes handle)
40
D Depth of chassis and control panel (excludes handle)
609
E Depth of chassis
569
F Height of chassis
675
G Width of chassis
720
H Height of control panel
100
I Height from bottom datum to top of oven door
574
J Height from bottom datum to centerline of handle
551
K Height from bottom datum to bottom of door
26
L Width of handle (including standoffs)
735
M Depth of handle (including standoffs)
58
N Thickness of handle (excluding standoffs)
25
O Depth of door when open (measured from front of door)
550
Minimum Clearances- Proud Installation
mm
Minimum inside height of cavity
681
Minimum inside width of cavity
724
Minimum inside depth of cavity*
575
Minimum clearance above oven control panel to upper cabinetry front
panel or appliance
2
Minimum clearance between bottom of oven chassis to lower cabine-
try front panel or appliance
2
Note:Depending on cabinet panel thickness a rebate around control panel might be required.
Ensure a 5mm minimum clearance is maintained between the top of the oven chassis and
the cabinetry. Ensure the oven is not bearing any weight from cabinetry or products installed
above.
IMPORTANT NOTE: For full installation and clearance details please refer to our installation
manual.
Millimeters
0 100 200 400
<< CONTENTS
background
© FISHER & PAYKEL LIMITED 2024 PAGE 1990003341E PLANNING GUIDE COOKING - VERSION E - SEPTEMBER 2024
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm
(1/16''). Please read the Installation Guide for detailed information on
installing the product. For full installation instructions visit fisherpaykel.com
INDICATES PRODUCT DATUM -------------------------------------------
INDICATES CABINETRY CLEARANCES --------------------------------
EB76PSX1
G
i
h
l
k
j
d
c
a
470mm
b
757mm
f
445mm
SPACERS,
OPTIONAL.
SUPPLIED WITH
COFFEE MAKER
e
PLAN VIEW
FRONT VIEW PROFILE VIEW
Model no:

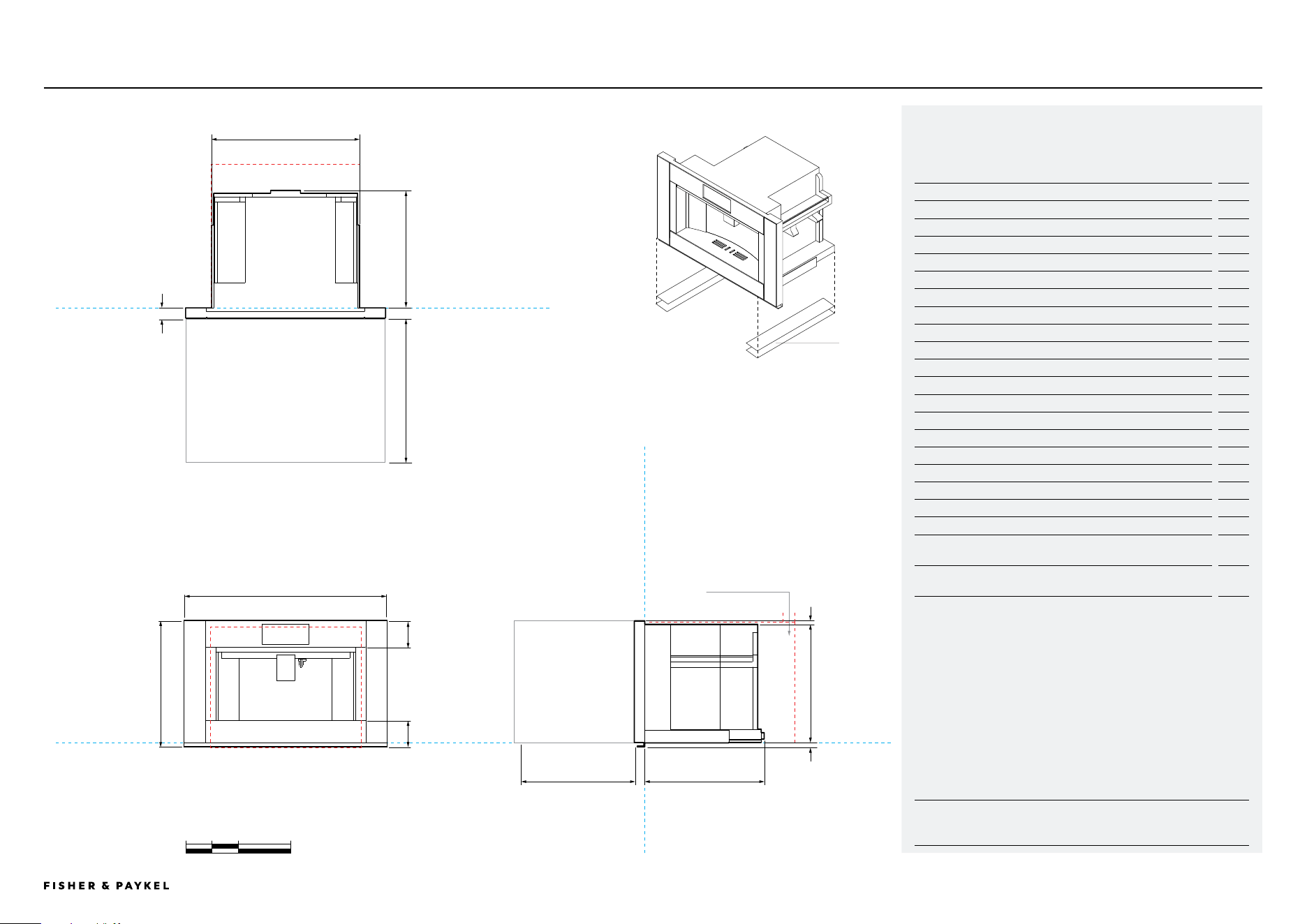

Built-in Coffee Maker, 76cm - EB76PSX1
Product Dimensions
mm
A Overall height of product
470
B Overall width of product
757
C Overall depth of product
484
D Height of chassis
442
E Width of chassis
560
F Depth of chassis
445
G Depth of control panel
40
H Height of control panel
100
I Height from top of lower front panel to bottom of product
98
J Height from bottom of chassis to bottom of lower trim
15
K Stepdown from control panel to chassis
13
L Maximum extension of built-in coffee maker
435
Minimum Clearances - Proud Installation
mm
Minimum inside cavity height from bottom of chassis*
450
Minimum inside width of cavity**
560
Minimum inside depth of cavity
545
Rear ventilation depth***
50
Rear ventilation width***
560
Minimum clearance above built-in coffee maker to upper cabinetry
front panel or appliance
2
Minimum clearance between bottom of lower trim to lower cabinetry
front panel or appliance
2
*Additional panel of 16mm required at the base of the cavity for under bottom of chassis for
standalone installation only
**Additional vertical sidewalls are required to secure the product
***Rear ventilation totalling 280cm2 is required. The air vent must be located at the rear of
cabinet, it can be positioned at the base, sides, back or top of the cavity.
NOTE: For full installation and clearance details please refer to our installation manual.
DATA SHEET | BUILT-IN COFFEE MAKER 76CM
Built-in Coee Maker
VENTILATION
DATUM: FRONT OF CHASSIS
DATUM : BOTTOM OF
CHASSIS
DATUM: FRONT OF CHASSIS
l
Millimeters
0 100 200 400
<< CONTENTS
background
© FISHER & PAYKEL LIMITED 2024 PAGE 2090003341E PLANNING GUIDE COOKING - VERSION E - SEPTEMBER 2024
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm
(1/16''). Please read the Installation Guide for detailed information on
installing the product. For full installation instructions visit fisherpaykel.com
INDICATES PRODUCT DATUM -------------------------------------------
INDICATES CABINETRY CLEARANCES --------------------------------

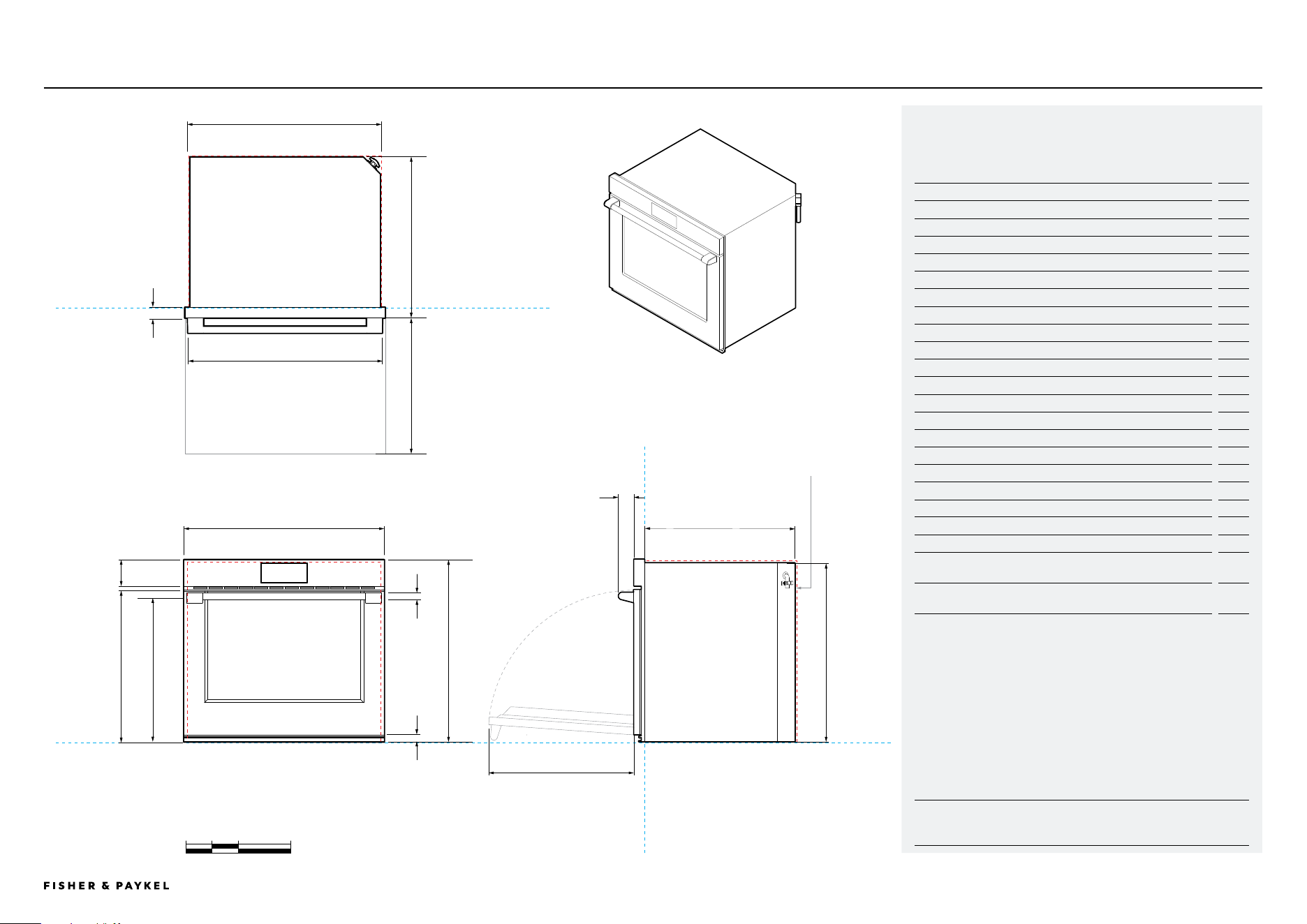

DATA SHEET | COMBINATION STEAM OVEN, 76CM
Combination Steam Oven
OS76NPTX1
b
757mm
a
458mm
e
545mm
g
d
c
o
l
h
i
j
n
k
m
o
f
DATUM: FRONT OF CHASSIS
POWER
OUTLET
LOCATION
DATUM: FRONT OF CHASSIS
PLAN VIEW
FRONT VIEW PROFILE VIEW
DATUM : BOTTOM OF CHASSIS
Model no:
Combination Steam Oven, 76cm - OS76NPTX1
Product Dimensions
mm
A Overall height of product
458
B Overall width of product
757
C Depth of control panel (excludes handle)
30
D Depth of chassis and control panel (excludes handle)
575
E Depth of chassis
545
F Height of chassis
435
G Width of chassis
720
H Height of control panel
100
I Height from bottom datum to top of oven door
347
J Height from bottom datum to centerline of handle
324
K Height from bottom datum to bottom of door
12
L Width of handle
737
M Depth of handle
58
N Thickness of handle
38
O Depth of door when open (measured from front of door)
336
Minimum Clearances - Proud Installation
mm
Minimum inside height of cavity*
446
Minimum inside width of cavity
724
Minimum inside depth of cavity
550
Minimum clearance above oven control panel to upper cabinetry front
panel or appliance
2
Minimum clearance between bottom of oven chassis to lower
cabinetry front panel or appliance
2
*Height includes a 6mm spacer in the base of the cavity (supplied with product)
Ensure a 5mm minimum clearance is maintained between the top of the oven chassis and
the cabinetry. Ensure the oven is not bearing any weight from cabinetry or products installed
above.
NOTE: For full installation and clearance details please refer to our installation manual.
Millimeters
0 100 200 400
<< CONTENTS
background
© FISHER & PAYKEL LIMITED 2024 PAGE 2190003341E PLANNING GUIDE COOKING - VERSION E - SEPTEMBER 2024
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm
(1/16''). Please read the Installation Guide for detailed information on
installing the product. For full installation instructions visit fisherpaykel.com
INDICATES PRODUCT DATUM -------------------------------------------
INDICATES CABINETRY CLEARANCES --------------------------------

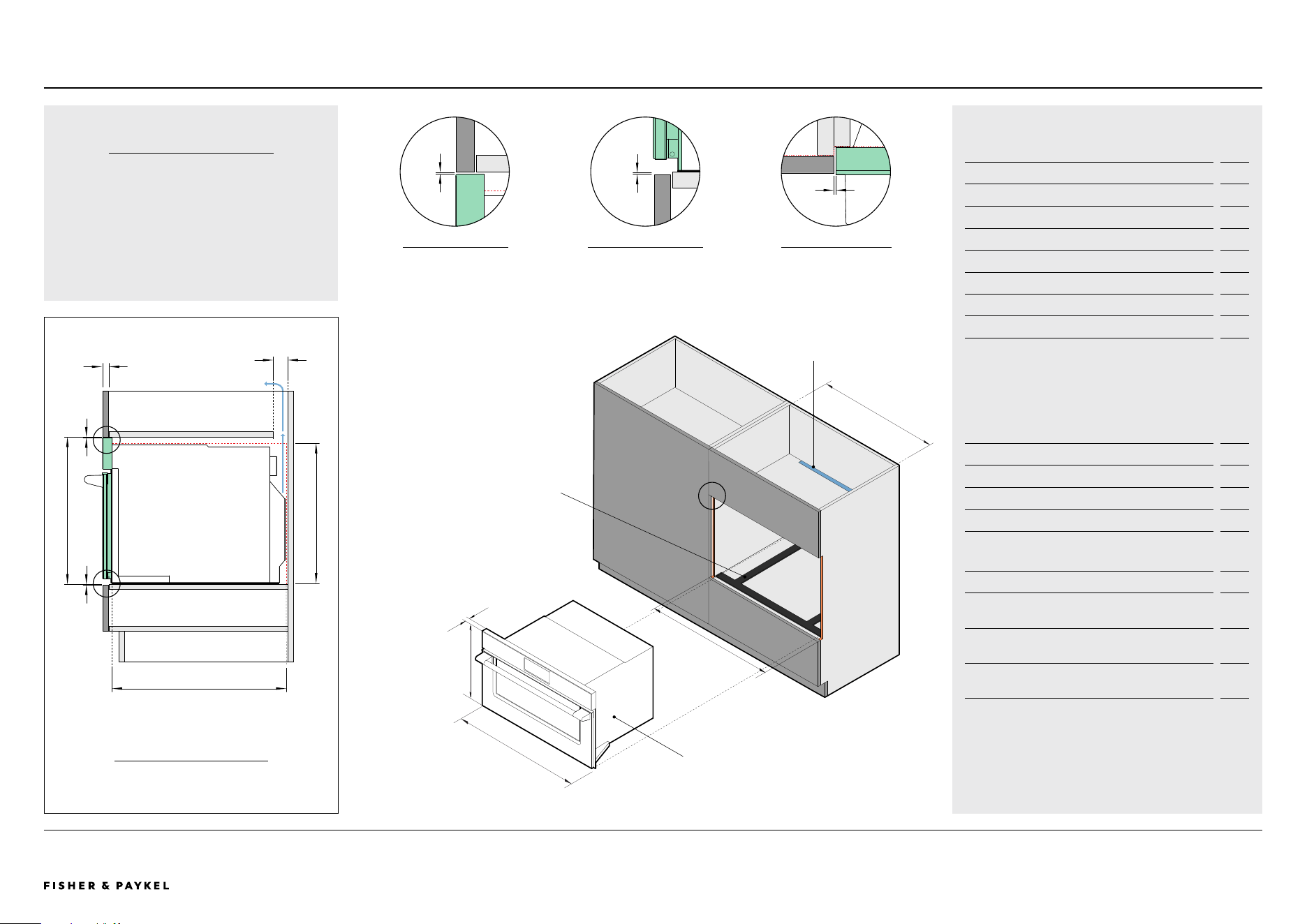

Combination Microwave Oven
b
757mm
a
458mm
e
545mm
g
d
c
o
l
h
i
j
n
k
m
o
f
DATUM: FRONT OF CHASSIS
DATUM: FRONT OF CHASSIS
PLAN VIEW
FRONT VIEW PROFILE VIEW
DATUM : BOTTOM OF CHASSIS
Model no:
Combination Microwave Oven, 76cm - OM76NPTX1
Product Dimensions
mm
A Overall height of product
458
B Overall width of product
757
C Depth of control panel (excludes handle)
30
D Depth of chassis and control panel (excludes handle)
575
E Depth of chassis
545
F Height of chassis
435
G Width of chassis
720
H Height of control panel
100
I Height from bottom datum to top of oven door
347
J Height from bottom datum to centerline of handle
324
K Height from bottom datum to bottom of door
12
L Width of handle
737
M Depth of handle
58
N Thickness of handle
38
O Depth of door when open (measured from front of door)
336
Minimum Clearances - Proud Installation
mm
Minimum inside height of cavity*
446
Minimum inside width of cavity
724
Minimum inside depth of cavity
550
Rear ventilation depth**
50
Rear ventilation depth**
560
Minimum clearance above oven control panel to upper cabinetry front
panel or appliance
2
Minimum clearance between bottom of oven chassis to lower
cabinetry front panel or appliance
2
*Height includes a 6mm spacer in the base of the cavity (supplied with product)
**Rear ventilation totalling 280cm2 is required. The air vent must be located at the rear of
cabinet, it can be positioned at the base, sides, back or top of the cavity.
Ensure a 5mm minimum clearance is maintained between the top of the oven chassis and
the cabinetry. Ensure the oven is not bearing any weight from cabinetry or products installed
above.
NOTE: For full installation and clearance details please refer to our installation manual.
VENTILATION
Millimeters
0 100 200 400
DATA SHEET | COMBINATION MICROWAVE OVEN, 76CM OM76NPTX1
<< CONTENTS
background
© FISHER & PAYKEL LIMITED 2024 PAGE 2290003341E PLANNING GUIDE COOKING - VERSION E - SEPTEMBER 2024
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm
(1/16''). Please read the Installation Guide for detailed information on
installing the product. For full installation instructions visit fisherpaykel.com
INDICATES PRODUCT DATUM -------------------------------------------
INDICATES CABINETRY CLEARANCES --------------------------------

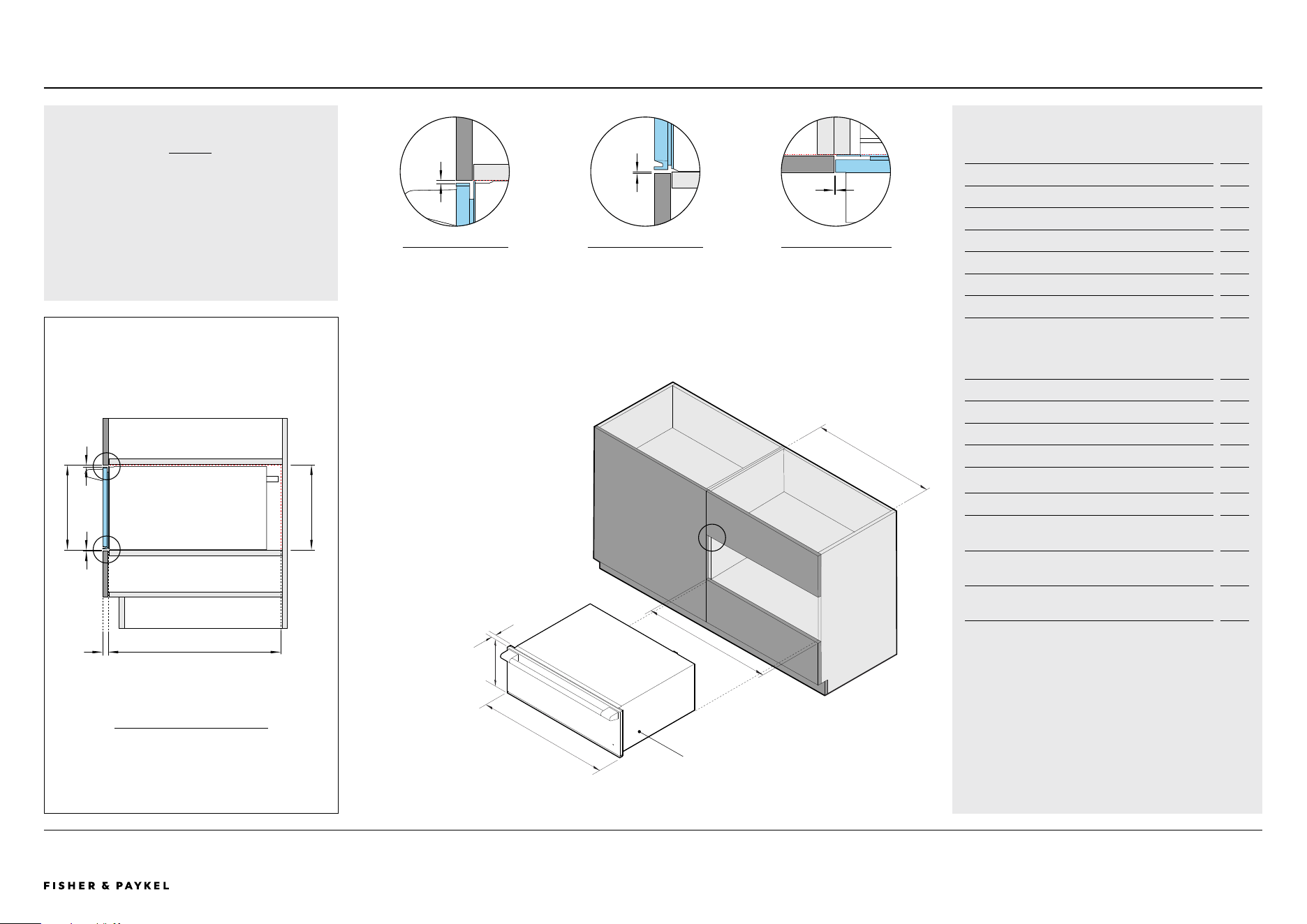

WB76SPEX1DATA SHEET | WARMING DRAWER, 76CM
Warming Drawer
b
760mm
a
271mm
c
567mm
e
f
g
m
n
DATUM: FRONT OF CHASSIS
DATUM: FRONT OF CHASSIS
PLAN VIEW
FRONT VIEW PROFILE VIEW
DATUM : BOTTOM OF CHASSIS
g
k
hh
d

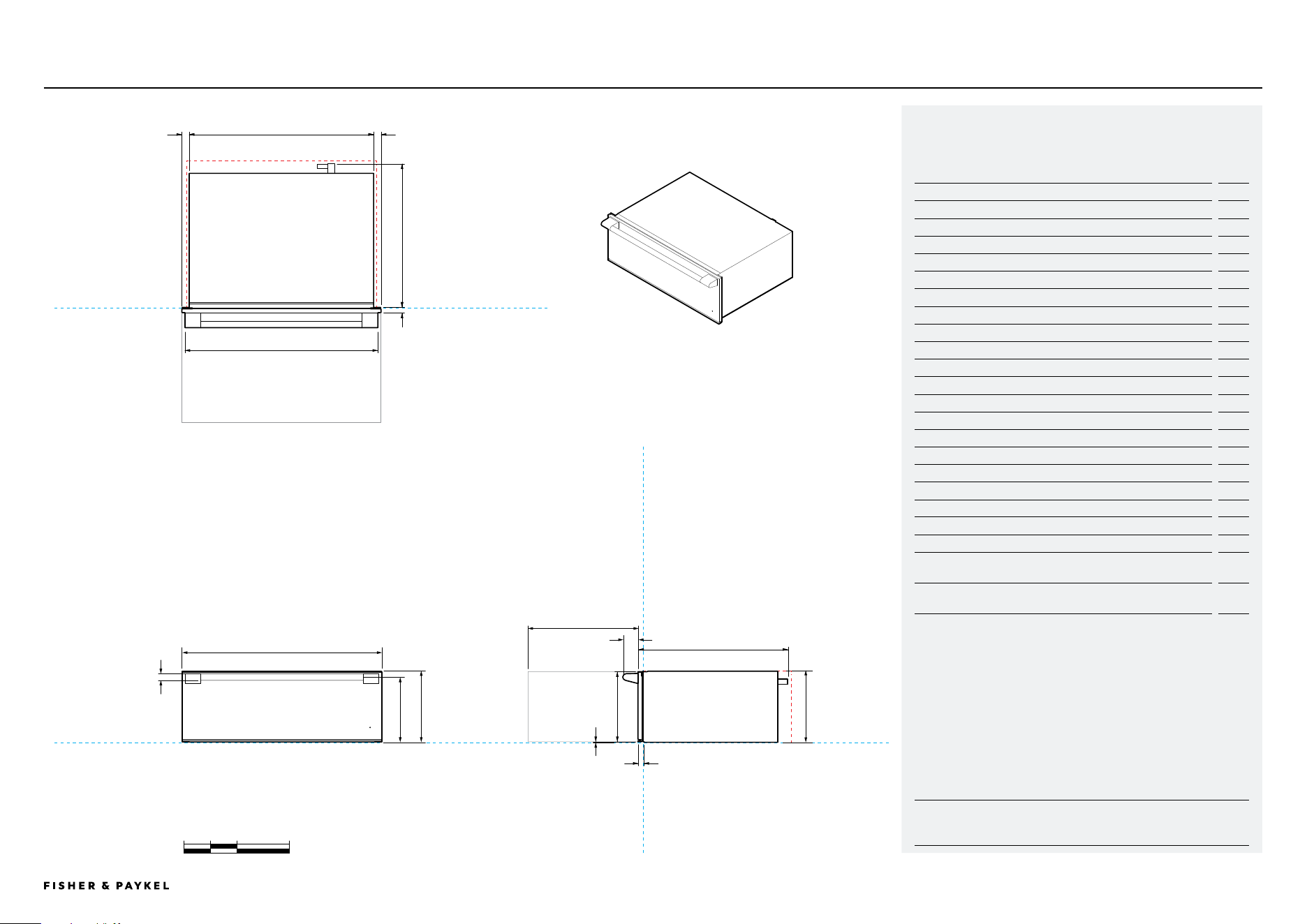

Model no:
Warming Drawer, 76cm - WB76SPEX1
Product Dimensions
mm
A Overall height of product
271
B Overall width of product
760
C Overall depth (incl. front panel & power plug)
567
D Height of chassis
271
E Width of chassis
707
F Depth of chassis (includes power plug)
547
G Depth of drawer front panel and flange
20
H Distance from side of chassis to side of drawer front
27
I Height from bottom of product to centre of handle rail
249
J Width of handle
736
K Depth of handle
58
L Thickness of handle
25
M Height of drawer front panel
267
N Height from bottom of chassis to bottom of front panel
2
O Depth of open drawer (measured from front of drawer panel)
419
Minimum Clearances - Proud Installation
mm
Minimum inside height of cavity
273
Minimum inside width of cavity
724
Minimum inside depth of cavity
560
Minimum clearance above drawer front panel to upper cabinetry front
panel or appliance*
4
Minimum clearance between bottom of drawer chassis to lower
cabinetry front panel or appliance
2
*Achieve a smaller gap between drawer front panel to upper cabinetry front panel by dropping
cabinetry front panel down
NOTE: For full installation and clearance details please refer to our installation manual.
i
l
l
o
Millimeters
0 100 200 400
<< CONTENTS
background
© FISHER & PAYKEL LIMITED 2024 PAGE 2390003341E PLANNING GUIDE COOKING - VERSION E - SEPTEMBER 2024
PLANNING CONSIDERATIONS
Planning Considerations
background
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 2490003341E PLANNING GUIDE COOKING - VERSION E - SEPTEMBER 2024

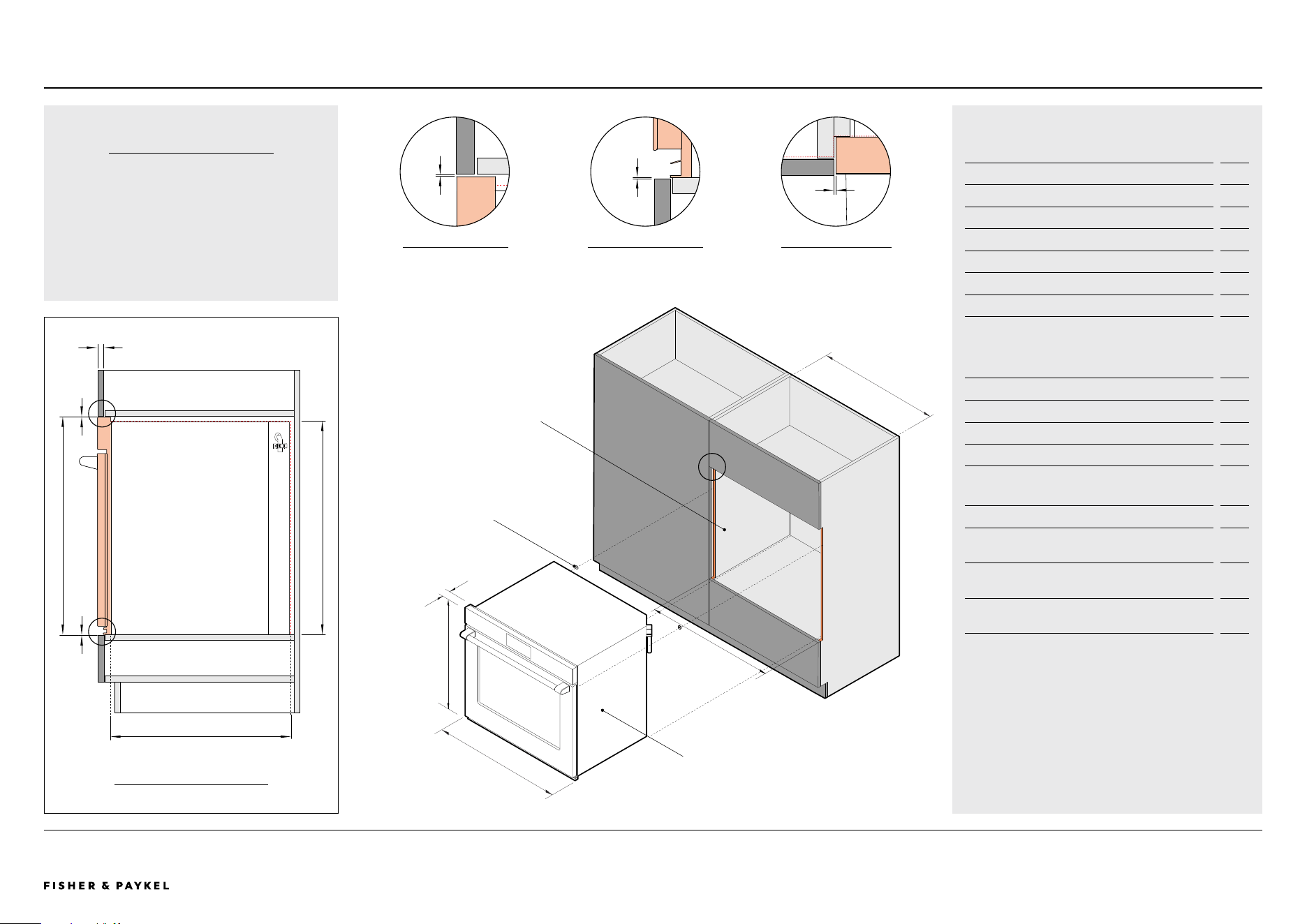

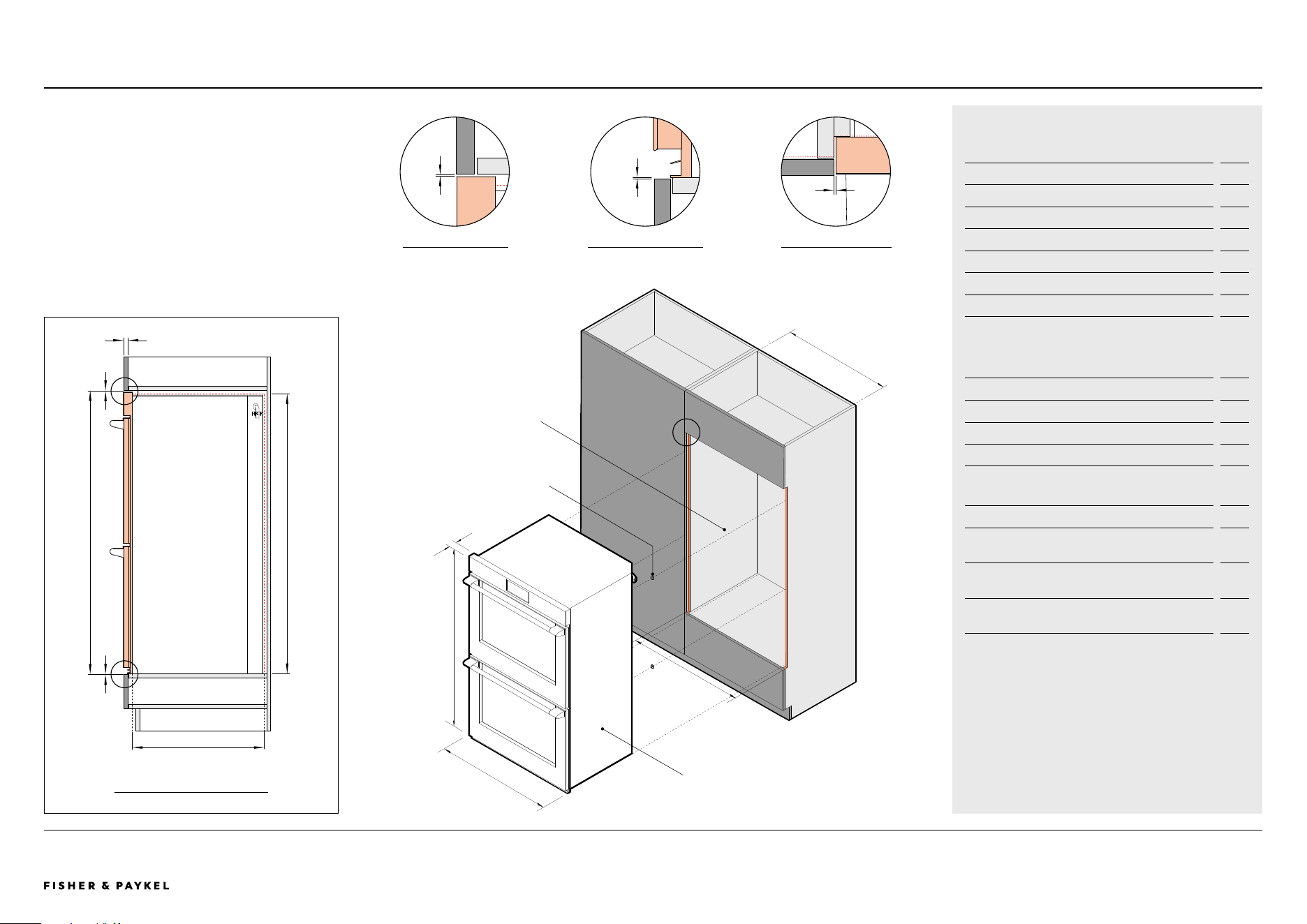

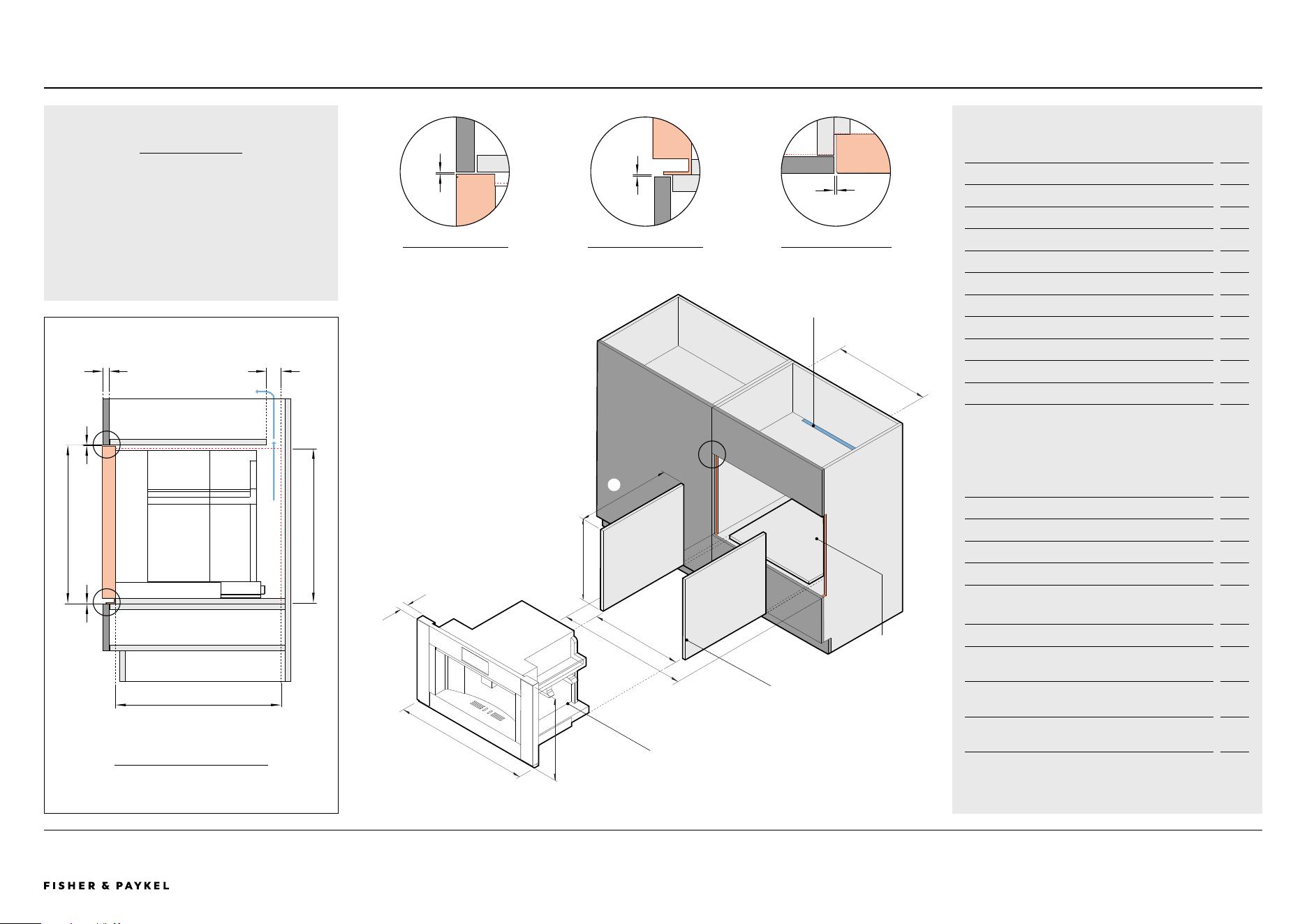

PLANNING CONSIDERATIONS | CABINETRY PREPARATION
Cabinetry Preparation - ALL MODELS
ALL MODELS
Combination Steam Oven or
Combination Microwave Oven or
Built-in Coffee Maker
Oven
Warming Drawer
Dividing shelf
Cabinetry front
panel below
Cabinetry front
panel above
Adjacent cabinet
Supporting shelf
Ventilation gap
Vertical walls for
Built-in Coffee
Maker only
DIVIDING SHELF
If the appliance front panel is thicker than the
cabinetry front panel, adjust the dividing shelf depth
to ensure the oven sits flush with the front of the
cabinetry.
BLACK CLASHING
Black clashing is recommended on front facing edges
where products are located and on side cabinets if
cabinet is rebated.
LEVEL CABINETRY
Check the shelves are level and the side panels
are straight.
OVEN CABINETRY TRIM
If using light-colored cabinets, we recommend using
black cabinetry trim to help hide the cabinetry beneath
the front door panel of the appliance. Ensure the
trim height does not interfere with any appliances or
cabinetry below. Black cabinetry trim is included with
ovens.
Depth 25mm
Width
759mm
Height 21mm
Thickness
1.5mm
<< CONTENTS
background
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 2590003341E PLANNING GUIDE COOKING - VERSION E - SEPTEMBER 2024

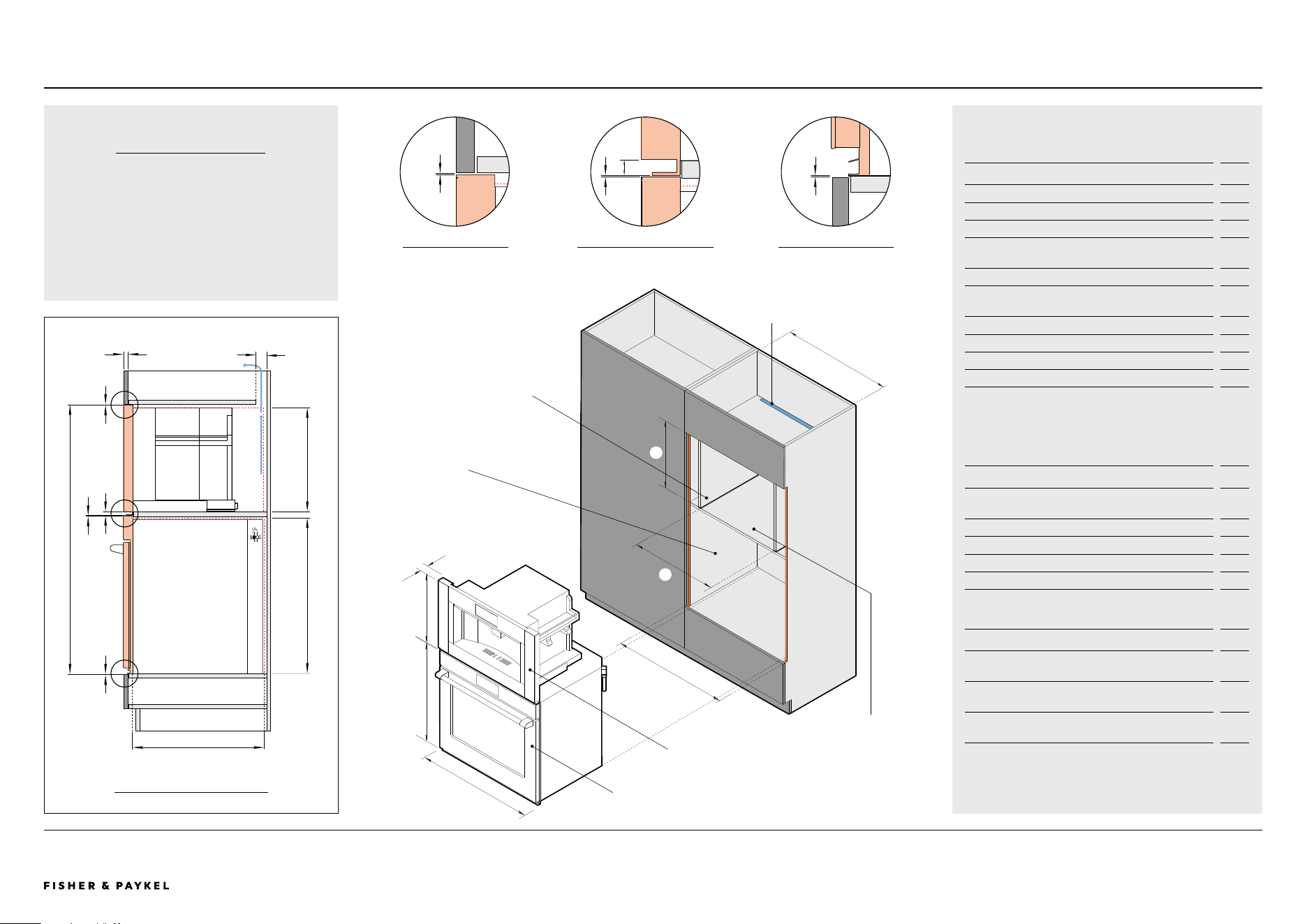

PLANNING CONSIDERATIONS | CONFIGURATIONS, 76CM
WARMING DRAWER
WB76SPEX1
COMBINATION MICROWAVE OVEN
OM76NPTX1
COMBINATION STEAM OVEN
OS76NPTX1
BUILT-IN COFFEE MAKER
EB76PSX1
OVEN
OB76SPPTX1
DOUBLE OVEN
OB76DPPTX1
DIMENSIONS
A Overall product height 271mm 464mm** 464mm** 470mm 690mm 1232mm
B Minimum clearance
above
- - 2mm 2mm 2mm 2mm
C Stack height 271mm* 448mm 448mm 472mm 692mm 1234mm
D Minimum inside height
of cavity
271mm 446mm** 446mm** 450mm from bottom of chassis 681mm 1224mm
Configurations - ALL MODELS
MINIMUM
DIMENSION
CLEARANCES
Warming Drawers and
Vacuum Seal Drawers can
fully support a 76cm Fisher
& Paykel oven, without
adding a shelf in between.
Ventilation air vent is
required at rear for some
products.
PRODUCT
PROFILE VIEW
Dividing shelf
location, shelf
must be above
min inside height
of cavity.
STACK EXPLODED
PROFILE VIEW
ALL MODELS
Dividing shelves are
required to support stacked
appliances and to achieve
correct clearance.
Dividing shelves must be
constructed from material
that will support the weight
of the appliances.
Ensure the oven is not
bearing any weight from
cabinetry or products
installed above.
*Drawers can fully support 76cm Fisher & Paykel wall oven, without adding shelf in between
NOTE: Stack height is overall product height with minimum clearance above appliance control panel
or front panel to upper appliance.
**Height includes a 6mm spacer in the base of the cavity (supplied with product)
C
D
BACKFRONT
Stack Height
Minimum inside height of cavity
A
B
Minimum clearance above appliance control panel to upper
appliance
B
Overall product height
+
Minimum clearance above appliance control panel or
front panel to upper appliance
=
Stacked Height
STACK HEIGHT
A
B
C
2mm
<< CONTENTS
background
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 2690003341E PLANNING GUIDE COOKING - VERSION E - SEPTEMBER 2024
Model no:
Double Oven, 76cm - OB76DPPTX1
Cabinetry Dimensions - Flush Installation
mm
A Overall cabinet height
1234
B Overall cabinet width - single installation
764
C Minimum inside width of cavity
724
D Minimum inside height of cavity
1224
E Minimum inside depth of cavity
575
F Thickness of cabinetry front panel** 16-20
*Overall cabinet height is overall product height with minimum clearance above
oven control panel to upper cabinetry front panel.
**Cabinetry shown in drawings 19mm panels.
Note: Oven requires 1/16" (2mm) spacers for screws (supplied x 4).
Product Dimensions mm
G Overall height of product
1232
H Overall width of product
757
I Thickness of oven control panel*
40
*If the oven control panel is thicker than 20mm, adjust the panel above and
below to ensure the oven sits flush with the front of the cabinetry.
Cabinetry Clearances mm
J Minimum clearance above oven control panel to upper
cabinetry front panel
2
K Minimum clearance between bottom of oven chassis to
lower cabinetry front panel
2
L Minimum clearance between adjacent front panel or
appliance
3
PLANNING CONSIDERATIONS | DOUBLE OVEN, 76CM
OB76DPPTX1
Double Oven
CLEARANCE ABOVE
PROFILE VIEW
J
1
BACKFRONT
CABINETRY
PROFILE VIEW
E
F
J
A D
2
1
Double Oven
H
I
G
3
2
CLEARANCE BOTTOM
PROFILE VIEW
K
ADJACENT CABINET
PLAN VIEW
L
3
C
B
K
4x Spacers
Sealed Cavity
<< CONTENTS
background
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 2790003341E PLANNING GUIDE COOKING - VERSION E - SEPTEMBER 2024
PLANNING CONSIDERATIONS | OVEN, 76CM
Model no:
Oven, 76cm - OB76SPPTX1
Cabinetry Dimensions - Flush Installation
mm
A Overall cabinet height
692
B Overall cabinet width - single installation
764
C Minimum inside width of cavity
724
D Minimum inside height of cavity
681
E Minimum inside depth of cavity
575
F Thickness of cabinetry front panel** 16-20
*Overall cabinet height is overall product height with minimum clearance above
oven control panel to upper cabinetry front panel.
**Cabinetry shown in drawings 19mm panels.
Note: Oven requires 2mm spacers for screws (supplied x 2).
Product Dimensions mm
G Overall height of product
690
H Overall width of product
757
I Thickness of oven control panel*
40
*If the oven control panel is thicker than 20mm, adjust the panel above and
below to ensure the oven sits flush with the front of the cabinetry.
Cabinetry Clearances mm
J Minimum clearance above oven control panel to upper
cabinetry front panel
2
K Minimum clearance between bottom of oven chassis to
lower cabinetry front panel
2
L Minimum clearance between adjacent front panel or
appliance
3
OB76SPPTX1
Oven
COOKTOP CLEARANCE
If installing a cooktop above the oven,
ensure adequate clearance is provided for the
cooktop as per the cooktop manufacturer’s
instructions.
CLEARANCE ABOVE
PROFILE VIEW
J
1
BACKFRONT
CABINETRY
PROFILE VIEW
E
F
J
K
A D
2
1
Oven
H
I
G
3
2
CLEARANCE BOTTOM
PROFILE VIEW
K
ADJACENT CABINET
PLAN VIEW
L
3
C
B
2x Spacers
Sealed Cavity
<< CONTENTS
background
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 2890003341E PLANNING GUIDE COOKING - VERSION E - SEPTEMBER 2024
EB76PSX1
Additional panel
16mm thickness
Model no:
Built-in Coffee Maker, 76cm - EB76PSX1
Cabinetry Dimensions - Flush Installation
mm
A Overall cabinet height*
473
B Overall cabinet width - single installation
764
C Minimum inside width of cavity
560
D Minimum inside height of cavity*
466
E Minimum inside depth of cavity
585
F Minimum height of additional side walls
466
G Width between additional side walls 560
H Minimum depth of additional side walls
570
I Thickness of cabinetry front panel** 16-20
J Ventilation gap*** 50
*Includes height for a 16mm additional panel at base of cavity
**Cabinetry shown in drawings 19mm panels.
***A rear ventilation air vent totalling 280cm
2
is required. The air vent must be
located at the rear of the cabinet, it can be positioned at the base, sides, back
or top of the cavity.
Note:Overall cabinet height is overall product height with minimum clearance
above coffee maker control panel to upper cabinetry front panel.
Product Dimensions mm
K Overall height of product 470
L Overall width of product 757
M Thickness of built-in coffee maker front panel*
40
*If the oven control panel is thicker than 20mm, adjust the panel above and
below to ensure the oven sits flush with the front of the cabinetry.
Cabinetry Clearances mm
N Minimum clearance above built-in coffee maker front
panel to upper cabinetry front panel
2
O Minimum clearance between bottom of built-in coffee
maker to lower cabinetry front panel
2
P Minimum clearance between adjacent front panel or
appliance
3
VENTILATION
Ventilation of 50mm x 560mm or totalling
280cm
2
is required. The air vent must be
located at the rear of cabinet, it can be
positioned at the base, top, sides, or back.
Additional sidewalls
for securing Coffee
Maker, 16-20mm
thickness
PLANNING CONSIDERATIONS | BUILT-IN COFFEE MAKER, 76CM - STANDALONE
Built-in Coee Maker
B
M
N
O
P
3
C
G
CLEARANCE ABOVE
PROFILE VIEW
1 2
CLEARANCE BOTTOM
PROFILE VIEW
ADJACENT CABINET
PLAN VIEW
3
BACKFRONT
CABINETRY
PROFILE VIEW
E
N
O
A D
2
1
J
Built-in Coffee Maker
I
F
H
K
Ventilation gap
L
<< CONTENTS
background
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 2990003341E PLANNING GUIDE COOKING - VERSION E - SEPTEMBER 2024
EB76PSX1, OB76SPPTX1 PLANNING CONSIDERATIONS | BUILT-IN COFFEE MAKER, 76CM - STACKED
ADDITIONAL PANEL
Standalone installation requires additional
panel of 16mm under the coffee maker chassis.
No additional panel required for stacked
installation.
Model no:
Built-in Coffee Maker, 76cm - EB76PSX1
Oven, 76cm - OB76SPPTX1
Cabinetry Dimensions - Flush Installation
mm
A Stack height
1164
B Overall cabinet width
764
C Minimum inside width of cavity
724
D Minimum inside height of built-in coffee maker cavity
(excludes lower trim stepdown)
450
E Minimum inside height of oven cavity
681
F Minimum inside depth of cavity and additional side
walls
575
G Minimum height of additional side walls
470
H Width between additional side walls 560
I Thickness of cabinetry front panel* 16-20
J Ventilation gap** 50
*Cabinetry shown in drawings 19mm panels.
**A rear ventilation air vent totalling 280cm
2
is required. The air vent must be
located at the rear of the cabinet, it can be positioned at the base, sides, back
or top of the cavity.
Note: Stack height is overall product height with minimum clearance above
appliance control panel or front panel to upper appliance.
Product Dimensions mm
K Overall height of built-in coffee maker
(including lower tim)
470
L Height from bottom of chassis to bottom of lower trim 15
M Overall height of oven
690
N Overall width of products 757
O Thickness of products*
40
*If the oven control panel is thicker than 20mm, adjust the panel above and
below to ensure the oven sits flush with the front of the cabinetry.
Cabinetry Clearances mm
P Minimum clearance above appliance front panel to
upper cabinetry front panel or appliance
2
Q Minimum clearance between bottom of appliance to
lower cabinetry front panel
2
Minimum clearance between adjacent front panel or
appliance
3
CLEARANCE ABOVE
PROFILE VIEW
P
1
BACKFRONT
CABINETRY
PROFILE VIEW
P
A
E
2
1
Oven
N
O
M
Ventilation gap
2
LOWER TRIM STEPDOWN
PROFILE VIEW
L
Q
3
C
B
Q
Built-in Coffee Maker
D
Dividing shelf 16-20mm
thickness
Additional sidewalls for
securing Coffee Maker,
16-20mm thickness
F
K
3
CLEARANCE BOTTOM
PROFILE VIEW
H
G
I J
L
P
P
Sealed Cavity
<< CONTENTS
background
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 3090003341E PLANNING GUIDE COOKING - VERSION E - SEPTEMBER 2024
PLANNING CONSIDERATIONS | COMBINATION STEAM OVEN, 76CM OS76NPTX1
Combination Steam Oven
Model no:
Combination Steam Oven, 76cm - OS76NPTX1
Cabinetry Dimensions - Flush Installation
mm
A Overall cabinet height*
466
B Overall cabinet width - single installation
764
C Minimum inside width of cavity
724
D Minimum inside height of cavity*
446
E Minimum inside depth of cavity
580
F Thickness of cabinetry front panel** 16-20
Note: Overall cabinet height is overall product height with minimum clearance
above oven control panel to upper cabinetry front panel.
*Height includes a 6mm spacer in the base of the cavity (supplied with product).
**Cabinetry shown in drawings 19mm panels.
Note: Concider placement of shelf above minimum inside height of cavity.
Product Dimensions mm
G Overall height of product
458
H Overall width of product
757
I Thickness of oven front panel*
30
*If the oven control panel is thicker than 20mm, adjust the panel above and
below to ensure the oven sits flush with the front of the cabinetry.
Cabinetry Clearances mm
J Minimum clearance above oven control panel to upper
cabinetry front panel
2
K Minimum clearance between bottom of oven spacer to
lower cabinetry front panel
2
L Minimum clearance between adjacent front panel or
appliance
3
COOKTOP CLEARANCE
If installing a cooktop above the oven,
ensure adequate clearance is provided for the
cooktop as per the cooktop manufacturer’s
instructions.
CLEARANCE ABOVE
PROFILE VIEW
J
1
BACKFRONT
CABINETRY
PROFILE VIEW
E
J
K
A D
2
1
Combination Steam Oven
H
I
G
3
2
CLEARANCE BOTTOM
PROFILE VIEW
K
ADJACENT CABINET
PLAN VIEW
L
3
C
B
F
Supplied Spacer
Overall width 720mm
Overall depth 520mm
Thickness 6mm
<< CONTENTS
background
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 3190003341E PLANNING GUIDE COOKING - VERSION E - SEPTEMBER 2024
PLANNING CONSIDERATIONS | COMBINATION MICROWAVE OVEN, 76CM OM76NPTX1
Combination Microwave Oven
Model no:
Combination Microwave Oven, 76cm - OM76NPTX1
Cabinetry Dimensions - Flush Installation
mm
A Overall cabinet height*
466
B Overall cabinet width - single installation
764
C Minimum inside width of cavity
724
D Minimum inside height of cavity*
446
E Minimum inside depth of cavity
580
F Thickness of cabinetry front panel** 16-20
G Ventilation gap*** 50
Note: Overall cabinet height is overall product height with minimum clearance
above oven control panel to upper cabinetry front panel.
*Height includes a 6mm spacer in the base of the cavity (supplied with product).
**Cabinetry shown in drawings 19mm panels.
***A rear ventilation air vent totalling 280cm2 is required. The air vent must be
located at the rear of the cabinet, it can be positioned at the base, sides, back
or top of the cavity.
Note: Concider placement of shelf above minimum inside height of cavity.
Product Dimensions mm
H Overall height of product
458
I Overall width of product
757
J Thickness of oven front panel*
30
*If the oven control panel is thicker than 20mm, adjust the panel above and
below to ensure the oven sits flush with the front of the cabinetry.
Cabinetry Clearances mm
K Minimum clearance above oven control panel to upper
cabinetry front panel
2
L Minimum clearance between bottom of oven spacer to
lower cabinetry front panel
2
M Minimum clearance between adjacent front panel or
appliance
3
Combination Microwave Oven
COOKTOP CLEARANCE
If installing a cooktop above the oven,
ensure adequate clearance is provided for the
cooktop as per the cooktop manufacturer’s
instructions.
CLEARANCE ABOVE
PROFILE VIEW
K
1
BACKFRONT
CABINETRY
PROFILE VIEW
E
K
L
A D
2
1
I
J
H
Ventilation gap
3
2
CLEARANCE BOTTOM
PROFILE VIEW
L
ADJACENT CABINET
PLAN VIEW
M
3
C
B
F
G
Supplied Spacer
Overall width 720mm
Overall depth 520mm
Thickness 6mm
<< CONTENTS
background
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 3290003341E PLANNING GUIDE COOKING - VERSION E - SEPTEMBER 2024
WB76SPEX1PLANNING CONSIDERATIONS | WARMING DRAWER, 76CM
Warming Drawer
NOTE
The Warming Drawer can fully support a 76cm
Fisher & Paykel oven, without adding a shelf
in between.
Model no:
Warming Drawer, 76cm - WB76SPEX1
Cabinetry Dimensions - Flush Installation
mm
A Overall cabinet height*
275
B Overall cabinet width - single installation
764
C Minimum inside width of cavity
724
D Minimum inside height of cavity
273
E Minimum inside depth of cavity
580
F Thickness of cabinetry front panel** 16-20
*Overall cabinet height is overall product height with minimum clearance above
drawer front panel to upper cabinetry front panel.
**Cabinetry shown in drawings 19mm panels.
Note: Concider placement of shelf above minimum inside height of cavity.
Product Dimensions mm
G Overall height of product
271
H Overall width of product
760
I Thickness of warming drawer front panel and flange
20
Cabinetry Clearances mm
J Minimum clearance above drawer front panel to upper
cabinetry front panel*
4
K Minimum clearance between bottom of drawer chassis
to lower cabinetry front panel
2
L Minimum clearance between adjacent front panel or
appliance
2
*Achieve a smaller gap between drawer front panel to upper cabinetry front
panel by dropping cabinetry front panel down
CLEARANCE ABOVE
PROFILE VIEW
1
BACKFRONT
CABINETRY
PROFILE VIEW
E
J
K
A D
2
1
Warming Drawer
3
2
CLEARANCE BOTTOM
PROFILE VIEW
ADJACENT CABINET
PLAN VIEW
3
C
B
F
J
H
I
G
K
L
<< CONTENTS
background
© FISHER & PAYKEL LIMITED 2024 PAGE 3390003341E PLANNING GUIDE COOKING - VERSION E - SEPTEMBER 2024
SERVICES
Services
background
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 3490003341E PLANNING GUIDE COOKING - VERSION E - SEPTEMBER 2024
WARMING DRAWER
WB76SPEX1
BUILT-IN COFFEE MAKER
EB76PSX1
POWER CORD
Maximum power cord
length
1800mm* 1700mm*
Location Upper right Lower centered
Connection Flex cord Flex cord
*Measured from power outlet
WATER
Total Capacity - 2.4L
Location - Water tank (internal)
ELECTRICAL
Supply 220-240 V, 50 Hz 220-240 V, 50 Hz
Service 10 A 10 A
Note: Multiple product installation requires the design of power outlets according to local regulations.
Clip
provided
BUILT-IN COFFEE MAKER
The power cable must be long enough to
allow the appliance to be extracted from the
cabinet to fill the coffee bean container. Fix
the power cable with the clip.
SERVICES | POWER CORD LENGTH AND LOCATION
Power Cord Length and Location - COMPANIONS
Maximum 1800mm
Maximum 1700mm
CONNECTION
Connections may be located in an adjacent
cabinet to either side of the appliance.
Ensure power will remain accessible following
install to allow access for any future product
maintenance.
Power Cable
Water Tank
1 2
3
1
1
2
WB76SPEX1, EB76PSX1
<< CONTENTS
background
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 3590003341E PLANNING GUIDE COOKING - VERSION E - SEPTEMBER 2024
OM76NPTX1, OS76NPTX1 SERVICES | POWER CORD LENGTH AND LOCATION
Power Cord Length and Location -
STEAM + MICROWAVE
COMBINATION MICROWAVE OVEN
OM76NPTX1
COMBINATION STEAM OVEN
OS76NPTX1
POWER CORD
Power cord free length Minimum 1500mm* Minimum 1500mm*
Location Upper right Upper left
Connection Hard wire** Hard wire**
*The electrician provides sufficient free length of power supply cable to reach from the bottom rear of the cavity to at least 1500mm in front of the bottom edge of the opening
**For more information, refer to the Installation Guide. Ensure power will remain accessible following install to allow access for any future product maintenance.
WATER
Total Capacity - 1.4L
Location - Water tank (internal)
ELECTRICAL
Supply 220-240 V, 50 Hz 220-240 V, 50 Hz
Service 20 A 20 A
Note: Multiple product installation requires the design of power outlets according to local regulations.
Power Cable
Water Tank
Minimum 1500mm Minimum 1500mm
3
4
3
3 4
4
<< CONTENTS
background
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 3690003341E PLANNING GUIDE COOKING - VERSION E - SEPTEMBER 2024
OB76SPPTX1, OB76DPPTX1SERVICES | POWER CORD LENGTH AND LOCATION
Power Cord Length and Location - OVENS
OVEN
OB76SPPTX1
DOUBLE OVEN
OB76DPPTX1
POWER CORD
Power cord free length Minimum 1500mm* Minimum 1500mm*
Location Upper right Upper right
Connection Hard wire** Hard wire**
*The electrician provides sufficient free length of power supply cable to reach from the bottom rear of the cavity to at least 1500mm in front of the bottom edge of the opening
**For more information, refer to the Installation Guide. Ensure power will remain accessible following install to allow access for any future product maintenance.
WATER
Total Capacity - -
Location - -
ELECTRICAL
Supply 220-240 V, 50 Hz 220-240 V, 50 Hz
Service 20 A 40 A
Note: Multiple product installation requires the design of power outlets according to local regulations.
Power Cable
Minimum 1500mm
Minimum 1500mm
5 6
6
5
5
6
<< CONTENTS
background
© FISHER & PAYKEL LIMITED 2024 PAGE 3790003341E PLANNING GUIDE COOKING - VERSION E - SEPTEMBER 2024

Specifications

Fisher & Paykel OM76NPTX1 Questions and Answers
