60CM CONTEMPORARY OVENS AND
COMPANIONS
PLANNING GUIDE
SERIES 7 PYROLYTIC OVEN | OB60SACPTDX5
SERIES 7 COMPACT COMBI-MICROWAVE OVEN | OM60NCTDX5
SERIES 9 BUILT-IN COFFEE MAKER | EB60CSX3
SERIES 9 TALL WARMING DRAWER | WB60SCTX3
SERIES 9 INTEGRATED TALL WARMING DRAWER | WB60SDTEI3
SERIES 9 WARMING DRAWER | WB60SCX3
SERIES 9 INTEGRATED WARMING DRAWER | WB60SDEI3
SERIES 9 VACUUM SEAL DRAWER | VB60SCX3
SERIES 9 INTEGRATED VACUUM SEAL DRAWER | VB60SDEI3
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 290005576A UK-IE-EU PLANNING GUIDE 60CM OVENS AND COMPANIONS VERSION A - FEBRUARY 2026
CONCEPT DESIGN PAGE
DEVELOPED AND DETAILED DESIGN PAGE DEVELOPED AND DETAILED DESIGN PAGE
DESIGN CHOICE
Styles 4
Contemporary Style 5
Installation Options 6
Overview 7
SPECIFICATION GUIDE
Pyrolytic Oven 9
Compact Combi-Microwave Oven 10
Built-in Coee Maker 11
Tall Warming Drawer 12
Integrated Tall Warming Drawer 13
Warming Drawer 14
Integrated Warming Drawer 15
Vacuum Seal Drawer 16
Integrated Vacuum Seal Drawer 17
Dimensions - Ovens and Built-in Coee Maker 18
Dimensions - Drawers 19
Services 20
SUPPORT
For additional design planning and installation support please
contact the Fisher & Paykel design support team.
designsupport@fisherpaykel.com
CONTENTS | 60CM OVENS AND COMPANIONS
INTRODUCTION
This comprehensive planning guide provides you with the
framework and tools to achieve your desired design outcome
with Fisher & Paykel appliances. In this guide, you will find a
range of conceptual, detailed, and dimensional product
information to bring your ideas to life and create spaces that
truly reflect your vision.
NOTES
The models shown in this Planning Guide may not be available
in all markets and are subject to change at any time. Refer to to
our website fisherpaykel.com for the latest document version.
Product specifications may vary from those shown.
This Planning Guide should not be used as installation guidance
for any product. Specific installation guidance will be available
with the product on delivery and on our website.
<< CONTENTS
CONTENTS
PAGE 3© FISHER & PAYKEL APPLIANCES LIMITED 2026PLANNING GUIDE 60CM OVENS AND COMPANIONS VERSION A - FEBRUARY 202690005576A UK-IE-EU
DESIGN CHOICE
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 490005576A UK-IE-EU PLANNING GUIDE 60CM OVENS AND COMPANIONS VERSION A - FEBRUARY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

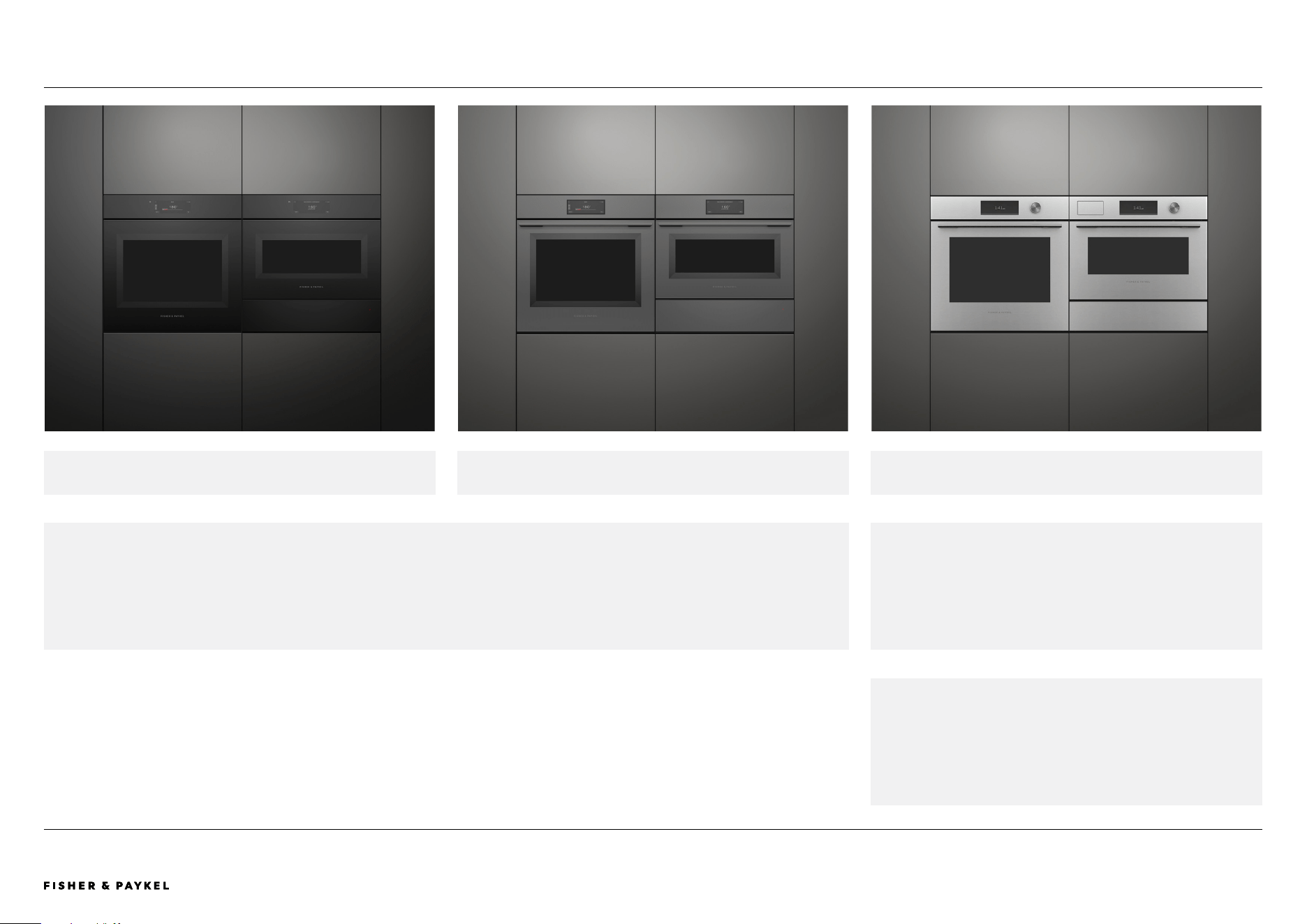

DESIGN CHOICE | 60CM OVENS AND COMPANIONS STYLES
This Planning Guide is for the Contemporary Style featuring 60cm
Ovens and Companions. For information on other styles, please
visit the Fisher and Paykel website. To see what models are
available, head to the 'Overview' section in this Planning Guide.
MINIMAL STYLE MINIMAL STYLE - HANDLELESS CONTEMPORARY STYLE
Celebrating a singular aesthetic to blend seamlessly into the kitchen, Minimal style ovens feature subtle textural and tonal contrasts for a sense
of refinement and purity.
Defined by clean lines and timeless design cues, Contemporary
style ovens bring a sense of balance and refinement. A versatile
aesthetic that complements a range of kitchen styles.
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 590005576A UK-IE-EU PLANNING GUIDE 60CM OVENS AND COMPANIONS VERSION A - FEBRUARY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

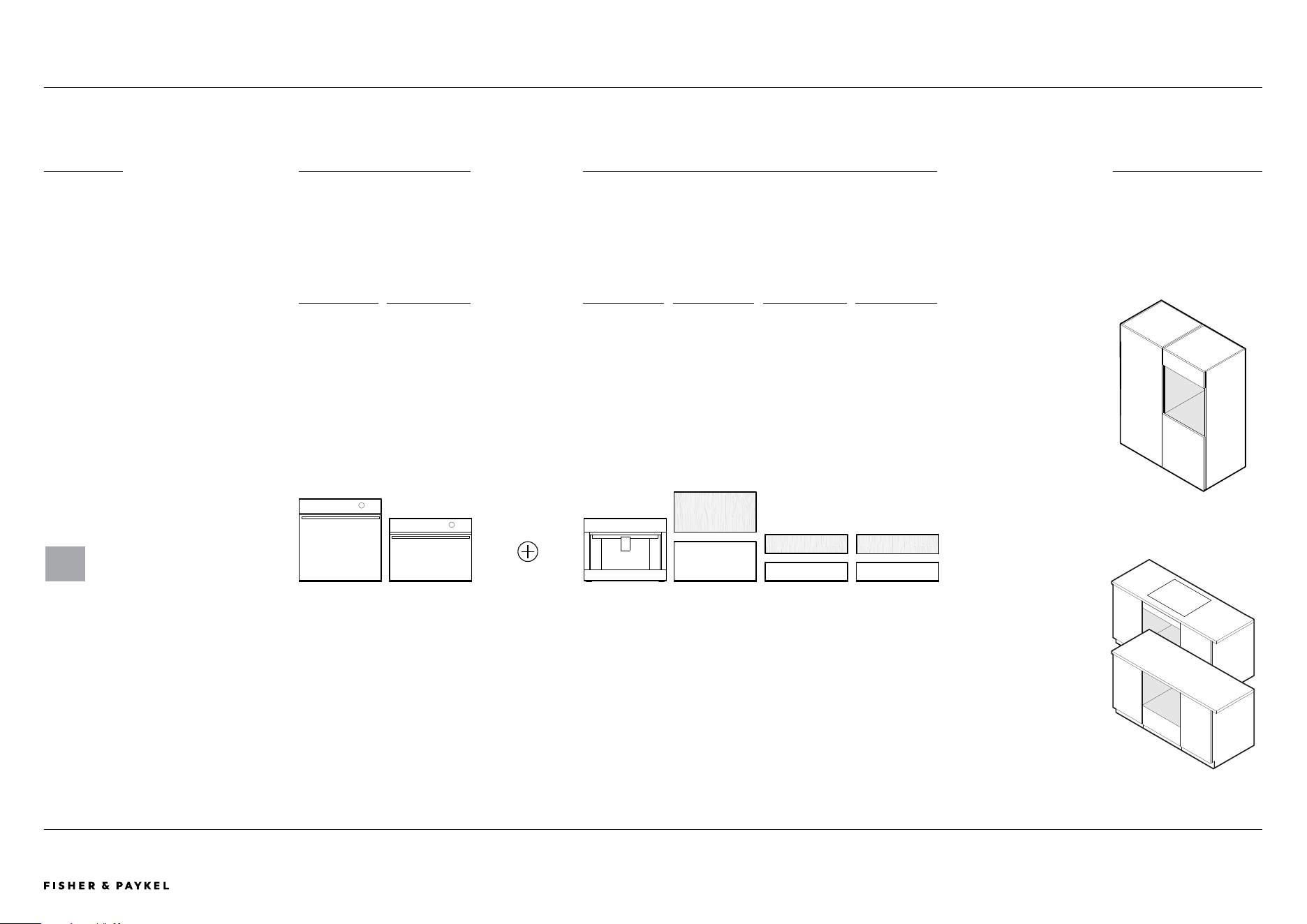

CONTEMPORARY STYLEDESIGN CHOICE | 60CM OVENS AND COMPANIONS
Brushed
Silver Glass
Installation in wall
Installation under-bench
*Integrated model, panel ready for a custom front panel.
*
* *
FINISH OVENS COMPANIONS INSTALLATION OPTIONS
PYROLYTIC
COMBI-
MICROWAVE
BUILT-IN
COFFEE
MAKER
TALL
WARMING
DRAWER
WARMING
DRAWER
VACUUM
SEAL
DRAWER
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 690005576A UK-IE-EU PLANNING GUIDE 60CM OVENS AND COMPANIONS VERSION A - FEBRUARY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
INSTALLATION OPTIONSDESIGN CHOICE | 60CM OVENS AND COMPANIONS
CONSIDERATIONS
Dierent configurations possible, consider
heights for grid and row installations.
STACK HEIGHT
Stack Height is overall product height with
minimum clearance above appliance front
panel to upper cabinetry front panel or
appliance.
STACKED INSTALLATION GRID INSTALLATION ROW INSTALLATION
Stack Height
750mm
Stack Height
600mm
Stack Height
600mm
Stack Height
1200mm
Stack Height
600mm
Stack Height
600mm
Stack Height
1200mm
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 790005576A UK-IE-EU PLANNING GUIDE 60CM OVENS AND COMPANIONS VERSION A - FEBRUARY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

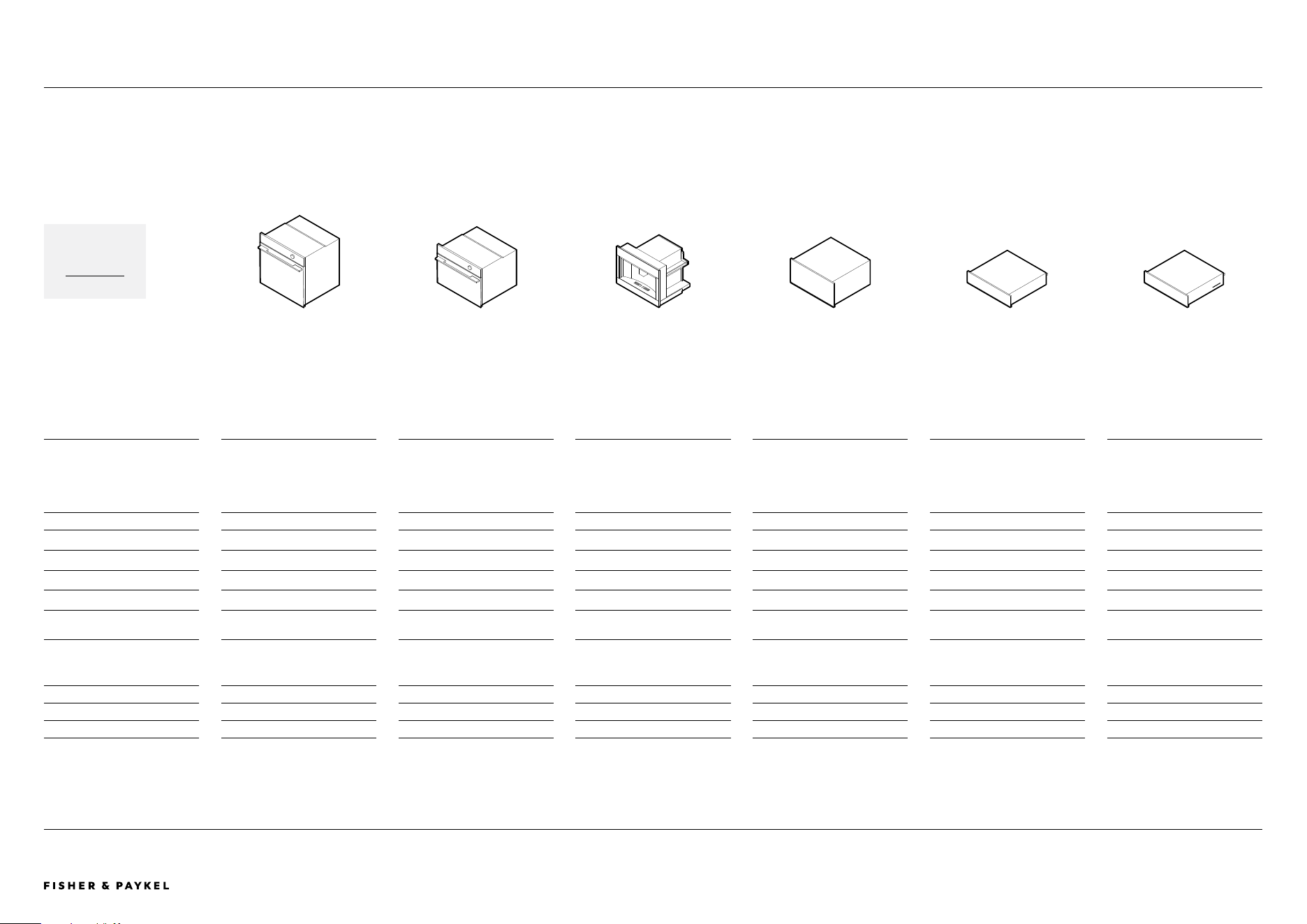

OVERVIEWDESIGN CHOICE | 60CM OVENS AND COMPANIONS
SIDE
ELEVATION
FRONT
ELEVATION
PYROLYTIC OVEN COMPACT COMBI-MICROWAVE
OVEN
BUILT-IN COFFEE TALL WARMING DRAWER WARMING DRAWER VACUUM SEAL DRAWER
Series Series 7 Series 7 Series 9 Series 9 Series 9 Series 9
Brushed Silver Glass Models OB60SACPTDX5 OM60NCTDX5 EB60CSX3 WB60SCTX3 WB60SCX3 VB60SCX3
Integrated Models - - - WB60SDTEI3 WB60SDEI3 VB60SDEI3
Interface 5" Touchscreen 5" Touchscreen 4.3" Touchscreen - - -
Overall Height 598mm 458mm 458mm 290mm 140mm 140mm
Overall Width 596mm 596mm 596mm 596mm 596mm 596mm
Control Panel/Front Panel
Thickness
20mm 20mm 20mm 20mm 20mm 20mm
*Integrated models available.
*
**
<< CONTENTS
PAGE 8© FISHER & PAYKEL APPLIANCES LIMITED 2026PLANNING GUIDE 60CM OVENS AND COMPANIONS VERSION A - FEBRUARY 202690005576A UK-IE-EU
SPECIFICATION GUIDE
SERIES 7 & 9
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 990005576A UK-IE-EU PLANNING GUIDE 60CM OVENS AND COMPANIONS VERSION A - FEBRUARY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

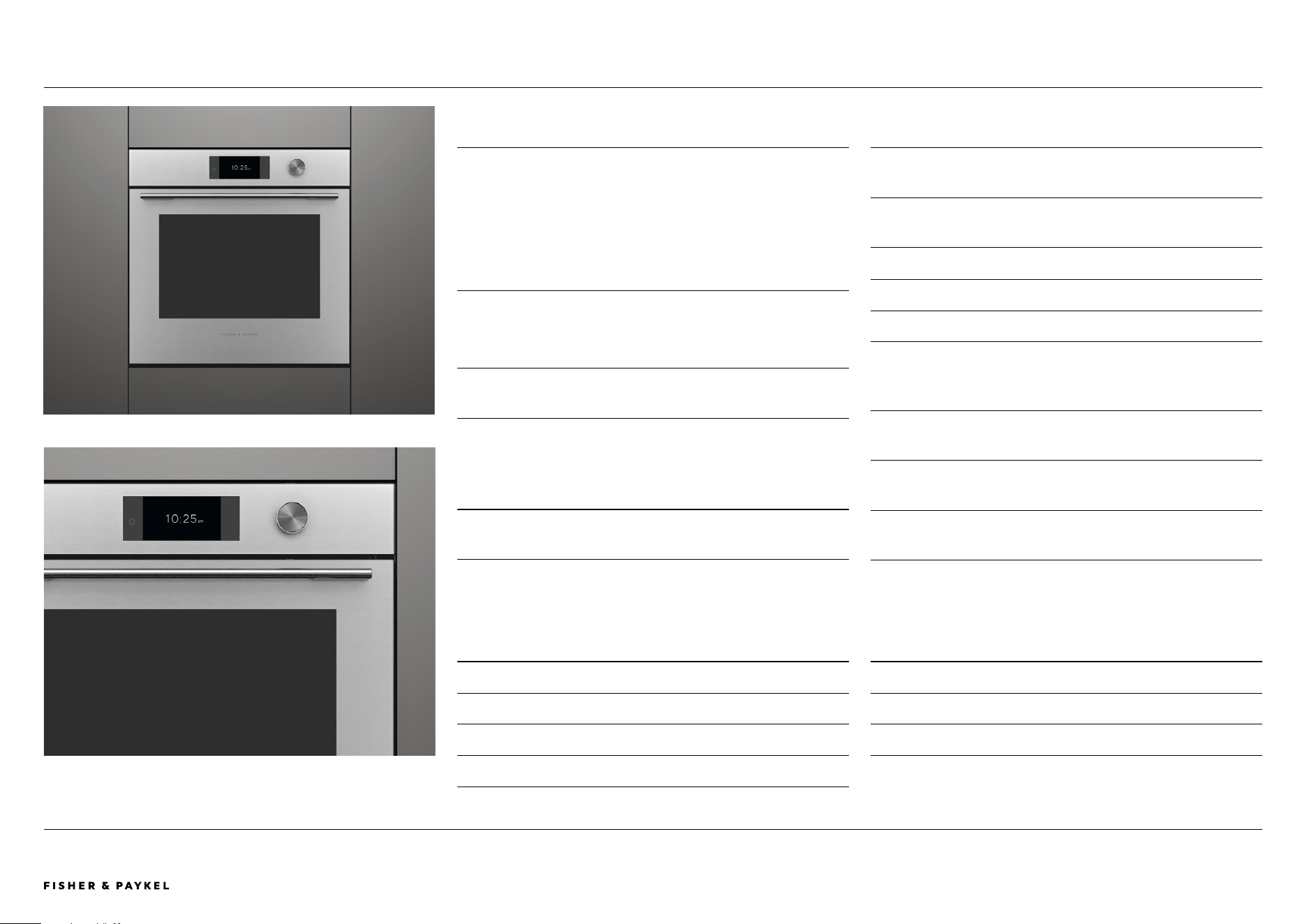

OB60SACPTDX5SPECIFICATION GUIDE | PYROLYTIC OVEN, 60CM
OVERVIEW
Designed to be distinctive and timeless, this Contemporary
oven matches with our Contemporary style family of appliances.
The pyrolytic self-cleaning function breaks down food residue
for an easy clean, while precise cooking methods with
temperature and heat type recommendations for a wide range
of food types are easily accessed via the touch screen and
SmartHQ™.
PRODUCTS
OB60SACPTDX5
60cm Series 7 Contemporary Pyrolytic Oven
SERIES & STYLE
Series 7
Contemporary
FEATURES
1 Contemporary style is distinctive and timeless. Designed to
match with our Contemporary style family of appliances
2 Self-cleaning pyrolytic function breaks down food residue
for an easy clean
3 Premium soft open and close door
4 Generous 72L useable capacity
5 5” touchscreen is intuitive and easy to use
6 Create perfect results with precise cooking methods, with
temperature and heat type recommendations for your food
type
7 Moisture control and even heat distribution thanks to
ActiveVent™ and AeroTech™ technology
8 Includes a wired temperature sensor for real-time
monitoring of cooking temperatures
9 Connected capability via the SmartHQ™ app gives control &
visibility from anywhere at anytime
ACCESSORIES
1 Pyro-proof Side Ladders
2 Telescopic Sliding Runners
3 Wire Shelf
4 Multi-functional Air Fry Tray
ACCESSORIES
5 Roasting Dish
6 Flat Brushed Baking Tray
7 Wired Temperature Sensor
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1090005576A UK-IE-EU PLANNING GUIDE 60CM OVENS AND COMPANIONS VERSION A - FEBRUARY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

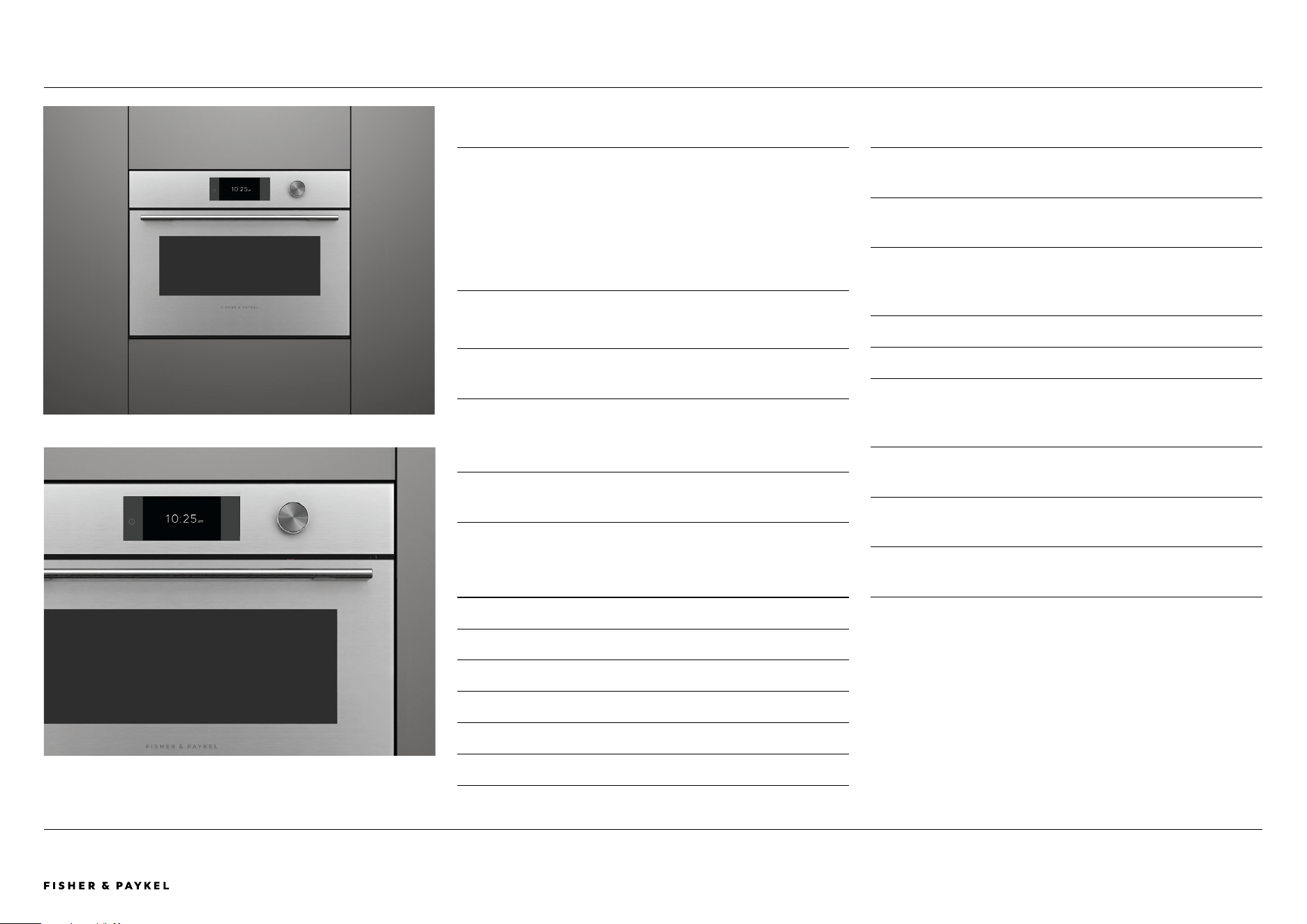

OM60NCTDX5SPECIFICATION GUIDE | COMPACT COMBI-MICROWAVE OVEN, 60CM
OVERVIEW
Designed to be distinctive and timeless, this Contemporary
oven matches with our Contemporary style family of appliances.
Versatile cooking options including microwave or convection
oer ecient heating across a variety of dishes. Precise cooking
methods with temperature and heat type recommendations for
a wide range of food types are easily accessed via the touch
screen and SmartHQ™.
PRODUCTS
OM60NCTDX5
60cm Series 7 Contemporary Compact Combi-Microwave Oven
SERIES & STYLE
Series 7
Contemporary
FEATURES
1 Contemporary style is distinctive and timeless. Designed to
match with our Contemporary style family of appliances
2 Combines fast microwave cooking with even convection
heat for versatile, efficient heating across a variety of dishes
3 With soft open and close, the CoolTouch door is safe to
touch from the outside - protecting hands and surrounding
cabinetry
4 Compact 38L useable capacity
5 5” touchscreen is intuitive and easy to use
6 Create perfect results with precise cooking methods, with
temperature and heat type recommendations for your food
type
7 Versatile microwave only, convection only or combi-
microwave functions to suit a range of cooking styles
8 Includes a wired temperature sensor for real-time
monitoring of cooking temperatures
9 Connected capability via the SmartHQ™ app gives control &
visibility from anywhere at anytime
ACCESSORIES
1 Chrome Side Ladders
2 Wire Shelf
3 Step Down Wire Shelf
4 Glass Tray
5 Grill Rack
6 Wired Temperature Sensor
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1190005576A UK-IE-EU PLANNING GUIDE 60CM OVENS AND COMPANIONS VERSION A - FEBRUARY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

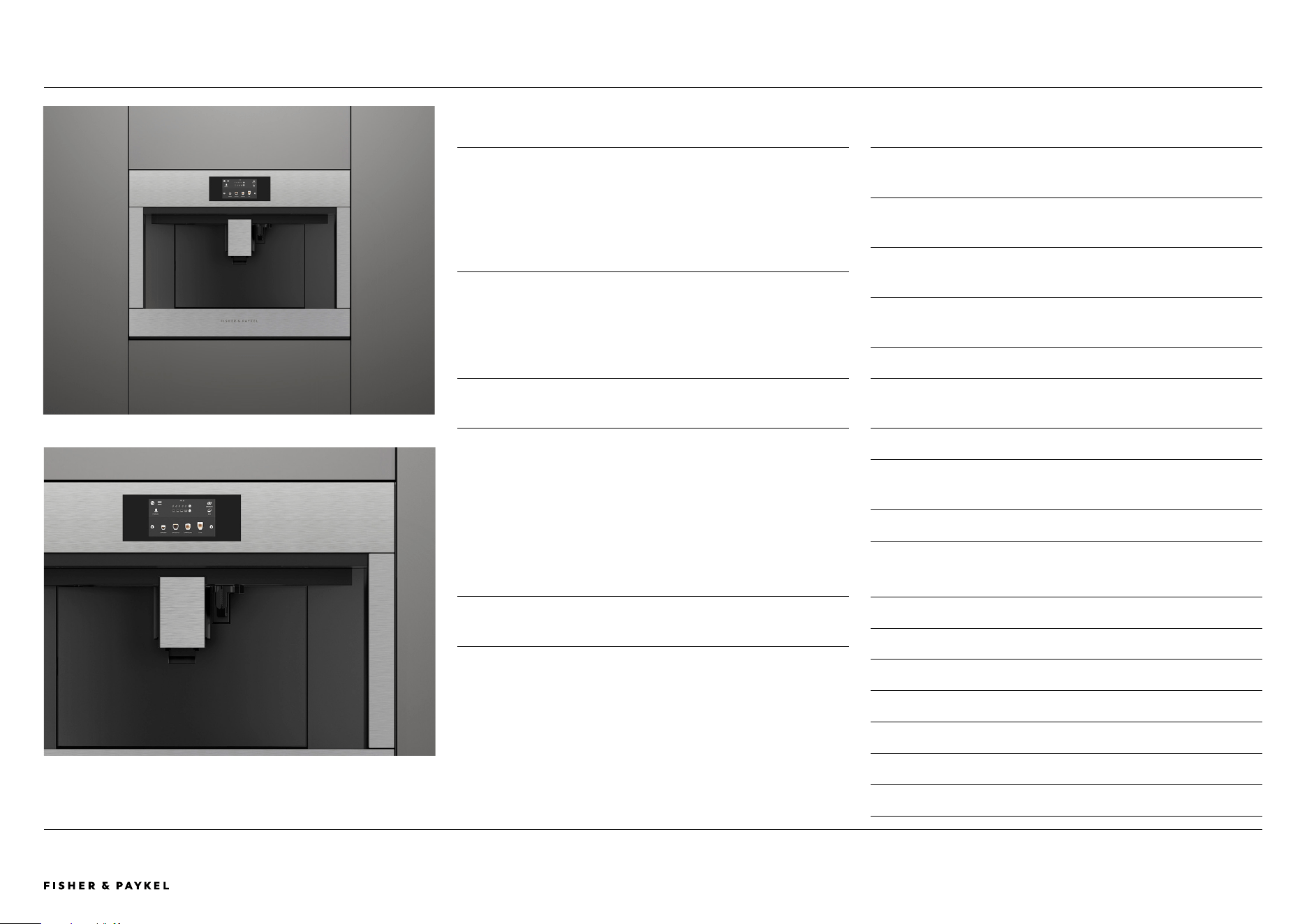

EB60CSX3SPECIFICATION GUIDE | BUILT-IN COFFEE MAKER, 60CM
FEATURES
1 Contemporary style is distinctive and timeless. Designed to
match with our Contemporary style family of appliances
2 Intuitive touch display brews a perfect cup of coffee at the
touch of a button
3 Programmable timer turns on the Coffee Maker at the ideal
time each day
4 Personalised coffee and smart self-learning menu
preferences with 13 functions to suit any taste
5 Allows you to prepare hot milk or creamy froth in seconds
6 Stainless steel conical burr grinder with 13 coarseness
positions
7 15 bar pump pressure
8 Self-cleaning function and easy-to-empty coffee grounds
container and drip tray
9 2.4L water tank capacity
ACCESSORIES
1 Milk Container (Auto-Froth)
2 Steam Wand
3 Coffee Spoon
4 Cleaning Brush
5 Descaler Solution – 1 bottle
6 Water Hardness Indicator Paper
7 Water Filter
OVERVIEW
Designed to be distinctive and timeless, this Coee Maker
matches with our Contemporary style family of appliances. It
learns your preferences over time, oering personalised coee
at the touch of a button. With precise grinding, creamy milk
frothing, and eortless self-cleaning, it brings barista-quality
coee home.
PRODUCTS
EB60CSX3
60cm Series 9 Contemporary Built-in Coee Maker
SERIES & STYLE
Series 9
Contemporary
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1290005576A UK-IE-EU PLANNING GUIDE 60CM OVENS AND COMPANIONS VERSION A - FEBRUARY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

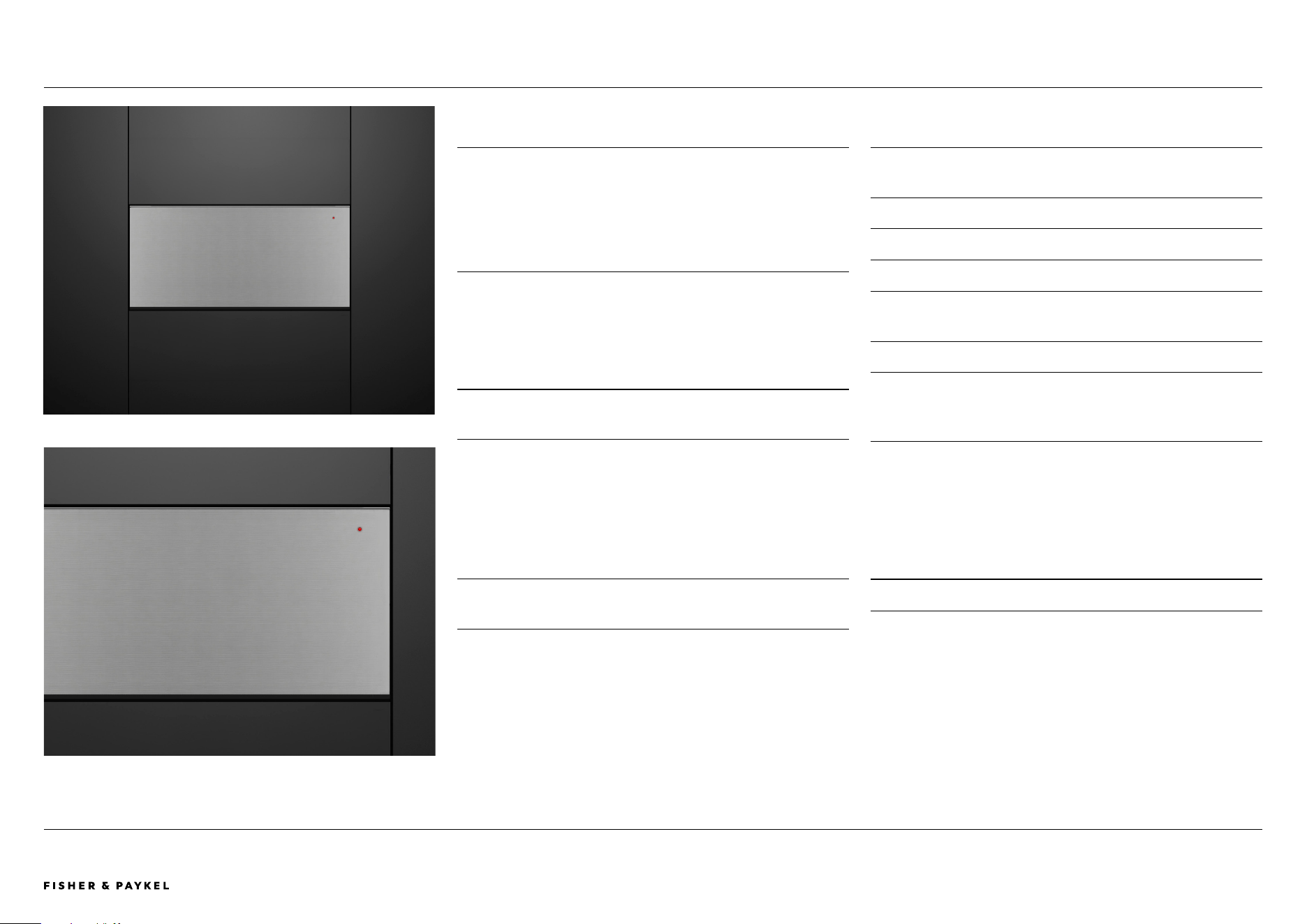

WB60SCTX3SPECIFICATION GUIDE | TALL WARMING DRAWER, 60CM
FEATURES
1 Contemporary style is distinctive and timeless. Designed to
match with our Contemporary style family of appliances
2 Push-to-open drawer, designed for added convenience
3 Simple and intuitive touch controls for effortless operation
4 Easy-to-clean glass base
5 Automatic switch-off and delayed start functionality to help
keep dishes warm until it is time to serve
6 Room for 16 standard-sized place settings
7 Six tailored programmes including Warming, Proofing,
Dehydrating, and Slow Cooking offer convenience and
flexibility
ACCESSORIES
1 Accessory rack for optimising space
OVERVIEW
Designed to be distinctive and timeless, this Warming Drawer
matches with our Contemporary style family of appliances.
Featuring a push-to-open mechanism, intuitive touch controls,
and a smooth glass base for easy cleaning. With six tailored
programmes and space for 16 place settings, it keeps meals
ready to serve.
PRODUCTS
WB60SCTX3
60cm Series 9 Contemporary Tall Warming Drawer
SERIES & STYLE
Series 9
Contemporary
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1390005576A UK-IE-EU PLANNING GUIDE 60CM OVENS AND COMPANIONS VERSION A - FEBRUARY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
WB60SDTEI3SPECIFICATION GUIDE | INTEGRATED TALL WARMING DRAWER, 60CM
FEATURES
1 Panel ready design allows for seamless integration and
customisation with kitchen cabinetry for a cohesive kitchen
look
2 Push-to-open drawer, designed for added convenience
3 Simple and intuitive touch controls for effortless operation
4 Easy-to-clean glass base
5 Automatic switch-off and delayed start functionality to help
keep dishes warm until it is time to serve
6 Room for 16 standard-sized place settings
7 Six tailored programmes including Warming, Proofing,
Dehydrating, and Slow Cooking offer convenience and
flexibility
ACCESSORIES
1 Accessory rack for optimising space
OVERVIEW
Panel ready design allows for seamless integration and
customisation of this Warming Drawer with kitchen cabinetry
for a cohesive kitchen look. Featuring a push-to-open
mechanism, intuitive touch controls, and a smooth glass base
for easy cleaning. With six tailored programmes and space for
16 place settings, it keeps meals ready to serve.
PRODUCTS
WB60SDTEI3
60cm Series 9 Integrated Tall Warming Drawer
SERIES & STYLE
Series 9
Integrated
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1490005576A UK-IE-EU PLANNING GUIDE 60CM OVENS AND COMPANIONS VERSION A - FEBRUARY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

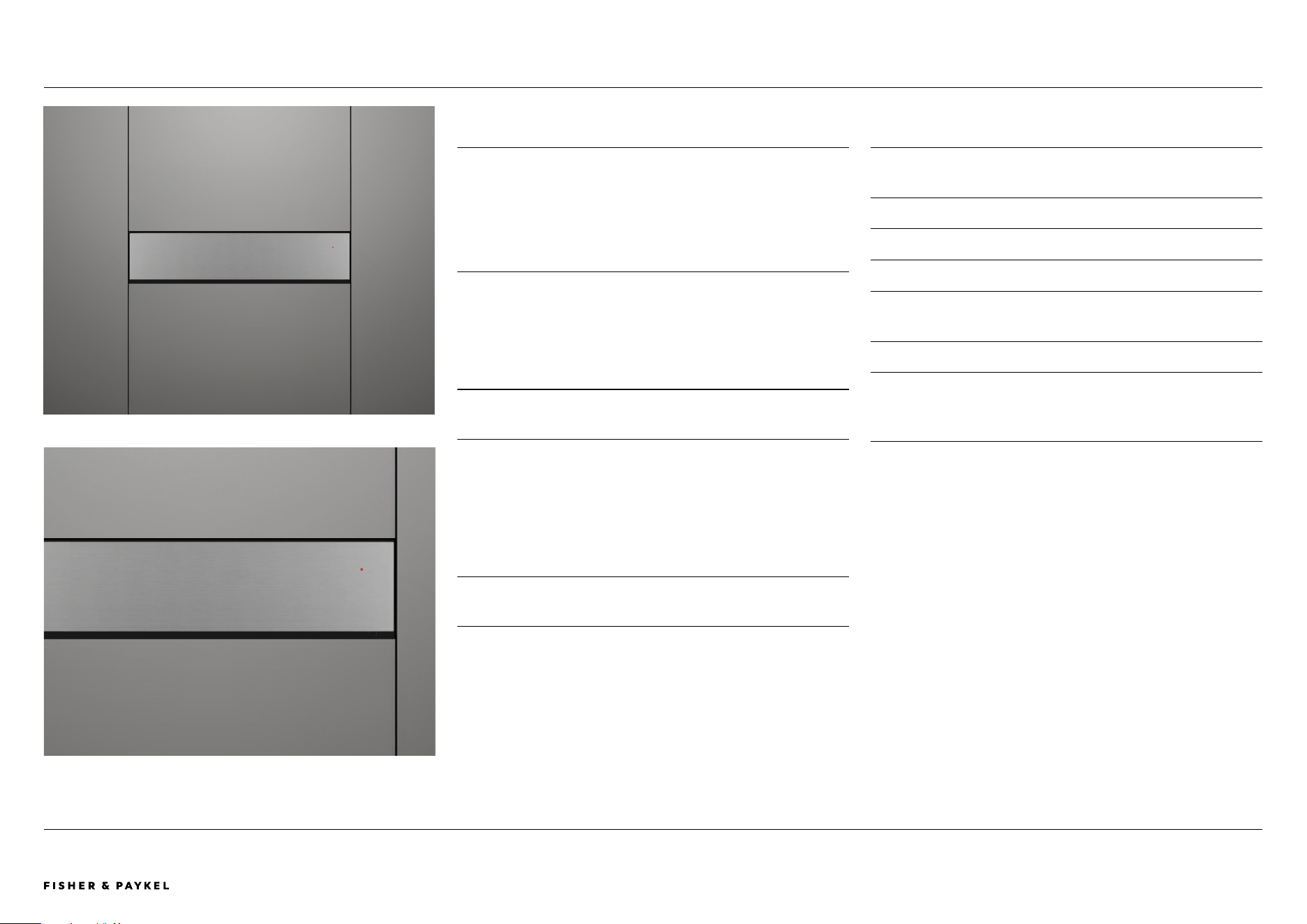

WB60SCX3SPECIFICATION GUIDE | WARMING DRAWER, 60CM
FEATURES
1 Contemporary style is distinctive and timeless. Designed to
match with our Contemporary style family of appliances
2 Push-to-open drawer, designed for added convenience
3 Simple and intuitive touch controls for effortless operation
4 Easy-to-clean glass base
5 Automatic switch-off and delayed start functionality to help
keep dishes warm until it is time to serve
6 Room for 6 standard-sized place settings
7 Six tailored programmes including Warming, Proofing,
Dehydrating, and Slow Cooking offer convenience and
flexibility
OVERVIEW
Designed to be distinctive and timeless, this Warming Drawer
matches with our Contemporary style family of appliances.
Featuring a push-to-open mechanism, intuitive touch controls,
and a smooth glass base for easy cleaning. With six tailored
programmes and space for 6 place settings, it keeps meals
ready to serve.
PRODUCTS
WB60SCX3
60cm Series 9 Contemporary Warming Drawer
SERIES & STYLE
Series 9
Contemporary
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1590005576A UK-IE-EU PLANNING GUIDE 60CM OVENS AND COMPANIONS VERSION A - FEBRUARY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
WB60SDEI3SPECIFICATION GUIDE | INTEGRATED WARMING DRAWER, 60CM
FEATURES
1 Panel ready design allows for seamless integration and
customisation with kitchen cabinetry for a cohesive kitchen
look
2 Push-to-open drawer, designed for added convenience
3 Simple and intuitive touch controls for effortless operation
4 Easy-to-clean glass base
5 Automatic switch-off and delayed start functionality to help
keep dishes warm until it is time to serve
6 Room for 6 standard-sized place settings
7 Six tailored programmes including Warming, Proofing,
Dehydrating, and Slow Cooking offer convenience and
flexibility
OVERVIEW
Panel ready design allows for seamless integration and
customisation of this Warming Drawer with kitchen cabinetry
for a cohesive kitchen look. Featuring a push-to-open
mechanism, intuitive touch controls, and a smooth glass base
for easy cleaning. With six tailored programmes and space for 6
place settings, it keeps meals ready to serve.
PRODUCTS
WB60SDEI3
60cm Series 9 Integrated Warming Drawer
SERIES & STYLE
Series 9
Integrated
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1690005576A UK-IE-EU PLANNING GUIDE 60CM OVENS AND COMPANIONS VERSION A - FEBRUARY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
VB60SCX3SPECIFICATION GUIDE | VACUUM SEAL DRAWER, 60CM
FEATURES
1 Contemporary style is distinctive and timeless. Designed to
match with our Contemporary style family of appliances
2 Push-to-open drawer, designed for added convenience
3 Simple and intuitive touch controls for effortless operation
4 Easy-to-clean glass base
5 Three levels of vacuum and heat sealing - for easy re-
sealing, food portioning, marinating, storage and extending
shelf life
6 Allows effortless preparation for sous vide cooking
7 Our food-grade, BPA-free bags are an excellent storage
option — these can be re-used if sealed and cut
appropriately
ACCESSORIES
1 External Vacuuming Accessory Kit
2 Large BPA-free Vacuum Seal Bags - 50 bags (Part 793034)
3 Small size BPA-free Vacuum Seal Bags - 50 bags (Part
793033)
OVERVIEW
Designed to be distinctive and timeless, this Vacuum Seal
Drawer matches with our Contemporary style family of
appliances. A push-to-open mechanism and intuitive touch
controls oer eortless use, while three vacuum and heat
sealing levels support sous vide preparation, marinating, and
food storage, using reusable and BPA-free food-grade bags.
PRODUCTS
VB60SCX3
60cm Series 9 Contemporary Vacuum Seal Drawer
SERIES & STYLE
Series 9
Contemporary
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1790005576A UK-IE-EU PLANNING GUIDE 60CM OVENS AND COMPANIONS VERSION A - FEBRUARY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
VB60SDEI3SPECIFICATION GUIDE | INTEGRATED VACUUM SEAL DRAWER, 60CM
FEATURES
1 Panel ready design allows for seamless integration and
customisation with kitchen cabinetry for a cohesive kitchen
look
2 Push-to-open drawer, designed for added convenience
3 Simple and intuitive touch controls for effortless operation
4 Easy-to-clean glass base
5 Three levels of vacuum and heat sealing - for easy re-
sealing, food portioning, marinating, storage and extending
shelf life
6 Allows effortless preparation for sous vide cooking
7 Our food-grade, BPA-free bags are an excellent storage
option — these can be re-used if sealed and cut
appropriately
ACCESSORIES
1 External Vacuuming Accessory Kit
2 Large BPA-free Vacuum Seal Bags - 50 bags (Part 793034)
3 Small size BPA-free Vacuum Seal Bags - 50 bags (Part
793033)
OVERVIEW
Panel ready design allows for seamless integration and
customisation of this Vacuum Seal Drawer with kitchen
cabinetry for a cohesive kitchen look. A push-to-open
mechanism and intuitive touch controls oer eortless use,
while three vacuum and heat sealing levels support sous vide
preparation, marinating, and food storage, using reusable and
BPA-free food-grade bags.
PRODUCTS
VB60SDEI3
60cm Series 9 Integrated Vacuum Seal Drawer
SERIES & STYLE
Series 9
Integrated
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1890005576A UK-IE-EU PLANNING GUIDE 60CM OVENS AND COMPANIONS VERSION A - FEBRUARY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
OB60SACPTDX5,
OM60NCTDX5, EB60CSX3SPECIFICATION GUIDE | 60CM OVENS AND COMPANIONS
PYROLYTIC OVEN
OB60SACPTDX5
COMPACT MICROWAVE OVEN
OM60NCTDX5
BUILT-IN COFFEE MAKER
EB60CSX3

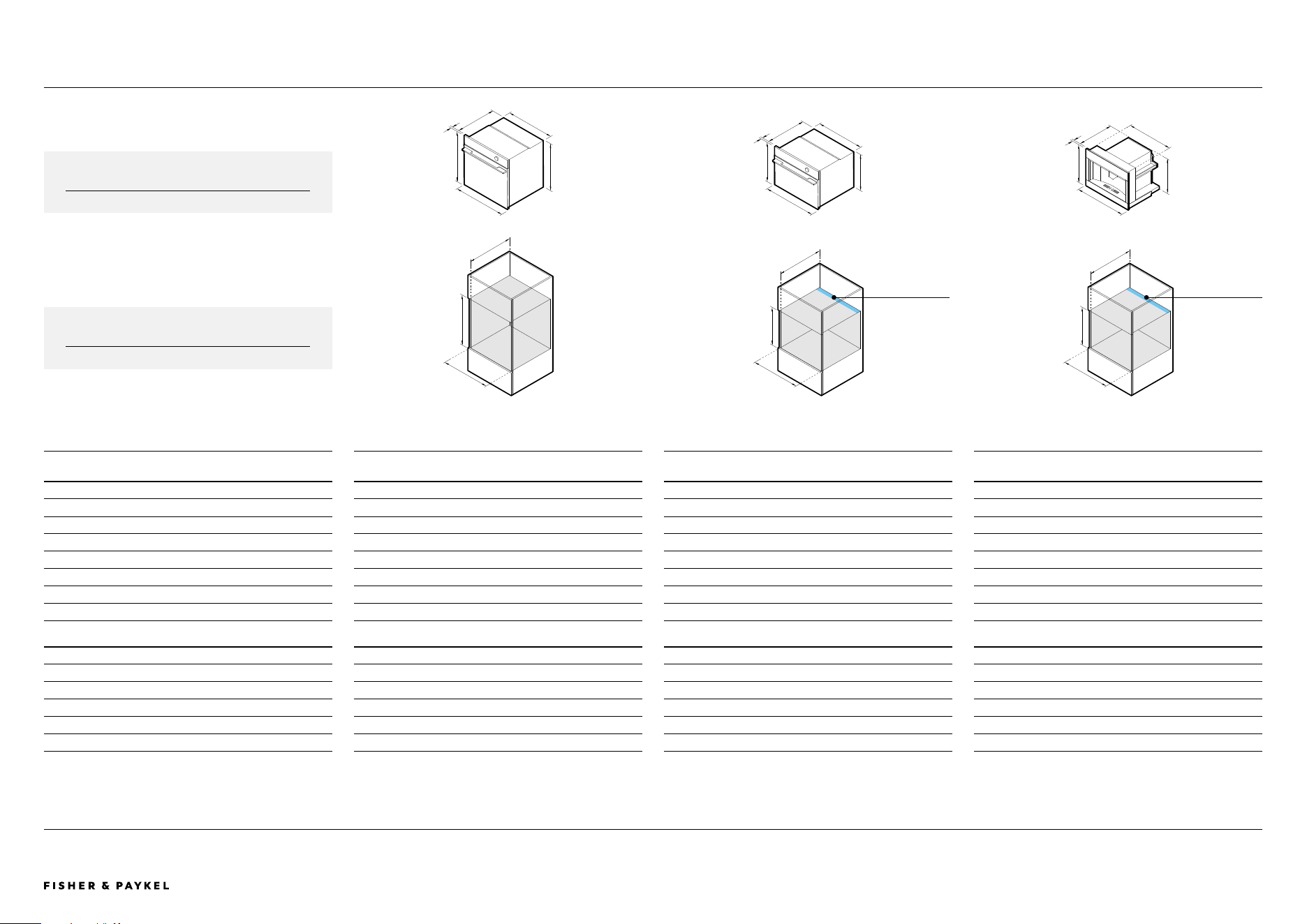

PRODUCT DIMENSIONS mm mm mm
A Overall height
598 458 458
B Overall width
596 596 596
C Chassis height
575 435 445
D Chassis width
556 556 560
E Chassis depth
545 545 460
F Control panel thickness
20 20 20
Depth with door/drawer fully open* 463 324 435
*Measured from front of control panel.
CAVITY DIMENSIONS mm mm mm
G Minimum inside height of cavity
580 440
450
H Minimum inside width of cavity
560 560
560*
I Minimum inside depth of cavity**
550 550***
545***
Recommended cabinet height
600 460
460
Recommended cabinet width
600 600
600
*Cabinetry requires additional vertical sidewalls to secure the product. **Measured from front of chassis. ***A rear ventilation air vent totalling 280cm² is required. The air vent must be located at the rear of the cabinet, it can be positioned at the base, sides, back or top of
the cavity.
CAVITY DIMENSIONS
PRODUCT DIMENSIONS
A
B
C
D
E
F
g
h
i
A
B
C
D
E
F
g
h
i
Ventilation
required
Ventilation
required
A
B
C
D
E
F
g
h
i
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1990005576A UK-IE-EU PLANNING GUIDE 60CM OVENS AND COMPANIONS VERSION A - FEBRUARY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
TALL WARMING DRAWER
WB60SCTX3
TALL INTEGRATED WARMING
DRAWER
WB60SDTEI3
WARMING DRAWER
WB60SCX3
INTEGRATED WARMING
DRAWER
WB60SDEI3
VACUUM SEAL DRAWER
VB60SCX3
INTEGRATED VACUUM SEAL
DRAWER
VB60SDEI3

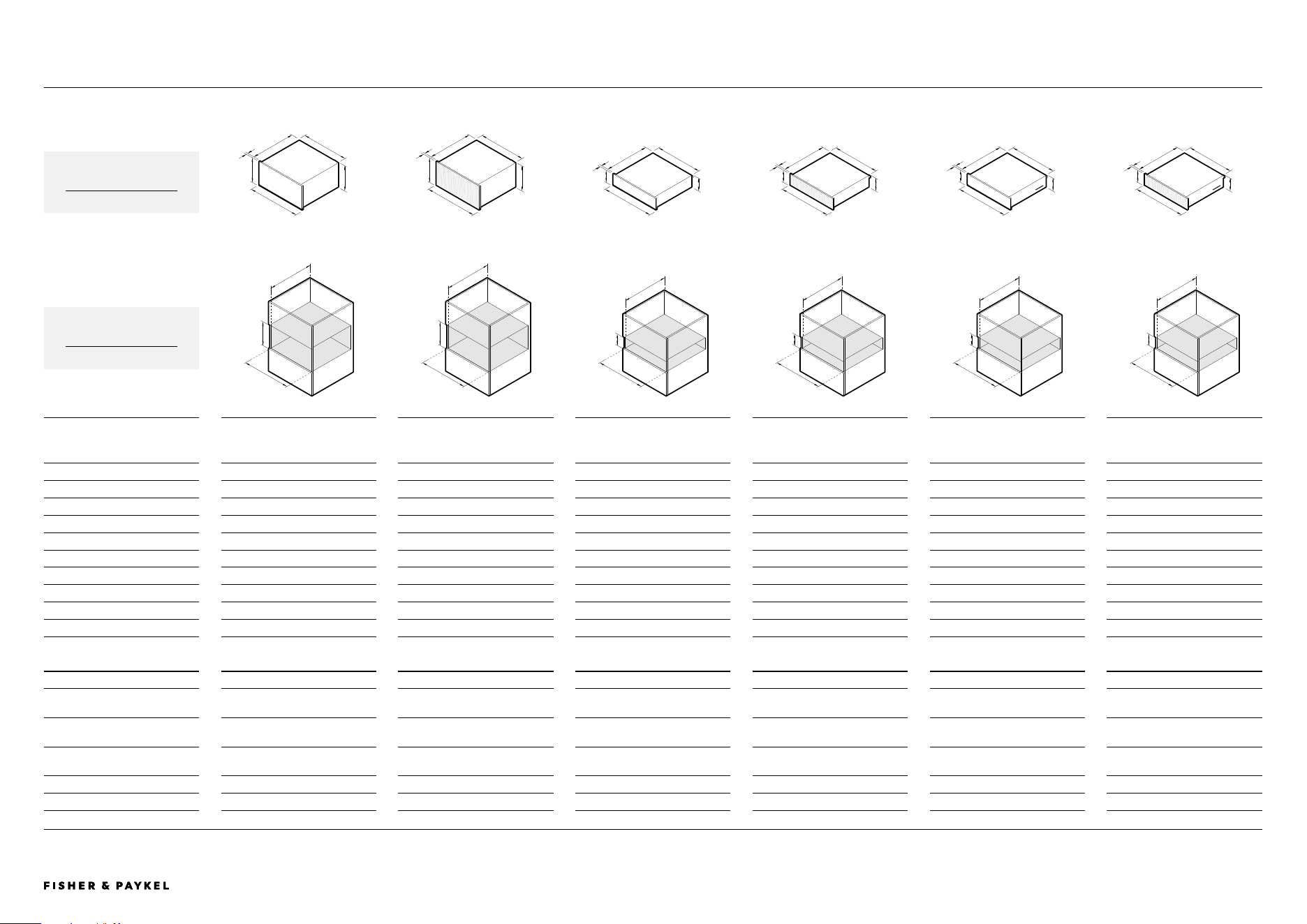

PRODUCT DIMENSIONS mm mm mm mm
A Overall height
290
290
140 140 140 140
B Overall width
596
596
596 596 596 596
C Chassis height
290
290
140 140 140 140
D Chassis width
543
559*
543 559* 556**
559**
E Chassis depth***
547
566
547 566 545
563
F Front panel thickness
20
min 16****
20
min 16****
20
min 16****
Front panel height
286
min 286 136 min 136 136 min 136
Front panel width
596
min 596 596 min 596 596 min 596
Depth of drawer open*****
414
414 414 414 414 414
*Including side brackets. **Including side brackets and anti-tip brackets. ***Including power plug. ****A clearance of 2mm between the cabinet and the custom panel is required for the push-to-open mechanism (spacer included). Maximum custom panel weight 5kg.
*****Measured from front of control panel.
CAVITY DIMENSIONS mm mm mm mm
G Minimum inside height of
cavity
292 292
142 142 142 142
H Minimum inside width of
cavity
560 560
560 560 560 560
I Minimum inside depth of
cavity*
550 570
550 570 550 570
Recommended cabinet height
294 294
144 144 144 144
Recommended cabinet width
600 600
600 600 600 600
*Measured from front of chassis. Note: Drawers can fully support 60cm Fisher & Paykel ovens, without adding shelf in between.
CAVITY DIMENSIONS
PRODUCT DIMENSIONS
WB60SCTX3, WB60SDTEI3, WB60SCX3,
WB60SDEI3, VB60SCX3, VB60SDEI3SPECIFICATION GUIDE | 60CM OVENS AND COMPANIONS
A
B
C
D
E
F
g
h
i
A
B
C
D
E
F
g
h
i
A
B
C
D
E
F
g
h
i
A
B
C
D
E
F
g
h
i
A
B
C
D
E
F
g
h
i
A
B
C
D
E
F
g
h
i
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 2090005576A UK-IE-EU PLANNING GUIDE 60CM OVENS AND COMPANIONS VERSION A - FEBRUARY 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
ALL MODELS
PYROLYTIC OVEN
OB60SACPTDX5
COMPACT COMBI-MICROWAVE
OVEN
OM60NCTDX5
BUILT-IN COFFEE MAKER
EB60CSX3
TALL WARMING DRAWER
WB60SCTX3
INTEGRATED TALL WARMING
DRAWER
WB60SDTEI3
WARMING DRAWER
WB60SCX3
INTEGRATED WARMING
DRAWER
WB60SDEI3
VACUUM SEAL DRAWER
VB60SCX3
INTEGRATED VACUUM SEAL
DRAWER
VB60SDEI3
PRODUCT REQUIREMENTS
Dedicated Circuit (A) 16 16 10 10 10 10
Rated Power (W) 2800 - 3300 3350 - 3800 1350 810 810 320
Supply (Hz) 50 50 50 50 50 50
Voltage (V) 220 - 240 220 - 240 220 - 240 220 - 240 220 - 240 220 - 240
Connection
Hard-wired
min 1500mm**
Hard-wired
min 1500mm**
Flex cord
1700mm*
Flex cord
1800mm*
Flex cord
1800mm*
Flex cord
1800mm*
*Supplied with product. **The electrician provides sucient free length of power supply cable to reach from the bottom rear of the cavity to at least 1.5m in front of the bottom edge of the opening.
Note: For multi-residential installs, use the Rated Power to calculate the demand.
CAPACITY
Total Oven capacity 85L 49L - - - -
Total water tank capacity - - 2.4L - - -
Note: All Coee Makers has internal water tanks which need to be filled manually. No external water supply is required.
SERVICES | 60CM OVENS AND COMPANIONS
ISOMETRIC
VIEW
<< CONTENTS
