ECAM31X.6Y - 31X.8Y
Instructions for use
2
Magnica Evo Next
Contents
DESCRIPTION OF THE MACHINE (A) .............................................................................4
DESCRIPTION OF PANEL (B) ........................................................................................ 6
Following selection of drink (e.g. Espresso) ............................................................7
DESCRIPTION OF HOMEPAGE (C) ................................................................................. 7
DESCRIPTION OF ACCESSORIES (D)* ............................................................................ 8
DESCRIPTION OF MILK CARAFE (E) ..............................................................................9
USING THE MACHINE FOR THE FIRST TIME ................................................................. 10
Select your language ............................................................................................10
Fill the water tank ................................................................................................11
Prepare the machine ............................................................................................11
Using for the rst time..........................................................................................11
Check the hardness of the water ........................................................................... 12
Setting water hardness.........................................................................................12
Installing a lter ...................................................................................................13
Tutorial .................................................................................................................14
Support for operation ...........................................................................................14
TURNING THE MACHINE ON ...................................................................................... 15
Switching o for extended periods ....................................................................... 16
TURNING THE MACHINE OFF ..................................................................................... 16
Access the settings menu .....................................................................................17
MENU SETTINGS ...................................................................................................... 17
Rinsing .................................................................................................................17
Descaling .............................................................................................................. 18
Water lter ...........................................................................................................18
Milk carafe ............................................................................................................19
Drain water...........................................................................................................19
Auto-o................................................................................................................20
Beep sound ..........................................................................................................20
Energy saving .......................................................................................................21
Coee temperature ..............................................................................................21
Grinder .................................................................................................................22
Water hardness.....................................................................................................22
Languages ............................................................................................................22
Statistics ...............................................................................................................23
Default values.......................................................................................................23
Serial number .......................................................................................................24
Suppor t ................................................................................................................24
SELECTION OF PROFILES .......................................................................................... 25
Set up the machine to make coee-based drinks .................................................26
Directly selected coee-based drinks ...................................................................26
Drinks from the “More” menu (B10) ......................................................................26
3
COFFEE-BASED DRINKS ........................................................................................... 26
Preparation with pre-ground coee .....................................................................27
Tips for a hotter coee ..........................................................................................28
DIRECTIONS FOR COFFEE-BASED DRINKS................................................................... 28
MILK-BASED DRINKS ............................................................................................... 29
Preparing the milk carafe .....................................................................................29
What milk to use? .................................................................................................29
Filling and attaching the milk carafe ....................................................................29
Making milk-based drinks ....................................................................................30
Cleaning the milk carafe after each use (Clean function) .....................................30
Preparing several drinks in succession: .................................................................30
After multiple preparations, the milk container is empty or the milk that remains is not enough to
make further drinks ..............................................................................................30
After multiple preparations, there is enough milk left in the container to make further drinks
.............................................................................................................................31
Following preparation of milk-based drinks — general notes: ............................31
HOT WATER ............................................................................................................. 32
“MY” FUNCTION ....................................................................................................... 33
CLEANING THE MACHINE .......................................................................................... 34
Internal circuit of the machine ..............................................................................35
Coee grounds container ...................................................................................... 35
Drip tray and drip tray grille .................................................................................36
Inside of the machine ...........................................................................................37
Water tank ............................................................................................................37
Coee spouts ........................................................................................................37
Removable brewing unit ......................................................................................37
Pre-ground coee funnel .....................................................................................38
Control panel (B) ..................................................................................................38
Thorough cleaning of milk carafe .........................................................................38
DESCALING .............................................................................................................. 40
FREQUENT AND ALARM MESSAGES ........................................................................... 43
FAQ ................................................................................................................. 49
TECHNICAL DATA...................................................................................................... 56
Tips for Energy Saving ..........................................................................................56
6
Magnica Evo Next
Description of panel (B)
B1. ON/Standby button
B2. Machine settings menu button
B3. Press OK to conrm
B4. Scroll arrow/intensity selection - pre-ground
B5. Scroll arrow/quantity selection
B6. button (Esc) used to exit
B7. Prole change button
B8. "My" button: customization of drinks
B9. Direct drink selection
B10. Extra drinks menu (varies according to model)
B11. Display
(*) (*)
B1B2B7B8
B3B4B5B6
B9
B10 B11
Drink ECAM31X.8Y ECAM31X.6Y
Doppio+
✓ ✓
2x Espresso
✓ ✓
Americano
✓
✕
Long
Directly
selected
drink
✓
Drink ECAM31X.8Y ECAM31X.6Y
Cappuccino Mix
✓ ✓
Cappuccino+
✓
✕
Espresso Macchiato
✓
✕
Hot milk
Directly
selected
drink
(Hot Milk)
✓
7
Magnica Evo Next
Description of homepage (C)
C1. Filter spent indicator
C2. Descaling required indicator
C3. Selected prole
C4. Milk carafe Clean alert indicator
Prole 1
Choose the
drink
C1 C2 C3 C4
Following selection of drink (e.g. Espresso)
M 4
Espresso
C6 C7
C5
C5. Name of selected drink
C6. Selected quantity (variable using “<” button B5)
C7. Selected intensity (variable using “>” button B4)
10
Magnica Evo Next
Using the machine for the first time
Please note:
• Possible traces of coee in the grinder are the result of settings tests performed on the machine before
sale, proof of the meticulous care and attention we invest in our products.
• The rst time the machine is used, all removable accessories and components designed to make contact
with water and milk (water tank, water spout, milk carafe, etc.) should be rinsed with hot water. It is
advisable to wash the milk carafe in the dishwasher (see section Thorough cleaning of milk carafe).
1. Connect the power cord (A8) to the mains supply
(g. 1).
1
The machine switches on and will show you how to set it up the way you prefer
: follow
the instructions displayed
(B11) and the Magnica will be ready for use!
Here are the essentials:
Cold drinking water
Hot water spout
(already tted to the machine)
Your favourite coee beans
A container
(make sure the capacity is at least 0.2 litres)
Water hardness test strip
(you’ll nd it in the accessories pack)
Select your language
2. The display (B11) shows the
language currently selected:
use the scroll arrows “>” (B4)
or “<
”
(B5) to select the ag
corresponding to your lan-
guage (g.
2).
3. Press “OK” (B3) to conrm
the language selected (g.
3).
2 3
WATCH THE VIDEO HERE
11

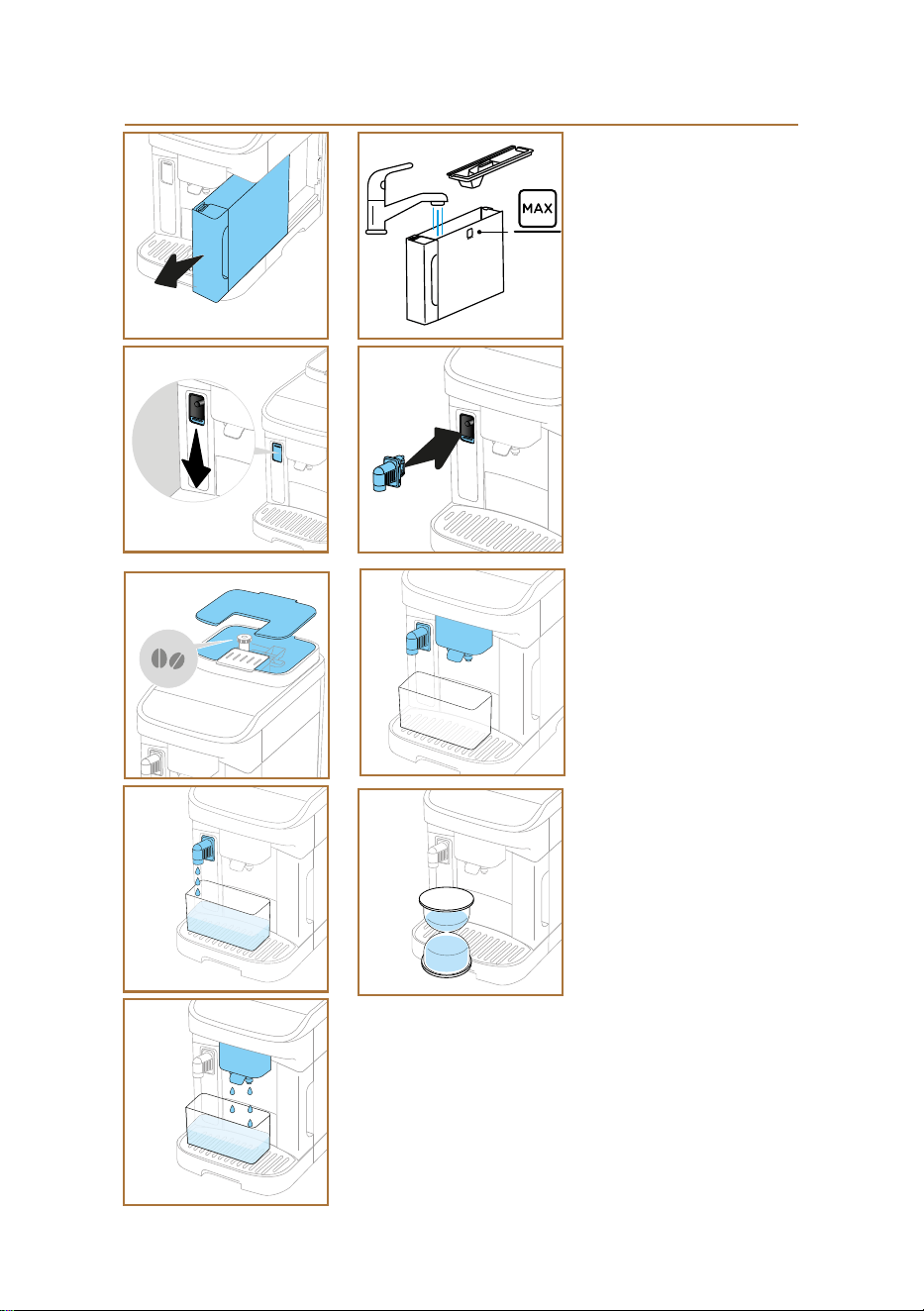

Fill the water tank
4. Remove the water tank (A9)
(g. 4).
5. Fill the tank with cold drink-
ing water up to the MAX
level (g. 5) and reposition
it in the machine, then press
">” (B4).
Prepare the machine
6. Check that the hot water
spout (D2) is attached to the
machine: if not, press down-
wards on the accessories
connector ap (A4) (g. 6)
and t the hot water spout
(g. 7). Press “>” (B4).
7. Fill the bean container (A1)
(g. 8), then conrm by
pressing “>” (B4)
Using for the first time
8. Position a container of at
least 0.2 litres capacity
under the coee spout (A5)
and the hot water spout (D2)
(g. 9).
9. Press “OK” (B3) to start the
rinse cycle (g. 10). The rinse
will stop automatically.
10. The machine now starts
heating up (g. 11), contin-
uing until hot water is deliv-
ered from the coee spout
(A5) (g. 12).
11. Press “OK” (B3) to move on to
the next step.
MAX
5
4
6 7
8 9
10
12
11
12
Check the hardness of the water
The machine will prompt for descaling to be carried out after a predeter-
mined period of time, depending on the water hardness. The machine
can also be programmed according to the actual hardness of the local
water supply, so that descaling is required less frequently. Accordingly,
it is advisable to set the correct value without delay, following the ma-
chine’s step by step guide. Proceed as follows:
12. Take the "Total hardness test" strip (D3) (in the accessories pack) and
remove it from its wrapper. Press “>” (B4).
13. Fill a glass with a sample of the water you intend to use in your
machine, and immerse the strip fully for approximately one second.
Press “>” (B4).
14. Remove the strip from the water and shake lightly. After about a
minute, 1, 2, 3, or 4 red squares appear, depending on the hardness
of the water. Each square corresponds to one level. Press “>” (B4).
Setting water hardness
15. Using the scroll arrows “<” (B5) or “>” (B4), select the dot that cor-
responds to the level of hardness detected using the test strip, as
indicated in the following table:
Test strip Water hardness
Soft water
Slightly hard water
Hard water
Very hard water
16. Press “OK” (B3).
17. The machine is now reprogrammed with the new water hardness
setting. Press “OK”
(B3).
Please note:
The water hardness can be changed at any time by way of the settings
menu (B2) (see “Water hardness”).
13
Installing a filter
To ensure the performance of the machine remains constant over time,
a message will suggest you install a De’Longhi water softener lter (D5).
Proceed as follows to install the lter straight away, or alternatively, press
“ ” (B6) to postpone installation:
18. Take the lter out of the pack and press “OK” (B3).
19. Turn the date indicator to show the next 2 months (g. 13): press the
forward arrow “>” (B4) to pass on to the next step.
Please note:
The lter lasts about two months assuming normal use of the machine; if
on the other hand the machine remains idle with the lter installed, it will
not last more than three weeks, at most.
20. To activate the lter, run tap water through the hole in the centre of
the lter until water comes out of the openings at the side for more
than a minute (g. 14). Press the forward arrow “>” (B4) to pass on
to the next step.
2
13
0,5 L
14
21. Remove
the water tank
(A9)
from the machine and ll with
cold drinking water; remove
the lid of the tank and im-
merse the lter in the water,
while squeezing the middle
section 2 or 3 times so that
the air bubbles can escape
(g. 15).
Press the forward
arrow “>” (B4) to pass on to
the next step.
22. Locate the lter in the special
hous
ing
(g. 16) and push
fully home. Close the water
tank with the lid. Press the
forward arrow “>” (B4) to
pass on to the next step.
23. Return the water tank to the
machine (A9) (g. 17). Press
the forward arrow “>” (B4)
15 16
17
24. Position an empty containerof at least 0.5 litres capacity under the hot
water spout (g.
18) and press “OK” (B3) to activate the lter.
25. The machine delivers hot water (g. 19) and stops automatically.
26. The lter is now operational. Press “OK” (B3).
The technical part is nished: press
the forward arrow “>” (B4)
.
18
19
14
Tutorial
A short video tutorial will help you get to know your machine better.
Support for operation
Scanning the QR code shown in the display with your smartphone, you
can get access to manuals and informative materials for operation of the
machine. Press the forward arrow “>” (B4) .
The QR code can be found in the settings menu (B2), under the item
“Support”.
Press
the forward arrow “>” (B4)
, then “OK” (B3): the machine is ready for
use.
Please note:
• The rst time the machine is used, it will be necessary to make 4-5
cappuccinos before the drink in the cup tastes as it should.
• The rst time the machine is used, the water circuit will be empty
and operation could be very noisy. The noise becomes less as the
circuit lls.
15
Magnica Evo Next
Turning the machine on
Please note:
Each time the machine is turned on, it carries out an automatic preheat
and rinse cycle, which cannot be interrupted. The machine is not ready
for use until the cycle has been completed.
1. To turn the machine on, press the button (B1) and hold for 0.5
second (g. 20): the machine switches on.
2. Once preheated to a preset temperature, a rinse cycle takes place
and hot water ows from the coee spouts (A5); in addition to heat-
ing the boiler, this has the eect of heating the internal circuits by
circulating hot water through them.
(*)
20
0.5 seconds
16
Magnica Evo Next
Turning the machine o
Whenever the machine is turned o after being used to make coee, it
will run a rinse cycle automatically.
1. To turn the machine o, press the
button (B1) and hold for
0.5 second (g. 20).
2. If envisaged
, the machine runs a rinse cycle, delivering hot water
from the coee spout
(A5)
, then switches o (stand-by).
Important!
Never unplug the machine while it is switched on.
Switching o for extended periods
If the machine is not going to be used for extended periods (e.g. holidays,
periods of absence), follow the directions in heading
Drain water.
If the machine is not used for a few days, proceed as follows:
1. To turn the machine o, press the
button (B1) and hold for 0.5
second (g. 20).
2. Remove, empty and clean the drip tray (A7)
,
the grounds container
(A11) (g. 21) and the water tank (A9);
3. Unplug the power cord
(A8) from the socket.
Please note:
When turning the machine on again, ll the water tank and, before
making any kind of drink, run 3 rinse cycles as indicated in section
Rinsing.
21
17
Magnica Evo Next
Access the settings menu
1. Pressthe button (B2) (g. 22).
The settings are divided into three topics:
(*)
22
Menu settings
• Maintenance
Rinsing
Descaling
Water lter
Milk carafe
Drain water
• Preferences
Auto-o
Beep sound
Energy saving
Coee
temperature
Grinder
Water hardness
Languages
Default values
• Info
Statistics
Serial number
Support
2. Use the scroll arrows “>” (B4) or “< “(B5) to select the topic of
interest.
3. Press “OK” (B3) to access the settings.
4. Press “ ” (B6) to go back.
5. Press “ ” again to go back to the homepage.
Maintenance: Rinsing
1. Press the
button (B2).
2. Use the scroll arrows “>” (B4) or “< “(B5) to select “Maintenance”.
Press “O K” (B3).
3. Use the scroll arrows “>”
(B4) or “<” (B5) to select “Rinse” (g. 23).
Using this function, hot water can be delivered from the coee spout to
clean and heat the internal circuit of the machine.
To carry out a rinse immediately:
4. Place a container of at least 0.2 litres capacity under the coee spout
(A5) (g. 9).
5. Press “OK”
(B3): after a few seconds, hot water is delivered from the
coee spout to clean and heat the internal circuit of the machine.
6. To stop rinsing, press“ ” (B6) or wait for rinsing to stop
automatically.
Please note:
• If the machine is not used for more than 3-4 days, it is highly ad-
visable, when turning it on again, to run 2-3 rinses before use;
• After cleaning, it is normal for the grounds container
(A11) to
contain water.
23
Maintenance
Rinsing
Place the 0.2l container
under the coee spout
WATCH THE VIDEO HERE
18
Maintenance: Descaling
1. Press the
button (B2).
2. Use the scroll arrows “>” (B4) or “< “(B5) to select “Maintenance”.
Press “O K” (B3).
3. Use the scroll arrows “>” (B4) or “< “(B5) to select “Descaling”.
The display (B11) shows a progress bar (g. 24) indicating when the next
descale will be required (g. 25).
4. To descale immediately, press “OK” (B3) and follow the guided pro-
cedure. The instructions are also given in the heading “Descaling”.
5. To select a dierent item, press the scroll arrow “>” (B4) or “<” (B5)
until the required topic is highlighted; otherwise press “ ” (B6)
to exit.
Maintenance: Water filter
To ensure the performance of the machine remains constant over time, it
is advisable to install a De’Longhi water softener lter (D5).
For further information, visit www.delonghi.com.
EAN: 8004399327252
1. Press the button (B2).
2. Use the scroll arrows “>” (B4) or “< “(B5) to select “Maintenance”.
Press “O K” (B3).
3. Use the scroll arrows “>” (B4) or “< “(B5) to select “Water lter”.
If the water lter is not installed (g. 26):
4. Press “OK” (B3) and follow the guided procedure. The instructions
are also given in the heading “Installing a lter”.
If the water lter needs to be replaced (g. 27) press “OK” (B3):
4. Press “OK” (B3) to conrm and follow the guided procedure.
5. Detach the water tank (A9), remove the lid and take out the water
softener lter (g. 28). Press “OK” (B3) to conrm removal of the l-
ter and proceed. Press the scroll arrow “>” (B4) to continue.
24
Maintenance
Descaling
Check counter bar for next
cycle
3
25
Maintenance
Descaling
Ready to start descaling?
(25 min)
26
Maintenance
Water lter
Ready to install the water
lter?
2827
Maintenance
Water lter
It's time to replace your
water lter. Ready?
6. To install a new lter: press
“OK”
(B3) and follow the
guided procedure. The in-
structions are also given in
the heading “Installing a
lter”.
7. To use the machine without
a lter: press “ ” (B6). To
select a dierent item, press
the scroll arrow “>” (B4) or
19
“<” (B5) until the required topic is highlighted; otherwise press “
” (B6) to exit.
8. Press “ ” a second time to go back to the homepage.
Maintenance: Milk carafe
1. Press the
button (B2).
2. Use the scroll arrows “>” (B4) or “< “(B5) to select “Maintenance”.
Press “O K” (B3).
3. Use the scroll arrows “>” (B4) or “< “(B5) to select “Milk carafe” (g.
29).
This section has all the information you need to guarantee the long-term
reliability of your milk carafe, and ensure you get your froth just right
every time. Press “OK” (B3). Use the scroll arrows “>” (B4) or “< “(B5) to
select the topic of interest:
• Cleaning: To start the cleaning cycle, press “OK” (B3) and follow the
guided procedure. On completion of the cycle, press “OK” (B3) to go
back to the homepage.
• Deep cleaning: the machine will prompt regularly for deep clean-
ing. To view the operations that must be carried out, press “OK” (B3)
and view the various screens with the aid of the scroll arrows “>”
(B4) o “<” (B5). The instructions are also given in the heading “Thor-
ough cleaning of milk carafe”. When done, press “OK” (B3) to go back
to the homepage.
• Tips on frothing: press “OK” (B3) and view the various screens with
the aid of the scroll arrows “>” (B4) o “<” (B5). This information is
also available in the heading “What milk to use?”. When done, press
“OK” (B3) to go back to the homepage.
Maintenance: Drain water
1. Press the
button (B2).
2. Use the scroll arrows “>” (B4) or “< “(B5) to select “Maintenance”.
Press “O K” (B3).
3. Use the scroll arrows “>” (B4) or “< “(B5) to select “Drain water” (g.
30).
To avoid the water in the circuit freezing if the machine is to be left idle for
an extended period, or before taking it to a service centre, it is advisable
to drain the water circuit.
4. Press “OK” (B3) and follow the guided procedure.
5. Remove the drip tray (A7) (g. 21); empty and clean both the tray
and the grounds container (A11). Return the parts to the machine.
6. Press the forward arrow “>”
(B4). Position a container of at least 0.2
litres capacity under the coee spout (A5) and the hot water spout
(D2) (g. 9).
29
Maintenance
Milk carafe
How to get the best results
from your milk carafe
30
Maintenance
Drain water
Ready to start draining the
water circuit?
20
7. Press “OK” (B3): the machine will run a rinse cycle, releasing hot
water from the spouts.
8. Once rinsing is complete, remove the water tank (g. 31) and empty
it.
9. Remove the lter (D5) (if installed) from the water tank
and press
the forward arrow “>” (B4)
.
10. Reposition the tank (empty) and press the forward arrow “>” (B4).
11. When ready, conrm by pressing “OK” (B3).
12. Wait
for the machine to empty the circuit; (Caution: beware of hot
water coming from the spouts!). As the water circuit gradually emp-
ties, the machine could become noisier: this is a normal aspect of
operation.
13. Once the circuit has emptied, remove, empty and reposition the drip
tray, then press “OK”
(B3).
14. Press “OK” (B3): the machine will switch o (standby).
15. Unplug the machine from the mains power supply.
16. The
next time the machine is turned on, follow the instructions in the
heading
“Using the machine for the rst time”
.
Preferences:
Auto-o
1. Press the button (B2)
.
31
32 33
Preferences
Auto-o
Please select the auto-o
time
Auto-o
15 min. 30 min.
1 hour 3 hours
2. Use the scroll arrows “>”
(B4) or “< “(B5) to select
“Preferences”. Press “OK”
(B3).
3. Use the scroll arrows “>”
(B4) or “< “(B5) to select
“Auto-o” (g.
32).
Auto-o can be set so that if the machine is not being used, it will switch
o after 15 or 30 minutes or after 1 or 3 hours have elapsed.
4. Press “OK” (B3): the display will show the auto-o time currently
selected and the other options available (g. 33).
5. Use the scroll arrows “>” (B4) or “<” (B5) to select a preferred au-
to-o time other than the current setting: press
“OK” (B3)
to save
the new setting.
6. Press
“ ”
(B6) to go back to the previous screen.
7. Press
“ ”
(B6) to go back to the homepage.
Preferences:
Beep sound
1.
Press the button (B2).
2. Use the scroll arrows “>” (B4) or “< “(B5) to select “Preferences”.
Press “O K” (B3).
21
3. Use the scroll arrows “>” (B4) or “<” (B5) to select “Beep” (g. 34).
If enabled, the machine emits a beep whenever an operation is per-
formed. Selecting this item, you can enable or disable the beep.
4. Press “OK” (B3): the display will show the preference currently
selected.
5. Use the scroll arrows “>” (B4) or “<” (B5) to enable (On) or disable
(O) the function: press
“OK” (B3)
to save the new setting.
6. Press
“ ”
(B6) to go back to the previous screen.
7. Press
“ ”
(B6) to go back to the homepage.
Preferences:
Energy saving
1.
Press the button (B2).
2. Use the scroll arrows “>” (B4) or “< “(B5) to select “Preferences”.
Press “O K”
(B3).
3. Use the scroll arrows “>” (B4) or “<” (B5) to select “Energy saving”
(g.
35).
When activated, the function reduces energy consumption in compliance
with European regulations. Selecting this item, you can enable or disable
energy saving.
4. Press “OK” (B3): the display will show the preference currently
selected.
5. Use the scroll arrows “>” (B4) or “<” (B5) to enable (On) or disable
(O) the function: press
“OK” (B3)
to save the new setting.
Please note:
• The symbol indicates that the function is active.
• The symbol indicates that the function is not active.
Preferences:
Coee temperature
1.
Press the button (B2).
2. Use the scroll arrows “>” (B4) or “< “(B5) to select “Preferences”.
Press “O K”
(B3).
3. Use the scroll arrows “>” (B4) or “< “(B5) to select “Coee temper-
ature” (g.
36).
Selecting this item, you can change the temperature of the water used
to make coee.
4. Press “OK” (B3): the display will show the preference currently
selected.
5. Use the scroll arrows “>” (B4) or “<” (B5) to select the preferred
temperature: press
“OK” (B3)
to save the new setting.
6. Press
“ ”
(B6) to go back to the previous screen.
7. Press
“ ”
(B6) to go back to the homepage.
34
Preferences
Beep
Enable or disable beep
sounds
35
Preferences
Energy saving
Use to save energy
36
Preferences
Coee temperature
Please set the water temper-
ature for coee
22
Please note:
The eect of varying the temperature is most noticeable with long
drinks.
Preferences:
Grinder
1. Press
to access the settings menu (g. 13).
2. Use the scroll arrows “>”
(B4) or “< “(B5) to select “Preferences”.
Press “O K”
(B3).
3. Use the scroll arrows “>” (B4) or “<” (B5) to select “Grinder” (g. 37).
The machine oers a tutorial on how to adjust the coee grinder correctly
and ensure the best results.
4. Press “OK” (B3): view the tips on how grinding is adjusted, and scroll
the pages with the arrows
“>” (B4) or “<” (B5) to read the entire
tutorial.
5. Press “OK” (B3) to go back to the homepage.
Please note:
• After completing the above procedure, at least 3 coees should
be prepared and delivered before making any further adjustment
to the coee grinder. If coee delivery is still not correct, repeat
the procedure.
• The adjuster ring must be turned only when the coee mill is in
operation during the initial step of coee preparation.
Preferences:
Water hardness
1. Press the button (B2).
2. Use the scroll arrows “>” (B4) or “< “(B5) to select “Preferences”.
Press “O K” (B3).
3. Use the scroll arrows “>” (B4) or “< “(B5) to select “Water hardness”
(g.
38).
To enter a new water hardness setting, proceed as follows:
4. Measure the water hardness as described above, see “
Check the
hardness of the water”.
5. Press “OK” (B3) and change the selection using the scroll arrows
“>”
(B4) or “<” (B5).
6. Press
“OK” (B3)
to store the new setting.
7. Press
“ ”
(B6) to go back to the previous screen.
8. Press
“ ”
(B6) to go back to the homepage.
Preferences:
Languages
1.
Press the button (B2).
2. Use the scroll arrows “>” (B4) or “< “(B5) to select “Preferences”.
Press “O K” (B3).
37
Preferences
Grinder
Adjust your grind level for a
perfect extraction
38
Preferences
Water hardness
You can set the water hard-
ness level using the test strip
39
Preferences
Languages
What language should we
speak in?
23
3. Use the scroll arrows “>” (B4) or “< “(B5) to select “Languages” (g.
39).
To enter a new language setting, proceed as follows:
4. Press “OK” (B3) and change the selection using the scroll arrows
“>”
(B4) or “<” (B5).
5. Press
“OK” (B3)
to store the new setting.
6. Press
“ ”
(B6) to go back to the previous screen.
7. Press
“ ”
(B6) to go back to the homepage.
Preferences:
Default values
1.
Press the button (B2).
2. Use the scroll arrows “>” (B4) or “< “(B5) to select “Preferences”.
Press “O K” (B3).
3. Use the scroll arrows “>”
(B4) or “< “(B5) to select “Default values”
(g. 40).
This function resets all menu settings and all user customizations, restor-
ing the factory default values (with the exception of the language, which
remains as set, and the statistics).
4. Press “OK” (B3): use the scroll arrows
“>” (B4) or “<” (B5) to select
what you want to reset: “Machine” or “Single prole”.
• Machine: Press “OK” (B3)
twice and wait for the machine to reset
itself. Press
“OK”
(B3)
again to go back to the homepage.
Please note:
When the machine has been reset to default values, it displays the tu-
torial prompt.
• Single prole: Press “OK”
(B3)
and use the scroll arrows
“>” (B4) or
“<” (B5) to select the prole you want to reset.
Press “OK” (B3)
twice
and wait for the machine to reset the prole. Press
“OK” (B3)
again
to go back to the homepage.
Info:
Statistics
1. Press the button (B2).
2. Use the scroll arrows “>” (B4) or “< “(B5) to select “Info”. Press “OK”
(B3).
3. Use the scroll arrows “>” (B4) or “< “(B5) to select “Statistics” (g.
41).
4. Press “O K ” (B3).
View all the data of your machine, scrolling with the
arrows
“>” (B4) or “< “(B5).
5. Press
“ ”
(B6) to go back to the previous screens.
6. Press
“ ”
(B6) twice to go back to the homepage.
40
Preferences
Default values
Reset the machine to default
values entirely or for the
single prole
41
Info
Statistics
Check the activities of your
coee machine
24
Info:
Serial number
1.
Press the button (B2).
2. Use the scroll arrows “>” (B4) or “< “(B5) to select “Info”. Press “OK”
(B3).
3. Use the scroll arrows “>”
(B4) or “< “(B5) to select “Serial number”
(g. 42).
The display will show the serial number of the machine,
which is useful for identication purposes.
4. Press
“ ”
(B6) to go back to the previous screens.
5. Press
“ ”
(B6) to go back to the homepage.
Info:
Support
1. Press the button (B2).
2. Use the scroll arrows “>” (B4) or “< “(B5) to select “Info”. Press “OK”
(B3).
3. Use the scroll arrows “>”
(B4) or “< “(B5) to select “Support” (g.
43).
4. Press “O K ” (B3).
Scan the QR-Code with your smartphone to see the
manual and access support.
5. Press
“ ”
(B6) to go back to the previous screen.
6. Press
“ ”
(B6) twice to go back to the homepage.
42
Info
Serial number:
xxxxxxxxxxxxxxx
43
Info
Support
Scan the QR code to access
manual and get support
25
Magnica Evo Next
Selection of profiles
The machine has 3 selectable proles, each one of which identied by a
dierent colour:
• Prole 1:
• Prole 2:
• Prole 3:
The default setting is Prole1: to select a dierent prole, press the
button
(B7): the prole can be selected both before and after making the
selection of he drink.
26
Magnica Evo Next
Set up the machine to make coee-based
drinks
Important!
Do not use green, caramelized or candied coee beans as they could
stick to the coee grinder and render it unusable.
1. Place 1
or 2 cups under the coee spout (A5).
2. Lower the spout as near as possible to the cup (g. 44): this makes
a creamier coee.
The machine oers a wide variety of coee-based drinks to select from.
See Extra drinks menu (varies according to model) for details of the drinks
included in “More” (B10).
Directly selected coee-based drinks
1. Press the image corresponding to the drink (e.g. Espresso) (g. 45).
2. Press “OK” (B3) if you want to use the standard quantity and intensi-
ty when delivering the drink, or to customize it, as follows:
- Press the back arrow “<” (B5) to change the quantity (g. 46):
S, M, L or XL.
- Press the forward arrow “>” (B4) to change the intensity (g.
47): from 1 (extra-weak) to 5 (extra-strong).
3. Press
“OK” (B3)
to start the preparation:
the machine proceeds to
make the drink, and a description of each single step (grinding, de-
livery of coee) appears on the display.
4. Once the drink has been delivered, changes can be saved and stored
in the current prole, pressing “OK” (B3)
. If you do not want to save
any new settings, press
“ ”
(B6).
Please note
If saved, the new settings will be stored ONLY in the selected prole.
The machine is ready to be used again.
Drinks from the “More” menu (B10)
1. Press the “More” image (g. 48).
2. Use the scroll arrows “>” (B4) or “<” (B5) to select the desired drink.
Press “OK”
(B3)
.
3. Press
“OK” (B3)
to conrm the selection of the drink.
4. The drink can now be customized:
- Press the back arrow “<” (B5) to change the quantity (g. 46):
S, M, L or XL.
- Press the forward arrow “>”
(B4) to change the intensity (g.
47): from 1 (extra-weak) to 5 (extra-strong).
5. Press
“OK” (B3)
to start the preparation:
the machine proceeds to
make the drink, and a description of each single step (grinding, de-
44
45
S
5
46
S
5
47
48
Coee-based drinks
WATCH THE VIDEO HERE
27
livery of coee) appears on the display.
6. Once the drink has been delivered, changes can be saved and stored
in the current prole, pressing “OK” (B3)
. If you do not want to save
any new settings, press
“ ”
(B6).
Please note
If saved, the new settings will be stored ONLY in the selected prole.
Preparation with pre-ground coee
Important!
• Never add pre-ground coee when the machine is o, or it could
spread through and soil the inside of the machine. In this situation
the machine could be damaged.
• Never use more than 1 level scoop (D1) of pre-ground coee, oth-
erwise the inside of machine could become soiled, or the funnel
blocked.
• When using pre-ground coee, you can make only one cup at a
time.
• Certain drinks cannot be prepared using pre-ground coee Dop-
pio+, 2x Espresso, Cappuccino+.
• When making Long coee: halfway through preparation, when
prompted by the machine, add one level scoop of pre-ground cof-
fee and press “OK” (B3).
1. Select the drink to be prepared, as illustrated in headings “Direct-
ly selected coee-based drinks” or “Drinks from the “More” menu
(B10)”
2. Having accessed the drink customization screen, scroll with the for-
ward arrow “>”
(B4) to the symbol (coee scoop) (g. 49).
3. Lift the ap of the pre-ground coee funnel
(A2) (g. 50).
4. Check that the pre-ground coee funnel is not blocked; add one
level scoop of pre-ground coee and press “OK”
(B3) to proceed with
delivery.
5. The machine proceeds with preparation and a description of each
single step (water heating, delivery of coee) appears on the display.
Once the preparation has been completed, the machine is ready for use
again.
S
49
50
28
Magnica Evo Next
• While the machine is making coee, delivery can be interrupted at
any time by pressing the button corresponding to “Stop” (B5). or “
” (B6).
• At the end of delivery, to increase the quantity of coee in the cup,
simply press the button corresponding to “Extra” (B4). When the de-
sired quantity has been reached, press the button corresponding to
“Stop” (B5) or “ ” (B6).
• Sundry alarm messages could be displayed while using the machine
(“Fill tank with fresh water up to the MAX level”, etc.) their meaning
is explained in heading “Frequent and alarm messages”.
• If the coee emerges drop-by-drop,too weak and not creamy
enough or too cold, refer to the tutorial on adjusting the coee
grinder (see section “Grinder”) and heading “FAQ”.
• If “Energy saving” mode is activated, there may be a few seconds
delay before the rst coee is delivered.
Tips for a hotter coee
To make a hotter coee, proceed as follows:
• run a rinse cycle before preparing and delivering the coee (see
“Rinsing” in the settings menu (B2)).
• warm the cups with hot water using the hot water function (see
heading “Hot water”).
• select a higher temperature setting for the coee (see “Coee tem-
perature”
in the settings menu (B2)).
Directions for coee-based drinks
29
Magnica Evo Next
Preparing the milk carafe
Please note
To avoid the preparation of milk with insucient froth or large bub-
bles, always clean the milk carafes as described in sections “Cleaning
the milk carafe after each use (Clean function)” and “Thorough cleaning
of milk carafe”
What milk to use?
The quality of the froth can vary depending on:
• the temperature of the milk or vegetable drink used (for best
results, always use milk or vegetable drinks straight from the
fridge, 5 °C);
• type of milk or vegetable drink;
• the brand used;
• ingredients and nutritional values.
Cow's milk
Whole
(fat >3,5%)
3
Semi-skimmed
(fat between 1.5 and 1.8%)
Skimmed
(fat <0.5%)
Vegetable drinks
Soya
3
Almond
3
Oatmeal
3
Filling and attaching the milk carafe
1. Press the release button (E4) and lift the lid (g. 51).
2. Fill the milk container (E8) with a sucient quantity of milk, not
exceeding the MAX level marked on the container (g. 52);
3. Make sure the milk intake tube (E7) is secured correctly to the socket
on the underside of the milk carafe lid (g. 53);
51
Press
Lift
MAX
52
53
WATCH THE VIDEO HERE
Milk-based drinks
30
4. Reposition the lid on the milk container;
5. Lower the ap of the carafe connector (A4) and attach the carafe,
pushing it fully home (g. 54). The machine emits a beep (if the
beep function is enabled);
6. Place a suciently large cup under the coee spouts (A5) and under
the milk spout (E6).
7. Make sure the dial
(E2) is in the position (Froth).
Making milk-based drinks
Select the desired drink directly from the control panel (B9) or from
“More” (B10) .
As with coee-based drinks, a milk-based drink can be customized by
selecting from the options available on the machine.
On the homepage, press directly on the image corresponding to the re-
quired drink.
To suspend delivery of the drink manually: press the back arrow “<” (B5)
corresponding to “Stop” and pass on to the next ingredient, or press “ ”
(B6) to stop the entire preparation.
Cleaning the milk carafe after each use (Clean
function)
Every time a milk drink is delivered, the machine will ask for the lid of the
milk carafe to be cleaned (E1). To start the cleaning operation, proceed
as follows:
1. Leave the milk carafe in the machine (there is no need to empty the
container);
2. Position a cup or other recipient under the milk spout (E6) (g. 55);
3. 3.Press “OK” (B3) to start cleaning: hot water and steam will come
out of the milk spout. Cleaning stops automatically.
Preparing several drinks in succession:
• Every time a milk-based drink has been prepared, the machine asks
for the carafe to be cleaned (Clean function): other drinks can be
delivered by selecting them directly or pressing “ ” (B6) to post-
pone cleaning. Proceed with cleaning of the carafe after the nal
preparation.
After multiple preparations, the milk container
is empty or the milk that remains is not enough
to make further drinks
• Having carried out the cleaning step (“Clean” function), disassemble
the milk carafe and clean all components, proceeding as described
in section
“Thorough cleaning of milk carafe”
54
55
31
After multiple preparations, there is enough
milk left in the container to make further drinks
• Having carried out the cleaning step (“Clean” function), remove the
milk carafe and put it straight in the refrigerator. The carafe contain-
ing milk can be kept in the refrigerator no more than 2 days, after
which time all components should be cleaned as described in the
section “Thorough cleaning of milk carafe”.
Important:
If the milk carafe is left out of the refrigerator for more than 30 minutes,
disassemble and clean all components, proceeding as described in the
section “Thorough cleaning of milk carafe”.
Following preparation of milk-based drinks —
general notes:
• If the milk carafe is not cleaned, the symbol appears on the
homepage (C4) as a reminder that cleaning is required. To start the
function, see “Milk carafe”
• In certain cases, the machine will need to heat up before cleaning
can take place.
• Wait until the Clean function has nished, to ensure it is completed
correctly. The function is automatic. It must not be stopped while
in progress.
32
Magnica Evo Next
1. Push down the ap of the accessories compartment (A4) and attach
the hot water spout (D2) (g. 7).
2. Place a cup under the hot water spout.
3. On the control panel (B), press the image that indicates hot water.
4. Press the back arrow “<” (B5) to select the quantity (g. 46): S, M,
L or XL.
5. Press “OK” (B3) to start preparation.
6. Delivery will stop automatically.
Please note
• To suspend delivery manually, press the button corresponding to
“Stop” (B5) or “ ” (B6).
• Immediately after delivery has stopped automatically, the quan-
tity can be increased by pressing the button corresponding to
“Extra” (B4).
Hot water
33
Magnica Evo Next
With the “my” function, you can select the quantity of each single ingredi-
ent used for preparation of the hot drink you want to make.
1. Check that the selected prole
(C3) is the one for which you want to
customize the drink.
2. You can access the function by pressing the dedicated “my” button (B8)
and then using the forward arrow “>” (B4); now select the drink to
be customized (by direct selection (B9) or via the “More” menu (B10)).
Alternatively, the function can be accessed by selecting the desired
drink (directly or via the “More” menu), then pressing the “my” button.
3. In the case of coee-based drinks, select the intensity with the for-
ward arrow “>” (B4).
4. Press “OK”
(B3).
5. Make sure that a cup of the right size is placed under the coee
spout (A5) and press “OK” (B3).
6. As the drink is delivered, a progress bar will ll up gradually. Once
the minimum programmable quantity is reached, the “OK” button
(B3) will blink.
7. When the quantity in the cup is as desired, press “OK”
(B3).
8. Press “OK” (B3) to store the new parameters for the drink under the
selected prole.
Please note
• If saved, the new settings will be stored ONLY in the selected
prole (C3).
• Customizing a single drink, the respective double version of the
drink is automatically customized as well (e.g. Espresso).
• Programming mode can be exited at any given moment by
pressing “ ” (B6): any values entered will not be saved.
• If the drink has already been programmed, the machine will
overwrite the existing programming with the new.
Quantities table
Drink* Standard quantity Programmable
quantity
Espresso 40ml 20-180 ml
2X Espresso 40 ml + 40 ml 20-180 ml + 20-180 ml
Coee 180ml 100-270 ml
Long 160ml 115-250 ml
Americano 150ml 70-480 ml
Doppio+ 120ml 80-180 ml
Hot water 250ml 20-420 ml
(*) Numbers and types of drinks dier according to model.
“My” function
34
Magnica Evo Next
Cleaning the machine
➡
INTERNAL CIRCUIT OF THE
MACHINE
➡
COFFEE GROUNDS
CONTAINER
➡
DRIP TRAY AND DRIP TRAY
GRILLE
➡
INSIDE OF THE MACHINE
➡
WATER TANK
MAX
➡
COFFEE SPOUTS
PUSH
➡
“REMOVABLE BREWING
UNIT”
➡
PRE-GROUND COFFEE
FUNNEL
Please note
• Do not use solvents, abrasive detergents or alcohol to clean the
machine. With De’Longhi superautomatic coee machines, no
chemical additives are required for cleaning purposes.
• Do not use metal objects to remove encrustations or coee depos-
its as they could scratch metal or plastic surfaces.
WATCH THE VIDEO HERE
➡
CONTROL PANEL (B)
“THOROUGH CLEANING OF
MILK CARAFE”
35
Which items are dishwasher-safe
1
2
1
2
Drip tray grille (A12)
Hot Lattecrema Carafe
(all components must be
disassembled)
Internal circuit of the machine
If the machine has not been used for more than 3-4 days, it is strongly rec-
ommend that before any further use, it should be switched on (Turning
the machine on) and rinsed 2 or 3 times, selecting the relative function
“Rinsing”.
Please note
Water may nd its way into the grounds container during the above
cleaning procedure: this is quite normal. (A11)
Coee grounds container
When required by the machine, this must be emptied and cleaned. The
machine cannot be used to make coee again until the grounds container
(A11) has been cleaned. The machine will display the message indicating
the need to empty the grounds container 72 hours after the rst coee
has been prepared, even if the container is not full (for the 72 hours to be
calculated correctly, the machine must never be disconnected from the
mains power supply).
36
Important! Danger of scalding
If several milk-based drinks are prepared one after the other, the metal
cup grille (A6) becomes hot. Wait for it to cool down before touching it,
and handle from the front only.
To clean (with the machine on):
1. Remove the drip tray
(A7) and the coee grounds container (A11);
2. Empty the drip tray and the grounds container and clean them,
taking care to remove all residues that may have collected on the
bottom.
3. Reposition the drip tray in the machine, complete with grille
(A12)
and grounds container.
Important!
When removing the drip tray, the coee grounds container must always
be emptied, even if it has not lled up noticeably. If this is not done, it
can happen that when further coees are prepared, the grounds con-
tainer will ll up more than expected and clog the machine.
Drip tray and drip tray grille
The drip tray (A7) is tted with a oat level indicator (A13) (colour red)
showing the amount of water it contains (g. 56).
Before the indicator protrudes from the cup tray (A6), the drip tray must
be emptied and cleaned, otherwise the water may overow the edge and
damage the appliance, the surface it rests on or the surrounding area. To
remove the drip tray, proceed as follows:
1. Remove the drip tray with all its components (g. 21).
2. Remove the grounds container (A11): empty the grounds container;
3. Remove the cup tray (A6) and the cup tray grille (A12) and wash all
components thoroughly: the cup tray grille is not dishwasher safe;
4. Reposition the drip tray in the machine, complete with all its
components.
Important!
When removing the drip tray, the coee grounds container must always
be emptied, even if it has not lled up noticeably. If this is not done, it
can happen that when further coees are prepared, the grounds con-
tainer will ll up more than expected and clog the machine.
56
37
Inside of the machine
Danger of electric shock!
Before carrying out cleaning operations on internal parts, the machine
must be turned o (see “Turning the machine o”) and unplugged
from the mains power supply. Never immerse the machine in water
1. Check regularly (about once a month) that the inside of the appli-
ance (accessible after removing the drip tray
(A15)) is not dirty;
2. Remove all residues with a vacuum cleaner
Water tank
Periodically (about once a month) and whenever the water softener lter
(D5) is replaced, clean the water tank (A9).
1. Take out the water tank, remove the water softener lter (if in-
stalled) and rinse with drinking water;
2. Empty the water tank and clean with warm water (40 °C approx),
wiping if necessary with a clean, non-abrasive cloth. Rinse thor-
oughly under running water;
3. Reinstate the lter, if removed previously, then ll the water tank
with fresh drinking water up to the MAX level and return it to the
machine.
4. (Only if a water softener lter is installed) release 100ml of hot
water to reactivate the lter.
Please note:
If the machine has not been used for more than 3 days, clean the water
tank as described above.
Coee spouts
1. Wipe the coee spout (A5) regularly with a clean cloth;
2. Check that the holes in the coee spout are not blocked. If necessary,
remove coee deposits with a toothpick.
Removable brewing unit
The brewing unit (A16) must be cleaned at least once a month.
Important!
The brewing unit cannot be removed while the machine is on.
1. Make sure the machine has run the shutdown procedure correctly
(see heading
“Turning the machine o”);
2. Remove the water tank (A9) (g. 4);
3. Open the brewing unit ap
(A14) (g. 57) on the right of the ma-
chine by releasing the top catch;
4. Press the two coloured release buttons inwards (g. 58) while at the
same time pulling the brewing unit outwards;
PUSH
57
PUSH
58
38
5. Immerse the brewing unit in cold drinking water for about 5 min-
utes, then rinse under the tap;
Important!
RINSE WITH WATER ONLY
NO DETERGENTS - NO DISHWASHER
6. Do not use detergents when cleaning the brewing unit, as they
could damage it.
7. Use a brush to remove any coee residues left in the housing of the
brewing unit, which can be seen through the relative ap;
8. After cleaning, replace the brewing unit by sliding it into its housing,
then apply pressure to the component until it clicks into place;
Please note:
If the brewing unit is dicult to t, adapt it to the right size (before
insertion) by applying pressure to the two levers (g. 59).
59
9. Once in position, make sure the two coloured buttons have snapped
out (g.
60);
10. Close the brewing unit ap and ensure it is rmly in place;
11. Reposition the water tank in the machine.
Pre-ground coee funnel
Clean the pre-ground coee funnel regularly (about once a month), using
a brush. Proceed as follows
1. Switch o the machine (see “Turning the machine o”);
2. Open the ap of the funnel (A2);
3. Clean the funnel with a brush;
4. Close the ap.
Important!
After cleaning, check that there are no accessories in the funnel. Ensure
that there is no foreign matter in the funnel during operation, as this
could damage the machine.
Control panel (B)
1. Switch o the machine (see section “Turning the machine o”);
2. Wipe with a soft, non-abrasive cloth.
3. Apply rm pressure to remove stubborn ngerprints, without using
excessive force.
Thorough cleaning of milk carafe
This operation will guarantee optimum results over time. Proceed as
follows:
PUSH
60
39
1. Press the release button (E4) and lift the lid (g. 51).
2. Turn the milk delivery spout (E6) into an upright position and pull
out until detached (g. 61); pull the intake tube free (E7) (g. 61).
3. Remove the connector (E5) by turning anticlockwise and pulling
gently outwards (g. 62).
4. Turn the dial (E2) to the “Remove” position and pull free (g. 63).
5. Wash in a dishwasher (recommended) or by hand, as indicated
below:
61
62
63
• In a dishwasher: Rinse all
components with warm
drinking water (at least
40 °C): place the lid of the
carafe in the top basket of
the dishwasher, standing
upright on its edge, and the
smaller detachable parts
(outlet tube, intake tube,
connector, dial) in the cut-
lery basket (g.
64) . Run a
wash program at 50 °C, e.g.
Eco Standard
• By hand: Rinse all compo-
nents carefully with warm
drinking water (at least 40
°C) to ensure that all visi-
ble residues are removed:
make sure the water passes
64
through the holes. Immerse all components (including the milk
container) in a solution of warm drinking water (at least 40° C) and
washing-up liquid for at least 30 minutes. Rinse all components
thoroughly with warm drinking water, rubbing them individually
between ngers and thumbs.
6. Make sure there are no milk residues left in the cavity and the chan-
nel on the underside of the dial (g.
65). If necessary, scrape with
a toothpick.
7. Check that the intake tube and the outlet tube are not clogged with
milk residues;
8. Dry the components with a clean dry cloth;
9. Reassemble all components of the milk carafe.
Please note:
The machine will give a reminder periodically of the need for thorough
cleaning of the milk carafe, and indicate the full sequence of steps.
65
WATCH THE VIDEO HERE
40
Magnica Evo Next
Important!
• Before use, read the instructions and the labelling on the descaler
pack.
• Use only descaler supplied by De’Longhi. If unsuitable descaler is
used, or descaling is not carried out properly and when required,
the machine may develop faults not covered by the manufactur-
er’s guarantee.
• Descaler can cause damage to delicate surfaces. If the product is
accidentally spilt, dry immediately.
To descale
Descaler De’Longhi descaler (D4)
Container Recommended capacity: 2 litres
Time ~25min
Descale the machine when the corresponding message appears on the
homepage: to proceed with descaling straight away, press “OK” (B3) and
follow the instructions step by step as indicated on the machine display
(B11) .
To delay descaling until later, press “ ” (B6): the homepage will con-
tinue to show the corresponding symbol (C2) as a reminder that
descaling needs to be carried out. (The message reappears every time the
machine is turned on).
To access the descaling menu:
1. Press the
button (B2).
2. Use the scroll arrows “>” (B4) or “<” (B5) to select “Maintenance”.
Press “OK”
(B3).
3. Use the scroll arrows “>” (B4) or “<” (B5) to select “Descaling”. Press
“OK” to view the instructions.
4. Attach the hot water spout (D2)(g. 7);
5. Remove and empty the drip tray
(A7) and the coee grounds con-
tainer
(A11) (g. 21): then reposition both in the machine and press
“>”(B4);
6. Remove the water tank
(A9), lift the lid and (if inserted) remove
the lter
(D5). Empty the tank completely and press “>” (B4) to
continue;
7. Pour the descaler (D4) into the water tank, lling up to level A
marked on the inside of the tank (which is equivalent to one 100ml
single-use pack), then add drinking water (one litre) up to level B
(g. 66). Reposition the water tank (with its lid) and press “>”(B4)
(press “<” (B4) to go back to the previous screen or “ ” (B6) to exit
the procedure, remembering in this instance to remove the descal-
ing solution from the tank).
Descaling
WATCH THE VIDEO HERE
A
A
B
B
66
41
8. Place an empty container of at least 2 litres capacity under the
spouts (A5) and (D2) (g. 9). Press “OK” (B3) to start the procedure.
Important! Danger of scalding
Hot water containing acid ows out of the spouts. Accordingly, take
care to avoid contact with this solution.
9. The descale programme starts and the descaler solution comes out
of the hot water spout and the coee spout; a succession of rinses
is performed automatically at set intervals to remove the scale resi-
dues from inside the coee machine;
After about 15 minutes, the descaling action ceases;
10. The machine is now ready to be rinsed out with cold water. Empty
the container used to collect the descaler solution. Remove and
empty the water tank, rinse thoroughly under running drinking
water, then ll the tank with cold water up to the MAX level and
return it to the machine. Press “>”
(B4)
11. Having emptied the container used previously to collect the descaler
solution, reposition it under the spouts and press “OK” (B3) to start
the rst rinse;
12. Hot water is released both from the hot water spout and from the
coee spout;
13. When the water in the tank has run out, empty the container used
to collect the rinsing water;
14. Take out the water tank and reposition the water softener lter, if
removed previously. Press “>” (B4) to continue;
15. Fill the tank with fresh water to the MAX level, and return it to the
machine; Press “>” (B4) to continue;
16. Having emptied the container used previously to collect the descaler
solution, reposition it under the spouts and press "OK” (B3) to start
another rinsing cycle;
17. When the water in the tank has run out, empty the container used to
collect the rinsing water, then remove the drip tray and the grounds
container, empty them and return them to the machine: press “OK”
(B3).
18. Take out the water tank (A9), top up to the MAX level and reposition
in the machine;
19. The descaling procedure is now complete: press "OK” (B3) .
42
Please note:
• If the descaling cycle is not completed successfully (e.g., due to a
power outage), the machine will prompt for the entire procedure
to be repeated.
• Water may nd its way into the grounds container (A11) during
the descale procedure. This is quite normal.
• If the water tank
(A9) was not lled to the MAX level for descaling,
the machine requests a third rinse to guarantee that the descaler
solution has been completely eliminated from its internal circuits.
Before starting the rinse, remember to empty the drip tray (A7).
43
Magnica Evo Next
Frequent and alarm messages
• The water tank (A9) is not in
place
Reposition the tank in the
machine correctly, and press
fully home.
Can you insert the
water tank?
• Coee beans have run out.
Fill the bean container (A1)
and press OK (B3) to resume
preparation
Oops! it looks like
you’re out of coffee
beans.
Time to add some
more.
• Pre-ground coee has been
selected (
) but pre-ground
coee has not been poured into
the funnel.
Make sure when opening the
flap (A2) that the funnel is not
blocked, then put in one level
scoop (D1) of pre-ground coee
and press OK (B3) to resume
preparation
You haven’t added
the pre-ground coffee
Add it now
One scoop only!
• Too much coee has been used.
Press OK (B3), remove the
drip tray (A7) and the grounds
container (A11), empty them
both, then return all parts to
the machine and repeat the
preparation.
I am unable to complete your drink.
Please empty the grounds container
and drip tray and try again
44
• Too much pre-ground coee
has been used
Press OK (B3), remove the
drip tray (A7) and the grounds
container (A11), empty them
both, then return all parts to
the machine and repeat the
preparation, reducing the
amount of pre-ground coee
(maximum 1 scoop).
I am unable to complete your drink.
Please reduce the pre-ground
quantity, empty the grounds
container and try again
• The beans are too finely ground,
so that the coee is delivered
too slowly or not at all.
Press "OK" (B3) and adjust the
coee grinder as appropriate
(see section “Grinder”).
• The beans are too finely ground,
so that the coee is delivered
too slowly or not at all.
Press OK (B3) to go back to
the homepage. Repeat the
preparation, selecting a lower
intensity setting from the
customizations menu (see Coee-
based drinks ).
Sorry, I am unable to complete your
drink.
Please reduce the intensity and try
again
I am unable to complete your drink.
Adjust the coffee grinder by turning
the dial to give a ner setting, 1 step
at a time (+1)
• Too much pre-ground coee
has been used
Press OK (B3) and repeat the
preparation, reducing the
amount of pre-ground coee
(maximum 1 scoop).
I am unable to complete your drink.
Please reduce the pre-ground coffee
quantity and try again
45
• The drip tray (A7) and/or the
grounds container (A11) are not
correctly in place, or missing
Refit the drip tray complete
with grounds container and
press fully home
Please insert the
grounds container and
drip tray
• The grounds container (A11) is
full.
Clean as described in heading
“Coee grounds container”
Please empty the drip
tray
and the grounds
container
• The brewing unit has not been
replaced after cleaning (A16)
Position the brewing unit as
described in heading “Removable
brewing unit”
Can you insert the
brewing unit?
• Water spout (D2) not correctly in
place, or missing.
Attach the water spout and push
fully home: the machine emits
a beep (if the beep function is
enabled).
Please insert the water
spout
46
• Milk carafe (E) not positioned
correctly, or missing.
Position the milk carafe and
push fully home: the machine
emits a beep (if the beep
function is enabled).
Can you insert the
LatteCrema Hot
carafe?
• Every time a milk-based drink
has been prepared, the machine
asks for the carafe (E) to be
cleaned (Clean function).
Proceed as described in section
. Cleaning the milk carafe after each use
(Clean function)
• A milk-based drink has been
prepared and the milk carafe (E)
is still on the machine
Remove the milk carafe and put
it in the refrigerator.
Time to clean the
milk carafe Place
a recipient under
the milk spout.
Ready?
Remember to
store the milk
carafe in the
fridge
• The machine has detected
impurities in its internal circuits.
Wait until the machine is ready
for use again and reselect the
required drink. Contact an
authorized Service Centre if the
problem persists.
Just doing a little
cleaning.
I’ll be back in a few
seconds
47
• The water softener filter (D5) is
spent.
Press “OK” (B3) to remove/
replace the filter, or “ ” (B6)
if the intention is to replace it
later. Follow the instructions in
heading Water lter.
It's time to replace your water lter.
Ready?
The water circuit is out
of water.
Ready to rell?
• The water circuit is empty
Press "OK" (B3) to fill the circuit:
the flow of water will stop
automatically.
If the problem persists, make
sure the water tank (A9) is
pushed fully home.
• A new water softener filter has
been fitted
Make sure that the instructions
for installing the new filter
(D5) (section
Water lter) have
been followed correctly.
If the
problem persists, remove the
water filter.
• Indicates that the machine
needs descaling.
To proceed with descaling,
press “OK” (B3)and follow the
guided procedure, otherwise
press “ ”(B6): in this case the
homepage (C) continues to
display the
symbol (C2) as
a reminder that descaling is
required (see heading Descaling).
It's time to descale. Ready?
(25 min)
48
• During the guided procedure on
preparation for the start of the
descale cycle, the quantity of
descaling solution put into the
water tank was not sucient
Prepare the solution as
described in heading Descaling
Add De'Longhi descaler
(up to Level A), and
top up with water (to
level B)
A
A
B
B
• Insucient water in the tank
Remove the tank (A9) (fig. 4),
fill with fresh drinking water up
to the MAX level (fig. 5), and
return it to the machine.
• Tank not correctly in place
Reposition the tank correctly
and press fully home.
Time to ll the water
tank with fresh water.
• Descaling interrupted or not
completed correctly
Press OK (B3) to continue
(see heading Descaling).
• Installation of filter interrupted
or not completed correctly
Press OK to continue
(see heading Water lter).
Oops, the process has been interrupted.
Ready to continue?
• The inside of the machine is
very dirty.
Clean the inside of the machine
thoroughly, as described in the
heading Cleaning the machine. If the
message is still displayed after
cleaning, contact De’Longhi
Customer Services and/or an
approved Service Centre
Something’s not right: can you refer to
the user manual please?
49
Magnica Evo Next
FAQ
• Coee not hot (1)
It has been 2-3 minutes since the last preparation and the
internal circuit of the machine has cooled down: in this situation,
a hot rinse is advisable.
On the homepage, press to enter the settings menu:
(*)
Go to the “Maintenance” section, select the item Rinsing and
proceed as indicated to start delivery. After a few seconds, hot
water is released from the boiler to clean and heat the internal
circuit of the machine.
Maintenance
Rinsing
Place the 0.2l container
under the coee spout
• Coee not hot (2)
The cups have not been preheated.
Warm the cups by rinsing them with hot water.
(Please note: the Hot water function can be used).
50
• Coee not hot (3)
The temperature set for preparation of the coee is too low.
Select a higher temperature as indicated below:
On the homepage, press to enter the settings menu:
(*)
Go to the “Preferences” section, select the item Coee temperature
and proceed as indicated to select a higher temperature.
.
Preferences
Coee temperature
Please set the water temper-
ature for coee
• Coee not hot (4)
Descaling is required: proceed as illustrated in heading Descaling.
This done, check that the water hardness setting is right for the
water provided by your local supplier (see Check the hardness of the water
and Setting water hardness).
51
• Coee weak or not creamy enough (1)
The coee is ground too coarsely. Adjust the grind level following
the tips given below:
on the homepage, press to enter the settings menu:
(*)
Go to the section containing “Preferences”, select the item
Grinder and proceed with adjustment of the grinder dial (A17) as
indicated.
• Coee weak or not creamy enough (2)
The coee is unsuitable.
Use coee for espresso machines.
• Coee weak or not creamy enough (3)
The coee is not fresh: the pack has been open too long and it
has lost its flavour.
Preferences
Grinder
Adjust your grind level for a
perfect extraction
52
• Coee delivered too slowly or drop-by-drop
The coee is ground too finely. Adjust the grind level following
the tips given below:
on the homepage, press to enter the settings menu:
(*)
Go to the section containing “Preferences”, select the item
Grinder and proceed with adjustment of the grinder dial (A17) as
indicated.
• Coee does not come out of one or both spouts.. (A5)
The coee spouts are blocked. Clean as described in section
Preferences
Grinder
Adjust your grind level for a
perfect extraction
➡
COFFEE SPOUTS
54
• The brewing unit (A16) cannot be removed.
The machine has not been turned o correctly.
Switch o by pressing (B1) (see Turning the machine o)
• On completion of the descale cycle, the machine calls
for a third rinse.
During the two rinse cycles, the water tank (A9) has not been
filled to the MAX level
Follow the procedure indicated by the machine, but first empty
the drip tray (A7) to avoid water overflowing.
• The cup shelf (A3) is hot.
Several drinks have been prepared in rapid succession.
• After cleaning, there is diculty repositioning the drip
tray (A7) in the machine.
The condensate tray (A10) is not positioned correctly
Check that the condensate tray is correctly in place.
• The machine emits pus of steam from the drip tray
(A7) and/or there is water on the surface where the
machine is positioned.
The drip tray grille (A12)has not been replaced after cleaning.
Reposition the grille in the drip tray.
55
• Milk presents large bubbles, or splashes from the milk
spout (E6) or is under-frothed (1).
Cow's milk
Whole
(fat >3,5%)
3
Semi-skimmed
(fat between 1.5 and 1.8%)
Skimmed
(fat <0.5%)
Vegetable drinks
Soya
3
Almond
3
Oatmeal
3
Use cow’s milk or vegetable drinks at refrigerator temperature
(about 5° C).
If the result is still not as expected, try changing the brand of
milk.
In the case of vegetable drinks, use “Barista” versions for best
results.
• Milk presents large bubbles, or splashes from the milk
spout (E6) or is under-frothed (2).
Clean the lid of the milk carafe (E1) thoroughly, as indicated in
headings
“Cleaning the milk carafe after each use (Clean function)” and “Thorough
cleaning of milk carafe
56
Magnica Evo Next
Technical data
Voltage:
220-240 V~ 50-60 Hz max. 10 A
Power:
1450 W
Pressure:
1.5 MPa (15 bars)
Water tank capacity:
1.9l
Size LxDxH:
240x440x360 mm
Cord length:
1200 mm
Weight:
9.6 kg
Bean container capacity: 250 g
De’Longhi reserves the right to change the technical specication and styl-
ing of its products at any time, while maintaining their functionality and
quality unaected.
Tips for Energy Saving
• To reduce energy consumption, remove the milk carafe (E) after one or
more drinks have been delivered;
• Set auto-o to 15 minutes (see section
“Auto-o”);
• Enable Energy Saving (see section
“Energy saving”);
• Always run the descaling procedure when prompted by the machine
(see Descaling).
57132C9063_01_0524
