GXL
FOLDING ELECTRIC SCOOTER
USER MANUAL
Congratulations
On Your Purchase!
This user manual will help you assemble and operate
your new electric scooter. Be sure to read ALL OF THE
INFORMATION in this manual before riding.
NOTE TO ALL RIDERS UNDER 18 YEARS OF AGE: It’s
very important that you get parental permission before
riding your electric scooter.
ALWAYS wear a helmet when riding your electric scooter.
Make sure your scooter has a full battery before taking it out to ride.
Always be aware of local road laws, and follow them.
Do not ride the scooter under the inuence of drugs or alcohol.
Always respect pedestrians.
Do not ride under wet conditions. The scooter may slide from under your
feet causing injury. Wet conditions may damage the electronics and void the
warranty.
Don’t Ride Until You Read This:
1. Avoid water - The scooter is not waterproof. The electronics may be damaged
due to water and water damage is not covered by our warranty. Riding in wet
conditions is also very dangerous and may result in injury.
2. Abuse - We do not cover physical damage due to negligent care and extreme
riding.
3. Whenever you ride the Gotrax scooter, you risk severe injury or even death
from loss of control, collisions, and falls. Use caution and ride at your own risk.
4. Do not modify the product from the manufacturer’s original design.
5. Keep hands and all body parts away from moving parts while operating the
scooter.
6. Before riding - be sure to check the scooter over and make sure the scooter is
operating correctly before each use.
7. Before riding - be sure to check that the braking system is functioning properly;
also be sure to check that all safety labels are in place and you understand the
safety warnings.
8. Before riding - be sure that any and all axle guards, chain guards, or other covers
or guards supplied by the manufacturer are in place and in serviceable condition.
9. Before riding - be sure to check that the tires are in good condition, inated
properly, and have sucient tread remaining.
10. Never exceed the 220 lb (100 kg) maximum load rating.
11. The electric scooter should never be used by children under the age of 13.
12. Maximum Speed - Your electric scooter goes the maximum speed of 15.5 mph.
Warning Message
You should nd each of these items in your box:
1. Electric Scooter
2. Console & Handlebars
3. Approved Power Adapter / Charging Unit
4. Allen Wrench
5. Screws
6. Tire Pump Extender
7. Safety Pin
Remove all packaging material, then inspect each item for any
accidental damage that may have occurred during shipping.
Unpack
1 2 3
4
5
7
6
The electric scooter comes partially assembled.

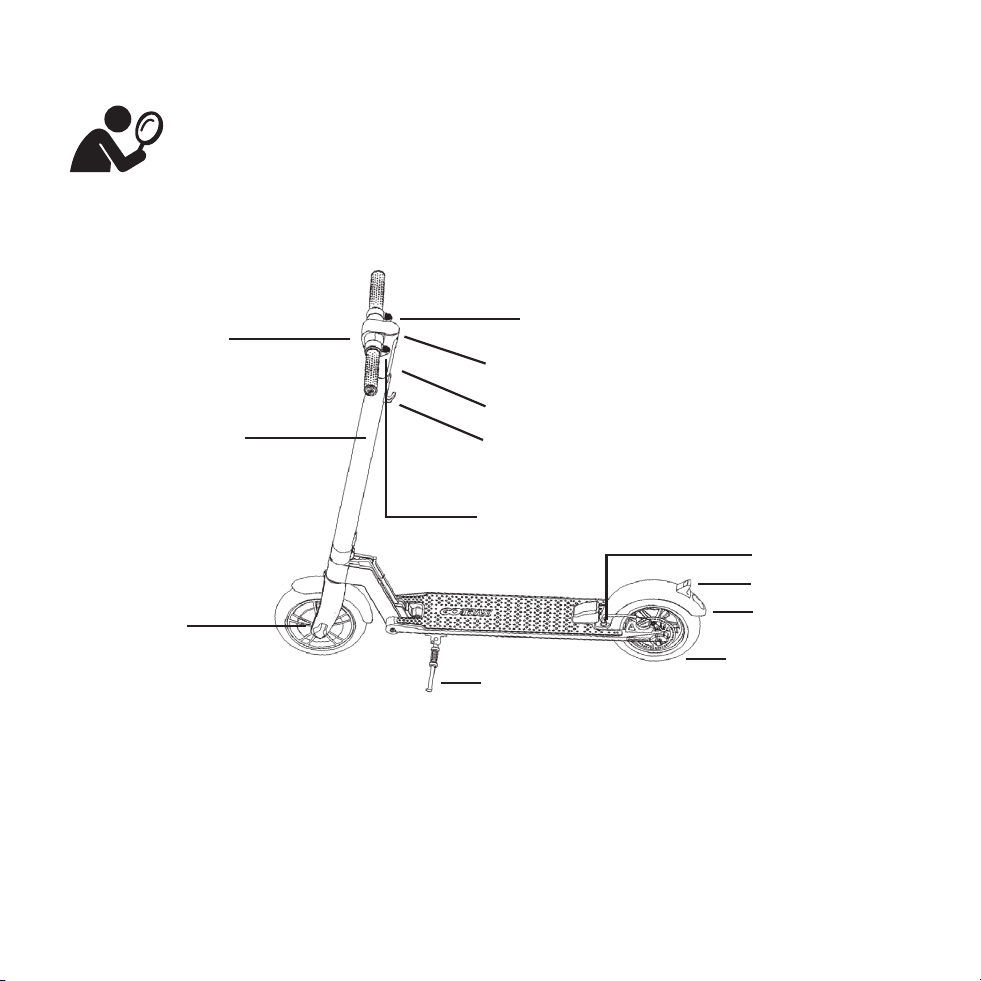

Headlight
Tiller
Rear Reector
Fender Buckle
Rear Brake
Folding System
Kickstand
Brake (left thumb throttle)
Hook
Charger Port
Console
Accelerator (right thumb throttle)
Hub Motor
Disc Brake
Get To Know Your Scooter
Press down on the rear fender, separate the
folding hook and fender buckle, then lift the
tiller upright (as shown in the gure). Once
the scooter is locked in the upright position,
verify by gently trying to fold.
UNFOLD SCOOTER & LOCK
IN UPRIGHT POSITION

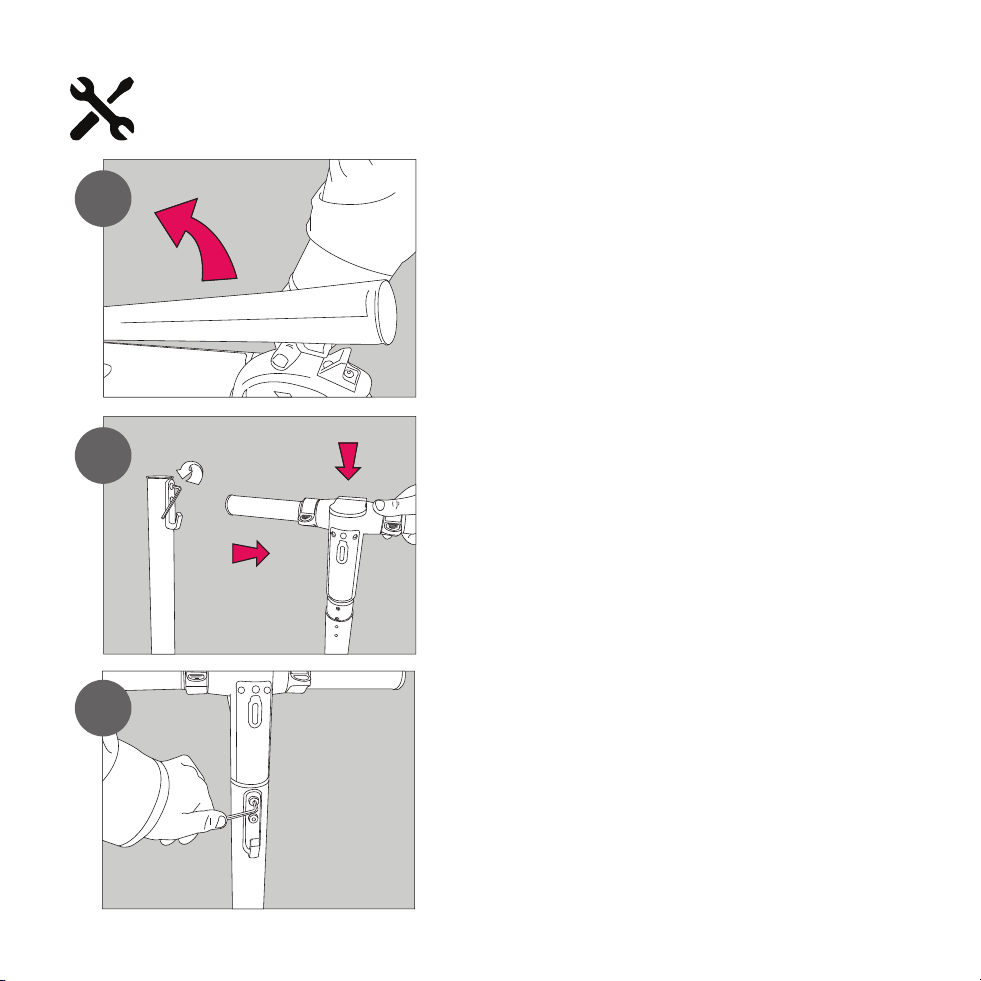

Use the Allen wrench to loosen the screws
located at the hook and detach. Once
you’ve removed the hook and screws,
make sure to remove the cover from the
top of the tiller.
LOOSEN SCREWS & DETACH.
REMOVE COVER
Place the console into the top of the tiller.
Once the console is attached, use the Allen
wrench to attach the hook back to the tiller
with the two screws.
PLACE CONSOLE INTO TILLER
& REATTACH
Assemble Your Scooter
1
2
3
Charge Your Scooter

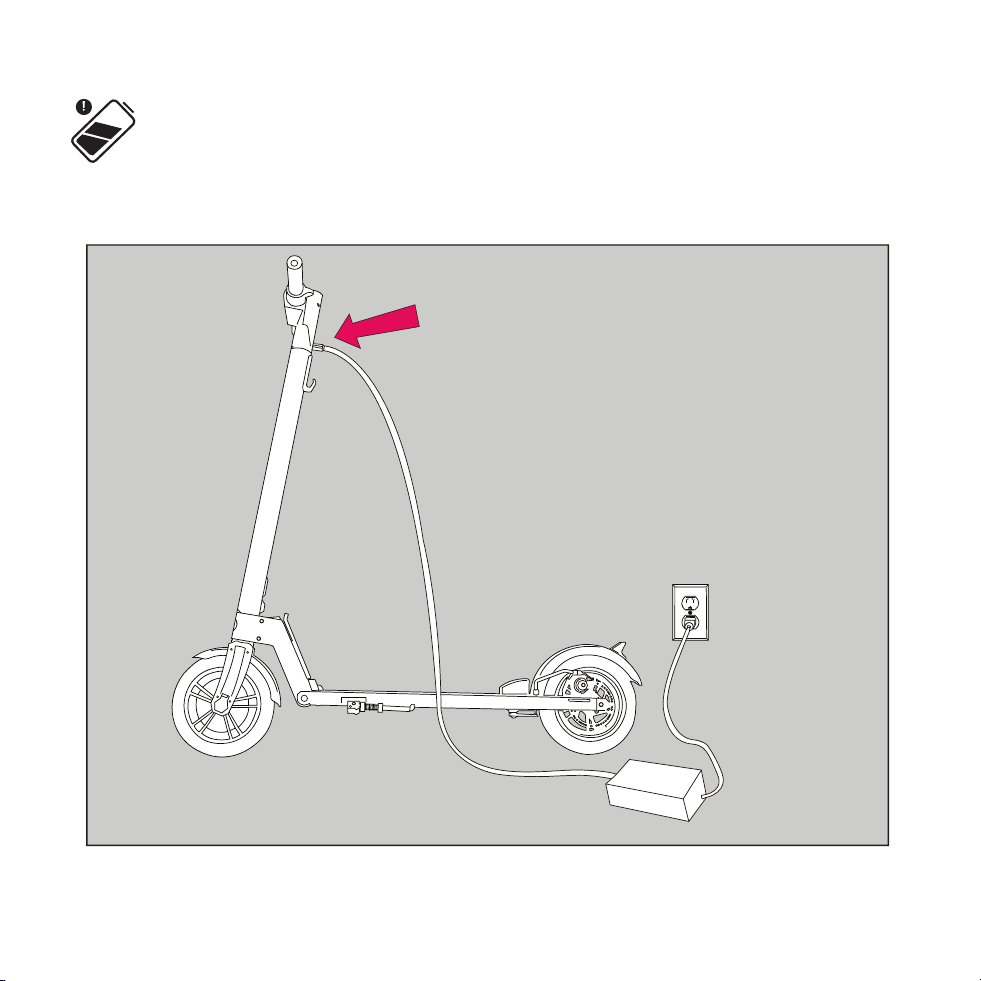

Before using the scooter, you must fully charge the battery.
1. Open the rubber charging port cover.
2. Insert the charging plug into the port.
3. The charger box will have a green light when fully charged and a red light when
charging.
4. When you are done charging be sure to cover the charging port to keep it clear of
dust and debris.
5. Charging Time: 4 hours
Charging Requirement: Make sure to charge your scooter in conditions that do not
exceed 104 degrees Fahrenheit or below 32 degrees Fahrenheit.
SCOOTER CONSOLE FUNCTIONS
To power the scooter on, press and hold the red
button for 1 second.
To power the scooter off, press and hold the red
button for 5 seconds.
To power the headlights on or off, press the red
button for 1 second while the scooter is powered
on.
To change between 1st and 2nd gear, press the
red button for 2 seconds. The display screen on the
console will switch from the number 1 (1st gear)
and the number 2 (2nd gear).
To power the scooter on, press and hold the red button
for 1 second.
To power the scooter o, press and hold the red button
for 5 seconds.
To power the headlight on or o, press the red button for
1 second while the scooter is powered on.
To change between 1st and 2nd gear, press the red
button for 2 seconds. The display screen on the console will
switch from the number 1 for 1st gear and the number 2
for 2nd gear.
The console on the Scooter displays speed in MPH,
Battery life, and what gear the scooter is currently in.
Scooter Console Functions
1. You will want to start riding your scooter with one foot on the platform and one
foot on the ground. Use your foot on the ground to push o and at the same time,
press the throttle button to begin movement.
2. Press the brake-throttle to slow down or stop. For quicker stopping step on the
rear fender foot brake.
3. The scooter performs best when on a smooth surface e.g. carparks, smooth roads,
footpaths, & bike lanes.
4. Always clean your scooter (wheels, platform, etc.), it’s a machine and it needs to be
maintained.
5. Do not press the throttle while walking with the scooter beside you.
6. Be aware of the terrain you are riding on, watch out for curbs and obstacles!
7. Use the red button to change between gears as you would on a bike, cycle through
them according to the terrain and elevation. First gear equals more torque for
going uphill, Second gear is more speed for straight aways.
8. Cruise Control: To activate the cruise control press the right-hand throttle down
for 10 seconds. To deactivate the cruise control press either the right-hand throttle
or brake button to deactivate the cruise control.
9. CAUTION: The left paddle control on the console controls the motor’s Electro-
Magnetic brake. This brake is energized by the operation of the motor and will
NOT be 100% eective until the motor has been in operation for 30 seconds.
Riding Tips

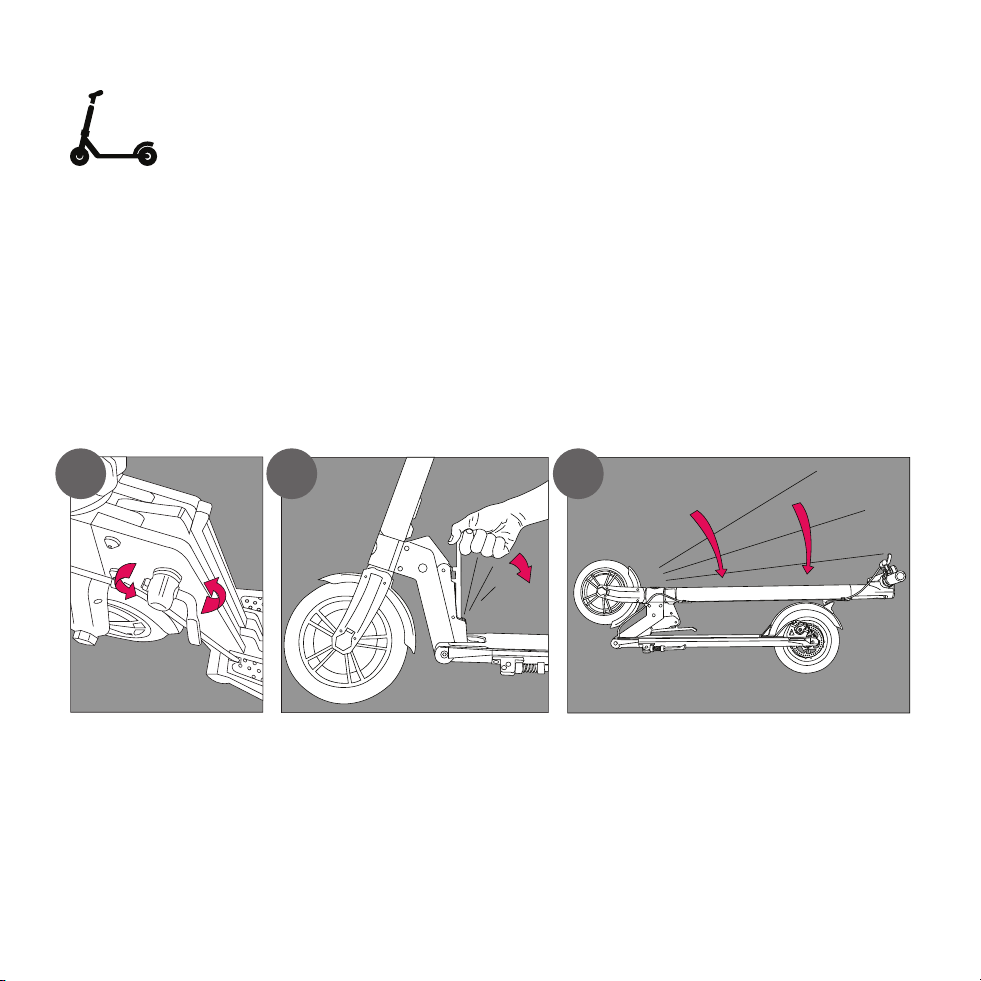

Before folding the scooter, make sure that the scooter is powered o and remove the
safety pin.
Pull the tiller towards the back wheel, as shown in the gures. Insert the hook on the
tiller into the loop on the rear fender buckle. You may hear a click which indicates
that you were successful in folding and locking the scooter.
Putting Your Scooter
Away/Folding
1 2
3
If you regularly clean and maintain your electric scooter, it will extend its life.
Cleaning and storage: If the scooter is dirty, wipe it clean with a soft damp cloth.
Brake Adjustments & Service: If you notice you need brake adjustments or any
service on your scooter, contact our customer service team and we will adjust and
repair your scooter. Do not repair your scooter yourself, this can void your warranty
and you risk damaging the scooter.
Tires: If you notice that the tire pressure is low, please ll to the recommended PSI
on the side of the tire. Recommended PSI: 50
Maintenance & Repair
DO NOT use alcohol, gasoline, kerosene, or other corrosive chemical solvents to
clean the scooter. It can severely damage the appearance and structure of the
scooter. Please do not use a pressure washer as it may also cause damage to the
electronics.
Storage: When you’re not using your scooter store in a dry and cool location. Avoid
storing your scooter outdoors because sun exposure can damage its appearance and
may cause wear on the life of the battery and tires.
Tightening the Tiller: If you notice that the tiller is loose or wiggles while riding, you
can tighten the screws. Open the plastic cover, and use the Allen wrench to tighten
the screws.
1. Unfolding: Lift the tiller in the upright position and insert the safety lock. Rotate
the safety lock clockwise to tighten the safety lock before you ride!
Safety Lock Instructions
2. Folding: Rotate the Safety Lock counterclockwise to pull out the safety lock. Fold
the scooter and then insert the safety lock and rotate clockwise to lock the safety
lock again.

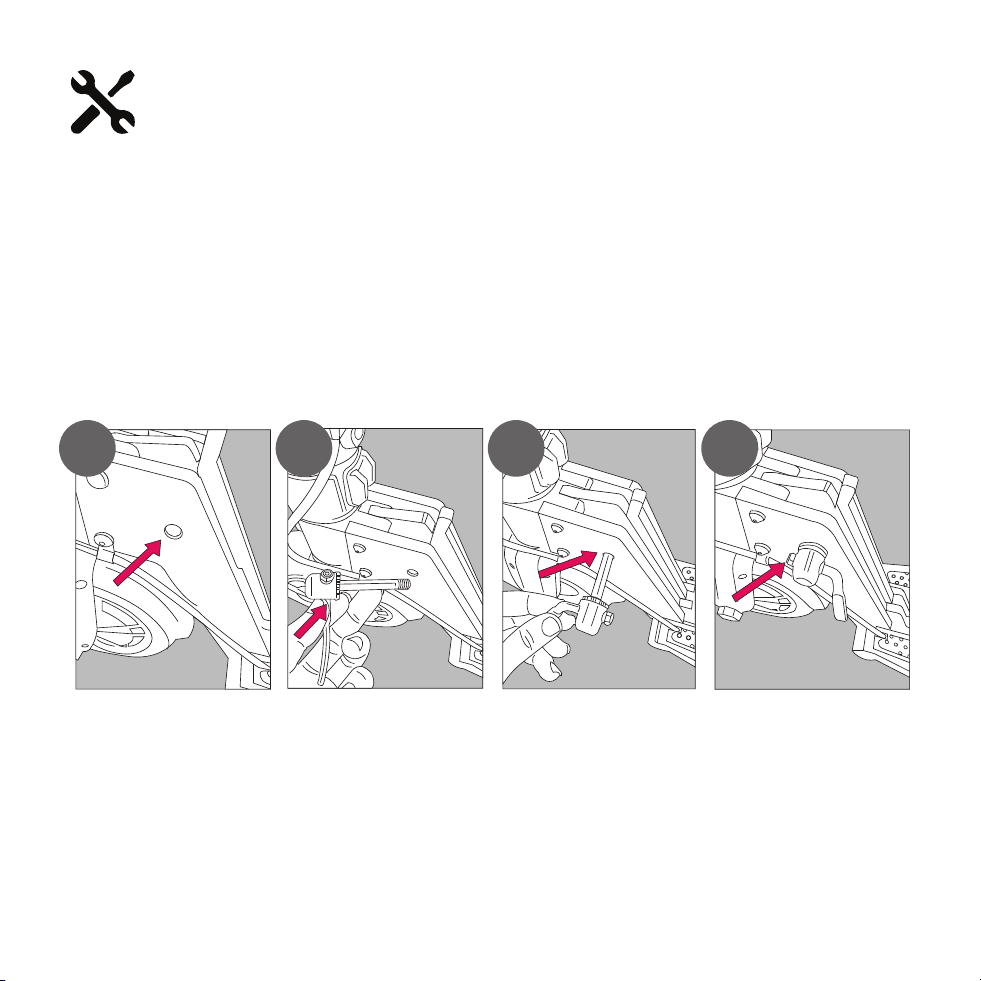

The hole is located
next to the red
lever on the bottom
of the scooter.
Arrow points to
the Safety Pin
(pictured).
Insert the Safety
Pin.
Twist the Safety Pin
into the hole and
secure it. Make sure
it twists rmly in
place.
1 2
3 4
Only use the approved Gotrax power adapter to charge your scooter, others may
cause risk of re & equipment may be damaged.
Improper disposal of used batteries may seriously pollute the environment. Please
comply with local disposal regulations.
Make sure to store your scooter and power adapter in conditions that do not exceed
122 degrees fahrenheit or below -4 degrees fahrenheit.
Warning - Risk of Fire - No User Serviceable Parts, The prolonged exposure to UV
Rays, Rain and the Elements may damage the enclosed materials, store indoors when
not in use.
Battery Information
We frequently update our user manuals at gotrax.com, and reserve the rights to
update and change manuals online.
Please contact our customer service team if you are experiencing problems or
need more detailed information. They can be reached at gotrax.com
For warranty information, please visit us at www.gotrax.com.
