COMET
ELECTRIC SCOOTER
USER MANUAL
01
This user manual will help you assemble and
operate your new Electric Scooter. Be sure
to read ALL OF THE INFORMATION in this
manual before riding.
NOTE TO ALL RIDERS UNDER 18 YEARS OR
AGE:
It’s very important that you get parental
permission before riding your electric scooter.
Electric scooter for kids age of 6-12.
Don’t ride until you read this
ALWAYS wear a helmet when riding your Electric Scooter.
Make sure your scooter has a full battery before taking it out to ride.
Always be aware of local road laws, and follow them.
Do not rider the scooter under the influence of drugs or alcohol.
Always respect pedestrians.
Do not ride under wet conditions. The scooter may slide from under
your feet causing injury. Wet conditions may damage the electronics
and void the warranty.
02
Warning Message
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Avoid water - The scooter is not waterproof. The electronics may be
damaged due to water and water damage is not covered by our warranty.
Riding in wet conditions is also very dangerous and may result in injury.
Abuse - We do not cover physical damage due to negligent care and
extreme riding.
Whenever you ride the GOTRAX scooter, you risk severe injury or even
death from loss of control, collisions, and falls. Use caution and ride at your
own risk.
Keep hands and all body parts away from moving parts while operating
the scooter.
Before riding - be sure to check the scooter over and make sure the scooter
is operating correctly before each use.
Before riding - be sure that any and all axle guards, chain guards, or other
covers or guards supplied by the manufacturer are in place and in service-
able condition.
Before riding - be sure to check that the tires are in good condition, inflated
properly, and have sufficient tread remaining.
Never exceed the 132lbs (60kg) maximum load rating.
Before riding - be sure to check that the braking system is functioning
properly, also be sure to check that all safety labels are in place and you
understand the safety warnings.
Do not modify the product from the manufacturer’s original design.
03
11.
12.
The electric scooter should never be used by children under the age of
6-12.
Maximum Speed - Your electric scooter goes the maximum speed of
10 mph (16 km/h).
04
Unpack
You should find each of these item in your box:
1.
2.
3.
4.
5.
Electric Scooter
Console & Handlebars
Approved Power Adapter / Charging Unit
4mm Allen Wrench
Screws (x4)
Remove all packaging material, then inspect each item for any
accidental damage that may have occurred during shipping.
05
54
21 3
Get To Know Your Scooter
Deck
Kickstand Battery Box Charging Port
Motor Wheel
Taillight
Top Speed:
Max Weight:
Battery Type:
Battery Input:
Charge Time:
Motor Power:
Power Requirements:
10mph(16km/h)
132 lbs
21.6Vdc 2.6Ah
25.2Vdc 0.5A
5.5 hours
150W
AC 100-240V 50/60Hz
The electric scooter comes partially assembled.
Handle Bar
Fender
Brake Handle
Folding Hook
Switch Button
Accelerator
Handlight
Safety Lock
Folding Latch
Front Wheel
06

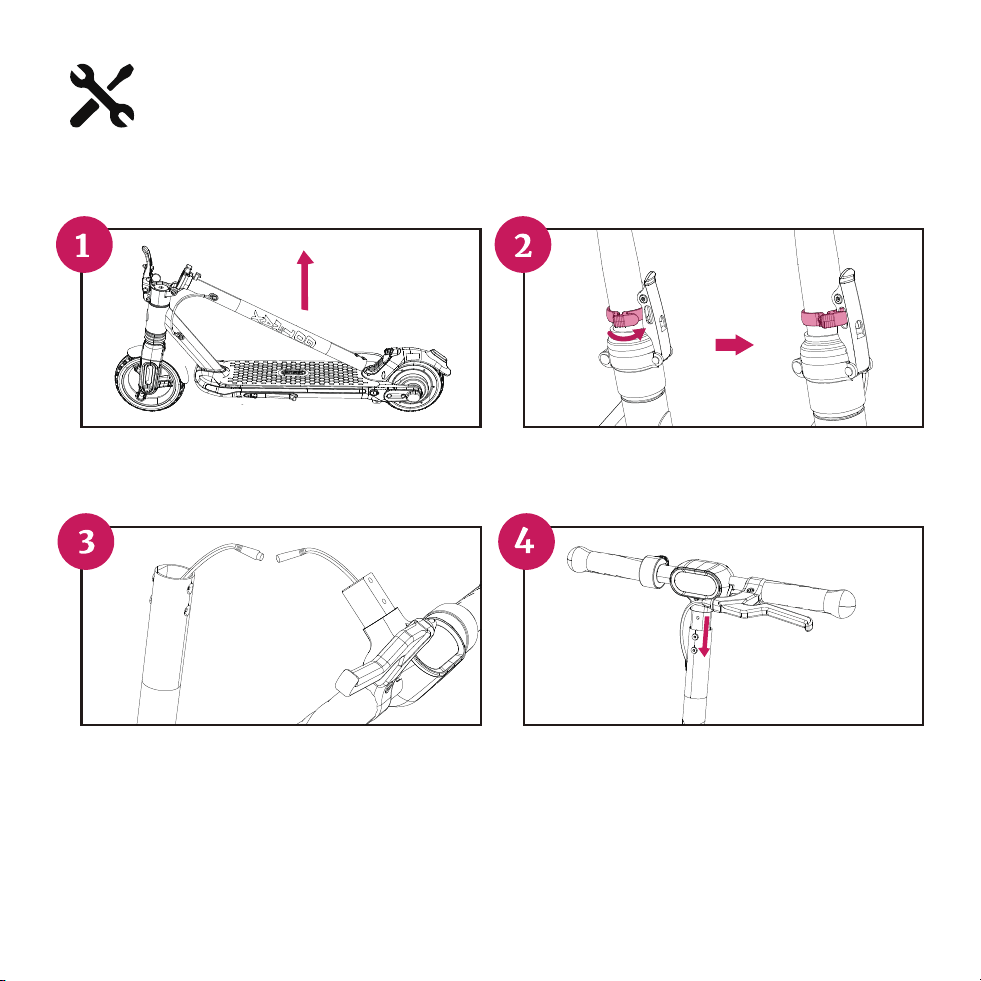

Assemble Your Scooter
Tool requirements: 4mm Allen wrech (In the package)
Unfold the scooter pole, stand it up, and
lock the folding latch.
Turn off the safety lock.
Connect the console power cord. Insert the corresponding fixing screw
hole of the console into the pole (the
brake handle is on the left front of the
rider)
07
Tighten the 4 console fixing screws with
a 4mm Allen wrench.
5
08
Charge Your Scooter
Before using the scooter, you must fully charge the battery.
09
1.
2.
3.
4.
5.
Open the rubber charging port cover.
Insert the charging plug into the port.
The charger box will have a green light when fully
charged and a red light when charging.
When you are done charging be sure cover the
charging port to keep it clear of dust and debris.
Charging Time: About 5.5 hours.
10
Scooter Console Funtions
Brake Handle
Switch Button
Accelerator
11
Power on/off: Press and hold the power on/off button for 2-3 seconds to
turn on the scooter, and the speaker will emit a prompt tone.
Bluetooth link: In the power-on state, search for the Bluetooth name:
"Comet", and it can be connected to Bluetooth to play audio.
Riding a scooter: When the scooter is turned on, put one foot on the deck
and push the other foot on the ground. When the speed is greater than
3mph, press the accelerator to start accelerating the ride.
You need to start riding your electric scooter with one foot on the deck and
the other foot on the ground. Push with your foot on the ground and while
reaching 3.1 mph, press the throttle to start moving.
Slow down or stop by holding on to the brake bars.
The scooter perform best when on a smooth surface e.g. carparks, smooth
roads, footpaths, & bike lanes.
Always clean your scooter (wheels, platform..etc.), it’s a machine and it
needs to be maintained.
Be aware of the terrain you are riding on, watch out for curbs and obstacles!
1.
2.
3.
4.
5.
Riding Tips
12
Before folding the scooter, make sure that the scooter is powered off.
Folding: Ensure the electric scooter is powered off, open the safety latch as
figure shows and pull down the lever. Fold the tiller down towards the rear
fender and lock the tiller hook to the fender hook buckle.
Unfolding: Disconnect the tiller hook from the fender hook. Once unhooked
pull the tiller upwards and lock the locking device on the bottom of the tiller
by pulling the clamp towards the tiller. Make sure to test the tiller before
riding to make sure it is locked into place.
Putting Your Scooter Away/Folding
13
Maintenance & Repair
If you regularly clean and maintain your electric scooter, it will extend its
life.
Cleaning and storage: If the scooter is dirty, wipe it clean with a soft damp
cloth.
DO NOT use alcohol, gasoline, kerosene, or other corrosive chemical
solvents to clean the scooter. It can severely damage the appearance and
structure of the scooter. Please do not use a pressure washer as it may also
cause damage to the electronics.
Storage: When you’re not using your scooter store in a dry and cool location.
Avoid storing your scooter outdoors because sun exposure can damage it’s
appearance and may cause wear on the life of the battery and tires.
14
Only use the approved GOTRAX power adapter to charge your scooter,
others may cause risk of fire & equipment may be damaged.
Improper disposal of used batteries may seriously pollute the environment.
Please comply with local disposal regulations.
Make sure to store your scooter and power adapter in conditions that do not
exceed 122 degrees Fahrenheit or below -4 degrees Fahrenheit.
Warning-Risk of Fire. No User Serviceable Parts, the prolonged exposure to
UV Rays, rain and the Elements may damage the enclosed materials, store
indoors when not in use.
Warning - To avoid overcharging, please do not charge the scooter for more
than 6 hours.
15
Warranty
Please contact our customer service team if you are experiencing problems
or need more detailed information.
US team after-sales email: [email protected]
CA team after-sales email: [email protected]
1.
2.
3.
4.
Users should operate in accordance with the product manual. In case of any
performance fault caused by production quality, the company shall perform the
obligations of the three guarantees in accordance with the provisions of relevant
laws and regulations of the state.
The company is still responsible for the after-sales service of the faults beyond
three guarantees and the major components in the three guarantees, but there
will be a cost for repair.
If the battery replacement is over the warranty time, our company will supply the
battery at factory price. To ensure safety, and avoid pollution.
We do not cover physical damage due to negligent care and extreme riding.
16
GOTRAX.com
2201 Luna Rd.
Carrollton, TX 75006
(US) GOLABS, INC
170 Bartor Road, Unit 1 North York,
Ontario M9M 2W6,
Canada.
(CA) Tao Motor Canada Inc.
