USE AND CARE GUIDE
HAWKINS III 44 IN. CEILING FAN
THANK YOU
1-855-HD-HAMPTON
HAMPTONBAY.COM
Questions, problems, missing parts? Before returning to the store,
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
call Hampton Bay Customer Service
#
1006 878 800
Item #
1006 878 798
Model #
YG204D-BN
#YG204D-ORB
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to nd
this fan and click the link of visual instruction in the product overview section.
2
Table of Contents ..........................................................
Safety Information .........................................................
Warranty .........................................................................
Pre-installation ..............................................................
Installation......................................................................
2
2
3
3
6
Assembly.......................................................................
Operation ......................................................................
Care and Cleaning .......................................................
Troubleshooting ..........................................................
7
13
14
14
Table of Contents
Safety Information
WARNING: To reduce the risk of electrical shock or re, do
not use this fan with any solid-state fan speed control device.
It will permanently damage the electronic circuitry.
WARNING: To reduce the risk of personal injury, do not
bend the blade arms (also referred to as anges), when
installing the brackets, balancing the blades or cleaning the
fan.
WARNING: Do not insert foreign objects in-between rotating
fan blades.
CAUTION: To reduce the risk of personal injury, use only
the screws provided with the outlet box.
WARNING: To reduce the risk of re, electric shock or
personal injury, mount the fan to the outlet box marked
acceptable for fan support with the screws provided with the
outlet box.
1. To reduce the risk of electric shock, ensure electricity has
been turned off at the circuit breaker or fuse box before
beginning.
2. All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70-1999” and local electrical codes.
Electrical installation should be performed by a qualied
licensed electrician.
3. The outlet box and support structure must be securely
mounted and capable of reliably supporting a minimum of 35
lbs (15.9 kg) or less. Use only UL-listed outlet boxes marked
“FOR FAN SUPPORT.”
4. The fan must be mounted with a minimum of 7 ft (2.1m)
clearance from the trailing edge of the blades to the oor.
5. Avoid placing objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other
items, be cautious when working around or cleaning the fan.
7. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
8. After making electrical connections, spliced conductors
should be turned upward and pushed carefully up into the
outlet box. The wires should be spread apart with the
grounded conductor and the equipment-grounding conductor
on one side of the outlet box and ungrounded conductor on
the other side of the outlet box.
9. All setscrews must be checked and retightened where
necessary before installation.
READ AND SAVE THESE INSTRUCTIONS
The following responsible party designated in FCC §2.909 is
responsible for this declaration:
Model Number: YG204D-BN, YG204D-ORB
Company Name: TAL INTERNATIONAL CORPORATION
Company Address: 2919 E. Philadelphia St., Ontario, CA 91761, U.S.A.
Full Name: James Lai Title: Manager
Telephone Number: (909) 923-2888 Fax: (909) 923-8337

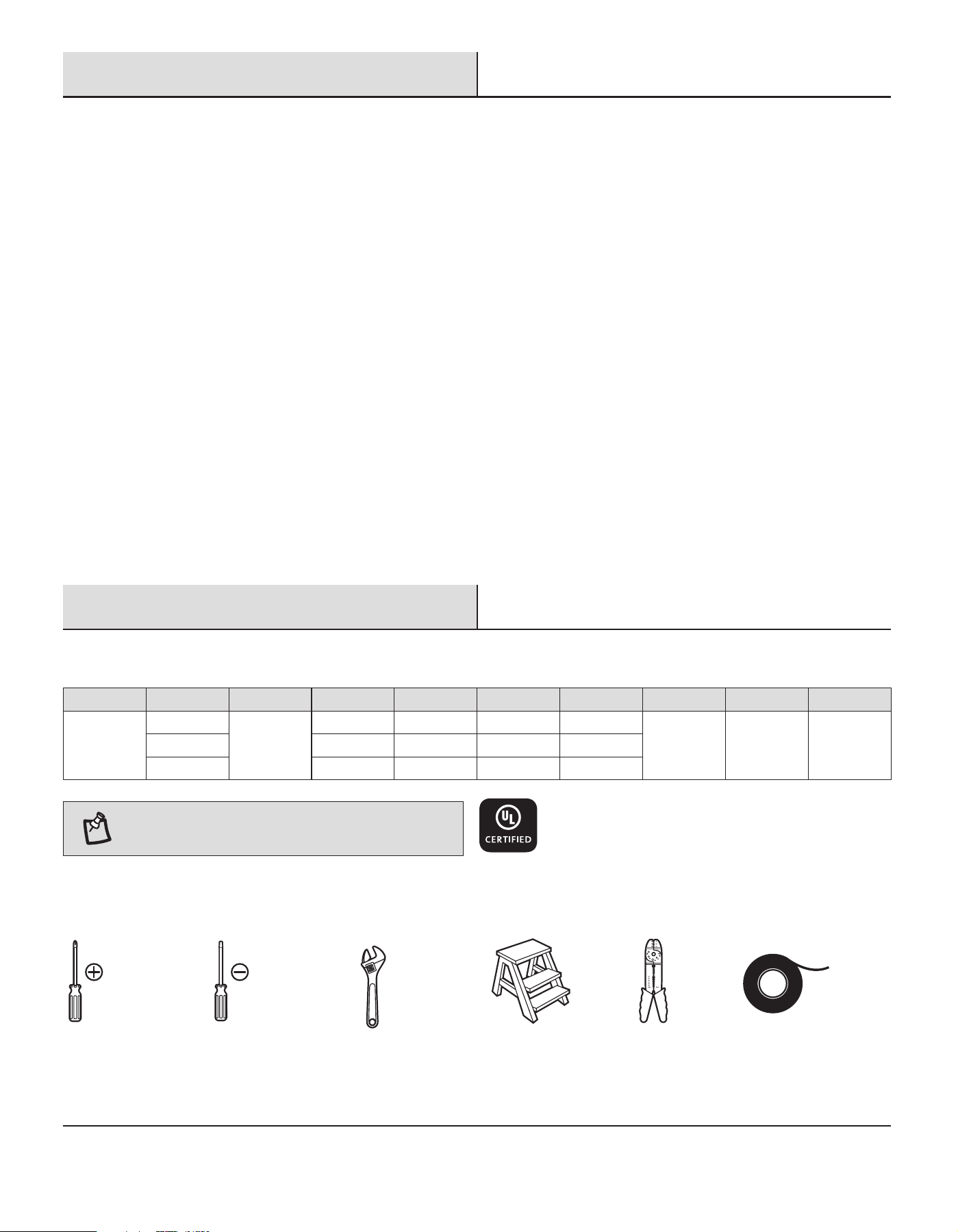

SPECIFICATIONS
TOOLS REQUIRED
NOTE: These are approximate measures. They do not
include amps and wattage used by the light kit.
Warranty
3
Pre-InstallationPre-Installation
44 in.
Low
Medium
High
120
Fan size Watts RPM CFMSpeed Volts Amps
1.37 cu. ft.
N.W. G.W. C.F.
0.21
0.33
0.45
10.75
27.19
54.43
80
132
182
1428
2245
3055
6.1 kg
(13.42 lbs.)
7.7 kg
(16.99 lbs.)
The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the
factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any
glass), to be free from defects in workmanship and material at the time of shipment from the factory for a period of three years after the
date of purchase by the original purchaser. The manufacturers also warrants that all other fan parts, excluding any glass or acrylic blades,
to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of
purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All
costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper
installation or by afxing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not
cover any changes in brass nish, including rusting, pitting, corroding, tarnishing or peeling. Brass nishes of this type give the longest
useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a
defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby
disclaim any and all warranties, including but not limited to those of merchantability and tness for a particular purpose to the extent
permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specied in the
express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to
you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product use or
performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential
damages, so the above exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you may also have other
rights which vary from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a
claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.hamptonbay.com.
Phillips
screwdriver
Flat blade
screwdriver
Step
ladder
Wire
stripper
Electrical
tape
Adjustable
wrench
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
AA
BB
CC
DD
EE
FF
GG
HH
II
JJ
Plastic wire nut
Blade arm screw with lock washer (preassembled)
Nut (preassembled)
Washer (preassembled)
Light kit mounting screw (preassembled)
Metal nut (preassembled)
Cap (preassembled)
Decorative nut (preassembled)
Pull chain and fob
9 watt LED bulb
Part Description
3
10
4
4
3
1
1
1
2
2
Quantity
Pre-Installation (continued)

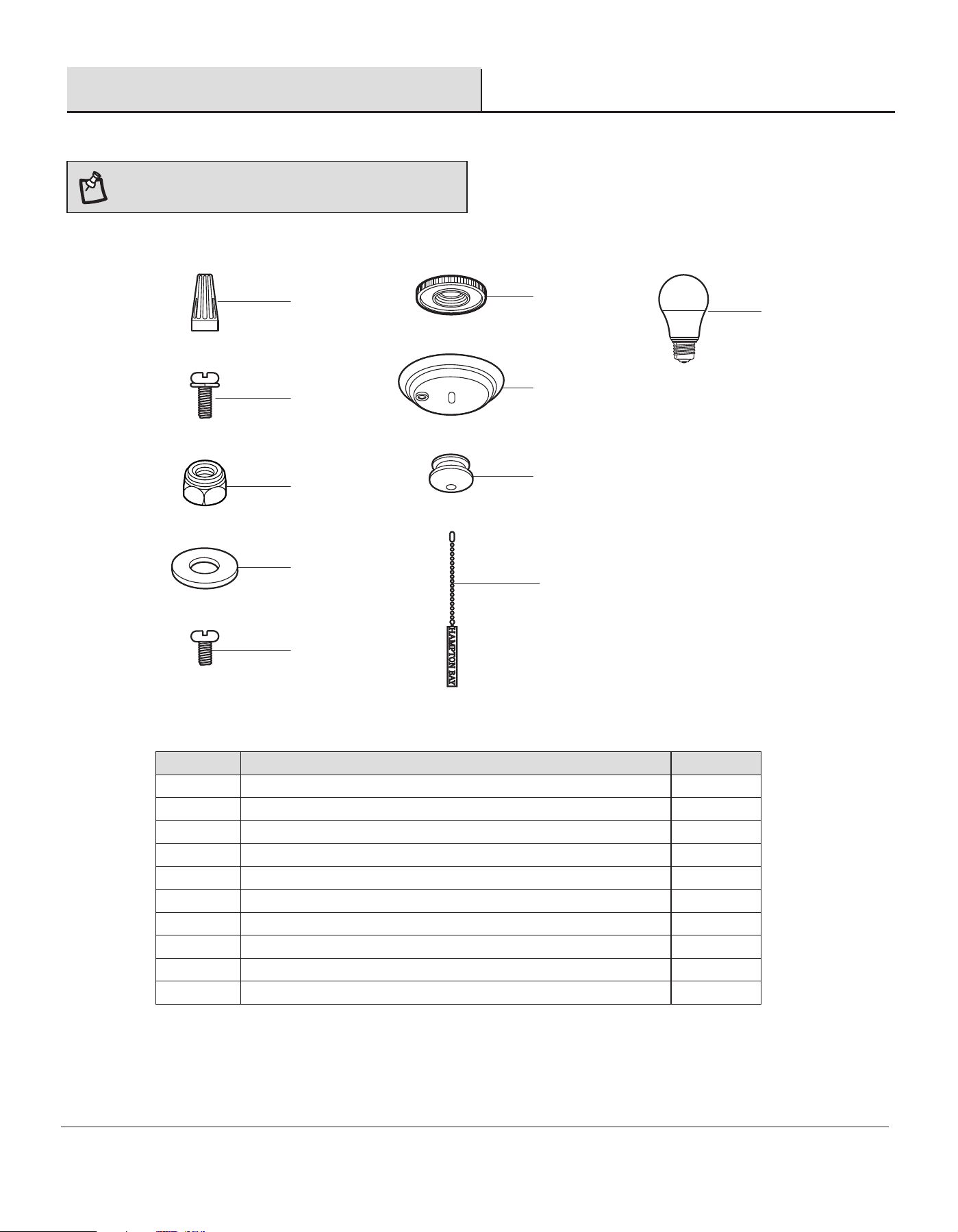

HARDWARE INCLUDED
4
AA
FF
JJ
GG
HH
II
BB
CC
DD
EE
NOTE: Hardware not shown to actual size.

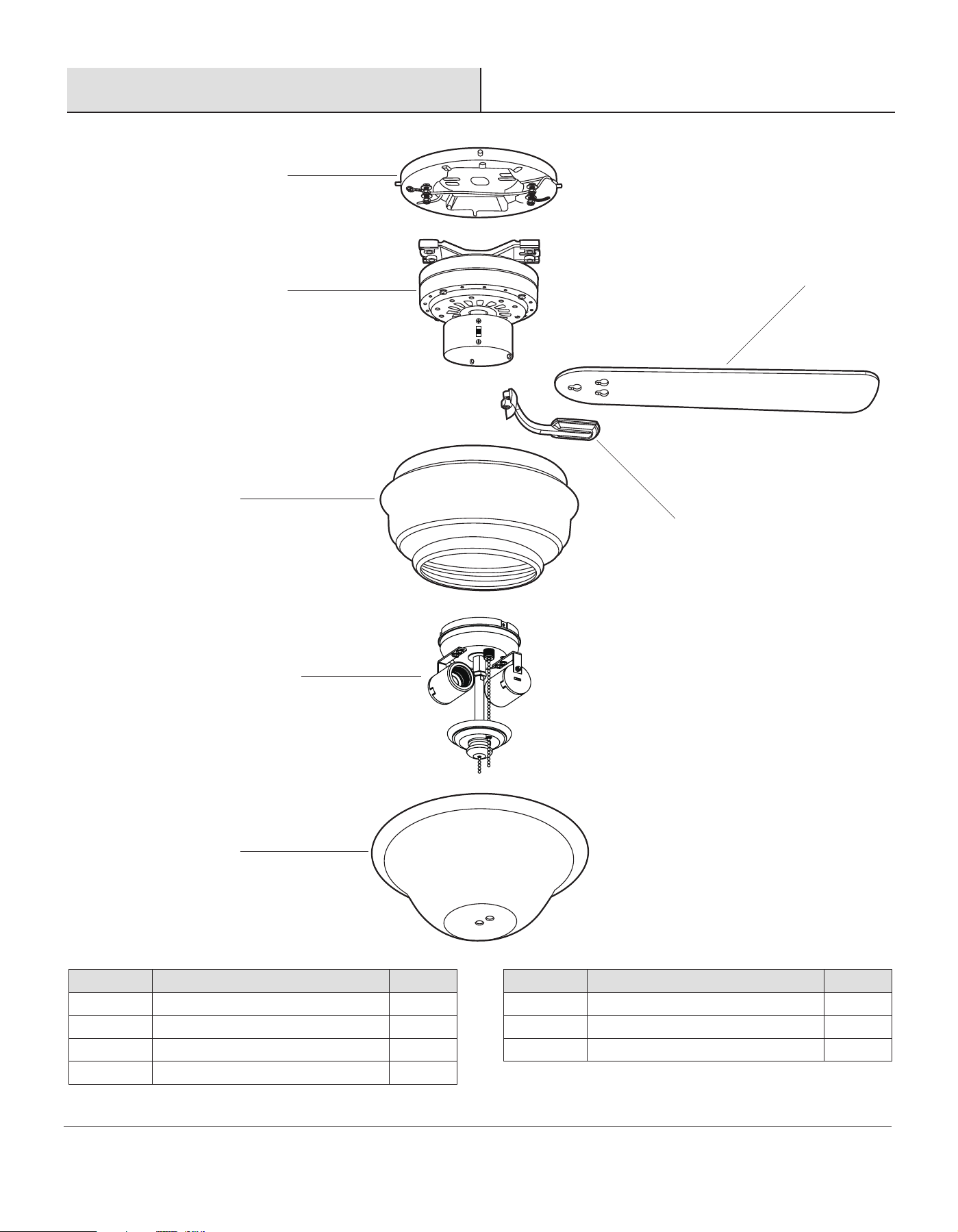

PACKAGE CONTENTS
Part
E
F
G
Description
Motor housing
Light kit
Plastic shade
Pre-Installation (continued)
Part
A
B
C
D
Quantity
1
1
5
5
Quantity
1
1
1
Description
Mounting bracket
Fan motor assembly
Blade
Blade arm
A
B
F
E
G
C
D
5
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

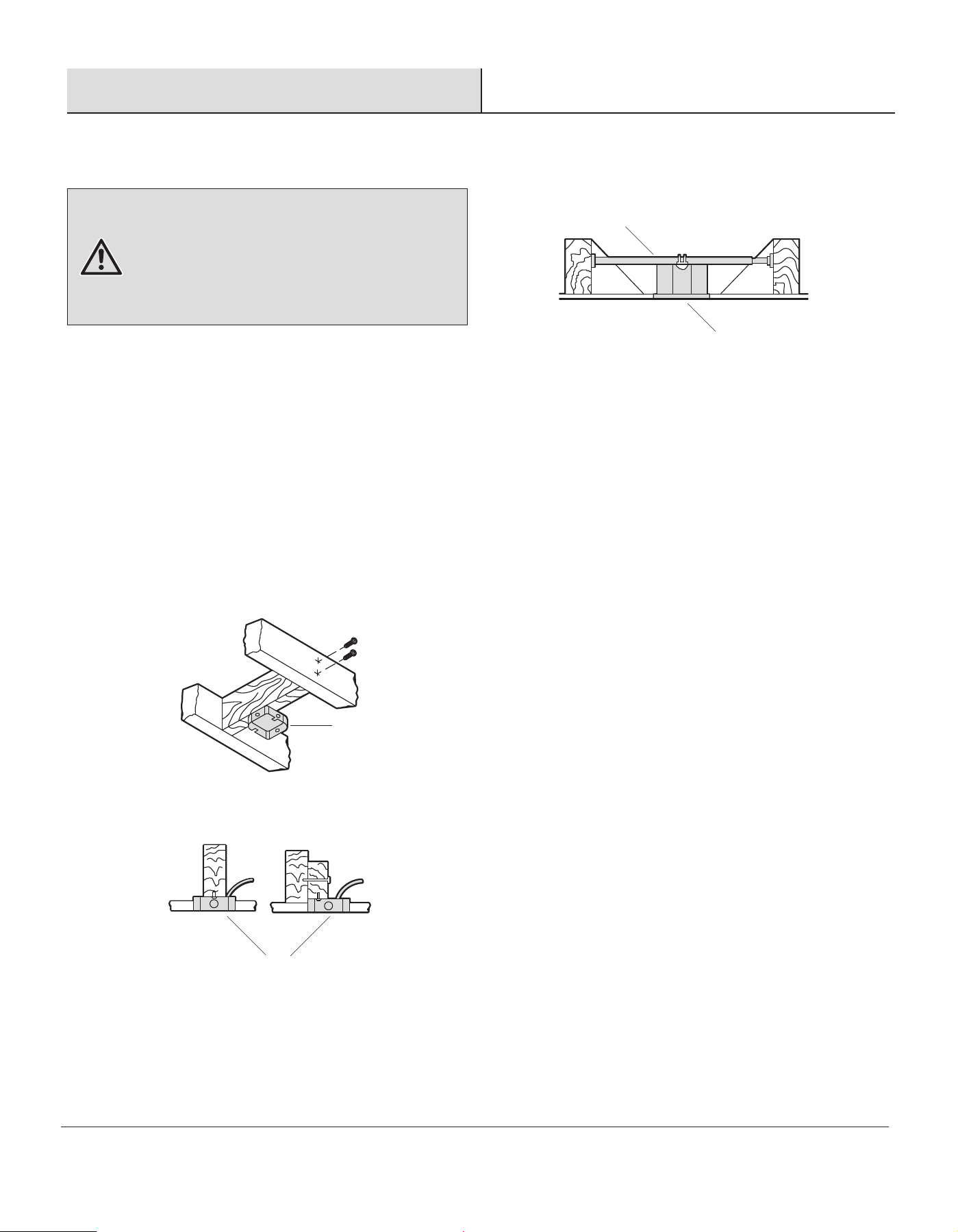

To hang your fan where there is an existing xture but no ceiling
joist, you may need an installation hanger bar (LL) (not included)
as shown above.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□ Disconnect the power by removing the fuses or turning off
the circuit breakers.
□ Secure the outlet box (KK) (not included) directly to the
building structure. Use appropriate fasteners and materials
(not included). The outlet box and its bracing must be able
to fully support the weight of the moving fan (at least 35
lbs.). Do not use a plastic outlet box.
The illustrations below show two different ways to mount the
outlet box (KK) (not included).
WARNING: To reduce the risk of re, electric shock, or
personal injury, mount the fan to an outlet box marked
acceptable for fan support using the screws provided with the
outlet box. An outlet box commonly used for the support of
lighting xtures may not be acceptable for fan support and
may need to be replaced. If in doubt, consult a qualied
electrician.
KK
KK
LL
KK
Installation
MOUNTING OPTIONS
6

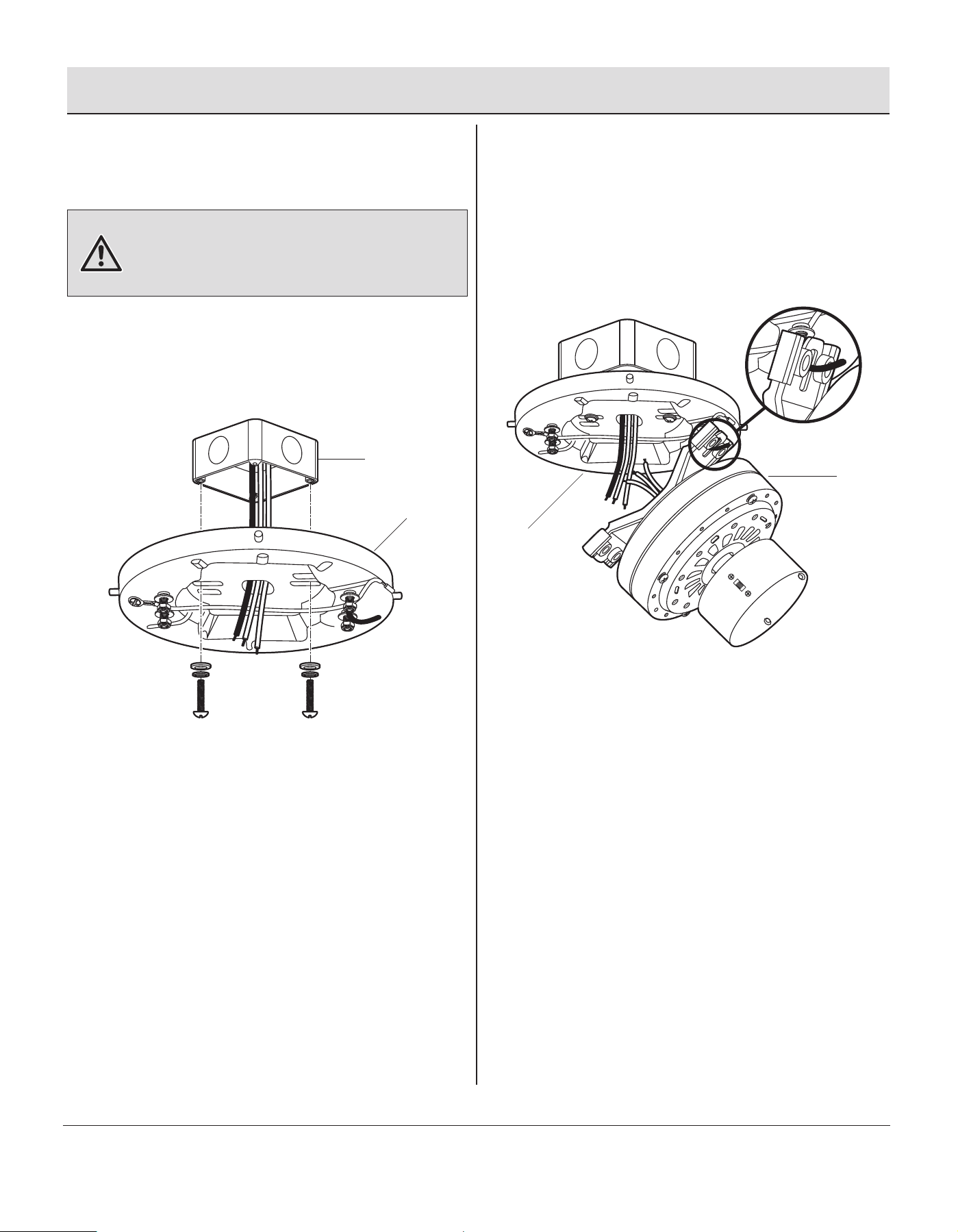

Assembly — Hanging the Fan
1
Installing the mounting bracket
to the electrical box
Hanging the fan to the
mounting bracket
□ Attach the mounting bracket (A) to the outlet box (KK)
(not included) with two screws and washers provided
with the outlet box (KK). Ensure the mounting bracket
(A) is tight and secured.
WARNING: To reduce the risk of re, electric shock or
other personal injury, mount the fan only to an outlet box or
supporting system marked acceptable for fan support and
use the mounting screws provided with the outlet box.
□ Lift the fan into position by hanging the fan motor
assembly (B) onto the hook from the mounting
bracket (A) allowing it to hang freely.
2
A
KK
7
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
A
B
AA
NeutralHot
Black
Ground
conductor
White
Blue
Black
Green
Green
White
KK

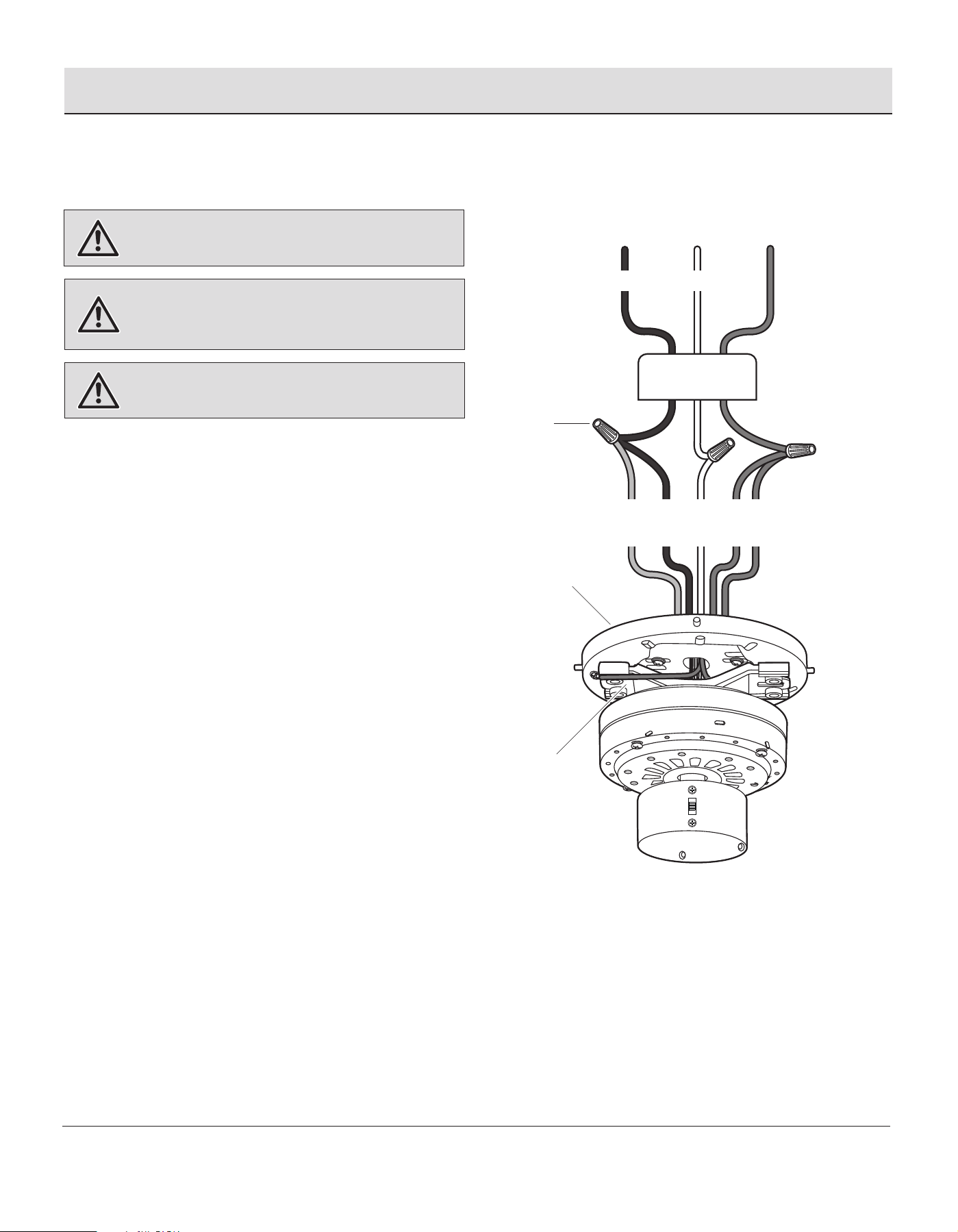

Making the electrical connections
WARNING: Check to see that all connections are tight,
including ground, and that no bare wire is visible at the wire
nuts (except for the ground wire).
WARNING: To reduce the risk of re or electric shock, do
not use this fan with any solid-state speed control device.
WARNING: To avoid possible electrical shock, be sure
electricity is turned off at the main fuse box before wiring.
Assembly — Hanging the Fan (continued)
3a
If you feel you do not have enough electrical wiring knowledge
or experience, have your fan installed by a licensed
electrician.
Follow the steps below to connect the fan to your household
wiring. Use the plastic wire nuts (AA) with your fan. Secure the
plastic wire nuts (AA) with electrical tape. Make sure there are
no loose strands or connections.
□ Make wire connections as follows, using the wire nuts
(AA).
From Fan To Outlet Box
Black + Blue Wires ---------- Black Wire (Hot)
White Wire ------------------- White Wire (Neutral)
Green Wires* ---------------- Green or Bare Wire (Ground)
* There are two green grounding leads: one from the mounting
bracket (A) and one from the mounting bar (MM).
□ Turn the wire nut connections upward, spreading them
apart so the green (ground) and white wires will be on
one side of the outlet box (KK) and the black and blue
wires will be on the other side. Carefully tuck the
connections up into the outlet box (KK).
A
MM
8

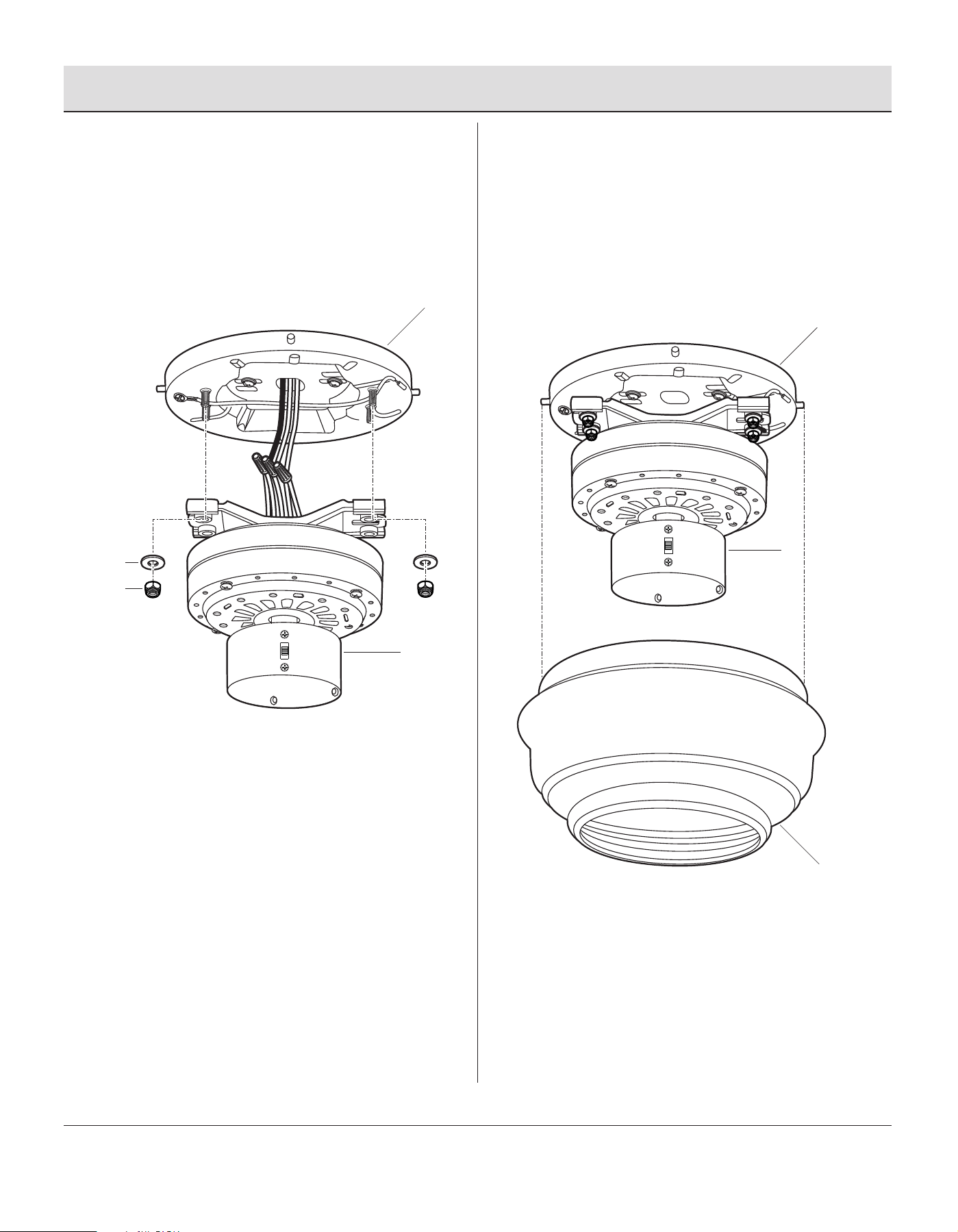

Assembly — Hanging the Fan (optional)
3b

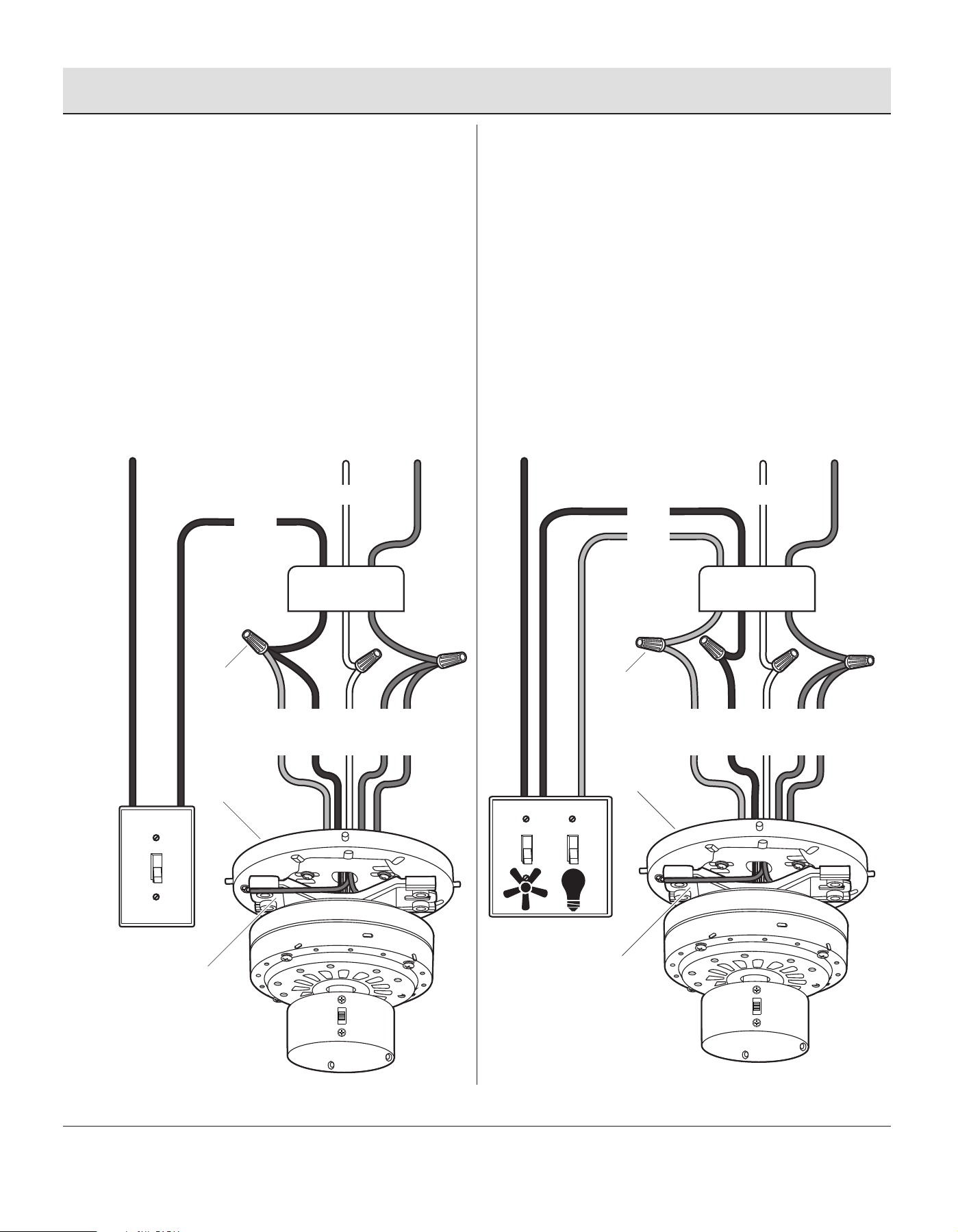

Single Switch Connections
3c
Dual Switch Connections
□ On a single switch the fan and light can be turned on or
off together. Make wire connections as follows, using the
wire nuts (AA). Wall switch not included.
From Fan To Outlet Box
Black + Blue Wires ---------- Black Wire (Hot)
White Wire ------------------- White Wire (Neutral)
Green Wires ----------------- Green or Bare Wire (Ground)
□ On a dual switch the fan and light can be turned on or off
separately. Make wire connections as follows, using the
wire nuts (AA). Wall switch not included.
From Fan To Outlet Box
Black Wire (for Fan) --------- Black Wire (Hot #1)
Blue Wire (for Light) --------- Red Wire (Hot#2 but maybe
be in another color other
than black, white or green)
White Wire ------------------- White Wire (Neutral)
Green Wires ----------------- Green or Bare Wire (Ground)
AA
SINGLE SWITCH
NeutralAC IN
Black
Ground
conductor
White
Blue
Black
Green
Green
White
KK
AA
Neutral
Ground
conductor
White
Blue
Black
Green
Green
White
AC IN
Black
Red
DUAL SWITCH
KK
A
MM
9
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
A
MM
4
Finishing the fan installation
□ Move the fan motor assembly (B) into position over
the four mounting bracket studs and secure with the
provided nuts (CC) and washers (DD).
5
Attaching the motor housing
to the mounting bracket
□ Raise the motor housing (E) up against the mounting
bracket (A). The four supports inside the motor
housing (E) should be placed against the four studs
on the mounting bracket (A). Twist the motor housing
(E) clockwise until snug.
Assembly — Hanging the Fan (continued)
10
B
A
DD
CC
A
B
E

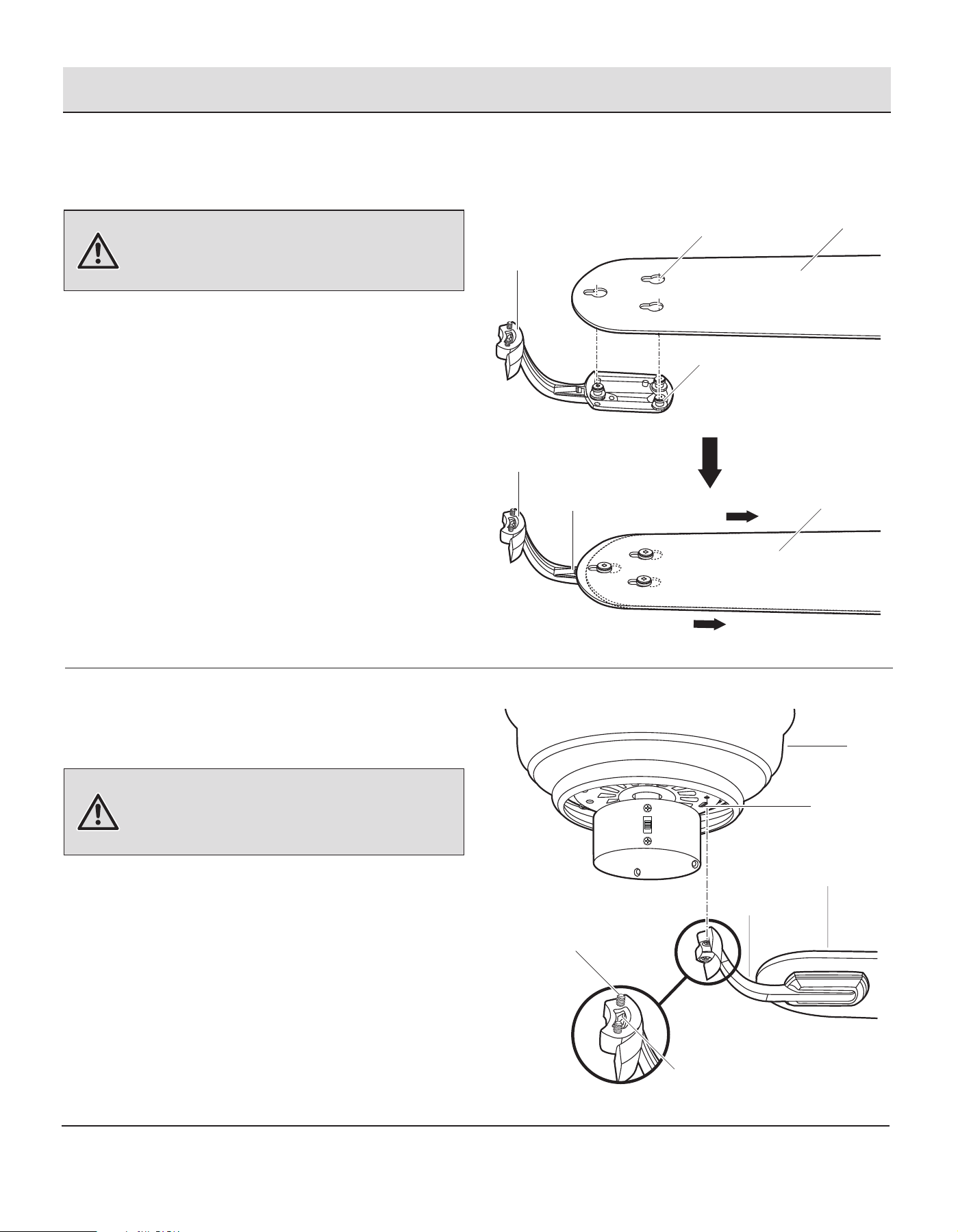

Assembly — Attaching the Fan Blades
Attaching the blades to the
blade arms
7
Fastening the blade
assemblies to the motor
B
D
C
QQ
BB
RR
WARNING: To reduce the risk of personal injury, do not
bend the blade arms (D) while installing, balancing the blades
(C), or cleaning the fan. Do not insert foreign objects between
rotating fan blades (C).
□ Fasten the blade assemblies to the fan motor
assembly (B) by lining up the slots of the motor (RR)
with the tabs on the blade arms (QQ).
□ Tighten the two blade arm screws with lock washers
(BB) already installed in the blade arms (D).
□ Repeat this procedure for the remaining blade arms
(D).
6
□ Hold the blade (C) with hands close to the blade arm
(D), align the key-slot holes (NN) with the blade arm
posts (OO) and press the blade down rmly. Ensure
the key-slot holes (NN) are properly seated on the
blade arm posts (OO).
□ Firmly slide the blade (C) away from the blade arm (D)
until the blade (C) engages in the spring locking
mechanism (PP). Make sure the spring of the spring
locking mechanism (PP) is upward and the butt of the
spring locking mechanism (PP) is against the edge of
the blade.
C
NN
OO
D
C
D
PP
To install the blade to the blade arm:
□ Press down the spring locking mechanism (PP) to
release the blade (C) from the blade arm (D). Slide the
blade (C) toward the blade arm (D) until the blade (C)
disengages from the spring locking mechanism (PP).
Carefully push the blade (C) up to detach from the
blade arm (D).
To detach the blade from the blade arm:
WARNING: Failure to properly seat the blades (C) on the
blade arms (D) and engage in the spring locking mechanism
(OO) could result in the fan blades (C) loosening and possibly
falling.
11
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
8
Attaching the light kit to the
switch housing
9
Installing the light bulbs and the
plastic
shade
□ Install two 9 watt LED bulbs (JJ) (included).
□ While holding the plastic shade (G), slip the pull chain (UU)
from the switch housing into the outside hole in the plastic
shade (G).
□ Feed the pull chain (UU) from the light kit stem (VV)
through the eyelet on the plastic shade (G).
□ Place the plastic shade (G) over the light kit stem (VV) .
Secure the plastic shade (G) with the metal nut (FF)
(rubber side on the top).
□ Fit the cap (GG) onto the light kit stem (VV) and then slip
the pull chain (UU) through the hole on the side of the cap
(GG).
□ Feed the pull chain (UU) from the light kit stem (VV)
through the cap (GG) and the decorative nut (HH), and then
thread the decorative nut (HH) on securely. Do not
overtighten.
CAUTION: Before starting installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufcient to prevent electric shock.
CAUTION: Before starting installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufcient to prevent electric shock.

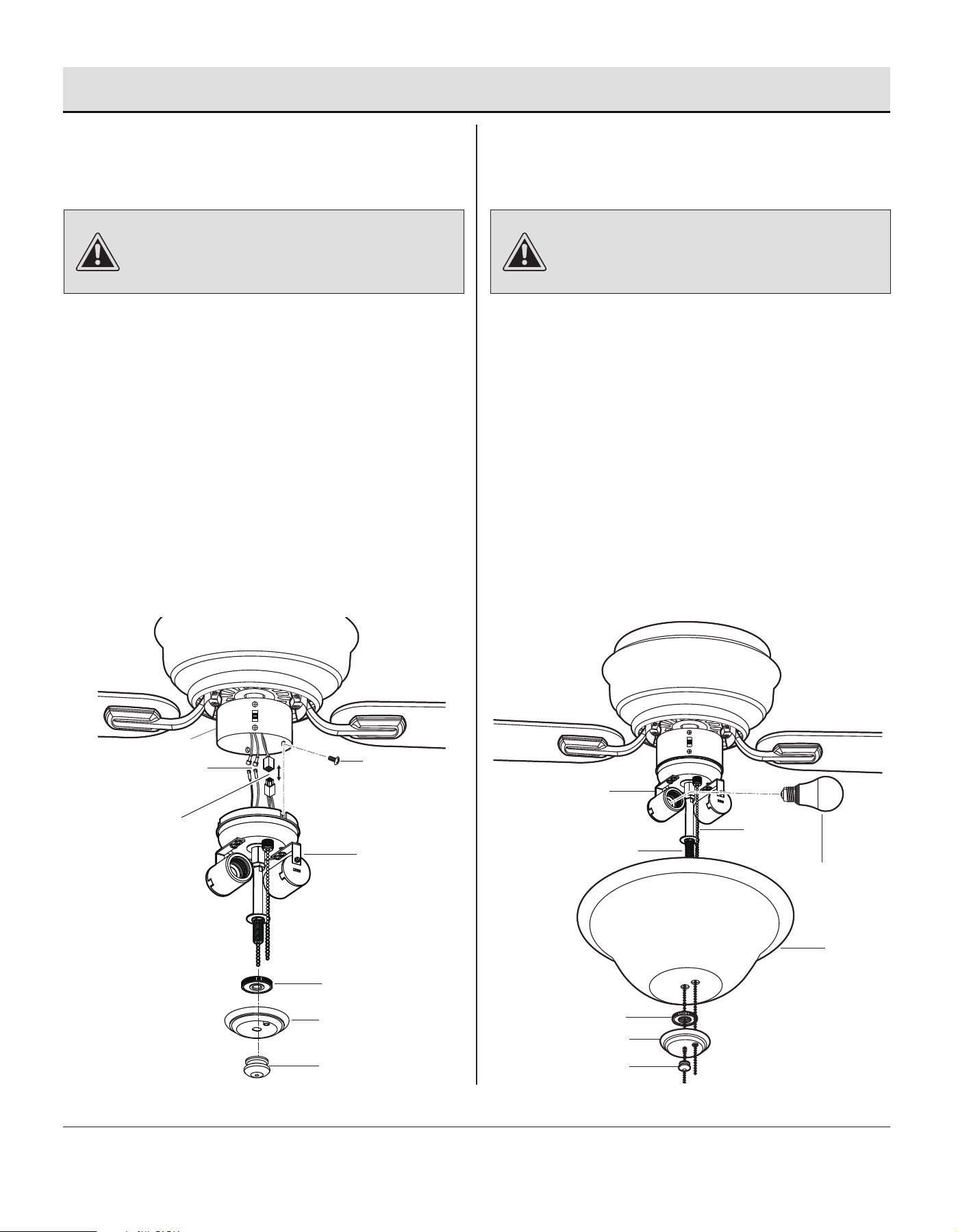

Assembly — Installing the Light Kit
□ Remove the three light kit mounting screws (EE) from the
light kit (F) and keep these screws.
□ While holding the light kit (F) under your fan motor
assembly (B), snap together the 4-pin wire connection
plugs (SS) and locate two single white and blue wires in
the switch housing labeled "FOR LIGHT". Make the
polarized plug connections (TT),
- White to white - Blue to black
□ Carefully push all wires back into the switch housing.
Install the light kit (F) onto the switch housing with the
three light kit mounting screws (EE) provided. Be sure to
tighten all screws.
□ Remove the decorative nut (HH), cap (GG) and the metal
nut (FF) from the light kit (F).
12
F
UU
VV
G
JJ
FF
GG
HH
F
TT
SS
EE
B
FF
GG
HH

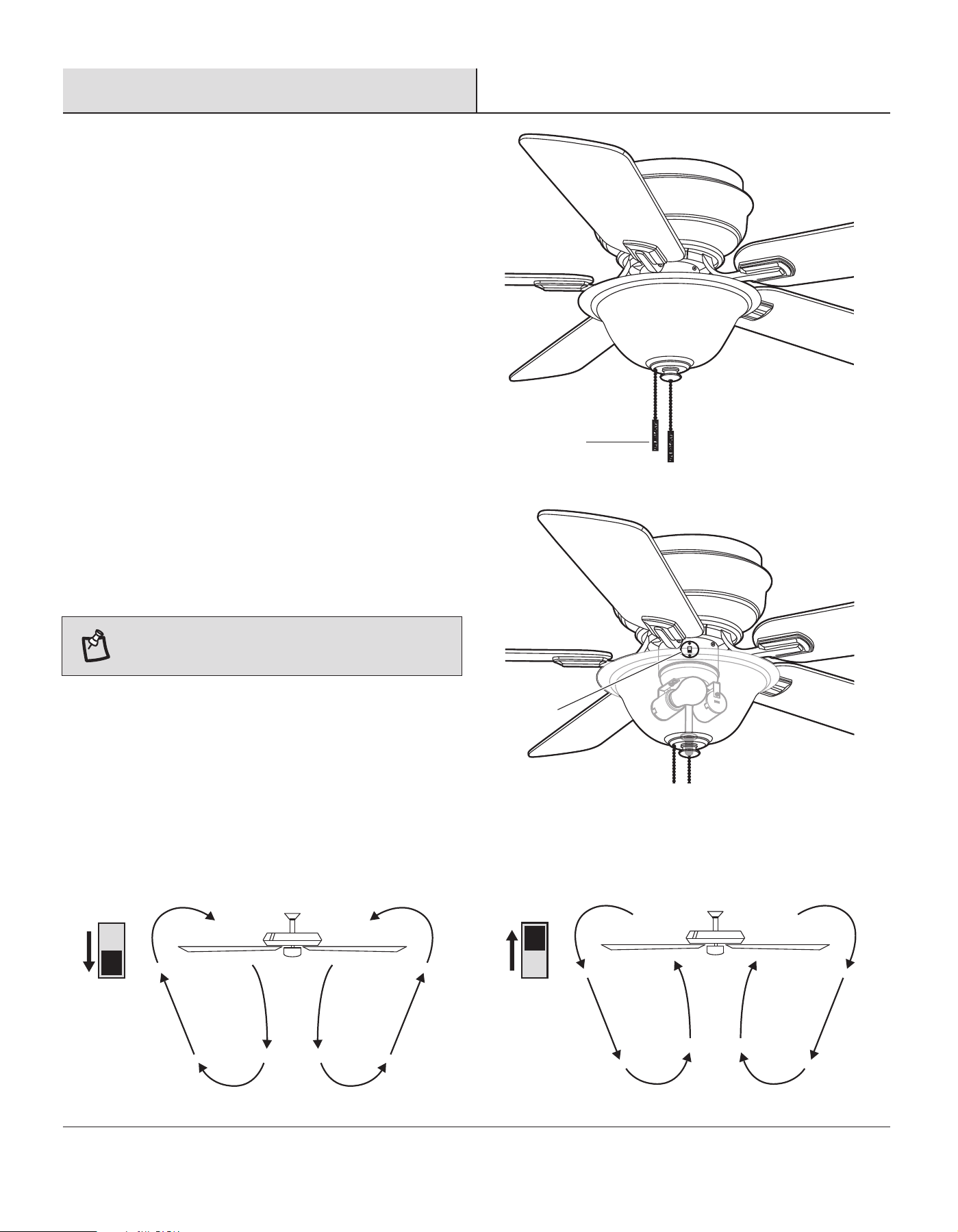

Operation
PULL CHAIN OPERATING INSTRUCTIONS
Install two pull chains and fobs (II) onto the pull chains located in the
switch housing and light kit. Turn on the power and check the operation of
the fan.
The pull chain controls the fan speed as follows:
1 pull - High, 2 pulls - Medium, 3 pulls - Low and 4 pulls - Off.
Speed settings for warm or cool weather depend on factors such as the
room size, ceiling height, numbers of fans, and so on.
To turn the light On or Off, pull the chain that is attached to the light
kit.
NOTE: Wait for the fan to stop before reversing the direction
of the blade rotation.
REVERSE SWITCH OPERATING INSTRUCTIONS
The reverse switch is located on the surface of the switch housing.
This switch controls directions: forward (switch down) or reverse
(switch up).
Warm weather - (Counterclockwise Direction) A downward air ow
creates a cooling effect. This allows you to set your air conditioner
on a higher setting without affecting your comfort.
Cool weather - (Clockwise Direction) An upward air ow moves
warm air off the ceiling. This allows you to set your heating unit on
a lower setting without affecting your comfort.
II
Reverse
switch
13
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
WARNING: Make sure the power is off before cleaning
your fan.
The fan wobbles.
Problem Solution
Check the main and branch circuit fuses or breakers.
Check the line wire connections to the fan and switch wire connections in the switch housing.
Make sure all motor housing screws are snug.
Make sure the screws that attach the fan blade to the motor hub are tight.
Make sure the wire nut connections are not rattling against each other or the interior wall of the switch
housing.
Allow a 24-hour "breaking-in" period. Most noises associated with a new fan disappear during this time.
If using the ceiling light kit, make sure the glassware are secured tight. Check that the light bulb is also
secure.
Make sure there is a short distance from the ceiling to the canopy. It should not touch the ceiling.
Make sure your ceiling box is secure and that rubber isolator pads are used between the mounting
bracket and outlet box.
The fan will not start.
The fan sounds noisy.
Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by
loose parts). Once the fan is properly installed, run the ceiling fan for 10 minutes to let the fan
self-adjust.
If wobble occurs after running the fan for 10 minutes, verify blade level using the following process:
- Select a point on the ceiling above the tip of one of the blades, then select any fan blade and measure
from the center of the selected blade to the point on the ceiling. Rotate the fan until the next blade is
positioned and repeat the measurement using the same point from the ceiling for every blade.
Measurement deviations should be within 1/8 in.
- If all deviations are less than 1/8 in. and the fan continues to wobble, please call Customer Service
(1-855-HD-HAMPTON) to order a complimentary Blade Balancing Kit.
- If deviation is greater than 1/8 in. , please call Customer Service (
1-855-HD-HAMPTON) to order
complimentary replacements of your brackets.
Troubleshooting
Care and Cleaning
Use water when cleaning. Water could damage the motor, or the wood, or possibly cause an electrical shock.
Apply oil to your fan or motor. The motor has permanently-lubricated sealed ball bearings.
Do not
Do
Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. Because of the fan’s
natural movement, some connections may become loose over time. It is not necessary to remove the fan from the ceiling.
Clean your fan periodically. Use only a soft brush or lint-free cloth to avoid scratching the nish. The plating is sealed with a lacquer to
minimize discoloration or tarnishing.
(Optional) Apply a light coat of furniture polish to the wood blades.
(Optional) Cover small scratches with a light application of shoe polish.
14
1-855-HD-HAMPTON
HAMPTONBAY.COM
Retain this manual for future use.
Questions, problems, missing parts? Before returning to the store,
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
call Hampton Bay Customer Service
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
