User Manual
JR700
Cordless Vacuum Cleaner
support@inteture.com
EN
2.
1. INTRODUCTION 3
2. WARNING 3
2.1 Personal Safety 3
2.2 Electrical Safety 4
2.3 Battery Safety 4
3. CONTENT OF PACKAGE 5
4. KNOW YOUR PRODUCT 6
5. CHARGING 7
6. ASSEMBLING 8
7. USING 9
8. CLEANING 10
8.1 Clean the dust cup 10
8.2 Reinstallation 11
8.3 Clean the brush 12
9. TROUBLESHOOTING 13
9.1 Blockage Protection 13
10. COMMON TROUBLE 14
11. MAINTENANCE 17
12. WARRANTY 17
Content
support@inteture.com
EN
3.
1. INTRODUCTION
2. WARNING
Thank you for purchasing INTETUTR JR700 Pro stick vacuum cleaner. Please read the user manual carefully before using the product to avoid malfunctions
caused by accidental operation. If the product is given to another person, please make sure the manual is conveyed.
The product provides a free 2-year warranty, please activate the warranty card in time. If you have any questions, please contact support@inteture.com
2.1 Personal Safety
①
Store it indoors in a dry place and out of the reach of children.
②
This product is suitable for children 10 years old and above. Users with reduced physical functions, sensory or intellectual abilities, or lack of experience
and knowledge are advised to use the product safely supervision or guidance and to be aware of the hazards involved.
③
Please pay attention to safety when children or pets near the vacuum cleaner.
④
Children should not clean or use the product without supervision.
⑤
Use only manufacturer’s recommended attachments as described in this manual; misuse or use of any accessory or attachment other than those
recommended may present a risk of personal injury.
⑥
Take extra care when cleaning stairs.
⑦
Keep the appliance and accessories away from the hot surface.
⑧
Do not block the appliances' openings or hinder airflow, keep openings free of any objects including dust, lint, clothing, fingers (and all parts of the
body).
support@inteture.com
EN
4.
2.2 Electrical Safety
2.3 Battery Safety
①
Only use batteries and chargers supplied by the manufacturer.
②
Never modify the charger in any way.
③
Do not pull the cord to disconnect it from a socket, grasp the plug and pull to disconnect it.
④
Keep the charger cord away from hot surfaces and sharp edges.
⑤
The supply cord cannot be replaced. If the cord is damaged the charger should be discarded and replaced.
⑥
Do not handle the charger or the appliance with wet hands.
⑦
Do not store, or charge the appliance outdoors.
⑧
The charger must be removed from the socket before removing the battery, cleaning, or maintaining the appliance.
①
This appliance includes Li-ion batteries, do not incinerate batteries or expose them to high temperatures, as they may explode.
②
Liquid ejected from the battery may cause irritation or burns.
③
In an emergency contact professional help immediately.
④
Leaks from the battery cells can occur under extreme conditions. Do not touch any liquid that leaks from the battery. If the liquid gets on the skin,
wash immediately with soap and water. If the liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes and seek
medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.
⑤
When the battery pack is not in use, keep it away from paper clips, coins, keys, nails, screws, or other small metal objects that could make a connection
from one terminal to another.
⑥
When you dispose of the appliance remove the battery and dispose of the battery safely in accordance with local regulations.
support@inteture.com
EN
5.
3. CONTENT OF PACKAGE
Part Name Quantity Part Name Quantity
Main Body 1 Charging Stand 1
Battery Pack 1 Charger 1
Telescopic Tube 1 Small Cleaning Brush 1
Floor Brush 1 Air Filter(Installed) 1
Hard And Soft Bristle Integrated
Brush (Installed)
1
Hepa Dust Filter(one is installed
in the main body)
3
Crevice Nozzle 1
Screws set (Used to install wall
mount stand)
1
Round Brush 1 Quick User Guide 1
support@inteture.com
EN
6.
4. KNOW YOUR PRODUCT
LED Touch Screen
Battery Release Button
Battery
ON/OFF Button
Dust Cup Release Button
Dust Cup
Tube Release Button
Telescopic Tube
Length Adjustment Button
Floor Brush
Release Button
Floor
Brush
Battery
Indicator
Suction
Adjustment
Button
Round Brush
Charger
Hard And Soft
Bristle Integrated
Brush (Installed)
Charging Stand
Crevice Nozzle
Small Cleaning
Brush
Brush Roller
Tangled
Suction Indicator
Air Passage/
Dust Cup
Blocked
support@inteture.com
EN
7.
5. CHARGING
Turn off the power before charging
2 Charging ways
•
Only charge with the original charger to avoid damage to the vacuum cleaner.
•
During overcurrent protection and overvoltage protection, the battery indicators flash at the same times and the screen goes out.
①
Charge the battery directly
•
During the charge if the battery indicator shows 100, means it is fully
charged and ready to use.
②
Charging on the stand
support@inteture.com
EN
8.

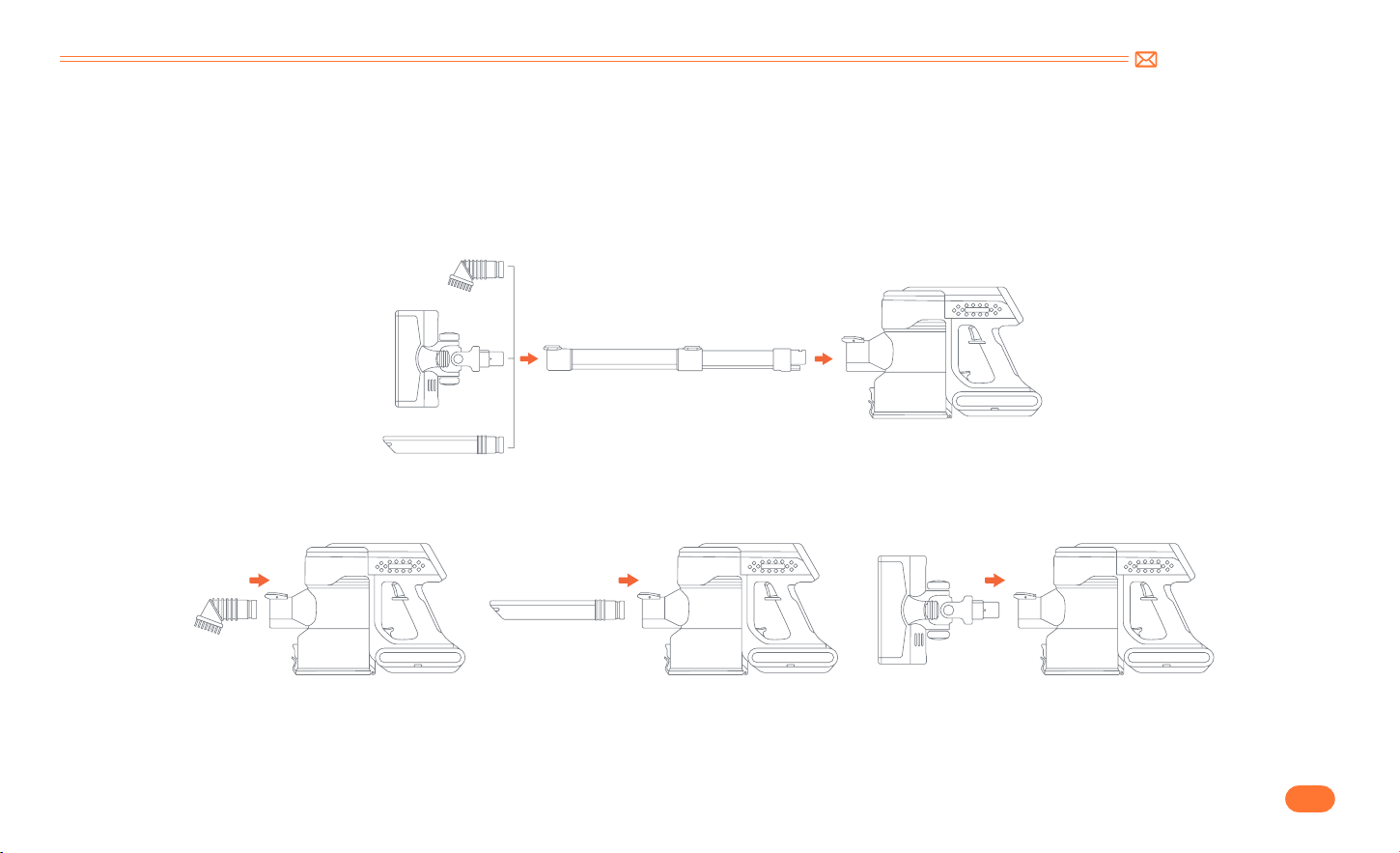

6. ASSEMBLING
Insert the telescopic tube into the main body and make sure it is secure. Press the release button, the telescopic tube can be removed.
•
Connect the telescopic tube
•
Connect brush heads
support@inteture.com
EN
9.
7. USING
Do not exceed the "MAX" dust collection capacity of the dust cup.
•
Press the ON/OFF button to start work
Please keep the suction nozzle unobstructed and avoid blockage. Otherwise, the motor will overheat and cause danger.
ON/OFF
Touch the button to adjust the suction power.
When turning on the vacuum, the green light is on, the vacuum is in ECO mode. Press
the button once, the blue light is on, the vacuum is in standard mode. Press the button
twice, the red light is on, the vacuum is at the max suction mode.
•
Adjust suction power
support@inteture.com
EN
10.
8. CLEANING
8.1 Clean the dust cup
•

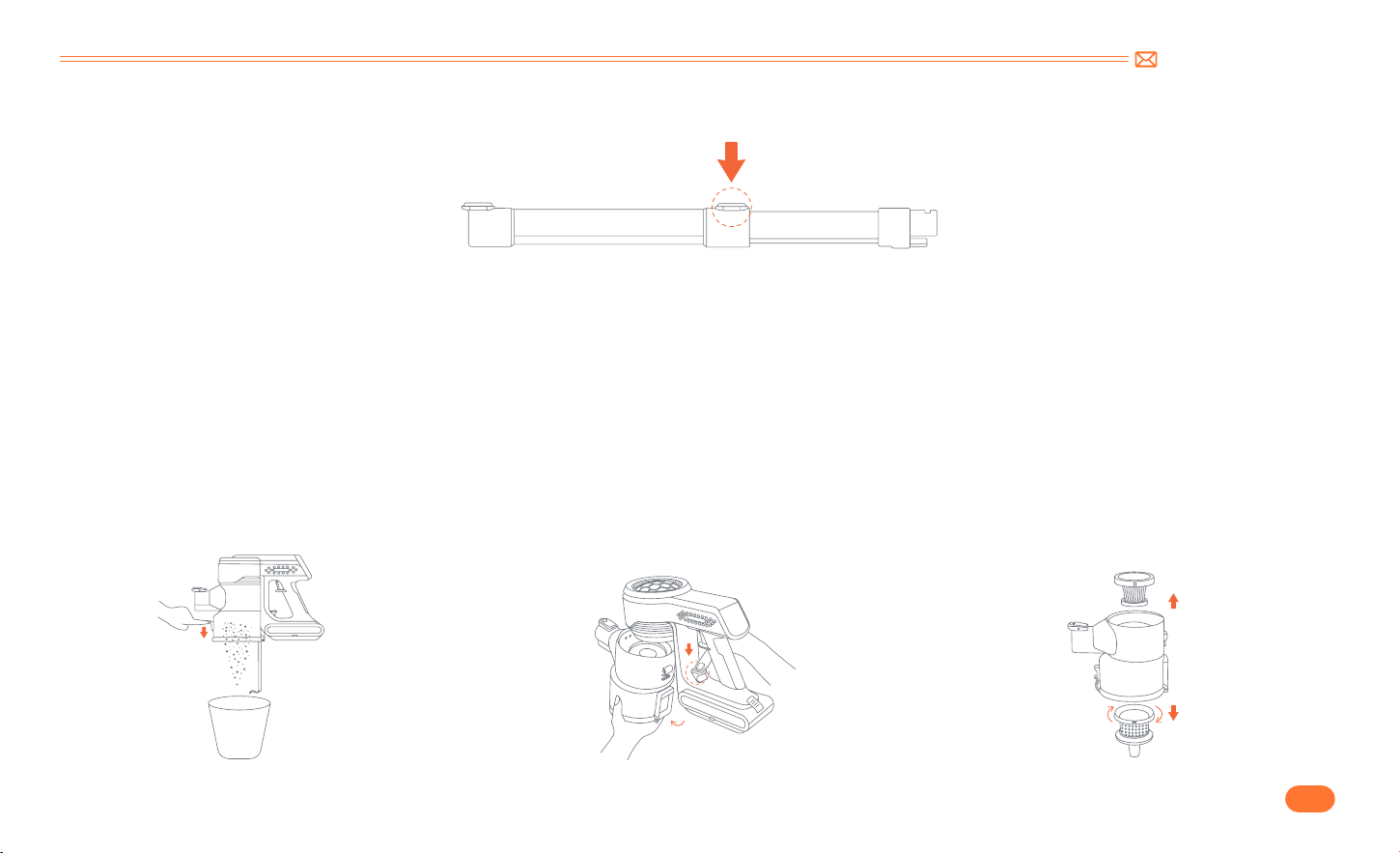

According to different needs, the length of the tube can be adjusted
To maintain good suction power, please empty the dust cup and clean the filter after each use.
①
Press the release button on the dust cup
to open the dust cup lid, dump out the
trash.
②
Press vertically the dust cup release button of
the main body, grasp the bottom of the dust
cup, and take out the dust cup.
③
Pull out the HEPA filter. Then open the
bottom cover of the dust cup, rotate the
stainless steel filter and take it out.
support@inteture.com
EN
11.

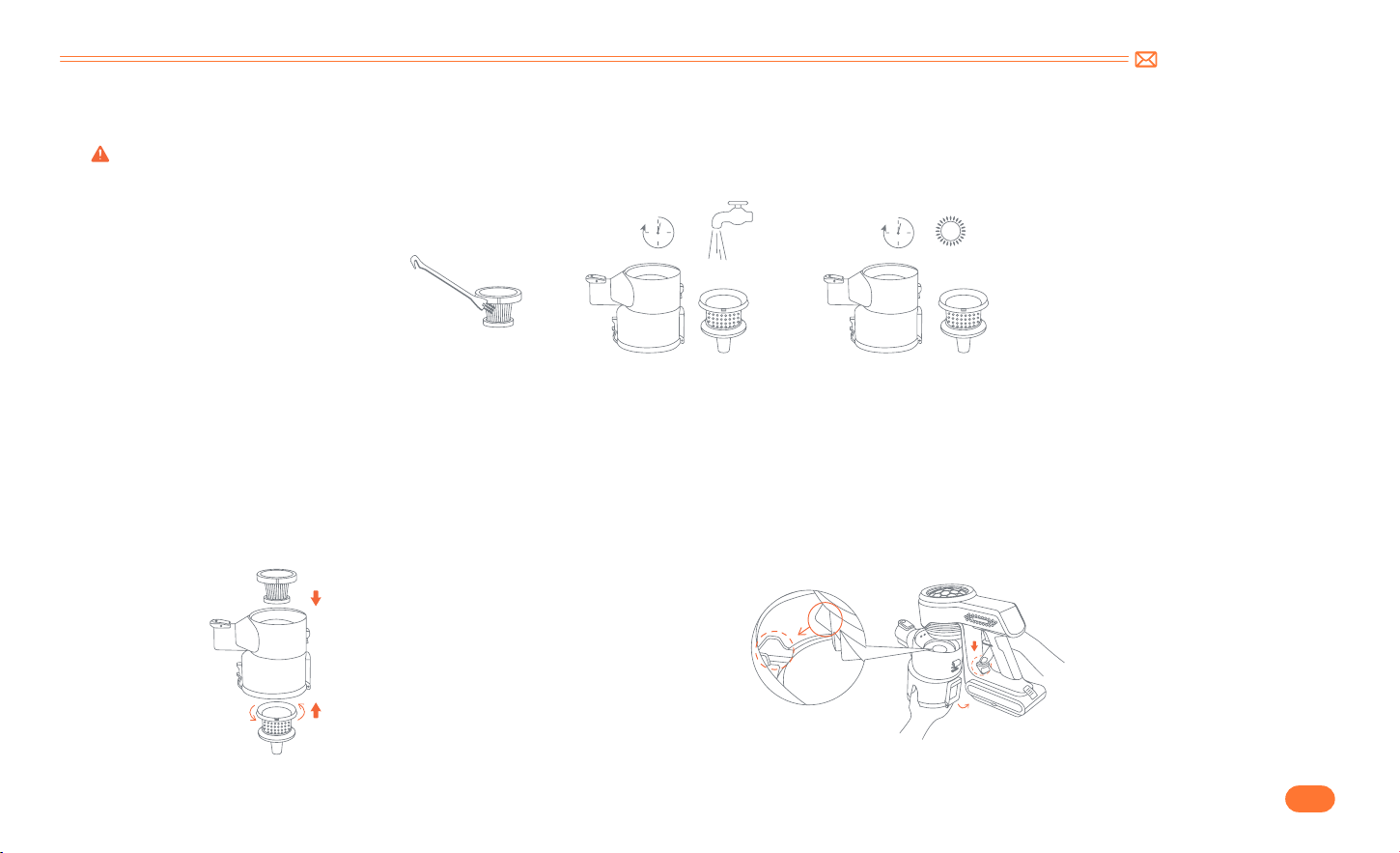

④
Sweep off the dust on the HEPA filter with the cleaning brush. The stainless steel filter and dust cup can be washed by water, and shall be installed after
being dried for 24 hours.
Do not use cleaning equipment (washing machine, etc.) to clean the filter, do not use drying equipment (dryer, iron, etc.) to dry the vacuum cleaner,
natural drying only.
1min
24h
8.2 Reinstallation
Put the stainless steel filter from the bottom of the dust cup and rotate it tightly (There are 3 small protrusions on the stainless steel filter's edg correspond-
ing to the 3 small grooves on the dust cup).
①
Put the HEPA filter from above, and cover
the dust container Bottom cover Bottom.
②
Align the convex part of the handle with the concave part of the dust cup and insert it, and then
press the release button of the dust cup to completely close the dust cup and the handle.
support@inteture.com
EN
12.

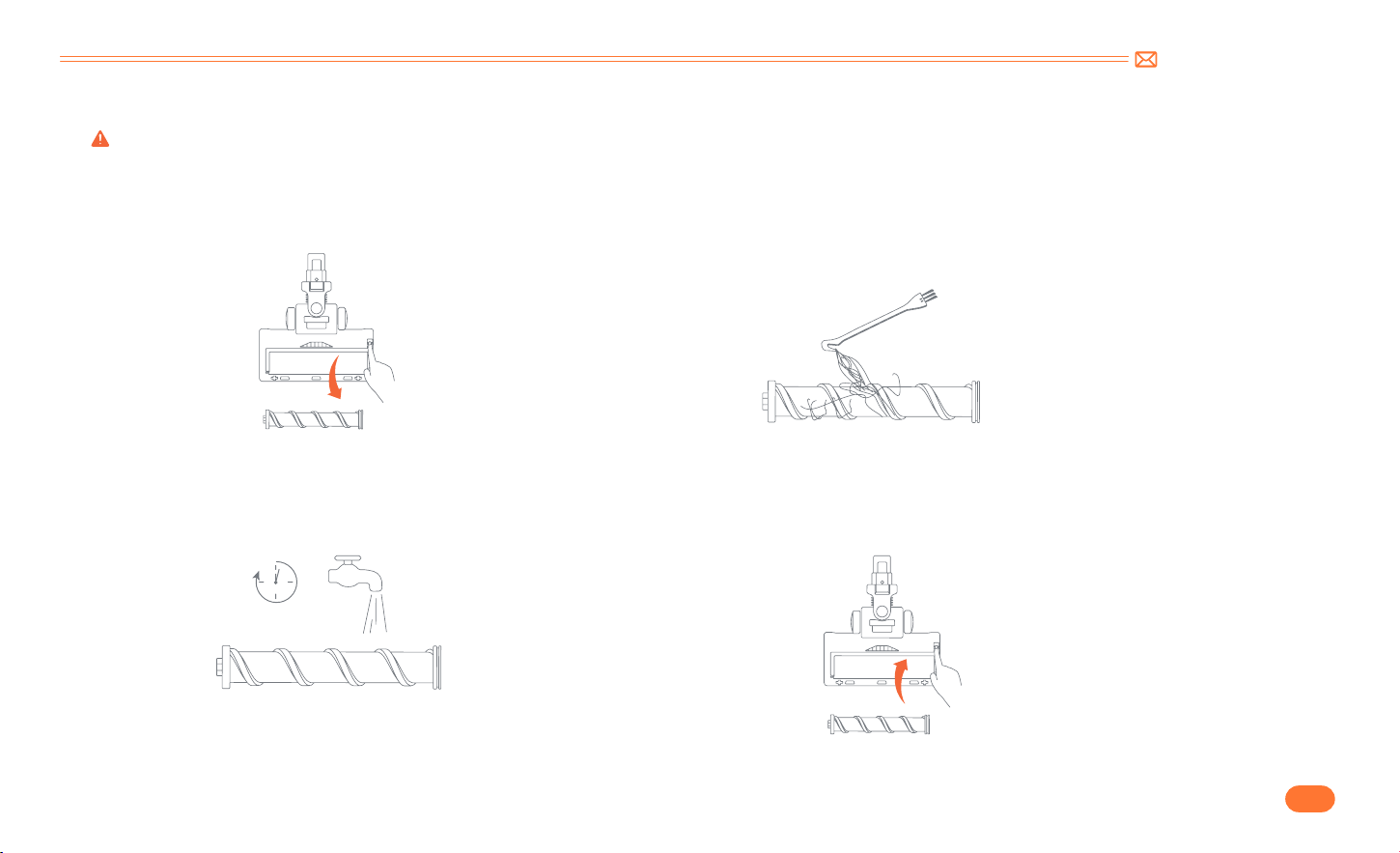

8.3 Clean the brush
Ensure the appliance is disconnected from the charger before removing the roller brush. Be careful not to pull the ON button.
①
Push up the switch to the “unlock” side, remove the
plug, then take out the roller brush.
③
Clean the roller brush with/without water
.
②
Use the small cleaning brush to sweep away
the trash on the roller. The knife side used to remove
the tangled hairs from brush roller.
④
Push in gently to install the roller brush. Before replacing,
make sure the brush is completely dry.
1min
support@inteture.com
EN
13.
9. TROUBLESHOOTING
If there is any problem during use, please check the following troubleshooting table.
If the problem can't be solved, please contact the after-sales email: support@inteture.com
Turn off the vacuum cleaner before maintenance. Otherwise it may cause electric shock or other personal injury.
Warning:
①
Brush Roller Tangled
②
When the air passage or dust cup is blocked, the indicator on the right
will flash.
If the floor brush inhales large foreign objects or entangles too
much hair, the indicator on the left flashes.
Solution: Remove the floor brush and
clean up the foreign matter wrapped
around the roller. Please ensure that the
brush head has been detached from the
main unit to prevent accidental starting of
the machine and cause personal injury.
Solution: Clean the aluminum tube and
the filters in the dust cup thoroughly.
9.1 Blockage Protection
support@inteture.com
EN
14.
10. COMMON TROUBLE
Problems Possible Causes Solutions
Vacuum can not work
1. Low battery power.
2. The floor brush, telescopic tube, dust cup, filter are
blocked by hair or other debris.
3. Does not charge with original charger.
4. The battery is not installed properly.
5. Battery damaged.
1. Charge before use.
2. Clean thoroughly blockage in brush suction inlet,
extension tube, dust cup, HEPA filter and metal filter.
3. Make sure charging with the original charger.
4. Make sure the battery is in place.
5. Contact after-sales email: support@inteture.com.
Suction power
becomes weak
1. The dust cup is full.
2. Metal filter blocked by dust.
3. HEPA filter blocked by dust.
4. Low battery power.
5. Attachments such as extension tube and clean head
are not installed in place to the vacuum cleaner.
6. Air outlets or inlets are blocked by rubbish.
1. Clean the dust cup.
2. Clean the metal filter.
3. Clean up/Replace the HEPA filter(Replacement HEPA filters
can be purchased by contacting the after-sales email) .
4. Charge the battery .
5. Follow the instructions to reinstall.
6. Clean the floor brush and extension tube.
Insufficient running time
after charging
1. Insufficient charging time.
2. Battery aging.
3. The dust cup is full of dust.
4. The filters are full of dust.
5. The telescopic tube or brush inlet blocked.
6. Always use the highest speed for cleaning the whole
house.
1. Recharge the battery.
2. Replace a battery.
3. Empty the dust cup.
4. Clean or change the HEAP filter.
5. Remove blockage in tube and brush inlet.
6. For simple cleaning, it is recommended to use the lowest
speed or the medium speed. Only larger garbage needs the
highest speed, which can effectively prolong the battery life.
support@inteture.com
EN
15.
Problems Possible Causes Solutions
LED indicator is not light
1. The charging cable is not fully inserted into the
charging socket.
2. Foreign matter on the metal contact of the charger
or on the battery charging port prevent charging.
3. The charging socket is damaged.
4. Motor of vacuum cleaner damaged .
5. Battery damaged.
6. Charger damaged.
1. Make sure the charger, battery, and power socket are in
good contact.
2. Make sure that the charging contact is in good condition
without foreign matter or dust build-up.
3. Change another charging socket.
4. Contact [email protected] for a replacement motor.
5. Contact [email protected] for a replacement battery.
6. Contact [email protected] for a replacement
charger.
Electric floor brush roller
does not rotate
1. The roller brush is wrapped or entangled by hair.
2. The roller brush is not installed in place.
3. The extension tube or electric floor brush is not
installed in place.
4. Extension tube damaged.
5. Floor brush damaged
.
1. Follow the instructions to clean the floor brush and restart
the vacuum cleaner.
2. Follow the instructions to reinstall the roller brush.
3. Follow the instructions to reinstall the extension tube and
floor brush.
4.Extension tube damaged, please contact the after-sales.
5.The floor brush is damaged, please contact the after-sales.
Vacuum cleaner
leaks dust
1. The HEPA filter is not installed or not in place.
2. The HEPA filter is full of dust.
3. The metal filter is full of dust .
4. HEPA filter damage needs to be replaced.
5. Turn off the vacuum cleaner before the rubbish come
into the dust cup.
1. Check that the HEPA filter is installed in place.
2. Clean the HEPA filter.
3. Clean the metal filter .
4. Contact customer service to purchase a replacement
HEPA filter.
5. Make sure all the rubbish is in the dust cup before turning
off the vacuum cleaner.
The vacuum cleaner stops
automatically
1. Out of battery.
2. Clogged suction ports cause the vacuum cleaner to
be overheated.
3. Clogged HEPA filter causes the vacuum cleaner to be
overheated.
4. HEPA filter needs to be replaced.
1. Charge the battery.
2. Clean all the air inlets. Let the vacuum cleaner cool to
room temperature before turning it on.
3. Clean up the HEPA filter, dust cup, floor brush and metal
filter.
4. Replace the HEPA filter.
support@inteture.com
EN
16.
Problems Possible Causes Solutions
Display turns black
and shows E1 in the
middle
Over temperature protection
Prompt that the current battery temperature is high.
Stop using/charge the vacuum cleaner until the battery
temperature is normal (wait about 45 minutes).
Display turns black
and shows E2 in the
middle
Abnormal charger voltage
When the adapter voltage is too high or too low, the display
will flash "E2" quickly, and a red light will flash quickly on the
battery. The machine will automatically shut down after
flashing for 10 seconds.
In this case, please contact [email protected]om
Display turns black
and shows E3 in the
middle
Battery failure
When the battery fails, the display will flash "E3" quickly, and
a red light will flash quickly on the battery. The machine will
automatically shut down after flashing for 10 seconds.
In this case, please contact [email protected]om
Display turns black and
shows E4 in the middle
Negative Temperature
Coefficient connection abnormal
When the Negative Temperature Coefficient is abnormal,
the display will flash "E4" quickly, and the red light on the
battery will flash quickly. The machine will automatically shut
down after flashing for 10 seconds.
In this case, please contact [email protected]om
Display turns black and
shows E5 in the middle
Host overcurrent protection
In order to protect the quality of the host, there is a
reminder of over-current protection. When the host is used
over current, the display will flash "E5" quickly, and a red light
on the battery will flash quickly. At this time, temporarily
stop using the vacuum cleaner and wait for a while before
using it again.
support@inteture.com
EN
17.
11. MAINTENANCE
12. WARRANTY
①
The stainless steel filter and dust cup can be washed by water. After cleaning they must be thoroughly dried before putting it back into use. Do not
immerse the HEPA filter and main unit in water or any liquid.
②
Clean the hoover casing only with a soft, slightly damp cloth. Do not allow any liquid substances to enter the hoover.
③
Do not use any corrosive chemicals or abrasives.
④
It is recommended to change the Hepa filter every 2 months (depend-ing on use) to ensure optimum phsformance. Do not use the filter when it is
damaged or worn out.
If there is any problem or malfunction during use, please send your question and order number to our email.We will provide you a good after-sales service
within 24 hours.
E-mail: support@inteture.com
Federal Communication Commission Interference Statement
Correct Disposal of this product
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this
equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
( 1 ) This device may not cause harmful interference, and
( 2) This device must accept any interference received, including interference that may cause undesired operation.
This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm
to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased.
They can take this product for environmental safe recycling.
Declaration of Conformity
We (Manufacturer is responsible for this declaration)
Ekoo Electronic Co.,Ltd.
(Company name)
B09,block B,f2,bldg.b,runfeng Pioneer Park,no.973, minzhi Avenue, Minzhi St., Longhua, Shenzhen, CN.(Company address)
Declare under our sole responsibility that the product
Trade name: INTETUTR
Equipment: Vacuum Cleaner
Model No. : JR700
To which this declaration relates is in conformity with the essential requirement set out in the Council Directive on the Approximation of the laws of the
Member States relating to LVD Directive(2014/35/EU) & EMC Directive(2014/30/EU) & RoHS(2011/65/EU) product is responsible to affix CE marking, the
following standards were applied:
EN 60335-2-2:2010+A11:2012+A1:2013
EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019
EN 62233:2008
EN 55014-1:2021
EN 55014-2:2021
EN IEC 61000-3-2:2019+A1:2021
IEC62321-3-1:2013
IEC62321-4:2013
IEC62321-5:2013
IEC62321-6:2015
IEC62321-7-1:2015
IEC62321-7-2:2017
IEC62321-8:2017
Full Name: George.wang Position: Approbation Manager
Signature: George.wang Place/Date: Shenzhen,China/Jun.27-2022
support@inteture.com
