DIESEL HEATER
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only
represents an estimate of savings you might benefit from buying certain
tools with us compared to the major top brands and doses not necessarily
mean to cover all categories of tools offered by us. You are kindly
reminded to verify carefully when you are placing an order with us if you
are actually saving half in comparison with the top major brands.
- 1 -
Model: ZM5005/ ZM5004 /ZM8003/ Model:CY-24/CY-25
ZM8004/ ZM8005/ CY-35/ CY-36/
CY-31/ CY-39
Model:ZM8001/CY-6/CY-14/CY-7/CY-8
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
DIESEL HEATER
- 2 -
Symbol
Symbol Description
Warning: To reduce the risk of injury, the user must read the
instructions manual carefully.
This symbol, placed before a safety comment, indicates a kind of
precaution, warning, or danger. Ignoring this warning may lead to
an accident. To reduce the risk of injury, fire, or electrocution,
please always follow the recommendations shown below.
CORRECT DISPOSAL:This product is subject to the provisions of
European Directive 2012/ 19/EC. The symbol showing a wheelie
bin crossed through indicates that the product requires separate
refuse collection in the European Union. This applies to the product
and all accessories marked with this symbol. Products marked as
such may not be discarded with normal domestic waste, but must
be taken to a collection point for recycling electrical and electronic
devices.
Warning: Toxic material. Take care to avoid coming into contact
with toxic material.
Warning: Flammable material. Take care to avoid causing a fire by
igniting flammable material.
Responsibility requirements:
·Vevor is not responsible for any issues arising from non-compliance with these
instructions and the precautions included in these instructions.
Similarly, the company shall not be held responsible for any issues arising from
repairs conducted without professional maintenance or the use of original spare
parts/accessories. This type of maintenance will result in the invalidation of the
heater's type approval and its ECE type approval certificate.
- 3 -
SAFETY INSTRUCTION
WARNING：
Read all safety warnings, instructions, illustrations, and specifications
provided with this diesel heater. Failure to follow all instructions listed
below may result in electric shock, fire, and /or serious injury.
1. The following measures shall not be adopted
Change the important component of the diesel heater.
Make use of spare parts from other manufacturers without permission.
Disobey the instructions and the guidelines during installation or operation.
2. Only allow using original attachments and spare parts during installation and
maintenance.
3. The heaters shall not be used in places where they may form flammable vapor
or dust, for example:
Fuel depot
Carbon storehouse
Timber storehouse
Granary and similar sites
Diesel/petrol station
And keep away from fuel tanks, compression tanks, fire extinguishers, clothes, or
other flammable objects.
4. Do not use cigarette lighter for startup.
5. Do not use the heater in closed and/or unventilated places.
6. The heaters shall be turned off when filling fuel.
7. Do not cut off the electric power during operation.
8. If there is a fuel leak or discharge from the fuel system of heaters, please
contact VEVOR for repair.

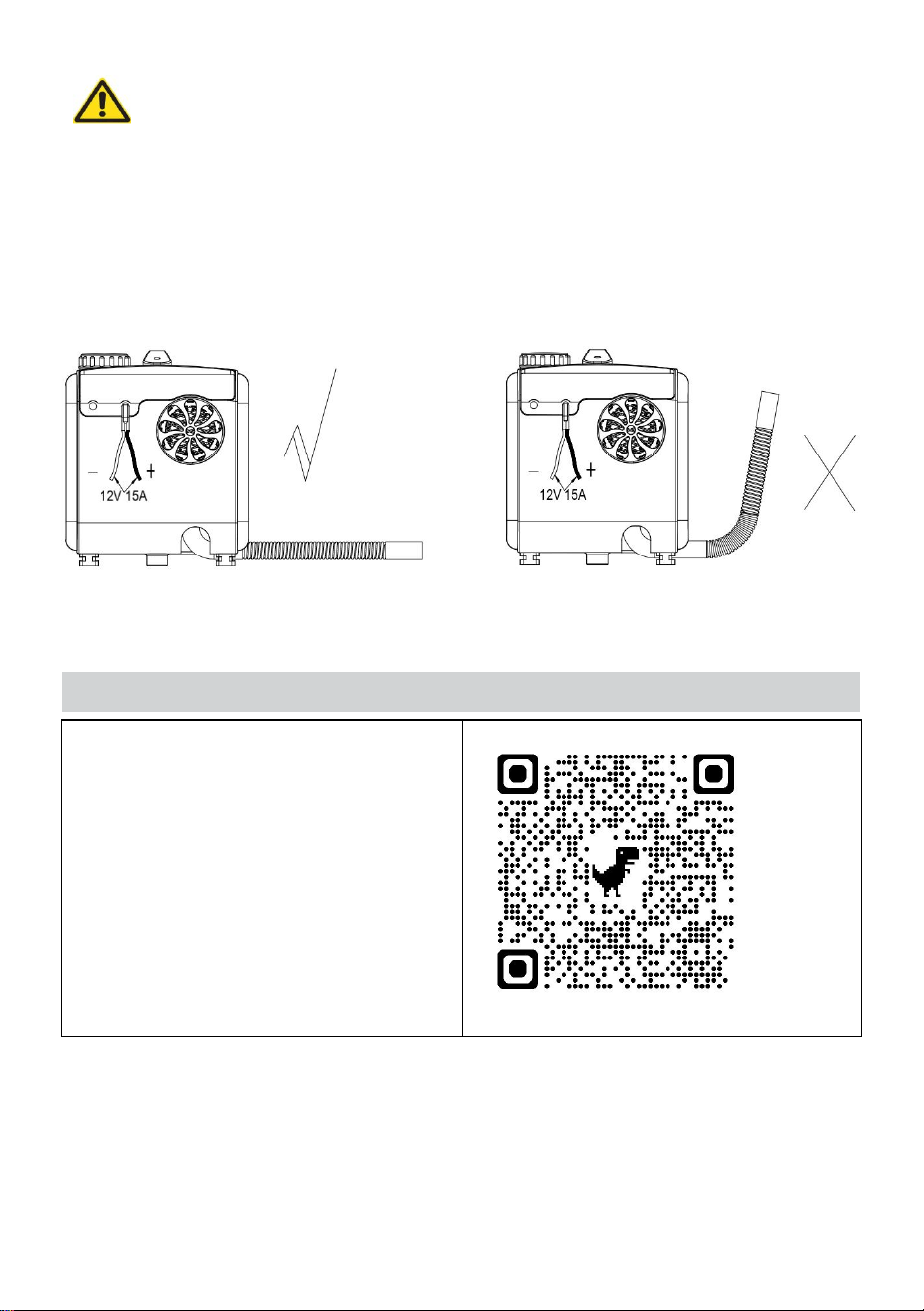

9. Place the exhaust outlet outside to prevent any penetration of exhaust fumes.
10. In the process of work, it is forbidden to cut off the electric power directly to
stop the heater from working.
11. Seal all gaps between the mounting plate and the car body.
12. The machine will stop heating after over-temperature protection. Please do
not power off. After the machine is naturally cooled and turned off, it can be
- 4 -
restarted.
13. After turning off the machine, please do not immediately disconnect the power
supply. It takes 3-5 minutes for the machine to stop working completely.
14. After starting the machine for 3-5 minutes, it will work normally and heat up.
Please wait patiently.
15. When the heater is just started, the current is relatively high, so an adapter
with a voltage of 12V and a current of 15A or greater is required for the power
supply.
16. This appliance can be used by children aged 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of
the appliance in a safe way and understand the hazards involved. Children shall
not play with the appliance. Cleaning and user maintenance shall not be done by
children without supervision.
17. WARNING: Flammable material
During installation/use, service, and disposal of the appliance, please
pay attention to the fact that there should be no flammable substances
around the exhaust pipe. The temperature of the exhaust pipe is very
high when it is working. Take care to avoid causing a fire by igniting flammable
material.

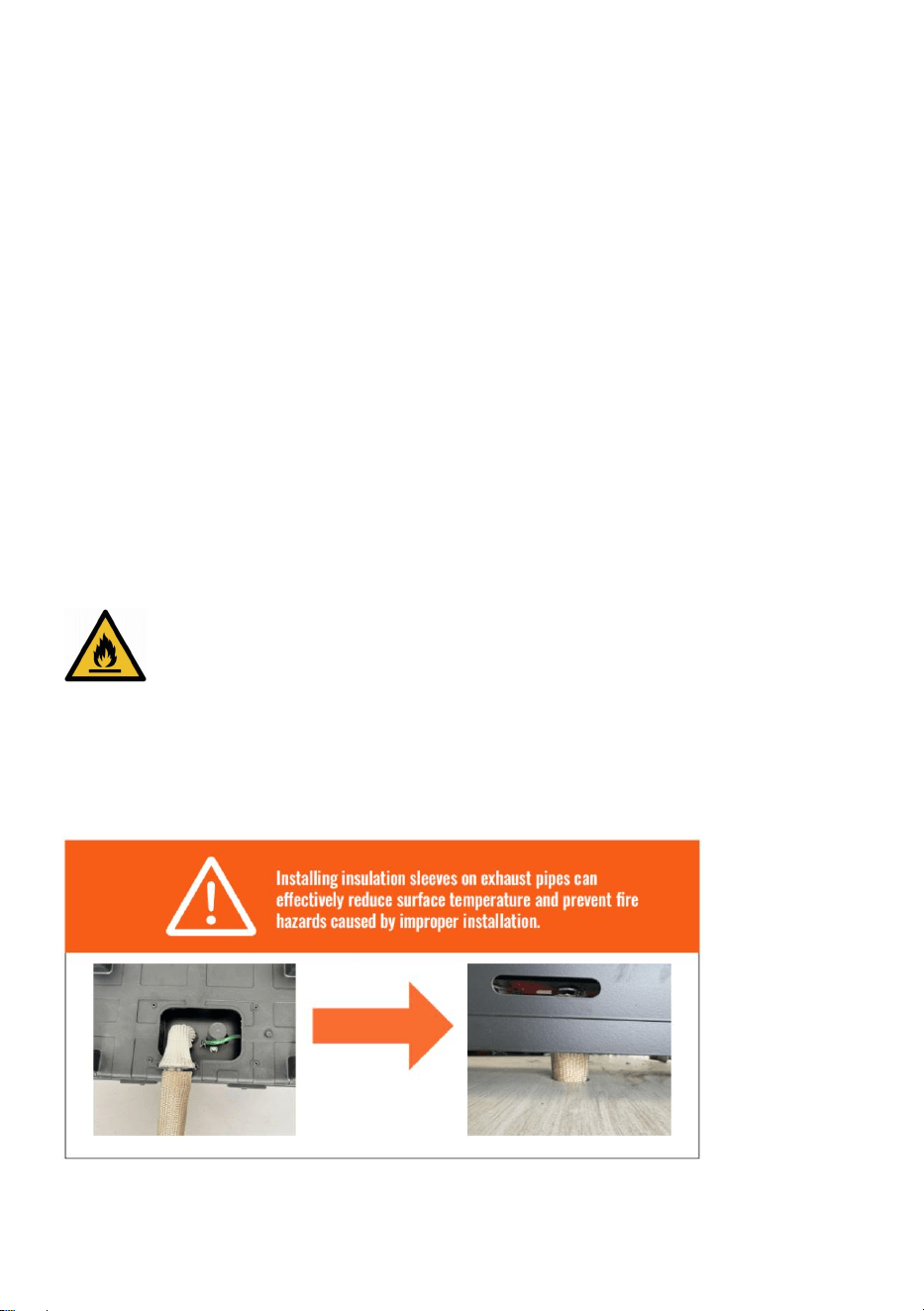

Please strictly follow the following methods to correctly install insulation sleeves
on the exhaust pipe and reduce surface temperature:
.
18. WARNING: Toxic material
- 5 -
During installation/use, service, and disposal of the appliance, please install the
appliance with space for ventilation to prevent carbon monoxide
poisoning. Place the exhaust outlet outdoors to prevent exhaust gas
from seeping in.
19.The fuel tank supplying fuel to the device shall meet the following
requirements:
a) If there is a leak, the fuel should be discharged to the ground and must not
come into contact with the hot parts of the vehicle or load
b) The fuel tank containing gasoline should be equipped with an effective flame
arrester at the fuel filling port, or a sealing device should be used to completely
seal the opening
20.Space that cannot be used for heating and transporting dangerous
goods.
SAVE THESE INSTRUCTIONS
FCC INFORMATION
CAUTION: Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment!
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1) This product may cause harmful interference.
2)This product must accept any interference received, including interference that
may cause undesired operation.
WARNING: Changes or modifications to this product are not expressly approved
by the party. Responsibility for compliance could void the user's authority to
operate the product.
Note: This product has been tested and found to comply with the limits for a
Class B digital device pursuant to Part 15 of the FCC Rules, These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
This product generates, uses and can radiate radio frequency energy, and if not
installed and used in accordance with the instructions, it may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this product does cause
harmful interference to radio or television reception, which can be determined by
- 6 -
turning the product off and on, the user is encouraged to try to correct the
interference by one or more of the following measures.
Reorient or relocate the receiving antenna.
Increase the distance between the product and the receiver.
Connect the product to an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for assistance.

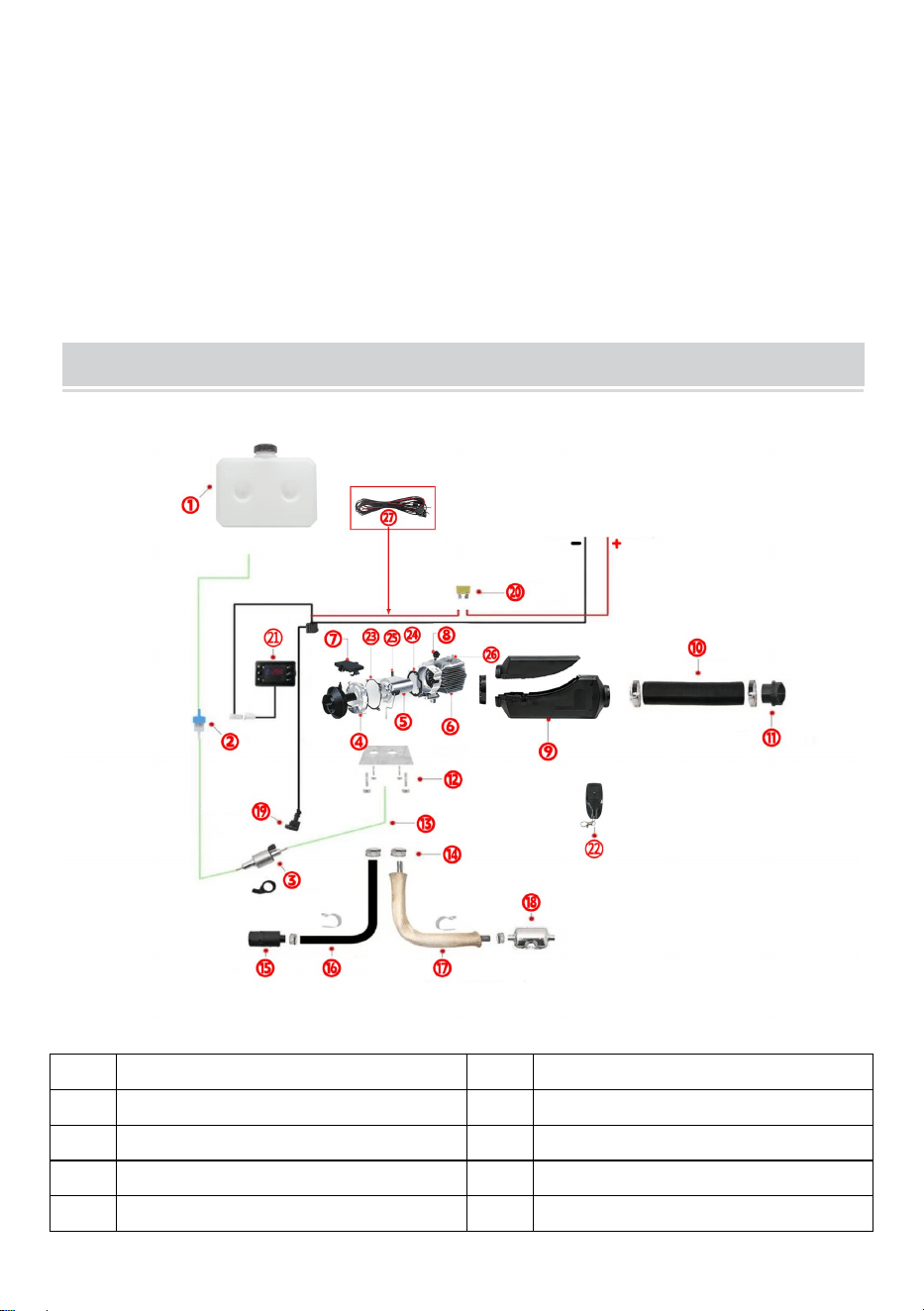

INTERNAL STRUCTURE
NO
Part Name
NO
Part Name
1
Fuel Tank
2
Fuel Filter
3
Fuel Pump
4
Motor Assembly
5
Combustion Chamber
6
Heat Exchanger
7
Mainboard
8
Glow Plug
- 7 -
9
Plastic Housing
10
Warm Air Duct
11
Air Outlet
12
Double-Ended Screw
13
Fuel Line
14
Clamp
15
Air Filter
16
Intake Pipe
17
Exhaust Pipe
18
Muffler
19
Power Cord Plug
20
Fuse
21
LCD Switch
22
Remote Control
23
Fan Assembly Gasket
24
Combustion Chamber
Gasket
25
Glow Plug Atomizing
Screen
26
Temperature Sensor
27
Wiring Harness
PRODUCT INFORMATION
Model: CY-24/CY-25
- 8 -

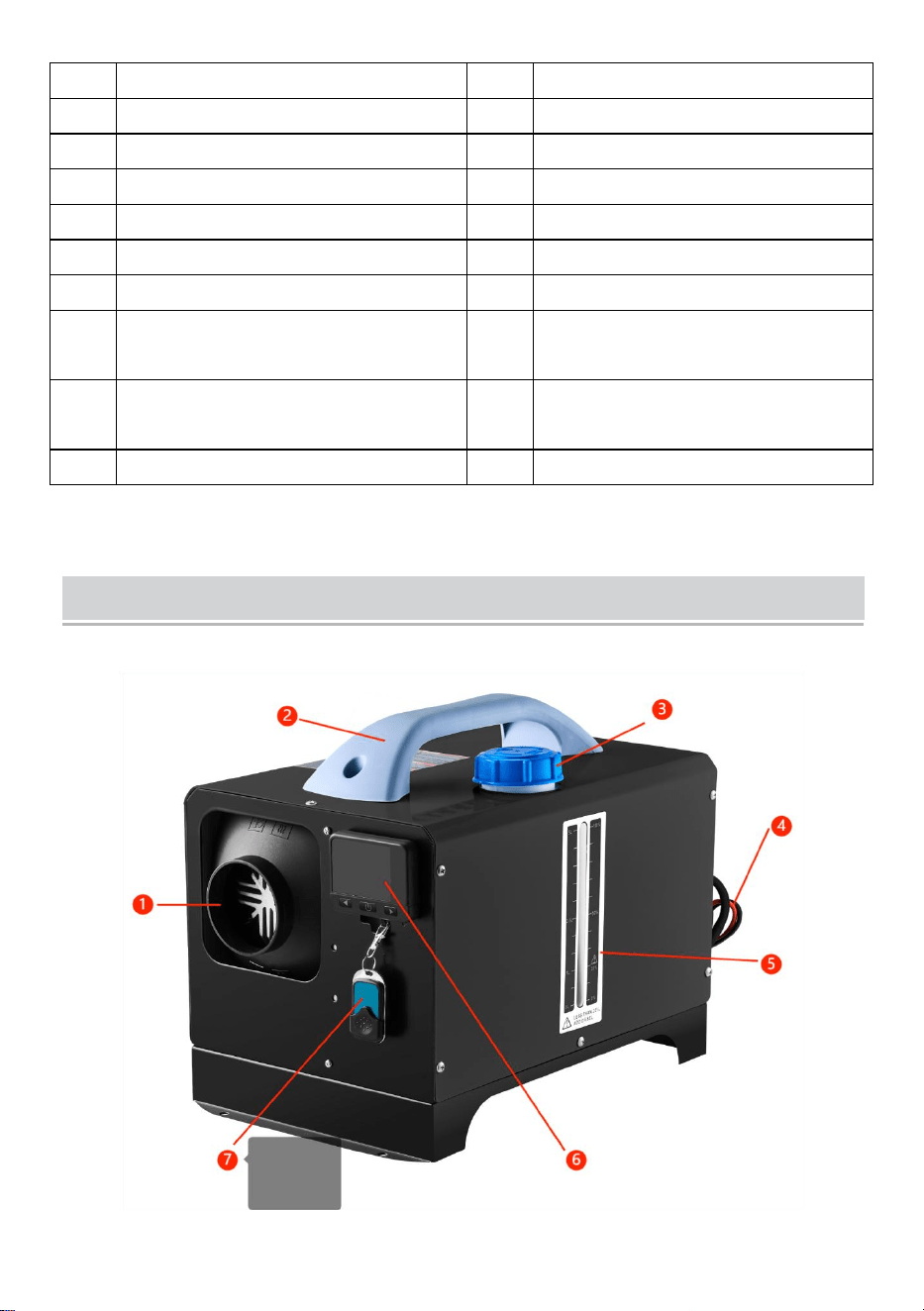

1
Air Outlet
2
Handle
3
Fuel tank port
4
Wiring Harness
5
Fuel tank scale
6
LCD Switch
7
Remote Control
8

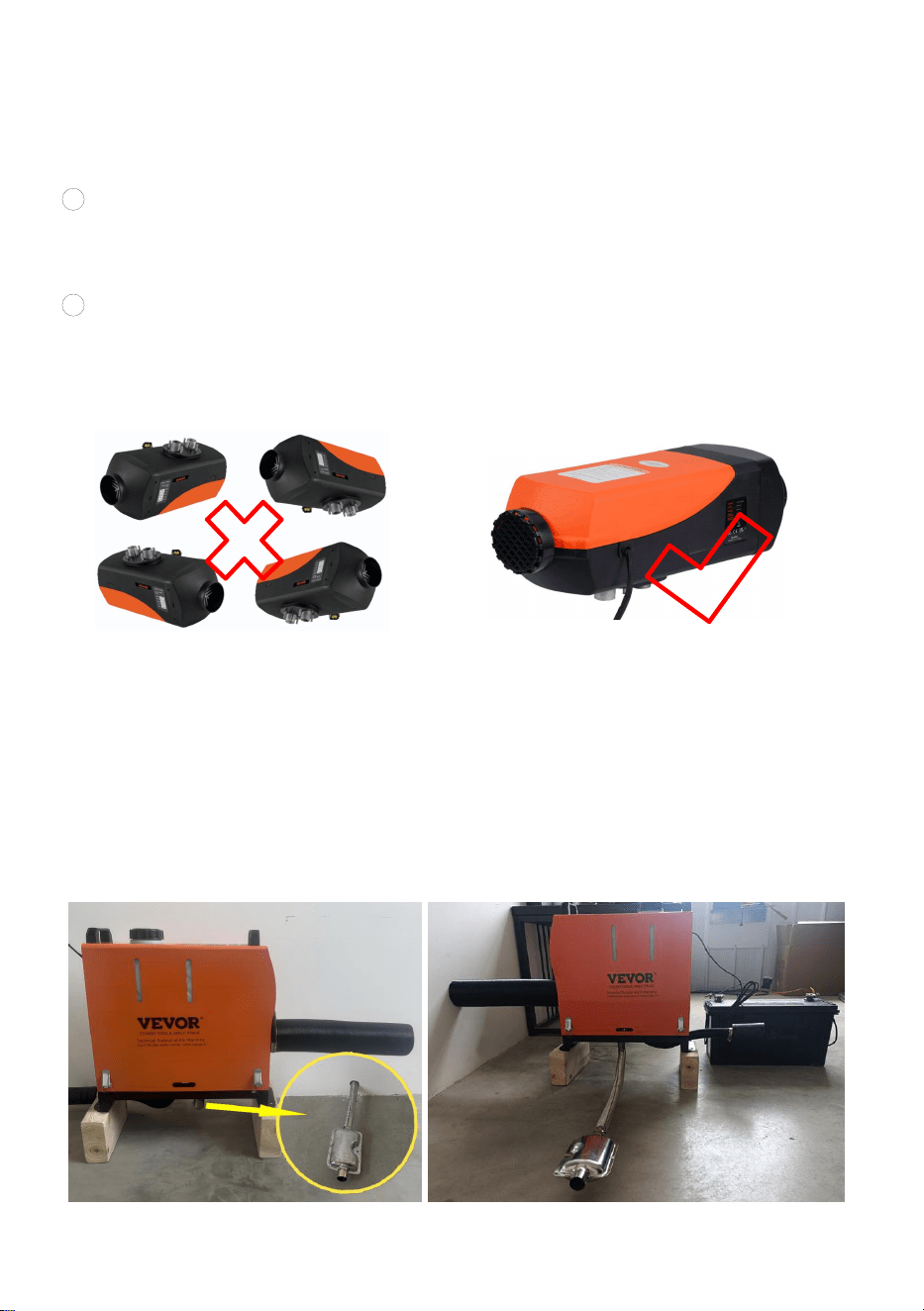

INSTALLATION POSITION
It is recommended to use high-grade diesel fuel when refueling the
diesel heater. Other types of fuels, such as kerosene, vegetable oil,
gasoline, waste oil, etc., cannot be used. Otherwise, the heater may
have an unpleasant odor and malfunction during operation.
The installation of the machine requires professional personnel.

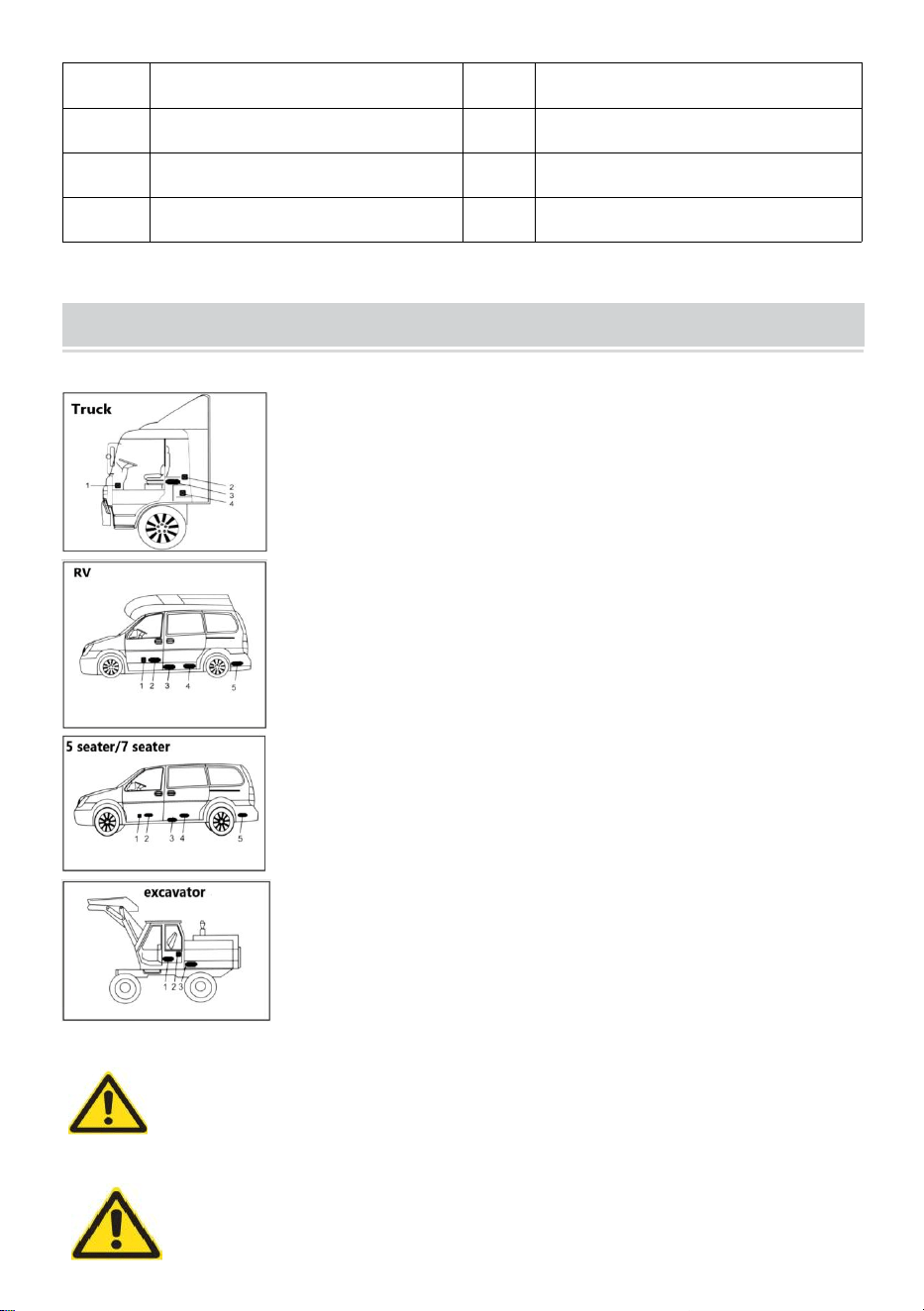

1. On the co-driver's legroom.
2. On the back wall of the cab.
3. Driver's seat backrest.
4. Within the tool box.
1. In front of the passenger seat.
2. Between the driver seat and passenger seat.
3. 3 & 4 under the container.
4. In the trunk.
The heater is mainly installed in the passenger
room or baggage room of the vehicle. If it cannot
be installed, fix the heater under the underside
of the vehicle, but beware of splashing.
1. Inside the driver's seat.
2. On the back wall of the cab.
3. Inside the protection box.
- 9 -

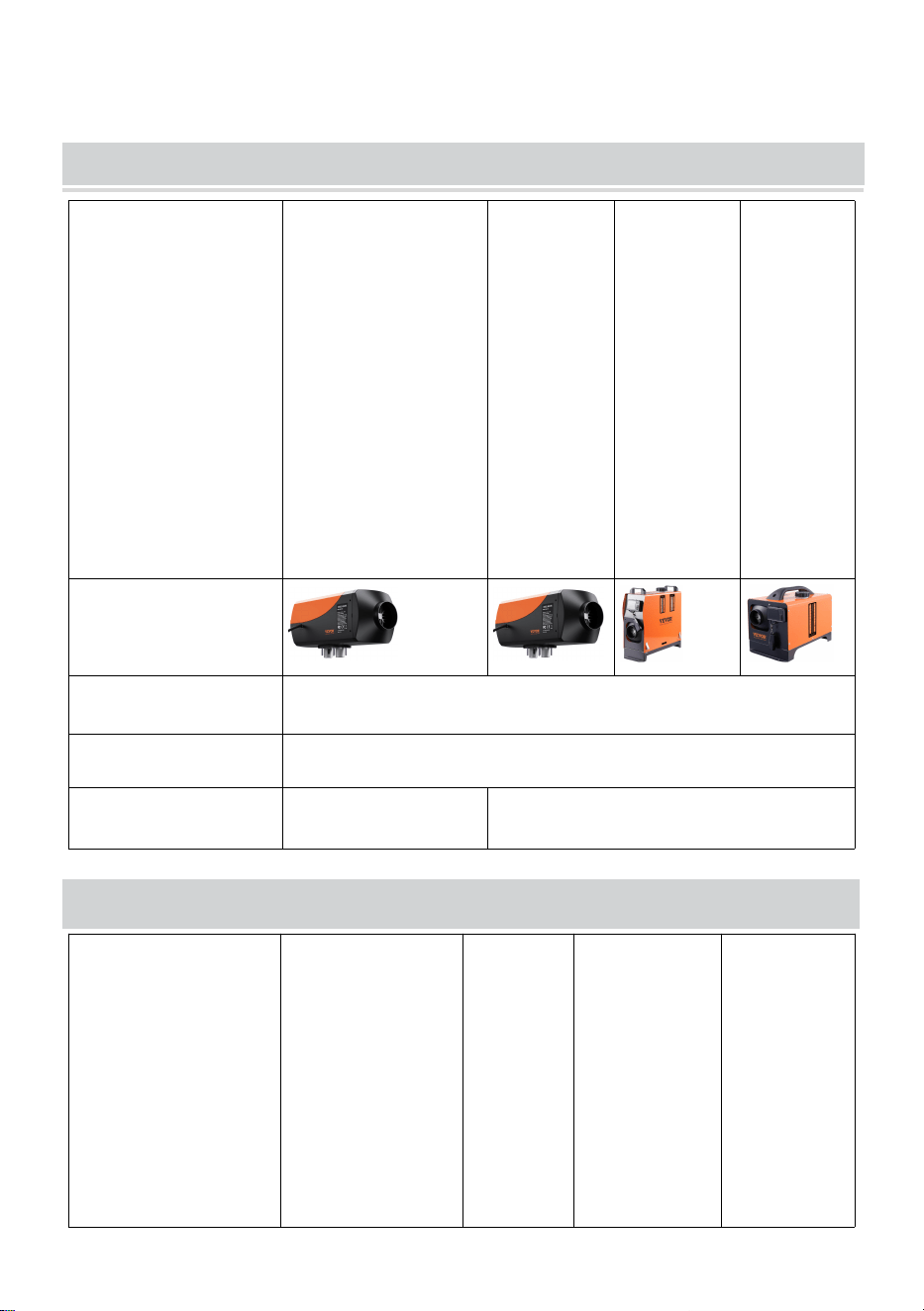

MODEL
Product Model
ZM8001
CY-6
CY-14
CY-7
CY-8
ZM5005
ZM5004
ZM8003
ZM8004
ZM8005
CY-35
CY-36
CY-31
CY-39
CY-24
CY-25
Appearance
Heating medium
Air
Fuel
Diesel
Ratings
DC12-24V/40W
DC12V/40W

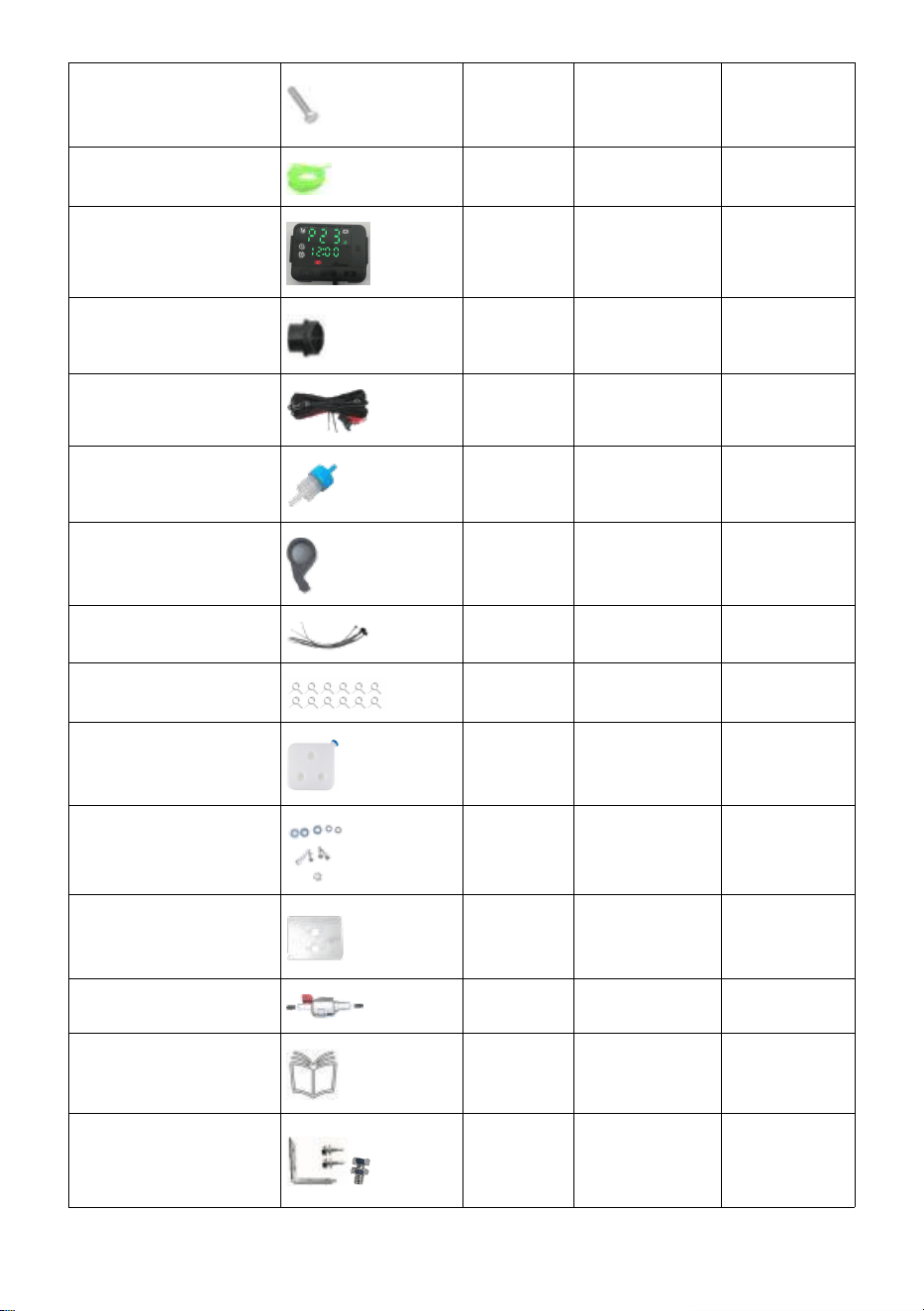

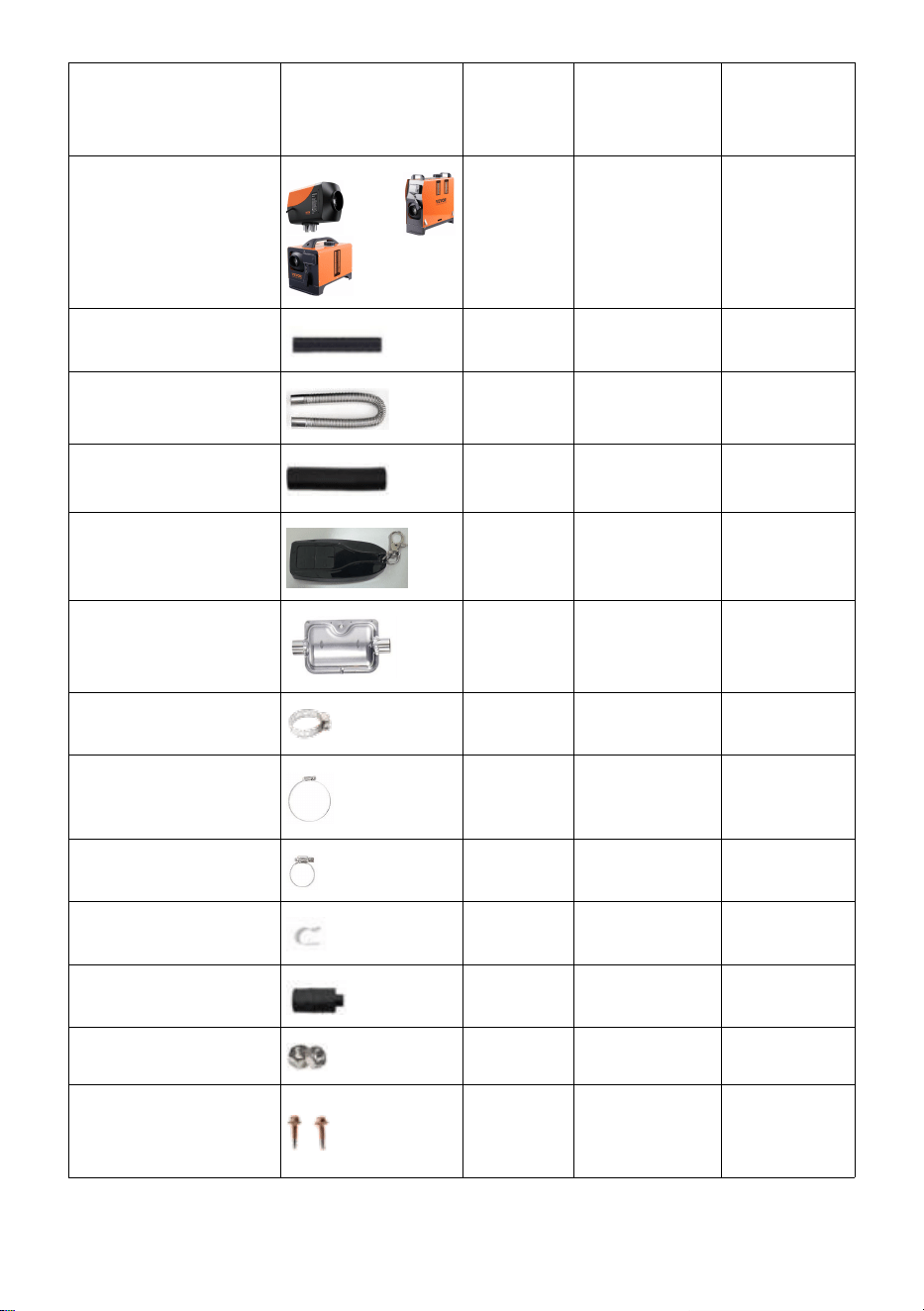

PACKING LIST
Model
ZM8001
CY-6
CY-14
CY-7
CY-8
ZM5005
ZM5004
ZM8003
ZM8004
ZM8005
CY-35
CY-36
CY-24
CY-25
- 10 -
CY-31
CY-39
Main engine
1
1
1
Intake pipe
1
1
1
Exhaust pipe
1
1
1
Blowpipe
1
1
1
Remote control
1
1
1
Silencer
1
1
1
Blowpipe clamp
4
4
4
Air outlet pipe
clamp
2
2
2
Clamp
2
2
2
Pipe clip
2
2
2
Air filter element
1
1
1
Nut
5
5
5
The screw for the
lock catch
6
6
6
- 11 -
Machine fixing
screws
1
/
//
Oil pipe
1
/
/
Liquid crystal switch
1
1
1
Rotary tuyere
1
1
1
Power cord
1
/
/
Oil filter
1
/
/
Fuel pump sheath
with a screw
1
/
/
Ribbon
12
/
/
Oil pipe clip
12
/
/
Fuel tank
1
/
/
Oil tank accessories
1
1
1
Machine fixing
piece
1
/
/
Fuel pump
1
/
/
User Manual
1
1
1
Muffler
Accessories
1
1
1
- 12 -
Protective sleeve
1
1
1

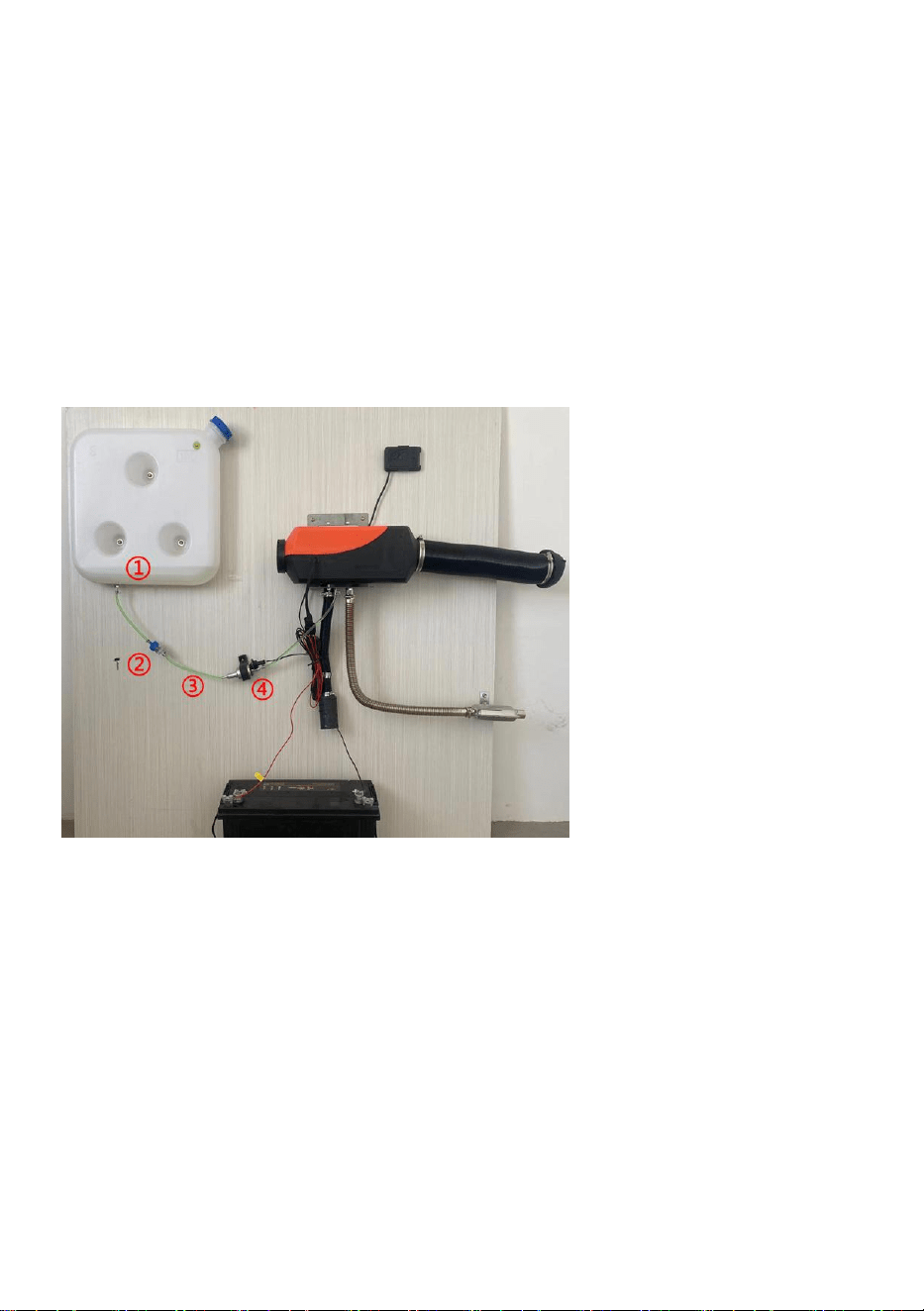

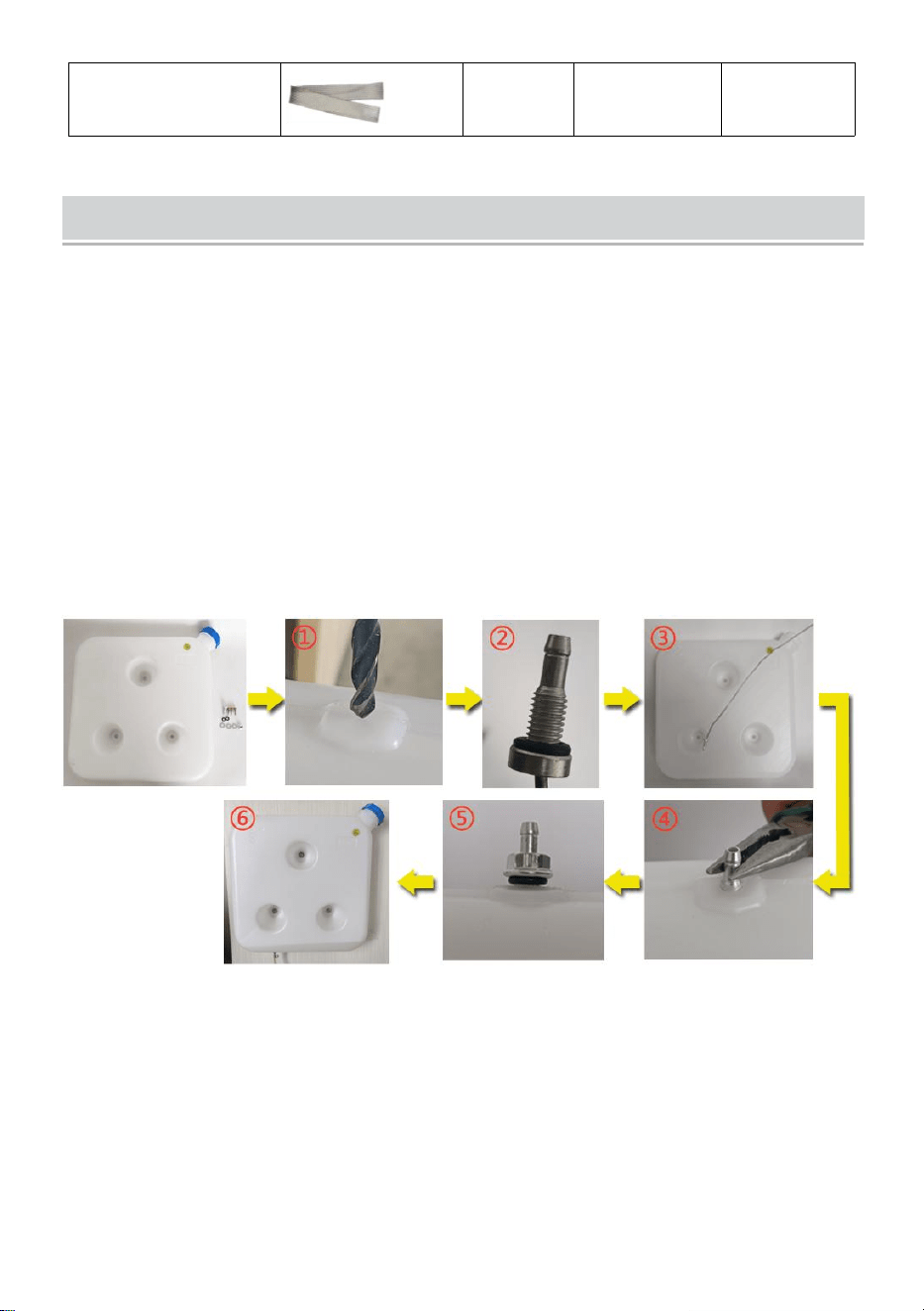

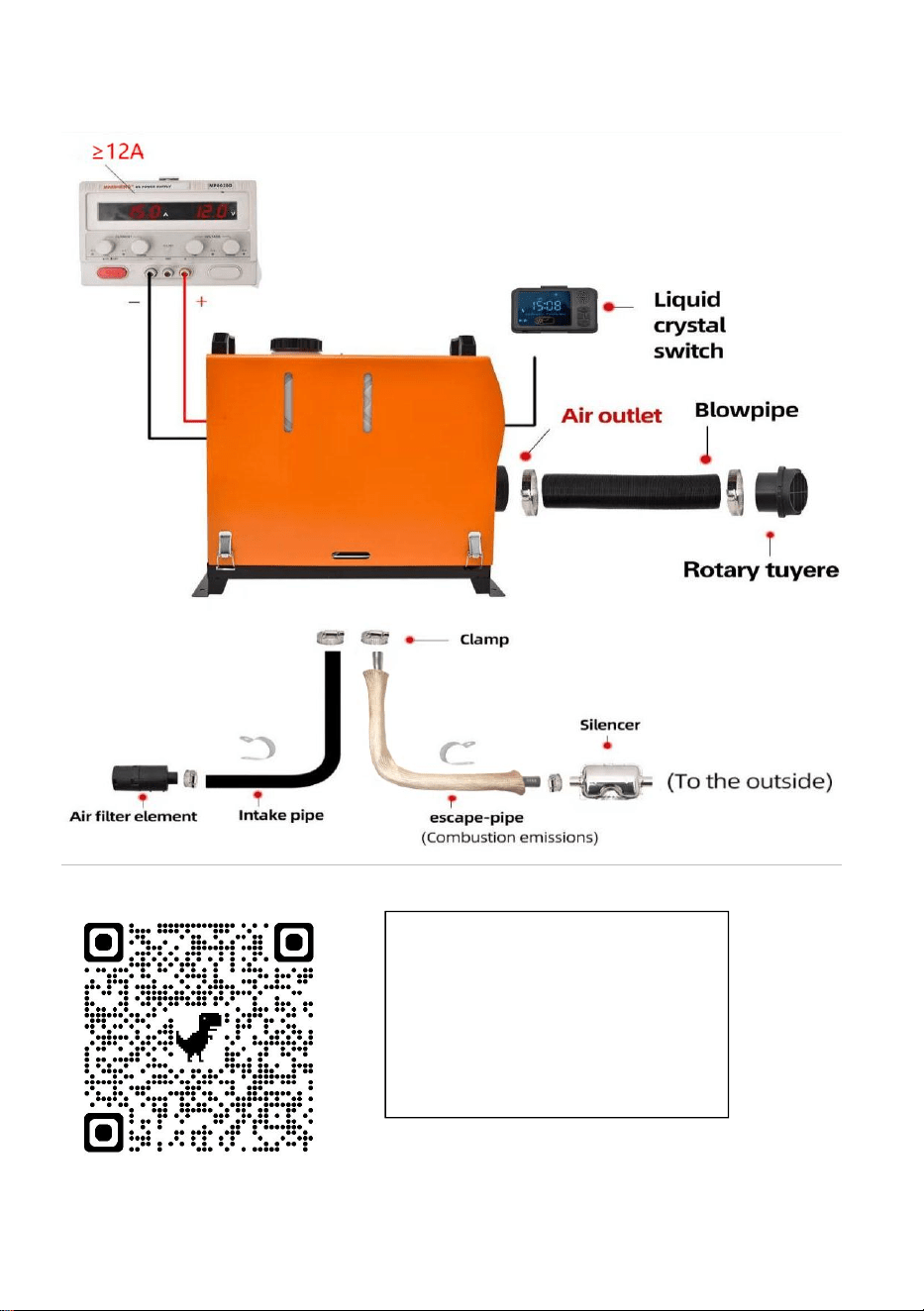

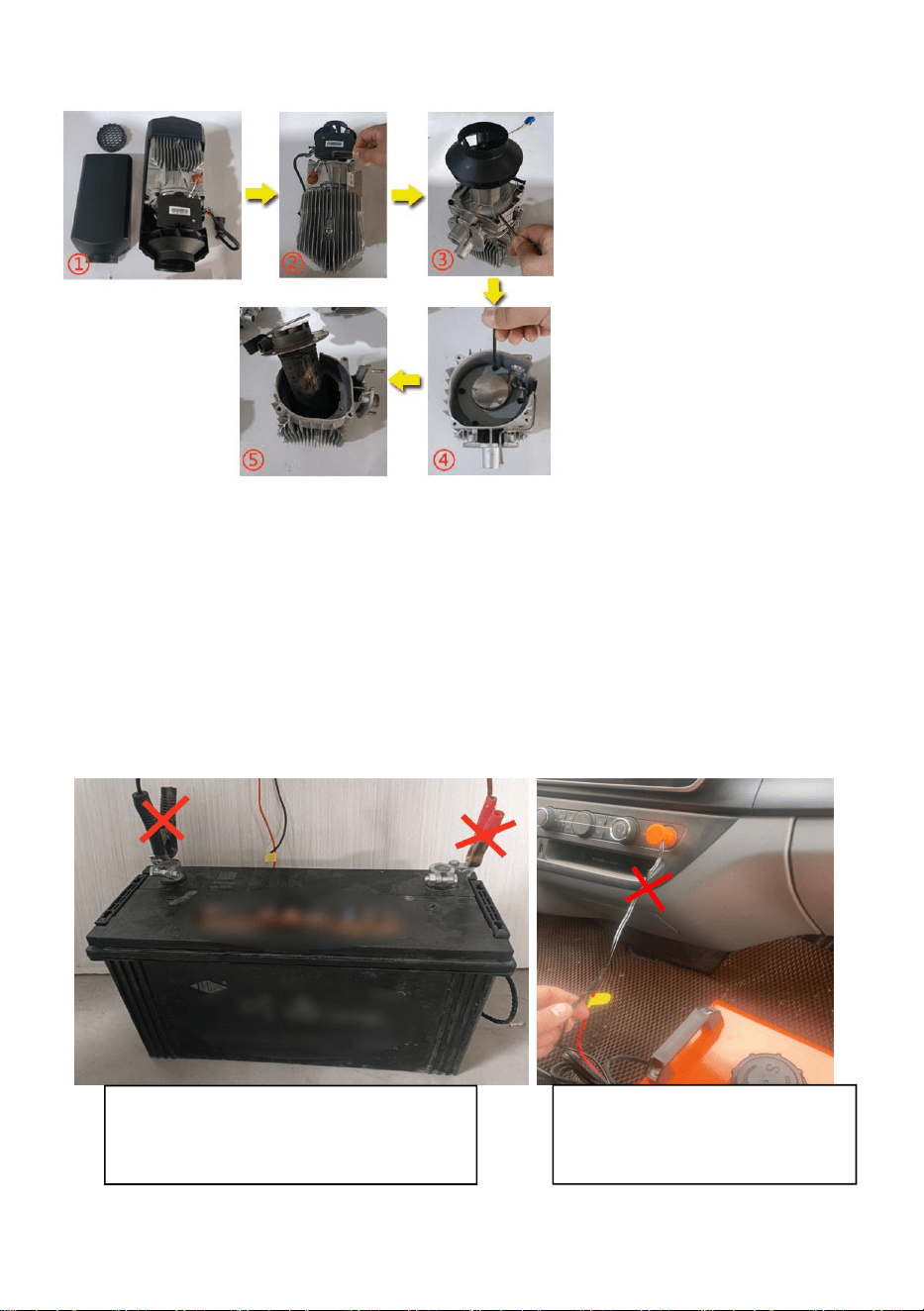

INSTALLATION OF FUEL TANK AND NOZZLE
1、Splitting machine
Please strictly follow the following diagram to avoid inevitable losses
caused by oil leakage during use:
①Drill holes with a 7.5mm drill bit at the protruding position of the fuel tank
② Cover the fuel tank nozzle with a gasket
③Fix the fuel tank nozzle with iron wire and thread it into the punching position
along the fuel tank opening
④Swivel the pointed pliers to remove the fuel tank nozzle
⑤Insert washers and nuts for locking
⑥The three installation holes of the fuel tank are fixed with bolts and washers,
and the installation is completed
Fuel Tank Installation Diagram

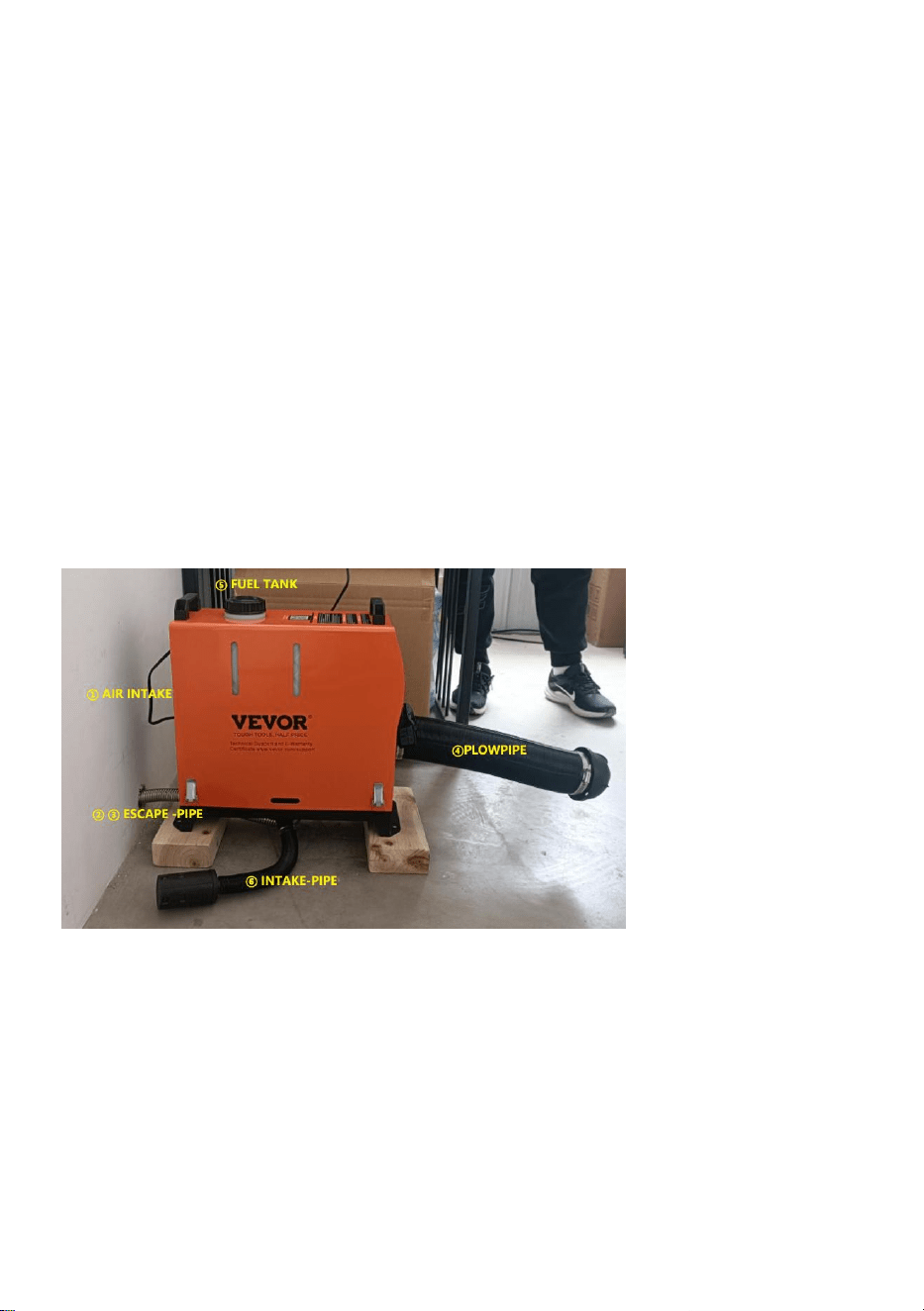

Refer to the installation diagram below and carefully read the precautions when
installing or using:
1. No Side Installation:
※ Side installation of the diesel heater will result in oil leaks inside the machine
after a period of use, producing a large amount of smoke and carbon monoxide
- 13 -
poisoning. During installation, leave a space of 10cm around the heater to ensure
good ventilation.
※ If installing the heater inside a building:
1
With the heater placed indoors: Make holes in the wall for the exhaust pipe to
be placed outdoors. Pay attention to insulating the exhaust pipe as it can become
very hot and could cause a fire.
2 With the heater placed outdoors: It's necessary to extend the exhaust pipe to
avoid the exhaust from being sucked into the building from the back fan position
of the heater, which can lead to carbon monoxide poisoning.
Incorrect Installation Direction Correct Installation Direction
※ If installing the heater inside a building: ① With the heater placed indoors:
Make holes in the wall for the exhaust pipe to be placed outdoors. Pay attention
to insulating the exhaust pipe as it can become very hot and could cause a fire. ②
With the heater placed outdoors: It's necessary to extend the exhaust pipe to
avoid the exhaust from being sucked into the building from the back fan position
of the heater, which can lead to carbon monoxide poisoning.
Indoor installation Outdoor installation diagram
- 14 -
(wooden floor exhaust pipes need to be protected)
※ Installation position and precautions
①Reserve a 4-inch gap between the air inlet for unobstructed air intake
② Keep the bottom exhaust pipe at a distance of 2 inches from the ground, and
prevent fires if the exhaust pipe temperature is high;
③ Do not bend the exhaust pipe excessively, as it may cause uneven exhaust
flow;
④ The air outlet duct shouldn't be too long and multiple bends can cause heat not
to be discharged, resulting in a high-temperature fault;
⑤ When refueling the fuel tank, do not flow onto the casing, as it will flow along
the inside of the machine to the exhaust pipe position, causing smoke. Fill the oil
level close to the fuel tank port；
⑥Do not block the intake pipe, which will cause insufficient oxygen, and the
heater will not work；
Installation location precautions - schematic diagram

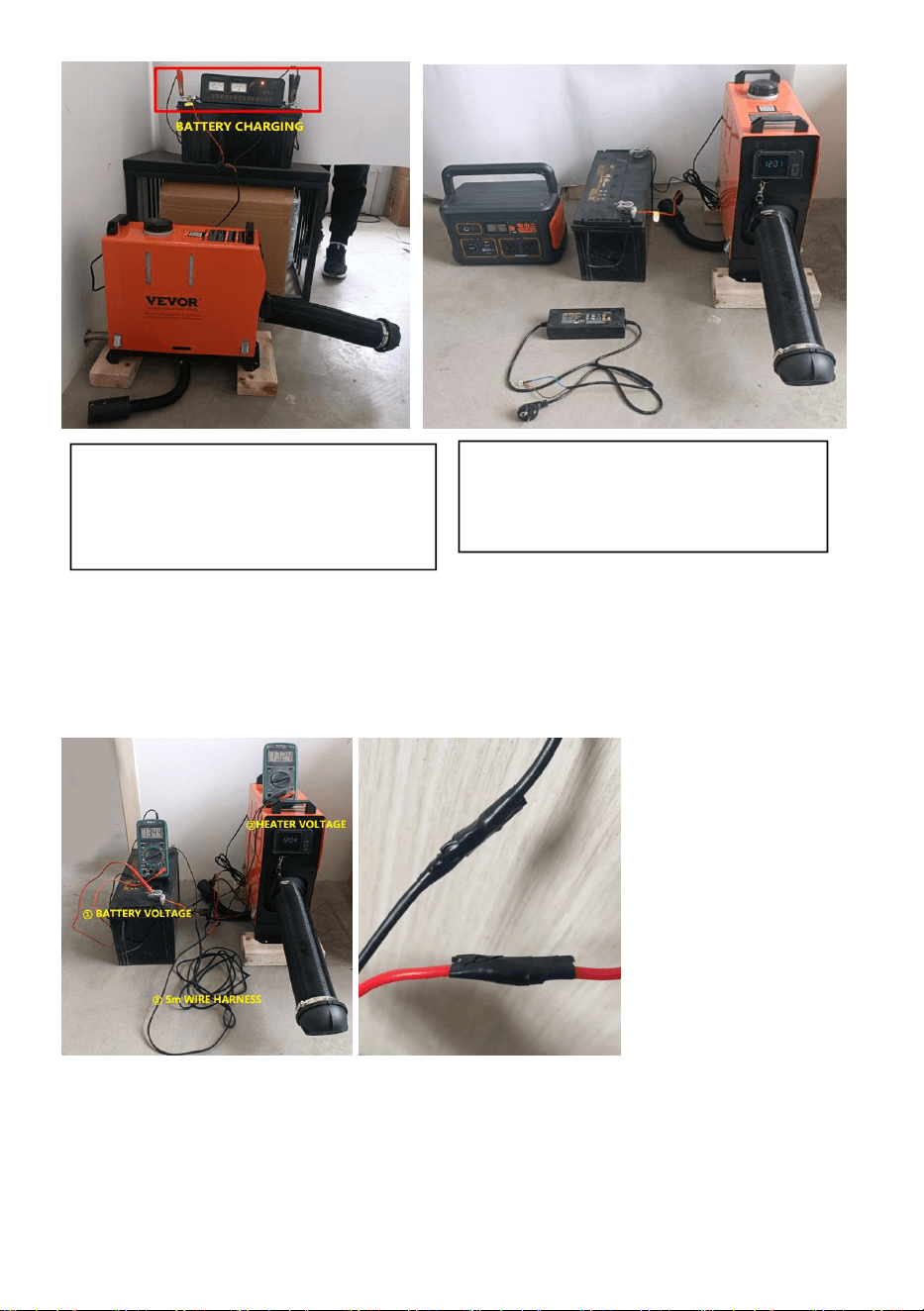

2. Precautions for the power supply:
※ The power supply for the diesel heater must meet the following requirements:
Voltage: 12V; Current: ≥20A, either from a direct power source or a battery. When
powered by a battery, do not charge the battery while using the heater as
insufficient current can cause malfunction. Ensure a firm and secure connection
to the battery. Using clamps for fixation can result in poor contact.
- 15 -
※When extending the power cable for the diesel heater, the wire diameter should
be >2㎟. Using a thin wire can lead to insufficient current, causing the heater not
to work. After connecting, use insulating tape to protect the connection and
prevent electrical leakage, which might lead to fires.
※Do not disconnect the power when the diesel heater is operating at high
temperatures. This can cause backfire due to high temperatures. Repeatedly
doing so can cause permanent damage. Solutions:
1. Do not use the heater when
charging the battery
2.The current is low and it does
not work
Suggest using energy storage
(batteries) or adapters for the
power supply
- 16 -
- If power is cut and you immediately turn on the heater: Wait until the internal
heat of the heater has completely dissipated before turning it on for normal
operation.
- If the heater is turned on a long time after a power cut: Incomplete combustion
inside may produce a large amount of smoke. Wait for the smoke to clear, and
the heater will automatically start and operate normally.
Abnormal power outage and smoke coming from the intake pipe
3. After the heater is installed, you need to manually pump oil before turning
it on:
※ The fuel line of the heater is long. Before initially starting the heater, manually
pump oil up to the fuel inlet. Otherwise, when turned on, the heater will take over
30 minutes to detect the fuel (during this time, it will continuously check for the
fuel signal). Once the ignition plug detects the fuel, it will ignite and heat. Refer to
the LCD switch user guide for detailed instructions on manual fuel pumping.
- 17 -
The first work requires manual pumping of oil to the position shown in the diagram
and starting up
※ When manually pumping fuel, pump just up to the fuel inlet. Over-pumping can
result in the heater emitting a large amount of white smoke. Quick solution:
Detach the fuel line, turn on the heater, let it stop naturally, and restart it. Repeat
this process until no smoke is emitted. Reconnect the fuel line and turn the heater
on to resume normal operation.
※ After starting the diesel heater, continuously blow air into the air pipe using an
air pump or a high-speed blower until the heater starts and functions normally. If
white smoke appears after operating for a period: This indicates that the
atomizing net is clogged. Remove the ignition plug, take out the atomizing net,
clean its surface or replace it with a new one.
Excessive pump oil
produces white
smoke
Blow the air gun
towards the intake pipe
to assist combustion
Remove the oil pipe
and insert it after it is
normal
- 18 -
※ Oil circuit fault, such as E4/E8/E10 fault code, indicates that there is no
oil heater or heat in the machine. The following steps need to be followed
for troubleshooting：
①Is there a shortage of oil in the fuel tank?
② Whether the oil filter is blocked;
③ Is there any bending of the oil pipe that cannot accommodate oil?
④ Is the oil pump not working?
Inspection diagram
※ Maintenance:If black smoke is found during the operation of the heater
for a period of time or in the second year of use, it indicates that there is
carbon accumulation in the combustion chamber that needs to be cleaned
in a timely manner. The operation method is as follows:
①Remove the outer shell;
②Remove the motherboard bolts with an Allen wrench;
③ Remove the four bolts of the fan assembly with an Allen wrench;
④Remove the four bolts of the combustion chamber with an Allen wrench;
- 19 -
⑤ Remove the combustion chamber and replace it with a new recovery heater;
Schematic diagram of combustion chamber replacement
Cautions for Diesel Heater Power Supply:
※ Diesel heater power supply requirements: Voltage: 12V; Current: ≥ 20A; Use
either a power source or a battery. （Avoid charging the battery while supplying
power to the heater, as low current may lead to malfunctions. Ensure a secure
battery connection without using clamps to prevent poor contact. Using the car's
cigarette lighter as a power source is not recommended due to insufficient current.
）
Fixing the battery clamp can
easily cause poor contact
Cigarette lighter current
low does not work
- 20 -

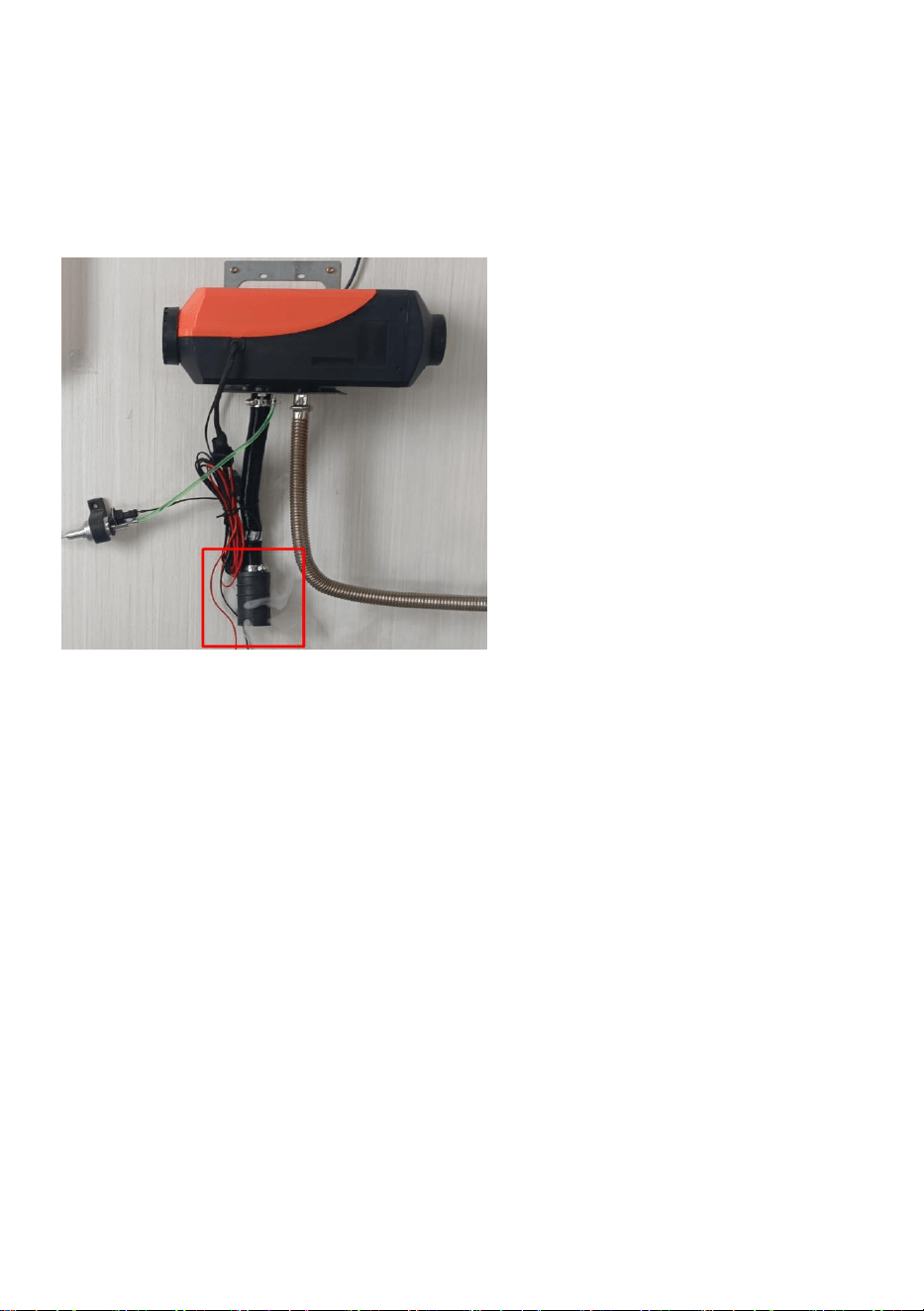

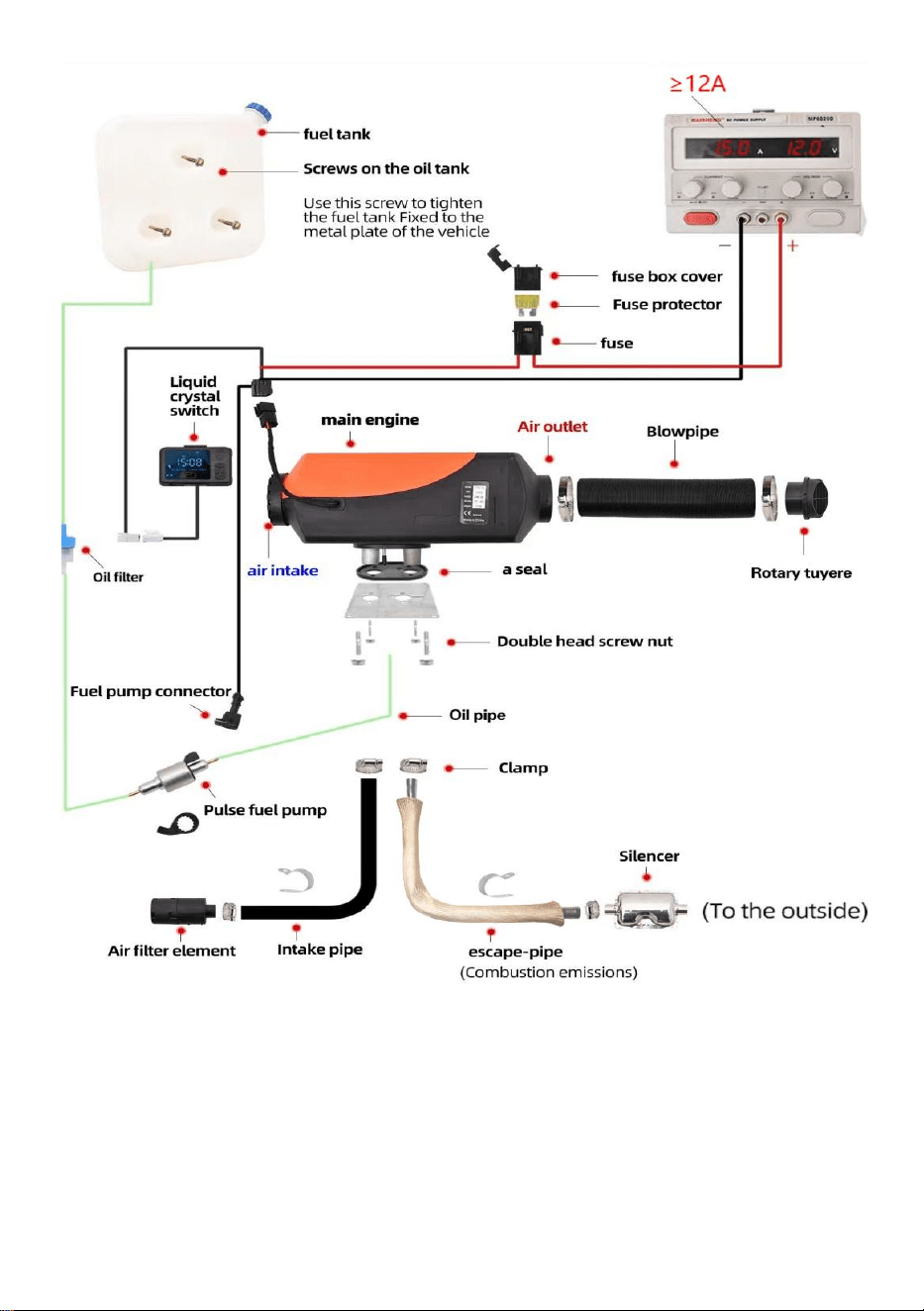

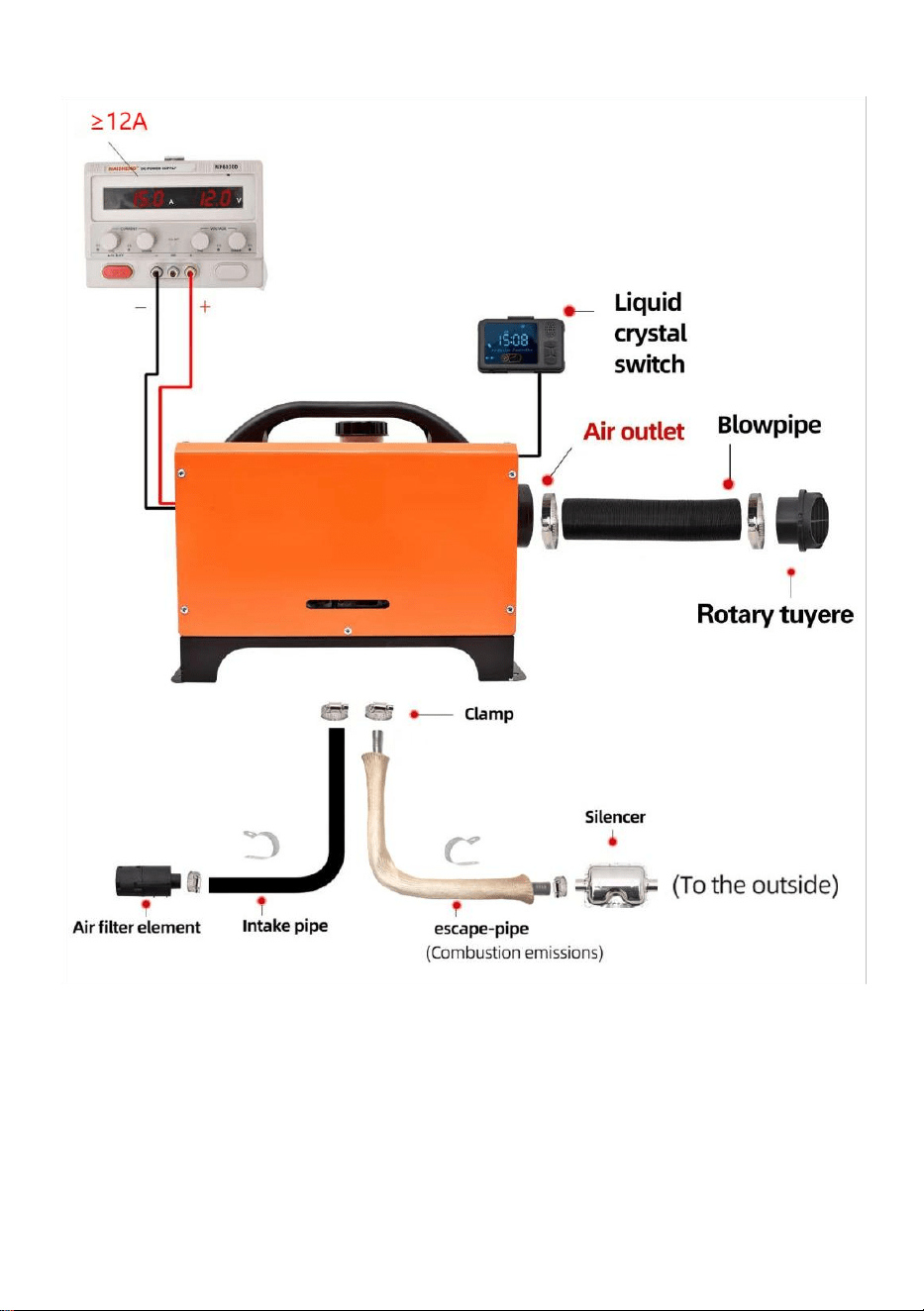

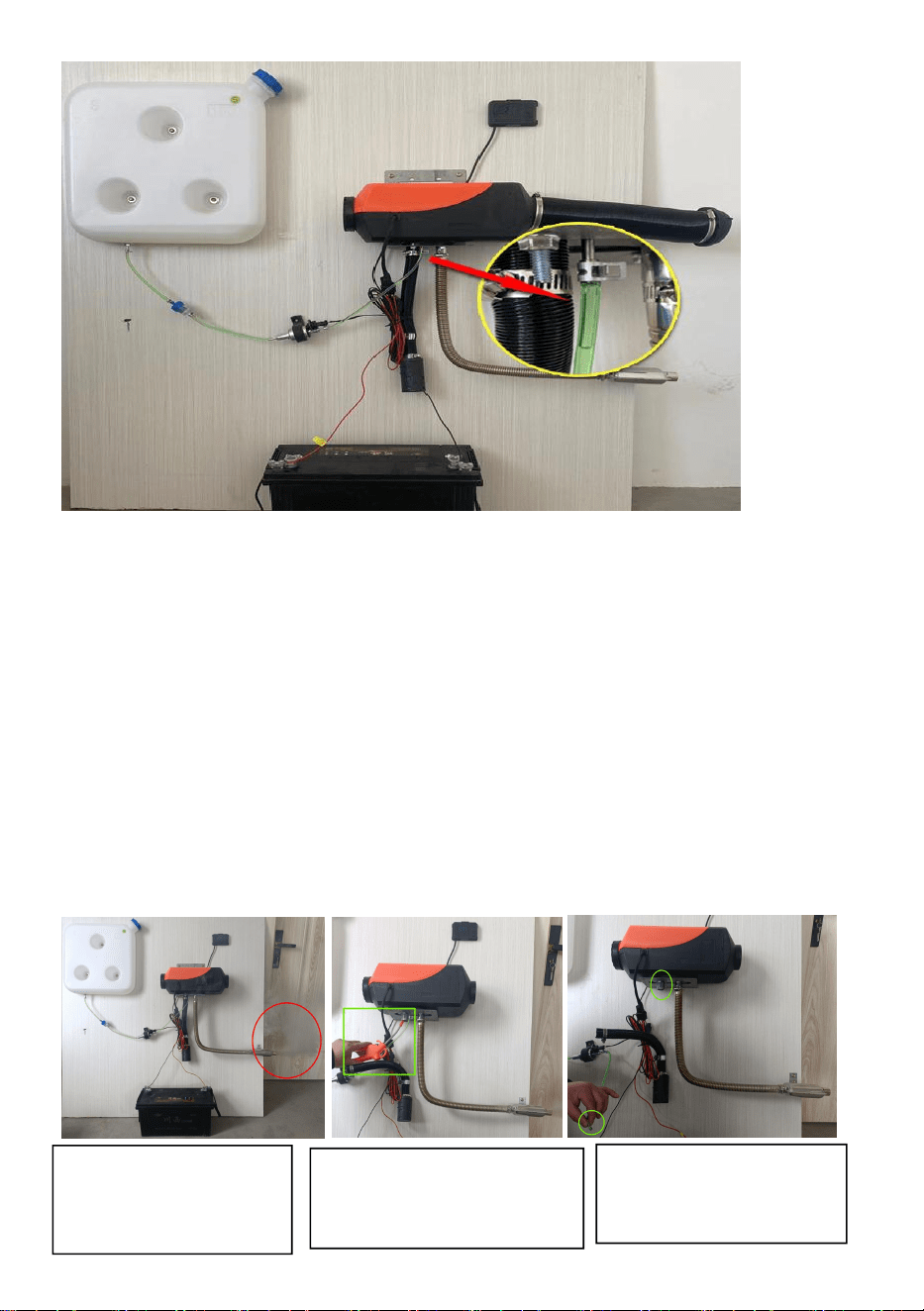

INSTALLATION DIAGRAM
ZM8001/CY-6/CY-14/CY-7/CY-8（Split type）
- 21 -
During installation, the oil tank should be properly placed above the main engine
to facilitate the operation of the fuel pump.
- 22 -
CY-24/CY-25 （Horizontal type）
- 23 -
ZM5005/ZM5004/ZM8003/ZM8004/ZM8005/CY-35/CY-36/CY-31/CY-39 （Ver
tical type）
For specific installation,
please scan the QR
code to view the
installation video
- 24 -
Warning：
1. The air inlet shall not be blocked to keep it open and clear.
2.Keep the exhaust pipe clear.The exhaust pipe outlet shall be kept away from
anything flammable, and avoid heating and igniting the flammable goods and
loading cargo on the ground.
3.To ensure optimal combustion, please remember that the smoke exhaust pipe
cannot be placed upward, but must be placed horizontally or downward.
Panel operation instructions
Please refer to the instructions below f
or the LCD screen switch usage.
To sync, scan the QR code on the
Right to watch the video.

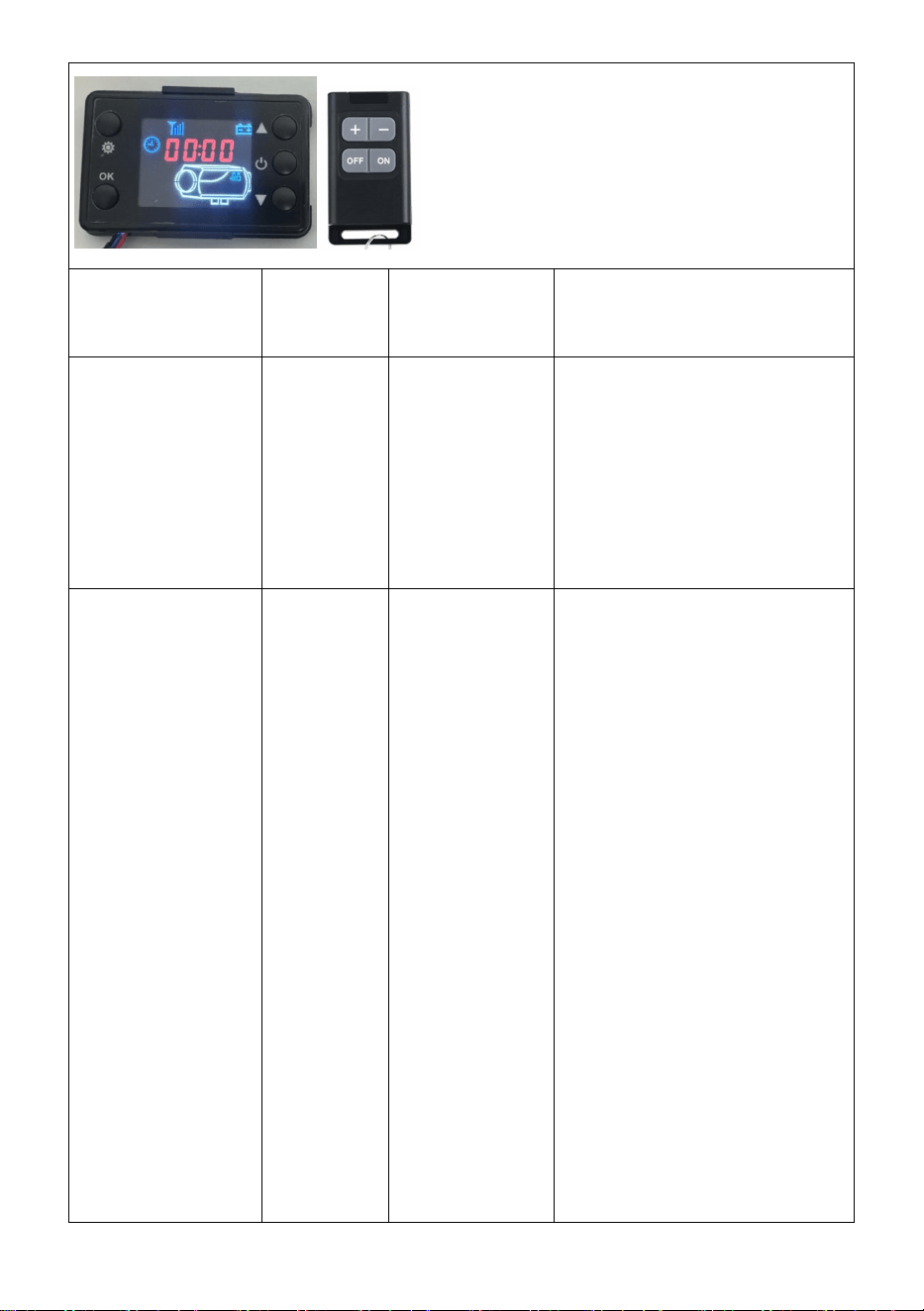

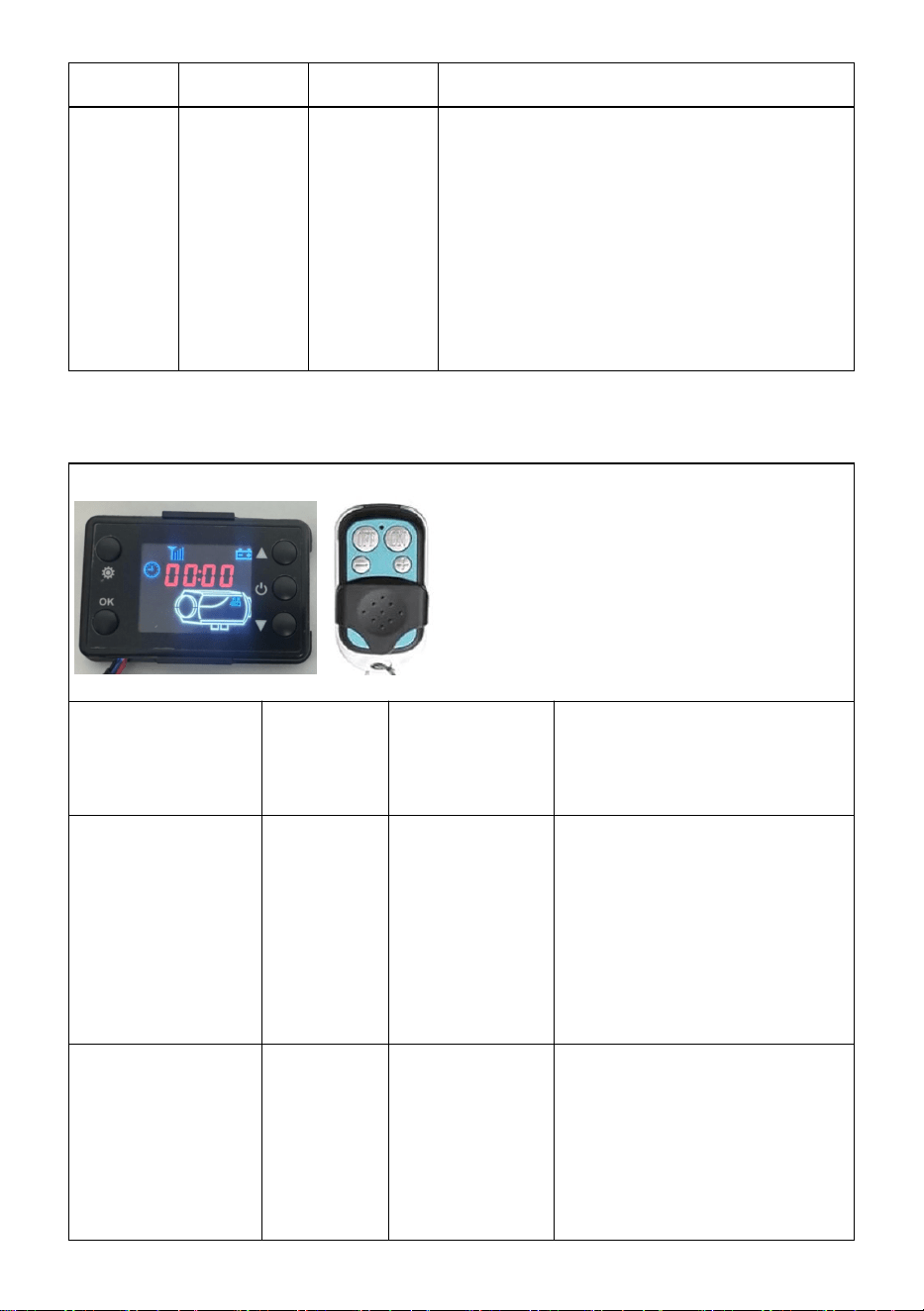

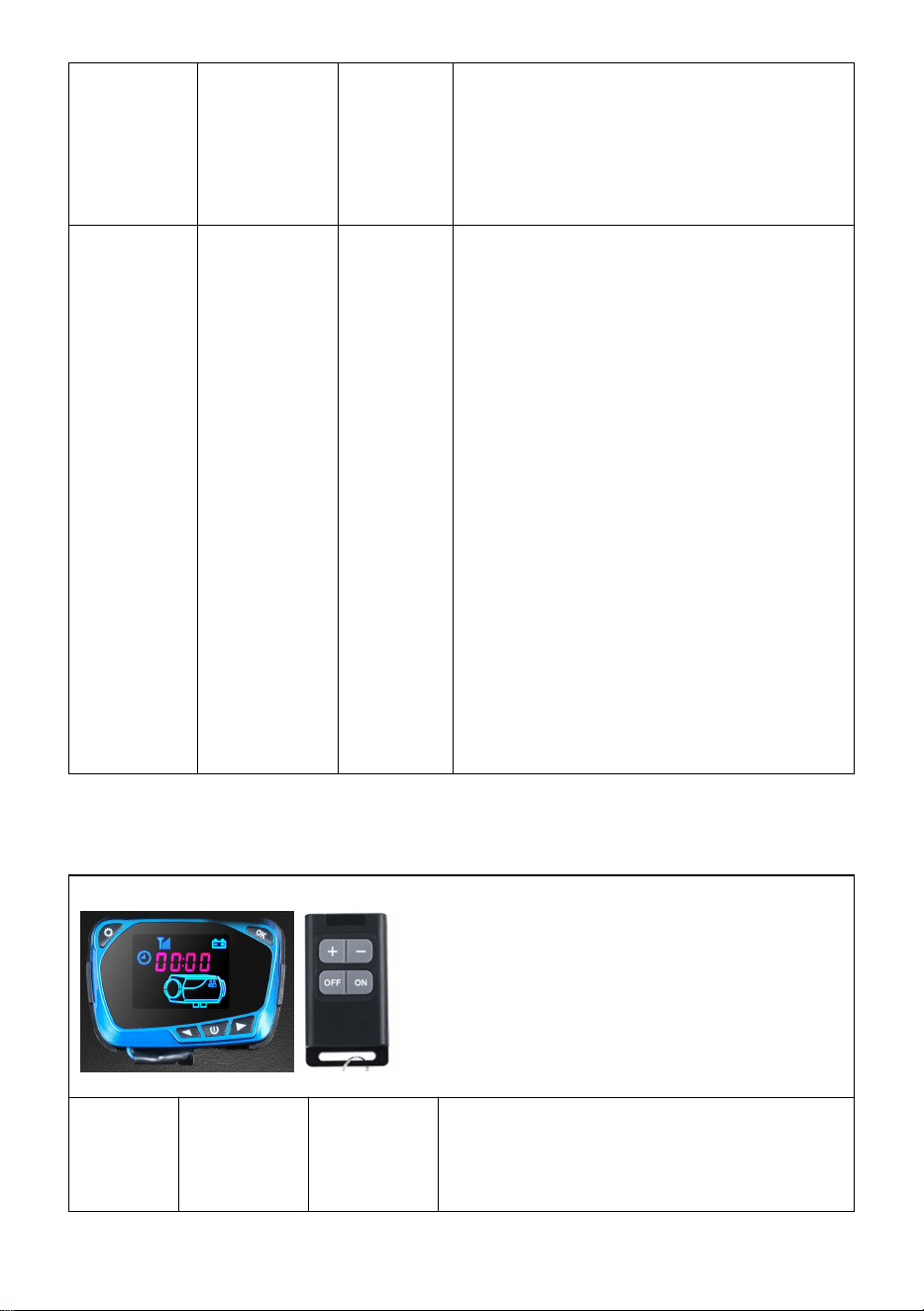

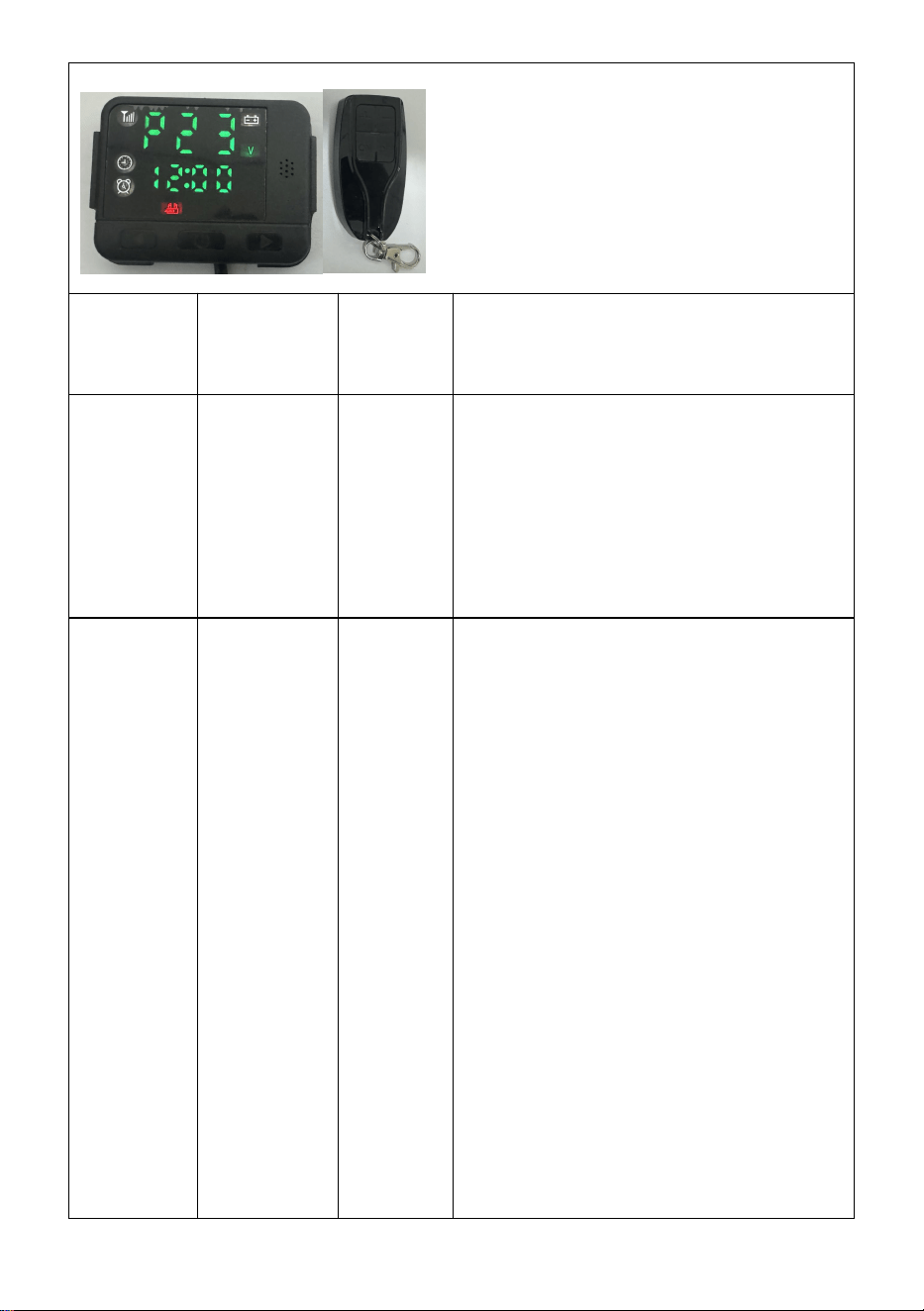

1. Three-button digital-LCD switch [voice type]
- 25 -
Function
Parameter
Operatio
n method
Specific operational steps
Power on
/
Short
press the
power
on/off
button
In the shutdown state, press the
power button briefly to turn on the
device. When the screen displays
temperature or H-number, it indicates
that the device has been turned on for
heating.
Shutdown
/
Short
press the
power
on/off
button
In the power-on state, short press the
'power on/off button' to display 'OFF'
to shut down. During the shutdown
process, the button cannot be
operated. Wait for the fan to stop
working, and the language will
announce that the heating will stop
and the machine will be completely
shut down;
Note: It is forbidden to forcefully cut off
the power during the shutdown
process. Otherwise, the internal heat
will not be completely dissipated. A
second startup will produce a large
amount of smoke, and incomplete
heat dissipation can easily damage
the internal wind turbine of the
machine. At this time, it is necessary
- 26 -
to wait for the internal to completely
burn before returning to normal.
Display
time
24-hour
clock
system
Display
in
standby
mode
After powering on, the screen displays'
Display Time 'in standby mode, and
automatically switches to' Display
Time 'in standby mode after shutdown.
In the power-on state, long press [Left]
for 2 seconds to enter the time option,
long press [Power button] for 2
seconds [Hour flashing], press
[Left]&[Right] to adjust to the current
time, long press [Power button] for 2
seconds [Minute flashing], press
[Left]&[Right] to adjust to the current
time, long press [Left] for 2 seconds to
save and exit.
S1 is to adjust the current time setting;
S2 runtime setting; S3 timed power
on/off settings; S4 timed on and off
settings;
Note: The display time will
automatically reset to zero after a
power failure, and there is no memory-
saving function.
run time
9999min
Display
during
work
process
Automatically timed after startup,
allowing real-time observation of
working time.
Gear
mode
Levels 1-6
Left and
Right
Click to
Adjust
Default gear mode upon startup, [left
button]&[right button] adjust the gear
size.The lowest gear is 1st gear, and
- 27 -
Gear
the highest gear is 6th gear.
Gear/Tem
perature
Switching
/
Long
press the
power
button
for 2
seconds
Default gear mode when turned on,
long press the [power on/off button] for
2 seconds to switch temperature
mode. Short press the left and right
buttons to adjust the temperature.
Temperat
ure -
Celsius
8~36℃
Long
press the
power
button
for 2
seconds
In the power-on state, long press the
[power on/off button] for 2 seconds to
display Celsius degrees.
Temperat
ure -
Fahrenheit
46~97℉
Long
press the
power
button
for 2
seconds
In the power-on state, long press the
[power on/off] button for 2 seconds to
display Celsius degrees, and long
press the [right-click] button for 2
seconds to switch to Fahrenheit
degrees. Short press the left and right
buttons to adjust the temperature.
Manual oil
pump
Maximum
300 second
countdown
Long
press the
[left
button]
for 3
seconds
When powered on for the first time,
press and hold the [left button] for 3
seconds to automatically pump oil for
300 seconds. When the oil pump icon
appears on the screen, it indicates
that the oil is being manually pumped.
After the end, it will automatically stop,
or you can short press the [power
on/off button] to stop halfway. The
disappearance of the oil pump icon
indicates successful shutdown.
Note: Observe the oil inlet at the
- 28 -
bottom of the machine and stop
pumping oil until it reaches the inlet
position. Excessive pumping of oil can
cause excessive internal oil volume
and failure to ignite.
Remote
control
matching
Effective
distance ≤
30m
Long
press
[right-
click] for
2
seconds
In standby mode, long press the [right-
click] button for 2 seconds to display
[rtE]. Press any key on the remote
control to successfully match and exit
the matching process
Remote
control
function
Effective
distance ≤
30m
Factory
default
matching
[ON] - power button, [OFF] - power
button, [+/-] - gear/temperature size
Timer
setting
Maximum
10 hours
Minimum
running
time of
30
minutes
In the power-on state, press and hold
the [left button] for 2 seconds to enter
the time setting, [S01] the current time
setting; [S02] Start time setting; [S03]
Set the scheduled running time; [S04]
Set the timer function switch, right-
click to select:
1. [S01] Current Time Setting: [S01]
Interface, long press the [Power
On/Off] button for 2 seconds [hour
flashing], press the [Left]&[Right]
buttons to adjust to the current time,
long press the [Power On/Off] button
for 2 seconds [minute flashing], press
the [Left]&[Right] buttons to adjust to
the current time, long press the [Left]
button for 2 seconds to save and exit.
2. [S02]Start time setting: On the [S02]
interface, long press the [power on/off
- 29 -
button] for 2 seconds[hour flashing],
press [left]&[right]to adjust to the
current time, long press the[power
on/off button]for 2 seconds[minute
flashing], press [left]&[right] to adjust
to the current time, long press the [left
button] for 2 seconds to save and exit.
3. [S03] Set the scheduled running
time; On the [S03] interface, long
press the [Power On/Off] button for 2
seconds [hour flashing], press the
[Left]&[Right] buttons to adjust to the
current time, long press the [Power
On/Off] button for 2 seconds [minute
flashing], press the [Left]&[Right]
buttons to adjust to the current time,
long press the [Left] button for 2
seconds to save and exit.
4. [S04 ] Timer function switch setting;
On the [S04] interface, long press the
[power on/off] button for 2 seconds [t-
off flashing], press the [left]&[right]
buttons to turn on [t-on flashing], long
press the [left] button for 2 seconds to
save and exit. When in standby mode,
the alarm icon displayed on the screen
indicates a successful setting.
Note: Set the start time and run time in
sequence, for example: if the current
time is 15:00, set it to start at 15:10,
run it at 15:40 and close it
Voice
Announce
ments
Voice
broadcastin
g during
startup,
Factory
default
English
After turning on the device, long press
the combination of the [left button] and
[power on/off button] for 2 seconds to
display the voice selection interface.
- 30 -
shutdown,
and fault
code
situations
Release it and it will automatically
enter standby mode;
[U-FU]-Russian, [U-EN]-English, [U-
GE]-German, [U-OF]-Voice off
Basic
informatio
n
/
Press
the
power
button
and
right-
click
combinat
ion key
for 2
seconds
to enter
basic
informati
on
In the power-on state, simultaneously
press and hold the [Power On] and
[Right] combination keys for 2
seconds to enter the basic settings.
Press the [Left] and [Right] keys to
select, and the display area will show
data display items. Short press the
[Power On] key to exit;
01: Shell temperature [XX ℃];
02: Power supply voltage [P-12V];
03: Current gear [- X -];
04:Environmental temperature [P-
XX ℃];
2. Blue screen-LCD switch [standard version]
Function
Parameter
Operation
method
Specific operational steps
- 31 -
Power
on
/
Long
press the
[power
on/off
button]
In the shutdown state, press and hold
the power button for 2 seconds to turn
on and start heating. When the screen
displays the H-number, it indicates that
the device has been turned on and
heated up
Shutdow
n
/
Long
press the
[power
on/off
button]
In the power-on state, long press and
hold the [power on/off button] for 2
seconds to display 'OFF' for shutdown.
During the shutdown process, the
button cannot be operated. Wait for the
fan to stop working and the language
will announce that the heating will stop,
and then the machine will be completely
shut down;
Note: It is forbidden to forcefully cut off
the power during the shutdown process,
otherwise the internal heat will not be
completely dissipated. A second startup
will produce a large amount of smoke/
incomplete heat dissipation, which can
easily damage the internal wind turbine
of the machine
Display
time
24-hour
clock
system
Display in
standby
mode
After power on, the screen displays'
Display Time 'in standby mode, and
automatically switches to' Display Time
'in standby mode after shutdown.
In standby mode, long press the OK
button for 2 seconds to enter the time
option, short press the power button to
select the hour and minute, press the
left and right buttons to adjust to the
current time, short press the OK button
to confirm and enter the week option,
press the left and right buttons to adjust
the week, and short press the OK
- 32 -
button to save and exit.
Note: The display time will automatically
reset to zero after power failure, and
there is no memory-saving function.
run time
99 hours
and 59
minutes
Display
during
work
process
Automatically timed after startup,
allowing real-time observation of
working time.
Gear
mode
Levels 1-6
Left or
Right Click
to Adjust
Gear
Default gear mode upon startup, short
press [left button]&[right button] to
adjust the gear size.
Gear/Te
mperatu
re
Switchin
g
/
Long
press the
[Settings]b
utton for 2
seconds
Default gear mode when turned on,
long press the
【
Settings
】
button for 2
seconds to switch temperature mode.
Short press the left and right buttons to
adjust the temperature
Temper
ature -
Celsius
0~40℃
Long
press the
[Settings]b
utton for 2
seconds
In the power-on state, press and hold
the
【
Settings
】
button for 2 seconds to
display Celsius degrees. Short press
the left and right buttons to adjust the
temperature
Temper
ature -
Fahrenh
eit
32~104℉
Long
press the
[Settings]b
utton for 2
seconds
In the power-on state, long press the
【
Settings
】
button for 2 seconds to
display Celsius degrees, and long press
the
【
Left
】
&
【
Power On
】
combination
button for 2 seconds to switch
Fahrenheit degrees. Short press the left
and right buttons to adjust the
temperature
Manual
Maximum
Long
press the
In standby mode, long press the [left
button]&[right button] for 3 seconds to
- 33 -
oil pump
300
second
countdow
n
【
Left
】
&
【
Right
】
buttons for
3 seconds
automatically pump oil. When the oil
pump icon appears on the screen, it
indicates that the oil is being manually
pumped. Stop pumping oil after
releasing the button, and the
disappearance of the oil pump icon
indicates the end of manual pumping.
Note: Observe the oil inlet at the bottom
of the machine and stop pumping oil
until it reaches the inlet position.
Excessive pumping of oil can cause
excessive internal oil volume and failure
to ignite.
Remote
control
matchin
g
Effective
distance ≤
30m
Long
press the
power
button and
left button
combinati
on key for
2 seconds
In standby mode, press and hold the
【
p
ower on/off button
】
&
【
right button
】
combination key for 2 seconds to
display
【
HFR1
】
Press any key on the
remote control to successfully match
and exit the matching process.
Remote
control
function
Effective
distance ≤
30m
Factory
default
matching
[ON] - power button, [OFF] - power
button, [+/-] - gear/temperature size
Timer
setting
Maximum
23 hours
and 59
minutes
Minimum
running
time of 5
minutes
In standby mode:
1. Current time setting: Long press the
[OK] button for 2 seconds to enter the
time option, short press the [Power
On/Off] button to select hours and
minutes, press the [Left]&[Right] buttons
to adjust to the current time, short press
the [OK] button to confirm, enter the
[Week Options], press the [Left]&[Right]
buttons to adjust the star period, short
press the [OK] button to save and exit.
- 34 -
2. Timer startup time setting: Long
press the
【
Right
】
&
【
OK
】
key
combination for 2 seconds to enter the
time setting, press the
【
Left
】
&
【
Rig
ht
】
key to set the hour and minute,
press the
【
Power On
】
key to enter
the hour and minute selection, and then
short press the
【
OK
】
key to set the
timer shutdown time; Press the left and
right buttons to set the hour and minute
settings. Short press the power button
to enter the hour and minute selection.
After completion, press the OK button to
confirm and save to exit. Confirm to
save and exit. When the screen
displays an alarm during standby, it
means the setting is successful.
3. Cancel the timing method; When the
timer function is activated, press and
hold the
【
right-click
】
&
【
OK
】
key
combination for 2 seconds to turn off
the timer function. When the alarm icon
on the screen disappears, it means it
has been successfully turned off
Note: After setting the current time,
sequentially set the startup time and
shutdown time. For example, if the
current time is 15:10, set it to start at
15:12 and run and shut down at 15:17,
Warning: Timer startup and timer
shutdown need to be set simultaneously
and cannot run independently. After
setting the timer startup and shutdown,
they will be repeated every day. When
not in use, follow the cancel timer
- 35 -
method to turn off the timer.
Basic
Settings
/
In the
startup
state,
press the
[OK] key
to enter
the basic
settings
In the power-on state, press the [OK]
key to enter the basic settings and view
information:
01: Shell temperature [XXX ℃];
02: Power supply voltage [P-12V];
03: Environmental temperature [PXX
℃];
04: Current gear [H-X];
3. Five-button-large LCD switch[standard version A]
Function
Parameter
Operation
method
Specific operational steps
Power on
/
Long press the
[power on/off
button]
In the shutdown state, long
press the [power on/off
button] for 3 seconds to turn
on and start heating.
Shutdown
/
Long press the
[power on/off
button]
In the power-on state, long
press and hold the [power
on/off button] for 2 seconds
to display 'OFF' for
shutdown. During the
shutdown process, the button
- 36 -
cannot be operated. Wait for
the fan to stop working and
the language will announce
that the heating will stop, and
then the machine will be
completely shut down;
Note: It is forbidden to
forcefully cut off the power
during the shutdown process,
otherwise the internal heat
will not be completely
dissipated. A second startup
will produce a large amount
of smoke/incomplete heat
dissipation, which can easily
damage the internal wind
turbine of the machine
Display time
24-hour
clock
system
Display in
standby mode
After power on, the screen
displays' Display Time 'in
standby mode, and
automatically switches to'
Display Time 'in standby
mode after shutdown.
After the first power is on, the
display screen lights up with
a flashing time. Press the
power button to select the
hour and minute, press the ↑
and ↓ keys to adjust to the
current time, and press the
OK button to save and exit.
Note: The display time will
automatically reset to zero
after power failure, and there
is no memory-saving
function.
- 37 -
Gear mode
Levels 1-6
【
▲ Key
】
&
【
▼ Key
】
Adjust gear
Default gear mode upon
startup, adjust the gear size
using the
【
▲ Key
】
&
【
▼
Key
】
Gear/Temperature
Switching
/
Long press the
[Settings]button
for 2 seconds
Default gear mode when
turned on, long press the
【
Settings
】
button for 2
seconds to switch
temperature mode.
Temperature -
Celsius
0~40℃
Long press the
[Settings]button
for 2 seconds
In the power-on state, press
and hold the
【
Settings
】
button for 2 seconds to
display Celsius degrees.
Temperature -
Fahrenheit
32~104℉
Long press the
[Settings]button
for 2 seconds
In the power-on state, long
press the
【
Settings
】
button for 2 seconds to
display Celsius degrees, and
long press the
【
▲
】
&
【
Po
wer On
】
combination
button for 2 seconds to
switch Fahrenheit degrees.
Manual oil pump
Maximum
300
second
countdown
Long press the
【
▲
】
&
【
▼
】
key
combination for
3 seconds
When powered on for the
first time, press and hold the
【
▲
】
&
【
▼
】
combination key for 3
seconds to automatically
pump oil for 300 seconds.
Release the button and it will
automatically stop.
Note: Observe the oil inlet at
the bottom of the machine
and stop pumping oil until it
- 38 -
reaches the inlet position.
Excessive pumping of oil can
cause excessive internal oil
volume and failure to ignite.
Remote control
matching
Effective
distance ≤
30m
Long press the
[power on/off]
key and the
【
▼
】
key
combination
key for 2
seconds
In the shutdown state, long
press the combination key of
[power on/off] and
【
▼
】
key for 2 seconds to display
[HFR1], then press any key
on the remote control to
successfully match and exit
the matching process.
Note: HFR1~HFR5 can be
matched with 5 remote
controls for simultaneous
operation.
Remote control
function
Effective
distance ≤
30m
Factory default
matching
[ON] - power button, [OFF] -
power button, [+/-] -
gear/temperature size
Timer setting
Maximum
10 hours
Minimum
running time of
30 minutes
In standby mode, long press
the
【
▼
】
&
【
OK
】
key
combination for 2 seconds to
enter the timed startup
setting. The setting sequence
is: current time setting →
startup time setting → timed
running time setting → timed
function switch setting:
1. Current time setting: After
the first power is on, the
display screen will light up
with a flashing time. Press
the power button to select
the hour and minute, press
- 39 -
the ↑ and ↓ keys to adjust to
the current time, and press
the OK button to save and
exit.
2. Start time setting: Long
press the
【
▼
】
and
【
OK
】
combination keys for 2
seconds to enter the time
setting. Press the
【
▲
】
and
【
▼
】
keys to set the
hour and minute settings.
Press the
【
power on/off
】
key to confirm. After
completion, press the
【
OK
】
key twice to confirm and
save to exit.
3. Timed running time
setting; Long press the
【
▼
】
and
【
OK
】
combination
keys for 2 seconds to enter
the time setting. Press the
【
OK
】
key to enter the timed
running time setting. Press
the
【
▲
】
and
【
▼
】
keys
to set the hours and minutes.
Press the
【
power on/off
】
key to confirm. After
completion, press the
【
OK
】
key to confirm and save to
exit.
4. Timer function switch
- 40 -
setting; When the timer
function is activated, long
press the
【
▼
】
&
【
OK
】
combination key for 2
seconds to turn off the timer
function.
Note: After setting the display
time, set the start time and
run time in sequence. For
example, if the current time is
15:00, set it to start at 15:10
and run at 15:40 to close
Basic Settings
/
In the startup
state, press the
[OK] key to
enter the basic
settings
In the power-on state, press
the [OK] key to enter the
basic settings and view
information:
01: Shell temperature [XXX
℃
];
02: Power supply voltage [P-
12V];
03: Environmental
temperature [PXX
℃
];
04: Check the scheduled
opening time
【
XX: XX
】
;
05: Check the scheduled
stop time
【
XX: XX
】
;
4. Five-button-large LCD switch[standard version B]
- 41 -
Function
Parameter
Operation
method
Specific operational steps
Power on
/
Long press the
[power on/off
button]
In the shutdown state, long
press the [power on/off
button] for 3 seconds to turn
on and start heating.
Shutdown
/
Long press the
[power on/off
button]
In the power-on state, long
press and hold the [power
on/off button] for 2 seconds
to display 'OFF' for
shutdown. During the
shutdown process, the button
cannot be operated. Wait for
the fan to stop working and
the language will announce
that the heating will stop, and
then the machine will be
completely shut down;
Note: It is forbidden to
forcefully cut off the power
during the shutdown process,
otherwise the internal heat
will not be completely
dissipated. A second startup
will produce a large amount
of smoke/incomplete heat
- 42 -
dissipation, which can easily
damage the internal wind
turbine of the machine
Display time
24-hour
clock
system
Display in
standby mode
After power on, the screen
displays' Display Time 'in
standby mode, and
automatically switches to'
Display Time 'in standby
mode after shutdown.
After the first power is on, the
display screen lights up with
a flashing time. Press the
power button to select the
hour and minute, press the ↑
and ↓ keys to adjust to the
current time, and press the
OK button to save and exit.
Note: The display time will
automatically reset to zero
after power failure, and there
is no memory-saving
function.
Gear mode
Levels 1-6
【
▲ Key
】
&
【
▼ Key
】
Adjust gear
Default gear mode upon
startup, adjust the gear size
using the
【
▲ Key
】
&
【
▼
Key
】
Gear/Temperature
Switching
/
Long press the
[Settings]button
for 2 seconds
Default gear mode when
turned on, long press the
【
Settings
】
button for 2
seconds to switch
temperature mode.
Temperature -
0~40
℃
Long press the
In the power-on state, press
- 43 -
Celsius
[Settings]button
for 2 seconds
and hold the
【
Settings
】
button for 2 seconds to
display Celsius degrees.
Temperature -
Fahrenheit
32~104
℉
Long press the
[Settings]button
for 2 seconds
In the power-on state, long
press the
【
Settings
】
button for 2 seconds to
display Celsius degrees, and
long press the
【
▲
】
&
【
Po
wer On
】
combination
button for 2 seconds to
switch Fahrenheit degrees.
Manual oil pump
Maximum
300
second
countdown
Long press the
【
▲
】
&
【
▼
】
key
combination for
3 seconds
When powered on for the
first time, press and hold the
【
▲
】
&
【
▼
】
combination key for 3
seconds to automatically
pump oil for 300 seconds.
Release the button and it will
automatically stop.
Note: Observe the oil inlet at
the bottom of the machine
and stop pumping oil until it
reaches the inlet position.
Excessive pumping of oil can
cause excessive internal oil
volume and failure to ignite.
Remote control
matching
Effective
distance ≤
30m
Long press the
[power on/off]
key and the
【
▼
】
key
combination
key for 2
In the shutdown state, long
press the combination key of
[power on/off] and
【
▼
】
key for 2 seconds to display
[HFR1], then press any key
on the remote control to
- 44 -
seconds
successfully match and exit
the matching process.
Note: HFR1~HFR5 can be
matched with 5 remote
controls for simultaneous
operation.
Remote control
function
Effective
distance ≤
30m
Factory default
matching
[ON] - power button, [OFF] -
power button, [+/-] -
gear/temperature size
Timer setting
Maximum
10 hours
Minimum
running time of
30 minutes
In standby mode, long press
the
【
▼
】
&
【
OK
】
key
combination for 2 seconds to
enter the timed startup
setting. The setting sequence
is: current time setting →
startup time setting → timed
running time setting → timed
function switch setting:
1. Current time setting: After
the first power is on, the
display screen will light up
with a flashing time. Press
the power button to select
the hour and minute, press
the ↑ and ↓ keys to adjust to
the current time, and press
the OK button to save and
exit.
2. Start time setting: Long
press the
【
▼
】
and
【
OK
】
combination keys for 2
seconds to enter the time
setting. Press the
【
▲
】
- 45 -
and
【
▼
】
keys to set the
hour and minute settings.
Press the
【
power on/off
】
key to confirm. After
completion, press the
【
OK
】
key twice to confirm and
save to exit.
3. Timed running time
setting; Long press the
【
▼
】
and
【
OK
】
combination
keys for 2 seconds to enter
the time setting. Press the
【
OK
】
key to enter the timed
running time setting. Press
the
【
▲
】
and
【
▼
】
keys
to set the hours and minutes.
Press the
【
power on/off
】
key to confirm. After
completion, press the
【
OK
】
key to confirm and save to
exit.
4. Timer function switch
setting; When the timer
function is activated, long
press the
【
▼
】
&
【
OK
】
combination key for 2
seconds to turn off the timer
function.
Note: After setting the display
time, set the start time and
run time in sequence. For
- 46 -
example, if the current time is
15:00, set it to start at 15:10
and run at 15:40 to close
Basic Settings
/
In the startup
state, press the
[OK] key to
enter the basic
settings
In the power-on state, press
the [OK] key to enter the
basic settings and view
information:
01: Shell temperature [XXX
℃];
02: Power supply voltage [P-
12V];
03: Environmental
temperature [PXX ℃];
04: Check the scheduled
opening time
【
XX: XX
】
;
05: Check the scheduled
stop time
【
XX: XX
】
;
Fault table
Fault alarm
Show the following figure,corresponding to the failure symbol flicker,and
corresponding to the failure device icon flicker,display data as fault code,its
meaning please refer to the fault table.
*Spark plug,oil pump, fan, sensor, power supply and other symbols, flicker
indicates that the corresponding device is failing.
Fault table
- 47 -
Scan the QR code to view the
troubleshooting method
Fault code
Cause of failure
solutions
E-02
Abnormal supply
voltage and current
1. Check the power supply equipment to
ensure that the input voltage is 12V/24V
and the input current is ≥ 15A, power: ≥
150W, there may be losses due to
differences in installation wire diameter and
length; ① 12V power supply: can be
started under the conditions of minimum
voltage ≥ 10V and minimum current 9.5A;
② 24V power supply: It can be started
under the conditions of minimum voltage ≥
24V and minimum current 4A Over voltage
protection>32.8V reports E-02 fault.
2. Power supply equipment selection:
recommended for power supply, battery,
adapter, etc. Input voltage: 12V/24V, input
current: ≥ 15A, power: ≥ 150W.
3. Charging the battery with a heater is
prohibited as low battery current can cause
it to malfunction;
4. Prohibit the use of in-car cigarette
lighters for power supply, as low current
cannot work;
5. It is forbidden to use fixtures to fix the
connection between the battery and the
wires, as poor contact can also cause
- 48 -
malfunction. When extending the wire
harness, attention should be paid to wires
with a diameter of ≥ 2mm ² to avoid voltage
drop caused by thin wire diameter, and low
voltage or current causing malfunction. If
the wire harness does not work after being
extended, measure the voltage and current
at the power supply end and the heater
wire harness end.
E-03
Ignition plug
malfunction
1. Check if the ignition plug is securely
connected.
2. Remove the ignition plug and inspect the
appearance for any defects such as broken
wire harness, broken ignition plug head,
oxidation, carbonization, etc.
3. Replace with new ignition plug
accessories.
E-04
Oil pump
malfunction
1. Check if the oil pump plug is loose,
unplug it, and reinstall it to confirm.
2. Confirm if there is any pumping sound in
the oil pump. If there is no pumping sound,
there may be impurities inside after
repeated tapping after disassembly.
3. The oil pump has malfunctioned, please
replace it.
E-05
Over-Temperature
Protection
The temperature sensor detects that if the
surface temperature of the aluminum body
is ≥ 280 ℃, it will provide over-temperature
protection. Pay attention to checking
whether the inlet, outlet, and exhaust pipes
are bent or too long, which affects the
exhaust and prevents heat from dissipating.
E-06
Wind turbine motor
malfunction
1. Check if the motor rotor is stuck, if the
plug is loose, if the connection is incorrect,
etc. If it is stuck, use two screwdrivers to
move it parallel outward and return to
- 49 -
normal.
2. Check if the distance between the Huo
sensor and the rotor magnet is too far, and
if it cannot sense the rotor speed, causing
an E-06 fault code to be reported;
3. Check if the induction magnet of the
wind turbine is missing or has incorrect
polarity, and adjust it to restore normal
operation.
4. The motor and motherboard have
malfunctioned. Please replace the motor or
motherboard.
E-07
Communication
Failure
1.Check if the connection port of the
remote control switch is loose
2. Check if the connecting wire (blue) of the
remote control switch is open circuited
E-08
Secondary ignition
failure
(Oil circuit
malfunction)
The program will automatically detect
whether there is an oil pump entering the
machine, perform 2 checks, and each
check takes 4 minutes;
1. Newly purchased machines need to be
filled with diesel in the fuel tank and
patiently wait for 2-3 minutes before
starting the heating process. If there is no
oil in the oil pipe of the new machine, it will
start slowly.
2. Check if the diesel in the fuel tank has
been completely burned, and observe the
fuel tank scale to confirm if the fuel is
sufficient. If there is no fuel in the tank,
replenish it in a timely manner before
starting the machine and heating it up
normally.
3. Refer to the troubleshooting method for
E-10 fault code.
E-09
sensor fault
1. Check if the temperature sensor
- 50 -
connection wire and connector are
damaged or loose, and if there is no signal
detected by the motherboard program due
to signal interruption.
2. Replace sensor accessories.
E-10
One ignition failure
(Oil circuit
malfunction)
1. Check if there is enough oil in the fuel
tank and oil pipe, if the oil pipe is blocked,
and if the oil pump is stuck.
2. Check if the intake and exhaust pipes
are unobstructed. Insufficient oxygen intake
or poor exhaust can cause ignition failure.
3. Does the altitude exceed the calibration
parameters? Insufficient oxygen intake can
cause ignition failure;
4. Refer to the E-02 fault code check, the
ignition failed due to insufficient heat from
the low point spark plug of the power
supply voltage/current.
Installation
Guide
The surface
temperature of the
exhaust pipe is
around 752 ℉, and
attention should be
paid to protection
against flammable
materials during
installation
1. Please note that there are no flammable
substances around the exhaust pipe and
muffler hot air outlet, and insulation
materials should be used for protection. It is
forbidden to drill holes and install machines
on wooden floors. The surface temperature
of the exhaust pipe is around 752 ℉.
2. Prohibit the use of nonhigh temperature
resistant adhesives to avoid odor
poisoning, and be careful to avoid causing
fires by igniting flammable materials.
3. Installation position: ① Reserve a 4-inch
gap at the air inlet for smooth air intake; ②
Keep the bottom exhaust pipe at a distance
of 2 inches from the ground, and prevent
fires when the exhaust pipe temperature is
high Do not bend the exhaust pipe
excessively, as it may cause poor exhaust
flow; ④ The exhaust duct is not easily too
- 51 -
long and multiple bends can cause heat to
be unable to be discharged, resulting in a
high-temperature fault When refueling the
fuel tank, do not let it flow onto the outer
shell, as it will flow along the inside of the
machine to the exhaust pipe position,
causing smoke. Fill the fuel tank to a level
close to the fuel tank opening. Do not block
the intake pipe as it may cause insufficient
oxygen and the heater to malfunction.
Accessories
modification
Prohibit the use of
nonhigh
temperature
resistant materials
and rubber seals
that may cause
odor and poisoning
hazards
1. Extension of exhaust duct modification: It
is recommended to purchase pipes made
of the same material or high-temperature
resistant material, with a length controlled
within 2 meters and no large angle bending
to avoid overheating.
2. Exhaust pipe modification and extension:
It is recommended to purchase pipes made
of the same material or high-temperature
resistant stainless steel material, with a
length controlled within 2 meters and no
large angle bending. The pipes must be
discharged downwards to the outside and
cannot be bent upwards multiple times to
affect exhaust heat dissipation (the working
temperature of the exhaust pipe reaches
around 752 ℉, and the installation position
is prohibited from drilling holes in the
wooden floor. Nonhigh temperature
resistant rubber seals are also prohibited,
which may cause odor and poisoning
hazards).
Emitting
white smoke
Abnormal power
outage/excessive
manual pump oil
volume
1. Manually pump oil, if there is too much
oil inside the machine, it will not ignite and
emit white smoke. The correct way is to
pump oil to the inlet position and stop. If the
pump oil volume is too high, the oil pipe
- 52 -
should be unplugged and restarted 2-3
times to restore normal operation before
inserting the oil pipe; Or use a hair dryer to
blow towards the intake pipe for a period of
time until it works properly.
2. Abnormal power outage during
operation: During normal operation, press
the 'power on/off button' to display 'OFF' for
shutdown. During the shutdown process,
the button cannot be operated. Wait for the
fan to stop working before completely
shutting down, and then disconnect the
power supply. During the shutdown
process, it is forbidden to forcefully cut off
the power. Otherwise, the internal heat will
not be completely dissipated and a large
amount of smoke will be generated during
the second startup. At this time, it is
necessary to wait for the internal to
completely burn before returning to normal.
3. Refer to E-01/E-02 fault code
troubleshooting.
Smoking
Insufficient oxygen
intake or carbon
deposition in the
combustion
chamber
1. Does the altitude exceed the calibration
parameters? Insufficient oxygen intake can
cause ignition failure and black smoke
emission.
2. Check if there is any blockage in the
intake pipe causing insufficient oxygen
intake.
3. The small space at the air inlet position
leads to air intake obstruction.
4. Refer to the E-01/E-02 fault code check,
the low point of the power supply
voltage/current has insufficient heat from
the ignition plug, resulting in ignition failure
and black smoke emission.
5. Disassemble the internal combustion
chamber of the machine to check for
- 53 -
carbon deposits and replace the
combustion chamber in a timely manner.
Smoke blue
Poor oil quality
Only high-grade diesel can be used, and
the use of mixed diesel, other types of oil,
and non-brand-new oil products is
prohibited. In winter, negative temperature
diesel should be met;
Machine oil
leakage
Oil tank/pipe
damage, side
installation
(Side installation
prohibited)
1. Check the appearance of the fuel tank/oil
pipe and whether the fuel tank nozzle is
damaged or cracked, which may cause oil
leakage.
2. When filling the fuel tank with diesel, be
careful not to pour it onto the machine
casing. Otherwise, it will flow into the
interior and smoke due to high internal heat
during operation.
3. The heater cannot be installed on the
side. The oxygen hole oil on the ignition
plug side will flow out through the hole, and
the correct installation method is to have
the intake/exhaust port facing downwards;
4. Poor oil quality leads to blockage of the
ignition plug atomization network in the
combustion chamber, causing ignition to
flow out through the exhaust pipe. The
ignition plug atomization network and high-
grade diesel should be replaced.
There is no
oil or heat
inside the
machine
The oil pipe is bent
Check if there are any bent positions in the
oil pipe that prevent air from supplying oil.
Oil flowing
through the
exhaust pipe
Excessive pump oil
volume/blocked
atomization
network/abnormal
voltage
1. Manually pumping oil, if there is too
much oil inside the machine, it will not
ignite and emit white smoke. If the
combustion chamber is filled with excessive
pumping oil, it will flow out from the exhaust
- 54 -
pipe; The correct way to pump oil to the
inlet position and stop. If the pump oil
volume is too high, the oil pipe should be
unplugged and restarted 2-3 times to
restore normal operation before inserting
the oil pipe; Or use a hair dryer to blow
towards the intake pipe for a period of time
until it works properly.
2. The ignition plug atomization net is
blocked. After removing the ignition plug,
take out the internal atomization net and
check for any blockage. It should be
cleaned or replaced immediately.
Oil flowing
inside the
intake pipe
Incorrect installation
direction/excessive
manual pump oil
volume
1. Manually pumping oil, if there is too
much oil inside the machine, it will not
ignite and emit white smoke. If the
combustion chamber is filled with excessive
pumping oil, it will flow out from the intake
pipe; The correct way to pump oil to the
inlet position and stop. If the pump oil
volume is too high, the oil pipe should be
unplugged and restarted 2-3 times to
restore normal operation before inserting
the oil pipe; Or use a hair dryer to blow
towards the intake pipe for a period of time
until it works properly.
2. The heater cannot be installed on the
side. The oxygen hole oil on the ignition
plug side will flow out through the hole, and
the correct installation method is to have
the intake/exhaust port facing downwards.
The exhaust
pipe
temperature
is too high
and turns
red
Combustion
chamber
malfunctions
Immediately shut down, dismantle the
aluminum body to check if the internal
combustion chamber is sealed or replace
the combustion chamber.
- 55 -
abnormal
sound
Poor exhaust flow
Foreign matter blockage in the exhaust
pipe affects the exhaust. It should be
immediately shut down, and the exhaust
pipe, muffler, and exhaust port should be
checked for blockage. If there is any
blockage, it should be cleaned and restored
to normal operation.
Diesel odor
Oil leakage/fuel
error
1. Only high-grade diesel can be used, and
the use of mixed diesel, other types of oil,
and non-brand-new oil products is
prohibited. In winter, negative temperature
diesel should be met, as other fuels may
cause odors.
2. Disassemble the machine casing to
check for any oil leaks inside and replace
the parts promptly.
Plastic smell
Use external
accessories
1. Extension or modification requires the
purchase of high-temperature resistant
accessories. If the heater has high heat, it
may produce unpleasant and pungent
odors.
2. Extend the pipe fittings without bending
or being too long, as this can cause heat to
be unable to dissipate and result in high
internal temperature and plastic odor.
3. The working temperature of the exhaust
pipe reaches around 752 ℉. It is prohibited
to drill holes in the wooden floor or use
non-high-temperature resistant rubber
seals for installation, which may cause odor
and poisoning hazards.
Maintenance
Smoking/insufficient
heat
If black smoke or insufficient heat is found
during the operation of the heater for a
period of time, it indicates that there is
carbon deposition inside the combustion
chamber and it needs to be cleaned or
replaced in a timely manner.
- 56 -
Fuse burnt
ou
Short circuit power-
off inspection
1. Remove the fuse and check for damage.
If damaged, replace the fuse.
2. Measure whether the positive and
negative poles are short circuited. If there is
a short circuit, replace the motherboard if it
is damaged.
Manufacturer: Shanghaimuxinmuyeyouxiangongsi
Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai
200000 CN.
Imported to AUS: SIHAO PTY LTD.
1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd.
Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
REP
UK
YH CONSULTING LIMITED.
C/O YH Consulting Limited Office 147,
Centurion House, London Road, Staines-
upon-Thames, Surrey, TW18 4AX
REP
EC
E-CrossStu GmbH
Mainzer Landstr.69,
60329 Frankfurt am Main.
