HELA 2500Rz
• Compliant with ATX 3.1 and PCIe Gen 5 standards, supporting 12V-2x6 PCIe connectors
• 4 x native 12V-2x6 connectors with cables included, supporting RTX 40/50 series GPUs.
• High efficiency with Cybenetics Platinum certification
• 24/7 continuous power output with 50℃ operating temperature
• Fully modular design with SilverStone’s 3rd generation modular interface
• Silent running 135mm Fluid Dynamic Bearing (FDB) fan with delayed shut-off function
• Compact 200mm depth design allows for easy system integration
HELA Series
Cybenetics Platinum 2500W ATX 3.1 & PCIe 5 Fully Modular ATX Power Supply
SPECIFICATION
SilverStone HELA Series
HELA 2500Rz
SST-HA2500R-PM
ATX Switching Power Supply
Cybenetics Platinum efficiency certified.
2500W
01
1.1 Scope
This specification defines the performance characteristics of a single phase 2500Watts, 5 output
power supply. This specification also defines worldwide safety and electromagnetic compatibility
requirements for the power supply which is intended for use in computer products.
2.1 Input
1.General
2.Input Characteristics
Nominal Voltage Voltage Variation Range
--------------------- ----------------------------
200-240 Vrms(For 2500W) 90 - 264 Vrms
115-240 Vrms(For 1650W)
100-240 Vrms(For 1350W)
2.2 Input Frequency
Nominal Frequency Frequency Variation Range
------------------------ --------------------------------
50-60 Hz 47 Hz to 63 Hz
* The power supply must operate at above frequency with 90-264 VACrms input voltage range.
02
2.3 Max. Input AC Current
Max. Input Current Measuring Range
------------------------ -----------------------
20A 90 - 264 Vrms
2.4 Inrush Current
3.1 Normal Operation Output
(200-240 Vrms(For 2500W))
•
Maximum continuous total DC output power should not exceed 2500W.
•
Maximum continuous combined load on +3.3VDC and +5VDC outputs shall
not exceed 120W.
•
Maximum combined load on +12V outputs shall not exceed 2500W.
•
The 12V-2x6 Max load shall not exceed 50A(600W).
The power supply must meet inrush requirements for any rated AC voltage,
during turn on at any phase of AC voltage, during a single cycle AC dropout
condition, during repetitive ON/OFF cycling of AC, and over the specified
temperature range. The peak inrush current shall be less than the ratings of
its critical components (including input fuse, bulk rectifiers, and surge limiting
device).
2.5 Efficiency
Efficiency versus Load for ENERGY STAR* with 2500W
Table1
Loading
Full Load
(100%)
Typical Load
(50%)
Light
Load
(20%)
Low Load
(2%)
PFC@
50%Load
Minimum
Efficiency
90% 94%
92% 60%
≥0.9
3.Output characteristics
Output
Voltage
Load
MIN
Range
MAX
Load
Regulation
Total
Regulation
Ripple & Noise
P-P Max.
1. +5V 0.0A 22A
±3% ±5%
30mV
2. +12V 0.0A 208.3A
±3%
-7% /+5% 50mV
4. –12V 0.0A 0.5A
±10% ±10%
50mV
5. +5Vs 0.0A 3.0A
±3% ±5%
30mV
6. +3.3V 0.0A 22A
±3% ±5%
30mV
03
•
Maximum continuous total DC output power should not exceed 1650W.
•
Maximum continuous combined load on +3.3VDC and +5VDC outputs shall not exceed 120W.
•
Maximum combined load on +12V outputs shall not exceed 1650W.
•
The 12V-2x6 Max load shall not exceed 50A(600W).
•
Maximum continuous total DC output power should not exceed 1350W.
•
Maximum continuous combined load on +3.3VDC and +5VDC outputs shall not exceed 120W.
•
Maximum combined load on +12V outputs shall not exceed 1350W.
•
The 12V-2x6 Max load shall not exceed 50A(600W).
NOTE:
Noise test should be measured with 20 MHz bandwidth frequency oscilloscope. The output terminal
shall add a tantalum capacitor of 10uF in parallel with a ceramic capacitor of 0.1uF.
The PSON# signal is required to remotely turn on/off the power supply, PSON# is an active low signal
that turns on the output power rails. When this is not pulled low by the system, or left open,
the outputs (except the +5VSB) turn off. This signal is pulled to a standby voltage by a pull-up resistor
internal to the power supply.
TTL level "H" 2.0 V - 5.25 V
"L" 0.0 V – 1.0 V
(115-240 Vrms(For 1650W))
(100-240 Vrms(For 1350W))
Table2
Table3
3.2 Remote On/Off Controlled mode
Output
Voltage
Load
MIN
Range
MAX
Load
Regulation
Total
Regulation
Ripple & Noise
P-P Max.
1. +5V 0.0A 22A
±3% ±5%
30mV
2. +12V 0.0A 137.5A
±3%
-7% /+5% 50mV
4. –12V 0.0A 0.5A
±10% ±10%
50mV
5. +5Vs 0.0A 3.0A
±3% ±5%
30mV
6. +3.3V 0.0A 22A
±3% ±5%
30mV
Output
Voltage
Load
MIN
Range
MAX
Load
Regulation
Total
Regulation
Ripple & Noise
P-P Max.
1. +5V 0.0A 22A
±3% ±5%
30mV
2. +12V 0.0A 112.5A
±3%
-7% /+5% 50mV
4. –12V 0.0A 0.5A
±10% ±10%
50mV
5. +5Vs 0.0A 3.0A
±3% ±5%
30mV
6. +3.3V 0.0A 22A
±3% ±5%
30mV
04
The cross regulation defined as follows, the output regulation should be within the specified range.
5VSB is requierd for the implementation of PS-ON described above. 5VSB is a standby voltage that
may be used to power circuits that require power input during the powereddown state of all power rails.
The 5 VSB pin should deliver 5V ± 3% at a minimum of 3.0 A for PC board circuits to operate.
Conversely, PC board should draw no more than 3.0A maximum form this pin. This power may be
used to operate circuits such as soft power control.
DC output rise time is less than 20 mS at nominal line and full load.
3.3 Regulation
3.4 Rise Time
The +12V and +5V output levels must be equal to or greater than the +3.3V output at all times during
power-up and normal operation. The time between any output of + 12V and +5V reaching its minimum
in-regulation level and +3.3V reaching its minimum in-regulation level must be ≤ 20mS.
3.5 +5V DC / +3.3V DC Power Sequencing
PG output maintains at least 11mS after power off which hold within 80% loads
under 230V/50Hz condition.
3.6 Hold-up Time
3.7 5VSB
PG-OK is a power good signal and should be asserted high by power supply to indicate that the
+5 VDC and +3.3 VDC outputs are above the under-voltage thresholds of the power supply.
When this signal is asserted high, there should be sufficient mains energy stored by the converter to
guarantee continuous power operation within specification. Conversely, when either the +5VDC or
the +3.3VDC output voltage falls below the under-voltage threshold, or when mains power has been
removed for a time sufficiently long so that power supply operation is no longer guaranteed, PG-OK
should be deasserted to a low state. See Figure 1 for a representation of the timing characteristics
of the PG-OK,PS-ON, and germane power rail signals.
3.8 PG-OK
A default 3.3V sense line should be implemented pin 13 of the connector.
3.9 3.3V Sense
Load +5V +3.3V +12V -12V +5Vsb
Low Load 0.27A 0.27A 3.94A 0.01A 0.06A
Light Load 2.74A 2.74A 39.44A 0.09A 0.57A
Typical Load 6.84A 6.84A 98.61A 0.24A 1.42A
Full Load 13.69A 13.69A 197.21A 0.47A 2.84A
05
3.10 Capacitive Load
3.11 Support PCIE 12V-2X6 Connector Power
The power supply should be able to power up and operate normally with the
following capacitances simultaneously present on the DC outputs.
3.11.1 PCI Express* 12V-2X6 Connector Power Limits
3.11.2 PCIe* AIC and PSU Power Budget used for Peak Power Excursion
Output Capacitive load (uF)
+5V 3300
+12V 3300
+3.3V 3300
-12V 330
+5VS 3300
Initial Permitted
Power at System
Power Up
Maximum
Sustain Power
after Software
Configuration
375 W 600 W*4
225 W 450 W
150 W 300 W
100 W 150 W
Power Excursion % of PSU
Rated Size
PSU ≤ 450 Watts & PSUs
without 12V-2X6 Connector
Power Excursion % of
PSU Rated Size
PSU > 450 Watts &
12V-2X6 Connector
present
Time for Power
Excursion (TE)
Testing
Duty Cycle
150% 200% 100 us 5%
145% 180% 1ms 8%
135% 160% 10ms 12.5%
110% 120% 100ms 25%
100% 100% Infinite
--
4.1 Input Protection
4.2 Output Protection
In primary circuit of the power supply , a protected fuse is inserted. Only internal
fault of the power supply will cause the fuse blown. Any overload or short circuit
at DC output will keep from fuse brown or fire hazard.
4.2.1 Under voltage protection
The +5V/+12V/+3.3V DC output are protected against the under voltage
condition . range value can't be exceed 10.3~11.0V at 12V terminal and
4.2~4.6V at 5V, 2.0~2.4V at 3.3V.
4.2.2 Over Voltage Protection
The +12V/ DC output are protected against the over voltage condition .
Maximum value can't be over 15.6V at 12V terminal and 7.0V at 5V,
4.3V at 3.3V.
4.2.3 Over Power Protection
The power supply can be used electronic circuit to limit the output current
against exceeding 40%-70% of surge output power or protected against
excessive power delivery since short circuit of any output or over total
power at high line.
4.2.4 Short Circuit Protection
Short circuit placed on +5V,+12V,+3.3V,-12V will latch off. +5VSB will
auto-recovery.
This power supply includes an over-temperature protection sensor, which
can trip and shut down the power supply at 95℃ ±10℃
4.2.5 Over-Current Protection
4.2.6 Over-Temperature Protection
Current protection should be designed to limit the current to operate within
safe operating conditions.Over current protection schemes where only the
voltage output that experiences the over current event is shut off may be
adequate to maintain safe operation of the power supply and the system;
however, damage to the motherboard or other system components may
occur. The recommended over current protection scheme is for the
power supply to latch into the shutdown state. The setting of over current
protection for each output rail is as following.
+5V is less than or equal to 24~35A.
+3.3V is less than or equal to 24~35A.
+12V is less than or equal to 270~354A.
4. Protection:
07
5.1 No Load Start
5. Start Stability
6.1 Temperature and Humidity
6.2 Altitude
6. Environments
CE,FCC
7. Conducted EMI
8.1 Safety Requirement
CB .cTUVus
8.2 Leakage Current
The AC leakage current is less than 3.5mA when the power supply connect
to 264Vac/50Hz .
8. Product Safety
When power is applied to PSU with no load connected or under minimum load
connected, neither damage to power supply nor hazards to users will occur.
5.2 Cold Start
The power supply shall operate properly when first applied at normal input voltage
and or so maximum load after 4 hours storage in 0ƫ environment.
6.1.1 Operating
Temperature 0ƫ to 50ƫ
Relative Humidity 20% to 90 %
6.1.2 Storage
Temperature -40ƫ to 70ƫ
Relative Humidity 20% to 95 % noncondensing
The power supply can operate normally at any altitude between 0 to 10000 feet.
6.3 Vibration and Shock
Sweep and resonance search for each of X,Y,Z, axis at the sweep.
RATE of 1/OCTAVE/Min.
Frequency Duration Amplitude
5-55-10 Hz 30 minutes 0.35 mm
8.3 Insulation Resistance
The insulation resistance should be not less than 30M ohm after applying of
500VDC for 1 minute.
8.4 Dielectric Voltage Withstand
The power supply shall withstand for 1 minute without breakdown the
application of a 60Hz 1500V AC voltage applied between both input line and
chassis (20mA DC cut-off current). Main transformer shall similarly withstand
3000Vac applied between both primary and secondary windings for a minimum
of one minute.
08
A TTL compatible signal for the purpose of initiating an orderly start-up procedure
under normal input operating conditions. During power up, this signal is asserted
( low ) until +5V is under regulation and AC reaches min. line specification range.
After all voltage are going appropriate level, the system may have a turn on delay
of 100mS, but no greater than 250mS. During power off the signal should go to low
level before +5V is out of regulation. The low level is 0 to 0.8V and high level is 4.75
to 5.25V. The " Power Good "signal can drive up to 6 standard TTL loads.
9. Power Good Signal

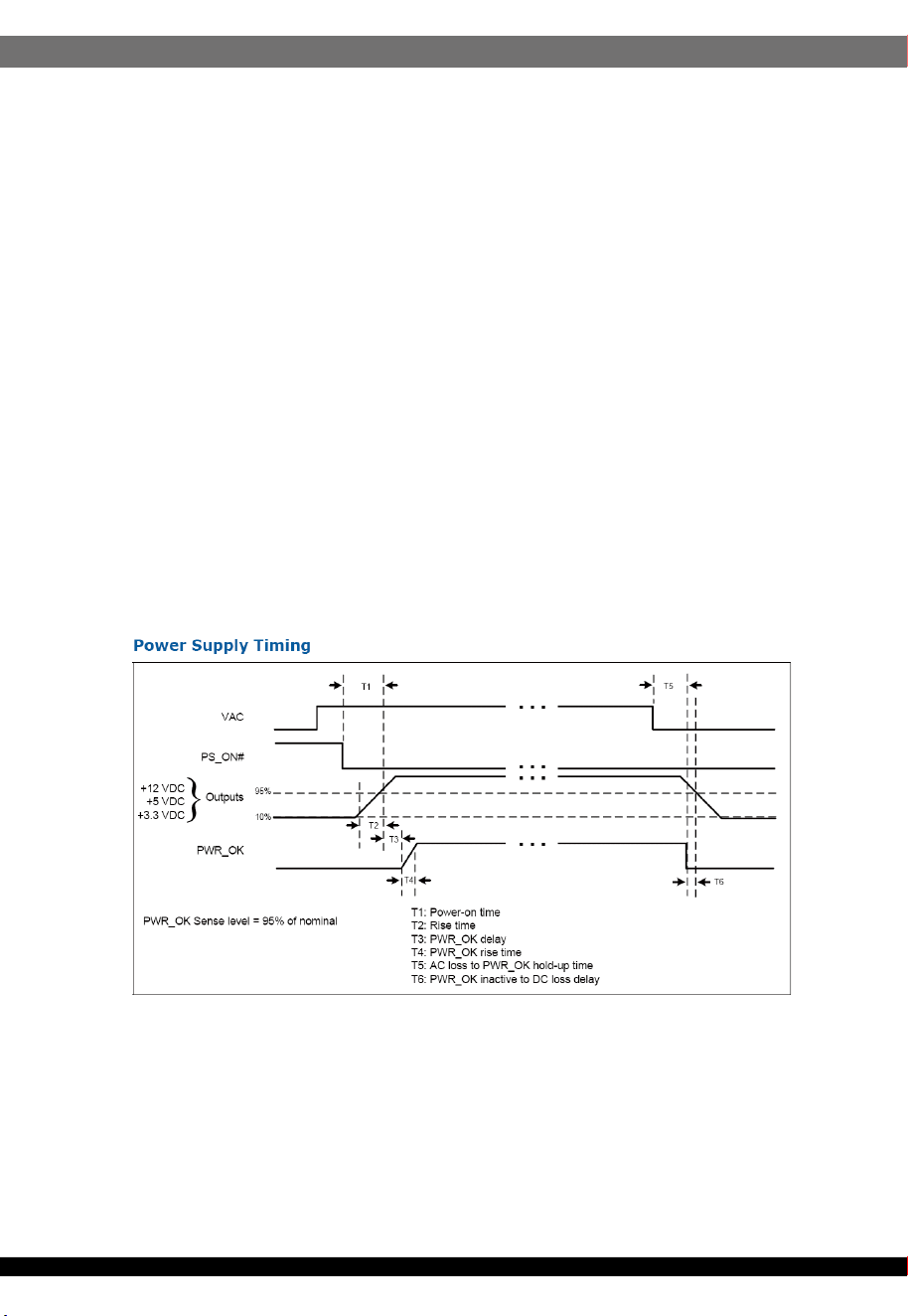

* T1 : Turn on time ( 200mS Max.)
* T2 : Rise time (0.2~20 mS)
* T3 : Power good turn on delay time (100~ 250 mS)
* T4 : Switch on time (10mS Max.)
* T5 : Power hold-on time ( 11 mS Min@80% LOAD)
* T6 : Power good turn off delay time ( 1.0 mS Min@80% LOAD)
* Power on-off cycle :
When the power supply is turned off for a minimum of 2.0 sec. and turn on again,
the power good signal will be asserted.
09
10. MTBF
The MTBF of the power should be 100,000 hours min.
11. Burn-In
12. Harmonics
11.1 Input Voltage
Applying 220Vac
11.2 Test Condition
Applying 80% loads for the power supply in 40 (+/-5)
ƫ
chamber for 4 hours.
The product shall meet requirement for EN61000-3-2 & EN61000-3-3 :2005
standard of class D, test at 230Vac 50Hz.
13. Power Factor
The power supply with active power factor correction, and meet the EN61000-3-2
standards, The power factor is greater than 0.95 at 230V/50Hz, Max. load.
14. Fan Function
15. Mechanical Specification
14.1 Fan Less
When Zero RPM Fan Mode switch ON, it has Fan Less function, while on OFF,
there is no Fan Less function. When the Fan Less function is turned on, in the cold
state ,the fan does not rotate below 370W load, and starts to rotate between 370W
load and 500W load.
14.2 Fan Delay
The power supply has the Fan Delay function. When PS-OFF the Fan turns and
does not stop until after 60S.
15.1 Outline Dimension
150X86X200mm

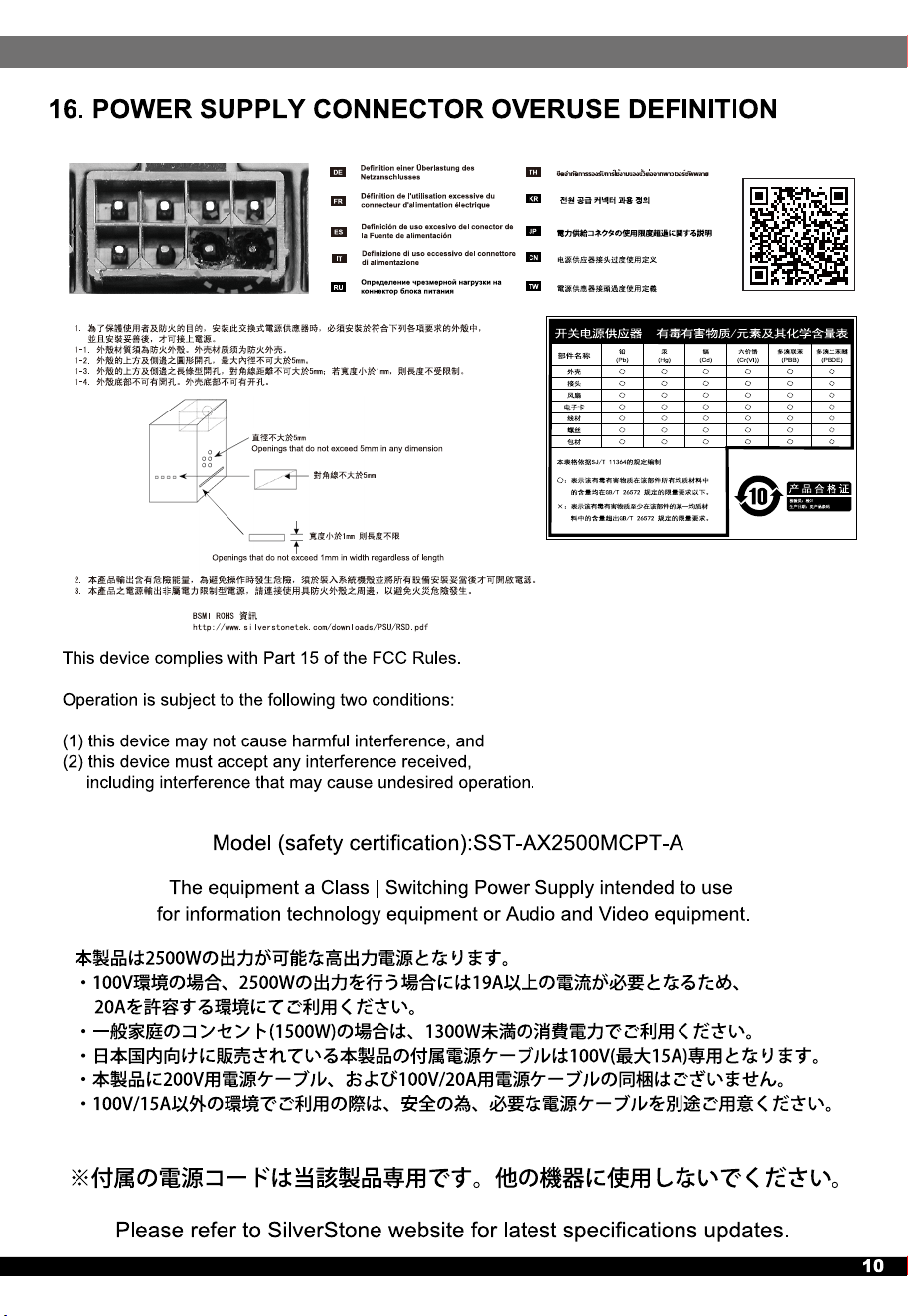

G11254260
