SUNPORT CEILING FAN
ITEM #6009624
MODEL #FLA52MBK5L
1
ST24004
HARBOR BREEZE and logo design are trademarks or
registered trademarks of LF, LLC. All rights reserved.
4007498
APPROVED FOR USE
IN DAMP LOCATIONS
Español p. 19
ATTACH YOUR RECEIPT HERE
Purchase Date
Thank you for purchasing this HARBOR BREEZE product.
Questions, problems or missing parts?
Before returning, contact us on: 888-251-1003, 8 a.m. - 8 p.m., EST,
Monday - Sunday or [email protected].
Safety Information .................................................................................................................................... 2
Package Contents .................................................................................................................................... 5
Hardware Contents .................................................................................................................................. 6
Preparation ............................................................................................................................................... 6
Initial Installation ........................................................................................................................................ 6
Wiring ...................................................................................................................................................... 11
Final Installation ...................................................................................................................................... 13
Operating Instructions ............................................................................................................................ 15
Care and Maintenance ........................................................................................................................... 17
Troubleshooting ...................................................................................................................................... 17
Limited Lifetime Warranty ....................................................................................................................... 18
Replacement Parts List .......................................................................................................................... 18
TABLE OF CONTENTS
2
SAFETY INFORMATION
CAUTION: Changes or modifications not approved by the party responsible for compliance could
void the user's authority to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75053; 800-527-1292
The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, (2) this device must accept any interference
received, including interference that may cause undesired operation.
NOTE: Dimmable to 10% with select dimmers. See Lowes.com for more information.
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or operate
the product. Review the accompanying assembly diagrams.
• Do not discard fan carton or packing material. Should this fan need to be returned to the factory for
repairs, it must be shipped in its original packaging to ensure proper protection against damage that
might exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code
and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you
are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to the
floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 16.5 lbs.
SAFETY INFORMATION
3
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. (15.9 KG) OR LESS" and use
mounting screws provided with the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a
qualified electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a plastic
outlet box. Secure the outlet box directly to the building structure. The outlet box and its support must
be able to support the moving weight of the fan (at least 35 lbs.).
To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp
edges.
WARNING
DANGER
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
To reduce the risk of serious bodily injury, DO NOT use power tools to assemble any part of the fan,
including the blades.
Before installation, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
SAFETY INFORMATION
4
To reduce the risk of fire, electrical shock or personal injury, lever wire connectors provided with this
fan are designed to accept only one 12-gauge house wire and one lead wire from the fan. If your
house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size lever wire connectors to use.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blades when installing
them, balancing the blades or cleaning the fan. Do not insert objects between the rotating fan blades.
To reduce the risk of personal injury, use ONLY parts provided with this fan. The use of parts OTHER
than those provided with this fan will void the warranty.
WARNING
CAUTION
Be sure outlet box is properly grounded and that a ground wire (GREEN or BARE) is present.
Once installation is complete, carefully check all screws, bolts and nuts on fan motor assembly to
ensure that they are secured.
Do NOT tamper with or attempt to repair LED component. The light source is designed for this specific
application and should not be serviced by untrained personnel. If any servicing is required, call our
customer service department.

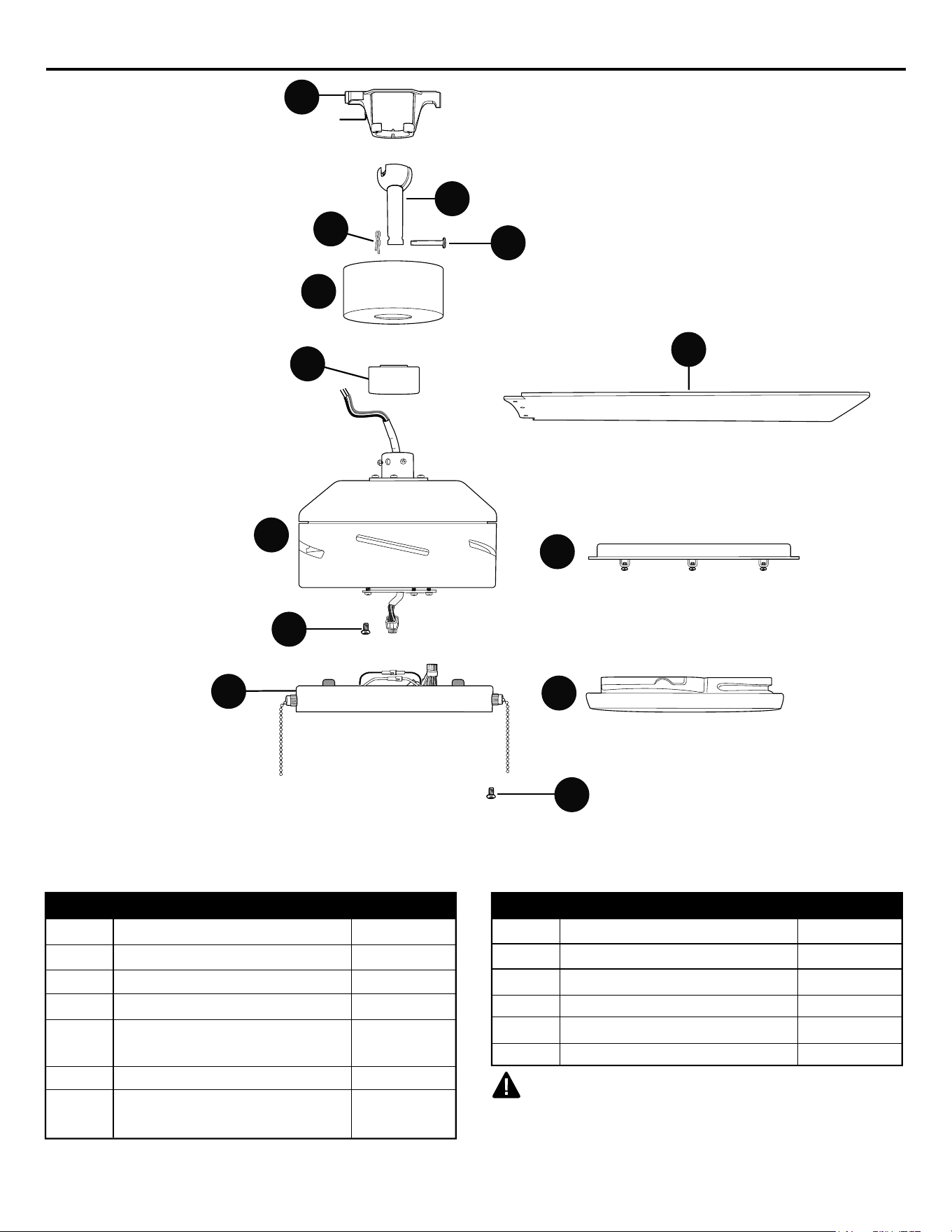

PACKAGE CONTENTS
5
D
E
F
H
I
L
H Blade 5
I Fitter Plate 1
J Pin (preassembled) 1
K Clip (preassembled) 1
L Yoke Cover 1
M Shade 1
IMPORTANT: You must use the parts
provided with this fan for proper installation and
safety.
A Downrod 1
B Canopy 1
C Mounting Bracket 1
D Motor Housing 1
E Motor Plate Screw 3
(preassembled)
F Switch Housing 1
G Switch Housing Screw 3
(preassembled)
DESCRIPTIONPART
QUANTITY
DESCRIPTIONPART
QUANTITY
A
B
J
K
M
C
G
6
PREPARATION
HARDWARE CONTENTS (shown actual size)
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list. If
any part is missing or damaged, do not attempt to install the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety Glasses,
Stepladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and Wire
Cutters
Turn off circuit breakers or fuse and wall switch
to the fan supply line leads.
DANGER: Failure to disconnect power
supply prior to installation may result in serious
injury or death.
1.
INITIAL INSTALLATION
ON
OFF
ON
OFF

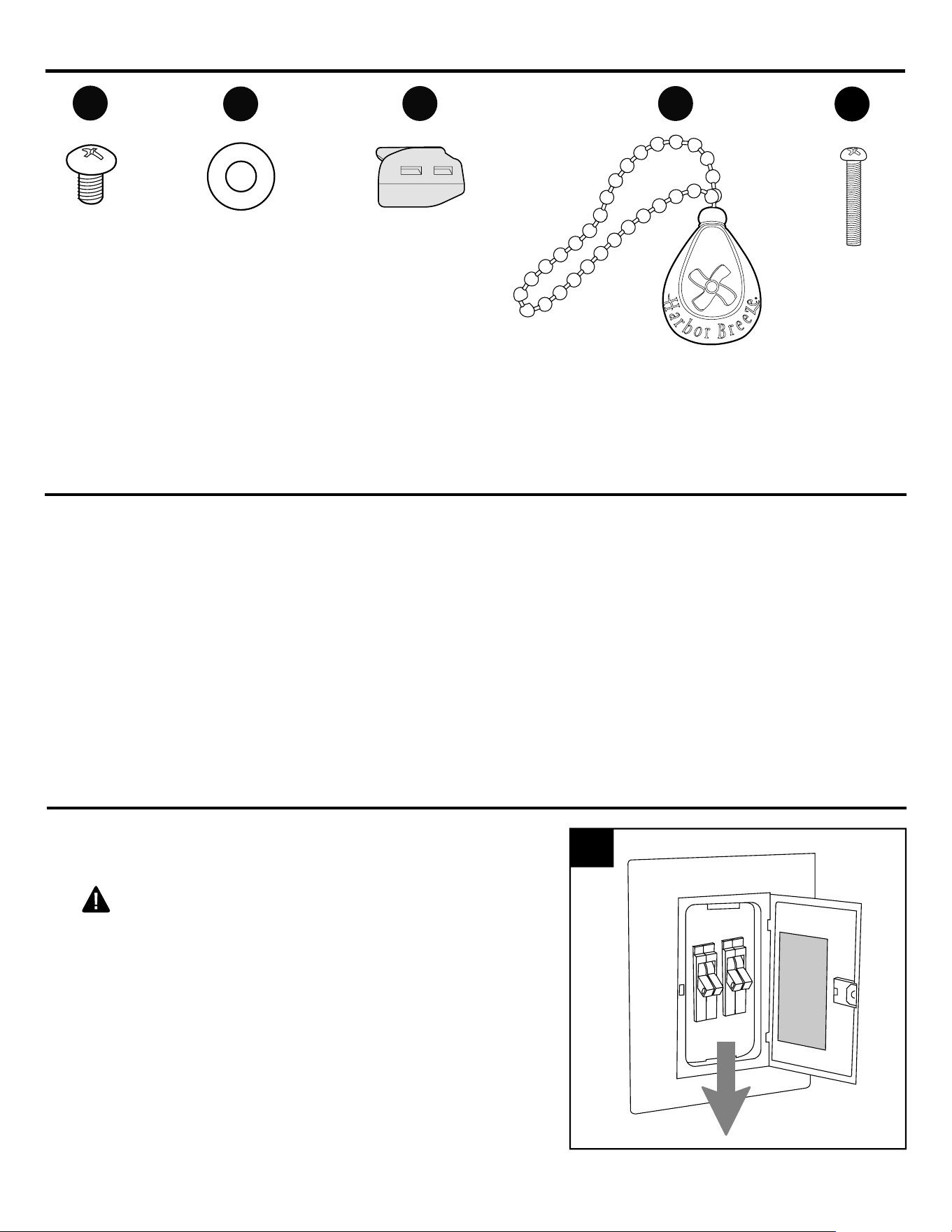

1
Lever Wire
Connector
Qty. 4
Blade
Screw
Qty. 15
+ 1 extra
Fiber Blade
Washer
Qty. 15
+ 1 extra
Pull Chain
Extension
Qty. 2
AA
BB
CC DD
EE
Canopy
Mounting
Screw
Qty. 1
If applicable, remove existing fan and fan parts,
including the mounting bracket, from outlet box
and disconnect all electrical wiring.
WARNING: To reduce the risk of personal
injury, use ONLY parts provided with your new
fan. The use of parts OTHER than those
provided with this fan will void the warranty.
Set aside screws, spring washers and flat
washers (provided with the outlet box) for fan
installation.
7
INITIAL INSTALLATION
3.

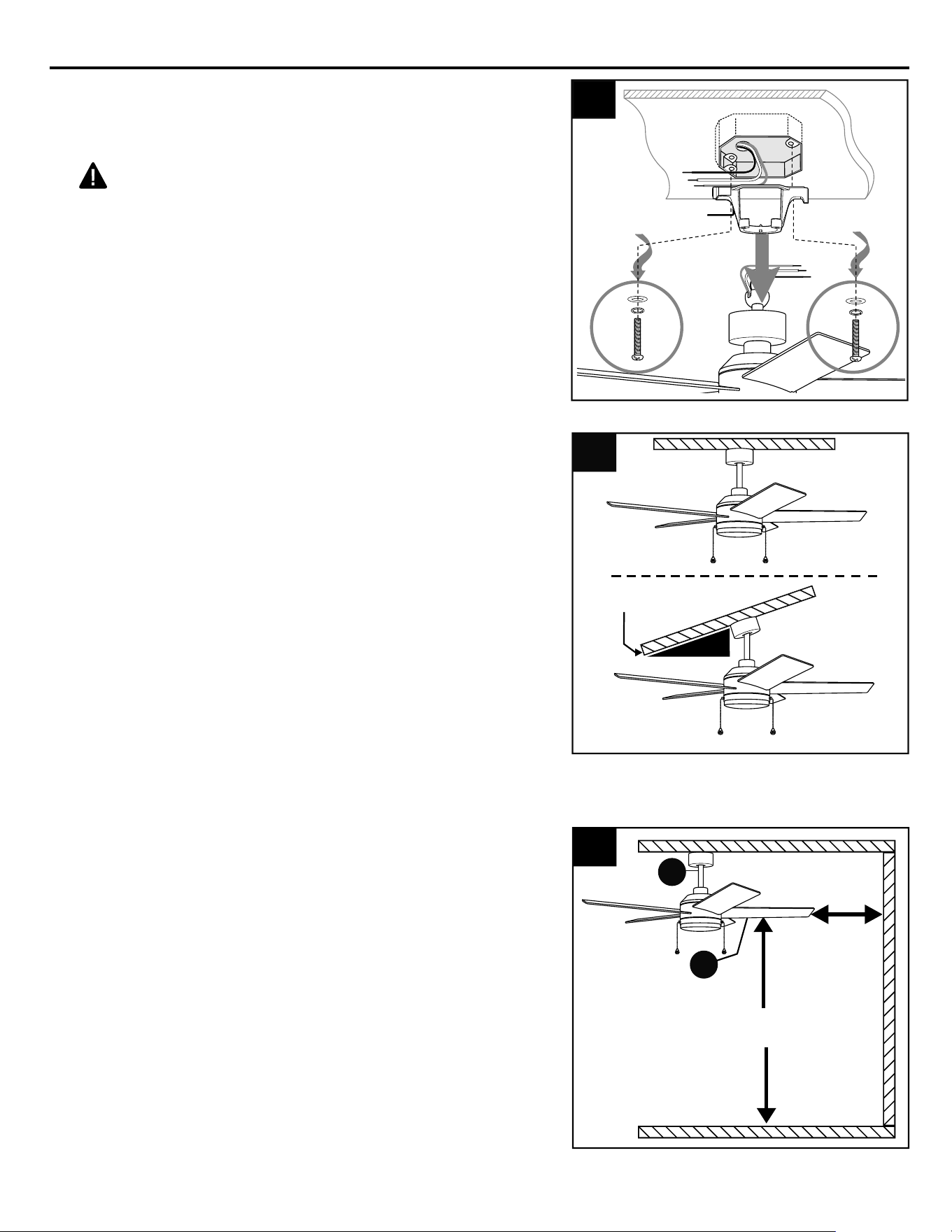

Determine mounting method to use for new fan.
A. Standard mount
B. Angle mount
IMPORTANT: If using the angle mount, ensure
the ceiling angle is not steeper than 19°.
NOTE: Closemount option is not available for
this fan.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. high or higher. For taller
ceilings you may want to use a longer downrod
(not included). Angle-style mounting is best
suited for angled or vaulted ceilings. A longer
downrod is sometimes necessary to ensure
proper blade clearance.
Check to make sure blades (H) will be at least
30 inches from any obstruction. Check downrod
(A) length to ensure blades (H) will be at least
7 ft. above the floor.
4.
7 ft.
min.
30 in.
min.
4
3
B
A
19° max.
2.
2
A
H
INITIAL INSTALLATION
8

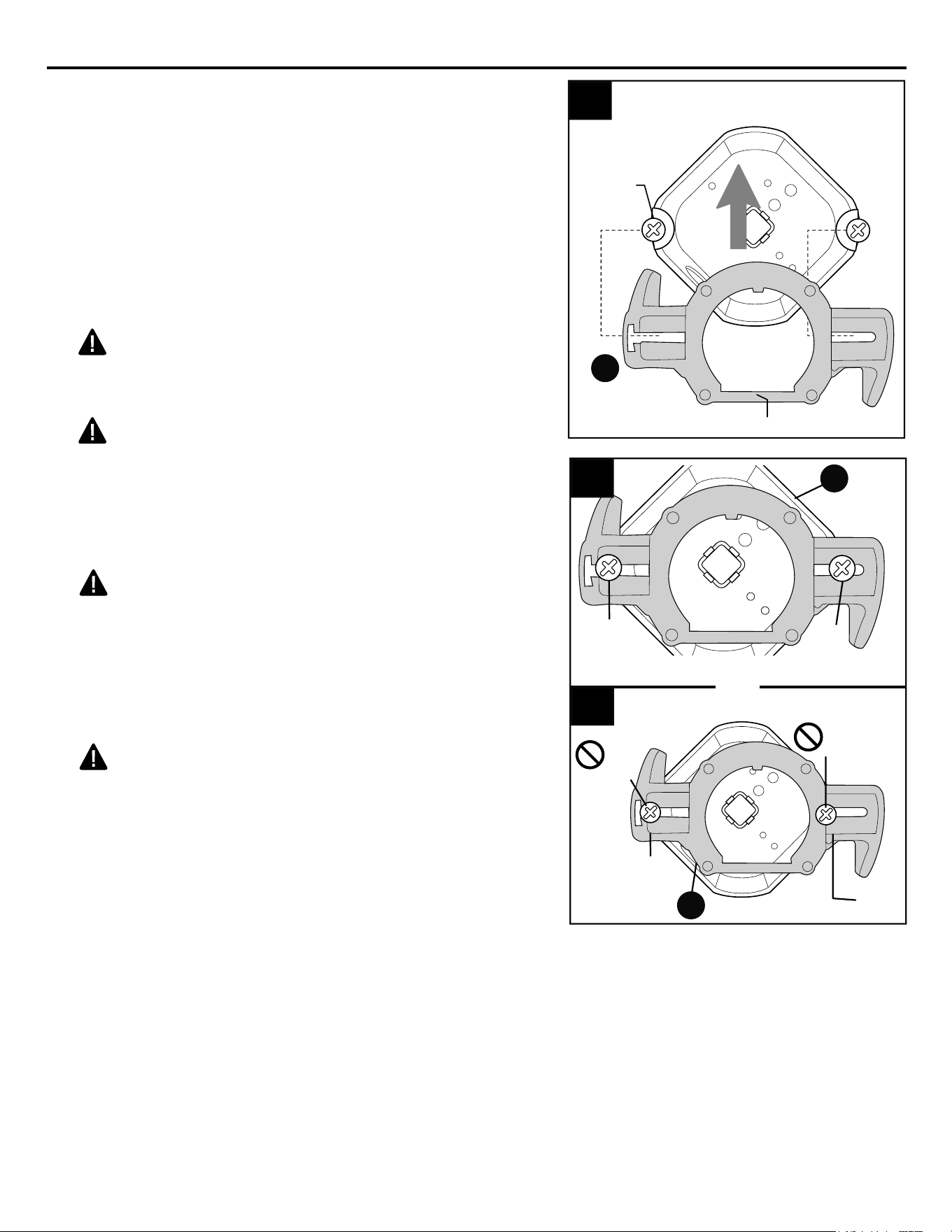

If attaching mounting bracket (C) to an
existing outlet box (not included) with
pre-installed screws, spring washers and
flat washers, slide mounting bracket (C) over
the screws. Then proceed to the following
paragraph. If attaching mounting bracket
(C) to outlet box where screws/washers
were removed, secure mounting bracket (C)
to outlet box using the screws, spring
washers and flat washers previously removed
in (Step 2, page 7).
WARNING: It is very important you use
the proper hardware when installing the
mounting bracket as this will support the fan.
DANGER: To reduce the risk of serious
injury or death, the outlet box screws MUST
be installed somewhere within the long slots
of the mounting bracket and then
TIGHTENED DOWN COMPLETELY. [Refer
to Fig. 5a.]
DANGER: To reduce the risk of fire,
electrical shock, serious personal injury or
damage to the fan, make sure outlet box
screws DO NOT get installed on or near the
wall that separates the keyhole and the long,
narrow slot on each side of the mounting
bracket. [Refer to Fig. 5b.]
WARNING: If using the angle mount,
make sure open end of mounting bracket (C)
is installed facing the higher point of the
ceiling, and ensure the ceiling angle is not
steeper than 19°.
5.
STANDARD MOUNT
Outlet Box
Screws
Wall
CORRECT Screw Position
VS
INCORRECT Screw Position
5
5a
C
C
Wall
5b
(underside)
C
(view from underside)
5a.
5b.
Screw
Screw
Screw
Position
Screw
Position
(view from underside)
Open End
6a
6b
K
A
D
J
INITIAL INSTALLATION
9
7.

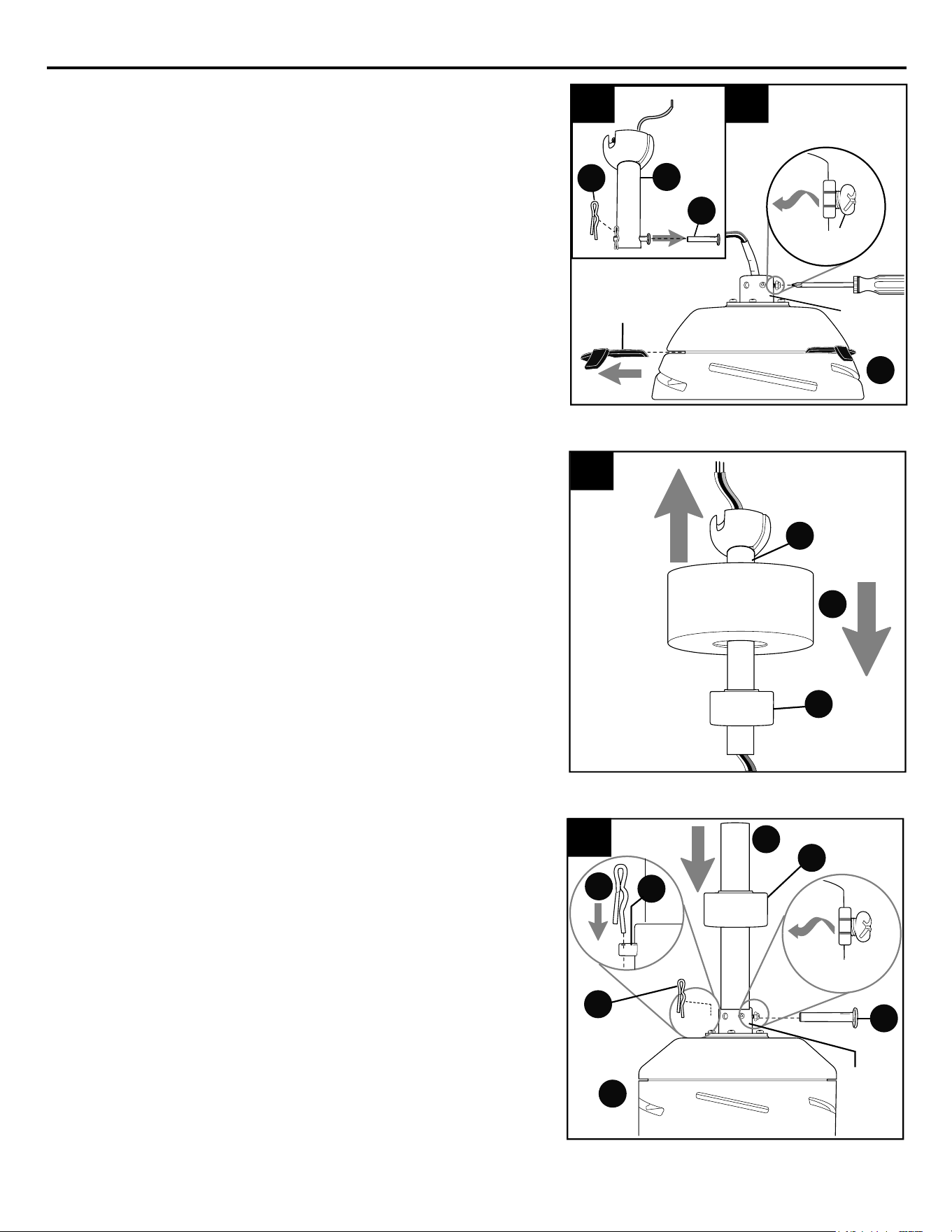

Remove pin (J) and clip (K) from downrod (A).
Partially loosen preassembled set screws and
nuts in motor housing yoke at top of motor
housing (D).
Remove all preassembled motor stabilization
pieces from motor housing (D). The motor
stabilization pieces may be discarded at this
time.
6a.
Set
Screw
Sideview
Yoke
6b.
Motor
Stabilization
Piece
Insert downrod (A) through canopy (B) and yoke
cover (L).
Then, thread wires from motor housing (D)
through downrod (A).
7
A
B
Slip downrod (A) into motor housing yoke, align
holes and re-install pin (J) and clip (K). Tighten set
screws in motor housing yoke and then tighten
preassembled nuts on the set screws. Then, slide
yoke cover (L) down until it rests on top of motor
housing (D).
8
Yoke
Sideview
A
K
K
D
J
J
L
Set Screw
and Nut
8.
L
INITIAL INSTALLATION
10

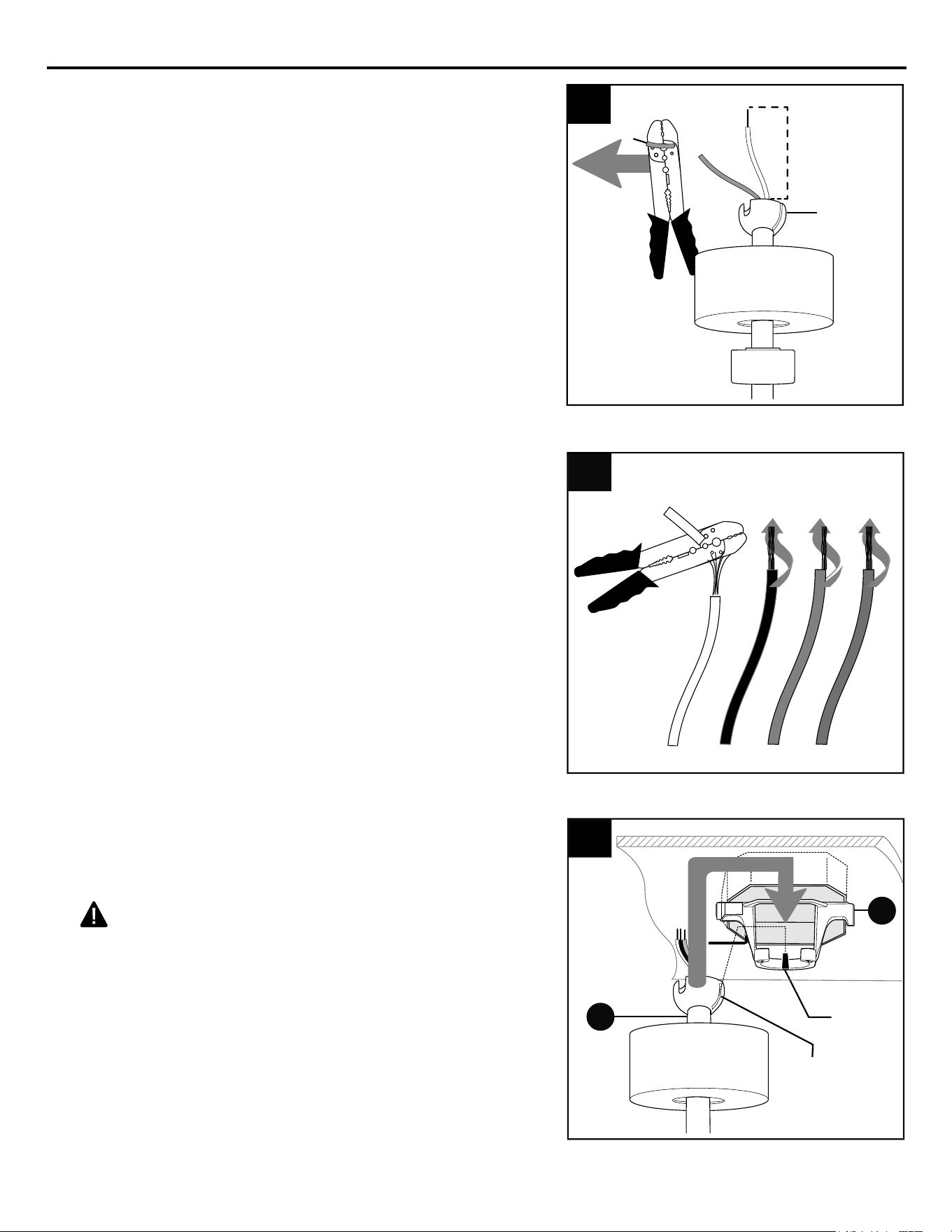

Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify the
wiring. If you decide to cut back the lead wires, it is
suggested you do so in the following manner:
Take the lead wires and make sure you have
pulled them all the way through the top of the
downrod. Start at the TOP of the hanging ball on
the downrod and measure 8 in. of lead wire, then
cut the excess wire off with wire cutters (not
included).
NOTE: If you do not cut back the lead wires,
Steps 9 and 10 are not necessary and you may
proceed to Step 11 instead.
9.
If you decided to cut back the lead wires in Step 9,
strip 3/8 in. of insulation from end of each wire --
WHITE, BLACK, GREEN and BLUE (if
applicable). Twist stripped ends of each strand of
wire within the insulation with pliers (not included).
10.
10
Install hanging ball of downrod (A) into opening
of mounting bracket (C). Align the slot in
hanging ball with tab in mounting bracket (C).
DANGER: Failure to align the slot in the ball
with the tab may result in serious injury or death.
11.
11
Tab
Slot
A
C
Hanging
Ball
9
8 in.
11
WIRING
WIRING
WARNING: To reduce the risk of fire, electrical shock or personal injury, lever wire connectors provided
with this fan are designed to accept only one 12-gauge house wire and one lead wire from the fan. If your
house wire is larger than 12-gauge or there is more than one house wire to connect to the corresponding
fan lead wires, consult an electrician for the proper size lever wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (GREEN or BARE) wire is
present.
WARNING: If house wires are different colors than referred to in the following steps, stop immediately.
A professional electrician is recommended to determine wiring.
WARNING: Using a full range dimmer switch (not included) to control fan speed will cause a loud
humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full range dimmer
switch to control fan speed.
NOTE: This fan is remote control adaptable (remote control not included). Please refer to instructions
provided with the remote control before proceeding with these wiring instructions.
1.

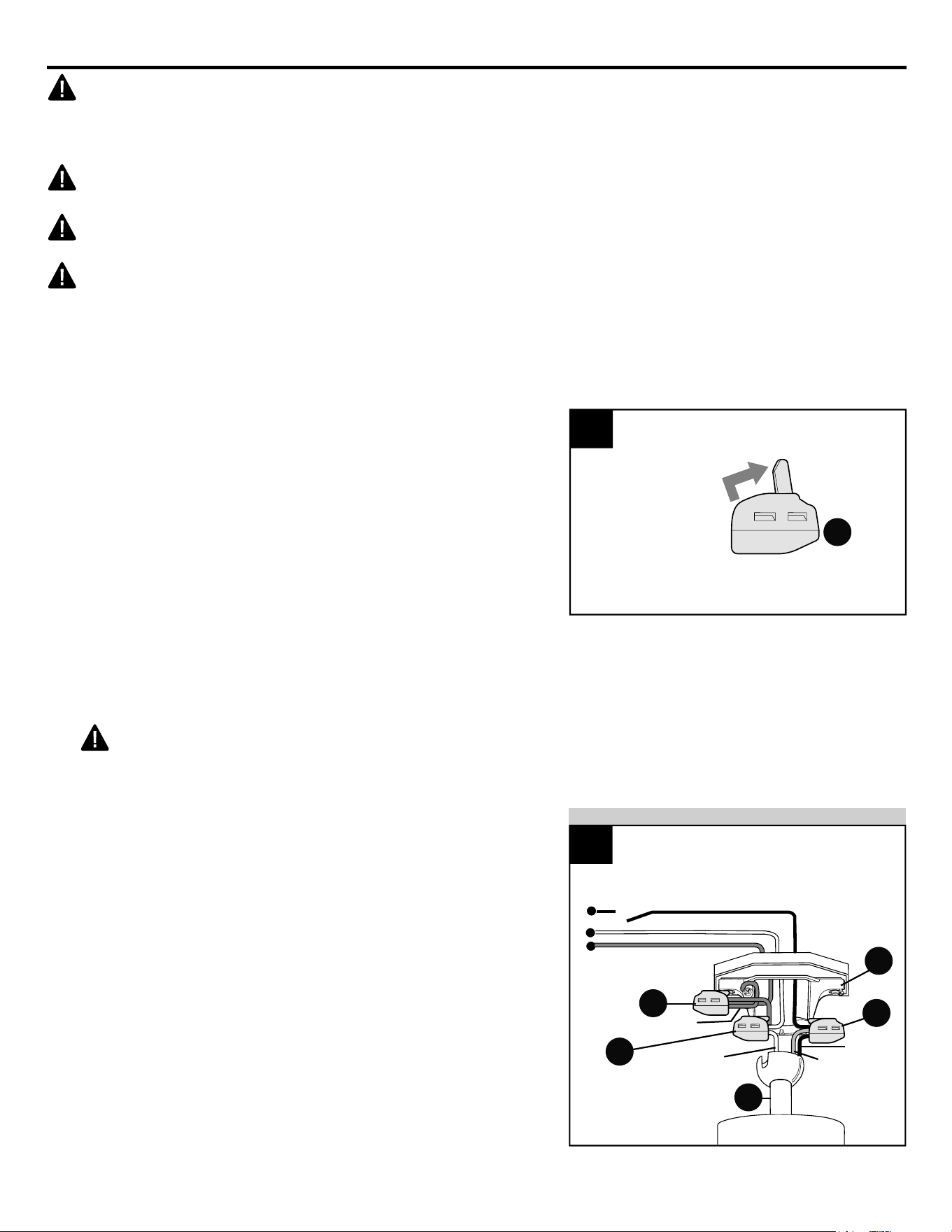

IMPORTANT: Each wire connection is made by
firmly raising the levers on each lever wire connector
(CC), as shown. Then, ONE wire is inserted into
each opening.
1
CC
Choose wiring diagram (Fig. 2a, Fig. 2b or Fig. 2c)
that fits your situation and make appropriate wiring
connections per your selection in Step 2.
WARNING: In order for wire connections to be
secure, all levers on the lever wire connectors (CC)
must be completely returned to their original position
as shown in the wiring diagram, option 2a, 2b or 2c,
which corresponds to your wiring needs.
2.

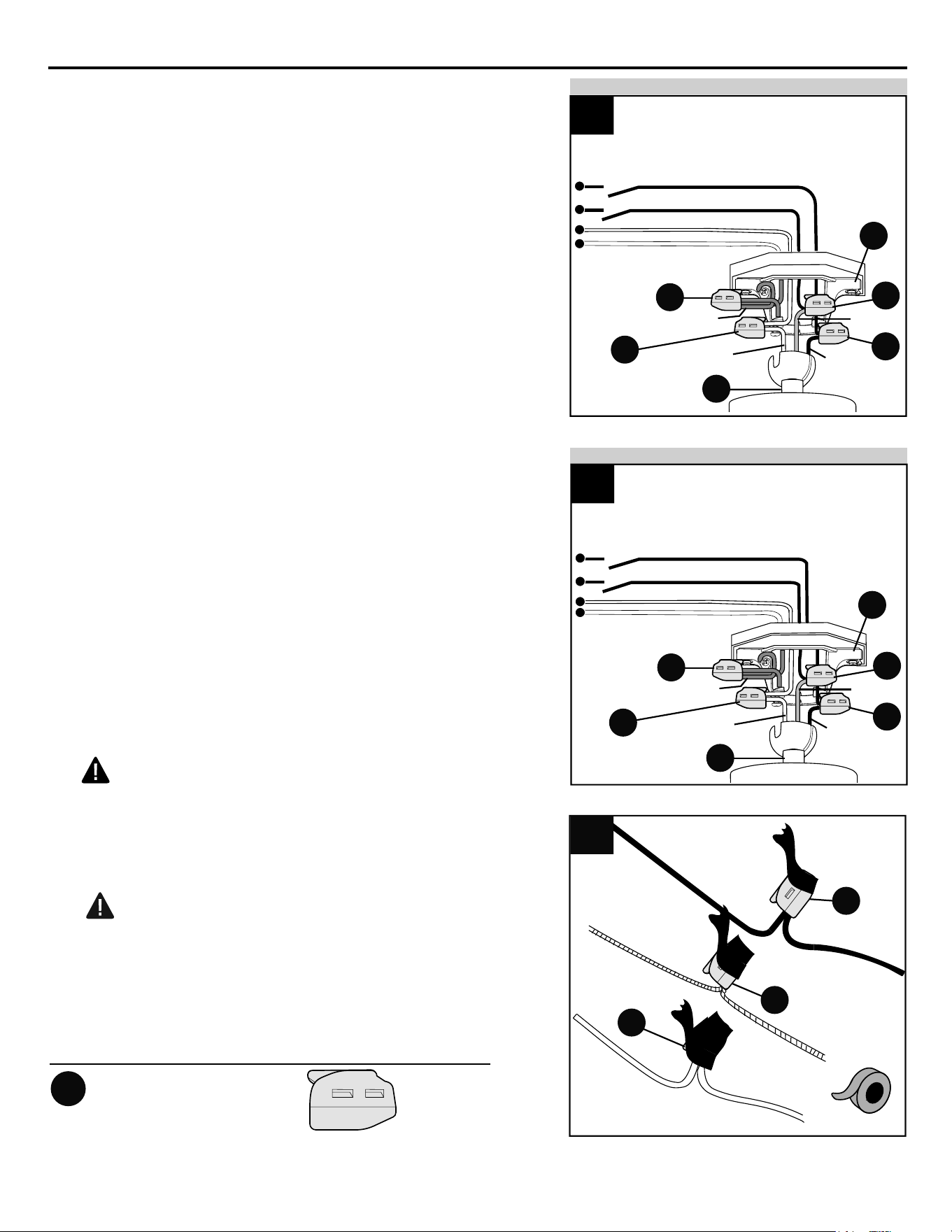

FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
2a
FAN AND LIGHT CONTROLLED BY PULL CHAINS
120V POWER
FROM CEILING
BLACK (POWER)
WHITE (NEUTRAL)
GROUND/GREEN (BARE)
GREEN
WHITE
BLACK
BLUE
CC
CC
CC
2a. FAN AND LIGHT CONTROLLED BY PULL
CHAINS: Insert each GROUND (GREEN) wire
from fan (on downrod (A) and mounting bracket
(C)) and the BARE/GREEN wire from ceiling into
openings in lever wire connector (CC) with three
levers.
Insert BLACK wire and BLUE wire from fan and
BLACK wire from ceiling into openings in lever
wire connector (CC) with three levers.
Insert WHITE wire from fan and WHITE wire from
ceiling into openings in lever wire connector (CC)
with two levers.
A
C
NOTE: BLACK wire is hot power for fan. BLUE wire is hot
power for light kit. WHITE wire is common for fan and light
kit. GREEN or BARE wire is GROUND.
WIRING
WARNING: GENTLY pull on wire in each lever wire
connector (CC) to confirm the lock is engaged and that all
wires are secure.
12
Wrap electrical tape around each individual lever wire
connector (CC) down to the wire.
WARNING: Make sure no bare wire or wire strands
are visible after making connections. Place GREEN and
WHITE connections on opposite side of box from the
BLACK and BLUE (if applicable) connections.
Turn spliced/taped wires upward and gently push wires
and lever wire connectors (CC) into outlet box.
3.
3
CC
CC
Lever Wire
Connector
x 4
Hardware Used
CC
CC
2b. FAN CONTROLLED BY PULL CHAIN, LIGHT BY
WALL SWITCH: Insert each GROUND (GREEN) wire
from fan (on downrod (A) and mounting bracket (C))
and the BARE/GREEN wire from ceiling into openings
in lever wire connector (CC) with three levers.
Insert BLACK wire from fan and BLACK wire from
ceiling into openings in lever wire connector (CC) with
three levers.
Insert WHITE wire from fan and WHITE wire from
ceiling into openings in lever wire connector (CC) with
two levers.
Insert BLUE wire and BLACK (or RED) wire from the
independent wall switch for the light into openings in
lever wire connector (CC) with two levers.
FAN CONTROLLED BY PULL CHAIN, LIGHT BY WALL SWITCH
2b
120V POWER
FROM CEILING
BLACK (POWER)
BLACK (WALL SWITCH)
WHITE (NEUTRAL)
GROUND/GREEN (BARE)
WHITE
BLACK
BLUE
GREEN
CC
CC
CC
CC
A
C
2c. FAN AND LIGHT CONTROLLED BY TWO WALL
SWITCHES: Insert each GROUND (GREEN) wire from
fan (on downrod (A) and mounting bracket (C)) and the
BARE/GREEN wire from ceiling into openings in lever
wire connector (CC) with three levers.
Insert BLACK wire from fan and BLACK (or RED) wire
from the independent wall switch for the fan into
openings in lever wire connector (CC) with three levers.
Insert BLUE wire from fan and BLACK (or RED) wire
from the other independent wall switch for the light into
openings in lever wire connector (CC) with two levers.
Insert WHITE wire from fan and WHITE wire from
ceiling into openings in lever wire connector (CC) with
two levers.
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
2c
120V POWER
FROM CEILING
BLACK (WALL SWITCH)
BLACK (WALL SWITCH FOR LIGHT)
WHITE (NEUTRAL)
GROUND/GREEN (BARE)
WHITE
BLACK
BLUE
GREEN
CC
CC
CC
CC
A
C

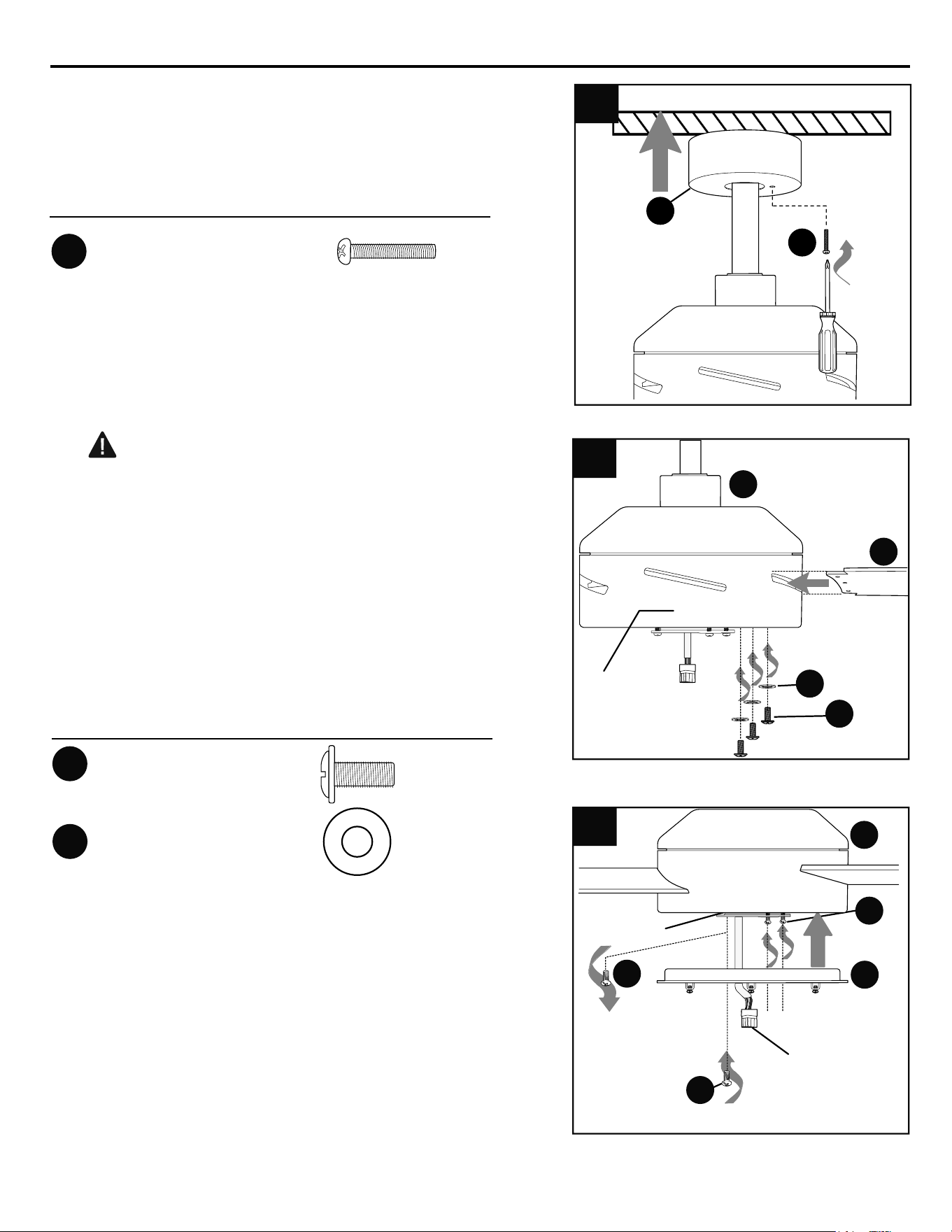

3.
Remove one motor plate screw (E) from motor plate
preassembled on the underside of the motor housing
(D) and partially loosen the other two motor plate
screws (E). Align slotted holes in fitter plate (I) with
loosened motor plate screws (E), allowing female plug
from motor housing (D) to come through hole in fitter
plate (I). Twist fitter plate (I) to lock. Re-insert the
motor plate screw (E) that was removed and securely
tighten all three motor plate screws (E).
3
E
Motor Plate
E
I
Female Plug
E
D
13
FINAL INSTALLATION
1.
Lift canopy (B) to mounting bracket (C) aligning
hole in canopy (B) with hole in mounting bracket
(C). Insert canopy mounting screw (EE) and
tighten securely.
H
DANGER: To reduce the risk of serious
bodily injury, DO NOT use power tools to
assemble the blades (H). If screws are
overtightened, blades (H) may crack and break.
Insert one blade (H) through a slot on the band of
the motor housing (D). Align holes in blade (H)
with holes in blade arms on underside of motor.
Attach the blade (H) with blade screws (AA) and
fiber blade washers (BB). Then, tighten each
blade screw (AA), starting with the one in the
middle. Repeat for remaining blades (H).
2.
3
2
Band
D
AA
BB
Blade Screw
x 15
Hardware Used
AA
Fiber Blade Washer
x 15
BB
Canopy Mounting Screw x 1
Hardware Used
EE
B
EE
1
6.
NOTE: It is recommended to test your fan (Step 3,
Page 16) before installing shade (M).
Align slots on shade (M) with protrusions on
underside of switch housing (F). Turn shade (M)
CLOCKWISE until it no longer turns.
NOTE: Pull down gently on the shade (M) to make
sure it is secured completely.
6
Slot
Protrusion
M
F

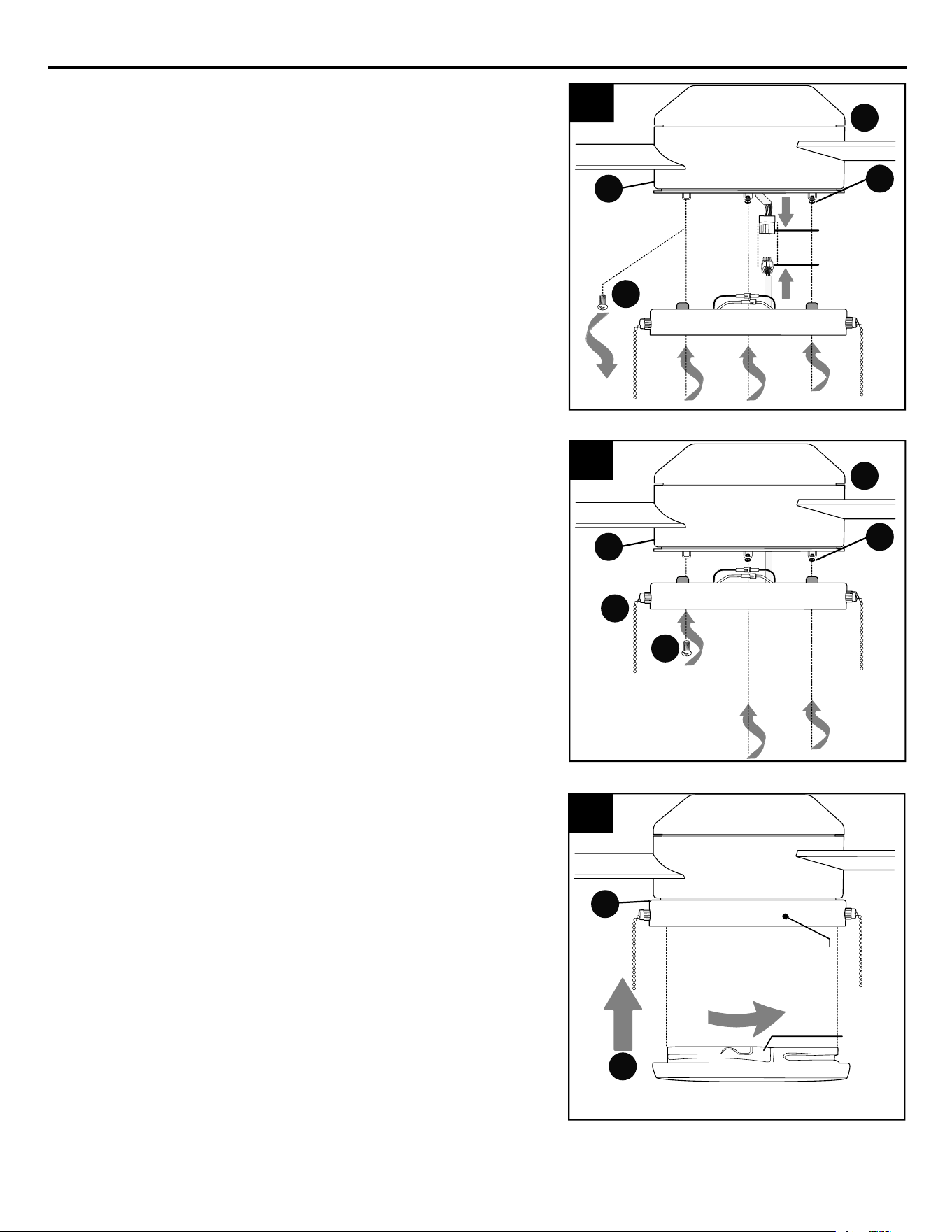

FINAL INSTALLATION
14
Carefully arrange wires inside switch housing (F).
Align slotted holes in switch housing (F) with loosened
switch housing screws (G) and twist switch housing
(F) to lock. Re-insert switch housing screw (G)
previously removed and securely tighten all three
switch housing screws (G).
5.
4.
Remove one switch housing screw (G) from post on
underside of fitter plate (I) and partially loosen the
other two switch housing screws (G).
Connect female plug from motor housing (D) to male
plug from switch housing (F), matching up the colors
on the plugs for correct fit. Make sure plugs connect
tightly.
F
5
4
D
G
Female
Plug
Male
Plug
G
I
D
G
G
I
The pull chain labeled FAN has four positions to
control fan speed. One pull is HIGH, two is
MEDIUM, three is LOW and four turns the fan
OFF.
1.
1
OPERATING INSTRUCTIONS
FINAL INSTALLATION
15

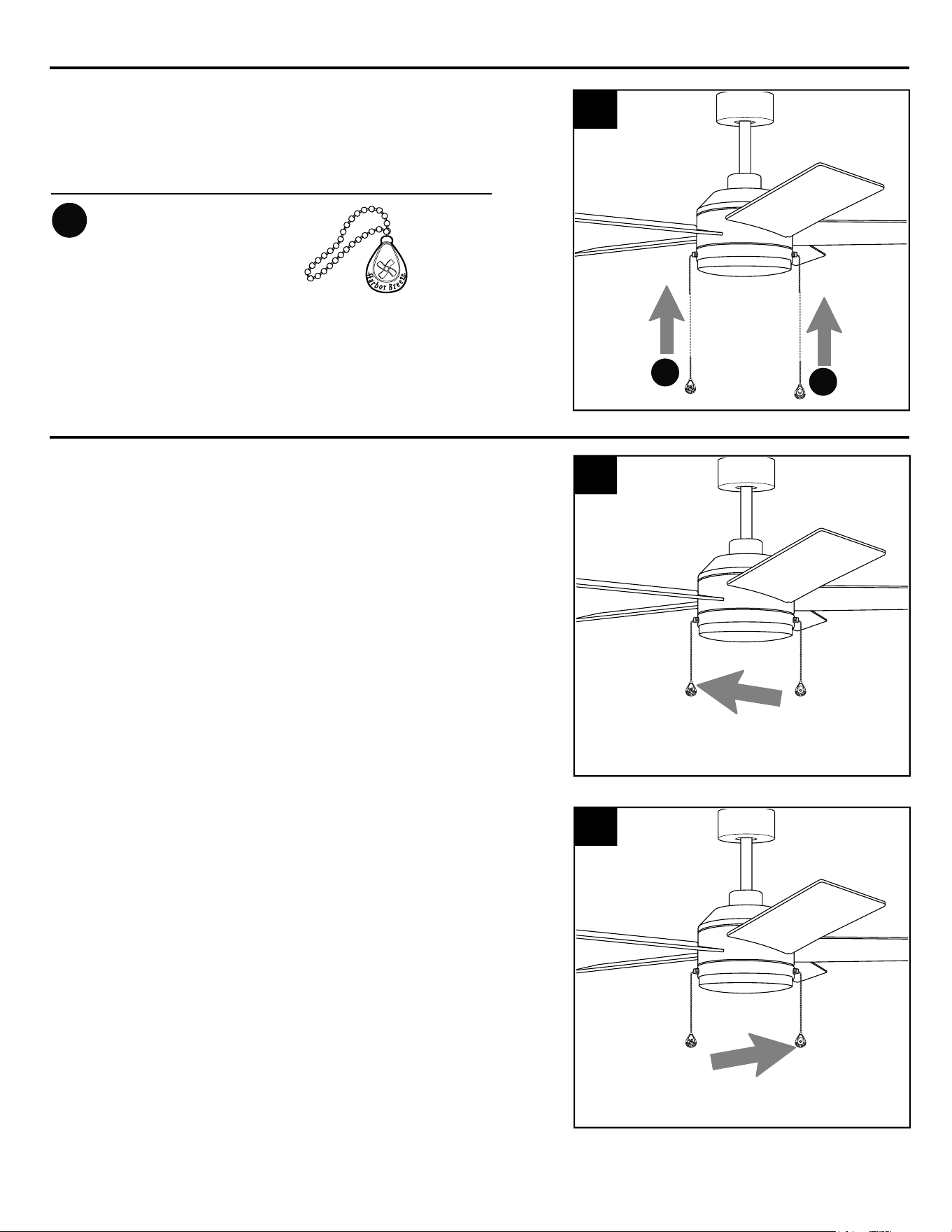

7.
Attach pull chain extensions (DD) or custom pull
chain extensions (not included) to corresponding
fan and light pull chains.
7
2.
The pull chain labeled LIGHT is used to control
the light.
To turn the light ON or OFF, simply pull down on
and then let go of the light pull chain.
To DIM the light, pull on and hold the light pull
chain down. When the desired brightness
appears, let go of the pull chain.
To use the COLOR MODE feature for the light,
pull on the light pull chain rapidly twice. Repeat
until the desired color temperature appears.
Color temperature settings:
– soft white
– warm white
– cool white
– daylight
– cool daylight
2
Pull Chain Extension x 2
Hardware Used
DD
DD
DD
OPERATING INSTRUCTIONS
16

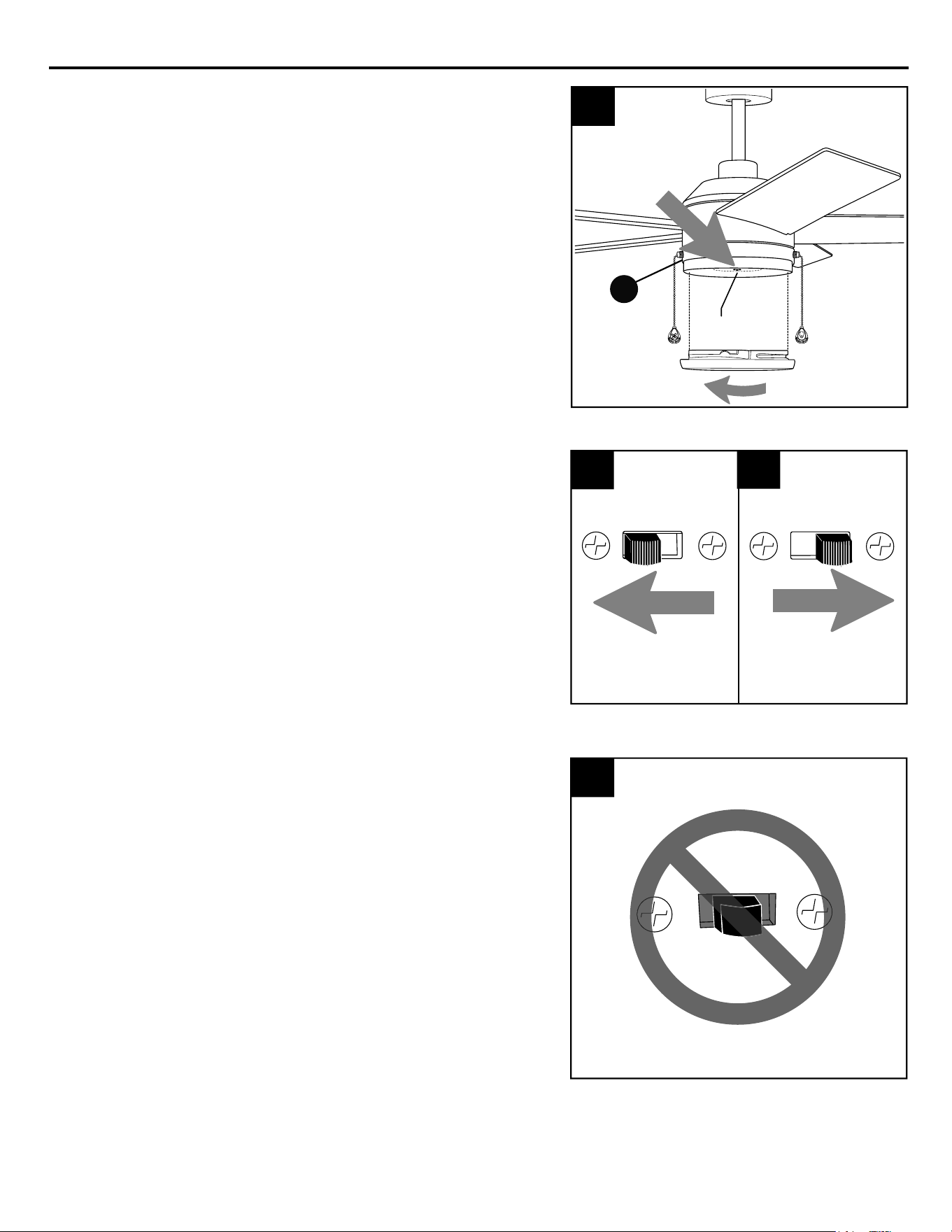

3c. IMPORTANT: Reverse switch must be set
either completely LEFT or completely RIGHT
for fan to function. If the reverse switch is set in
the middle position, fan will not operate.
3c
3.
Carefully remove the shade (M) to access fan
reverse switch. Use the fan reverse switch,
located in the switch housing (F), to optimize
your fan for seasonal performance. A ceiling fan
will allow you to raise your thermostat setting in
summer and lower your thermostat setting in
winter without feeling a difference in your
comfort.
NOTE: Wait for fan to stop before moving the
reverse switch.
3a. In warmer weather, setting the reverse
switch in the LEFT position will result in
downward airflow creating a wind chill effect.
3b. In cooler weather, setting the reverse
switch in the RIGHT position will result in
upward airflow that can help move stagnant,
hot air off the ceiling area.
3a
3b
3
F
Reverse Switch
17
Excessive wobbling.
1. Blades are loose.
2. Unbalanced blades.
3. Fan not securely mounted.
4. Fan too close to vaulted ceiling.
5. Set screw(s) on motor housing
yoke is (are) not tightened properly.
6. Set screw on hanging ball is not
tightened properly.
1. Tighten all blade screws.
2. Switch one blade with a blade from
the opposite side.
3. Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
4. Use a longer downrod or move fan to
another location.
5. Tighten yoke set screw(s) securely.
6. Carefully loosen and lower canopy
and verify that set screw on hanging
ball is tightened securely.
CARE AND MAINTENANCE
At least twice each year, lower canopy (B) to check downrod (A) assembly, and then tighten all screws
on the fan. Clean motor housing (D) with only a soft brush or lint-free cloth to avoid scratching the
finish. Clean blades (H) with a lint-free cloth. You may occasionally apply a light coat of furniture polish
to wood blades (H) for added protection.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
Total wattage for the light kit for this fan is 20 watts; do not attempt to replace the LEDs.
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move.
1. Reverse switch not engaged.
2. Power is off or fuse is blown.
3. Faulty wire connection.
1. Push switch firmly either left or right.
2. Turn power on or check fuse.
3. Turn power off. Loosen canopy and
check all connections.
Noisy operation.
1. Blades are loose.
2. Cracked blade.
3. Full range dimmer switch.
4. Fan is new.
1. Tighten all blade screws.
2. Replace blade.
3. Replace with an approved speed
control device.
4. Allow fan a “break in” period of a few
days, especially when running the fan
at Medium and High speeds.
TROUBLESHOOTING
Fan operates but
light fails.
1. Wires in canopy not wired properly.
2. Wall switch to light is off.
1.Check wires in canopy and, if
necessary, re-wire according to
instructions on pages 11 - 12.
2. Make sure that wall switch to light is
on.
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
18
GGLI2408
REPLACEMENT PARTS LIST
A Downrod
B Canopy
C Mounting Bracket
H Blade
6009624-A
6009624-B
6009624-C
6009624-H
PART DESCRIPTION PART #
Printed in China
LIMITED LIFETIME WARRANTY
Set forth below, the manufacturer warrants the fan motor for this ceiling fan to be free from defects in
workmanship and material for the life of the product. Also, subject to the limitations below, the manufacturer
warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made in whole or in part with
glass) to be free from defects in workmanship and material for a period of one year after the date of
purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product through
a store or contractor. Ceiling fan part defects must be reported within the first year from the date of
purchase. Parts made in whole or in part with glass and the finishes of metal and other surfaces are not
warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any part
caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by this
warranty. The manufacturer assumes no responsibility whatsoever for fan installation. Any service
performed by a non-licensed electrician will render the warranty invalid.
The manufacturer’s sole responsibility shall be to repair or replace the motor, parts, or product within the
terms stated above. The manufacturer shall not be liable for any loss or damage of any kind, including any
incidental or consequential damages resulting directly or indirectly, from any breach of warranty, express or
implied, or any other failure of this product. Some states do not allow the exclusion or limitation of incidental
or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials
within the warranty period associated with the defective part, the manufacturer agrees to replace the
defective part without charge, or at its option, to replace the ceiling fan with a comparable or superior model.
The manufacturer’s warranties are limited to the written warranties set out in this ceiling fan limited lifetime
warranty. All other express and implied warranties, including, without limitation, the implied warranty of
fitness for a particular purpose and the implied warranty of merchantability are disclaimed. Some states do
not allow the disclaimer of implied warranties, so this disclaimer may not apply to you.
All parts are replaceable (see parts list in “Package Contents” on Page 5), however, only the parts listed
below are under warranty. For replacement parts, call our customer service department at
888-251-1003, 8 a.m. - 8 p.m., EST, Monday - Sunday. You could also contact us at [email protected].
A
B
H
C
