eTOS30
BATTERY PUSH SWEEPER
Parts Manual
Parts Manual
eTOS30 BATTERY PUSH SWEEPER

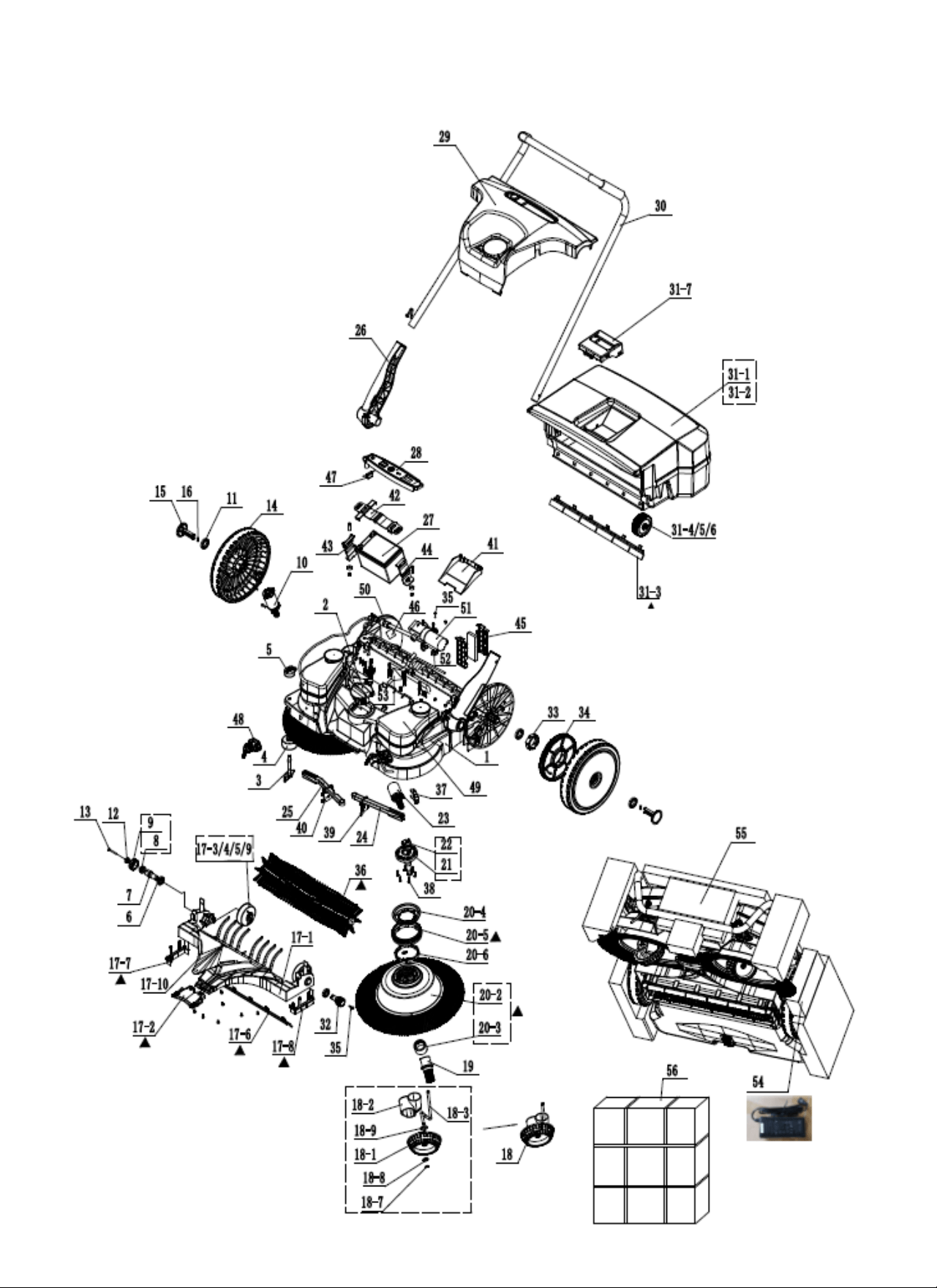

ITEM NO. NAME QUANTITY
1 Machine Frame 1
2 Regulating Handle 1
3 Anti-Collision Axle 1
4 Anti-Collision Wheel 1
5 Push Button 1
6 Bearing 61805-2Rs 4
7 Connecting Sleeve 1
8 Unidirectional Spring 1
9 Small Turbine 1
10 Brush Motor Assembly 1
11 Bearing 61903-2Rs 4
12 Turbine Cover 1
13 M 4 X 70 Assault Spike 1
14 Wheel 2
15 Wheel Cover 2
16 Wheel Cap Pin 2
17 Dust Collector Assembly 1
18 Front Wheel Assembly 2
19
Spur Gear
2
20 Front Brush Assembly 2
21 Fixed Shaft 2
22 Fixed Axle Cover 2
23 Front Brush Motor Assembly 2
24 Adjusting Lever Left 1
25 Adjusting Lever 1
26 Handrail Support 2
27 Battery Assembly 1
28 Switch Seat Assembly 1
29 Upper Cover Assembly 1
30 Handrail 1
31 Dust Container Assembly 1
32 Small Pinions 1
33 Monomia Case 1
34 Big Pinions 1
35 Self-Tapping Nailst4.2×19 15
36 Roller Brush Assembly 1
37 Turbine Arm 2
38 Self-Tapping Nailst4.2×16 16
39 Camber Plate Left 1
40 Camber Plate Right 1
41 Camber Plate 1
42 Battery Pressure Plate 1 1
43 Battery Pressure Plate 2 1
44 Battery Pressure Plate 3 1
45 Sponge Assembly 2
46 Signage 1
47 Chargers 2
48 Nozzle Base Assembly 2
49 Water Container Assembly 2
50 Water Pipes And Fittings 1
51 Pump 1
52 Pump Support 1/2 4
53 Filter Assembly 2
54 Insurance Pipe 1
55 Packaging 1
56 Box 1
