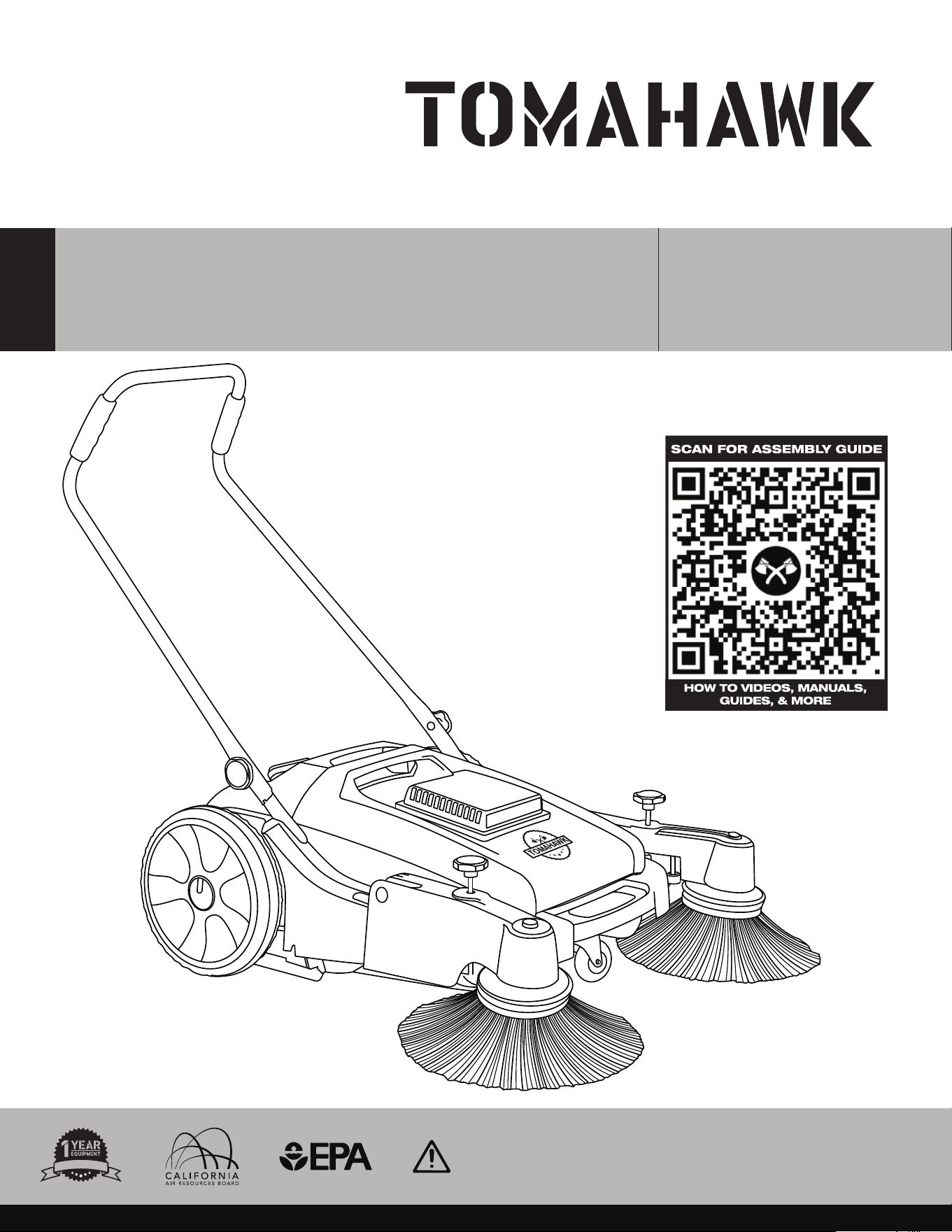

PUSH SWEEPER
MODEL NUMBER: TOS38
To reduce the risk of injury, the user must read and understand the Operator’s
Manual before using this product. Save these instructions for future reference.
Operation Manual
W
A
R
R
A
N
T
Y
2
Table of Contents
1. SAFETY INFORMATION
2. EQUIPMENT DATA
3. SPECIFICATIONS
4. QUICK ASSEMBLY GUIDE
5. OPERATION
- Using the Sweeper
- Checking the Equipment
- Removing Debris
6. TROUBLESHOOTING
7. MAINTENANCE RECORD
8. REPLACEMENT PARTS
9. WARRANTY
10. PARTS MANUAL
11. CATALOG & COUPON
3
Register Your Equipment
Thank you for purchasing TOMAHAWK® equipment! Your product is covered by the
TOMAHAWK® Warranty policy, but in order to activate your warranty, we need you to register
your product. In addition to activating your equipment warranty, product registration will
grant you access to important product updates, streamlined customer service and more.
INCLUDED WITH YOUR REGISTRATION
☑ Equipment Warranty Activation
☑ Product Updates
☑ Streamlined Customer Service
☑ Exclusive Discounts and Sales
STEPS TO REGISTER YOUR EQUIPMENT
1. Visit www.tomahawk-power.com
2. Choose “Product Registration” at the bottom of the page
3. Enter your equipment’s serial number to get started
4. Provide all required information
5. Submit Registration
Equipment Resources
TOMAHAWK® Customer Service doesn’t stop at checkout. We understand to keep a job-site
running smoothly - the proper equipment, spare parts, instruction manuals, and more are
needed at the drop of a hat. Visit www.tomahawk-power.com to gain access to the incredible
resources below.
How To Video Library
More of a visual person? Visit our Video Library for equipment
assembly instructions, troubleshooting tips, and more!
Found at the TOMAHAWK® Resource Center
Manual and Assembly Guide Library
Visit our Manual Library if you are looking for a lost
operations manual or a particular spare part?
Found on the TOMAHAWK® Manuals Page
Service Requests
In need of a quick fix or a service center referral? Submit a
Service Request and a TOMAHAWK® Technician will respond
shortly to get you the help you need.
Choose “Service Request” at the bottom of www.tomahawk-power.com
This manual provides information and procedures to safely operate and maintain this
model. For your own safety and protection from injury, carefully read, understand and
observe the safety instructions described in this manual.
Keep this manual or a copy of it with the machine. If you lose this manual or need an
additional copy, please contact TOMAHAWK® or visit www.tomahawk-power.com This
machine is built with user safety in mind; however, it can present hazards if improperly
operated and serviced. Follow operating instructions carefully. If you have questions about
operating or servicing this equipment, please contact TOMAHAWK®.
The information contained in this manual is based on machines in production at the time of
publication. TOMAHAWK® reserves the right to change any portion of this information
without notice.
No part of this publication may be reproduced in any form or by any means, electronic or
mechanical, including photocopying, without express written permission from
TOMAHAWK®.
Any type of reproduction or distribution not authorized by TOMAHAWK® represents an
infringement of valid copyrights and will be prosecuted. We expressly reserve the right to
make technical modifications, even without due notice, which aim at improving our
machines or their safety standards.
1. SAFETY INFORMATION
This manual contains DANGER, WARNING, CAUTION, and NOTE callouts which must be
followed to reduce the possibility of personal injury, damage to the equipment, or improper
service.
This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid possible injury
or death.
DANGER indicates an imminently hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injury.
DANGER
WARNING
CAUTION
4
5
1.1 Operating Safety
1.1.1 Observe all applicable local safety regulations, standards, and ordinances.
1.1.2 Individuals who operate the sweeper must be informed about the dangers related to
use of the machine.
1.1.3 Do not operate the sweeper if you are under the influence of any substance (drugs,
alcohol) which might impair vision, dexterity, or judgment.
1.1.4 Keep bystanders, especially children, and animals away from the work area.
1.1.5 The user is responsible for avoiding injury to third parties or damage to their property.
1.1.6 Do not lend or rent your power tool without the instruction manual. Be sure that
anyone using it understands the information contained in this manual.
1.1.7 If you have any condition that might be aggravated by strenuous work, check with your
doctor before operating a power tool.
1.2 Usage
1.2.1 The sweeper is designed for sweeping road dust, leaves, grass, paper, and similar items
from flat and hard surfaces.
1.2.2 Do not sweep substances that are dangerous to health. The power tool is not suitable
for sweeping liquids.
1.2.3 Never sweep explosive dusts, liquids, acids, or solvents.
1.2.4 Do not operate the power tool in potentially explosive atmospheres.
1.2.5 Do not use the power tool as a means of transport.
1.2.6 Wear sturdy shoes with non-slip soles
8. Wheel Cover
9. Dust Filter
10. Angled Wheel
11. Handle Knob
12. Rolling Brush
13. Handle Grip
14. Baffle
6
2. EQUIPMENT DATA

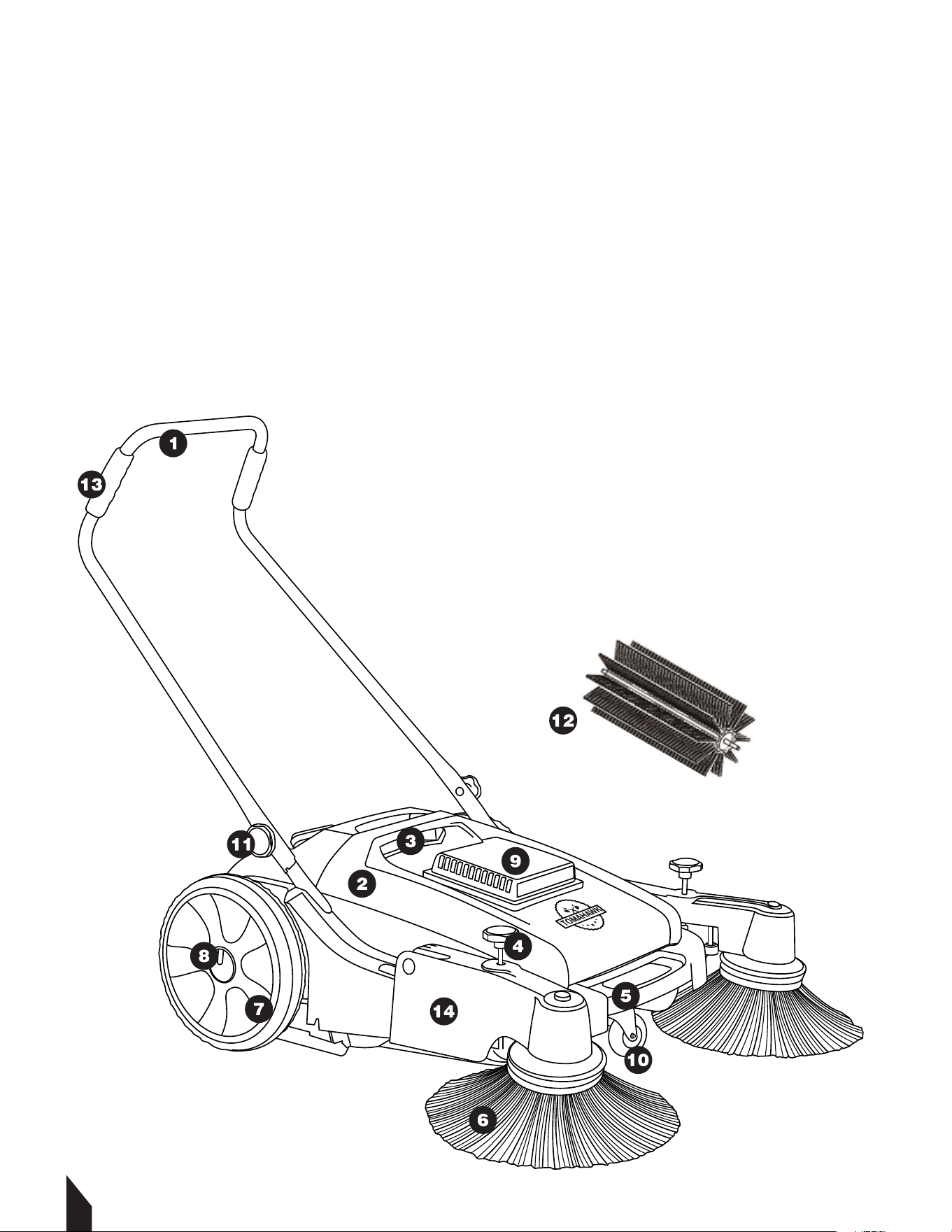

2.1 Features
1. Push Handle
2. Waste Bin
3. Waste Bin Handle
4. Arm Adjustment Knob
5. Carrying Handle
6. Disc Brush
7. Running Wheel
Working Width
31 - 38 in. (78.7 - 96.5)
Cleaning Area
12,467 ft (3799.9 m)
Container Capacity
14.5 Gallons (54.8 Liters)
Net Weight
60 lb. (27.2 kg)
Package Size
36 x 31 x 16 in (91.4 x 78.7 x40.6 cm)
Storage Temperature
14F - 104F (-10C - 40C)
Brush Assembly Types 2 Side Brushes 1 Roller Brush
Roller Brush
19 in. (48.2 cm)
Side Brush
15 in. (38.1 cm)
Uses Indoor and Outdoor
Fine Dust Filter Included
Adjustable Roller Brush Yes
Foldable Side Brush Yes
TOS38 SPECIFICATIONS
7
3. SPECIFICATIONS
8
2

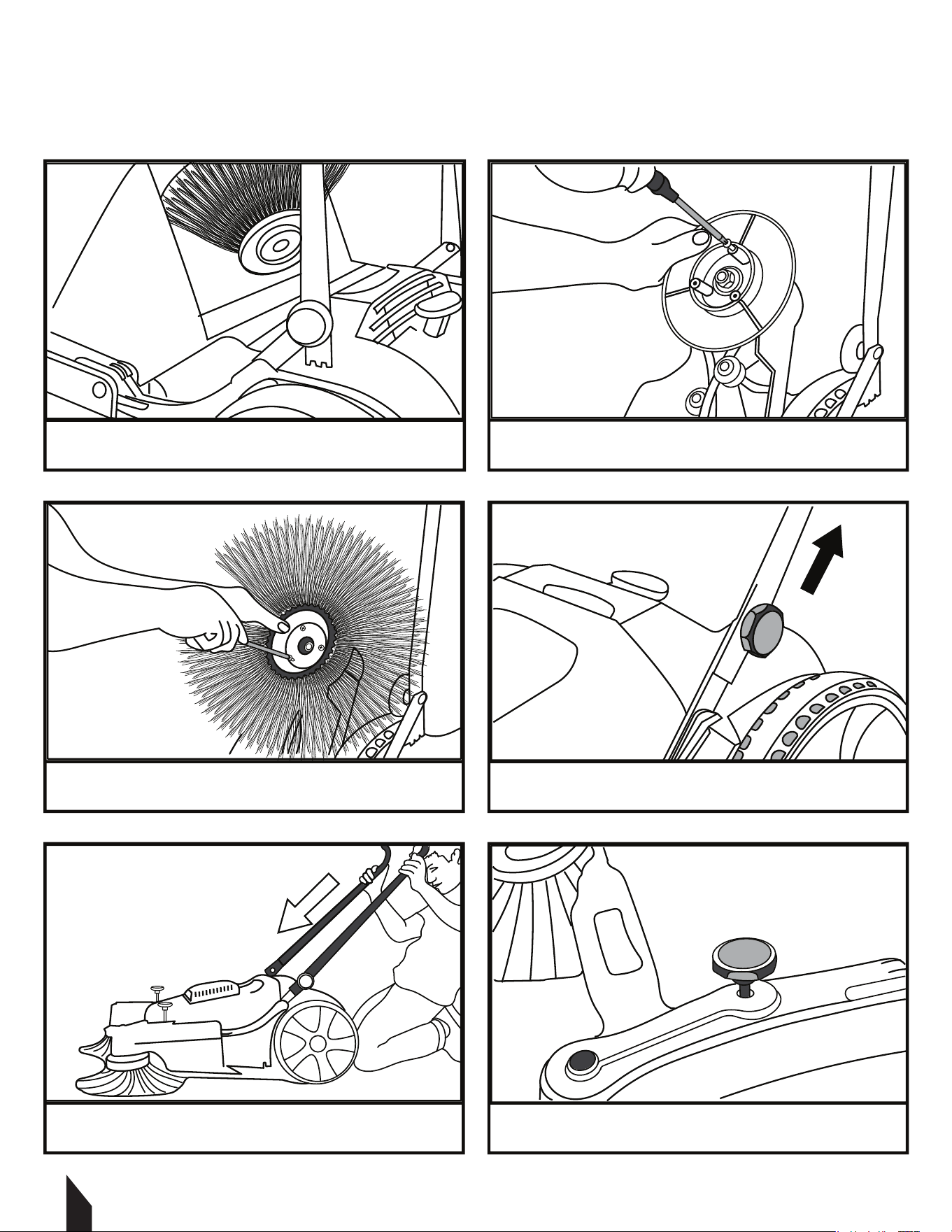

Lift the broom arms and begin unscrewing
the 3 screws attached underneath.
4
Loosen the handles knobs then pull the
handlebar up to align it with the slots.
6
Adjust the height of the brushes using the back
lever and side knobs for deeper cleaning.
1
Raise the handles and open the hopper bin
to find the sweeper’s two front brooms.
3
Align the first broom to the holes in the arm
and begin to fasten in place with the screws.
5
Push the handlebar down into the slots and
tighten the knobs to lock it in place.
4. QUICK ASSEMBLY GUIDE
5. OPERATION
5.1. Using the Sweeper
5.1.1 The operator should use the sweeper under normal conditions and consider the
surrounding environment when operating - be cautious of people around the sweeper
and objects that may unintentionally sweep in an outward direction.
5.1.2 Depending upon the area the operator intends to sweep, you can adjust the
height of the front and back brushes. The higher the brush is set the less pressure exerted on
surfaces. A higher the brush is set may be less effective but will increase the longevity of the
brush. A lower brush setting will be more effective at sweeping, but may be harder to push
and decrease the longevity of the brush.
5.1.3 If debris is not going into the sweeper, try sweeping quickly with some force over
the debris pile to push the trash into the sweeper trash bin.
5.2 Checking the Equipment Prior to Use
5.2.1 Check to ensure that the push handle is securely attached to the sweeper.
5.2.2 Check condition of waste bin and ensure that it is securely attached.
5.2.3 Check the disc brushes and fine dirt sweeping roller for stuck parts and embedded dirt
- bristles must move freely.
5.2.4 Check height adjustment of the disc brushes and adjust to the ground to be swept.
5.2.5 Check the height adjustment.
9
Note: Do not pull the sweeper in reverse. It will not properly collect
trash in the reverse direction.
Note: The machine must be serviced regularly. Do not attempt any
maintenance or repair work not described in the Instruction
Manual. All other work should be carried out by a servicing dealer.
5.3 Removing Debris

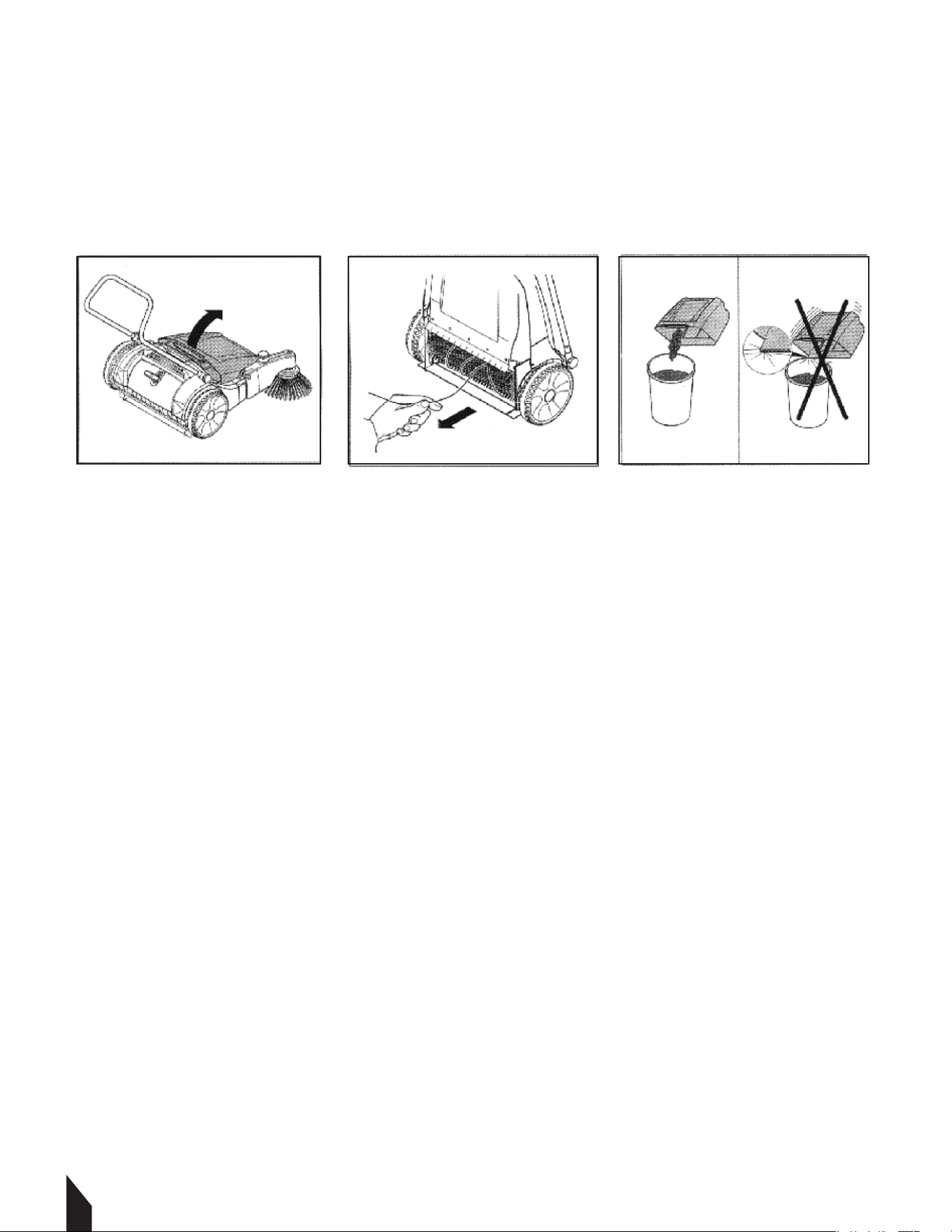

5.3.1 Hold your handle and li it up to remove the garbage can
5.3.2 When the main brush is entangled with garbage, it should be reversed and removed
in time.
5.3.3 Dump the garbage along the side of the garbage can. No knocking on the garbage
can is allowed.
6. TROUBLESHOOTING
6.1 Cleaning the Equipment
6.1.1 Always clean, dust off and clear debris from the sweeper
6.1.2 Do not use any grease solvents, pressure washer for cleaning the sweeper.
6.1.3 Wear safety gear when cleaning to reduce the risk of injury.
6.1.4 Store the machine in a safe and dry area.
6.2 Fixing a Clog
Solution: If one of the side brooms or the roller brush becomes blocked, stop work, and
remove the blockage. Wear work gloves to reduce the risk of cuts or injuries from sharp
objects.
6.3 If Debris Escapes from the Sides
Solution: Continue pushing the sweeper for a brief period, li the sweeper up at the front
(front wheels up doing a wheelie) so that dirt falls to the back of the trash bin hopper. This
helps make better use of the hopper's full capacity. When sweeping heavy material, ex:
gravel, loose chippings, nails the sweeper's center of gravity shis to the rear. This tends to
li the side brooms away from the surface and reduce cleaning efficiency. Adjust the side
brooms downward accordingly.
10
11
6.5 Side Brush Not Moving
Solution: Replace Brush and or band that rotates brush.
6.6 Debris Not Sweeping up into Hopper
Solution: Replace roller brush
6.7 Brush Bristles Damaged
Solution: Use a heat gun or blower dry to straighten bristles
6.8 The Machine is Difficult to Push
Solution: The Roller brush may have a blockage. Unclog the brush. Also, the side brushes
may be a setting that is too low; increase the height of the brushes.
6.9 Gear Components Stiff
Solution: Lubricate gears with a silicone-based oil.
12

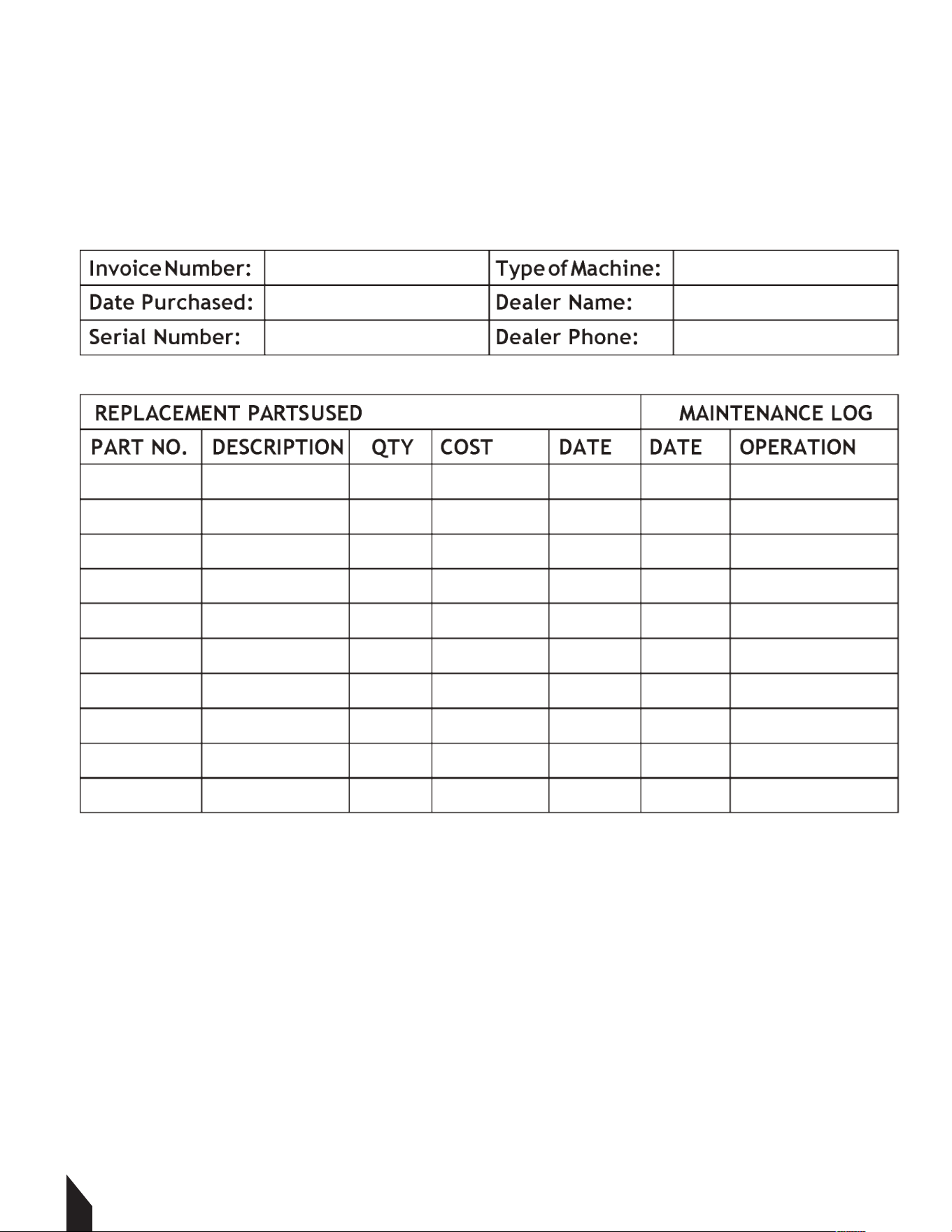

7. MAINTENANCE RECORD
TOMAHAWK® tools are assembled with care and will provide years of service when properly
maintained. Preventative maintenance and routine service are essential to the long life of
your tool. Adhere to reading through this manual thoroughly. You will find that you can do
some of the regular maintenance yourself. However, when in need of parts or major service,
be sure to contact a TOMAHAWK® Technician. For your convenience we have provided this
space to record relevant data about your TOMAHAWK® equipment.

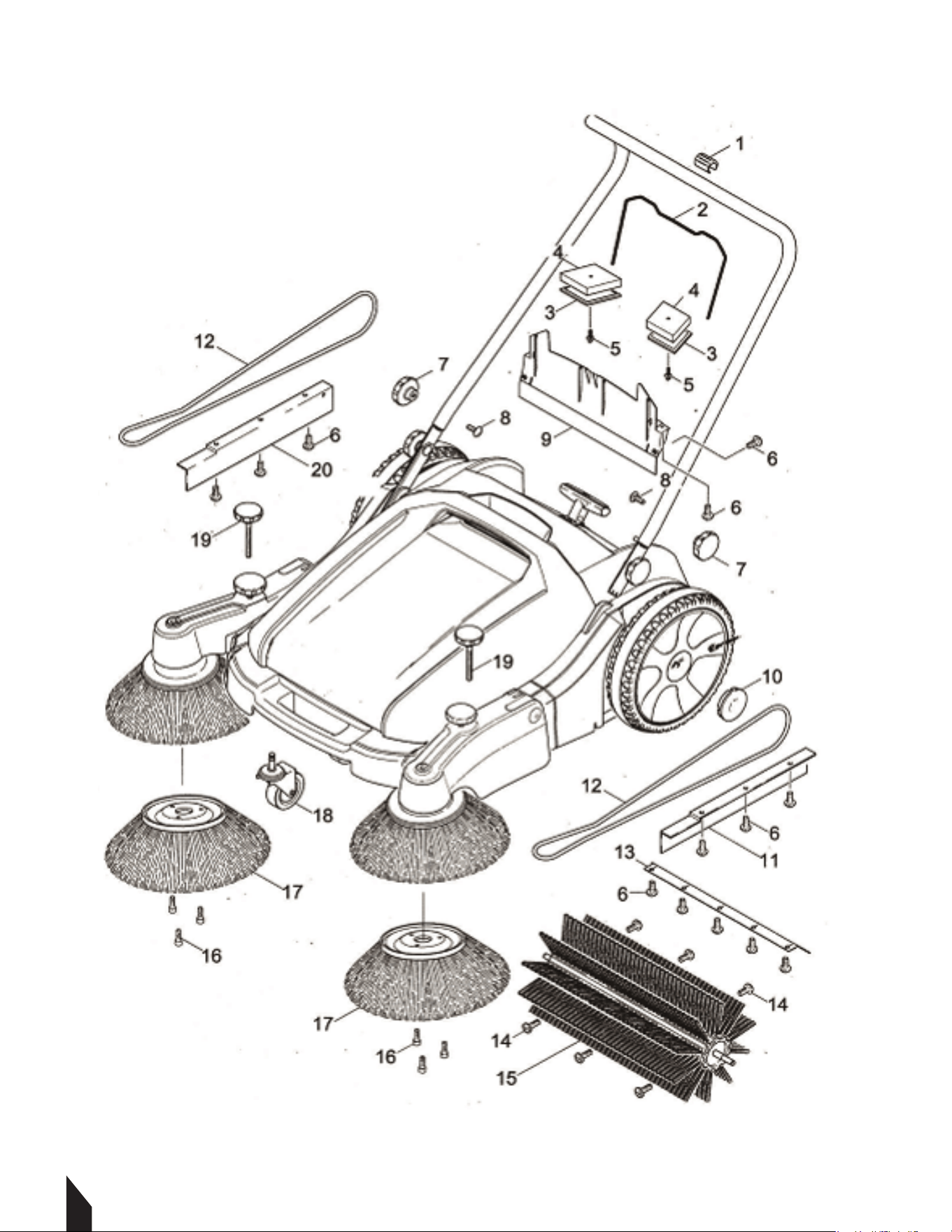

8. REPLACEMENT PARTS
8.1
8.2
8.3
8.4
13
9. WARRANTY
Your new TOMAHAWK® equipment is warranted to the original purchaser for a period of
one-year.
(12 months) from the original date of purchase. The TOMAHAWK® warranty is against defects
in design, materials and workmanship.
The following are not covered under the warranty:
1. Damage caused by abuse, misuse, dropping or other similar damage caused by or as a
result of failure to follow assembly, operation or user maintenance instructions.
2. Alterations, additions or repairs carried out by persons other than TOMAHAWK® or their
recognised agents.
3. Transportation or shipment costs to and from TOMAHAWK® or their recognised agents, for
repair or assessment against a warranty claim, on any machine.
4. Materials and/or labor costs to renew, repair or replace components due to fair wear and
tear.
TOMAHAWK® and/or their recognised agents, directors, employees or insurers will not be
held liable for consequential or other damages, losses or expenses in connection with or by
reason of or the inability to use the machine for any purpose.
Warranty Claims
Before submitting any warranty claim, your new TOMAHAWK® equipment should be
registered through www.tomahawk-power.com. Follow the steps on page 3 to complete the
equipment registration. Aer registration is complete, all warranty claims should firstly be
directed to TOMAHAWK® through the online Service Request form found at
www.tomahawk-power.com/pages/service-request.
14

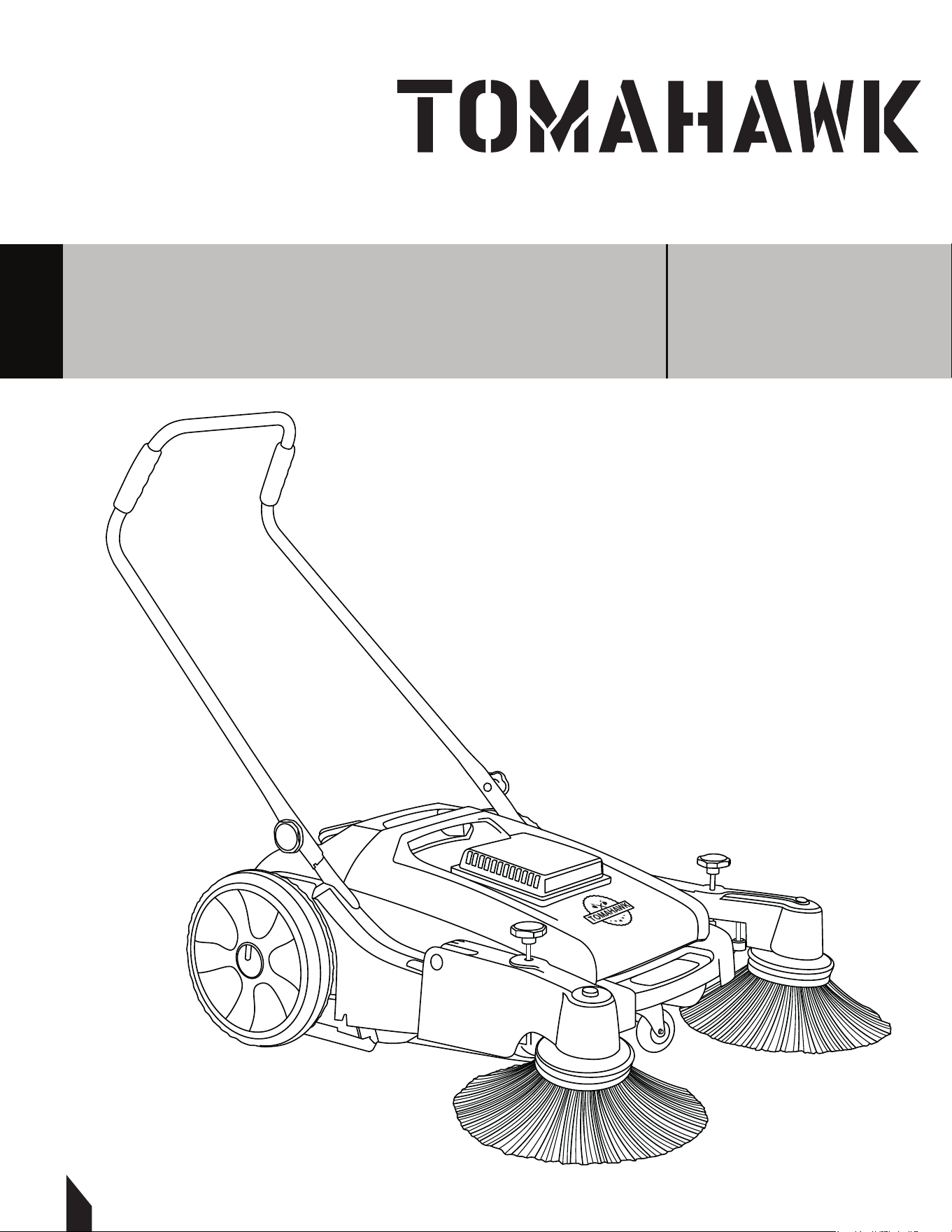

TOS38
PUSH SWEEPER
Parts Manual
15
PARTS LIST
Part # Name
1 Handle Sleeve
2 Sealing Gluey Stripe
3 Sponge Cap
4 Sponge
5 Locking Pin
6 Self Tapping Screw St4.8*16
7 Screw Cap
8 Half Round Head Square Neck Bolt M8*25
9 Dust-Proof Rear Cover
10 Wheel Cover
11 Baffle 1
12 Drive Belt
13 Dust-Proof Rubber
14 Self Tapping Screw ST4.8*32
15 Rolling Brush
16 Self Tapping Screw ST4.8*22
17 Side Brush
18 Universal Wheel
19 Adjusting Bolt Assembly
20 Baffle 2
16
24
TAKE BACK YOUR YARD
Enjoy the outdoors again.
Tomahawk mosquito foggers deliver the
power to eliminate virus-carrying pests,
before they ruin outdoor activities for your
friends and family. 10x Faster than manual
sprayers, cover 1 acre in less than 30 minutes
with ǔ0ƚ *! ea#. Great for year-round use,
Tomahawk Foggers are also an excellent leaf
blowing solution. No matter the season, keep
your yard pest free and looking great!
Item #: TMD14
3.7 GALLON TURBO
BACKPACK FOGGER
www.tomahawk-power.com
h
e
t
s,
t
o
ur
ual
t
es
s
e,
e
a
f
e
p
1.6HP Backpack Concrete Vibrator
Part#: TVIBH + TVW10-P
1.6 HP Honda GX35 engine
Consolidation with speeds of 10,000-12,000 VPM
Quick Connect centrifugal clutch vibrator
1” and 2” Diameter Whips Available in 10ft Length
3 Year Engine Warranty & 1 Year Product Warranty
8” Gas Powered Concrete Scarifier
Part#: TSCAR8H
5.5 HP Honda GX160 Engine
Remove traffic lines at 800 - 1,000 linear ft/hr
Tungsten Carbide Blade Kit Available
OSHA approved dust port for silica vacuum removal
3 Year Engine Warranty & 1 Year Product Warranty
36” & 46” Concrete Power Trowel
Part#: TPT36H/K & TPT46H/K
6 HP/14HP Kohler & 5.5HP/8.5HP Honda Engines
Adjust trowel blade pitch from 0-28°
60-115 RPM rotor speed for superior concrete finishes
Includes float pan and trowel blades
3 Year Engine Warranty & 1 Year Product Warranty
HAVE QUESTIONS?
Contact us. We’re here to help!
Email us at [email protected]
3,550 lbs/ft Vibratory Rammer
Part#: TR68H
3.6 HP Honda GXR120 Engine
Easily achieve a 100% compaction rating
3-in-One Fuel System with carburetor protection
13” x 11” plate for narrow trenches and corners
3 Year Engine Warranty & 1 Year Product Warranty
3,400 lbs/ft Plate Compactor
Part#: TPC90H
5.5 HP Honda GX160 Engine
Easily achieve a 100% compaction rating
22” x 20” cold, rolled steel beveled base plate
Includes 3.5 gallon water tank for asphalt compaction
3 Year Engine Warranty & 1 Year Product Warranty
3,000 lbs/ft Plate Compactor
Part#: TPC80 & TPC80H
6 HP Kohler CH260 & 5.5 HP Honda GX160 Engines
Easily achieve a 100% compaction rating
16.5” x 21.5” plate for narrow trenches and corners
Optional Honda Engine model: TPC80H
3 Year Engine Warranty & 1 Year Product Warranty
COMPACTION
6.5 Gal Backpack Concrete Sprayer
Part#: TCS6.5
Maintain constant, adjustable pressure up to 450 PSI
Achieve superior concrete finishes with even spraying
Spray 15,000 sq ft in less than 10 minutes
Compatible with major manufacturer wands
1 Year Product Warranty
1.6 HP Vibratory Concrete Screed
Part#: TVSA-H
1.6 HP Honda GX35 Engine
Aluminum Magnesium blades available from 8ft - 14ft
Finish concrete 4X faster than other screed methods
360° adjustable handle placement
3 Year Engine Warranty & 1 Year Product Warranty
6” Early Entry Green Concrete Saw
Part#: TFS6H
5.5 HP Honda GX160 Engine
Maximum cutting depth of 1 3/16 inches
OSHA compliant vacuum port for dust collection
Includes 6” early entry concrete blade
3 Year Engine Warranty & 1 Year Product Warranty
FINISHINGFINISHING
1.6HP Backpack Concrete Vibrator
Part#: TVIBH + TVW10-P
1.6 HP Honda GX35 engine
Consolidation with speeds of 10,000-12,000 VPM
Quick Connect centrifugal clutch vibrator
1” and 2” Diameter Whips Available in 10ft Length
3 Year Engine Warranty & 1 Year Product Warranty
8” Gas Powered Concrete Scarifier
Part#: TSCAR8H
5.5 HP Honda GX160 Engine
Remove traffic lines at 800 - 1,000 linear ft/hr
Tungsten Carbide Blade Kit Available
OSHA approved dust port for silica vacuum removal
3 Year Engine Warranty & 1 Year Product Warranty
36” & 46” Concrete Power Trowel
Part#: TPT36H/K & TPT46H/K
6 HP/14HP Kohler & 5.5HP/8.5HP Honda Engines
Adjust trowel blade pitch from 0-28°
60-115 RPM rotor speed for superior concrete finishes
Includes float pan and trowel blades
3 Year Engine Warranty & 1 Year Product Warranty
HAVE QUESTIONS?
Contact us. We’re here to help!
Email us at [email protected]
3,550 lbs/ft Vibratory Rammer
Part#: TR68H
3.6 HP Honda GXR120 Engine
Easily achieve a 100% compaction rating
3-in-One Fuel System with carburetor protection
13” x 11” plate for narrow trenches and corners
3 Year Engine Warranty & 1 Year Product Warranty
3,400 lbs/ft Plate Compactor
Part#: TPC90H
5.5 HP Honda GX160 Engine
Easily achieve a 100% compaction rating
22” x 20” cold, rolled steel beveled base plate
Includes 3.5 gallon water tank for asphalt compaction
3 Year Engine Warranty & 1 Year Product Warranty
3,000 lbs/ft Plate Compactor
Part#: TPC80 & TPC80H
6 HP Kohler CH260 & 5.5 HP Honda GX160 Engines
Easily achieve a 100% compaction rating
16.5” x 21.5” plate for narrow trenches and corners
Optional Honda Engine model: TPC80H
3 Year Engine Warranty & 1 Year Product Warranty
COMPACTION
6.5 Gal Backpack Concrete Sprayer
Part#: TCS6.5
Maintain constant, adjustable pressure up to 450 PSI
Achieve superior concrete finishes with even spraying
Spray 15,000 sq ft in less than 10 minutes
Compatible with major manufacturer wands
1 Year Product Warranty
1.6 HP Vibratory Concrete Screed
Part#: TVSA-H
1.6 HP Honda GX35 Engine
Aluminum Magnesium blades available from 8ft - 14ft
Finish concrete 4X faster than other screed methods
360° adjustable handle placement
3 Year Engine Warranty & 1 Year Product Warranty
6” Early Entry Green Concrete Saw
Part#: TFS6H
5.5 HP Honda GX160 Engine
Maximum cutting depth of 1 3/16 inches
OSHA compliant vacuum port for dust collection
Includes 6” early entry concrete blade
3 Year Engine Warranty & 1 Year Product Warranty
FINISHINGFINISHING
Ramm
er
Ramm
er
USE CODE
SAVE10
AT CHECKOUT FOR
10% OFF YOUR ORDER AT
WWW.TOMAHAWK-POWER.COM
www.tomahawk-power.com
www.tomahawk-power.com
(866) 577-4476
ASSEMBLED IN THE
PARTS SOURCED GLOBALLY
USA
INVERTER SERIESINVERTER SERIES
www.tomahawk-power.com
(866) 577-4476
3.7 Gallon 3HP Backpack Fogger
Part#: TMD14
Turbo Boosted Pump with 40ft + Horizontal Reach
Sprays 1 acre in 30 minutes
10X Faster than Manual Pump Sprayers
Converts to Leaf Blower with 200 MPH Air Velocity
1 Year Product Warranty
Commercial 38" Push Sweeper
Part#: TOS38
Collect up to 14.5 gallons of dust and debris
Can be used indoors & outdoors on wet or dry surfaces
Includes integrated airflow control and fine dust filter
Lightweight design, capable of fitting through doorways
1 Year Product Warranty
210 Amp Portable Welder Generator
Part#: TWG135Ai
Steady 50 - 135 Amp DC welding output
3300 Watt Inverter Generator
60% Duty Cycle for extended use
Suitable for welding rods from 6010 to 7024
2 Year Product Warranty
210 Amp Portable Welder Generator
Part#: TWG210A
Steady 50 - 210 Amp DC welding output
2000 Watt Inverter Generator
60% Duty Cycle for extended use
Suitable for welding rods from 6010 to 7024
2 Year Product Warranty
INVERTER SERIES
Part#: TG2000i
2000 Max Watts, 1600 Rated Watts
Run Time of 8 hours on 1 gallon of gas
OSHA and GFCI Compliant
Parallel technology capable for double the power
2 Year Product Warranty
2000 Watt Inverter Generator
5 Gallon Backpack Power Sprayer
Part#: TPS25
Reach Up to 30ft Horizontal Reach
Sprays acres in 10 minutes
10X Faster than Manual Pump Sprayers
50-435 Adjustable PSI Commercial Grade Pump
1 Year Product Warranty
4.75 Gallon Battery Power Sprayer
Part#: eTPS18
Reach Up to 30ft Horizontal Reach
Sprays 6000 sq ft in 10 minutes
10X Faster than Manual Pump Sprayers
70 PSI Commercial Grade Pump
1 Year Product Warranty
4 Gal. Motorized Fertilizer Spreader
Part#: TGS30
Reach up to 30ft Horizontally
Sprays 1 acre in 30 minutes
20X Faster than push spreaders
Converts to Leaf Blower with 200 MPH Air Velocity
1 Year Product Warranty
3” Full Trash Water Pump
Part#: TW3H
Moves liquids at a rate up to 375 gal/min
Handle solids up to 1.5"
Silicone carbide seals and a chrome plated volute
8 HP engine protected by rugged all purpose frame
3 Year Engine Warranty & 1 Year Product Warranty
AND MORE GENERATORSWELDING / POWER
INVERTER SERIES
Part#: TG2000i
2000 Max Watts, 1600 Rated Watts
Run Time of 8 hours on 1 gallon of gas
OSHA and GFCI Compliant
Parallel technology capable for double the power
2 Year Product Warranty
2000 Watt Inverter Generator
AND MORE POWER / WELDINGPEST CONTROL
ASSEMBLED IN THE
PARTS SOURCED GLOBALLY
USA
* All coupons in this manual are valid only for orders placed on www.tomahawk-power.com, unless otherwise noted. Coupon codes
may only be used once per customer and may not be combined with any other offer. Coupons may expire at any time without notice.
Tomahawk understands to keep a job-site running smoothly the proper equipment and
spare parts are needed at the drop of a hat. With same day shipping and faster
delivery times, count on Tomahawk to keep you powered throughout the day! With
long lasting parts and engines, Tomahawk equipment will be the star of your fleet for
years to come. Visit www.tomahawk-power.com to get started today!
Power Your World
FACEBOOK
facebook.com/TomahawkPowerUSA
YOUTUBE
youtube.com/TomahawkPower
INSTAGRAM
@tomahawkpower
TOMAHAWK®, LLC
San Diego, CA
Sales Support
(866) 577-4476
Equipment Support
(866) 577-4476
www.tomahawk-power.com
