REV i DATE: 07/10/2023
FUSION SELF-SERVICE AMBIENT BAKERY MERCHANDISERS
USER MANUALS\20-29787_FUSION_USER MANUAL_GHPF(L)(H)LB_AMBIENT_SLF-SVC_BAKERY CASE
GHPF456LB and GHPF552LB
(With Standard Wire Racks And Optional Wire Baskets)
GHPF656LB.5882A
(With Optional Wicker Baskets)
CDR5838 (With Standard Wire Racks, Curved
Top Glass and Solid Surface)
GHPF656LB
(With Optional Wicker Baskets)
GHPF456LB.5882
(With Optional Wicker Baskets)
GHPF356LB
(With Optional Wicker Baskets)
GHPF456LB.6165 (With Two Front Drawers
And Two Front Work Surfaces)
CDR7586B (With Laminate Packaging Ledge, Tissue
Dispensers, and Reflective Rear Sliding Doors
SCC P/N
20-29787
USER
MANUAL
FUSION
CAREFULLY FOLLOW THESE INSTRUCTIONS
Structural Concepts Corp. ∙ 888 E. Porter Rd ∙ Muskegon, MI 49441 Phone: 231.798.8888 Fax: 231.798.4960 ∙ www.structuralconcepts.com
2
TABLE OF CONTENTS
OVERVIEW / TYPE / COMPLIANCE / WARNINGS / PRECAUTIONS / PLUGS / WIRING DIAGRAM
INSTALLATION: REMOVAL OF UNIT / POSITIONING CASE / FRAME SUPPORT RAILS …...…….
INSTALLATION, CONTINUED: BOLTING UNITS TOGETHER / ELECTRICAL RATINGS /
BALLAST BOX ………………………………………………………………………………………….
START-UP AND OPERATION: LED STYLE LIGHT FIXTURES / WARNINGS & CAUTIONARY
NOTES …………………………………………………………………………………………………...
MAINTENANCE: SHELF ASSEMBLY / DOOR ACTUATOR / TISSUE BOX / TRASH ………………..
MAINTENANCE, CONT’D: WIRE RACKS AND BASKETS / OPEN LAMINATED STORAGE AREA
SERIAL LABEL INFORMATION AND LOCATION …...…………...…..………………..……………….....
CLEANING SCHEDULE .………………………………….…………...………………….……………...........
ENGINEERED (SYNTHETIC) QUARTZ CARE AND MAINTENANCE …………………………………...
TROUBLESHOOTING ………………………………………………………………………………..………..
TECHNICAL SERVICE CONTACT INFORMATION / WARRANTY INFORMATION ….….……….......
3
4
5
6
7
8
9
10
11
12
13
3

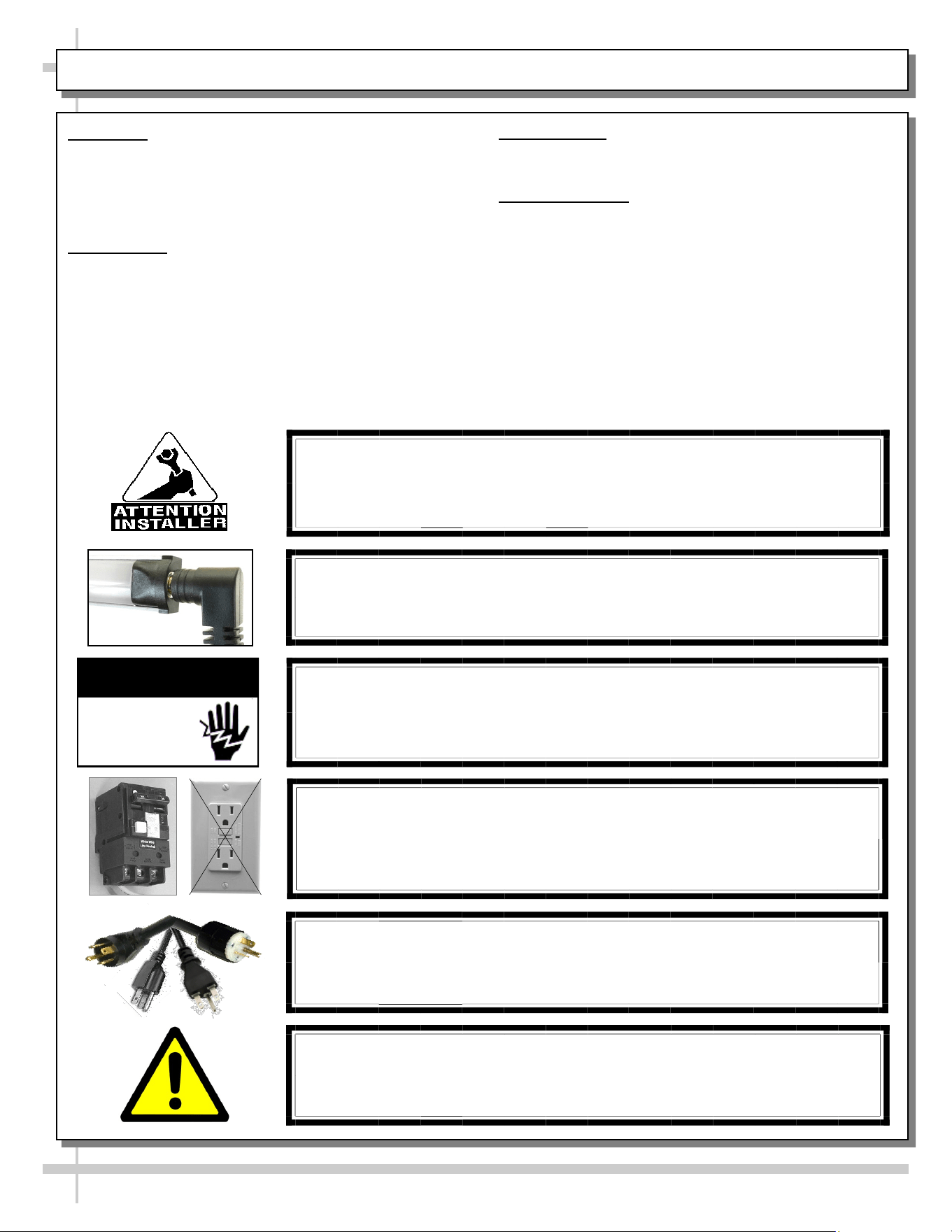

OVERVIEW
• These Structural Concepts cases should be installed and
operated according to these instructions to ensure proper
performance. Improper use will void warranty.
• This unit is designed to display of products in ambient
store conditions with a max. temperature of 80 °F (27 °C) .
COMPLIANCE
• Performance issues when in violation of applicable NEC,
federal, state or local electrical codes are not covered by
warranty. See below.
WARNING
Risk of electric shock.
Disconnect ALL ELECTRICAL SOURCES before servicing.
WARNING
ELECTRICAL
HAZARD
COMPLIANCE
This equipment MUST be installed in compliance with all applicable NEC,
federal, state and local electrical and plumbing codes.
PRECAUTIONS
• Following are important precautions to prevent damage
to unit or merchandise. Read carefully!
WIRING DIAGRAM
• Each case has its own wiring diagram folded and in its
own packet. It may be placed near ballast box, field
wiring box, raceway cover, or other related location.
CAUTION! POWER CORD AND PLUG MAINTENANCE
Risk of electric shock. If cord or plug becomes damaged,
replace only with cord and plug of same type.
CAUTION! GFCI BREAKER USE REQUIREMENT
If N.E.C. (National Electric Code) or your local code
requires GFCI (Ground Fault Circuit Interrupter) protection,
you MUST use a GFCI breaker in lieu of a GFCI receptacle.
OVERVIEW / COMPLIANCE / WARNINGS / PRECAUTIONS / WIRING DIAGRAM / CORDS & PLUGS
CAUTION! LAMP REPLACEMENT GUIDELINES
If LED lamps are used, they must be size, shape and overall design.
Any replacements must meet factory specifications.
WARNING: This product can expose you to chemicals, including
Urethane (Ethyl Carbamate), which are known to the state of
California to cause cancer and birth defects or other reproductive
harm. For more information go to P65Warnings.ca.gov.
4

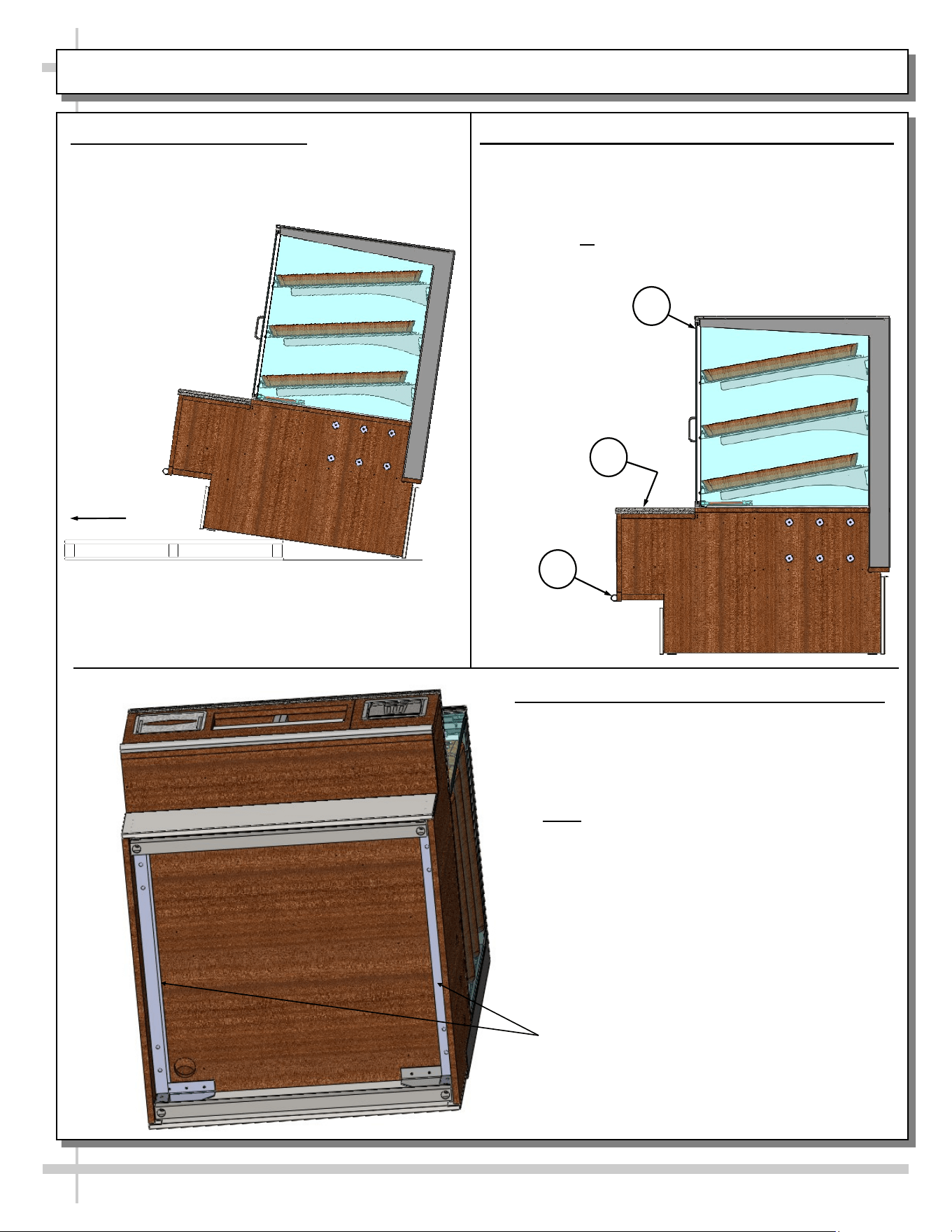

INSTALLATION: REMOVAL OF UNIT / POSITIONING CASE / FRAME SUPPORT RAILS
1. Remove Unit From Skid
Slide unit to rear of skid and tip backward off skid.
Case can be repositioned with pallet truck when front
lower panel is removed. Blocking may be necessary
to obtain adequate height.
Slide
Skid
Out
B
A
2. Position & Align Case Alongside Other Cases
• Before shimming, check that the case is in proper
position and, if required, aligned with adjoining
cases.
• This may require repositioning of the case you are
installing or the already positioned cases.
• Align multiple units carefully in areas A, B & C.
3. Frame Support Rails Must Be Shimmed
• Illustration at right shows case with frame
support rails.
• Shims are provided with all cases that have
frame support rails.
• Use shims to level case.
• Note: After case is in position, it must be
sealed to floor to prevent entry or leakage
of liquid or moisture.
C
Frame
Support
Rails
5

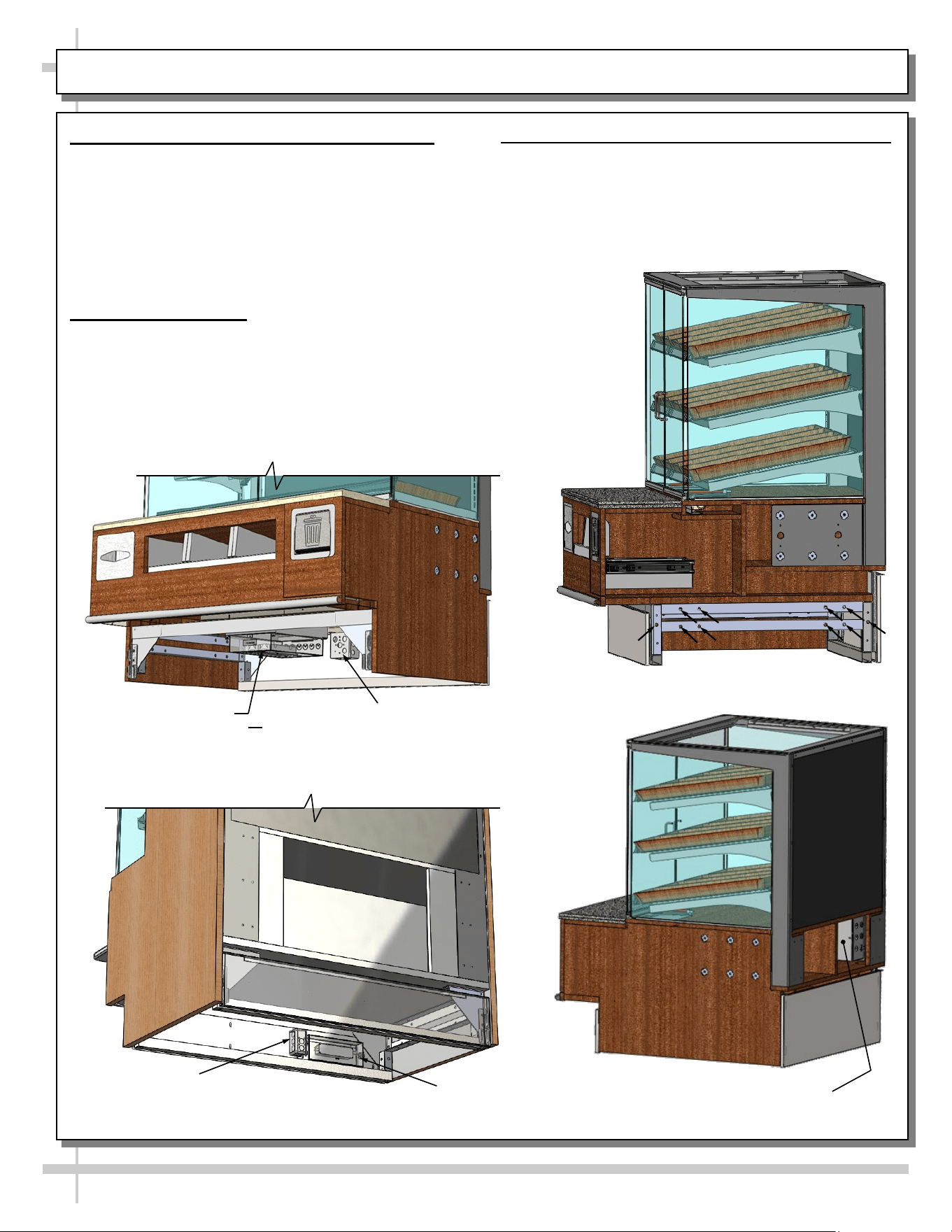

INSTALLATION, CONT’D: BOLTING UNITS TOGETHER / ELEC. RATINGS / FIELD ACCESS BOX
4. Bolting Units Together (Not All Cases)
Bolt units together at lower base as indicated.
• Remove front and rear panels (no screw removal
required) to drill clearance hole through end panel
and into unit it is being attached to.
• End panel is shown transparent for illustrative
purposes.
• Use SCC-supplied screws for adjoinment.
5. Electrical Ratings
• See SERIAL LABEL LOCATION &
INFORMATION LISTED / TECH INFO &
SERVICE section in this manual for instructions on
attaining electrical information for your case.
--- Model GHPF356LB ---
--- Model GHPF356LB ---
Field Access / Electrical Box
Model GHPF456LB.5882 Shown / Model GHPF456LB
Has Field Access Box In Same Location
Field Access Box
Ballast Box
6. Field Access Box / Ballast Box / 4 x 4 Box
• Field access box with ballasts (for LED lights)
may be either at rear or at underside of unit (as
shown in illustrations below).
--- Model GHPF456LB.6165 ---
Field Access Box
Ballast Box
6
START-UP AND OPERATION: LED STYLE LIGHT FIXTURES / WARNINGS & CAUTIONARY NOTES

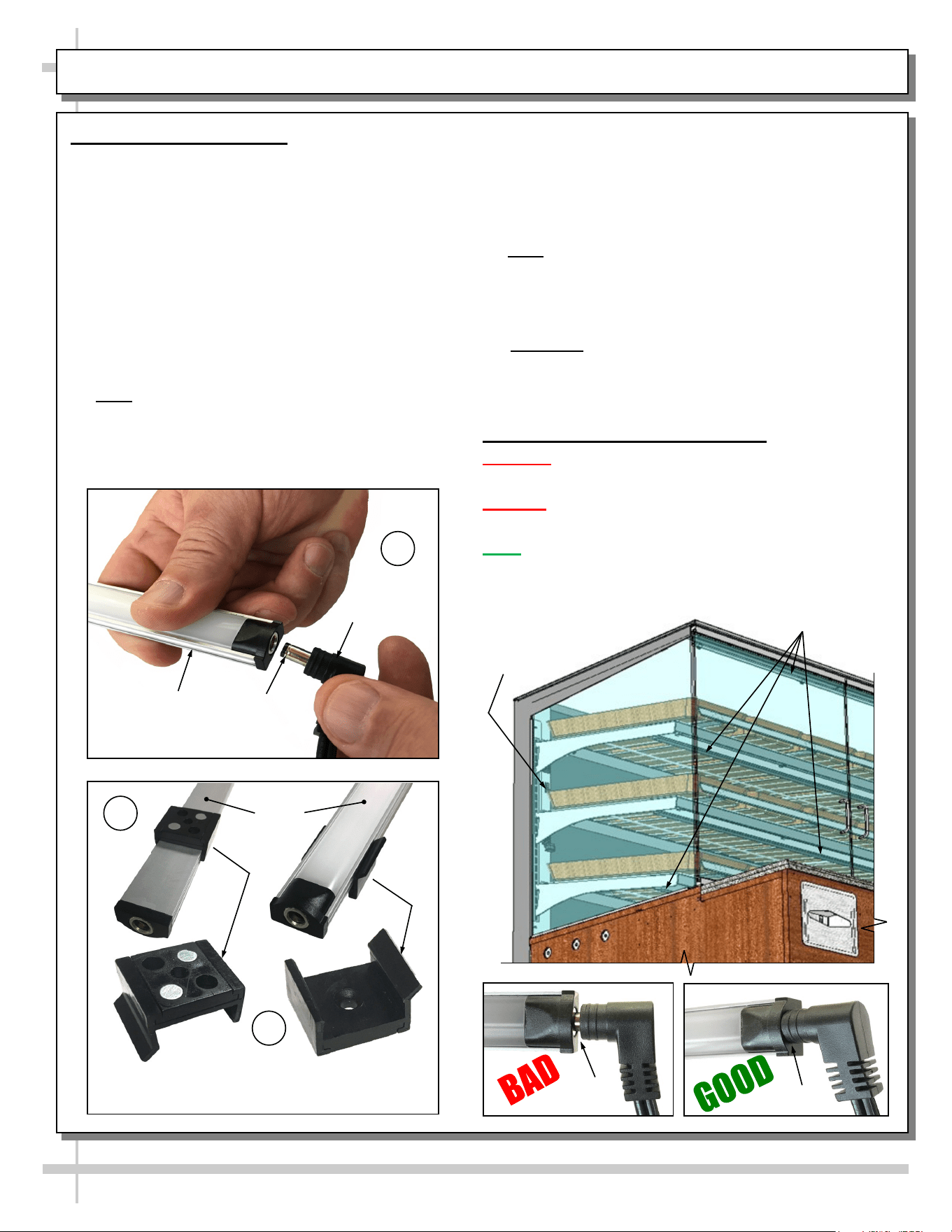

1. LED Style Light Fixtures
Removal of Faulty LED Lights:
• LED lights rarely require change-out.
• Contact Structural Concepts’ Technical Service
Department for replacement LED lights.
• Turn off LED light switch.
• To remove faulty LED light, follow these steps:
A. Disconnect plug from LED light.
B. Using both hands, grasp LED light assembly
(with its magnetic mounting clips). Pull
downward and off its shelf (or header).
C. Remove magnetic mounting clips from LED
light by pressing against flange part of clip
with thumb.
>> Note: Mounting clips MAY be riveted to shelf or
header. In such instances, simply remove LED light
from mounting clips by pressing against flange part
of clips with thumb.
Replacement of LED lights:
• Attach magnetic mounting clips onto LED light.
• Adjust magnetic mounting clips so they are equally
spaced on LED light.
• Reattach LED light assembly to its shelf/header.
• Position properly in shelf/header.
>> Note: If mounting clips are riveted to shelf (or
header), attach by placing LED in base of clip and
then snapping into clip at FLANGE SIDE.
• Press plug’s barrel-shaped insert all the way into
LED light’s orifice.
• Important: If plug is not inserted ALL THE WAY IN
the LED light’s orifice, light may not energize. See
“BAD” vs. “GOOD” insertion illustrations below.
• Turn LED light switch back on.
2. Warnings & Cautionary Notes
Warning! Disconnect power before providing
maintenance and service to unit.
Caution: Lamps have been treated to resist
breakage. Replace only with such treated lamps.
Note: Warranty will be void if claims arise from
negligence, misuse of goods, extreme
environmental conditions or improper
maintenance.
A
Plug
Barrel
Shaped
Insert
LED
Light
Magnetic Mounting
Clip View #2
LED
Lights
B
C
Magnetic Mounting
Clip View #1
LED Lights
LED Light
Switch
No Gap
Gap
7

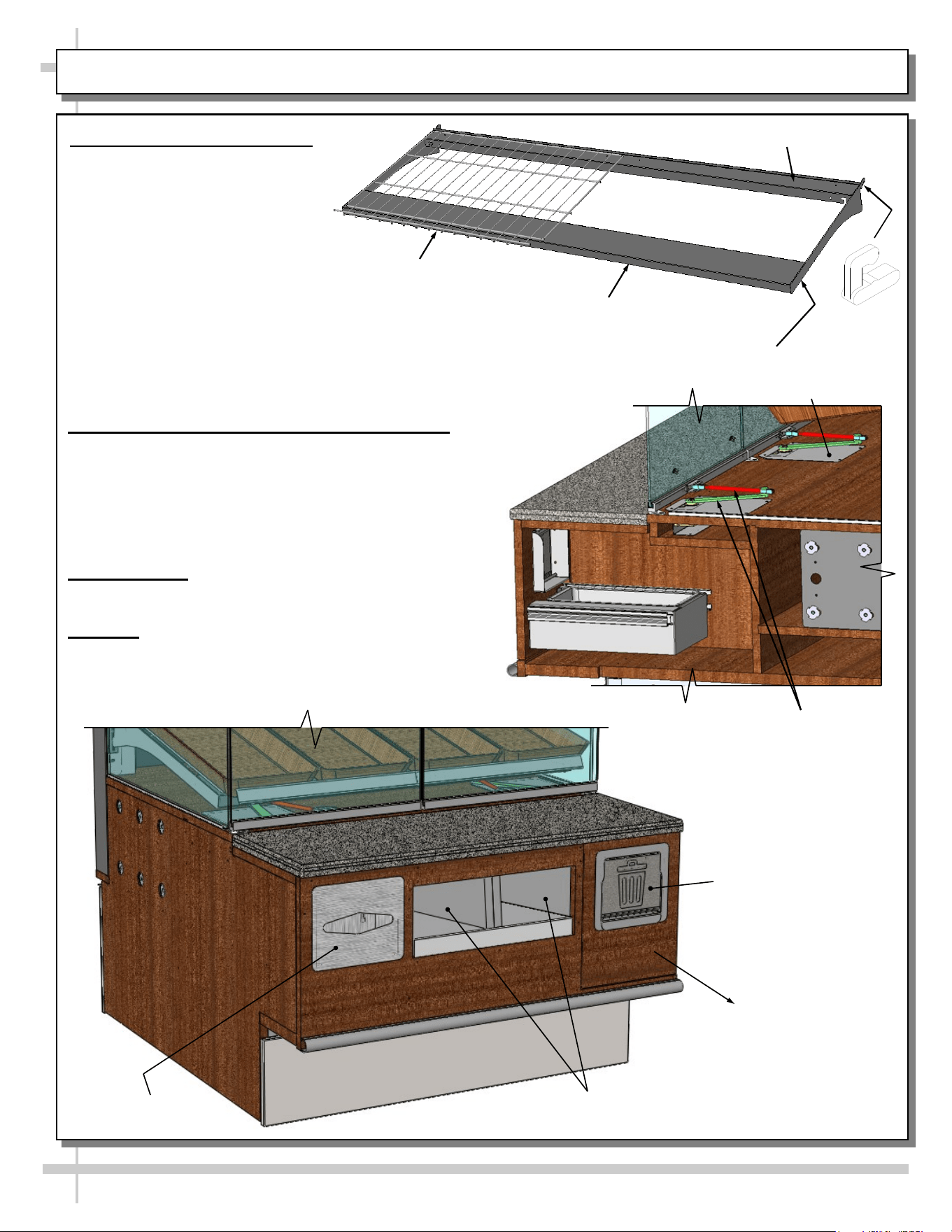

MAINTENANCE: SHELF ASSEMBLY / DOOR ACTUATOR / TISSUE BOX / TRASH
LED Light at
Underside
Rear Rack Support
Shelf Bracket
Bracket
Retainers
1. Shelf Assembly Removal
• Remove and set aside glass
or wire shelves.
• For lighted shelving, unplug
light cord and detach from
rear shelf support.
• Slide light assembly back to
unlock, then rotate up to
separate from brackets.
• Slide rear support back to unlock and rotate up to
separate from brackets.
• Remove brackets. Note, it may be necessary to
remove the nylon shipping bracket retainer.
• Pliers will be required to accomplish this task.
2. Door Actuator Removal (For Repair, etc.)
• Remove false deck (no tools required).
• Remove screw from actuator arm.
• Remove 4 screws from actuator cover plate.
• Remove 2 mounting screws that secure actuator to
mounting flange.
• Withdraw actuator.
3. Tissue Box
• See illustration below.
4. Trash
• Hinged, spring-actuated flip door provided.
• Drawer may be pulled out to empty trash container.
Wire Rack
(Typical)
Bag Placement
Trash (Drawer
May Be Pulled
Out To Empty)
Tissue Holder
Actuator Arm
(Typical)
Cover Plate (Typ.)
8

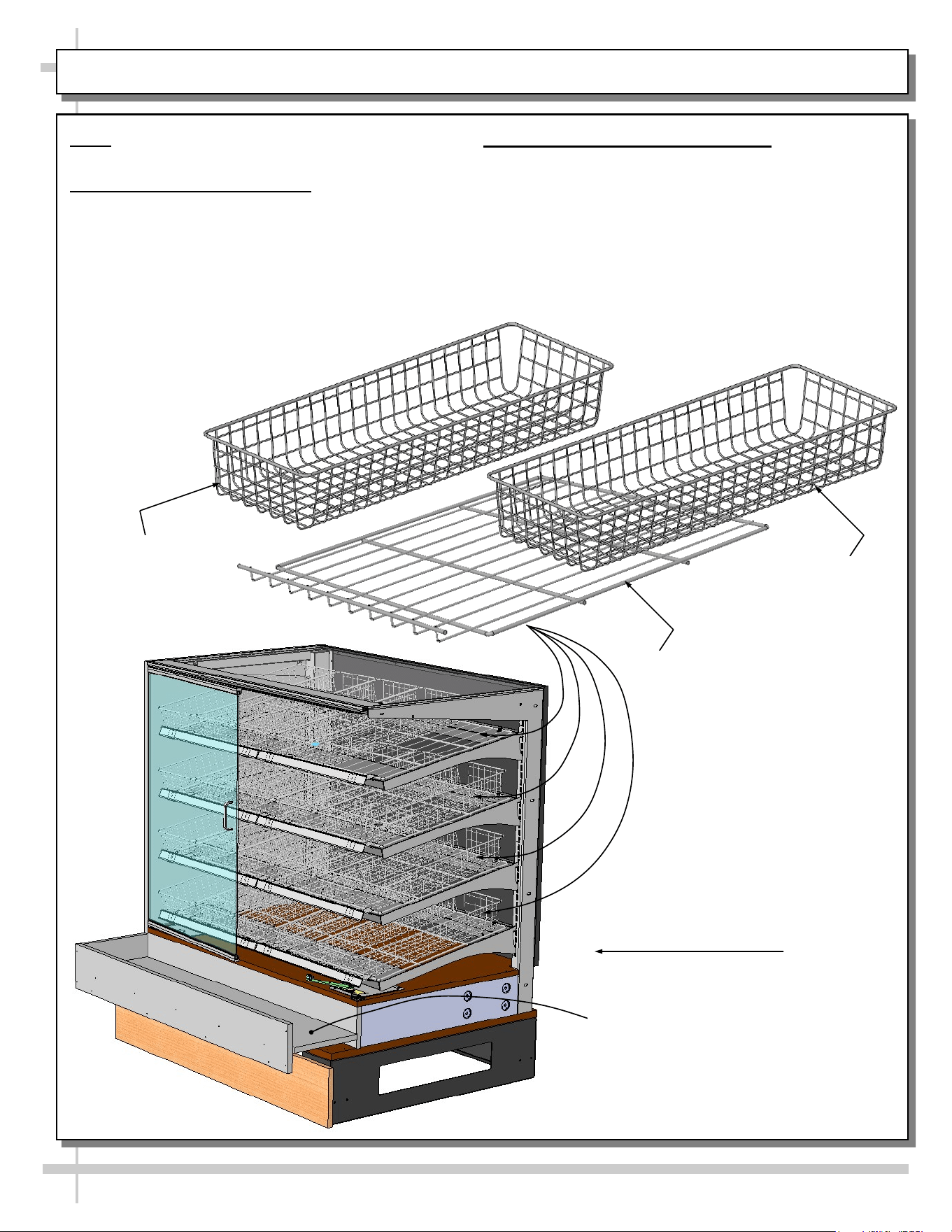

MAINTENANCE, CONTINUED: WIRE RACKS AND BASKETS / OPEN LAMINATED STORAGE AREA
Note: Information on This Sheet is
Applicable To Model GHPF456LB Only
1. Wire Racks and Baskets
• Wire racks and baskets are removable for
cleaning purposes.
• See cleaning schedule for cleaning specifics.
2. Open Laminated Storage Area
• Open laminated storage area is at case front.
• See cleaning schedule for cleaning specifics.
Wire Basket
Wire Basket
Wire Rack
Open Laminated Storage Area
Model GHPF456LB (Partially
Disassembled For Illustrative
Purposes Only)
9
SERIAL LABEL LOCATION & INFO LISTED / TECH INFO & SERVICE - AMBIENT/HEATED CASES ONLY

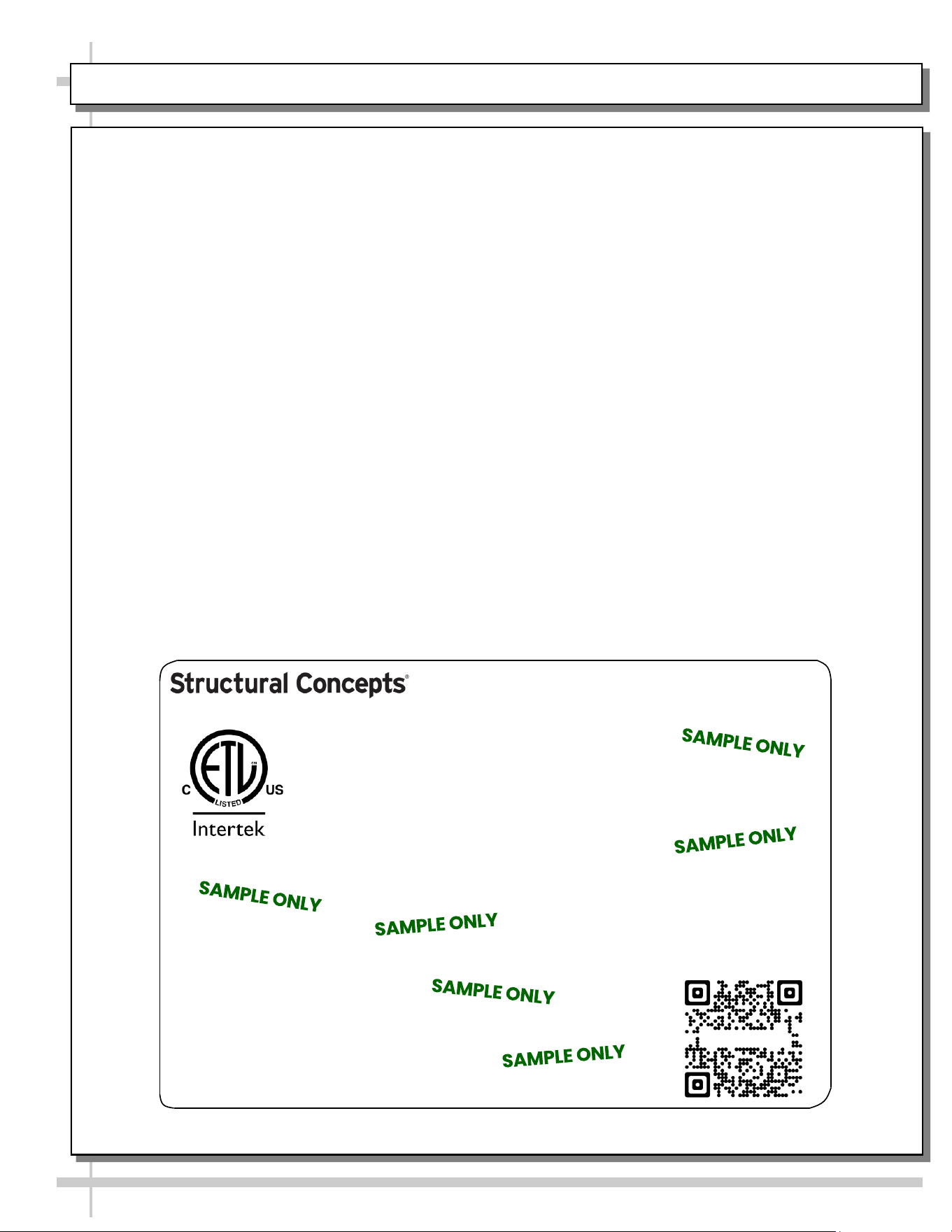

--- Sample Serial Label For Ambient/Heated Cases ---
MODEL NRS3648RXV-SAMPLE
SERIAL NO. 12345X30DZ098765
888 E. Porter Rd - Muskegon, MI 49441
3048256
Conforms to UL Std. 65
CERTIFIED TO CAN/CSA
STD C22.2 NO 120
120 VOLTS 60HZ
FOR PARTS OR SERVICE CALL
STRUCTURAL CONCEPTS
AT 1-800-433-9489
SINGLE PHASE 1.84 AMPS
Serial Label Location & Information Listed /
Technical Information & Service
• Serial labels are affixed at a wide range of places
(on the header, at case rear, behind panels or
toe-kicks, on electrical boxes, etc.).
• Serial labels contain electrical information as well
as regulatory standards to which the case
conforms.
• Sample serial label shown below.
• For additional technical information and service, see
the TECHNICAL SERVICE page in this manual for
instructions on contacting Structural Concepts’
Technical Service Department.
Sample QR Code
SCAN FOR PRODUCT LITERATURE
Fusion
10
CLEANING SCHEDULE
Cleaning Daily Weekly Monthly Task
Clean Case
Exterior
X
Clean glass doors, sides and top with household or
commercial glass cleaner.
X
Solid surface: See ENGINEERED (SYNTHETIC)
QUARTZ CARE AND MAINTENANCE section in this
operating manual.
X
Open laminated storage area (Model GHPF456LB
only): clean with soft cloth dipped in warm soapy
water. Wipe down with paper towel or cloth dipped
in clean water to rinse away soap residue.
X
Rear doors and door track: Remove rear doors and
clean with a household or commercial cleaner.
Clean out door track with moist cloth.
X
Toe-kicks: To remove dirt, dust and scuffs, clean with
soft cloth or soft-bristled brush dipped in warm, soapy
water. Wipe down with rag dipped in clean water to
rinse away soap residue.
Clean Case
Interior
X
Clean glass doors, sides and top with soap and water
solution and soft cloth
X
Wicker baskets can be removed and residue brushed
out. For fine, powdery residue, use vacuum with
brush attachment.
X
Solid surface: See ENGINEERED (SYNTHETIC)
QUARTZ CARE AND MAINTENANCE section in this
operating manual.
X
Decking and drawers may be cleaned with soap and
water solution and soft cloth. For hardened residue,
use soapy water and scrub with non-metallic,
soft-bristled brush.
X
Remove wire racks and wire baskets (and clear
plastic liners, if any) and wipe down with soft cloth
dipped in warm soapy water. For hardened residue
(or for more thorough cleaning), submerse in warm,
soapy water and scrub with non-metallic,
soft-bristled brush.
11
ENGINEERED (SYNTHETIC) QUARTZ CARE AND MAINTENANCE
Engineered
Quartz
Overview
Engineered (Synthetic) Quartz Overview:
• Engineered (synthetic) quartz is a ‘man-made’ product. It is sometimes called “engineered stone.” It is made from
crushed quartz particles bonded with polyester, styrene, resin, pigments and tert-butyl peroxybenzoate.
• It is non-porous, mold and mildew-resistant, and impervious to odor-causing bacteria.
• Slabs are specifically sized. Engineered quartz contains a maximum of 94% mineral quartz (though percentages
vary). Engineered quartz is extremely resistant to damaging chemicals.
• There are many engineered (synthetic) quartz brands. These include Caesarstone, Cambria, Compac, Corian, Daltile
ONE, Granite HanStone, Transformations, Kowalski, LG Hausys, LG Viatera, Lunastone, Marble.com, MSI Q, Okite,
Pental, Polarstone, Pompeii, Samsung, Sensa, Silestone, Stone Italiana, Vadara, Vena & Vicostone.
Routine
Care
For Daily, Routine Care and Cleaning:
Engineered (synthetic) quartz require very little maintenance. Simply wipe the surface with neutral pH balanced
household detergent and warm water solution with soft sponge or microfiber cloth to maintain its shine.
• To prevent fading, keep from harsh, direct sunlight for long periods of time.
• General cleaners: use neutral pH balanced household detergent and warm water (4 cups of water/1 teaspoon of
detergent). Or isopropyl alcohol (aka rubbing alcohol). Or use any general, all-purpose cleaner, glass cleaner or Pine
Sol. Or use Clorox Wet Wipes (as they contain no bleach or and are soft). After cleaning, thoroughly rinse with water
and dry with clean cloth to prevent water spots from forming.
• Specifically designed cleaners for manufactured quartz: Black Diamond Stoneworks Granite Counter Cleaner,
Caldrea Countertop Spray, Clark’s Natural Stone Spray Cleaner, Granite Gold, Simple Green, Park & Bailey Granite
& Stone Cleaner, Seventh Generation Granite & Stone Cleaner, Stone Care Quartz Clean & Shine, Stone Pro Quartz
Countertop Cleaner, Weiman Quartz Countertop Cleaner and Polish.
Difficult
Spills
For Difficult Spills, Stains and Spots:
• Thoroughly clean with warm water and neutral pH detergent (mixture detailed above) before pursuing next steps.
• Clean up high staining liquids such as coffee, tea, fruit juice, lemon juice, vinegar, wine and tomato juice right away.
Use warm water and neutral pH detergent to do so. After cleaning, thoroughly rinse with water and dry.
• For residues that harden as they dry (food, gum, nail polish, and paint), place wet cloth or paper towel over residue
for 10 minutes (to soften its properties); then gently scrape off residue by using a plastic putty knife or plastic scraper;
avoid metal blades or scrapers if possible; then clean using warm water and soap. If you must use metal razor blade
or scraper, remove gray marks with soap and water. Thoroughly rinse with water and dry to prevent water spots.
• Difficult spots may need to be treated with solutions/chemicals BEYOND warm water and neutral pH detergents: A.
Water/white vinegar mixture: 2 cups of water with 1 tablespoon of white vinegar in spray bottle; spray surface; allow
solution to sit for 2 minutes; wipe off with soft cloth or sponge. B. Soft Scrub Liquid Gel: Apply gel to cloth or sponge
(not directly to quartz surface); wipe the area in a circular motion; repeat until spot is removed. C. Goo Gone
adhesive remover (for sticky residue). Thoroughly rinse the surface with water and wipe dry to prevent water spots.
• Water stain removal: 1 part vinegar + 3 parts baking soda in warm water. Dip cloth in mixture and thoroughly soak
stain. Leave for 5-10 minutes; then scrub area with soft brush. Rinse with water and dry with clean cloth.
Extreme
Heat
Protection
Extreme Heat Protection:
• Engineered quartz is extremely resistant to heat, and can withstand moderately high temperatures for brief periods of
time without being damaged.
• Engineered quartz CAN BE damaged by sudden and extreme temperature changes; thus, use a trivet or a hot pad to
protect its surface from hot pans, hot dishes or small appliances that may reach high temperatures.
Chemicals
To
Avoid
Chemicals To Avoid:
• Nail polish remover (acetone), oil soaps, and furniture cleaners or paint strippers that contain trichloroethane or
methylene chloride.
• Chemicals with an alkaline level of pH >10 (oven cleaners, chloring bleach, lacquer thinner, ammonia, tub and tile
cleaner, borax, etc.)
• Chlorinated solvents (trichloroethylene or methylene chloride)
• Concentrated acids (hydrocyanic acid, hydrofluoric acid, hydrochloric acid, sulfuric acid, nitric acid or CLR)
Caution must be used for the following products on engineered quartz surfaces:
• Avoid using products containing oils or powders as may leave a residue.
• Avoid abrasive scrubs/cleaners (such as Ajax, Comet, Scotch-Brite or oven cleaner) as it dull or discolor the finish.
Common stains like coffee, food, makeup, permanent markers, etc.:
• Apply the appropriate cleaner with a paper towel and wipe. If necessary, soak with paper towels from 3-10 minutes.
• Scrub the area with a non-abrasive cloth or sponge. Rinse and dry thoroughly.
Preventing
Scratches
Scratch Deterrence: Engineered quartz surfaces are scratch RESISTANT. However, they CAN be scratched or marred
by certain utensils or cleaning materials.
• Use a cutting board to avoid damaging the quartz surface and knives.
• Never use abrasive scouring pads, steel wool soap pads, Brillo® pads or “Magic Erasers.
12
TROUBLESHOOTING
Issue Resolution of Issue
Product is Drying Out Check the relative humidity in the store.
Case Lights Not Working Check that light switch is on.
If power cord is used, check the unit is properly plugged in.
Be sure ALL lights are plugged in properly.
Check bulb for proper installation and connection.
Check for burned out bulb.
Clean dirt and dust from the bulbs to prevent flickering.
Trained Service Providers Only: After performing all other checkpoints and
lights are still not working, check for faulty ballast or circuit breaker box for
tripped circuits.
STRUCTURAL CONCEPTS TECHNICAL SERVICE CONTACT INFORMATION & LIMITED WARRANTY
13
TECH SERVICE/WARRANTY CONTACT INFO:
1 (800) 433-9490 / EXTENSION 1
DAYS/HOURS AVAILABLE:
MONDAY - FRIDAY (CLOSED HOLIDAYS)
8:00 P.M. to 8:00 P.M. EST
YOU MUST HAVE THE FOLLOWING INFO AVAILABLE
BEFORE CONTACTING STRUCTURAL CONCEPTS:
SERIAL NO. / MODEL NO. / STORE NO. / STORE
ADDRESS / DETAILS (PHOTOS, LEAK LOCATIONS,
DAMAGE, STORE’S AMBIENT CONDITIONS, ETC.)
To Access The Limited Warranty To Your
Case, Follow These Instructions:
> If Viewing This Document on Smart Phone,
Tablet or Computer, Select/Click On The QR
Code at Right.
> If Viewing This Document In Print (Hard
Copy), Scan The QR Code at Right With Your
Smart Phone or Tablet.
