OVERVIEW
Designed for seamless integration, this tall model oers quiet
performance and flexible loading for up to 16 place settings. At
the end of the cycle, the door automatically opens to release
steam, while AirCurtain technology creates a protective barrier
to help shield surrounding cabinetry. With simple installation,
SmartHQ™ connectivity, and panel-ready styling, it’s ideal for
modern kitchens.
FEATURES
1 Quiet operation supports open-plan and minimal kitchen
environments
2 Tall model fits up to 16 place settings for greater capacity
and convenience
3 Panel-ready design enables seamless integration with
surrounding cabinetry
4 Straightforward installation, with simple panel alignment and
specifications
5 Recognized as Energy Star Most Efficient
6 Third rack, adjustable middle rack, and foldable tines for
flexible loading
7 Pitch-adjustable tines allow space for deep bowls and larger
dishware
8 Auto door open at cycle end for steam release and efficient
drying
9 AirCurtain technology protects cabinetry by directing steam
away from the bench
"0 Wi-Fi enabled for remote monitoring and control via
SmartHQ™ app
PRODUCT FEATURES | SERIES 7 INTEGRATED TALL DISHWASHER
PRODUCT OVERVIEW
Dw24UT2I3
Series 7, Integrated Tall Dishwasher
ACCESSORIES
ADDW24TPX
Door panel for Integrated Dishwasher, Tall
AHD5-OBDD-60S
Contemporary Square Fine Handle, 24"
AHS-OBDD-60S
Contemporary Round Handle, 24"
AHP3-DWDD-SX
Professional Round Flush Handle Stainless Steel, 24"
AHP3DDDW24DC
Professional Round Flush Dark Copper Handle, 24"
AHP3DDDW24BA
Professional Round Flush P3 Brass Handle, 24"
AHCL-DDDW-24X
Classic Round Handle Kit, 24"
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 590004893B PLANNING GUIDE SERIES 7 INTEGRATED TALL DISHwASHER VERSION B - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

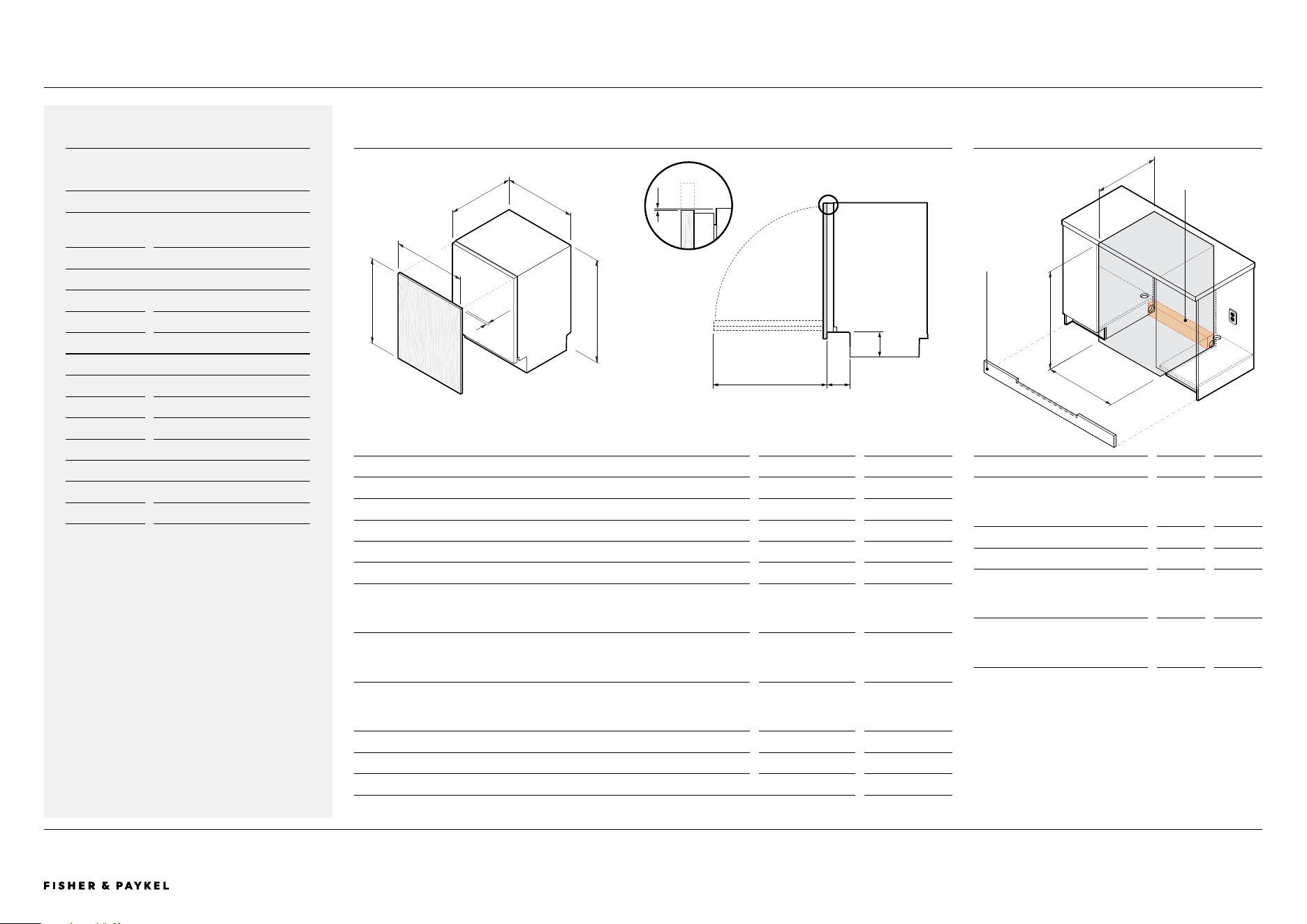

CABINETRY DIMENSIONS
Cabinetry Dimensions inch mm
A Height of cavity
- minimum
- maximum
33 7/8
36 1/8
860
917
B Minimum width of cavity 23 5/8 600
C Minimum depth of cavity* 22 7/8 560
Minimum clearance between
dishwasher front panel and
adjacent cabinetry
1/16 2
Supply area
- height
- depth
4
2
102
51
* excludes front panel
PRODUCT DIMENSIONS
Product Dimensions inch mm
A Height of dishwasher 33 7/8 - 36 1/8 860 - 917
B Width of dishwasher 23 1/2 597
C Depth of dishwasher* 22 13/16 554
D Depth of door opening* 26 5/8 676
E Height from top of chassis to top of custom panel or accessory panel** 1/8 3
F Height of door panel
- custom panel**
- accessory door panel (ADDW24TPX)
28 1/4 - 31 3/16
29 7/8
717 - 792
759
G Width of door panel
- custom door minimum
- accessory door panel (ADDW24TPX)
23 7/16
23 7/16
595
595
H Thickness of door panel
- custom panel
- accessory door panel (ADDW24TPX)
5/8 - 1
3/4
16 - 25
19
I Depth of toe kick recess 4 9/16 116
J Height of toe kick recess 4 11/16 - 6 7/8 119 - 176
Maximum weight of custom door panel including handle 9 - 20 lb 4 - 9 kg
* excludes front panel and handle
** custom panel can be extended upwards in addition to stated dimension. Cabinetry clearances must be met.
PRODUCT SPECIFICATIONS | SERIES 7 INTEGRATED TALL DISHWASHER
SPECIFICATIONS
Model Number
DW24UT2I3 Series 7, Integrated Tall
Dishwasher
Weight
Packaged 128 lb (58 kg)
Unpackaged 110 lb (50 kg)
Electrical
Supply 120 V, 60 Hz
Service 10 A
Connection No power cord supplied
Plumbing
Pressure 30 kPA - 1000 kPA
Connection 3/4" BSP inlet valve
Note: Electircal and Plumbing connections to
be made in adjacent cabinets either side of
dishwasher.
DW24UT2I3
ISOMETRIC VIEW
b
a
c
f
g
d
e
DETAIL 1
SIDE VIEW
1
h
I
j
ISOMETRIC VIEW
a
b
c
Supply area
Continuous toe
kick panel.
Cutout may be
required to
accomodate
door swing.
<< CONTENTS
