Safety & Warning
Read and understand this entire manual before assembling, installing,
operating, or servicing this product. Failure to follow these warnings
and instructions can cause death, personal injury or damage to
valuable property.
Wear ANSI-approved safety goggles, heavy-duty work gloves and
safety shoes during assembly and installation of this product. Keep
bystanders out of the area during assembly
Do not assemble when tired or when under the influence of alcohol,
drugs or medication.
Use as intended only. TO PREVENT SERIOUS INJURY AND DEATH
FROM TIPPING: DO NOT SIT, STAND OR CLIMB ON THIS ITEM.
This product is not a toy. Do not allow children to play with or
near this item.
Before use, inspect the general condition of the product. Check for:
broken, cracked, or bent parts, loose or missing parts, and any
condition that may affect the proper function of the product.
Ensure only genuine parts are used for replacement & Repair.
SAVE THESE INSTRUCTIONS
PRODUCT PAREMETERS
Model
YC3
Chimney Size
for Horizontal Installation
Length of the Long External Side:
18.11-18.89 inch (460-500 mm)
Length of the Short External Side:
9.05-9.84 inch (230-270 mm)
Chimney Size
for Vertical Installation
Length of the Long External Side:
13.38-15.74 inch (340-400 mm)
Length of the Short External Side:
4.33-6.69 inch (110-170 mm)
- 3 -

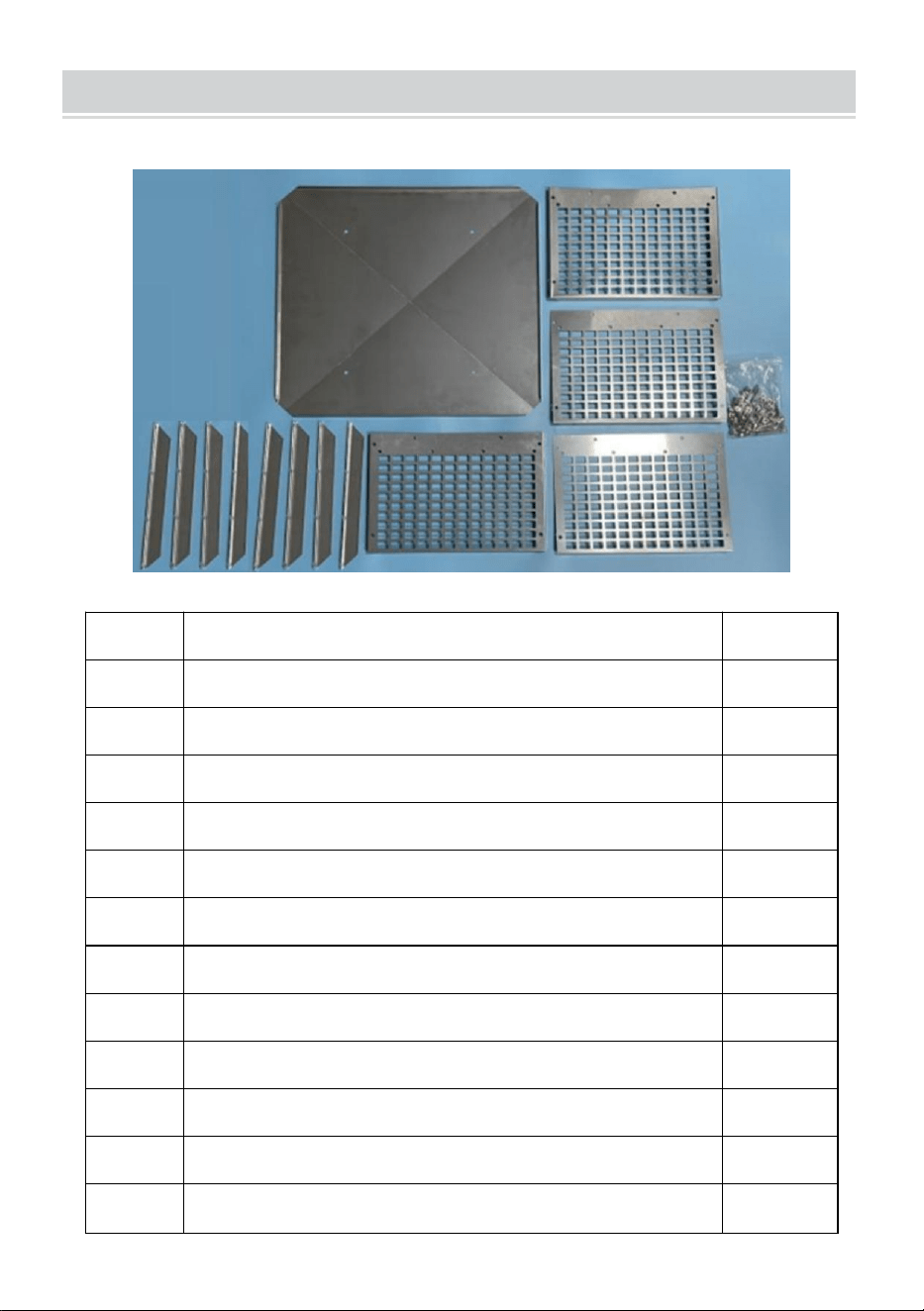

ACCESSORY LIST
Part
Description
Qty
1
Coaming A
2
2
Coaming B
2
3
Roof
1
4
Inner reinforced edge strip A
2
5
Inner reinforced edge strip B
2
6
External installation of edge strips A
2
7
External installation of edge strips B
2
8
Cross round head screw M5x60
8
9
Cross round head screw M5x8
28
10
Flange nut M5
44
11
Cross round head self-tapping screw M5x16
8
12
Manual
1
- 4 -
OPERATION
1. Check whether the product parts and accessories are complete.

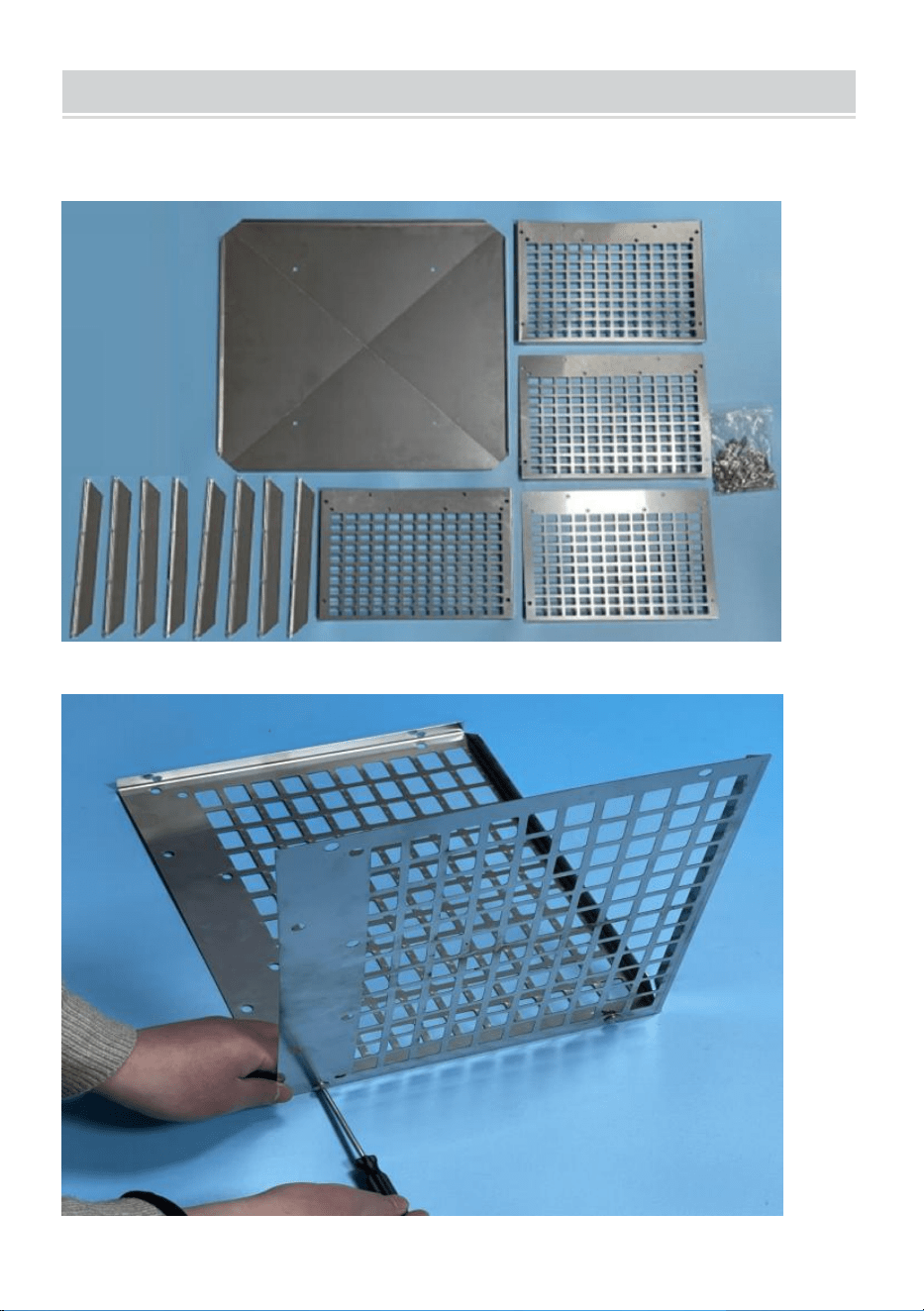

2. Fix the 4 coamings(A/B) with screw M5*8 and flange nut M5.
- 5 -
3. Fix the 4 inner reinforced edge strip with screw M5*8 and flange nut M5.
4. Assemble the roof to the 4 coamings with screw M5*8 and flange nut M5.
Inner reinforced edge strip A/B
- 6 -
5. Two optional installation Horizontal installation or Vertical installation.
5-1. Horizontal installation:
Assemble the External installation of edge strips A/B to the 4 coamings with screw
M5*60 and flange nut M5.

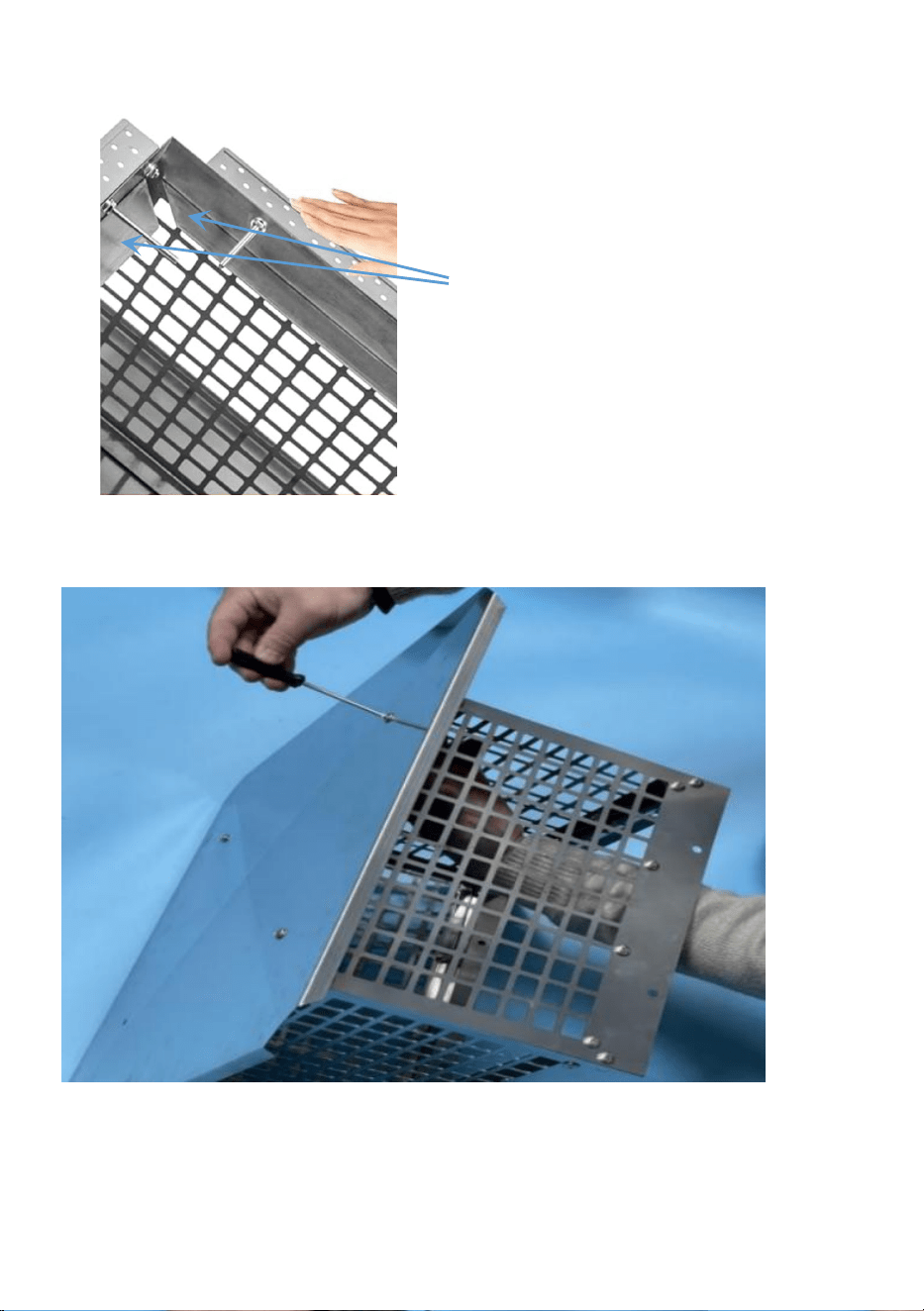

Install the chimney cap as a whole onto the surface of the chimney with cross
round head self-tapping screw M5x16.
External installation of edge strips A/B
cross round head
self-tapping screw
M5x16
- 7 -
5-2 Vertical installation:

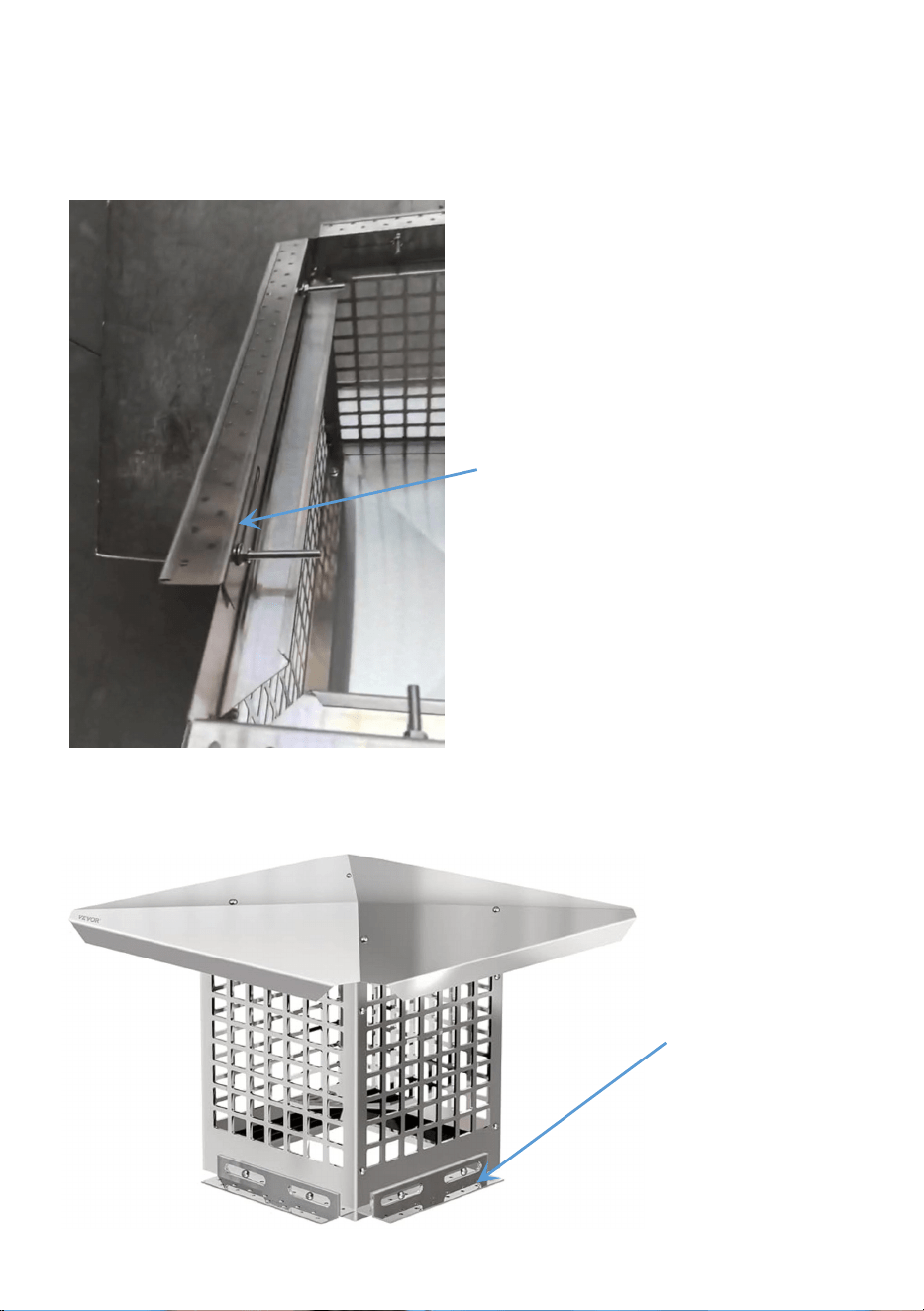

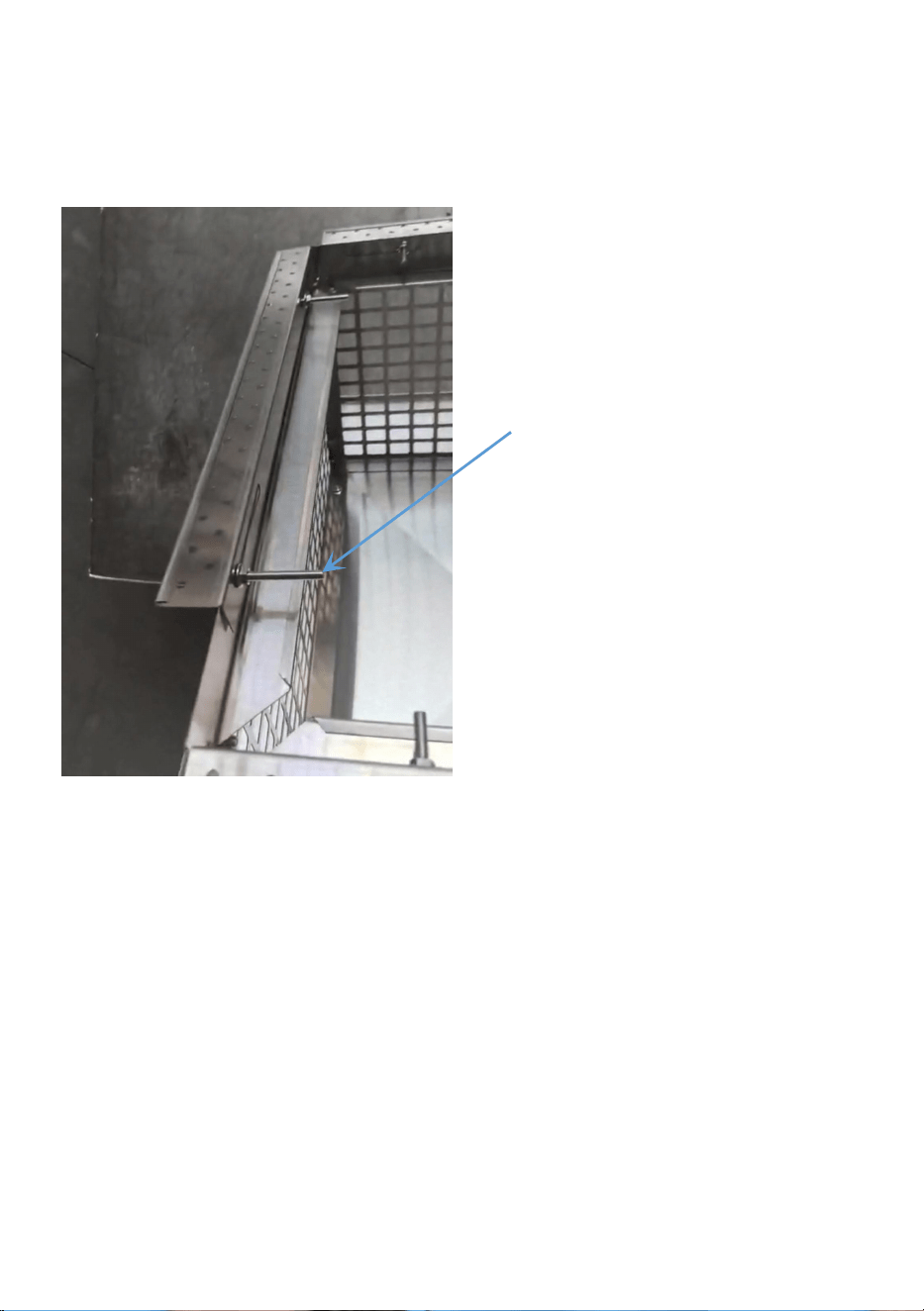

Place the chimney cap on the outer wall of the chimney and install it with screw
M5*60 and flange nut M5, with the end of the screw pressing against the outer
wall of the chimney.
Top tightly against the
outer wall of the chimney
- 8 -
