72
1
25
24
23
22
21
(2x)
20
15
14
13
12
37
39
38
71
34
(4x)
27
30
29
28
33
26
60
36
(1x)
56
(1x)
35
(8x)
58
59
58
59
70
73
1 6 35 36
37 56 60
44(2x)
45
46
48
47
12
73
80
17
(3x)
20
25
85
6
Rubber Slugs
are (2x) per
handle halve
(4 total)
65
As an aid for servicing,
the Speed Switch
Assembly #72 should
be mounted onto the
PCBA first and than
carefully installed
together into the Left
Housing Halve #1.
PCBA
72
1
19
18
16
(3x)
75a 75b
75c
75
14-46-0475
Tool Hanger
Assy.
75a
75b
75c
NOTE:
DO NOT sub-
stitute screws
#34 here.
BULLETIN NO.

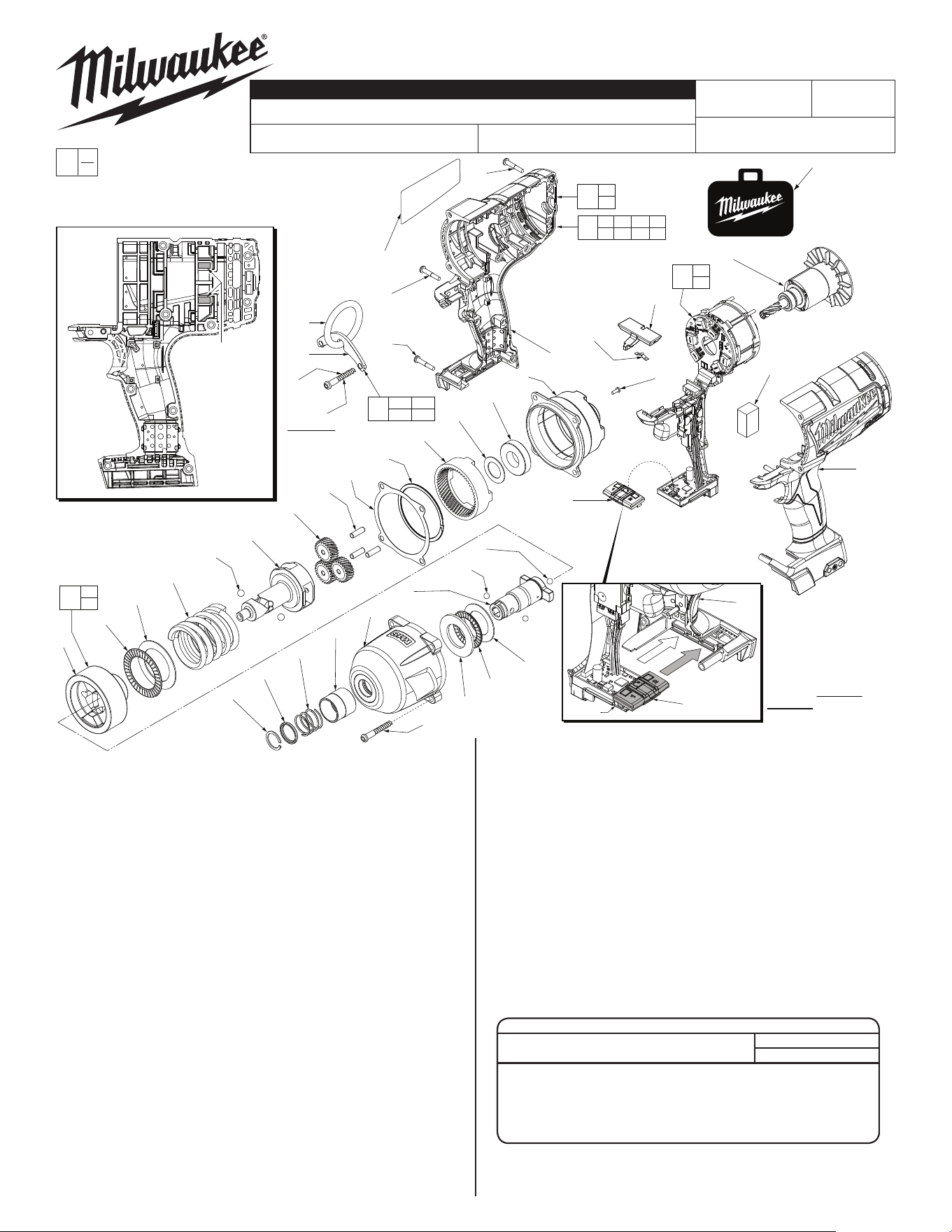

SERVICE PARTS LIST
54-26-2750
Aug. 2019
REVISED BULLETIN
DATE
WIRING INSTRUCTION
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 ---------------
Handle Support (Housing Halve-Left) w/ metal pin
1
6 45-30-0255 Rubber Slug 4
12 --------------- Rear Case 1
13 02-04-0375 Ball Bearing 1
14 45-88-1655 Thrust Washer 1
15 32-65-0025 Ring Gear 1
16 44-60-1960 Planet Pin 3
17 32-62-0500 Planet Gear 3
18 30-40-0052 Retaining Ring 1
19 43-44-0065 Gasket 1
20 --------------- Camshaft 1
21 02-02-0251 1/4" Steel Ball 2
22 40-50-0955 Hammer Spring 1
23 45-88-1006 Thrust Washer 1
24 02-80-0200 Hammer Thrust Bearing 1
25 --------------- Hammer 1
26 02-02-7010 7/32" Steel Ball 1
27 42-06-0065 7/16" Hex Anvil 1
28 45-88-1875 Thrust Washer 1
29 02-80-3256 Thrust Bearing 1
30 45-88-1620 Thrust Washer 1
33 14-30-0120 Front Housing Assembly with Bushing 1
34 06-82-2210 50 x 40mm Pan Hd. PT T-20 Screw 4
35 06-82-0995 M4 x 16mm Pan Hd. Plastite T-20 Screw 8
36 06-82-2230 M4 x 22mm Pan Hd. Plastite T-20 Screw 1
37 --------------- Handle Cover (Housing Halve Right) 1
38 45-24-0130 Forward / Reverse Shuttle 1
39 40-50-1135 Shuttle Spring 1
44 02-02-0250 Steel Ball 2
45 42-76-0185 Sleeve 1
46 40-50-0365 Sleeve Spring 1
47 34-60-0050 Retaining Ring 1
See Page 2
F44A
STARTING
SERIAL NO.
2765-20
CATALOG NO.
M18 FUEL™ 7/16" QUICK CONNECT IMPACT WRENCH
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
48 44-90-0020 Washer 1
56 06-81-5383 M4 x 35mm Pan Hd. Plastite T-20 Screw 1
58 44-52-0025 Foam Pad 1
59 06-82-0165 High Voltage Screw 1
60 12-20-2626 Service Nameplate 1
65 48-55-3560 Contractor Bag 1
70 14-20-0092 Electronics Assembly
ConsistingofOn-OSwitch,Stator,PCBA,
Forward/ReverseSwitch,LED,Battery
TerminalConnectorBlock,FoamPadand
High Voltage Screw 1
71 16-01-0105 Rotor Assembly 1
72 45-24-0110 Speed Switch Assembly 1
73 --------------- Housing Assembly 1
75 14-46-0475 Tool Hanger Assembly 1
75a 44-90-0095 Ring 1
75b --------------- Bracket 1
75c --------------- 50 x 43mm Pan Hd. PT T-20 Screw 2
80 14-46-0047 Housing/Rear Case Assembly 1
85 14-46-6032 7/16" Camshaft/Hammer Kit 1
0
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
00
SCREW TORQUE SPECIFICATIONS
SEAT TORQUE
FIG. PART NO. WHERE USED (KG/CM) (IN/LBS)
34 06-82-2210 Front Housing Assy. 36 31
35 06-82-0995 Housing Assembly 12.5 11
36 06-82-2230 Housing Assembly 8.5 7
56 06-82-2240 Housing Assembly 12.5 11
59 06-82-0165 High Voltage Screw
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135W.LisbonRoad,Brookeld,WI53005
Drwg. 3
2
1
3
4
5
6

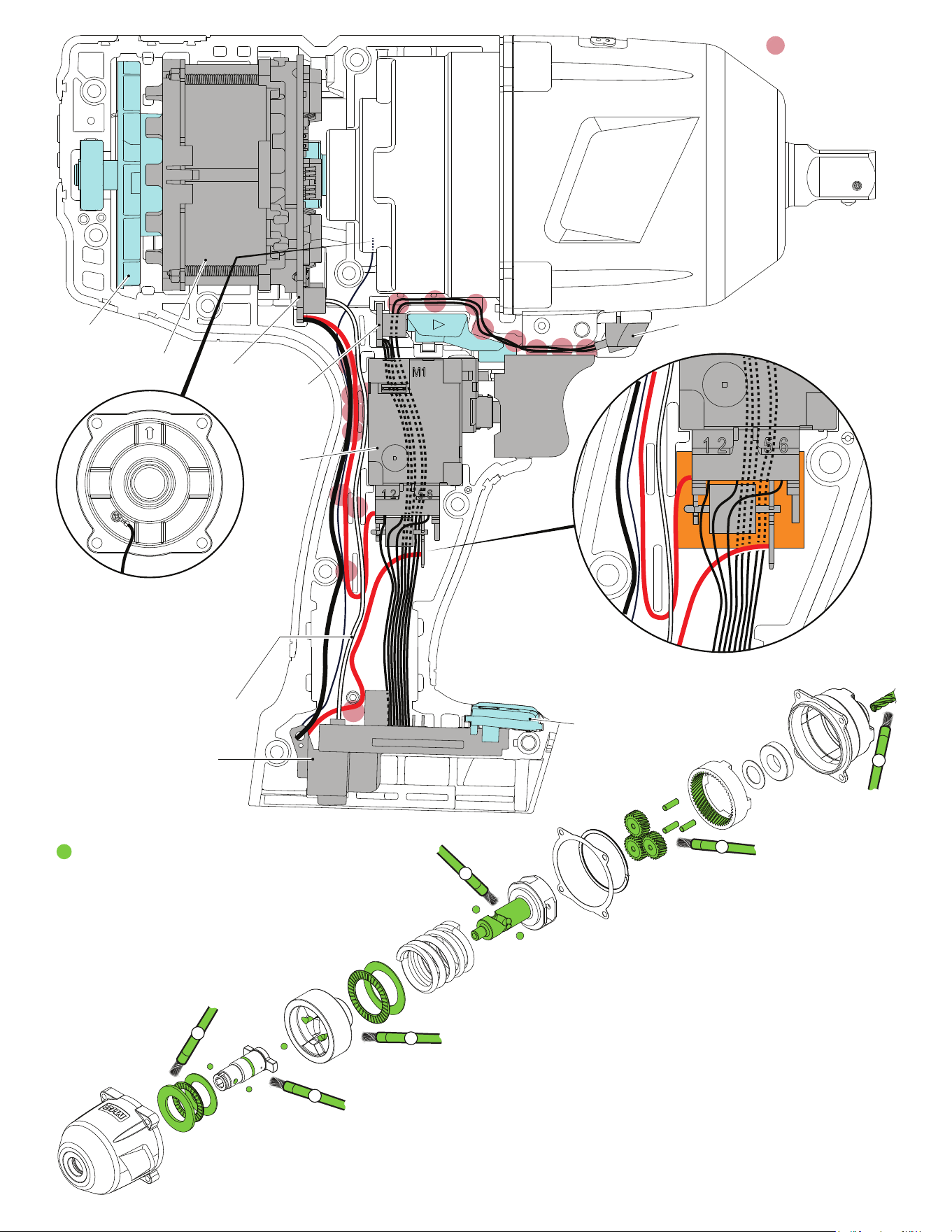

LUBRICATION NOTES:
Type ‘J’ Grease
No. 49-08-4220, 1 lb. can
A total of approx. 11 grams (.4 oz) will be used.
Prior to reinstalling, clean gear assemblies
with a clean, dry cloth. Lightly coat all parts
highlighted here with ‘J’ grease. Apply a
greater amount of grease to all internal and
external gear teeth.
1). Coat both sides of the Thrust Bearing and the two Thrust
Washers with grease.
2). Lightly coat the Steel Balls with grease. Apply a thin coat of
grease to both ball holes and the groove in the Anvil.
3). Place grease in both ball grooves of the Hammer. Coat both
sides of the Thrust Bearing and Thrust Washer with grease.
4). Coat the shaft surface of the Camshaft with grease, being sure to
place approximately 1 gram of grease in each ball groove. Lightly
coat the two Steel Balls.
5). Coat the three Planet Pins with grease. Place a generous
amount of grease to the exterior teeth of the three Planet Gears
and the interior teeth of the Ring Gear.
6). Place a generous amount of grease to the pinion teeth of the
Rotor Assembly.
= WIRE TRAPS
or GUIDES
Rotor
Assembly
Stator
Assembly PCBA
Fwd/Rev
Switch
On-Off
Switch
LED
Assembly
Speed Switch
Assembly
Battery Terminal
Connector Block
Ribbon Cable
Place Foam Pad
#58 (44-52-0025)
over the two LED
wires and the three
Fwd/Rev wires. Place
the On-Off Switch into
position,with the terminals
and diode over the foam pad,
as shown.
Model 2762-20
shown
Back View of Rear Case #12
showing the orientation of the Rear
Case (arrow facing upward) and
showing location of High Voltage
Screw #59 and wire.
