Visit our website at: http://www.harborfreight.com
Email our technical support at: [email protected]
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual (or month and year of purchase if product has no number). Keep this manual and the
receipt in a safe and dry place for future reference. 22g
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright
©
2021 by Harbor Freight Tools
®
. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Page 2 For technical questions, please call 1-888-866-5797. Item 58358
SAFETy OpERATION MAINTENANcESETUp
Table of contents
Safety ......................................................... 2
Specifications ............................................. 6
Setup .......................................................... 6
Operation .................................................... 8
Maintenance .............................................. 16
Parts List and Diagram .............................. 18
Warranty .................................................... 20
WARNING SyMBOLS AND DEFINITIONS
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that
follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
IMpORTANT SAFETy INFORMATION
General Tool Safety Warnings
Read all safety warnings and instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
1. KEEP GUARDS IN PLACE and in working order.
2. REMOVE ADJUSTING KEYS AND
WRENCHES. Form habit of checking to
see that keys and adjusting wrenches are
removed from tool before turning it on.
3. KEEP WORK AREA CLEAN.
Cluttered areas and benches invite accidents.
4. DON’T USE IN DANGEROUS ENVIRONMENT.
Don’t use power tools in damp or wet locations,
or expose them to rain. Keep work area well lighted.
5. KEEP CHILDREN AWAY. All visitors should
be kept safe distance from work area.
6. MAKE WORKSHOP KID PROOF with padlocks,
master switches, or by removing starter keys.
Page 3For technical questions, please call 1-888-866-5797.Item 58358
SAFETyOpERATIONMAINTENANcE SETUp
7. DON’T FORCE TOOL. It will do the job better
and safer at the rate for which it was designed.
8. USE RIGHT TOOL. Don’t force tool or attachment
to do a job for which it was not designed.
Table A: REcOMMENDED MINIMUM WIRE GAUGE
FOR EXTENSION cORDS
(120 VOLT)
NAMEpLATE
AMpERES
(at full load)
EXTENSION cORD
LENGTH
25′ 50′ 100′ 150′
0 – 6 18 16 16 14
6.1 – 10 18 16 14 12
10.1 – 12 16 16 14 12
12.1 – 16 14 12 Do not use.
9. USE PROPER EXTENSION CORD. Make sure your
extension cord is in good condition. When using
an extension cord, be sure to use one heavy
enough to carry the current your product will draw.
An undersized cord will cause a drop in line voltage
resulting in loss of power and overheating.
Table A shows the correct size to use depending
on cord length and nameplate ampere rating.
If in doubt, use the next heavier gauge.
The smaller the gauge number, the heavier the cord.
10. WEAR PROPER APPAREL. Do not wear
loose clothing, gloves, neckties, rings, bracelets,
or other jewelry which may get caught in moving
parts. Nonslip footwear is recommended.
Wear protective hair covering to contain long hair.
11. ALWAYS USE SAFETY GLASSES. Also use
face or dust mask if cutting operation is dusty.
Everyday eyeglasses only have impact resistant
lenses, they are NOT safety glasses.
12. SECURE WORK. Use clamps or a vise to
hold work when practical. It’s safer than using your
hand and it frees both hands to operate tool.
13. DON’T OVERREACH.
Keep proper footing and balance at all times.
14. MAINTAIN TOOLS WITH CARE. Keep
tools sharp and clean for best and safest
performance. Follow instructions for
lubricating and changing accessories.
15. DISCONNECT TOOLS before servicing;
when changing accessories, such as
blades, bits, cutters, and the like.
16. REDUCE THE RISK OF UNINTENTIONAL
STARTING. Make sure switch is in
off position before plugging in.
17. USE RECOMMENDED ACCESSORIES.
Consult the owner’s manual for recommended
accessories. The use of improper accessories
may cause risk of injury to persons.
18. NEVER STAND ON TOOL.
Serious injury could occur if the tool is tipped or
if the cutting tool is unintentionally contacted.
19. CHECK DAMAGED PARTS. Before further use
of the tool, a guard or other part that is damaged
should be carefully checked to determine that
it will operate properly and perform its intended
function – check for alignment of moving parts,
binding of moving parts, breakage of parts,
mounting, and any other conditions that may
affect its operation. A guard or other part that is
damaged should be properly repaired or replaced.
20. DIRECTION OF FEED.
Feed work into a blade or cutter against the
direction of rotation of the blade or cutter only.
21. NEVER LEAVE TOOL RUNNING UNATTENDED.
TURN POWER OFF. Don’t leave tool
until it comes to a complete stop.
Page 4 For technical questions, please call 1-888-866-5797. Item 58358
SAFETy OpERATION MAINTENANcESETUp
Grounding Instructions
TO pREVENT ELEcTRIc SHOcK AND DEATH FROM INcORREcT
GROUNDING WIRE cONNEcTION READ AND FOLLOW THESE INSTRUcTIONS:
110-120 VAc Grounded Tools: Tools with Three prong plugs
1. In the event of a malfunction or breakdown,
grounding provides a path of least resistance for
electric current to reduce the risk of electric shock.
This tool is equipped with an electric cord having an
equipment-grounding conductor and a grounding
plug. The plug must be plugged into a matching
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
2. Do not modify the plug provided – if it will
not fit the outlet, have the proper outlet
installed by a qualified electrician.
3. Improper connection of the equipment-grounding
conductor can result in a risk of electric shock.
The conductor with insulation having an outer
surface that is green with or without yellow
stripes is the equipment-grounding conductor.
If repair or replacement of the electric cord or
plug is necessary, do not connect the equipment-
grounding conductor to a live terminal.
4. Check with a qualified electrician or service
personnel if the grounding instructions are
not completely understood, or if in doubt as
to whether the tool is properly grounded.
5. Use only 3-wire extension cords that
have 3-prong grounding plugs and 3-pole
receptacles that accept the tool’s plug.
6. Repair or replace damaged or
worn cord immediately.

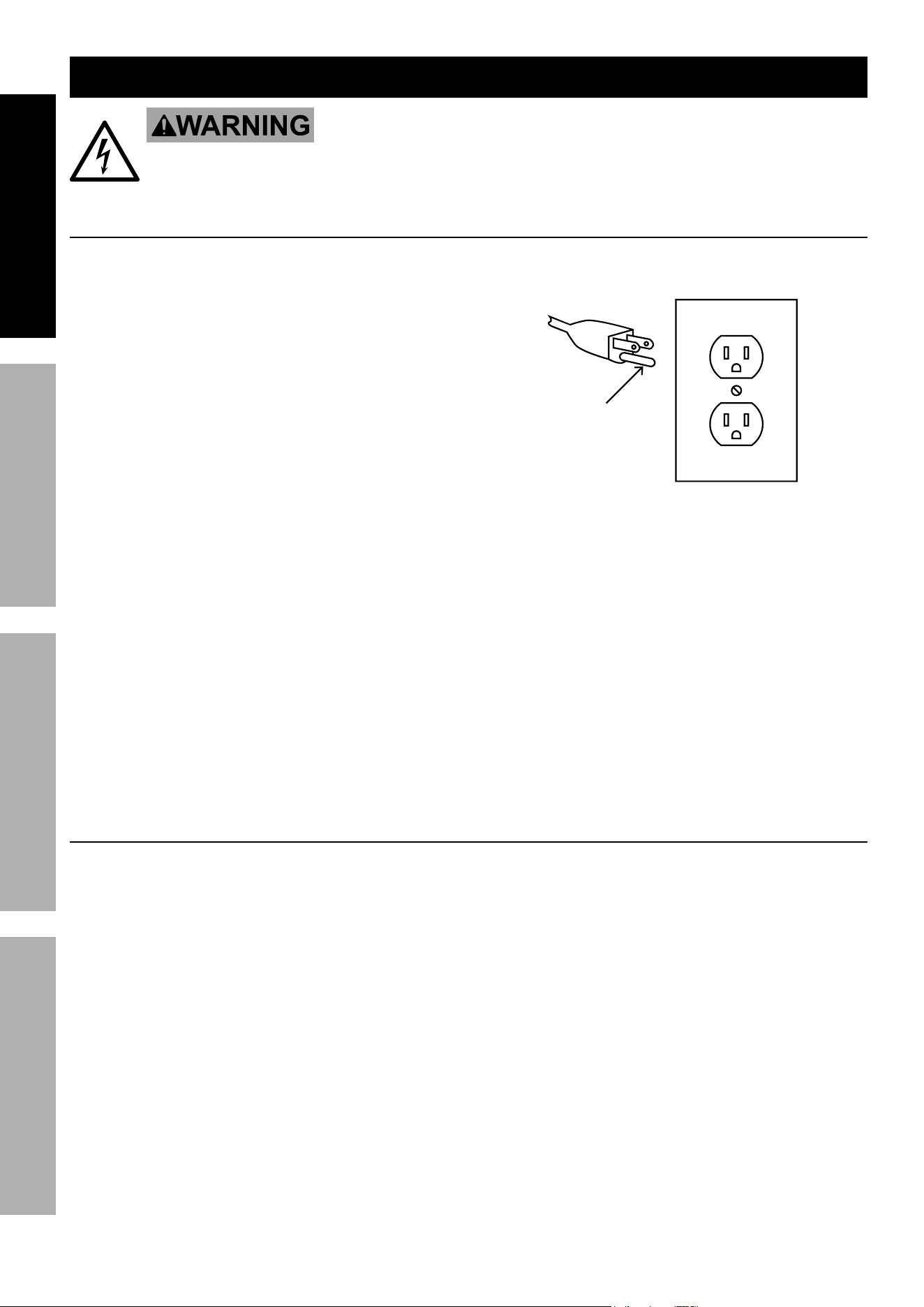

Grounding
pin
125 VAc 3-prong plug and Outlet
(for up to 125 VAc and up to 15 A)
7. This tool is intended for use on a circuit that has
an outlet that looks like the one illustrated above in
125 VAc 3-prong plug and Outlet. The tool has
a grounding plug that looks like the plug illustrated
above in 125 VAc 3-prong plug and Outlet.
8. The outlet must be properly installed and grounded
in accordance with all codes and ordinances.
9. Do not use an adapter to connect
this tool to a different outlet.
Lathe Tool Safety Warnings
For your Own Safety Read Instruction
Manual Before Operating Tool Lathe
1. Wear eye protection.
2. Do not wear gloves, necktie, or loose clothing.
3. Tighten all locks before operating.
4. Rotate workpiece by hand before applying power.
5. Rough out workpiece before installing on faceplate.
6. Do not mount split workpiece or one containing knot.
7. Use lowest speed when starting new workpiece.
8. DO NOT OpERATE WITH ANy GUARD
DISABLED, DAMAGED, OR REMOVED. Moving
guards must move freely and close instantly.
9. The use of accessories or attachments not
recommended by the manufacturer may
result in a risk of injury to persons.
10. When servicing use only identical replacement parts.
11. Do not depress the spindle lock when
starting or during operation.
12. Only use safety equipment that has been approved
by an appropriate standards agency. Unapproved
safety equipment may not provide adequate
protection. Eye protection must be ANSI-approved
and breathing protection must be NIOSH-approved
for the specific hazards in the work area.
Page 5For technical questions, please call 1-888-866-5797.Item 58358
SAFETyOpERATIONMAINTENANcE SETUp
13. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the influence of drugs, alcohol or medication.
A moment of inattention while operating power
tools may result in serious personal injury.
14. Industrial applications must follow OSHA guidelines.
15. Maintain labels and nameplates on the tool.
These carry important safety information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
16. Avoid unintentional starting.
Prepare to begin work before turning on the tool.
17. People with pacemakers should consult their
physician(s) before use. Electromagnetic fields in
close proximity to heart pacemaker could cause
pacemaker interference or pacemaker failure.
18. The warnings, precautions, and instructions
discussed in this instruction manual cannot cover all
possible conditions and situations that may occur.
It must be understood by the operator that
common sense and caution are factors
which cannot be built into this product,
but must be supplied by the operator.
Vibration Safety
This tool vibrates during use. Repeated or
long-term exposure to vibration may cause
temporary or permanent physical injury,
particularly to the hands, arms and shoulders.
To reduce the risk of vibration-related injury:
1. Anyone using vibrating tools regularly or for an
extended period should first be examined by a
doctor and then have regular medical check-ups
to ensure medical problems are not being caused
or worsened from use. Pregnant women or
people who have impaired blood circulation to
the hand, past hand injuries, nervous system
disorders, diabetes, or Raynaud’s Disease should
not use this tool. If you feel any medical or
physical symptoms related to vibration (such as
tingling, numbness, and white or blue fingers),
seek medical advice as soon as possible.
2. Do not smoke during use. Nicotine reduces
the blood supply to the hands and fingers,
increasing the risk of vibration-related injury.
3. Use tools with the lowest vibration when there
is a choice between different processes.
4. Include vibration-free periods each day of work.
5. Grip workpiece as lightly as possible (while still
keeping safe control of it). Let the tool do the work.
6. To reduce vibration, maintain the tool as
explained in this manual. If any abnormal
vibration occurs, stop use immediately.
SAVE THESE INSTRUcTIONS.
Page 6 For technical questions, please call 1-888-866-5797. Item 58358
SAFETy OpERATION MAINTENANcESETUp

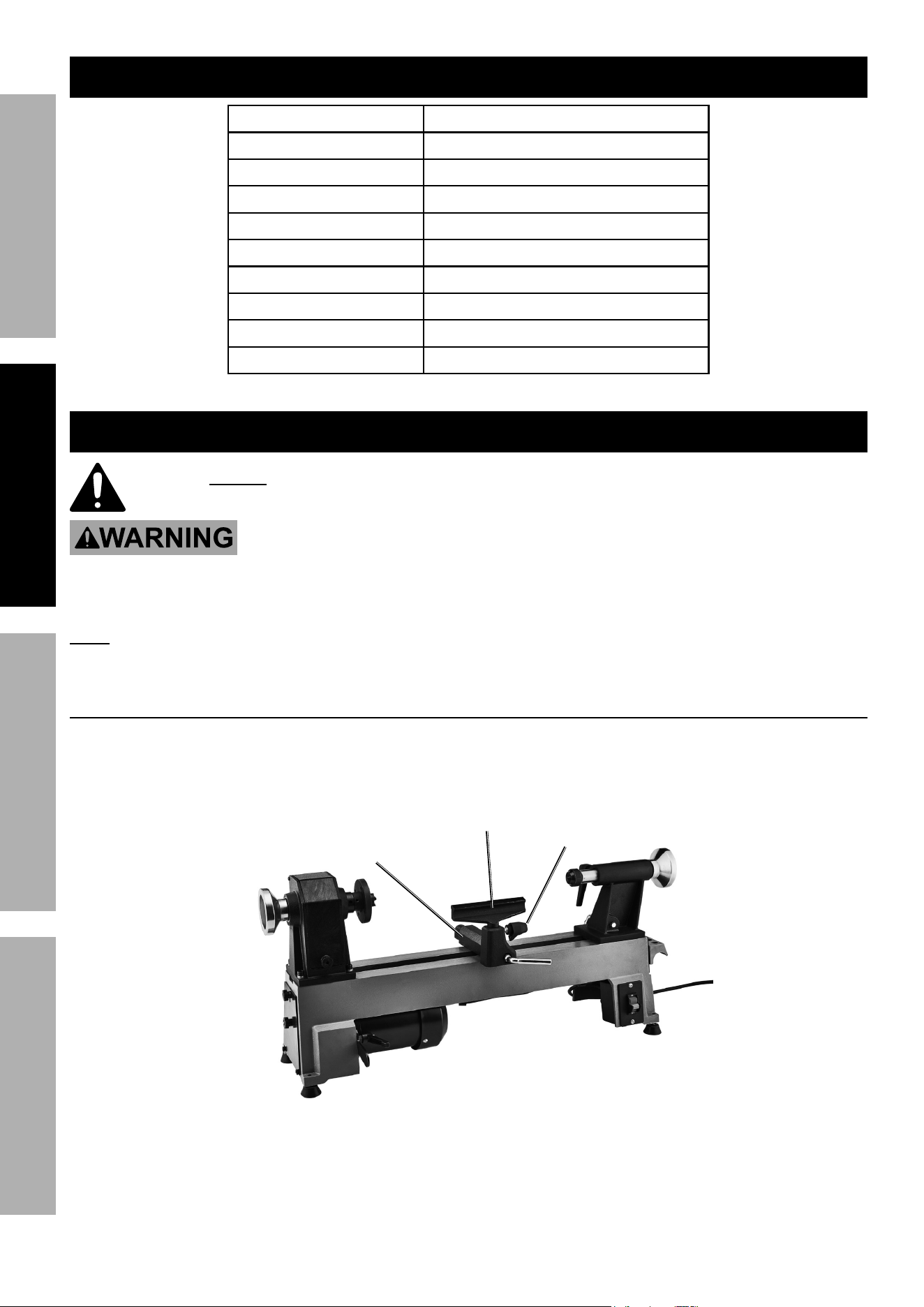

Specifications
Electrical Rating 110VAC / 60Hz / 370W / 3.3A
Spindle Speeds 760 / 1100 / 1600 / 2200 / 3200 RPM
Spindle Size 1″ x 8 TPI
Swing Over Bed 10″
Swing Over Tool Rest 7-1/4″
Tailstock Taper MT2
Tailstock Quill Bore 3/8″
Tailstock Quill Travel 1-3/4″
Weight 77 lbs
Distance Between Centers 18″ Max.
Setup - Before Use
Read the ENTIRE IMpORTANT SAFETy INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
TO pREVENT SERIOUS INJURy FROM AccIDENTAL OpERATION:
Turn the power Switch of the tool off and unplug the tool from its electrical outlet
before performing any procedure in this section.
Note: For additional information regarding the parts listed in the following pages,

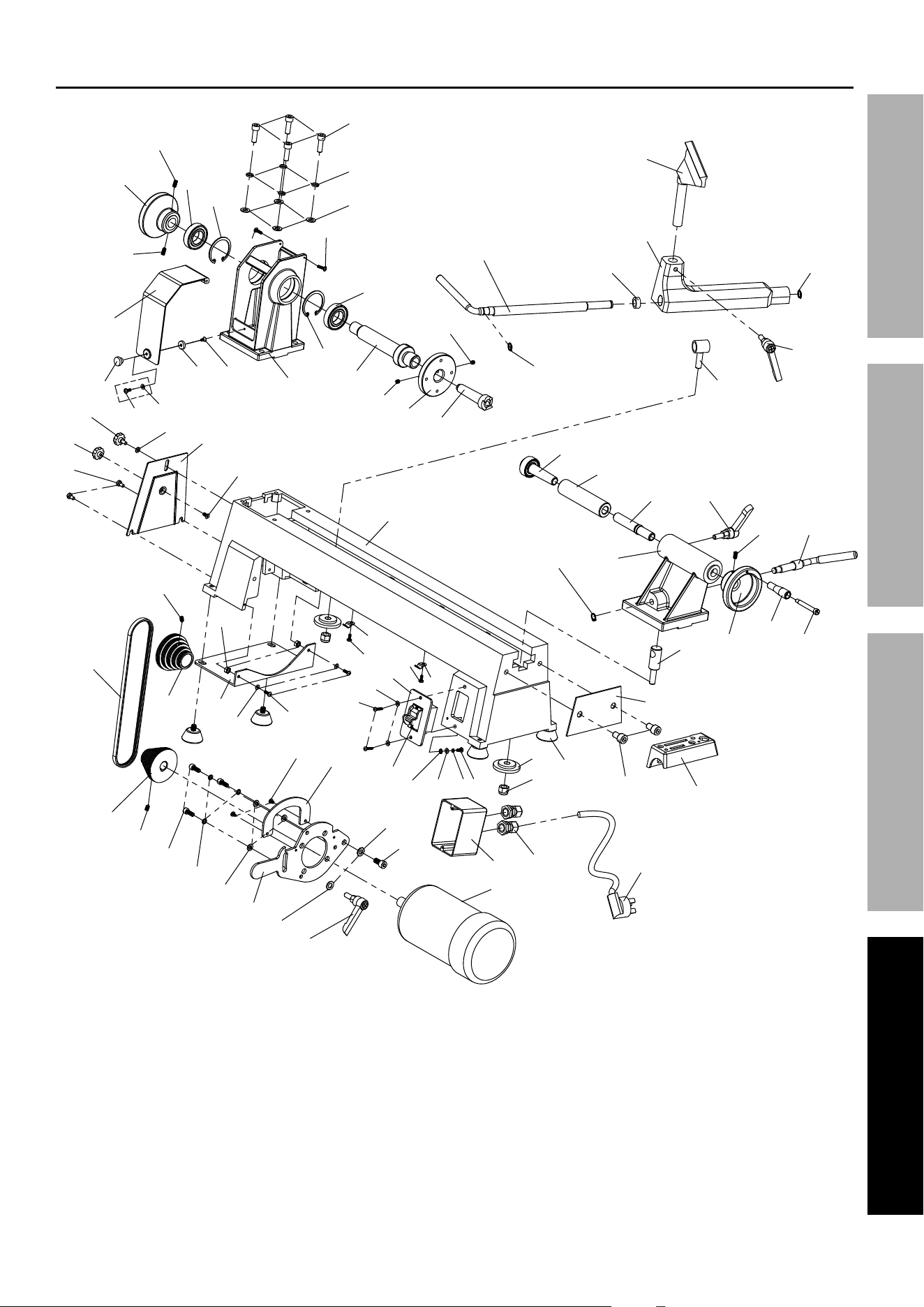

refer to the Assembly Diagram near the end of this manual.
Assembly/Mounting
1. To install the Tool Rest, loosen the Lock Lever. Insert
the Tool Rest into the Tool Rest Base. Retighten
the Lock Lever to secure the Tool Rest in place.
Tool Rest Base
Tool Rest
Lock Lever
Page 7For technical questions, please call 1-888-866-5797.Item 58358
SAFETyOpERATIONMAINTENANcE SETUp
Balance
Wheel
pulley cover
Headstock
Headstock
Spur center
Tool
Rest
Live
center
Tailstock
Lock
Lever
Handwheel
Slide plate
Switch
Bed

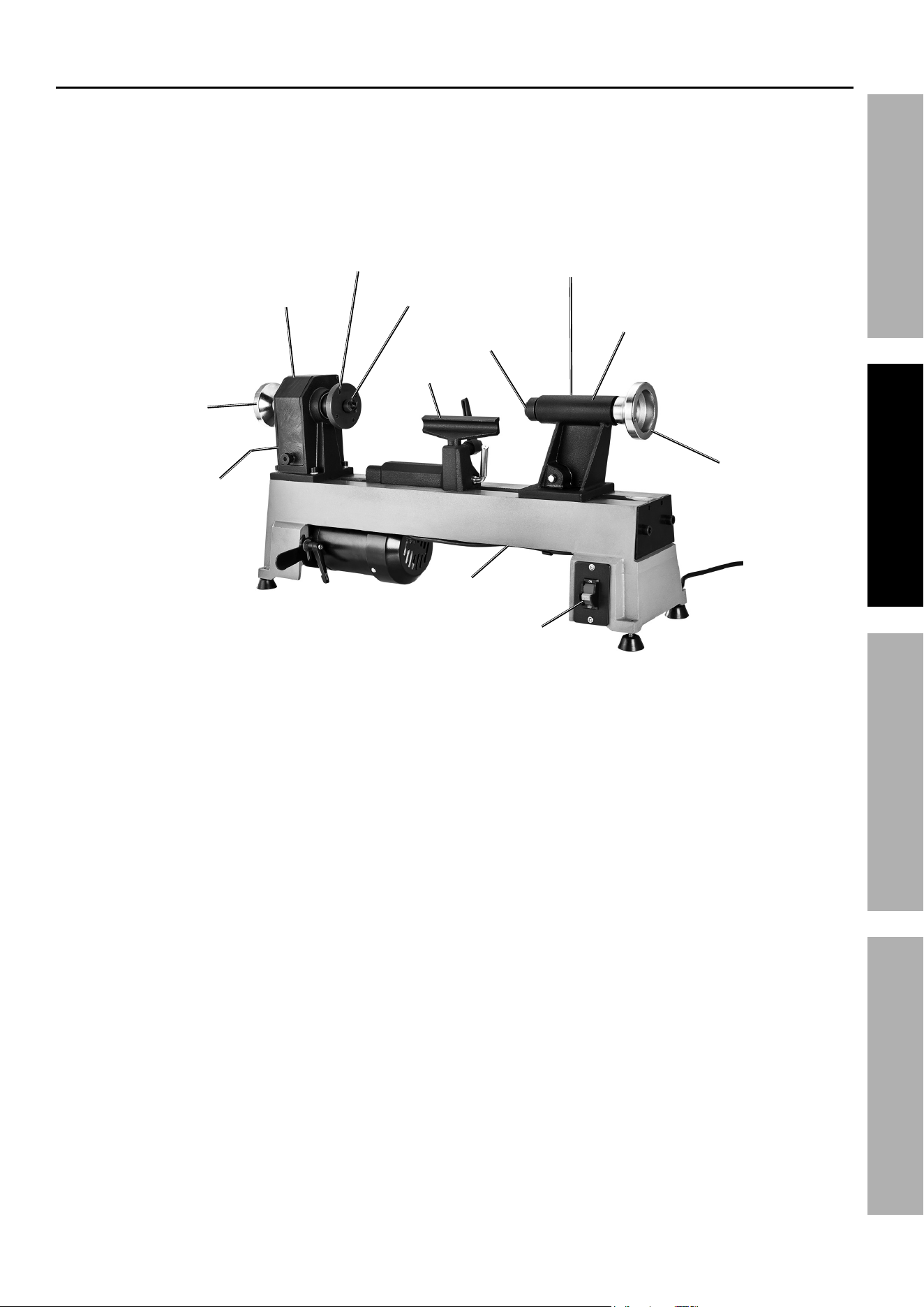

Functions
Page 8 For technical questions, please call 1-888-866-5797. Item 58358
SAFETy OpERATION MAINTENANcESETUp
Operating Instructions
Read the ENTIRE IMpORTANT SAFETy INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
Tool Set Up
TO pREVENT SERIOUS INJURy FROM AccIDENTAL OpERATION:
Turn the power Switch of the tool off and unplug the tool from its electrical outlet
before performing any procedure in this section.
TO pREVENT SERIOUS INJURy:
DO NOT OpERATE WITH ANy GUARD DISABLED, DAMAGED, OR REMOVED.
Moving guards must move freely and close instantly.
Workpiece and Work Area Set Up
1. Designate a work area that is clean and well-lit.
The work area must not allow access by children
or pets to prevent distraction and injury.
2. The Lathe will need to be located on a surface
capable of bearing the combined weight of
the Lathe and intended workpieces. The
surface must be able to withstand the vibration
generated by the Lathe during operation.
3. The Lathe must be completely level, left-to-
right and front-to-back, or the Lathe will not
rotate properly and may become damaged.
4. The unpainted surfaces are coated with a waxy oil
to protect them from corrosion during shipment.
Remove the coating with a solvent cleaner or
citrus-based degreaser. Avoid chlorine-based
solvents since they will damage the paint.
5. Route the power cord along a safe route to reach
the work area without creating a tripping hazard or
exposing the power cord to possible damage. The
power cord must reach the work area with enough
extra length to allow free movement while working.
6. There must not be objects, such as utility lines,
nearby that will present a hazard while working.
General Operating Instructions
1. Make sure the Switch is in the off-position,
then plug in the tool.
2. Turn on the tool.
3. To prevent accidents, turn off the tool and unplug
the tool from its electrical outlet after use. Clean,
then store the tool indoors out of children’s reach.
Page 9For technical questions, please call 1-888-866-5797.Item 58358
SAFETyOpERATIONMAINTENANcE SETUp
To Adjust the Spindle Speed (RpM)
TO pREVENT SERIOUS INJURy FROM AccIDENTAL OpERATION:
Turn the power Switch of the tool off and unplug the tool from its electrical outlet
before performing any procedure in this section.

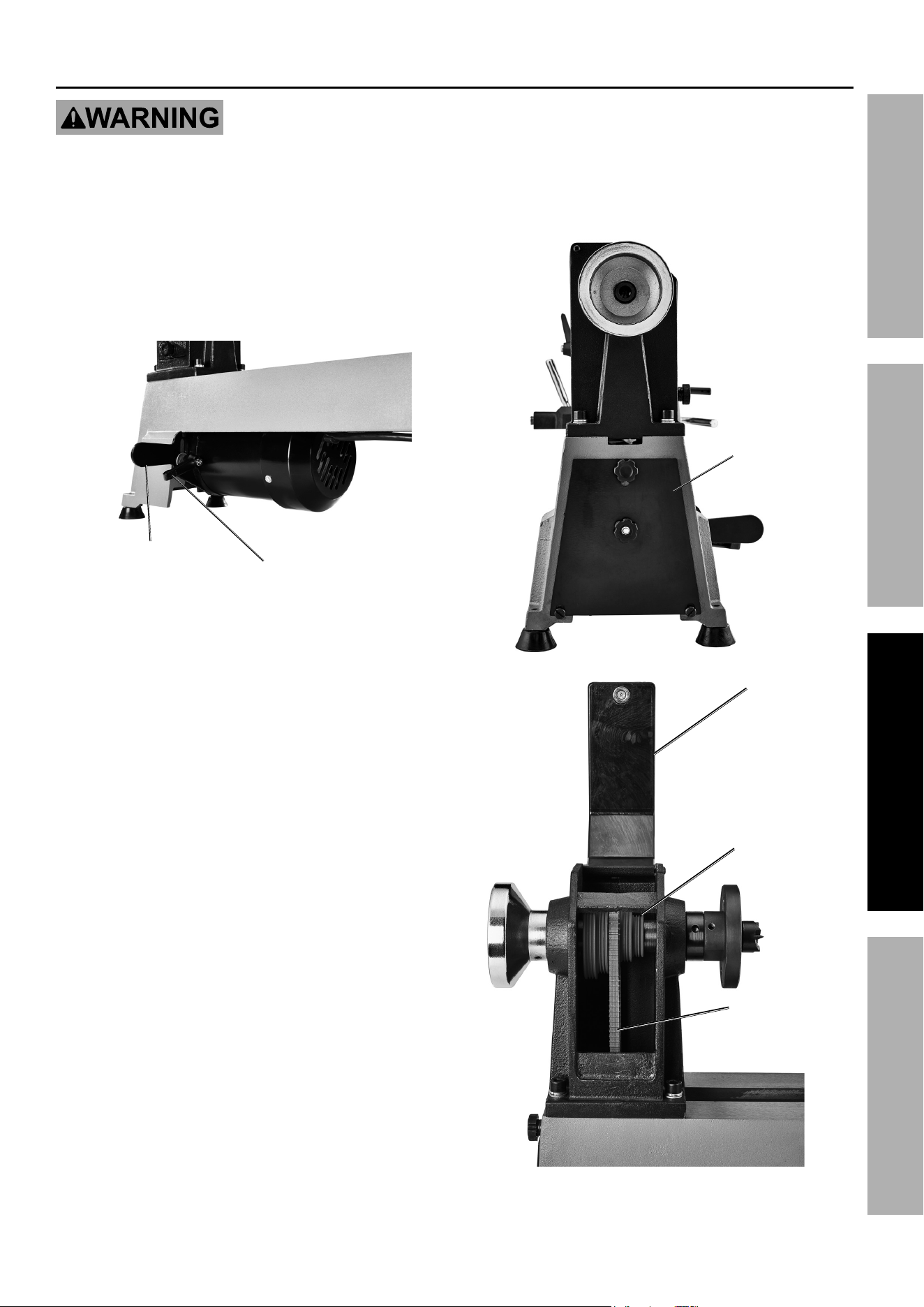

1. Loosen the Motor Mount Screw (65) securing
the Motor Mount Plate (31) to the casting.
2. Loosen the Lock Lever then pull up the Belt Tension
Lever to release tension from the Drive Belt.
3. Tighten Lock Lever to hold motor in raised position.
Lock Lever
Belt Tension Lever
4. Open the Pulley Cover and Side Plate.
Side plate
pulley cover
Drive Belt
Drive pulley
Page 10 For technical questions, please call 1-888-866-5797. Item 58358
SAFETy OpERATION MAINTENANcESETUp

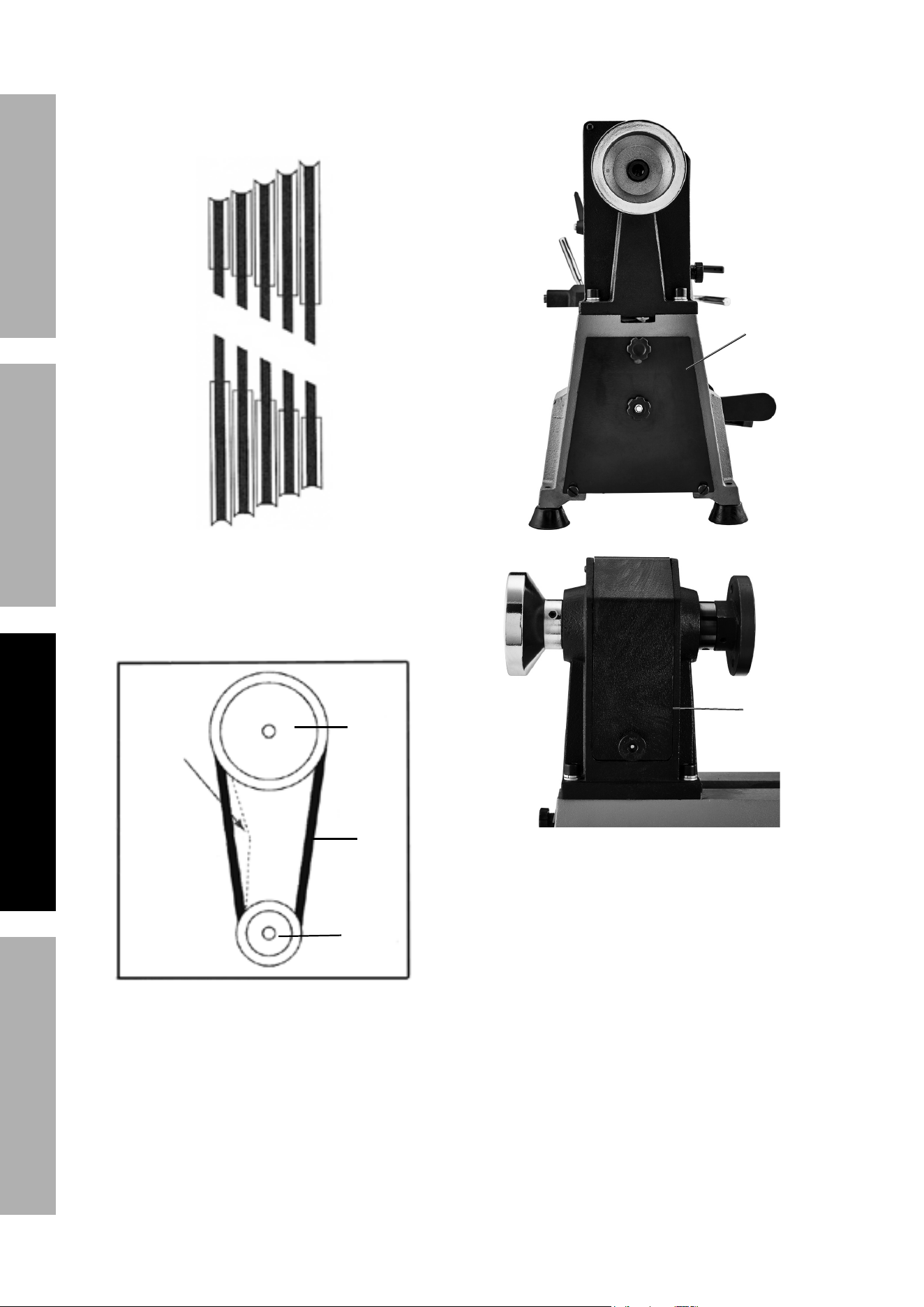

5. Locate the desired speed on the Speed Chart on the
rear of the Lathe Bed and move the Drive Belt to the
proper grooves on the drive Pulley and Motor Pulley.
760
1100
1600
2200
3200
6. Loosen Lock Lever.
7. Move the Belt Tension Lever down, adjusting
tension so that 1/2″ of Drive Belt deflection is
measured then retighten the Lock Lever.
DRIVE
pULLEy
MOTOR
pULLEy
1/2″
DEFLEcTION
DRIVE
BELT
8. Retighten the Motor Mount Screw (65).
9. Replace the Pulley Cover and Sideplate.
Sideplate
pulley cover
Page 11For technical questions, please call 1-888-866-5797.Item 58358
SAFETyOpERATIONMAINTENANcE SETUp

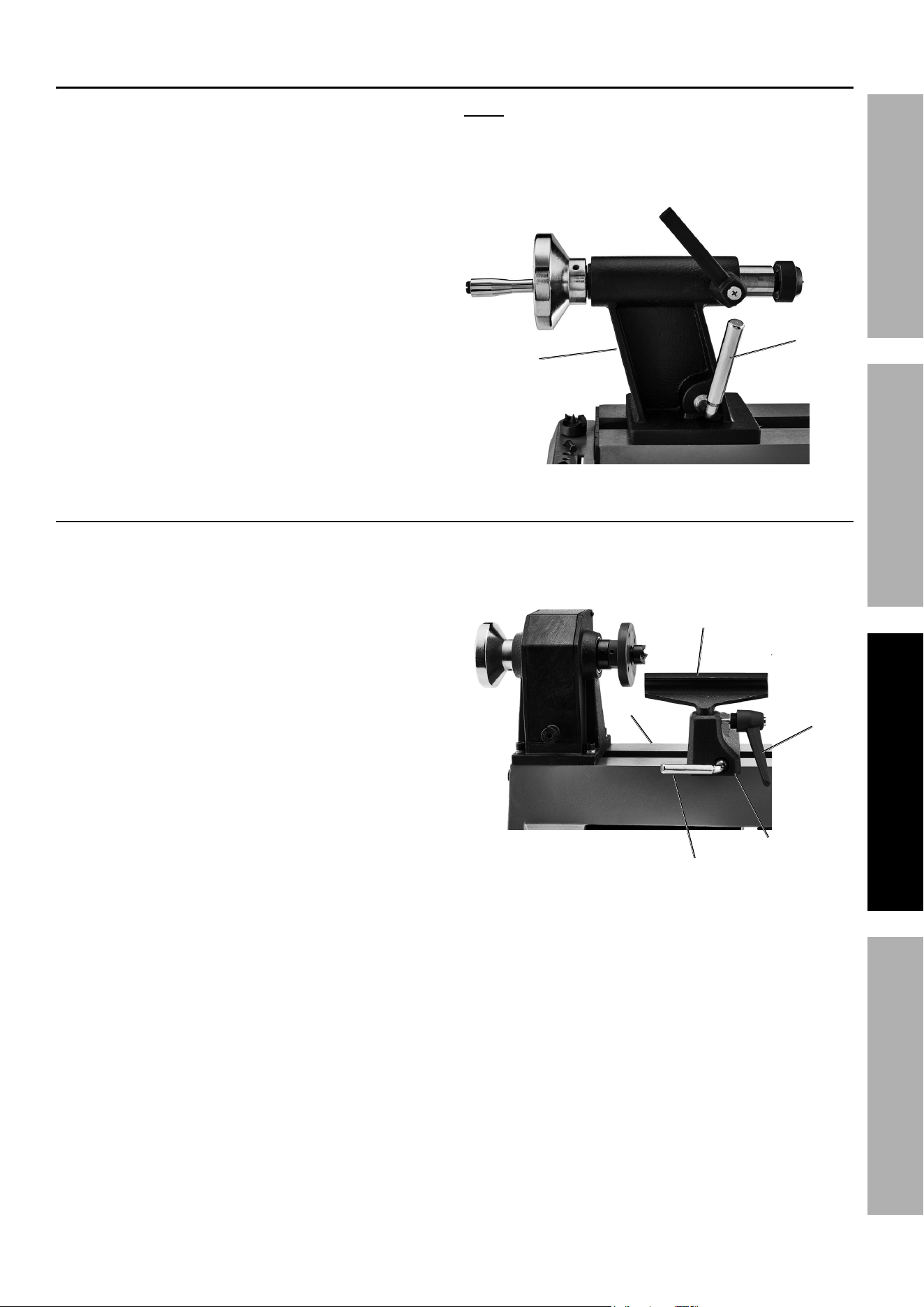

To Adjust the Tailstock
1. Loosen the Release Lever and move
the Tailstock to the desired position.
Then retighten the Release Lever.
Note: If the Release Lever will not release or
lock the Tailstock (either too tight or too loose),
tighten or loosen the nut located on the underside
of the Tailstock in small increments as needed
to achieve the proper clamping pressure.
Tailstock
Release Lever
To Adjust the Tool Rest
1. Loosen the Lock Handle and slide the Tool
Rest Base along the Bed to the desired
position. Then retighten the Lock Handle.
2. Loosen the Lock Lever and adjust the
Tool Rest vertically or swivel it as needed.
Then retighten the Lock Lever.
Lock
Lever
Tool Rest
Lock Handle
Bed
Tool Rest
Base
Page 12 For technical questions, please call 1-888-866-5797. Item 58358
SAFETy OpERATION MAINTENANcESETUp
To Install and Remove the Spur center
Note: The Spur Center can be used with or
without the Faceplate mounted to the Spindle.
1. To install, insert the tapered end of the Headstock
Spur Center into the Headstock Spindle. Make
sure the Headstock Spur Center is securely
installed by giving it a quick pull. A properly installed
Headstock Spur Center will not pull out by hand.
2. To remove, insert the Knockout Rod through
Balance Wheel and Spindle, and tap the inserted
end of Spur Center until it comes out.
Note: Hold Spur Center with one hand to
prevent it from falling and being damaged.
Balance
Wheel
Headstock Spindle
Headstock Spur
center
Faceplate

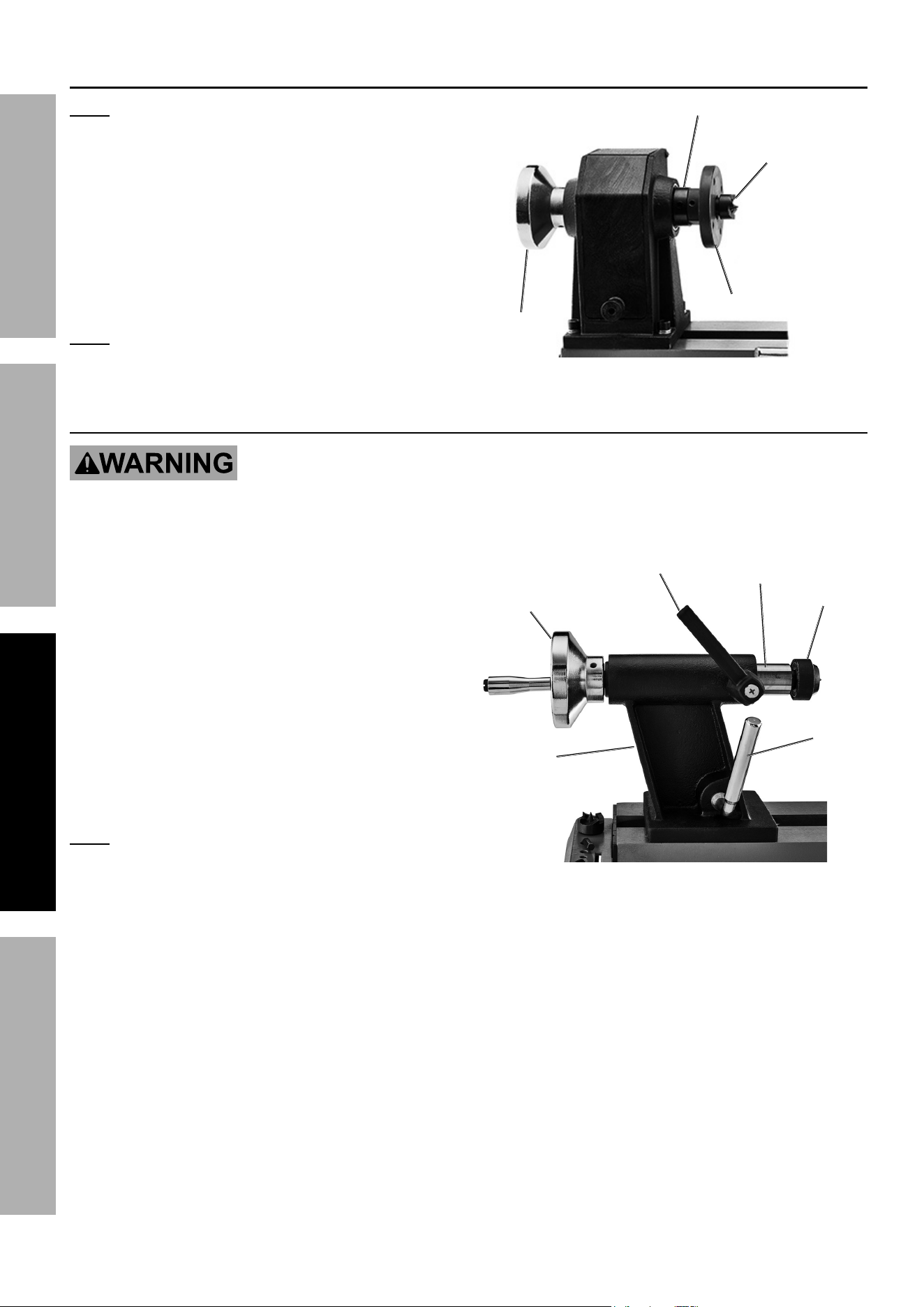

To Install and Remove the Live center
The Lock Lever must always be locked down while the Lathe is in use. The workpiece can be thrown from
the Lathe if this step is not followed. The Tail Axis should not protrude from the Tailstock more than 2″ or
the Tail Axis will not be supported enough. Failure to follow these warnings may result in personal injury.
1. To install, loosen the Lock Lever approximately
half a turn counterclockwise.
2. Rotate the Tailstock Handwheel clockwise until the
Tail Axis protrudes out of the tailstock about 3/4″.
3. Insert the Live Center and push firmly.
Then retighten the Lock Lever.
4. To remove, loosen the Lock Lever
approximately half a turn counter clockwise.
5. Rotate the Tailstock Handwheel counterclockwise
until the Tail Axis bottoms out, causing
the Live Center to be forced out of the Tail Axis.
Note: Hold Live Center with one hand to
prevent it from falling and being damaged.
Tailstock
Release Lever
Live center
Axis
Lock Lever
Tailstock
Hand Wheel
Page 13For technical questions, please call 1-888-866-5797.Item 58358
SAFETyOpERATIONMAINTENANcE SETUp

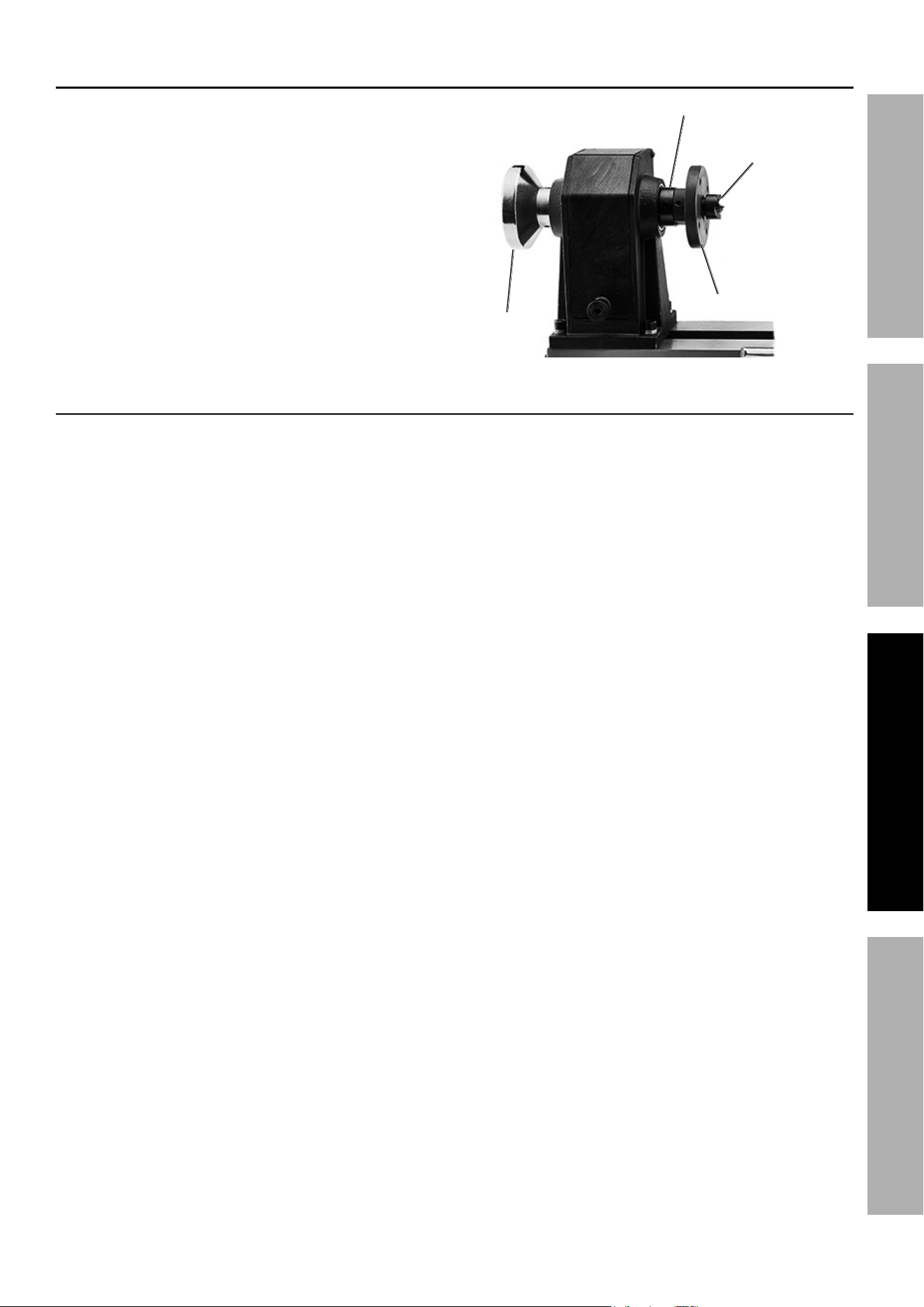

To Install and Remove the Faceplate
1. To install, thread the Faceplate onto the
Headstock Spindle until it is secure against
the shoulder on the Headstock Spindle.
Tighten the set screw on the Faceplate.
2. To remove, loosen the set screw, hold the
Balance Wheel securely while turning the
Faceplate counterclockwise with the provided
wrench until it is removed. If the Headstock Spur
Center is installed, it should be removed first.
Balance
Wheel
Headstock Spindle
Headstock Spur
center
Faceplate
power Switch Safety Key
1. The Lathe features a yellow Safety Key on the
Power Switch to prevent unauthorized use. To
turn the Lathe on, plug the Power Cord into the
nearest 120 volt, grounded electrical outlet.
2. Insert the Safety Key into the Power Switch.
Move the Power Switch to the ″ON″ position.
To turn the Lathe off, move the Power Switch
to the ″OFF″ position. To lock the Power
Switch in the ″OFF″ position, remove the
Safety Key and store it in a safe location.
Page 14 For technical questions, please call 1-888-866-5797. Item 58358
SAFETy OpERATION MAINTENANcESETUp
Operating Instructions
1. With the Power Switch in the ″OFF″ position
and the Lathe unplugged from its electrical
outlet, make all necessary adjustments to
the machine as previously discussed.

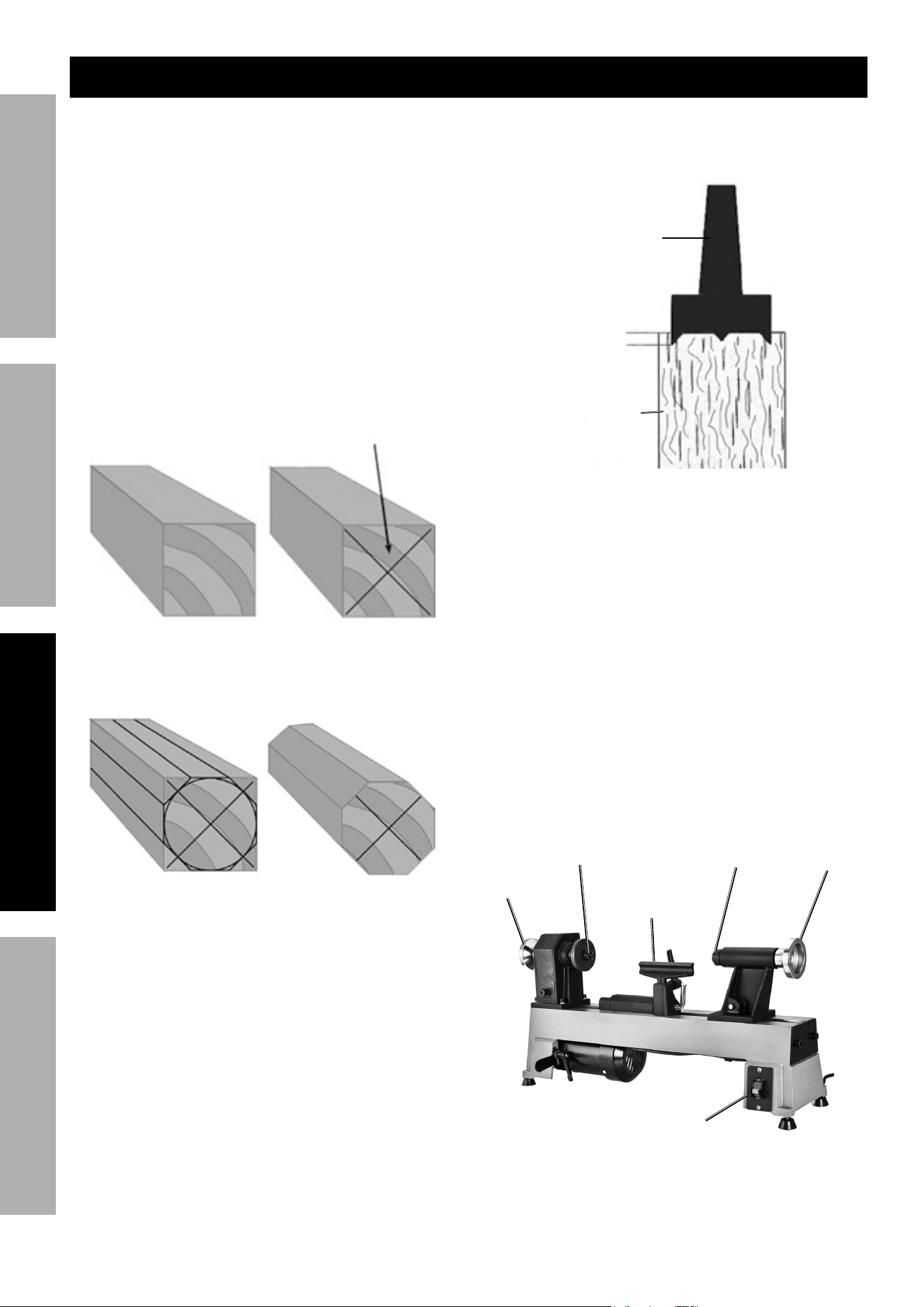

2. To set-up a spindle turning operation, mark both
ends of the workpiece by drawing diagonal lines
from corner to corner. The intersection point of these
two lines will indicate the center of the workpiece.
3. Use a wood mallet and punch or nail to
tap the point of the center of the workpiece
so that it leaves a center mark.
4. Use a 1/8″ drill bit to drill a 3/16″ deep hole
at the center mark on the workpiece.
pENcIL LINES
MARKED DIAGONALLy
AcROSS cORNERS
WORKpIEcE
5. Cut the corners off the workpiece if it is
over 2″ x 2″ to make safer and easier.
6. Use a wood mallet to drive the Headstock
Spur Center into the center of the
workpiece at least 1/4″ deep.
Headstock
Spur center
1/4″
Workpiece
7. With the workpiece still attached, insert the
Headstock Spur Center into the Headstock Spindle.
8. With the Live Center installed in the Tailstock,
slide the Tailstock toward the workpiece until
the Live Center touches the workpiece center
point. Then lock the Tailstock in position.
9. Use the Tailstock Handwheel to push the Cup
Center into the workpiece at least 1/4″.
10. Position the Tool Rest approximately
1/4″ away from the workpiece and
approximately 1/8″ above the center line.
11. Make sure to test the set up by hand turning
the workpiece to ensure there is enough
clearance all the way around before starting.
Balance
Wheel
Headstock
Spur center
Tool
Rest
Live
center
Tailstock
Handwheel
power Switch
Page 15For technical questions, please call 1-888-866-5797.Item 58358
SAFETyOpERATIONMAINTENANcE SETUp
12. To set up a Faceplate turning operation,
remove the Headstock Spur Center and
the Faceplate from the spindle.
Headstock Spur
center
Faceplate
13. Find the center of the workpiece in the
same way as the spindle turning.
14. Cut off the corners of the workpiece.
15. Center the Faceplate on the workpiece and attach
it through the Faceplate mounting holes with
non-tapered head wood screws (not provided).

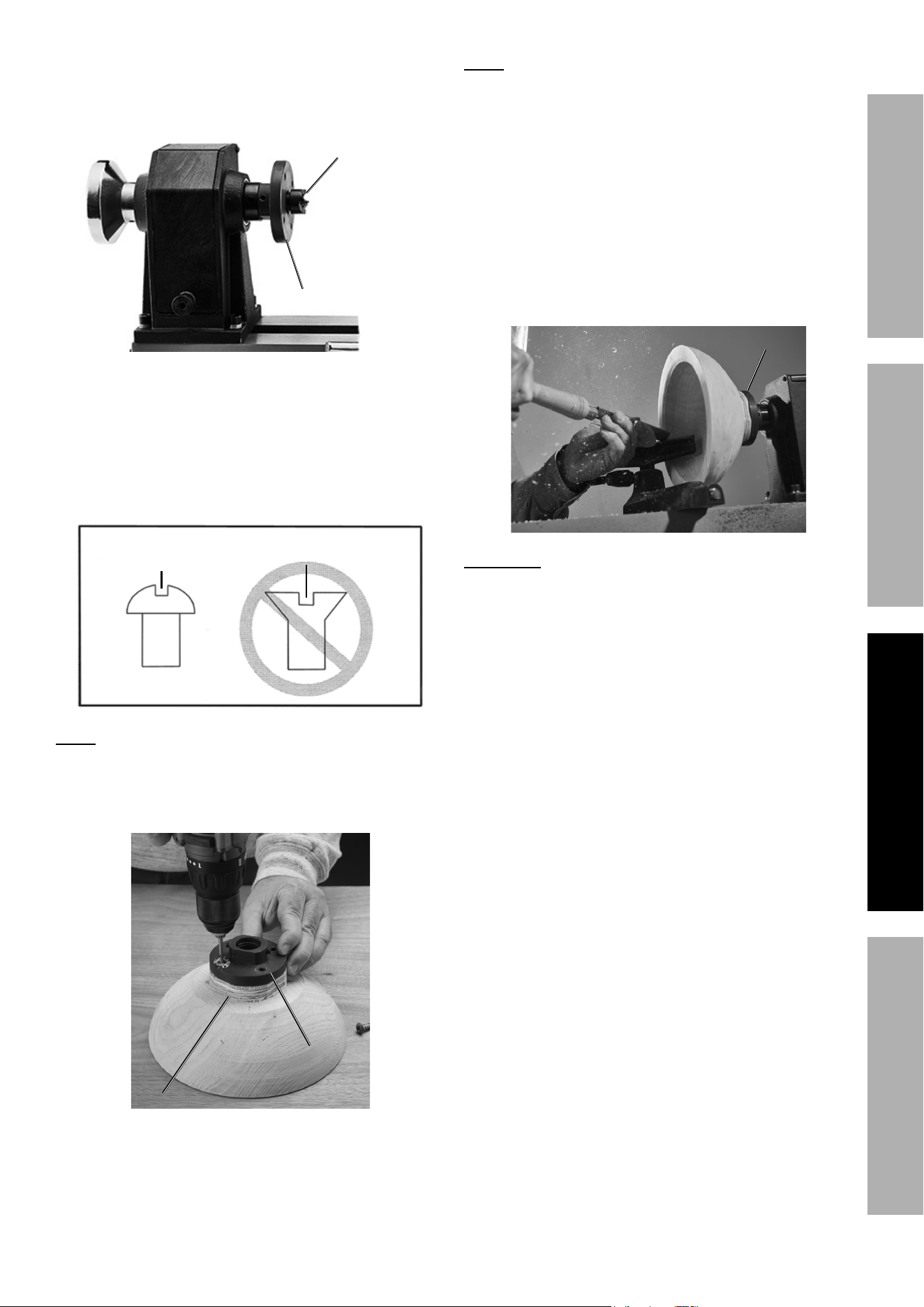

FIGURE T
USE
ONLy
NON-TApERED
WOOD ScREWS
DO NOT USE
TApERED HEAD
ScREWS
Note: Faceplate turning is typically done with
open-faced workpieces like bowls. If screws
cannot be placed in the workpiece, then a
backing block can be glued to the workpiece
and attached to the Faceplate with screws.
Backing Block
Faceplate
16. To mount the workpiece to a backing block,
make the backing block from a piece of
scrap wood that is flat on both sides.
17. Mark the center of the backing block.
Note: Make sure the wood piece is free of sawdust.
18. Using a sharp drill bit, drill a 1/4″ diameter hole
through the center of the backing block.
19. Glue the center of the backing block to the center
of the workpiece. Clamp the backing block to the
workpiece and wait for the glue to dry according
to the glue manufacturer′s recommendation.
20. Thread the Faceplate onto the Headstock
Spindle and tighten securely.
21. After turning, the workpiece can be sanded and
finished before removing it from the Lathe.
Faceplate
Important: Whenever sanding or finishing,
remove the Tool Rest to increase safety and gain
adequate working room. Use low speed.
Page 16 For technical questions, please call 1-888-866-5797. Item 58358
SAFETy OpERATION MAINTENANcESETUp
Maintenance and Servicing
procedures not specifically explained in this manual must
be performed only by a qualified technician.
TO pREVENT SERIOUS INJURy FROM AccIDENTAL OpERATION:
Turn the power Switch of the tool off and unplug the tool from its electrical outlet
before performing any procedure in this section.
TO pREVENT SERIOUS INJURy FROM TOOL FAILURE:
Do not use damaged equipment. If abnormal noise or vibration
occurs, have the problem corrected before further use.
TO pREVENT SERIOUS INJURy: If the supply cord of this power tool is
damaged, it must be replaced only by a qualified service technician.
cleaning, Maintenance, and Lubrication
1. BEFORE EAcH USE, inspect the general
condition of the tool. Check for:
• loose hardware,
• misalignment or binding of moving parts,
• cracked or broken parts,
• damaged electrical wiring, and
• any other condition that may
affect its safe operation.
2. AFTER USE, wipe external surfaces
of the tool with clean cloth.
3. Periodically, wear ANSI-approved
safety goggles and NIOSH-approved
breathing protection and blow dust out of
the motor vents using dry compressed air.
4. DAILY, lubricate all external moving
parts with ISO 68 or SAE 20W oil.
5. Lubricate the Tailstock oiling point every five
uses, or once per week if used frequently.
6. WARNING! If the supply cord of this
power tool is damaged, it must be replaced
only by a qualified service technician.
Page 17For technical questions, please call 1-888-866-5797.Item 58358
SAFETyOpERATIONMAINTENANcE SETUp
Troubleshooting
problem possible causes Likely Solutions
Quality of cut
is poor.
1. Cutting tool is above
workpiece center line.
2. Lathe speed too slow.
3. Cutting tool is dull.
4. Cutting too aggressively.
1. Lower cutting tool to center line of workpiece.
2. Increase lathe speed.
3. Sharpen or replace cutting tool.
4. Use a lighter touch.
Excessive
vibration when
turning thin
workpieces.
1. Cutting tool is positioned below
workpiece center line.
2. Cutting too aggressively.
1. Raise cutting tool to center line of workpiece.
2. Use a lighter touch.
Excessive
vibration when
turning larger
workpieces
or bowls.
1. Headstock and/or tailstock
improperly located at
ends of workpiece.
2. Workpiece is unbalanced.
1. Check for proper workpiece centers.
2. Cut off stock until workpiece is balanced.
Lathe will not
turn on.
1. Speed control lever not in
its lowest speed setting.
2. Electrical outlet not working
or is of wrong voltage.
3. Blown fuse or tripped circuit breaker.
1. Make sure speed control lever is turned
to its lowest speed setting.
2. Make sure lathe is plugged into a working,
120 volt, grounded, electrical outlet.
3. Replace fuse or reset circuit breaker.
Lathe will not
turn off.
Damaged or faulty power switch
and/or internal wiring.
Unplug the lathe from its electrical outlet
immediately. Do not operate lathe until it is
repaired by a qualified service technician.
Follow all safety precautions whenever diagnosing or servicing the tool.
Disconnect power supply before service.
Page 18 For technical questions, please call 1-888-866-5797. Item 58358
SAFETy OpERATION MAINTENANcESETUp
part Description Qty
1 Bed 1
2 Semi-circle Head Screw M10×25 2
3 Retaining Plate 1
4 Tailstock Hand Wheel 1
5 Tailstock 1
6 Lock Lever 1
7 Release Lever 1
8 Tail Axis 1
9 Live Center 1
10 hex Socket Tightening M6×6 2
11 Strain Relief 2
12 Headstock Spur Center 1
13 Faceplate 1
14 Headstock Spindle 1
15 Bearing Ball 6005 2
16 Ring Retaining Ø47 2
17 Stationary Knob 1
18 Magnet 1
19 Headstock 1
20 Pulley Cover 1
21 Cross Countersunk Head Bolt M4×10 1
22 Balance Wheel 1
23 Side Plate 1
24 Hex. Socket Set Screw M6×10 1
25 Drive Pulley 1
26 Drive Belt 630×3 1
27 Hex. Socket Head Screw M8×30 4
28 Hex. Socket Set Screw M6×10 4
29 Motor Pulley 1
30 Hex. Socket Head Screw M6×16 3
31 Motor Mount Plate 1
32 Motor 1
33 Lock Lever 1
34 Ring Retaining 12 2
35 Tool Rest 1
36 Tool Rest Base 1
37 Bolt 1
38 Lock Plate 2
39 Hex. Nut M10 2
part Description Qty
40 Lock Handle 1
41 Lock Lever 1
42 Bolt 1
43 Flat Gasket Ø4 6
44 Self Tapping M4×25 2
45 Power Cord 1
46 Plate 1
47 Power Switch 1
48 Washer Ø8 5
49 Spring Washer Ø8 4
50 Rubber Washer 4
51 Switch Box 1
52 Spring Washer Ø6 3
53 Ring Retaining 10 1
54 Tailstock Quill 1
55 Bolt 1
56 Handle 1
57 Moving Knob 1
58 Stationary Knob 1
59 Washer Ø6 3
60 Cross-head Bolt M4 2
61 Screw 2
62 Bushing 1
63 Washer Ø5 1
64 Tool Rack 1
65 Motor Mount Screw 1
66 Counter-Sunk hex Socket
Head Bolt M5×16
1
67 Washer Ø8×22×1.5 1
68 Semi-circular Head Screw M4×10 4
69 Tension Disc 2
70 Semi-circular Head Screw M4×12 2
71 Guard 1
72 Nut M6 2
73 Semi-circular Head Screw M4×16 2
74 Motor Guard Plate 1
75 Spring Washer Ø4 1
76 External Tooth Gasket Ø4 1
parts List and Diagram
pLEASE READ THE FOLLOWING cAREFULLy
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
parts List
Record product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not available
individually as replacement parts. Specify UPC 193175437822 when ordering parts.
Page 19For technical questions, please call 1-888-866-5797.Item 58358
SAFETyOpERATIONMAINTENANcE SETUp
Assembly Diagram
69
75
62
1
2
3
4
5
6
7
8
9
54
12
13
14
15
19
16
16
15
22
28
28
40
34
48
36
35
34
41
37
20
17
18 21
23
57
58
26
25
30
59
65
29
31
24
28
33
51
32
43
38
39
64
46
44
43
60
61
42
53
56
55
27
49
48
50
28
45
47
63
66
60
10
10
11
52
67
43
68
71
72
43
70
74
73
69
68
68
68
76
Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
26677 Agoura Road • calabasas, cA 91302 • 1-888-866-5797
