USER GUIDE
1000 Watt 2 Channel Bridgeable
MOSFET Amplifier
PB717X
Visit Our Website
SCAN ME
PyleUSA.com
www.PyleUSA.com
2
READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT.
RETAIN THIS OWNER’S MANUAL FOR FUTURE REFERENCE.
FEATURES:
• Two Channel Bridgeable Amplication
• Tri-way Conguration: 1/ 2 Channels
• 2 x 50 Watts Total Output @ 4 Ohms
• 1000 Watts Total System Output @ 4 Ohms
• Variable Gain Control
• MOSFET Pulse Width Modulated Power Supply
• 2 Ohm Stereo Stable
• Built-In Variable Subwoofer Crossover
• High Level Low Impedance MOLEX Input Connector
• RCA Low Level Inputs
• Speaker Output Terminal Strip
• Signal/Noise Ratio: 90dB
• THD Less Than 0.04%
• Frequency Response: 15-30kHz
• Overload Protection
• Thermal Protection
• Short Circuit Protection
• Power On LED Indicator
• LED Diagnostic Condition Indicator
• Automotive Type Fuse Protection
• Dimensions: 9.84'' L 10.03'' W 1.96'' H
California Prop 65 Warning
WARNING:
This product may expose you to chemicals, which is known to
the state of California to cause cancer, birth defects and other
reproductive harm. Do not ingest.
For more info go to: www.P65warnings.ca.gov
www.PyleUSA.com
3
FCC INFORMATION
WARNING:
Changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This unit generates, uses, and can radiate
radio frequency energy, and if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o and on, the
user is encouraged to try and correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit dierent from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that
may cause undesired operation.
PRECAUTIONS
• Do not block ventilation openings or cooling ns.
• Avoid installing near sources of moisture or heat.
• Disconnect the negative battery terminal before installation.
• Ensure secure mounting to avoid vibration damage.
• Use correct fuse rating only.
www.PyleUSA.com
4
MOUNTING AND INSTALLATION
Choose a Mounting Location
• Select a location in your vehicle with low vibration, adequate ventilation, minimal
dust, and no moisture.
• Allow airow over the cooling ns.
• Position the amp and use a scribe or screw through each mounting hole to mark
the surface. If mounting on carpet, measure hole centers and mark with a felt-tip
pen.
Caution:
• Check behind the mounting surface for wires, lines, or devices before drilling!
• Drill pilot holes, insert the mounting screws, and tighten securely.
Electrical Connections
• Use at least 8-gauge wire for power and ground connections.
• Connect directly to the car battery.
• Keep the ground wire as short as possible, connected to a solid chassis ground.
• Wire the Remote terminal to the auto start lead from your head unit, equalizer,
or power antenna.
Fuse Information
Pyramid Arctic Series ampliers have built-in fuse systems to protect both the
amp and your vehicle. Only replace with a fuse of the same type and rating.
Using a dierent fuse can cause damage or re.
www.PyleUSA.com
5

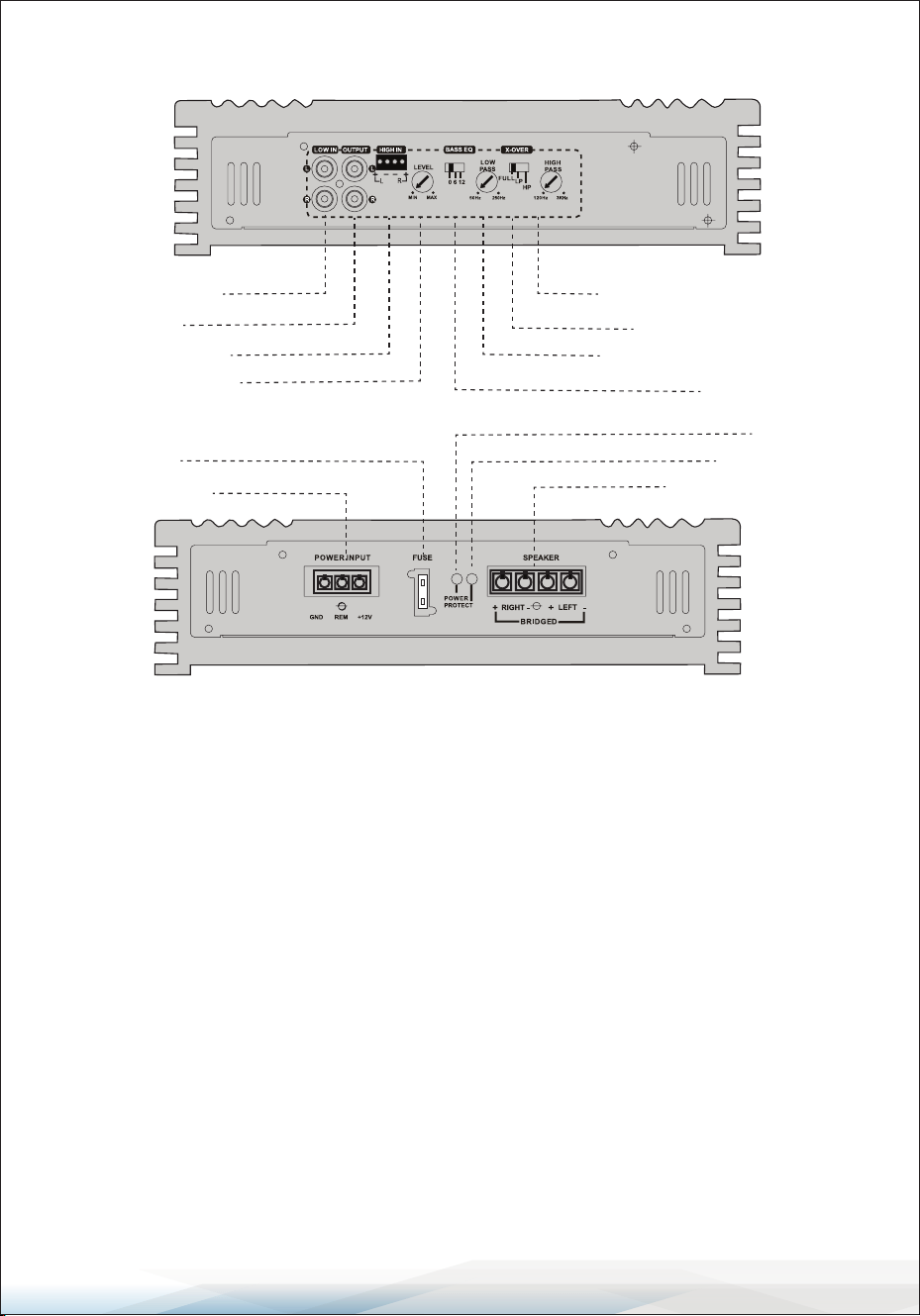

CONTROLS & INDICATORS
Crossover Mode Selector:
• “FULL” for normal full-range systems
• “LOWPASS” or “HIGHPASS” for ltered output
Input Level Control:
• Match the output of your head unit to the amp.
• Set the head unit volume around 2 o’clock, adjust the amp gain until distortion
occurs, then back o slightly.
Low Pass Frequency Control:
Sets the upper frequency limit when “LOWPASS” is selected.
High Pass Frequency Control:
Sets the lower frequency limit when “HIGHPASS” is selected.
Bass Boost Level Control: Adjusts bass up to +18 dB.
Low-Level Inputs
Output level
High-Level Inputs
Input Level Control
High Pass Frequency Control
Crossover Mode Selector
Low Pass Frequency Control
Bass Boost Level
Power LED
Protection LED
Speaker Connections
Power Fuse
Power terminals
www.PyleUSA.com
6
Low-Level Inputs: Gold-plated RCA jacks for high-impedance stereo output.
High-Level Inputs: For stereos without RCA output jacks (connect speaker
output leads here).
Power LED: Illuminates when power is applied.
Protection LED: Illuminates when protection mode is activated.
Power Fuse: The fuse protects the amplier and your car’s electrical system from
short circuit conditions.
Power Terminals: Use these connectors to deliver power, ground, and remote
turn-on control to the amplier.
Speaker Connections: These terminals are 14K gold-plated to guarantee high
conductivity and minimal signal loss.
SPECIFICATIONS
• Power Output (14.4V DC, 1kHz):
• RMS @ 4 Ohms: 50 Watts x 2
• RMS @ 2 Ohms: 75 Watts x 2
• Maximum Output: 500 Watts x 2
• Frequency Response: 10 Hz – 70 kHz
• Input Impedance:
• Low-Level: 10K Ohms
• High-Level: 100 Ohms
• Input Sensitivity:
• Low-Level: 200 mV – 5V
• High-Level: (as above)
• Power Supply Voltage: 14.4V DC Negative Ground (10.5 – 16V)
• Speaker Impedance:
• Stereo Mode: 2 – 4 Ohms
• Bridged Mode: 4 – 8 Ohms
• Maximum Current Draw: 30A
www.PyleUSA.com
7
to a second amplier

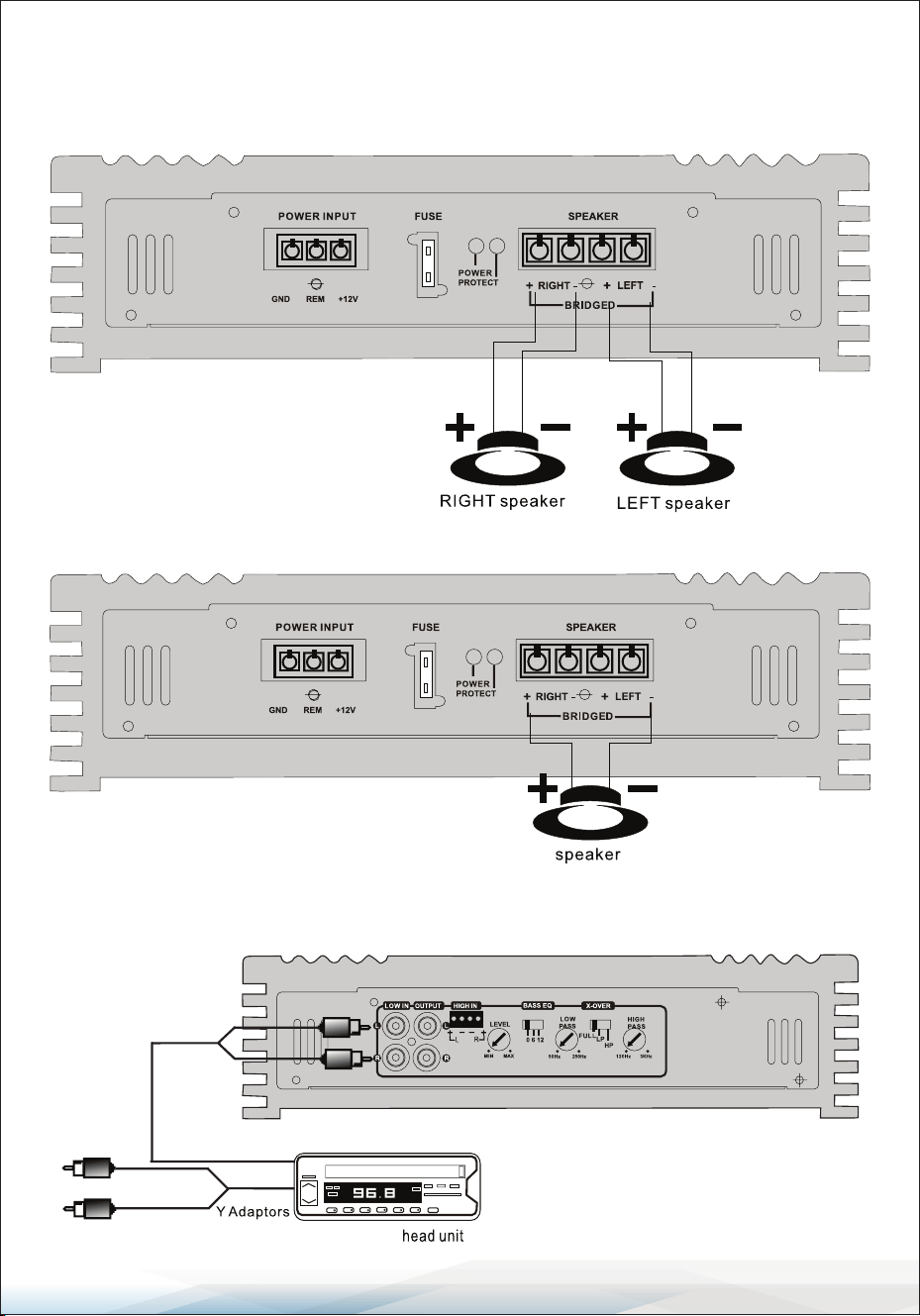

SPEAKER & INPUT CONNECTIONS
Stereo Output Mode
Bridged Mono Output Mode
Mono Input Connections
Using low-level inputs
MINIMUM SPEAKER
IMPEDANCE: 40 OHMS
www.PyleUSA.com
8

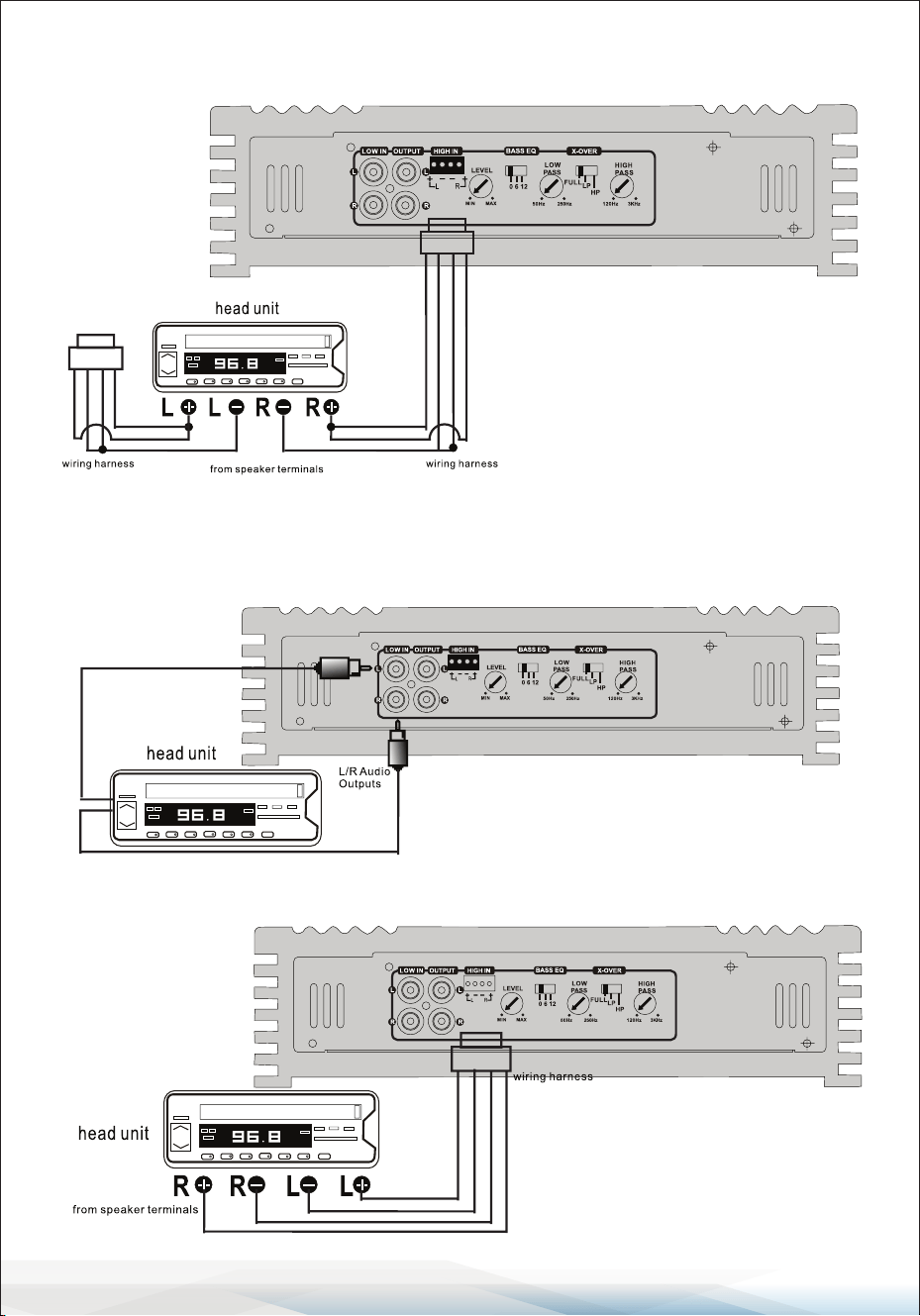

Using high-level inputs
Mono Input Connections
Using low-level inputs
Using high-level inputs
IMPORTANT: Do not use both high-level
and low-level (RCA) inputs at the same time.
to a second amplier
www.PyleUSA.com
9

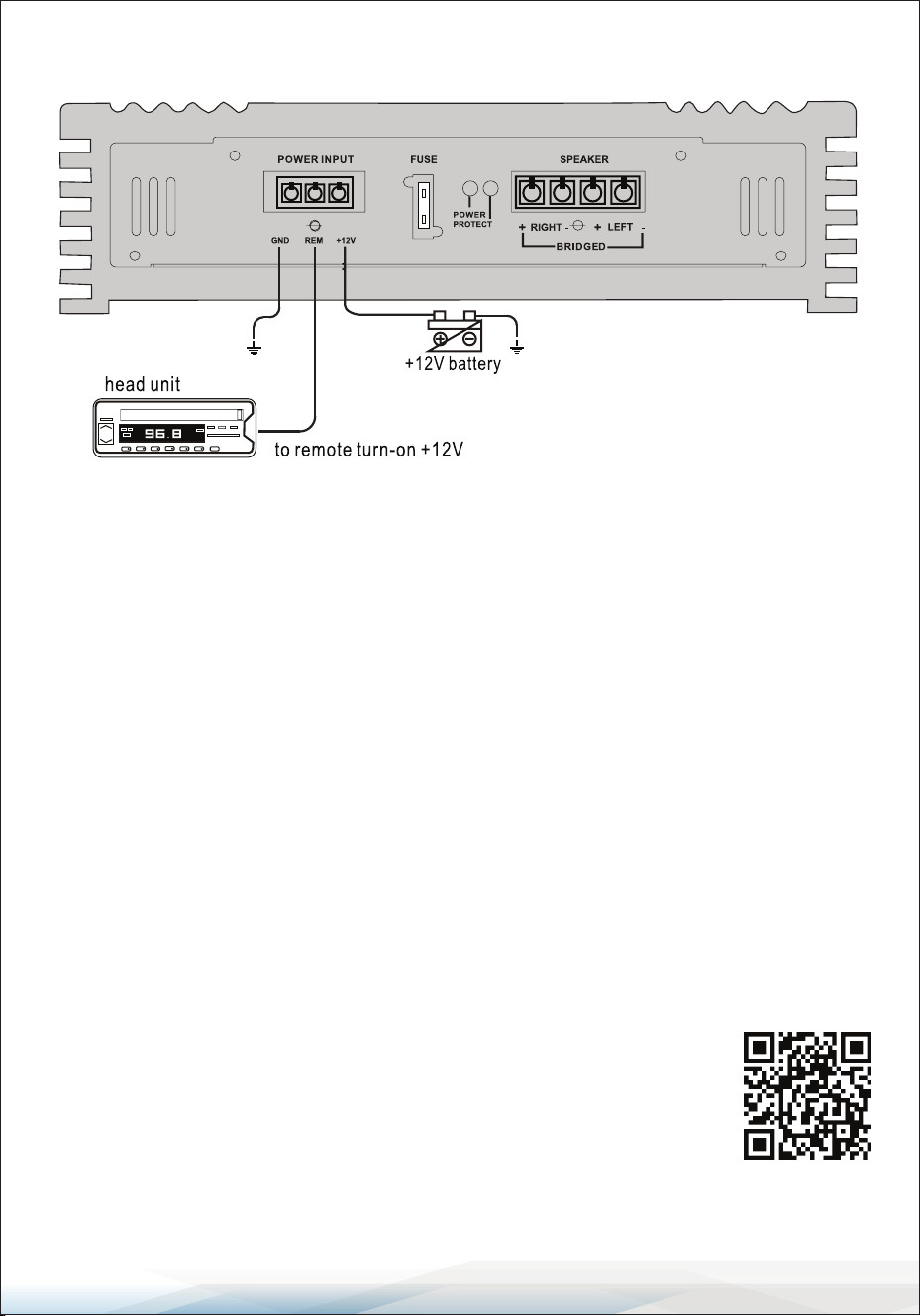

Electrical Connections
CLEANING, MAINTENANCE, AND STORAGE
Cleaning
• Turn o and disconnect the amplier before cleaning
• Use a dry or slightly damp soft cloth
• Avoid using harsh chemicals, solvents, or abrasive cleaners
Maintenance
• Periodically check wiring connections and clean terminals if corroded
• Inspect the cooling ns and ensure they remain unobstructed
• Test performance occasionally to conrm optimal operation
Storage
• Store in a dry, dust-free environment
• Avoid extreme temperatures and humidity
• Cover the amplier to prevent dust buildup when not in use
Register Product
Thank you for choosing PyleUSA. By registering your product, you
ensure that you receive the full benets of our exclusive warranty
and personalized customer support.
Complete the form to access expert support and to keep your
PyleUSA purchase in perfect condition.
Start Here
Model Number:
PB717X
PyleUSA.com/pages/register
