Westinghouse IGEN2250 2250W 4-Stroke Petrol Digital User Manual

Instruction

Manual

iGen2250

Inverter Generator

CONGRATULATIONS ON PURCHASING A WESTINGHOUSE INVERTER GENERATOR

Thank you for purchasing a Westinghouse inverter generator. It is a high-quality power product that will

provide many years of safe and reliable service if properly operated and maintained.

DANGER

This manual contains important instructions for operating the generator. For your safety and

that of others, be sure to read this manual thoroughly before operating the generator. Failure

to properly follow all instructions and precautions could cause you or others to be seriously

hurt or killed. This manual should be considered a permanent part of the generator and

should remain with it if resold.

For Your Records

Date of Purchase: Generator Model Number:

Purchased From:

Generator Serial Number:

Purchase Receipt: Please retain your tax invoice or purchase receipt to ensure warranty coverage.

DISCLAIMERS

All instructions, illustrations and speciﬁcations in this manual are based on the latest information available

at the time of publishing. The illustrations used in this manual are intended as representative reference

views only. Moreover, because of our continuous product improvement policy, we may modify information,

illustrations or speciﬁcations to explain or exemplify a product, service or maintenance improvement. We

reserve the right to make any change at any time without notice. Your generator may differ slightly from the

models pictured, including optional accessories.

No part of this publication may be reproduced or used in any form by any means – graphic, electronic or

mechanical, including photocopying, recording, taping or information storage and retrieval systems – without

the written permission of Westinghouse Outdoor Power Equipment.

UPDATES

The latest Instruction Manual for your Westinghouse inverter generator can be found under the Downloads

tab on our website at www.westinghouseoutdoorpower.com.au

CONTENTS

SAFETY .....................................................................................................................................................................1

SAFETY DEFINITIONS .......................................................................................................................................1

SAFETY SYMBOL DEFINITIONS .......................................................................................................................1

GENERAL SAFETY RULES ................................................................................................................................2

SAFETY LABELS ................................................................................................................................................4

UNPACKING .............................................................................................................................................................5

UNPACKING THE GENERATOR ........................................................................................................................5

ACCESSORIES ...................................................................................................................................................5

FEATURES ................................................................................................................................................................6

MAIN GENERATOR COMPONENTS .................................................................................................................6

CONTROL PANEL FEATURES ...........................................................................................................................7

OPERATION .............................................................................................................................................................9

BEFORE STARTING THE GENERATOR ............................................................................................................9

CHECKING OR ADDING ENGINE OIL AND FUEL ............................................................................................9

Checking and Adding Engine Oil ..............................................................................................................10

Checking and Adding Fuel ........................................................................................................................10

STARTING THE GENERATOR ..........................................................................................................................10

ECO THROTTLE CONTROL ............................................................................................................................12

OVERLOAD RESET ..........................................................................................................................................12

STOPPING THE GENERATOR .........................................................................................................................12

Normal Operation ......................................................................................................................................12

During an Emergency ................................................................................................................................12

APPLICATION AND DUTY CYCLE ...................................................................................................................12

AMBIENT CONDITIONS ...................................................................................................................................12

CONNECTING ELECTRICAL LOADS ..............................................................................................................13

240-Volt AC Loads .....................................................................................................................................13

12-Volt DC Loads.......................................................................................................................................13

Power Output and Demand ......................................................................................................................13

240-VOLT AC EXTENSION CORDS .................................................................................................................14

12 VOLT BATTERY CHARGING .......................................................................................................................15

Battery Charging by Direct Connection ...................................................................................................15

Battery Charging by a Mains-Powered Charger ......................................................................................15

TRANSPORTING THE GENERATOR ...............................................................................................................16

CONTENTS

iii

MAINTENANCE

......................................................................................................................................................17

MAINTENANCE PRECAUTIONS .....................................................................................................................17

MAINTENANCE SCHEDULE ............................................................................................................................17

ENGINE OIL ......................................................................................................................................................18

Engine Oil Speciﬁcation ............................................................................................................................18

Checking Engine Oil ..................................................................................................................................18

Adding Engine Oil ......................................................................................................................................19

Changing Engine Oil ..................................................................................................................................19

AIR FILTER .......................................................................................................................................................20

Cleaning the Air Filter ...............................................................................................................................20

FUEL STRAINER ..............................................................................................................................................21

Cleaning the Fuel Strainer ........................................................................................................................21

SPARK PLUG ...................................................................................................................................................21

Cleaning and Replacing the Spark Plug ..................................................................................................21

SPARK ARRESTOR ..........................................................................................................................................23

Cleaning the Spark Arrestor ......................................................................................................................23

REPLACING THE FUEL FILTER ......................................................................................................................23

CHECKING AND ADJUSTING THE VALVE CLEARANCE ..............................................................................24

MAINTENANCE ACCESS ................................................................................................................................25

CLEANING THE GENERATOR .........................................................................................................................25

DRAINING THE FUEL .......................................................................................................................................25

LONG-TERM STORAGE ..................................................................................................................................26

Storage Procedure for 1 – 3 Months ........................................................................................................26

Storage Procedure for Greater than 3 Months .........................................................................................27

Removal from Storage ..............................................................................................................................27

DISMANTLING AND DISPOSAL ......................................................................................................................27

TROUBLESHOOTING ............................................................................................................................................28

SPECIFICATIONS ...................................................................................................................................................33

WIRING DIAGRAM .................................................................................................................................................34

WARRANTY ............................................................................................................................................................35

WARRANTY AGAINST DEFECTS ....................................................................................................................35

Proof of Purchase .....................................................................................................................................35

Warranty Conditions .................................................................................................................................35

SAFETY

SAFETY DEFINITIONS

The words DANGER, WARNING, CAUTION and

NOTICE are used throughout this manual to

highlight important information. Be certain that the

meanings of these alerts are known to all who work

on or near the equipment.

This safety alert symbol appears

with most safety statements. It

means attention, become alert, your

safety is involved! Please read and

abide by the message that follows

the safety alert symbol.

DANGER

Indicates a hazardous situation which, if not

avoided, will result in death or serious injury.

WARNING

Indicates a hazardous situation which, if not

avoided, could result in death or serious injury.

CAUTION

Indicates a hazardous situation which, if not

avoided, could result in minor or moderate injury.

NOTICE

Indicates a situation which, if not avoided, could

cause damage to the generator, personal property

or the environment, or cause the equipment to

operate improperly.

NOTE:

Indicates a procedure, practice or condition

that should be followed in order for the

generator to function in the manner intended.

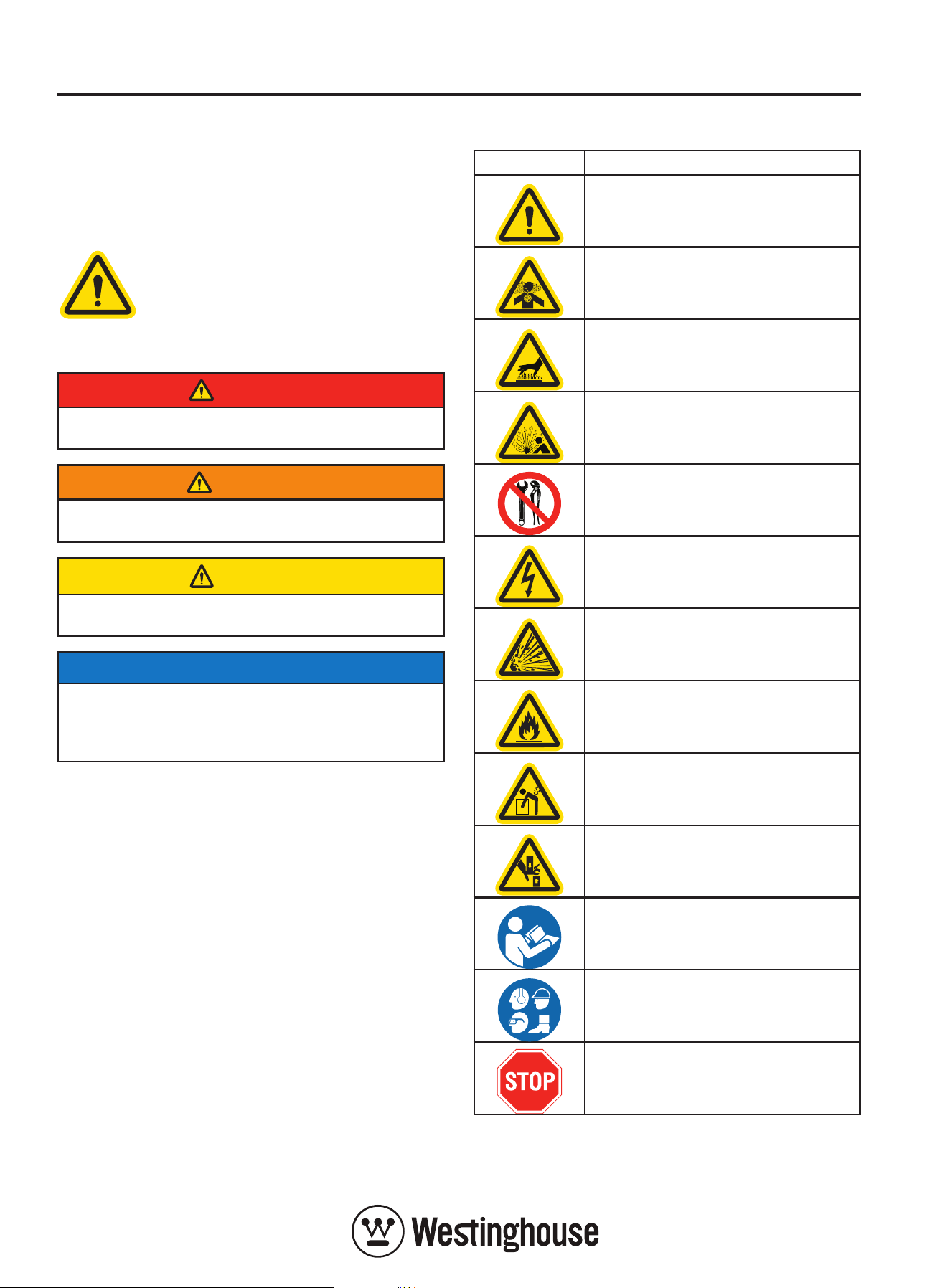

SAFETY SYMBOL DEFINITIONS

Symbol Description

Safety Alert Symbol

Asphyxiation Hazard

Burn Hazard

Burst / Pressure Hazard

Don’t Leave Tools Around

Electrical Shock Hazard

Explosion Hazard

Fire Hazard

Lifting Hazard

Pinch-Point Hazard

Read Manufacturer’s Instructions

Wear Personal Protective

Equipment (PPE)

Read Safety Messages Before

Proceeding

SAFETY

GENERAL SAFETY RULES

DANGER

Never use the generator in a location

that is wet or damp. Never expose the

generator to rain, snow, water spray

or standing water while in use. Protect

the generator from all hazardous

weather conditions. Moisture or ice

can cause a short circuit or other

malfunction in the electrical system.

Never operate the generator in

an enclosed area. Engine exhaust

contains carbon monoxide. Only

operate the generator outside and

away from windows, doors and vents.

WARNING

Voltage produced by the generator

could result in death or serious injury.

• Never operate the generator in

rain or a ﬂoodplain unless proper

precautions are taken to avoid being

subject to rain or ﬂood.

• Never use worn or damaged

extension cords.

• Always have a licensed electrician

connect the generator to any ﬁxed

electrical installation.

• Never touch an operating generator

if the generator is wet or if you have

wet hands.

• Never operate the generator in

highly conductive areas such as

around metal decking or steel

works.

• Always use earthed extension cords.

Always use three-wire or double-

insulated power tools.

• Never touch live terminals or

bare wires while the generator is

operating.

• Keep animals and children away

from the generator at all times.

WARNING

Petrol fuel liquid and vapours are

extremely ﬂammable and explosive

under certain conditions.

• Always refuel the generator

outdoors, in a well-ventilated area.

• Never remove the fuel cap while the

engine is running.

• Never refuel the generator while

the engine is running. Always turn

engine off and allow the generator

to cool before refuelling.

• Only ﬁll fuel tank with unleaded

petrol.

• Keep away from sparks, open

ﬂames or other forms of ignition

such as matches, cigarettes, CB

radios and mobile phones when

refuelling.

• Never overﬁll the fuel tank. Leave

room for fuel to expand. Overﬁlling

the fuel tank can result in a sudden

overﬂow of fuel and result in spilled

fuel coming in contact with hot

surfaces. Spilled fuel can ignite. If

fuel is spilled on the generator, wipe

it up immediately and dispose of

rags properly. Allow area of spilled

fuel to dry before operating the

generator.

• Wear eye protection while refuelling.

• Never use fuel as a cleaning agent.

• Store any fuel containers in a well-

ventilated area, away from any

combustibles or source of ignition.

• Check for fuel leaks after refuelling.

Never operate the engine if a fuel

leak is discovered.

• Equip the operating area with

a Class ABE or BE portable ﬁre

extinguisher.

SAFETY

WARNING

Never operate the generator if:

powered items overheat; electrical

output drops; there are sparks, ﬂames

or smoke coming from the generator;

or if the receptacles are damaged.

Never attempt to connect more than

one generator or other electrical

energy source (e.g. mains power

supply, solar power system, battery

and inverter power system, etc.)

concurrently to the same electrical

device, extension cord or ﬁxed

electrical installation.

Never use the generator to power

medical support equipment.

Always remove any tools or other

service equipment used during

maintenance before operating the

generator.

WARNING

Do not operate in a hazardous

location, e.g. where there may be

a risk of explosion of petrol fumes,

leaking gas or explosive dusts.

Do not operate in a conﬁned area

where exhaust gases, smoke or

fumes could reach dangerous

concentrations.

Do not refuel while engine is running.

WARNING

You must take reasonable care for

the health and safety both of yourself

and any others who may be affected

by your actions. You must understand

and follow all of the safety rules and

working instructions described herein.

You must also use your own good

judgement and common sense.

NOTICE

Never modify the generator.

Never operate the generator if it vibrates at high

levels, if the engine speed changes greatly or if

the engine misﬁres often.

Always disconnect electric tools or appliances

from the generator before starting.

SAFETY

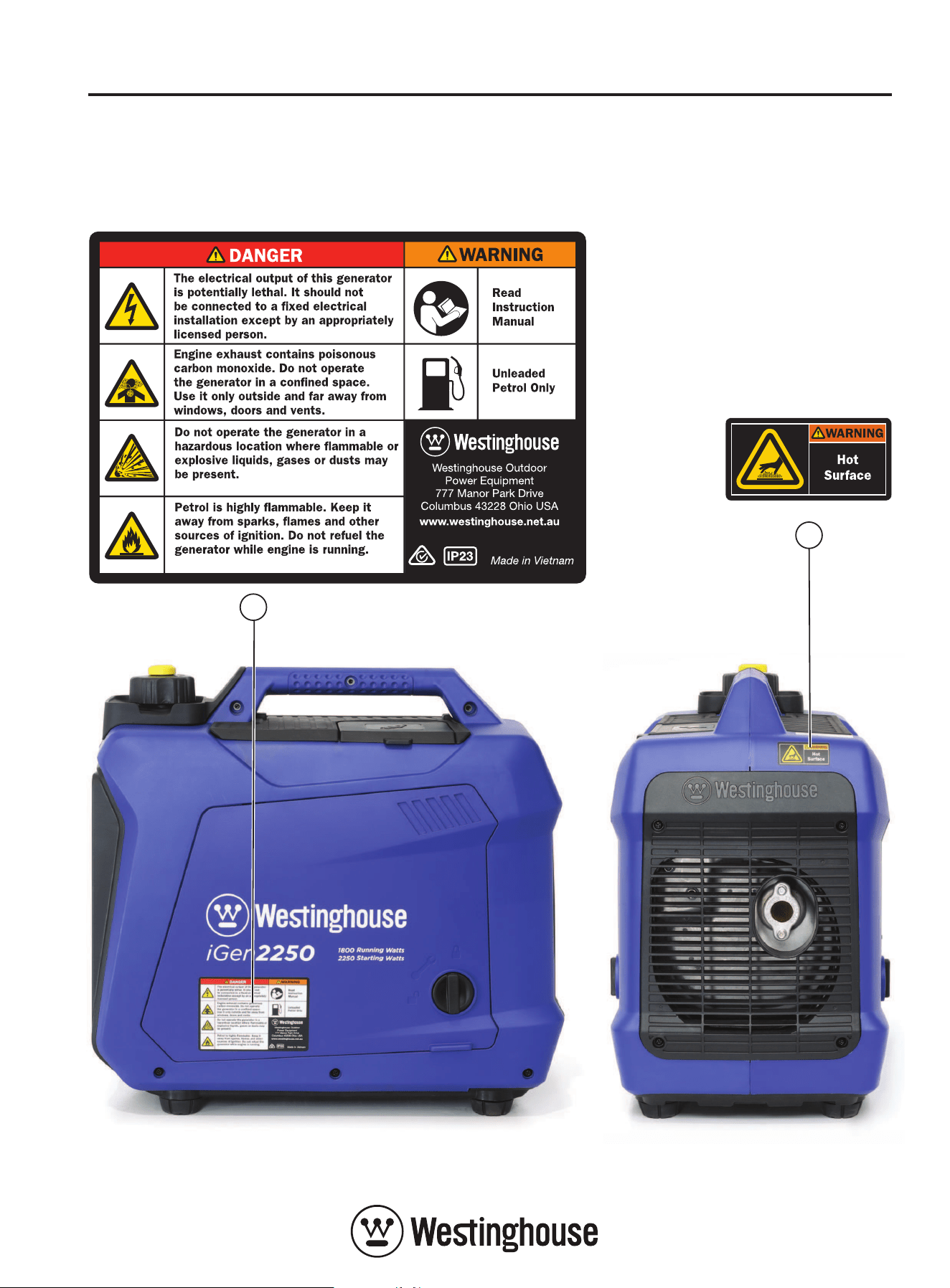

SAFETY LABELS

The safety labels have speciﬁc positions and must be replaced if they are unreadable, damaged or missing.

Figure 1 - Safety Labels

UNPACKING

UNPACKING THE GENERATOR

WARNING

Always have assistance when lifting

the generator. The generator is heavy;

lifting it could cause bodily harm.

Avoid cutting on or near staples to

prevent personal injury.

1. Carefully cut the packing tape on top of the

carton.

Fold back top ﬂaps to reveal the upper packing

tray.

Remove and save the instruction manual, oil

bottle, oil funnel and spark plug socket wrench.

Remove and discard the upper packing tray.

Unfold the top of the plastic bag enclosing the

generator.

Lift the generator out of the plastic bag and

carton.

Recycle or dispose of the packaging materials

properly.

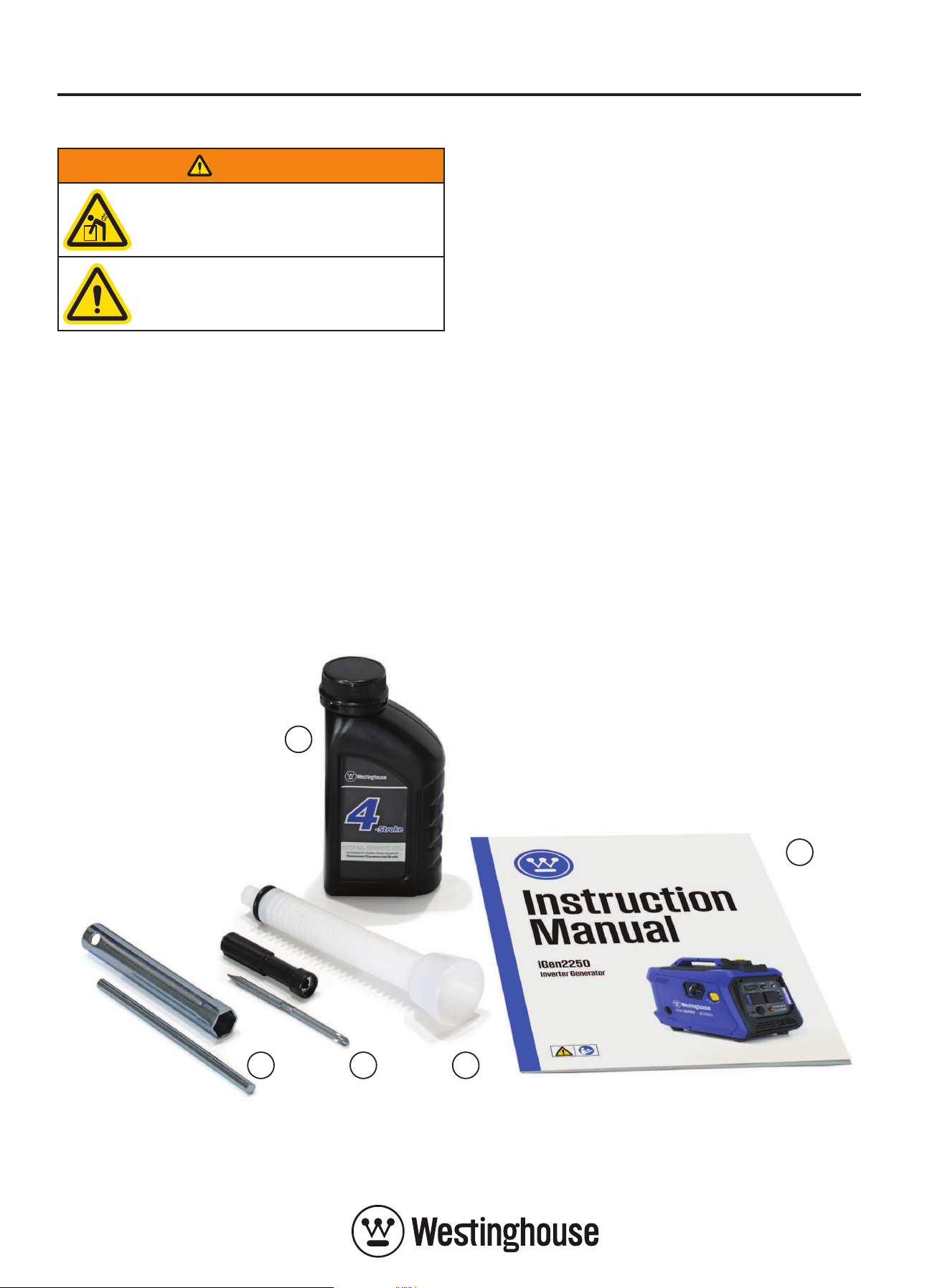

ACCESSORIES

Check the accessories against those shown in

Figure 2. If any parts are missing, please contact

your local Westinghouse dealer.

A – Bottle of SAE 10W-30 Engine Oil

(350 ml for iGen2250).

B – Spark Plug Socket Wrench

C – Double-Ended Screwdriver

D – Oil Funnel

E – Instruction Manual

Figure 2 - Accessories

C D

FEATURES

MAIN GENERATOR COMPONENTS

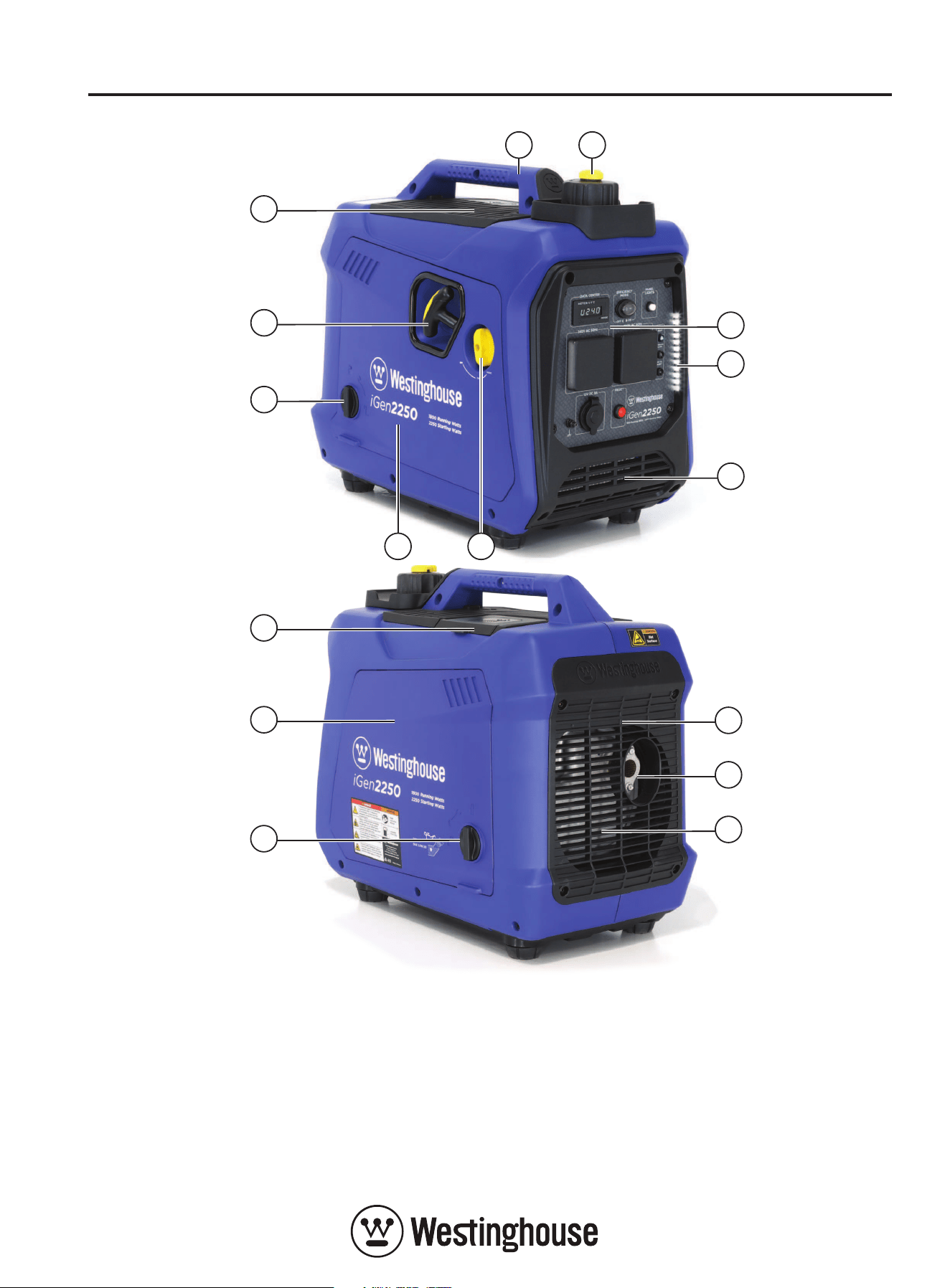

Figure 3 - iGen2250 Main Generator Components

Recoil Starter Handle

Device Charging Tray (Non-Magnetic)

Mufer Access Cover

Exhaust Pipe

Outlet Ventilation Grille

RHS Access Cover Lock

RHS Maintenance Access Cover

Spark Plug Access Cover

Carry Handle

Fuel Cap and Vent

Control Panel

Panel Lights

Inlet Ventilation Grille

Engine Control Switch

LHS Maintenance Access Cover

LHS Acess Cover Lock

FEATURES

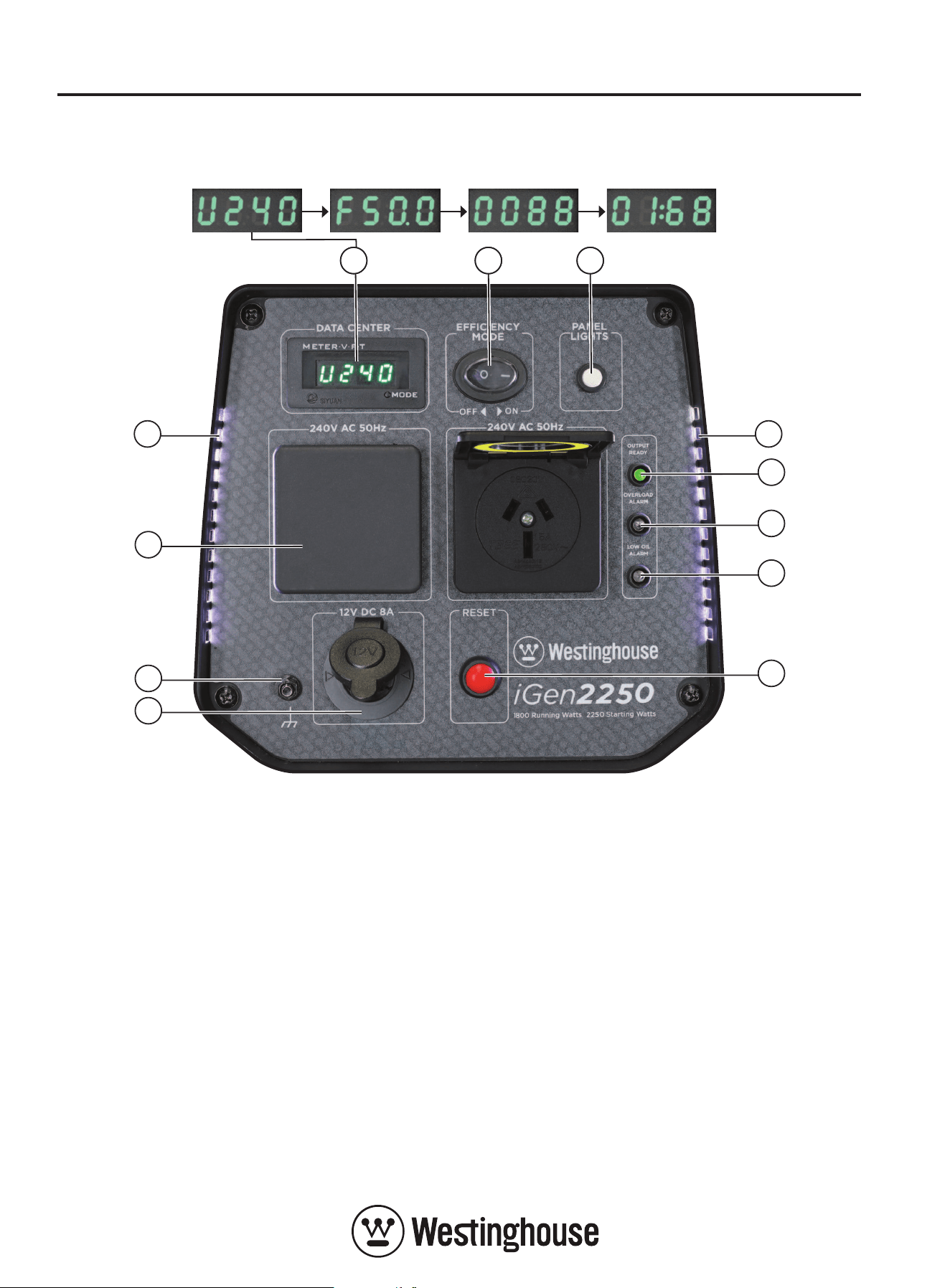

1. Data Center: The alphanumeric LED display

shows the output voltage by default. This

parameter is displayed automatically upon

start-up. Press the button on the lower right-

hand side of the data center fascia to cycle

the display through the output frequency, and

cumulative and current run time values, as

required, before returning to the output voltage

value.

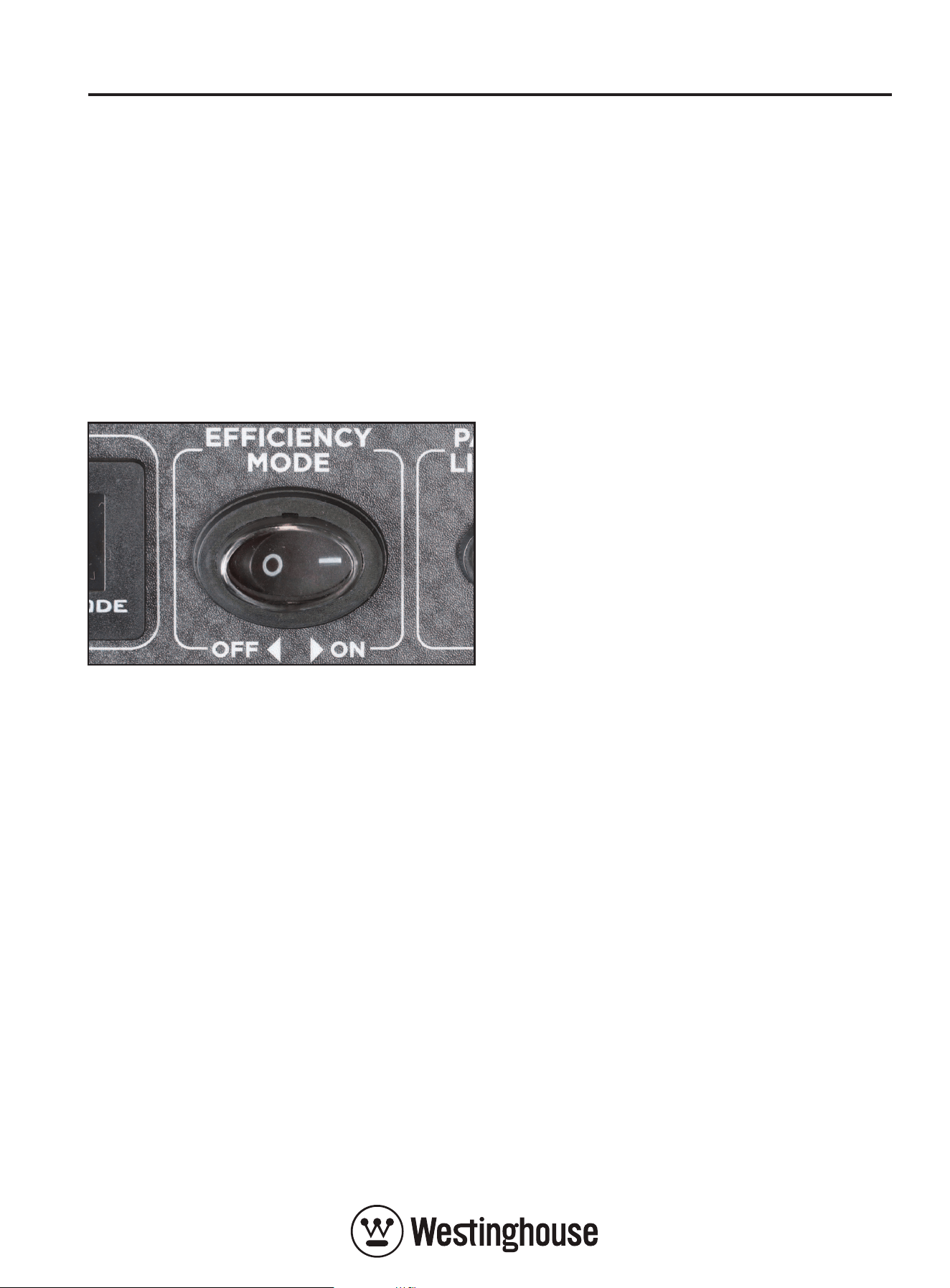

ECO Throttle Switch: Move the switch to the

ON position when powering small resistive loads

such as a computer or electric light; the engine

speed will automatically be kept to a minimum,

thereby reducing fuel consumption and noise.

Select the OFF position when powering large

inductive loads such as an air conditioner or

electric pump; the engine speed will be kept

higher for maximum electrical starting power.

Panel Lights Switch: Press this button in fully

and release to switch the panel lights on or off.

The setting will be retained if the generator is

stopped and restarted.

LED Panel Lights: These can be switched on

while the generator is running to illuminate the

control panel for your convenience and safety.

Output Indicator: The green status light will

illuminate whenever the engine is running and

there’s AC output available from the generator.

Overload Alarm: The red warning light will

illuminate if the generator’s AC output is

overloaded or short-circuited. A brief small

overload may be tolerated, but the connected

load should be reduced. An extended large

overload or short circuit will trip the overload

protection feature and disconnect the

Figure 4 - iGen2250 Control Panel Features

1 2 3

CONTROL PANEL FEATURES

Output

Frequency (Hz)

Cumulative

Run Time (hours)

Current

Run Time (hh:mm)

Output Voltage

(Volts)

FEATURES

generator’s AC output even though the engine

is still running. Reduce the connected load or

rectify the electrical fault before pressing the

generator reset button to restore AC output.

Low Oil Alarm: The red warning light will

illuminate and the engine will automatically shut

down if the oil level becomes too low. Add oil to

the correct level before restarting the engine.

Generator Reset Button: Press and hold down

this button to reset the generator’s 240-Volt

AC electrical output when safe to do so after

reducing the applied load or rectifying the

electrical fault that has caused an overload trip.

12-Volt DC Accessory Socket: Can be used for

12-Volt DC powered devices up to a maximum

demand of 100 Watts (i.e. 8 Amps).

10.

Frame Terminal: The frame terminal can be

used by a licensed electrician to earth the

generator if necessary.

11.

240-Volt AC, 15-Amp Outlets: Each outlet is

capable of delivering the generator’s peak

output of 2,250 Watts.

OPERATION

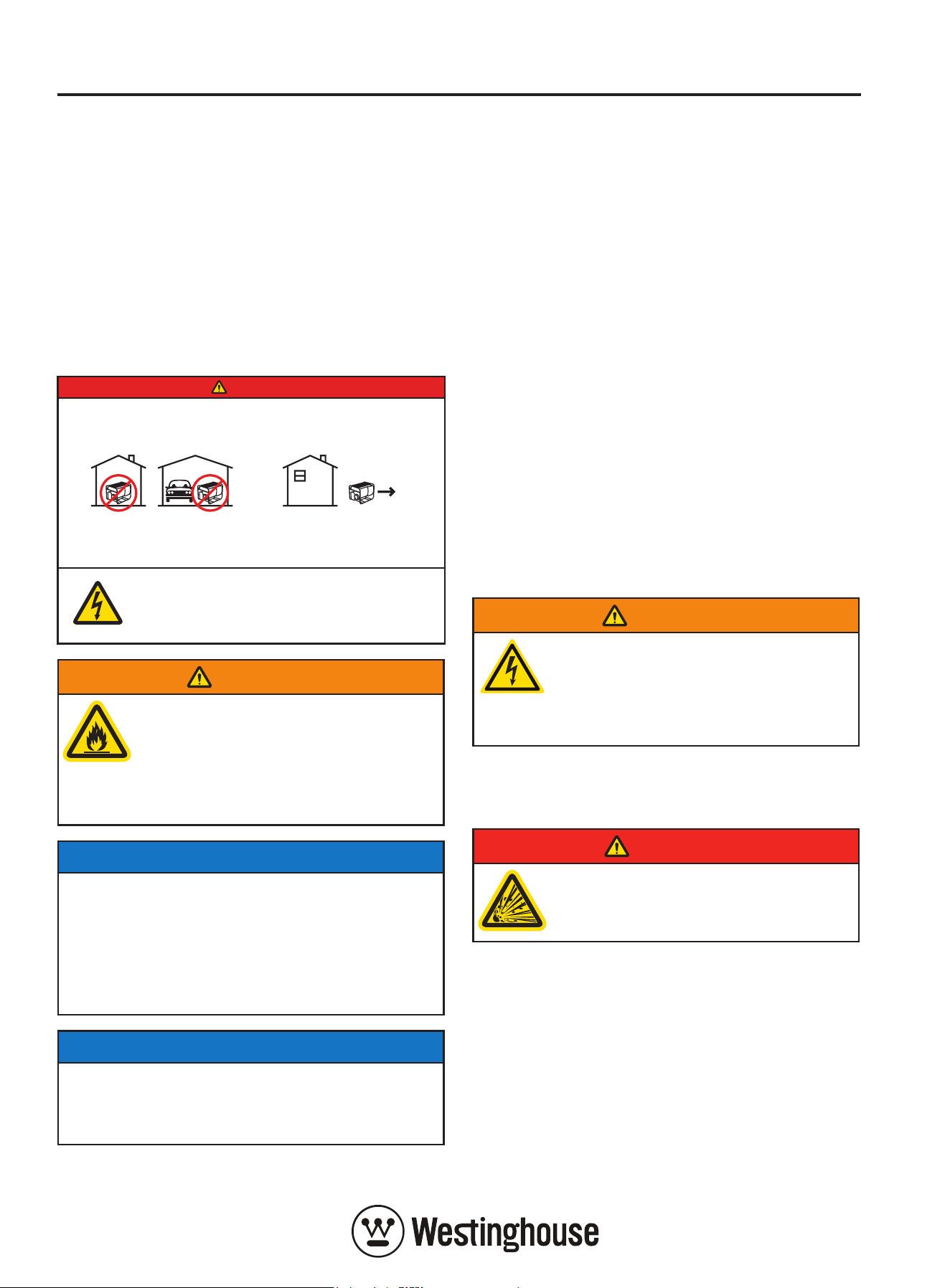

BEFORE STARTING THE GENERATOR

Location Selection – Before starting the generator,

avoid exhaust and location hazards by verifying that:

• You have selected a location to operate the

generator that is outdoors and well ventilated.

• You have selected a location with a level and

solid surface on which to place the generator.

•

You have selected a location that is at least 1.8 m

away from any building, other equipment or

combustible material.

• If the generator is located close to a building, it is

not located near any windows, doors or vents.

The output of this generating set is potentially

lethal. The set should not be connected to a xed

electrical installation except by an appropriately

licensed person.

DANGER

Using a generator indoors can kill you in minutes.

Generator exhaust contains carbon monoxide.

This is a poison you cannot see or smell.

Never use inside a home

or garage, even if doors

and windows are open.

Only use outside and

far away from windows,

doors and vents.

WARNING

Always operate the generator on a

level surface. Placing the generator

on a non-level surface can cause the

generator to tip over, causing fuel

and oil to spill. Spilt fuel can ignite if

it comes into contact with an ignition

source such as a very hot surface.

NOTICE

Only operate the generator on a solid, level

surface. Operating the generator on a surface with

loose material such as sand or grass clippings

can cause debris to be ingested by the generator

that could:

• Block cooling vents

• Block air intake system

NOTICE

Ensure that the generator is always kept

horizontal during handling, operation, storage

and transport. Flipping the generator over onto its

side, end or top will damage it.

Weather – Never operate or store your generator

outdoors during rain, snow or any combination

of weather conditions that could lead to moisture

collecting on, in or around the generator.

Dry Surface – Always operate or store the generator

on a dry surface free of any moisture.

No Connected Loads – It is recommended that the

generator has no connected loads before starting

to prevent the unintended operation of any such

connected devices; this might not be practicable in

all applications. To ensure there are no connected

loads, either unplug any electrical cords or devices

from the 240-Volt AC or 12-Volt DC accessory

receptacles on the control panel or check that they

are switched off.

Extensions Cords – Locate the generator in a

convenient place, avoiding long extension cords

and possible damage to them by pedestrians or

vehicles.

Earthing the Generator – The generator’s

equipotential bonding system including the

frame terminal on the control panel should not be

connected to the general mass of earth through

a separate earth electrode. For more information,

refer to AS/NZS 3010:2017 Electrical Installations –

Generating Sets or consult a licensed electrician.

WARNING

Be sure the generator is properly

installed to reduce the possibility of

electric shock. Any connection to

an electrical installation such as in a

building, for example, must be carried

out by a licensed electrician.

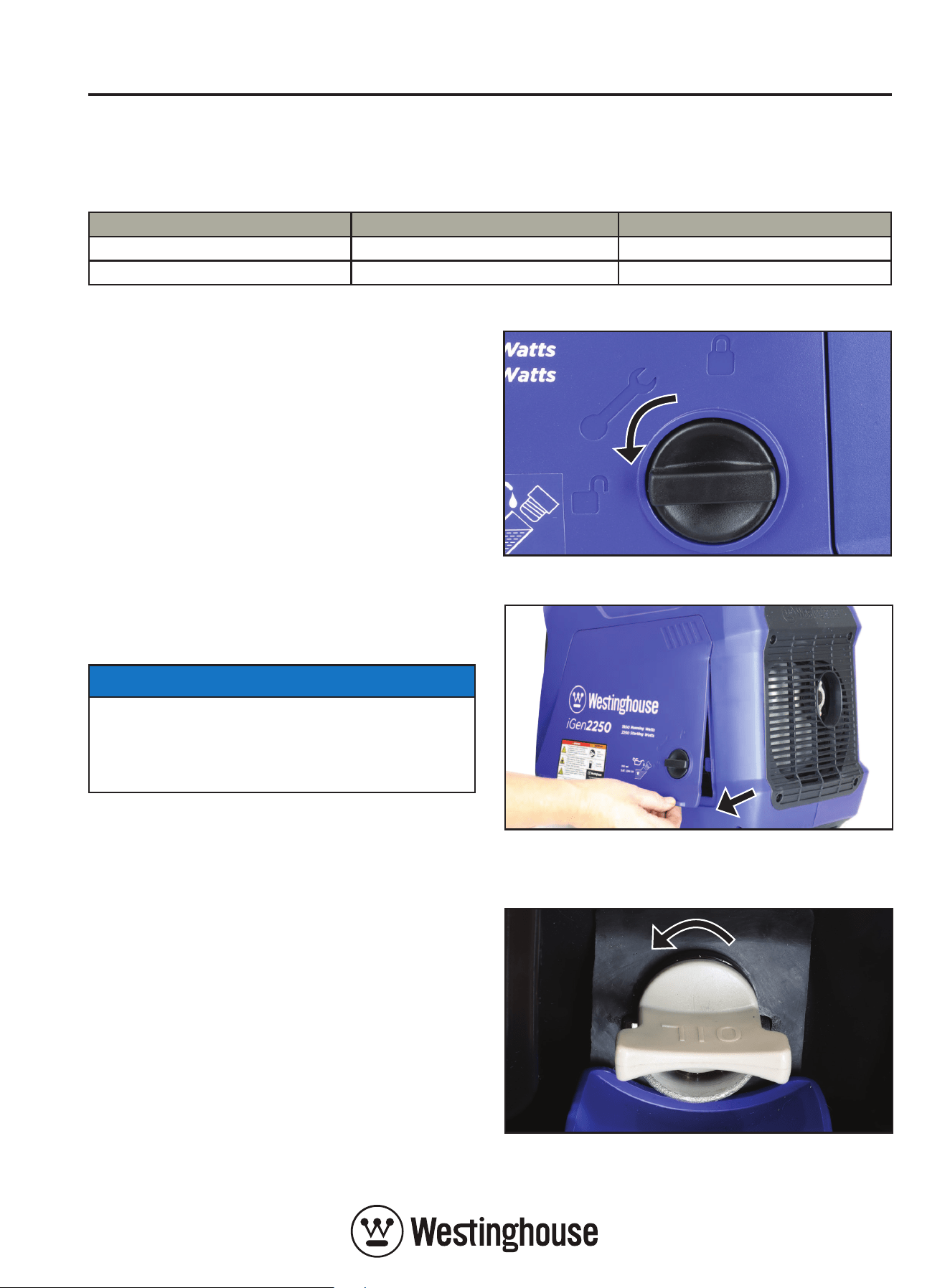

CHECKING OR ADDING ENGINE OIL

AND FUEL

DANGER

Filling the fuel tank with fuel while the

generator is running can cause fuel

to spill and come in contact with hot

surfaces that can ignite the fuel.

Before starting the generator, always check the

engine oil and fuel levels.

After starting the generator, it is not safe to add fuel

to the fuel tank or engine oil to the engine while

the engine is running or immediately after stopping

while the engine and mufﬂer are still hot.

OPERATION

Checking and Adding Engine Oil

WARNING

Internal pressure can build up in the

engine crankcase while the engine

is running. Removing the oil ﬁll plug

while the engine is hot can cause hot

oil to spray out of the crankcase and

cause severe skin burns. Allow engine

oil to cool for several minutes before

removing the oil ﬁll plug.

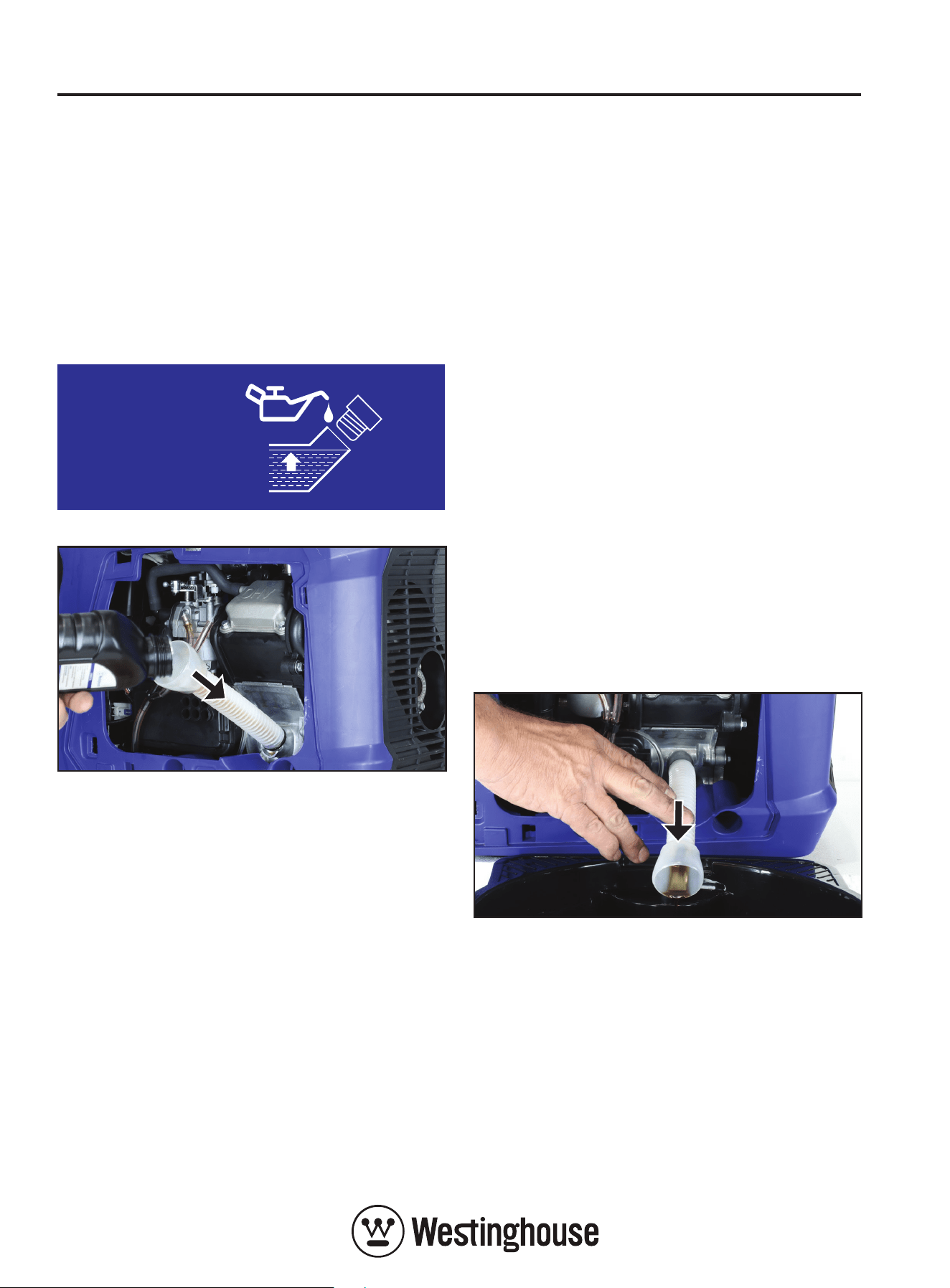

The generator as shipped does not contain oil in the

engine. You must add engine oil before starting the

generator for the ﬁrst time. See Checking Engine Oil

and Adding Engine Oil for instructions on checking

engine oil level and the procedure for adding engine

oil.

NOTICE

The generator does not contain engine oil as

shipped. Attempting to start the engine before

adding engine oil can permanently damage

internal engine components.

Checking and Adding Fuel

WARNING

Never refuel the generator while the

engine is running.

Always turn the engine off and allow

the generator to cool before refuelling.

With the generator switched off and stationary on

a horizontal surface, check the fuel level in the tank

visually by removing the fuel cap. It is good practice

to always ﬁll the fuel tank before operating the

generator.

Required Fuel – Use only unleaded petrol with

an octane rating not less than 91 and ethanol

content not greater than 10%. Where possible, it is

preferable to use regular or Opal unleaded petrol

(RON 91) or premium unleaded petrol (RON 95 or 98)

and not an ethanol blend such as E10.

Filling the Fuel Tank – Follow the steps below to ﬁll

the fuel tank:

1. Stop the generator, if running.

Allow the generator to cool down until the

mufﬂer access cover is cool to the touch.

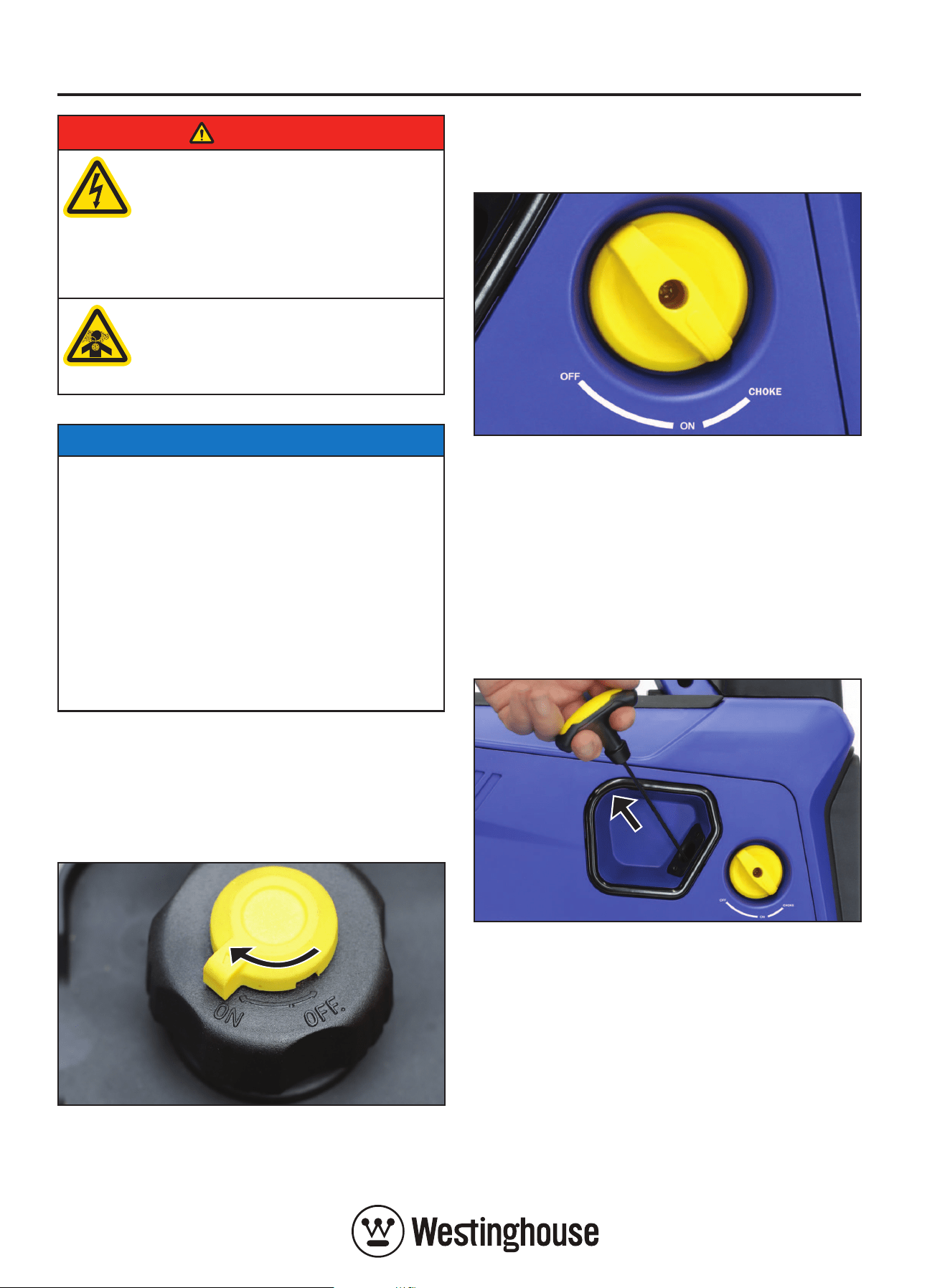

3. Move the generator to a ﬂat surface.

Clean area around the fuel cap.

Turn the fuel cap vent clockwise to the ON

position.

Remove the fuel cap by unscrewing it anti-

clockwise.

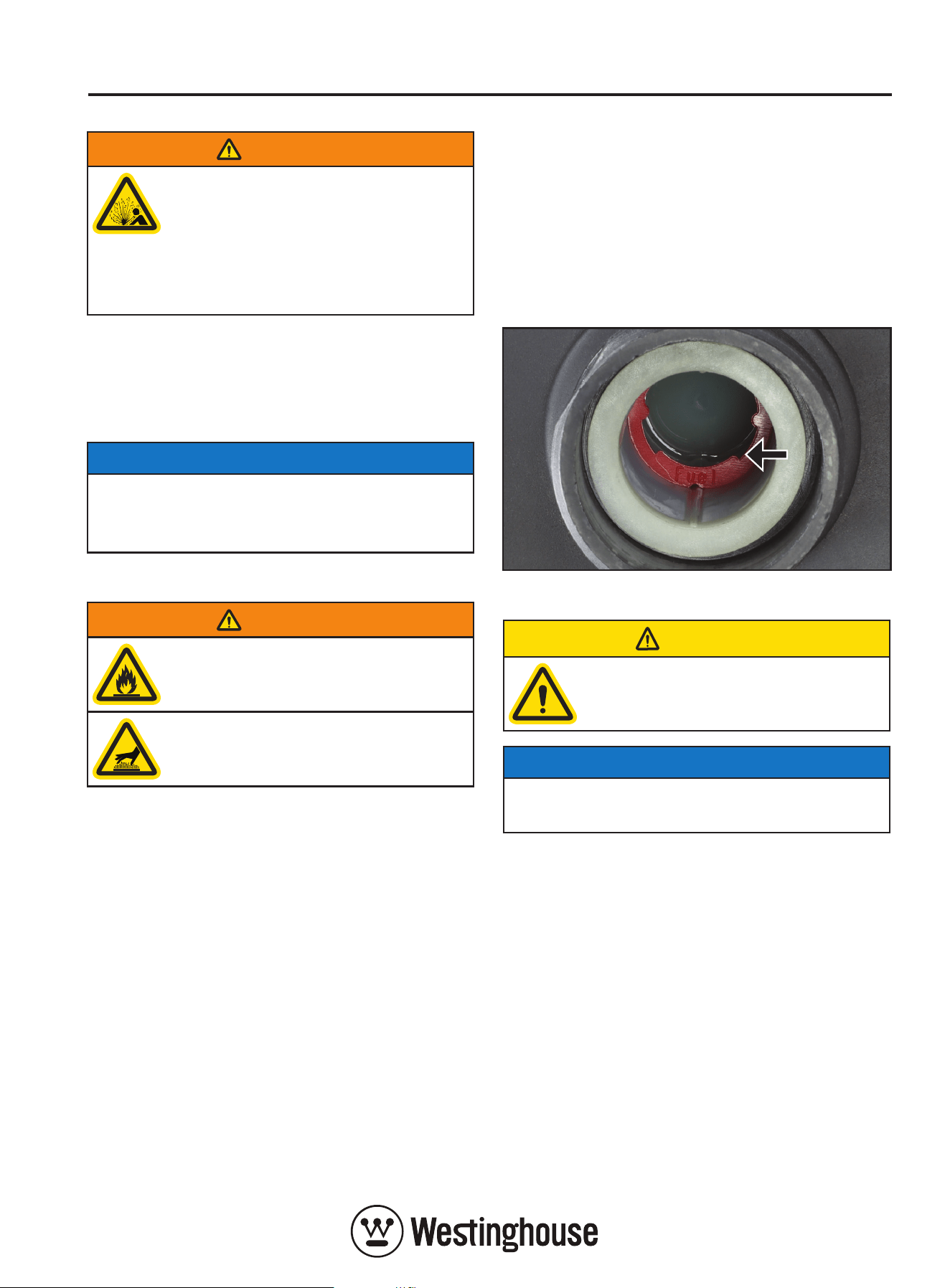

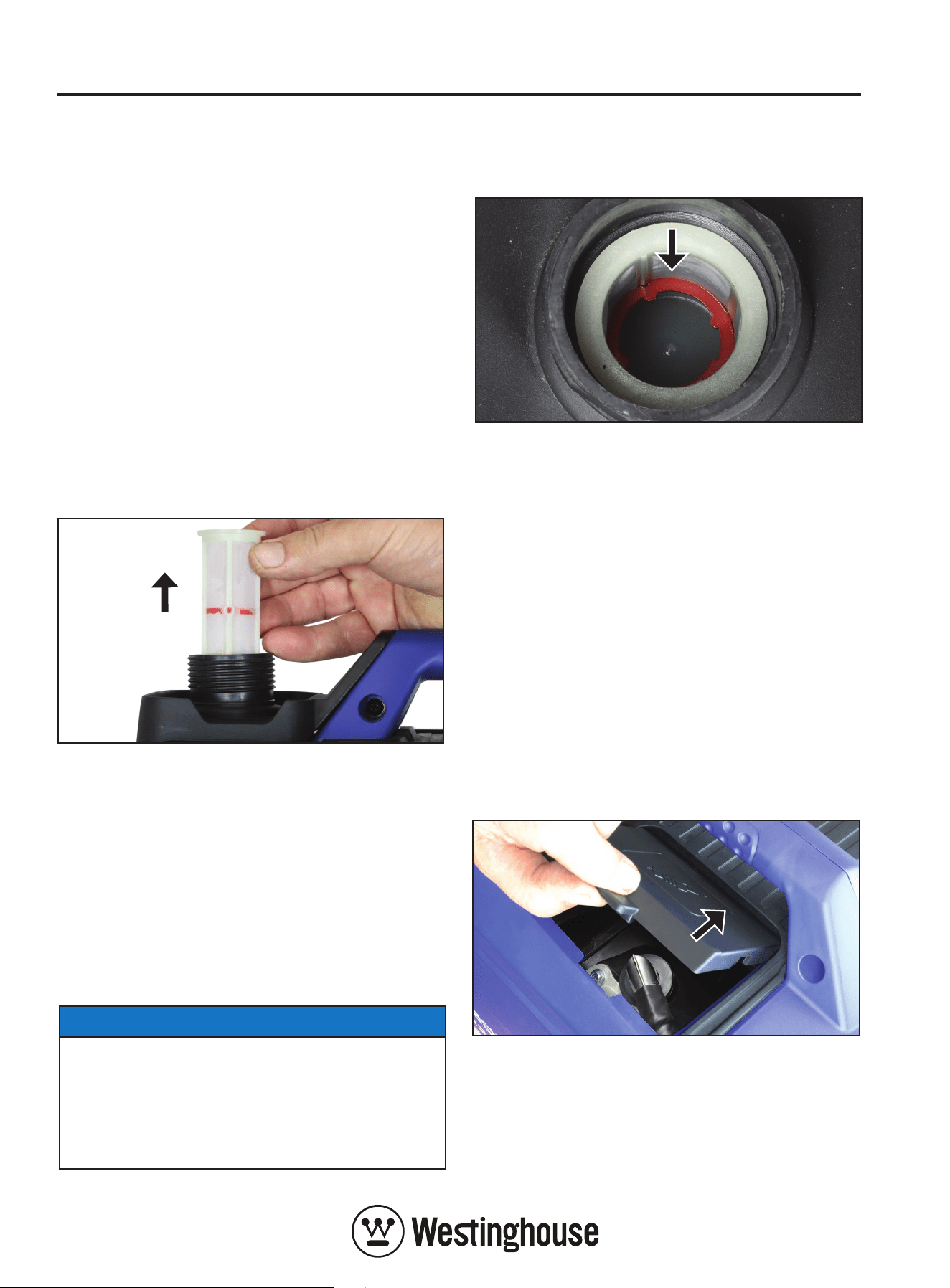

Slowly add fuel into the fuel tank. Be careful not

to overﬁll the tank. The fuel level should NOT be

higher than the red ring inside the fuel strainer

(see Figure 5).

Replace the fuel cap by screwing it on clockwise

and turn the fuel cap vent anti-clockwise to the

OFF position.

CAUTION

Avoid prolonged skin contact with

fuel. Avoid prolonged inhalation of

fuel vapours.

NOTICE

Do not overﬁll the fuel tank. Spilt fuel may damage

some plastic parts.

STARTING THE GENERATOR

Before attempting to start the generator, verify the

following:

• The engine is ﬁlled with engine oil (see Checking

Engine Oil).

•

The generator is situated in a proper location

(see Location Selection).

• The generator is on a dry surface (see Weather

and Dry Surface).

• All loads are disconnected from the generator or

switched off (see No Connected Loads).

• The ECO throttle control switch is in the OFF

position (see ECO Throttle Control).

Figure 5 – Maximum Fuel Fill Level

OPERATION

DANGER

Never use the generator in a location

that is wet or damp. Never expose the

generator to rain, snow, water spray

or standing water while in use. Protect

the generator from all hazardous

weather conditions. Moisture or ice

can cause a short circuit or other

malfunction in the electrical system.

Never operate the generator in

an enclosed area. Engine exhaust

contains carbon monoxide. Only

operate the generator outside and

away from windows, doors and vents.

NOTICE

The generator is equipped with a low oil shutdown

switch. If the oil level becomes too low, the engine

will shut down automatically and cannot be

restarted until the oil is ﬁlled to the proper level.

Be sure the engine has the proper oil level before

using. Failure to verify that the engine has the

proper oil level could result in severe engine

damage or shorten the engine life.

Disconnect or switch off all loads from the

generator before starting. Failure to verify all loads

are disconnected prior to starting the generator

could result in damage to the connected electrical

devices.

The primary touch points that the user needs

to interact with when starting the generator are

identiﬁed with yellow coloured markings.

1. Turn the fuel cap vent to the ON position

(see Figure 6).

2. Turn the engine control switch anti-clockwise to

the CHOKE position if starting a cold engine (see

Figure 7). To restart a warm engine, turn the knob

to the ON position.

3. While holding the generator down with one

hand, ﬁrmly grasp the recoil starter handle with

your other hand and pull it slowly until you feel

increased resistance. At this point, pull it briskly

up and away from the generator (see Figure 8).

Do not allow the starter handle to snap back

against the engine, but instead return it gently to

prevent starter damage. Do not allow the starter

cord to rub against other parts of the generator.

4. As the engine starts running and warms up, turn

the engine control switch clockwise to the ON

position.

5. Connect electrical cords or devices into the

240-Volt AC or 12-Volt DC accessory outlets, as

required.

Figure 8 – Recoil Starter Handle Operation

Figure 7 – Engine Control Switch in the

CHOKE Position

Figure 6 – Fuel Cap Vent in the ON Position

OPERATION

ECO THROTTLE CONTROL

The generator is equipped with ECO Throttle Control

to minimise fuel consumption and noise. In ECO

mode, the generator senses the electrical load

demand and adjusts the engine speed and power

output to match it; if there is no electrical load

connected, the engine speed drops down to idle.

ECO mode should only be used once the generator

has reached normal operating temperature after

running for at least ﬁve minutes. When starting

large inductive loads such as an air conditioner or

pump, ECO mode should be switched off so that

the engine speed will be kept higher for maximum

electrical starting power availability.

To activate ECO mode, move the ECO throttle

switch to the ON position (see Figure 9).

To deactivate ECO mode, move the ECO throttle

switch to the OFF position.

OVERLOAD RESET

An electrical overload or short circuit will trip the

overload protection system by disconnecting the

generator’s AC output even though the engine is still

running. If this occurs, the overload alarm light will

be illuminated red and the output indicator light will

be off. The AC output can be restored as follows:

Turn off or unplug any electrical devices or cords

from the 240-Volt AC or 12-Volt DC accessory

receptacles on the control panel.

2. Press the generator reset button on the control

panel until the overload alarm light goes off and

the output indicator light is illuminated green.

3. Check that the intended electrical running and

starting loads do not exceed the generator’s

capacity or have a licensed electrician rectify any

fault causing a short circuit in the load.

4. Reconnect any electrical devices or cords to the

receptacles on the control panel and then turn on

the electrical loads as required.

STOPPING THE GENERATOR

Normal Operation

During normal operation, use the following steps to

stop the generator:

Turn off or unplug any electrical cords or devices

from the 240-Volt AC or 12-Volt DC accessory

receptacles on the control panel, if practicable.

2. Allow the generator to run unloaded for at least

one minute to cool and stabilise the engine and

alternator temperatures.

3. Turn the engine control switch clockwise to the

OFF position.

4. Turn the fuel cap vent anti-clockwise to the

OFF position.

During an Emergency

If there is an emergency and the generator must

be stopped quickly, follow the procedure in Step 3

above with haste.

APPLICATION AND DUTY CYCLE

All models within the iGen range of Westinghouse

generators are portable, air-cooled, petrol-

engine driven, self-contained units designed for

independent supply of electrical power. They are

ideal as a backup power supply in the event of

mains power failure or as a remote area power

supply for use when camping, caravanning or

working out in the ﬁeld.

For most common applications, users can connect a

Westinghouse generator to power electrical devices

by detachable plug and socket-outlet connection as

described in this manual.

Westinghouse generators can also be connected

to a ﬁxed electrical installation such as in a house

or business premises, for example, by a licensed

electrician.

AMBIENT CONDITIONS

The generator is designed to operate within the

following range of ambient conditions:

• Temperature:

-5 to +40°C

• Altitude: Up to 1,000 m

Where possible, the generator should be operated

in the shade to prevent additional heat load due to

solar radiation.

The engine’s power output will decrease by

approximately 3.5% for each 300 m increase in

altitude above sea level. This is normal for spark-

ignition engines and is attributable to the decrease

Figure 9 – ECO Throttle Switch in the ON Position

OPERATION

in atmospheric pressure (and thus the available air

for combustion) as altitude increases.

CONNECTING ELECTRICAL LOADS

The generator can be used to power 240-Volt AC,

50 Hz, single phase or 12-Volt DC electrical devices.

Maintain normal safety precautions with appliances

and accessories as for use when connected to the

mains power supply.

240-Volt AC Loads

240-Volt AC devices can be connected either

directly or via electrical extension cords into the

240-Volt AC outlet(s) on the generator’s control

panel. Lift up the spring-loaded weather resistant

cover on each outlet for access to connect the

electrical device or cord.

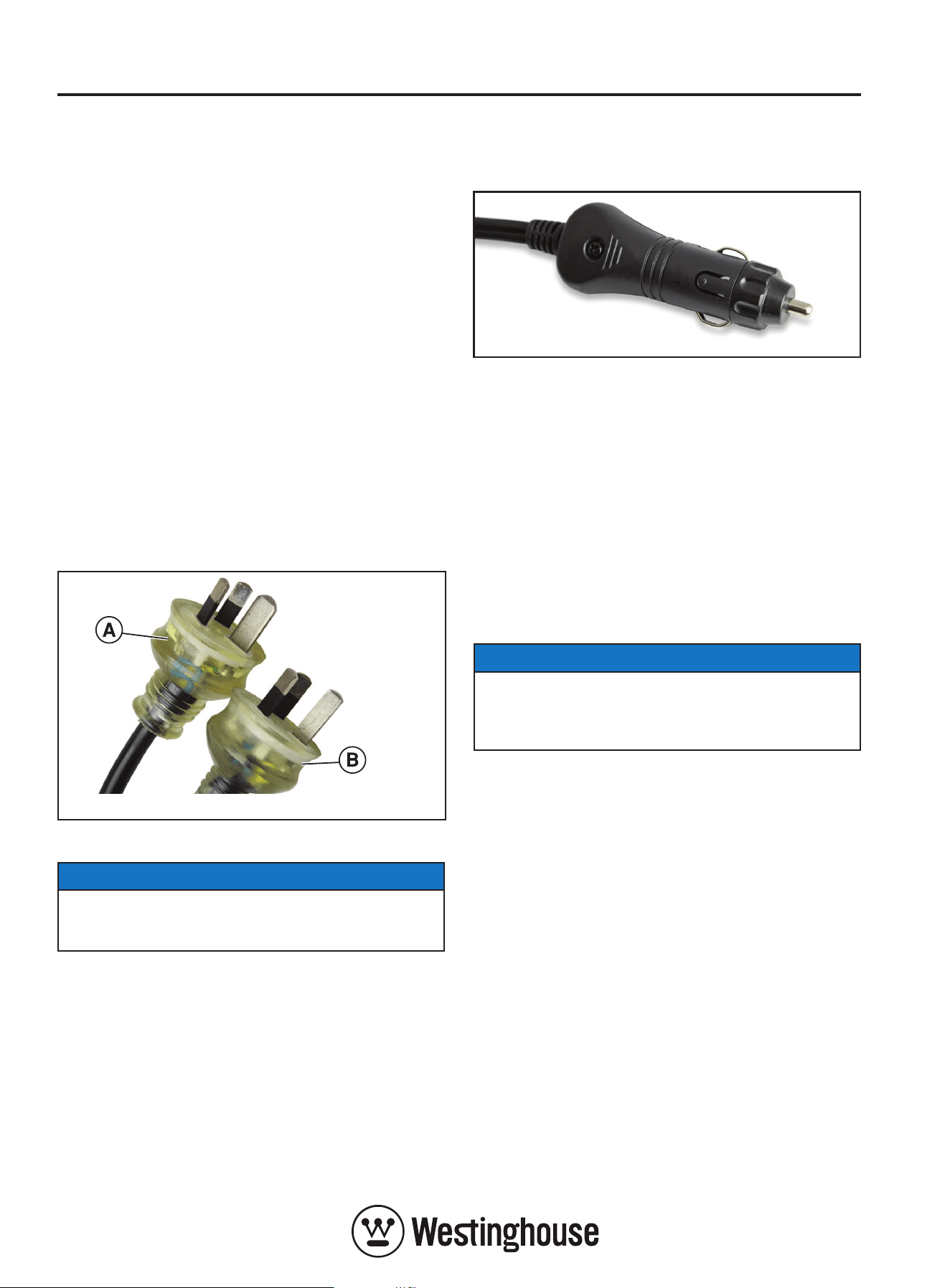

240-Volt AC devices may be ﬁtted with either a

three-pin 15 Ampere (typically abbreviated “15 Amp”

or “15 A”) plug or a three-pin 10 Ampere (“10 Amp”

or “10 A”) plug as shown in Figure 10. Certain

double-insulated devices may be ﬁtted with a two-

pin 10 A plug that doesn’t have an earth pin (which

is the longer, vertical pin).

A -

15 Ampere B - 10 Ampere

Figure 10 – 240-Volt AC Three-Pin Plugs

NOTICE

DO NOT connect any 240-Volt AC device that is

ﬁtted with a three-pin 20 A plug. This can overload

the generator.

See 240-Volt AC Extension Cords for detailed

instructions concerning their selection and use.

12-Volt DC Loads

12-Volt DC devices can be connected either directly

or via an electrical extension cord not exceeding

3.5 m in length into the 12-Volt DC outlet on the

generator’s control panel. Pull out the weather

resistant stopper on the outlet for access to connect

the electrical accessory or cord, and re-insert it after

use.

12-Volt DC devices or extension cords must be

ﬁtted with a cigarette lighter plug for connection to

the generator as shown in Figure 11.

Figure 11 – 12-Volt DC Cigarette Lighter Plug

Power Output and Demand

There are two limits to the amount of electric power

that the generator can usefully provide: (a) its total

240-Volt AC or 12-Volt DC electric power generating

capacity or power output and (b) the electric current

or power output capacity of each individual 240-Volt

AC outlet.

The generator’s total power output measured in

Watts is listed in the Speciﬁcations. Two 240-Volt

AC power outputs are speciﬁed for the generator,

namely the running power and the starting power.

The 12-Volt DC power output is also speciﬁed

NOTICE

DO NOT overload the generator’s 240-Volt AC or

12-Volt DC circuits beyond their rated capacities.

This can result in damage to the generator or to

the connected devices.

The generator should not be run completely

unloaded for extended periods otherwise the engine

may be damaged. It is recommended that the

generator should always be operated with at least

one-third of its rated 240-Volt AC power output.

240-Volt AC devices have two different electric

power demands that must be taken into

consideration, namely the running power and the

starting power. Both are measured in Watts (typically

abbreviated as “W”).

The steady state continuous load is the running

power demand and this is often marked on the

device near its model number or serial number.

Sometimes the device might only be marked with

its voltage (i.e. 240 Volt or 240 V) and current draw

(e.g. 6 Ampere or 6 Amp or 6 A), in which case the

running power demand in Watts can be obtained by

multiplying the voltage times the current, e.g. 240 V

× 6 A = 1,440 W.

Simple resistive 240-Volt AC devices such as

incandescent bulbs, toasters and heaters have no

OPERATION

extra power demand when starting, and so their

starting power demands are the same as their

running power demands.

More complex 240-Volt AC devices containing

inductive or capacitive elements such as electric

motors have a momentary extra power demand

when starting, which can be up to seven times the

running power demand or more. Manufacturers

of such devices rarely publish this starting power

demand and so it’s often necessary to estimate it.

A rule of thumb for devices ﬁtted with an electric

motor is to apply a starting power multiplier of

1.2 for small hand-held or portable devices and

a value of 3.5 for larger stationary devices. For

example, a 900 W angle grinder can be assumed

to have a starting power demand of at least 1.2 ×

900 W, which equals 1,080 W. Similarly, a 1,650 W

air compressor can be assumed to have a starting

power demand of at least 3.5 × 1,650 W, which

equals 5,775 W.

To prevent overloading of the generator’s 240-Volt

AC system:

1. Add up the running power demand of all the

240-Volt AC devices that will be connected to

the generator at one time. This total must not be

greater than the generator’s speciﬁed running

power output.

Add up the running power demand again, but for

the largest motor-driven device use the value of

its starting power demand instead of its running

power demand. This total must not be greater

than the generator’s speciﬁed starting power

output.

The total running power demand of all the

devices that will be connected to any one of

the generator’s outlets must not exceed the

generator’s speciﬁed running power output or

3,600 W, whichever is the lesser.

The above guidelines serve as approximations

only of determining the running and starting power

demands of 240-Volt AC devices. If in doubt, always

err on the conservative side to avoid overloading

the generator. In the absence of any power demand

information whatsoever, one can assume that any

device ﬁtted with a standard domestic 10 A plug has

a maximum running power demand of up to 2,400 W

(i.e. 240 V x 10 A = 2,400 W). Similarly, a device

ﬁtted with a heavy duty 15 A plug can be assumed

to have a maximum running power demand of up to

3,600 W (i.e. 240 V x 15 A = 3,600 W). And then apply

the appropriate multiplying factor for starting power

demand if the device has an electric motor.

There are large variations in the performance of

different makes and models of electrical devices

and the manufacturer’s speciﬁcations are often

inaccurate or misleading. It is recommended that

the generator and powered device(s) be trialled to

ensure that the combination performs satisfactorily.

240-VOLT AC EXTENSION CORDS

Wherever possible, it is recommended to connect

240-Volt AC devices directly to the generator’s 240-

Volt AC outlet(s). This ensures that the device is

supplied with the best quality electricity.

In those instances where it’s not practicable or

safe to directly plug an electrical device into the

generator, the use of an electrical extension cord is

necessary.

1. Locate the generator in a convenient place,

avoiding long extension cards and possible

damage to them by pedestrian or vehicular

trafﬁc.

Use only the shortest possible extension

cord for the task. Voltage drop increases

proportionately with the length of an extension

cord and may result in damage to the powered

device.

Use only a single extension cord and not

multiple cords joined together. This will minimise

voltage drop and prevent any hazard or

inconvenience arising from the joint(s) becoming

disconnected.

Use only extra heavy duty 15 A extension cords

made from 3-core cable of at least 1.5 mm

conductor size and ﬁtted with 15 A plugs and

sockets (see Figure 10). A 15 A plug cannot be

inserted into a standard domestic 10 A socket.

Extension cords with conductor size of 1.5mm

or 2.5 mm

should not exceed 25 m or 40m

in length, respectively, for general use in

accordance with AS/NZS 3199:2020.

NOTICE

DO NOT use extension cords with only 2-pin

(active and neutral) plugs and sockets. These

extension cords lack the earth connection that

is provided by a 3-pin plug and socket joined

with a 3-core cable; the vertical pin is the earth

connection.

6. DO NOT use extension cords with any visible

signs of damage to the plug, socket or cable.

DO NOT use extension cords that are rolled up

or knotted as they may overheat.

Check the continuity of the extension cord’s

earthing core periodically from pin to socket for

assured electrical safety.

OPERATION

12 VOLT BATTERY CHARGING

There are two methods by which the generator can

be used to charge an external 12 Volt battery:

1. By direct connection to the generator’s 12-Volt

DC electrical outlet; or

By using a mains-powered 12 Volt battery

charger connected to one of the generator’s

240-Volt AC outlets.

Never use either of these methods to charge the

generator’s own 12 Volt battery, if equipped.

DANGER

Wet cell batteries produce explosive

hydrogen gas while charging. If ignited,

the hydrogen gas mixture can explode

the battery and cause serious injury

or blindness. Only charge a battery in

a well-ventilated area away from any

sources of ignition such as sparks,

open ﬂames, matches, cigarettes, CB

radios and mobile phones.

The electrolyte ﬂuid inside a battery

contains highly corrosive sulphuric

acid, which upon contact with the

skin or eyes can cause severe burns

or blindness. Always wear protective

glasses and clothing – including gloves

– when working on a battery. Any

electrolyte spill should be thoroughly

ﬂushed clean with water.

Battery Charging by Direct Connection

This method is not recommended and should only

be used in an emergency. The generator’s 12-Volt

DC electrical output is unregulated and may damage

the battery due to overcharging.

Tools required: 12 V DC, 10 A minimum battery

charging cable with cigarette lighter plug for

connection to the generator and alligator clips (both

positive and negative) for connection to the battery.

1. Prepare the battery for charging if it is a user-

maintainable type by removing the vent caps

and adding demineralised or distilled water until

the electrolyte level is just above the internal

battery plates. This may not be possible with a

maintenance-free battery.

Connect the positive (+) alligator clip (red) to the

positive (+) terminal on the battery.

Connect the negative (-) alligator clip (black) to

the negative (-) terminal on the battery.

Start the generator.

5. Insert the cigarette lighter plug into the

generator’s 12-Volt DC accessory socket. The

battery is now charging. Keep the battery as far

away as possible from the generator due to the

explosive gas hazard.

Monitor the battery; stop charging if the battery

gets hot to the touch and the electrolyte boils

violently.

Variables such as battery size and initial state

of charge make it impossible to deﬁnitively

recommend the charging period. Some batteries

have a state of charge indicator that can be

visually checked. Otherwise a voltmeter or

hydrometer is necessary to accurately determine

the battery’s condition. A fully charged battery

will have an open circuit voltage of at least

12.6 V and an electrolyte speciﬁc gravity of

at least 1.265. In the absence of any state

of charge tools, stop the charging after

approximately three hours and check whether

the battery is capable of powering the required

application, e.g. to start a car’s engine.

Remove the cigarette lighter plug from the

generator’s 12-Volt DC accessory socket.

Stop the generator unless it’s being used to

power some other 240-Volt AC device(s).

10.

Disconnect the negative (-) alligator clip (black)

from the negative (-) terminal on the battery.

11.

Disconnect the positive (+) alligator clip (red)

from the positive (+) terminal on the battery.

12.

Reﬁt the battery’s vent caps, if applicable. The

battery can now be used.

Battery Charging by a Mains-Powered

Charger

This method is recommended. Using a proprietary

mains-powered 12 Volt battery charger will ensure

that the battery is optimally charged and without

risk of damage due to overcharging.

Tools required – 240-Volt AC powered 12 V DC

battery charger.

1. Prepare the battery for charging if it is a user-

maintainable type by removing the vent caps

and adding demineralised or distilled water until

the electrolyte level is just above the internal

battery plates. This may not be possible with a

maintenance-free battery.

Connect the battery charger’s positive (+)

alligator clip or terminal clamp (red) to the

positive (+) terminal on the battery.

Connect the battery charger’s negative (-)

alligator clip or terminal clamp (black) to the

negative (-) terminal on the battery.

4. Start the generator.

OPERATION

5. Make any necessary pre-charging adjustments

or settings on the battery charger in accordance

with its operating instructions.

Insert the battery charger’s power supply plug

into one of the generator’s 240-Volt AC outlet

sockets and then switch the battery charger ON.

The battery is now charging. Keep the battery as

far away as possible from the generator due to

the explosive gas hazard.

Monitor the battery; stop charging if the battery

gets hot to the touch and the electrolyte boils

violently.

Monitor the battery charger in accordance with

its operating instructions and switch it off when

indicated to do so.

Switch the battery charger OFF and unplug its

power supply cord from the generator.

10.

Stop the generator unless it’s being used to

power some other 240-Volt AC device(s).

11.

Disconnect the battery charger’s negative (-)

alligator clip or terminal clamp (black) from the

negative (-) terminal on the battery.

12.

Disconnect the battery charger’s positive (+)

alligator clip or terminal clamp (red) from the

positive (+) terminal on the battery.

13.

Reﬁt the battery’s vent caps, if applicable. The

battery is now charged and ready for use.

TRANSPORTING THE GENERATOR

The generator should be stopped and both the

engine control switch and fuel cap vent should

be turned to the OFF position before transporting

the generator. Keep the unit level during transport

to minimise the possibility of fuel leakage or, if

practicable, drain out the fuel prior to transport as

described in Draining the Fuel.

If the generator has been operating, allow the unit

to cool down before loading it onto the transport

vehicle.

Use only the generator’s ﬁxed handle for lifting the

unit or attaching any load restraints such as ropes

or tie-down straps. Do not attempt to lift or secure

the generator by holding onto any of its other

components.

CAUTION

Do not up-end the generator or place

it either on its side or upside down.

Fuel or oil may leak out and create a

hazardous situation.

MAINTENANCE

MAINTENANCE PRECAUTIONS

WARNING

Avoid accidentally starting the

generator during maintenance by

removing the spark plug boot from the

spark plug.

Allow hot components to cool to

the touch prior to performing any

maintenance procedure.

Internal pressure can build in the

engine crankcase while the engine

is running. Removing the oil ﬁll plug

while the engine is hot can cause hot

oil to spray out of the crankcase and

cause severe skin burns. Allow engine

oil to cool for several minutes before

removing the oil ﬁll plug.

Always perform maintenance in a

well-ventilated area. Fuel and fuel

vapours are extremely ﬂammable and

can ignite under certain conditions.

CAUTION

Avoid skin contact with engine oil

or fuel. Prolonged skin contact with

engine oil or fuel can be harmful.

Frequent and prolonged contact with

engine oil may cause skin cancer.

Take protective measures and wear

protective clothing and equipment.

Wash all exposed skin with soap and

water.

MAINTENANCE SCHEDULE

WARNING

Failure to perform periodic

maintenance or not following

maintenance procedures can cause

the generator to malfunction and

could result in death or serious injury.

NOTICE

Periodic maintenance intervals vary depending

on generator operating conditions. Operating

the generator under severe conditions, such

as sustained high-load, high-temperature, or

unusually wet or dusty environments, will require

more frequent periodic maintenance. The intervals

listed in the maintenance schedule should be

treated only as a general minimum guideline. Use

only genuine Westinghouse spare parts or others

as speciﬁed herein. Non-genuine spare parts may

be of inferior quality and cause damage to the

generator.

Following the maintenance schedule is essential to keep the generator in good operating condition. Table 1

provides a summary of routine inspection procedures and simple maintenance tasks that can be performed

by someone with mechanical proﬁciency using commonly available hand tools. Alternatively, an authorised

Westinghouse service dealer can carry out this work for a fee.

Table 1: Basic Maintenance Schedule - Owner Performed

Maintenance

Item

Before Every

Use

After First 20

Hours or First

Month *

After 50 Hours

or Every

3 Months *

After 100

Hours or Every

6 Months *

After 250

Hours or

Every Year *

Engine Oil

Check / Add Change – Change –

Air Filter – – Clean ^ – –

Spark Plug – – – Check / Clean Replace

Fuel Strainer – – – Clean –

Spark Arrestor – – – Clean –

Exterior Surfaces Check / Clean – – – –

* Whichever occurs ﬁrst. ^ Service more frequently if operating in dusty conditions.

MAINTENANCE

ENGINE OIL

Engine Oil Speciﬁcation

Use premium quality 4-stroke engine oil with an

API Service Classiﬁcation of at least SF. An SAE

multigrade viscosity of 10W-30 is suitable for use in

ambient temperatures of up to 40°C.

NEVER use 2-stroke engine oil either directly in the

engine or mixed with the fuel.

Mineral based, semi-synthetic or fully synthetic oils

may be used, but different types of oils should not

be mixed together. The engine oil supplied originally

with the generator is a mineral type with SAE

10W-30 viscosity.

Checking Engine Oil

NOTICE

Always maintain proper engine oil level. Failure

to maintain proper engine oil level can damage

the engine. Always use the speciﬁed engine oil.

Failure to use the speciﬁed engine oil can damage

the engine.

Tools required - None.

Engine oil level should be checked before every use.

1. Always operate or maintain the generator on a

ﬂat surface.

Stop engine if running.

Let engine sit and cool for several minutes (allow

crankcase pressure to equalise).

Turn the right-hand side maintenance access

cover lock anti-clockwise to the unlocked

position (see Figure 12).

Grip and pull away on the right-hand side

maintenance tab to open and remove the cover

(see Figure 13).

Remove the oil ﬁll plug by unscrewing it anti-

clockwise (see Figure 14).

Figure 13 - Removing the RHS Maintenance

Access Cover

Figure 14 - Removing the Oil Fill Plug

Table 2: Advanced Maintenance Schedule - Authorised Westinghouse Service Dealer Performed

Maintenance Item After 250 Hours or Every Year * After 500 Hours or Every 2 Years *

Fuel Filter

Replace –

Valve Clearance Check / Adjust –

* Whichever occurs ﬁrst.

Table 2 lists the more complicated maintenance tasks that are best performed by a qualiﬁed mechanic using

specialised tools. It is recommended to engage an authorised Westinghouse service dealer to carry out this

work.

Figure 12 - RHS Maintenance Access Cover

Lock in the Unlocked Position

MAINTENANCE

7. Check oil level:

• Acceptable Oil Level – Oil surface is at

the bottom lip of the oil ﬁll plug opening

(see Figure 15).

• Low Oil Level – Oil surface is below the

bottom lip of the oil ﬁll plug opening. Add oil

as required. See Adding Engine Oil.

• Too High Oil Level - Oil ﬂows out when the oil

ﬁll plug is removed. Allow the excess oil to

drain out into a waste oil container.

8. Reinstall the oil ﬁll plug and maintenance access

cover.

Figure 15 – Checking Oil Level

350 ml

SAE 10W-30

Figure 16 – Adding Engine Oil

Adding Engine Oil

Tools required - None.

1. Always operate or maintain the generator on a

ﬂat surface.

Stop the engine, if running.

Let engine cool down for several minutes

allowing crankcase pressure to equalise.

Remove the RHS maintenance access cover

(see Figures 12 and 13).

Thoroughly clean around the oil ﬁll plug.

Remove the oil ﬁll plug.

Select proper engine oil as described in Engine

Oil Speciﬁcation.

Screw the supplied oil funnel into the threaded

oil ﬁll plug hole and slowly add engine oil to the

engine as shown in Figure 16. Check the oil level

periodically to avoid overﬁlling.

9. Continue to add oil until the oil is at the correct

level. See Checking Engine Oil. A simple visual

guide is to observe the oil level relative to the

bottom lip of the oil ﬁller neck in the engine

into which the oil ﬁll plug is screwed. If the oil

reaches the bottom lip, then it’s at the high level.

If the oil is above the bottom lip and ﬂows out of

the hole, then it’s too full and the excess must

be drained out.

10.

Unscrew the oil funnel and then reinstall the oil

ﬁll plug and maintenance access cover.

Changing Engine Oil

Tools required - None.

1. Stop the engine, if running.

Let engine cool down for several minutes

allowing crankcase pressure to equalise.

Remove the RHS maintenance access cover

(see Figures 12 and 13).

Place oil pan or other suitable container under

the oil ﬁll plug.

Thoroughly clean around the oil ﬁll plug with a

rag.

Remove the oil ﬁll plug. Once removed, place

the oil ﬁll plug on a clean surface.

Screw the supplied oil funnel into the threaded

oil ﬁll plug hole and tilt the generator over to

drain oil into a waste oil pan or container (see

Figure 17).

Figure 17 – Draining the Engine Oil

8. Allow oil to drain completely.

Fill crankcase with new oil following the steps

outlined in Adding Engine Oil.

10.

Unscrew the oil funnel and then reinstall the oil

ﬁll plug and maintenance access cover.

An alternate method for draining is to use an oil

extractor vacuum pump to remove the used oil via

the oil ﬁll plug hole.

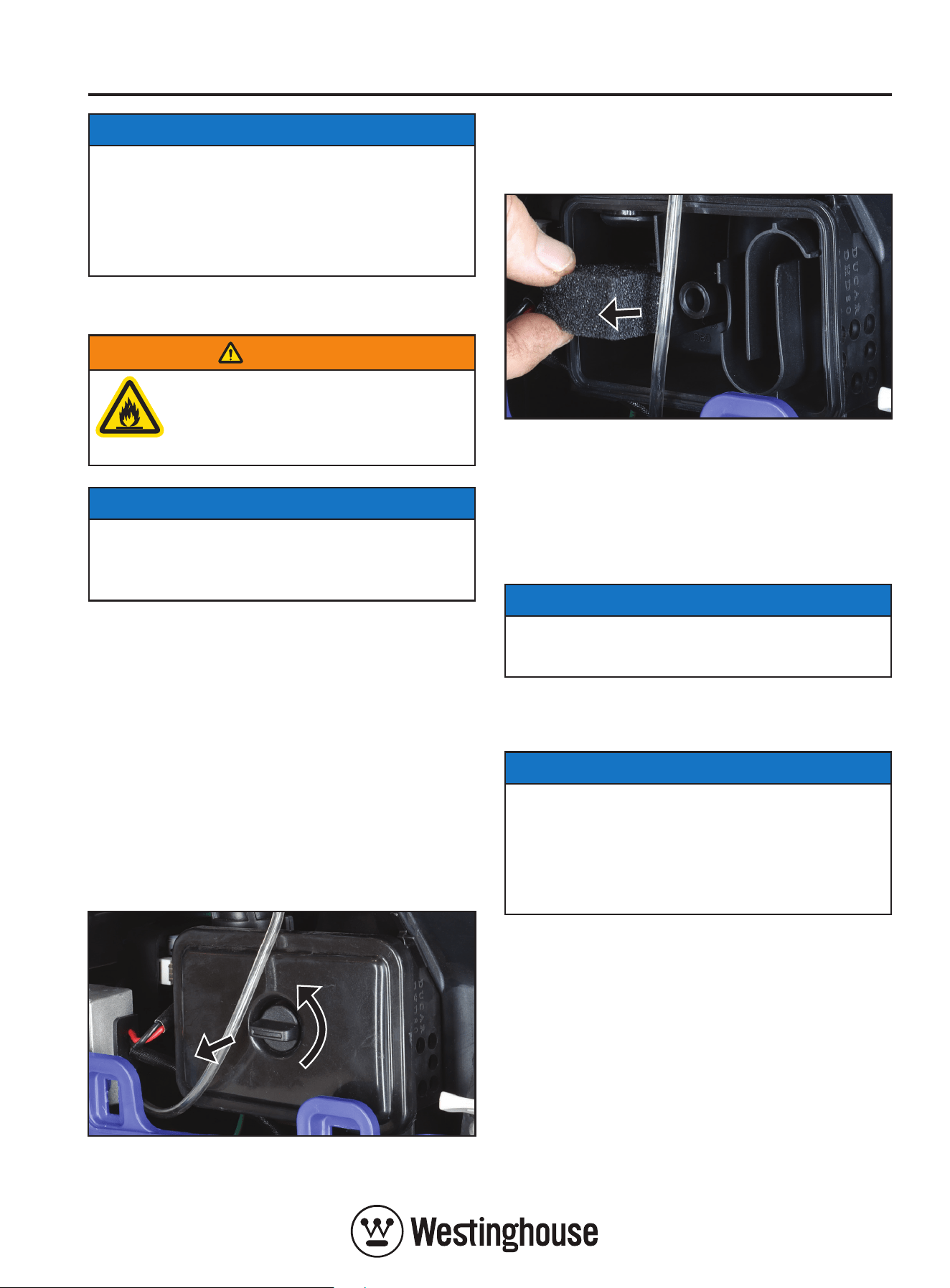

MAINTENANCE

NOTICE

Never dispose of used engine oil by dumping

the oil into a sewer, on the ground, or into

groundwater or waterways. Always be

environmentally responsible. Follow the guidelines

of the government agencies for proper disposal of

hazardous materials. Consult local authorities or

reclamation facility.

AIR FILTER

WARNING

Never use fuel or other ﬂammable

solvents to clean the air ﬁlter. Use only

household detergent and warm water

or alternatively a non-ﬂammable

solvent.

NOTICE

Do not operate the generator without an air ﬁlter

element or with a damaged air ﬁlter element.

This will allow dirt to enter the engine and cause

accelerated wear.

Cleaning the Air Filter

Tools required - None.

The air ﬁlter must be cleaned after every 50 hours of

use or 3 months (frequency should be increased if

generator is operated in a dusty environment).

1. Turn off the generator and let it cool for several

minutes if it’s been running.

Move the generator to a ﬂat, level surface.

Remove the RHS maintenance access cover

(see Figures 12 and 13).

Remove the air ﬁlter cover by undoing the

central ﬁxing screw (see Figure 18). Clean the air

ﬁlter cover with a rag and place it aside.

5. Remove the foam air ﬁlter element while

taking care to note its shape and orientation

(see Figure 19). The air ﬁlter element must be re-

installed later in the same position.

6. Wash the air ﬁlter element in a solution of

household detergent and warm water or

alternatively in non-ﬂammable solvent. Slowly

squeeze the foam in the liquid for a thorough

cleaning action. Then remove the foam and

squeeze out the liquid.

NOTICE

NEVER twist or tear the air ﬁlter element during

cleaning or drying. Apply only a slow and ﬁrm

squeezing action.

7. Rinse the air ﬁlter element by immersing it in

fresh water and applying a slow squeezing

action.

NOTICE

Never dispose of the used cleaning solution or

solvent by dumping it into a sewer, on the ground,

into groundwater or into a waterway. Always be

environmentally responsible. Follow the guidelines

of the governmental agencies for proper disposal

of hazardous materials. Consult local authorities

or reclamation facility.

8. Dry the air ﬁlter element by repeatedly applying

a slow ﬁrm squeezing action.

Coat the air ﬁlter element in clean engine oil and

then thoroughly squeeze out the excess liquid.

10.

Reinstall the air ﬁlter element inside the air ﬁlter

housing while taking care to ensure that the

element is correctly positioned.

11.

Reinstall the air ﬁlter cover and maintenance

access cover.

NOTE:

Replace the air ﬁlter element if it cannot be

adequately cleaned.

Figure 18 - Removing the Air Filter Cover

Figure 19 – Removing the Air Filter Element

MAINTENANCE

FUEL STRAINER

Cleaning the Fuel Strainer

Tools required - None.

Check and clean the fuel strainer after every

100 hours of use or 6 months. It is recommended

that this maintenance task also be performed each

time when ﬁlling with fuel from any source other

than directly from a service station bowser.

1. Stop the generator, if running.

Allow the generator to cool down until the

mufﬂer access cover is cool to the touch.

Remove the generator to a ﬂat surface.

Clean area around the fuel cap.

Turn the fuel cap vent to the ON position, if

equipped.

Remove the fuel cap and set it aside on a clean

surface.

7. Remove the fuel strainer by hand from inside the

ﬁller hole on top of the fuel tank (see Figure 20)

taking care not to tear or otherwise damage the

ﬁne mesh screen. Keep the fuel strainer vertical

so that any trapped liquid or solids do not spill

onto the generator.

Pour the contents of the fuel strainer into

a suitable waste receptacle. Low pressure

compressed air can be used if necessary for

blowing onto the outside of the strainer mesh to

remove any trapped ﬁne grit.

NOTICE

Never dispose of fuel or fuel contaminants by

dumping either of them into a sewer, on the

ground, or into groundwater or waterways. Always

be environmentally responsible. Follow the

guidelines of the government agencies for proper

disposal of hazardous materials. Consult local

authorities or reclamation facility.

9. Reinstall the fuel strainer by hand inside the ﬁller

hole on top of the fuel tank (see Figure 21). Make

sure it is fully inserted into the opening.

10.

Reinstall the fuel cap.

Figure 21 – Reinstalling the Fuel Strainer

SPARK PLUG

Cleaning and Replacing the Spark Plug

Tools required – Spark plug socket wrench, spark

plug gap tool or feeler gauge, and wire brush.

The spark plug should be checked and cleaned

after every 100 hours of use or 6 months and then

replaced after 250 hours of use or every year.

1. Stop the generator and let it cool for several

minutes if it’s been running.

Move the generator to a ﬂat, level surface.

Unlock and remove the RHS maintenance

access cover (see Figures 12 and 13).

Remove the spark plug access cover by lifting

up its locking tab (see Figure 22).

5. Remove the spark plug boot by ﬁrmly pulling it

up and away from the engine (see Figure 23).

Figure 22 – Removing the Spark Plug Access Cover

Figure 20 – Removing the Fuel Strainer

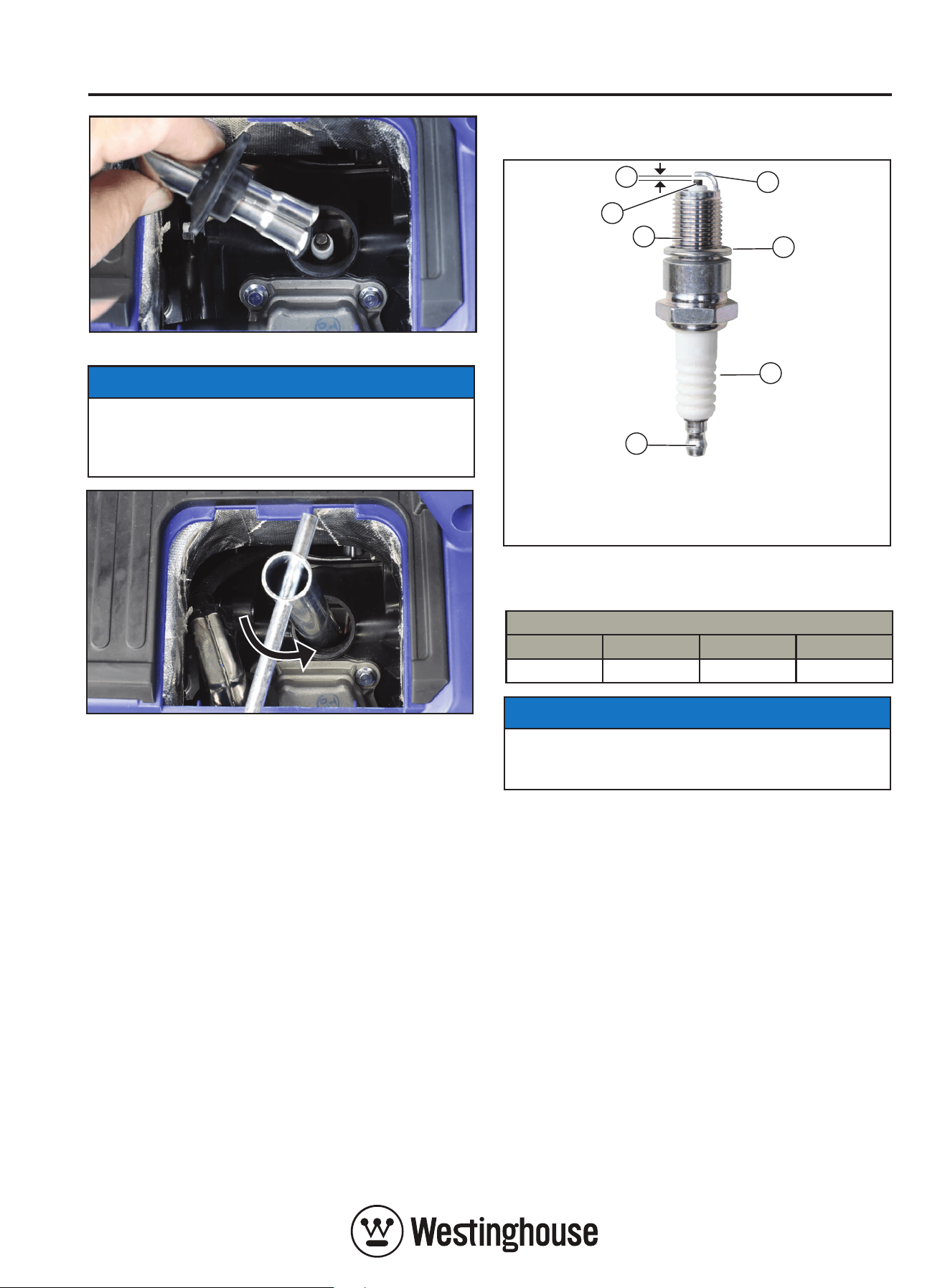

MAINTENANCE

NOTICE

Never apply any side load or move the spark plug

laterally when removing the spark plug. Applying

a side load or moving the spark plug laterally may

crack and damage the spark plug insulator.

6. Clean area around the spark plug.

Use a spark plug socket wrench to remove the

spark plug from the cylinder head by unscrewing

it anti-clockwise (see Figure 24).

Place a clean rag over the opening created by

the removal of the spark plug to make sure no

dirt can get into the combustion chamber.

Inspect the spark plug for:

• Cracked or chipped insulator; replace the

spark plug.

• Excessive wear of the electrodes; replace the

spark plug.

• Excessive carbon or oil fouling of the

electrodes; clean the electrodes with a wire

brush or replace the spark plug.

• Spark plug gap of 0.7 mm or 0.028 inch

(see Figure 25); after cleaning with a wire

brush, check using a spark plug gap tool or

feeler gauge and adjust by carefully bending

the ground electrode. Always check the gap

of a new spark plug before installing it.

When replacing the spark plug, use only

the speciﬁed part as listed in Table 3.

Spark Plug Make and Model

Torch Bosch Denso NGK

E6RTC WR7BC+ W20FPR-U BPR6HS

Table 3: Replacement Spark Plug for iGen2250

NOTICE

Use only the recommended spark plug

(Torch brand) or equivalent. The use of a non-

recommended spark plug can damage the engine.

10. Install the spark plug by following the steps

outlined below:

a -

Carefully insert the spark plug back into the

cylinder head. Hand screw the spark plug

clockwise until it bottoms out (seats).

b -

Use a spark plug socket wrench to ﬁnish

tightening the spark plug. If reinstalling a

used spark plug, tighten approximately

1/8 to 1/4 of a turn after the spark plug

seats. If installing a new spark plug, tighten

approximately 1/4 to 1/2 of a turn after the

spark plug seats. The tightening torque

should not exceed 17 Nm (13 lb-ft).

c - Reinstall the spark plug boot, making sure

the boot fully engages onto the spark plug’s

terminal.

11. Reinstall the spark plug and maintenance

access covers.

Figure 23 – Removing the Spark Plug Boot

Figure 24 – Removing the Spark Plug

A - Gap

B -

Ground Electrode

C -

Gasket

D -

Insulator

E - Terminal

F -

Thread

G -

Centre Electrode

Figure 25 – Spark Plug

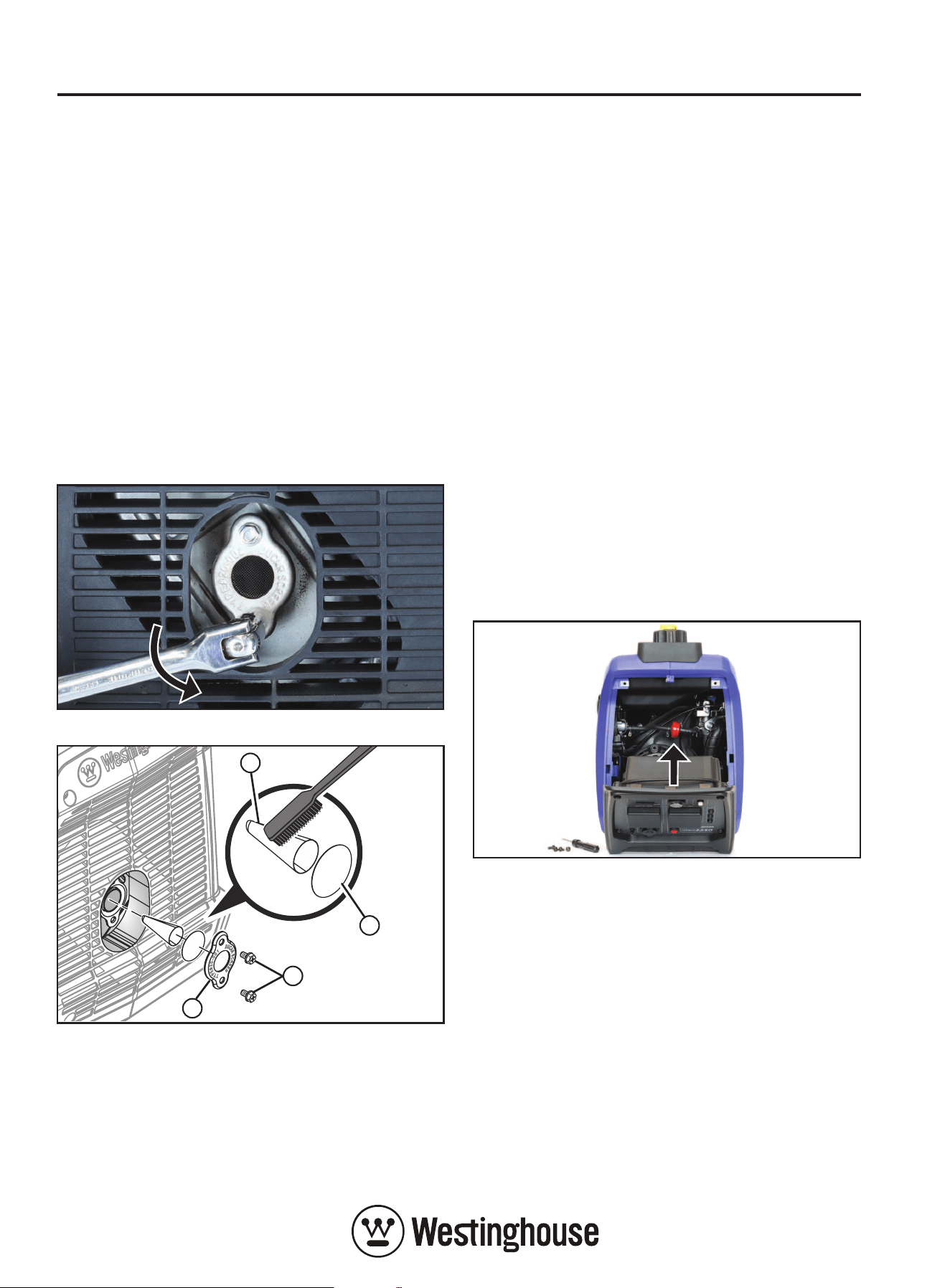

MAINTENANCE

SPARK ARRESTOR

Cleaning the Spark Arrestor

Tools required – 8 mm socket wrench.

Check and clean the spark arrestor after every

100 hours of use or 6 months.

1. Stop the generator and let it cool for several

minutes if it’s been running.

Move the generator to a ﬂat, level surface.

Remove the spark arrestor clamp by undoing

the two bolts afﬁxing it to the mufﬂer

(see Figure 26).

Pull off the screen and remove the spark arrestor

(see Figure 27).

Use a wire brush to remove any exhaust

deposits that may have collected on the spark

arrestor and screen (see Figure 27).

6. If the spark arrestor or screen show signs of

wear such as rips, tears or large openings, they

should both be replaced.

Reinstall the spark arrestor, screen, clamp and

bolts.

REPLACING THE FUEL FILTER

Tools required – Phillips head screwdriver (supplied)

and a pair of pliers.

The fuel ﬁlter should be replaced after every 250

hours of use or one year. It may need to be changed

earlier if the generator is inadvertently ﬁlled with

contaminated fuel.

1. Stop the generator, if running.

Ensure that the engine control switch is in the

OFF position.

Turn the fuel cap vent to the OFF position.

Allow the generator to cool down until the

mufﬂer access cover is cool to the touch.

Move the generator to a ﬂat, level surface

preferably at a comfortable working height for

maintenance.

Remove the four screws afﬁxing the control

panel / front maintenance access cover

assembly to the generator (see Figure 28) and

gently pull the cover forwards away from the

casing. Take care not to disconnect any of the

electrical cables that tether the cover to the

generator.

7. Locate the red-coloured fuel ﬁlter and note its

orientation.

Use pliers to squeeze the fuel hose clip tails

together (to loosen their clamping force) while

pulling off the fuel hoses. Use a rag to catch

and clean up any drops of fuel that may drip out

from the hoses or ﬁlter.

Using a new fuel ﬁlter in the correct orientation,

reattach the fuel hoses and reﬁt the clips.

10.

Turn both the engine control switch and fuel cap

vent to the ON position. Check for fuel leaks

from the newly installed fuel ﬁlter and reattached

fuel hoses. If all is OK, reinstall the control panel

/ access cover assembly.

Figure 28 – Replacing the Fuel Filter

Figure 26 - Removing the Spark Arrestor Clamp

A - Spark Arresto

B - Screen

C - Bolts

D - Clamp

Figure 27 - Removing and Cleaning

the Spark Arrestor

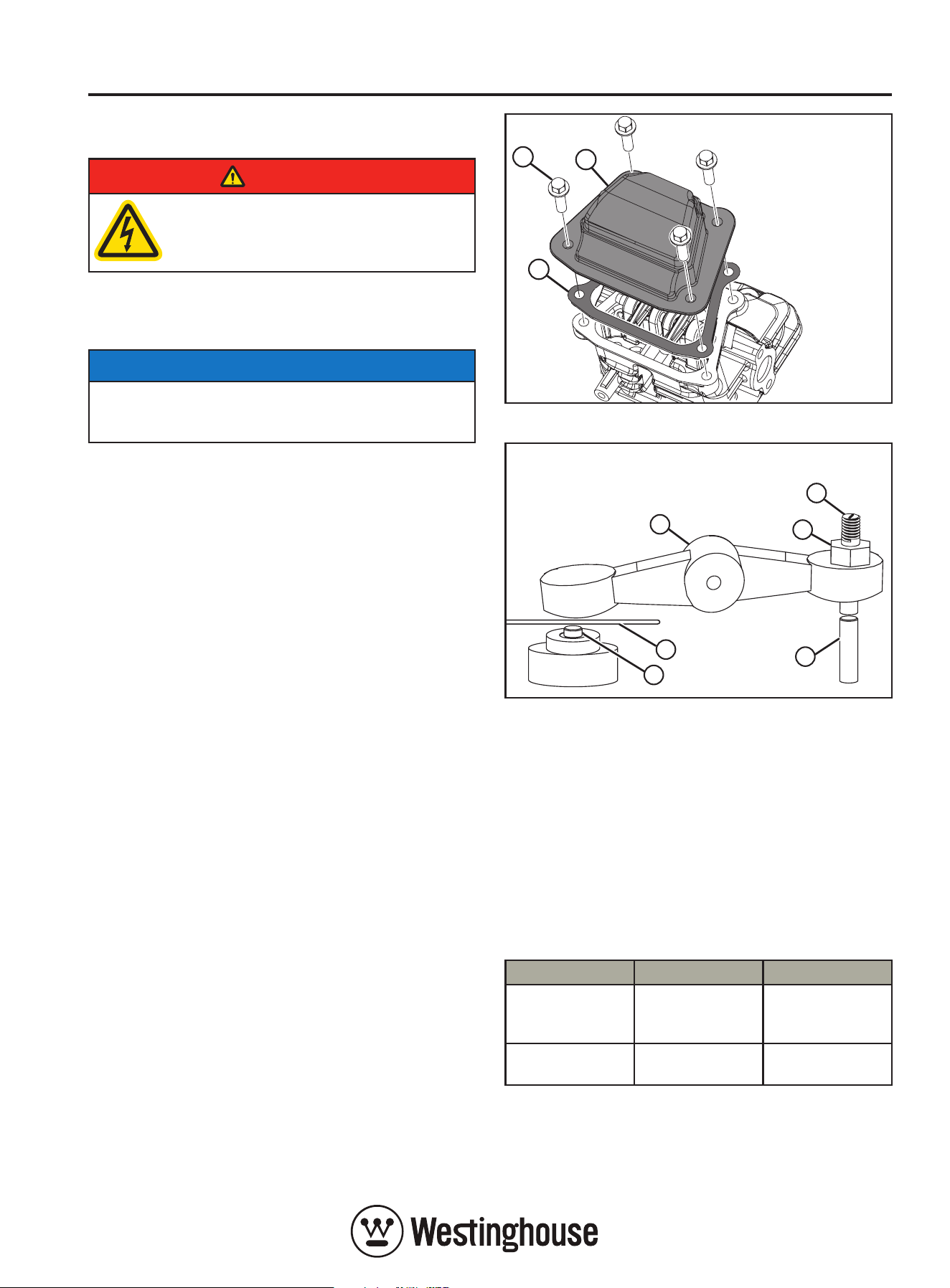

MAINTENANCE

11. Turn both the engine control switch and fuel cap

vent to the OFF position.

CHECKING AND ADJUSTING THE

VALVE CLEARANCE

NOTICE

The valve clearance should only be checked or

adjusted when the engine has cooled to ambient

temperature.

The engine’s valve clearance should be checked

and adjusted after every 250 hours of use or one

year.

Tools required – Spark plug socket wrench, 8 mm

socket wrench, 8 mm open-ended or ring spanner,

100 or 150 mm adjustable wrench and a set of feeler

gauges.

1. Stop the generator, if running.

Ensure that the engine control switch is in the

OFF position.

Turn the fuel cap vent to the OFF position.

Allow the generator to cool down until the

engine is at ambient temperature.

Move the generator to a ﬂat, level surface

preferably at a comfortable working height for

maintenance.

Remove the spark plug access cover, spark plug

boot and spark plug (see Figures 22, 23 and 24).

Remove the RHS maintenance access cover

(see Figures 12 and 13).

Remove the rocker arm cover (see Figure 29).

If the gasket remains wholly intact in situ and

there is no visible evidence of it being damaged

or leaking, it can be reused. If not, it will need to

be replaced during reassembly.

Pull the recoil starter handle slowly in small

increments until the engine is at top dead

center (TDC). Look through the spark plug hole

to observe that the piston is at the top of its

stroke and check by hand that both rocker arms

are loose with some play between each one

and its corresponding inlet or exhaust valve.

(See Figure 30).

10. Insert a feeler gauge between the rocker

arm and the valve stem to measure the valve

clearance. Refer to Table 4. The inlet valve

is that which is closest to the carburettor. If

adjustment is required, loosen the lock nut and

then turn the adjustment screw as required.

After verifying the correct clearance has been

set, maintain the position of the adjustment

screw by using the adjustable wrench and then

tighten the lock nut. If possible, use a torque

wrench to precisely tighten the lock nut.

11. Double-check the inlet and exhaust valve

clearances. If all is OK, reinstall the rocker arm

cover, gasket and bolts.

Table 4: Valve Clearance and Lock Nut Torque

Speciﬁcation Inlet Valve Exhaust Valve

Valve Stem to

Rocker Arm

Clearance

0.08 - 0.12 mm 0.13 - 0.17 mm

Lock Nut

Torque

8 - 12 Nm 8 - 12 Nm

Figure 29 – Removing the Rocker Arm Cover

A - Rocker Arm Cover

Bolt

C -

Gasket

Figure 30 – Adjusting the Valve Clearance

A - Adjustment Screw

B - Lock Nut

C - Feeler Gauge

D - Rocker Arm

E - Valve Stem

F - Push Rod

DANGER

Never operate the generator without

its control panel / front maintenance

access cover assembly properly

installed.

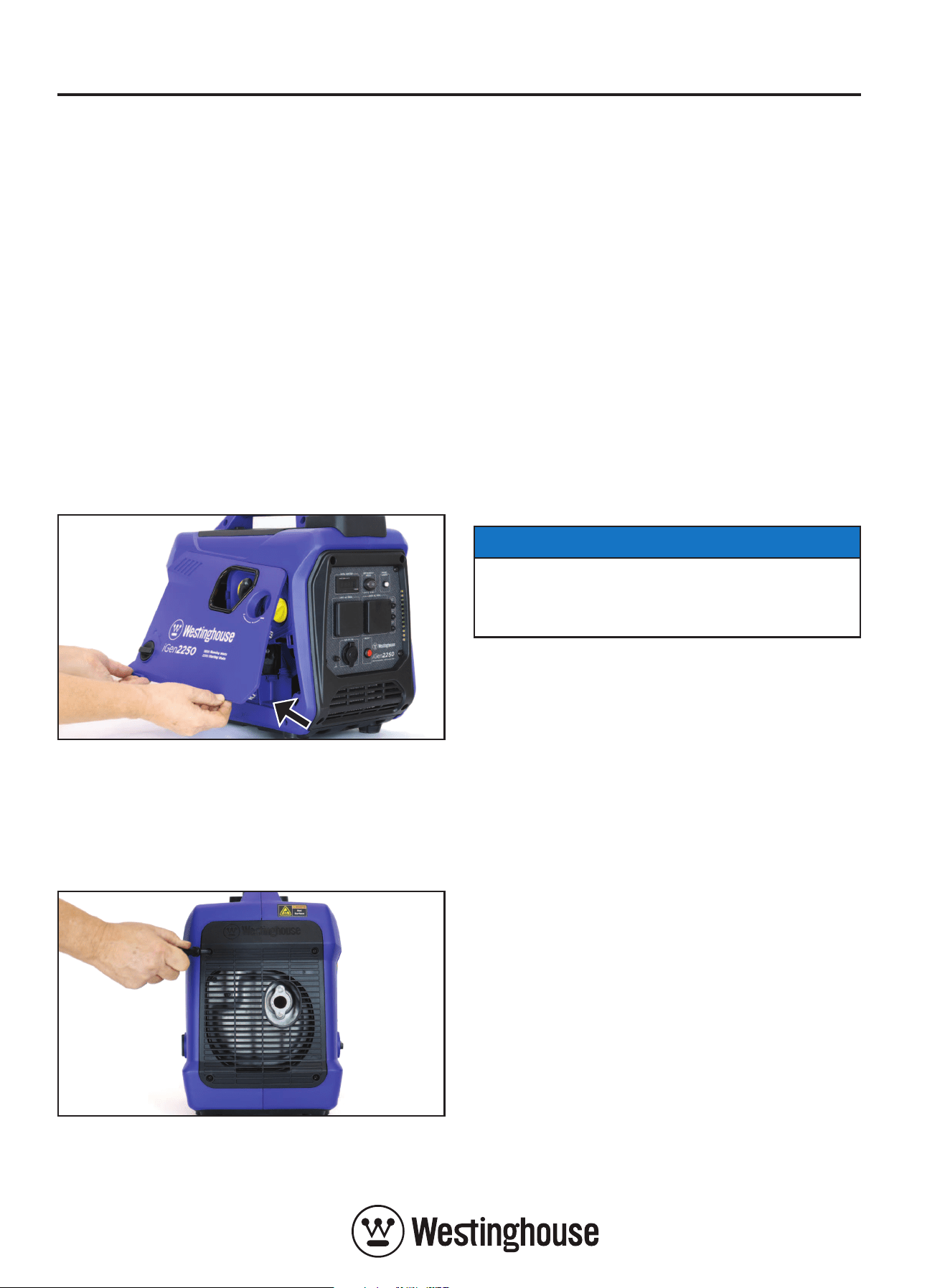

MAINTENANCE

12. Reinstall the spark plug, spark plug boot, spark

plug access cover and the RHS maintenance

access cover.

MAINTENANCE ACCESS

All routine scheduled maintenance can be

performed by removing the right-hand side

maintenance access cover (see Figures 12 and13),

the spark plug access cover (see Figure 22) or the

control panel / front maintenance cover assembly

(see Figure 28).

If necessary for non-routine repair, the left-hand side

maintenance access cover and the mufﬂer access

cover on the rear of the generator can also be

removed easily.

No tools are required to remove the LHS

maintenance access cover. Turn the LHS

maintenance access cover lock clockwise to the

unlock position. Then grip and pull away on the left-

hand side maintenance tab to open and remove the

cover (see Figure 31).

To remove the mufﬂer access cover, use a Phillips

head screwdriver (supplied) to remove the four

screws afﬁxing it to the casing. Then grip and pull

away on the bottom edge to open and remove the

cover (see Figure 32).

CLEANING THE GENERATOR

The generator should be kept clean and dry at

all times to ensure its reliable and safe operation.

This must be checked each time before using the

generator.

Use a damp cloth which has been soaked in a

mixture of household detergent and warm water and

then wrung out to remove excess liquid. Wipe the

exterior surfaces of the generator clean and then

repeat with a damp cloth which has been rinsed in

clean water and wrung out. Finish by wiping off all

moisture with a dry cloth. Do not use abrasive or

solvent cleaners.

A soft, non-metallic bristle brush or a vacuum

cleaner may be used to loosen and remove any

built-up dirt, mud or other debris. Low pressure

compressed air may also be used to blow off any

dirt or dust.

Make sure all of the ventilation grilles are clean of

any dirt or other debris otherwise the generator may

overheat and be damaged.

NOTICE

NEVER use a water hose or pressure washer to

clean the generator. Water may enter the fuel or

electric systems and damage the generator. The

risk of electric shock is also possible.

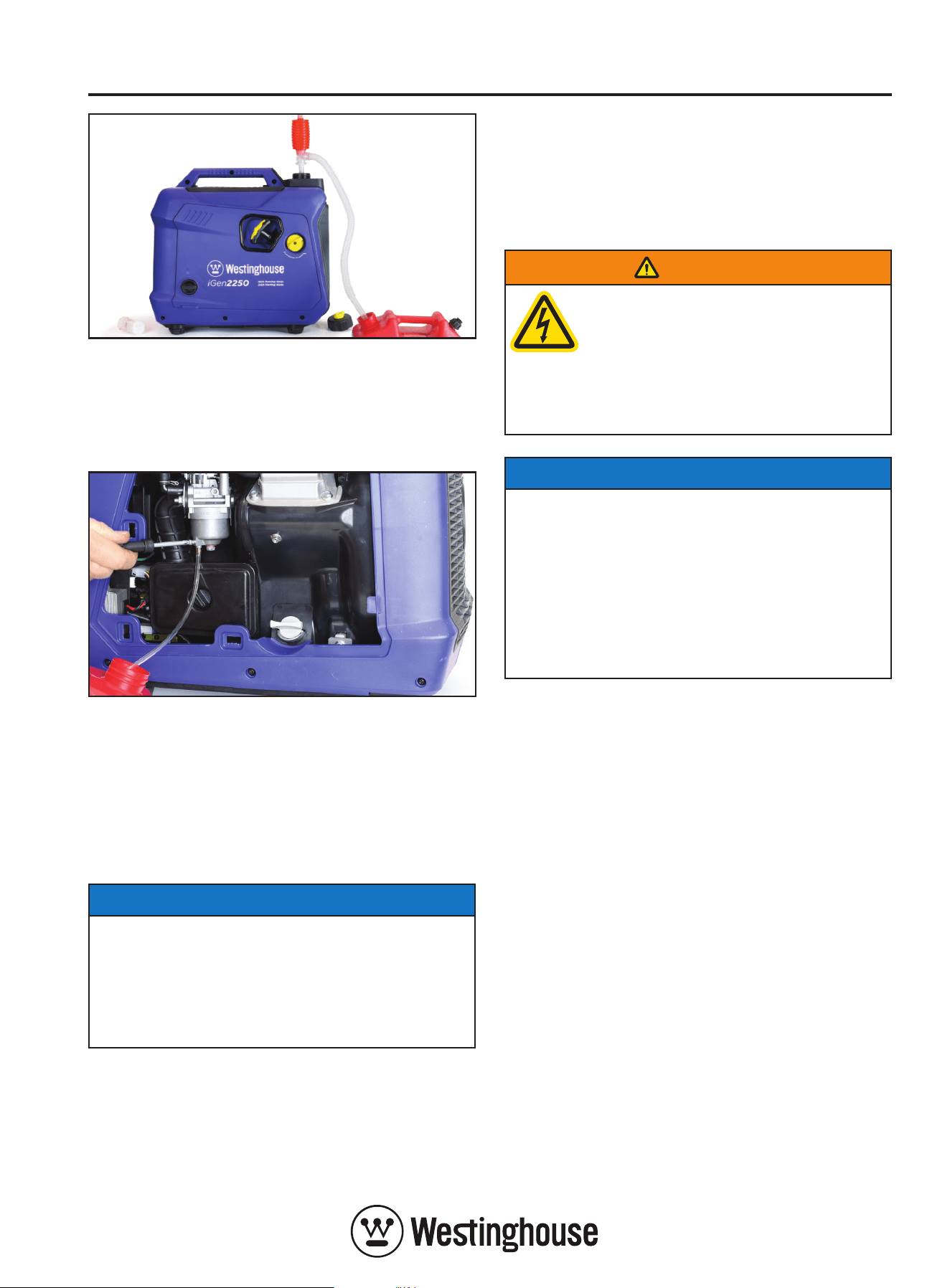

DRAINING THE FUEL

Occasionally it may be necessary to drain all the

fuel out of the generator. For example, to remove

contaminated or stale fuel or to prepare the

generator for transport or storage.

Tools required – Flat head screwdriver (supplied),

fuel siphon hand pump and fuel storage container.

1. Turn the fuel cap vent to the ON position.

Remove the fuel cap.

Clean the fuel strainer (see Fuel Strainer

Maintenance), but do not reinstall it.

Pour or siphon the contents of the fuel tank into

a fuel storage container (see Figure 33).

Remove the RHS maintenance access cover

(see Figures 12 and 13).

Locate the fuel drain hose connected to the

bottom of the carburettor ﬂoat bowl. Take note

of the hose’s stowed position. Then gently pull

the loose end of the hose up and out of the

generator casing.

Position the fuel storage container to collect the

remaining fuel discharged from the drain hose.

Turn the engine control switch to the ON

position.

Figure 31 – Removing the LHS Maintenance

Access Cover

Figure 32 – Removing the Mufﬂer Access

Cover

MAINTENANCE

9. Use the screwdriver to loosen the fuel drain

screw by turning it anti-clockwise and then

carefully drain the fuel out (see Figure 34). Take

care to wipe up any spills immediately.

10. When all the fuel has been drained out, tighten

the fuel drain screw. Move the storage container

and any fuel soaked rags away from the

generator. It is preferable to consume the fuel in

another engine-powered device straight away or

dispose of it properly rather than storing it for a

long time with fuel stabiliser for later reuse.

NOTICE

Never dispose of fuel or fuel contaminants by

dumping either of them into a sewer, on the

ground, or into groundwater or waterways.

Always be environmentally responsible. Follow

the guidelines of the governmental agencies for

proper disposal of hazardous materials. Consult

local authorities or reclamation facility.

11. Turn the engine control switch to the OFF

position.

12.

Re-stow the fuel drain hose back to its original

position routed downwards. Take care to

ensure that the hose is correctly routed and not

touching any potentially hot components.

13. Reinstall the maintenance access cover.

14.

Reinstall the fuel strainer.

15.

Reinstall the fuel cap.

16.

Turn the fuel cap vent to the OFF position.

LONG-TERM STORAGE

WARNING

Never store a generator with fuel

in the tank indoors or in a poorly

ventilated area where the fumes can

come into contact with an ignition

source such as: a pilot light of a stove,

water heater, clothes dryer or any

other gas appliance; or a spark from

an electric appliance.

NOTICE

Fuel stored for as little as 30 days can go bad,

causing gum, varnish and corrosive build-up

in fuel lines, fuel passages and the engine.

This corrosive build-up restricts the ﬂow of

fuel, preventing an engine from starting after a

prolonged period of storage.

The most commonly experienced faults with

portable generators are directly attributable to

contaminated or stale fuel. Such faults are not

covered by the generator’s warranty.

The generator should be run at least once per

month for 30 minutes under no less than one-third

load. If this is not possible, the generator should

be prepared for long-term storage as described

hereunder.

Proper care should be taken to prepare the

generator for any long-term storage. This will

protect the generator’s function and appearance,

and will make it easier to start when next required.

Storage Procedure for 1 – 3 Months

1. Clean the generator as outlined in Cleaning the

Generator.

Add a proprietary fuel stabiliser to the fuel

tank and then add fresh fuel up to the tank’s

maximum capacity (see Checking and

Adding Fuel). Follow the manufacturer’s

recommendation for correct amount of stabiliser

to add.

Start the generator and run it for 10 minutes to

ensure that treated fuel is distributed throughout

the engine’s fuel system.

4. Stop the generator (see Stopping the Generator).

5. Turn the engine control switch to the OFF

position if not already done in Step 4.

Figure 34 – Draining the Carburettor

Figure 33 – Emptying the Fuel Tank

MAINTENANCE

6. Turn the fuel cap vent to the OFF position.

Allow the unit to cool down and then move it to

a clean, dry place for storage.

Storage Procedure for Greater than

3 Months

1. Clean the generator as outlined in Cleaning the

Generator.

Drain the fuel (see Draining the Fuel).

Start the generator, if possible, and run the

engine without load until it stops when the last

remnants of fuel have been used. (See Starting

the Generator and Stopping the Generator).

Change the engine oil (see Changing Engine Oil).

Remove the spark plug (see Spark Plug

Maintenance) and pour a tablespoon of clean

engine oil into the spark plug opening. While

placing a clean rag over the spark plug opening,

slowly pull the recoil starter handle to rotate

the engine several times. This will distribute the

oil and protect the cylinder wall from corrosion

during storage.

Reinstall the spark plug (see Spark Plug

Maintenance).

Slowly pull the recoil starter handle until

resistance is felt, at which point the piston

is coming up on its compression stroke and

both the intake and exhaust valves are closed.

Storing the engine in this position will help to

prevent internal corrosion.

Move the unit to a clean, dry place for storage.

Removal from Storage

Follow the normal procedures for pre-operation

checks and starting (see Before Starting the

Generator).

Use only fresh fuel to re-ﬁll the tank, if necessary,

ather than re-using any old fuel.

If oil was inserted into the cylinder prior to storage,

the exhaust may smoke for a short while after

starting the generator; this is normal and will cease

within a minute or so of running time.

DISMANTLING AND DISPOSAL

There is no requirement for the generator to be

dismantled during normal operation other than for

major repair / overhaul or prior to ﬁnal disposal at

the end of its service life.

Dismantling should only be carried out by a

mechanically proﬁcient person with access to

proper tools or alternatively by your authorised

Westinghouse service dealer for a fee.

Before dismantling:

Stop the generator (see Stopping the Generator).

Drain the engine oil (see Changing Engine Oil).

Drain the fuel (see Draining the Fuel).

NOTICE

Do not pollute the environment by improper or

illegal disposal of the waste ﬂuids. Dispose of

these hazardous items only at an authorised

waste collection / recycling facility.

Do not pollute the environment by improper or

illegal disposal of the generator either as a whole

or in parts. Take the unwanted unit or components

to your local recycling centre instead. The

generator is made almost entirely of metals that

can be recycled.

TROUBLESHOOTING

PROBLEM POTENTIAL CAUSE SOLUTION

Engine will not start or

starts and runs rough.

1. Low oil level. 1. Check oil level and add oil if necessary.

Generator is out of fuel. 2. Check fuel level and add fuel if necessary.

Fuel is stale or contaminated

with water or other foreign

substance.

Drain fuel and reﬁll with fresh fuel.

4. Electrical load connected to

generator.

4. Unplug or switch off any electrical cords or devices

from the 240-Volt AC receptacles.

Fuel cap vent is in the OFF

position.

5. Move fuel cap vent to the ON position.

Engine

control switch is in

the OFF position.

Move engine control switch to the ON or CHOKE

position.

Engine is not choked (if

cold).

7. Move engine control switch to the CHOKE position.

Engine is over choked (if

hot).

8. Move engine control switch to the ON position.

Spark plug boot is not

properly connected onto

spark plug terminal.

Push spark plug boot ﬁrmly onto spark plug.

10. Spark plug is dirty or faulty. 10. Clean or replace spark plug.

Air ﬁlter is dirty or blocked. 11. Check air ﬁlter element and clean if necessary.

12.

Spark arrestor is dirty or

blocked.

12. Check spark arrestor and clean if necessary.

13.

If above possible causes

are checked and eliminated,

generator may be faulty.

13.

Take generator to an authorised Westinghouse

service dealer.

WARNING

Before attempting to service or

troubleshoot the generator, the owner

or service technician must ﬁrst read

and understand this instruction

manual and comply with all safety

instructions. Failure to follow all

instructions may result in conditions

leading to voiding of the product

warranty, serious personal injury,

property damage or even death.

TROUBLESHOOTING

PROBLEM POTENTIAL CAUSE SOLUTION

Engine is running, but

no 240-Volt AC output is

available.

1. If output indicator light is

green, 240-Volt AC output

should be available.

Check connected electrical cord(s) or appliance(s)

as described below.

Connected electrical cord

or appliance plug is not

properly inserted into 240-

Volt AC outlet socket.

Check connected electrical cord or appliance plug

is fully inserted into 240-Volt AC outlet socket.

Connected electrical cord or

appliance is faulty.

3. Connect known functioning appliance directly into

generator’s 240-Volt AC outlet socket to verify

electrical output.

If output indicator light is not

illuminated, there is no 240-

Volt AC output available. In

such case:

•

If overload alarm light is not

illuminated, generator may

be faulty.

•

If overload alarm light is red,

there is an overload or short

circuit in the connected 240-

Volt AC load.

• Disconnect all electrical cords and devices

from generator and press the generator reset

button. If unresolved, stop and restart engine

with ECO throttle switch in the OFF position. If

still unresolved, take generator to an authorised

Westinghouse service dealer.

•

Disconnect all electrical cords and devices from

generator and press the generator reset button.

If unresolved, stop and restart engine with ECO

throttle switch in the OFF position. Reconnect

and test run 240-Volt AC loads individually; any

single cord or device that trips overload alarm is

either faulty or too great a load for the generator.

Any faulty device must not be used further until

checked and approved by a licensed electrician.

Check running and starting power demands of total

connected electrical load versus generator’s rating.

If above possible causes

are checked and eliminated,

generator may be faulty.

Take generator to an authorised Westinghouse

service dealer.

TROUBLESHOOTING

PROBLEM POTENTIAL CAUSE SOLUTION

Engine is running, but

no 12-Volt DC output is

available.

1. If output indicator light is

blinking green, generator

is still in starting mode and

not yet delivering electrical

output.

Wait 5 seconds for the generator to warm up,

stabilise and commence output. No fault.

Connected electrical cord

or appliance plug is not

properly inserted into the

DC outlet socket.

Check connected electrical cord or appliance plug

is fully inserted into the DC outlet socket.

Connected electrical cord or

appliance is faulty.

3. Connect known functioning appliance directly

into generator’s 12-Volt DC outlet socket to verify

electrical output.

Overload or short circuit in

the connected DC load

4. Disconnect all electrical cords and devices from the

12-Volt DC outlet socket. Reconnect and test run

12-Volt DC loads individually. Check that the DC

device(s) do not overload the generator’s rated DC

output. Check that the DC device(s) are not faulty,

e.g. short circuit. Damage caused to the generator

by excessive or faulty DC loads is not covered by

warranty. If unresolved, stop and restart engine with

ECO throttle switch in the OFF position.

If above possible causes

are checked and eliminated,

generator may be faulty.

Take generator to an authorised Westinghouse

service dealer.

TROUBLESHOOTING

PROBLEM POTENTIAL CAUSE SOLUTION

Engine stops during

operation.

1. Generator is out of fuel. 1. Check fuel level and add fuel if necessary.

Fuel is contaminated with

water or other foreign

substance.

Drain fuel and reﬁll with fresh fuel.

Fuel cap vent is in the OFF

position.

3. Turn fuel cap vent to the ON position.

Engine control switch is in

the OFF position.

4. Turn engine control switch to the ON position.

Low oil level. 5. Check oil level and add oil if necessary.

Spark plug boot is not

properly connected onto

spark plug terminal.

Push spark plug boot ﬁrmly onto spark plug.

If above possible causes

are checked and eliminated,

generator may be faulty.

Take generator to an authorised Westinghouse

service dealer.

TROUBLESHOOTING

PROBLEM POTENTIAL CAUSE SOLUTION

Engine runs erratically

or does not hold steady

speed.

1. Power demand of connected

240-Volt AC load may be

varying.

Engine speed varies when electrical load changes;

this is normal operation. It is most noticeable when

ECO throttle switch is in the ON position. No fault.

If output indicator and

overload alarm are both

illuminated, there is an

overload in the connected

240-Volt AC load.

Switch off or unplug connected 240-Volt AC

device(s) to reduce electrical power demand.

Engine is not warm enough. 3. Disconnect all electrical cords and appliances from

generator. Allow engine to run for at least 2 minutes

after the engine control switch has been moved

to the ON position before reconnecting electrical

loads.

Engine control switch is in

the CHOKE position and

engine is already warm or

hot.

Move engine control switch to the ON position.

Fuel is stale or

contaminated.

5. Drain fuel and reﬁll with fresh fuel.

Air ﬁlter is dirty or blocked. 6. Check air ﬁlter element and clean if necessary.

If above possible causes

are checked and eliminated,

generator may be faulty.

Take generator to an authorised Westinghouse

service dealer.

SPECIFICATIONS

* Rated output at 1.0 power factor.

Output ready indicator light equipped.

‡

Ethanol blends such as E10 are not recommended.

PARAMETER iGen2250

ENGINE

Type

1-Cylinder, 4-Stroke, Overhead Valve, Air Cooled

Displacement (cm

) 80

Max. Speed (rpm) 5,000

Oil Capacity (mL) 350

Oil Viscosity SAE 10W-30

Low Oil Shutdown Yes

Spark Plug Torch E6RTC

Spark Plug Gap (mm) 0.60 - 0.80

Fuel

Unleaded Petrol

‡

(91, 95 or 98 RON)

Fuel Tank Capacity (L) 4.7

Fuel Gauge No

Starting Method Recoil

Inlet Valve Clearance - Cold (mm) 0.08 - 0.12

Exhaust Valve Clearance - Cold (mm) 0.13 - 0.17

240 V AC

ELECTRICAL

Voltage (V)

240

Frequency (Hz)

No. of Phases

Continuous Running Power (W) *

1,800

Maximum Starting Power (W)

2,250

Continuous Running Current (A)

7.5

Voltage & Waveform Control Digital Inverter, Pure Sine Wave Output

Receptacle(s) 2 x 15 A, IP44

Overload Protection Electronic

Alternator Brushless, Permanent Magnet

Output Power Meter

12 V DC

ELECTRICAL

Voltage (V)

Maximum Current (A)

Maximum Power (W)

100

Receptacle(s) 5 A, IP44

DIMENSIONS

& WEIGHT

Length (mm) 485

Width (mm) 297

Height (mm) 456

Weight - Dry (kg) 19

Weight - Wet (kg) 23

SPECIFICATIONS

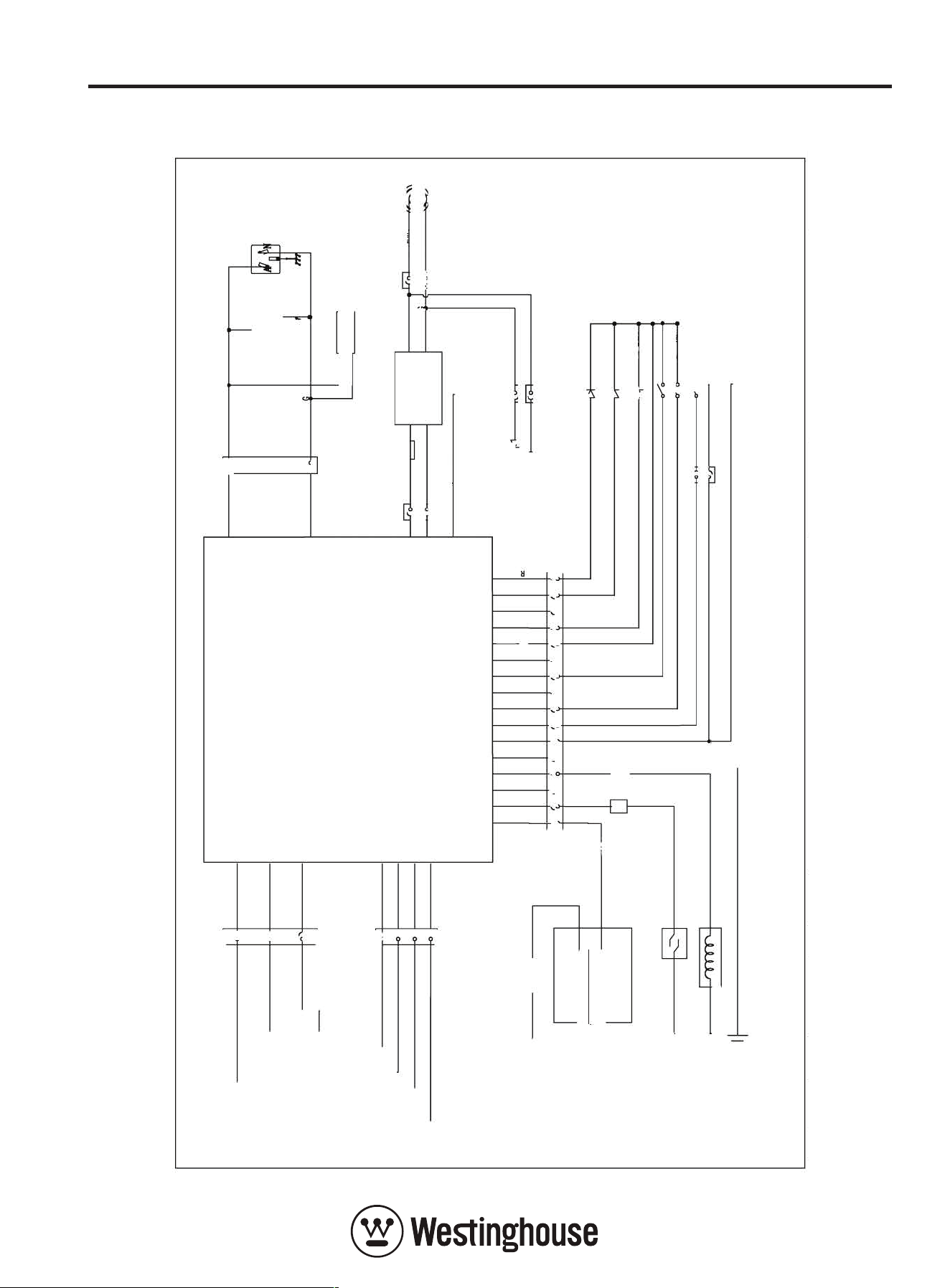

iGen2250 WIRING DIAGRAM

Stepper

Motor

Alternator

�

O



Spark Plug

R 16AWG

R 1WG

Y 24AWG

Bu 24AWG

0 24AWG

P 24AWG

�

Ignition Coil

�

_O_OO J

000'

Oil Sensor

111

Trigger Coil

111

Engine

Bl Black

Orange

Blue

Y/G

Yellow green

w White

BI/W

Black/white

R Red Pu

Purple

Brown

Yellow



)

�

� I

;�

�

� �

�

Bu 20G �  �

�



 ,,

�







Y/G 16AWG

Gray

Pink

Inverter

�







�

1�



�





� I

� 



'�

�

, �

R 16AWG



Bl 1WG

C-

R 2WG 

I: I

Bl 2WG



Y/G 16AWG

c�-

Panel Lights

R 22AWG

Bl 22AWG

Br 22AWG

W 22AWG

Y 22AWG

0 22AWG



Bl 22AWG I _: I

Grounding System (AC): Neutral Floating

R 16AWG

�

2

Y/G 16A

Bl 1W

Bl 16AWG

R 2WG

��I

Doto Center

Regulated

R 1WG

;

Bl 1WI

Rectifier



�

Bl 2WG

R 2WG

�

Bu 22AWG

�



W 22AWG

Oveoad



W ??A

W

Gr 22AWG

, ??AW

Br 22AWG

✓

ENG.SW.

Bl 22AWG

111

Output Ready

Reset

Eiciency Mode

Y/G 1WG

R 1RAW

l�

Bl 1WG

�

Control Panel

Model: iGen2250

Model Revision Level

Doc No: 505101-001

Doc Revision Level

Title: SCHEMATIC

Ed. Date: 21/05/2024

WARRANTY

WARRANTY AGAINST DEFECTS

Proof of Purchase

It is recommended that you keep a copy of the

original tax invoice for your records.

Warrantor

Name:

Westinghouse Outdoor Power Equipment

(ABN 21101370085)

Address:

19 Corymbia Place

Parkinson, 4115, Australia

Phone:

1800 453 626

Email:

[email protected]

Web:

westinghouseoutdoorpower.com.au

Warranty Conditions

Westinghouse Outdoor Power Equipment (the

“Company”) warrants that its Westinghouse portable

electric generators (the “Goods”) shall be free from

defects in material and workmanship for a period of

two years (2) years or ﬁve hundred (500) operating

hours, whichever occurs ﬁrst, from the date of

original sale (hereinafter the “Warranty Period”) in

normal domestic applications such as personal,

residential household or recreational use.

A Warranty Period of one (1) year or ﬁve hundred

(500) operating hours, whichever occurs ﬁrst, shall

apply in commercial applications such as income

producing, rental or other business-related use.

Goods sold to a Consumer with an Australian

Business Number shall be deemed as being used in

a commercial application.

The Warranty Period is continuous from the date of

original sale and does not restart upon the repair or

replacement of the Goods or any part thereof.

Upon return – transportation charges prepaid by

the Consumer – to the Company’s or its nominated

dealer’s premises within the Warranty Period, the

Company shall repair or replace, at its option, any

Goods which it determines to contain defective

material or workmanship, and shall return said

Goods to the Consumer free-on-board (FOB) at

the Company’s or agent’s premises. The repair or

replacement work will be scheduled and performed

according to the Company’s normal work ﬂow and

availability of replacement parts.

The Company shall not be obligated, however, to

repair or replace Goods which have been: repaired

by others; abused; improperly installed, operated,

maintained, repaired, transported or stored; not

serviced to schedule using genuine spare parts;

altered or otherwise misused or damaged in any

way.

The Company shall not be responsible for any

diagnosis, communication, dismantling, packing,

handling, freight, and reassembly or reinstallation

charges.

Freight damage, pre-delivery service, normal

operating adjustments, preventative maintenance

service, consumable items, cosmetic damage,

corrosion, erosion, normal wear and tear,

performance, merchantability, and ﬁtness for a

particular purpose are not covered under this

Warranty. Consumable items include batteries,

ﬁlters, fuel, lubricants and spark plugs.

The Company shall not be liable for any repairs,

replacements, or adjustments to the Goods or any

costs of labour performed by the Consumer or

others without the Company’s prior written approval.

To the extent permissible by law and

notwithstanding any other clause in these

Warranty Conditions, the Company excludes all

liability whatsoever to the Consumer arising out

of or in any way connected with a contract for

any consequential or indirect losses of any kind

howsoever arising and whether caused by breach of

statute, breach of contract, negligence or other tort.

The Company’s liability will be limited to, in the case

of products, the replacement of the products, the

supply of equivalent products or the payment of

the cost of replacing the products or of acquiring

equivalent products or, in the case of services, the

supply of the services again or the payment of the

cost of having the services supplied again. The

choice of remedy will be at the discretion of the

Company and the Consumer acknowledges that this

limitation of liability is fair and reasonable.

This Warranty is available only to the original

Consumer bearing the original tax invoice from the

Company or one of its authorised dealers as proof

of purchase. Goods purchased from any other party

such as a private seller, auction house, eBay seller,

etc. are not covered by this Warranty.

Our Goods come with guarantees that cannot be

excluded under the Australian Consumer Law. You

are entitled to a replacement or refund for a major

failure and compensation for any other reasonably

foreseeable loss or damage. You are also entitled to

have the Goods repaired or replaced if the Goods

fail to be of acceptable quality and the failure does

not amount to a major failure.

NOTES

2024-09-06

Westinghouse Outdoor Power Equipment

19 Corymbia Place

Parkinson QLD 4115 Australia

and Westinghouse are trademarks of Westinghouse Electric Corporation

used under license by Westinghouse Outdoor Power Equipment.

Westinghouse IGEN2250 2250W 4-Stroke Petrol Digital Inverter Generator

Product's Documents

User Manual

Specifications

Westinghouse IGEN2250 Questions and Answers
