Instruction Manual
Read instructions carefully and thoroughly before rst
use.
MINI WALKING TREADMILL
Only for use while sitting.
DO NOT use in a standing position.
2
SAFETY INFO & WARNINGS
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be
followed, including the following:
Read all instructions before using this appliance.
DANGER ‒ To reduce the risk of electric shock
1. Always unplug this appliance from the electrical outlet immediately after
using and before cleaning.
WARNING ‒ To reduce risk of burns, re, electric shock, or
injury to persons:
1. Appliance should never be left unattended when plugged in. Unplug from
outlet when not in use and before putting on or taking off parts.
2. Do not operate under blanket or pillow. Excessive heating can occur and
cause re, electric shock, or injury to persons.
3. Close supervision is necessary when this appliance is used by, on, or near
children, invalids, or disabled persons.
4. Use this appliance for only its intended use as described in this manual. Do
not use attachments not recommended by the manufacturer.
5. Never operate this appliance if it has a damaged cord or plug, if it is not
working properly, been dropped or damaged, or dropped into water.
6. Do not carry this appliance by supply cord or use cord as a handle.
7. Keep the cord away from heated surfaces.
8. Never operate the appliance with the air openings blocked. Keep the air
openings free of lint, hair, and the like.
9. Never drop or insert any object into any opening.
10. Do not use outdoors.
11. Do not operate where aerosol (spray) products are being used or where
oxygen is being administered.
12. To disconnect, turn all controls to the off position, then remove plug from
outlet.
13. WARNING: Connect this appliance to a properly grounded outlet only. See
the "Grounding Instructions".
14. This appliance is not intended for use by persons with reduced physical,
sensory, or mental capabilities, or lack of experience and knowledge. Unless
they have been given supervision or instruction concerning use of this
appliance by a person responsible for their safety. Keep children under the
age of 13 away from this machine.
15. WARNING:
i) Do not use the appliance in close proximity to loose clothing or jewelry.
ii) Keep long hair away from the appliance while in use.
16. For Household / Residential Use Only
17. CAUTION – Risk of Injury to Persons – To avoid injury, use extreme caution
when stepping onto or off of a moving belt.
18. WARNING – Risk of Personal Injury – Keep children under the age of 13 away
from machine.
3
SAFETY INFO & WARNINGS
GROUNDING INSTRUCTION
This product must be grounded. If it should malfunction or break down,
grounding provides a path of least resistance for electric current to reduce
the risk of electric shock. This product is equipped with a cord having an
equipment-grounding conductor and a grounding plug. The plug must be
plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
DANGER - Improper connection of the equipment-grounding conductor can
result in a risk of electric shock. Check with a qualied electrician or
serviceman if you are in doubt as to whether the product is properly
grounded. Do not modify the plug provided with the product ‒ if it will not
t the outlet, have a proper outlet installed by a qualied electrician.

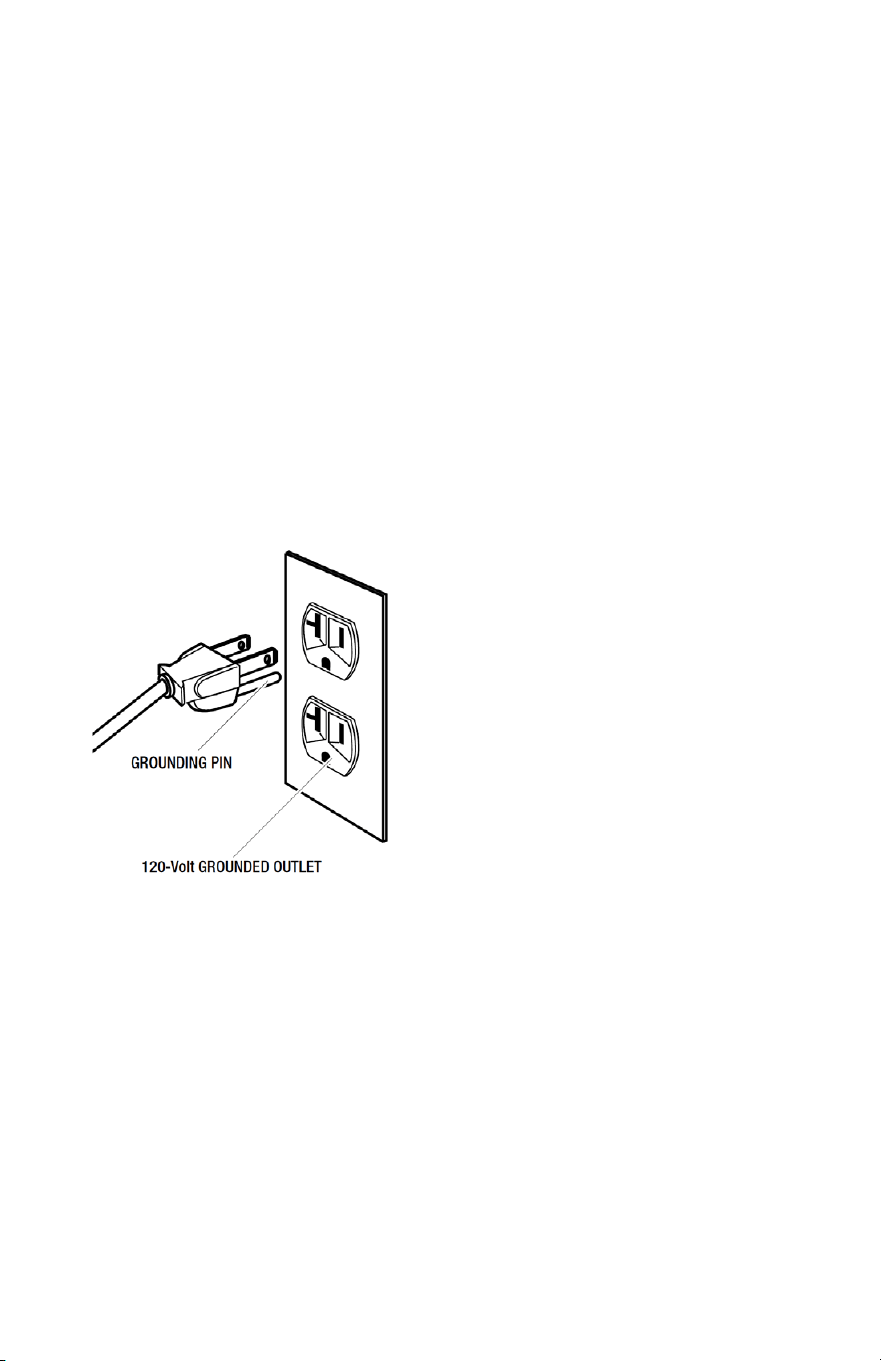

This product is for use on a nominal 120-volt circuit and has a grounding plug
similar to the plug shown below. Only connect this product to an outlet having
the same conguration as the plug below.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Please note that changes or modications of this product is not expressly
approved by the party responsible for compliance could void the user's
authority to operate the equipment.
NOTE – This equipment has been
tested and found to comply with
the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against
harmful interference in a residential
installation. This equipment
generates, uses and can radiate
radio frequency energy and, if not
installed and used in accordance with
the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that
interference will not occur in a
particular installation.
4
SAFETY INFO & WARNINGS
WARNING
DO NOT use the Mini Walking Treadmill while standing. Using the Mini
Walking Treadmill while standing may result in serious injury. The walking
treadmill is only to be used while sitting.
ATTENTION
• Save these instructions and ensure that other users read this manual prior to
using the Mini Walking Treadmill for the rst time.
• Read all warnings and cautions posted on the Mini Walking Treadmill.
• The Mini Walking Treadmill should only be used after a thorough review of
the manual. Make sure that it is properly assembled and tightened
• before use.
• Read and review all warning labels. Call Customer Service (see Warranty
section) to obtain replacements if needed.
• The maximum weight of the Mini Walking Treadmill is 110 lbs (50 kg). Do not
apply weight in excess of 110 lbs (50 kg) on the treadmill.
• The safety and integrity designed into the machine can only be maintained
when treadmill is regularly examined for damaged components, and
• repaired. It is the sole responsibility of the user/owner to ensure that regular
maintenance is performed. Worn or damaged components shall be replaced
immediately or the treadmill removed from service until the repair is made.
Only manufacturer-supplied or approved components shall be used to
maintain and repair the treadmill.
BEFORE starting any tness or strength program, consult with your physician or
health ofcial. This will ensure that you engage in the proper strength or tness
program for your age and physical condition.
Before using the treadmill, answer these questions:
Have you been sick recently?
Have you had prolonged dizziness recently?
Have you been out of breath for no reason recently?
Have you had chest pain recently?
Do you currently have any injuries preventing you from exercise?
Are you pregnant?
Do you have any conditions or reasons you should NOT exercise?
Are you over 35 years old and physically inactive?
IF YOU ANSWER "YES" TO ANY OF THE ABOVE QUESTIONS, YOU SHOULD SEEK
FURTHER ADVICE FROM YOUR DOCTOR PRIOR TO EXERCISING.
• Do not use treadmill in a moist environment. Always make sure there is
adequate air circulation.
• Use treadmill on a smooth, level surface only.
• Do not place any objects on treadmill. Do not get treadmill wet.
• Always wear suitable clothing. Do not wear clothing that may be caught or
hooked onto parts of the treadmill. Do not use while barefoot.
• Keep out of reach of children under the age of 13. Use adult supervision
when operating around children.
• Always unplug treadmill when not in use or when storing.
• Do not leave treadmill running for extended periods of time as it could
cause damage to motor or controller and speed up the wear and aging of
bearings and belts.
5
SAFETY INFO & WARNINGS
SAVE THESE INSTRUCTIONS
• Keep power cord away from moving objects and extreme temperatures.
Do not allow power cord to be bent or crushed, such as under a door, to
avoid damage to the cord.
• Do not attempt to service the treadmill beyond what is instructed in
this manual as this could cause serious injury and void the warranty. Call
customer service if problem occurs.
• Do not have more than one person using the treadmill at once.
• If you feel faint, unwell, or have physical discomfort, discontinue use
immediately and consult a doctor.
• Always inspect treadmill before each and every use. If unit appears
damaged in any way, discontinue use.
• For personal, home use only.
• Do not jump on treadmill.
• Do not use or store in places exposed to direct sunlight or in high
temperatures.
• Do not use if power cord or plug appears damaged or if socket is loose.
• Power plug must be reliably grounded and the outlet must have a
dedicated circuit to avoid sharing with other electrical equipment.
• Be mindful of surroundings when using treadmill.
• Do not spray or spill water on treadmill to avoid electrical shock or re.
• Do not lift or move treadmill using the power cord as this may damage
the unit or the cord.
6
PARTS LIST
SPECIFICATIONS
Product Dimensions:
21.25" × 17.24" × 5.3" (540 × 438 × 135 mm)
Belt Dimensions:
20.5" × 13" × T0.05" (521 × 330 × T1.4 mm)
Product Weight: 27.8 lbs (12.6 kg)
Mini Walking Treadmill Mini Screw Driver
Power Cord Allen KeyRemote
Max Weight: 110 lbs (50 kg)
Speed: 0.5 – 1.8 mph (0.9 – 3 km/h)
Incline: 10°
Power: 200 W
Display: Speed, Time
7
PRODUCT DESCRIPTION
1. Housing
2. Belt
3. Control Panel
4. Power Socket
5. Power Switch
6. Belt Adjustment
1
2
3
4
5
6
8

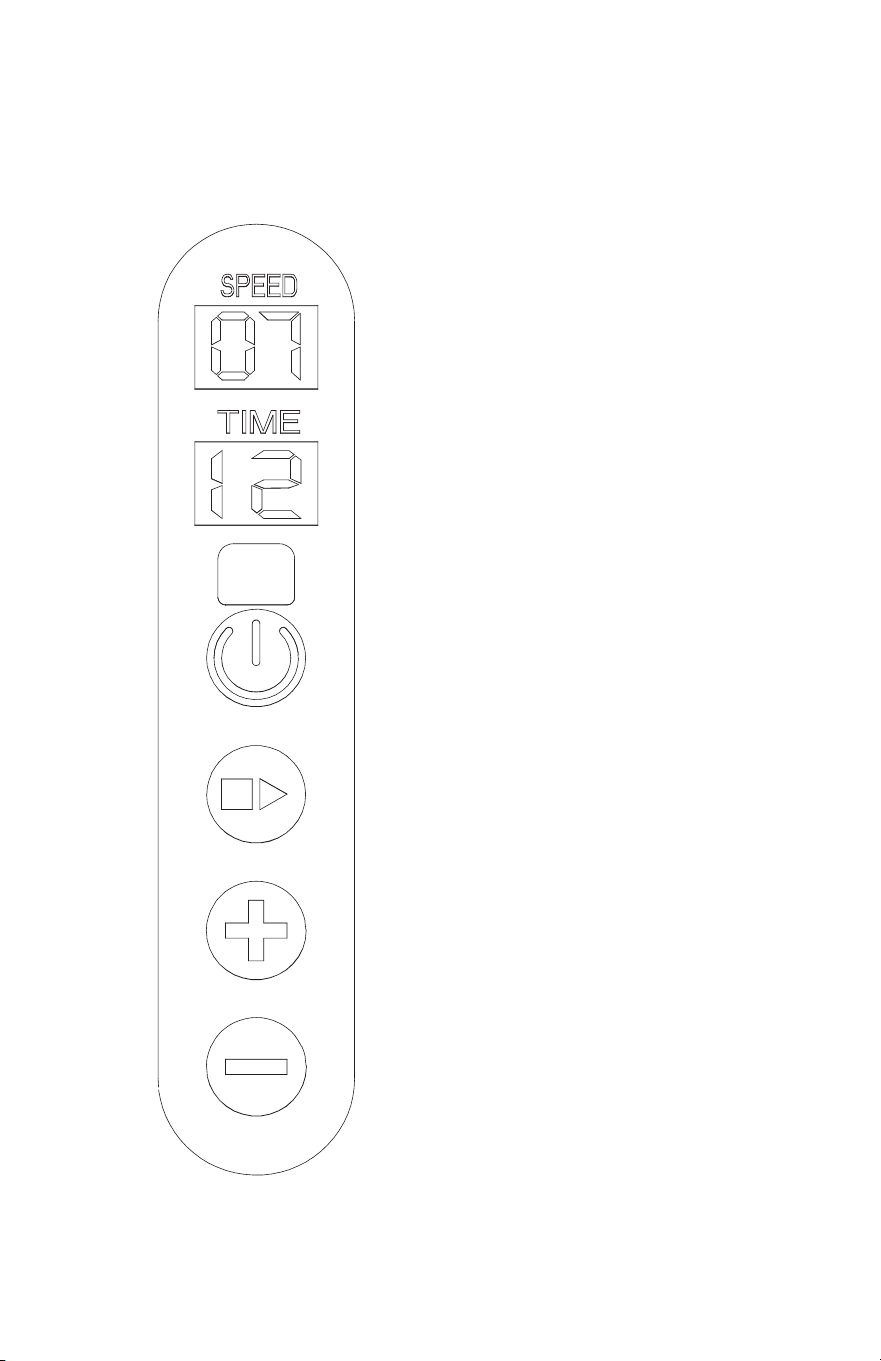

CONTROL PANEL
Speed Display: Ten Speed Settings
from 0.5 mph to 1.8 mph.
Time Countdown: Default is 30 minutes
Receiver
Power On / Off
Start / Stop
Speed +
Speed -
9
REMOTE CONTROL
Remote Control Button Functions
1. Start / Stop
2. Power On / Off
3. Time and Speed setting (+ or -). Time set when device stops. Speed set
when device is moving.
4. Quickly sets 5 minute countdown when device stops, then starts.
5. Quickly sets 20 minute count down when device stops, then starts.
Battery Requirements
This remote requires ×1 CR2032 battery.
Battery Installation
1. Remove the screw holding the back panel in place using the mini screw
driver. Then, remove the back panel to reveal the battery compartment.
2. Install the CR2032 battery. Replace the back cover and the screw that
holds it in place.
1
1
2
2
3
4
5
10

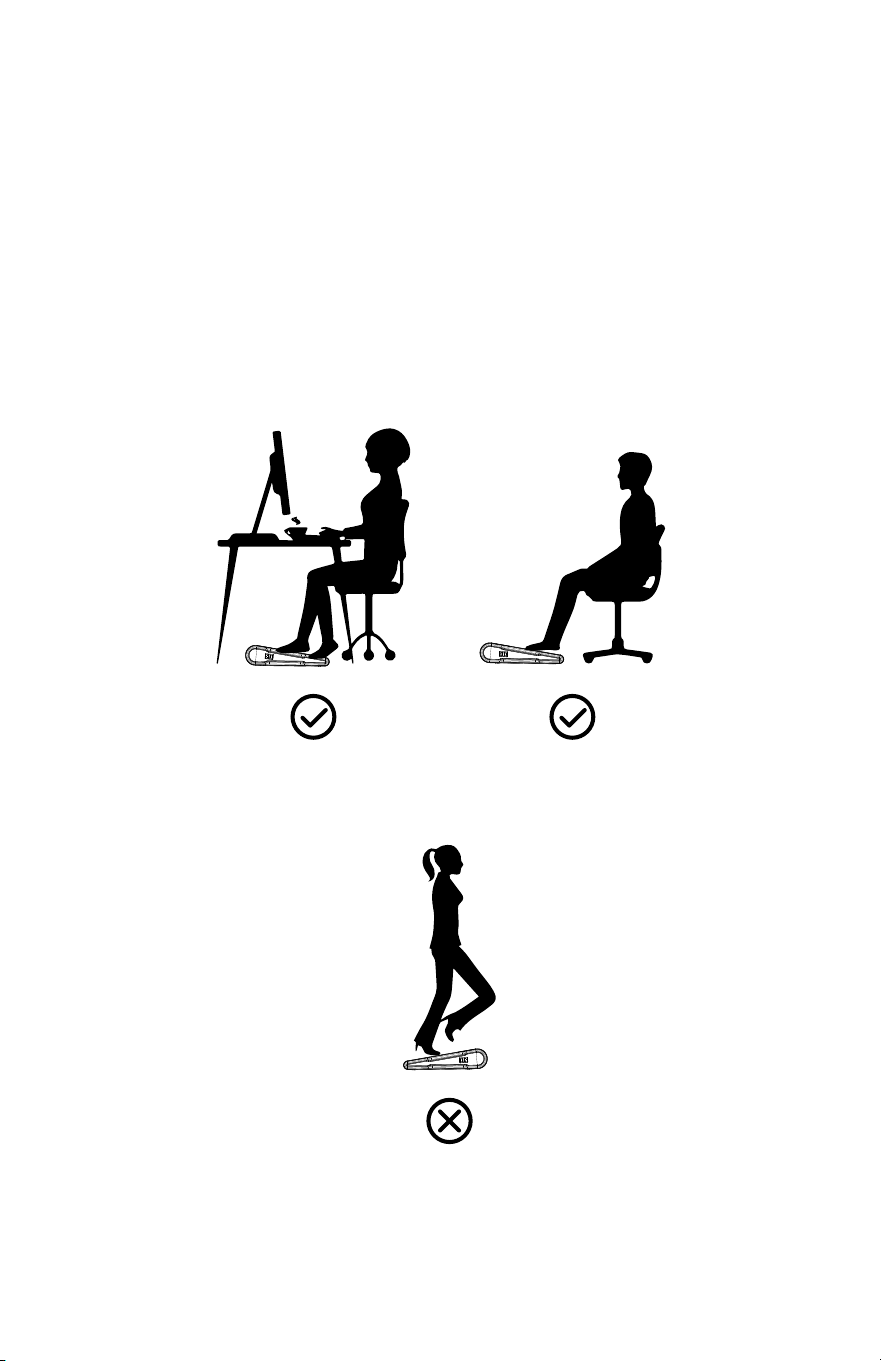

USAGE INSTRUCTIONS
Risk of serious injury.
DO NOT USE
WHILE STANDING
Use Under Desk Use While Seated
• Place walking treadmill in an appropriate location based on the
precautions outlined in the "Safety Info and Warnings" sections.
• Plug in the power cord on the right side of the treadmill next to the
power switch, ensuring the plug is correctly oriented. Plug the other
end of the power cord into a grounded outlet.
• Flip the power switch into the "On" position.
SPEED ADJUSTMENT
Adjust the walking treadmill's speed by pressing Speed + or Speed - on the
Control Panel or on the Remote.
11
MAINTENANCE & CARE

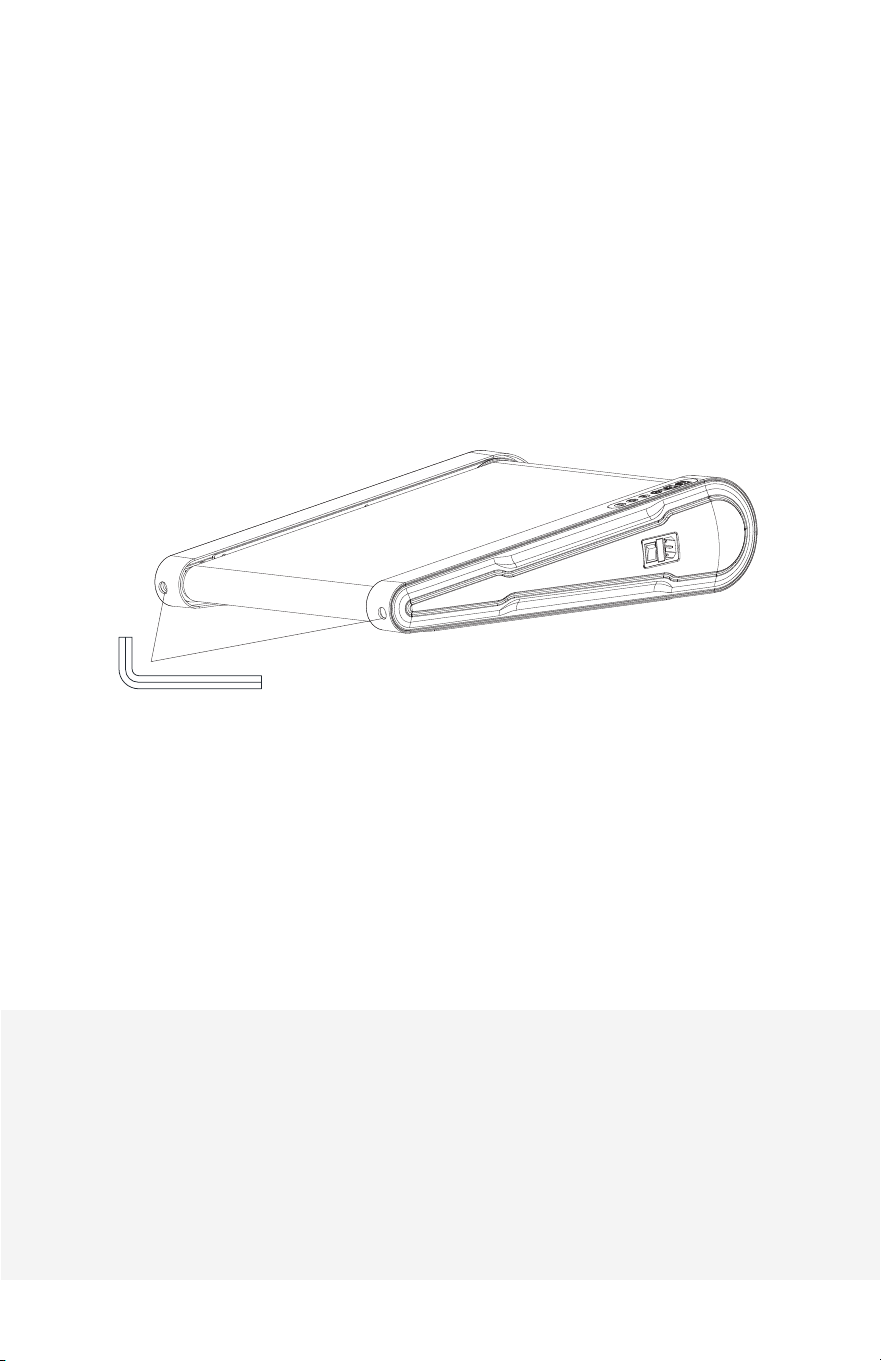

TIGHTENING BELT
If you observe any slipping, dragging, or loud noises, it may be necessary to
tighten the belt to ensure safe operation.
When the belt is correctly adjusted, the edge of the belt can be lifted from
the running board about 2-3 in. If belt can be lifted more than this amount,
tightening is necessary.
To tighten belt: Turn both adjustment screws located on the back of the unit
a half turn clockwise. Lift edge of belt to check if adjusted correctly. If it is still
not tightened adequately, continue to tighten the adjustment screws in half
turn increments until properly tightened. Once tightened, center the belt as
outlined below.
CENTERING BELT
If the belt appears to veer to one side, you may need to adjust the belt. To
adjust the belt's center, use the included Allen Key on the left and right
adjustment screws on the rear of the treadmill.
Adjusting to the Right
To adjust the belt to the right, turn the left adjustment screw a half-turn
clockwise and right adjustment screw a half-turn counterclockwise.
Adjusting to the Left
To adjust the belt to the left, turn the left adjustment screw a half-turn
counterclockwise and right adjustment screw a half-turn clockwise.
WARNING: Before performing maintenance, power off and unplug.
LUBRICATION OIL
0.8 oz (25 mL)
WARNINGS: Keep out of eyes. In case of eye contact, ush thoroughly with
water for several minutes. Do not ingest. If symptoms caused by exposure
to solution persist, consult a doctor. Keep away from children. Store in a cool,
dry place. Dispose of product according to local regulation.
INGREDIENTS: Silicone Oil
12
QUESTIONS?
CONTACT CUSTOMER SERVICE
+44(0)203 3763 5892
+44(0)203 3763 5892 cs@echelonfit.uk
Customer Service
MADE IN
CHINA
PATENT
PENDING
DO NOT DISPOSE OF BATTERIES IN FIRE. ALWAYS DISPOSE OF BATTERIES PER LOCAL & FEDERAL GUIDELINES.
Rev:
Echelon
®
warrants this product to be free of manufacturing defects. Should any such defect develop or become evident within one year from the date
of purchase, Echelon
®
will replace the entire product or, at its option, repair or replace the defective part(s) without charge.
Contact Echelon
®
customer service at +44(0)203 3763 5892 or at cs@echelonfit.uk to determine whether it is necessary to return the unit.
This warranty is void if damage or malfunction is due to abuse or failure to operate product in accordance with instructions and on recommended
electrical current. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. If you have any
questions, or would like to learn more about Echelon
®
, please contact us at +44(0)203 3763 5892 or at cs@echelonfit.uk.
Register your product online at echelonfit.com/pages/register-warranty/
Model:
ECHELONFIT.UK
For questions, assistance, or replacement parts, do not return to your retailer. Contact Echelon
®
customer
service below. For refunds on items not purchased from Echelon
®
directly, please contact your retailer.
ECHELON
®
FIT 90-DAY LIMITED WARRANTY
Register your equipment online at www.registermyechelon.com to upgrade your
90-Day warranty to a 1-Year warranty.
Read Instructions
Before Operating
© 2022 ECHELON FITNESS MULTIMEDIA, LLC. All specifications are subject to change without notice. All rights reserved.
© 2022 Echelon Fitness UK Limited, 88 Crawford Street, London, England, W1H 2EJ
PB008
020922
CLEANING
• Remove dust with a microber cloth.
• Remove dust, dirt, and other debris from exposed sides of the belt to
prevent dirt from accumulating under belt.
• MAKE SURE DEVICE IS UNPLUGGED. Scrub the surface of belt with
a damp cloth and soapy water. DO NOT get water in or near electrical
components.
MAINTENANCE & CARE
LUBRICATING THE BELT
• Re-lubricate the running board and belt as needed with included
lubrication oil. It is recommended to lubricate every two weeks to a
month depending on frequency of use.
• Make sure treadmill is powered off and unplugged before applying
lubrication oil
• To lubricate running board and belt, use included Allen Key to push edge
of belt in and lift to access running board. Squeeze a dime-size amount of
lubrication oil onto running board. Repeat on other side. Run treadmill on
lowest speed for a few minutes to allow oil to distribute.
