Parts ManualParts ManualParts ManualParts Manual
Mfg. No: 10V332-0001-F1
Copyright © Briggs & Stratton. All Rights reserved
04-Sep-2025
Table Of ContentsTable Of ContentsTable Of ContentsTable Of Contents
Model ComponentsModel ComponentsModel ComponentsModel Components PagePagePagePage
Air Cleaner Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Blower Housing Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Carburetor Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Controls Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Crankcase Cover/Sump and Lubrication Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Crankshaft Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cylinder Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Cylinder Head Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

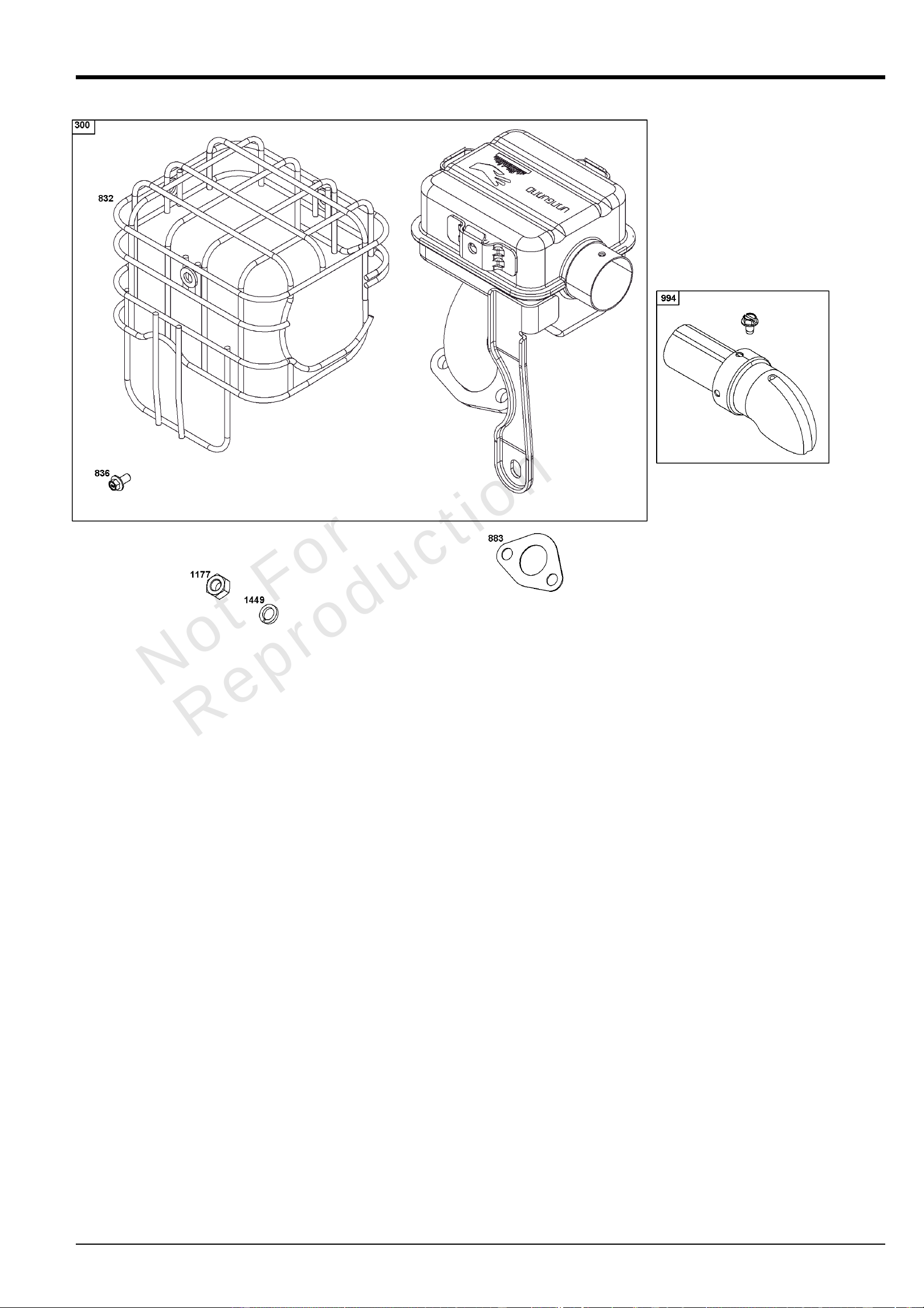

Exhaust Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

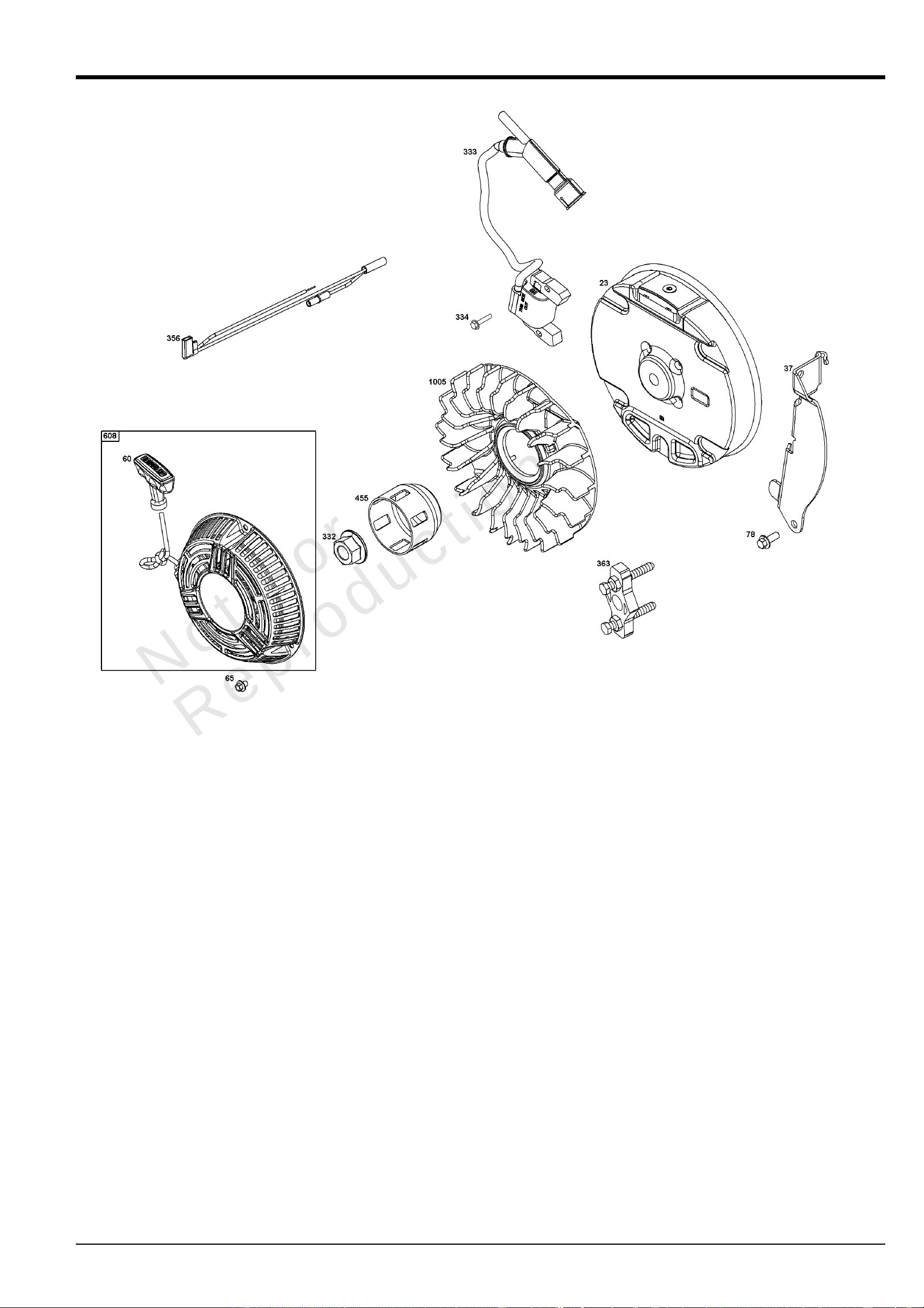

Flywheel, Ignition, and Starter Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Fuel Supply Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
3 04-Sep-2025

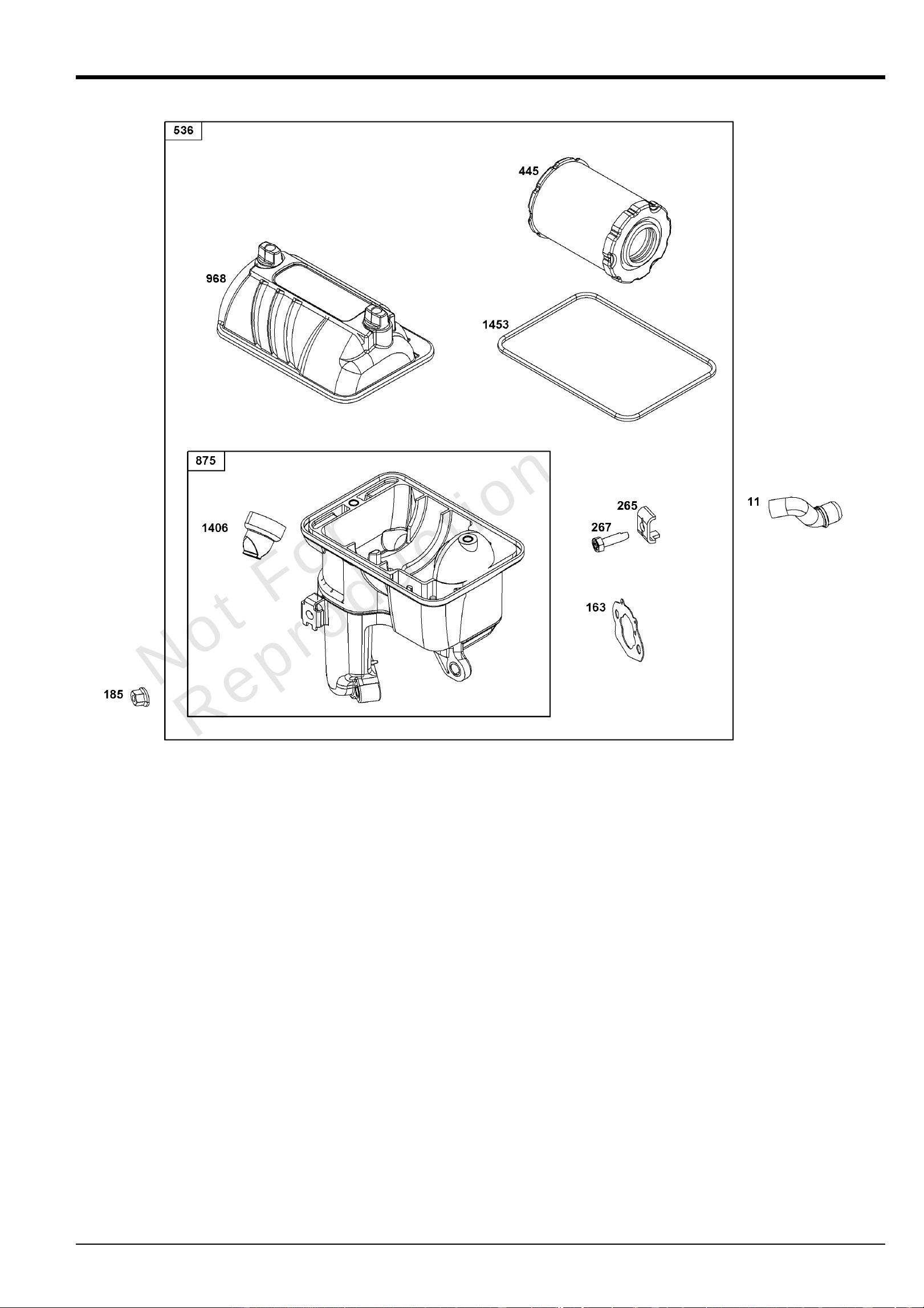

Air Cleaner GroupAir Cleaner GroupAir Cleaner GroupAir Cleaner Group
Mfg. No: 10V332-0001-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
4 04-Sep-2025
Air Cleaner GroupAir Cleaner GroupAir Cleaner GroupAir Cleaner Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
11 597013 1 TUBE, Breather
163 596768 1 GASKET, Air Cleaner
185 590692 3 NUT
-(Air Cleaner Base)
265 ----- 1 CLAMP, Casing
-(Part information located in Controls Group.)
267 ----- 1 SCREW
-(Part information located in Controls Group.)
445 84002309 1 FILTER, A/C Cartridge
536 84005299 1 CLEANER, AIR
875 84005297 1 BASE, Air Cleaner
968 84005353 1 COVER, Air Cleaner
1406 597065 1 VALVE, Debris
1453 84005298 1 SEAL, Air Cleaner Cover
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
5 04-Sep-2025

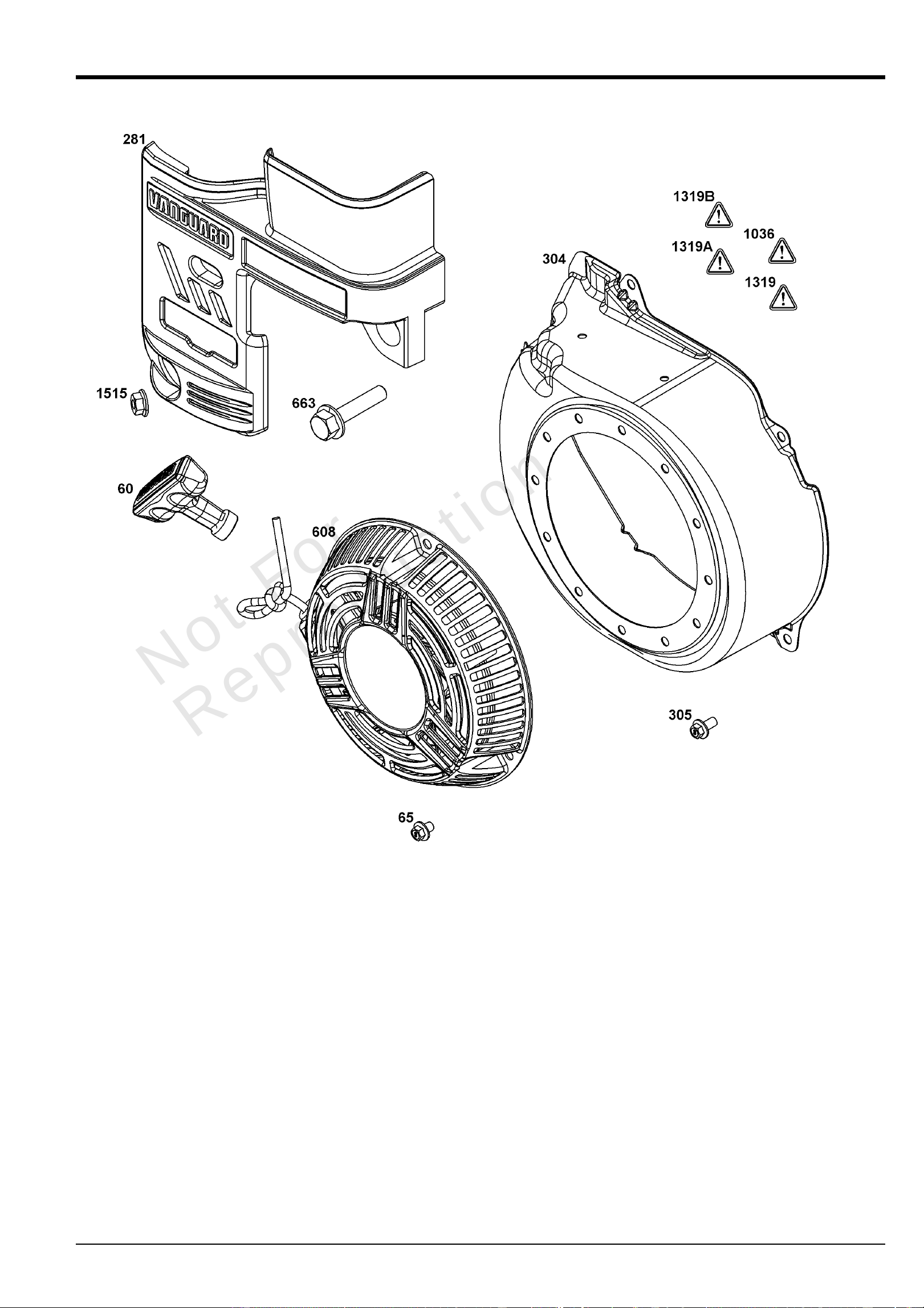

Blower Housing GroupBlower Housing GroupBlower Housing GroupBlower Housing Group
Mfg. No: 10V332-0001-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
6 04-Sep-2025
Blower Housing GroupBlower Housing GroupBlower Housing GroupBlower Housing Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
60 ----- 1 GRIP, Starter Rope
-(Part information located in Flywheel/Ignition/Starter Group.)
65 ----- 1 SCREW
-(Part information located in Flywheel/Ignition/Starter Group.)
281 ----- 1 PANEL, Control
-(Part information located in Controls Group.)
304 597073 1 HOUSING, Blower
305 597078 4 SCREW
-(Blower Housing)
608 ----- 1 STARTER, Rewind
-(Part information located in Flywheel/Ignition/Starter Group.)
663 ----- 1 SCREW
-(Part information located in Controls Group.)
1036 ----- 1 LABEL, Emissions
-(Available from a Briggs & Stratton Authorized Dealer)
1319 794467 1 LABEL, Warning
-(REQUIRED When Replacing Parts With Warning Labels Affixed)
1319A 797669 1 LABEL, Warning
-(REQUIRED When Replacing Parts With Warning Labels Affixed)
1319B 278911GS 1 LABEL, Warning
-(REQUIRED When Replacing Parts With Warning Labels Affixed)
1515 590692 1 NUT
-(Part information located in Controls Group.)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
7 04-Sep-2025

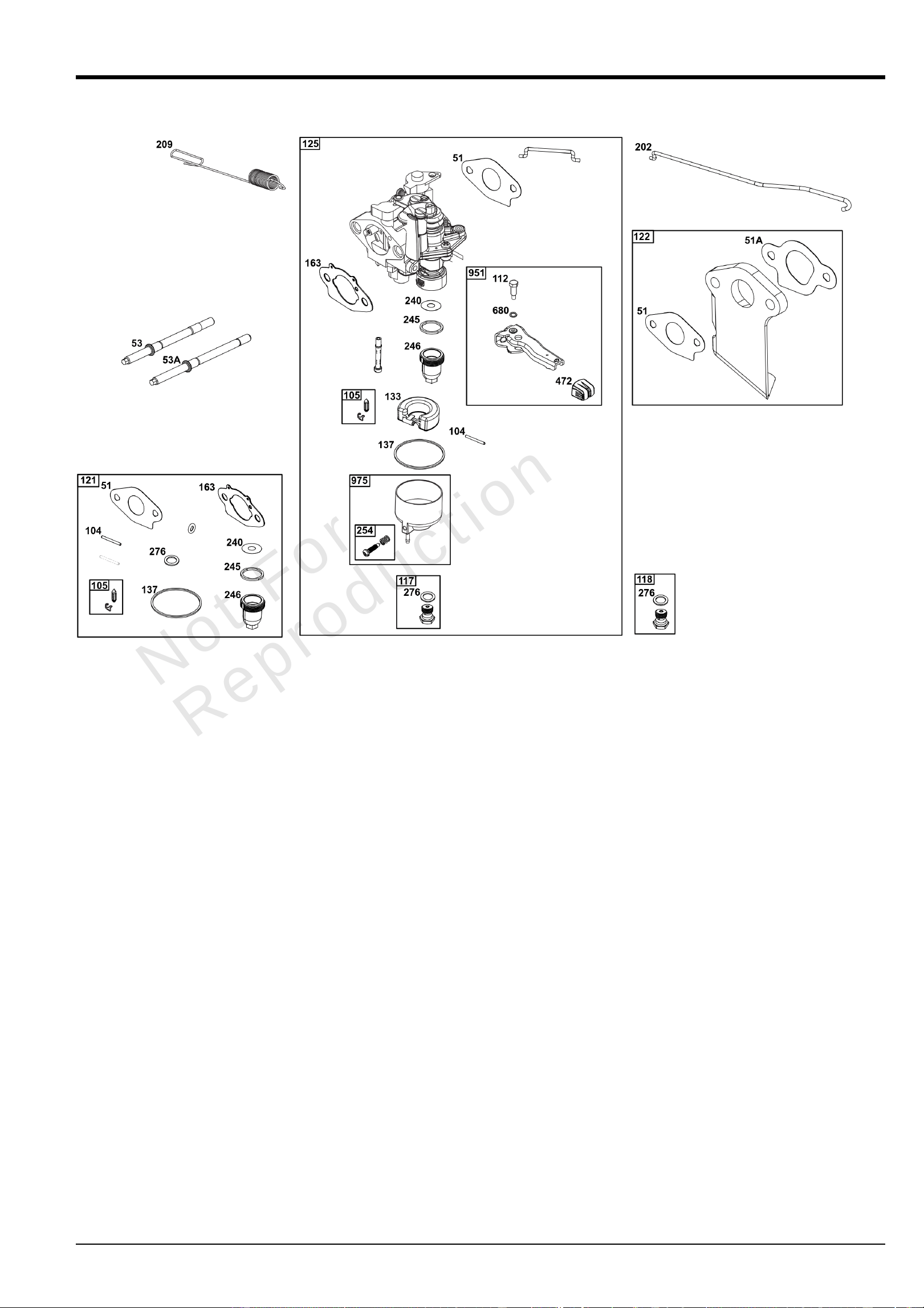

Carburetor GroupCarburetor GroupCarburetor GroupCarburetor Group
Mfg. No: 10V332-0001-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
8 04-Sep-2025
Carburetor GroupCarburetor GroupCarburetor GroupCarburetor Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
51 ----- 1 GASKET, Intake
-(Part information located in Cylinder Head Group.)
51A ----- 1 GASKET, Intake
-(Part information located in Cylinder Head Group.)
53 597052 1 STUD
-(Carburetor) (Short)
53A 597051 1 STUD
-(Carburetor) (Long)
104 597533 1 PIN, Float Hinge
105 797139 1 VALVE, Float Needle
112 84003640 1 SCREW
-(Choke Lever)
117 597454 1 JET, Main
-(Standard)
118 84004636 1 JET, MAIN
-(High Altitude)
121 597138 1 KIT, Carburetor Overhaul
-(Service Kits may include extra parts not specific to this engine.)
122 84005442 1 SPACER, Carburetor
125 84004632 1 CARBURETOR
133 597473 1 FLOAT, Carburetor
137 798932 1 GASKET, Float Bowl
163 ----- 1 GASKET, Air Cleaner
-(Part information located in Air Cleaner Group.)
202 ----- 1 LINK, Mechanical Governor
-(Part information located in Controls Group.)
209 ----- 1 SPRING, Governor
-(Part information located in Controls Group.)
240 597039 1 FILTER, Fuel
245 597735 1 GASKET, Fuel Bowl
246 597043 1 BOWL, Fuel Filter
254 595322 1 DRAIN, Carburetor Bowl
276 797632 1 WASHER, Sealing
472 84002963 1 KNOB, Control
680 84005074 1 WASHER
-(Choke Lever)
951 597044 1 LEVER, Choke
975 597049 1 BOWL, Float
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
9 04-Sep-2025

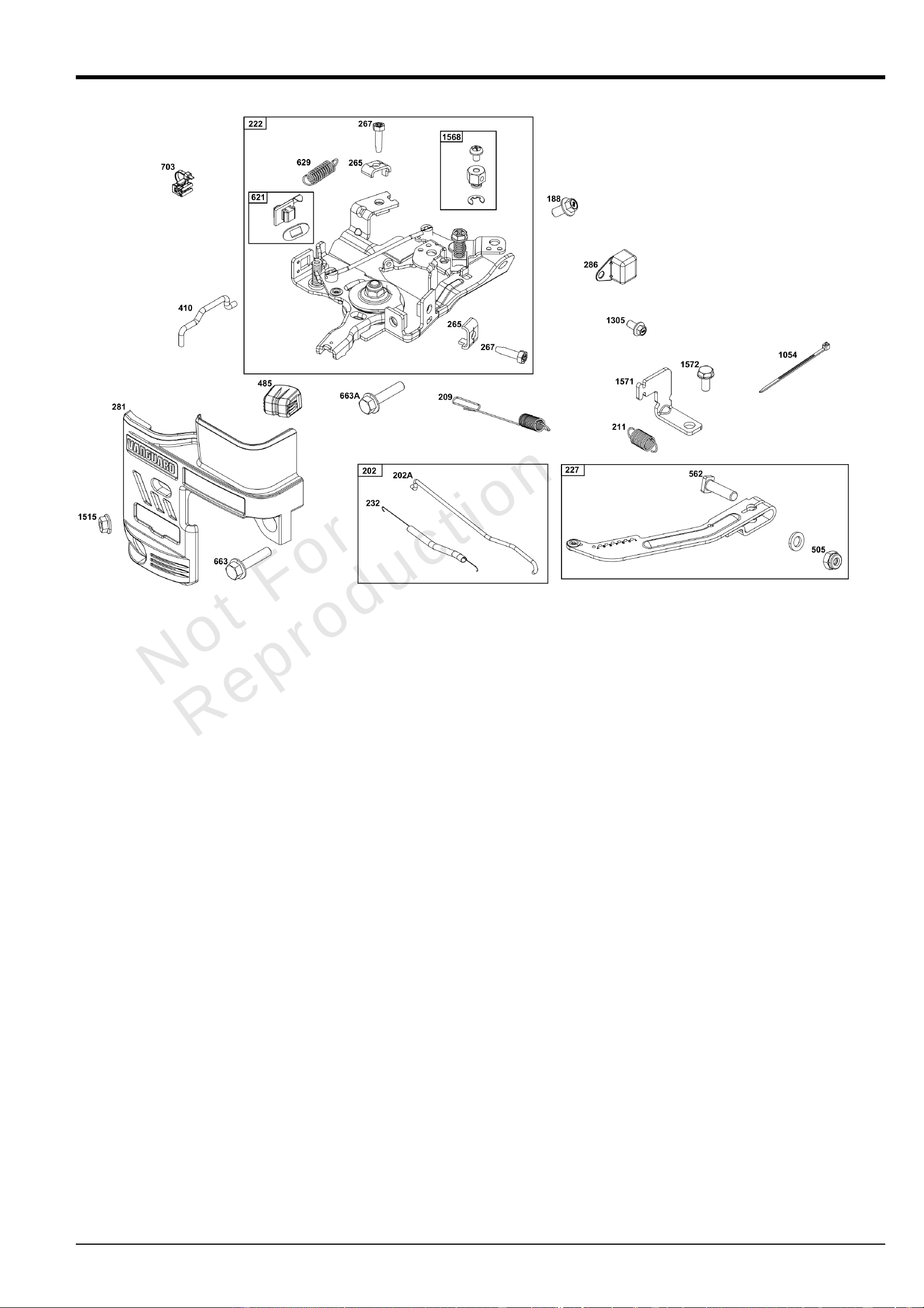

Controls GroupControls GroupControls GroupControls Group
Mfg. No: 10V332-0001-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
10 04-Sep-2025
Controls GroupControls GroupControls GroupControls Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
188 590850 2 SCREW
-(Control Bracket)
202 597032 1 LINK, Mechanical Governor
202A 597033 1 LINK, Mechanical Governor
209 597111 1 SPRING, Governor
211 691278 1 SPRING, Governor
222 84006188 1 BRACKET, Control
227 84003330 1 LEVER, Governor Control
232 597034 1 SPRING, Governor Link
265 691024 2 CLAMP, Casing
265 84004472 1 CLAMP, Casing
267 84004279 1 SCREW
-(Casing Clamp)
281 84005296 1 PANEL, CONTROL
286 594949 1 MODULE, Oil Sensor
410 597024 1 LINK, Control
485 84004631 1 KNOB, Control
505 590641 1 NUT
-(Governor Control Lever)
562 597121 1 BOLT
-(Governor Control Lever)
621 84007989 1 SWITCH, Stop
629 597022 1 SPRING, Throttle Return
663 597460 1 SCREW
-(Control Panel)
663A 84003635 6 SCREW
-(Control Panel)
703 84008531 1 CLIP
1054 280275 1 TIE, Cable
1305 590703 1 SCREW
-(Oil Sensor Module)
1515 590692 1 NUT
-(Control Panel)
1568 84005188 2 RETAINER, Wire
1568 84005188 2 RETAINER, Wire
1571 597035 1 BRACKET, Governor Control
1572 597036 1 SCREW
-(Governed Idle Spring Bracket)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
11 04-Sep-2025

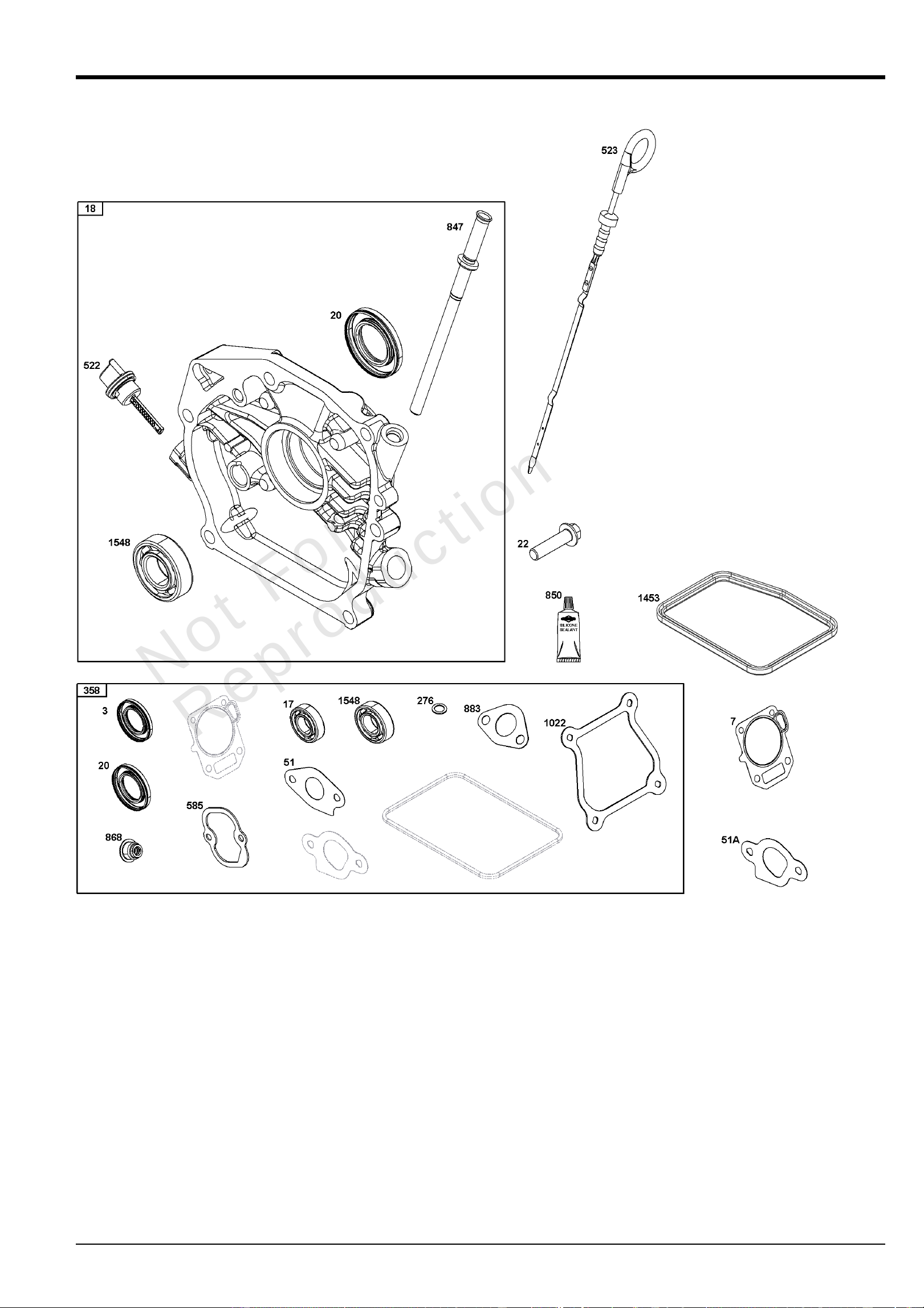

Crankcase Cover/Sump and Lubrication GroupCrankcase Cover/Sump and Lubrication GroupCrankcase Cover/Sump and Lubrication GroupCrankcase Cover/Sump and Lubrication Group
Mfg. No: 10V332-0001-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
12 04-Sep-2025
Crankcase Cover/Sump and Lubrication GroupCrankcase Cover/Sump and Lubrication GroupCrankcase Cover/Sump and Lubrication GroupCrankcase Cover/Sump and Lubrication Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
3 ----- 1 SEAL, Oil
-(Part information located in Cylinder Group.)
7 ----- 1 GASKET, Cylinder Head
-(Part information located in Cylinder Head Group.)
17 ----- 1 BEARING, Ball
-(Part information located in Cylinder Group.)
18 596986 1 COVER, Crankcase
20 596991 1 SEAL, Oil
-(PTO Side)
22 590714 6 SCREW
-(Crankcase Cover/Sump)
51 ----- 1 GASKET, Intake
-(Part information located in Cylinder Head Group.)
51A ----- 1 GASKET, Intake
-(Part information located in Cylinder Head Group.)
276 ----- 1 WASHER, Sealing
-(Part information located in Carburetor Group.)
358 ----- 1 GASKET SET, Engine
-(Part information located in Cylinder Group.)
522 590716 1 PLUG, Dipstick/Fill
522 590716 1 PLUG, Dipstick/Fill
523 596992 1 DIPSTICK
585 ----- 1 GASKET, Breather Passage
-(Part information located in Cylinder Head Group.)
847 596989 1 DIPSTICK/TUBE ASSEMBLY
850 100106 1 SEALANT, Liquid
868 ----- 1 SEAL, Valve
-(Part information located in Cylinder Head Group.)
883 ----- 1 GASKET, Exhaust
-(Part information located in Exhaust Group.)
1022 ----- 1 GASKET, Rocker Cover
-(Part information located in Cylinder Head Group.)
1453 ----- 1 SEAL, Air Cleaner Cover
-(Part information located in Air Cleaner Group.)
1548 596990 1 BEARING, Ball
-(Crankcase Cover/Sump)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
13 04-Sep-2025

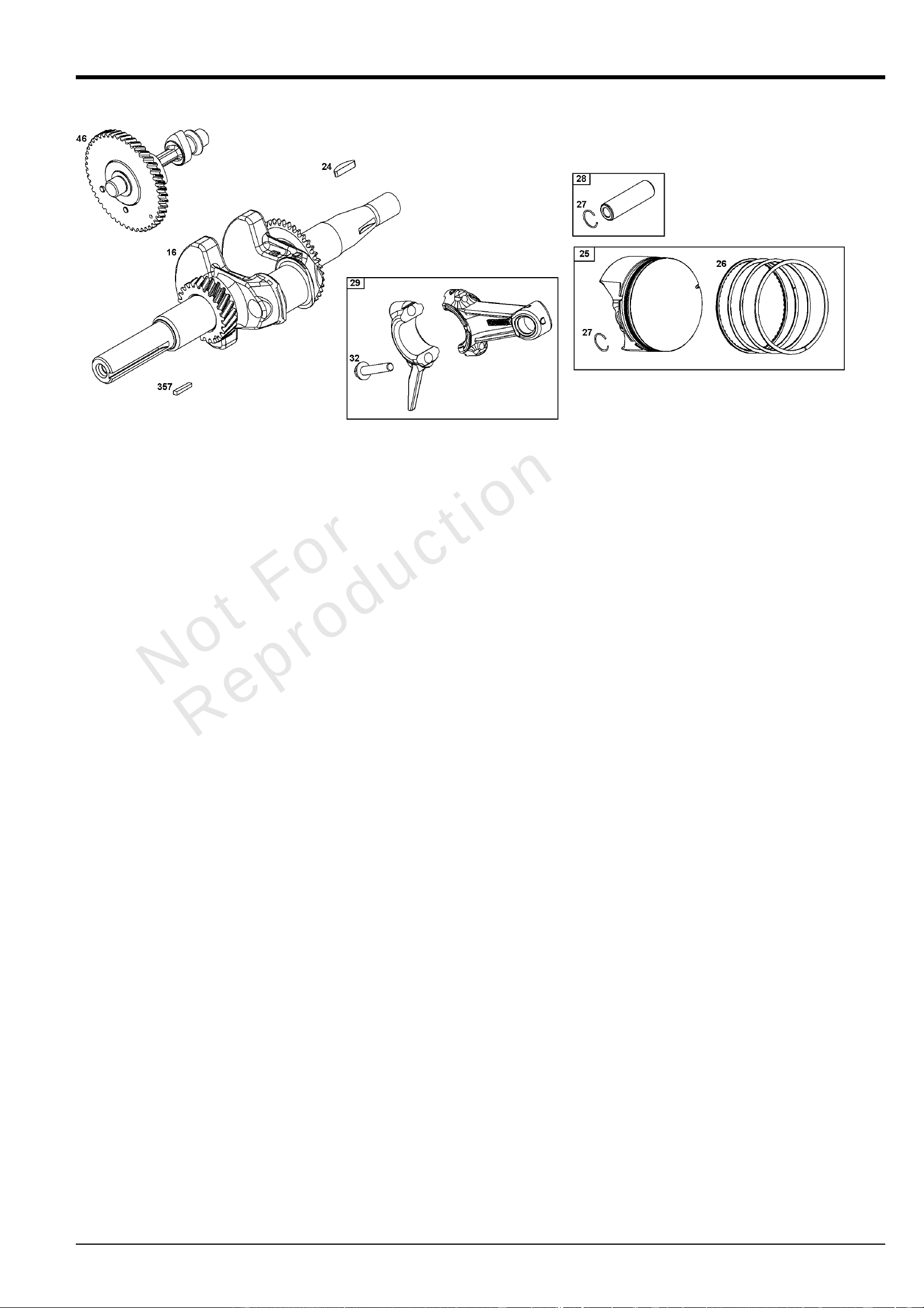

Crankshaft GroupCrankshaft GroupCrankshaft GroupCrankshaft Group
Mfg. No: 10V332-0001-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
14 04-Sep-2025
Crankshaft GroupCrankshaft GroupCrankshaft GroupCrankshaft Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
16 84004649 1 CRANKSHAFT
24 596976 1 KEY, Flywheel
25 84004674 1 PISTON ASSEMBLY
25 84005433 1 PISTON ASSEMBLY
-(.020" Oversize)
26 84005435 1 SET, Ring
26 84005437 1 SET, Ring
-(.020" Oversize)
27 596982 1 LOCK, Piston Pin
28 84005441 1 PIN, Piston
29 84005444 1 ROD, Connecting
32 596984 2 SCREW
-(Connecting Rod)
46 84005295 1 CAMSHAFT
357 692191 1 KEY, Drive Pulley
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
15 04-Sep-2025

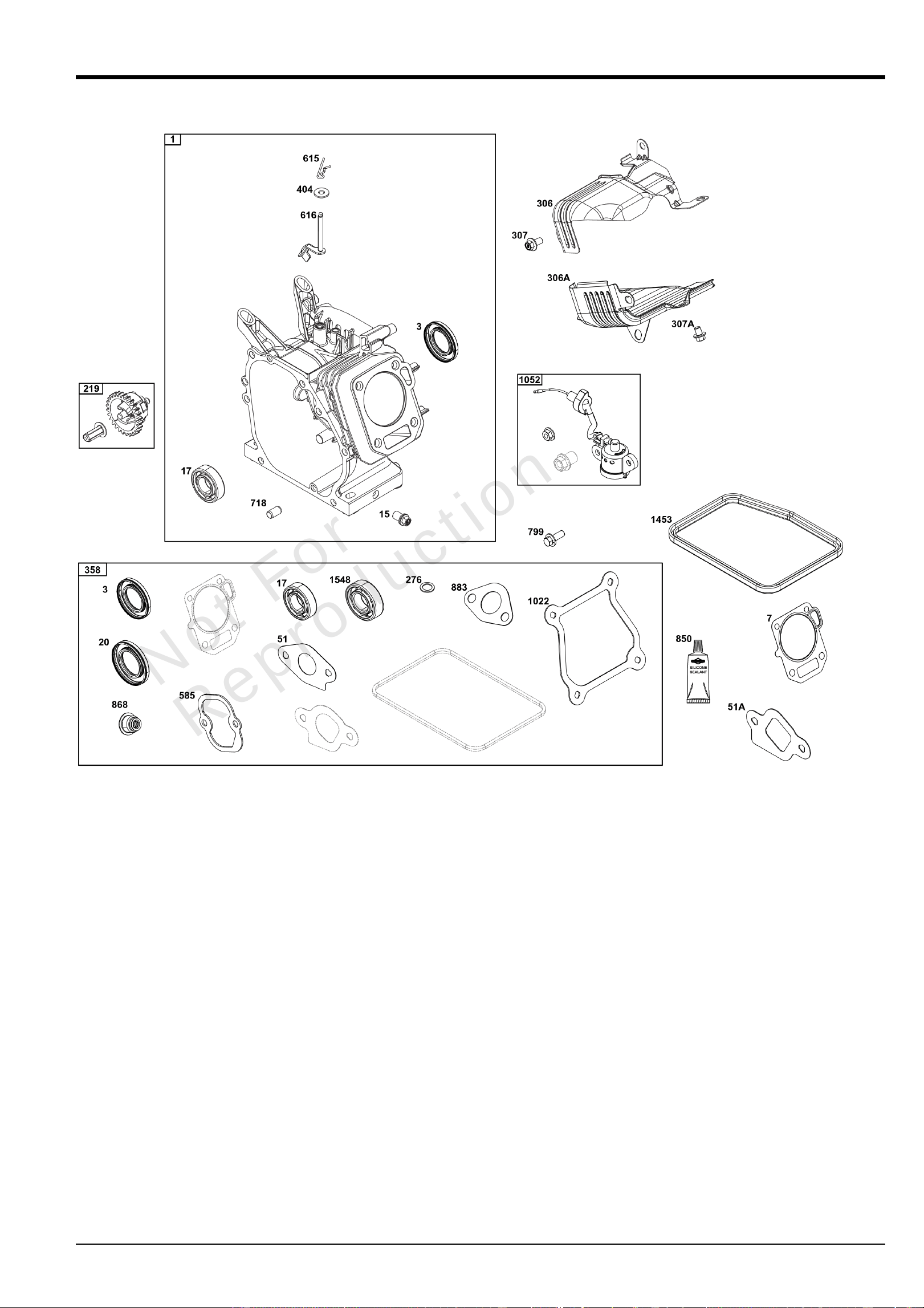

Cylinder GroupCylinder GroupCylinder GroupCylinder Group
Mfg. No: 10V332-0001-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
16 04-Sep-2025
Cylinder GroupCylinder GroupCylinder GroupCylinder Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
1 84005446 1 CYLINDER ASSEMBLY
3 84002132 1 SEAL, Oil
-(Magneto Side)
7 ----- 1 GASKET, Cylinder Head
-(Part information located in Cylinder Head Group.)
15 590678 2 PLUG, Oil Drain
17 596990 1 BEARING, Ball
-(Cylinder)
20 ----- 1 SEAL, Oil
-(Part information located in Crankcase Cover/Sump and Lubrication Group.)
51 ----- 1 GASKET, Intake
-(Part information located in Cylinder Head Group.)
51A ----- 1 GASKET, Intake
-(Part information located in Cylinder Head Group.)
219 597038 1 GEAR, Governor
276 ----- 1 WASHER, Sealing
-(Part information located in Carburetor Group.)
306 84007614 1 SHIELD, Cylinder
306A 597076 1 SHIELD, Cylinder
307 590850 1 SCREW
-(Cylinder Shield)
307A 590683 2 SCREW
-(Cylinder Shield)
358 597139 1 GASKET SET, Engine
-(Service Kits may include extra parts not specific to this engine.)
404 597030 1 WASHER
-(Governor Crank)
585 ----- 1 GASKET, Breather Passage
-(Part information located in Cylinder Head Group.)
615 597031 1 RETAINER, Governor Shaft
616 597029 1 CRANK, Governor
718 590713 2 PIN, Locating
799 590703 2 SCREW
-(Oil Sensor)
850 ----- 1 SEALANT, Liquid
-(Part information located in Crankcase Cover/Sump and Lubrication Group.)
868 ----- 1 SEAL, Valve
-(Part information located in Cylinder Head Group.)
883 ----- 1 GASKET, Exhaust
-(Part information located in Exhaust Group.)
1022 ----- 1 GASKET, Rocker Cover
-(Part information located in Cylinder Head Group.)
1052 84004948 1 SENSOR, Oil
1453 ----- 1 SEAL, Air Cleaner Cover
-(Part information located in Air Cleaner Group.)
1548 ----- 1 BEARING, Ball
-(Part information located in Crankcase Cover/Sump and Lubrication Group.)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
17 04-Sep-2025

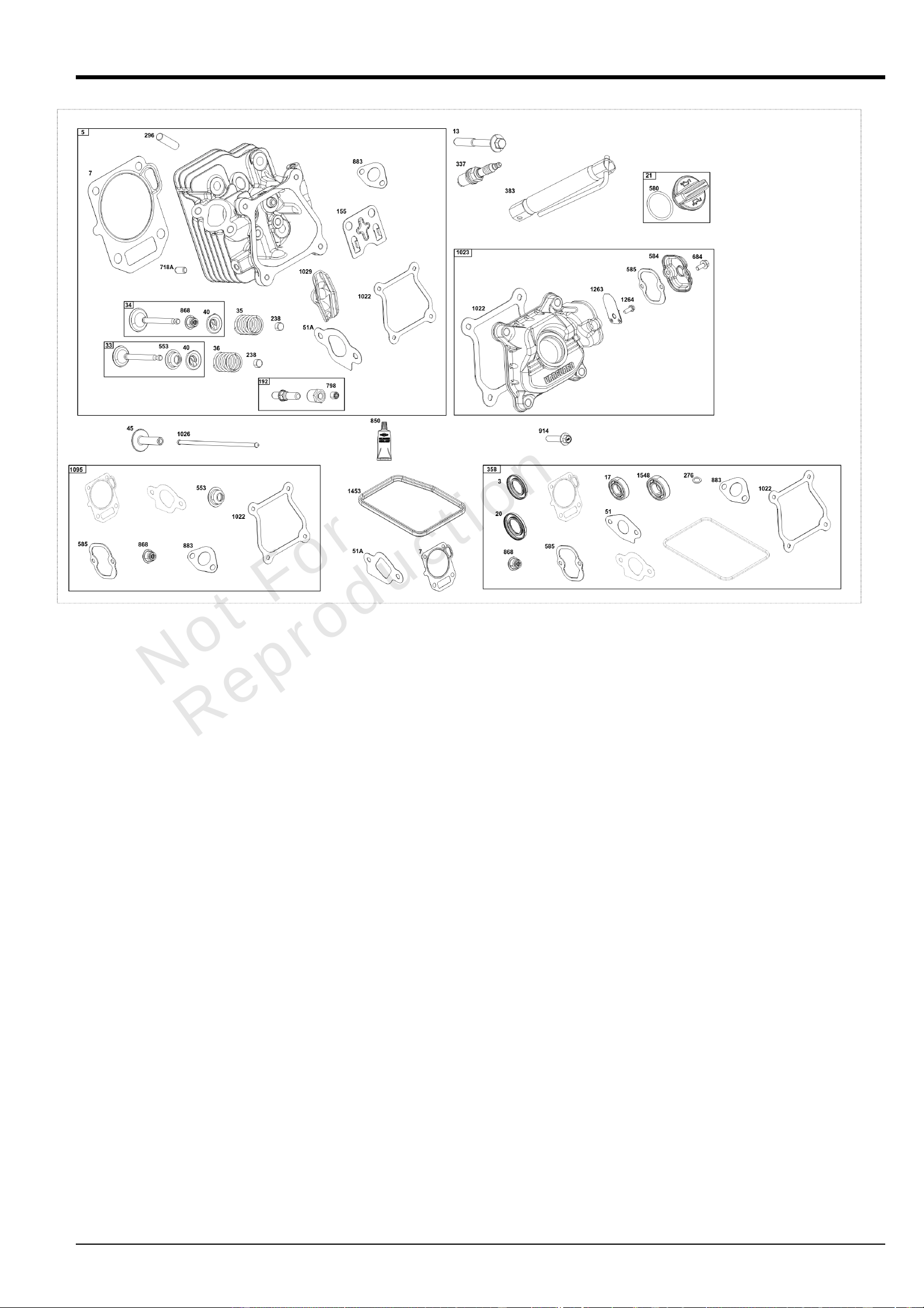

Cylinder Head GroupCylinder Head GroupCylinder Head GroupCylinder Head Group
Mfg. No: 10V332-0001-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
18 04-Sep-2025
Cylinder Head GroupCylinder Head GroupCylinder Head GroupCylinder Head Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
3 ----- 1 SEAL, Oil
-(Part information located in Cylinder Group.)
5 84005288 1 HEAD, Cylinder
7 84005440 1 GASKET, Cylinder Head
13 597008 4 SCREW
-(Cylinder Head)
17 ----- 1 BEARING, Ball
-(Part information located in Cylinder Group.)
20 ----- 1 SEAL, Oil
-(Part information located in Crankcase Cover/Sump Group.)
21 84006593 1 CAP, Oil Fill
33 84005287 1 VALVE, Exhaust
34 84005280 1 VALVE, Intake
35 597002 2 SPRING, Valve
-(Intake)
36 597002 2 SPRING, Valve
-(Exhaust)
40 590654 2 RETAINER, Valve
45 591449 2 TAPPET, Valve
51 596769 1 GASKET, Intake
51A 84005443 1 GASKET, Intake
155 592874 1 PLATE, Cylinder Head
192 597006 2 ADJUSTER, Rocker Arm
238 590649 2 CAP, Valve
276 ----- 1 WASHER, Sealing
-(Part information located in Carburetor Group.)
296 590631 2 STUD
-(Muffler)
337 597383 1 PLUG, Spark
358 ----- 1 GASKET SET, Engine
-(Part information located in Cylinder Group.)
383 19576S 1 WRENCH, Spark Plug
553 597003 1 RETAINER, Valve Spring
580 809894 1 SEAL, O-Ring
-(Oil Fill Cap)
584 597011 1 COVER, Breather Passage
585 597010 1 GASKET, Breather Passage
684 597012 2 SCREW
-(Breather Passage Cover)
718A 590637 2 PIN, Locating
798 597000 2 SCREW
-(Rocker Arm)
850 ----- 1 SEALANT, Liquid
-(Part information located in Crankcase Cover/Sump Group.)
868 597001 1 SEAL, Valve
883 ----- 1 GASKET, Exhaust
-(Part information located in Exhaust Group.)
914 597016 4 SCREW
-(Rocker Cover)
1022 597015 1 GASKET, Rocker Cover
1023 597009 1 COVER, Rocker
1026 597017 2 ROD, Push
1029 596999 2 ARM, Rocker
1095 597140 1 GASKET SET, Valve
-(Service Kits may include extra parts not specific to this engine.)
1263 697124 1 REED, Breather
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
19 04-Sep-2025
Cylinder Head GroupCylinder Head GroupCylinder Head GroupCylinder Head Group
Mfg. No: 10V332-0001-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
20 04-Sep-2025
Cylinder Head GroupCylinder Head GroupCylinder Head GroupCylinder Head Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
1264 793453 1 SCREW
-(Breather Reed)
1453 ----- 1 SEAL, Air Cleaner Cover
-(Part information located in Air Cleaner Group.)
1548 ----- 1 BEARING, Ball
-(Part information located in Crankcase Cover/Sump Group.)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
21 04-Sep-2025
Exhaust GroupExhaust GroupExhaust GroupExhaust Group
Mfg. No: 10V332-0001-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
22 04-Sep-2025
Exhaust GroupExhaust GroupExhaust GroupExhaust Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
300 84005147 1 MUFFLER
832 84005354 1 GUARD, Muffler
836 590850 3 SCREW
-(Muffler Guard)
883 597072 1 GASKET, Exhaust
994 593207 1 ARRESTOR, Spark
1177 590632 2 NUT
-(Muffler)
1449 590633 2 WASHER
-(Muffler)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
23 04-Sep-2025
Flywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter Group
Mfg. No: 10V332-0001-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
24 04-Sep-2025
Flywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
23 597085 1 FLYWHEEL
37 84005259 1 GUARD, Flywheel
60 597080 1 GRIP, Starter Rope
65 590683 3 SCREW
-(Rewind Starter)
78 590703 1 SCREW
-(Flywheel Guard)
332 591988 1 NUT
-(Flywheel)
333 84004673 1 ARMATURE, Magneto
334 699477 2 SCREW
-(Magneto Armature)
356 597054 1 WIRE, Stop
363 19203 1 PULLER, Flywheel
455 597088 1 CUP, Flywheel
608 596772 1 STARTER, Rewind
1005 794273 1 FAN, Flywheel
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
25 04-Sep-2025

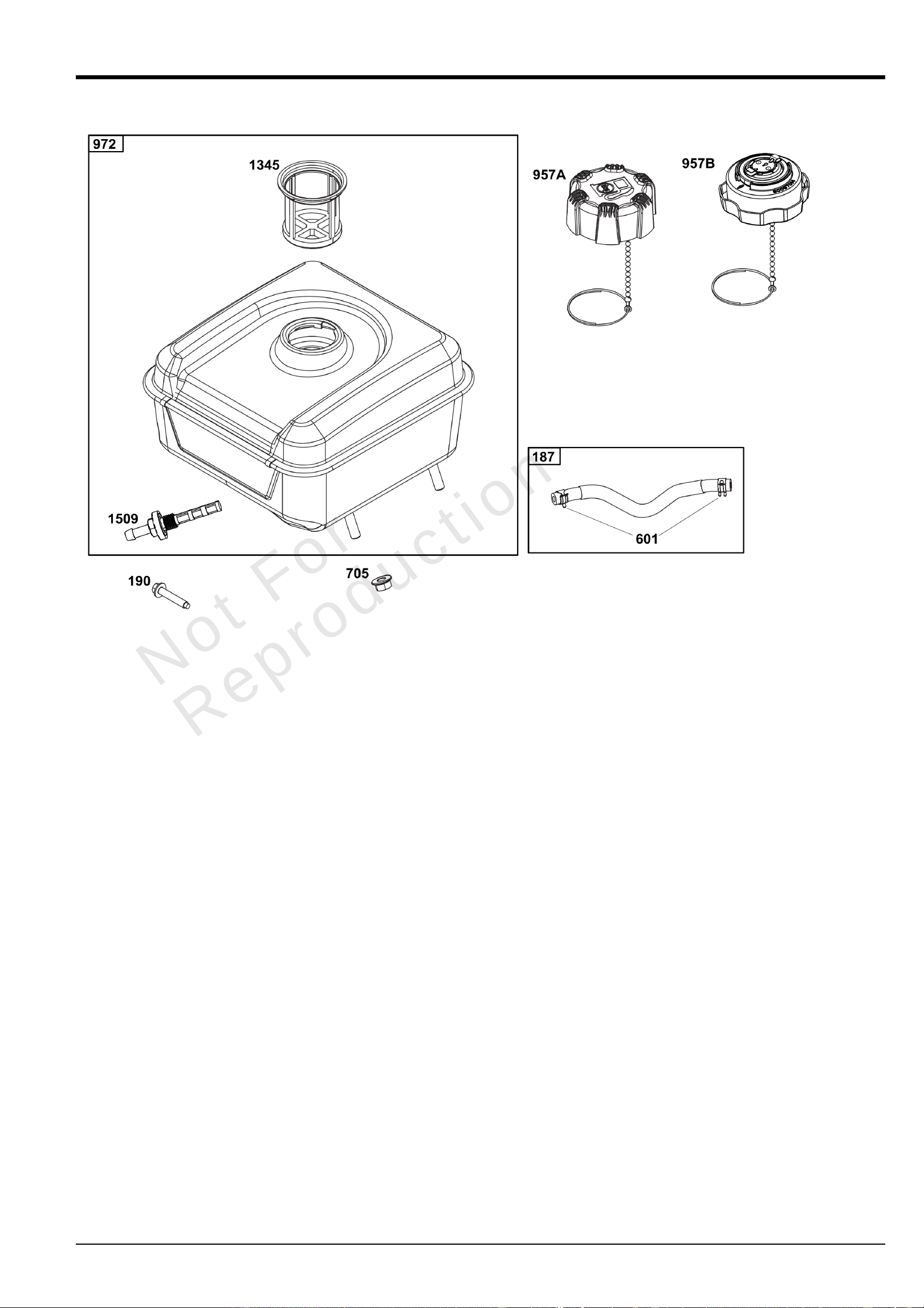

Fuel Supply GroupFuel Supply GroupFuel Supply GroupFuel Supply Group
Mfg. No: 10V332-0001-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
26 04-Sep-2025
Fuel Supply GroupFuel Supply GroupFuel Supply GroupFuel Supply Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
187 597058 1 LINE, Fuel
190 591476 1 SCREW
-(Fuel Tank)
601 791850 2 CLAMP, Hose
705 707919 2 NUT
-(Fuel Tank)
957A 596765 1 CAP, Fuel Tank
-Used Before Code Date 24091600
957B 84007570 1 CAP, Fuel Tank
-Used After Code Date 24091500
972 84004779 1 TANK, Fuel
1345 792917 1 FILTER, Filler Neck
1509 797346 1 OUTLET, Tank
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
27 04-Sep-2025
Copyright © Briggs & Stratton. All Rights reserved
04-Sep-2025
