BULLETIN NO.

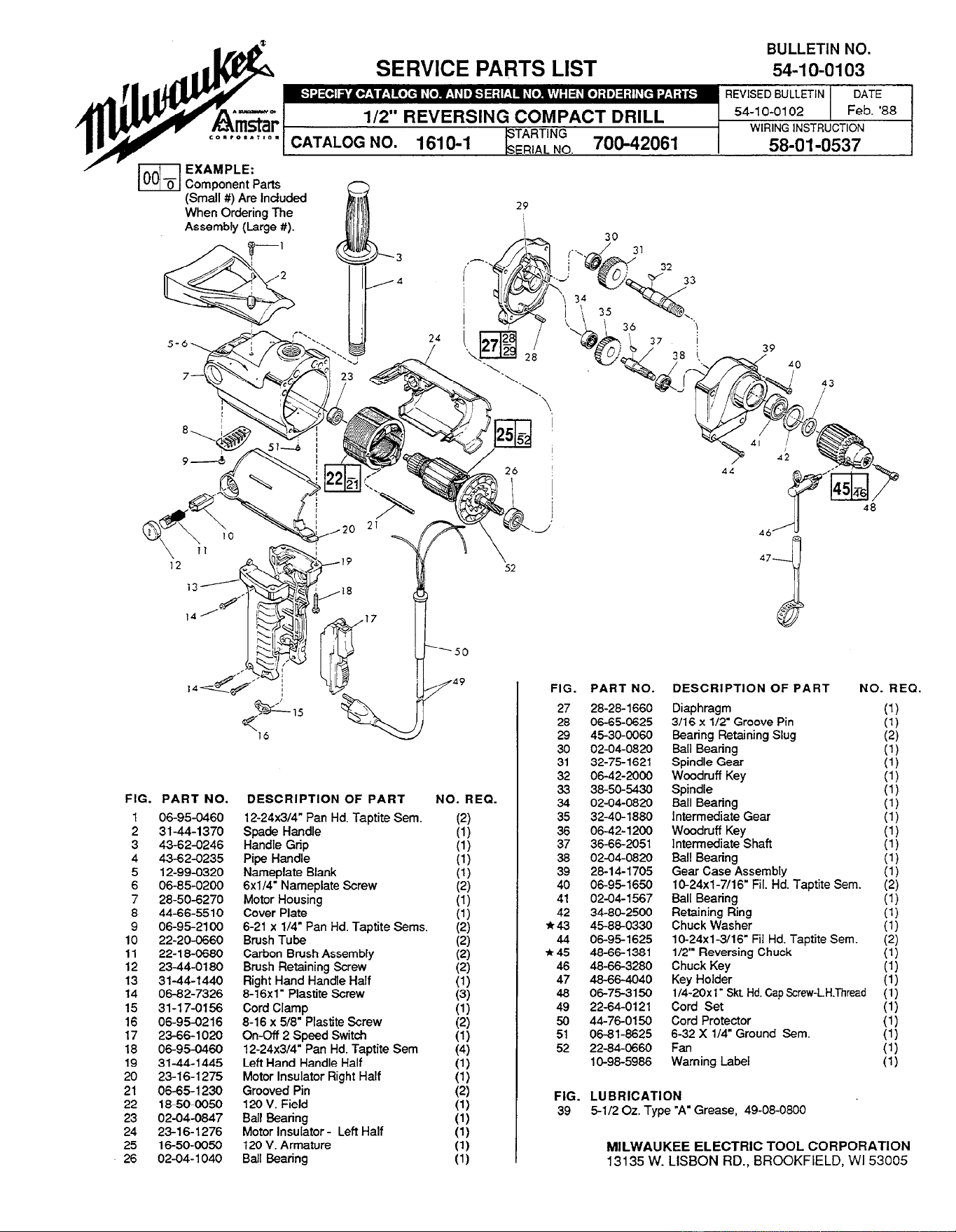

SERVICE PARTS LIST
54-10-0103
(Small #) Are induded
When Ordering The
Assembly (Large #).
29
32
FIG. PART NO.
1
06-95-0460
2 31-44-1370
3 43-62-0246
4 43-62-0235
5 12-99-0320
6
06-85-0200
7
28-50-6270
8 44-66-5510
9
06-95-2100
10 22-20-0660
;:
22-l 8-0680
23-44-0180
13 31-44-1440
14 06-82-7326
15 31-17-0156
16 06-95-0216
17
23-66-1020
18 06-95-0460
19 31-44-1445
20 23-16-1275
21 06-65-l 230
22 18-50-0050
23 02-04-0847
24 23-16-1276
25 16-50-0050
26 02-04-l 040
DESCRIPTION OF PART NO. REQ.
12-24x314” Pan Hd. Taptite Sem.
Spade Handle
Handle Grip
Pipe Handle
Nameplate Blank
6x1/4” Nameplate Screw
Motor Housing
Cover Plate
6-21 x l/4” Pan Hd. Taptite Sems.
Brush Tube
Carbon Brush Assembly
Brush Retaining Screw
Right Hand Handle Half
8-16x1” Plastite Screw
Cord Clamp
8-16 x 5/8’ Plastite Screw
On-Off 2 Speed Switch
12-24x3/4” Pan Hd. Taptite Sem
Left Hand Handle Half
Motor Insulator Right Half
Grooved Pin
120 V. Field
Bail Bearing
Motor Insulator - Left Half
120 V. Armature
Ball Bearing
FIG. PART NO.
27 28-28-1660
28
06-65-0625
29 45-30-0660
30
02-04-0820
31
32-75-1621
32 06-42-2000
33 38-50-5430
34
02-04-0820
35 32-40-1880
36
06-42- 1200
37 36-66-2051
38
02-04-0820
39
28-14-1705
40
06-95-1650
41 02-04-1567
42 34-80-2500
*43 45880330
44 06-95-1625
*45 48-66-1381
46 48-66-3280
47
48-66-4040
48 06753150
49 22-64-0121
50
44-76-0150
51 06-81-8625
52 22-84-0660
1 O-98-5986
III
48
DESCRIPTION OF PART NO. REQ.
Diaphragm
3116 x l/2” Groove Pin
I:;
Bearing Retaining Slug
Ball Bearing I:;
Spindle Gear
Woodruff Key II;
Spindle
Ball Bearing I;;
Intermediate Gear
Woodruff Key I;;
Intermediate Shaft
(1)
Ball Beating
Gear Case Assembly
I:;
1&24x1-7/16” Fil. Hd. Taptite Sem.
Ball Bearing ::;
Retaining Ring
(1)
Chuck Washer
(1)
10-24x1-3/16” Fil Hd. Taptite Sem.
l/2” Reversing Chuck I:;
Chuck Key
(1)
Key Holder
(1)
1/4-20x1 ’ Skt Hd. Cap Screw-LH.Thread (1)
Cord Set
(1)
Cord Protector
6-32 X 114” Ground Sem. I:{
Fan
Warning Label
FIG. LUBRICATION
39
5-l/2 Oz. Type “A’ Grease, 49-08-0800
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005
